USER MANUAL COLORado Solo Batten Chauvet
The COLORado Solo Batten Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
- DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it. - DO NOT look at the light source when the product is on.
- CAUTION: This product's housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power. - CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
- Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:
• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
• Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
- Locations that are prone to flooding or being buried in snow.
• Other areas where the product will be subject to extreme radiation or caustic substances.
- USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
- DO NOT connect this product to a dimmer or rheostat.
- ONLY connect this product to a grounded and protected circuit.
- ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Contact
Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Visit Contact Us at the end of this QRG for contact information.
What is Included
• COLORado Solo Batten
- Seetronic Powerkon IP65 power cord
- Wall washing filter
- Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power linking
You can link up to 4 COLORado Solo Batten products at 120 V, 8 products at 208 V, or 9 products at 230 V. Never exceed this number. Power linking cords can be purchased separately.
AC Plug
| Connection | Wire (U.S.) | Wire (Europe) | Screw Color |
| AC Live Black Brown Yellow/Brass | |||
| AC Neutral White Blue Silver | |||
| AC Ground Green/Yellow Green/Yellow Green | |||

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- When using this product in an outdoor IP65-type environment, be sure to use IP65 (or higher) rated power cables and secure unused ports with attached IP65 covers.
Signal Connections
You can link the COLORado Solo Batten to a controller or controller software using a DMX connection or an Ethernet connection. If using other Art-Net™ or sACN-compatible products with the COLORado Solo Batten, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.
Control Personalities
The COLORado Solo Batten uses DMX, Art-Net™, and sACN for its 36 control personalities, ranging from 3CH to 160CH in 1-cell, 2-cell, 3-cell, and 12-cell modes:
| Mode | 1 Cell | 2 Cell | 3 Cell | 12 Cell |
| RGB | 3 | 6 | 9 | 36 |
| RGBA | 4 | 8 | 12 | 48 |
| RGBAW | 5 | 10 | 15 | 60 |
| RGB EXT | 8 | 15 | 21 | 75 |
| HSIC | 9 | 15 | 22 | 85 |
| RGBA EXT | 9 | 17 | 24 | 87 |
| RGBAW EXT | 10 | 19 | 27 | 99 |
| RGBAW Fine | 10 | 20 | 30 | 120 |
| RGBAW FULL | 16 | 30 | 43 | 160 |
DMX Linking
The COLORado Solo Batten will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.
DMX Connection
The COLORado Solo Batten uses a 5-pin DMX data connection for its DMX personalities: 1 Cell, 2 Cell, 3 Cell, or 12 Cell. See the User Manual for information about connecting and configuring the product for DMX operation.
Art-Net™ Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using a Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network. ACN is maintained by the Professional Lighting and Sound Association (PLASA).

When using this product in an outdoor IP65-type environment, be sure to use IP65 (or higher) rated data cables and secure unused ports with attached IP65 covers.
Master/Slave connection
The COLORado Solo Batten uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The COLORadoSolo Batten supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

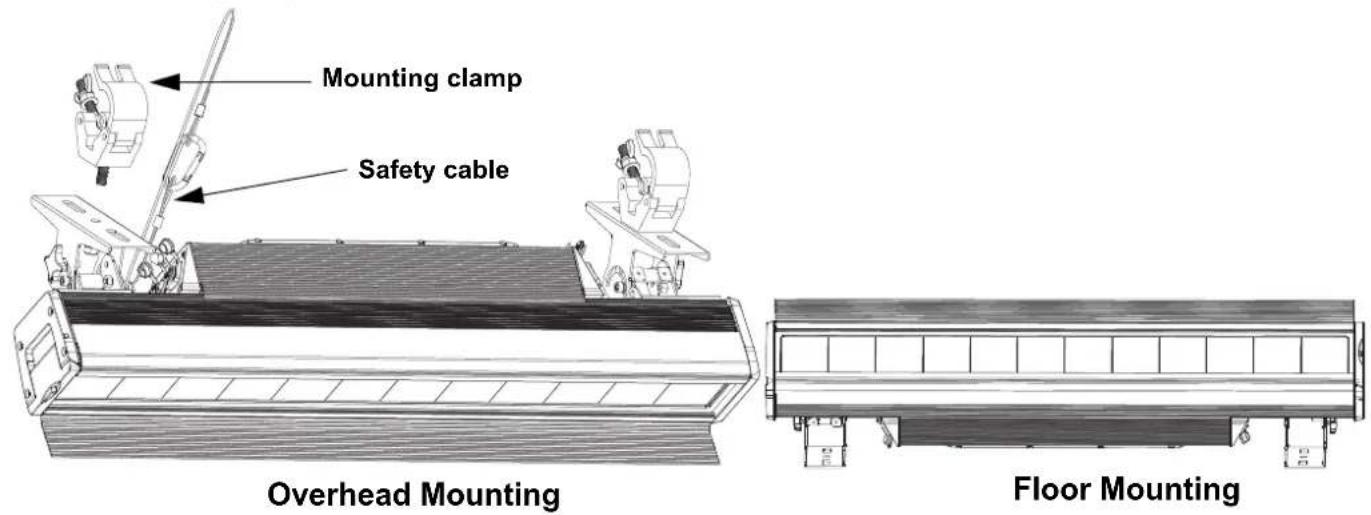

Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/
Product Mounting Diagram
The COLORado Solo Batten Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control protocol and starting address, color output testing, and the ability to change the Web Server password.
To access the Web Server:
- Set the IP address of the network to have the same first digit as the IP address of the product.
- Enter the IP address of the product into the URL bar of a web browser application.
- Enter both the user name and password as admin to log in.
Control Panel Description
| Button Function | |
| Exits from the current menu or function | |
| Enables the currently displayed menu or sets the currently selected value into the selected function | |
| Navigates upwards through the menu list or increases the numeric value when in a function | |
| Navigates downwards through the menu list or decreases the numeric value when in a function |
Passcode
After being prompted, enter the following passcode by pressing:
This passcode cannot be changed and must be used whenever prompted.
Color Macro Chart
| DMX Channel Value | Red Value | Green Value | Blue Value | Amber Value | White Value |
| 000 ⇔ 010 | No function No function No function No function | ||||
| 011 ⇔ 034 100% 0–100% 0% 0% 0% | |||||
| 035 ⇔ 059 | 100–0% | 100% | 0% | 0% | 0% |
| 060 ⇔ 084 | 0% | 100% | 0–100% | 0% | 0% |
| 085 ⇔ 109 | 0% | 100–0% | 100% | 0% | 0% |
| 110 ⇔ 134 | 0–100% | 0% | 100% | 0% | 0% |
| 135 ⇔ 159 | 100% | 0% | 100–0% | 0% | 0% |
| 160 ⇔ 184 | 100% | 0–100% | 0–100% | 0% | 0% |
| 185 ⇔ 209 | 100–0% | 100–0% | 100% | 0% | 0% |
| 210 ⇔ 255 | 100% | 100% | 100% | 100% | 100% |
Color Temperature Chart
| DMX Channel Value | Display Readout |
| 000 ⇔ 010 | -- |
| 011 ⇔ 028 | 1800K |
| 029 ⇔ 046 | 2200K |
| 047 ⇔ 064 | 2700K |
| 065 ⇔ 082 | 3000K |
| 083 ⇔ 100 | 3200K |
| 101 ⇔ 118 | 3500K |
| 119 ⇔ 136 | 4000K |
| 137 ⇔ 154 | 4200K |
| 155 ⇔ 172 | 4500K |
| 173 ⇔ 190 | 5600K |
| 191 ⇔ 208 | 6000K |
| 209 ⇔ 226 | 6500K |
| 227 ⇔ 244 | 7200K |
| 245 ⇔ 255 | 8000K |

Note: The color temperatures above are simulated renditions of the color output produced as compared to a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.
Menu Map
| Main Level Programming Levels Description | |||
| Protocol | DMX512 | Selects the control protocol | |
| ArtNet | |||
| ArtNet to DMX | |||
| sACN | |||
| Start Address | 001-510* | Selects starting address (*highest channel restricted to personality chosen) | |
| Personality | 1 Cell | 1 Cell - RGB 3-channel: | RGB |
| 1 Cell - RGBA 4-channel: | RGBA | ||
| 1 Cell - RGBAW 5-channel: | RGBAW | ||
| 1 Cell - RGB EXT | 8-channel: 16-bit dimmer, RGB, color macros, color temperature, strobe | ||
| 1 Cell - RGBA EXT | 9-channel: 16-bit dimmer, RGBA, color macros, color temperature, strobe | ||
| 1 Cell - HSIC | 9-channel: dimmer, hue, 16-bit hue, saturation, strobe, color macros, color temperatures, dimmer speed, GN saturation | ||
| 1 Cell - RGBAW EXT | 10-channel: 16-bit dimmer, RGBAW, color macros, color temperature, strobe | ||
| 1 Cell - RGBAW Fine 10-channel: | 16-bit RGBAW | ||
| 1 Cell - RGBAW Basic | 13-channel: 16-bit dimmer, RGBAW, color macros, color temperature, strobe, auto programs, auto speed, auto delay | ||
| 1 Cell - RGBAW FULL | 16-channel: 16-bit dimmer, 16-bit RGBAW, color macros, color temperature, strobe, dimmer mode | ||
| 2-Cell | 2 Cell - RGB 6-channel: | RGB (per cell) | |
| 2 Cell - RGBA 8-channel: | RGBA (per cell) | ||
| 2 Cell - RGBAW 10-channel: | RGBAW (per cell) | ||
| 2 Cell - RGB EXT | 15-channel: 16-bit dimmer, RGB (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe | ||
| 2 Cell - HSIC | 15-channel: dimmer (per cell), 16-bit hue (per cell), saturation (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), dimmer mode | ||
| 2 Cell - RGBA EXT | 17-channel: 16-bit dimmer, RGBA (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe | ||
| 2 Cell - RGBAW EXT | 19-channel: 16-bit dimmer, RGBAW (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe | ||
| 2 Cell - RGBAW Fine 20-channel: | 16-bit RGBAW (per cell) | ||
| 2 Cell - RGBAW FULL | 30-channel: 16-bit dimmer, 16-bit RGBAW (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe, dimmer mode | ||
| Main Level Programming Levels | Description | |||||
| Personality | 3-Cell | 3 Cell - RGB 9-channel: | RGB (per cell) | |||
| 3 Cell - RGBA 12-channel: | RGBA (per cell) | |||||
| 3 Cell - RGBAW 15-channel: | RGBAW (per cell) | |||||
| 3 Cell - RGB EXT | 21-channel: 16-bit dimmer, RGB (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe | |||||
| 3 Cell - HSIC | 22-channel: dimmer (per cell), 16-bit hue (per cell), saturation (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), dimmer mode | |||||
| 3 Cell - RGBA EXT | 24-channel: 16-bit dimmer, RGBA (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe | |||||
| 3 Cell - RGBAW EXT | 27-channel: 16-bit dimmer, RGBAW (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe | |||||
| 3 Cell - RGBAW Fine 30-channel: 16-bit RGBAW (per cell) | ||||||
| 3 Cell - RGBAW FULL | 43-channel: 16-bit dimmer, 16-bit RGBAW (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe, dimmer mode | |||||
| 12-Cell | 12 Cell - RGB 36-channel: RGB (per cell) | |||||
| 12 Cell - RGBA 48-channel: RGBA (per cell) | ||||||
| 12 Cell - RGBAW 60-channel: RGBAW (per cell) | ||||||
| 12 Cell - RGB EXT | 75-channel: 16-bit dimmer, RGB (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe | |||||
| 12 Cell - HSIC | 85-channel: dimmer (per cell), 16-bit hue (per cell), saturation (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), dimmer mode | |||||
| 12 Cell - RGBA EXT | 87-channel: 16-bit dimmer, RGBA (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe | |||||
| 12 Cell - RGBAW EXT | 99-channel: 16-bit dimmer, RGBAW (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe | |||||
| 12 Cell - RGBAW Fine 120-channel: 16-bit RGBAW (per cell) | ||||||
| 12 Cell - RGBAW FULL | 160-channel: 16-bit dimmer, 16-bit RGBAW (per cell), color macros (per cell), color temperature (per cell), strobe (per cell), strobe, dimmer mode | |||||
| Network | Netswitch | 2.x.x.x Sets network to a preset 2.x.x.x IP address | ||||
| 10.x.x.x Sets network to a preset 10.x.x.x IP address | ||||||
| IP Mode | Default IP | Sets IP address | ||||
| Custom IP ---.---.--- | ||||||
| Universe | 000–255 | Sets universe for Art-NetTM or sACN | ||||
| Output Setting | Power Mode | Avoids going over max. temperature by adjusting power/intensity output | ||||
| Steady Mode | Uses lower power/intensity output level at a constant rate to avoid going over max temperature | |||||
| Main Level Programming Levels Description | ||||||
| Static Colors | Preset Colors | Color 1 | 0-100% | Refer to the Color Macro Chart section for specific values. | ||
| Color 2 | ||||||
| Color 3 | ||||||
| Color 4 | ||||||
| Color 5 | ||||||
| Color 6 | ||||||
| Color 7 | ||||||
| Color 8 | ||||||
| Color 9 | ||||||
| Color 10 | ||||||
| Color 11 | ||||||
| Color 12 | ||||||
| Color 13 | ||||||
| Color 14 | ||||||
| Color Temperature Presets | White 1 | 0-100% | Preset white color temperatures. Emulates a tungsten lamp at the specified color temperature. Refer to the Color Temperature Chart section for specific values. | |||
| White 2 | ||||||
| White 3 | ||||||
| White 4 | ||||||
| White 5 | ||||||
| White 6 | ||||||
| White 7 | ||||||
| White 8 | ||||||
| White 9 | ||||||
| White 10 | ||||||
| White 11 | ||||||
| White 12 | ||||||
| White 13 | ||||||
| White 14 | ||||||
| Static Colors | Manual Color Mixer | Red | 000-255 | Combines red, green, blue, amber and white to make a custom color (0-100%) | ||
| Green | ||||||
| Blue | ||||||
| Amber | ||||||
| White | ||||||
| Auto Programs | Run | Auto 1-10 | 0-100% | Selects automatic programs and auto program speed | ||
| User program 1-10 | Selects custom programs and custom program speed | |||||
| Edit | User program 1-10 | Scene 1-30 | Red | 000-255 | Combines red, green, blue, white, and amber to make a custom color (0-100%) | |
| Green | ||||||
| Blue | ||||||
| Amber | ||||||
| White | ||||||
| Strobe Selects the strobe frequency (0-25 Hz) | ||||||
| Master/ Slave | Master Master mode | |||||
| Slave Slave mode | ||||||
| Dimmer Mode | Off Linear dimmer | |||||
| Dimmer 1 | Selects dimming profiles from fast (Dimmer 1) to slow (Dimmer 4) or Off | |||||
| Dimmer 2 | ||||||
| Dimmer 3 | ||||||
| Dimmer 4 | ||||||
| Main Level Programming Levels Description | |||||
| LED Frequency | 600Hz | Selects the PWM output frequency | |||
| 1200Hz | |||||
| 2400Hz | |||||
| 4000Hz | |||||
| 6000Hz | |||||
| 25000Hz | |||||
| Cell Order | 1-12 (Left to Right) | Selects the start side of the cells | |||
| 12-1 (Right to Left) | |||||
| Settings | ****(Enter Passcode) | DMX Error/ Loss | Hold Last | Continues with last command upon loss of DMX control | |
| Blackout Blacks | out fixture upon loss of DMX | ||||
| Display Backlight Timeout | On Display backlight always on | ||||
| 10s | Turns off display backlight after 10 seconds of inactivity | ||||
| 20s | Turns off display backlight after 20 seconds of inactivity | ||||
| 30s | Turns off display backlight after 30 seconds of inactivity | ||||
| Display Passcode | On | Sets to key lock (Passcode mode) | |||
| Off | |||||
| Information | Fixture Hours ____ | Shows total product hours | |||
| Firmware Version V__ | Shows installed software version | ||||
| Device Label | COLORADO SOLO BATTEN | Shows product device ID | |||
| Device UID: ____ | Shows product UID | ||||
| MAC Address____ | Shows product MAC Address | ||||
| Factory Reset | ****(Enter Passcode) | No | Reset to factory defaults | ||
| Yes | |||||
DMX Values
12-Cell Personalities
12-Cell RGBAW FULL (160 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Dimmer | 000 ⇔ 255 | 0–100% |
| 2 | Dimmer fine | 000 ⇔ 255 | 0–100% |
| 3 | Red 1 | 000 ⇔ 255 | 0–100% |
| 4 | Red fine 1 | 000 ⇔ 255 | 0–100% |
| 5 | Green 1 | 000 ⇔ 255 | 0–100% |
| 6 | Green fine 1 | 000 ⇔ 255 | 0–100% |
| 7 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 8 | Blue fine 1 | 000 ⇔ 255 | 0–100% |
| 9 | Amber 1 | 000 ⇔ 255 | 0–100% |
| 10 | Amber fine 1 | 000 ⇔ 255 | 0–100% |
| 11 | White 1 | 000 ⇔ 255 | 0–100% |
| 12 | White fine 1 | 000 ⇔ 255 | 0–100% |
| 13 | Color macros 1 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 14 | Color temperature 1 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 15 | Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 16 | Red 2 | 000 ⇔ 255 | 0–100% |
| 17 | Red fine 2 | 000 ⇔ 255 | 0–100% |
| 18 | Green 2 | 000 ⇔ 255 | 0–100% |
| 19 | Green fine 2 | 000 ⇔ 255 | 0–100% |
| 20 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 21 | Blue fine 2 | 000 ⇔ 255 | 0–100% |
| 22 | Amber 2 | 000 ⇔ 255 | 0–100% |
| 23 | Amber fine 2 | 000 ⇔ 255 | 0–100% |
| 24 | White 2 | 000 ⇔ 255 | 0–100% |
| 25 | White fine 2 | 000 ⇔ 255 | 0–100% |
| 26 | Color macros 2 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 27 | Color temperature 2 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 28 | Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 29 | Red 3 | 000 ⇔ 255 | 0–100% |
| 30 | Red fine 3 | 000 ⇔ 255 | 0–100% |
| 31 | Green 3 | 000 ⇔ 255 | 0–100% |
| 32 | Green fine 3 | 000 ⇔ 255 | 0–100% |
| 33 | Blue 3 | 000 ⇔ 255 | 0–100% |
| 34 | Blue fine 3 | 000 ⇔ 255 | 0–100% |
| 35 | Amber 3 | 000 ⇔ 255 | 0–100% |
| 36 | Amber fine 3 | 000 ⇔ 255 | 0–100% |
| 37 | White 3 | 000 ⇔ 255 | 0–100% |
| 38 | White fine 3 | 000 ⇔ 255 | 0–100% |
| 39 | Color macros 3 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 40 | Color temperature 3 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| Channel | Function | Value | Percent/Setting |
| 41 Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 42 | Red 4 | 000 ⇔ 255 | 0–100% |
| 43 | Red fine 4 | 000 ⇔ 255 | 0–100% |
| 44 | Green 4 | 000 ⇔ 255 | 0–100% |
| 45 | Green fine 4 | 000 ⇔ 255 | 0–100% |
| 46 | Blue 4 | 000 ⇔ 255 | 0–100% |
| 47 | Blue fine 4 | 000 ⇔ 255 | 0–100% |
| 48 | Amber 4 | 000 ⇔ 255 | 0–100% |
| 49 | Amber fine 4 | 000 ⇔ 255 | 0–100% |
| 50 | White 4 | 000 ⇔ 255 | 0–100% |
| 51 | White fine 4 | 000 ⇔ 255 | 0–100% |
| 52 | Color macros 4 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 53 | Color temperature 4 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 54 Strobe 4 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 55 | Red 5 | 000 ⇔ 255 | 0–100% |
| 56 | Red fine 5 | 000 ⇔ 255 | 0–100% |
| 57 | Green 5 | 000 ⇔ 255 | 0–100% |
| 58 | Green fine 5 | 000 ⇔ 255 | 0–100% |
| 59 | Blue 5 | 000 ⇔ 255 | 0–100% |
| 60 | Blue fine 5 | 000 ⇔ 255 | 0–100% |
| 61 | Amber 5 | 000 ⇔ 255 | 0–100% |
| 62 | Amber fine 5 | 000 ⇔ 255 | 0–100% |
| 63 | White 5 | 000 ⇔ 255 | 0–100% |
| 64 | White fine 5 | 000 ⇔ 255 | 0–100% |
| 65 | Color macros 5 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 66 | Color temperature 5 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 67 Strobe 5 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 68 | Red 6 | 000 ⇔ 255 | 0–100% |
| 69 | Red fine 6 | 000 ⇔ 255 | 0–100% |
| 70 | Green 6 | 000 ⇔ 255 | 0–100% |
| 71 | Green fine 6 | 000 ⇔ 255 | 0–100% |
| 72 | Blue 6 | 000 ⇔ 255 | 0–100% |
| 73 | Blue fine 6 | 000 ⇔ 255 | 0–100% |
| 74 | Amber 6 | 000 ⇔ 255 | 0–100% |
| 75 | Amber fine 6 | 000 ⇔ 255 | 0–100% |
| 76 | White 6 | 000 ⇔ 255 | 0–100% |
| 77 | White fine 6 | 000 ⇔ 255 | 0–100% |
| 78 | Color macros 6 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 79 | Color temperature 6 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 80 Strobe 6 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 81 | Red 7 | 000 ⇔ 255 | 0–100% |
| 82 | Red fine 7 | 000 ⇔ 255 | 0–100% |
| 83 | Green 7 | 000 ⇔ 255 | 0–100% |
| 84 | Green fine 7 | 000 ⇔ 255 | 0–100% |
| 85 | Blue 7 | 000 ⇔ 255 | 0–100% |
| 86 | Blue fine 7 | 000 ⇔ 255 | 0–100% |
| 87 | Amber 7 | 000 ⇔ 255 | 0–100% |
| 88 | Amber fine 7 | 000 ⇔ 255 | 0–100% |
| 89 | White 7 | 000 ⇔ 255 | 0–100% |
| 90 | White fine 7 | 000 ⇔ 255 | 0–100% |
| 91 | Color macros 7 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 92 | Color temperature 7 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 93 Strobe 7 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 94 | Red 8 | 000 ⇔ 255 | 0–100% |
| 95 | Red fine 8 | 000 ⇔ 255 | 0–100% |
| 96 | Green 8 | 000 ⇔ 255 | 0–100% |
| 97 | Green fine 8 | 000 ⇔ 255 | 0–100% |
| 98 | Blue 8 | 000 ⇔ 255 | 0–100% |
| 99 | Bluefine 8 | 000 ⇔ 255 | 0–100% |
| 100 | Amber 8 | 000 ⇔ 255 | 0–100% |
| 101 | Amber fine 8 | 000 ⇔ 255 | 0–100% |
| 102 | White 8 | 000 ⇔ 255 | 0–100% |
| 103 | White fine 8 | 000 ⇔ 255 | 0–100% |
| 104 | Color macros 8 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 105 | Color temperature 8 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 106 | Strobe 8 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 107 | Red 9 | 000 ⇔ 255 | 0–100% |
| 108 | Red fine 9 | 000 ⇔ 255 | 0–100% |
| 109 | Green 9 | 000 ⇔ 255 | 0–100% |
| 110 | Green fine 9 | 000 ⇔ 255 | 0–100% |
| 111 | Blue 9 | 000 ⇔ 255 | 0–100% |
| 112 | Blue fine 9 | 000 ⇔ 255 | 0–100% |
| 113 | Amber 9 | 000 ⇔ 255 | 0–100% |
| 114 | Amber fine 9 | 000 ⇔ 255 | 0–100% |
| 115 | White 9 | 000 ⇔ 255 | 0–100% |
| 116 | White fine 9 | 000 ⇔ 255 | 0–100% |
| 117 | Color macros 9 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 118 | Color temperature 9 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 119 Strobe 9 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 120 | Red 10 | 000 ⇔ 255 | 0–100% |
| 121 | Red fine 10 | 000 ⇔ 255 | 0–100% |
| 122 | Green 10 | 000 ⇔ 255 | 0–100% |
| 123 | Green fine 10 | 000 ⇔ 255 | 0–100% |
| 124 | Blue 10 | 000 ⇔ 255 | 0–100% |
| 125 | Blue fine 10 | 000 ⇔ 255 | 0–100% |
| 126 | Amber 10 | 000 ⇔ 255 | 0–100% |
| 127 | Amber fine 10 | 000 ⇔ 255 | 0–100% |
| 128 | White 10 | 000 ⇔ 255 | 0–100% |
| 129 | White fine 10 | 000 ⇔ 255 | 0–100% |
| 130 | Color macros 10 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 131 | Color temperature 10 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 132 Strobe 10 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 133 | Red 11 | 000 ⇔ 255 | 0–100% |
| 134 | Red fine 11 | 000 ⇔ 255 | 0–100% |
| 135 | Green 11 | 000 ⇔ 255 | 0–100% |
| 136 | Green fine 11 | 000 ⇔ 255 | 0–100% |
| 137 | Blue 11 | 000 ⇔ 255 | 0–100% |
| 138 | Blue fine 11 | 000 ⇔ 255 | 0–100% |
| 139 | Amber 11 | 000 ⇔ 255 | 0–100% |
| 140 | Amber fine 11 | 000 ⇔ 255 | 0–100% |
| 141 | White 11 | 000 ⇔ 255 | 0–100% |
| 142 | White fine 11 | 000 ⇔ 255 | 0–100% |
| 143 | Color macros 11 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 144 | Color temperature 11 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 145 Strobe 11 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 146 | Red 12 | 000 ⇔ 255 | 0–100% |
| 147 | Red fine 12 | 000 ⇔ 255 | 0–100% |
| 148 | Green 12 | 000 ⇔ 255 | 0–100% |
| 149 | Green fine 12 | 000 ⇔ 255 | 0–100% |
| 150 | Blue 12 | 000 ⇔ 255 | 0–100% |
| 151 | Blue fine 12 | 000 ⇔ 255 | 0–100% |
| 152 | Amber 12 | 000 ⇔ 255 | 0–100% |
| 153 | Amber fine 12 | 000 ⇔ 255 | 0–100% |
| 154 | White 12 | 000 ⇔ 255 | 0–100% |
| 155 | White fine 12 | 000 ⇔ 255 | 0–100% |
| 156 | Color facros 12 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 157 | Color temperature 12 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 158 Strobe 12 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 159 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 160 Dimmer speed | 000 ⇔ 009 Preset dimmer speed from display menu010 ⇔ 029 Dimmer speed mode off030 ⇔ 069 Dimmer speed mode 1 (fastest)070 ⇔ 129 Dimmer speed mode 2130 ⇔ 189 Dimmer speed mode 3190 ⇔ 255 Dimmer speed mode 4 (slowest) | ||
12-Cell RGBAW Fine (120 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red 1 | 000 ⇔ 255 | 0–100% |
| 2 | Red fine 1 | 000 ⇔ 255 | 0–100% |
| 3 | Green 1 | 000 ⇔ 255 | 0–100% |
| 4 | Green fine 1 | 000 ⇔ 255 | 0–100% |
| 5 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 6 | Blue fine 1 | 000 ⇔ 255 | 0–100% |
| 7 | Amber 1 | 000 ⇔ 255 | 0–100% |
| 8 | Amber fine 1 | 000 ⇔ 255 | 0–100% |
| 9 | White 1 | 000 ⇔ 255 | 0–100% |
| 10 | White fine 1 | 000 ⇔ 255 | 0–100% |
| 11 | Red 2 | 000 ⇔ 255 | 0–100% |
| 12 | Red fine 2 | 000 ⇔ 255 | 0–100% |
| 13 | Green 2 | 000 ⇔ 255 | 0–100% |
| 14 | Green fine 2 | 000 ⇔ 255 | 0–100% |
| 15 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 16 | Blue fine 2 | 000 ⇔ 255 | 0–100% |
| 17 | Amber 2 | 000 ⇔ 255 | 0–100% |
| 18 | Amber fine 2 | 000 ⇔ 255 | 0–100% |
| 19 | White 2 | 000 ⇔ 255 | 0–100% |
| 20 | White fine 2 | 000 ⇔ 255 | 0–100% |
| 21 | Red 3 | 000 ⇔ 255 | 0–100% |
| 22 | Red fine 3 | 000 ⇔ 255 | 0–100% |
| 23 | Green 3 | 000 ⇔ 255 | 0–100% |
| 24 | Green fine 3 | 000 ⇔ 255 | 0–100% |
| 25 | Blue 3 | 000 ⇔ 255 | 0–100% |
| 26 | Blue fine 3 | 000 ⇔ 255 | 0–100% |
| 27 | Amber 3 | 000 ⇔ 255 | 0–100% |
| 28 | Amber fine 3 | 000 ⇔ 255 | 0–100% |
| 29 | White 3 | 000 ⇔ 255 | 0–100% |
| 30 | White fine 3 | 000 ⇔ 255 | 0–100% |
| 31 | Red 4 | 000 ⇔ 255 | 0–100% |
| 32 | Red fine 4 | 000 ⇔ 255 | 0–100% |
| 33 | Green 4 | 000 ⇔ 255 | 0–100% |
| Channel | Function | Value | Percent/Setting |
| 34 | Green fine 4 | 000 ⇔ 255 | 0–100% |
| 35 | Blue 4 | 000 ⇔ 255 | 0–100% |
| 36 | Blue fine 4 | 000 ⇔ 255 | 0–100% |
| 37 | Amber 4 | 000 ⇔ 255 | 0–100% |
| 38 | Amber fine 4 | 000 ⇔ 255 | 0–100% |
| 39 | White 4 | 000 ⇔ 255 | 0–100% |
| 40 | White fine 4 | 000 ⇔ 255 | 0–100% |
| 41 | Red 5 | 000 ⇔ 255 | 0–100% |
| 42 | Red fine 5 | 000 ⇔ 255 | 0–100% |
| 43 | Green 5 | 000 ⇔ 255 | 0–100% |
| 44 | Green fine 5 | 000 ⇔ 255 | 0–100% |
| 45 | Blue 5 | 000 ⇔ 255 | 0–100% |
| 46 | Blue fine 5 | 000 ⇔ 255 | 0–100% |
| 47 | Amber 5 | 000 ⇔ 255 | 0–100% |
| 48 | Amber fine 5 | 000 ⇔ 255 | 0–100% |
| 49 | White 5 | 000 ⇔ 255 | 0–100% |
| 50 | White fine 5 | 000 ⇔ 255 | 0–100% |
| 51 | Red 6 | 000 ⇔ 255 | 0–100% |
| 52 | Red fine 6 | 000 ⇔ 255 | 0–100% |
| 53 | Green 6 | 000 ⇔ 255 | 0–100% |
| 54 | Green fine 6 | 000 ⇔ 255 | 0–100% |
| 55 | Blue 6 | 000 ⇔ 255 | 0–100% |
| 56 | Blue fine 6 | 000 ⇔ 255 | 0–100% |
| 57 | Amber 6 | 000 ⇔ 255 | 0–100% |
| 58 | Amber fine 6 | 000 ⇔ 255 | 0–100% |
| 59 | White 6 | 000 ⇔ 255 | 0–100% |
| 60 | White fine 6 | 000 ⇔ 255 | 0–100% |
| 61 | Red 7 | 000 ⇔ 255 | 0–100% |
| 62 | Red fine 7 | 000 ⇔ 255 | 0–100% |
| 63 | Green 7 | 000 ⇔ 255 | 0–100% |
| 64 | Green fine 7 | 000 ⇔ 255 | 0–100% |
| 65 | Blue 7 | 000 ⇔ 255 | 0–100% |
| 66 | Blue fine 7 | 000 ⇔ 255 | 0–100% |
| 67 | Amber 7 | 000 ⇔ 255 | 0–100% |
| 68 | Amber fine 7 | 000 ⇔ 255 | 0–100% |
| 69 | White 7 | 000 ⇔ 255 | 0–100% |
| 70 | White fine 7 | 000 ⇔ 255 | 0–100% |
| 71 | Red 8 | 000 ⇔ 255 | 0–100% |
| 72 | Red fine 8 | 000 ⇔ 255 | 0–100% |
| 73 | Green 8 | 000 ⇔ 255 | 0–100% |
| 74 | Green fine 8 | 000 ⇔ 255 | 0–100% |
| 75 | Blue 8 | 000 ⇔ 255 | 0–100% |
| 76 | Blue fine 8 | 000 ⇔ 255 | 0–100% |
| 77 | Amber 8 | 000 ⇔ 255 | 0–100% |
| 78 | Amber fine 8 | 000 ⇔ 255 | 0–100% |
| 79 | White 8 | 000 ⇔ 255 | 0–100% |
| 80 | White fine 8 | 000 ⇔ 255 | 0–100% |
| 81 | Red 9 | 000 ⇔ 255 | 0–100% |
| 82 | Red fine 9 | 000 ⇔ 255 | 0–100% |
| 83 | Green 9 | 000 ⇔ 255 | 0–100% |
| 84 | Green fine 9 | 000 ⇔ 255 | 0–100% |
| 85 | Blue 9 | 000 ⇔ 255 | 0–100% |
| 86 | Blue fine 9 | 000 ⇔ 255 | 0–100% |
| 87 | Amber 9 | 000 ⇔ 255 | 0–100% |
| 88 | Amber fine 9 | 000 ⇔ 255 | 0–100% |
| 89 | White 9 | 000 ⇔ 255 | 0–100% |
| 90 | White fine 9 | 000 ⇔ 255 | 0–100% |
| 91 | Red 10 | 000 ⇔ 255 | 0–100% |
| 92 | Red fine 10 | 000 ⇔ 255 | 0–100% |
| 93 | Green 10 | 000 ⇔ 255 | 0–100% |
| 94 | Green fine 10 | 000 ⇔ 255 | 0–100% |
| 95 | Blue 10 | 000 ⇔ 255 | 0–100% |
| 96 | Blue fine 10 | 000 ⇔ 255 | 0–100% |
| 97 | Amber 10 | 000 ⇔ 255 | 0–100% |
| 98 | Amber fine 10 | 000 ⇔ 255 | 0–100% |
| 99 | White 10 | 000 ⇔ 255 | 0–100% |
| 100 | White fine 10 | 000 ⇔ 255 | 0–100% |
| 101 | Red 11 | 000 ⇔ 255 | 0–100% |
| 102 | Red fine 11 | 000 ⇔ 255 | 0–100% |
| 103 | Green 11 | 000 ⇔ 255 | 0–100% |
| 104 | Green fine 11 | 000 ⇔ 255 | 0–100% |
| 105 | Blue 11 | 000 ⇔ 255 | 0–100% |
| 106 | Blue fine 11 | 000 ⇔ 255 | 0–100% |
| 107 | Amber 11 | 000 ⇔ 255 | 0–100% |
| 108 | Amber fine 11 | 000 ⇔ 255 | 0–100% |
| 109 | White 11 | 000 ⇔ 255 | 0–100% |
| 110 | White fine 11 | 000 ⇔ 255 | 0–100% |
| 111 | Red 12 | 000 ⇔ 255 | 0–100% |
| 112 | Red fine 12 | 000 ⇔ 255 | 0–100% |
| 113 | Green 12 | 000 ⇔ 255 | 0–100% |
| 114 | Green fine 12 | 000 ⇔ 255 | 0–100% |
| 115 | Blue 12 | 000 ⇔ 255 | 0–100% |
| 116 | Blue fine 12 | 000 ⇔ 255 | 0–100% |
| 117 | Amber 12 | 000 ⇔ 255 | 0–100% |
| 118 | Amber fine 12 | 000 ⇔ 255 | 0–100% |
| 119 | White 12 | 000 ⇔ 255 | 0–100% |
| 120 | White fine 12 | 000 ⇔ 255 | 0–100% |
12-Cell RGBAW EXT (99 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Dimmer | 000 ⇔ 255 | 0-100% |
| 2 | Dimmer fine | 000 ⇔ 255 | 0-100% |
| 3 | Red 1 | 000 ⇔ 255 | 0-100% |
| 4 | Green 1 | 000 ⇔ 255 | 0-100% |
| 5 | Blue 1 | 000 ⇔ 255 | 0-100% |
| 6 | Amber 1 | 000 ⇔ 255 | 0-100% |
| 7 | White 1 | 000 ⇔ 255 | 0-100% |
| 8 | Color macros 1 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 9 | Color temperature 1 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 10 | Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 11 | Red 2 | 000 ⇔ 255 | 0-100% |
| 12 | Green 2 | 000 ⇔ 255 | 0-100% |
| 13 | Blue 2 | 000 ⇔ 255 | 0-100% |
| 14 | Amber 2 | 000 ⇔ 255 | 0-100% |
| 15 | White 2 | 000 ⇔ 255 | 0-100% |
| 16 | Color macros 2 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 17 | Color temperature 2 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 18 | Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 19 | Red 3 | 000 ⇔ 255 | 0-100% |
| 20 | Green 3 | 000 ⇔ 255 | 0-100% |
| 21 | Blue 3 | 000 ⇔ 255 | 0-100% |
| 22 | Amber 3 | 000 ⇔ 255 | 0-100% |
| 23 | White 3 | 000 ⇔ 255 | 0-100% |
| 24 | Color macros 3 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 25 | Color temperature 3 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 26 | Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 27 | Red 4 | 000 ⇔ 255 | 0-100% |
| 28 | Green 4 | 000 ⇔ 255 | 0-100% |
| 29 | Blue 4 | 000 ⇔ 255 | 0-100% |
| 30 | Amber 4 | 000 ⇔ 255 | 0-100% |
| 31 | White 4 | 000 ⇔ 255 | 0-100% |
| 32 | Color macros 4 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 33 | Color temperature 4 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 34 | Strobe 4 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| Channel | Function | Value | Percent/Setting |
| 35 | Red 5 | 000 ⇔ 255 | 0–100% |
| 36 | Green 5 | 000 ⇔ 255 | 0–100% |
| 37 | Blue 5 | 000 ⇔ 255 | 0–100% |
| 38 | Amber 5 | 000 ⇔ 255 | 0–100% |
| 39 | White 5 | 000 ⇔ 255 | 0–100% |
| 40 | Color macros 5 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 41 | Color temperature 5 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 42 Strobe 5 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 43 | Red 6 | 000 ⇔ 255 | 0–100% |
| 44 | Green 6 | 000 ⇔ 255 | 0–100% |
| 45 | Blue 6 | 000 ⇔ 255 | 0–100% |
| 46 | Amber 6 | 000 ⇔ 255 | 0–100% |
| 47 | White 6 | 000 ⇔ 255 | 0–100% |
| 48 | Color macros 6 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 49 | Color temperature 6 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 50 Strobe 6 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 51 | Red 7 | 000 ⇔ 255 | 0–100% |
| 52 | Green 7 | 000 ⇔ 255 | 0–100% |
| 53 | Blue 7 | 000 ⇔ 255 | 0–100% |
| 54 | Amber 7 | 000 ⇔ 255 | 0–100% |
| 55 | White 7 | 000 ⇔ 255 | 0–100% |
| 56 | Color macros 7 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 57 | Color temperature 7 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 58 Strobe 7 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 59 | Red 8 | 000 ⇔ 255 | 0–100% |
| 60 | Green 8 | 000 ⇔ 255 | 0–100% |
| 61 | Blue 8 | 000 ⇔ 255 | 0–100% |
| 62 | Amber 8 | 000 ⇔ 255 | 0–100% |
| 63 | White 8 | 000 ⇔ 255 | 0–100% |
| 64 | Color macros 8 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 65 | Color temperature 8 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 66 Strobe 8 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 67 | Red 9 | 000 ⇔ 255 | 0–100% |
| 68 | Green 9 | 000 ⇔ 255 | 0–100% |
| 69 | Blue 9 | 000 ⇔ 255 | 0–100% |
| 70 | Amber 9 | 000 ⇔ 255 | 0-100% |
| 71 | White 9 | 000 ⇔ 255 | 0-100% |
| 72 | Color macros 9 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 73 | Color temperature 9 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 74 Strobe 9 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 75 | Red 10 | 000 ⇔ 255 | 0-100% |
| 76 | Green 10 | 000 ⇔ 255 | 0-100% |
| 77 | Blue 10 | 000 ⇔ 255 | 0-100% |
| 78 | Amber 10 | 000 ⇔ 255 | 0-100% |
| 79 | White 10 | 000 ⇔ 255 | 0-100% |
| 80 | Color macros 10 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 81 | Color temperature 10 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 82 Strobe 10 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 83 | Red 11 | 000 ⇔ 255 | 0-100% |
| 84 | Green 11 | 000 ⇔ 255 | 0-100% |
| 85 | Blue 11 | 000 ⇔ 255 | 0-100% |
| 86 | Amber 11 | 000 ⇔ 255 | 0-100% |
| 87 | White 11 | 000 ⇔ 255 | 0-100% |
| 88 | Color macros 11 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 89 | Color temperature 11 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 90 Strobe 11 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 91 | Red 12 | 000 ⇔ 255 | 0-100% |
| 92 | Green 12 | 000 ⇔ 255 | 0-100% |
| 93 | Blue 12 | 000 ⇔ 255 | 0-100% |
| 94 | Amber 12 | 000 ⇔ 255 | 0-100% |
| 95 | White 12 | 000 ⇔ 255 | 0-100% |
| 96 | Color macros 12 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 97 | Color temperature 12 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 98 Strobe 12 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 99 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
12-Cell RGBA EXT (87 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Dimmer | 000 ⇔ 255 | 0–100% |
| 2 | Dimmer fine | 000 ⇔ 255 | 0–100% |
| 3 | Red 1 | 000 ⇔ 255 | 0–100% |
| 4 | Green 1 | 000 ⇔ 255 | 0–100% |
| 5 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 6 | Amber 1 | 000 ⇔ 255 | 0–100% |
| 7 | Color macros 1 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 8 | Color temperature 1 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 9 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 10 | Red 2 | 000 ⇔ 255 | 0–100% |
| 11 | Green 2 | 000 ⇔ 255 | 0–100% |
| 12 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 13 | Amber 2 | 000 ⇔ 255 | 0–100% |
| 14 | Color macros 2 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 15 | Color temperature 2 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 16 | Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 17 | Red 3 | 000 ⇔ 255 | 0–100% |
| 18 | Green 3 | 000 ⇔ 255 | 0–100% |
| 19 | Blue 3 | 000 ⇔ 255 | 0–100% |
| 20 | Amber 3 | 000 ⇔ 255 | 0–100% |
| 21 | Color macros 3 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 22 | Color temperature 3 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 23 | Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 24 | Red 4 | 000 ⇔ 255 | 0–100% |
| 25 | Green 4 | 000 ⇔ 255 | 0–100% |
| 26 | Blue 4 | 000 ⇔ 255 | 0–100% |
| 27 | Amber 4 | 000 ⇔ 255 | 0–100% |
| 28 | Color macros 4 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 29 | Color temperature 4 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 30 | Strobe 4 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 31 | Red 5 | 000 ⇔ 255 | 0–100% |
| 32 | Green 5 | 000 ⇔ 255 | 0–100% |
| 33 | Blue 5 | 000 ⇔ 255 | 0–100% |
| 34 | Amber 5 | 000 ⇔ 255 | 0–100% |
| Channel Function Value Percent/Setting | |||
| 35 | Color macros 5 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 36 | Color temperature 5 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 37 Strobe 5 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 38 | Red 6 | 000 ⇔ 255 | 0–100% |
| 39 | Green 6 | 000 ⇔ 255 | 0–100% |
| 40 | Blue 6 | 000 ⇔ 255 | 0–100% |
| 41 | Amber 6 | 000 ⇔ 255 | 0–100% |
| 42 | Color macros 6 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 43 | Color temperature 6 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 44 Strobe 6 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 45 | Red 7 | 000 ⇔ 255 | 0–100% |
| 46 | Green 7 | 000 ⇔ 255 | 0–100% |
| 47 | Blue 7 | 000 ⇔ 255 | 0–100% |
| 48 | Amber 7 | 000 ⇔ 255 | 0–100% |
| 49 | Color macros 7 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 50 | Color temperature 7 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 51 Strobe 7 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 52 | Red 8 | 000 ⇔ 255 | 0–100% |
| 53 | Green 8 | 000 ⇔ 255 | 0–100% |
| 54 | Blue 8 | 000 ⇔ 255 | 0–100% |
| 55 | Amber 8 | 000 ⇔ 255 | 0–100% |
| 56 | Color macros 8 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 57 | Color temperature 8 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 58 Strobe 8 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 59 | Red 9 | 000 ⇔ 255 | 0–100% |
| 60 | Green 9 | 000 ⇔ 255 | 0–100% |
| 61 | Blue 9 | 000 ⇔ 255 | 0–100% |
| 62 | Amber 9 | 000 ⇔ 255 | 0–100% |
| 63 | Color macros 9 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 64 | Color temperature 9 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| Channel | Function | Value | Percent/Setting |
| 65 Strobe 9 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 66 | Red 10 | 000 ⇔ 255 | 0–100% |
| 67 | Green 10 | 000 ⇔ 255 | 0–100% |
| 68 | Blue 10 | 000 ⇔ 255 | 0–100% |
| 69 | Amber 10 | 000 ⇔ 255 | 0–100% |
| 70 | Color macros 10 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 71 | Color temperature 10 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 72 Strobe 10 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 73 | Red 11 | 000 ⇔ 255 | 0–100% |
| 74 | Green 11 | 000 ⇔ 255 | 0–100% |
| 75 | Blue 11 | 000 ⇔ 255 | 0–100% |
| 76 | Amber 11 | 000 ⇔ 255 | 0–100% |
| 77 | Color macros 12 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 78 | Color temperature 12 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 79 Strobe 12 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 80 | Red 12 | 000 ⇔ 255 | 0–100% |
| 81 | Green 12 | 000 ⇔ 255 | 0–100% |
| 82 | Blue 12 | 000 ⇔ 255 | 0–100% |
| 83 | Amber 12 | 000 ⇔ 255 | 0–100% |
| 84 | Color macros 12 | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 85 | Color temperature 12 | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 86 Strobe 12 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 87 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
12-Cell HSIC (85 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer 1 | 000 ⇔ 255 | 0–100% | |
| 2 Hue 1 | 000 ⇔ 255 | 0–100% | |
| 3 Hue fine 1 | 000 ⇔ 255 | 0–100% | |
| 4 Saturation 1 | 000 ⇔ 255 | 0–100% | |
| 5 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 6 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 7 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 8 Dimmer 2 | 000 ⇔ 255 | 0–100% | |
| 9 Hue 2 | 000 ⇔ 255 | 0–100% | |
| 10 Hue fine 2 | 000 ⇔ 255 | 0–100% | |
| 11 Saturation 2 | 000 ⇔ 255 | 0–100% | |
| 12 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 13 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 14 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 15 Dimmer 3 | 000 ⇔ 255 | 0–100% | |
| 16 Hue 3 | 000 ⇔ 255 | 0–100% | |
| 17 Hue fine 3 | 000 ⇔ 255 | 0–100% | |
| 18 Saturation 3 | 000 ⇔ 255 | 0–100% | |
| 19 Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 20 Color macros 3 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 21 Color temperature 3 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 22 Dimmer 4 | 000 ⇔ 255 | 0–100% | |
| 23 Hue 4 | 000 ⇔ 255 | 0–100% | |
| 24 Hue fine 4 | 000 ⇔ 255 | 0–100% | |
| 25 Saturation 4 | 000 ⇔ 255 | 0–100% | |
| 26 Strobe 4 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 27 Color macros 4 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 28 Color temperature 4 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 29 Dimmer 5 | 000 ⇔ 255 | 0–100% | |
| 30 Hue 5 | 000 ⇔ 255 | 0–100% | |
| 31 Hue fine 5 | 000 ⇔ 255 | 0–100% | |
| 32 Saturation 5 | 000 ⇔ 255 | 0–100% | |
| Channel Function Value Percent/Setting | |||
| 33 Strobe 5 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 34 Color macros 5 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 35 Color temperature 5 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 36 Dimmer 6 | 000 ⇔ 255 | 0–100% | |
| 37 Hue 6 | 000 ⇔ 255 | 0–100% | |
| 38 Hue fine 6 | 000 ⇔ 255 | 0–100% | |
| 39 Saturation 6 | 000 ⇔ 255 | 0–100% | |
| 40 Strobe 6 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 41 Color macros 6 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 42 Color temperature 6 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 43 Dimmer 7 | 000 ⇔ 255 | 0–100% | |
| 44 Hue 7 | 000 ⇔ 255 | 0–100% | |
| 45 Hue Fine 7 | 000 ⇔ 255 | 0–100% | |
| 46 Saturation 7 | 000 ⇔ 255 | 0–100% | |
| 47 Strobe 7 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 48 Color macros 7 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 49 Color temperature 7 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 50 Dimmer 8 | 000 ⇔ 255 | 0–100% | |
| 51 Hue 8 | 000 ⇔ 255 | 0–100% | |
| 52 Hue fine 8 | 000 ⇔ 255 | 0–100% | |
| 53 Saturation 8 | 000 ⇔ 255 | 0–100% | |
| 54 Strobe 8 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 55 Color macros 8 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 56 Color temperature 8 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 57 Dimmer 9 | 000 ⇔ 255 | 0–100% | |
| 58 Hue 9 | 000 ⇔ 255 | 0–100% | |
| 59 Hue fine 9 | 000 ⇔ 255 | 0–100% | |
| 60 Saturation 9 | 000 ⇔ 255 | 0–100% | |
| 61 Strobe 9 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 62 Color macros 9 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| Channel Function Value Percent/Setting | |||
| 63 Color temperature 9 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 64 Dimmer 10 | 000 ⇔ 255 | 0–100% | |
| 65 Hue 10 | 000 ⇔ 255 | 0–100% | |
| 66 Hue fine 10 | 000 ⇔ 255 | 0–100% | |
| 67 Saturation 10 | 000 ⇔ 255 | 0–100% | |
| 68 Strobe 10 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 69 Color macros 10 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 70 Color temperature 10 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 71 Dimmer 11 | 000 ⇔ 255 | 0–100% | |
| 72 Hue 11 | 000 ⇔ 255 | 0–100% | |
| 73 Hue Fine 11 | 000 ⇔ 255 | 0–100% | |
| 74 Saturation 11 | 000 ⇔ 255 | 0–100% | |
| 75 Strobe 11 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 76 Color macros 11 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 77 Color temperature 11 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 78 Dimmer 12 | 000 ⇔ 255 | 0–100% | |
| 79 Hue 12 | 000 ⇔ 255 | 0–100% | |
| 80 Hue Fine 12 | 000 ⇔ 255 | 0–100% | |
| 81 Saturation 12 | 000 ⇔ 255 | 0–100% | |
| 82 Strobe 12 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 83 Color macros 12 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 84 Color temperature 12 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 85 Dimmer speed | 000 ⇔ 009 | Preset dimmer speed from display menu | |
| 010 ⇔ 029 Dimmer speed mode off | |||
| 030 ⇔ 069 Dimmer speed mode 1 (fastest) | |||
| 070 ⇔ 129 Dimmer speed mode 2 | |||
| 130 ⇔ 189 Dimmer speed mode 3 | |||
| 190 ⇔ 255 Dimmer speed mode 4 (slowest) | |||
12-Cell RGB EXT (75 channels)
| Channel Function Value Percent/Setting | ||
| 1 Dimmer | 000 ⇔ 255 | 0-100% |
| 2 Dimmer fine | 000 ⇔ 255 | 0-100% |
| 3 Red 1 | 000 ⇔ 255 | 0-100% |
| 4 Green 1 | 000 ⇔ 255 | 0-100% |
| 5 Blue 1 | 000 ⇔ 255 | 0-100% |
| 6 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 7 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 8 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 9 Red 2 | 000 ⇔ 255 | 0-100% |
| 10 Green 2 | 000 ⇔ 255 | 0-100% |
| 11 Blue 2 | 000 ⇔ 255 | 0-100% |
| 12 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 13 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 14 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 15 Red 3 | 000 ⇔ 255 | 0-100% |
| 16 Green 3 | 000 ⇔ 255 | 0-100% |
| 17 Blue 3 | 000 ⇔ 255 | 0-100% |
| 18 Color macros 3 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 19 Color temperature 3 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 20 Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 21 Red 4 | 000 ⇔ 255 | 0-100% |
| 22 Green 4 | 000 ⇔ 255 | 0-100% |
| 23 Blue 4 | 000 ⇔ 255 | 0-100% |
| 24 Color macros 4 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 25 Color temperature 4 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 26 Strobe 4 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 27 Red 5 | 000 ⇔ 255 | 0-100% |
| 28 Green 5 | 000 ⇔ 255 | 0-100% |
| 29 Blue 5 | 000 ⇔ 255 | 0-100% |
| 30 Color macros 5 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 31 Color temperature 5 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 32 Strobe 5 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 33 Red 6 | 000 ⇔ 255 | 0–100% |
| 34 Green 6 | 000 ⇔ 255 | 0–100% |
| 35 Blue 6 | 000 ⇔ 255 | 0–100% |
| 36 Color macros 6 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 37 Color temperature 6 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 38 Strobe 6 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 39 Red 7 | 000 ⇔ 255 | 0–100% |
| 40 Green 7 | 000 ⇔ 255 | 0–100% |
| 41 Blue 7 | 000 ⇔ 255 | 0–100% |
| 42 Color macros 7 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 43 Color temperature 7 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 44 Strobe 7 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 45 Red 8 | 000 ⇔ 255 | 0–100% |
| 46 Green 8 | 000 ⇔ 255 | 0–100% |
| 47 Blue 8 | 000 ⇔ 255 | 0–100% |
| 48 Color macros 8 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 49 Color temperature 8 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 50 Strobe 8 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 51 Red 9 | 000 ⇔ 255 | 0–100% |
| 52 Green 9 | 000 ⇔ 255 | 0–100% |
| 53 Blue 9 | 000 ⇔ 255 | 0–100% |
| 54 Color macros 9 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 55 Color temperature 9 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 56 Strobe 9 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 57 Red 10 | 000 ⇔ 255 | 0–100% |
| 58 Green 10 | 000 ⇔ 255 | 0–100% |
| 59 Blue 10 | 000 ⇔ 255 | 0–100% |
| 60 Color macros 10 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 61 Color temperature 10 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| Channel Function Value Percent/Setting | |||
| 62 Strobe 10 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 63 Red 11 | 000 ⇔ 255 | 0–100% | |
| 64 Green 11 | 000 ⇔ 255 | 0–100% | |
| 65 Blue 11 | 000 ⇔ 255 | 0–100% | |
| 66 Color macros 12 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 67 Color temperature 12 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 68 Strobe 12 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 69 Red 12 | 000 ⇔ 255 | 0–100% | |
| 70 Green 12 | 000 ⇔ 255 | 0–100% | |
| 71 Blue 12 | 000 ⇔ 255 | 0–100% | |
| 72 Color macros 12 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 73 Color temperature 12 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 74 Strobe 12 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 75 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
12-Cell RGBAW (60 channels)
| Channel Function Value Percent/Setting | ||
| 1 Red 1 | 000 ⇔ 255 | 0–100% |
| 2 Green 1 | 000 ⇔ 255 | 0–100% |
| 3 Blue 1 | 000 ⇔ 255 | 0–100% |
| 4 Amber 1 | 000 ⇔ 255 | 0–100% |
| 5 White 1 | 000 ⇔ 255 | 0–100% |
| 6 Red 2 | 000 ⇔ 255 | 0–100% |
| 7 Green 2 | 000 ⇔ 255 | 0–100% |
| 8 Blue 2 | 000 ⇔ 255 | 0–100% |
| 9 Amber 2 | 000 ⇔ 255 | 0–100% |
| 10 White 2 | 000 ⇔ 255 | 0–100% |
| 11 Red 3 | 000 ⇔ 255 | 0–100% |
| 12 Green 3 | 000 ⇔ 255 | 0–100% |
| 13 Blue 3 | 000 ⇔ 255 | 0–100% |
| 14 Amber 3 | 000 ⇔ 255 | 0–100% |
| 15 White 3 | 000 ⇔ 255 | 0–100% |
| 16 Red 4 | 000 ⇔ 255 | 0–100% |
| 17 Green 4 | 000 ⇔ 255 | 0–100% |
| Channel Function Value Percent/Setting | |||
| 18 | Blue 4 | 000 ⇔ 255 | 0-100% |
| 19 | Amber 4 | 000 ⇔ 255 | 0-100% |
| 20 | White 4 | 000 ⇔ 255 | 0-100% |
| 21 | Red 5 | 000 ⇔ 255 | 0-100% |
| 22 | Green 5 | 000 ⇔ 255 | 0-100% |
| 23 | Blue 5 | 000 ⇔ 255 | 0-100% |
| 24 | Amber 5 | 000 ⇔ 255 | 0-100% |
| 25 | White 5 | 000 ⇔ 255 | 0-100% |
| 26 | Red 6 | 000 ⇔ 255 | 0-100% |
| 27 | Green 6 | 000 ⇔ 255 | 0-100% |
| 28 | Blue 6 | 000 ⇔ 255 | 0-100% |
| 29 | Amber 6 | 000 ⇔ 255 | 0-100% |
| 30 | White 6 | 000 ⇔ 255 | 0-100% |
| 31 | Red 7 | 000 ⇔ 255 | 0-100% |
| 32 | Green 7 | 000 ⇔ 255 | 0-100% |
| 33 | Blue 7 | 000 ⇔ 255 | 0-100% |
| 34 | Amber 7 | 000 ⇔ 255 | 0-100% |
| 35 | White 7 | 000 ⇔ 255 | 0-100% |
| 36 | Red 8 | 000 ⇔ 255 | 0-100% |
| 37 | Green 8 | 000 ⇔ 255 | 0-100% |
| 38 | Blue 8 | 000 ⇔ 255 | 0-100% |
| 39 | Amber 8 | 000 ⇔ 255 | 0-100% |
| 40 | White 8 | 000 ⇔ 255 | 0-100% |
| 41 | Red 9 | 000 ⇔ 255 | 0-100% |
| 42 | Green 9 | 000 ⇔ 255 | 0-100% |
| 43 | Blue 9 | 000 ⇔ 255 | 0-100% |
| 44 | Amber 9 | 000 ⇔ 255 | 0-100% |
| 45 | White 9 | 000 ⇔ 255 | 0-100% |
| 46 | Red 10 | 000 ⇔ 255 | 0-100% |
| 47 | Green 10 | 000 ⇔ 255 | 0-100% |
| 48 | Blue 10 | 000 ⇔ 255 | 0-100% |
| 49 | Amber 10 | 000 ⇔ 255 | 0-100% |
| 50 | White 10 | 000 ⇔ 255 | 0-100% |
| 51 | Red 11 | 000 ⇔ 255 | 0-100% |
| 52 | Green 11 | 000 ⇔ 255 | 0-100% |
| 53 | Blue 11 | 000 ⇔ 255 | 0-100% |
| 54 | Amber 11 | 000 ⇔ 255 | 0-100% |
| 55 | White 11 | 000 ⇔ 255 | 0-100% |
| 56 | Red 12 | 000 ⇔ 255 | 0-100% |
| 57 | Green 12 | 000 ⇔ 255 | 0-100% |
| 58 | Blue 12 | 000 ⇔ 255 | 0-100% |
| 59 | Amber 12 | 000 ⇔ 255 | 0-100% |
| 60 | White 12 | 000 ⇔ 255 | 0-100% |
12-Cell RGBA (48 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red 1 | 000 ⇔ 255 | 0-100% |
| 2 | Green 1 | 000 ⇔ 255 | 0-100% |
| 3 | Blue 1 | 000 ⇔ 255 | 0-100% |
| 4 | Amber 1 | 000 ⇔ 255 | 0-100% |
| 5 | Red 2 | 000 ⇔ 255 | 0-100% |
| 6 | Green 2 | 000 ⇔ 255 | 0-100% |
| 7 | Blue 2 | 000 ⇔ 255 | 0-100% |
| 8 | Amber 2 | 000 ⇔ 255 | 0-100% |
| 9 | Red 3 | 000 ⇔ 255 | 0-100% |
| 10 | Green 3 | 000 ⇔ 255 | 0-100% |
| 11 | Blue 3 | 000 ⇔ 255 | 0-100% |
| 12 | Amber 3 | 000 ⇔ 255 | 0-100% |
| 13 | Red 4 | 000 ⇔ 255 | 0-100% |
| 14 | Green 4 | 000 ⇔ 255 | 0-100% |
| 15 | Blue 4 | 000 ⇔ 255 | 0-100% |
| 16 | Amber 4 | 000 ⇔ 255 | 0-100% |
| 17 | Red 5 | 000 ⇔ 255 | 0-100% |
| 18 | Green 5 | 000 ⇔ 255 | 0-100% |
| 19 | Blue 5 | 000 ⇔ 255 | 0-100% |
| 20 | Amber 5 | 000 ⇔ 255 | 0-100% |
| 21 | Red 6 | 000 ⇔ 255 | 0-100% |
| 22 | Green 6 | 000 ⇔ 255 | 0-100% |
| 23 | Blue 6 | 000 ⇔ 255 | 0-100% |
| 24 | Amber 6 | 000 ⇔ 255 | 0-100% |
| 25 | Red 7 | 000 ⇔ 255 | 0-100% |
| 26 | Green 7 | 000 ⇔ 255 | 0-100% |
| 27 | Blue 7 | 000 ⇔ 255 | 0-100% |
| 28 | Amber 7 | 000 ⇔ 255 | 0-100% |
| 29 | Red 8 | 000 ⇔ 255 | 0-100% |
| 30 | Green 8 | 000 ⇔ 255 | 0-100% |
| 31 | Blue 8 | 000 ⇔ 255 | 0-100% |
| 32 | Amber 8 | 000 ⇔ 255 | 0-100% |
| 33 | Red 9 | 000 ⇔ 255 | 0-100% |
| 34 | Green 9 | 000 ⇔ 255 | 0-100% |
| 35 | Blue 9 | 000 ⇔ 255 | 0-100% |
| 36 | Amber 9 | 000 ⇔ 255 | 0-100% |
| 37 | Red 10 | 000 ⇔ 255 | 0-100% |
| 38 Green 10 | 000 ⇔ 255 | 0-100% | |
| 39 Blue 10 | 000 ⇔ 255 | 0-100% | |
| 40 Amber 10 | 000 ⇔ 255 | 0-100% | |
| 41 Red 11 | 000 ⇔ 255 | 0-100% | |
| 42 Green 11 | 000 ⇔ 255 | 0-100% | |
| 43 Blue 11 | 000 ⇔ 255 | 0-100% | |
| 44 Amber 11 | 000 ⇔ 255 | 0-100% | |
| 45 Red 12 | 000 ⇔ 255 | 0-100% | |
| 46 Green 12 | 000 ⇔ 255 | 0-100% | |
| 47 Blue 12 | 000 ⇔ 255 | 0-100% | |
| 48 Amber 12 | 000 ⇔ 255 | 0-100% | |
12-Cell RGB (36 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red 1 | 000 ⇔ 255 | 0–100% |
| 2 | Green 1 | 000 ⇔ 255 | 0–100% |
| 3 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 4 | Red 2 | 000 ⇔ 255 | 0–100% |
| 5 | Green 2 | 000 ⇔ 255 | 0–100% |
| 6 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 7 | Red 3 | 000 ⇔ 255 | 0–100% |
| 8 | Green 3 | 000 ⇔ 255 | 0–100% |
| 9 | Blue 3 | 000 ⇔ 255 | 0–100% |
| 10 | Red 4 | 000 ⇔ 255 | 0–100% |
| 11 | Green 4 | 000 ⇔ 255 | 0–100% |
| 12 | Blue 4 | 000 ⇔ 255 | 0–100% |
| 13 | Red 5 | 000 ⇔ 255 | 0–100% |
| 14 | Green 5 | 000 ⇔ 255 | 0–100% |
| 15 | Blue 5 | 000 ⇔ 255 | 0–100% |
| 16 | Red 6 | 000 ⇔ 255 | 0–100% |
| 17 | Green 6 | 000 ⇔ 255 | 0–100% |
| 18 | Blue 6 | 000 ⇔ 255 | 0–100% |
| 19 | Red 7 | 000 ⇔ 255 | 0–100% |
| 20 | Green 7 | 000 ⇔ 255 | 0–100% |
| 21 | Blue 7 | 000 ⇔ 255 | 0–100% |
| 22 | Red 8 | 000 ⇔ 255 | 0–100% |
| 23 | Green 8 | 000 ⇔ 255 | 0–100% |
| 24 | Blue 8 | 000 ⇔ 255 | 0–100% |
| 25 | Red 9 | 000 ⇔ 255 | 0–100% |
| 26 | Green 9 | 000 ⇔ 255 | 0–100% |
| 27 | Blue 9 | 000 ⇔ 255 | 0–100% |
| 28 | Red 10 | 000 ⇔ 255 | 0–100% |
| 29 | Green 10 | 000 ⇔ 255 | 0–100% |
| 30 | Blue 10 | 000 ⇔ 255 | 0–100% |
| 31 | Red 11 | 000 ⇔ 255 | 0–100% |
| 32 | Green 11 | 000 ⇔ 255 | 0–100% |
| 33 | Blue 11 | 000 ⇔ 255 | 0–100% |
| 34 | Red 12 | 000 ⇔ 255 | 0–100% |
| 35 | Green 12 | 000 ⇔ 255 | 0–100% |
| 36 | Blue 12 | 000 ⇔ 255 | 0–100% |
3-Cell Personalities
3-Cell RGBAW FULL (43 channels)
| Channel Function Value Percent/Setting | ||
| 1 Dimmer | 000 ⇔ 255 | 0–100% |
| 2 Dimmer fine | 000 ⇔ 255 | 0–100% |
| 3 Red 1 | 000 ⇔ 255 | 0–100% |
| 4 Red fine 1 | 000 ⇔ 255 | 0–100% |
| 5 Green 1 | 000 ⇔ 255 | 0–100% |
| 6 Green fine 1 | 000 ⇔ 255 | 0–100% |
| 7 Blue 1 | 000 ⇔ 255 | 0–100% |
| 8 Blue fine 1 | 000 ⇔ 255 | 0–100% |
| 9 Amber 1 | 000 ⇔ 255 | 0–100% |
| 10 Amber fine 1 | 000 ⇔ 255 | 0–100% |
| 11 White 1 | 000 ⇔ 255 | 0–100% |
| 12 White fine 1 | 000 ⇔ 255 | 0–100% |
| 13 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 14 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 15 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 16 Red 2 | 000 ⇔ 255 | 0–100% |
| 17 Red fine 2 | 000 ⇔ 255 | 0–100% |
| 18 Green 2 | 000 ⇔ 255 | 0–100% |
| 19 Green fine 2 | 000 ⇔ 255 | 0–100% |
| 20 Blue 2 | 000 ⇔ 255 | 0–100% |
| 21 Blue fine 2 | 000 ⇔ 255 | 0–100% |
| 22 Amber 2 | 000 ⇔ 255 | 0–100% |
| 23 Amber fine 2 | 000 ⇔ 255 | 0–100% |
| 24 White 2 | 000 ⇔ 255 | 0–100% |
| 25 White fine 2 | 000 ⇔ 255 | 0–100% |
| 26 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 27 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 28 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 29 Red 3 | 000 ⇔ 255 | 0–100% |
| 30 Red fine 3 | 000 ⇔ 255 | 0–100% |
| 31 Green 3 | 000 ⇔ 255 | 0–100% |
| 32 Green fine 3 | 000 ⇔ 255 | 0–100% |
| 33 Blue 3 | 000 ⇔ 255 | 0–100% |
| 34 Blue fine 3 | 000 ⇔ 255 | 0–100% |
| 35 Amber 3 | 000 ⇔ 255 | 0–100% |
| 36 Amber fine 3 | 000 ⇔ 255 | 0–100% |
| 37 White 3 | 000 ⇔ 255 | 0–100% |
| 38 White fine 3 | 000 ⇔ 255 | 0–100% |
| 39 Color macros 3 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 40 Color temperature 3 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| Channel | Function | Value | Percent/Setting |
| 41 Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 42 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 43 Dimmer speed | 000 ⇔ 009 | Preset dimmer speed from display menu010 ⇔ 029 Dimmer speed mode off030 ⇔ 069 Dimmer speed mode 1 (fastest)070 ⇔ 129 Dimmer speed mode 2130 ⇔ 189 Dimmer speed mode 3190 ⇔ 255 Dimmer speed mode 4 (slowest) | |
3-Cell RGBAW Fine (30 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red 1 | 000 ⇔ 255 | 0–100% |
| 2 | Red fine 1 | 000 ⇔ 255 | 0–100% |
| 3 | Green 1 | 000 ⇔ 255 | 0–100% |
| 4 | Green fine 1 | 000 ⇔ 255 | 0–100% |
| 5 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 6 | Blue fine 1 | 000 ⇔ 255 | 0–100% |
| 7 | Amber 1 | 000 ⇔ 255 | 0–100% |
| 8 | Amber fine 1 | 000 ⇔ 255 | 0–100% |
| 9 | White 1 | 000 ⇔ 255 | 0–100% |
| 10 | White fine 1 | 000 ⇔ 255 | 0–100% |
| 11 | Red 2 | 000 ⇔ 255 | 0–100% |
| 12 | Red fine 2 | 000 ⇔ 255 | 0–100% |
| 13 | Green 2 | 000 ⇔ 255 | 0–100% |
| 14 | Green fine 2 | 000 ⇔ 255 | 0–100% |
| 15 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 16 | Blue fine 2 | 000 ⇔ 255 | 0–100% |
| 17 | Amber 2 | 000 ⇔ 255 | 0–100% |
| 18 | Amber fine 2 | 000 ⇔ 255 | 0–100% |
| 19 | White 2 | 000 ⇔ 255 | 0–100% |
| 20 | White fine 2 | 000 ⇔ 255 | 0–100% |
| 21 | Red 3 | 000 ⇔ 255 | 0–100% |
| 22 | Red fine 3 | 000 ⇔ 255 | 0–100% |
| 23 | Green 3 | 000 ⇔ 255 | 0–100% |
| 24 | Green fine 3 | 000 ⇔ 255 | 0–100% |
| 25 | Blue 3 | 000 ⇔ 255 | 0–100% |
| 26 | Blue fine 3 | 000 ⇔ 255 | 0–100% |
| 27 | Amber 3 | 000 ⇔ 255 | 0–100% |
| 28 | Amber fine 3 | 000 ⇔ 255 | 0–100% |
| 29 | White 3 | 000 ⇔ 255 | 0–100% |
| 30 | White fine 3 | 000 ⇔ 255 | 0–100% |
3-Cell RGBAW EXT (27 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer | 000 ⇔ 255 | 0–100% | |
| 2 Dimmer fine | 000 ⇔ 255 | 0–100% | |
| 3 Red 1 | 000 ⇔ 255 | 0–100% | |
| 4 Green 1 | 000 ⇔ 255 | 0–100% | |
| 5 Blue 1 | 000 ⇔ 255 | 0–100% | |
| 6 Amber 1 | 000 ⇔ 255 | 0–100% | |
| 7 White 1 | 000 ⇔ 255 | 0–100% | |
| 8 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 9 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 10 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 11 Red 2 | 000 ⇔ 255 | 0–100% | |
| 12 Green 2 | 000 ⇔ 255 | 0–100% | |
| 13 Blue 2 | 000 ⇔ 255 | 0–100% | |
| 14 Amber 2 | 000 ⇔ 255 | 0–100% | |
| 15 White 2 | 000 ⇔ 255 | 0–100% | |
| 16 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 17 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 18 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 19 Red 3 | 000 ⇔ 255 | 0–100% | |
| 20 Green 3 | 000 ⇔ 255 | 0–100% | |
| 21 Blue 3 | 000 ⇔ 255 | 0–100% | |
| 22 Amber 3 | 000 ⇔ 255 | 0–100% | |
| 23 White 3 | 000 ⇔ 255 | 0–100% | |
| 24 Color Macros 3 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 25 Color Temperature 3 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 26 Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 27 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
3-Cell RGBA EXT (24 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer | 000 ⇔ 255 | 0-100% | |
| 2 Dimmer fine | 000 ⇔ 255 | 0-100% | |
| 3 Red 1 | 000 ⇔ 255 | 0-100% | |
| 4 Green 1 | 000 ⇔ 255 | 0-100% | |
| 5 Blue 1 | 000 ⇔ 255 | 0-100% | |
| 6 Amber 1 | 000 ⇔ 255 | 0-100% | |
| 7 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 8 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 9 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 10 Red 2 | 000 ⇔ 255 | 0-100% | |
| 11 Green 2 | 000 ⇔ 255 | 0-100% | |
| 12 Blue 2 | 000 ⇔ 255 | 0-100% | |
| 13 Amber 2 | 000 ⇔ 255 | 0-100% | |
| 14 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 15 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 16 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 17 Red 3 | 000 ⇔ 255 | 0-100% | |
| 18 Green 3 | 000 ⇔ 255 | 0-100% | |
| 19 Blue 3 | 000 ⇔ 255 | 0-100% | |
| 20 Amber 3 | 000 ⇔ 255 | 0-100% | |
| 21 Color macros 3 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 22 Color temperature 3 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 23 Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 24 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
3-Cell HSIC (22 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer 1 | 000 ⇔ 255 | 0–100% | |
| 2 Hue 1 | 000 ⇔ 255 | 0–100% | |
| 3 Hue fine 1 | 000 ⇔ 255 | 0–100% | |
| 4 Saturation 1 | 000 ⇔ 255 | 0–100% | |
| 5 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 6 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 7 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 8 Dimmer 2 | 000 ⇔ 255 | 0–100% | |
| 9 Hue 2 | 000 ⇔ 255 | 0–100% | |
| 10 Hue fine 2 | 000 ⇔ 255 | 0–100% | |
| 11 Saturation 2 | 000 ⇔ 255 | 0–100% | |
| 12 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 13 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 14 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 15 Dimmer 3 | 000 ⇔ 255 | 0–100% | |
| 16 Hue 3 | 000 ⇔ 255 | 0–100% | |
| 17 Hue fine 3 | 000 ⇔ 255 | 0–100% | |
| 18 Saturation 3 | 000 ⇔ 255 | 0–100% | |
| 19 Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 20 Color macros 3 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 21 Color temperature 3 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 22 Dimmer speed | 000 ⇔ 009 Preset dimmer speed from display menu010 ⇔ 029 Dimmer speed mode off030 ⇔ 069 Dimmer speed mode 1 (fastest)070 ⇔ 129 Dimmer speed mode 2130 ⇔ 189 Dimmer speed mode 3190 ⇔ 255 Dimmer speed mode 4 (slowest) | ||
3-Cell RGB EXT (21 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer | 000 ⇔ 255 | 0–100% | |
| 2 Dimmer fine | 000 ⇔ 255 | 0–100% | |
| 3 Red 1 | 000 ⇔ 255 | 0–100% | |
| 4 Green 1 | 000 ⇔ 255 | 0–100% | |
| 5 Blue 1 | 000 ⇔ 255 | 0–100% | |
| 6 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 7 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 8 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 9 Red 2 | 000 ⇔ 255 | 0–100% | |
| 10 Green 2 | 000 ⇔ 255 | 0–100% | |
| 11 Blue 2 | 000 ⇔ 255 | 0–100% | |
| 12 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 13 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 14 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 15 Red 3 | 000 ⇔ 255 | 0–100% | |
| 16 Green 3 | 000 ⇔ 255 | 0–100% | |
| 17 Blue 3 | 000 ⇔ 255 | 0–100% | |
| 18 Color macros 3 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 19 Color temperature 3 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 20 Strobe 3 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 21 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
3-Cell RGBAW (15 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red 1 | 000 ⇔ 255 | 0–100% |
| 2 | Green 1 | 000 ⇔ 255 | 0–100% |
| 3 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 4 | Amber 1 | 000 ⇔ 255 | 0–100% |
| 5 | White 1 | 000 ⇔ 255 | 0–100% |
| 6 | Red 2 | 000 ⇔ 255 | 0–100% |
| 7 | Green 2 | 000 ⇔ 255 | 0–100% |
| 8 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 9 | Amber 2 | 000 ⇔ 255 | 0–100% |
| 10 | White 2 | 000 ⇔ 255 | 0–100% |
| 11 | Red 3 | 000 ⇔ 255 | 0–100% |
| 12 | Green 3 | 000 ⇔ 255 | 0–100% |
| 13 | Blue 3 | 000 ⇔ 255 | 0–100% |
| 14 | Amber 3 | 000 ⇔ 255 | 0–100% |
| 15 | White 3 | 000 ⇔ 255 | 0–100% |
3-Cell RGBA (12 channels)
| Channel | Function | Value | Percent/Setting |
| 1 | Red 1 | 000 ⇔ 255 | 0–100% |
| 2 | Green 1 | 000 ⇔ 255 | 0–100% |
| 3 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 4 | Amber 1 | 000 ⇔ 255 | 0–100% |
| 5 | Red 2 | 000 ⇔ 255 | 0–100% |
| 6 | Green 2 | 000 ⇔ 255 | 0–100% |
| 7 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 8 | Amber 2 | 000 ⇔ 255 | 0–100% |
| 9 | Red 3 | 000 ⇔ 255 | 0–100% |
| 10 | Green 3 | 000 ⇔ 255 | 0–100% |
| 11 | Blue 3 | 000 ⇔ 255 | 0–100% |
| 12 | Amber 3 | 000 ⇔ 255 | 0–100% |
3-Cell RGB (9 channels)
| Channel | Function | Value | Percent/Setting |
| 1 | Red 1 | 000 ⇔ 255 | 0–100% |
| 2 | Green 1 | 000 ⇔ 255 | 0–100% |
| 3 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 4 | Red 2 | 000 ⇔ 255 | 0–100% |
| 5 | Green 2 | 000 ⇔ 255 | 0–100% |
| 6 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 7 | Red 3 | 000 ⇔ 255 | 0–100% |
| 8 | Green 3 | 000 ⇔ 255 | 0–100% |
| 9 | Blue 3 | 000 ⇔ 255 | 0–100% |
2-Cell Personalities
2-Cell RGBAW FULL (30 channels)
| Channel Function Value Percent/Setting | ||
| 1 Dimmer | 000 ⇔ 255 | 0-100% |
| 2 Dimmer fine | 000 ⇔ 255 | 0-100% |
| 3 Red 1 | 000 ⇔ 255 | 0-100% |
| 4 Red fine 1 | 000 ⇔ 255 | 0-100% |
| 5 Green 1 | 000 ⇔ 255 | 0-100% |
| 6 Green fine 1 | 000 ⇔ 255 | 0-100% |
| 7 Blue 1 | 000 ⇔ 255 | 0-100% |
| 8 Blue fine 1 | 000 ⇔ 255 | 0-100% |
| 9 Amber 1 | 000 ⇔ 255 | 0-100% |
| 10 Amber fine 1 | 000 ⇔ 255 | 0-100% |
| 11 White 1 | 000 ⇔ 255 | 0-100% |
| 12 White fine 1 | 000 ⇔ 255 | 0-100% |
| 13 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 14 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 15 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 16 Red 2 | 000 ⇔ 255 | 0-100% |
| 17 Red fine 2 | 000 ⇔ 255 | 0-100% |
| 18 Green 2 | 000 ⇔ 255 | 0-100% |
| 19 Green fine 2 | 000 ⇔ 255 | 0-100% |
| 20 Blue 2 | 000 ⇔ 255 | 0-100% |
| 21 Blue fine 2 | 000 ⇔ 255 | 0-100% |
| 22 Amber 2 | 000 ⇔ 255 | 0-100% |
| 23 Amber fine 2 | 000 ⇔ 255 | 0-100% |
| 24 White 2 | 000 ⇔ 255 | 0-100% |
| 25 White fine 2 | 000 ⇔ 255 | 0-100% |
| 26 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 27 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 28 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 29 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| 30 Dimmer speed | 000 ⇔ 009 Preset dimmer speed from display menu010 ⇔ 029 Dimmer speed mode off030 ⇔ 069 Dimmer speed mode 1 (fastest)070 ⇔ 129 Dimmer speed mode 2130 ⇔ 189 Dimmer speed mode 3190 ⇔ 255 Dimmer speed mode 4 (slowest) | |
2-Cell RGBAW Fine (20 channels)
| Channel Function Value Percent/Setting | ||
| 1 Red 1 | 000 ⇔ 255 | 0–100% |
| 2 Red fine 1 | 000 ⇔ 255 | 0–100% |
| 3 Green 1 | 000 ⇔ 255 | 0–100% |
| 4 Green fine 1 | 000 ⇔ 255 | 0–100% |
| 5 Blue 1 | 000 ⇔ 255 | 0–100% |
| 6 Blue fine 1 | 000 ⇔ 255 | 0–100% |
| 7 Amber 1 | 000 ⇔ 255 | 0–100% |
| 8 Amber fine 1 | 000 ⇔ 255 | 0–100% |
| 9 White 1 | 000 ⇔ 255 | 0–100% |
| 10 White fine 1 | 000 ⇔ 255 | 0–100% |
| 11 Red 2 | 000 ⇔ 255 | 0–100% |
| 12 Red fine 2 | 000 ⇔ 255 | 0–100% |
| 13 Green 2 | 000 ⇔ 255 | 0–100% |
| 14 Green fine 2 | 000 ⇔ 255 | 0–100% |
| 15 Blue 2 | 000 ⇔ 255 | 0–100% |
| 16 Blue fine 2 | 000 ⇔ 255 | 0–100% |
| 17 Amber 2 | 000 ⇔ 255 | 0–100% |
| 18 Amber fine 2 | 000 ⇔ 255 | 0–100% |
| 19 White 2 | 000 ⇔ 255 | 0–100% |
| 20 White fine 2 | 000 ⇔ 255 | 0–100% |
2-Cell RGBAW EXT (19 channels)
| Channel Function Value Percent/Setting | ||
| 1 Dimmer | 000 ⇔ 255 | 0–100% |
| 2 Dimmer fine | 000 ⇔ 255 | 0–100% |
| 3 Red 1 | 000 ⇔ 255 | 0–100% |
| 4 Green 1 | 000 ⇔ 255 | 0–100% |
| 5 Blue 1 | 000 ⇔ 255 | 0–100% |
| 6 Amber 1 | 000 ⇔ 255 | 0–100% |
| 7 White 1 | 000 ⇔ 255 | 0–100% |
| 8 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 9 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 10 Strobe 1 | 000 ⇔ 009 | No function |
| 010 ⇔ 099 | Strobe, slow to fast | |
| 100 ⇔ 109 | No function | |
| 110 ⇔ 179 | Lightning effect, slow to fast | |
| 180 ⇔ 189 | No function | |
| 190 ⇔ 255 | Random strobe, slow to fast | |
| 11 Red 2 | 000 ⇔ 255 | 0–100% |
| 12 Green 2 | 000 ⇔ 255 | 0–100% |
| 13 Blue 2 | 000 ⇔ 255 | 0–100% |
| 14 Amber 2 | 000 ⇔ 255 | 0–100% |
| 15 White 2 | 000 ⇔ 255 | 0–100% |
| 16 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values |
| 17 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values |
| 18 Strobe 2 | 000 ⇔ 009 | No function |
| 010 ⇔ 099 | Strobe, slow to fast | |
| 100 ⇔ 109 | No function | |
| 110 ⇔ 179 | Lightning effect, slow to fast | |
| 180 ⇔ 189 | No function | |
| 190 ⇔ 255 | ||
| Channel Function Value Percent/Setting | |||
| 19 Strobe all | 000 ⇔ 009 | No function | |
| 010 ⇔ 099 | Strobe, slow to fast | ||
| 100 ⇔ 109 | No function | ||
| 110 ⇔ 179 | Lightning effect, slow to fast | ||
| 180 ⇔ 189 | No function | ||
| 190 ⇔ 255 | Random strobe, slow to fast | ||
2-Cell RGBA EXT (17 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer | 000 ⇔ 255 | 0–100% | |
| 2 Dimmer fine | 000 ⇔ 255 | 0–100% | |
| 3 Red 1 | 000 ⇔ 255 | 0–100% | |
| 4 Green 1 | 000 ⇔ 255 | 0–100% | |
| 5 Blue 1 | 000 ⇔ 255 | 0–100% | |
| 6 Amber 1 | 000 ⇔ 255 | 0–100% | |
| 7 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 8 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 9 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 10 Red 2 | 000 ⇔ 255 | 0–100% | |
| 11 Green 2 | 000 ⇔ 255 | 0–100% | |
| 12 Blue 2 | 000 ⇔ 255 | 0–100% | |
| 13 Amber 2 | 000 ⇔ 255 | 0–100% | |
| 14 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 15 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 16 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 17 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
2-Cell HSIC (15 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer 1 | 000 ⇔ 255 | 0–100% | |
| 2 Hue 1 | 000 ⇔ 255 | 0–100% | |
| 3 Hue fine 1 | 000 ⇔ 255 | 0–100% | |
| 4 Saturation 1 | 000 ⇔ 255 | 0–100% | |
| 5 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 6 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 7 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 8 Dimmer 2 | 000 ⇔ 255 | 0–100% | |
| 9 Hue 2 | 000 ⇔ 255 | 0–100% | |
| 10 Hue fine 2 | 000 ⇔ 255 | 0–100% | |
| 11 Saturation 2 | 000 ⇔ 255 | 0–100% | |
| 12 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 13 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 14 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 15 Dimmer speed | 000 ⇔ 009 Preset dimmer speed from display menu010 ⇔ 029 Dimmer speed mode off030 ⇔ 069 Dimmer speed mode 1 (fastest)070 ⇔ 129 Dimmer speed mode 2130 ⇔ 189 Dimmer speed mode 3190 ⇔ 255 Dimmer speed mode 4 (slowest) | ||
2-Cell RGB EXT (15 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer | 000 ⇔ 255 | 0–100% | |
| 2 Dimmer fine | 000 ⇔ 255 | 0–100% | |
| 3 Red 1 | 000 ⇔ 255 | 0–100% | |
| 4 Green 1 | 000 ⇔ 255 | 0–100% | |
| 5 Blue 1 | 000 ⇔ 255 | 0–100% | |
| 6 Color macros 1 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 7 Color temperature 1 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 8 Strobe 1 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255Random strobe, slow to fast | ||
| 9 Red 2 | 000 ⇔ 255 | 0–100% | |
| 10 Green 2 | 000 ⇔ 255 | 0–100% | |
| 11 Blue 2 | 000 ⇔ 255 | 0–100% | |
| 12 Color macros 2 | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 13 Color temperature 2 | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 14 Strobe 2 | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255Random strobe, slow to fast | ||
| 15 Strobe all | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255Random strobe, slow to fast | ||
2-Cell RGBAW (10 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red 1 | 000 ⇔ 255 | 0–100% |
| 2 | Green 1 | 000 ⇔ 255 | 0–100% |
| 3 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 4 | Amber 1 | 000 ⇔ 255 | 0–100% |
| 5 | White 1 | 000 ⇔ 255 | 0–100% |
| 6 | Red 2 | 000 ⇔ 255 | 0–100% |
| 7 | Green 2 | 000 ⇔ 255 | 0–100% |
| 8 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 9 | Amber 2 | 000 ⇔ 255 | 0–100% |
| 10 | White 2 | 000 ⇔ 255 | 0–100% |
2-Cell RGBA (8 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red 1 | 000 ⇔ 255 | 0–100% |
| 2 | Green 1 | 000 ⇔ 255 | 0–100% |
| 3 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 4 | Amber 1 | 000 ⇔ 255 | 0–100% |
| 5 | Red 2 | 000 ⇔ 255 | 0–100% |
| 6 | Green 2 | 000 ⇔ 255 | 0–100% |
| 7 | Blue 2 | 000 ⇔ 255 | 0–100% |
| 8 | Amber 2 | 000 ⇔ 255 | 0–100% |
2-Cell RGB (6 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red 1 | 000 ⇔ 255 | 0–100% |
| 2 | Green 1 | 000 ⇔ 255 | 0–100% |
| 3 | Blue 1 | 000 ⇔ 255 | 0–100% |
| 4 | Red 2 | 000 ⇔ 255 | 0–100% |
| 5 | Green 2 | 000 ⇔ 255 | 0–100% |
| 6 | Blue 2 | 000 ⇔ 255 | 0–100% |
1-Cell Personalities
1-Cell RGBAW FULL (16 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Dimmer | 000 ⇔ 255 | 0–100% |
| 2 | Dimmer fine | 000 ⇔ 255 | 0–100% |
| 3 | Red | 000 ⇔ 255 | 0–100% |
| 4 | Red fine | 000 ⇔ 255 | 0–100% |
| 5 | Green | 000 ⇔ 255 | 0–100% |
| 6 | Green fine | 000 ⇔ 255 | 0–100% |
| 7 | Blue | 000 ⇔ 255 | 0–100% |
| 8 | Blue fine | 000 ⇔ 255 | 0–100% |
| 9 | Amber | 000 ⇔ 255 | 0–100% |
| 10 | Amber fine | 000 ⇔ 255 | 0–100% |
| 11 | White | 000 ⇔ 255 | 0–100% |
| 12 | White fine | 000 ⇔ 255 | 0–100% |
| 13 | Color macros | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 14 | Color temperature | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 15 Strobe | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | ||
| 16 Dimmer speed | 000 ⇔ 009 Preset dimmer speed from display menu010 ⇔ 029 Dimmer speed mode off030 ⇔ 069 Dimmer speed mode 1 (fastest)070 ⇔ 129 Dimmer speed mode 2130 ⇔ 189 Dimmer speed mode 3190 ⇔ 255 Dimmer speed mode 4 (slowest) | ||
1-Cell - RGBAW Basic (13 channels)
| Channel | Function | Value | Percent/Setting |
| 1 | Dimmer | 000 ⇔ 255 | 0–100% |
| 2 | Dimmer fine | 000 ⇔ 255 | 0–100% |
| 3 | Red | 000 ⇔ 255 | 0–100% |
| 4 | Green | 000 ⇔ 255 | 0–100% |
| 5 | Blue | 000 ⇔ 255 | 0–100% |
| 6 | Amber | 000 ⇔ 255 | 0–100% |
| 7 | White | 000 ⇔ 255 | 0–100% |
| 8 | Color macros | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 9 | Color temperature | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 10 | Strobe | 000 ⇔ 009 No function010 ⇔ 099 Strobe, slow to fast100 ⇔ 109 No function110 ⇔ 179 Lightning effect, slow to fast180 ⇔ 189 No function190 ⇔ 255 Random strobe, slow to fast | |
| Channel Function Value Percent/Setting | ||
| 11 Auto programs | 000 ⇔ 040 No function041 ⇔ 050 Auto 1051 ⇔ 060 Auto 2061 ⇔ 070 Auto 3071 ⇔ 080 Auto 4081 ⇔ 090 Auto 5091 ⇔ 100 Auto 6101 ⇔ 110 Auto 7111 ⇔ 120 Auto 8121 ⇔ 130 Auto 9131 ⇔ 140 Auto 10141 ⇔ 150 Program 1151 ⇔ 160 Program 2161 ⇔ 170 Program 3171 ⇔ 180 Program 4181 ⇔ 190 Program 5191 ⇔ 200 Program 6201 ⇔ 210 Program 7211 ⇔ 220 Program 8221 ⇔ 230 Program 9231 ⇔ 240 Program 10 | |
| 12 Auto speed | 000 ⇔ 255 | Auto program speed adjust |
| 13 Auto delay | 000 ⇔ 255 | Auto program delay adjust |
1-Cell RGBAW Fine (10 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red | 000 ⇔ 255 | 0–100% |
| 2 | Red fine | 000 ⇔ 255 | 0–100% |
| 3 | Green | 000 ⇔ 255 | 0–100% |
| 4 | Green fine | 000 ⇔ 255 | 0–100% |
| 5 | Blue | 000 ⇔ 255 | 0–100% |
| 6 | Blue fine | 000 ⇔ 255 | 0–100% |
| 7 | Amber | 000 ⇔ 255 | 0–100% |
| 8 | Amber fine | 000 ⇔ 255 | 0–100% |
| 9 | White | 000 ⇔ 255 | 0–100% |
| 10 | White fine | 000 ⇔ 255 | 0–100% |
1-Cell RGBAW EXT (10 channels)
| Channel | Function | Value | Percent/Setting |
| 1 | Dimmer | 000 ⇔ 255 | 0–100% |
| 2 | Dimmer fine | 000 ⇔ 255 | 0–100% |
| 3 | Red | 000 ⇔ 255 | 0–100% |
| 4 | Green | 000 ⇔ 255 | 0–100% |
| 5 | Blue | 000 ⇔ 255 | 0–100% |
| 6 | Amber | 000 ⇔ 255 | 0–100% |
| 7 | White | 000 ⇔ 255 | 0–100% |
| 8 | Color macros | 000 ⇔ 255 | Refer to the Color Macro Chart section for specific values |
| 9 | Color temperature | 000 ⇔ 255 | Refer to the Color Temperature Chart section for specific values |
| 10 Strobe | 000 ⇔ 009 | No function | |
| 010 ⇔ 099 | Strobe, slow to fast | ||
| 100 ⇔ 109 | No function | ||
| 110 ⇔ 179 | Lightning effect, slow to fast | ||
| 180 ⇔ 189 | No function | ||
| 190 ⇔ 255 | Random strobe, slow to fast |
1-Cell HSIC (9 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer | 000 ⇔ 255 | 0–100% | |
| 2 Hue | 000 ⇔ 255 | 0–100% | |
| 3 Fine hue | 000 ⇔ 255 | 0–100% | |
| 4 Saturation | 000 ⇔ 255 | 0–100% | |
| 5 Strobe | 000 ⇔ 009 | No function | |
| 010 ⇔ 099 | Strobe, slow to fast | ||
| 100 ⇔ 109 | No function | ||
| 110 ⇔ 179 | Lightning effect, slow to fast | ||
| 180 ⇔ 189 | No function | ||
| 190 ⇔ 255 | Random strobe, slow to fast | ||
| 6 Color macros | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 7 Color temperature | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 8 Dimmer speed | 000 ⇔ 009 | Preset dimmer speed from display menu | |
| 010 ⇔ 029 | Dimmer speed mode off | ||
| 030 ⇔ 069 | Dimmer speed mode 1 (fastest) | ||
| 070 ⇔ 129 | Dimmer speed mode 2 | ||
| 130 ⇔ 189 | Dimmer speed mode 3 | ||
| 190 ⇔ 255 | Dimmer speed mode 4 (slowest) | ||
| 9 GN saturation | 000 ⇔ 010 No function | ||
| 011 ⇔ 029 Full minus green | |||
| 030 ⇔ 069 -99% to -1% | |||
| 070 ⇔ 129 No function | |||
| 130 ⇔ 189 1% to 99% | |||
| 190 ⇔ 255 Full plus green | |||
1-Cell RGBA EXT (9 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer | 000 ⇔ 255 | 0–100% | |
| 2 Dimmer fine | 000 ⇔ 255 | 0–100% | |
| 3 Red | 000 ⇔ 255 | 0–100% | |
| 4 Green | 000 ⇔ 255 | 0–100% | |
| 5 Blue | 000 ⇔ 255 | 0–100% | |
| 6 Amber | 000 ⇔ 255 | 0–100% | |
| 7 Color macros | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 8 Color temperature | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 9 Strobe | 000 ⇔ 009 | No function | |
| 010 ⇔ 099 | Strobe, slow to fast | ||
| 100 ⇔ 109 | No function | ||
| 110 ⇔ 179 | Lightning effect, slow to fast | ||
| 180 ⇔ 189 | No function | ||
| 190 ⇔ 255 | Random strobe, slow to fast | ||
1-Cell RGB EXT (8 channels)
| Channel Function Value Percent/Setting | |||
| 1 Dimmer | 000 ⇔ 255 | 0–100% | |
| 2 Dimmer fine | 000 ⇔ 255 | 0–100% | |
| 3 Red | 000 ⇔ 255 | 0–100% | |
| 4 Green | 000 ⇔ 255 | 0–100% | |
| 5 Blue | 000 ⇔ 255 | 0–100% | |
| 6 Color macros | 000 ⇔ 255 | Refer to theColor Macro Chartsection for specific values | |
| 7 Color temperature | 000 ⇔ 255 | Refer to theColor Temperature Chartsection for specific values | |
| 8 Strobe | 000 ⇔ 009 | No function | |
| 010 ⇔ 099 | Strobe, slow to fast | ||
| 100 ⇔ 109 | No function | ||
| 110 ⇔ 179 | Lightning effect, slow to fast | ||
| 180 ⇔ 189 | No function | ||
| 190 ⇔ 255 | Random strobe, slow to fast | ||
1-Cell RGBAW (5 channels)
| Channel Function Value Percent/Setting | |||
| 1 | Red | 000 ⇔ 255 | 0–100% |
| 2 | Green | 000 ⇔ 255 | 0–100% |
| 3 | Blue | 000 ⇔ 255 | 0–100% |
| 4 | Amber | 000 ⇔ 255 | 0–100% |
| 5 | White | 000 ⇔ 255 | 0–100% |
1-Cell RGBA (4 channels)
| Channel | Function | Value | Percent/Setting |
| 1 | Red | 000 ⇔ 255 | 0–100% |
| 2 | Green | 000 ⇔ 255 | 0–100% |
| 3 | Blue | 000 ⇔ 255 | 0–100% |
| 4 | Amber | 000 ⇔ 255 | 0–100% |
1-Cell RGB (3 channels)
| Channel | Function | Value | Percent/Setting |
| 1 | Red | 000 ⇔ 255 | 0–100% |
| 2 | Green | 000 ⇔ 255 | 0–100% |
| 3 | Blue | 000 ⇔ 255 | 0–100% |
Acerca de Esta Guía
RDM (Remote Device Management)
Chauvet World Headquarters
Address: 5200 NW 108th Ave. Voice: (844) 393-7575
Sunrise, FL 33351 Fax: (954) 756-8015
Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com
Fax: (954) 929-5560
Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com
Chauvet Europe Ltd
Address: Unit 1C Email: UKtech@chauvetlighting.eu
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu
NG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110
Chauvet Europe BVBA
Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu
9770 Kruishoutem
Belgium Website: www.chauvetprofessional.eu
Voice: +32 9 388 93 97
Chauvet France
Address: 3, Rue Ampère
91380 Chilly-Mazarin
France Website: www.chauvetprofessional.eu
Voice: +33 1 78 85 33 59
Chauvet Germany
(Entrance by Calle 2)
Zona Industrial Lerma Website: www.chauvetprofessional.mx
Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

UL 1573
CSA C22.2 No. 166
E113093

