USER MANUAL Maverick Storm 1 Spot Chauvet

MAVERICK STORM 1SPOT

Quick Reference Guide

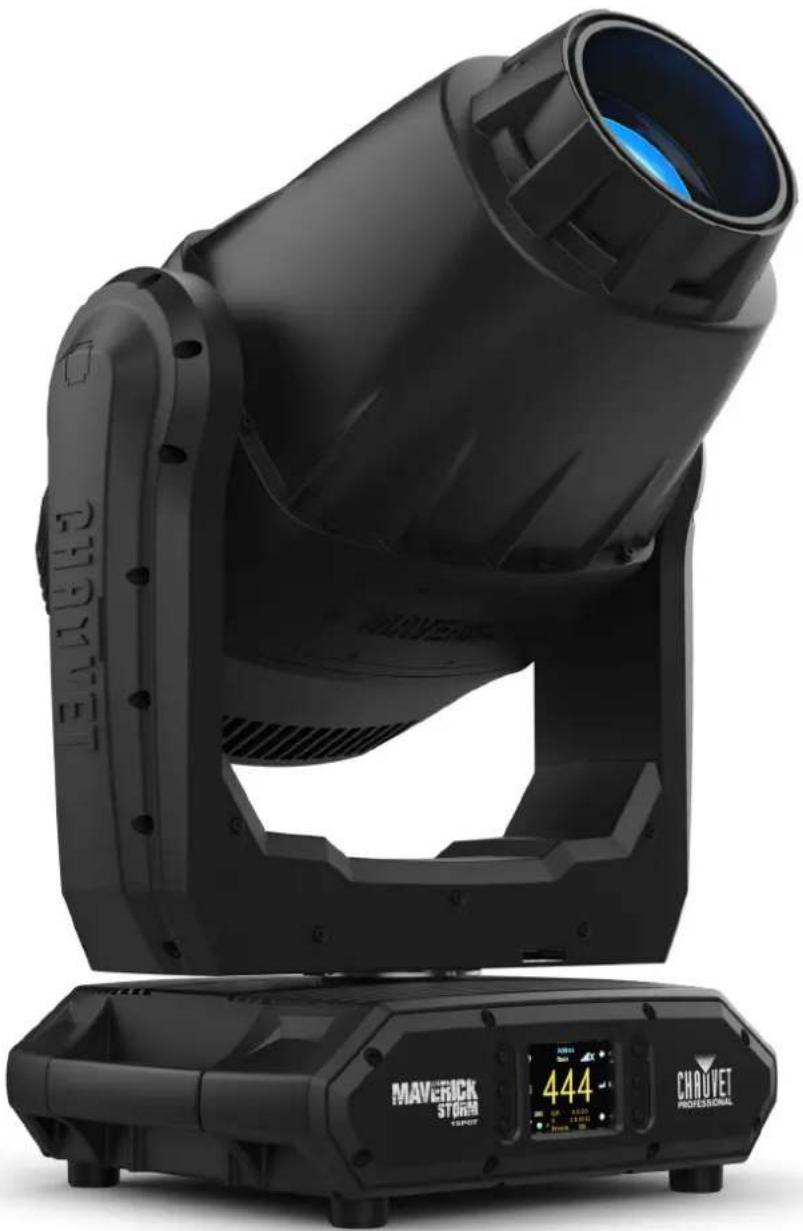

Exterior view of a black MAVERICK STORM radar light with a digital display showing '444' and 'CHROVET PROFESSIONAL' branding (no text-heavy elements)

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

About This Guide

The Maverick Storm 1 Spot Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4^ (-20°C). Do not start the product at lower temperatures.
• The minimum ambient temperature is -22^ (-30°C). Do not operate the product at lower temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Warning for North America, and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Contact

Outside the US, United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Maverick Storm 1 Spot
• Seetronic Powerkon IP65 Power Cord

• 2 Omega Brackets with Mounting Hardware
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow	Green

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link 1 Maverick Storm 1 Spot at 100 V, up to 2 products at 120 V, 3 products at 208 V, or up to 4 products at 230 V or 240 V. Never exceed this number. Power-linking cables can be purchased separately.

Replacing the Fuse

1. Disconnect this product from power.
2. Using a Phillips-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Maverick Storm 1 Spot will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Maverick Storm 1 Spot uses a 5-pin DMX data connection for its DMX personalities: 33Ch and 26Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

Signal Connection

The Maverick Storm 1 Spot can link to controller software using an Ethernet connection. If using other Art-Net™ or sACN-compatible products with the Maverick Storm 1 Spot, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.

Art-Net™ Connection

Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using an Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results.

Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.

sACN Connection

Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Maverick Storm 1 Spot supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least two mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

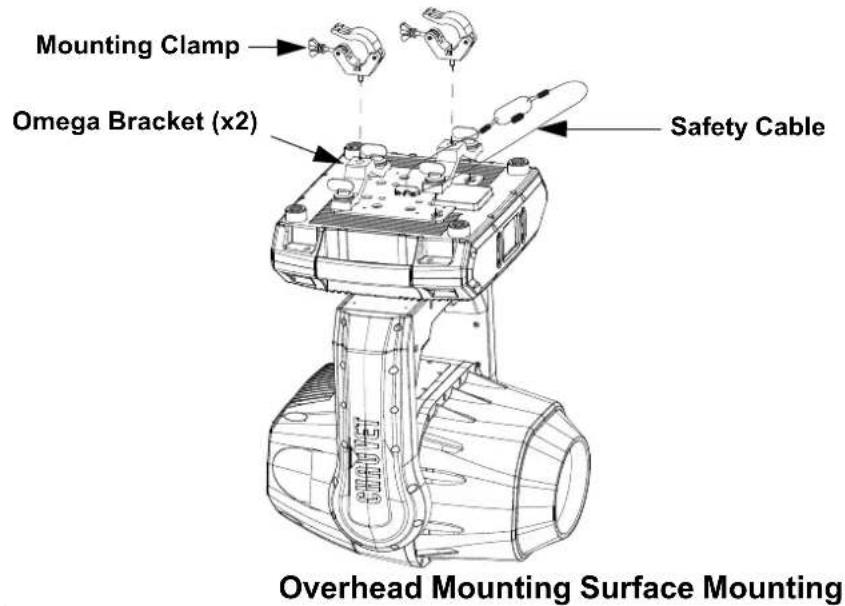

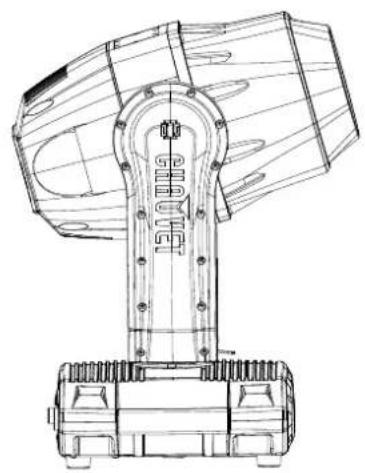

Mounting Diagram

Mounting Clamp Omega Bracket (x2) Safety Cable Overhead Mounting Surface Mounting

Technical line drawing of a mechanical device with no visible text or symbols

Control Panel Description

Button	Name Function
		Navigates upwards through the menu list or increases the numeric value when in a function
		Exits from the current menu or function
		Navigates downwards through the menu list or decreases the numeric value when in a function
		Navigates leftwards through the menu list
		Enables the currently displayed menu or sets the currently selected value into the selected function
		Navigates rightwards through the menu list

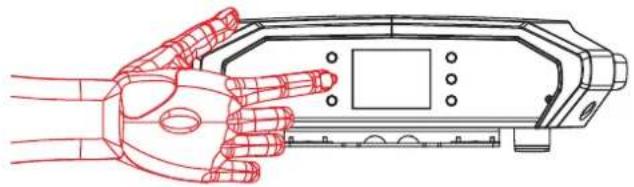

Battery Powered Display

Press and hold until menu screen appears (approx 15 sec.).

Line drawing of a robotic hand holding a device (no text or symbols present)

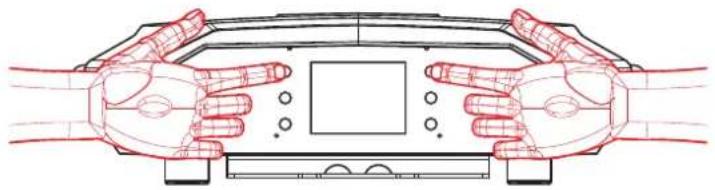

Technician Mode

The technician mode disables the pan and tilt motors, allowing the output of the product to be aimed by hand. To enable technician mode, hold and while the product is powering on. When the product is turned off and back on, the pan and tilt will return to normal function.

Top-down schematic of a device with hands holding a central screen (no text or symbols)

Menu Map

Refer to the Maverick Storm 1 Spot product page on www.chauvetprofessional.com for the latest menu map.

Main Level Programming Levels Description
Address 000-512 Network Setting
Network Setup	IP Mode	Manual	Selection of IP modeDHCP
		Static
	Universe 000	-255 Set the Universe
	Ip ____.	IP setting
	SubMask ____.	Subnet Mask
Personality	DMX 26CH	NO	Choose 26 Channels of DMX
		YES
	DMX 33CH	NO	Choose 33 Channels of DMX
		YES
Settings	Control Mode	DMX	Signal Selection
		WDMX
		ArtNet
		sACN
	Pan Reverse	NO	Reverse the Pan
		YES
	Tilt Reverse	NO	Reverse the Tilt
		YES
	Screen Reverse	NO	Manually or automatically reverse the screenYES
		AUTO
	Pan Angle	540	Change the Pan angle360
		180
	Tilt Angle	270	Change the Tilt angle
		180
		90
	BL. O. P/T Move	NO	Enable/disable XY blackout
		YES
	BL. O. Color Move	NO	Enable/disable color blackout
		YES
	BL. O. Gobo Move	NO	Enable/disable gobo blackout
		YES
	Lock Screen	NO	Lock the buttons and touchscreen
		YES
	Swap XY	NO	Swap the pan and tilt
		YES
	WDMX Reset	NO	Reset the wireless DMX
		YES
	Backlight Timer	30S	Set the backlight to turn off automatically after a chosen time
		1M
		5M
		ON
	Loss of Data	Hold	Loss of data setting
		Close
	Fans	Auto	Change the fan speed mode
		Full
		ECO

Main Level Programming Levels Description
Settings (cont.)	Theatrical Dimming	ON		Enable/Disable theatrical dimming
		OFF
	Dimmer Curve	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
	PWM Option	600Hz		PWM selection
		1200Hz
		2000Hz
		4000Hz
		6000Hz
		15000Hz
	Smart Zoom	OFF		Enable/Disable smart zoom feature
		ON
	Beam Correction	OFF		Enable/Disable the beam correction
		ON
	Preset Select	PRESET A		Recorded preset menu options PRESET B
		PRESET C
	Preset Sync	NO Allows recorded		preset menu options to be transferred to other Maverick Storm 1 Spots in the DMX daisy chain
		YES
	Reset Function	Pan/Tilt	NO YES	Reset individual functions or all functions
		Iris/Prism
		Color/CMY
		Gobo/Gobo Rotate
		Frost
		All
	Factory Settings	NO		Reset product to factory
		YES
Test	Auto Test Auto test the product
	Manual Test	Pan	000-255	Individually test each function/channel
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter
		Virtual Shaking
		Cyan
		Magenta
		Yellow
		CTO
		Color
		Gobo
		Gobo Rotate
		Gobo Index
		Gobo2
		Animation
Main Level	Programming Levels			Description
Test (cont.)	Manual Test (cont.)	Animation Rotate	000-255	Individually test each function/channel
		Focus
		Focus Fine
		Focus Auto
		Zoom
		Zoom Fine
		Prism
		Prism Rotate
		Iris
		Frost
		Frost2
		CMY Macro
		CMY Macro Speed
		Special Function
Information	Fixture Information	Ver V_ Current Version
		Running Mode	____	Current Mode
		DMX Address	____
		Temperature	____ Current Temperature
		Fixture Hours	____ Current active hours
		Ip ____	____ Current IP address
		SubMask	____ Current subnet mask
		MAC ____	____ MAC address
	Fan Information	Base Fan1 Speed	____	View speed setting
		Base Fan2 Speed	____
		head Fan1 Speed	____
		head Fan2 Speed	____
	Error Information	____ Will appear on screen
	Channel Information	Frequency	Hz	Status of individual channel
		Pan	000-255
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
		Dimmer
		Dimmer Fine
		Shutter
		Virtual Shaking
		Cyan
		Magenta
		Yellow
		CTO
		Color
		Gobo
		Gobo Rotate
		Gobo Index
		Gobo2
		Animation
		Animation Rotate
		Focus
Information (cont.)	Channel Information (cont.)	Focus Fine	000–255	Status of individual channel
		Focus Auto
		Zoom
		Zoom Fine
		Prism
		Prism Rotate
		Iris
		Frost
		Frost2
		CMY Macro
		CMY Macro Speed
		Special Function

DMX Values

26CH	33CH Function Value Percent/Setting
1	1	P a n	000 ⇔ 255 0–100%
2	2	Fine Pan	000 ⇔ 255	Fine control (16-bit)
3	3	Tilt	000 ⇔ 255	0–100%
4	4	Fine Tilt	000 ⇔ 255	Fine control (16-bit)
5	5	Pan/Tilt Speed	000 ⇔ 255	Fast to slow
6	6	Dimmer	000 ⇔ 255	0–100%
-	7	Fine Dimmer	000 ⇔ 255	Fine control (16-bit)
7	8	S t r o	000 ⇔ 003 Closed004 ⇔ 007 Open008 ⇔ 076 Strobe, slow to fast077 ⇔ 145 Pulse strobe, slow to fast146 ⇔ 215 Random strobe, slow to fast216 ⇔ 255 Open
8 9 Virtual Strobe			000 ⇔ 001 No function002 ⇔ 128 Shaking strobe, slow to fast129 ⇔ 255 Fading shake, slow to fast
9	10	Cyan	000 ⇔ 255	0–100%
10	11	Magenta	000 ⇔ 255	0–100%
11	12	Yellow	000 ⇔ 255	0–100%
12	13	CTO	000 ⇔ 255	0–100%
13	14	Color Wheel	000 ⇔ 006 Open007 ⇔ 013 Red014 ⇔ 020 Orange021 ⇔ 027 Green028 ⇔ 034 Blue035 ⇔ 041 Magenta042 ⇔ 048 UV049 ⇔ 059 CTO060 ⇔ 187 Split color188 ⇔ 219 Color scroll, fast to slow220 ⇔ 223 Stop224 ⇔ 255 Reverse color scroll, slow to fast
26CH	33CH	Function	Value	Percent/Setting
14 15	Gobo Wheel 1		000 ⇔ 007	Open
			008 ⇔ 015	Gobo 1 (Sail Boats)
			016 ⇔ 023	Gobo 2 (Radial Dot)
			024 ⇔ 031	Gobo 3 (Mower Blade)
			032 ⇔ 039	Gobo 4 (Bolts)
			040 ⇔ 047	Gobo 5 (Shower Glass)
			048 ⇔ 055	Gobo 6 (Ballistic Clouds)
			056 ⇔ 063	Gobo 7 (Four Eyes)
			064 ⇔ 071	Gobo 7 shaking
			072 ⇔ 079	Gobo 6 shaking
			080 ⇔ 087	Gobo 5 shaking
			088 ⇔ 095	Gobo 4 shaking
			096 ⇔ 103	Gobo 3 shaking
			104 ⇔ 111	Gobo 2 shaking
			112 ⇔ 119	Gobo 1 shaking
			120 ⇔ 127	Open
			128 ⇔ 191	Gobo scroll, slow to fast
			192 ⇔ 255	Reverse gobo scroll, slow to fast
15 16	Gobo 1	Rotate	000 ⇔ 063	Rotating gobo index
			064 ⇔ 145	Gobo rotation, fast to slow
			146 ⇔ 149	Stop
			150 ⇔ 231	Reverse gobo rotation, slow to fast
			232 ⇔ 255	Bounce effect, short to long
-	17	Gobo Wheel 1 Indexing	000 ⇔ 255	Fine control (16-bit)
16 18	Gobo Wheel 2		000 ⇔ 005	Open
			006 ⇔ 011	Gobo 1 (Beam)
			012 ⇔ 017	Gobo 2 (Bars)
			018 ⇔ 023	Gobo 3 (Circles)
			024 ⇔ 029	Gobo 4 (Breakup)
			030 ⇔ 035	Gobo 5 (Dots)
			036 ⇔ 041	Gobo 6 (Circuits)
			042 ⇔ 047	Gobo 7 (Triangles)
			048 ⇔ 053	Gobo 8 (Forest)
			054 ⇔ 063	Gobo 9 (Rainbows)
			064 ⇔ 069	Gobo 9 shaking
			070 ⇔ 075	Gobo 8 shaking
			076 ⇔ 081	Gobo 7 shaking
			082 ⇔ 087	Gobo 6 shaking
			088 ⇔ 093	Gobo 5 shaking
			094 ⇔ 099	Gobo 4 shaking
			100 ⇔ 105	Gobo 3 shaking
			106 ⇔ 111	Gobo 2 shaking
			112 ⇔ 117	Gobo 1 shaking
			118 ⇔ 127	Open
			128 ⇔ 191	Gobo scroll, slow to fast
			192 ⇔ 255	Reverse gobo scroll, slow to fast
17	19	Animation Wheel	000 ⇔ 255	Animation effect, 0–100%
18 20	Animation Wheel Rotate		000 ⇔ 124	Animation wheel rotation, fast to slow
			125 ⇔ 130	Stop
			131 ⇔ 255	Reverse animation wheel, slow to fast
19 21-	Focus22	000 ⇔ 255 0–100%Fine Focus	000 ⇔ 255	Fine control (16-bit)
-23	Auto Focus		000 ⇔ 010	No function
			011 ⇔ 030	0–5 m
			031 ⇔ 050	6 m
			051 ⇔ 070	7 m
			071 ⇔ 090	8 m
			091 ⇔ 110	9 m
			111 ⇔ 130	10 m
			131 ⇔ 150	12.5 m
			151 ⇔ 170	15 m
			171 ⇔ 190	17.5 m
			191 ⇔ 210	20–60 m
			211 ⇔ 255	Auto-detect distance
20 24	Zoom	000 ⇔ 255 0–100%
-	25	Fine Zoom	000 ⇔ 255	Fine control (16-bit)
21 26	Prism		000 ⇔ 004	No function
			005 ⇔ 255	Prism effect
22 27	Prism	Rotate	000 ⇔ 127	Rotating prism index
			128 ⇔ 189	Prism rotation, fast to slow
			190 ⇔ 193	Stop
			194 ⇔ 255	Reverse prism rotation, slow to fast
23 28	Iris		000 ⇔ 063	Big to small
			064 ⇔ 127	Auto change, slow to fast
			128 ⇔ 191	Slow expand, fast shrink (slow to fast)
			192 ⇔ 255	Slow shrink, fast expand (slow to fast)
24 29	Frost 1	000 ⇔ 255 0–100%
25 30	Frost 2	000 ⇔ 255 0–100%
-31	CMY Macro		000 ⇔ 009	No function
			010 ⇔ 255	CMY macro
-32	CMY Macro Speed	000 ⇔	255	CMY macro speed, fast to slow
26CH 33CH Function Value Percent/Setting
26 33 Control			000 ⇔ 007	No function
			008 ⇔ 015	XY blackout
			016 ⇔ 023	C blackout
			024 ⇔ 031	G blackout
			032 ⇔ 039	XY/C blackout
			040 ⇔ 047	XY/G blackout
			048 ⇔ 055	XY/C/G blackout
			056 ⇔ 095	No function
			096 ⇔ 103	X reset
			104 ⇔ 111	Y reset
			112 ⇔ 119	Color reset
			120 ⇔ 127	Gobo wheels and rotation reset
			128 ⇔ 135	No function
			136 ⇔ 143	Prism reset
			144 ⇔ 151	No function
			152 ⇔ 159	All reset
			160 ⇔ 167	Iris reset
			168 ⇔ 175	Frost reset
			176 ⇔ 183	No function
			184 ⇔ 191	CMY reset
			192 ⇔ 199	Fan ECO mode
			200 ⇔ 207	Fan full speed
			208 ⇔ 215	Fan auto
			216 ⇔ 220	No function
			221 ⇔ 225	Iris fast mode
			226 ⇔ 230	Iris smooth mode
			231 ⇔ 235	XY swap on
			236 ⇔ 240	XY swap off
			241 ⇔ 245	No function
			246 ⇔ 250	XY smooth mode
			251 ⇔ 255	XY fast mode

Acerca de esta Guía

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic hand holding a device (no text or symbols)

Modo de técnico

Top-down diagram of a robotic hand holding a device panel, with no visible text or symbols

Mapa de Menú

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic hand holding a device (no text or symbols present)

Mode de technicien

Top-down schematic of a device with two hands holding a central panel (no text or symbols)

Tableu de Menu

RDM (Remote Device Management)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a robotic hand interacting with a device (no text or symbols)

Technikermodus

Top-down line drawing of two hands holding a device with buttons and a central screen (no text or symbols)

Menüstruktur

Line drawing of a robotic hand holding a device with a screen and buttons (no text or symbols)

Technicus modus

Top-down diagram of two hands holding a device panel with buttons and display (no text or symbols)

Menumap

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet U.K.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

UL 1573

CSA C22.2 No. 166

E113093

RoHS
