USER MANUAL Rogue R2X Beam Chauvet

Line drawing of a CHAVET telescope with mounted components and control panel (no text or symbols)

About This Guide

The Rogue R2X Beam Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product.
• To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the mounting brackets or the handles to carry this product. Do not carry by the moving head.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

- Rogue R2X Beam

• 2 Omega brackets and mounting hardware

- Neutrik® powerCON® power cord

- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection Wire (U S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing The Fuse

1. Disconnect this product from power
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

Lamp Replacement

1. Turn the fixture off and disconnect it from power.
2. Wait at least 15 minutes for the lamp to cool down.

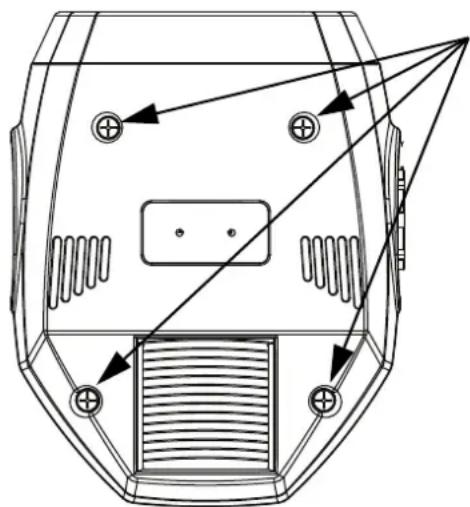

3. Remove both head covers by removing 8 Phillips-head 14 -turn screws.
4. Orient the rear of the product so that the fan is facing downward.
5. Remove the 2 wires connected to the lamp by the spade terminals.
6. Using the lamp base, push the lamp left against the spring clips located on the left, then roll the lamp out the top.
7. Reverse the steps above to install the new lamp.

Technical line drawing of a vehicle front panel with mounting holes and ventilation slots (no text or symbols)

1/4-turn Phillips-head screws

Please refer to the User Manual for more detailed instructions.

DMX Linking

The Rogue R2X Beam will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Rogue R2X Beam uses a 3- or 5-pin DMX data connection for its 2 DMX personalities. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Rogue R2X Beam supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

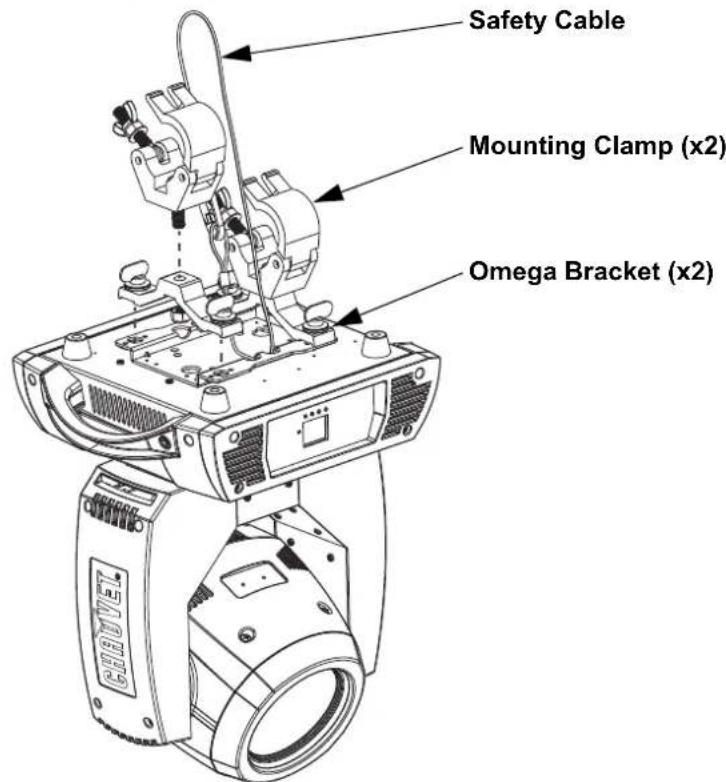

Product Mounting Diagram

Safety Cable Mounting Clamp (x2) Omega Bracket (x2)

Technical line drawing of a mechanical optical instrument with no visible text or symbols

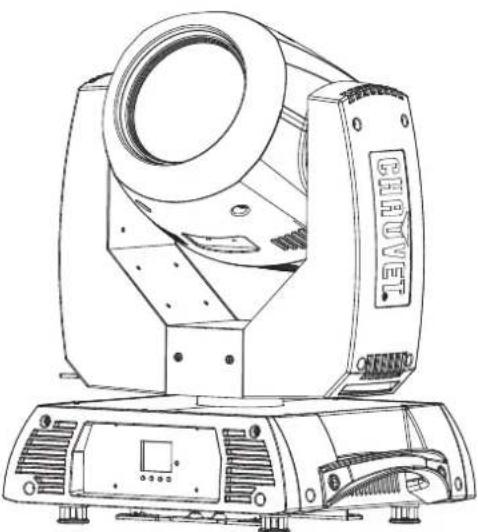

Overhead Mounting Floor Mounting
Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Main Level Programming Levels Description
Address 00	1-512 Sets the DMX starting address
Running Mode	DMX	19CH		Selects the DMX mode
		16CH
	Auto Test Runs the product's test sequence
	Manual Test	Pan	000-255	Allows manual control of all settings from the control panel
		Pan Fine
		Tilt
		Tilt Fine
		P/T Speed
Running Mode	Manual Test	Dimmer	000-255	Allows manual control of all settings from the control panel
		Dimmer Fine
		Shutter
		Color
		Gobo
		Prism1
		Prism1 Rotate
		Prism2
		Prism2 Rotate
		Focus
		Frost
		P/T Macro
		P/T Ma. Speed
		Special Function
Setup	Pan Reverse	NO Normal pan operation
		YES Reverse pan operation
	Tilt Reverse	NO Normal tilt operation
		YES Reverse tilt operation
	Screen Reverse	NO Normal control screen view
		YES Rotates control screen view 180°
	Pan Angle	540 Selects the 540° pan angle range
		360 Selects the 360° pan angle range
		180 Selects the 180° pan angle range
	Tilt Angle	270 Selects the 270° tilt angle range
		180 Selects the 180° tilt angle range
		90 Selects the 90° tilt angle range
	BL.O.P/T Move	NO		Enables/disables blackout on pan/tilt move
		YES
	BL.O.Color Move	NO		Enables/disables blackout on color wheel move
		YES
	BL.O.Gobo Move	NO		Enables/disables blackout on gobo wheel move
		YES
	Lamp Settings	On/Off	ON	Turns lamp on/off
			OFF
		State/Power on	ON	Defines the status of the lamp when powering up product
			OFF
	Lamp Settings	Off Via Dmx	NO	Turns off the unit via DMX controller
			YES
		On If Dmx on	NO	Turns lamp on when DMX signal is detected
			YES
		Off If Dmx off	NO	Turns lamp off when DMX signal is lost
			YES
		Ignition Delay 000-255		Selects duration of delay between product power on and lamp power on
		Low Power Delay 000-255		Sets duration of delay when shutter is closed and lamp enters low power mode
		Reset Lamp Time	NO Leaves lamp time unchanged
			YES Resets lamp timer to 0

Main Level	Programming Levels Description
Setup	Maintenance Timer	Interval Time 010-250		Defines amount of hours between maintenance
		Remain Time	RESET Resets maintenance cycle
			000-250 Shows remaining time on lamp
	Reset Function	Pan/Tilt	NO	Resets pan/tilt functions to the home position
			YES
		Shutter/Prism	NO	Resets all shutter and prism functions to the home position
			YES
		Color	NO	Resets all color functions to the home position
			YES
		Gobo	NO	Resets all gobo functions to the home position
			YES
		Frost/Focus	NO	Resets the focus and frost functions to the home position
			YES
		All	NO	Resets all functions to the home position
			YES
	Factory Setting	NO		Reverts the product back to the original factory settings
		YES
Sys Info	Ver: V_ Displays the software version
	Running Mode: ____. Displays the current running mode
	DMX Address: ____. Displays the current DMX address
	Temperature: ____.			Displays the product's temperature in Celsius
	Lamp On Time: ____.			Displays the amount of time the lamp has been on (provided the counter has been reset upon installation of new lamp)
	Remaining Time: ____.			Shows amount of time remaining in maintenance cycle
	UID: ____. Displays the UID

DMX Values

19CH

Channel Function		Value Percent/Setting
1	Pan	000 ⇔ 255	0–100%
2	Fine Pan	000 ⇔ 255	Fine control (16-bit)
3	Tilt	000 ⇔ 255	0–100%
4	Fine Tilt	000 ⇔ 255	Fine control (16-bit)
5	Pan/Tilt Speed	000 ⇔ 255	0–100%
6	Dimmer	000 ⇔ 255	0–100%
7	Fine Dimmer	000 ⇔ 255	Fine control (16-bit)
8	Shutter	000 ⇔ 007	Closed
		008 ⇔ 015	Open
		016 ⇔ 131	Synchronizing strobe with increasing speed
		132 ⇔ 167	Fast close, slow open from slow to fast
		168 ⇔ 203	Slow close, fast open from slow to fast
		204 ⇔ 239	Pulse strobe with increasing speed
		240 ⇔ 250	Random strobe with increasing speed
		251 ⇔ 255	Open

Channel Function Value Percent/Setting
9 Color Wheel	000 ⇔ 004 Open
	005 ⇔ 008 Color 1
	009 ⇔ 012 Color 2
	013 ⇔ 016 Color 3
	017 ⇔ 020 Color 4
	021 ⇔ 024 Color 5
	025 ⇔ 028 Color 6
	029 ⇔ 032 Color 7
	033 ⇔ 036 Color 8
	037 ⇔ 040 Color 9
	041 ⇔ 044 Color 10
	045 ⇔ 048 Color 11
	049 ⇔ 052 Color 12
	053 ⇔ 056 Color 13
	057 ⇔ 060 Color 14
	061 ⇔ 127 Split color
	128 ⇔ 189 Rotation, fast to slow
	190 ⇔ 255 Reverse rotation, slow to fast
10 Gobo Wheel	000 ⇔ 003 Open
	004 ⇔ 006 Gobo 1
	007 ⇔ 009 Gobo 2
	010 ⇔ 012 Gobo 3
	013 ⇔ 015 Gobo 4
	016 ⇔ 018 Gobo 5
	019 ⇔ 021 Gobo 6
	022 ⇔ 024 Gobo 7
	025 ⇔ 027 Gobo 8
	028 ⇔ 030 Gobo 9
	031 ⇔ 033 Gobo 10
	034 ⇔ 036 Gobo 11
	037 ⇔ 039 Gobo 12
	040 ⇔ 042 Gobo 13
	043 ⇔ 045 Gobo 14
	046 ⇔ 048 Gobo 15
	049 ⇔ 051 Gobo 16
	052 ⇔ 055 Gobo 17
	056 ⇔ 059 Open
	060 ⇔ 063 Gobo 1 shake, from slow to fast
	064 ⇔ 067 Gobo 2 shake, from slow to fast
	068 ⇔ 071 Gobo 3 shake, from slow to fast
	072 ⇔ 075 Gobo 4 shake, from slow to fast
	076 ⇔ 079 Gobo 5 shake, from slow to fast
	080 ⇔ 083 Gobo 6 shake, from slow to fast
	084 ⇔ 087 Gobo 7 shake, from slow to fast
	088 ⇔ 091 Gobo 8 shake, from slow to fast
	092 ⇔ 095 Gobo 9 shake, from slow to fast
	096 ⇔ 099 Gobo 10 shake, from slow to fast
10 Gobo Wheel	100 ⇔ 103 Gobo 11 shake, from slow to fast104 ⇔ 107 Gobo 12 shake, from slow to fast108 ⇔ 111 Gobo 13 shake, from slow to fast112 ⇔ 115 Gobo 14 shake, from slow to fast116 ⇔ 119 Gobo 15 shake, from slow to fast120 ⇔ 123 Gobo 16 shake, from slow to fast124 ⇔ 127 Gobo 17 shake, from slow to fast128 ⇔ 189 Rotation, fast to slow190 ⇔ 193 Stop194 ⇔ 255 Reverse rotation, slow to fast
11 Prism 1	000 ⇔ 004 No function005 ⇔ 255 5-facet prism effect
12 Prism 1 Rotation	000 ⇔ 127 Prism indexing128 ⇔ 189 Clockwise rotation, fast to slow190 ⇔ 193 Stop194 ⇔ 255 Counter-clockwise rotation, slow to fast
13 Prism 2	000 ⇔ 004 No function005 ⇔ 255 8-facet prism effect
14 Prism 2 Rotation	000 ⇔ 127 Prism indexing128 ⇔ 189 Clockwise rotation, fast to slow190 ⇔ 193 Stop194 ⇔ 255 Counter-clockwise rotation, slow to fast
15 Focus 000 ⇔ 255 0–100%
16 Frost 000 ⇔ 255 0–100%
17 Auto Program	000 ⇔ 007 No function008 ⇔ 015 Auto program 1016 ⇔ 023 Auto program 2024 ⇔ 031 Auto program 3032 ⇔ 039 Auto program 4040 ⇔ 047 Auto program 5048 ⇔ 055 Auto program 6056 ⇔ 063 Auto program 7064 ⇔ 071 Auto program 8072 ⇔ 079 Auto program 9080 ⇔ 087 Auto program 10088 ⇔ 095 Auto program 11096 ⇔ 103 Auto program 12104 ⇔ 111 Auto program 13112 ⇔ 119 Auto program 14120 ⇔ 127 Auto program 15128 ⇔ 135 Auto program 16136 ⇔ 143 Auto program 17144 ⇔ 151 Auto program 18152 ⇔ 159 Auto program 19160 ⇔ 167 Auto program 20168 ⇔ 175 Auto program 21

Channel Function Value Percent/Setting
17 Auto Program	176 ⇔ 183 Auto program 22184 ⇔ 191 Auto program 23192 ⇔ 199 Auto program 24200 ⇔ 207 Auto program 25208 ⇔ 215 Auto program 26216 ⇔ 223 Auto program 27224 ⇔ 231 Auto program 28232 ⇔ 239 Auto program 29240 ⇔ 247 Auto program 30248 ⇔ 255 Auto program 31
18 Auto Speed 000 ⇔ 255 Fast to slow
19 Control	000 ⇔ 069 No function070 ⇔ 079 Enable blackout during pan/tilt080 ⇔ 089 Disable blackout during pan/tilt090 ⇔ 099 Enable blackout while color wheel is moving100 ⇔ 109 Disable blackout while color wheel is moving110 ⇔ 119 Enable blackout while gobo wheel is moving120 ⇔ 129 Disable blackout while gobo wheel is moving130 ⇔ 139 Lamp on140 ⇔ 149 Pan/Tilt reset150 ⇔ 159 Color Reset160 ⇔ 169 Gobo reset170 ⇔ 179 Shutter/Prism reset180 ⇔ 189 No function190 ⇔ 199 Frost/Focus reset200 ⇔ 209 All reset210 ⇔ 219 Blackout enabled220 ⇔ 229 Blackout disabled230 ⇔ 239 Lamp off240 ⇔ 255 No function

16CH

Channel Function Value Percent/Setting
1 Pan	000 ⇔ 255 0–100%
2 Fine	Pan 000 ⇔ 255 Fine control (16-bit)
3 Tilt	000 ⇔ 255 0–100%
4 Fine	Tilt 000 ⇔ 255 Fine control (16-bit)
5 Pan/Tilt Speed	000 ⇔ 255 0–100%
6 Dimmer	000 ⇔ 255 0–100%
7 Shutter		000 ⇔ 007 Closed008 ⇔ 015 Open016 ⇔ 131 Synchronizing strobe with increasing speed132 ⇔ 167 Fast close, slow open from slow to fast168 ⇔ 203 Slow close, fast open from slow to fast204 ⇔ 239 Pulse strobe with increasing speed240 ⇔ 250 Random strobe with increasing speed251 ⇔ 255 Open

Channel Function Value Percent/Setting
8 Color Wheel	000 ⇔ 004 Open005 ⇔ 008 Color 1009 ⇔ 012 Color 2013 ⇔ 016 Color 3017 ⇔ 020 Color 4021 ⇔ 024 Color 5025 ⇔ 028 Color 6029 ⇔ 032 Color 7033 ⇔ 036 Color 8037 ⇔ 040 Color 9041 ⇔ 044 Color 10045 ⇔ 048 Color 11049 ⇔ 052 Color 12053 ⇔ 056 Color 13057 ⇔ 060 Color 14061 ⇔ 127 Split color128 ⇔ 189 Rotation, fast to slow190 ⇔ 255 Reverse rotation, slow to fast
9 Gobo Wheel	000 ⇔ 003 Open004 ⇔ 006 Gobo 1007 ⇔ 009 Gobo 2010 ⇔ 012 Gobo 3013 ⇔ 015 Gobo 4016 ⇔ 018 Gobo 5019 ⇔ 021 Gobo 6022 ⇔ 024 Gobo 7025 ⇔ 027 Gobo 8028 ⇔ 030 Gobo 9031 ⇔ 033 Gobo 10034 ⇔ 036 Gobo 11037 ⇔ 039 Gobo 12040 ⇔ 042 Gobo 13043 ⇔ 045 Gobo 14046 ⇔ 048 Gobo 15049 ⇔ 051 Gobo 16052 ⇔ 055 Gobo 17056 ⇔ 059 Open060 ⇔ 063 Gobo 1 shake, from slow to fast064 ⇔ 067 Gobo 2 shake, from slow to fast068 ⇔ 071 Gobo 3 shake, from slow to fast072 ⇔ 075 Gobo 4 shake, from slow to fast076 ⇔ 079 Gobo 5 shake, from slow to fast080 ⇔ 083 Gobo 6 shake, from slow to fast084 ⇔ 087 Gobo 7 shake, from slow to fast088 ⇔ 091 Gobo 8 shake, from slow to fast092 ⇔ 095 Gobo 9 shake, from slow to fast
Channel	Function Value Percent/Setting
9 Gobo Wheel		096 ⇔ 099 Gobo 10 shake, from slow to fast100 ⇔ 103 Gobo 11 shake, from slow to fast104 ⇔ 107 Gobo 12 shake, from slow to fast108 ⇔ 111 Gobo 13 shake, from slow to fast112 ⇔ 115 Gobo 14 shake, from slow to fast116 ⇔ 119 Gobo 15 shake, from slow to fast120 ⇔ 123 Gobo 16 shake, from slow to fast124 ⇔ 127 Gobo 17 shake, from slow to fast128 ⇔ 189 Rotation, fast to slow190 ⇔ 193 Stop194 ⇔ 255 Reverse rotation, slow to fast
10 Prism 1		000 ⇔ 004 No function005 ⇔ 255 5-facet prism effect
11 Prism 1 Rotation		000 ⇔ 127 Prism indexing128 ⇔ 189 Clockwise rotation, slow to fast190 ⇔ 193 Stop194 ⇔ 255 Counter-clockwise rotation, slow to fast
12 Prism 2		000 ⇔ 004 No function005 ⇔ 255 8-facet prism effect
13 Prism 2 Rotation		000 ⇔ 127 Prism indexing128 ⇔ 189 Clockwise rotation, slow to fast190 ⇔ 193 Stop194 ⇔ 255 Counter-clockwise rotation, slow to fast
14 Focus 000 ⇔ 255 0–100%
15 Frost 000 ⇔ 255 0–100%
16 Control		000 ⇔ 069 No function070 ⇔ 079 Enable blackout during pan/tilt080 ⇔ 089 Disable blackout during pan/tilt090 ⇔ 099 Enable blackout while color wheel is moving100 ⇔ 109 Disable blackout while color wheel is moving110 ⇔ 119 Enable blackout while gobo wheel is moving120 ⇔ 129 Disable blackout while gobo wheel is moving130 ⇔ 139 Lamp on140 ⇔ 149 Pan/Tilt reset150 ⇔ 159 Color Reset160 ⇔ 169 Gobo reset170 ⇔ 179 Shutter/Prism reset180 ⇔ 189 No function190 ⇔ 199 Frost/Focus reset200 ⇔ 209 All reset210 ⇔ 219 Blackout enabled220 ⇔ 229 Blackout disabled230 ⇔ 239 Lamp off240 ⇔ 255 No function

Acerca de Esta Guía

Technical line drawing of a vehicle front panel with mounting holes and ventilation slots (no text or symbols)

Technical line drawing of a mechanical optical instrument with no visible text or symbols

Technical line drawing of a large industrial optical instrument with no visible text or symbols

RDM (Remote Device Management)

Technical line drawing of a vehicle front panel with mounting holes and ventilation slots (no text or symbols)

Technical line drawing of a mechanical optical instrument with no visible text or symbols

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère Email: [e-mail]

91380 Chilly-Mazarin

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

Address: Bruno-Bürgel-Str. 11 Email: [e-mail]

28759 Bremen

Germany Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Mexico

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

UL 1573

® CSA C22.2 No. 166

US E113093

RoHS
