About This Guide

The Ovation F-55WW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product's housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Visit Contact Us at the end of this QRG for contact information.

What is Included

• Ovation F-55WW
  • G e l f r a m e
• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow		Green

Replacing The Fuse

1. Disconnect this product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

DMX Linking

The Ovation F-55WW will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation F-55WW uses a 5-pin DMX for its DMX personalities: 1Ch, 2Ch, and 5Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation F-55WW uses the DMX data connection for its Master/Slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation F-55WW supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

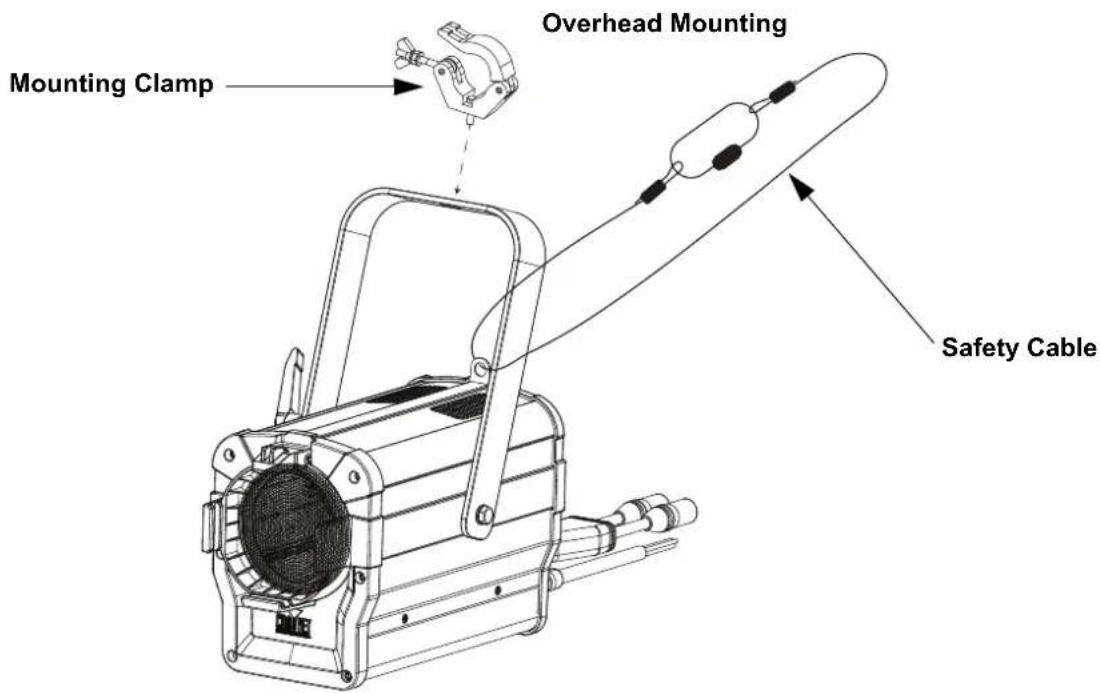

Product Mounting Diagram

Mounting Clamp Overhead Mounting Safety Cable

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Main Level Programming Levels Description
DMX Address Address 001-512			Selects starting address (*highest channel restricted to personality chosen)
DMX Channel	1Ch 1-channel: dimmer
	2Ch 2-channel: dimmer, strobe
	5Ch		5-channel: dimmer, strobe, auto programs, auto speed, control
Static	Dimmer	000-255	Controls intensity
	Strobe Controls strobe rate
Master/Slave	Master Master mode
	Slave Slave mode
Dimmer Curve	SCurve		Sets the dimmer curve
	Linear
	Square
	Inverse Square
Dimmer Mode	Off Linear dimmer
	Dimmer 1 Fast dimmer curve
	Dimmer 2 Medium dimmer curve
	Dimmer 3 Slow dimmer curve
Back Light	10S		Turns off display backlight after 10 seconds of inactivity
	30S		Turns off display backlight after 30 seconds of inactivity
	2Min		Turns off display backlight after 2 minutes of inactivity
	Always On Display backlight always on
LED Frequency	600Hz		Selects the PWM output frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Information	Fixture Hours	____H	Shows total hours the product has been powered on
	LED Hours	____H	Shows total hours the LED has been powered on
	Version	V__	Shows installed software version
	Temperature	__	Shows current product temperature
	UID	--------	Shows product UID
Factory Setting	No		Reset to factory defaults
	Yes

DMX Values

5 Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0-100%
2	S t r	000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast
3 Auto Programs		000 ⇔ 010 No function011 ⇔ 070 Auto Program 1071 ⇔ 130 Auto Program 2131 ⇔ 190 Auto Program 3191 ⇔ 255 Auto Program 4
4 Auto Speed 000 ⇔ 255 0-100%
5	Control(hold for 3 seconds)	000 ⇔ 007 No function008 ⇔ 015 Dimmer reset016 ⇔ 023 S-curve dimmer024 ⇔ 031 Linear dimmer032 ⇔ 039 Square dimmer curve040 ⇔ 047 Inverse square dimmer curve048 ⇔ 055 Dimmer speed mode OFF056 ⇔ 063 Dimmer speed 1 (fastest)064 ⇔ 071 Dimmer speed 2072 ⇔ 079 Dimmer speed 3 (slowest)080 ⇔ 255 Reserved for future use

2 Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0-100%
2	S t r	000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast

1 Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0-100%

Acerca de Esta Guía

Channel	Function	Value	Percent/Setting
1	Gradateur	000 ⇔ 255	0-100%

RDM (Remote Device Management)

Channel Function Value Percent/Setting
1	Dimmer	000 ⇔ 255	0-100%
