USER MANUAL WELL Panel Chauvet

WIRELESS EVENT LED LUMINAIRE

Quick Reference Guide

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

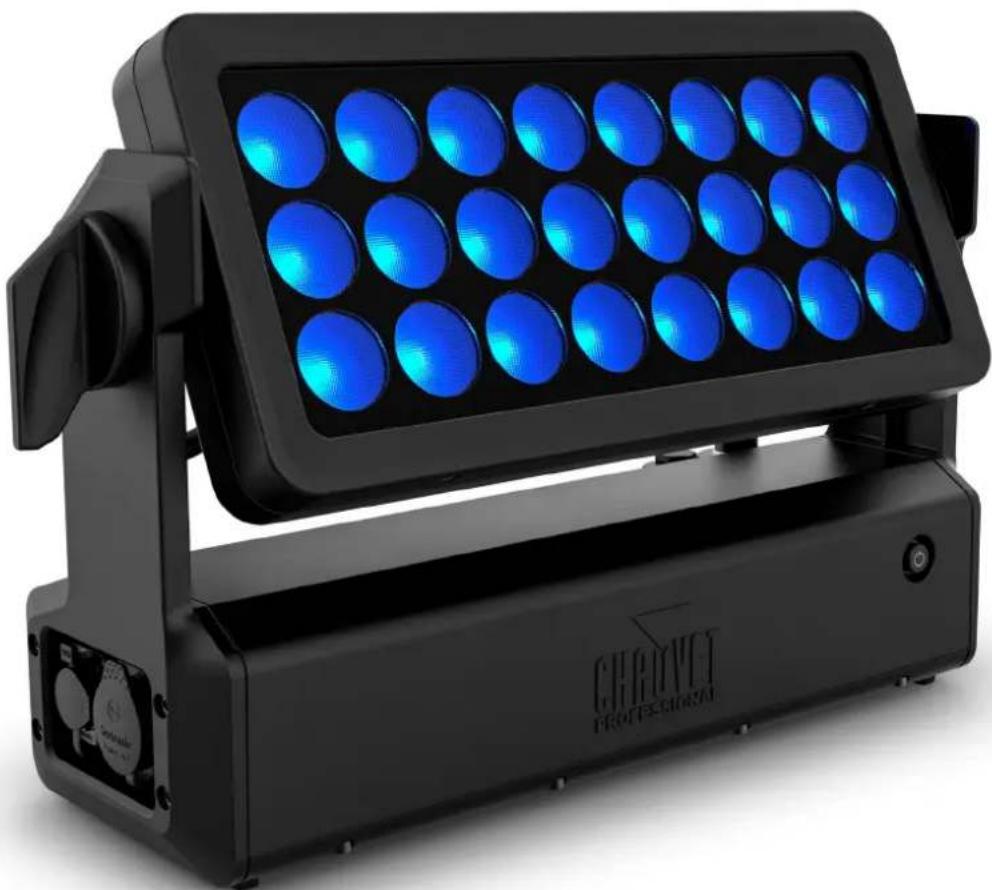

Black industrial lighting fixture with blue circular light fixtures and a 'CHAVET PROFESIONARY' branding (no readable text beyond branding)

Model ID: WELLPANEL

About This Guide

The WELL Panel Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT submerge this product (IP65). Regular outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum startup temperature is -4^ (-20°C). Do not start the product at lower temperatures.
  • The minimum ambient temperature is -22^ ( -30^ ). Do not operate the product at lower temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF Exposure Warning for North America and Australia

Warning! This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico contact your distributor to request support or return a product. Visit www.chauvetprofessional.com for contact information.

What is Included

• WELL Panel

• Seetronic Powerkon IP65 power cord
  • Color blending filter lens

• Omega bracket with mounting hardware

• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

It is possible to link up to 9 WELL Panel products at 120 VAC, 17 products at 208 VAC, or 18 products at 230 VAC. Never exceed this number. Power-linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow	Green/Yellow	Green

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Battery Charge Notes

This product is equipped with a built-in rechargeable lithium ion battery.

• Avoid depleting the battery below 10% .
• For best results, charge the battery in a temperature between 32^ (0 °C), and 95^ (35 °C).
• When charging the battery, keep the product at least 1 m from any open flame or hot plate.
• If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.
• While charging, the device may heat up. This is normal and should not affect the device's lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

- Always charge the battery with the product in an upright position.

- Do not charge the battery for more than 24 hours.

• This product must be charged under supervision only. NEVER leave it unattended or unmonitored while charging.

Storage Notes

• Store charged product(s) in a dry environment, away from direct sunlight.
• Charge or discharge the battery to approximately 50% of capacity before storage.
• Lithium-Ion batteries continue to slowly discharge (self-discharge) when not in use or while in storage. Routinely check the battery's charge status.
• Store the battery at temperatures between 41 °F and 68 °F (5 °C and 20 °C).
  • Always store the product in an upright position ( ≤ 10^ tilt).

Battery Run Time

Battery Run Time	Recharge Time
3, 5, 8, or 12 hours	4 hours

DMX Linking

The WELL Panel will work with a DMX controller using a 5-pin DMX data connection or a wireless DMX connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The WELL Panel uses a wireless or 5-pin DMX data connection for its DMX personalities: 4Ch, 8Ch, 12Ch, 13Ch, and 21Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The WELL Panel uses the DMX data connection for its Master/Slave mode. See the User Manual for information about connect and configure the product for master/slave operation.

Wireless Operation

In optimal conditions, the WELL Panel can operate up to 300 m (900 ft) away from the W-DMX transmitter. The W-DMX receiver in the WELL Panel must be paired with the W-DMX transmitter for wireless operation.

Initial Setup

1. Turn the W-DMX transmitter on.
2. Connect the W-DMX transmitter to a DMX controller.
3. Place the WELL Panel within 300 m from the W-DMX transmitter.
4. Turn the WELL Panel on.

Configuration

1. From the WELL Panel's control panel, go to DMX Address.
2. Select the start address, as with any other DMX compatible product.
3. Go to Wireless Setting >Receive On/Off.
4. Select On. (The Signal Strength Indicator will show a ? in front of the bars)
5. Press the reset button on the W-DMX transmitter.

(The Signal Strength Indicator on the WELL Panel will show a 5 in front of the bars for 3 seconds while a connection is established.)

Product Pairing

If the WELL Panel has already been paired with the W-DMX transmitter, the Signal Strength Indicator in the middle of the OLED screen will show the strength of the signal. In this case, the WELL Panel is ready to work in Wireless mode.

Pairing theWELL Panel and a new W-DMX transmitter

1. From the WELL Panel's control panel, go to Wireless Setting >Receive Reset.
2. Select Yes. The Signal Strength Indicator on the WELL Panel will show a ? in front of the bars.
3. From the W-DMX transmitter, press (the Signal Indicator on the transmitter will flash).
4. Once the transmitter has found the WELL Panel, the Signal indicator on the W-DMX transmitter will illuminate solid.
5. The Signal Strength Indicator in the middle of the OLED screen on the WELL Panel will show the strength of the signal.

W-DMX operation can be interrupted or inhibited by liquid masses between the transmitter and receiver such as water, snow, or people. For best results, keep the area between the transmitter and receiver clear of any liquid mass.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. The WELL Panel supports RDM protocol that allows feedback to monitor temperature and changes to DMX Address, DMX Channel, Dimmer Mode, and LED Frequency menu options. Download the User Manual from www.chauvetprofessional.com for more details.

Color Blending Filter Lens

The Color Blending Filter Lens produces a very even light that is soft at the edges. Attach the Color Blending Filter Lens easily with the built-in magnets.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products.

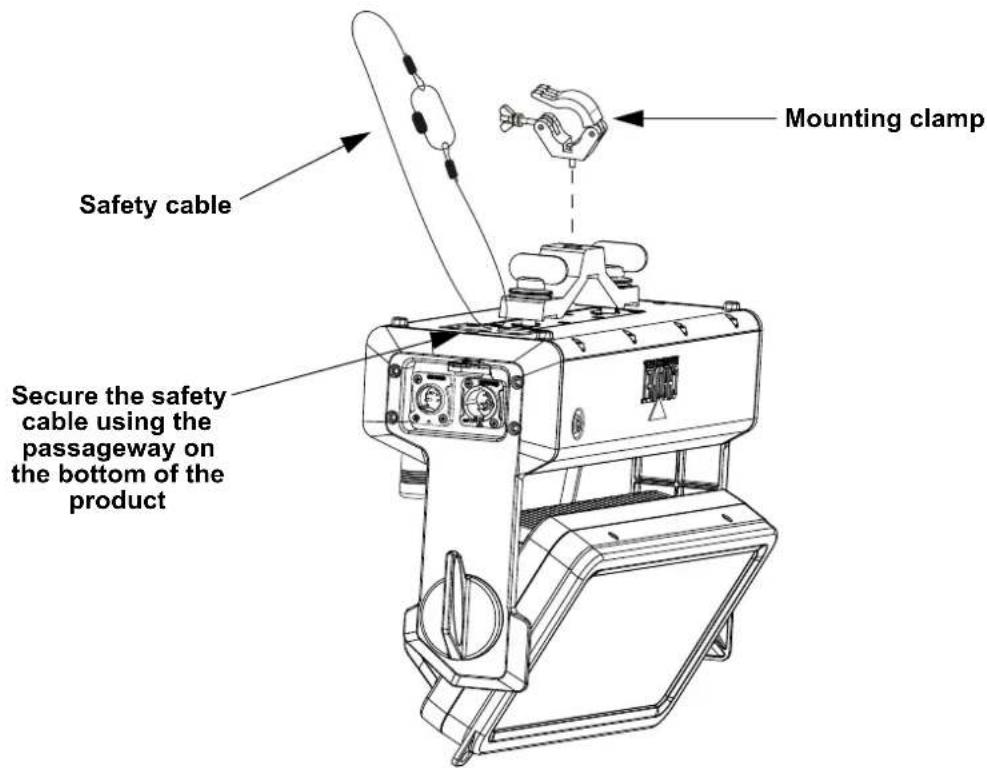

Mounting Diagram

Mounting clamp Safety cable Secure the safety cable using the passageway on the bottom of the product

Color Temperature Chart

DMX Value Display Readout
000 ⇔ 005 --
006 ⇔ 025 2800K
026 ⇔ 050 3200K
051 ⇔ 075 3500K
076 ⇔ 100 4000K
101 ⇔ 125 4500K
126 ⇔ 150 5000K
151 ⇔ 175 5600K
176 ⇔ 200 6000K
201 ⇔ 225 6500K
226 ⇔ 255 --

The color temperatures above are simulated renditions of the color output produced as compared to a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function

Menu Map

Refer to the WELL Panel product page at www.chauvetprofessional.com for the latest menu map.

Main Level Programming Levels Description
DMX Address 001-509				Selects DMX address (highest channel restricted to personality chosen)
DMX Channel	4 Ch 4-channel: RGBW
	8 Ch 8-channel: 16-bit dimmer, RGBW, Strobe, Red shift
	12 Ch			12-channel: 3-zone RGBW
	13 Ch			13-channel: 16-bit dimmer, RGBW, Strobe, Color macro, Color temperature, Auto program, Auto speed, Dimmer speed, Red shift
	21 Ch			21-channel: 16-bit dimmer, 3-zone RGBW, Strobe, Color macro, Color temperature, Auto program, Auto speed, Dimmer speed, Red shift
Static	Fixed Color	R	Dimmer 000-255	Red
		G Green
		B		Blue
		W		White
		GB		Green and blue
		RB		Red and blue
		RG		Red and green
		RGB		Red, green, and blue
		RW		Red and white
		GW		Green and white
		BW		Blue and white
		RGW		Red, green, and white
		RBW		Red, blue, and white
		GBW		Green, blue, and white
		RGBW		Red, green, blue, and white
	Color Temperature	2800K	Dimmer 000-255	Preset white color temperatures. Emulates a tungsten lamp at the specified color temperature.
		3200K
		3500K
		4000K
		4500K
		5000K
		5600K
		6000K
		6500K
	Manual Color Mixer	Red	000-255	Combine red, green, blue, and white to make a custom color temperature
		Green
		Blue
		White
Auto Show	Auto 1-9	001-100		Selects automatic programs and program speed
Red Shift	On			Turns on or off Red Shift (amber LEDs imitate lamp when dimming)
	Off
Master/Slave	Master			DMX mode (Master)
	Slave			Slave mode

Main Level	Programming Levels			Description
Dimmer Mode	Off Linear dimmer
	Dimmer 1-3			Dimming curves Dimmer 1 (fast) to Dimmer 3 (slow)
Dimmer Curve	Linear Liner dimmer
	Square Square curve dimmer
	I Squa Reverse square curve dimmer
	Scurve S curve dimmer
White Balance	Off Uses factory default white setting
	Manual	Red	125-255	Sets red LED maximum value
		Green Sets green LED maximum value
		Blue Sets blue LED maximum value
		White Sets white LED maximum value
LED Frequency	600Hz			Sets the PWM frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Wireless Setting	Receive On/Off		On	Enables/disables wireless DMX
			Off
	Receive Reset		No	Resets wireless receiver
			Yes
Line Voltage Power Loss Mode	Stay In State			If line power is lost, the fixture will continue to function as programmed under battery power (default)
	All At Full			After 5 seconds of line power loss, all LEDs will go to full power (returns to normal operation when line power is restored)
	Dim Out			After 5 seconds of line power loss, the LEDs will dim in a 10 second fade to black (returns to normal operation when line power is restored)
Run Time	Off			Maximum intensity for all LEDs
	3 Hours			Reduced intensity, limiting battery run time to 3 hours
	5 Hours			Reduced intensity, limiting battery run time to 5 hours
	8 Hours			Reduced intensity, limiting battery run time to 8 hours
	12 Hours			Extends battery to the maximum run time of 12 hours
Back Light	10S Turns off display backlight after 10 seconds of inactivity
	30S Turns off display backlight after 30 seconds of inactivity
	2Min Turns off display backlight after 2 minutes of inactivity
	Always On Display backlight always on
Key Lock	On			Locks display (password is,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, UP , DOWN , UP , DOWN , ENTER )
	Off
Information	Fixture Hours		<____H>	Shows total hours the product has been powered on
	Version		V_..	Shows current firmware version
	UID		<____>	Shows product UID
Factory Reset	No			Resets the product to factory default settings
	Yes

DMX Values

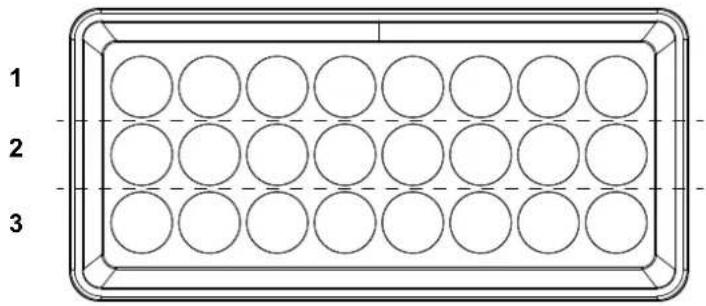

Zones for DMX Control

Diagram of a rectangular container with 16 circular holes arranged in rows, no text or symbols present

4Ch	8Ch	12Ch	13Ch	21Ch	Function						Value			Percent/Setting
-	1	-	1		1	D	i	m			m ⇔ e255			0–100% 000
-	2	-	2	2	D	i	m	m			e ⇔ 255			0–100% n e 000
1	3	-	3		-	R	e	d			⇔ 255			0–100% 000
2	4	-	4		-	G	r	e			e ⇔n255			0–100% 000
3	5	-	5		-	B	l	u			e ⇔ 255			0–100% 000
4	6	-	6		-	W	h	i			t ⇔e 255			0–100% 000
-	-	1	-	3	R	e	d	1			⇔ 255			0–100%
-	-	2	-	4	G	r	e	e			n ⇔ 255			0000%
-	-	3	-	5	B	l	u	e			1 ⇔ 255			0–100% 000
-	-	4	-	6	W	h	i	t			e ⇔ 255			0–100% 000
-	-	5	-	7	R	e	d	2			⇔ 255			0–100%
-	-	6	-	8	G	r	e	e			n ⇔ 255			0000%
-	-	7	-	9	B	l	u	e			2 ⇔ 255			0–100% 000
-	-	8	-	1	0	W	h	i			t ⇔ 2552			0–100% 000
-	-	9	-	11	Red 3						000 ⇔ 255			0–100%
-	-	10	-	12	Green 3						000 ⇔ 255			0–100%
-	-	11	-	13	Blue 3						000 ⇔ 255			0–100%
-	-	12	-	14	White 3						000 ⇔ 255			0–100%
-	7	-	7	1	5	S	t	r	o		000 ⇔ 010			No function
											b			Strobe, slow to fast
											011 ⇔ 255
-	-	-	8	1	6	C	o	l	o		000 ⇔ 010			No function
											011 ⇔ 030			R: 100% G: 0–100% B: 0%
											031 ⇔ 050			R: 100–0% G: 100% B: 0%
											051 ⇔ 070			R: 0% G: 100% B: 0–100%
											071 ⇔ 090			R: 0% G: 100–0% B: 100%
											091 ⇔ 110			R: 0–100% G: 0% B: 100%
											111 ⇔ 130			R: 100% G: 0% B: 100–0%
											131 ⇔ 150			R: 100% G: 0–100% B: 0–100%
											151 ⇔ 170			R: 100% G: 100–0% B: 100%
											171 ⇔ 200			R: 100% G: 100% B: 100%
											201r ⇔ 205m			Dark amber r o
											206 ⇔ 210			Amber
											211 ⇔ 215			Light amber
											216 ⇔ 220			Dark pink
											221 ⇔ 225			Pink
											226 ⇔ 230			Light pink
											231 ⇔ 235			No color pink
											236 ⇔ 240			No color blue
											241 ⇔ 245			Light blue
											246 ⇔ 250			Cornflower blue
											251 ⇔ 255			Light pale blue

4Ch	8Ch	12Ch	13Ch	21Ch	Function	Value	Percent/Setting
--	9 17	Color	temperature			000 ⇔ 005 No function006 ⇔ 025 2800K026 ⇔ 050 3200K051 ⇔ 075 3500K076 ⇔ 100 4000K101 ⇔ 125 4500K126 ⇔ 150 5000K151 ⇔ 175 5600K176 ⇔ 200 6000K201 ⇔ 225 6500K226 ⇔ 255 No function
--	10 18	Auto	programs			000 ⇔ 010 No function011 ⇔ 037 Auto program 1038 ⇔ 064 Auto program 2065 ⇔ 091 Auto program 3092 ⇔ 118 Auto program 4119 ⇔ 145 Auto program 5 (Auto program 1-4)146 ⇔ 172 Auto program 6173 ⇔ 199 Auto program 7200 ⇔ 226 Auto program 8227 ⇔ 255 Auto program 9 (Auto program 6-8)
--	11 19	Auto	program speed	000		⇔ 255 Auto speed, slow to fast
--	12 20	Dimmer speed mode				000 ⇔ 051 Preset dimmer speed from display menu052 ⇔ 101 Dimmer speed mode off102 ⇔ 152 Dimmer speed mode 1 (fastest)153 ⇔ 203 Dimmer speed mode 2204 ⇔ 255 Dimmer speed mode 3 (slowest)
-8	13 21	Red shift				000 ⇔ 010 No function011 ⇔ 127 On128 ⇔ 255 Off

Acerca de Esta Guía

Diagram of a rectangular container with 16 circular holes arranged in rows, no text or symbols present

4Ch	8Ch	12Ch	13Ch	21Ch	Función					Valor	Porcentaje/Configuración
-	1	-	1	1	A	t	e	n	u	a 255 0-100%o r 000
-	2	-	2	2	A	t	e	n	u	a 255 0-100%o r f i n o
1	3	-	3	-	R	o	j	o		255 0-100% 000
2	4	-	4	-	Ve	r	d	e		255 0-100% 000
3	5	-	5	-	A	z	u	l		255 0-100% 000
4	6	-	6	-	B	l	a	n	c	a 255 0-100% 000
-	-	1	-	3	R	o	j	o	1	255 0-100% 000
-	-	2	-	4	Ve	r	d	e	1	255 0-100% 000
-	-	3	-	5	A	z	u	l	1	255 0-100% 000
-	-	4	-	6	B	l	a	n	c	a 255 0-100% 000
-	-	5	-	7	R	o	j	o	2	255 0-100% 000
-	-	6	-	8	Ve	r	d	e	2	255 0-100% 000
-	-	7	-	9	A	z	u	l	2	255 0-100% 000
-	-	8	-	10	Blanco 2				000	255 0-100%
-	-	9	-	11	Rojo 3				000	255 0-100%
-	-	10	-	12	Verde 3				000	255 0-100%
-	-	11	-	13	Azul 3				000	255 0-100%
-	-	12	-	14	Blanco 3				000	255 0-100%
-	7	-	7	15	Estroboscopio				000	010 Sin función
									011	255 Estroboscopio, lento a rápido
-	-	-	8	16	Macro de color				000	010 Sin función
									011	030 R: 100% G: 0–100% B: 0%
									031	050 R: 100–0% G: 100% B: 0%
									051	070 R: 0% G: 100% B: 0–100%
									071	090 R: 0% G: 100–0% B: 100%
									091	110 R: 0–100% G: 0% B: 100%
									111	130 R: 100% G: 0% B: 100–0%
									131	150 R: 100% G: 0–100% B: 0–100%
									151	170 R: 100% G: 100–0% B: 100%
									171	200 R: 100% G: 100% B: 100%
									201	205 Ámbar oscuro
									206	210 Ámbar
									211	215 Ámbar claro
									216	220 Rosa oscuro
									221	225 Rosa
									226	230 Rosa claro
									231	235 Sin color rosa
									236	240 Sing color azul
									241	245 Azul claro
									246	250 Azul aciano
									251	255 Azul pálido claro

00C

Diagram of a rectangular tray with 16 circular holes arranged in rows, no text or symbols present

4Ch	8Ch	12Ch	13Ch	21Ch	Fonction					Valeur	Pourcentage/Configuration
-	1	-	1	1	G	r	a	d	a ⇔ 1255 0e100%u r 000
-	2	-	2	2	G	r	a	d	a ⇔ 1255 0e100%u r f i n 000
1	3	-	3	-	R	o	u	g	e ⇔ 255 0-100%000
2	4	-	4	-	Ve	r	t		⇔ 255 0-100%000
3	5	-	5	-	B	l	e	u	⇔ 255 0-100% 000
4	6	-	6	-	B	l	a	n	c ⇔ 255 0-100% 000
-	-	1	-	3	R	o	u	g	e ⇔ 255 0-100% 000
-	-	2	-	4	Ve	r	t	1	⇔ 255 0-100%000
-	-	3	-	5	B	l	e	u	1 ⇔ 255 0-100% 000
-	-	4	-	6	B	l	a	n	c ⇔ 255 0-100% 000
-	-	5	-	7	R	o	u	g	e ⇔ 255 0-100% 000
-	-	6	-	8	Ve	r	t	2	⇔ 255 0-100%000
-	-	7	-	9	B	l	e	u	2 ⇔ 255 0-100% 000
-	-	8	-	10	Blanc 2				000 ⇔ 255 0-100%
-	-	9	-	11	Rouge 3				000 ⇔ 255 0-100%
-	-	10	-	12	Vert 3				000 ⇔ 255 0-100%
-	-	11	-	13	Bleu 3				000 ⇔ 255 0-100%
-	-	12	-	14	Blanc 3				000 ⇔ 255 0-100%
-	7	-	7	15	Stroboscope				000 ⇔ 010 Pas de fonction
									011 ⇔ 255 Stroboscope, lent à rapide
-	-	-	8	16	Macros de couleurs				000 ⇔ 010 Pas de fonction
									011 ⇔ 030 R: 100% G: 0–100% B: 0%
									031 ⇔ 050 R: 100–0% G: 100% B: 0%
									051 ⇔ 070 R: 0% G: 100% B: 0–100%
									071 ⇔ 090 R: 0% G: 100–0% B: 100%
									091 ⇔ 110 R: 0–100% G: 0% B: 100%
									111 ⇔ 130 R: 100% G: 0% B: 100–0%
									131 ⇔ 150 R: 100% G: 0–100% B: 0–100%
									151 ⇔ 170 R: 100% G: 100–0% B: 100%
									171 ⇔ 200 R: 100% G: 100% B: 100%
									201 ⇔ 205 Ambre foncé
									206 ⇔ 210 Ambre
									211 ⇔ 215 Ambre clair
									216 ⇔ 220 Rose foncé
									221 ⇔ 225 Rose
									226 ⇔ 230 Rose clair
									231 ⇔ 235 Pas de couleur rose
									236 ⇔ 240 Pas de couleur bleu
									241 ⇔ 245 Bleu clair
									246 ⇔ 250 Bleu barbeau
									251 ⇔ 255 Bleu pâle clair

RDM (Remote Device Management)

Diagram of a rectangular container with 16 circular holes arranged in two rows, no text or symbols present.

4Ch	8Ch	12Ch	13Ch	21Ch	Funktion					Wert		Prozent/Einstellung
-	1	-	1		1	D	i	m	m	e	2550-100%	000
-	2	-	2	2	D	i	m	m	e	r	2550f-100%e	i	n 000
1	3	-	3		-	R	o	t		⇔	2550-100%
2	4	-	4		-	G	r	ü	n	⇔	2550-100%	000
3	5	-	5		-	B	l	a	u	⇔	2550-100%	000
4	6	-	6		-	W	e	i	ß	⇔	2550-100%	000
-	-	1	-	3	R	o	t	1		⇔	2550-100%00
-	-	2	-	4	G	r	ü	n	1	⇔	2550-100%	000
-	-	3	-	5	B	l	a	u	1	⇔	2550-100%	000
-	-	4	-	6	W	e	i	ß	1	⇔	2550-100%	000
-	-	5	-	7	R	o	t	2		⇔	2550-100%00
-	-	6	-	8	G	r	ü	n	2	⇔	2550-100%	000
-	-	7	-	9	B	l	a	u	2	⇔	2550-100%	000
-	-	8	-	1	0	W	e	i	ß	2⇔	2550-100%	000
-	-	9	-	11	Rot 3					000⇔	2550-100%
-	-	10	-	12	Grün 3					000⇔	2550-100%
-	-	11	-	13	Blau 3					000⇔	2550-100%
-	-	12	-	14	Weiß 3					000⇔	2550-100%
-	7	-	7	1	5	S	t	r	o	000⇔	010Keine Funktion
										011⇔	255Strobe, langsam bis schnell
-	-	-	8	16	Farbe Makro					000⇔	010Keine Funktion
										011⇔	030R: 100% G: 0-100% B: 0%
										031⇔	050R: 100-0% G: 100% B: 0%
										051⇔	070R: 0% G: 100% B: 0-100%
										071⇔	090R: 0% G: 100-0% B: 100%
										091⇔	110R: 0-100% G: 0% B: 100%
										111⇔	130R: 100% G: 0% B: 100-0%
										131⇔	150R: 100% G: 0-100% B: 0-100%
										151⇔	170R: 100% G: 100-0% B: 100%
										171⇔	200R: 100% G: 100% B: 100%
										201⇔	205Dunkler Bernstein
										206⇔	210Bernstein
										211⇔	215Leicht bernsteinfarben
										216⇔	220Dunkelpink
										221⇔	225Rosa
										226⇔	230Hell-Pink
										231⇔	235Keine Farbe pink
										236⇔	240Keine Farbe blau
										241⇔	245Hellblau
										246⇔	250Kornblumenblau
										251⇔	255Hellblau

Diagram of a rectangular container with 16 circular holes arranged in two rows, labeled 1, 2, and 3 (no text or symbols on the diagram itself)

4Ch	8Ch	12Ch	13Ch	21Ch	Functie					Waarde		Percentage/Instelling
-	1	-	1		1	D	i	m	m	⇔ e255 0+	100%	000
-2	-2 2	Fijne dimmer			000					⇔ 255 0-	100%
1 3	-3 -	Rood 000								⇔ 255 0-	100%
2	4	-	4		-	G	r	o	e	⇔n 255 0-	100%	000
3	5	-	5		-	B	l	a	u	⇔w 255 0-	100%	000
4	6	-	6		-	W	i	t		⇔ 255 0-	100%	000
--	1 - 3	Rood 1			000					⇔ 255 0-	100%
-	-	2	-	4	G	r	o	e	n	⇔ 255 0-	100%	000
-	-	3	-	5	B	l	a	u	w	⇔ 255 0-	100%	000
-	-	4	-	6	W	i	t	1		⇔ 255 0-	100%
--	5 - 7	Rood 2			000					⇔ 255 0-	100%
-	-	6	-	8	G	r	o	e	n	⇔ 255 0-	100%	000
-	-	7	-	9	B	l	a	u	w	⇔ 255 0-	100%	000
-	-	8	-	1	0	W	i	t	2	⇔ 255 0-	100%	000
-	-	9	-	11	Rood 3					000 ⇔ 255 0-	100%
-	-	10	-	12	Groen 3					000 ⇔ 255 0-	100%
-	-	11	-	13	Blauw 3					000 ⇔ 255 0-	100%
-	-	12	-	14	Wit 3					000 ⇔ 255 0-	100%
-7	-7	15	Stroboscoop							000 ⇔ 010 Geen functie
										011 ⇔ 255 Stroboscoop, langzaam tot snel
--	-8	16	Kleurenmacro							000 ⇔ 010 Geen functie
										011 ⇔ 030 R: 100% G: 0-100% B: 0%
										031 ⇔ 050 R: 100-0% G: 100% B: 0%
										051 ⇔ 070 R: 0% G: 100% B: 0-100%
										071 ⇔ 090 R: 0% G: 100-0% B: 100%
										091 ⇔ 110 R: 0-100% G: 0% B: 100%
										111 ⇔ 130 R: 100% G: 0% B: 100-0%
										131 ⇔ 150 R: 100% G: 0-100% B: 0-100%
										151 ⇔ 170 R: 100% G: 100-0% B: 100%
										171 ⇔ 200 R: 100% G: 100% B: 100%
										201 ⇔ 205 Donker amber
										206 ⇔ 210 Amber
										211 ⇔ 215 Licht amber
										216 ⇔ 220 Donker roze
										221 ⇔ 225 Roze
										226 ⇔ 230 Lichtroze
										231 ⇔ 235 Geen kleur roze
										236 ⇔ 240 Geen kleur blauw
										241 ⇔ 245 Lichtblauw
										246 ⇔ 250 Korenbloemblauwe
										251 ⇔ 255 Licht lichtblauw

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet U.K.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mažarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

RoHS
