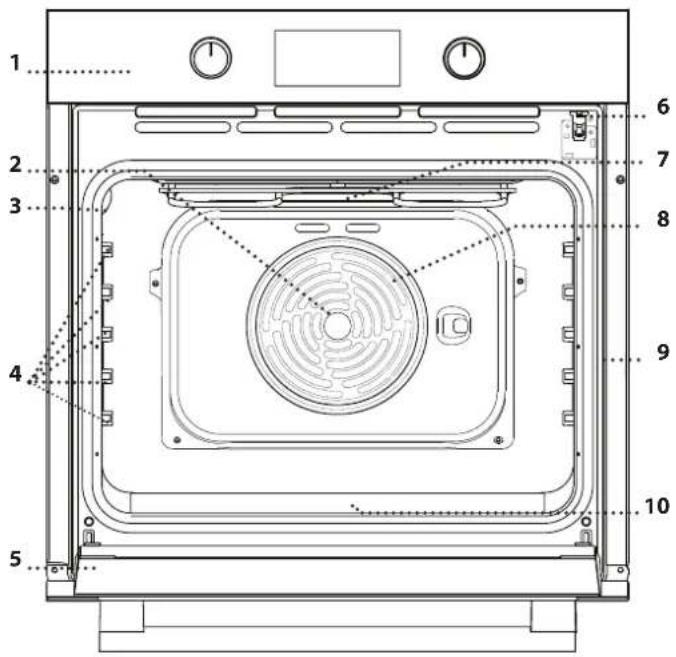

PRODUCT DESCRIPTION

1 2 3 4 5 6 7 8 9 10

1. Control panel
2. Fan
3. Lamp
4. Shelf guides (the level is indicated on the wall of the cooking compartment)
5. Door
6. Door lock (locks the door while automatic cleaning is in progress and afterwards)
7. Top heating element/grill
8. Circular heating element (not visible)
9. Identification plate (do not remove)
10. STEAM embossing for drinking water

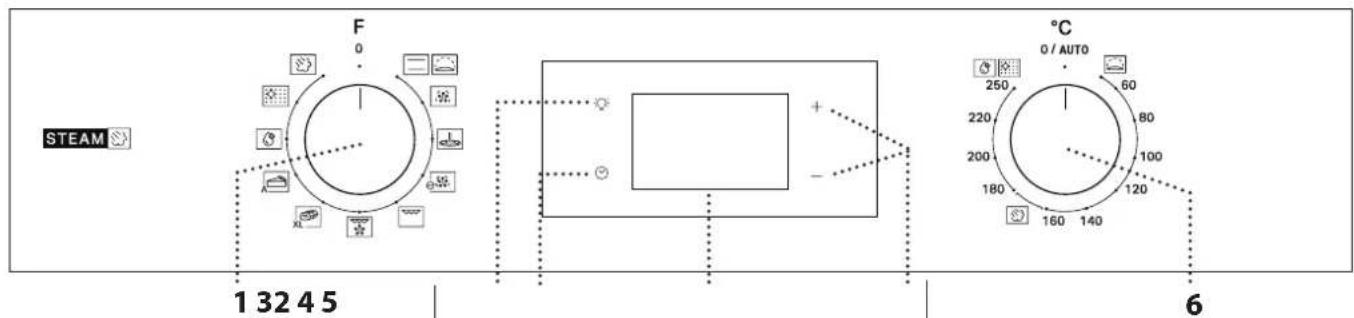

CONTROL PANEL DESCRIPTION

STEAM F 0 1 32 4 5 + - °C 0 / AUTO 250 60 80 100 120 220 200 180 160 140 140 160 180 200 220 250 6 6

1. SELECTION KNOB

For switching the oven on by selecting a function. Turn to the 0 position to switch the oven off.

2. LIGHT

With the oven switched on, press 📋 to turn the oven compartment lamp on or off.

3. SETTING THE TIME

For accessing the cooking time settings, delayed start and timer. For displaying the time when the oven is off.

1. DISPLAY

5. ADJUSTMENT BUTTONS

For changing the cooking time settings.

6. THERMOSTAT KNOB

Turn to select the temperature you require when activating manual functions.

Please note: Type of knob may vary from model type. If the knobs are push-activated, push down on the center of the knob to release it from seating.

ACCESSORIES

Simple line drawing of a rectangular grid-like structure with a handle, no text or symbols present.

Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware.

3D rendering of a rectangular tray with a shaded interior and a separate curved bracket on the right (no text or symbols)

Use as an oven tray for cooking meat, fish, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices.

Pure geometric diagram of a square frame with a small curved line on the right side (no text or symbols)

Use for cooking all bread and pastry products, but also for roasts, fish en papillotte, etc.

Two metallic cylindrical metal rods with flanged ends, shown from different angles (no text or symbols visible)

To facilitate inserting or removing accessories.

* Available only on certain models

The number and the type of accessories may vary depending on which model is purchased.

Other accessories can be purchased separately from the After-sales Service.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf onto the level you require by holding it tilted slightly upwards and resting the raised rear side (pointing upwards) down first.

Then slide it horizontally along the runners as far as possible.

Other accessories, like the baking tray, are to be inserted horizontally, letting them slide on the runners.

SLIDING SHELVES AND SHELF GUIDES

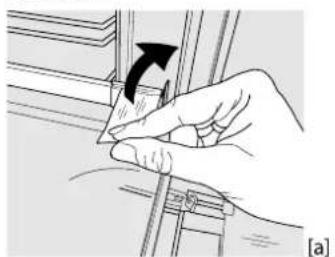

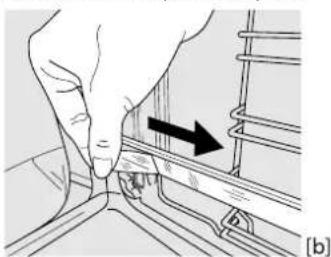

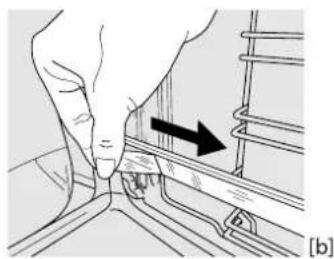

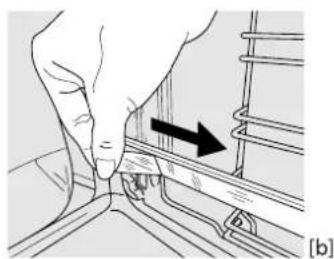

Before using the oven remove the protective tape [a] and then remove the protective foil [b] from the sliding runners.

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand turning a component with an arrow indicating direction (no text or symbols)

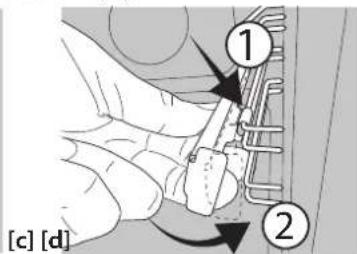

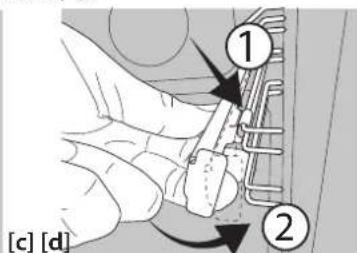

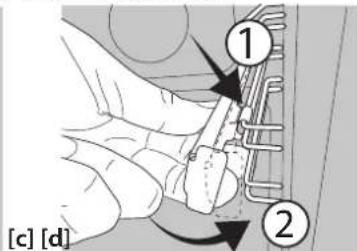

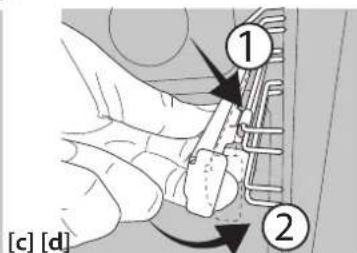

REMOVING THE SLIDING RUNNERS [c]

Pull the lower part of the sliding runner to uncouple the lower hooks (1) and pull the the sliding runners upwards, removing them from the upper hooks (2).

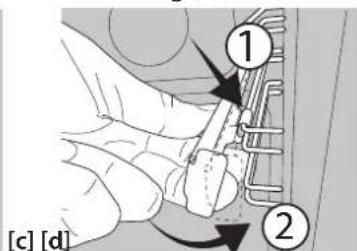

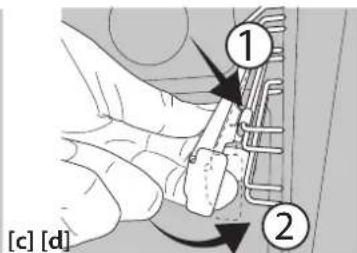

REFITTING THE SLIDING RUNNERS [d]

Hook the upper hooks on the shelf guides (1) then press the lower part of the sliding runners against the shelf guides, until the lower hooks are clicking (2).

Diagram showing a hand holding a device with numbered annotations indicating steps 1 and 2.

① ② [c] [d]

REMOVING AND REFITTING THE SHELF GUIDES

1. To remove the shelf guides, firmly grip the external part of the guide, and pull it towards you to extract the support and the two internal pins from the lodging.

2. To reposition the shelf guides, position them near the cavity and initially insert the two pins into their lodgings. Next, position the external part near its lodging, insert the support, and firmly press towards the wall of the cavity to make sure the shelf guide is properly secured.

FUNCTIONS

CONVENTIONAL

For cooking any kind of dish on one shelf only.

RISING

For helping sweet or savoury dough to rise

effectively. Turn the thermostat knob to the icon to activate this function.

FORCED AIR

For cooking different foods that require the same cooking temperature on several shelves (maximum three) at the same time. This function can be used to cook different foods without odours being transferred from one food to another.

PIZZA

For baking different types and sizes of pizza and bread. It is a good idea to swap the position of the baking trays halfway through cooking.

ECO FORCED AIR

For cooking roasts and stuffed roasting joints on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation.

When this ECO function is in use, the light will remain switched off during cooking but can be switched on again by pressing ⚙.

GRILL

For grilling steaks, kebabs and sausages, cooking

vegetables au gratin or toasting bread. When grilling meat, we recommend using a dripping pan to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water.

TURBO GRILL

For roasting large joints of meat (legs, roast beef, chicken). We recommend using a dripping pan to collect the cooking juices: position the pan on any of the levels below the wire shelf and add 200 ml of drinking water.

FIRST TIME USE

1. SETTING THE TIME

You will need to set the time when you switch on the appliance for the first time: Press ⏻ until the 📣on and the two digits for the hour start flashing on the display.

Use -or to-set the hour and press to confirm. The two digits for the minutes will start flashing. Use + or to set the minutes and press ⏻ to confirm.

Please note: When the ☑con is flashing, for example following lengthy power outages, you will need to reset the time.

MAXI COOKING

For cooking large joints of meat (above 2.5 kg).

We recommend turning the meat over during cooking to ensure that both sides brown evenly. We also recommend basting the joint every so often to prevent it from drying out excessively.

PASTRY AUTO

A This function automatically selects the ideal temperature and baking time for cakes. Activate the function when the oven is cold.

STEAM +

The Steam+ function allows to obtain excellent performances thanks to the presence of steam in the cooking cycle. This function automatically manages the ideal temperature for cooking a wide range of recipes; the cooking times of the main dishes are shown in the relative cooking table. Always activate the steam function when the oven is cold, and after pouring 200 ml of drinking water into the bottom of the cavity. To activate Steam+ function, the thermostat knob needs to be turned in to position of 📋 icon.

FLEXI CLEAN PACK

SMARTCLEAN

The action of the steam released during this special low-temperature cleaning cycle allows dirt and food residues to be removed with ease. To activate the "Smart Clean" function, pour 100-120 ml of drinking water on the bottom of the oven then turn the selection knob and the thermostat knob to the icon. It is best to use the function for 35'. Activate the function when the oven is cold. The position of the icon does not correspond to the temperature reached during the cleaning cycle.

AUTOMATIC CLEANING - PYRO

For eliminating cooking spatters using a cycle at very high temperature. To activate this function move thermostat knob to 📁. The position of the icon does not correspond to the real temperature reached during the cleaning cycle.

2. SET THE POWER CONSUMPTION

By default the oven is programmed to work at a power higher than 3kW (Hi). To operate the oven at a power that is compatible with a domestic power supply less than 2,9 kW (Lo), you will need to change the settings.

To go to the change menu, turn the selection knob to ☐, then turn it back to 0.

Press and hold + and for five seconds immediately afterwards.

Use + o - to change the setting, then press and hold ⏻ for at least two seconds to confirm.

3. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

DAILY USE

1. SELECT A FUNCTION

To select a function, turn the selection knob to the symbol for the function you require: the display will light up and an audible signal will sound.

2. ACTIVATE A FUNCTION

MANUAL

To start the function you have selected, turn the thermostat knob to set the temperature you require.

Please note: During cooking you can change the function by turning the selection knob or adjust the temperature by turning the thermostat knob. The function will not start if the thermostat knob will be on O / AUTO position (except for PASTRY AUTO function). You can set the cooking time, cooking end time (only if you set a cooking time) and a timer.

RISING

To start the "Rising" function, turn the thermostat knob to Rising position (40 deg) and put function knob in Conventional position; if the oven is set to a different temperature, the function will not start.

Please note: You can set the cooking time, cooking end time (only if you set a cooking time) and a timer.

Line drawing of a kitchen interior with a hand pouring liquid into a bowl (no text or symbols)

To start the Steam function, pour 200 ml of drinking water in the oven bottom. Select the function turning clockwise the selection knob on the relevant icon, and the thermostat knob in any position between 160 and 180°C (as suggested by the icon). The function will start and the display

will show the current time of the day. No preheating is needed. To end the cooking, turn the selection knob on 0 position. During Steam cooking do not open the door and never top up the water.

Please note: Opening the door and topping up the water during cooking may have an adverse effect on the final cooking result.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it.

Heat the oven to 250 °C for about one hour. The oven must be empty during this time.

Please note: It is advisable to air the room after using the appliance for the first time.

3. PREHEATING AND RESIDUAL HEAT

Once the function starts, an audible signal and a flashing icon 🔒 on the display indicate that the preheating phase has been activated. At the end of this phase, an audible signal and the fixed icon 🔒 on the display will indicate that the oven has reached the set temperature: at this point, place the food inside and proceed with cooking.

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result.

After cooking and with the function deactivated, the icon ⏻ may continue to remain visible on the display even after the cooling fan has switched off to indicate that there is residual heat in the compartment.

Please note: The time after which the icon switches off varies because it depends on a series of factors such as ambient temperature and function used. In any case, the product should be considered to be off when the pointer on the selection knob is at "0".

4. PROGRAMMING COOKING

You will need to select a function before you can start programming cooking.

DURATION

Keep pressing until the icon and "00:00" start flashing on the display.

Use + or - to set the cooking time you require, then press ⏻to confirm.

Activate the function by turning the thermostat knob to the temperature you require: an audible signal will sound and the display will indicate that cooking is complete.

Please note: To cancel the cooking time you have set, keep pressing ⏻ until the ⏻ icon starts flashing on the display, then use to reset the cooking time to "00:00". This cooking time includes a preheating phase.

PROGRAMMING THE END COOKING TIME/DELAYED START

After a cooking time has been set, starting the function can be delayed by programming its end time: press ⚙ until the Aeon and the current time start flashing on the display.

Use or to-set the time you want cooking to end and press ☑ to confirm.

Activate the function by turning the thermostat knob to the temperature you require: the function will remain paused until it starts automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Please note: To cancel the setting, switch the oven off by turning the selection knob to the 0 position.

Delay to start functionality in not available for Grill and Turbo Grill functions.

END OF COOKING

An audible signal will sound and the display will indicate that the function has finished.

Turn the selection knob to select a different function or to 0 to switch the oven off.

Please note: If the timer is active, the display will show "END" alternately with the remaining time.

5. SETTING THE TIMER

This option does not interrupt or program cooking but allows you to use the display as a timer, either during while a function is active or when the oven is off.

Keep pressing ⏻ until the Ⓓ and "00:00" icon and "00:00" start flashing on the display.

Use + or - to set the time you require and press Ⓧ to confirm. An audible signal will sound once the timer has finished counting down the selected time.

Notes: To cancel the timer, keep pressing until the icon starts flashing, then use - to reset the time to "00:00".

6. AUTOMATIC CLEANING FUNCTION – PYRO

Do not touch the oven during the Pyro cycle. Keep children and animals away from the oven during and after (until the room has finished airing) running the Pyro cycle.

Remove all accessories - including shelf guides - from the oven before activating the function. If the oven is installed below a hob, make sure that all the burners or electric hotplates are switched off while running the selfcleaning cycle.

For optimum cleaning results, remove the worst soiling with a damp sponge before using the Pyro function.

Avoid activating the pyro cycle cleaning in the presence of limescale residues.

We recommend only running the Pyro function if the appliance contains heavy soiling or gives off bad odours during cooking.

To activate the automatic cleaning function, turn the selection knob and the thermostat knob to the 📄icon. The function will be activated automatically, the door locked and the light inside the oven switched off: The display will show the time remaining to the end, alternating with "Pyro".

Once the cycle has been completed, the door remains locked until the temperature inside the oven has returned to a safe level. Air the room during and after running the Pyro cycle.

COOKING TABLE

RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (Min) LEVEL AND ACCESSORIES
	☐	Yes 170	30 - 50	2
Leavened cakes	☐	Yes 160	30 - 50	2
	☐	Yes 160	40 - 60	4 1
Filled cake(cheese cake, strudel, fruit pie)	☐	Yes 160	- 200 35 - 90	2
	☐	Yes 160	- 200 40 - 90	4 2
Biscuits / tartlets	☐	Yes 160	25 - 35	3
	☐	Yes 160	25 - 35	3
	☐	Yes 150	35 - 45	4 2
Choux buns	☐	Yes 180	- 210 30 - 40	3
	☐	Yes 180	- 200 35 - 45	4 2
	☐	Yes 180	- 200 35 - 45	5 3 1
Meringues	☐	Yes 90	150 - 200	3
	☐	Yes 90	140 - 200	4 2
	☐	Yes 90	140 - 200	5 3 1
Pizza / Focaccia	☐	Yes 190	- 250 15 - 50	1/2
	☐	Yes 190	- 250 20 - 50	4 2
Frozen pizza	☐	Yes 250	10 - 20	3
	☐	Yes	230-250 10 - 25	4 2
Salty cakes(vegetable pie, quiche)	☐	Yes 180	- 200 40 - 55	3
	☐	Yes 180	- 200 45 - 60	4 2
	☐	Yes 180	- 200 45 - 60	5 3 1
Vols-au-vents / puff pastry crackers	☐	Yes 190	- 200 20 - 30	3
	☐	Yes 180	- 190 20 - 40	4 2
	☐	Yes 180	- 190 20 - 40	5 3 1
Lasagne / baked pasta /canneloni / flans	☐	Yes 190	- 200 45 - 65	2
Lamb / veal / beef / pork 1 kg	☐	Yes	190 - 200	80 - 110
Roast pork with crackling 2 kg	☐	Yes	180 - 190	110 - 150
Chicken / rabbit / duck 1 kg	☐	Yes	200 - 230	50 - 100
Turkey / goose 3 kg	☐	-	190 - 200	100 - 160
Baked fish / en papillote(fillets, whole)	☐	Yes 170	- 190 30 - 45	2
Stuffed vegetables(tomatoes, courgettes, aubergines)	☐	Yes 180	- 200 50 - 70	3
Toasted bread	☐	5' 250	2 - 6	5

* Turn food halfway through cooking

ACCESSORIES	Wire shelf	Baking dish on the wire shelf	Baking tray/Drip tray or baking dish on the wire shelf	Drip tray / Baking tray	Drip tray / Baking tray with 200 ml of water
FUNCTIONS	Conventional	Forced air	Pizza	Grill	Turbo grill
RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (Min) LEVEL AND ACCESSORIES
Fish fillets / slices - 230 - 250 15 - 30 *					4 3
Sausages / kebabs / spare ribs / hamburgers		-250 15 - 30 *			5 4
Roast chicken 1-1.3 kg Yes 200 - 220 55 - 70 **					2 1
Roast beef rare 1 kg		Yes	200 - 210	35 - 50 **	3
Leg of lamb / knuckle		Yes 200 - 210 60 - 90 **			3
Roast potatoes		Yes 200 - 210	35 - 55		2
Vegetable gratin		-200 - 210	25 - 55		3
Meat and potatoes		Yes	190 - 200	45 - 100 ***	4 1
Fish and vegetables		Yes	180	30 - 50 ***	4 2
Lasagne and meat		Yes	200	50 - 100 ***	4 1
Complete meal: fruit tart (level 5) / lasagne (level 3) / meat (level 1)		Yes 180 - 190	40 - 120 ***		5 3 1
Roast meat / stuffed roasting joints		-	170 - 180	100 - 150	3

** Turn food two thirds of the way through cooking (if necessary).

*** Estimated length of time: dishes can be removed from the oven at different times depending on personal preference.

COOKING TABLE STEAM+

FOOD	RECIPE	QUANTITY	TIME (min)	ACCESSORIES	LEVEL	WATER
BREAD	Small breads	80-100 g	30 - 45		2	200 ml
	Sandwich loaf in tin	300-500 g	40 - 60
	Bread	500g-2 kg	50 - 100
	Baguettes	200-300 g	30 - 45
MEAT	Roast	1 kg	60 - 110
	Ribs	500g-1,5 kg	50 - 75
	Chicken	1-1,5 kg 55 - 80
	Chicken/Turkey	3 kg	100 - 140
FISH	Fillet Steak	0.5-2 cm 15 - 25
	Fillet Steak	2-4 cm	20 - 35
	Whole Fish	300- 600 g	20 - 30
	Whole Fish	600 -1200 g	25 - 45
VEGETABLES	Steamed Potatoes	0.5-1.5 kg	45 - 60
	Stuffed Peppers	1-2 kg 35 - 55
	Steamed Broccoli	0.3-1 kg	30 - 50
	Steamed Zucchini	0.5-1.5 kg	30 - 50
PASTRIES	Cookies	a tray	25 - 35
	Muffin	30-60 g	25 - 45
	Sponge Cake	500-700 g	30 - 50
	Tart	a tin	35 - 55

Start the STEAM+ function only when the oven is cold. Opening the door and topping up the water during cooking may have an adverse effect on the final cooking result.

ACCESSORIES	Wire shelf	Baking dish on the wire shelf	Baking tray/Drip tray or baking dish on the wire shelf	Drip tray / Baking tray	Drip tray / Baking tray with 200 ml of water
FUNCTIONS	Conventional	Forced air	Pizza	Grill	Turbo grill

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning.

Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves.

The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.

Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, leave the oven to cool completely and then wipe it with a cloth or sponge.
- To remove the remaining limescale from the bottom of the cavity after the STEAM cooking, we recommend to clean the cavity with the products provided by After

Sales Service (please follow instructions attached to the product).

Cleaning is recommended at least for every 5 to 10 STEAM cooking cycles.

• If there is stubborn dirt on the interior surfaces, we recommend running the automatic cleaning function for optimal cleaning results. Avoid activating the pyrolitic cycle cleaning in the presence of limescale residues. Before activating, perform limescale cleaning as described above.
• The door can be easily removed and refitted to facilitate cleaning of the glass.
• Clean the glass in the door with a suitable liquid detergent.

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

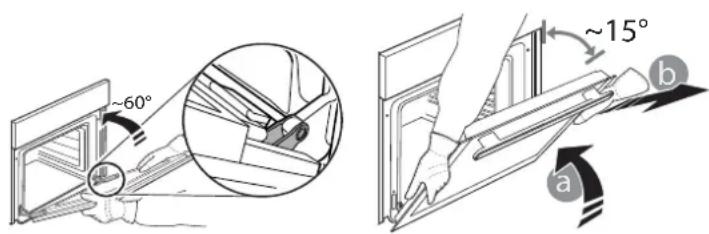

REMOVING AND REFITTING THE DOOR

1. To remove the door, open it fully and lower the catches until they are in the unlock position.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

1. Close the door as much as you can.

Take a firm hold of the door with both hands – do not hold it by the handle. Simply remove the door by continuing to close it while pulling it upwards (a) at the same time until it is released from its seating (b). Put the door to one side, resting it on a soft surface.

REPLACING THE LAMP

1. Disconnect the oven from the power supply.
2. Unscrew the cover from the light, replace the bulb and screw the cover back on the light.
3. Reconnect the oven to the power supply.

~60° ~15° a b

1. Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating.
2. Lower the door and then open it fully. Lower the catches into their original position: Make sure that you lower them down completely.
3. Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above.

Please note: Use 25 W/230 V type G9, T300 °C halogen lamps. The bulb used in the product is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009).

Light bulbs are available from our After-sales Service. - Do not handle bulbs with your bare hands as your fingerprints could damage them. Do not use the oven until the light cover has been refitted.

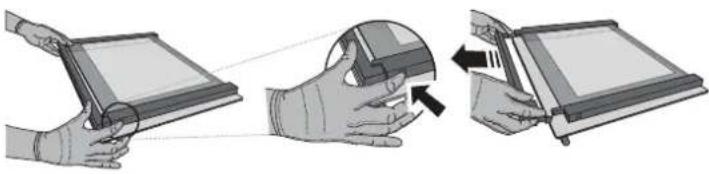

CLEANING OF THE DOOR GLASSES

1. After removing the door and resting it on a soft surface with the handle downwards, simultaneously press the two retaining clips and remove the upper edge of the door by pulling it towards you.

Illustration showing three-step steps of a device manipulation or assembly process (no text or symbols present)

1. Lift and firmly hold the inner glass with both hands, remove it and place it on a soft surface before cleaning it.

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

1. Refit the intermediate pane (marked with "1R") before refitting the inside pane: To position the panes of glass correctly, make sure that the "R" mark can be seen in the left-hand corner. First insert the long side of the glass marked "R" into the support seats, then lower it into position. Repeat this procedure for both panes of glass.

Diagram showing a printer with a magnified view of its internal structure, no text or symbols present

1. Refit the upper edge: A click will indicate correct positioning. Make sure the seal is secure before refitting the door.

Illustration of hands using a tool to adjust or spread a document on a flat surface (no text or symbols visible)

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The display shows the letter “F” followed by a number or letter.	Oven failure.	Contact you nearest Client After-sales Service Centre and state the number following the letter “F”.
The display is showing the message “Hot” and the selected function will not start.	Temperature too high.	Allow the oven to cool down before activating the function. Select a different function.
The display shows unclear text and appears to be broken.	Another language set. Contact your nearest Client After-sales Service Center.

* Available only on certain models

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance
- Visiting our website docs.whirlpool.eu

- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

MERCI D'AVOIR ACHETÉ UN PRODUIT WHIRLPOOL

Simple line drawing of a rectangular grid or panel with no text, numbers, or symbols

3D rendering of a rectangular tray with a shaded interior and a separate U-shaped bracket (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

ENLÈVEMENT DES PATINS COULISSANTS [c]

Diagram showing a hand holding a device with labeled parts, including numbered callouts ① and ②.

[c] [d] ① ②

ENLEVER ET REPLACER LES SUPPORTS DE GRILLE

FUNCTIONS (FONCTIONS)

CONVECTION NATURELLE

FLEXI CLEAN PACK (PACK FLEXI CLEAN)

SMARTCLEAN

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of three-step hands holding a tablet device, showing the process from opening to closing (no text or symbols present)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical assembly with an inset close-up of a device (no text or symbols present)

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

DÉPANNAGE

Simple line drawing of a rectangular grid-like structure with no text or symbols

3D rendering of a rectangular tray with a gray interior and a separate U-shaped bracket (no text or symbols)

Simple line drawing of a square frame with a small curved bracket on the right side (no text or symbols)

Two metallic cylindrical metal rods with flanged ends, no text or symbols visible

Hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand adjusting a rail track component with an arrow indicating direction (no text or symbols present)

Diagram showing a hand holding a device with labeled parts and directional arrows indicating rotation or movement.

① ② [c] [d]

TOGLIERE E RIMONTARE LE GRIGLIE LATERALI

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a car seatbelt mechanism with an arrow indicating direction (no text or symbols present)

Three-step illustration showing hands holding a tablet device, interacting with a device via a screen (no text or symbols present)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical assembly with an inset close-up of a device (no text or symbols present)

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

Simple line drawing of a rectangular grid or rack with horizontal lines, no text or symbols present.

3D rendering of a rectangular tray with a shaded interior and a separate curved bracket on the right (no text or symbols)

Simple line drawing of a square frame with a small bracket on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

EXTRAER LAS GUÍAS DESLIZANTES [c]

Diagram showing a hand holding a device with labeled parts and directional arrows indicating rotation or movement.

① ② [c] [d]

CÓMO EXTRAER Y VOLVER A COLOCAR LAS GUÍAS PARA ESTANTES

Line drawing of a kitchen interior with a hand pouring liquid into a bowl (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of three-step hand manipulation process: holding a tablet, adjusting a device, and closing the screen (no text or symbols)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical device with an inset close-up of its internal components (no text or symbols present)

Illustration of hands using a tool to cut or spread a printed document (no text or symbols visible)

Hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand adjusting a rail track with an arrow indicating direction (no text or symbols present)

Diagram showing a hand holding a device with two labeled steps (① and ②) indicating a process or operation.

① ② [c] [d]

RETIRAR E REPOR AS GUIAS DE NÍVEL

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

REMOVER E REPOR A PORTA

Diagram of a car seatbelt mechanism with a black arrow indicating direction (no text or symbols present)

Illustration showing three-step steps of a hand holding a tablet, with the next step showing a magnified view of the device (no text or symbols present)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical assembly with an inset close-up of a device (no text or symbols present)

Illustration of hands using a tool to cut or spread a printed document (no text or symbols visible)

Technical diagram of an oven with numbered components and control panel, likely for assembly or labeling purposes.

Hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

Diagram illustrating two steps of a mechanical or electrical component handling, labeled with numbered arrows and reference to [c] [d].

ИЗВАЖДАНЕ И ПОСТАВЯНЕ НА ВОДАЧИТЕ

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a car's seatbelt mechanism with a black arrow indicating direction (no text or symbols)

Illustration of three-step robotic manipulation process: hand holding tablet, hand pressing a device, and hand holding screen (no text or symbols)

Diagram of a mechanical assembly with a rectangular component and a black arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with a slide and a chair, no text or symbols present

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

ОТКРИВАНЕ И ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

Simple line drawing of a rectangular grid or panel with no text, numbers, or symbols

3D rendering of a rectangular tray with a shaded interior and a separate U-shaped bracket (no text or symbols)

Simple line drawing of a square frame with a small bracket on the right side (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols present)

VYJMUTÍ VÝSUVNÝCH LIŠT [c]

Diagram showing a hand holding a device with numbered annotations indicating step 1 and step 2 of the process.

(c) [d] ① ②

DEMONTÁŽ A INSTALACE VODICÍCH DRÁŽEK

PASTRY AUTO (CUKROVÍ A DORTY)

FLEXI CLEAN PACK (BALÍČEK FLEXI CLEAN)

SMARTCLEAN

Line drawing of a kitchen interior with a hand pouring liquid into a pan (no text or symbols)

3. PŘEDEHŘEV A ZBYTKOVÉ TEPLO

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration showing three-step hand manipulation process: holding a tablet, adjusting a device, and closing the screen (no text or symbols)

Diagram of a mechanical or electronic component with layered structure and directional arrow (no text or symbols)

Diagram showing a mechanical device with an inset close-up of its component (no text or symbols present)

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

ODSTRAŇOVÁNÍ ZÁVAD

TAK FORDI DU HAR K∅BT ET WHIRLPOOL PRODUKT

Simple line drawing of a rectangular grid or panel with a handle, no text or symbols present.

3D rendering of a rectangular tray with a shaded interior and a separate U-shaped bracket (no text or symbols)

Pure geometric diagram of a square frame with a small curved line below (no text or symbols)

Two metallic cylindrical metal rods with flanged ends, shown from different angles (no text or symbols visible)

Hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

UDTAGNING AF GLIDESKINNERNE [c]

Diagram showing a hand holding a device with two numbered steps indicating process flow

(c) [d] ① ②

AFTAGNING OG GENMONTERING AF SKINNERNE

Line drawing of a kitchen interior with a hand pouring liquid into a bowl (no text or symbols)

Diagram of a vehicle's seatbelt mechanism with an arrow indicating direction (no text or symbols)

Illustration of three-step robotic manipulation process: hand holding tablet, lens interacting with screen, and close-up of tool (no text or symbols)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical assembly with a slide and a chair, no text or symbols present

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

FEJLFINDING

Simple line drawing of a rectangular grid or rack with a handle, no text or symbols present.

3D rendering of a rectangular tray with a shaded interior and a separate U-shaped bracket (no text or symbols)

Simple line drawing of a square frame with a small bracket on the right side (no text or symbols)

Illustration of a hand holding a metal bracket with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols present)

LIUGSIINIDE EEMALDAMINE [c]

Diagram showing a hand holding a device with numbered annotations indicating step 1 and step 2, likely illustrating a process or operation.

[c] [d] ① ②

RIIULISIINIDE EEMALDAMINE JA ÜMBERPAIGUTAMINE

CONVENTIONAL (TAVAPÄRANE KÜPSETAMINE)

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a car's seatbelt mechanism with arrow indicating direction (no text or symbols)

Illustration of three-step hand manipulation process: holding a tablet, adjusting the mask, and adjusting the screen (no text or symbols)

Diagram of a mechanical or electronic component with layered structure and directional arrow (no text or symbols)

Diagram showing a mechanical device with an inset close-up of its internal components (no text or symbols present)

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

RIKKEOTSING

Simple line drawing of a rectangular plate with horizontal slats (no text or symbols)

3D rendering of a rectangular tray with a gray interior and a separate curved bracket on the right (no text or symbols)

Simple line drawing of a square frame with a small bracket on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

LIUKUKISKOJEN POISTAMINEN [c]

Diagram showing a hand using a tool to adjust or install a component, labeled with numbered steps 1 and 2.

[c] [d] ① ②

FLEXI CLEAN PACK (FLEXI -PUHDISTUSPAKKAUS)

SMARTCLEAN-PUHDISTUSTOIMINTO

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a car door handle with an arrow indicating direction (no text or symbols present)

Illustration of three-step hand tool application: holding a tablet, adjusting a device, and opening a tablet (no text or symbols present)

Diagram of a mechanical or electronic component with layered structure and directional arrow (no text or symbols)

Diagram showing a mechanical device with an inset close-up of its component (no text or symbols present)

Illustration of hands using a tool to cut or spread a printed document (no text or symbols visible)

VIANMÄÄRITYS

Simple line drawing of a rectangular grid or panel with horizontal lines, no text or symbols present.

3D rendering of a rectangular tray with a shaded interior and a separate curved line on the right side (no text or symbols)

Pure geometric diagram of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating upward motion (no text or symbols)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

Diagram showing a hand holding a device with labeled parts and directional arrows indicating rotation or movement.

① ② [c] [d]

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a vehicle climbing stairs with an arrow indicating direction (no text or symbols)

Illustration of three-step hand tool application: holding a tablet, adjusting a face mask, and opening a document (no text or symbols present)

Diagram of a mechanical assembly with a rectangular component and directional arrow (no text or symbols)

Diagram showing a mechanical device with a circular component and a separate view of a seated chair (no text or symbols present)

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

CSEPPFELFOGÓ TÁLCA\*

3D rendering of a rectangular tray with a gray interior and a small curved bracket on the right side (no text or symbols)

Simple line drawing of a square frame with a small bracket on the right side (no text or symbols)

Hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram showing a hand holding a device with numbered annotations indicating step 1 and step 2, likely illustrating a mechanical or electrical process.

① ② [c] [d]

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of three-step hand manipulation process: holding a tablet, adjusting the mask, and adjusting the screen (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating movement (no text or symbols)

Diagram showing a mechanical assembly with a slide and a chair, no text or symbols present

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)

A PROBLÉMÁK MEGOLDÁSA

Simple line drawing of a rectangular grid or panel with a handle, no text or symbols present.

3D rendering of a rectangular tray with a shaded interior and a separate U-shaped bracket (no text or symbols)

Pure geometric diagram of a square frame with a small curved line below (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand turning a component with an arrow indicating direction (no text or symbols)

SLÍDOŠO SLIEČU IZNEMŠANA [c]

Diagram showing a hand holding a device with numbered annotations indicating steps 1 and 2.

(c) [d] ① ②

PLAUKTU VADOTNU IZNEMŠANA UN ATKÄRTOTA IEVIETOŠANA

Line drawing of a kitchen interior with a hand pouring liquid into a bowl (no text or symbols)

Diagram of a vehicle's seatbelt mechanism with arrow indicating direction (no text or symbols)

Illustration of three-step hand-drawing process: holding a tablet, adjusting a cap, and opening a device (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating movement (no text or symbols)

Diagram showing a mechanical device with an inset close-up of its component, no text or symbols present

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

PROBLÉMU NOVĚRŠANA

Simple line drawing of a rectangular grid or panel with a handle, no text or symbols present.

3D rendering of a rectangular tray with a gray interior and a separate U-shaped bracket (no text or symbols)

Pure geometric diagram of a square frame with a small curved line on the right side (no text or symbols)

Two metallic cylindrical metal rods with flanges, shown from different angles (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

SLANKIOJANČIŲ GROTELIŲ IŠĖMIMAS [c]

Diagram showing a hand holding a device with numbered annotations indicating steps 1 and 2.

① ② [c] [d]

SKERSINIŲ GROTELIŲ IŠĖMIMAS IR ĮSTATYMAS

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a car seatbelt mechanism with an arrow indicating direction (no text or symbols present)

1. Uždarykite dureles.

Illustration showing three-step steps of a hand holding a tablet device, with no visible text or symbols.

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a printer with a magnified view of its internal components (no text or symbols present)

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

TRIKČIŲ ŠALINIMAS

TAKK FOR AT DU HAR KJ∅PT ET WHIRLPOOL-PRODUKT

Simple line drawing of a rectangular grid or panel with a handle, no text or symbols present.

3D rendering of a rectangular tray with a gray interior and a separate U-shaped bracket (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

FJERNING AV GLIDESKINNENE [c]

Diagram showing a hand holding a device with numbered annotations indicating step 1 and step 2 of the process.

(c) [d] ① ②

FJERNING OG INSTALLASJON AV GLIDESKINNENE

TRADISJONELL STEKING

For å tilberede en hvilken som helst matrett på kun e.

RISING (HEVING)

FLEXI CLEAN PACK (FLEKSIBEL

RENG∅RINGSPAKKE)

SMARTCLEAN (INTELLIGENT RENGJ∅RING)

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a car door handle with an arrow indicating direction (no text or symbols)

PLASS ~60° ~15° a b

RENHOLD AV D∅RGLASSENE

1. Etter at du har fjernet døren og lagt den på et mykt underlag med håndtaket ned, trykker du samtidig på de to holdeklemmene og fjerner den øvre kanten av døren ved å dra den mot deg.

Illustration of three-step hand tool application: holding a tablet, adjusting a device, and opening a tablet (no text or symbols present)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction and a magnified inset of a device (no text or symbols present)

Illustration of hands using a power tool to adjust or install a flatboard (no text or symbols visible)

FEILS∅KING

Simple line drawing of a rectangular grid or panel with horizontal lines and a small bracket at the top (no text or symbols)

3D rendering of a rectangular tray with a gray interior and a separate U-shaped bracket (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating upward motion (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

DEMONTAŻ PROWADNIC WYSUWANYCH [c]

PONOWNY MONTAŻ PROWADNIC WYSUWANYCH [d]

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or process.

[c] [d] ① ②

WYJMOWANIE I PONOWNY MONTAŻ DRABINEK

FLEXI CLEAN PACK (PAKIET FLEXI CLEAN)

SMARTCLEAN

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

END OF COOKING (KONIEC PIECZENIA)

Diagram of a mechanical assembly with a black arrow indicating direction (no text or symbols present)

Illustration of three-step robotic manipulation process: hand holding tablet, hand using magnifying glass, and hand holding screen (no text or symbols)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical device with a magnified inset view of its internal components (no text or symbols present)

Illustration of hands using a digital tablet to interact with a screen (no text or symbols visible)

ROZWIĄZYWANIE PROBLEMÓW

VĂ MULȚUMIM CĂ AȚI ACHIZIȚIONAT UN PRODUS WHIRLPOOL

Simple line drawing of a rectangular grid with horizontal lines and a small bracket at the top (no text or symbols)

3D rendering of a rectangular tray with a gray interior and a separate U-shaped bracket (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a metal object with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

DEMONTAREA GHIDAJELOR CULISANTE [c]

Diagram showing a hand holding a device with numbered annotations (① and ②) indicating steps of operation or installation.

[c] [d] ① ②

DEMONTAREA ŞI REMONTAREA GHIDAJELOR PENTRU GRĂTAR

FLEXI CLEAN PACK (PACHETUL FLEXI CLEAN)

SMARTCLEAN

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

4. PROGRAMAREA PREPARĂRII

Diagram of a car seatbelt mechanism with a directional arrow indicating motion (no text or symbols present)

Illustration showing three-step steps of a device manipulation process: hand holding a tablet, head with magnifying glass, and screen with scroll (no text or symbols)

Diagram of a mechanical or electronic component with a rectangular frame and directional arrow (no text or symbols)

Diagram showing a mechanical device with an inset close-up of its internal components (no text or symbols present)

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

REMEDIEREA DEFECTIUNILOR

Simple line drawing of a rectangular grid with horizontal lines, no text or symbols present.

3D rendering of a rectangular tray with a gray interior and a separate U-shaped outline on the right side (no text or symbols)

Simple line drawing of a square frame with a small bracket on the right side (no text or symbols)

Two metallic cylindrical metal rods with flanges, shown from different angles (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

VYBRATIE POSUVNÝCH BEŽCOV [c]

Diagram showing a hand holding a device with labeled parts and directional arrows indicating rotation or adjustment.

① ② [c] [d]

VYBRATIE A VKLADANIE VODIACICH LÍŠT

1. Ak chcete vodiace lišty vybrat, pevne uchopte vonkajšiu časť lišty, potiahnite ju k sebe, aby ste vytiahli podperu a dva vnútorné kolíky z otvorov.

2. Ak ich chcete zasa nasadit, priložte ich k priestoru rúry a najprv zasuňte oba kolíky do otvorov. Potom umiestnite vonkajšiu časť k otvoru, zasuňte podperu a pevne zatlačte k stene priestoru rúry tak, aby bola vodiaca lišta pevne osadená.

FUNKCIE

STATICKÝ OHREV

FLEXI CLEAN PACK (BALÍČEK FLEXI CLEAN)

SMARTCLEAN

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a vehicle suspension system with an arrow indicating direction (no text or symbols present)

1. Zatvorte dvierka, čo najviac ako to ide.

Illustration of three-step hand manipulation process: holding a tablet, adjusting a device, and adjusting a slide (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating movement (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction and a magnified inset of a device (no text or symbols present)

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

RIEŠENIE PROBLÉMOV

TACK FÖR ATT DU HAR KÖPT EN PRODUKT FRÅN WHIRLPOOL

Simple line drawing of a rectangular grid or panel with no text, numbers, or symbols

3D rendering of a rectangular tray with a shaded interior and a separate U-shaped bracket (no text or symbols)

Simple line drawing of a square frame with a small curved line on the right side (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

TA BORT GLIDSKENORNA [c]

Diagram showing a hand holding a device with labeled parts, including numbered callouts ① and ②.

[c] [d] ① ②

TA BORT OCH MONTERA UGNSSTEGARNA

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of three-step hand tool application: holding a tablet, adjusting a device, and opening a tablet (no text or symbols present)

Diagram of a mechanical component with a directional arrow indicating movement (no text or symbols)

Diagram showing a mechanical device with an inset close-up of its internal components (no text or symbols present)

Illustration of hands using a tablet device to interact with a screen (no text or symbols visible)

FELSÖKNING

Simple line drawing of a rectangular plate with horizontal slats (no text or symbols)

3D rendering of a rectangular tray with a gray interior and a separate U-shaped outline on the right side (no text or symbols)

Simple line drawing of a square frame with rounded corners and a small curved base (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a rail track with an arrow indicating direction (no text or symbols)

ЗНЯТТЯ ТЕЛЕСКОПИЧНИХ НАПРЯМНИХ [с]

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or adjustment.

① ② [c] [d]

Line drawing of a hand pouring liquid into a microwave oven (no text or symbols)

Diagram of a car door handle with an arrow indicating direction (no text or symbols present)

Illustration of three-step hands performing a manual task: holding a tablet, adjusting a magnifying glass, and adjusting a slide (no text or symbols present)

Diagram of a mechanical component with a rectangular frame and an arrow indicating direction (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction and a magnified inset of a device (no text or symbols present)

Illustration of hands using a tablet to interact with a screen (no text or symbols visible)
