Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool for the first time, read the operating manual.

Wear protective goggles.!

Short-circuit-proof safety transformer.

Protect the battery against heat, including prolonged sunshine, and fire. Explosion hazard!.

Do not throw the battery into a fire. Explosion hazard!

The tool is only suitable for use indoors. Do not expose the tool to rain. Store power tools and batteries in dry rooms.

Disposal information (see page 26).

Important safety information

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Before using the power tool, please read the following and act accordingly:

– these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet no.: 315.915),
– the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.

The power tool may be operated only if it is

• for its intended use,
• in perfect working order.

Faults which compromise safety must be repaired immediately.

Intended use

The DD 2G 10.8-EC R cordless drill driver is intended

– for commercial use in industry and trade,
– for inserting and releasing screws,
– for drilling in wood, metal, ceramic and plastic.

The PD 2G 10.8-EC cordless percussion drill is intended

– for commercial use in industry and trade,
– for inserting and releasing screws,
– for drilling in wood, metal, ceramic and plastic,
– for impact drilling in brick, masonry and stone.

Safety instructions for drills and drivers

■ Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory or the screw may contact hidden wiring or its own power cord.

The screw contacting a "live" wire may make exposed metal parts of the power tool "live" and cause an electric shock.

■ Use auxiliary handles if these are supplied with the power tool. The loss of control may result in injuries.
■ Use suitable detectors to detect concealed power supply cables or consult your local supply company. Contact with electric cables may result in a fire and/or electric shock. A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property.
■ Switch off the power tool immediately when the cutting accessory jams. Be prepared for high reaction torques which cause kickback. The cutting accessory jams when:

– the power tool is overloaded or

- it snags in the workpiece to be machined.

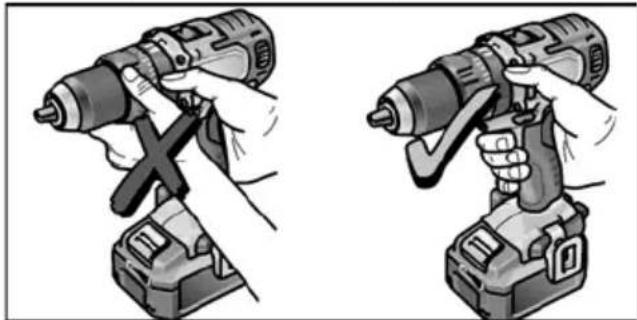

■ Maintain a firm grip on the power tool. High reaction torques can occur briefly when screws are tightened and released.

• Secure the workpiece. A workpiece is held more securely in a clamping device or vice than by hand.
  ■ Wait until the power tool has come to a stop before putting it down. The cutting accessory may snag, causing the operator to lose control of the power tool.
  ■ Use only original batteries with the voltage indicated on the type plate of your power tool. The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.

Additional safety instruction for percussion drill (PD 2G 10.8-EC)

■ Wear ear defenders when impact drilling. The effect of noise may result in loss of hearing.

Safety instructions for handling batteries

■ Do not open the battery. Short-circuiting hazard!
■ Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
■ A damaged or incorrectly used battery may result in the emission of fumes.

Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.

- Liquid may leak out of the battery if the battery is incorrectly used. Avoid contact with such liquid. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical attention.

Liquid discharged from the battery may cause irritation or burns.

■ Recharge batteries only with chargers recommended by the manufacturer.

A charger that is suitable for one type of battery may create a fire hazard when used with another battery.

■ The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.

Charger

■ Always check whether the mains voltage matches the voltage indicated on the type plate of the charger.
■ The charger plug must fit in the power socket. Never modify the plug in any way. Do not use any adapter plugs together with earthed (grounded) power tools. Unmodified plugs and matching power sockets will reduce the risk of electric shock.
■ Only use the charger in dry rooms and avoid all contact with moisture and rain. The ingress of water into the charger increases the risk of electric shock.
■ Never use the charger if cables, plugs or the device itself are damaged as a result of external influence. Take the charger to the nearest authorised repair shop.
■ Under no circumstances open the charger. In the event of a fault, take it to an authorised repair shop.
■ Do not place any objects on the charger and do not place the charger on soft surfaces. Fire hazard!

Special safety instructions

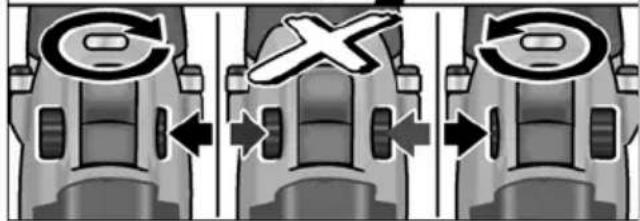

■ Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

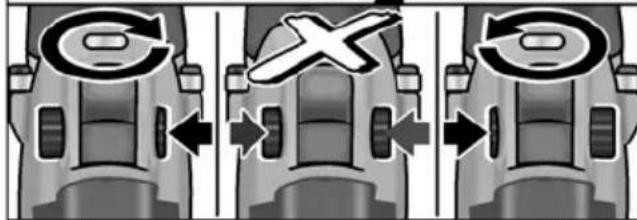

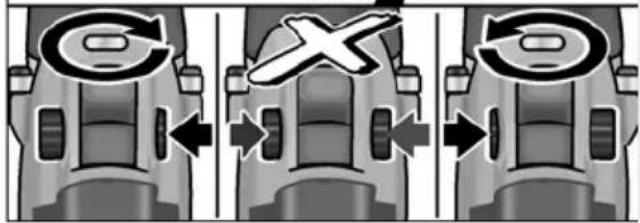

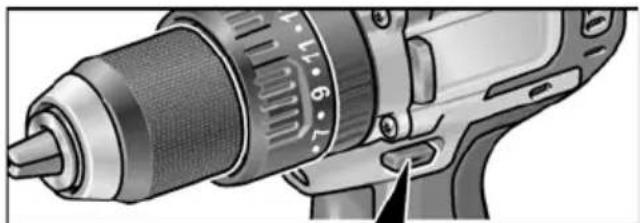

■ Operate the direction preselector switch (2) or torque setting turning dial (5) only when the tool is stopped.
■ Identify the power tool with stickers only. Do not drill any holes into the housing.

Noise and vibration

NOTE

The noise and vibration values have been determined in accordance with EN 60745. The values are set out in the “Technical data” table.

WARNING!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a measurement method standardised in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The specified vibration emission level represents the main applications of the tool.

However, if the tool is used for different applications, with different cutting accessories or poorly maintained, the vibration emission level may differ.

This may significantly increase the exposure level over the total working period.

To make an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use. This may significantly decrease the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the cutting accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear defenders at a sound pressure above 85 dB(A).

Technical data

Tool		DD 2G 10.8-EC	PD 2G 10.8-EC
Type Drill driver Percussion drill
Battery AP 10.8/2.5		AP 10.8/4.0AP 10.8/6.0
Charging time (depending on state of charge)- AP 10.8/2.5- AP 10.8/4.0- AP 10.8/6.0	minminmin	0-400-550-85
Torque, max.- Soft screwdriving case- Hard screwdriving case	Nm	3258	3258
Torque settings 20 24
Idling speed- Stage 1- Stage 2	rpmrpmrpm	0...4500...1700	0...4500...1700
Impact rate- Stage 1- Stage 2	rpmrpmrpm	-	0...58500...22100
Chuck mm 1.5-13
Max. drill diameter-in wood-in steel-in masonry	mmmmmm	2513-	251313
Weight according to “EPTA Procedure 01/2003” (without battery)	kg 1.12	1.23
Weight battery 2.5 Ah4,0 Ah6,0 Ah	kgkgkg	0.260.420.43
A-weighted sound pressure level* Impact drilling in concrete
Sound pressure level L_pA	dB(A)	71 71 / 90*
Sound power level L_WA	dB(A)	82 82 / 101*
Uncertainty K db 3.0
Overall vibration values (vector sum of three directions)
Vibration emission value a_h when ....
- drilling in metal	m/s^2	<2.5	<2.5
- impact drilling in concrete	m/s^2	-	10.8
- screwing	m/s^2	<2.5 <2.5
Uncertainty K	m/s^2	1.5

Overview

Different electric power tools are described in these instructions. The illustrated electric power tool may differ in detail from the one which you purchased.

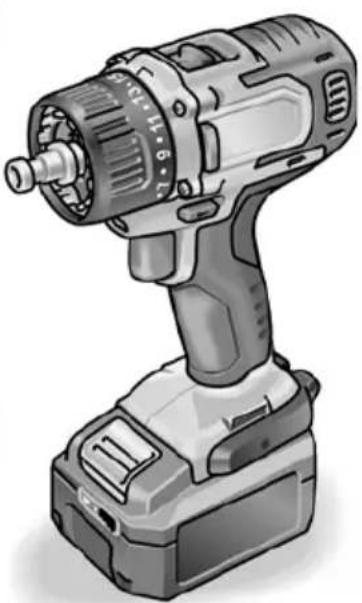

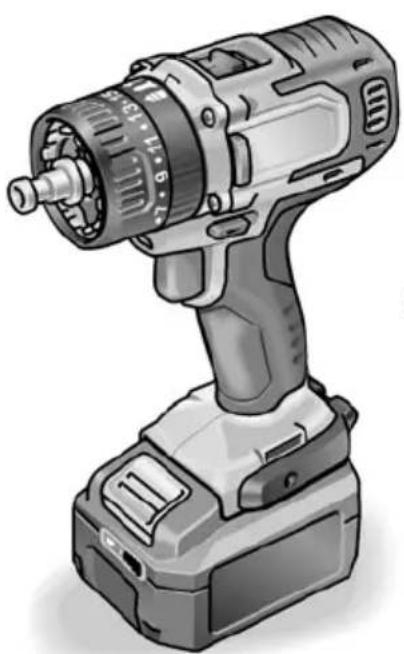

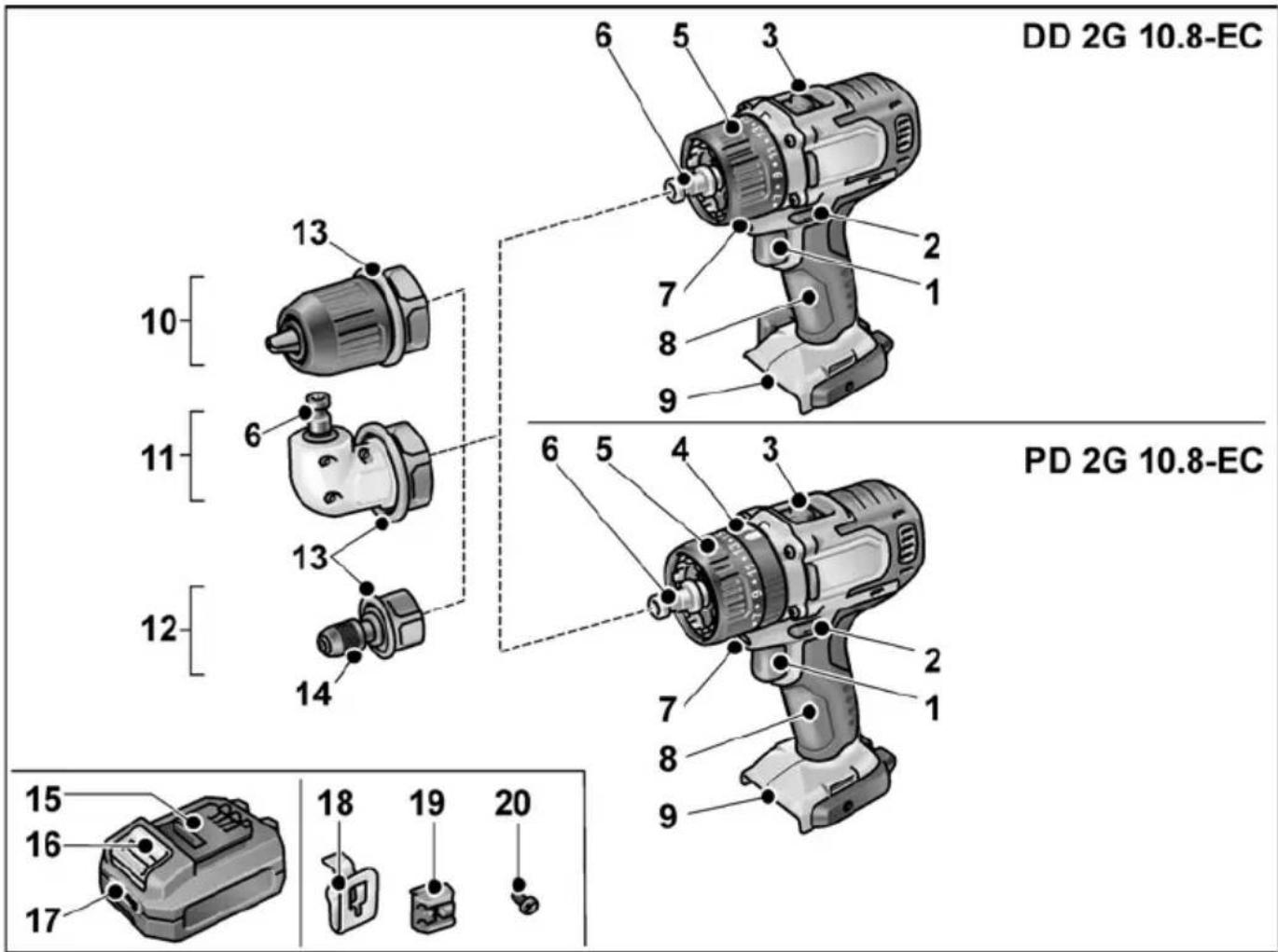

DD 2G 10.8-EC PD 2G 10.8-EC 10 11 12 13 13 6 6 5 4 3 2 1 7 8 9 10 11 12 13 14 15 16 17 18 19 20

1 Trigger switch

For switching on and off and for accelerating up to maximum rotational speed

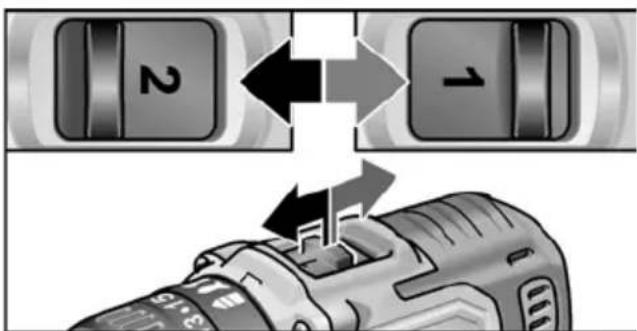

2 Direction preselector switch

3 Speed selector switch

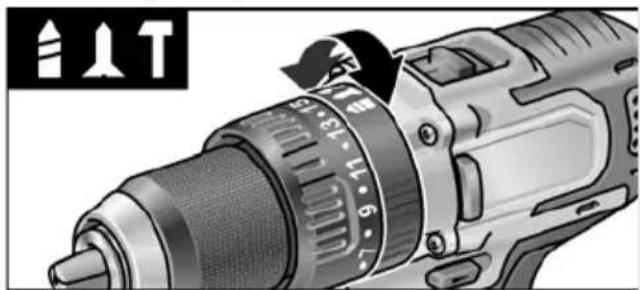

4 Turning dial for operating mode (PD... only)

5 Turning dial for torque setting

6 Tool holder

7 Workplace lighting

8 Handle

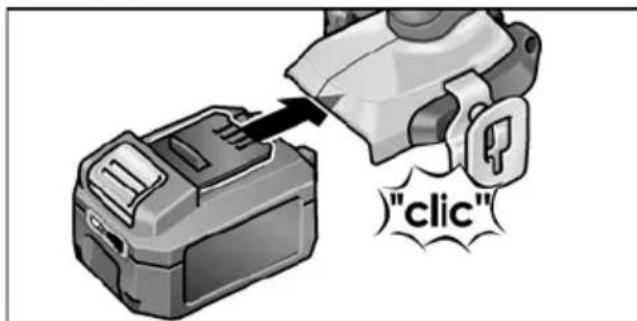

9 Insertion slot for battery

10 Interchangeable drill chuck BF 10.8-EC

11 Angle attachment WV 10.8-EC

12 Bit holder attachment BV 10.8-EC

13 Unlocking ring

14 Tool arrester

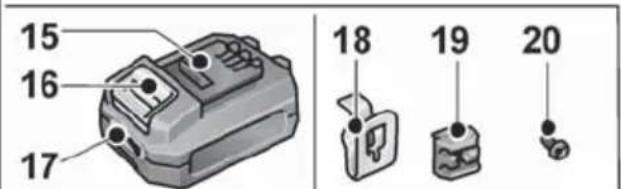

15 Li-ion battery (2.5 Ah/4.0 Ah/6.0 Ah)

16 Release button for battery

17 State of charge indicator

18 Belt clip

19 Bit bracket

20 Fastening screw

Instructions for use

Before initial operation

■ Unpack the power tool and accessories and check that no parts are missing or damaged.

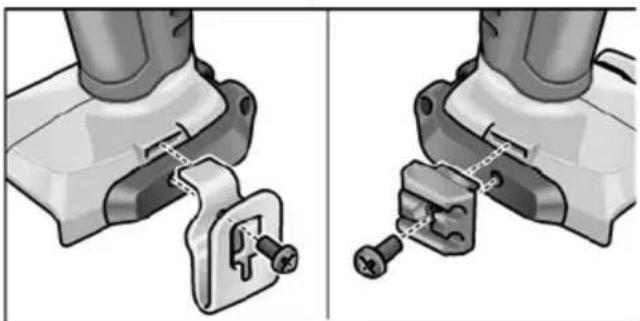

■ Attach the belt clip and bit holder with the enclosed fastening screw.

Mechanical assembly diagram showing two views of a mechanical clamp or bracket (no text or symbols present)

i NOTE

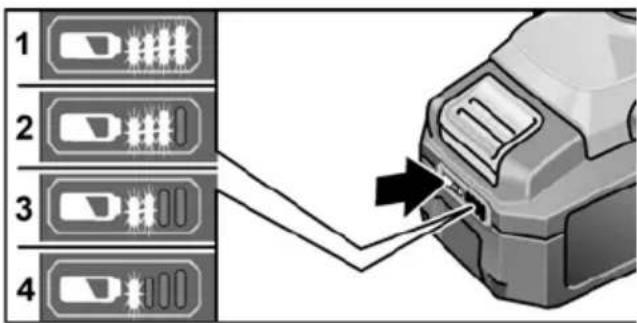

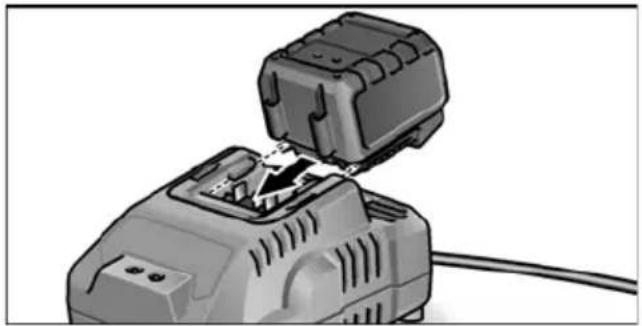

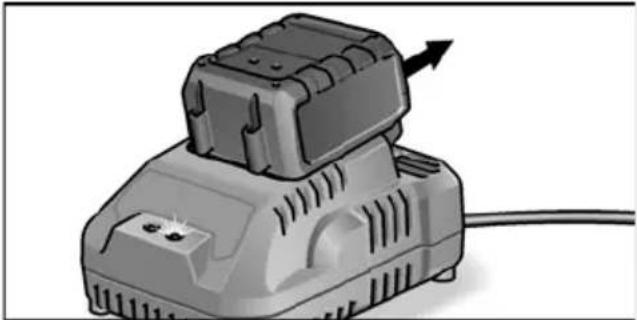

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. See "Charger/Charging process".

Changeable drill chuck BF 10.8-EC

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

Assemble

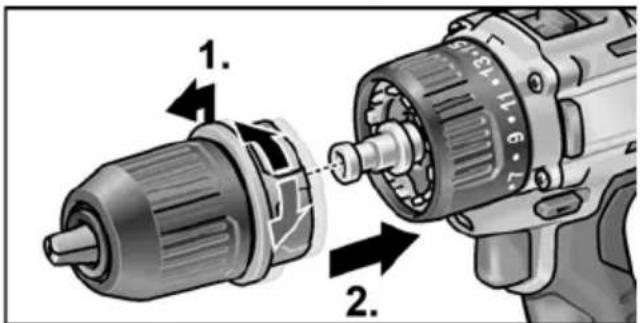

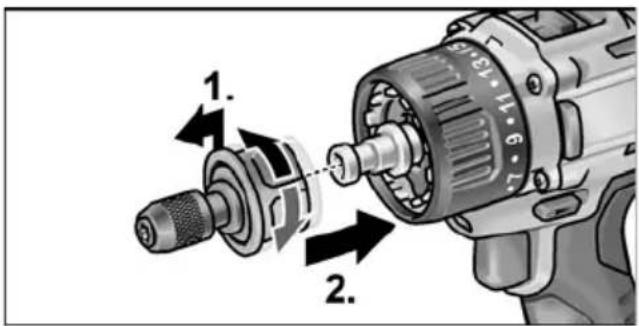

■ Pull unlocking ring forwards (1.) and press the drill chuck all the way onto the tool holder (2.).
■ Release unlocking ring. Check that the drill chuck is locked in position.

Technical diagram showing two components of a drill bit with numbered callouts indicating assembly steps.

Disassemble

■ Pull unlocking ring forwards and remove the drill chuck.

Inserting the tools

Drill bits with a diameter of 1.5–10 mm, 14 " screwdriver bits and 14 " bit holders are securely held in the drill chuck.

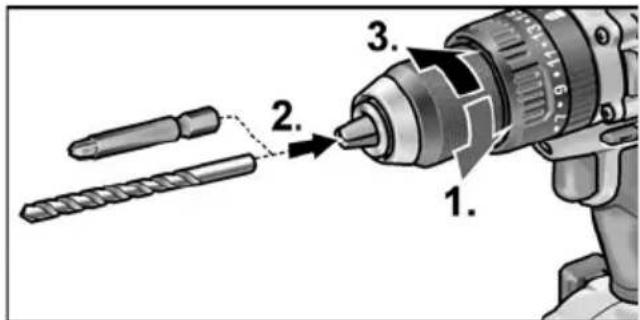

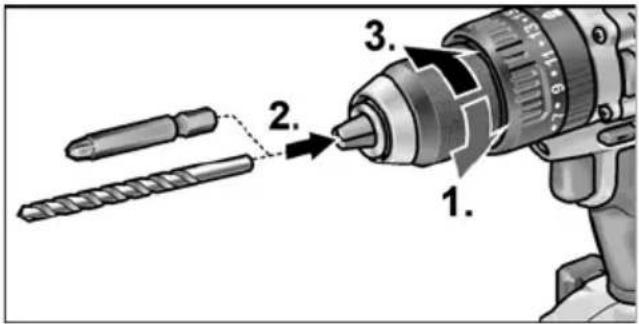

Grip the power tool firmly with one hand and turn the chuck with the other hand.
- Turn counterclockwise to open the chuck further.
- Turn clockwise to close the chuck.

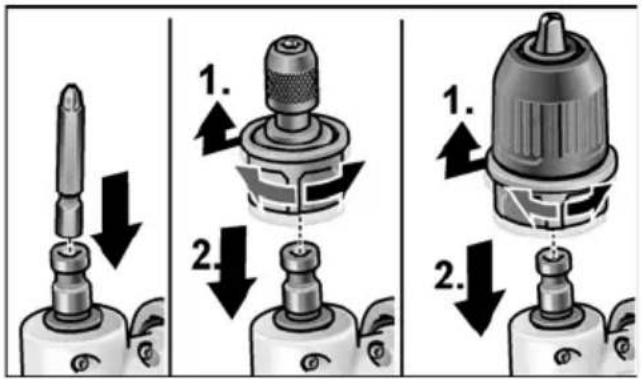

Diagram illustrating a drill bit insertion process with numbered steps: first, second, and final.

■ Insert the tool.
■ Close the chuck fully.

i NOTE

Carry out a test run to check that the tool is chucked in the centre.

Angle attachment WV 10.8-EC

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

The angle attachment facilitates working in places which are difficult to access.

The angle attachment can be locked in different 30° angular positions.

Assemble

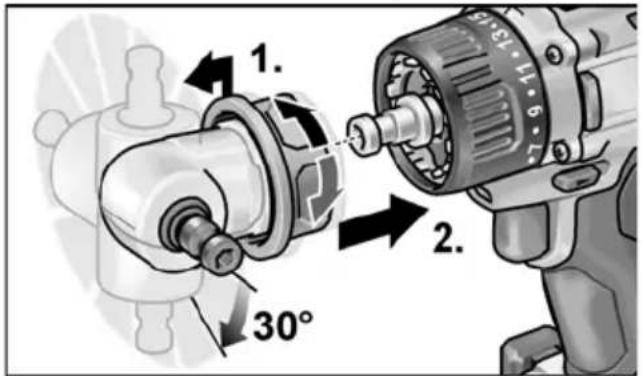

■ Pull unlocking ring forwards (1.) and press angle attachment all the way onto the tool holder (2.).
■ Lock angle attachment in the required angular position.

■ Release unlocking ring. Check that the attachment is locked in position.

1. 2. 30°

Disassemble

■ Pull unlocking ring forwards and remove angle attachment.

Inserting the tools

The angle attachment has a 14 " tool holder. Screwdriver bits and bit holders are securely held in the tool holder.

The keyless chuck (see "Changeable drill chuck BF 10.8-EC") or the bit holder (see "Bit holder attachment BV 10.8-EC") can be mounted on the angle attachment.

Diagram illustrating three-step soldering process steps with labeled arrows and component illustrations

Bit holder attachment BV 10.8-EC

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

Assemble

■ Pull unlocking ring forwards (1.) and press bit holder attachment all the way onto the tool holder (2.).
■ Release unlocking ring. Check that the bit holder attachment is locked in position.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Disassemble

■ Pull unlocking ring forwards and remove bit holder attachment.

Inserting the tools

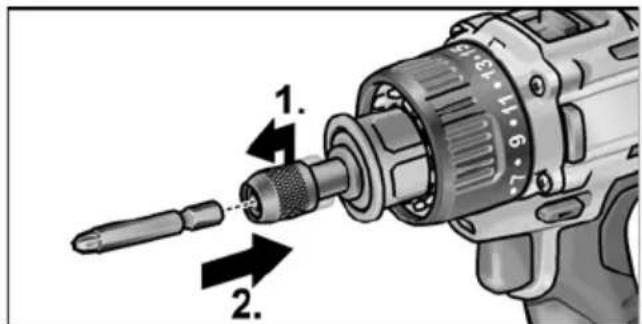

The bit holder attachment has a 14 " tool holder. Screw-driver bits are securely held in the tool holder.

■ Pull tool lock forwards (1.) and press in the tool all the way (2.).
■ Release tool lock.

Diagram of a drill bit with numbered instructions for tool installation

■ To remove the tool, pull tool lock backwards.

Inserting/replacing the battery

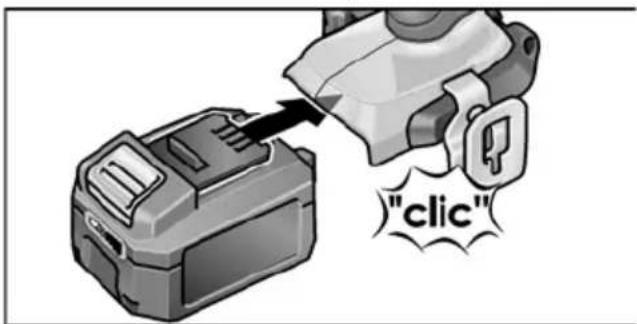

■ Press the charged battery into the power tool until it clicks into place.

"click"

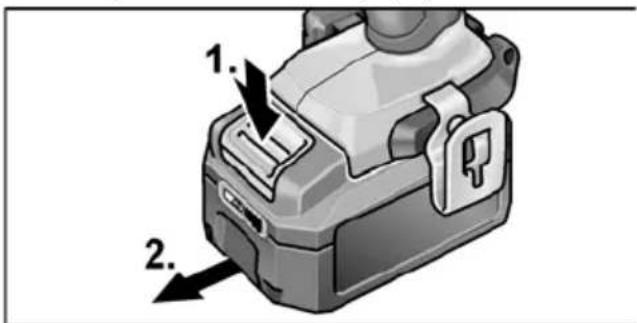

■ To remove, press the release button (1.) and pull out the battery (2.).

1. 2.

CAUTION!

Protect the battery contacts when the battery is not being used. Loose metal parts may short-circuit the contacts – Explosion and fire hazard!

Battery state of charge

■ Press the button to check the state of charge at the state of charge indicator LEDs.

1 2 3 4

The indicator goes out after 5 seconds. If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

Direction preselection

CAUTION!

Change the direction of rotation only when the power tool is stopped.

Close-up of a mechanical power drill bit with no visible text or symbols

C X D

■ Move the direction preselector switch to the required position:

• Left: counterclockwise (remove screws, release screws)
• Right: clockwise (drill, insert screws, tighten down screws)
• Middle: switch-on interlock (tool change, when working on the power tool)

Operating mode (PD ... only)

CAUTION!

Change the operating mode only when the power tool is stopped.

■ Move the operating mode turning dial to the required position.

Close-up of a black-and-white photo of a drill bit with no visible text or symbols

: Drilling
: Screwing
1: Impact drilling

Torque preselection

CAUTION!

Change the torque only when the power tool is stopped.

■ Move the torque setting turning dial to the required position.

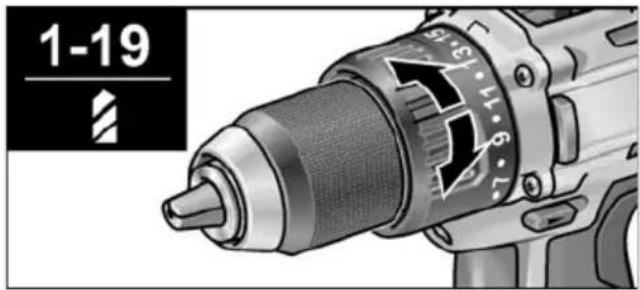

DD 2G 10.8-EC:

Close-up of a drill bit with visible teeth and caliper, no text or symbols present

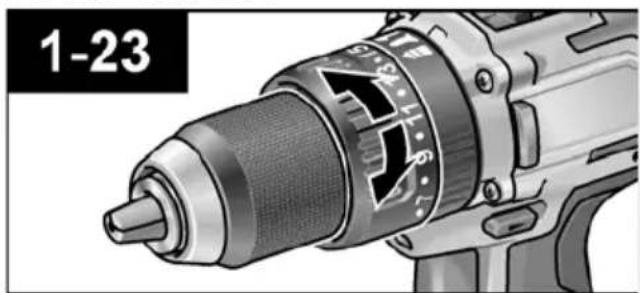

1–19: Screwing

: Drilling

i NOTE

The safety clutch is deactivated in the Drilling setting

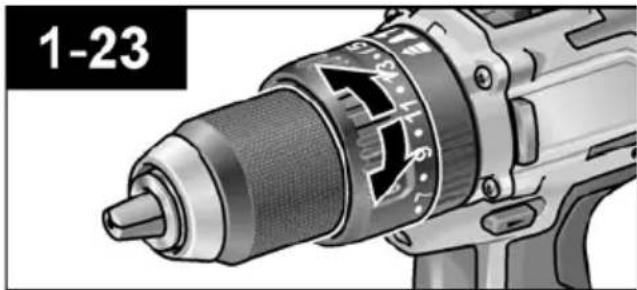

PD 2G 10.8-EC:

Close-up of a power drill bit with visible teeth and screw head (no text or symbols)

Speed preselection

CAUTION!

Change the speed only when the power tool is stopped.

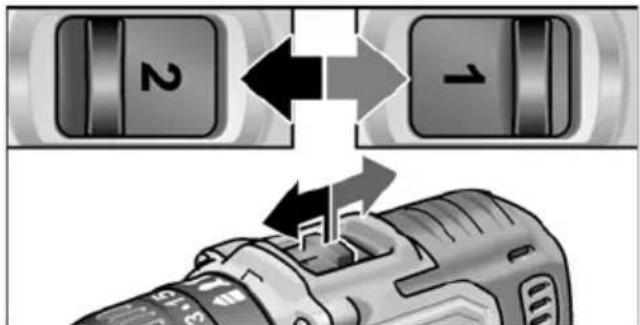

Diagram showing two directional arrows labeled '2' and '1' pointing to a device interface, with Chinese text indicating 'Control buttons'.

■ Move the selector switch to the required stage:

1: Low speed, high torque
2: High speed, low torque

Switching on the power tool

To switch the power tool on:

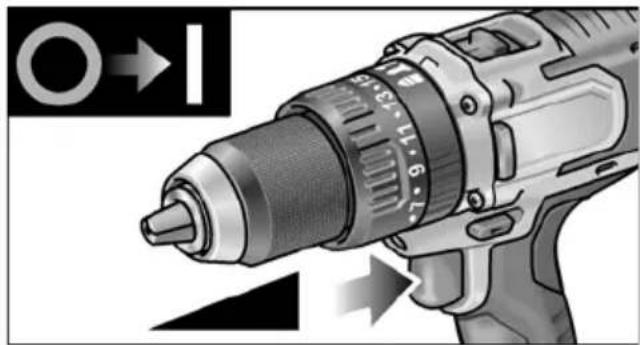

■ Press the trigger switch.

The power tool trigger switch allows the operator to increase the speed in increments up to the maximum speed.

Close-up of a power drill with a circular head indicator and directional arrow (no text or symbols on the drill itself)

To switch the power tool off:

■ Release the trigger switch.

i NOTE

• The power tool is equipped with a brake which stops the cutting accessory as soon as the trigger switch is released.
• When using the power tool continuously, the operator should work primarily with the trigger switch fully depressed.

Working with the power tool

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

i NOTE

To facilitate handling of the appliance when inserting screws, the screwdriver bit can be inserted directly into the tool holder of the appliance.

Illustration of a drill bit being inserted into a power supply (no text or symbols visible)

1. Assemble the tool head (drill chuck, angle attachment, bit holder attachment).
2. Insert the battery.
3. Insert the tool (drill bits, srewdriver bits, bit holders).
4. Set operating mode according to the work item (PD ... only).
5. Set torque preselection to the required setting.
6. Set speed to the required setting.
7. Set the required direction of rotation.

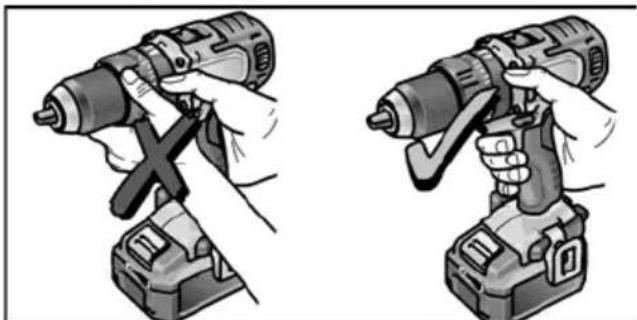

8. Hold the power tool with one hand on the handle and assume the working position.

If the power tool is running, never actuate the direction preselector switch or torque setting turning dial.

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Switch on the power tool.

At the end of work:

1. Release the trigger switch.
2. Move the direction preselector switch (2) to the middle position.

Charger

The CA 10.8 charger is designed to charge FLEX batteries of the following types

• AP 10.8/2.5,
• AP 10.8/4.0 and
• AP 10.8/6.0.

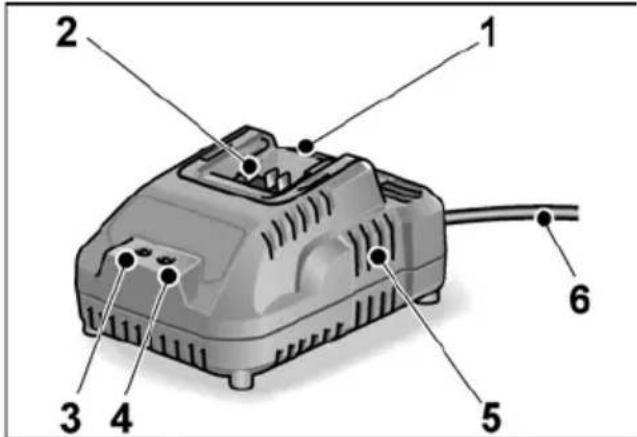

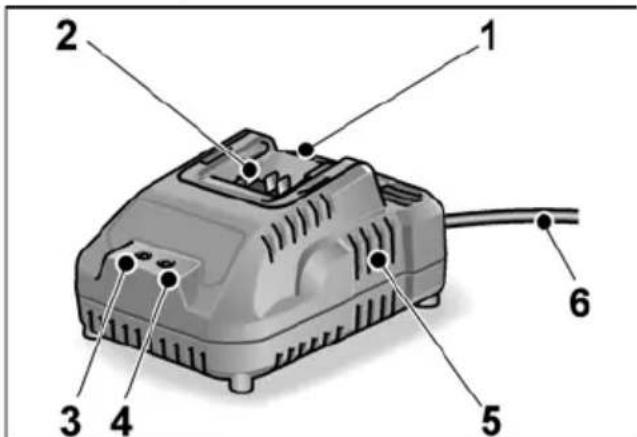

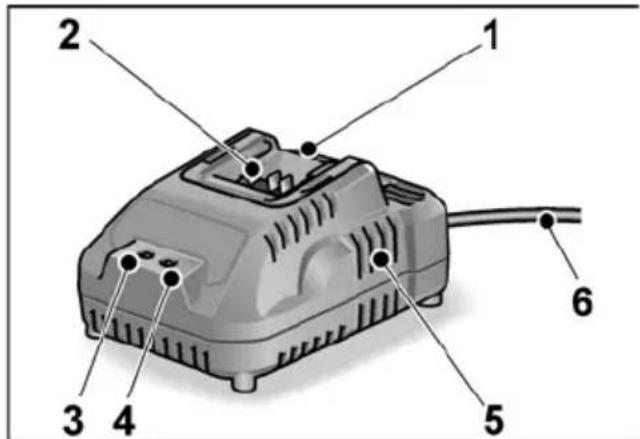

1 2 3 4 5 6

1 Insertion slot for battery
2 Contacts
3 LED fault message (red)
4 LED charge status (green)
5 Ventilation slots
6 Power cord with mains plug

Displays of LED

red green

off flashes Battery is charging.
off on	Charging process finished.Maintenance charging.
	See “Charging process”.
flashes off	Battery is too hot or too cold.
on off Battery or charger is faulty.
	See “Fault messages”.

Charging process

CAUTION!

Insert only original batteries in the supplied charger.

■ Insert the charger mains plug.

The LED fault message and the LED charge status light up for a short time.

■ Insert battery into the charger as far as stop.

The LED charge status flashes and the battery is charged.

When the battery is fully charged, the LED charge status is lit continuously.

Close-up of a mechanical component with a clamped top and cable, no visible text or symbols

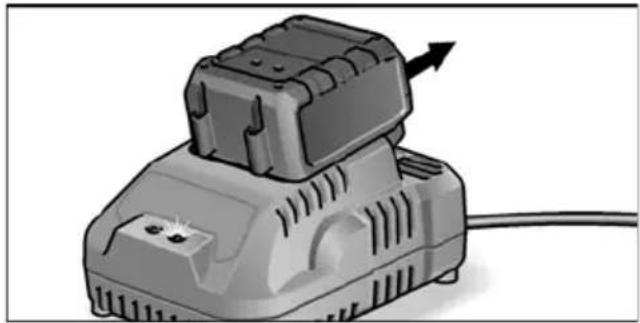

■ Remove the battery from the charger.

Illustration of a portable electrical plug with a cable, showing internal components and a directional arrow (no text or symbols)

■ Pull out the mains plug.

Fault messages

If the LED fault message lights up after the battery is inserted into the charger, there is an fault with the battery or charger.

The LED warning message is lit up continuously:

- The battery is too hot or too cold. The charging process starts when the battery reaches the charging temperature (0°C...40°C).

The LED fault message flashes or none of the two LEDs lights up:

- Remove battery from the charger. Check contacts at charger and battery for contamination and clean if necessary. Reinsert battery. The battery is faulty if the same display appears again. Replace battery or have it checked in a professional workshop.

- If this fault message is also displayed with a different battery, then there is a fault with the charger. Have the charger checked by a professional workshop.

Tips for a long battery service life

CAUTION!

• Never charge batteries at temperatures below 0 °C or above 40 °C.
• Do not charge batteries in environments with high air humidity or ambient temperature.
• Do not cover batteries and the charger during the charging process.
  – Pull out the charger mains plug at the end of the charging process.

Battery and charger heat up during the charging process. This is perfectly normal!

Lithium-ion batteries do not exhibit the established "memory effect". Nevertheless, a battery should be completely discharged before charging and the charging process should always be fully completed.

If batteries are not used for an extended period of time, store them partially charged in a cool place.

Maintenance and care

Cleaning

WARNING!

If metals are worked over a prolonged period, electroconductive dust may become deposited inside the housing.

Clean the power tool and ventilation slots at regular intervals. Frequency of cleaning is dependent on the material machined and the duration of use.

■ Regularly blow out the housing interior and motor with dry compressed air. Keep the power tool running while doing this.

Charger

WARNING!

Before performing any work, pull out the mains plug. Do not use water or liquid detergents.

■ Remove dirt and dust from the housing with a brush or a dry cloth.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

For other accessories, in particular cutting accessories, please refer to the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Transport

The lithium equivalent content of the batteries contained in the scope of delivery is below the relevant limit values. Therefore the battery as a separate component and the power tool with its scope of delivery are not subject to national or international dangerous goods regulations. If several devices containing lithium-ion batteries are transported, these regulations may become relevant and require special safety measures (e.g. for the packaging). In this case acquaint yourself with the regulations that apply to the country of use.

CE conformity

We declare on our sole responsibility that the product described in “Technical data” conforms to the following standards or normative documents:

EN 60745 according to the provisions of Directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Render redundant power tools unusable: - mains operated power tool by removing the power cord,

- battery operated power tool by removing the battery.

EU countries only

Do not dispose of electric power tools in the household waste! In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its incorporation into national law, used power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open disused batteries.

EU countries only

In accordance with the European Directive 2006/66/EC on Waste Electrical and Electronic Equipment and its incorporation into national law, defective or used batteries must be collected separately and recycled in an environmentally friendly manner.

i NOTE

Please ask your dealer about disposal options.

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.

Table des matières

Mechanical assembly diagram showing two views of a mechanical clamp or bracket (no text or symbols present)

i REMARQUE

Diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Démontage

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and mounting process.

Adaptateur porte-embout BV 10.8-EC

PRUDENCE!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Démontage

Diagram of a drill bit with numbered instructions for tool installation

Diagram illustrating the process of a drill bit with labeled steps and directional arrows, showing tool positioning and state indicators.

Close-up of a black-and-white illustration of a drill bit with a circular caliper and adjustment knobs (no text or symbols visible)

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19 : vissage

perçage

REMARQUE

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Diagram showing a device with labeled buttons 1 and 2, indicating directional movement or operation between them.

Close-up of a drill bit with adjustment knobs and a tool handle (no visible text or symbols)

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

Two illustrations of hands using a drill press to adjust the drill (no text or symbols present)

1. Allumez l'appareil.

• AP 10.8 / 2,5,
• AP 10.8 / 4,0 et
• AP 10.8 / 6,0 .

Labeled diagram of a mechanical device with numbered parts for identification

Close-up of a mechanical component with a metallic connector inserted into a socket (no visible text or symbols)

Illustration of a portable electronic device with a cable and indicator lights, no text or symbols present.

B. H. Q. - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i AVVERTENZA

Technical diagram showing two components of a drill bit with numbered callouts indicating parts of each.

Smontaggio

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and mounting process.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Smontaggio

Diagram of a drill bit with numbered instructions for tool installation

Diagram showing a drill bit being adjusted for a mechanical component, with labeled states and directional arrows indicating motion or assembly.

Close-up of a drill bit with caliper and adjustment knob (no visible text or symbols)

: Foratura

: Avvitatura

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: Avvitatura

Foratura

AVVERTENZA

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Diagram showing two connected devices labeled 1 and 2, with directional arrows indicating movement or interaction.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

Labeled diagram of a device with numbered parts for identification

Close-up of a mechanical component with an open lid and cable, no visible text or symbols

Illustration of a handheld electrical plug with a cable, showing no text or symbols.

■ Estrarre la spina d'alimentazione.

Messaggi d'errore

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

Mechanical assembly diagram showing two views of a mechanical clamp or bracket (no text or symbols present)

i NOTA

Technical diagram showing two mechanical components with numbered labels indicating parts of each.

Desmontaje

Diagram illustrating the step-by-step process of a drill tool, showing tool arrangement and drilling steps.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step callouts and directional arrows.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Desmontaje

Diagram of a drill bit with numbered instructions for tool insertion

Diagram illustrating the process of a drill bit with labeled steps and directional arrows indicating movement.

Close-up of a drill bit with caliper and screwdriver (no visible text or symbols)

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: Atornillar

Taladrar

NOTA

Close-up of a mechanical power drill bit with no visible text or symbols on the drill bit (labeled 1-23)

Diagram showing a device with labeled buttons (1, 2) and directional arrows indicating movement or interaction between two components.

Close-up of a power drill with a circular head indicator and directional arrow (no text or symbols on the drill itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

• AP 10.8 / 2,5,
• AP 10.8 / 4,0 y
• AP 10.8 / 6,0.

1 2 3 4 5 6

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

Illustration of a portable electrical plug with a cable, showing internal components and a directional arrow (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a bracket and mounting bracket (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket and screw (no text or symbols visible)

i INDICAÇÃO

Technical diagram showing two components of a drill bit with numbered callouts indicating parts of each.

Desmontar

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

■ Aplicar a ferramenta.
■ Fechar completamente o mandril.

i INDICAÇÃO

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and component positioning.

Adaptador de suporte para bits BV 10.8-EC

ATENÇÃO!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Desmontar

Diagram of a drill bit with numbered instructions for tool insertion

Close-up of a mechanical power drill bit with no visible text or symbols

C X 9

Close-up of a black-and-white photo of a drill bit with no visible text or symbols

: Furar

: Aparafusar

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: Aparafusar

Furar

INDICAÇÃO

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Diagram showing two connected devices labeled 1 and 2, with directional arrows indicating movement or interaction.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols visible)

Two illustrations of hands using a drill press, showing the correct and incorrect states of tooling (no text or symbols present)

1. Ligar o aparelho.

• AP 10.8/2,5,
• AP 10.8/4,0 e
• AP 10.8/6,0.

1 2 3 4 5 6

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

Illustration of a portable electrical plug with a cable, showing no text or symbols

■ Desligar a ficha da tomada.

Mensagens de erro

DD 2G 10.8-EC is bestemd

PD 2G 18.0-EC is bestemd

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i LET OP

Technical diagram showing two disassembled electric drill heads with numbered callouts indicating component alignment.

Demonteren

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and component positioning.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demonteren

Diagram of a drill bit with numbered instructions for tool insertion or disassembly

Close-up of a drill bit with a screwdriver and plunger (no visible text or symbols)

Close-up of a mechanical power drill with visible caliper and adjustment knobs (no text or symbols)

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: Schroeven

Boren

LET OP

Close-up of a power drill bit with visible screw and head (no text or symbols)

Snelheidsselectie

VOORZICHTIG!

Diagram showing a device's internal components labeled 1 and 2, with directional arrows indicating movement or flow.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Close-up of a drill bit with a screwdriver inserted, showing mechanical components and an arrow indicating motion (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

Close-up of a mechanical component with a clamped top and cable, no visible text or symbols

Illustration of a portable electrical plug with a cable, showing no text or symbols.

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i BEMAERK

Diagram showing two components of a drill press with numbered parts and directional arrows indicating assembly or operation.

Afmontering

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step soldering process with labeled steps and directional arrows indicating movement.

Bitholderforsats BV 10.8-EC

! FORSIGTIG!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Afmontering

Diagram of a drill bit with numbered instructions for tool insertion

Diagram showing a drill bit being adjusted to a tool, with three variations of the drill bit and directional arrows indicating movement.

Close-up of a drill bit with caliper and adjustment knobs (no visible text or symbols)

B o r i n g

: Skruning

: Slagboring

Momentvalg

FORSIGTIG!

Close-up of a power drill bit with visible screw and head (no text or symbols)

1–19: Skruning

Boring

BEMAERK

I borestilling er glidekoblingen deaktiveret.

PD 2G 10.8-EC:

Close-up of a power drill bit with visible screw and head (no text or symbols)

Hastighedsforvalg

FORSIGTIG!

Close-up of a power drill with a circular head indicator and directional arrows (no text or symbols)

Slukke maskinen:

■ Slip afbryderen.

i BEMAERK

Close-up of a drill bit being inserted into a motor, showing the shaft and screw (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Tænd maskinen.

• AP 10.8/2,5,
• AP 10.8/4,0,
• AP 10.8/6,0.

Labeled diagram of a mechanical device with numbered parts for identification

Close-up of a mechanical component with a clamped assembly and cable (no visible text or symbols)

■ Tag akkuen ud af ladeaggregatet.

Close-up of a gray electrical plug with a cable, showing internal components and a black arrow indicating direction (no text or symbols)

Handwritten signature or name with a circular outline and partial text below

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i HENVISNING

Diagram showing two mechanical components with numbered parts, likely illustrating a drill or tool operation.

Demontering

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step soldering process with labeled steps and directional arrows indicating movement.

Bitsholderforsats BV 10.8-EC

FORSIKTIG!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontering

■ Trekk läseringen fremover og ta av bitsholderforsatsen.

Diagram of a drill bit with numbered instructions for tool insertion

Diagram showing a drill bit being adjusted for a mechanical component, with labeled states and directional arrows indicating motion or assembly.

Close-up of a drill bit with caliper and adjustment knob (no visible text or symbols)

Boring
: Skruing
T: Slagboring

Dreiemomentforvalg

FORSIKTIG!

Close-up of a power drill bit with visible screw and handle (no text or symbols)

1–19: Skruer

Boring

i HENVISNING

I bore-stilling er slure-koblingen deaktivert.

PD 2G 10.8-EC:

Close-up of a power drill bit with visible screw and head (no text or symbols)

Hastighetsforvalg

FORSIKTIG!

Diagram showing two connected devices labeled 1 and 2, with directional arrows indicating movement or interaction.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols visible)

Two illustrations of hands using a drill press to adjust the drill (no text or symbols present)

Labeled diagram of a device with numbered parts for identification

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

■ Ta batteriet ut av ladeapparatet.

Illustration of a portable electronic device with a cable and indicator lights, no text or symbols present.

B. 10 - -

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

15 Litiumjonbatteri (2,5 Ah/4,0 Ah/6,0 Ah)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols present)

i OBS!

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Demontera

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing thread insertion and component positioning.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontera

Diagram of a drill bit with numbered instructions for tool positioning

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Diagram showing three stages of a mechanical device with labeled arrows and symbols, likely illustrating a process or assembly sequence.

Close-up of a black-and-white illustration of a drill bit with a circular caliper and adjustment knob (no text or symbols)

: Borrning
1: Skruvning
1: Slagborrning

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: Skruvning

Borning

OBS!

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Diagram showing a device with labeled buttons (2 and 1) and directional arrows indicating movement or interaction between components.

Close-up of a power drill with a circular head indicator and directional arrows (no text or symbols on the drill itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

Labeled diagram of a device with numbered parts for identification

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

■ Ta ut batteriet ur laddaren.

Illustration of a portable electronic device with a cable and indicator lights, no text or symbols present.

Klaus Peter Weinper Head of Quality Department (QD)

15 Litiumioniakku (2,5 Ah/4,0 Ah/6,0 Ah)

Mechanical assembly diagram showing two views of a tool with fasteners and bolts (no text or symbols)

i OHJE

Technical diagram showing two disassembled electric drill heads with numbered callouts indicating component alignment.

Irrotus

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Irrotus

Diagram of a drill bit with numbered instructions for tool insertion or repair

Close-up of a mechanical power drill bit with no visible text or symbols

Diagram showing three stages of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Close-up of a precision drill bit with no visible text or symbols on the tool itself

Close-up of a power drill bit with visible teeth and caliper (no text or symbols)

1–19: Ruuvaaminen

Poraaminen

OHJE

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Nopeuden esivalinta

VARO!

Close-up of a drill bit with adjustment knobs and a circular indicator (no text or symbols on the drill bit itself)

Koneen pysäytys:

Close-up of a drill bit with a screwdriver inserted, showing mechanical components and an arrow indicating motion (no text or symbols present)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Käynnistä kone.

Töiden jälkeen:

• AP 10.8/2,5,
• AP 10.8/4,0 ja
• AP 10.8/6,0.

Labeled diagram of a mechanical device with numbered parts for identification

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

Illustration of a gray electric shaver with a black top and cable, showing no text or symbols.

■ Irrota pistotulppa pistorasiasta.

Virheilmoitukset

Klaus Peter Weinper Head of Quality Department (QD)

Mechanical assembly diagram showing two views of a mechanical clamp or bracket with screws and a connector (no text or symbols)

i YΠΟΔΕΙΞΗ

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Αφαίρεση

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step assembly with arrows indicating direction.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Αφαίρεση

Diagram of a drill bit with numbered callouts indicating tool placement and adjustment points

Diagram illustrating the process of a drill press tool with labeled steps and directional arrows indicating motion.

Close-up of a mechanical power drill with caliper and adjustment knobs (no visible text or symbols)

Τρύπημα

: Bíδωμα

: Τρύπημα με κρούση

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: Bíδωμα

Τρύπημα

ΥΠΟΔΕΙΞΗ

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Close-up of a camera lens with directional arrows indicating light path (no text or symbols)

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

Illustration of a portable electrical plug with a cable, showing internal components and a black arrow indicating direction (no text or symbols)

B. T. Q.-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

15 Lityum İyon akü (2,5 Ah/4,0 Ah/6,0 Ah)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i BİLGİ

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Sökme

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing thread insertion and adjustment.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Sökülmesi

Diagram of a drill bit with numbered instructions for tool insertion

Close-up of a mechanical power drill bit with no visible text or symbols

C X 9

Close-up of a drill bit with caliper and adjustment knob (no visible text or symbols)

Delme

Vidalama

Darbeli delme

Tork ön seçimi

DİKKAT!

Close-up of a drill bit with visible screw and head, no text or symbols present

1–19: Vidalama

Delme

BÍLGI

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Hız ön seçimi

DİKKAT!

Close-up of a drill bit with a circular indicator showing 'O' and directional arrow (no text or symbols on the drill bit itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and rotor (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Cihazı açın.

Çalışma sonunda:

• AP 10.8/2,5,
• AP 10.8/4,0,
• AP 10.8/6,0.

Labeled diagram of a mechanical device with numbered parts for identification

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

Illustration of a power supply unit with a black top and cable, showing no text or symbols.

■ Fisi çekin.

Hata mesajları

Brisks -1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Demontaż

Diagram illustrating a drill bit insertion process with labeled steps 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pin positioning and adjustment instructions.

Nasadka do końcówek BV 10.8-EC

OSTROŻNIE!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontaż

Diagram of a drill bit with numbered instructions for tool insertion

Diagram illustrating the process of a drill bit with labeled states and directional arrows, showing steps to press or rotate.

Close-up of a black-and-white photo of a power drill with visible caliper and adjustment knobs (no text or symbols)

: wiercenie

: wkręcanie

: wiercenie udarowe

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: wkręcanie

wiercenie

WSKAZÓWKA

Close-up of a drill bit with visible screw and adjustment knob (no text or symbols)

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating movement or interaction.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Illustration of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols present)

Two illustrations of hands using a drill press, showing the tool being inserted (no text or symbols present)

1. Włączyć urządzenie.

Close-up of a mechanical component with a metallic bracket inserted into a socket (no visible text or symbols)

Illustration of a portable electrical plug with a cable, showing internal components and a directional arrow (no text or symbols)

Rille B. R. D.

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

15 Li-ion akku (2,5 Ah/4,0 Ah/6,0 Ah)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i MEGJEGYZÉS

Diagram showing two mechanical components with numbered parts and directional arrows indicating assembly or operation.

Leszerelés

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and mounting process.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Leszerelés

Diagram of a drill bit with numbered instructions for tool positioning

Diagram showing a drill bit being adjusted to a mechanical component, with labeled parts and directional arrows indicating motion or assembly.

Close-up of a mechanical power drill with visible caliper and screw head (no text or symbols)

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: Csavarozás

Fúrás

MEGJEGYZÉS

Close-up of a power drill bit with visible branding and model number 1-23 (no text or symbols on the drill itself)

Diagram showing a device with labeled buttons (2 and 1) interacting with a device, illustrating a process or operation.

Close-up of a drill bit with adjustment knobs and a circular indicator (no text or symbols visible)

A gép kikapcsolása:

Close-up of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

• AP 10.8/2,5,
• AP 10.8/4,0 és
• AP 10.8/6,0.

Diagram of a device with numbered parts labeled 1 through 6, likely illustrating a component or wiring.

Close-up of a mechanical component with a clamped top and cable, no visible text or symbols

Illustration of a portable electrical plug with a cable, showing internal components and a black arrow indicating direction (no text or symbols)

Handwritten signature or scribble on a document, possibly from a form or document.

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

Technical diagram showing two disassembled electric motors with numbered callouts indicating component alignment.

Demontáž

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating the step-by-step installation of a screwdriver tool, showing three sequential states with arrows indicating direction.

Diagram of a drill bit with labeled parts and directional arrows indicating tool positioning

Demontáž

Diagram of a drill bit with numbered instructions for tool positioning

Diagram illustrating the process of a power tool with labeled parts and directional arrows indicating rotation or adjustment.

Close-up of a drill bit with visible caliper and adjustment knob (no text or symbols)

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: šroubování

vrtání

UPOZORNĚNÍ

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Předvolba rychlosti

POZOR!

Diagram illustrating a device's internal components with labeled parts 1 and 2, showing directional arrows and a close-up of the device's interior.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Vypnutí nářadí:

■ Uvolněte spínač.

UPOZORNĚNÍ

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

• AP 10.8/2,5,
• AP 10.8/4,0 a
• AP 10.8/6,0.

1 2 3 4 5 6

Close-up of a mechanical component with an open socket and cable, no visible text or symbols

Illustration of a handheld electrical plug with a cable, showing internal components and a directional arrow (no text or symbols)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i UPOZORNENIE

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Demontáž

Diagram showing a drill bit being inserted into a drill bit, with numbered steps labeled 1 to 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step insertion and disassembly.

Nadstavec pre držiak hrotov BV 10.8-EC

POZOR!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontáž

■ Odblokovací krúžok potiahnite dopredu a odoberte nadstavec pre držiak hrotov.

Vloženie nástrojov

Diagram of a drill bit with numbered instructions for tool insertion

Diagram illustrating the process of a drill press tool with labeled steps and directional arrows indicating motion.

Close-up of a black-and-white photo of a power drill with visible caliper and adjustment knobs (no text or symbols)

: Vrtanie

: Skrutkovanie

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: Skrutkovanie

Vítanie

UPOZORNENIE

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Predvoľba rýchlosti

POZOR!

Diagram showing a device with labeled buttons (2 and 1) connected to a camera lens, illustrating the process of switching or positioning.

Close-up of a power drill with a circular head indicator and directional arrows (no text or symbols on the drill itself)

Vypnutie náradia:

■ Uvolnite vypínač.

UPOZORNENIE

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press, showing the tool being adjusted (no text or symbols present)

1. Zapnite náradie.

Po ukončení práce:

1. Uvołnite vypínač.

2. Nastavte prepínač predvolby smeru otáčania (2) do strednej polohy.

Nabíjačka

Nabíjačka CA 10.8 je určená na nabíjanie akumulátorov FLEX typu

• AP 10.8/2,5,
• AP 10.8/4,0 a
• AP 10.8/6,0.

Labeled diagram of a mechanical device with numbered parts for identification

Close-up of a mechanical component with a clamped top and cable, no visible text or symbols

Illustration of a portable electronic device with a cable and indicator lights (no text or symbols)

Handwritten signature or name with a circular outline and partial text below

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Mechanical assembly diagram showing two views of a clamp or bracket device (no text or symbols present)

i NAPOMENA

Prilikom isporuke akumulatori nisu potpuno napunjeni. Prije prvog puštanja u rad napunite do kraja akumulatore. U tu svrhu pogledajte „Punjač/Postupak punjenja“.

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Demontiranje

■ Prsten za deblokadu povucite prema naprijed i skinite steznu glavu.

Umetanje alata

Diagram illustrating the step-by-step process of a drill tool, showing tool positioning and drilling steps.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pin positioning and adjustment mechanism.

Držač nastavka BV 10.8-EC

OPREZ!

Prije svih radova na električnom alatu prekidač za odabir smjera okretanja (2) postavite u srednji položaj.

Montiranje

■ Prsten za deblokiranje povucite prema naprijed (1.) i držač nastavka do graničnika pritisnite u prihvat alata(2.).

Diagram of a drill bit with labeled parts showing mechanical assembly and tool path

Demontiranje

Diagram of a drill bit with numbered instructions for tool installation

■ Za vađenje alata aretiranje alata povucite prema nazad.

Close-up of a mechanical power drill bit with no visible text or symbols

Diagram showing three stages of a mechanical or industrial process with labeled components and directional arrows indicating flow or movement.

Close-up of a drill bit with caliper and adjustment knobs (no visible text or symbols)

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: vijčanje

bušenje

NAPOMENA

U položaju za bušenje klizna spojka je deaktivirana.

PD 2G 10.8-EC:

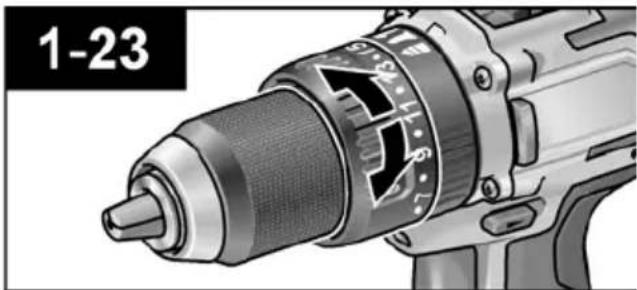

Close-up of a power drill bit with visible screw and head (no text or symbols)

Odabir brzine

OPREZ!

Brzinu možete mijenjati samo kada je električni alat u stanju mirovanja.

Diagram showing a device with two labeled buttons (2 and 1) connected by directional arrows, indicating a process or operation.

■ Prekidač za odabir stavite na potrebni stupanj:

1: mala brzina, visoki okretni moment
2: velika brzina, nizak okretni moment

Close-up of a power drill with a circular head indicator and directional arrows (no text or symbols on the drill itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

1. Montirajte nosač alata (zamjenska stezna glava, kutni nastavak, držač nastavka).
2. Umetnite akumulator.

3. Umetnite alat (svrdlo, odvijač, držač nastavka).

4. Način rada podesite sukladno radnom zadatku (samo PD...).

5. Odabir okretnog momenta postavite na potrebni stupanj.
6. Brzinu postavite na potrebni stupanj.
7. Podesite potreban smjer okretanja.
8. Električni alat primite rukom i zauzmite radni položaj.

Kada je motor u radu nikada ne pritišćite prekidač za odabir smjera okretanja odn. postavku okretnog momenta!

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Uključite aparat.

• AP 10.8/2,5,
• AP 10.8/4,0,
• AP 10.8/6,0.

1 2 3 4 5 6

1 Otvor za umetanje akumulatora
2 Kontakti
3 LED indikator dojave pogreške (crveno)

4 LED indikator stanja napunjenosti (zeleno)

5 Prorezi za ventilaciju
6 Mrežni kabel s mrežnim utikačem

LED indikator

crvena zelena

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

Illustration of a handheld electrical device with a cable and indicator lights (no text or symbols)

■ Izvucite mrežni utikač.

Dojava pogreške

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i OPOMBA

Akumulatorske baterije ob dobavi niso popolnoma napolnjene. Pred prvo uporabo akumulatorske baterije popolnoma napolnite. V ta namen glejte poglavje „Polnilnik/Polnjenje“.

Izmenljiva vrtalna glava BF 10.8-EC

POZOR!

Diagram showing two components of a drill bit with numbered callouts indicating parts of each tool.

Demontaža

■ Obroč za deblokiranje povlecite naprej in snemite vrtalno glavo.

Vpenjanje nastavkov

V vrtalno glavo je mogoče vpeti svedre s premerom 1,5–10 mm, vijačne nastavke 14 " in držala za nastavke 14 ".

■ Z eno roko čvrsto držite električno orodje, z drugo pa vrtite vrtalno glavo.
– Z vrtenjem v nasprotni smeri urnega kazalca vrtalno glavo še bolj odprete.
– Z vrtenjem v smeri urnega kazalca vrtalno glavo zaprete.

Diagram illustrating the step-by-step procedure of a drill tool, showing tool positioning and cutting steps.

■ Vstavite nastavek.
■ Vrtalno glavo popolnoma zaprite.

i OPOMBA

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and component positioning.

Vpetje za nastavke BV 10.8-EC

POZOR!

Diagram of a drill bit with labeled parts showing mechanical assembly and motion arrows

Demontaža

Diagram of a drill bit with numbered instructions for tool installation

■ Da nastavek odstranite, blokado nastavka povlecite nazaj.

Vstavljanje/menjava akumulatorske baterije

Napolnjeno akumulatorsko baterijo v električno orodje potisnite tako daleč, da se popolnoma zaskoči.

"click"

Diagram of a device with labeled parts, showing a switch and lock mechanism with numbered annotations.

POZOR!

Close-up of a mechanical power drill bit with no visible text or symbols

C X D

■ Stikalo za izbiro smeri vrtenja nastavite v želen položaj:

Close-up of a black-and-white illustration of a power drill with a circular caliper and adjustment knob (no text or symbols)

: Vrtanje
: Vijačenje
1: Udarno vrtanje

Izbira vrtilnega momenta

POZOR!

Vrtilni moment je dovoljeno spremeniti samo, ko električno orodje miruje.

Close-up of a power drill bit with visible screw and head (no text or symbols)

1–19: Vijačenje

Vrtanje

OPOMBA

Close-up of a power drill bit with visible screw and adjustment dial (no text or symbols)

Izbira hitrosti

POZOR!

Hitrost je dovoljeno spremeniti samo, ko električno orodje miruje.

Diagram showing a device with labeled buttons (2 and 1) connected to a device with directional arrows indicating movement or interaction.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols)

Izklop orodja:

■ Spustite stikalo.

OPOMBA

Close-up of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols visible)

Illustration of two hands using a drill press, showing the tool being adjusted (no text or symbols present)

1. Vklopite orodje.
   Po končanem delu:
2. Spustite stikalo.
3. Stikalo za izbiro smeri vrtenja (2) nastavite v osrednji položaj.

Polnilnik

• AP 10.8/2,5,
• AP 10.8/4,0,
• AP 10.8/6,0.

Labeled diagram of a device with numbered parts and cable connection points

1 Reža za vstavljanje akumulatorske baterije
2 Kontakti
3 LED-dioda za javljanje napake (rdeča)

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

LED-dioda za stanje napolnjenosti utripa in akumulatorska baterija se polni. Ko je akumulatorska baterija napolnjena, LED-dioda za stanje napolnjenosti neprekinjeno sveti.

Illustration of a handheld electrical plug with a cable, showing internal components and a directional arrow (no text or symbols)

■ Omrežni vtič izvlecite iz vtičnice.

Sporočila o napakah

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i INDICATIE

Technical diagram showing two disassembled electric drill heads with numbered callouts indicating component alignment.

Demontarea

Introducerea sculelor

Diagram illustrating the step-by-step process of a drill tool, showing tool arrangement and drilling steps.

Introducerea sculelor

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and mounting process.

Cap aplicat cu suport de bituri BV 10.8-EC

PRECAUTIE!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontarea

Introducerea sculelor

Diagram of a drill bit with numbered instructions for tool positioning

Close-up of a mechanical power drill bit with no visible text or symbols

C X D

Close-up of a drill bit with a 12-inch speed caliper and control buttons (no visible text or symbols)

Găurire

Înşurubare

Găurire cu percuție

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: Înşurubare

Găurire

INDICATIE

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Preselectarea vitezei

PRECAUTIE!

Diagram showing a device with labeled buttons (2 and 1) and directional arrows indicating movement or interaction between components.

Close-up of a power drill with visible blade and handle, showing tool movement (no text or symbols)

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

Illustration of two hands using a drill press, showing tool positioning and application (no text or symbols)

1. Conectați aparatul.

• AP 10.8/2,5,
• AP 10.8/4,0,
• AP 10.8/6,0.

Labeled diagram of a device with numbered parts for identification

Close-up of a mechanical component with a metallic connector inserted into a housing (no visible text or symbols)

Illustration of a portable electrical plug with a cable, showing no text or symbols.

EN 60745 conform prevederilor Directivei 2014/30/UE, 2006/42/CE, 2011/65/UE.

Responsabili pentru documente tehnice: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

B. H. Q. - 1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Mechanical assembly diagram showing a motor and clamping mechanism (no text or symbols)

Mechanical assembly diagram showing a drill bit and screwdriver (no text or symbols)

i УКАЗАНИЕ

Diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Демонтиране

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step callouts and directional arrows.

Diagram of a drill bit with numbered instructions for tool manipulation

Демонтиране

Diagram of a drill bit with numbered instructions for tool insertion or repair

Diagram showing a drill bit with labeled components and tool path changes, including 'C', 'X', and 'D' annotations.

Close-up of a drill bit with caliper and adjustment knobs (no visible text or symbols)

пробиване

: завинтване

: ударно пробиване

Close-up of a power drill bit with no visible text or symbols on the drill face (text is part of the diagram)

1–19: завинтване

пробиване

УКАЗАНИЕ

Close-up of a power drill bit with visible screw and head (no text or symbols)

Избор на скорост

ВНИМАНИЕ!

Diagram showing a device with labeled buttons (2 and 1) connected to a camera lens, illustrating the process of switching or positioning.

Close-up of a power drill with a circular head indicator and directional arrow (no text or symbols on the drill itself)

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Включете уреда.

• AP 10.8/2,5,
• AP 10.8/4,0,
• AP 10.8/6,0.

Labeled diagram of a device with numbered parts for identification

Close-up of a mechanical component with an open socket and cable, no visible text or symbols

Illustration of a small electrical plug with a cable, showing internal components and a directional arrow (no text or symbols)

Изтеглете щепсела.

Съобщения за грешка

B. T. Q.-1

Klaus Peter Weinper

Head of Quality

Department (QD)

Mechanical assembly diagram showing a tool interacting with a bracket and mounting bracket (no text or symbols visible)

Close-up of a mechanical component with a screw and pin assembly (no visible text or symbols)

i УКАЗАНИЕ

Diagram showing two components of a drill press with numbered parts and directional arrows indicating assembly or operation.

Снятие

Diagram illustrating the step-by-step process of a drill tool, showing tool arrangement and drilling steps.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and component positioning.

Technical diagram of a drill bit with numbered instructions for tool manipulation

Снятие

Diagram of a drill bit with numbered instructions for tool insertion

Close-up of a mechanical power drill with a drill bit and screw head (no visible text or symbols)

C X D

Close-up of a drill bit with caliper and adjustment knobs (no visible text or symbols)

: сверление

: заворачивание

: ударное сверление

Close-up of a drill bit with visible screw and handle, no text or symbols present

1–19: заворачивание

сверление

УКАЗАНИЕ

Close-up of a drill bit with visible screw and head (no text or symbols)

Выбор скорости

ВНИМАНИЕ!

Diagram showing a device with labeled buttons (1, 2) and directional arrows indicating movement or interaction between components.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Выключение прибора:

Illustration of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols present)

Illustration of two hands using a drill press to lift a drill, showing mechanical components (no text or symbols)

1. Включите прибор.

Diagram of a device with numbered parts labeled 1 through 6, likely illustrating a component or wiring.

Close-up of a mechanical component with a clamped assembly, showing internal structure and wiring (no text or symbols visible)

Illustration of a handheld electrical device with a cable and indicator lights (no text or symbols)

Klaus Peter Weinper Head of Quality Department (QD)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i MÄRKUS!

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Eemaldamine

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step callouts and directional arrows.

Otsakuhoidikumanus BV 10.8-EC

ETTEVAATUST!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Eemaldamine

Diagram of a drill bit with numbered instructions for tool positioning

Tarviku eemaldamiseks tömmake tarvikufiksaatorit tahapoole.

Aku paigaldamine/vahetamine

Diagram illustrating the process of a drill press with labeled steps and directional arrows indicating motion or assembly.

Close-up of a black-and-white photo of a power drill with visible caliper and adjustment knobs (no text or symbols)

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: kruvikeeramine

puurimine

MÄRKUS!

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Kiiruse eelvalik

ETTEVAATUST!

Diagram showing a device's left-hand rule with labeled buttons 1 and 2, and a close-up of its internal components.

Close-up of a power drill with a circular head indicator and directional arrow (no text or symbols on the drill itself)

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Two illustrations of hands using a drill press, showing the tool being adjusted (no text or symbols present)

Labeled diagram of a device with numbered components for identification

Close-up of a mechanical component with a clamped top and cable, no visible text or symbols

Close-up of a small electrical component with a cable and indicator lights, no visible text or symbols.

B. R. Q. - 1

Klaus Peter Weinper

Head of Quality

Department (QD)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i NURODYMAS

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Išmontavimas

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and component positioning.

Diagram of a drill bit with labeled parts, showing mechanical assembly and tool path

Išmontavimas

Diagram of a drill bit with numbered callouts indicating tool placement or insertion steps

Diagram showing a drill bit being adjusted to a tool, with three views of the drill bit labeled C, X, and B.

Close-up of a black-and-white photo of a power drill with visible caliper and adjustment knobs (no text or symbols)

: gręžimas

: sukimas

: smūginis gręžimas

Sukimo momento parinktis

ATSARGIA!!

Close-up of a power drill bit with visible screw and head (no text or symbols)

Greičio parinktis

ATSARGIA!!

Greitj keiskite tik sustojus elektriniam jrankiui.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press to lift a tool, showing the correct and incorrect states (no text or symbols present)

1. Prietaiso jungimas.

Baigus darba:

1. Jungiklj atleiskite.

2. Sukimosi krypties parinkimo jungiklj (2) nustatykite per vidurj.

Krovimo prietaisas

• AP 10.8/2,5,
• AP 10.8/4,0 ir
• AP 10.8/6,0.

Labeled diagram of a device with numbered parts for identification

Close-up of a plug socket with an open socket inserted, showing internal components and wiring (no text or symbols visible)

Illustration of a portable electronic device with a cable and indicator lights, no text or symbols present.

B. P. Q. - 1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

15 Litija jonu akumulators (2,5 Ah/4,0 Ah/6,0 Ah)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i NORÃDE

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating motion or assembly.

Demontāža

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and mounting process.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontāža

Diagram of a drill bit with numbered instructions for tool positioning

■ Lai iznemtu instrumentu, pavelciet instrumenta fiksatoru uz aizmuguri.

Diagram illustrating the process of a drill bit with labeled steps and directional arrows, showing tool positioning and rotation.

Close-up of a drill bit with caliper and adjustment knob (no visible text or symbols)

Close-up of a drill bit with visible screw and head (no text or symbols)

1–19: skrūvēšana

urbšana

NORÃDE

Close-up of a power drill bit with visible branding and model number 1-23 (no text or symbols on the drill itself)

Ātruma izvēle

UZMANĪBU!

Close-up of a power drill with a circular head indicator and directional arrows (no text or symbols on the drill itself)

Ierīces izslēgšana:

■ Atlaidiet slēdzi.

i NORÃDE

Close-up of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols visible)

Two illustrations of hands using a drill press, showing the tool being adjusted (no text or symbols present)

1. leslēdziet instrumentu.

Pēc darba beigām:

• AP 10.8/2,5,
• AP 10.8/4,0 un
• AP 10.8/6,0.

Diagram of a device with numbered parts labeled 1 through 6, likely for assembly or labeling purposes.

1 Akumulatora nodalijums
2 Kontakti
3 Klūdas paziņojuma gaismas diode (sarkana)

Close-up of a mechanical component with a clamped top and cable, no visible text or symbols

Close-up of a small electrical plug with a cable, showing internal components and a directional arrow (no text or symbols)

■ Atvienojiet spraudni.

Klūdas paziņojumi

Klaus Peter Weinper
Head of Quality
Department (QD)

Klaus Peter Weinper Head of Quality Department (QD)

Illustration of a gray electric shaver with a black top and cable, showing no text or symbols.

Close-up of a mechanical component with a clamped assembly and cable (no visible text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

Labeled diagram of a mechanical device with numbered parts for identification

Close-up of a power drill with a circular head indicator and directional arrow (no text or symbols on the drill itself)

إيقاف تشغيل الجهاز:

يتم ترك الفتح.

تنبيه! i

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Close-up of a power drill bit with visible teeth and caliper (no text or symbols)

19-1 ربط براغي

نَقْب

:

تنبیه!

i

Close-up of a power drill bit with visible branding and model number 1-23 (no text or symbols on the drill itself)

Illustration of a camera lens with directional arrows indicating light or movement (no text or symbols)

Diagram illustrating the process of a drill bit with labeled steps and directional arrows indicating rotation or adjustment.

Close-up of a precision drill bit with no visible text or symbols on the device itself

نَقْب

ریط براغي

نقب بالطرق

Diagram of a drill bit with numbered parts and directional arrows indicating tool positioning

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step callouts and directional arrows.

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Mechanical assembly diagram showing a clamp securing a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

تنبيه!

i

Technical diagram showing two disassembled electric motors with labeled parts and directional arrows indicating assembly.

نظرة عامة

Technical diagram of a drill press with numbered parts for identification

DD 2G 10.8-EC
PD 2G 10.8-EC

15 16 17 18 19 20

WV 10.8-EC 11

BV 10.8-EC 12

13 حلقة خرمر
