USER MANUAL LABPS3005DN VELLEMAN

PROGRAMMABLE DC LAB POWER SUPPLY

PROGRAMMEERBARE LABOVOEDING

ALIMENTATION DE LABORATOIRE PROGRAMMABLE

PROGRAMOWALNY ZASILACZ LABORATORYJNY

CE 16 15 17 SER No. 2001134 Terminal Induction of Adder to Dial: 16 Dial: 15 Dial: 17

8 V 3 100 V 9 7 SE 5.000 A 10 4 5 PUSHHOLD M1 VND FINECOURSE 4 6 4 MEN 4 3 OUTPUT 2 OUTPUT 1 12 13 14 - GND + OUTPUT

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device.
• Do not disassemble or open the cover under any circumstances. Touching live wires can cause life-threatening electroshocks. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
• Always connect the device to an earthed power socket.
• The device heats up during use. Make sure the ventilation openings are clear at all times. For sufficient air circulation, leave at least 1" (± 2.5 cm) in front of the openings.
• Place the device on a flat, heat-resistant surface. Do not place the device on flammable surfaces such as carpets, fabrics...
• Always disconnect mains power when the device is not in use, when servicing or maintenance activities are performed. Handle the power cord by the plug only.
• Keep this device away from dust and extreme temperatures.
• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Do not use the device when damage to housing or cables is noticed. Do not attempt to service the device yourself but contact an authorised dealer.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Product images are for illustrative purposes only.
• Keep this manual for future reference.

LABPS3005DN

4. Overview

Refer to the illustrations on page 2 of this manual.

1	power on-off
2	output on-off
3	MEN: memory save
4	M1-M2-M3: memory recall
5	V/A: voltage/current selector
6	OCP: over-current protection
7	CC: constant current mode
8	CV: constant voltage mode
9	V: voltage display

10	A: current display
11	voltage/current adjustment knob
12	output negative terminal
13	ground terminal
14	output positive terminal
15	power supply socket
16	fan
17	USB type B

5. Operation

5.1 Switching On and Off

1. Connect the device to the mains using the included power cord.

WARNING

Always connect the device to an earthed power socket.

1. Press the power button to switch on the device. At this moment, there is no output voltage or current on the output terminals.
2. Press the power button to switch off the device after use.

5.2 Constant Voltage Mode

Set up the desired output voltage between 0 and 30 V.

Also, set up the desired current limit. If the output current exceeds the limit, the device automatically goes into constant current mode.

5.3 Constant Current Mode

Set up the desired output current between 0 and 5 A.

Also, set up the desired voltage limit.

5.4 Setting Voltage and Current

The device allows you to save three different settings using the memory keys M1, M2 and M3.

1. Set the voltage value. Press the V/A button. The voltage readout flashes. Turn the adjustment knob until you reach the approximate desired voltage. Press the adjustment knob to select a digit in the voltage readout and turn to fine-tune.
2. Set the current value. Press the V/A button. The current readout flashes. Turn the adjustment knob until you reach the approximate desired current. Press the adjustment knob to select a digit in the current readout and turn to fine-tune. If you enable the over-current protection, the output switches off automatically if the current exceeds this value.
3. Press the memory save key. The readout will flash. Press the desired memory button to save.

5.5 Setting Recall

Press the corresponding memory key to recall a previously saved setting.

REMARK

The output is switched off automatically when pressing a memory button.

LABPS3005DN

5.6 Using Memory 3

1. Set the voltage and current as desired. Press memory button MEN and wait until the display starts flashing.
2. Press button M3. Wait until the display stops flashing; the settings are automatically stored into the memory.
3. To recall the settings, press button M3

5.7 Connecting a Load

1. Connect the load's positive terminal to the positive terminal of the device.
2. Connect the load's negative terminal to the negative terminal of the device.

REMARK

You can connect the positive or negative terminal to the ground terminal of the device to pin the voltage to 0 V (earth potential) at that terminal.

5.8 Applying Voltage to the Load

1. Press the on-off key to apply voltage to the load. The output and CV indicators light. The device works in constant voltage mode. The display shows the actual output voltage and current. If the current exceeds the set current limit, the device automatically goes into constant current mode. The CV indicator goes out and the CC indicator lights.

2. Press the on-off key to switch off the output.

5.9 Over-Current Protection

1. To protect the device against over-current, set up the maximum current and the n press the OCP button.
2. Switch on the output to apply output to the load. If the output current exceeds the set value, the device will cut off the output and the OCP indicator will flash.
3. Disconnect the load. To recover, press the OCP button.

5.10 Remote Control via PC

1. Install the software on your PC.
2. Connect the device to your PC and switch it on. Note that the control buttons on the front panel are locked when the device is connected to a PC. You can only operate the device through the PC.
3. Click the software to launch the software. The opening screen appears.

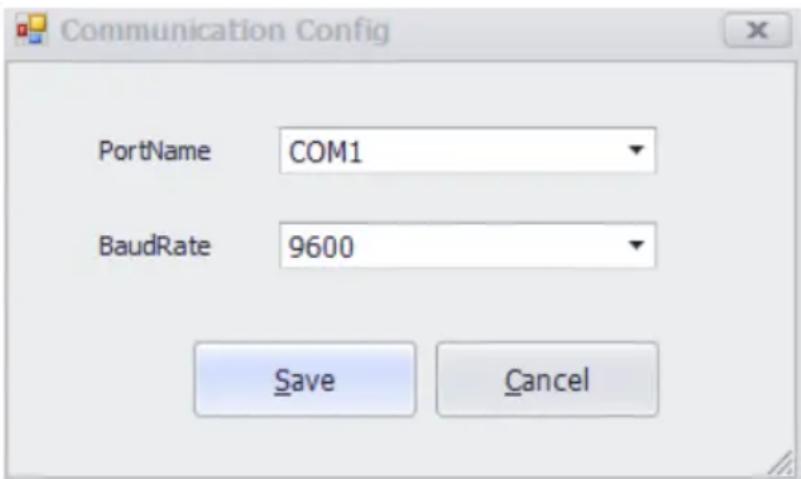

4. Select the connected device number from the drop list and click

Communication Config PortName COM1 BaudRate 9600 Save Cancel

LABPS3005DN

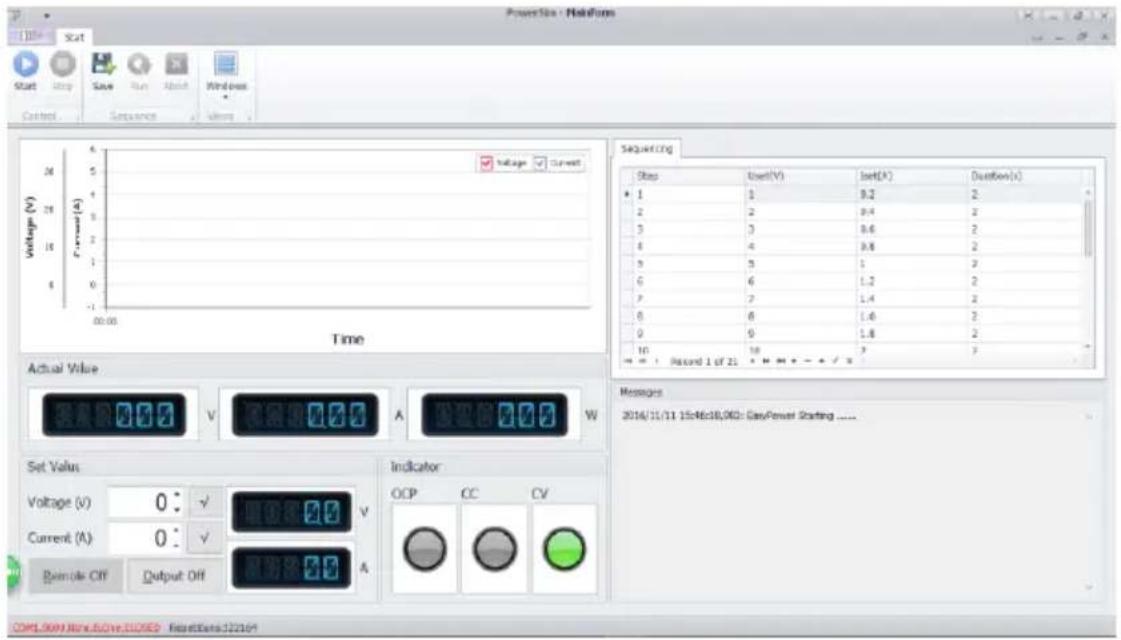

5. The main screen.

PowerUse - HoldForm Start Stop Save Run About Windows Control Sequence Window Voltage (V) Current Voltage (A) 00:00 Time Actual Value V A W Set Value Voltage (V) 0: √ Current (A) 0: √ Reimole Off Output Off Indicator OCP CC CV Sequentialing Stop User(V) Set(A) Duration(s) 1 1 9.2 2 2 2 9.4 2 3 3 8.6 2 4 4 9.8 2 5 5 1 2 6 6 1.2 2 7 7 1.4 2 8 8 1.6 2 9 9 1.8 2 10 10 3 3 Messages 2016/11/11 15=Rc18,060: Gain/Power Starting ..... COML999 Now Is Live CLOSED Resetless:2216?

MainForm Tab

1. Voltage/Current output display

Display for the output voltage and current.

1. Voltage Set/Current Set

Setting window for the voltage and current values. Change the value with the arrows.

1. Voltage waveform diagram

Displays the voltage wave curve.

1. Current waveform diagram

Displays the current wave curve.

ProgramForm Tab

1. Start

Software running.

1. Uset (V)

Voltage parameters.

1. Iset (A)

Current parameters.

1. Duration (S)

Timeout for every parameter.

1. Repetition

Number of cycles of the programming output.

1. Output

On-off button for the programming output.

1. Abort

Suspend to programming output.

6. Cleaning and Maintenance

6.1 General

• Disconnect the device from the mains prior to maintenance activities.
• The power supply cables must not show any damage. Have a qualified technician maintain the device.
• Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
• There are no user-serviceable parts, apart from the fuse. Contact your dealer for spare parts if necessary.
• Store the device in a dry, well-ventilated, dust-free room.

6.2 Replacing the Fuse

1. Only replace the fuse by a fuse of the same type and rating.
2. Before replacing the fuse, unplug the mains lead.
3. Wedge the fuse holder out of its housing with a flat-head screwdriver.
4. Remove the damaged fuse from its holder and replace with the exact same type of fuse.
5. Insert the fuse holder back in its place and reconnect power.

7. Technical Specifications

input voltage 230 V\~, 50 Hz, 1.5 A, 345 W, pf: 0.8

output voltage....0-30 VDC adjustable max.

output current 0-5 A adjustable max.

operating temperature....0 °C to 40 °C

dimensions....115 x 190 x 240 mm

weight 5.3 kg

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
