USER MANUAL Eisblock XPX Aurora Alphacool

Pure electrical circuit lines without any symbols

Simple diagram of two circular components inside a rounded square frame, with 'cc' text at bottom (no other symbols or text)

Pure electrical circuit lines without any symbols

EISBLOCK XPX AURORA

+

EISBLOCK XPX II

V. I.000-06.2019

DEUTSCH....3

SAFETY INSTRUCTIONS....18

SCOPE OF DELIVERY 19

TECHNICAL DETAILS....20

ASSEMBLY EISBLOCK XPX 23

PREPARING THE CPU....23

PREPARING THE CPU COOLER....23

INTEL 2011 / 2011-3 / 2066....24

INTEL 1151 / 1150 / 1155 / 1156 / 1366....25

AM4 27

AM3 / AM3 + / AM2 / AM2 + / FM1 / FM2 FM2 + / G34 / C32 / 940 / 939 / 754....29

THE FINISHING TOUCH .... 31

CONNECT DIGITAL - RGB LIGHTING....32

FRANÇAIS....34

INSTRUCTIONS DE SECURITE....34

ÉTENDUE DES LIVRAISONS .... 35

DETAILS TECHNIQUES....36

INSTALLATION EISBLOCK XPX 39

PREPARATION PROCESSEUR 39

PREPARATION DE REFROIDISSEUR DE CPU 39

INTEL 2011 / 2011-3 / 2066....40

INTEL |151 / |150 / |155 / |156 / |366....41

AM4 43

AM3 / AM3 + / AM2 / AM2 + / FM1 / FM2 FM2 + / G34 / C32 / 940 / 939 / 754....45

DERNIÈRE ETAPE 47

BRANCHEMENT L'ÉCLAIRAGE DIGITAL - RGB 48

DEUTSCH

SICHERHEITSHINWEISE

Three-step diagram showing a microchip being placed on top, with a pipette inserted and a blue tool inserted (no text or symbols)

Illustration of a layered electronic device with a red arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

3D mechanical component with four mounting holes and a central square hole, showing a red arrow indicating rotation (no text or symbols)

Top-down view of a black square mechanical component with four arms and mounting holes (no text or symbols)

3D diagram of a microchip assembly with mounting base and red indicator lights (no text or symbols)

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

Technical illustration of a mechanical assembly with a central processor and base platform (no text or symbols)

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

Technical diagram of a microcontroller with cooling unit and base platform (no text or symbols)

Pure electrical circuit lines without any symbols

"ALPHACOOL EISCONTROL ADRESSABLE RGB CONTROLLER"

EAN: 250197153607

Line drawing of a vertical pole with a base and two connectors (no text or symbols)

Line drawing of a vertical pole with a base and two side connectors, no text or symbols present

Pure electrical circuit lines without any symbols

• Not suitable for children under 6 years. (contains small parts which could be swallowed).
• Do not run any cooling components without ensuring that cooling liquid is flowing through the cooling system. Coolers operated without coolant can become very hot. Caution: Burn Hazard!
• Coolers that have no coolant flowing through them can destroy the computer hardware. When switching on the hardware, always make sure that the pump is working.
• Please note when tightening the connectors or fittings, no tools such as screwdrivers, pliers, or wrenches should be used. All plastic products or metal threaded connections, which are linked with plastic parts, are easily over-loaded with tools. Cracking or other damages incurred in this way, as well as damage from leaking coolant, are not covered under the warranty!
• Use only connectors with a sealing o-ring. When using a sealing ring a firm tightening with the hand is enough. Your instruction manual will clearly refer to the use of tools in exceptional cases.
• If you have not done so yet, please check your hardware and cooling system (tightness, pump function and fans). This will minimize time spent searching for possible problems. ALPHACOOL INTERNATIONAL GMBH accepts no liability on the warranty of the manufacturer of the electronic components. The assembly of the cooling system takes place at your own risk.
• The screws should not be tightened too firmly. If you tighten the screws excessively, the knurled nuts can loosen and the cooler's uniform pressure is no longer guaranteed.
• Fasten the connections of your choice to the cooler. Do not use tools such as wrenches for fastening the connections. Connectors with 8mm long threads may stop the flow.
• We recommend a tightness test before assembling/installing the cooler. The water pressure in the water cooling loop can be at a maximum of 0.8 bar. DO NOT use tools on the connectors.
• Ensure that the cooler is touching all components to be cooled through thermal grease and thermal pads.
• Only use distilled water or ALPHACOOL CAPE KELVIN CATCHER in your cooling circuit. Damage caused by unsuitable coolant is not covered by the warranty!

Specified normal operation

All ALPHACOOL INTERNATIONAL GMBH cooling components are constructed and licensed for ALPHACOOL INTERNATIONAL GMBH computer construction parts. The warranty expires in case of misuse.

Warranty

1. Data, designs, illustrations, technical data, weight, measurement and specifications, contained in folders, catalogues, circulars, announcements or price lists, have a purely informative character. We do not undertake warranty for the correctness of these data. As to the kind and the range of delivery, the data contained in the order and confirmation of order alone are decisive.
2. If there is a lack of warrantor, you are entitled, on the basis of the legal regulations to require subsequent delivery, to withdraw from the contract or reduce the purchase price. If you are a consumer, the limitation period of warranty claims for the supplied commodity amounts to two years starting from receipt of goods ( § 13 BGB ). If you are an entrepreneur, in accordance with legal conditions the limitation period amounts to only one year ( § 14 BGB ).
3. The warranty claim is valid only in combination with the original invoice, the sales slip or an ALPHACOOL confirmation on warranty claim.
4. It is ALPHACOOL INTERNATIONAL GMBHs own discretionary authority to replace or repair the defective product or defective component. The replaced product or component changes into property of ALPHACOOL INTERNATIONAL GMBH.
5. All warranty claims are accomplished by ALPHACOOL INTERNATIONAL GMBH or its authorized dealers. If the repair is carried out by a non-authorized or assigned person, ALPHACOOL INTERNATIONAL GMBH does not take over either costs or liability, unless the repair has been previously agreed upon with ALPHACOOL INTERNATIONAL GMBH.
6. All costs resulting from refitting of the products are not taken over by ALPHACOOL INTERNATIONAL GMBH.
7. ALPHACOOL INTERNATIONAL GMBHs warranty excludes the following points:

7.1. Regular controls maintenance and repair or the replacement of parts subject to regular wear and tear.

7.2. Improper manipulation or defects caused by incorrect installation.

7.3. Damages caused by storm, water, fire, overvoltage, acts of God, war, incorrect connection to the net, insufficient or incorrect ventilation or other reasons over which ALPHACOOL INTERNATIONAL GMBH has no influence.

7.4. Damages resulting from transportation or improper packaging.

1. Consumer's rights are valid in the respective country; demands made to the salesman, as explained and laid down in the sales contract, will not be covered by this warranty. ALPHACOOL INTERNATIONAL GMBH, Its Branch Office and Distributors, are not responsible for direct or indirect damage or losses, as far as the

compelling legal regulations do not oppose it.

1. ALPHACOOL INTERNATIONAL GMBH does not take over the warranty of the manufacturer of the electronic construction units and components. The assembly of the cooler takes place at your own risk.

CE

Contact an authorized waste management company in your country. A waste removal with the municipal waste (unsorted garbage) or similar mechanisms for the collection of local wastes is not permissible!

SCOPE OF DELIVERY

1xCPU cooler(Design depends on cooler version)	1xthermal grease		1xdigital – RGBadapter cable		4xrubber caps		4xscrew caps(Color depends on cooler version)
4xsprings		4x 0.5 mmwashersDIN EN ISO 7089		4x 2 mmwashersDIN EN ISO 7089		4xM4 nutsDIN EN ISO 4032
1x bracket set INTEL(Color depends on cooler version)				1x bracket set AMD(Color depends on cooler version)
4xINTEL 115Xscrews		4xINTEL 2066 / 2011screws		1xINTEL backplate		4xAMDscrews

TECHNICAL DETAILS

COMPATIBILITY INTEL 2066 / 2011 - 3 / 2011 / 115X / 1366 / 775 / 771 / 604

AMD AM4 / AM3 / AM3 + / AM2 / AM2 + / FM1 / FM2 / FM2 + / G34 / C32 / 940 / 939 / 754

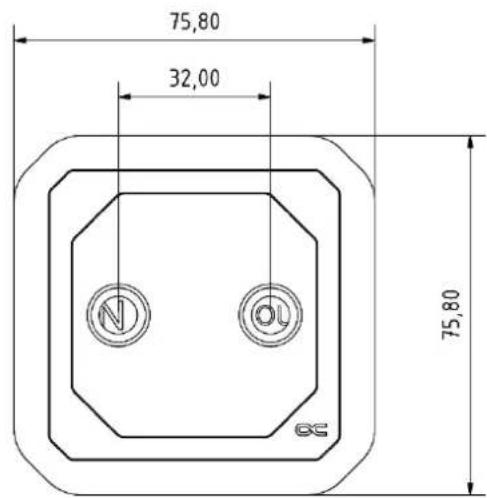

DIMENSIONS

Eisblock XPX Aurora (item no.: 12946, 12947)

[Dimensions in mm]

33,00 4,00 1,95

75,80 32,00 75,80

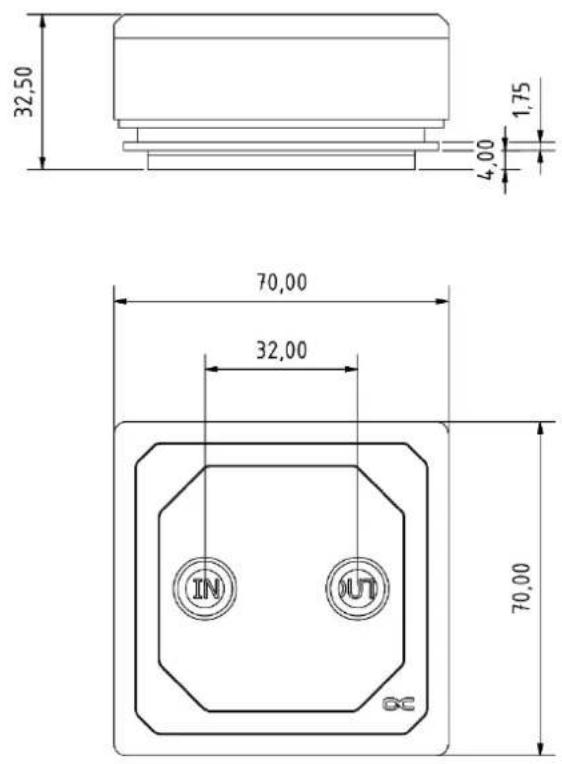

Eisblock XPX Aurora Edge Pro (item no.: 12948, 12949)

[Dimensions in mm]

32,50 4,00 1,75 70,00 32,00 70,00

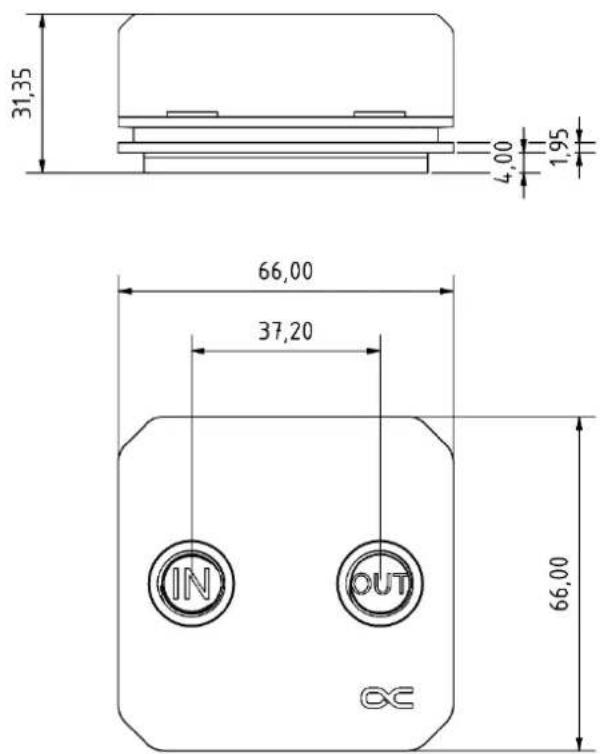

Eisblock XPX II (item no.: 12952)

[Dimensions in mm]

31,35 4,00 1,95 66,00 37,20 66,00 IN OUT CC

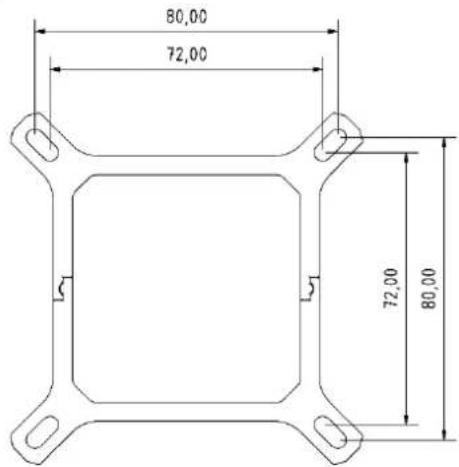

INTEL

80,00 72,00 72,00 80,00

INTEL 2066
2011/ -3

Three 3D renderings of a microchip with a solder pad, a needle inserted into a substrate, and a blue tool tip emerging from the base (no text or symbols visible)

If you have a cooler installed, remove it, then:

• Remove any remaining thermal paste from the CPU.
• Use a lint free cloth or other material to help. Dried on, stubborn paste can be removed with alcohol.
• Apply a pea-sized blob of thermal paste to the center of the CPU.
• Spread the paste using a spatular, or similar to an even, thin layer (< 0.5 mm layer thickness).

PREPARING THE CPU COOLER

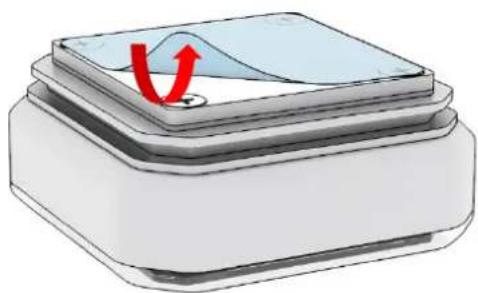

- Remove the protective film from the cooling plate:

Illustration of a layered electronic device with a red arrow indicating rotation or movement (no text or symbols)

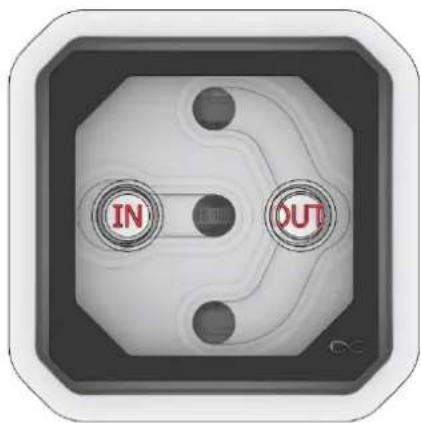

- Note that inlet and outlet are shown inside the thread of the CPU block:

IN OUT

INTEL 2011 / 2011-3 / 2066

- Select the appropriate brackets and mount them as shown:

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

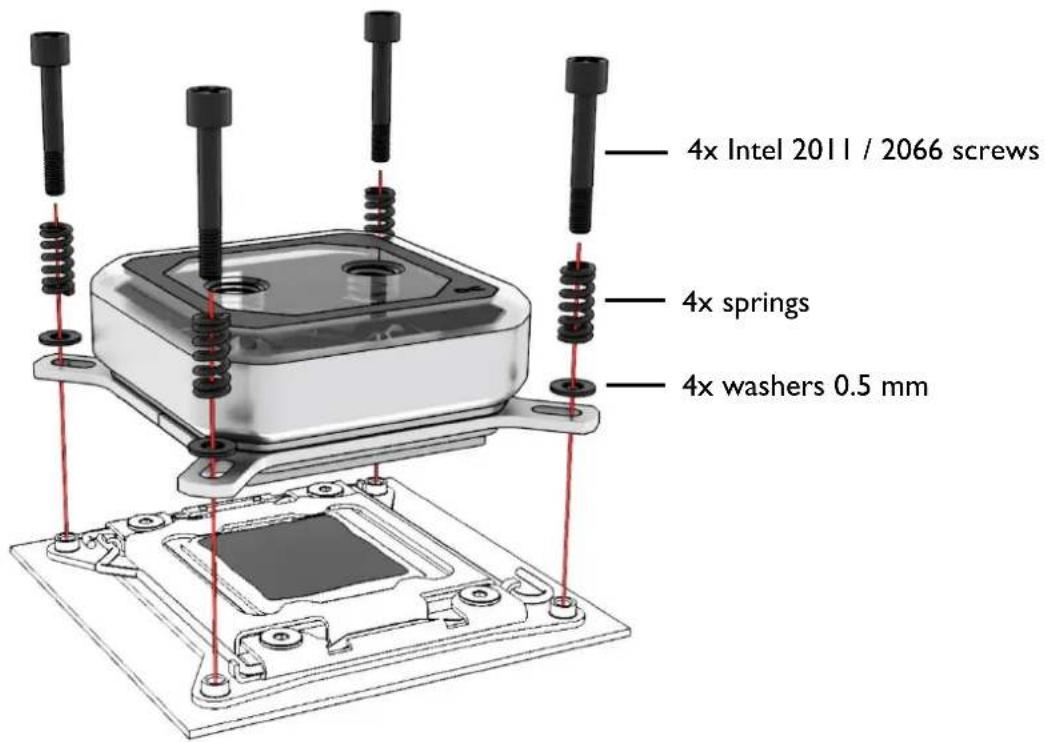

- Mount the cooler as shown:

4x Intel 2011 / 2066 screws 4x springs 4x washers 0.5 mm

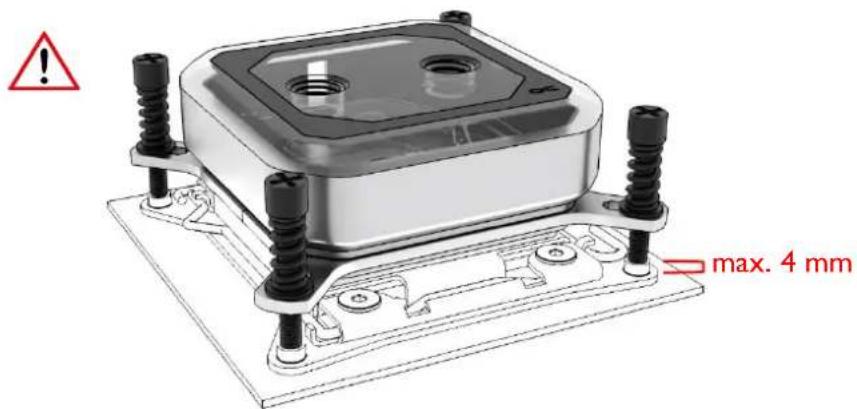

Note: Some 2011/- 3 Socket motherboards have continuous threaded mounting holes in the base. In this case, do not tighten the screws more than 4 mm.

max. 4 mm

Do not use tools, tighten only by hand!

INTEL 1151 / 1150 / 1155 / 1156 / 1366

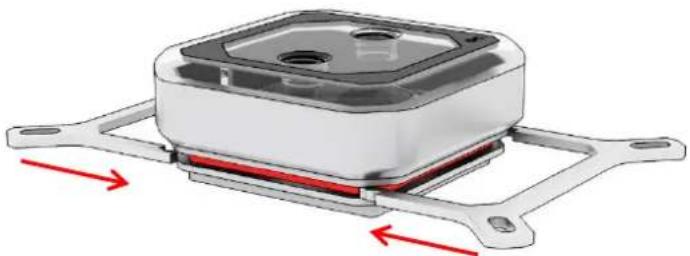

- Select the appropriate brackets and mount them as shown:

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

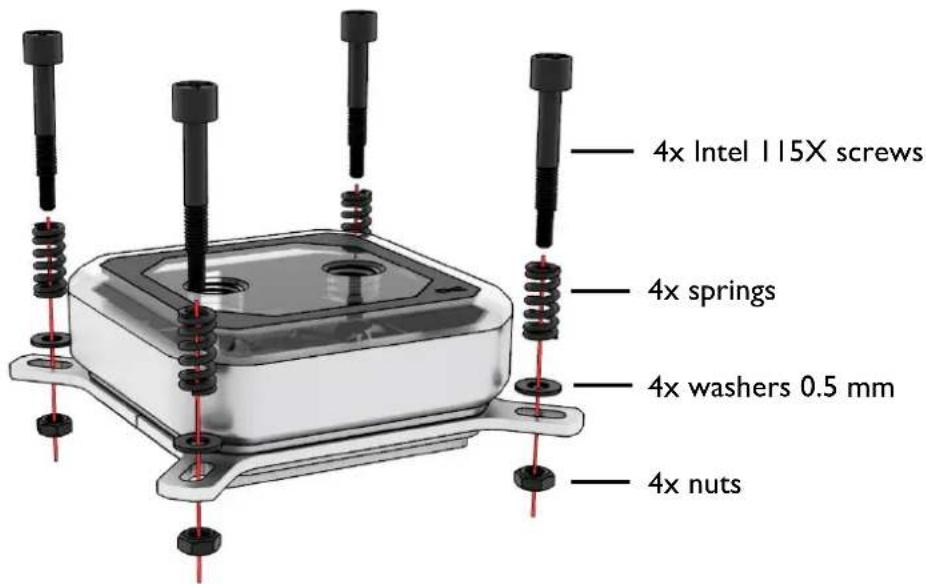

- First, mount the screws:

4x Intel 115X screws 4x springs 4x washers 0.5 mm 4x nuts

• Prepare the included backplate:

Remove the protective film from the adhesive strips.

3D mechanical component with four mounting holes and a central square cutout, showing a red arrow indicating rotation (no text or symbols)

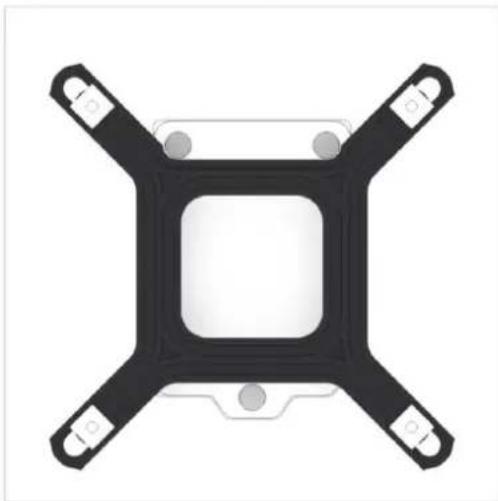

Alignment of the backplate:

Top-down view of a black square mechanical component with four arms and mounting holes (no text or symbols)

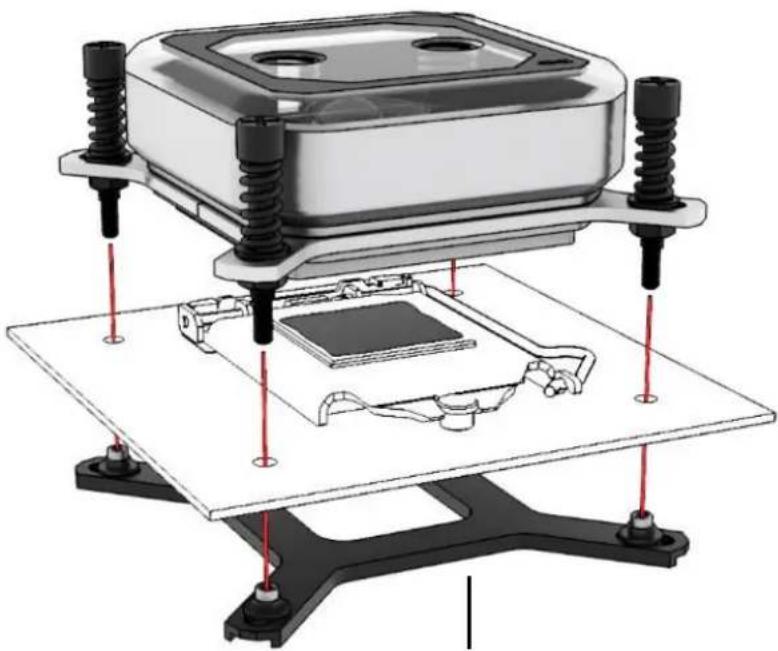

• Fix the cooler to the socket:

3D diagram of a microchip assembly with mounting base and red indicator lights (no text or symbols)

included backplate

Do not use tools, tighten only by hand!

AM4

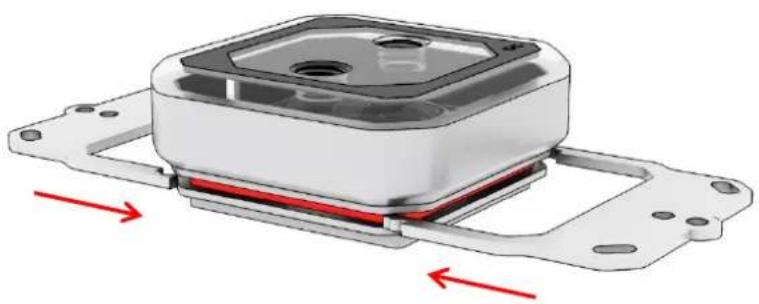

- Select the appropriate brackets and mount them as shown:

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

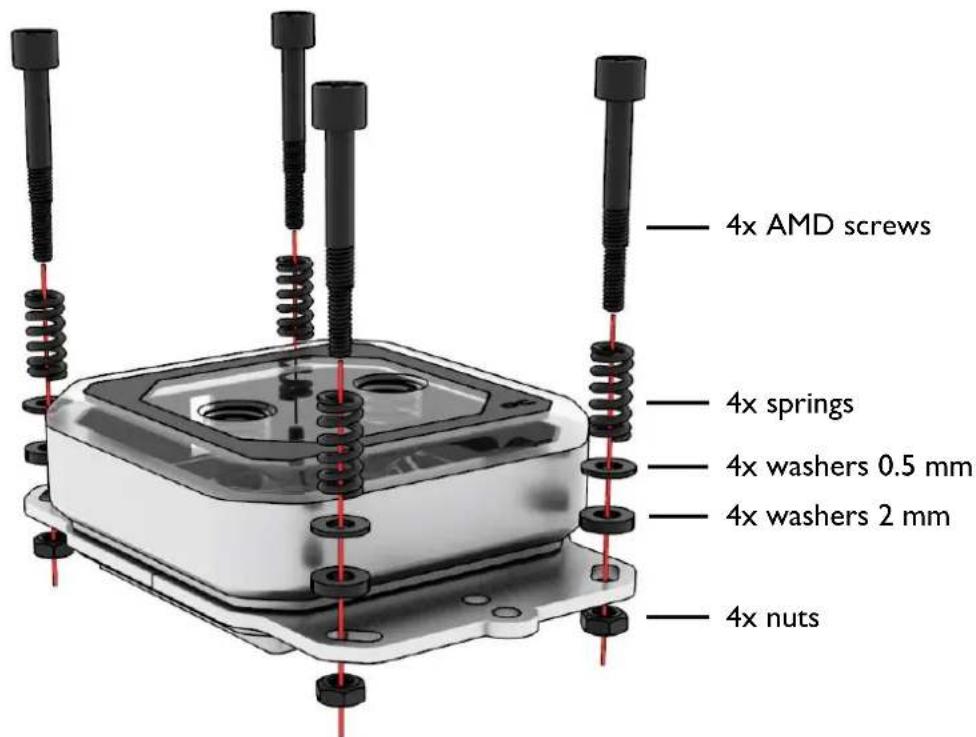

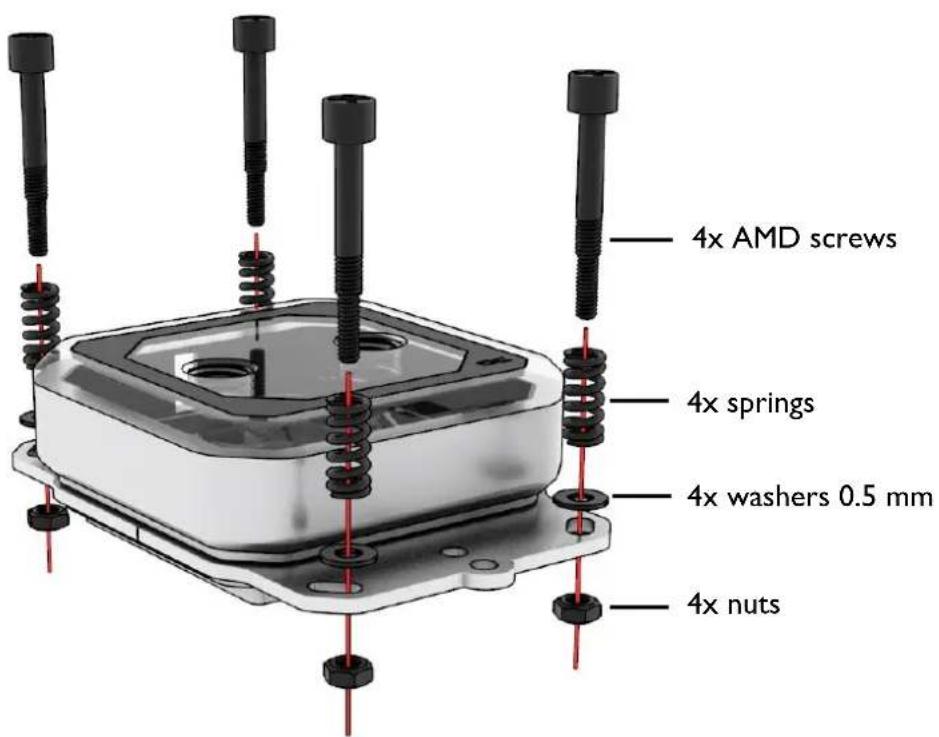

- First, mount the screws:

4x AMD screws 4x springs 4x washers 0.5 mm 4x washers 2 mm 4x nuts

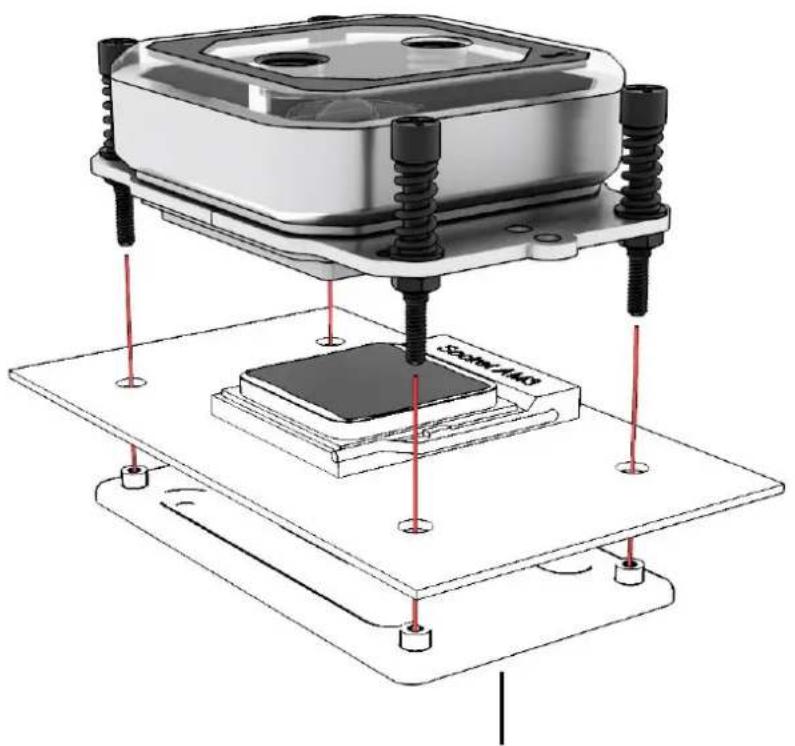

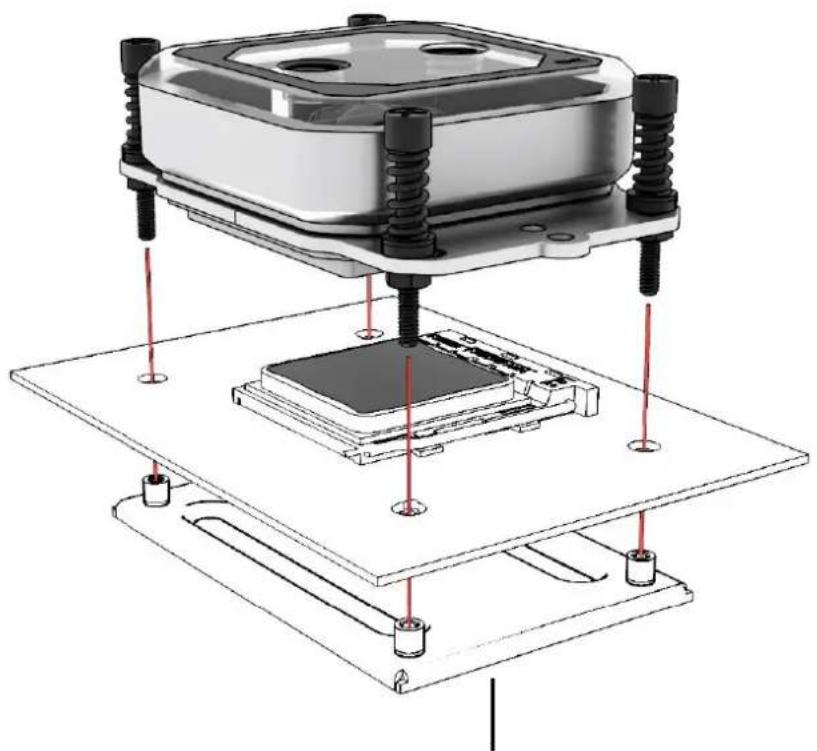

• Fix the cooler to the socket:

Technical illustration of a mechanical assembly with a central processor and base platform (no text or symbols)

original backplate from motherboard

Do not use tools, tighten only by hand!

AM3 / AM3 + / AM2 / AM2 + / FM1 / FM2 FM2 + / G34 / C32 / 940 / 939 / 754

- Select the appropriate brackets and mount them as shown:

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

- First, mount the screws:

4x AMD screws 4x springs 4x washers 0.5 mm 4x nuts

• Fix the cooler to the socket:

Technical diagram of a microcontroller with cooling unit and base platform (no text or symbols)

original backplate from motherboard

Do not use tools, tighten only by hand!

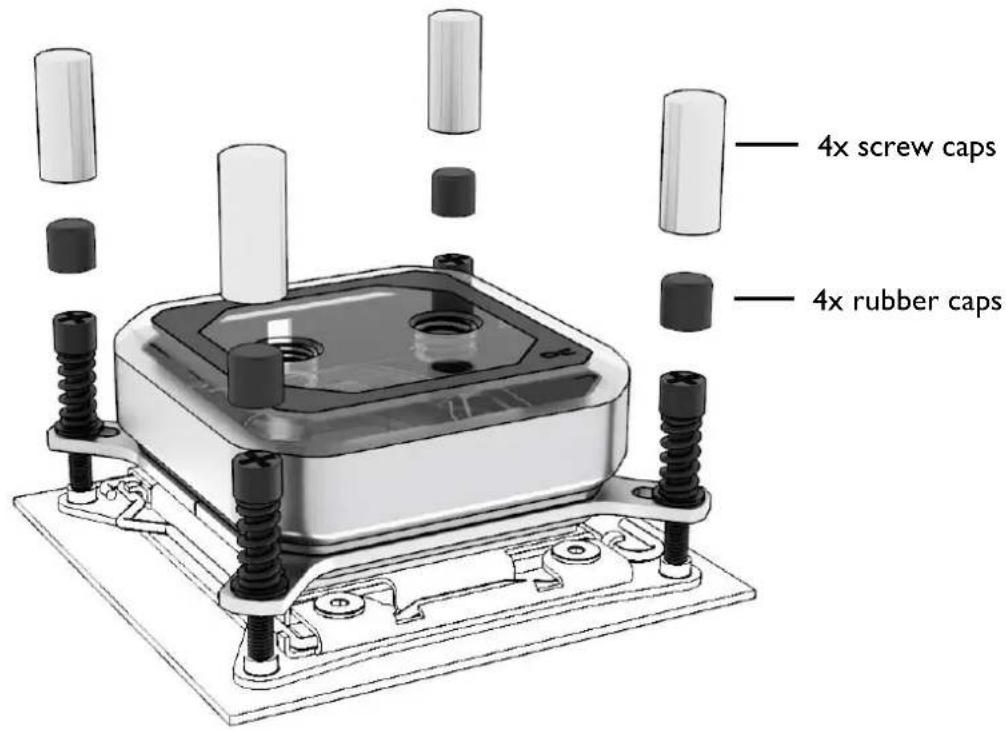

THE FINISHING TOUCH

• Install the screw caps:

4x screw caps 4x rubber caps

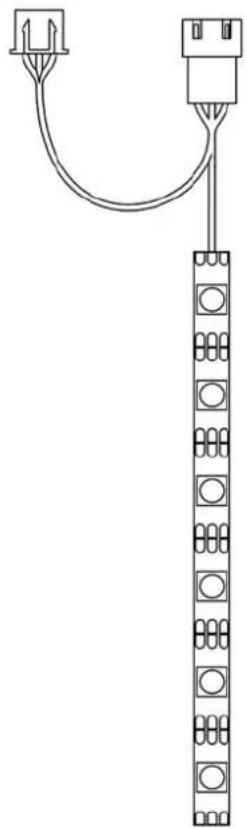

CONNECT DIGITAL - RGB LIGHTING

Supply and control of the digital RGB LEDs via the 3 - pin female connector

Extension of the digital - RGB lighting via the 3 - pin male connector

Pure electrical circuit lines without any symbols

"ALPHACOOL EISCONTROL ADRESSABLE RGB CONTROLLER"

EAN: 250197153607

Line drawing of a vertical electrical connector with a base and mounting bracket (no text or symbols)

Alternately, you can connect the lighting independently of the mainboard via a digital RGB controller (not included).

Line drawing of a vertical support structure with a base and top, no text or symbols present

For some motherboards you need the included adapter to connect the LEDs to the ADD header.

Connect the lighting directly to your mainboard if you have a VDG connection.

Pure electrical circuit lines without any symbols

To combine several digital - RGB components, simply expand your lighting chain via the 3 - pin male connector.

FRANÇAIS

INSTRUCTIONS DE SECURITE

LISEZ LES INSTRUCTIONS DE SECURITE AVANT DE COMMENCER L'INSTALLATION.

Three-step diagram showing a microchip being placed on top, with a pipette inserted and a blue tool inserted (no text or symbols)

Illustration of a layered electronic device with a curved arrow indicating rotation or movement (no text or symbols)

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

3D mechanical component with four mounting holes and a central square hole, showing a red arrow indicating rotation (no text or symbols)

Top-down view of a black square mechanical component with four arms and mounting holes (no text or symbols)

Technical illustration of a microchip assembly with mounting base and red indicator lights (no text or symbols)

plaque arrière incluse

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

Technical illustration of a mechanical assembly with a central processor and base platform (no text or symbols)

3D diagram of a mechanical component with red arrows indicating force or movement, no text or symbols present

Technical diagram of a mechanical assembly with a central processor and base platform (no text or symbols)

Pure electrical circuit lines without any symbols

"ALPHACOOL EISCONTROL ADRESSABLE RGB CONTROLLER"

EAN: 250197153607

Line drawing of a vertical electrical connector with a base and mounting bracket (no text or symbols)

Line drawing of a vertical support structure with a base and two side connectors (no text or symbols)

Pure electrical circuit lines without any symbols
