USER MANUAL Bowfell Plus Majority

Controls and Functions.... 3

What's in the box? 5

Instructions Guide.... 6

Mode Indicator lights 6

Using the USB Input 6

Using the Optical Input....7

Using the RCA Input.... 8

Using the AUX input....9

Connecting to the Mains Supply.... 10

Connecting the subwoofer with the Soundbar.... 11

Bluetooth Operation.... 12

Troubleshooting.... 13

Specifications.... 14

Support.... 14

Warranty.... 14

Safety information....

Front View/LED Indicator Light

1 2 3

1. Speaker Drivers

2. Remote Control Sensor

3. LED Indicator Light

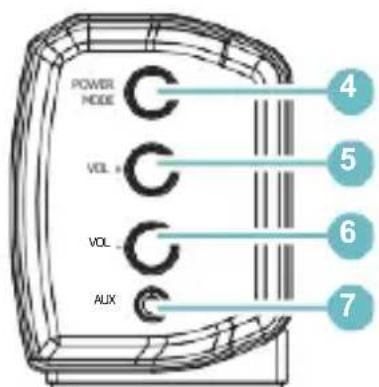

Side View: Buttons

POWER HODE VOL + VOL - AUX 4 5 6 7

1. Press and hold for 3 seconds to switch the unit on/off. Press to switch between Bluetooth, USB, AUX or OPTICAL in.
2. Volume increase
3. Volume decrease
4. 3.5mm stereo AUX/RCA

Rear View: Panel Interface Connection

9 108

1. Subwoofer Output
2. USB Socket
3. OPTICAL In Socket
4. DC 18V 2.3A Socket

Automatic Power Off Function

The Majority Bowfell will automatically go to standby mode after 180 minutes if the connected TV is switched off.

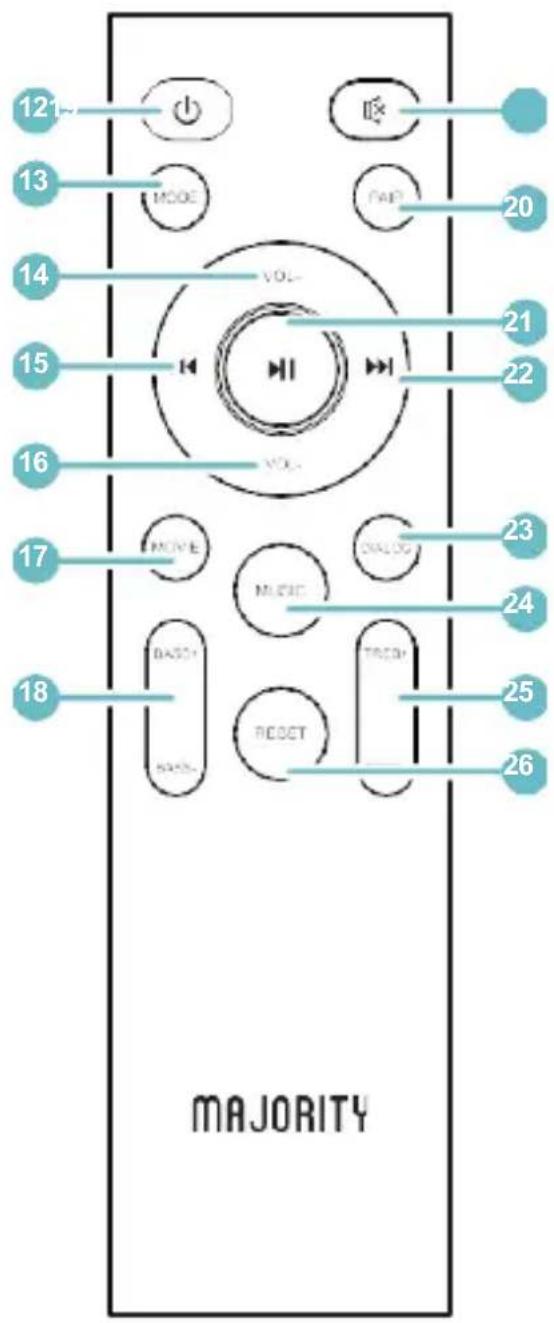

Remote Control

121 13 MODE VOL- 14 15 16 VOL- 17 MOVE MUSIC DIALOG 23 24 BASOT TROCH 18 BASO RESET 25 26 MAJORITY

1. Power On/Off

2. MODE: Switch modes.

3. Volume+: Increase volume.

4. Back step: Use in Bluetooth/USB mode to go back atrack.

5. Volume-: Decrease volume.

6. MOVIE: Set the MOVIE mode sound effect.

7. BASS+/-: It can adjust the Bass volume in mode of MUSIC.

8. MUTE: Mute/unmute sound.

9. BT PAIR: Disconnect the Bluetooth device.

10. Play/Pause: In Bluetooth/USB mode, press to pause/play media.

11. Forward Step: Use in Bluetooth/USB mode to go forward a track.

12. DIALOG: Set the DIALOG mode sound effect.

13. MUSIC: Set the MUSIC mode sound effect.

14. TREBLE+/-: It can adjust the Treble volume in mode of MUSIC.

15. RESET: Reset volume/EQ back to the default state.

Box Contents

A. Majority Bowfell Plus Soundbar

B. Subwoofer

C. Adapter

D. 3.5mm to 3.5mm Audio Cable

E. 3.5mm to RCA Stereo Audio Cable

F. Remote Control

G. "AAA" size batteries

H. Welcome Guide

I. Instructions Guide

A

Simple line drawing of a plug connected to a device with a clamped component (no text or symbols)

Coiled black cable with a small protrusion and a teal circular base (no text or symbols)

Coiled black cable with connectors and a teal circular base (no text or symbols visible)

Simple 3D diagram of a rectangular block with a vertical line and a small circle below it (no text or symbols)

Mode Indicator Lights

State Indicator Lights
Power off Red
Optical mode Orange
USB mode Light Blue
AUX mode Green
Bluetooth ready Flashing blue
Bluetooth connected Blue

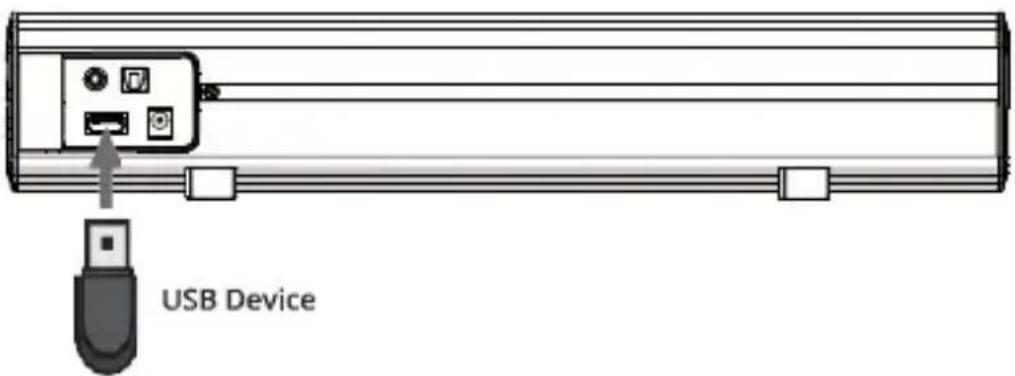

Using the USB Input

1. Connect your USB device to the USB jack (Ref.9) on the unit.
2. Press the "MODE" button (Ref.13) on the remote, and the LED indicator will be light blue.
3. Play music files from the USB device through the soundbar.

USB Device

Remark:

(a) The maximum memory size of a USB sticker is 64GB.

(b) The USB sticker must be formatted into FAT32 before use.

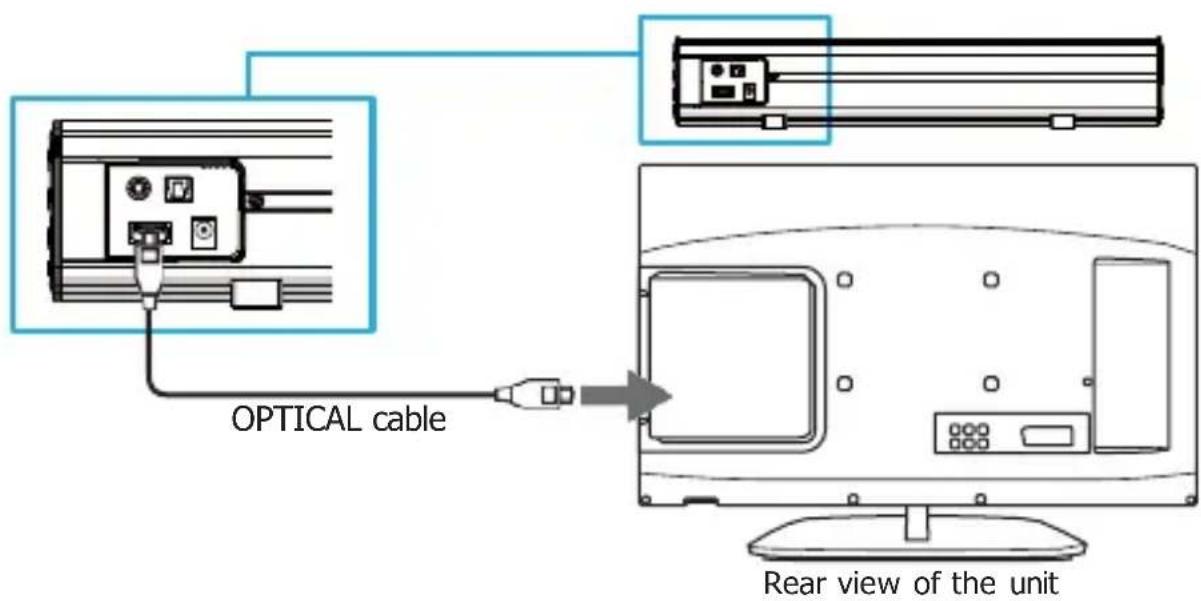

Using the Optical Input

You will need: An audio source with an Optical Audio output and a Digital Optical Audio cable (not included)

Connect the optical cable to the soundbar (Ref.10).

Press the OPTICAL button on the remote control or on the main unit (Ref.4/Ref.13) to switch to Optical mode. The mode indicator LED will turn ORANGE.

Using the native controls on your connected device, ensure the audio settings are set to PCM OT Optical Audio.

OPTICAL cable Rear view of the unit

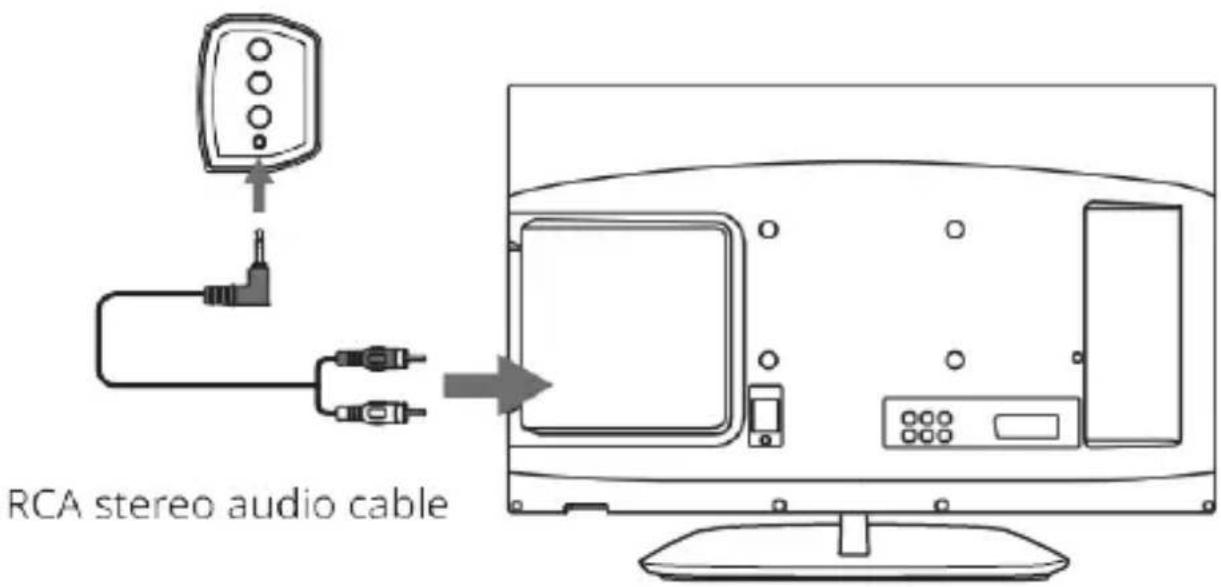

Using the RCA Input

You will need : an audio source with an RCA Output and an RCA cable (included).

Connect the RCA cable to the RCA output on the audio source and to the AUX on the speaker BAR (Ref.7).

Press the POWER/MODE button on the remote control or the main unit (Ref.4/Ref.13) to select AUX mode. The mode indicator LED will turn GREEN.

Using the native controls on your connected device, make sure the audio settings are set to Analog stereo output/RCA/Audio output.

RCA stereo audio cable

Rear view of the unit

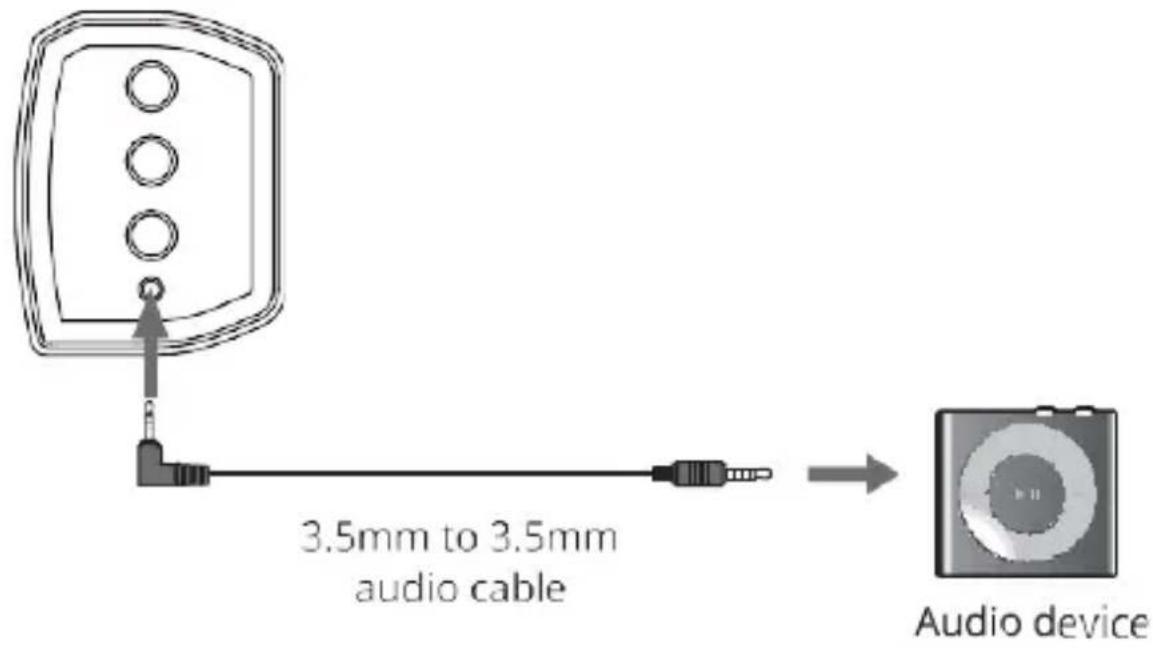

Using the AUX Input

Plug one end of a 3.5mm audio input cable (included) into the AUX on the unit (Ref.7).

Plug the other end of the cable into the audio output/headphone output on your MP3 player, PC, TV, etc, or any.

Press the POWER/MODE button (Ref.4/Ref.13) repeatedly to enter AUX mode. The mode indicator will turn green.

Side View of the Unit

3.5mm to 3.5mm audio cable Audio device

Connecting to the Mains Supply

Ensure that the power supply voltage is within the range of 100V-240V.

Any other voltage may cause damage to the unit.

Unwind the mains cable to its full length. Connect the mains plug to a mains socket. Ensure that the mains plug is fully inserted into the mains socket.

The mains plug/appliance coupler is used as the disconnect device. The disconnect device must remain readily operable.

Connect the Adapter to the unit and AC socket (Ref.11).

To the mains socket

Ensure all audio connections of the unit are connected before connecting to the mains power socket.

Unplug the power cord from the outlet when the unit is not in use for an extended period of time.

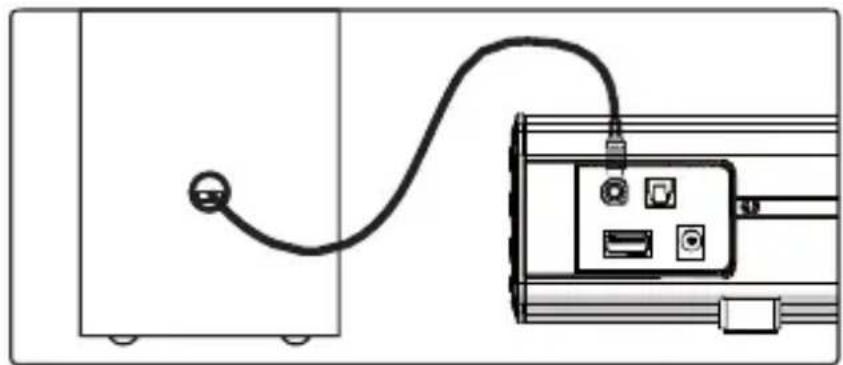

Connecting the Subwoofer with the Soundbar

Follow the below instructions to connect the wired subwoofer to the soundbar.

Pure electrical circuit lines without any symbols

1. Plug the soundbar into mains sockets. Press POWER button on the unit or “ ⏻ ” button (power logo) on the remote control to switch on the unit.

2. User the RCA audio cable from the subwoofer to connect to the SW.OUT jack (subwoofer out) on the soundbar.

3. When audio is played through any source, the bar will automatically use the connected subwoofer.

Bluetooth Operation

Pairing a Bluetooth Device for the First time

Select and press the mode directly on the remote control (Ref.13) or on the soundbar (Ref.4) until Bluetooth mode is selected, indicated by a flashing blue light.

Using the native controls on your Bluetooth device, select the "Majority Bowfell" when prompted to choose a Bluetooth device.

If your device requests a password, enter the default "0000". If you encounter issues at this stage, please refer to the user manual for instructions on pairing and connecting Bluetooth devices.

When successfully paired and connected, a beep will issue from the unit and the pairing indicator will display a solid blue light. After initial pairing, the unit will stay paired unless unpaired manually by the user or until the device is reset.

To unpair, hold down the PAIR button for 3 seconds. You can now pair the device with another Bluetooth Device.

If your device should become unpaired or you find it is unable to connect, repeat the steps above.

Troubleshooting

If you encounter an issue with your soundbar, please refer to the list.

Observation Potential Cause/Solution
No power/function	Check that the power is switched on at the wallCheck whether the power adaptor is properly connected to the power outlet
No Sound	Check whether unit is set to MUTECheck whether mode is correctly selectedCheck whether cables are properly installed.
No Sound from Bluetooth connection	Check whether you have pressed PAIR button before pairing.Check whether external device requires password “0000”.
Function disturbance	Switch off and Unplug the Unit. Leave it for 2 minute and switch it on again.If a particular mode is causing problems, please try an alternative connection such as Optical, AUX, or Bluetooth.
Remote Control function Issues	Check whether the battery needs replacing. Replace if necessary.Check whether there are obstacles blocking the remote sensor.
No Sound when connection and switches to OPTICAL IN Mode	Check and Insure the audio setting of the input source(e.g. TV, games, console, DVD Player, etc) is set to PCM mode while using digital connection (such as Optical, HDMI and COAXIAL).

Specification

Power Supply	DC 18V 2.3A
Frequency Response	30HZ-20KHZ
SNR	70dB
Separation	45dB
Bluetooth	V5.0
Dimension (WxHxD)	Sound bar: 38.8 x 5.43 x 7.21 cmSub-woofer: 9 x 22.4 x 30.8 cm

Support

If you require further assistance with your Majority product, please contact our support team on the Majority website: www.majority.co.uk/support

Warranty

Register your product within 30 days of purchase at www.majority.co.uk to activate your extended warranty. Terms and conditions apply.

Bowfell Plus

Soundbar & Langhubiger Subwoofer

Benutzerhandbuch

MAJORITY

A. Majority Bowfell Plus Soundbar

B. Subwoofer

C. Adapter

Simple line drawing of a plug connected to a wall-mounted device with a circular component labeled 'C' (no text or symbols on the diagram itself)

Coiled black cable with a small protrusion and a teal circular base (no text or symbols)

Coiled black cable with connectors and a teal circular base (no text or symbols visible)

Simple 3D diagram of a rectangular block with a vertical line and a small circle below it (no text or symbols)

USB Device

Bemerkung:

Simple line drawing of a device with a cable and connector, no text or symbols present

Simple line drawing of a plug connected to a bulb with a valve, no text or symbols present

Coiled black cable with a small protrusion and a teal circular base (no text or symbols)

Coiled black cable with connectors and a teal circular base (no text or symbols visible)

Simple 3D diagram of a rectangular block with a vertical line and a small circle below it (no text or symbols)

Témoins de mode

USB Device

Remarque :

Simple line drawing of a device with a cable and connector, no text or symbols present

Simple line drawing of a plug connected to a bulb and a valve (no text or symbols)

Coiled black cable with a small protrusion and a teal circular base (no text or symbols)

Coiled black cable with connectors and a teal circular base (no text or symbols visible)

Simple 3D diagram of a rectangular block with a vertical line and a small circle below it (no text or symbols)

Spie di modalità

USB Device

Osservazione:

Pure electrical circuit lines without any symbols

Simple line drawing of a plug connected to a bulb and a valve (no text or symbols)

Coiled black cable with a small protrusion and a teal circular base (no text or symbols)

Coiled black cable with a small connector attached to a teal circular base (no text or symbols visible)

Simple 3D diagram of a rectangular block with a vertical line and a small circle below it (no text or symbols)

USB Device

Pure electrical circuit lines without any symbols

Majority: www.majoriy.co.uk/support

Garantía

Simple line drawing of a plug connected to a bulb and a small device (no text or symbols)

Coiled black cable with a small protrusion and a teal circular base (no text or symbols)

Simple 3D diagram of a rectangular block with a vertical line and a small circle below (no text or symbols)

Tilan merkkivalot

USB Device

Pure electrical circuit lines without any symbols

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, Izilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT declare under our sole responsibility that the product:

Product Name: 2.1 Bowfell Plus Soundbar with Subwoofer

Model: 1000002852/1000002853/1000002880 Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham | Founder

Signed: E.Latham

Date of Issue: January 2024 Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB249PT

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rancho Dominguez, CA, 90220

Email: [e-mail]
