USER MANUAL Naga 60 Plus Majority

Soundbar with Wireless Subwoofer

User Manual

MAJORITY

What's in the Box? 3

Controls and Functions.... 4

Mounting the soundbar to the wall.... 7

Connecting to the Power Outlet.... 8

Display Icons....9

Audio Settings.... 10

Instructions Guide....

USB Input.... 11

ARC Input.... 12

Optical Input.... 13

AUX Input.... 14

Bluetooth.... 15

Troubleshooting.... 16

Support.... 17

Product Specification.... 18

Warranty.... 18

Regulatory Information.... 19

Safety Information.... 20

EU Declaration of Conformity......

The digital user manual is available in English, German, Spanish, Italian and French on our website https://majorityaudio.com/support/user-manuals/

3 year Warranty

Register your product online for a FREE 3 year extended warranty at: www.majority.co.uk

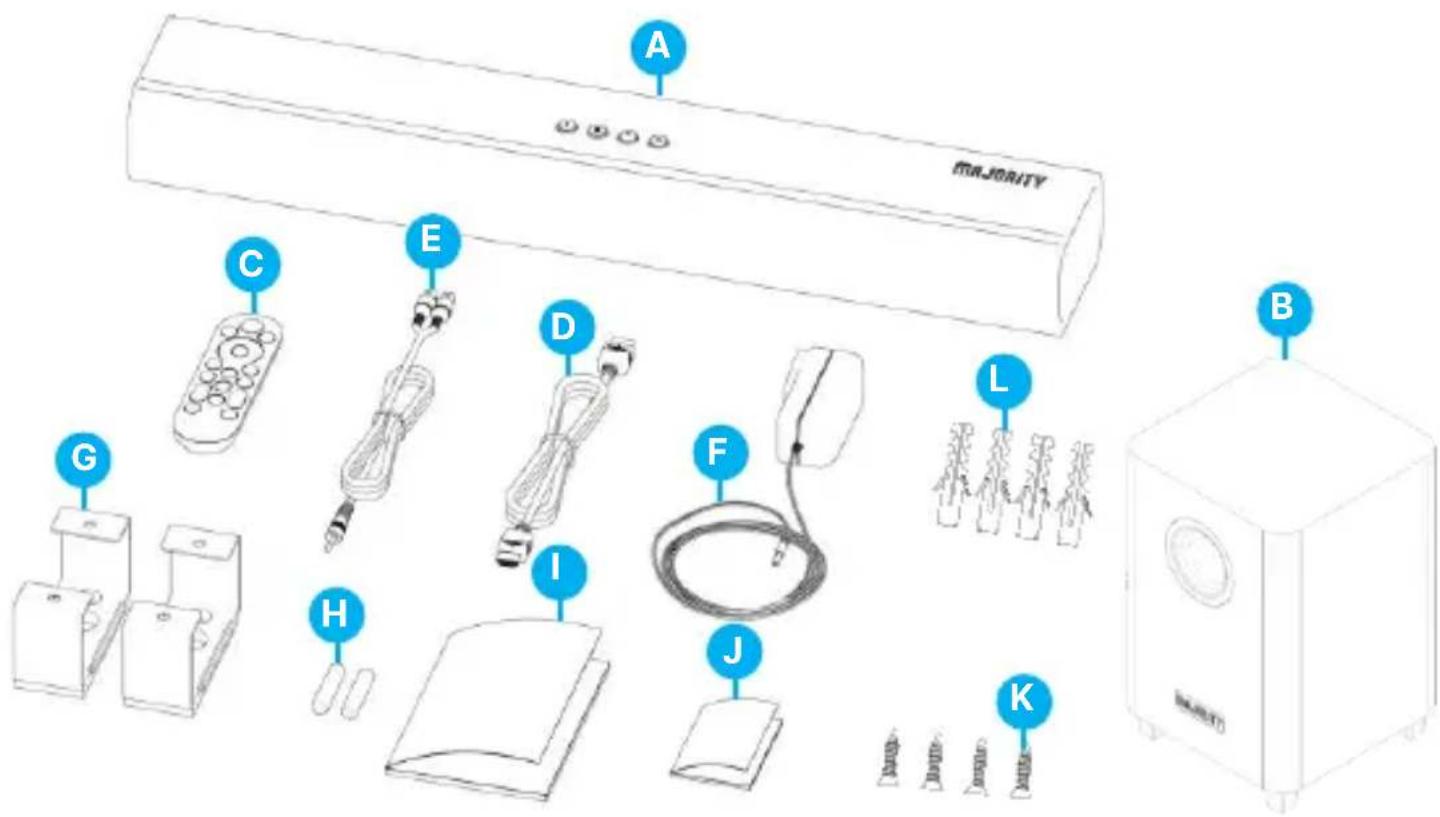

What's in the Box?

A. Majority NAGA 60 Plus Soundbar

B. Wireless Subwoofer

C. Remote Control

D. ARC Cable

E. 3.5mm to RCA stereo audio cable

F. Power Adaptor

G. Wall mount bracket x 2

H. 2 × AAA batteries

I. Welcome Guide

J. User Manual

K. 4 × Screws

L. 4 × Wall Plugs

A MAJORITY B C E D F L G H I J K

Note: Remote control (B) requires 2 x AAA batteries (included). It is recommended to use alkaline or heavy-duty batteries as this will ensure a longer playtime.

Front, Top & Rear View

1. Left & Right Speaker Drivers
2. Adjust volume up or down.
3. 4 digits LED display screen & Remote Sensor 6. 3.5 mm AUX Input port
4. Power ON/OFF
5. ARC Input port
6. Press INPUT button to change the modes between 8. USB Playback port BT, OPTICAL, AUX, USB or ARC. Press and hold for 9. OPTICAL Input port 2 seconds to disconnect existing Bluetooth device 10. DC 24V socket and search for other Bluetooth device.

Back View of the Subwoofer

11. Pc 12. LB 13. W 14. St 11 14 Pc Pcs Pcs Pcs 12 13

1. Power ON/OFF switch
2. LED light indicator for wireless pairing.
3. Wireless Pairing button
4. Subwoofer AC power cord

Automatic Subwoofer Pairing

The Naga 60 Plus Soundbar will automatically pair with the subwoofer when both items are powered on. The pair LED screen on the rear of the subwoofer will flash while searching for a connection and remain solid once successfully connected.

If the subwoofer becomes unpaired from the soundbar, please follow these steps to pair it:

• Power on both the soundbar and the subwoofer. The LED on the subwoofer (orange) will flash slowly.
• Press and hold the MUTE button on the remote control until the LED display shows "PAIR".
• Press the PAIRING button on the subwoofer (Ref.13). The units will automatically search for each other.
• Once pairing is successful, the LED on the subwoofer will turn solid.

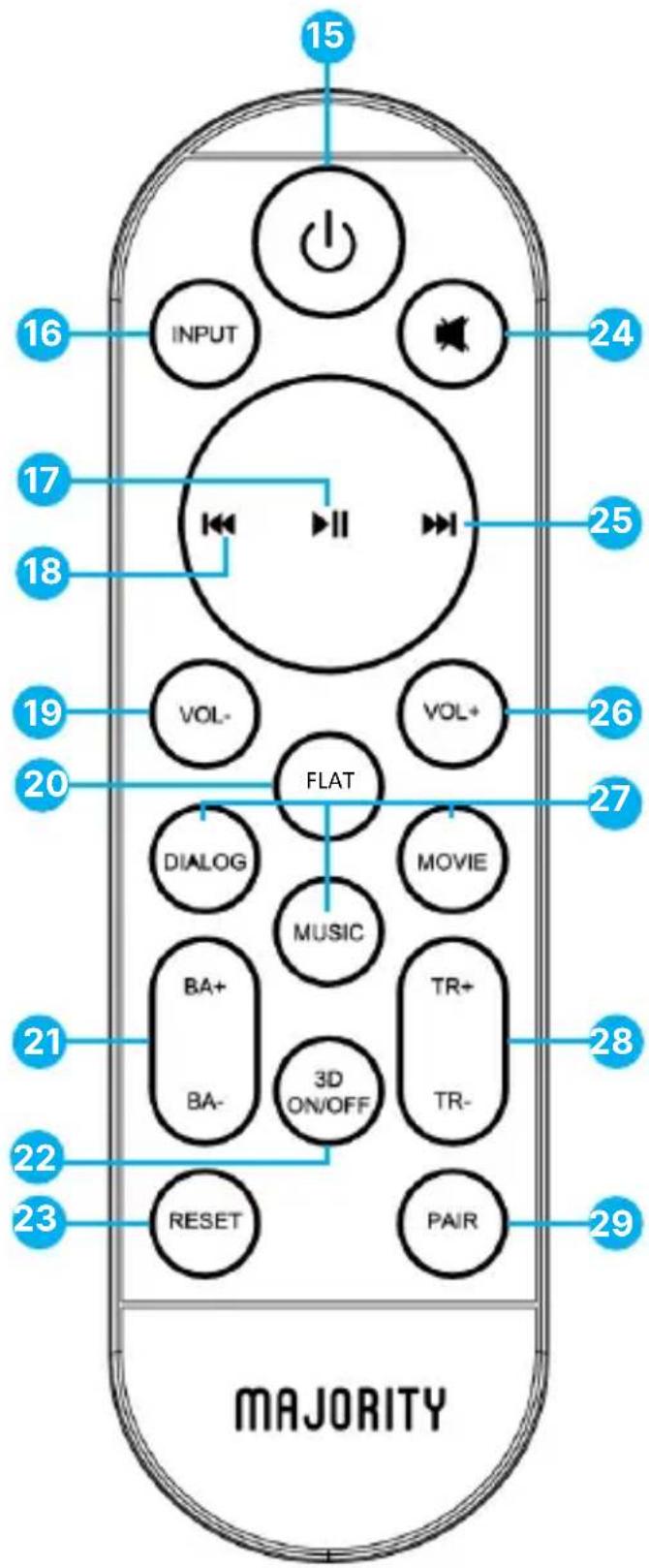

Remote Control Button

15 16 INPUT 24 17 25 18 19 VOL- VOL+ 26 20 FLAT 27 DIALOG MOVIE MUSIC 21 BA+ BA- 3D ON/OFF TR+ 28 22 RESET TR- 23 PAIR 29 MAJORITY

1. Power On/Off.

2. INPUT: Press to switch between modes.

3. Play/Pause: In Bluetooth/USB mode, press to pause/play media.

4. Back: Use in Bluetooth and USB modes to go back a track.

5. Volume - Adjust volume.

6. Flat: To return factory settings.

7. Bass +/-: To adjust during MUSIC, MOVIE or DIALOG mode. It is invalid during DEFAULT mode.

8. 3D on/off- audio surround sound preset.

9. RESET: To reset the volume and the EQ mode back to the default value.

10. MUTE: Press the button to mute the sound. Press once again to unmute the sound.

11. Forward button: Use in

Bluetooth/USB mode to go forward a track.

1. Volume +

2. Media Modes: Select Music, Dialog or Movie EQ mode.

3. Treble +/-: To adjust during MUSIC, MOVIE or DIALOG mode. It is invalid during DEFAULT mode.

4. PAIR: To connect or to disconnect from a Bluetooth device.

Mounting the Soundbar to the wall

The Majority NAGA 60 Plus soundbar can be placed on a flat surface or using the brackets and screws provided in the box, can be mounted onto a wall.

This section provides step-by-step instructions for preparing the soundbar for wall installation.

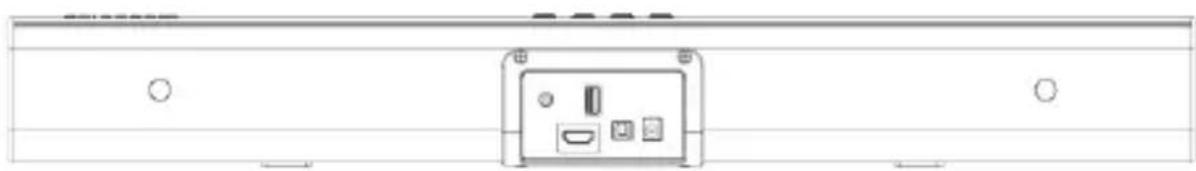

Distance between 2 wall-mount pillars at the rear panel of the soundbar.

A.

Line drawing of a device panel with buttons and indicator lights (no text or symbols)

454mm

Mark and drill four holes, spaced 454mm apart, ensuring they are level and horizontally aligned (Diagram A).

Insert four screws through the two wall-mount brackets and secure them to the wall with the wall plugs included. (Diagram B).

B.

Wall-Mount Brackets

Pure 3D coordinate system diagram with arrows and dashed lines, no text or symbols present

Position the soundbar to the wall-mount brackets (Diagram C).

C.

Technical line drawing of a mechanical component with an inset view showing a side view (no text or symbols)

PLEASE NOTE: The instructions within this user manual will refer to the button number on the soundbar (Ref 'number'), or buttons on remote control e.g. (Rem. 'number'), in accordance with the diagrams from pages 4 - 7.

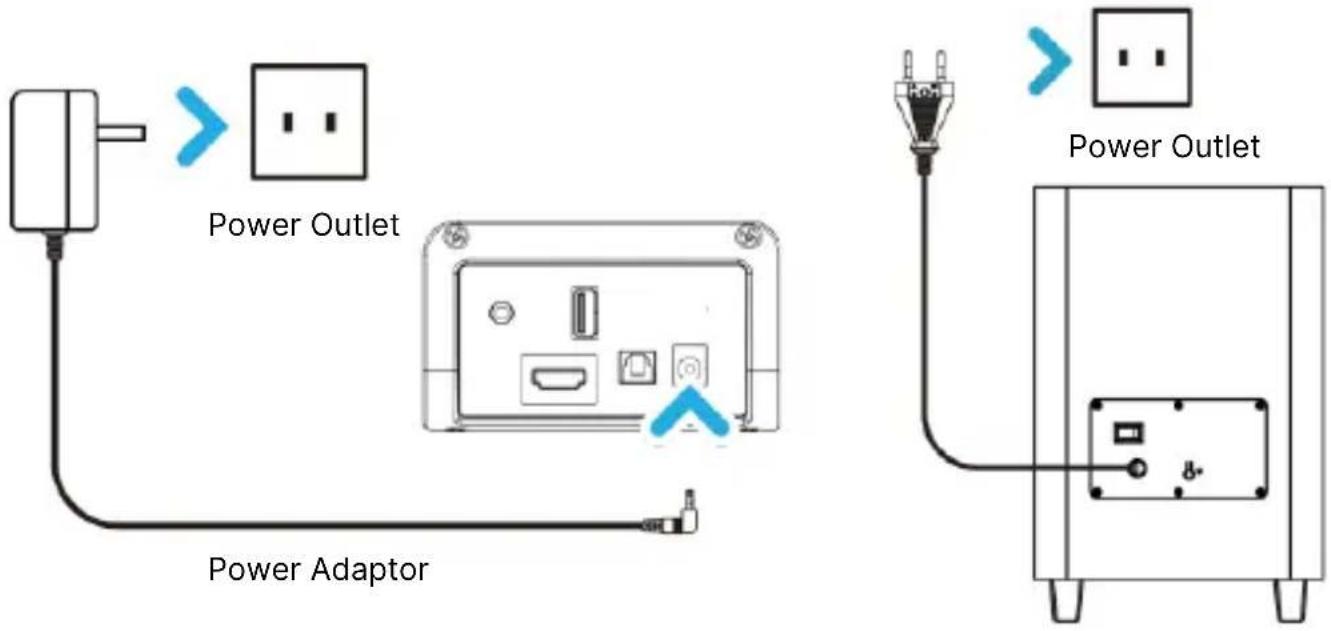

Connecting to the Mains Socket

Ensure that the power supply voltage is within the range of 100V\~240V. Any other voltage may cause damage to the unit.

Fully unwind the mains power cable for both the soundbar and subwoofer.

Insert the soundbar's power cable into its port (Ref.10), and then plug it into a mains socket.

Next, plug the subwoofer's power cable directly into a mains socket.

Ensure that both the soundbar and subwoofer plugs are fully and securely inserted into the wall sockets before powering on.

Power Outlet Power Adaptor Power Outlet

Ensure all audio cable connections of the units are properly inserted before connecting the soundbar and the subwoofer to the mains power socket. Unplug the power cord from the outlet when the unit is not in use for an extended period of time.

Display Icons

Input Use		Remote Control Button	Display
OPTICAL	Connecting the soundbar with Optical Cable (not included), to the Optical port of a TV, PC or similar device.	'Input'	OPT
ARC	Connecting the soundbar with HDMI(ARC) Cable, to the HDMI(ARC) port of the TV.	'Input'	Arc
Bluetooth	Pairing the soundbar via Bluetooth with a TV, phone, or other similar device to play audio from via NAGA 60 Plus Plus Soundbar.	'Input' or 'Pair'	bt
USB	USB Playback port- to be used to play audio from a USB stick (not included).	'Input'	USB
AUX IN	Connecting the soundbar with 3.5mm stereo cable, with a TV, PC, or other similar devices	'Input'	Rux

Audio Settings

Equaliser	Bass/Treble Options dB(decibels) refers to sound level.
MUSIC	Manually change BASS and TREBLE settings (between 0 dB and -4 dB to ~ 4 dB).
DIALOG	Manually change bass and treble setting (between 0 dB and -4 dB to ~ 4 dB).
MOVIE	Manually change bass and treble setting (between 0 dB and -4 dB to ~ 4 dB).
FLAT	FLAT is the default EQ. BASS+ BASS- TRE+ TRE- functions are disabled.

Please note: The 3D surround sound effect button (Rem.22) is a predefined preset which cannot be used with other EQ. Bass and Treble cannot be manually changed while using 3D.

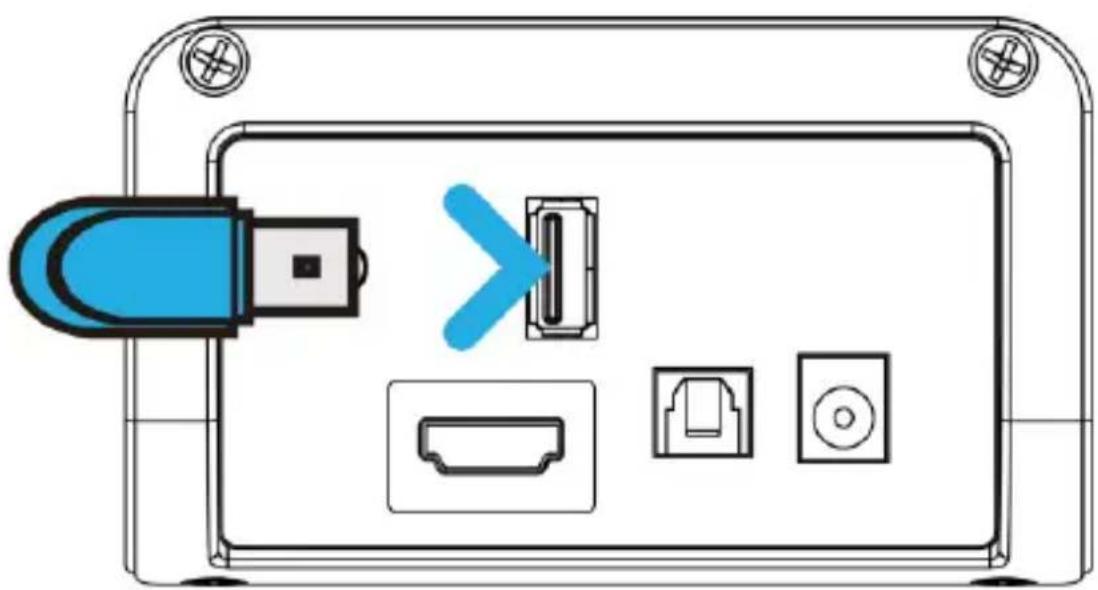

Using the USB Playback Port

1. Plug in a USB stick to the USB jack port (Ref.8) on the soundbar.

2. Press the 'INPUT' button (Rem.16) on the remote control to change the mode into USB. The LED screen on soundbar will display 'USB'.

3. Play music files from the USB stick through the soundbar.

Diagram of a device panel with a blue USB port, two connected ports, and four labeled icons (no text or symbols)

USB Device

Please Note:

a. The maximum memory size of a USB sticker 64GB.
b. The USB sticker must be formatted into FAT32 before use.
c. The supported audio file format is MP3.

Please note: The USB port cannot be used as a port of connection with other devices as this is only for playback.

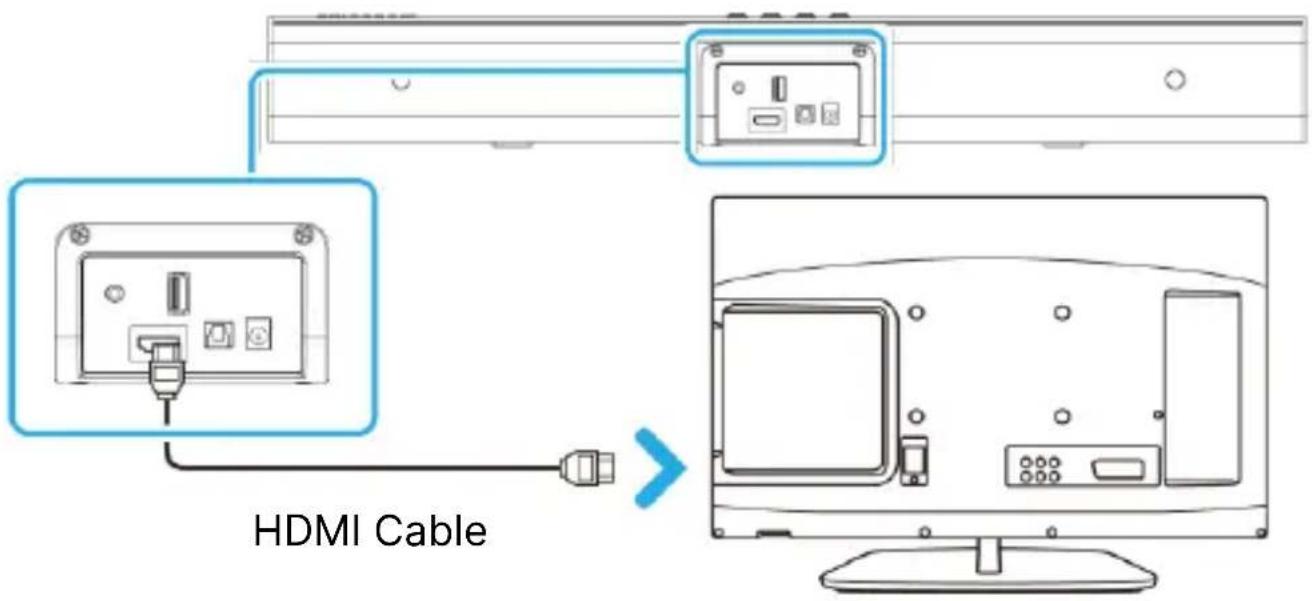

Using the ARC Input

Before connecting, switch off both the soundbar and TV.

Connect the soundbar to a TV:

• Plug in the ARC cable (included) to the ARC jack port on the rear panel of the Soundbar (Ref.7).
• Plug the other end of the cable into the TV's ARC output port. Ensure the TV port that you are using is marked as ARC. Switch on the TV set.

Change soundbar mode into ARC:

• Press the 'POWER' button on the top panel of the soundbar or remote control (Rem.15) to switch the soundbar on.
• Press the 'INPUT' button repeatedly on the Soundbar (Ref.4) or on the remote control (Rem.16) until ARC Mode is selected. The LED screen must display

Adjust the TV audio settings:

- Ensure the TV audio settings are set to HDMI ARC sound output, and the audio format is set to PCM. Enable HDMI –CEC on TV settings.

HDMI Cable

Rear view of unit

Please note: It is recommended to use a HDMI ARC cable included in the box for this type of connection. If you experience no sound from the soundbar, check the TV's audio/sound settings and set them to PCM. Alternatively, try a different type of cable connection, such as an optical cable, 3.5mm to RCA cable or pair via Bluetooth.

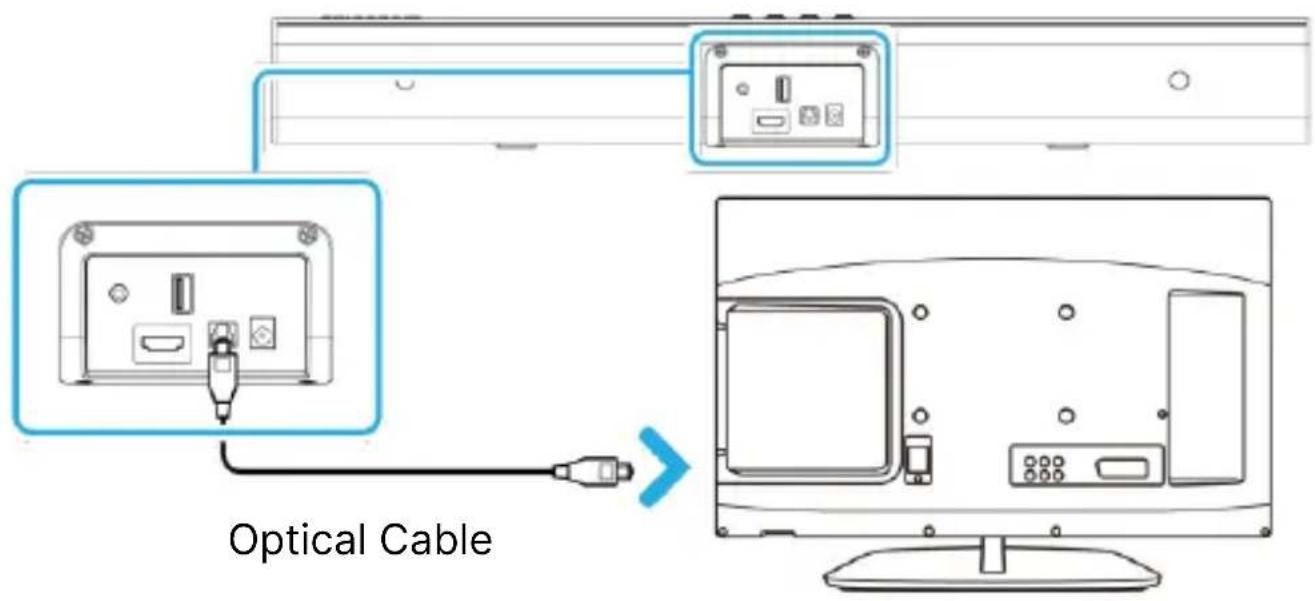

Using the Optical Input

Connecting the Majority NAGA 60 Plus with an audio source/TV/PC with an Optical Audio Output using a Digital Optical Audio cable (not included).

Connect the soundbar to TV, PC, audio source:

• Insert one end of the Digital Optical Audio cable to the optical output on the TV or the audio source and the other end to the Optical Input on the Soundbar (Ref.9).
• Press the 'POWER' button on the side panel (Ref.4) or on the remote control (Rem.15) to switch the soundbar on.

Change the soundbar mode into Optical:

- Press the 'INPUT' button on the remote control repeatedly (Rem.16) to switch to Optical Mode or press the 'INPUT' button (Ref.4) repeatedly on the soundbar to select 'Optical Mode'. The mode displays '____'

Adjust the audio settings on TV, PC audio source:

- Using the native controls on your connected device, make sure the audio settings are set to Digital Optical Audio and the digital audio format to PCM.

Optical Cable

Rear view of unit

Using the AUX Input

Before use, switch off the soundbar and the device you are about to connect with.

Connecting to external devices using a 3.5 mm to 3.5 mm audio cable (not included):

- Insert one end of the 3.5mm audio cable into the AUX input socket on the rear panel of the Soundbar (Ref.6) and the other end into the audio output/headphone output on external devices, e.g. MP3 player, phone or other audio sources etc.

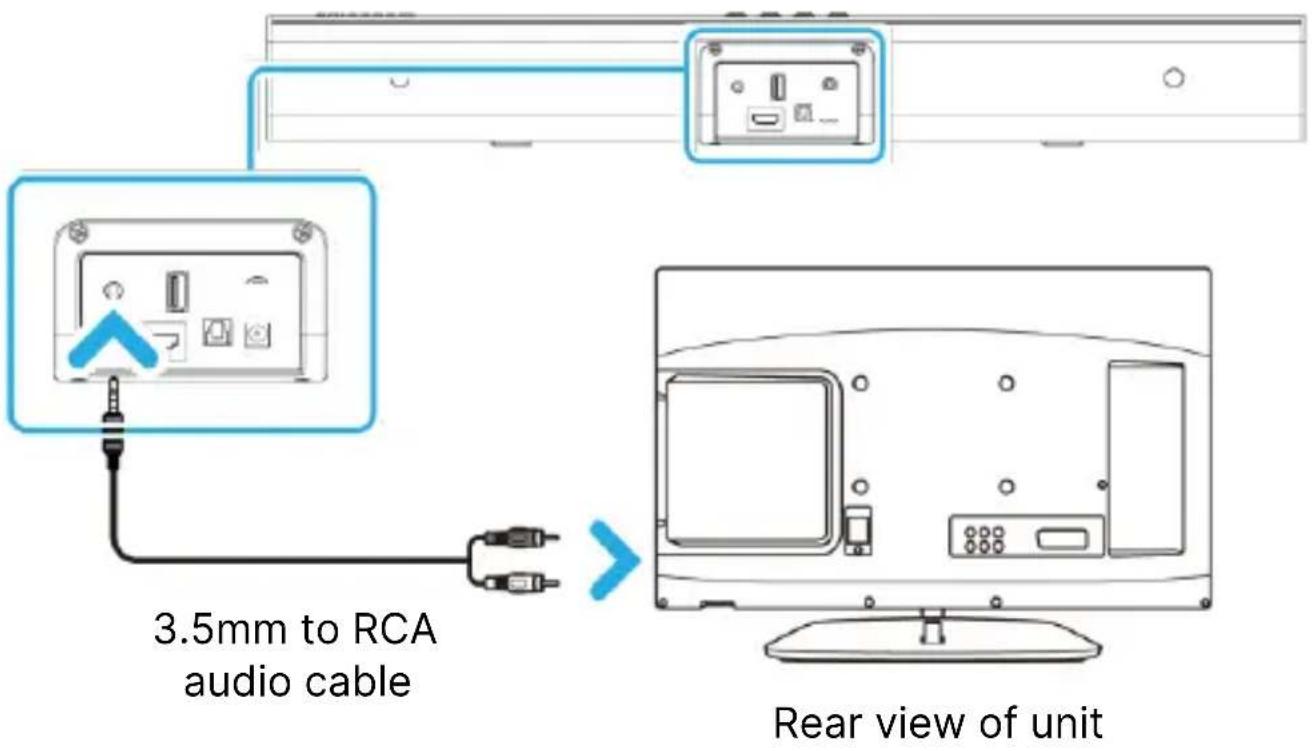

Connecting to the TV using the 3.5 mm to RCA cable (included):

- Insert the 3.5mm cable end into the AUX in port on the rear panel of the Soundbar (Ref.6) and insert the other two RCA colored ends into TV's RCA audio output port.

Press the 'POWER' button on the panel of the soundbar or remote control to switch the soundbar on.

Press the 'INPUT' button repeatedly on the soundbar (Ref.4) or the remote control (Rem.16) repeatedly until AUX In Mode is selected. The LED screen must display

Turn on the soundbar and TV or external devices etc. accordingly and audio will now be heard through the Majority NAGA 60 Plus.

3.5mm to RCA audio cable Rear view of unit

PLEASE NOTE: If you connect using any of these cables with a TV and you experience no sound from the soundbar, check the TV's audio/sound settings and set them to PCM, check if the RCA port on your TV is an 'RCA output' port if is 'RCA Input' you will have no sound. Alternatively, try a different type of cable connection, such as an optical cable, ARC cable or pair via Bluetooth.

Bluetooth Mode

The Majority NAGA 60 Plus can be paired via Bluetooth with a Bluetooth-enabled device such as a Smart TV, PC, Phone, Tablet or similar that you would like to play audio from via the soundbar.

Press the 'POWER' button on the soundbar (Ref.3) or on the remote control (Rem.15) to switch on the unit.

Activating Bluetooth Mode

- Press the 'INPUT' button repeatedly on the remote control (Rem.14) or press the INPUT button on the soundbar (Ref.4) repeatedly until Bluetooth Mode is selected. While searching for a device to pair with, the 'BT' flashing is displayed on the LCD screen.

Pairing with a Bluetooth Device

• Switch your device's Bluetooth connectivity on and start searching for the soundbar. Select the 'Naga 60 Plus' from your device's list when prompted to pair with the soundbar.
• If a password is required, enter '0000'. If you encounter issues at this stage, please refer to the user manual of your device for instructions on pairing and connecting with other Bluetooth devices.

Successful Connection

- When successfully paired, a beep will be heard from the soundbar, and the 'BT' will stop flashing. After initial pairing, the unit will stay paired unless manually unpaired by the user, or until the device is reset.

Reconnecting or Unpairing a Device

• If your device should become unpaired or you find it is unable to connect, repeat the above steps.
• To unpair the soundbar from a paired device press and hold the 'PAIR' button on remote control (Rem.29) for 3 seconds to disconnect.

PLEASE NOTE: The Majority Naga 60 Plus is not compatible with Bluetooth earbuds.

Observation Potential Cause/Solution
No power/function	Check that the power is switched on at the wall socket.Check that the power adapter is properly connected to the power outlet.
No sound	Check whether the unit is set to MUTE.Check that cables are properly installed. If cables are properly installed, please try connecting to your TV using an alternative cable.Check if the unit is switched on and set in the correct mode.
No sound in Bluetooth mode	Check that your Bluetooth device is paired.Check that you have pressed the 'PAIR' button before pairing.Check if the soundbar is paired with another device, unpair and try again.Increase volume on soundbar.Check whether external device requires password '0000'.
Function disturbance	Switch off and unplug the unit.Leave for 2 minutes and switch the soundbar on again.If a particular mode is causing problems, please try an alternative connection to your TV such as Optical or Bluetooth.
No sound when connected and switched to OPTICAL IN mode	Check and ensure the audio setting of the input source (e.g. TV, games console, DVD player etc.) is set to PCM while using digital connection (such as Optical, HDMI or RCA).
No sound when connected and switched to ARC mode.	Check and ensure the audio setting of the input (e.g. TV, games console etc.) is set to ARC mode while using digital connection.Check whether the ARC cable is correctly connected to the ARC terminal.Check the supplied ARC cable and try and try a different ARC cable.If not, the soundbar is unable to play the input signal. Change the TV's audio output to other digital input – PCM, and so as the Soundbar - OPTICAL
Remote control function issues	Check whether the battery needs to be replaced, try new ones.Check whether there are obstacles blocking the remote sensor.

Do you still need help with your Majority Naga 60 Plus ? Contact Tech Support

If you require further assistance with your Majority product, please contact our team on the Majority website: www.majorityaudio.com/support or email us @[e-mail]

Product Specification

Subwoofer Power SupplySoundbar Power Supply	AC 100-240 V 50/60HzDC 24V 1.7A
Frequency Response 30Hz-20KHz
Bluetooth version 5.0
Bluetooth range Up to 10 metres
USB playback audio format supported MP3
Soundbar Dimension (LxHxW)Subwoofer Dimension (LxHxW)	610 x77.7x117 mm220 x332.5 x 220 mm
Net Product Weight (soundbar with subwoofer)	5.86 Kg

Warranty

All products come with a standard 12-month warranty. All items must be registered within 30 days of purchase on www.majorityaudio.com for the warranty to be valid. Once on the web page, use the menu to find 'Register Your Product'. You will also be given the chance to extend your warranty for an additional 24 months, free of charge.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the retailer/seller or an experienced radio/TV technician for help.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Radiation Exposure Statement

The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile (min20cm) exposure conditions without restriction.

NAGA 60 Plus

A MAJORITY B C E D F L G H I J K

Line drawing of a device panel with buttons and indicator lights (no text or symbols)

454mm

Simple 3D diagram of a rectangular block with two arrows indicating direction, no text or symbols present

Technical line drawing of a mechanical component with an inset view showing a side view (no text or symbols)

Diagram of a device panel with ports and indicators, no readable text or symbols present

USB-Gerät

Bitte beachten:

MAJORITY A B C E D F L G H I J K

Mounting the Soundbar to the wall

Front view of a device panel with indicator lights and buttons, no visible text or symbols

454mm

Pure 3D coordinate system diagram with arrows indicating direction (no text or symbols)

Technical line drawing of a device component with an arrow indicating direction (no text or symbols)

Diagram of a device panel with a blue USB port, two connected ports, and four labeled icons (no text or symbols)

USB périphérique

Veuillez noter :

3.5mm to RCA audio cable Rear view of unit

MAJORITY A B C E D F L G H I J K

Front view of a device panel with indicator lights and buttons, no visible text or symbols

454mm

Pure 3D coordinate system diagram with arrows and labeled points, no text or symbols present

Technical line drawing of a device component with an arrow indicating direction (no text or symbols)

Diagram of a device panel with a blue USB port, two USB connectors, and four labeled icons (no text or symbols)

Dispositivo USB

Nota bene:

A MAJORITY B C E D F L G H I J K

Line drawing of a device panel with buttons and indicators (no text or symbols)

454mm

Pure 3D coordinate system diagram with arrows and dashed lines, no text or symbols present

C.

Technical line drawing of a mechanical component with an inset view showing a side view (no text or symbols)

Diagram of a device panel with a blue USB port, two ports, and four icons (no text or labels)

Dispositivo USB

Nota:

3.5mm to RCA audio cable Rear view of unit

A MAJORITY B C E D F L G H I J K

The Majority NAGA 60 Plus soundbar can be placed on a flat surface or using the brackets and screws provided in the box, can be mounted onto a wall.

This section provides step-by-step instructions for preparing the soundbar for wall installation.

Distance between 2 wall-mount pillars at the rear panel of the soundbar.

A.

Line drawing of a device rear panel with indicator lights and buttons (no text or symbols)

454mm

Mark and drill four holes, spaced 454mm apart, ensuring they are level and horizontally aligned (Diagram A).

Insert four screws through the two wall-mount brackets and secure them to the wall with the wall plugs included. (Diagram B).

B.

Wall-Mount Brackets

Pure 3D coordinate system diagram with arrows and dashed lines, no text or symbols present

Position the soundbar to the wall-mount brackets (Diagram C).

C.

Technical line drawing of a mechanical component with a top view and side view (no text or symbols)

Diagram of a device panel with a blue USB port, two ports, and a battery symbol (no text or labels)

USB-laite

Huomia.

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, iZilla Limited,1 Cygnus Business Park, Middlewatch, Swavesey, Cambridgeshire CB24 4AA, declare under our sole responsibility that the product:

Product Name: Naga 60 Plus - Large Wireless Sub

Model: 1000003065/1000003066/1000003067

Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham | Founder

Signed: E.Latham

Date of Issue: January 2024 Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Limited,1 Cygnus Business Park, Middlewatch, Swavesey, Cambridgeshire CB24 4AA

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rancho Dominguez, CA, 90220

Email: [e-mail]

ATTENTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

RISQUE D'ELECTROCUTION NE PAS OUVRIR

IMPORTANT: Please read all instructions carefully before use and keep for future reference

MAJORITY

www.majorityaudio.com
