USER MANUAL Bowfell Axis Dolby Majority

Dolby Audio 2.1 Soundbar with Wired Subwoofer

User Manual

Dolby

MAJORITY

What's in the Box? 3

Controls and functions.... 4

Product Setup.... 8

Mounting the soundbar to the wall.... 9

Connecting to Mains Socket.... 10

Selecting the Input Source 11

HDMI ARC/eARC Input.... 12

Optical Input.... 13

Audio Input (AUX) 14

Bluetooth.... 15

USB Playback 17

Troubleshooting.... 18

Support.... 19

Product Specification.... 20

Warranty.... 20

Warning and Safety Information.... 21

EU Declaration of Conformity.... 24

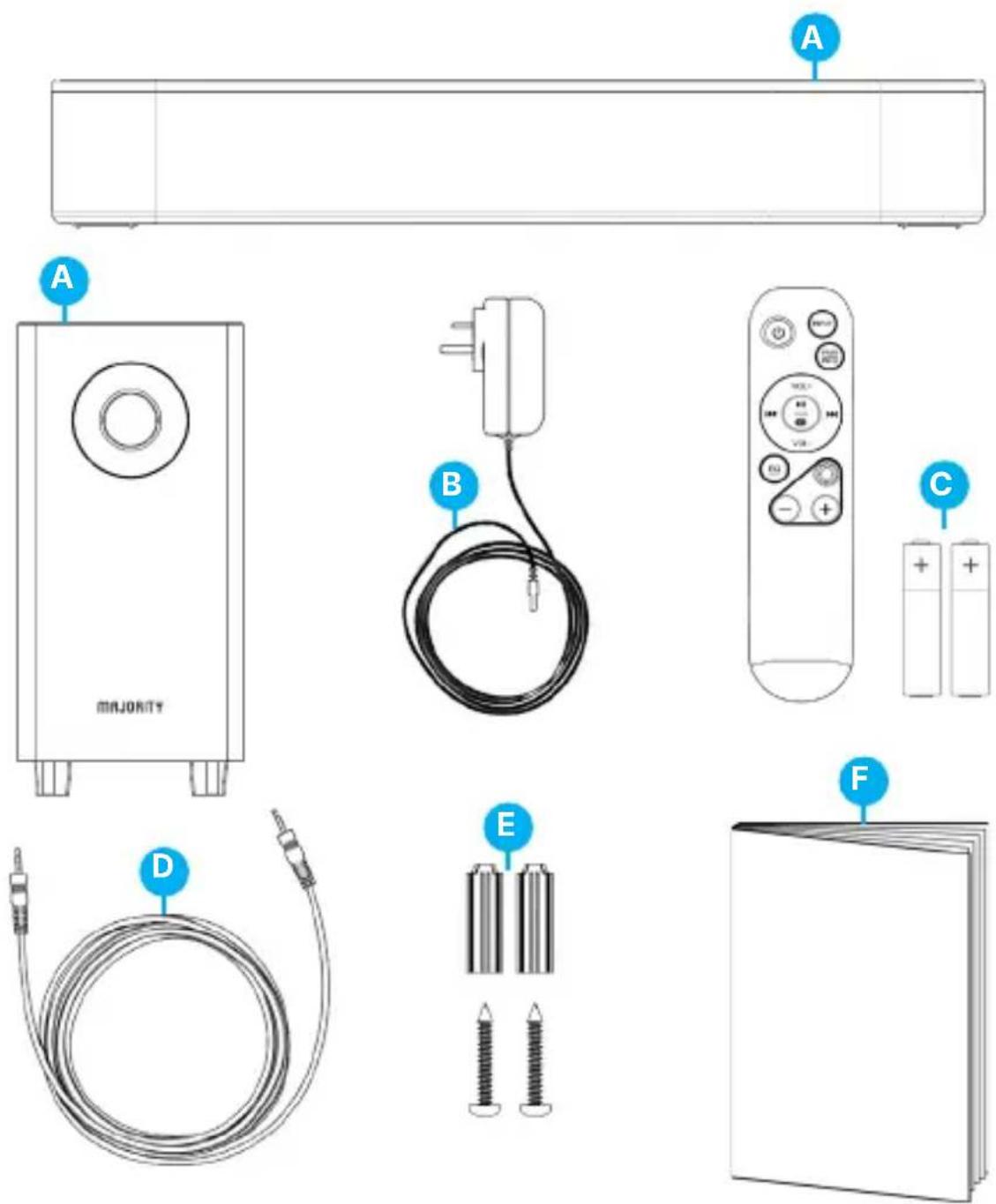

What is in the box?

A. Majority Axis Dolby soundbar with subwoofer
B. Power adaptor (soundbar)

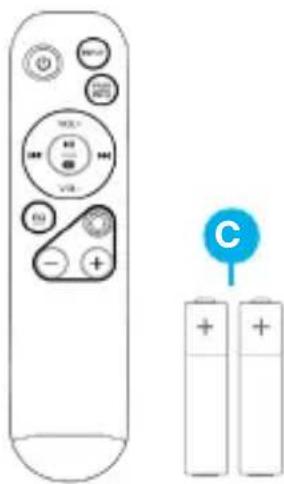

C. Remote control with batteries (2 x AAA)

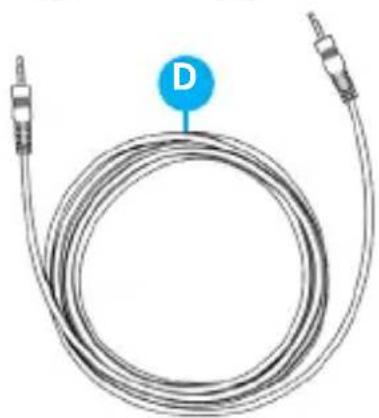

D. 3.5 mm to 3.5mm audio cable (AUX to AUX)
E. Wall mounting kit
F. User manual

Front, top and rear views of the soundbar

8188 1 MAJORITY 2 4 5 7 12 6 7 8 9 10 11

1. Display panel
2. Power ON/Standby
3. Input
4. Volume -
5. Volume +
6. SUB OUT- Wired Subwoofer connection port
7. DC IN power adaptor port (20V 1.5A)
8. Optical Input
9. USB Playback port
10. AUX Input (Line IN)
11. ARC (HDMI) port for TV
12. Wall Mounting brackets

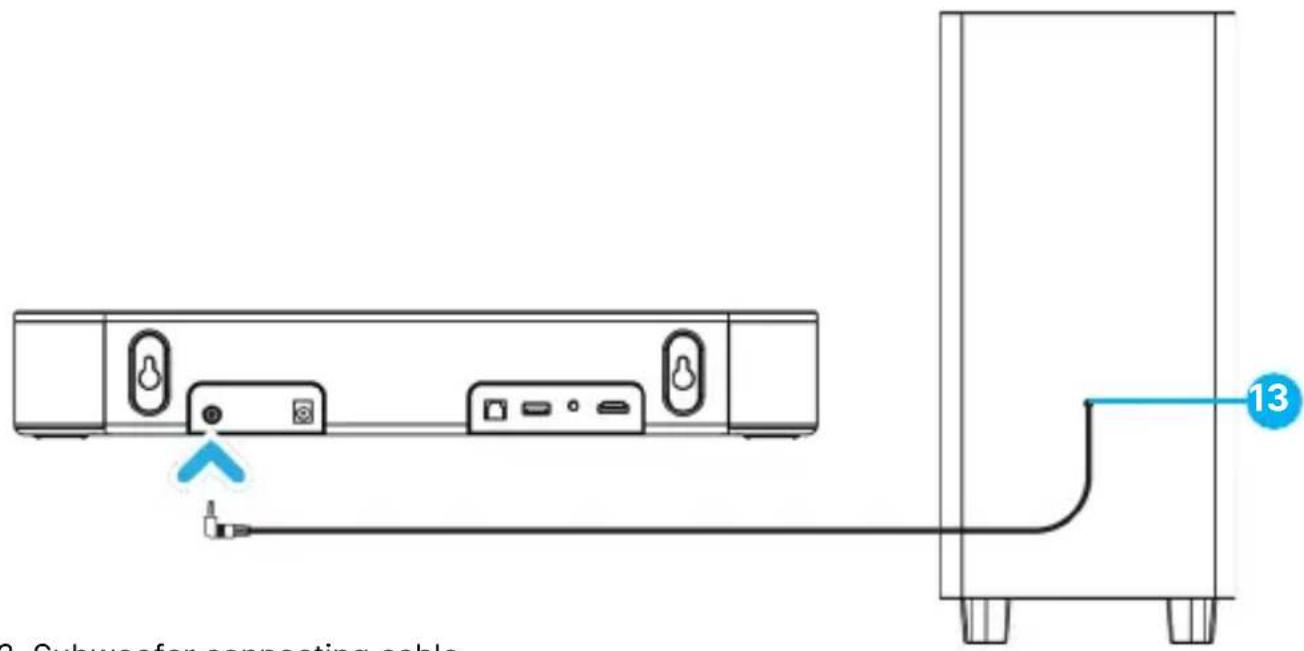

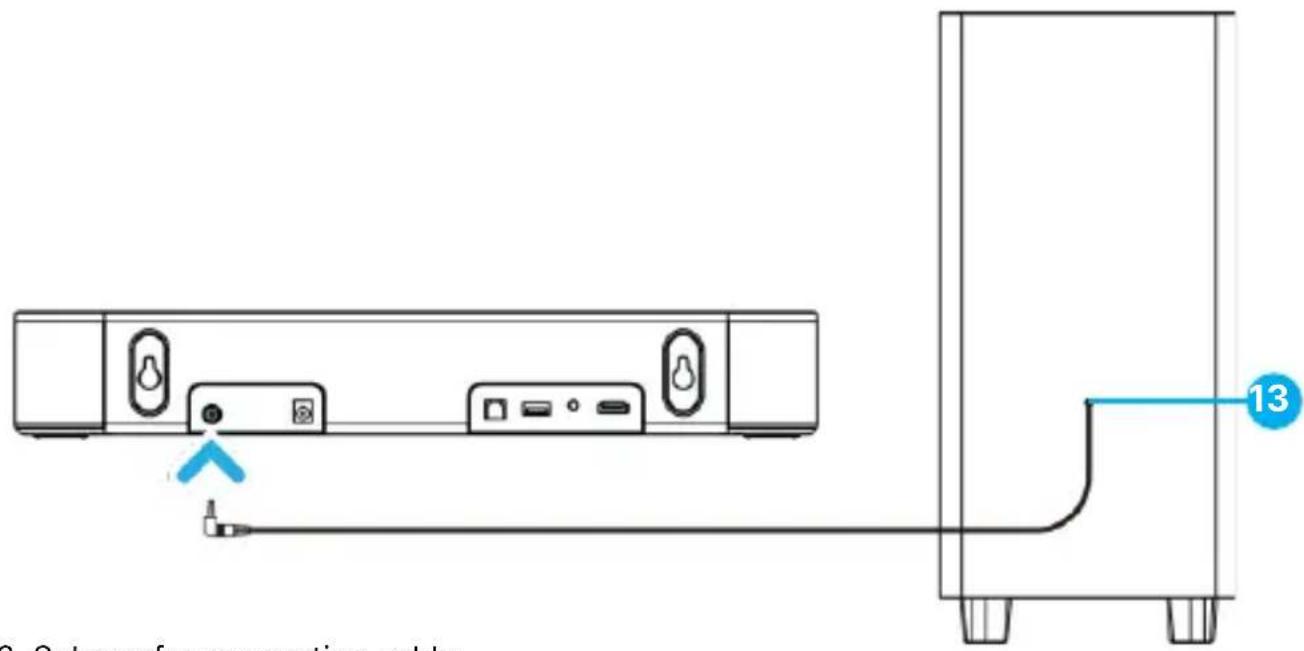

Rear views of the soundbar and subwoofer

2. Subwoofer connecting cable 13

1. Subwoofer connecting cable

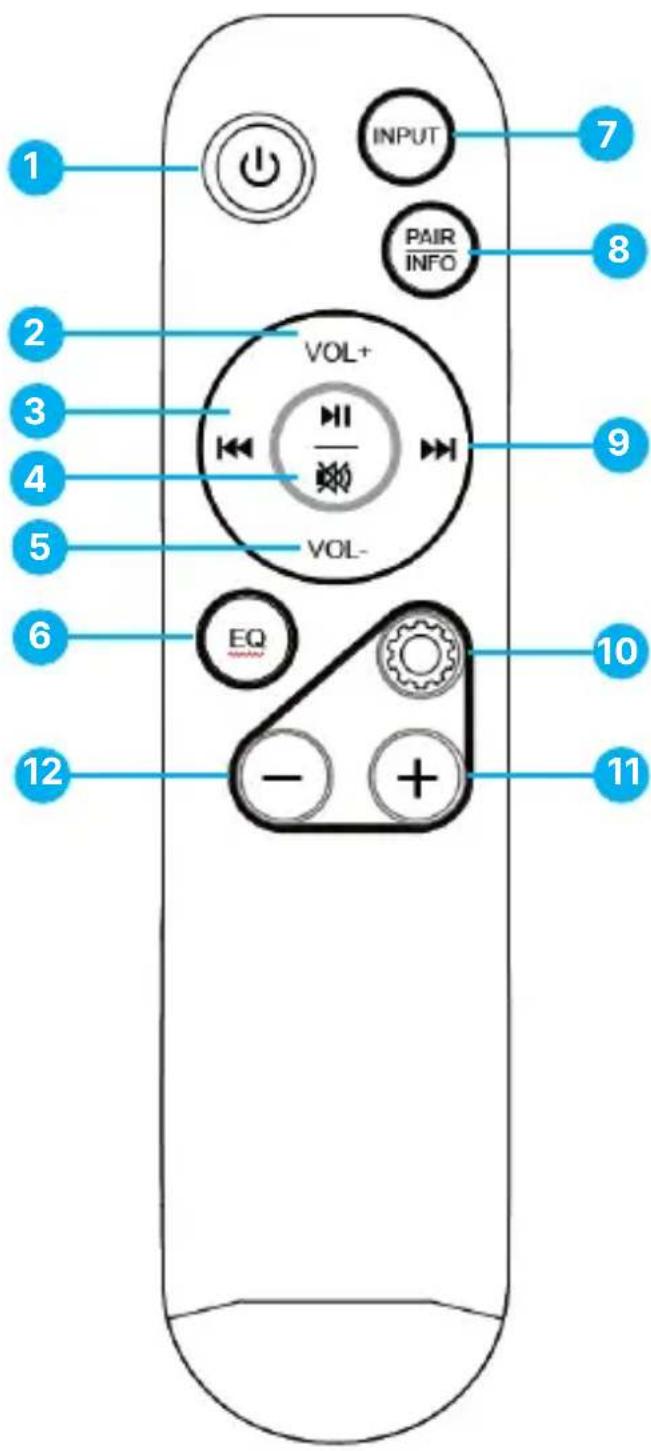

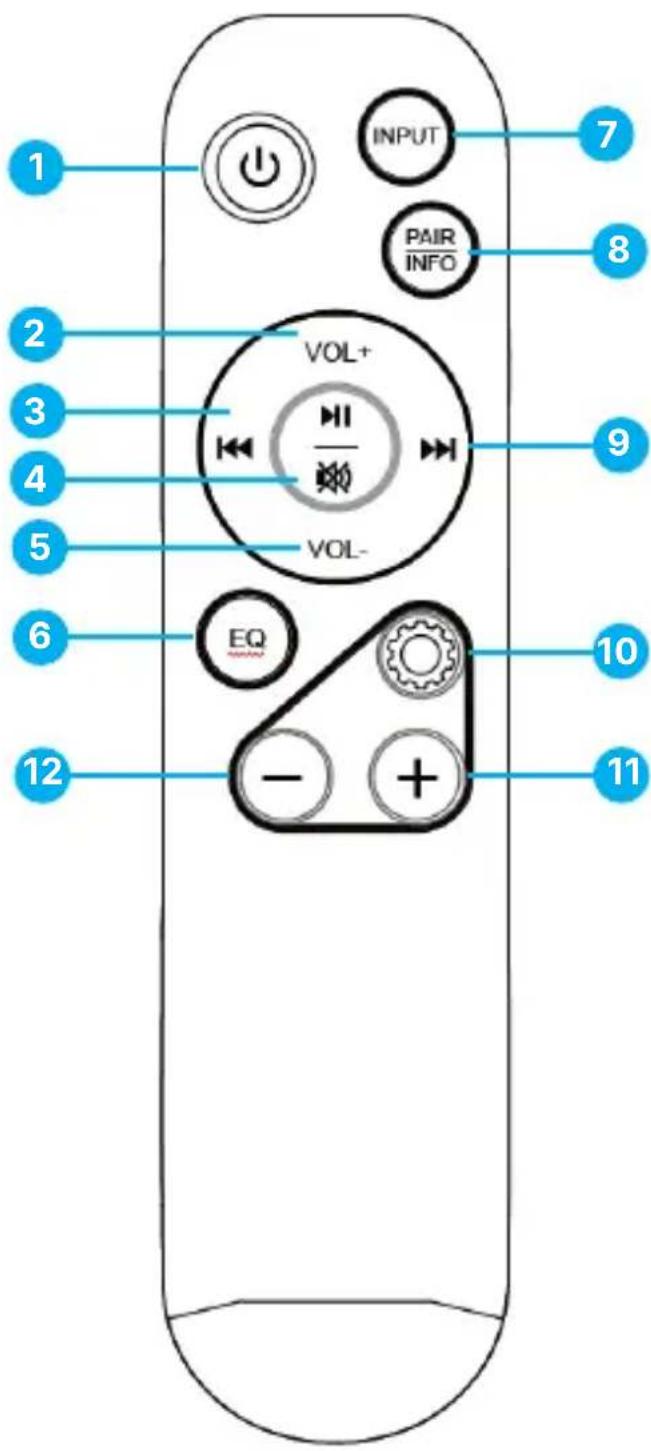

Remote Control

1 2 3 4 5 6 7 INPUT PAIR INFO VOL+ VOL- EQ EQ - + 10 11

1. POWER ON /Standby – Switch the soundbar on or to Standby mode.

2. VOLUME +

3. PREVIOUS – Press to skip to the previous track (works in USB and Bluetooth modes only).

4. PLAY/PAUSE/MUTE

In USB or Bluetooth mode: press to play or pause music.

In other modes: press to mute or unmute the sound. Soundbar display will show 'V00' text on its display.

1. VOLUME -

2. EQ (Equaliser) – Press to choose a sound setting: EQ1 for Music, EQ2 for Movie, EQ3 for News or EQ4 for Sport

3. INPUT – Press repeatedly to change the soundbar mode to AUX, USB, TV ARC, Optical, or Bluetooth.

4. PAIR /INFO- In ARC mode or optical press to see what audio signal is playing such as Dolby Audio, Dolby Surround or PCM.

5. NEXT – Press to skip to the next track (works in USB and Bluetooth modes only).

6. Sound Settings – Short press to enter setup mode to adjust bass and treble levels (range: -5 to +5, default = 0).

7. '+' When in setup mode, press to increase bass or treble levels.

8. '-' When in Setup, use this to decrease bass or treble.

Example: Press the 'Sound Settings' button once. The text 'b-00'(bass) will appear on the soundbar display. Use '-' to decrease the value or '+' to increase it. Press the 'Sound Settings' button again and follow these same steps to change treble.

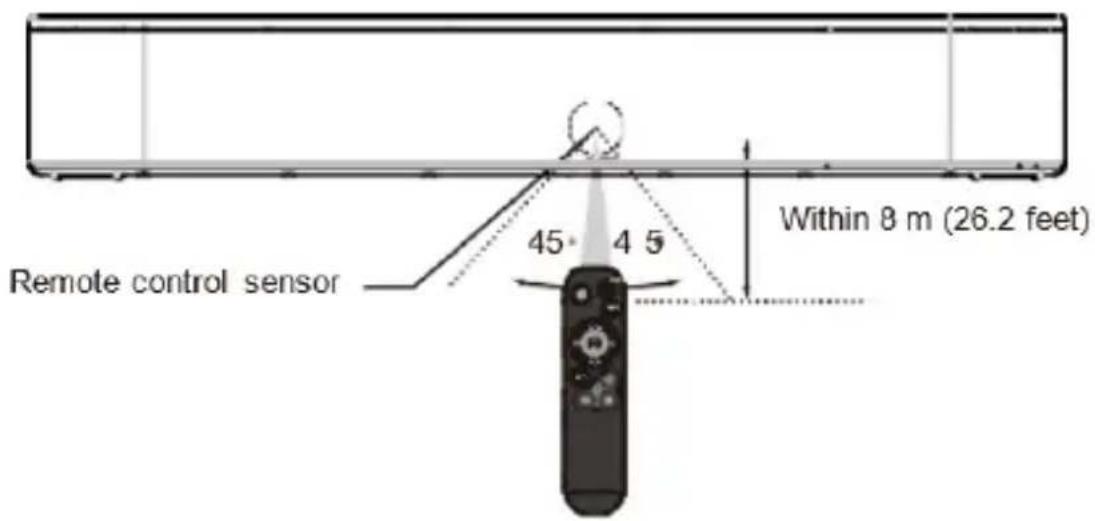

Remote Control Range

- When the unit is mounted on a wall, aim the remote control at the sensor on the front panel. The supplied remote control allows the unit to be operated from a distance.

•Even within the effective range of up to 8 metres (26.2 feet), operation may not be possible if there are obstacles between the remote control and the unit.

- If the remote control is used near other products that emit infrared signals, or if another infrared remote control is operated nearby, the unit may not work correctly. Conversely, the other products may also respond incorrectly.

Remote control sensor 45° 4 5 Within 8 m (26.2 feet)

PLEASE NOTE: The instructions within this user manual will refer to the button number on the soundbar and subwoofer (Ref 'number'), or buttons on remote control e.g. (Rem. 'number'), in accordance with the diagrams from pages 4 - 6.

Getting Started

Remove all packaging materials. Prepare the soundbar and subwoofer for use.

Remove any labels or stickers from the front or top of the cabinet. Do not remove labels from the back or bottom.

Place the soundbar and the subwoofer near a mains outlet, away from heat, dust, moisture, and vibration.

The Majority Axis Dolby soundbar can be placed on a flat surface or wall-mounted using the brackets and screws provided.

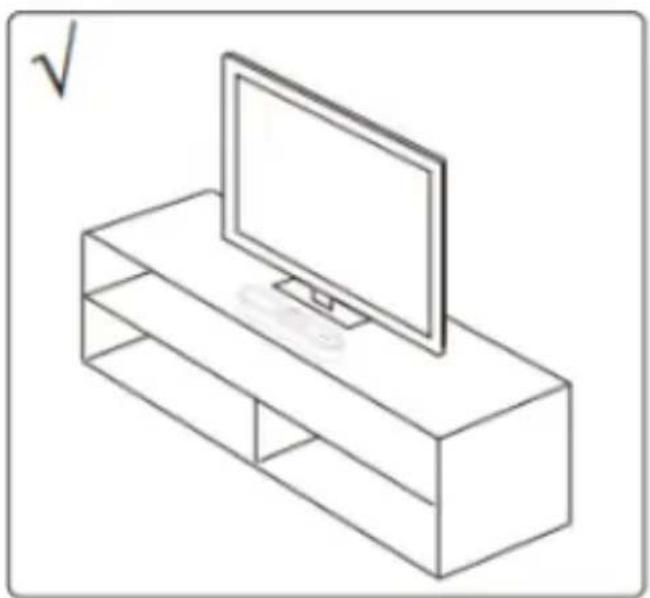

If positioning it on a flat surface such as a TV stand, ensure the surface is stable and align the soundbar centrally with the TV screen.

Leave some space between the soundbar and the wall.

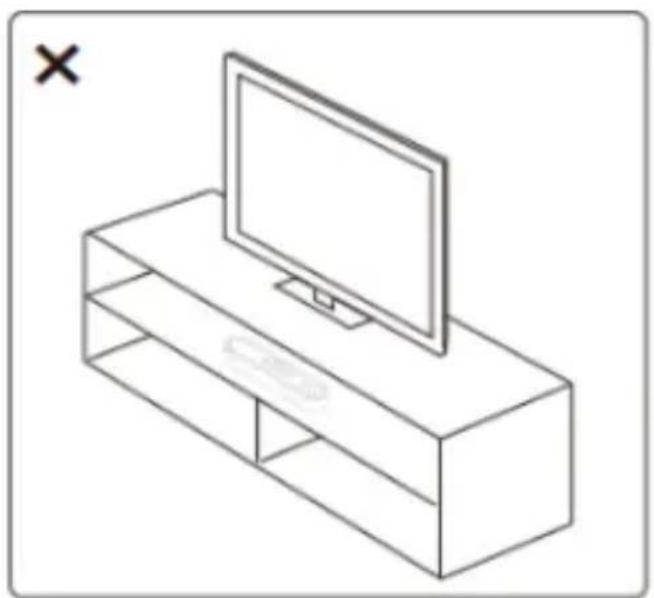

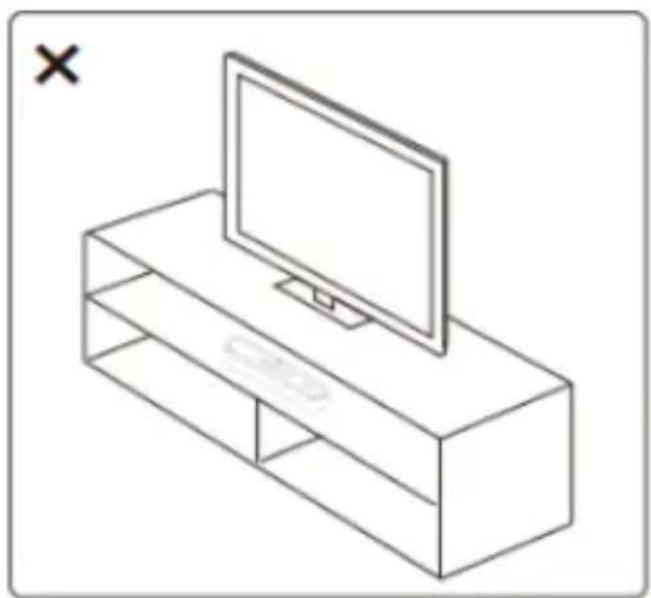

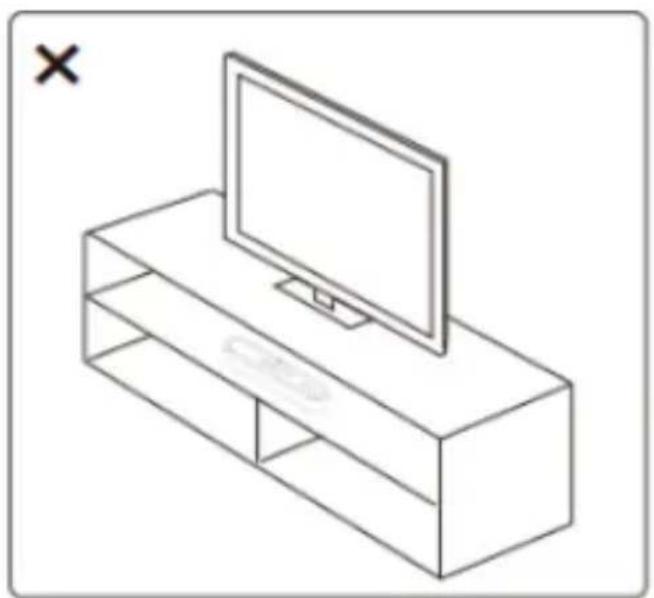

Do not place it inside a cabinet or on a walled shelf. Following this guidance will ensure the best sound output and proper airflow around the soundbar.

Line drawing of a flat-screen TV set with a monitor on top (no text or symbols)

Line drawing of a flat-screen TV set with a monitor on top, no text or symbols present

Preparing to wall-mount the soundbar

Warning: If you are not confident in securely wall-mounting the soundbar, please seek assistance from an experienced person or a professional.

• Install the soundbar on a vertical, solid, reinforced section of wall.
- For plasterboard walls, it is recommended to screw directly into wall studs for added security.
- For optimum performance, allow at least 25 mm (1") of space between the soundbar and the TV.

25mm / 1"

25mm / 1"

Wall-Mounting Instructions

1. Mark and drill two holes in the wall at the same distance as the brackets on the back of the soundbar.
2. Insert the plastic anchors into the holes, then partially fasten the screws into the anchors. Leave a small gap so the soundbar can be hung securely.
3. Attach the two EVA pads to the wall-mount bracket. This ensures a minimum clearance of 15 mm between the wall and the soundbar outlet.
4. Once the screws are securely fastened, hang the soundbar by aligning the brackets and inserting the screws into the slots.

27cm A1 B1 C1

Simple line drawing of a mechanical linkage or lever system (no text or symbols)

Simple line drawing of a horizontal beam with two hanging weights (no text or symbols)

Line drawing of a rectangular electronic device with two vertical connectors and a central control panel (no text or symbols)

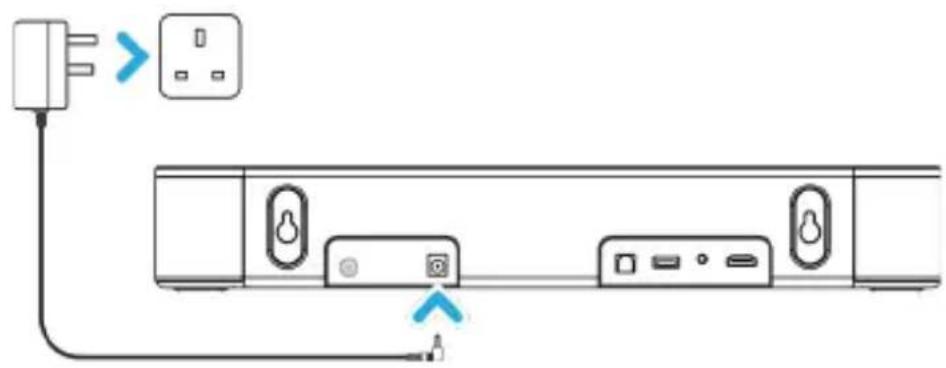

Connecting to the Mains Socket

Ensure that the power supply voltage is within the range of 110V\~240V \~ 50Hz/60Hz. Any other voltage may cause damage to the unit.

• Fully unwind the mains power adaptor included in the box. Insert the soundbar's power adaptor into its port (Ref.7).
• Next, insert the subwoofer's connecting cable into the soundbar connection port (Ref.6).

Ensure all audio cable connections of the units are properly inserted before connecting the soundbar to the mains power socket. Once all set, connect the soundbar power adaptor to mains socket. Once plugged to mains, the soundbar display will show '--' on its panel,. Pess the 'Power' button on remote control (Rem.1) or on the soundbar to switch on.

Unplug the power adaptor from the outlet when the unit is not in use for an extended period of time.

Diagram showing connection between a power outlet and a device with labeled ports and an arrow indicating connection point.

Diagram showing a power outlet connected to an electrical socket with a switch, indicating connection or status change.

Selecting the Input Source

Source Input Use		Remote Control Button	Display
OPTICAL	Connecting the soundbar with Optical Cable (not included), to the Optical port of a TV, PC or similar device.	'Input'	OPTI
TV ARC	Connecting the soundbar with HDMI(ARC) Cable( not included), to the TV HDMI(ARC/eARC) port .	'Input'	Hd
Bluetooth	Pairing the soundbar via Bluetooth with a TV, phone, or other similar device to play audio from via Majority Axis Dolby .	'Input' or 'Pair'	BT
USB	USB Playback port- to be used to play audio from a USB stick (not included).	'Input'	USB
AUX	Connecting the soundbar with 3.5mm audio cable (included), with a TV, PC, or other similar devices	'Input'	RUX
STANDBY	Majority Axis Dolby has an automatic standby function, which activates after 20 minutes of no sound signal being received from the connected device. Press the power button to take the soundbar out of standby mode and resume playback.	Power ON/ Standby	--

Using the ARC/eARC Input

Ensure that the TV's ARC/eARC port supports both video and audio and is HDMI ARC compliant.

Supported audio formats: Dolby Audio, Dolby Surround, PCM 2.0 Channel (Stereo)

When using the TV HDMI (ARC/eARC) input source:

- If the soundbar is not connected to your TV, or if it is into standby mode, "--" will appear on the display panel. Press the POWER/STANDBY button (Rem.1) to switch it on.

- If the soundbar is already connected to your TV's HDMI ARC port, when powered on will display "Hd".

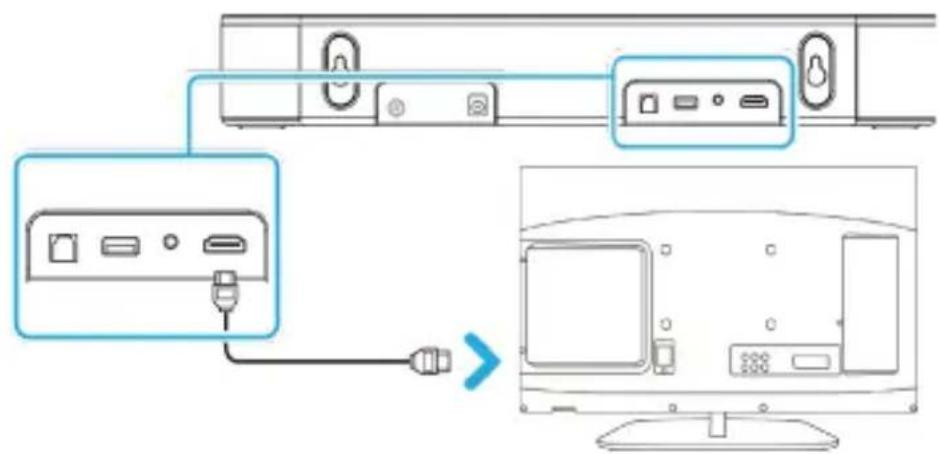

Connect the soundbar to a TV:

- Using a HDMI ARC cable (not included) connect Majority Axis Dolby to your TV. Insert one end of the cable into the soundbar's ARC port (Ref.11), and the other end into your TV HDMI ARC port.

Change the soundbar mode into ARC:

- Press the 'INPUT' button repeatedly on the Soundbar (Ref.3) or on the remote control (Rem.7) until ARC Mode is selected. The soundbar LED display will show 'Hd'.

Adjust the TV audio settings:

- Ensure the TV audio settings are set to HDMI ARC sound output, and the TV digital audio format is set to AUTO or Dolby. Enable HDMI –CEC in your TV settings.

- Use the soundbar remote control to select and apply a predefined Equaliser (Rem.6) or to set the Sound Settings (Rem.10, 11, 12), according to your playback preferences.

Diagram showing connection between a device with ports and cables, including a zoomed-in view of the cable.

Using the Optical Input

Connect the Majority Axis Dolby with an audio source/ such as a TV/PC with an Optical Audio Output using a Digital Optical Audio cable (not included).

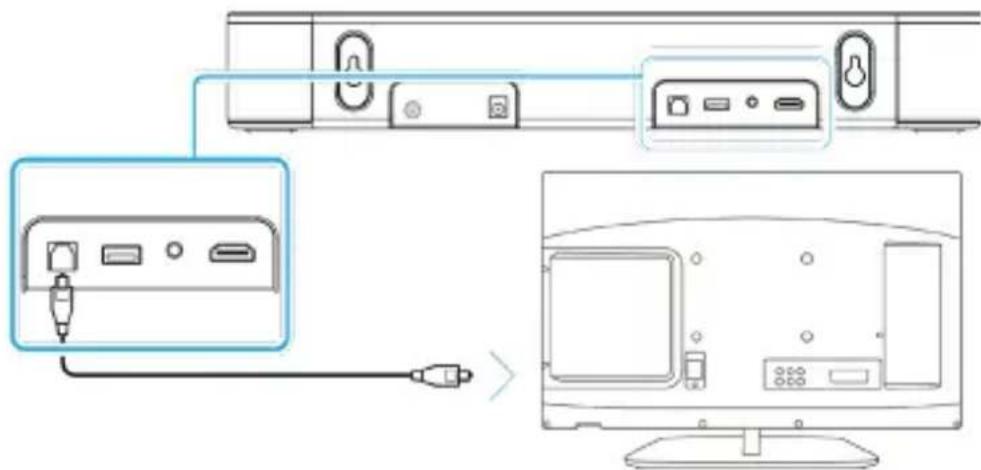

Connect the soundbar to TV, PC, audio source:

• Insert one end of the Digital Optical Audio cable to the optical output on the TV or the audio source and the other end to the Optical Input port on the Soundbar (Ref.8).
• Press the 'POWER/STANDBY' button on the top of the soundbar (Ref.2) or on the remote control (Rem.1) to switch the soundbar on.

Change the soundbar mode into Optical:

- Press the 'INPUT' button on the remote control repeatedly (Rem.7) to switch to Optical Mode or press the 'INPUT' button (Ref.3) repeatedly on the soundbar to select 'Optical Mode'. The soundbar LED display must show 'OPT'.

Adjust the audio settings on TV, PC audio source:

• Using the native controls on your TV or connected device, make sure the TV audio settings are set to Digital Optical Audio and the digital audio format to PCM.
• When connecting the soundbar using optical with other device than the TV such as a DVD player, set the audio settings on your device to AUTO or Dolby.
  • Use the soundbar remote control to apply on sound a predefined Equaliser (Rem.6) or set the Sound Settings (Rem.10, 11, 12) according to your playback preferences. Control the volume levels using the soundbar remote.

Diagram showing connection between a device via cable to a monitor, with labeled ports and connectors.

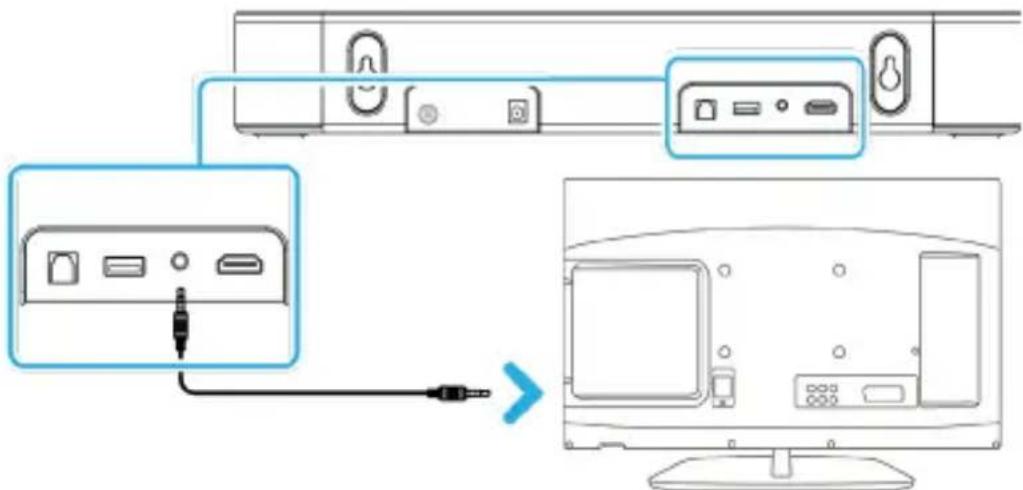

Using the AUX Input

Majority Axis Dolby can be connected to a PC, tablet, smartphone, TV's headphone jack by using the AUX input on the soundbar.

In this mode the audio playback can only be controlled from connected device.

Connecting to external devices using a 3.5 mm to 3.5 mm audio cable (included in the box):

- Insert one end of the 3.5mm audio cable into the AUX input socket on the rear panel of the Soundbar (Ref.10) and the other end into the audio output/headphone output on external devices, e.g. MP3 player, phone or other audio sources etc.

Connecting to the TV or a PC, DVD player using the 3.5 mm to RCA cable (not included):

- Insert the 3.5mm cable end into the AUX Input port on the rear panel of the Soundbar (Ref.10) and insert the other two RCA colored ends into TV's RCA audio output port or to the DVD player AUDIO RCA Output.

Once the cables are connected, press the 'POWER/STANDBY' button on the panel of the soundbar (Ref.2) or remote control (Rem.1) to switch the soundbar on.

Change the soundbar mode into AUX

- Press the 'INPUT' button repeatedly on the soundbar (Ref.3) or on the remote control (Rem.7) repeatedly until AUX In Mode is selected. The LED screen must display 'RUX'.

Adjust the audio settings on your device. For example, if you connect Majority Axis Dolby with a TV, the digital audio format must be set to PCM.

Diagram showing connection between a device panel and a monitor, with labeled ports and an arrow indicating connection to the monitor.

PLEASE NOTE: If you connect the Majority Axis Dolby to a TV using any of these cables and experience no sound from the soundbar, please check the TV's audio/sound settings and set them to PCM. Also, ensure that the RCA port on your TV is an RCA Audio Output port — if it is an RCA Audio Input port, no sound will be produced. Alternatively, try a different type of connection, such as an optical cable, ARC, or Bluetooth.

Bluetooth Mode

The Majority Axis Dolby can be paired via Bluetooth with any Bluetooth-enabled device, such as a Smart TV, PC, phone, tablet, or similar device you would like to play audio from through the soundbar.

Switching On

Press the POWER button on the soundbar (Ref.2) or on the remote control (Rem.1) to turn the unit on.

Activating Bluetooth Mode

- Press the INPUT button repeatedly on the remote control (Rem.7) or on the soundbar (Ref.3) until Bluetooth Mode is selected. The display will show "Bt". A short beep will sound to confirm the mode. While searching for a device, "Bt" will flash on the soundbar display.

Pairing with a Bluetooth Device

• Enable Bluetooth on your device and search for new devices.
• Select "Majority Axis Dolby" from the list when prompted.

Successful Connection

- When successfully paired, a double beep will sound, and "Bt" text will stop flashing. After the initial pairing, the soundbar will automatically reconnect unless manually unpaired or reset.

Reconnecting or Unpairing a Device

• If your device should become unpaired or you find it is unable to connect, repeat the above steps.
• To unpair the soundbar from a paired device press and hold the 'PAIR' button on remote control (Rem.8) for 2-3 seconds to disconnect.

Start playing form your device and the sound will be heard via Majority Axis Dolby.

Playback Controls in Bluetooth Mode

• Play/Pause button: Start, pause, or resume playback.
• PREV/NEXT buttons: Skip to the previous or next track.
• EQ (remote control only): Select a predefined equaliser setting.
• Sound Settings (remote control only): Adjust bass and treble to your preference.

PLEASE NOTE:

•The Majority AXIS Dolby is not compatible with Bluetooth earbuds.

• If you are experiencing connection problems, remove "Majority Axis Dolby" from your device's Bluetooth history, ensure the soundbar is within 10 metres range of your device, and try pairing again.
• For the best sound quality, ensure a clear line of sight between your device and the soundbar.
• If the paired device is switched off or disconnected, the soundbar will automatically enter pairing mode.
• Bluetooth streaming may be interrupted by obstacles such as walls, metal casings, or nearby devices operating on the same frequency.
• To connect to another Bluetooth device, press and hold PAIR on the remote control to disconnect the current device, then follow the pairing steps to connect with a new device.

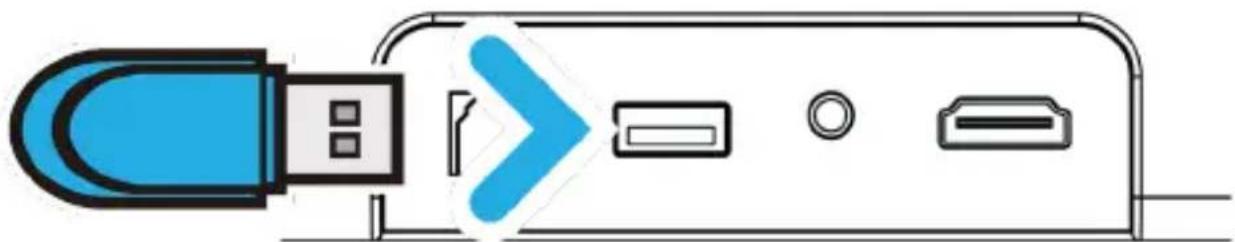

Using the USB Playback Port on the soundbar

The Majority Axis Dolby soundbar includes a USB port for playing music directly from a USB stick (up to 32GB) with supported audio formats: MP3, FLAC, and WAV.

• Press the POWER button on the soundbar (Ref.2) or the remote control (Rem.1) to switch the unit on.
• Insert the USB stick into the USB port on the back of the soundbar (Ref.9).
• The soundbar will automatically switch to USB mode, shown on the LED display as "USB".
• If the USB stick contains supported files, playback will start automatically. The display will show "0:00", then the elapsed play time once music begins.

Playback controls in USB mode:

•VOL +/-: Adjust the volume.

- PLAY/PAUSE: Play or pause playback.

- PREV/NEXT: Skip to the previous or next track.

• EQ (remote control only): Select a predefined equaliser setting.
• Sound Settings (remote control only): Adjust bass and treble to your preference.

Diagram of a USB port with ports and an arrow indicating data transfer (no text or symbols)

Please note:

The USB port on the soundbar is for playback only. This port cannot be used to connect with other devices.

Observation Potential Cause / Solution
No Power/ No Function	Check that the power is switched on at the wall socket.Ensure the power adaptor of the soundbar is properly connected to the mains outlet.Unplug the soundbar and disconnect from your devices. Leave everything switched off for 10 minutes, then reconnect the soundbar to the mains power If a particular mode causes issues, try an alternative connection (e.g. Optical or Bluetooth)
No sound	Check whether the unit or your device is set to MUTE.Ensure the soundbar is powered on and not in standby mode (display shows “--”). Increase the volume level if muted. Press the POWER button on the remote or the soundbar, then select the mode that matches your connection type.Ensure the soundbar is in the correct mode and all cables are securely connected.Increase the volume on both the soundbar and your device.Check your device’s audio settings to ensure they are properly configured.
Hissing Sound or No Sound heard when connected to TV (ARC / Optical / AUX)	Check the TV’s audio or sound settings and adjust, as necessary. Hissing sound can be heard if if the cable used is a faulty one, or if is a poor-quality cable. This can also happen if Tv audio settings are not adjusted as per connection used.Ensure the TV is set to use external speakers . The TV set should be HDMI ARC compliant. Use a HDMI cable with ARC.Check the TV’s audio/sound settings and ensure the digital audio format is set to AUTO.Check cable connections, replace the cable if necessary, or try an alternative connection.
No Sound in Bluetooth Mode	Check that your Bluetooth device is paired and the soundbar is set to BT mode.If the soundbar is paired with another device, unpair, and try again.Ensure your device is within Bluetooth range with no obstacles in between, such as furniture or walls in between.Increase the volume on both the soundbar and your device.If issues persist:-Unplug the soundbar and leave it switched off for a few minutes.-Remove the soundbar from your device’s Bluetooth list.-After 5 minutes, reconnect the soundbar to the mains, allow it to pair with its subwoofer, set it to BT mode, and try pairing again.

Troubleshooting

No sound In USB playback mode	Ensure the audio files uploaded on the USB stick are in supported formats: MP3, Flac or WAV.Ensure the soundbar mode is st to 'USB'. This text must be displayed on soundbar LED panel. Use a different USB stick.
Remote control function issues	Check whether the battery needs to be replaced, try new ones.Check whether there are obstacles blocking the remote sensor.
Sound quality is not as expected	Use the soundbar remote control to select a predefined and apply Equaliser (Rem.6) or the Sound Settings (Rem.10, 11, 12) and set them according to your playback preferences.

Do you still need help with your Majority Bowfell Axis Dolby? Contact Tech Support

If you require further assistance with your Majority product, please contact our team on the Majority website: www.majority.co.uk/support or email us @[e-mail]

Product Specification

Power supply	110V -240V ~ 50Hz/60Hz
Sound Frequency Response	55Hz-20KHz
Bluetooth version 5.0
Bluetooth range Up to 8 metres
USB playback audio format supported MP3, WAV, FLAC
Soundbar Dimension (LxWxH) Subwoofer Dimension (LxWxH)	40.5 (L) x 9 (W) x 6.2 (H) cm18.5 (L) x 15 (W) x 32 (H) cm
Net Product Weight (soundbar with subwoofer)	2.95 KG

Warranty

All products come with a standard 12-month warranty. To extend your warranty to a total of three years, you must register your product within 30 days of purchase at www.majority.co.uk. Simply navigate to the menu and select 'Register Your Product' and complete the registration form. This service is completely free of charge.

Bowfell

Axis Dolby

Line drawing of a white electronic device with a circular button and 'MAJORITY' text below (no other symbols or text)

Simple line drawing of a cable with a plug and label B (no text or symbols on the cable itself)

Illustration of a remote control with two batteries and a keypad (no text or symbols)

Coiled electrical cable with two connectors and a blue circular label marked 'D' (no text or symbols on the cable itself)

Diagram showing two cylindrical objects with a blue circular label labeled 'E' above them, and two separate screw-like components below (no text or symbols)

Illustration of a blank book with a blue circular icon labeled 'F' on top (no text or symbols on the book itself)

Remote control sensor 45° 4 5 Within 8 m (26.2 feet)

Line drawing of a flat-screen TV set with a monitor on top (no text or symbols)

Line drawing of a flat-screen TV set with a monitor on top, no text or symbols present

25mm / 1" 25mm / 1"

Diagram showing connection between a power outlet and a device with labeled ports and an arrow indicating connection point.

Diagram showing a power outlet connected to an electrical socket with a switch, indicating connection or status change.

Diagram showing connection between a device and a computer monitor, with labeled ports and connectors.

Diagram showing connection between a device via cable to a monitor, with labeled ports and connectors.

Diagram showing connection between a computer monitor and an audio device via USB cable, with labeled ports and connectors.

Diagram of a USB port with ports and an arrow indicating direction (no text or symbols)

Bitte beachten:

Remote control sensor 45° 4 5° Within 8 m (26.2 feet)

Line drawing of a flat-screen TV set with a monitor on top (no text or symbols)

Line drawing of a flat-screen TV set with a monitor on top, no text or symbols present

25mm / 1" 25mm / 1"

Instructions de fixation murale

Four-step diagram showing a device with a 27cm measurement and four different configurations for lifting or connecting the device.

Diagram showing connection between a power outlet, switch, and internal device with labeled ports and connection arrows

Diagram showing a power outlet connected to an electrical socket with a switch, indicating connection or status change.

Diagram showing connection between a device with ports and cables, including a separate monitor setup.

Diagram showing connection between a computer monitor and an audio device via cable, with labeled ports and connectors.

Diagram showing connection between a computer interface and a monitor, with labeled ports and an arrow indicating connection to the monitor.

Diagram of a USB port with ports and an arrow indicating data transfer (no text or symbols)

Remarque:

1 2 3 4 5 6 7 INPUT PAIR INFO VOL+ VOL- EQ EQ - + 10 11

Remote control sensor 45° 4 5° Within 8 m (26.2 feet)

Line drawing of a flat-screen TV set with a monitor on top (no text or symbols)

Line drawing of a flat-screen TV set with a monitor on top (no text or symbols)

25mm / 1"

25mm / l"

Simple line drawing of a lever mechanism with two weights and a fulcrum (no text or symbols)

Simple line drawing of a lever with two hanging weights (no text or symbols)

Line drawing of a rectangular electronic device with two ports and a handle, no text or symbols present

Diagram showing connection between a power outlet and a device with labeled ports and an arrow indicating connection point.

Diagram showing a power outlet connected to an electrical socket with a switch, indicating connection or status change.

Diagram showing connection between a device and a monitor, with labeled ports and connectors

Diagram showing connection between a device via cable to a monitor, with labeled ports and connectors

Diagram showing connection between a device panel and a computer monitor, with labeled ports and cable connections.

Rear views of the soundbar and subwoofer

2. Subwoofer connecting cable 13

1. Subwoofer connecting cable

Control remoto

1 2 3 4 5 6 7 INPUT PAIR INFO VOL+ VOL- EQ EQ - + 10 11

Remote control sensor 45° 4 5° Within 8 m (26.2 feet)

Line drawing of a flat-screen TV set with a monitor on top (no text or symbols)

Line drawing of a flat-screen TV set with a monitor on top (no text or symbols)

25mm / 1"

25mm / l"

Simple line drawing of a mechanical linkage or lever system (no text or symbols)

Simple line drawing of a lever with two hanging weights (no text or symbols)

Line drawing of a rectangular electronic device with three ports and a hanging arm (no text or symbols)

Diagram showing connection between a device via cable to a computer monitor, with labeled ports and connectors.

Diagram showing connection between a computer interface via USB cable, with labeled ports and an output screen view.

Diagram showing connection between a device panel and a computer monitor, with labeled ports and cable connections.

Diagram of a USB drive with port and connector ports (no text or symbols)

Por favor note:

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, iZilla Limited,1 Cygnus Business Park, Middlewatch, Swavesey, Cambridgeshire

CB24 4AA, declare under our sole responsibility that the product:

Product Name: Majority Bowfell Axis 2.1 Dolby Model: 1000003083

Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham | Founder

Signed: F. Latham Date of Issue: January 2024 Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Limited,1 Cygnus Business Park, Middlewatch, Swavesey, Cambridgeshire CB24 4AA

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rancho Dominguez, CA, 90220

Email: [e-mail]

ATTENTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

RISQUE D'ELECTROCUTION NE PAS OUVRIR

IMPORTANT: Please read all instructions carefully before use and keep for future reference

MAJORITY

www.majority.co.uk

FR + + + @
