Product Type	Smart Switch
Brand	Sonoff
Model	Basic R3 (BASICR3/BASICRFR3)
Dimensions	91 x 43 x 25 mm
Weight	Less than 1 kg
Power Supply	100-240 V AC, 50/60 Hz, 10 A (max)
Material	PC V0 (flame retardant)
Connectivity	Wi-Fi IEEE 802.11 b/g/n 2.4 GHz; RFR3 model: 433.92 MHz radio
Operating Systems	Android & iOS
Main Features	Remote control via app, scheduling, voice control, shared control, smart scenes, state synchronization, camera, FR remote control (RFR3 model)
Wi-Fi LED Indicator	Long/short flashes depending on mode (pairing, connection, error)
Installation	Flush or surface mounting, neutral and phase wiring, recommended height < 2 m
Safety	Cut power before installation; do not touch the switch during use; call a professional
Maintenance and Cleaning	Clean with a dry, soft cloth. Do not use abrasive products.

Frequently Asked Questions - Basic R3 Sonoff

How to pair the device with the eWeLink app?

Turn on the device: the LED flashes twice quickly then once long (Quick Pairing mode). Open the app, tap '+', select 'Quick Pairing' and follow the instructions. If quick mode doesn't work, use compatible mode: press and hold the setup button for 5 seconds until the LED flashes rapidly, then in the app choose 'Compatible Mode', connect to Wi-Fi ITEAD-****** with password 12345678, then return to the app.

What to do if the device stays 'Offline'?

Check the Wi-Fi LED: if it flashes briefly once per second, the device is not connecting to Wi-Fi. Possible causes: incorrect password, too much distance, interference, unsupported 5G Wi-Fi, MAC filtering enabled. Try moving the switch closer to the router, disable MAC filtering, or create a mobile hotspot. If the LED flashes rapidly twice, the device is connected to Wi-Fi but not to the server: check your internet connection and restart the device.

Does the Basic R3 support 5 GHz Wi-Fi?

No, the Basic R3 only works on the 2.4 GHz band (IEEE 802.11 b/g/n). Make sure your router broadcasts on this frequency.

How to reset the device to factory settings?

Delete the device in the eWeLink app: this automatically restores it to factory settings. You can also press and hold the setup button for 5 seconds to enter pairing mode, but this does not fully reset the device.

Can I use a remote control with the Basic R3?

Only the BASICRFR3 model supports a remote control on the 433.92 MHz frequency. The standard BASICR3 model is not compatible. To pair the remote, press the setup button for 3 seconds until the red LED flashes once, then press the desired remote button.

How to unpair an FR remote control?

Press and hold the setup button for 5 seconds until the red LED flashes twice. Then press the paired remote button to unpair it.

What does a Wi-Fi LED flashing rapidly three times mean?

This indicates that the device is updating its firmware. Wait until the update finishes.

How to change Wi-Fi network?

Press and hold the setup button for 5 seconds until the LED flashes twice short then once long. The device returns to quick pairing mode. Then follow the pairing procedure with the new network.

Is the Basic R3 compatible with Amazon Alexa or Google Assistant?

Yes, via the eWeLink app. After pairing the device with the app, you can link eWeLink to Alexa or Google Assistant for voice control. Follow the instructions in the app.

What is the maximum load supported by the Basic R3?

The device supports a maximum load of 10 A at 100-240 V AC, approximately 2400 W (at 240 V) or 1000 W (at 100 V). Never exceed this limit.

USER MANUAL Basic R3 Sonoff

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols present)

拆下保护盖，先接线再安装压线柱。

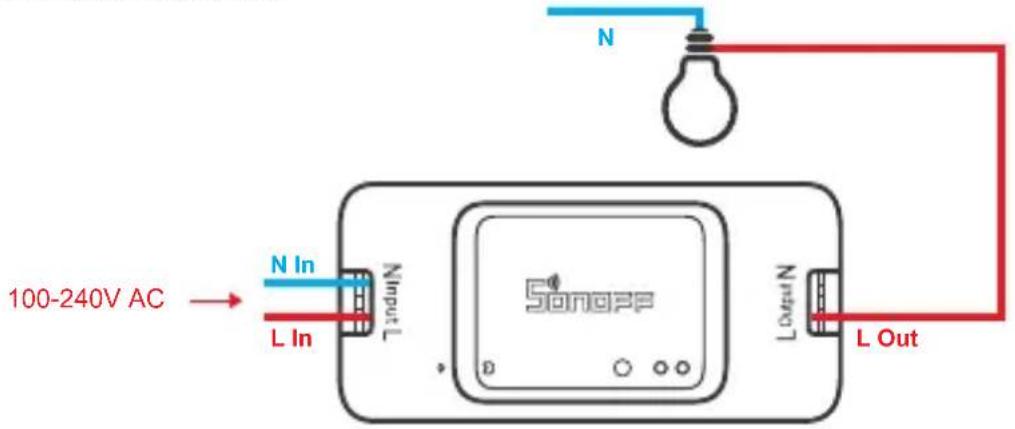

单火线输出接线示意:

确保零火线接入无误。

3. 下载 “易微联” APP

Android™ & iOS

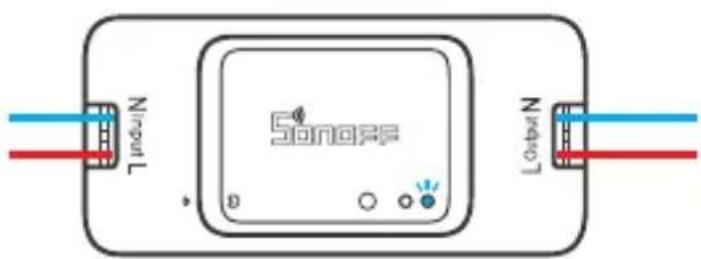

4. 上电

恢复出厂设置

Operating Instruction

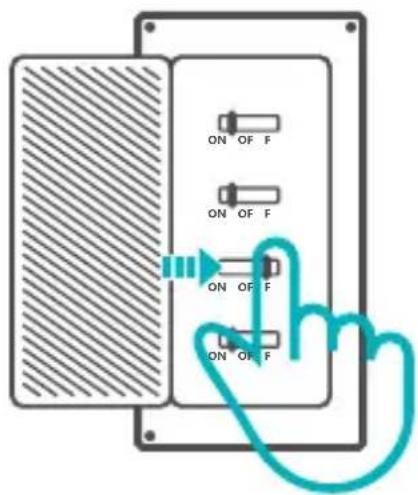

1. Power off

To avoid electric shocks, please consult the dealer or a qualified professional for help when installing and repairing! Please do not touch the switch during use.

2. Wiring instruction

Technical illustration of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

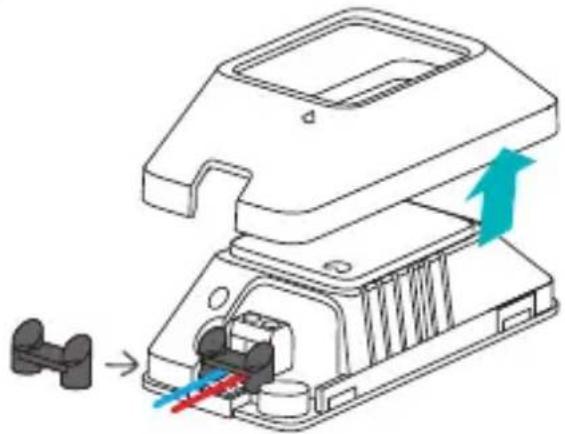

Remove the Protective cover, then connect wires before fixing the wire fastener.

To make sure a full installation, please align "with "when securing the protective cover.

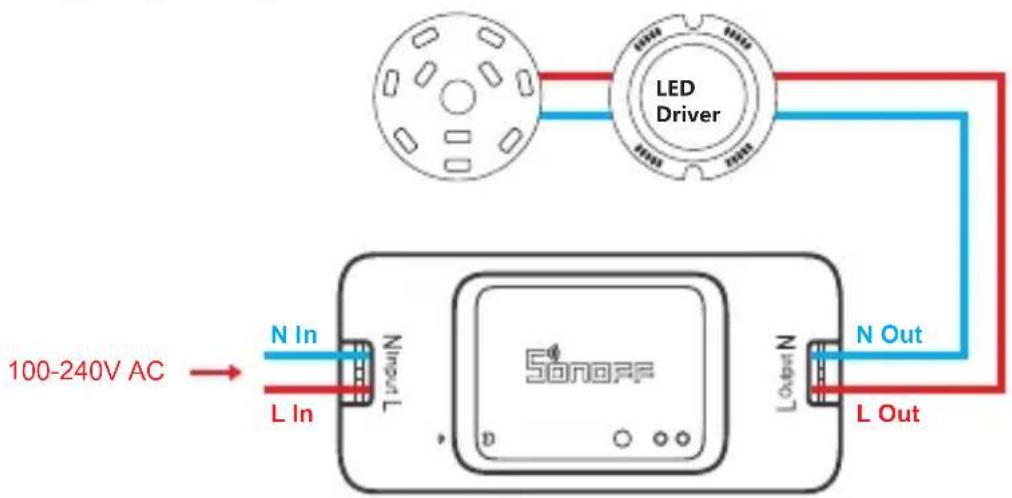

Ceiling lamp wiring instruction:

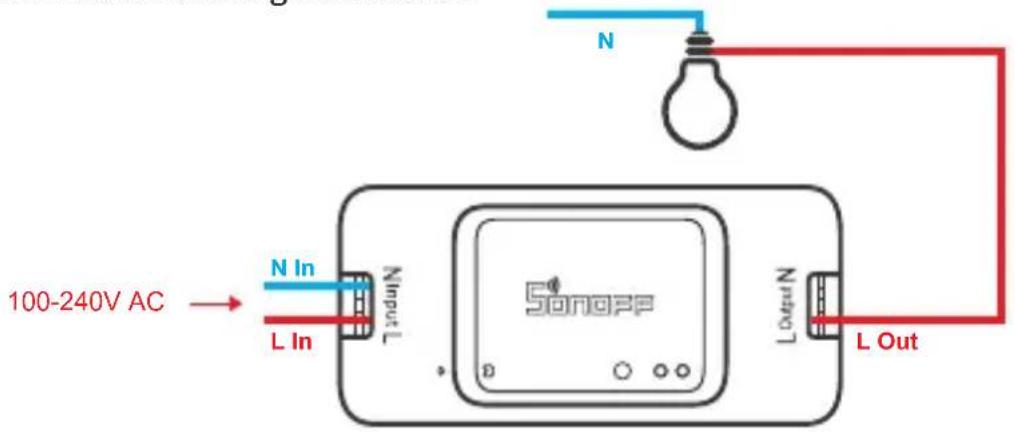

One live wire wiring instruction:

Make sure the neutral wire and live wire connection is correct.

3. Download APP

Android™ & iOS

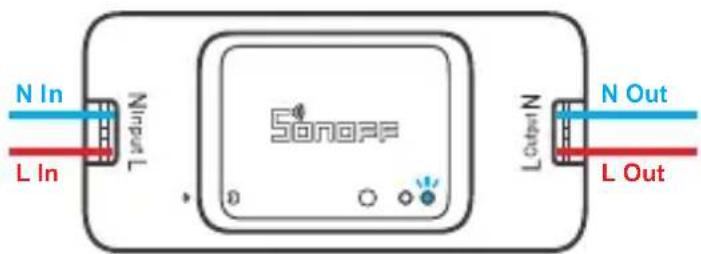

4. Power on

After powering on, the device will enter the quick pairing mode (Touch) during the first use. The Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

The device will exit the quick pairing mode (Touch) if not paired within 3mins. If you want to enter this mode, please long press the manual button for about 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release.

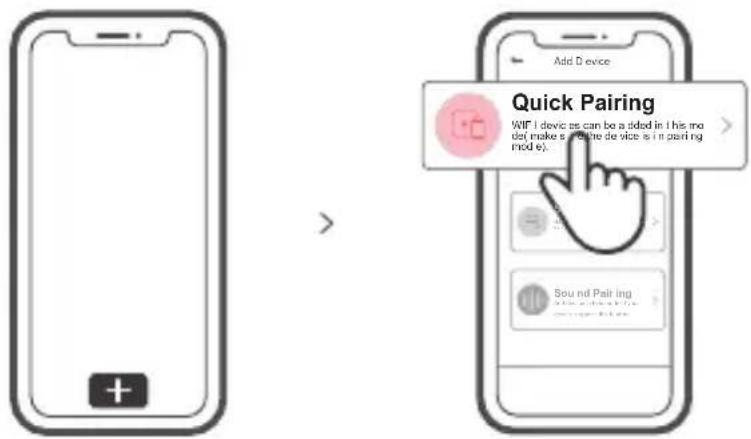

5. Add the device

Tap "+" and select "Quick Pairing", then operate following the prompt on the APP.

Compatible Pairing Mode

If you fail to enter Quick Pairing Mode (Touch), please try "Compatible Pairing Mode " to pair.

1 Long press Pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of two short flashes and one long flash and release. Long press Pairing button for 5s again until the Wi-Fi LED indicator flashes quickly. Then, the device enters Compatible Pairing Mode.
2 Tap "+" and select "Compatible Pairing Mode" on APP.

Select Wi-Fi SSID with ITEAD-***** and enter the password 12345678, and then go back to eWeLink APP and tap "Next". Be patient until pairing completes.

Specifications

Model	BASICR3/BASICRFR3
Input	100-240V AC 50/60Hz 10A Max
Output	100-240V AC 50/60Hz 10A Max
Operating systems	Android & iOS
Wi-Fi	IEEE 802.11 b/g/n 2.4GHz
RF	433.92MHz
Material	PC V0
Dimension	91x43x25mm

BASICR3 does not support the remote controller with 433.92MHz.

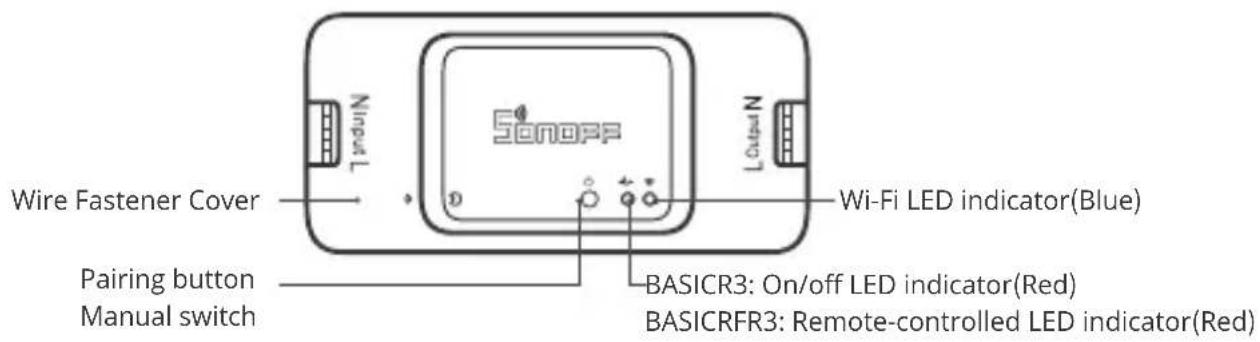

Product Introduction

The device weight is less than 1 kg. The installation height of less than 2 m is recommended.

Wi-Fi LED indicator status instruction

Wi-Fi LED indicator status	Status instruction
	Quick Pairing ModeFlashes (one long and two short)
Keeps on	Device is connected successfully
Flashes quickly	Compatible Pairing Mode
Flashes quickly once	Unable to discover the router
Flashes quickly twice	Connect to the router but fail to connect to Wi-Fi
Flashes quickly three times	Upgrading

Features

Turn on/off the device from anywhere, schedule power on/off and share APP with your family to control.

Remote Control

Single/Countdown Timing

Voice Control

Share Control

Smart Scene

Sync Status LAN Control Power Report State Control

Camera Linking

RF Remote Controller Pairing

The BASICRFR3 supports the remote controller with 433.92MHz frequency brand to turn on/off, and each channel can learn it independently, which is local short-range wireless control not Wi-Fi control.

Pairing Method:

Long press the pairing button for 3s until the red LED indicator flashesred once, then short press the remote control button you want to pair for successful learning.

Clearing Method:

Long press the pairing button for 5s until the red LED indicator flashesred twice, then short press the learned button corresponding to the remote controller to clear code values of all learned buttons.

Switch Network

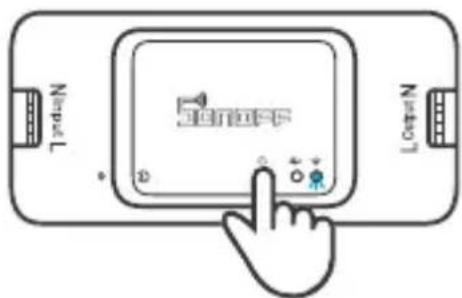

If you need to change the network, long press the pairing button for 5s until the Wi-Fi LED indicator changes in a cycle of two short and one long flash and release, then the device enters quick pairing mode and you can pair again.

Factory Reset

Deleting the device on the eWeLink app indicates you restore it to factory setting.

Common Problems

Q: Why my device stays "Offline"?

A: The newly added device needs 1 – 2mins to connect Wi-Fi and network. If it stays offline for a long time, please judge these problems by the blue Wi-Fi indicator status:

1. The blue Wi-Fi indicator quickly flashes once per second, which means that the switch failed to connect your Wi-Fi:

① Maybe you have entered a wrong Wi-Fi password.
② Maybe there's too much distance between the switch your router or the environment causes interference, consider getting close to the router. If failed, please add it again.
③ The 5G Wi-Fi network is not supported and only supports the 2.4GHz wireless network.
④ Maybe the MAC address filtering is open. Please turn it off.

If none of the above methods solved the problem, you can open the mobile datanetwork on your phone to create a Wi-Fi hotspot, then add the device again.

1. Blue indicator quickly flashes twice per second, which means your device has connected to Wi-Fi but failed to connect to the server.

Ensure steady enough network. If double flash occurs frequently, which means you access an unsteady network, not a product problem. If thenetwork is normal, try to turn off the power to restart the switch.

Betriebsanweisung

1. Ausschalten

Technical line drawing of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical assembly with a blue arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with a blue arrow indicating motion or force, showing internal parts and a small inset view (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating movement or force (no text or symbols)

The BASICRFR3 supports the remote controller with 433.92MHz frequency brand to turn on/off, and each channel can learn it independently, which is local short-range wireless control not Wi-Fi control.

Método de pareamento:

Changes or modifications not expressly approved by the party responsible for compliance could avoid the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

Hereby, Shenzhen Sonoff Technologies Co., Ltd. declares that the radio equipment type BASICR3/BASICRFR3 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://sonoff.tech/usermanuals

TX Frequency:

WiFi: 2412-2472MHz

RX Frequency:

WiFi: 2412-2472MHz SRD: 433.92MHz

Output Power:

11.69dBm(802.11b) 13.85dBm(802.11g) 13.74dBm(802.11n20)
