USER MANUAL SPBT2480BK NEDIS

Portable Bluetooth® Speaker

with Dynamic RGB Lightning

SPBT2480BK

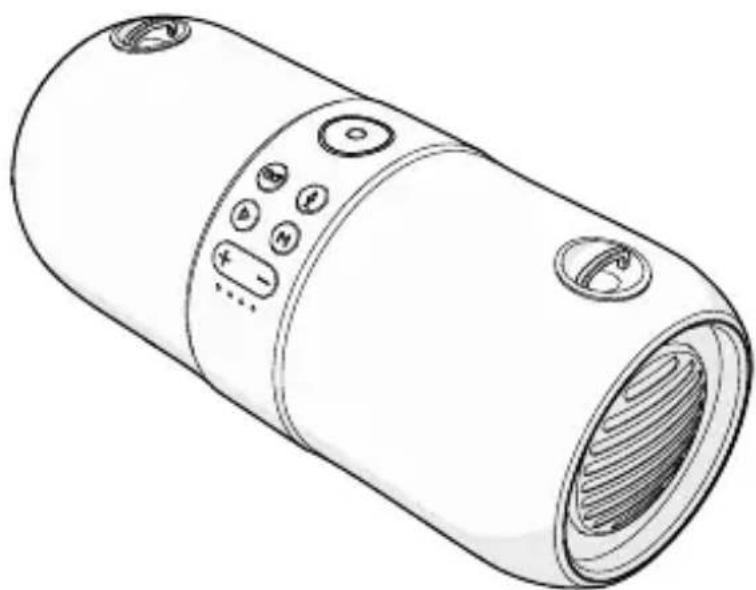

Line drawing of a cylindrical device with internal ventilation slots and control buttons (no text or symbols)

EN Quick start guide 4

DE) Kurzanleitung 7

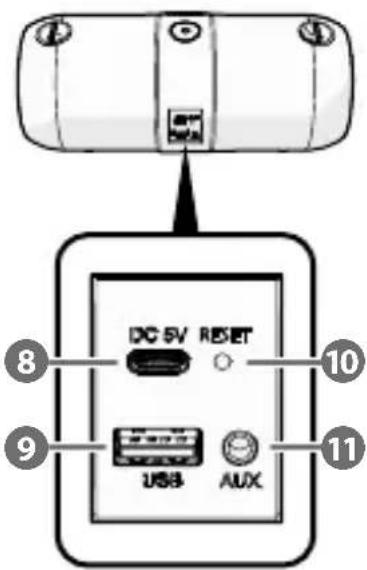

Diagram of a remote control device with labeled buttons and ports, showing numbered labels 1 through 7.

DC 5V RESET USB AUX

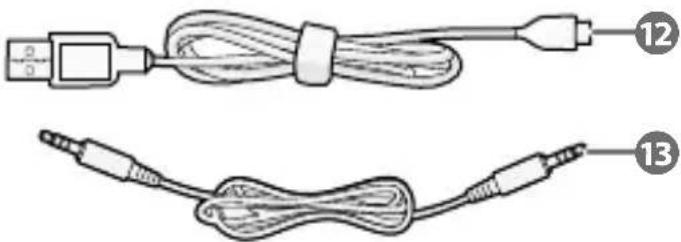

Two types of cables with connectors, labeled 12 and 13, showing different cable configurations (no text or symbols on the cables themselves)

Portable Bluetooth® Speaker

SPBT2480BK

For more information see the extended manual online: ned.is/spbt2480bk

Intended use

This product is intended as a speaker for playing music from your device via Bluetooth ^® , USB, or via AUX.

This product is intended for indoor use only.

This product is intended to be used in household and similar applications such as kitchen areas.

This product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Main parts (image A)

1 Power button
2 True Wireless Stereo (TWS) button
3 Play/pause button
4 Volume up/next track button
5 Voice assistant button
6 Source button

7 Volume down/previous track button
8 USB-C charging port
9 USB port
10 Reset button
11 AUX port
12 USB – USB-C charging cable
13 3.5 mm audio cable

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not let children play with the packaging material. Always keep the packaging material out of the reach of children.
• Do not drop the product and avoid bumping.
• Do not expose the product to water, rain, moisture, or high humidity.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.

• Do not open the product, there are no user serviceable parts inside.

• Disconnect the product from the power source before cleaning.

• Do not immerse the product in water or other liquids.
• Do not use aggressive chemical cleaning agents when cleaning the product.
• Only use the provided USB charging cable.
• Only charge the product via a 5V/1–2A power adapter or a PC.
• Do not dismantle, open or shred cells or batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Keep cells and batteries clean and dry.
• Do not leave a battery on prolonged charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge rechargeable cells or batteries several times to obtain maximum performance.

Charging the product

Only use the provided USB charging cable.

Ally charge the product via a 5V/1–2A power adapter or a PC.

The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before using the product for the first time.

1. Plug the USB-C connector of the USB - USB-C charging cable A⑫ into the USB-C charging port A⑧.

2. Plug the other end of the USB – USB-C charging cable A 12 into a 5V/1–2A power adapter.

3. Plug the power adapter into a power outlet.

Selecting a mode

1. Press and hold the power button A 1 to switch on the product.
2. Select your preferred music source:

Bluetooth® mode Activate Bluetooth® on your audio device and connect with the product (SPBT2480BK).
USB mode Plug a USB flash drive into the USB slot A9. The product automatically plays the stored music.
AUX mode	1. Plug a 3.5 mm audio cable A13 into the AUX port A11.2. Plug the other end of the 3.5 mm audio cable into your audio device.

• Press and hold the source button A6 to switch on/off the RGB lights.
• Press the voice assistant button A 5 to activate/deactivate voice assistance.

Playing music

• Press the play/pause button A 3 to play or pause music.
• Press the volume up or down button A 4 7 to adjust the volume.
• Press and hold the next or previous button A 4 7 to change the song or radio station.

Pairing two products for True Wireless Stereo (TWS)

1. Switch on both speakers for wireless pairing.
   Make sure both products are in Bluetooth® mode.
2. Press the True Wireless Stereo button A② to pair the speakers
3. Press the True Wireless Stereo button A② again to exit TWS mode.

Answer phone calls

This function is only available in Bluetooth ^® mode.

• Press the play/pause button A 3 to answer or finish a phone call.
• Press and hold the play/pause button A 3 torejectacall/ switch to phone during call.

Troubleshooting

Problem Possible cause Possible solution
The product does not switch on.	The battery power is low.	Charge the product
	An internal malfunction has occurred.	Press the reset button in the AUX port A11 with a small pin to reset the product.

Disposal

The product is designated for separate collection at an appropriate collection point. Do not dispose of the product with household waste.

For more information, contact the retailer or the local authority responsible for the waste management.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product SPBT2480BK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/SPBT2480BK#support
