SPBT2006BK - Speaker NEDIS - Free user manual and instructions

Product type	Bluetooth® speaker
Brand	Nedis
Model	SPBT2006BK
Power supply	5 V DC, 1 A via USB-C port
Wireless connection	Bluetooth®
Ports	AUX 3.5 mm, USB-C (charging)
Functions	Music streaming, hands-free (built-in microphone), RGB lighting, volume control, pause/play
Microphone	Built-in for hands-free calls
Lighting	Built-in RGB, toggle by pressing power button twice
LED indicator	Status LED: solid blue (paired), flashing blue (searching), red (charging)
Battery life	Approximately 10 hours (estimated)
Charging time	Approximately 3 hours (estimated)
Included accessories	USB-C charging cable
Intended use	Indoor only
Safety	Do not expose to water or moisture. Do not open the product. Use only the supplied charger.
Cleaning	Wipe with a dry, soft cloth

Frequently Asked Questions - SPBT2006BK NEDIS

How do I pair the speaker with my phone?

Turn on the speaker by pressing and holding the power button. It automatically enters Bluetooth® pairing mode. Enable Bluetooth on your phone and select Nedis SPBT2006BK. The blue LED lights up solid when pairing is successful.

How do I charge the speaker?

Connect the supplied USB-C cable to the speaker's charging port, then connect the other end to a 5 V/1 A USB adapter (not included) or a computer. The red LED lights up during charging and turns off when fully charged.

Can I use the speaker with a wired audio source?

Yes, plug a 3.5 mm audio cable (not included) into the speaker's AUX port and the other end into your audio source. Bluetooth is then disabled.

How do I control volume and change tracks?

Use the + button (volume up/next track) and - button (volume down/previous track). Press briefly to skip to next or previous track, press and hold to adjust volume.

How do I pause or resume music playback?

Press the power button once to pause or resume playback.

How do I activate RGB lighting?

Press the power button twice quickly to turn on the lighting, change mode, or turn it off.

What does the LED mean?

The LED indicates the speaker status: solid blue = paired, flashing blue = pairing mode, red = charging. When the battery is low, a voice alert 'Please charge' is heard.

Is the speaker waterproof?

No, it is not waterproof. Do not expose it to water or moisture. It is designed for indoor use only.

Can I use the speaker while it is charging?

Yes, you can use it while charging. However, monitor the temperature: if the product becomes too hot, stop charging and unplug it.

The speaker turns off by itself, is that normal?

Yes, the speaker automatically powers off after 10 minutes of inactivity to save battery.

USER MANUAL SPBT2006BK NEDIS

Illustration of a cylindrical electronic device with mesh grille and three buttons (no text or symbols)

Quick start guide 3

Kurzanleitung 7

Quick start guide

SPBT2006BK

Bluetooth® speaker

For more information see the extended manual online: ned.is/spbt2006bk

Intended use

This product is intended to stream audio via Bluetooth ^® or an audio cable.

The product is intended for indoor use only.

Any modification of the product may have consequences for safety, warranty and proper functioning.

The product is not intended for professional use.

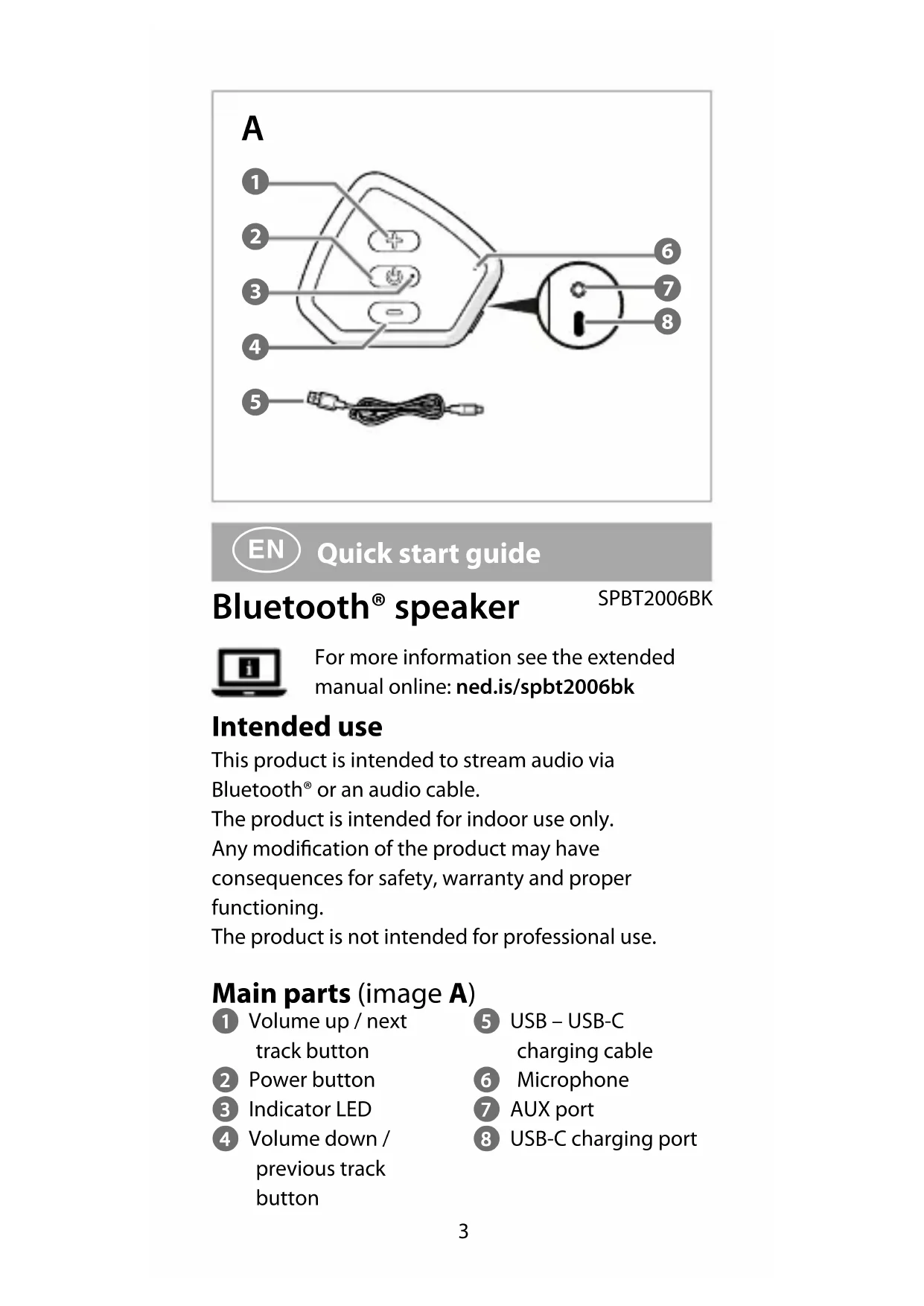

Main parts (image A)

1 Volume up / next track button

2 Power button

3 Indicator LED

4 Volume down / previous track button

5 USB – USB-C charging cable

6 Microphone

7 AUX port

8 USB-C charging port

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not drop the product and avoid bumping.
• Do not open the product, there are no user serviceable parts inside.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• The charger must only be plugged into an earthed socket-outlet.
• Do not leave a battery on prolonged charge when not in use.
• Stop the charging process if the product gets too warm.
• Only power the product with the voltage corresponding to the markings on the product.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not immerse the product in water.
• Do not charge when the product is wet.
• Do not dismantle, open or shred cells or batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not subject cells or batteries to mechanical shock.
• Disconnect the product from the electrical outlet and other equipment if problems occur.
• Only use the provided USB charging cable.

Switching the product on/off

1. Press and hold the power button A 2 to switch on the product.

The product automatically enters Bluetooth ^® pairing mode.

1. Press and hold the power button A ② to switch off the product.

The product automatically switches off after 10 minutes of inactivity.

Charging the product

The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before first use.

You can charge the product in two ways.

1. Plug the USB-C connector of the USB - USB-C charging cable A5 into the USB-C charging port A8.

2. Plug the other end of the USB – USB-C charging cable A5 into a 5V/1A USB adapter (not provided).

3. Plug the USB adapter into a power outlet.

For charging via the USB charging cable:

1. Plug the USB-C connector of the USB - USB-C charging cable A5 into the USB-C charging port A8.

2. Plug the other end of the USB – USB-C charging cable A5 into a 5V/1A power source. A PC is a usable power source for example. When the battery is low the speaker emits the voice alert "Please charge".

Playing music from a Bluetooth® audio source

1. Switch on the product.

The product automatically enters Bluetooth® mode.

1. Activate Bluetooth® on your audio source and connect with the product (Nedis SPBT2006BK).

A3 lights up continuously to indicate pairing is successful.

1. Play music from a Bluetooth ^® connected audio source.

Playing music from an AUX audio source

1. Switch on the product.

2. Plug a 3.5 mm audio cable (not included) into the AUX port A7.

3. Plug the other end of the 3.5 mm audio cable into your audio source.

Bluetooth is deactivated when you use a different audio source.

Controlling the music

- Press the volume up / next track button A 1 or the volume down / previous track button A 4 to skip between tracks.

- Press and hold the volume up / next track button A1 or the volume down / previous track button A4 to control the volume.

- Press the power button A ② to pause the music or to resume playback.

RGB lights

Double press the power button A2 to switch on the light, to cycle between different light modes, or to switch off the RGB light.

Disposal

The product is designated for separate collection at an appropriate collection point. Do not dispose of the product with household waste.

For more information, contact the retailer or the local authority responsible for the waste management.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product SPBT2006BK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

nedis.com/SPBT2006BK#support

Kurzanleitung

Bluetooth®

SPBT2006BK

-Lautsprecher
