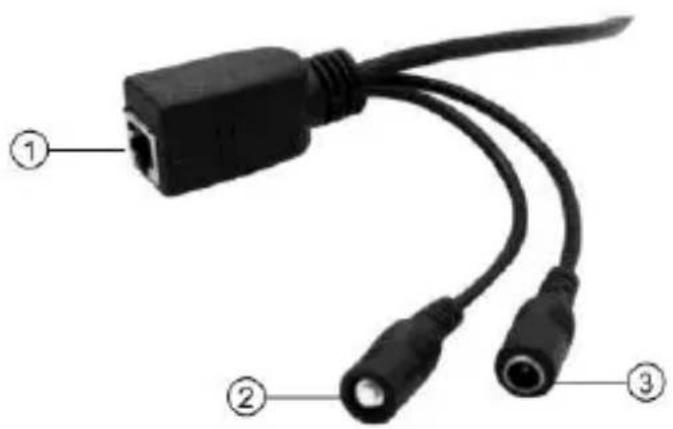

Diagram of a USB cable with labeled ports and connectors, showing three numbered parts.

①

EN Ethernet port

FR Port Ethernet

Resolution 1920*1280, 640*360,	320*180
Image sensor 2 mega pixels, 1/2.7" CMOS Sensor
Encryption WEP, WPA, WPA2, WPS
Used Frequency Band of Wireless connection	2.4GHz
Maximum RF power	3dB (Antenna)
Power input	DC 5.0V/1.0A
Operating temperature	-10°C ~ 50°C
Storage temperature	-40°C ~ 70°C
Operating humidity	10% ~ 90% RH
Storage humidity	3% ~ 90% RH
Size	67.5 x 67.5 x 180 mm
Weight	400g

English

Congratulations on the purchase of your Conceptronic JARETH03W. When problems occur, we advise you to visit our support site (go to www.conceptronic.net and click on 'Support'). If you have other questions about your product and cannot find it on our website, please contact us at [e-mail].

For more information about Conceptronic products, please visit the Conceptronic website: www.conceptronic.net.

Safety and Warnings instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

• Keep the device away from water, humidity, fire or hot environments.
• Keep your device and all its parts and accessories out of the reach of small children.
  ■ Do not leave the packaging material lying around carelessly. This may become dangerous playing material for children.
  ■ Do not use the device if there are any signs of damage to the housing, plug, or cable.
  ■ Avoid dropping, throwing or crushing the device.
  ■ Do not open, change or damage the device.
  ■ Disconnect the product from the mains before cleaning.
  ■ Clean the product with a dry, fibre-free cloth.

Safety instructions for power supply and disconnect from power:

■ Confirm that the wall outlet provides the same type of power indicated on the device (both Voltage [V] and frequency [Hz]).
■ Use the power supply only in a socket that is installed as close as possible to the device and easily accessible and easy to unplug.
■ Do not plug the power supply in a socket that is hidden behind of any furniture.
■ Do not cover the power supply connected into the socket.
■ Use the product only in dry indoor rooms and protect it from moisture.
■ If in doubt or if the power adapter malfunctions, discontinue use and contact our customer support or an authorized service center.
■ Discontinue use immediately if the power adapter shows visible damage, emits unusual odors, or becomes excessively hot.

Disposal of waste electrical equipment: Dispose of the product at a recycling point. Do not dispose of together with household waste. Incorrect storage/disposal can harm the environment and/or cause injury.

CE marking: Conceptronic declares that this product complies with the directives listed in the section 'Declaration of Conformity'.

Installation & usage

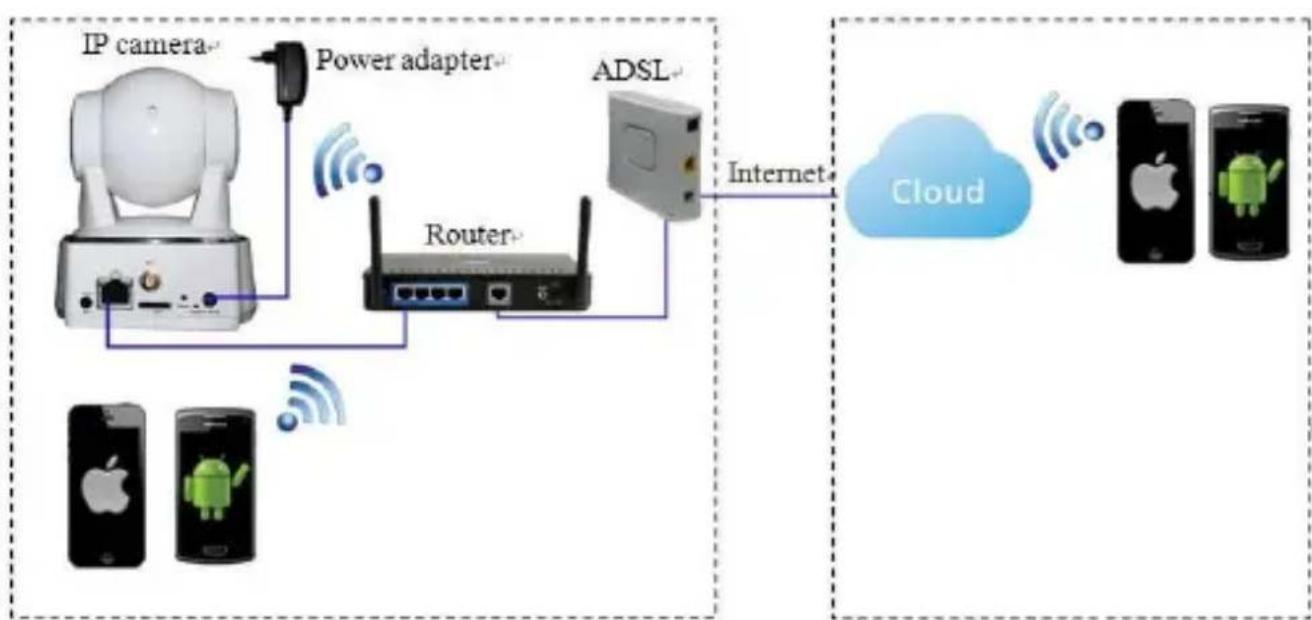

Get ready for camera

- Connect the power adapter into your camera. Note: Please use the power adapter attached with camera, in order to avoid damage the camera.

Note: Please make sure your router is connected to the Internet.

Android / iOS Phone Application

Search and download "AJCloud" from Google Play or APP Store.

Simple gray house icon with a triangular roof and an arched doorway (no text or symbols)

AJCloud icon

ANDROID APP ON Google play Available on the App Store

Wireless Setup

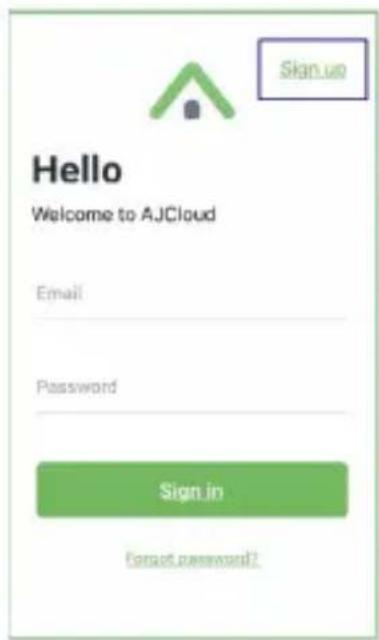

Hello Welcome to AJCloud Email Password Sign in Forgot password?

1. Connect your phone to 2.4G Wi-Fi (5G is not supported).
2. Open AJCloud app and register an account with your email.
3. Check the email and verify your account.

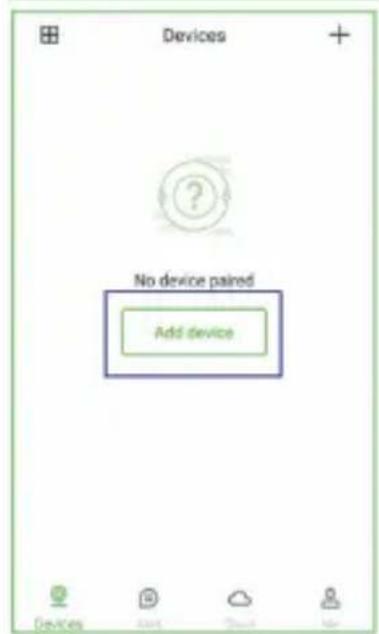

Devices No device paired Add device

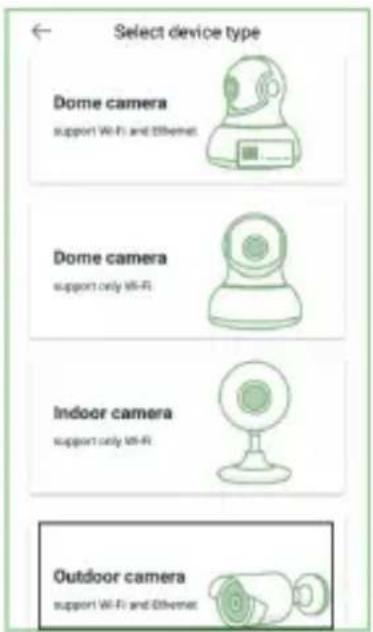

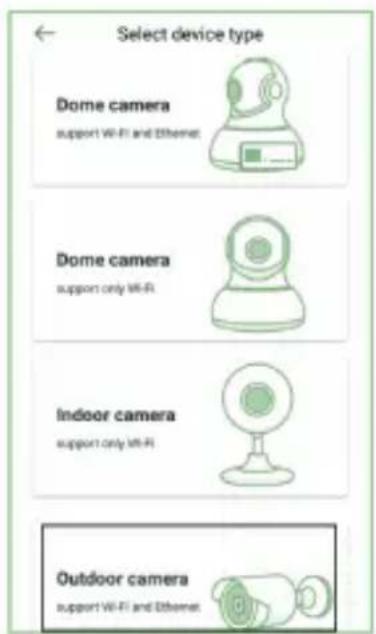

Select device type Dome camera support Wi-Fi and Ethernet Dome camera support only Wi-Fi Indoor camera support only Wi-Fi Outdoor camera support Wi-Fi and Ethernet

1. Please tap "Add device", and choose your camera model.

There are 2 ways to add device:

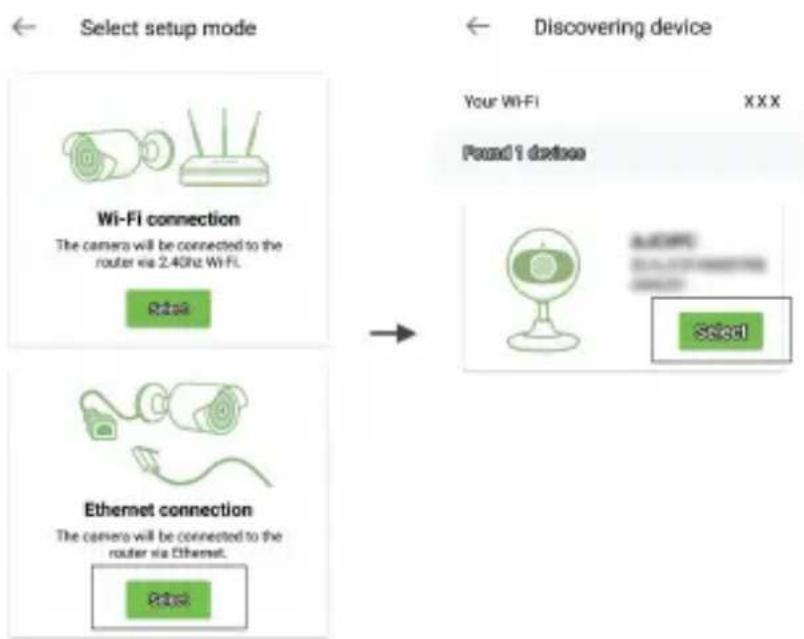

a) Search in LAN to Add

b) Scan QR to Add

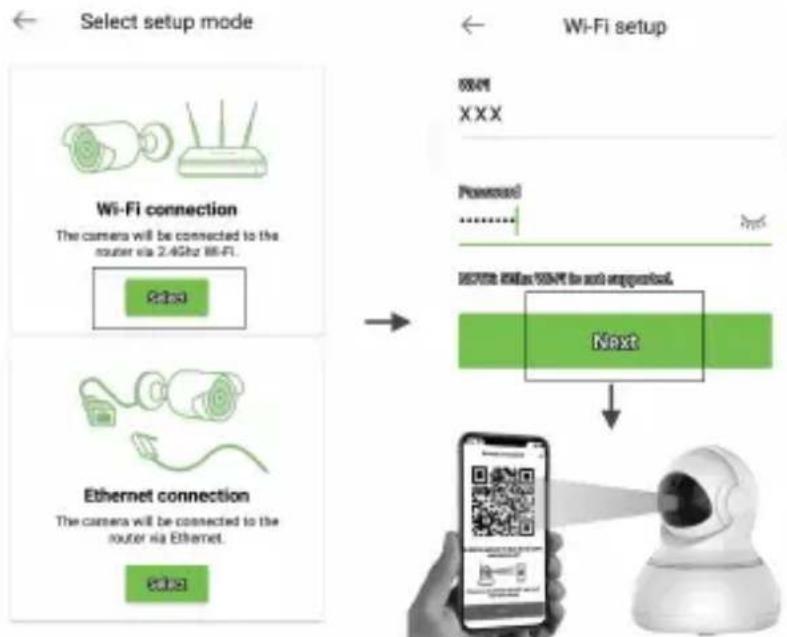

You will see your Wi-Fi name, inputting the correct Wi-Fi password and tap "Next".

The app will show a QR code, please put the phone in front of camera (3-8 inches), then please tap "Next" if you hear "QR code scanning is successful".


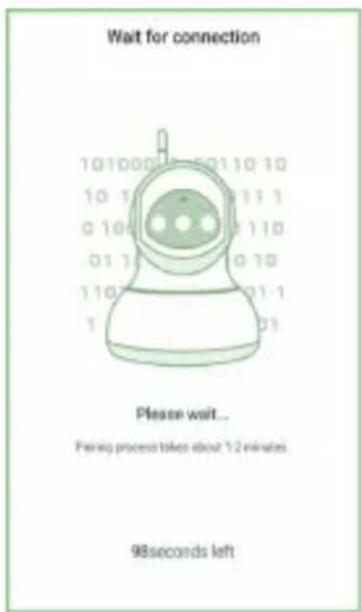

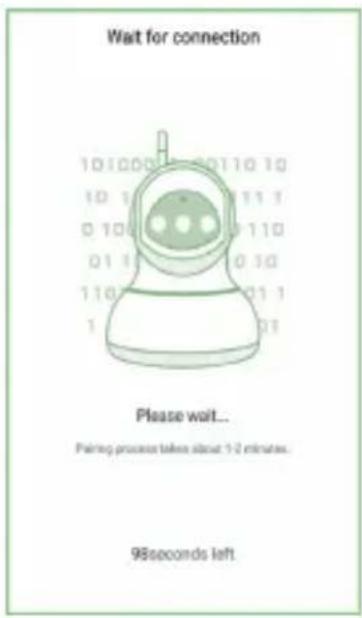

Wait for connection 10 10 00 01 10 10 10 1 01 11 1 0 10 01 10 11 0 01 1 01 10 10 11 02 01 1 1 01 Please wait... Painup process takes about 1/2 minutes. 98 seconds left

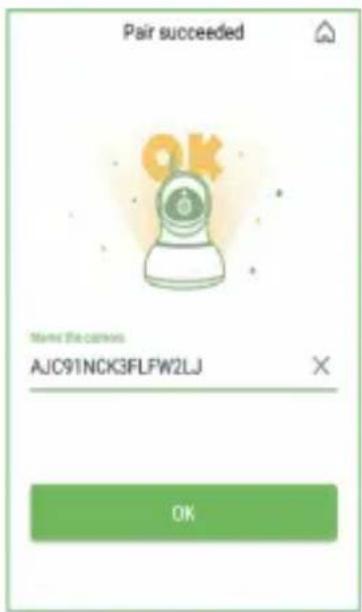

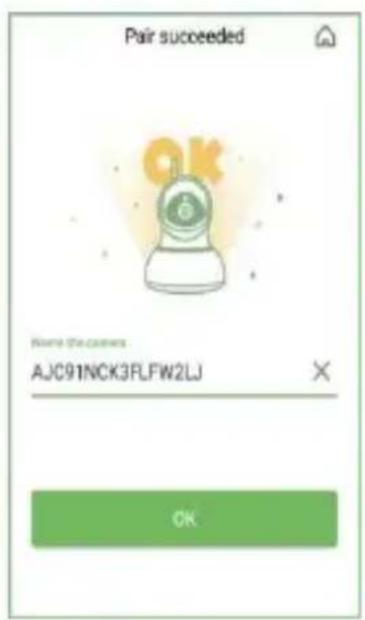

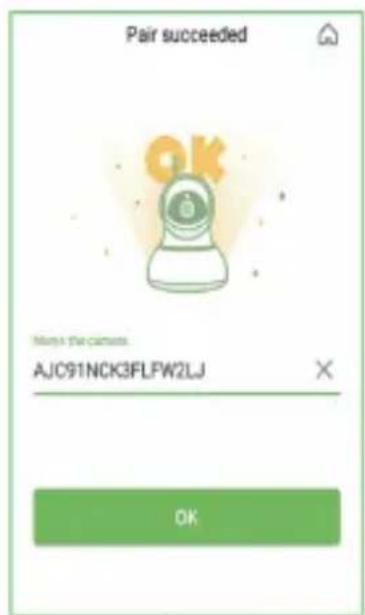

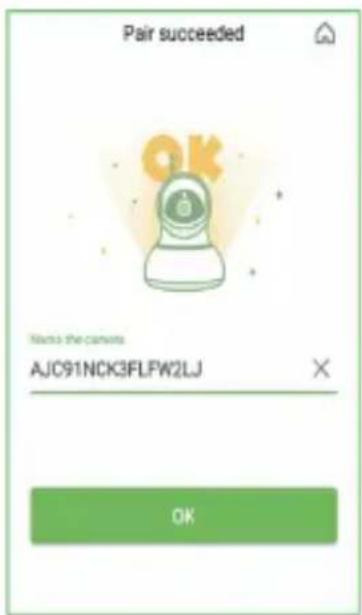

Pair succeeded OK Named the camera AJC91NCK3FLFW2LJ OK

Once it's connected, camera will say "Wi-Fi is connected" and the blue light will flash slowly. When the blue light is steady, the app will switch to a page that you can change camera name.

You can view the video after successful adding camera.

Deutsch

Simple gray house icon with a triangular roof and arched entrance (no text or symbols)

AJCloud icon

ANDROID APP ON Google play Available on the App Store

WLAN-Einrichtung

Hello Welcome to AJCloud Email Password Sign in Forgot password?

Devices No device paired Add device

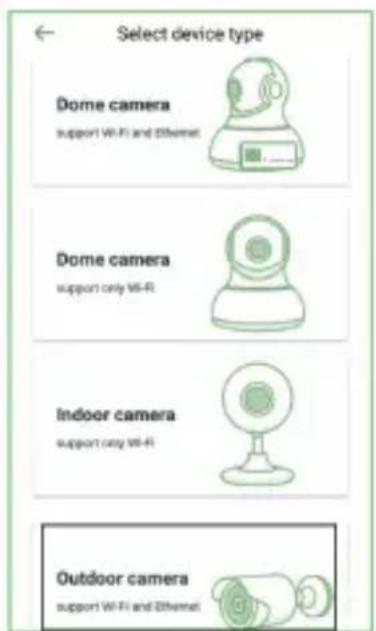

Select device type Dome camera support Wi-Fi and Ethernet Dome camera support only Wi-Fi Indoor camera support only Wi-Fi Outdoor camera support Wi-Fi and Ethernet

Wait for connection 10 1000 10 10 11 10 10 1 1 1 1 1 1 0 10 0 1 1 1 0 01 1 1 0 1 0 1 1 1 0 1 1 1 Please wait... Facing process takes about 1/2 minutes. 98 seconds left

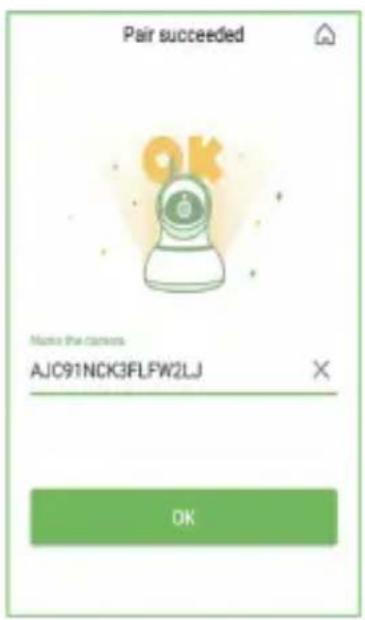

Pair succeeded OK Where the games AJC91NCK3FLFW2LJ OK
