USER MANUAL XL-B720D SHARP

Front view of a Sharp audio amplifier with digital display and control knobs (no visible text or symbols)

User manual

XL-B720D

Tokyo DAB+ All-in-One Hi-Fi System

ENPLESDERUFRITNL

SHARP 213456 7891011

DC In 17V 2.8A 12131415

2

1 2 3 4 5 7 8 6 9 1013 EQ LOUD DIM 11 12 14 15 1716 18 20 21 1922 PROG INTRO 2325 BASS TREB 1 2 3 4 5 6 7 8 9 2728 0 24 26 SHARP

Trademarks:

Bluetooth®

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by SHARP is under license. Other trademarks and trade names are those of their respective owners.

digitalradio DAB+ DAB FM certified

Important safety instructions

Please follow all safety instructions and heed all warnings. Keep this manual for future reference.

This symbol instructs the user to consult the user manual for further safety, operational and maintenance related information.

Refers to class II equipment.

This symbol indicates that this product has a double insulation system and does not require a safety connection to electrical earth (ground).

Refers to alternating current (AC).

This symbol indicates that the rated voltage marked with the symbol is AC voltage.

Refers to direct current (DC).

This symbol indicates that the rated voltage marked with the symbol is DC voltage.

For indoor use only

Energy efficiency marking with level VI

Polarity of d.c. power connector

Precautions

Child safety

- Always follow basic safety precautions when using this product, especially when children are present. Children should be supervised to ensure that they do not play with the product.

Location

- The product should be installed in a stable location and ensure the product and its parts are not overhanging.

Ventilation

- Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating; these openings must not be blocked or covered. Ensure a minimum distance of 5cm around the product for sufficient ventilation. Never let anyone push anything into holes, slots or any other openings in the product's casing as this could result in an electric shock.

Heat and operating temperature

- Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. Avoid exposure to direct sunlight.

Naked flames

- To prevent the risk of fire, keep candles or open flames away from this product.

Water, moisture and liquid entry

- To prevent the risk of fire or electric shock, do not expose this product to rain, water or moisture. Do not place objects filled with liquids on or near this product.

Storms and lightning

- Storms are dangerous for all electric products. If the power or aerial wiring is struck by lightning the product might get damaged, even if it is turned off. You should disconnect all cables and connectors from the product before a storm.

Power cable

- Do not damage, stretch, bend or place heavy objects on the power cable.

Damage

- Please inspect the unit for damage after unpacking. If it is damaged in any way do not operate the unit and consult your dealer.

Maintenance

- Unplug the power cable from the power source before cleaning the product. Use a soft and clean cloth to clean the outside of the unit. Never clean it with chemicals or detergent.

Service and repair

- This product does not contain any parts that are serviceable by the user. Exposing the internal parts inside the device may endanger your life. In case of a fault, contact the manufacturer or authorised service department. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties.

Power Adapter

- If the unit will not be used for a period of time it it recommended to switch the unit off and remove the AC power plug from the mains outlet.

- Only use the supplied mains adaptor as failure to do this may result in a safety risk and/or damage to the unit.

Batteries

Installation

- Do not use any batteries other than those specified. Observe the correct polarity when inserting the batteries. Never use different types of batteries together or mix new and old ones.

Use and maintenance

- Do not expose batteries to high temperatures, e.g. near fire or in direct sunshine. When the product is not to be used for a long time (more than a month), remove the batteries from the product to prevent them from leaking. If the batteries leak, wipe away the leakage inside the battery compartment and replace the batteries with new ones.

Children safety

• Always ensure battery compartment is closed and secured.

- Batteries are easily swallowed by young children and can cause severe internal burns and lead to death. Keep batteries away from children. Seek immediate medical advice if you believe a battery has been swallowed.

Environmental condition

- Keep batteries away from low air pressure or high temperatures as this may result in an explosion or the leakage of a flammable liquid or gas. Disposal

- Please dispose of batteries correctly by following the guidance in this manual (see section "Disposal of this equipment and batteries"). Do not throw them into fire, do not disassemble them and do not try to recharge non-rechargeable batteries. They could leak or explode.

Disposal of this equipment and batteries

Information for users on collection and disposal of old equipment and used batteries.

This symbol means that the product contains batteries covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. Cd, Hg and Pb underneath the wheelie bin symbol shows whether the battery contains, cadmium (Cd), mercury (Hg) or lead (Pb).

This symbol on a product means that the product is covered by European Directive 2012/19/EU and must not be disposed of or dumped with your other household waste.

This symbol means that the product is designed and manufactured so that it can be recycled and reused.

- These symbols on the products, packaging and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

CAUTION:

• Appliances with a built-in CD player are marked with this caution label.
• This unit is a class 1 laser product. this unit uses a visible laser beam which could cause hazardous radiation

exposure if directed. be sure to operate the player correctly as instructed, when this unit is plugged into the wall outlet, do not place your eyes close to the openings to look inside this unit.

• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not open up the unit and do not repair yourself. refer servicing to qualified personnel.

CE and UKCA statement:

• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this audio device is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and UK Radio Equipment Regulations 2017.
• The full CE text and UKCA declaration of conformity are available at sharpconsumer.eu, enter the download section of your model and select "CE Statements".

Box contents

• XL-B720D Tokyo DAB+/FM Hi-Fi All-in-One System
• Remote control (incl. batteries)
• Aerial
• Power adapter
• User documentation

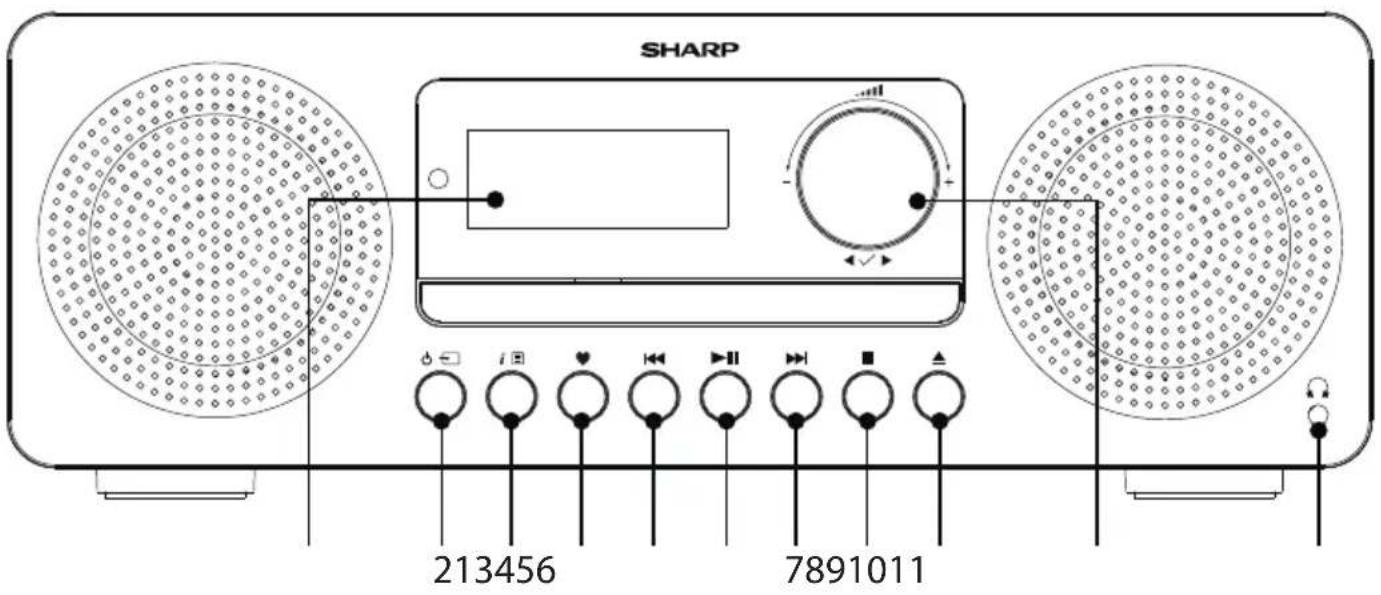

Controls

(Refer to 1 on page 1).

1. Backlit display

2. Power/Mode

3. Short press: Power on

4. Short press: Change the mode

5. Long press: Standby

6. i Info/Menu

7. Short press: Station information

8. Long press: Enter the menu options

In menu:

• Short press to go back to previous menu options.

• Long press to exit the menu.

• ♥ Preset (20 DAB/20 FM)

In DAB+/FM mode:

• Short press: Preset recall
• Long press: Preset store

In Bluetooth mode: Long press to disconnect current device and scan for new devices

In CD mode: Long press to enter programmed play mode (20 tracks)

5.

- Short press:

• In DAB mode: Move up the DAB station list
• In FM mode: Move down the frequency band by 0.05 MHz
• In Bluetooth, CD, and USB mode: Previous track
• In menu: Scroll left

- Long press:

• In FM mode: Scan down the frequency band

• In CD/USB mode: Rewind within a track

• ▶||

• In Bluetooth/CD/USB mode:
- Short press to Play/Pause

7.

- Short press:

• In DAB mode: Move down the DAB station list
• In FM mode: Short press move up frequency up 0.05 MHz; long press search up frequency band
• Bluetooth/CD/USB mode: Next track
• In menu: Scroll right

- Long press:

• In FM mode: Scan up the frequency band
• In CD/USB mode: Fast forward within a track

8.

In CD/USB mode: Short press to stop.
In CD mode: Short press twice to cancel programmed play

9.

In CD/DAB+/FM/USB/Aux-in mode:

• Short press to open the CD tray

• Press again to close the CD tray

• Rotary Volume/Scroll/Select control:

• Rotate: Adjust the volume

• Rotate in the menu or presets: Scroll through the available menu options or preset locations
• Short press: Select a displayed radio station/frequency, menu or preset option

• When alarm is sounding in standby, short press: activates 10-minute snooze.

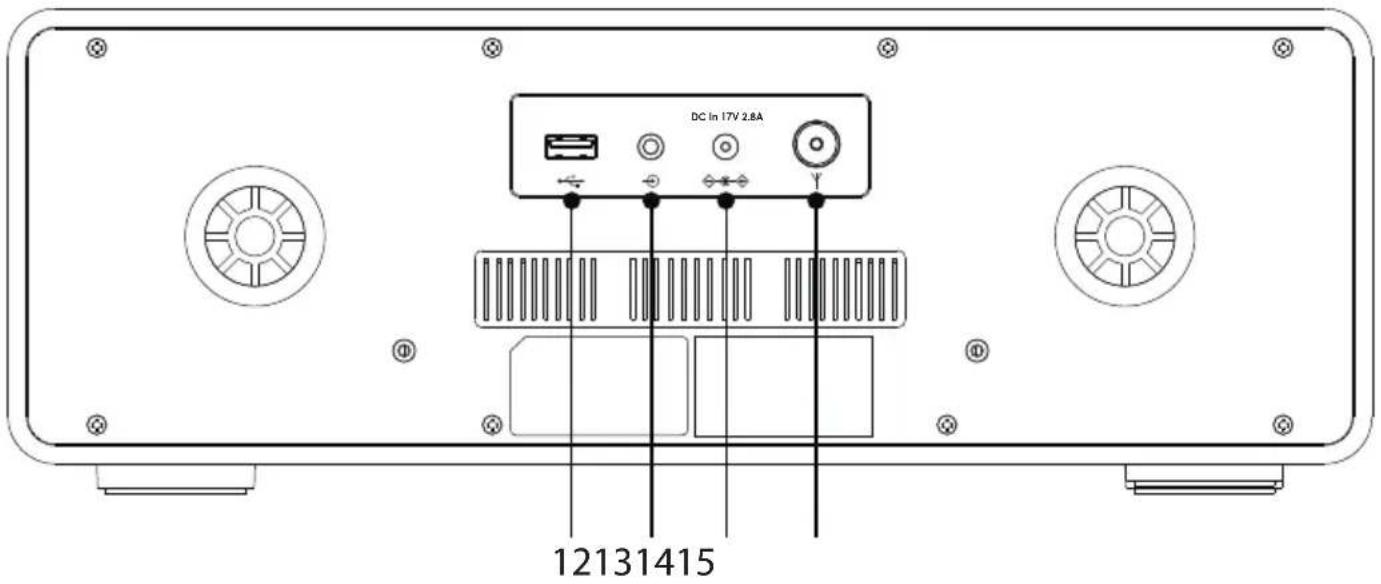

• Headphone jack

• USB input
• Aux in
• Power input
• Aerial input

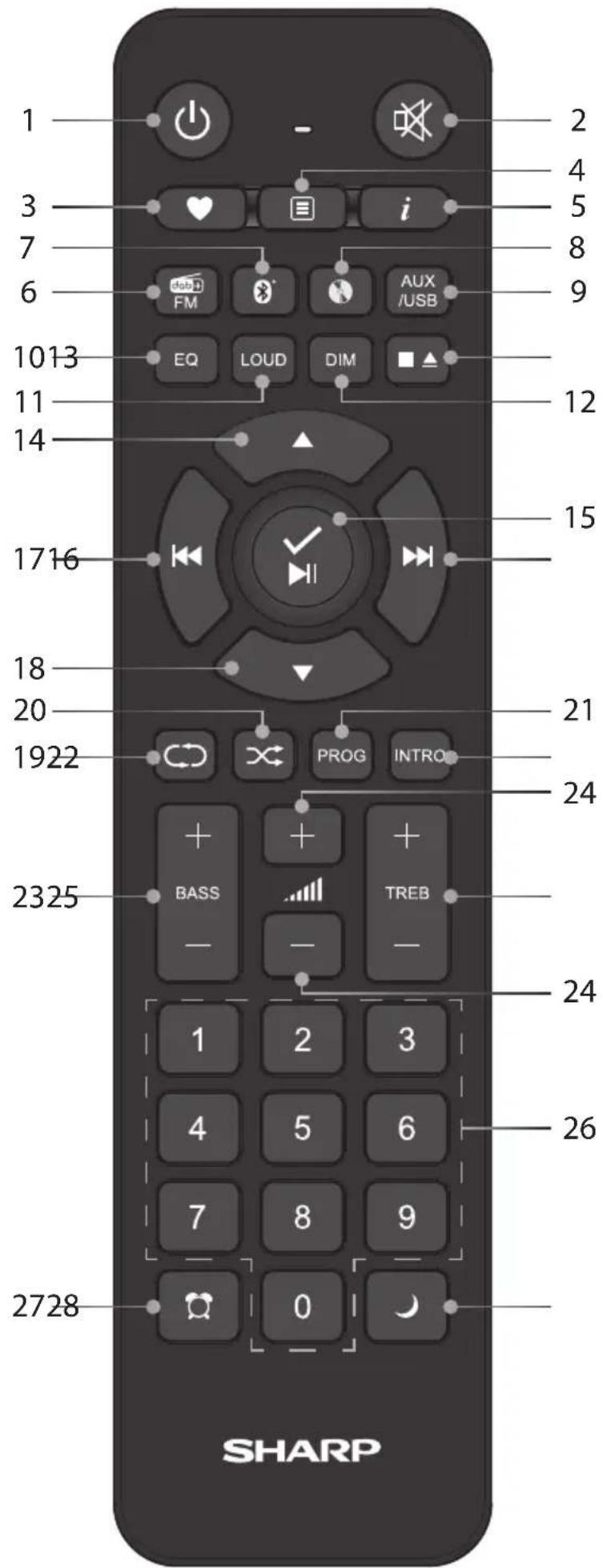

Remote control

(Refer to 2 on page 2).

1. ⏻ Press to power on or enter standby.

2. Press to mute the sound. Press again to resume sound, or press +/- to resume sound.

3. ♥ Presets (20 DAB/20 FM) In DAB+/FM mode:

4. Short press: Preset recall.

5. Long press: Preset store.
   In Bluetooth mode: Long press to disconnect current device and scan for new devices.

6. ☐Menu: Press to enter the menu options.

7. i Info: Press to cycle through different types of information available.

8. FM DAB+/FM radio: Press to enter DAB+ mode, press again to enter FM mode.

9. Short press to enter Bluetooth mode. Long press to disconnect from paired device.

10. Press to change audio source to CD.

11. AUX Press to change audio source to AUX. Press again to change audio source to USB.

12. EQ Equaliser: Press to cycle through EQ options.

13. LOUD Loudness compensation increases the low and high frequencies when listening at low volume.

14. DIMPress to cycle through display brightness settings: high, medium and low.

15. ■ ▲ In CD/USB mode: press to stop playback. Press again to open/close CD drawer.

17. In DAB mode: Move up the DAB station list.
18. In FM mode: Move down the frequency band by 0.05 MHz.

19. In Menu: Move up the menu options.

20. Select/Play/Pause. When alarm sounds, press to snooze.

21. ▶▶ Short press for next track/station, long press for fast forward/search forward.

22. Short press for previous track/station, long press to rewind/search back.

23. ▼

24. In Menu: Move down the menu options.

25. In DAB mode: Move down the DAB station list.

26. In FM mode: Move up the frequency band by 0.05 MHz.

27. Repeat: In CD/USB mode: Cycle through repeat options: repeat current track, repeat all tracks, repeat off.

28. ✗ Shuffle: In CD/USB mode: Shuffle songs on/off.

29. PROD mode: Press to program the playback order.

30. INTRO In CD mode: Press once to play the first 10 seconds of every track on a CD. Press again for the current track to play in full.
31. Bass +/-: Press to adjust the bass.
32. Volume +/-: Press to adjust the volume.
33. Treble +/-: Press to adjust the treble.
34. Numeric keypad (0-9): Used for song/preset selection.
35. Alarm: Press to set up Alarm 1/2. When in standby, press to switch on/off alarms.
36. Sleep timer: Press to cycle through sleep timer options.

Using your DAB+/FM hi-fi all-in-one system

Connection

NOTE: Your all-in-one system has been supplied with a power adapter. Please check and ensure that you connect the correct 3 pin or 2 pin part to the power adapter that is appropriate for the country where the product will be used.

Connect the aerial to the back of the all-in-one system to receive the best possible radio reception and signal quality.

Connect the power adapter lead to the power input on the back of the all-in-one system and plug the power adapter into the wall socket and switch on. The all-in-one system will power on and display and then go into standby.

NOTE: The processes described here use the controls on the main unit (unless specified). For controls using the remote control, please refer to the 'Remote control' section.

Initial set-up

Extend the aerial to ensure the maximum signal strength when you scan for radio stations.

Short press ⏻ to switch on your all-in-one system. It will begin an automatic scan for DAB stations. A progress bar will show the progress of the scan and the number of stations found.

When the scan is complete your all-in-one system will select the first available station and begin to play. By default, stations are listed numerically and then alphabetically.

NOTE: The DAB radio station list is stored in the memory; the next time the all-in-one system is switched on, the station search does not take place.

Short press ◀◀ or ▶▶ scroll through the available stations. To select the station displayed, short press √. There will be a short delay whilst your all-in-one system tunes to your selected station.

Time and date

Time and date will be synchronised automatically to that broadcast by the DAB service in 24-hour format.

To set the time and date manually, turn on the radio. Long press i to enter the menu options.

Use ◀✓▶ to select / / . is displayed and the hour digits will flash; use ◀✓▶ to set hours and minutes. is displayed and the day will flash; use ◀✓▶ to set day, month and year. is shown once the year is confirmed and you will return to the menu. Use ◀✓▶ to change the clock/date format and auto update settings. Long press i □ to exit the menu.

Change the mode

Short press ⏻ → to change between , , , , , and . modes. The display screen will confirm the mode.

You can adjust the sound of the all-in-one system using the equaliser presets.

Press and hold i □. Use ◀ √ ▶ to scroll to / .

Select the EQ option of your choice:

, , , , , , , , , .

Long press i ☐ to exit the menu.

Using headphones

You can connect headphones with a 3.5mm jack (not included) to the headphone jack. When you have them connected, sound will be heard via the headphones only.

NOTE: Always keep the volume within reasonable limits.

DAB Radio mode

Select DAB radio mode

Short press ⏻ until the screen displays . The first time you use the all-in-one system or if the station list is empty, your all-in-one system will automatically begin to scan for DAB radio stations. A progress bar will show the progress of the scan and the number of stations found during the scan will also be displayed. If you were listening to a DAB station when you switched the all-in-one system off, this station will automatically be selected when you switch the all-in-one system back on.

Changing DAB stations

Use to roll through the available stations. Press to select when the station you want to listen to is displayed. There will be a short delay whilst your radio tunes to your selected station.

Scanning for DAB stations

With DAB radio, additional stations and services regularly become available. Carry out a manual scan periodically to make sure that you have the most up-to-date station listing stored within the memory of your all-in-one system.

In DAB mode:

Long press i □. Use to scroll and select . The display will change to . A progress bar will show the progress of the scan and the number of stations found.

Prune DAB stations

You can remove the DAB stations in the station list that cannot be received in your area. These are listed with a <?> prefix.

In DAB mode:

Long press i □. Use ◀ to scroll and select . > is displayed. Use ◀ √ ▶ to scroll and select . Stations with a <?> prefix will now no longer be displayed.

Storing a DAB station preset

Your all-in-one system can store up to 20 DAB radio stations in its preset memories for instant access to your favourite stations.

NOTE: Storing DAB radio station presets do not overwrite FM station presets.

Tune the all-in-one system to the DAB radio station that you wish to preset. Long press ♥ until <Preset Store <1:(Empty)>> is displayed. Use ◀ to move to the preset location that you would like to store the radio station to (1-20). Press √ to select. The display will confirm , where 'X' is the number of the preset (1-20).

NOTE: If there is already an existing DAB station stored under a preset, it will be overwritten when you store the new station.

Tune to a DAB preset station

In DAB mode:

Short press ♥. <Preset Recall <1:>> is displayed together with the name or frequency of the station stored there, or if no previous station has been stored. Use ◀✓ to move to and select the preset station that you would like to listen to (1-20).

DAB display information

When listening to a DAB station, you can change the information that will appear on the display. There are several different types of information that are sent by the broadcaster. Repeatedly short press i to cycle through the different information options:

• Dynamic label segment (DLS) - This is scrolling text information as supplied by the broadcaster. This could include artist names, song titles, contact details for the radio station, etc.
• Signal strength - An empty □ will appear on the display to indicate the minimum signal strength for acceptable listening. The row of solid rectangles indicates the actual signal strength that you are receiving.
• Program type (PTY) – e.g. 'Rock', 'Pop', 'Talk' or 'News'
• Multiplex name - Displays the broadcasting area and collection of radio stations on this frequency e.g. BBC National DAB, Digital 1 Network
• Channel and frequency – e.g. 12B 225.648 MHz (Channel=12B, Frequency=225.648 MHz)
• Signal error - This is displayed as a number between 0-99. To satisfactorily listen to a radio station, the signal error must be below 30. Adjust the aerial or relocate your radio to improve reception.
• Signal information - The data rate at which the signal is being transmitted.

- Time

- Date

Dynamic range control (DRC)

DRC data is not transmitted by all broadcasters. DRC is used for controlling difference between the loudest and quietest sounds. e.g., in a noisy environment, setting the DRC to maximum makes quiet sounds comparatively louder, and loud sounds quieter.

There are 3 levels of compression:

• - no compression. This is the default setting.
• - medium compression
• - maximum compression
  In DAB mode, long press i ☐. Use ▶ to scroll and select and then select your preference.

NOTE: The current DRC setting will have an asterisk (*) in the display.

FM Radio mode

To change to FM mode, short press until the all-in-one system displays . If you were listening to an FM station when you switched the all-in-one system off, this station will automatically be selected when you power the all-in-one system back on.

Tune to an FM station

Long press ◄ button to scan up or down the frequency band. The radio will search for and stop at the next available station. Short press ◄ or ▶ fine-tune each frequency in 0.05MHz steps.

NOTE: If the reception is poor, adjust the aerial or move the all-in-one system to another location.

Change the scan setting

In FM mode:

Long press i ≡, will be displayed. Press √

There are two different options to choose from:

• The scan will only stop when a strong signal strength is received, resulting in better audio quality. It is possible that the station you are scanning for may be missed using this option.
• The scan will stop at every station it receives, even if the signal strength is poor.

Use ◀✓▶ to choose and select from the options available.

NOTE: The current scan setting will have an asterisk (*) in the display.

Audio mode

The all-in-one system will automatically switch between stereo and mono, depending on the quality of the signal being received but you can override this function and manually switch between them.

NOTE: You may wish to select 'Stereo' if you are listening to your all-in-one system using headphones.

Press and hold i. Use the rotary control to scroll to

Choose between and . The current setting will have an asterisk (*) in the display.

Use ◀ √ ▶ to confirm

Long press i ☐ to exit the menu.

Storing an FM station preset

Your all-in-one system can store up to 20 FM stations in its preset memories for instant access to your favourite stations.

NOTE: Storing FM radio station presets do not overwrite your DAB station presets.

Tune the all-in-one system to the FM radio station that you wish to preset. Long press ♥ until <Preset Store <1:(Empty)>> is displayed. Use ◀ √ ▶ to move to and select the preset location that you would like to store the radio station to (1-20). The display will confirm , where 'X' is the number of the preset (1-20).

NOTE: If there is already an existing FM station stored under a preset, it will be overwritten when you store the new station.

Auto memory store (AMS)

Alternatively, you can use the Auto Memory Store (AMS) feature to store your FM radio station presets. In FM mode, long press i ≡. Use ◀✓▶ to scroll to and select . Your all-in-one system will now scan the FM frequency band and the stations found will be automatically stored to the preset locations.

NOTE: You can manually overwrite your AMS stored presets by following the steps in 'Storing an FM station preset' above.

Tune to an FM preset station

In FM mode:

Short press ♥. <Preset Recall <1:>> is displayed together with the name or frequency of the station stored there, or if no previous station has been stored. Use ◀ √ ▶ to move to and select the preset station that you would like to listen to (1-20).

FM display information

When listening to an FM station you can change the information that appears on the second line of the display. Repeatedly short press i ☐ to cycle through the different information options:

• Radiotext (RT) - This is scrolling text information as supplied by the broadcaster. This could include artist names, song titles, contact details for the radio station, etc.
• Program Type (PTY) – e.g., 'Rock', 'Pop', 'Talk', or 'News'
• Station name or frequency – e.g., BBC R4, 93.30MHz
• Time
• Date

CD player

To change to the CD player, short press until the all-in-one system displays .The display will read , followed by , if the CD compartment is empty.

Play a CD

NOTE: It is not possible to play DVD or computer CDs.

Press ▲. The CD drawer will open and will be displayed.

Place CD onto the CD tray. Ensure that the CD is laying flat on the tray. Press ▲ to close the CD tray. will be displayed and after a short delay, the CD will start playing.

CD controls:

The following controls are possible when playing a CD:

▶ || Short press to play a CD. The track number and the elapsed time of the track will be displayed. Press again to pause the CD. The elapsed time will flash while music is paused.

▶▶▶ Short press to move to next track. Long press to forward within a track.

Press to move to previous track. Long press to rewind within a track.

■ Press to stop CD.

NOTE: If you stop or pause playing a CD for approximately 20 minutes, your all-in-one system will go into standby mode automatically.

Programmed play

Using your remote control, you can program the play order of up to 20 tracks on your CD.

NOTE: To set up programmed play, the CD must be stopped in the CD compartment and must not be paused or playing.

While in CD mode:

In CD mode, with the CD you wish to programme in the CD compartment and stopped:

PressPROG to enter CD programmed play mode will be displayed.

Use◀◀ or▶◀ go to the track number that you would like to program to play first. PressPROG to confirm.

You will now be able to select the second track that you would like to program. Continue to select each track as above, up to a total of 20 tracks.

Press▶II to play the programmed tracks.

To exit programmed play mode, press ■ twice.

Caring for compact discs

• Do NOT touch the playback side of the CD.
• Do NOT attach paper or tape or any other material to the disc.
• Fingerprints and dust on the disc will cause sound deterioration. Wipe the disc from the centre outwards with a soft cloth Always keep the disc clean.
• If dust or marks cannot be removed with a soft cloth, wipe the disc lightly with a slightly damp soft cloth and then wipe with a soft dry cloth.
• Do NOT use any type of solvent, commercially available cleaners or antistatic spray for vinyl as it may damage the disc.
• Do NOT store discs in a place subject to direct sunlight or near a heat source.
• Do NOT store discs in a place subject to moisture or dust, such as a bathroom or near a humidifier.

Bluetooth mode

Ensure your all-in-one system is in Bluetooth mode by short pressing until the radio displays . Your all-in-one system will begin to search for Bluetooth devices. Ensure the Bluetooth-enabled device you are connecting to is discoverable.

NOTE: If necessary, refer to the instructions for your device to add or set up Bluetooth.

When found, your all-in-one system will be displayed as 'SHARP XL-B720D' on your device. Select this to begin pairing. Once done, will be displayed on your radio.

Paired devices will connect to the all-in-one system when they are within range (within 10 metres in line of sight). Your device will remain paired with the radio unless you decide to disconnect it.

To disconnect from Bluetooth, long press ♥ for 3 seconds to unpair your current device and search for new devices.

Wirelessly stream music via Bluetooth

In Bluetooth mode, you can wirelessly stream audio through the all-in-one system. Use the controls on your paired Bluetooth device as well as those on your all-in-one system. Controls available:

▶II Short press to Play/Pause.

Short press to move to previous track. Long press to rewind within a track.

▶▶▶ Short press to move to next track. Long press to forward within a track.

Press to stop.

Volume can also be adjusted – either using your all-in-one system and/or your connected device.

NOTE: If the all-in-one system is inactive for 20 minutes, or no audio signal is being received, the all-in-one system will automatically go into standby.

Rewind and fast forward functions in Bluetooth are dependant on the software playing the audio.

USB mode

Ensure your all-in-one system is in USB mode by short pressing until the all-in-one system displays .

Insert the USB stick which has the MP3 files you wish to play into the USB input.

NOTE: If the USB does not insert easily, try rotating it by 180 degrees and try again. Never force the USB stick into the socket or try to insert it at an angle as this could damage the socket.

NOTE: USB drives up to 64GB FAT32 are supported.

The following controls are available when using a USB:

▶II Short press to Play/Pause.

Short press to move to previous track. Long press to rewind within a track.

▶▶▶ Short press to move to next track. Long press to forward within a track.

■ Press to stop.

NOTE: To navigate the folders on the USB, use ▲ and ▼ in the remote control.

Programmed play

Using your remote control, you can program the play order of up to 99 tracks on your USB stick.

NOTE: To set up programmed play, the USB stick file must not be paused or playing.

While in USB mode:

In USB mode, with the files you wish to programme on the USB inserted into the unit and not playing or paused.

Press PROG to enter USB programmed play mode will be displayed.

Use or go to the track number that you would like to program to play first. Press PROG to confirm.

You will now be able to select the second track that you would like to

program. Continue to select each track as above, up to a total of 99 tracks.

Press▶II to play the programmed tracks.

To exit programmed play mode, press ■.

Aux in mode

To change to an Aux-input, short press until the all-in-one system displays .

Use a 3.5mm audio input connection cable (not included) for a quick and easy connection to an external audio source.

Connect one end of the 3.5mm audio connection cable to the headphone (or auxiliary out) socket of your secondary device, connect the other end to the Aux in socket on the rear of your all-in-one system. Press the Play button on your external device to start playback through the all-in-one system speakers.

To gain optimal volume levels, adjust the output volume level on both the secondary device and on the all-in-one system.

NOTE: It is recommended that you unplug the Audio cable from the Aux in socket after you have finished listening to your external device.

Alarm functionality

Set an alarm

NOTE: Check that the all-in-one system is displaying the correct time and date before you set an alarm.


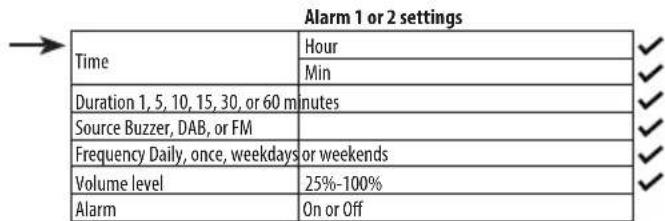

Alarm 1 or 2 settings Time Hour Min Duration 1, 5, 10, 15, 30, or 60 minutes Source Buzzer, DAB, or FM Frequency Daily, once, weekdays or weekends Volume level 25%-100% Alarm On or Off

NOTE: If the time is not set or has failed to update from the radio signal,

will be displayed when you try to set the alarm. The all-in-one system will then prompt you to set the time. An alarm can only be set after the time has been set.

Stop, snooze or switching the alarm off

To stop the alarm, short press will be displayed. The alarm symbol will remain in the display and will sound again at the same time the next day unless it was set for .

To snooze the alarm, press √. will be displayed, followed by a 10-minute countdown. Once the countdown ends, the alarm will sound again. You can terminate snooze by pressing √. will be displayed.

To switch off the alarm, follow the steps for 'Set an alarm' and select .

Sleep timer

You can set your all-in-one system to switch to standby mode automatically using the sleep timer. You can choose from , <15>, <30>, <45>, <60> and <90> minutes. To do this, long press i □ Use ◀✓▶ to scroll and select / . Use ◀✓▶ to scroll and select your preference. 📄 will be displayed.

Display backlight timeout

To adjust the display backlight timeout, long press i. Use to scroll to and select / / . Scroll through the available backlight timeout options. The current setting will have an asterisk (*) in the display. Press √ to select.

Similarly, use ◀✓ to change the settings for the backlight brightness for the and . There are 3 options available: , , and .

Display language

To change the display language, long press i. Use to scroll ▶ and select / . Use ◀ √ ▶ to scroll and select your preferred language. There are 7 options available: English, French, German, Italian, Spanish, Polish, and Dutch. An asterisk (*) will be displayed next to the current language setting.

Software version

To check the software version of your all-in-one system, long press i □. Use ◀✓▶ to scroll and select / . The software version will be displayed.

Factory reset

You can reset your all-in-one system to restore it to the original factory settings.

NOTE: If you reset your all-in-one system, your stored presets will be deleted and any connected Bluetooth device will be unpaired.

Long press i □. Use <to scroll and select / . Yes> will be displayed. Use ◀✓ to scroll and select . will be displayed. After a few seconds, the display will change to and will then go to standby mode.

Troubleshooting

If there is no sound or power:

• Adjust the volume.
• Check that the power cable is connected and that the all-in-one system is not in standby mode.
• If you have headphones connected, audio will play through them. Unplug your headphones to listen through the all-in-one system speakers.
• Ensure you are in the correct mode, and using the correct control functions for that mode.
• If you are using a Bluetooth connected device or an external sound source via Aux-in, increase the volume on the secondary device and on the all-in-one system.

If the radio reception is poor:

Make sure that you have fully extended the aerial. Rescan for radio stations, see sections 'Scanning for DAB stations' and/or 'Tune to an FM station' as appropriate.

Try moving your all-in-one system to another location to see if the reception improves.

Check that you do not have other electrical equipment close to your all-in-one system. This may cause interference.

If a CD does not play:

• Check that you are in CD mode.
• Remove the CD and check that it is not scratched or damaged as this will not play.
• Please check that you are using an original audio CD and not a copy. If the CD is not an original, playback may not be supported (depending on the CD and audio file types being used).

If you are unable to pair with a Bluetooth device:

Check that you are in Bluetooth mode.

Ensure that you are within 10 metres of the all-in-one system for Bluetooth functionality.

Move the all-in-one system and Bluetooth device away from other Bluetooth devices/electrical equipment.

If possible, turn off other nearby Bluetooth devices or disable their Bluetooth functionality.

If the function buttons do not respond:

• Check that the mains power is connected at the back of your all-in-one system. Short press the ⏻ (Power/Mode) button.
• Try to reset to factory default settings. See 'Factory reset' section.

NOTE: All of your settings, including the radio station list, connected Bluetooth devices and any presets will be deleted when you reset the system.

Dynamic Range Control (DRC)

Changer de station DAB

into the unit and not playing or paused.

Dynamic Range Control (DRC)

- Channel and frequency – например, "12B 225.648 MHz"

Sharp Consumer Electronics Poland sp. z o.o.

Ostaszewo 57B, 87-148 Lysomice, Poland

Made in China

SAU/MAN/0182

www.sharpconsumer.eu

SHARP
