USER MANUAL Darkstar Wireless CORSAIR

Abstract black silhouette of a stylized sailboat or wave (no text or symbols)

CORSAIR

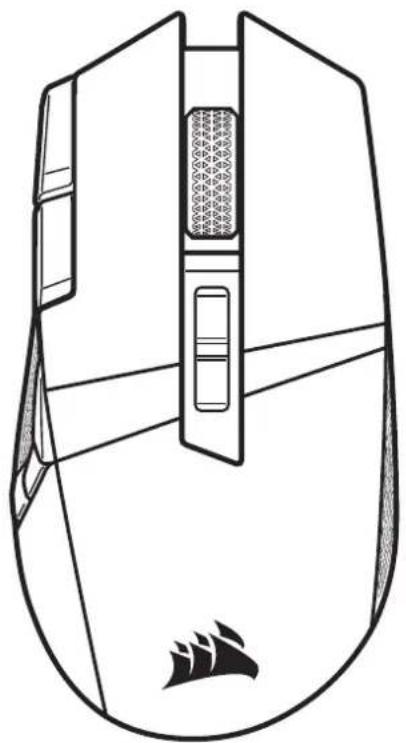

Line drawing of a computer mouse with a black star-shaped logo on the side (no text or symbols)

DARKSTAR WIRELESS

WIRELESS MOBA/MMO GAMING MOUSE

ENGLISHEN FRANÇAIS (EURO)FR DEUTSCHDE NEDERLANDSNL DANSKDA SUOMIFI SVENSKASV NORSKNO ITALIANOIT ESPAÑOL (EURO)ES PORTUGUÊS (EURO) PORTUGUÊS (BRAZIL) POLSKIPL RU TC JA KO AR POLYCKINÍ 繁體中文 日本語 한국어 العربية

CHARGING THE MOUSE

IMPORTANT: The DARKSTAR RGB mouse must be fully charged before its first use.

Connect the mouse to an available USB 2.0 or 3.0 port on your PC with the USB charging / data cable (W).

The battery & wireless status LED indicator (C) on the mouse will begin pulsing green to denote battery charging and will turn solid when charging is complete.

GETTING TO KNOW YOUR MOUSE

A QUICKSTRIKE LEFT CLICK BUTTON
B TILT LEFT CLICK / SCROLL WHEEL
C MIDDLE CLICK / SCROLL WHEEL / BATTERY & WIRELESS STATUS LED INDICATOR
D TILT RIGHT CLICK / SCROLL WHEEL
E QUICKSTRIKE RIGHT CLICK BUTTON
F PROFILE UP BUTTON
G PROFILE DOWN BUTTON
H DPI UP BUTTON

I DPI DOWN BUTTON

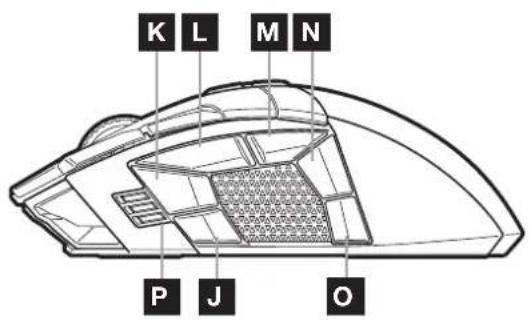

J SIDE BUTTON 1

K SIDE BUTTON 2

L SIDE BUTTON 3 (FORWARD)
M SIDE BUTTON 4 (BACK)
N SIDE BUTTON 5
O SIDE BUTTON 6
P DPI STAGE / PROFILE LED INDICATOR

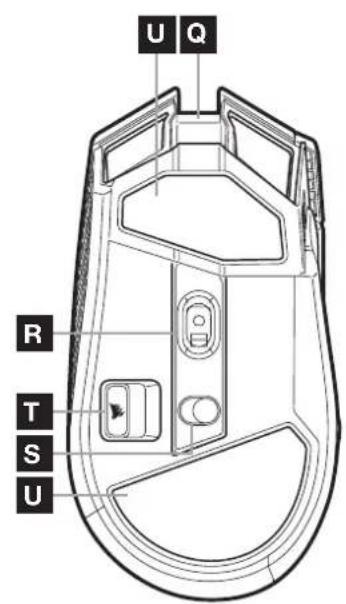

Q USB CHARGING / DATA PORT
R MARKSMAN OPTICAL GAMING SENSOR
S POWER / WIRELESS MODE SWITCH
T USB WIRELESS RECEIVER STORAGE
U PTFE GLIDE PADS
V SLIPSTREAM WIRELESS USB RECEIVER
W USB CHARGING / DATA CABLE

SETTING UP 2.4GHz SLIPSTREAM WIRELESS

Hyper-fast sub-1ms wireless connection is designed for no-compromise gaming grade performance.

Toggle power / wireless mode switch (S) to "2.4GHz" position to turn on your mouse.
Connect the USB wireless receiver (V) to an available USB 2.0 or 3.x port located on the front panel of your PC or nearby USB port.

(e.g. on CORSAIR MM700, MM800, MM1000 mousepads).

The battery & wireless LED indicator (C) will turn solid white when connected.

Download the iCUE software from www.corsair.com/downloads.

Run the installer program and follow instructions for installation.

If reconnection is required, initiate USB wireless receiver pairing via the iCUE software settings menu.

SETTING UP BLUETOOTH® WIRELESS

Bluetooth wireless is best for everyday computing tasks, productivity, and office applications.

Initiate Bluetooth pairing on your Bluetooth 4.0 or higher enabled device.
Press and hold DPI UP button.
Toggle power / wireless mode switch (S) to "BT" position to turn on your mouse.
Follow the instructions to successfully connect your device.
The battery & wireless LED indicator (C) will turn solid blue when connected.

ON-THE-FLY DPI TUNING

The mouse has a unique feature where you can adjust the current onboard DPI stage setting in 50 DPI increments without the software, so you can jump right into the action while you find the perfect sensitivity setting.

FUNCTION SHORTCUT	MULTI-PURPOSE LED INDICATOR
Increase DPI by 50	Hold DPI up button (H) and press forward button (L)	Blinks green
Decrease DPI by 50	Hold DPI up button (H) and press back button (M)	Blinks red
Reset DPI Stage	Hold DPI up (H) then both forward (L) and back (M) buttons for 2 seconds	Blinks yellow

On-the-fly DPI changes are saved to the onboard memory and can be further adjusted in granular 1 DPI steps in iCUE software. If iCUE is running, then changes are saved to the software profile directly.

MOUSE STATUS, DPI SETTINGS AND INDICATIONS

Wireless connection and battery status are communicated through BATTERY & WIRELESS STATUS LED INDICATOR (C). The mouse comes preloaded with common competitive DPI settings which can be selected by pressing the DPI Up (H) or DPI Down button (I) with DPI stage LED indicator (P) backlighting to reflect the current stage.

BATTERY STATUS BATTERY & WIRELESS STATUS LED INDICATOR
Battery charging Pulsing green
Battery critical, recharge required Pulsing red
Battery low, recharge soon Blinking red
Battery medium Blinking amber
Battery high Blinking green
Battery charged Green
WIRELESS STATUS
2.4GHz wireless mode - pairing Blinking white
2.4GHz wireless mode - paired	White
2.4GHz wireless mode - pairing failed	Pulsing white
BT wireless mode - pairing	Blinking blue
BT wireless mode - paired Blue
BT wireless mode - pairing failed	Pulsing blue
DPI STAGE STATUS	DPI STAGE LED INDICATOR
Stage #1 - 400 DPI
Stage #2 - 800 DPI
Stage #3 - 1200 DPI
Stage #4 - 1600 DPI
Stage #5 - 3200 DPI

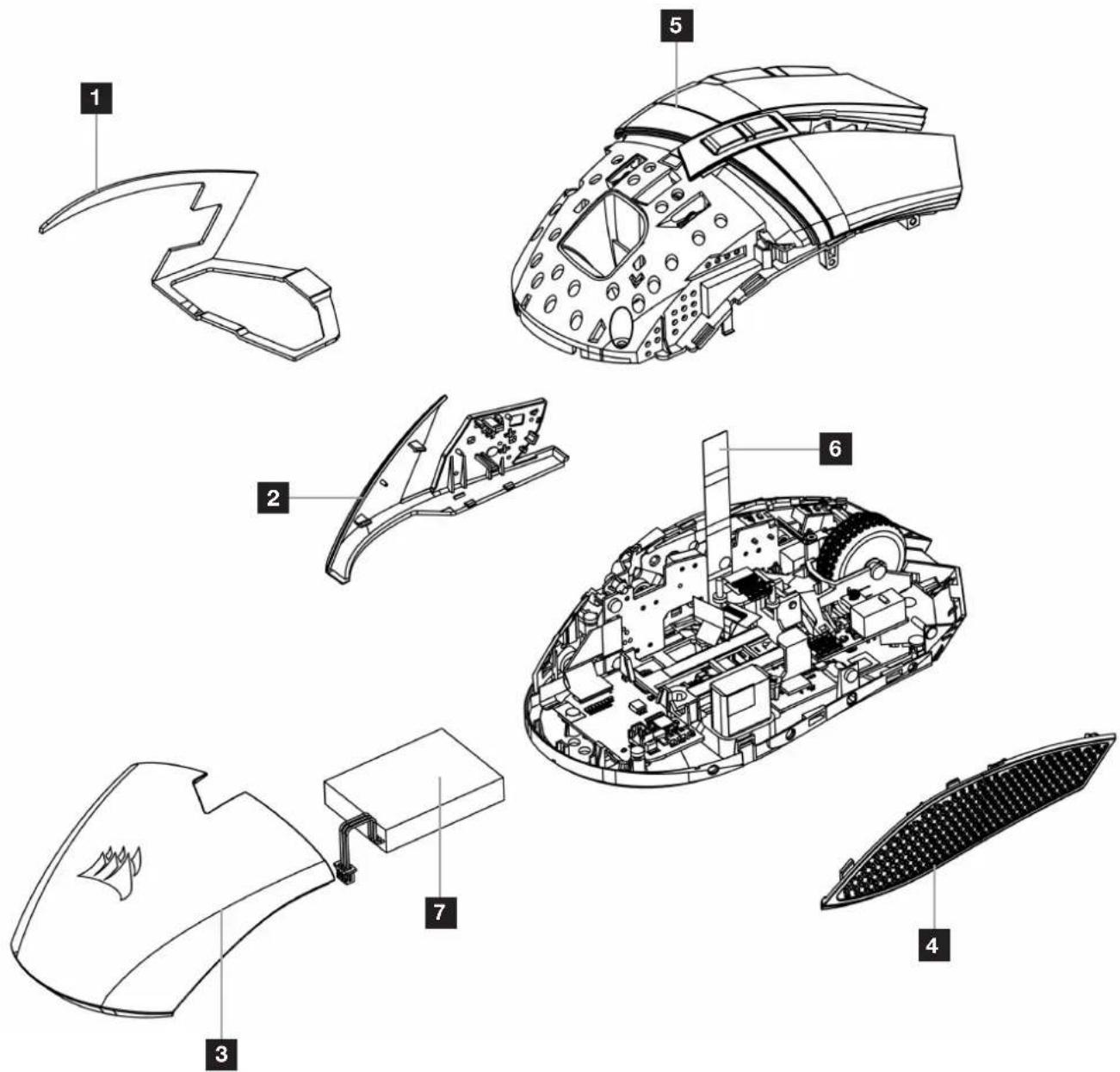

BATTERY REMOVAL INFORMATION

This product uses a rechargeable battery and safety guidelines must be followed in the event that the product is disabled for disposal and recycling. To safely remove the battery for disposal and recycling, follow the numbered steps with the below diagrams.

Exploded view diagram of a mechanical device with numbered parts for identification

CORSAIR MEMORY, Inc. encourages customers to recycle used electronic hardware and rechargeable batteries in accordance with local laws and regulations.

FCC ID: 2AAFMRGP0126 (Mouse)

FCC ID: 2AAFMRGP0119 (Dongle)

IC: 10954A-RGP0126 (Mouse)

IC: 10954A-RGP0119 (Dongle)

CHARGEMENT DE LA SOURIS

On-the-fly DPI changes are saved to the onboard memory and can be further adjusted in granular 1 DPI steps in iCUE software. If iCUE is running, then changes are saved to the software profile directly.

ÉTAT DE LA SOURIS, PARAMÈTRES ET INDICATIONS DES DPI

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a robotic device with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a robotic device with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

STATUS DO MOUSE, CONFIGURAÇÕES E INDICAÇÕES DE DPI

Exploded view diagram of a mechanical device with numbered parts for identification

C A B D E H I F G

U Q R T S U

Pure electrical connector diagram without any text, numbers, or symbols

KLMN P J O

A LEWY PRZYCISK KLIKANIA QUICKSTRIKE

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

Exploded view diagram of a computer mouse with numbered parts for identification

Exploded view diagram of a futuristic vehicle with numbered components for identification

Exploded view diagram of a robotic device with numbered parts for identification

C A B D E Q H I F G

U R T S U

Pure electrical connector diagram without any text, numbers, or symbols

K L M N P J O

Exploded view diagram of a robotic device with numbered parts for identification

© 2022-2023 CORSAIR MEMORY, Inc. All rights reserved. CORSAIR and the sails logo are registered trademarks of CORSAIR in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured.

49-002523 AB
