USER MANUAL Vind 3 Sonnenkönig
Festnetz 14 Cent/Minute
Modifications techniques
Festnetz 14 Cent/Minute
Festnetz 14 Cent/Minute
1 Safety Instructions. 43
2 Parts Description & Specifications 45
3 Operation 46
4 Cleaning. 47
5 Warranty / Disposal / Technical change 48
1. SAFETY INSTRUCTIONS
Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.
Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.
This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm.
Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.
- Do not let the appliance touch any hot surfaces.
- To avoid electric shock, do not place the cord, the plug or the appliance in water or other liquids.
- Close supervision is necessary when the appliance is used by or near children.
- Unplug the plug from the socket when not in use and before cleaning.
- Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return the appliance to our customer service centre for examination.
- Do not let the cord hang over the edge of a table or counter or touch hot surfaces. Do not place the appliance on an unstable or cloth covered surface.
EN
- Please check the power cord and plug first to see if they are intact, and check the body to see if there is any a crack or damages. If anything is damaged, please call the customer service hotline for assistance.
- When you wish to move the fan or it is not in use, please cut off the power and unplug the plug.
- Do not use the fan in the area at high humidity, temperature higher than 40^ C or in dusty surroundings.
- Do not insert fingers or other objects into the fan during operation. Supervise children carefully.
- Please do not allow air to blow directly onto children, elderly, or ill people for an extended period of time.
- Do not spray any aggressive detergent into the fan to prevent it from damages to the plastic material.
- The appliance is for household use only. Do not use outdoors or for any commercial or industrial purpose.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Always disconnect the mains power before any user maintenance.
- If the supply cord is damaged, it must be replaced by the sole distributor, its service agent or similarly qualified persons in order to avoid a hazard.
- Please ensure that the fan is switched off from the electrical supply before removing the guard.
- Only use on 220-240V / 50-60 Hz power supply.
- Do not operate the fan in the presence of explosive and/or flammable fumes.
- Do not place the fan or any parts near an open flame, stove or other heating appliance.
- Do not hang or mount fan on a wall or ceiling.
- Do not operate if the fan housing is damaged.

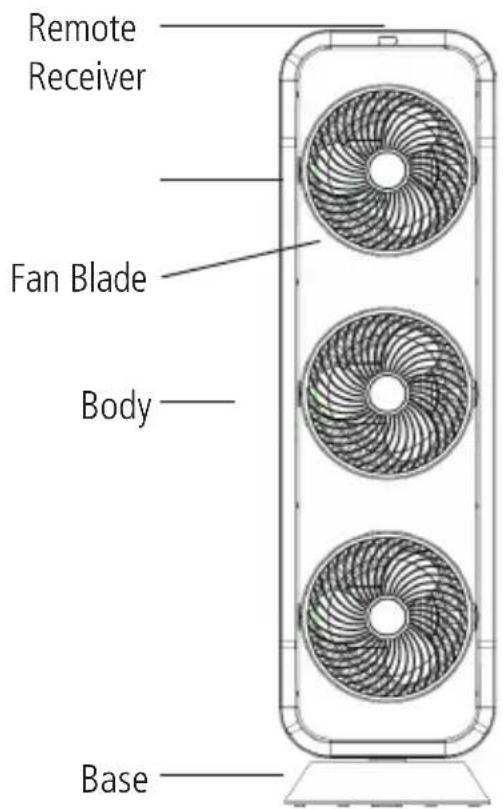

2. PARTS DESCRIPTION & SPECIFICATIONS
EN

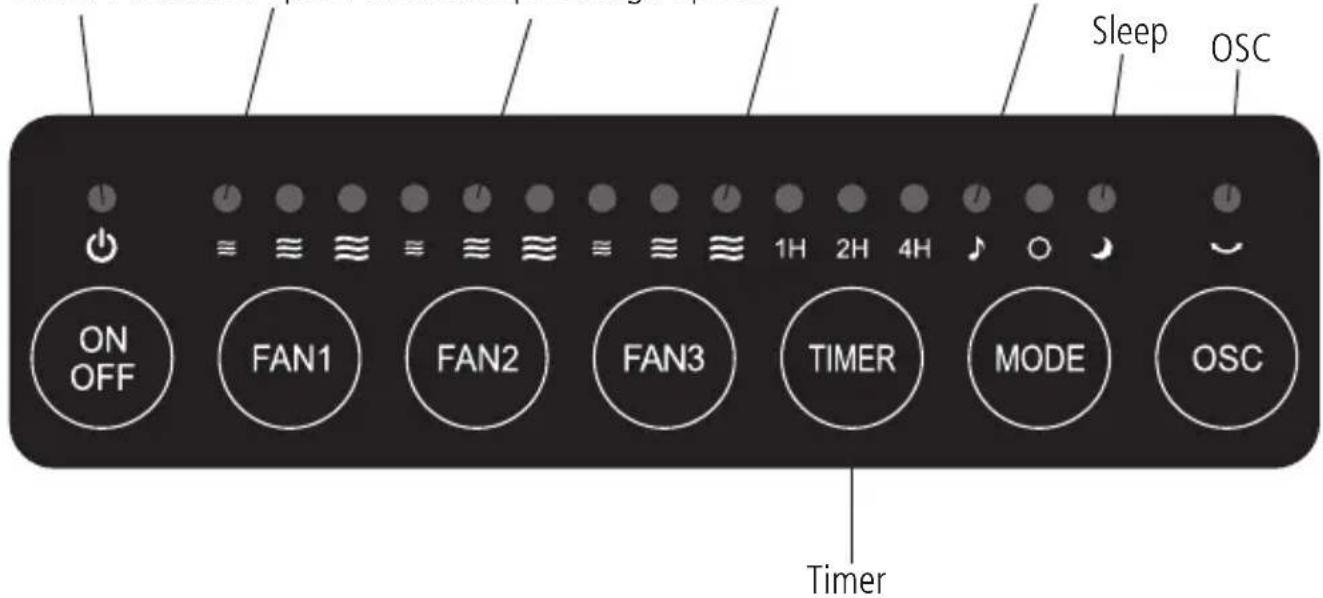

Control Panel
ON/OFF Naturew Speed Medium Speed High Speed
| Rated voltage: | 220-240 V | Product size: | 27.5 x 99.1 x 26.1 cm |
| Rated frequency: | 50-60 Hz | N.W.: | 6.5 kg |
| Rated power: 105 W | G.W.: 9.2 kg |
EN
3. OPERATION
- Check the household voltage to ensure it matches the appliance's rated specifications. Be sure to plug into AC 220-240V, 50/60 Hz outlet.
2. ON/OFF
After inserting the plug, a beeping noise will occur. You can now press the "ON/OFF" switch, the fan will start at low speed.
3. SPEED:
Product has 3 speed settings: low - medium - high. Illuminated symbols indicate the different speed settings.
Low speed
Medium speed
High speed
4. TIMER
The timer can be set between 1 and 7 hours. The timer button has three corresponding lights: 1H / 2H / 4H . Each pressing of the timer button will add one hour to the time set. (Pressing once = 1 hour, pressing seven times = 7 hours.)
The corresponding lights (1H / 2H / 4H) will light up in different combinations depending on the time set. For instance: Setting the timer for one hour will illuminate 1H. Setting the timer for seven hours will illuminate 1H, 2H and 4H since 1 + 2 + 4 = 7 .
5.OSC:
Press the "OSC" once: the fan will oscillate left and right automatically. Press once more to stop oscillation. Meanwhile, you can adjust the vertical angle manually.
6. The unit has 3 modes: Normal/Natural/Sleep.
7. The three fans in the unit can be adjusted independently of each other.
8. Disconnect the plug if you do not use the unit for a longer period of time.

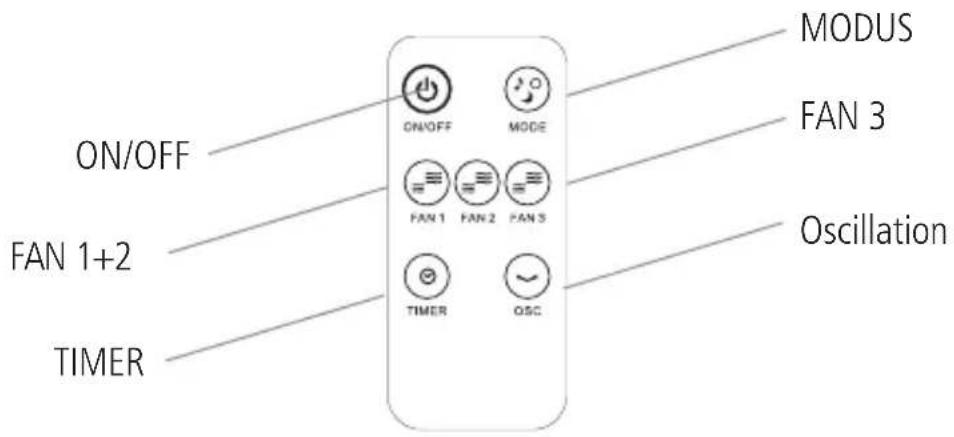

9. REMOTE CONTROL
4. CLEANING
- Before cleaning the fan, please ensure the power plug had been pulled out.
EN

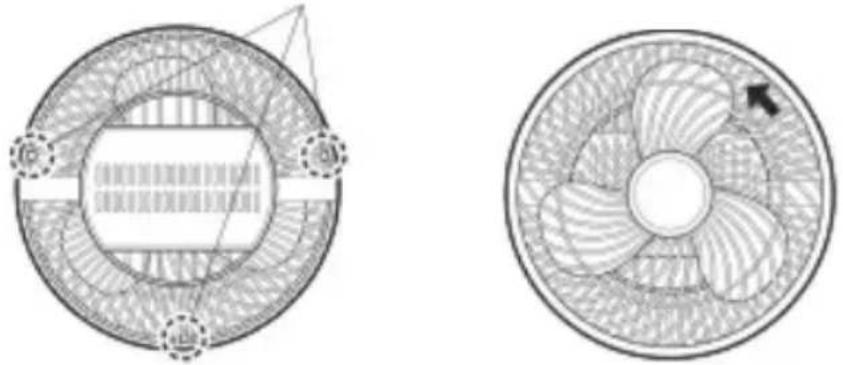

- Please remove the three screws on the back cover first, then twist the front cover to the left and take it out.
Screws

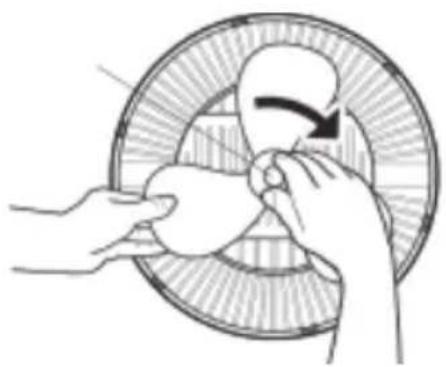

- Twist the fan blade screw to the right and remove the fan blade. You can now clean the fan blade.
- Before reassembling the fan, please ensure that all the parts are thoroughly dry.
6. WARRANTY / DISPOSAL / TECHNICAL CHANGE
Warranty
The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.
EN
Disposal
The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.
Technical changes
We reserve the right to modify the price, the design and the technical features.
Please save the packaging materials of the unit.
CE declaration of Conformity
This device complies with the following standards
EN 55014-1:2017
EN 55014-2:2015
EN 60335-1:2012 + A11:2014
EN 60335-2-80:2003 + A1:2004 + A2:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 62233:2008
2014/35/EU
2014/30/EU
206/2012/EU
EN
DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT
In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.
The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.
DISPOSAL OF BATTERIES AND ACCUMULATORS
In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.
Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury , Cd = Cadmium , Pb = Lead .
Company
Armin Schmid
Olensbachstrasse 9-15
CH-9631 Ulisbach
Tel. Int. +41 71 987 60 60
Tel. Nat. 0848870850
Festnetz 14 Cent/Minute
