EN

INDEX

1 Safety instructions ....45
2 Cleaning ....46
3 Specification ....46
4 Connection....47
5 Scope of delivery 47
6 Parts....48
7 Assembly 49
8 Operation....53
9 Warranty / Disposal / Technical modifications ....54

1 Safety instructions

EN

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

This product has passed through extensive quality assurance process. Every care has been taken to ensure that it reaches you in perfect condition.

Warning! When using electric tools, basic safety precautions should be followed to reduce the risk of fire, electric shock and personal injury, including the following.

• Read all these instructions before attempting to operate this product and save these instructions.
• Check the voltage indicated on the rating plate. This tool is designed for a 230V 50Hz electric supply.
• Do not use electrical extension cord with this fan.
• Do not introduce your fingers through the front case. Do not let children introduce their fingers through the front case. Do not introduce any foreign body into the front case.
• Do not let hair, net curtains, tablecloth, clothes or curtains next to the openings of the fan. They could be aspiring into the fan, causing damaged or injuries.
• Do not use the fan if the cable or plug is damaged or if they have been damaged in any way. Send the fan to customer service or have it repaired by a specialist.

EN

• Periodically check the electric cable of this fan. If the electric cable is damaged, it must be replaced by the manufacturer, its after sales service or by a similar qualified person in order to avoid a danger.
• Do not use this fan outside.
• Do not use this fan in a damp area such as bathroom.
• The fan should not be operate without a base nor used laying on its side.
• Do not place the electrical cord under a cover. Do not overlay the cord with little covers or such element. Place the cord in an area where there are not any risk to stumble over it.
• Do not operate the fan in an area where gasoline is used or stocked, painting or such flammable liquids.
• Use this fan only as it is describe in this manual.
• Do not try to throw off this fan, there are not any piece that could eventually be repaired by the user. If you need maintenance, please send back the fan to the agent.
• No part of this fan must be replaced by the user. The fan should not be opened by user.

2 Cleaning

• Parts should be cleaned with a soft dry cloth.
• Dirt marks should be removed with a mild soap (detergent) and a damp cloth. Ensure that all traces of the soap film are removed with a damp cloth.
• Do not use gasoline or solvents that may damage the fan.
• Care should be taken to ensure that water (or other liquid) does not enter the fan motor housing or the speed control unit.
• Do not dip the fan into the water or in any other liquid.

3 Specification

ATTENTION: The receiver module is the same on all models. If you have a VERONA or GENUA (without light), the blue cable is not used.

EN

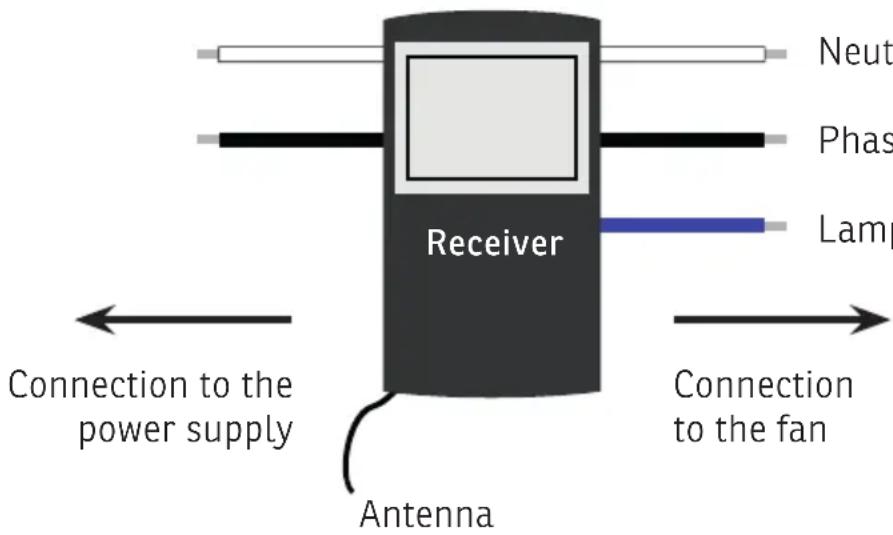

Neut Phas Lamp Receiver Connection to the power supply Antenna Connection to the fan

Neutral (white) Neutral (v

Phase (black) Phase (black)

Lamp (blue)

5 Scope of delivery

Ceiling plate

Motor cover

Hanging rod

Blades and bladearms

Receiver

Pieces in packaging

Receivercase

Cable connectors

Remote control

6 Parts

EN

Technical diagram of a mechanical or fluid system with numbered components and directional arrows indicating flow or movement.

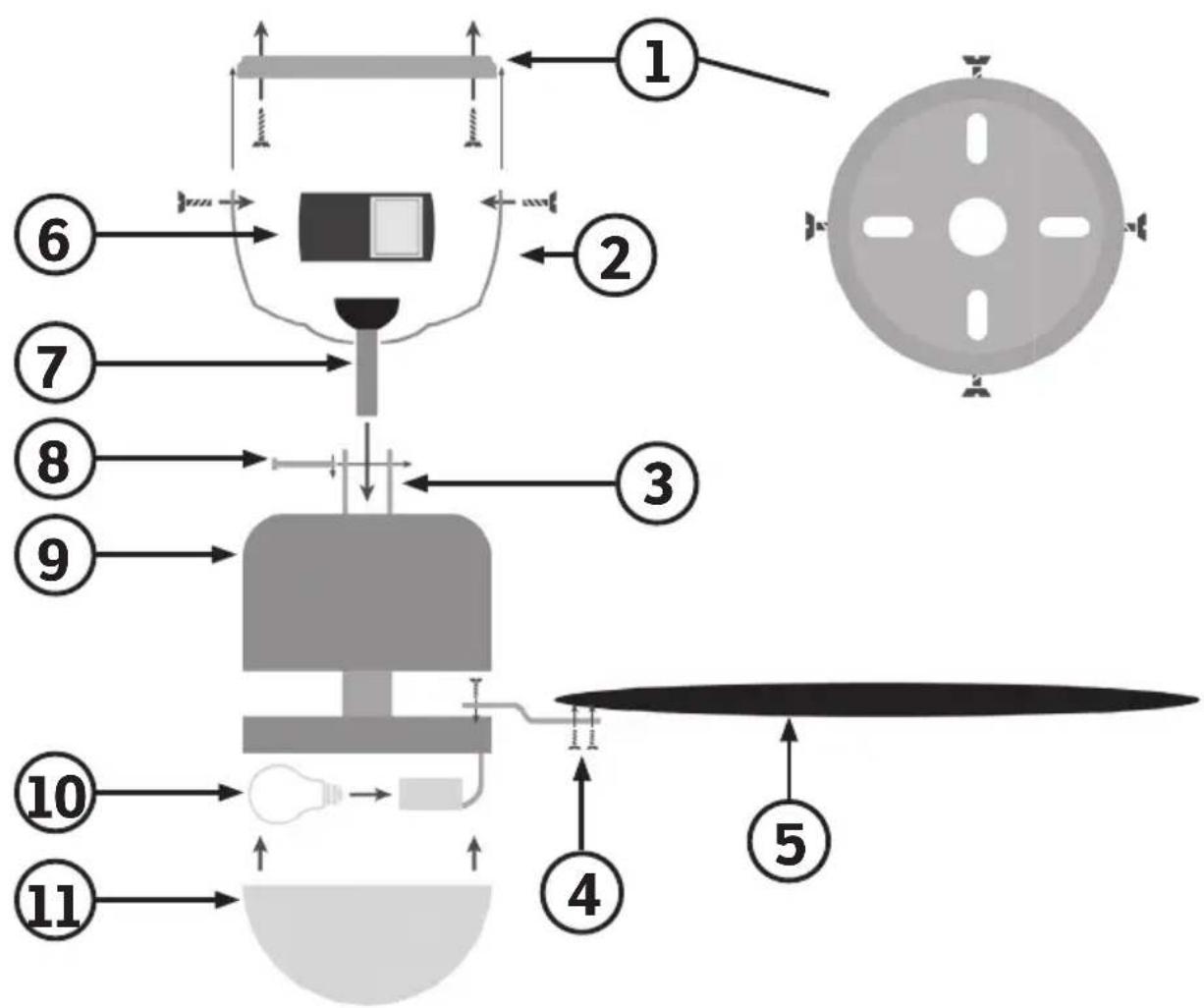

1. Ceiling plate
2. Receiver case
3. Tube from Motor
4. Blade arm
5. Blade
6. Receiver

7. Hanging rod

8. Bolt and Splint

9. Motor cover

CATANIA

1. Lightbulb

2. Lampcover

7 Assembly

The following equipment is necessary or recommended for installation:

EN

Safety goggles

Stepladder

At least two people

Manual

4 x

Ceiling Screws (Not included in delivery)

1. Remove all parts from the packaging and check for completeness.

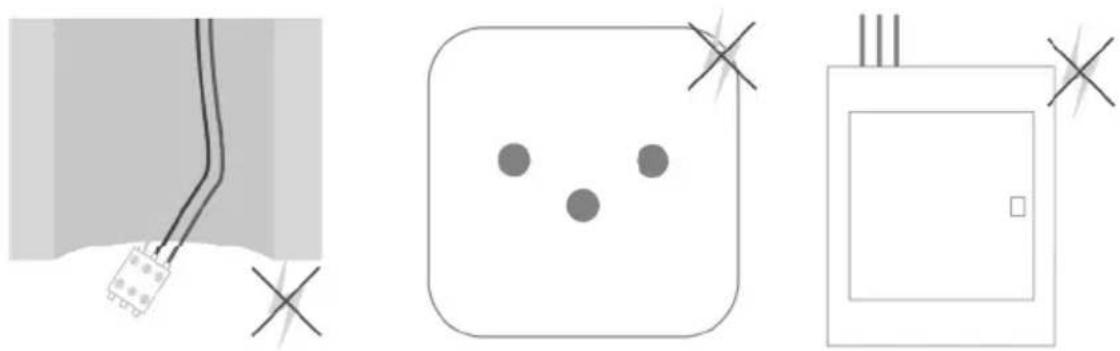

2. Make sure that any cables do not contain any voltage and switch off the fuses.

Three abstract electrical circuit symbols: a plug, a die, and a wall-mounted switch (no text or labels)

EN

Diagram showing a cable being inserted into a beam supported by two screws, with no text or symbols present.

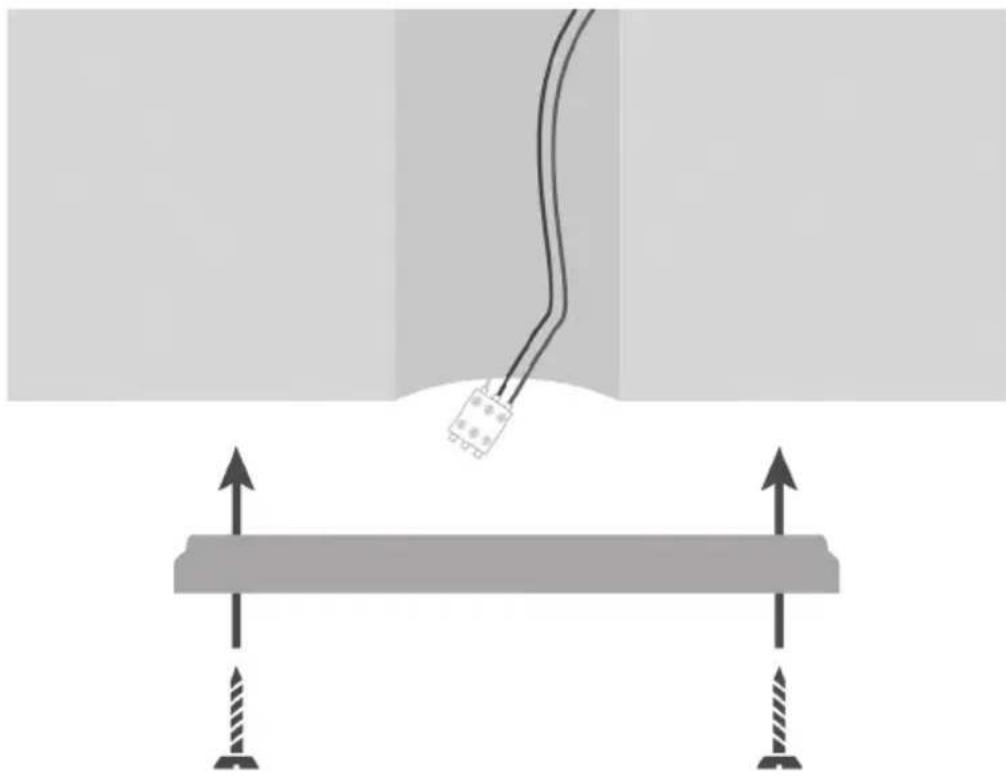

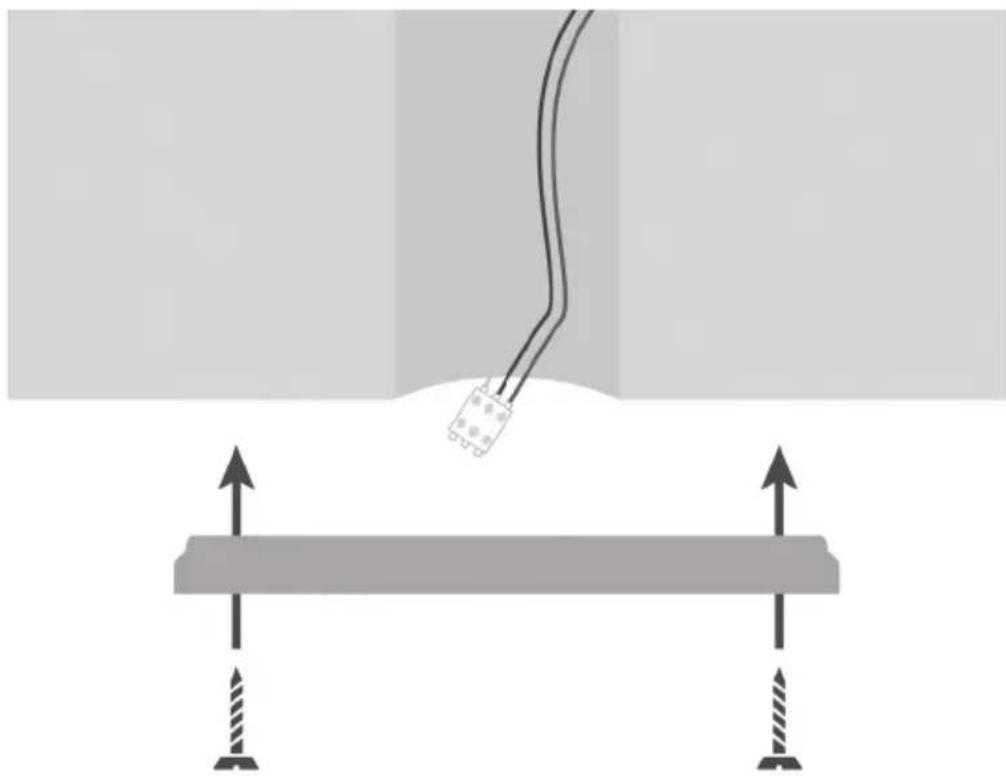

1. Attach the support plate to the ceiling or power outlet. Depending on the ceiling material, use screws of size M5 / ∅ 8 mm.

210 cm 80 cm

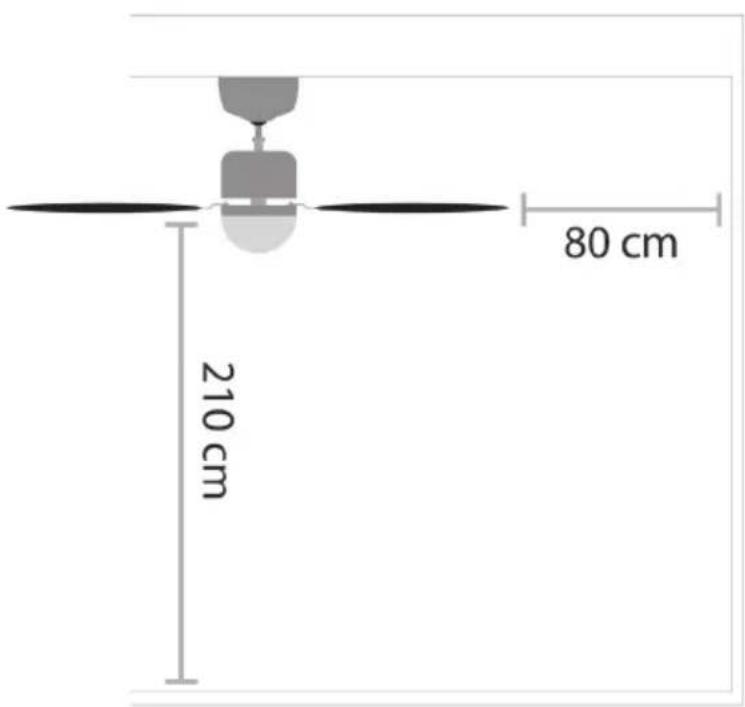

1. Ensure that the blades are at least 80 cm from any obstacles and at least 210 cm from the ground. Important: When mounting on an angled ceiling, contact qualified personnel.

GENUA / VERONA CATANIA EN

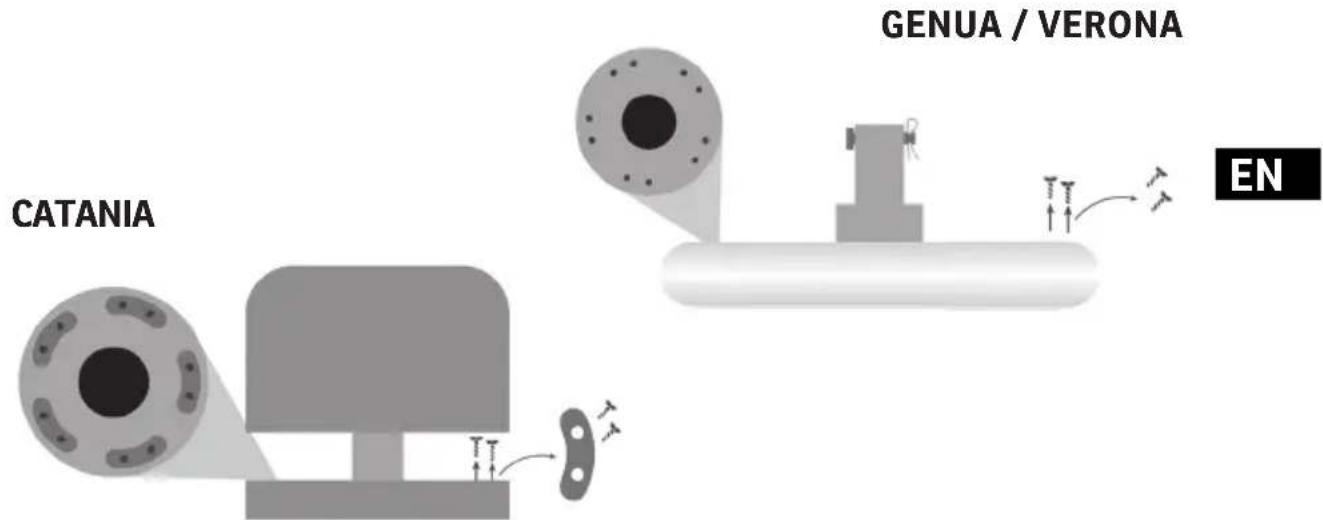

1. Loosen the screws on the motor housing and remove the damper plates. 5 times

CATANIA

Pure mechanical diagram showing a lever and pivot with no text or symbols

GENUA / VERONA

Pure diagram of a mechanical or fluidic component with no text, numbers, or symbols

1. Attach the blade arms to the motor housing using the previously loosened screws and attach the blades to the blade arms.

1. 2.

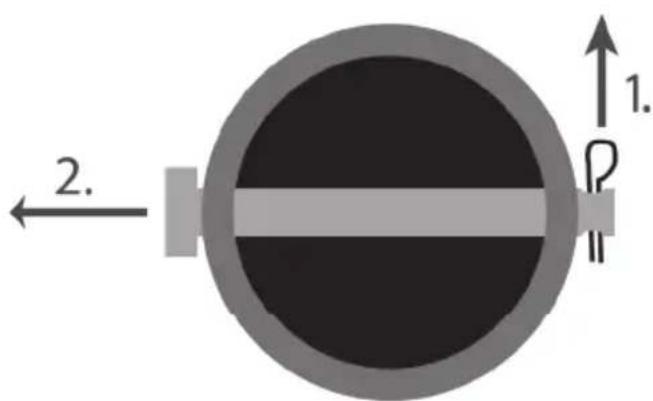

1. Remove the cotter pin and bolt from the tube at the top of the motor housing.

CATANIA
GENUA / VERONA
EN

Diagram showing light rays passing through a lens system with a curved mirror (no text or labels)

Diagram showing a device connected to a lens and a curved interface (no text or symbols)

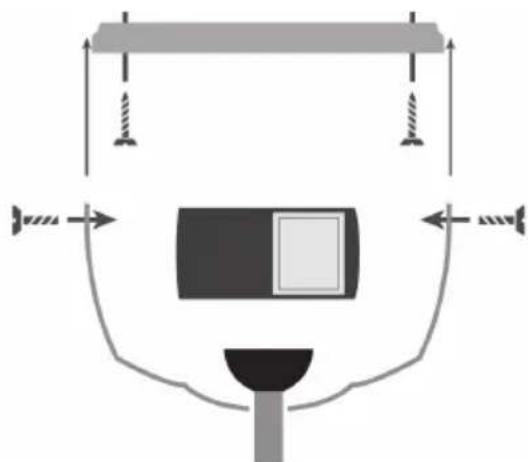

1. pass all cables through the suspension rod and the control unit housing and insert the rod through the tube in the motor housing

CATANIA

Pure diagram of a mechanical or fluidic component with directional arrows and a circular outline, no text or symbols present.

GENUA / VERONA

Pure mechanical diagram showing a shaft, housing, and eye-like shape without any text or symbols

1. Reattach the bolt to the pipe. Make sure that the cables in the tube are not damaged.

Diagram of a system with input/output ports and a central connector (no text or symbols)

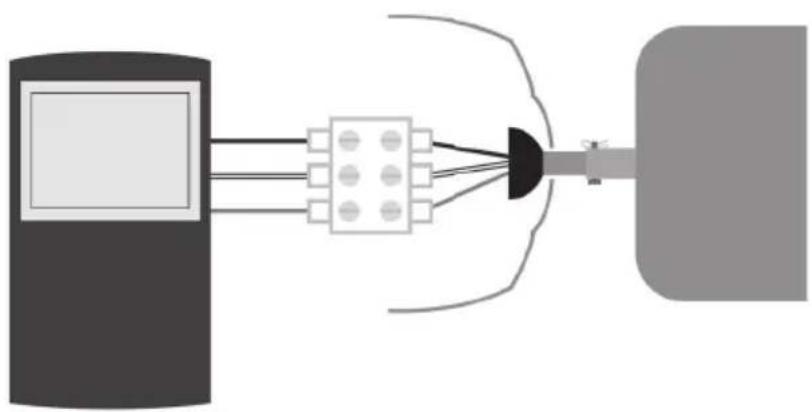

1. Connect the cables according to the wiring diagram (page 47; 4).

Diagram of a mechanical or electrical component with suspended parts and directional arrows, no text or symbols present.

EN

1. Connect the remaining cables correctly and attach the fan to the ceiling.

8 Operation

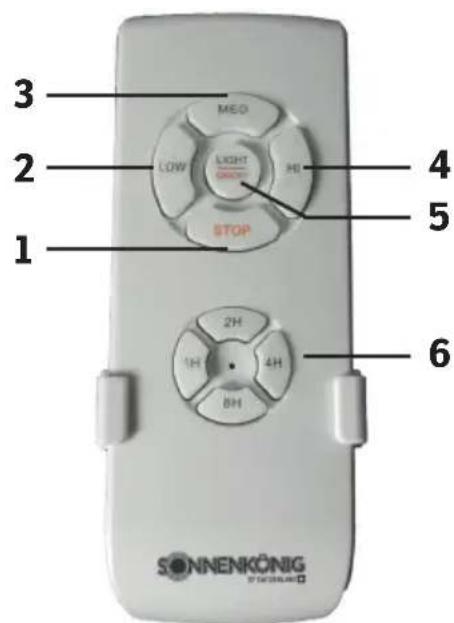

3 2 1 MEO LOW LIGHT OFF HI STOP 4 5 2H 1H 4H 8H 6 SONNENKÖNIG Fremed

1. STOP
2. LOW
3. MEDIUM
4. HIGH
5. Light switch (CATANIA)

6. Timer

7. Stop: Turn off fan
   2/3/4. Choose between speed setting High / Middle / Low

8. Switch Light on and off
9. Set timer from 1 - 8 h

Batteries: Replace the batteries by sliding the cover down on the back of the remote control. (1.5 V / AA, 2 pieces)

9 Warranty / Disposal / Technical modifications

EN

Garantie

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.

Company

Armin Schmid

Landline 14 Cent/Minute

Mobile network to 42 Cent/Minute
