ENGLISH

Important Instructions

Important instructions and warning notices are allegorized on the machine by means of symbols:

Before you start working, read the operating instructions of the machine.

Work concentrated and carefully. Keep your work-place clean and avoid dangerous situations.

In order to protect the user, take precautions.

During work you should wear ear protectors, goggles, dust mask, protective gloves and sturdy work clothes!

Wear safety goggles

Wear safety helmet

Use ear protection

Wear protective gloves

Wear protective boots

Warning notices:

Warning of general danger

Warning of dangerous voltage

Warning of hot surface

Danger of being ripped or cut

Technical Data

Wet Diamond Core Drill EBM 250/2 RP

Rated voltage:	230 V ~
Power input:	2500 W
Rated current:	11.5 A

Frequency: 50 - 60 Hz

Max. drilling diameter: 250 mm

Spindle connection: 1 14 " UNC

Protection class: I

Degree of protection: IP 20

Net weight: about 10.5 kg

Interference suppression: EN 55014 and EN 61000

Speed	Rated speed	Max. drilling diameter
I	360 rpm	250 mm
II 850 rpm	152 mm

Available accessories:

Item	Order no.
Diamond drill rig BST 152 with quick -change adapter	09631
Fastening set concrete / stone	35720
Copper rings for easy removal of the drill bit	35450
Adapter 1 1/4" i – 1/2" i	35116
Quick action bracing unit	35730
Water tank 10 l metal	35810
Wet/dry vacuum cleaner DSS 5 A	09915
Diamond drill bits ∅ 25 – 162 mm
Drill bit extensions

Supply

Diamond core drill with ball valve and GARDENA connector, PRCD protective switch, operating instructions, one spanner SW 32 and one spanner SW 41 in a cardboard box

Application for Indented Purpose

The diamond core drill EBM 250/2 RP is indented for professional use and may be used by instructed personnel only.

With the appropriate wet drill bits, the machine may be used for wet drillings only, e.g. in concrete, stone and masonry.

It may be used with a suitable diamond drill rig only.

Safe work with the machine is only possible if you read this operating instruction and follow the instructions contained strictly.

Additionally, the general safety instructions of the leaflet supplied with the tool must be observed. Prior to the first use, the user should absolve a practical training.

If the mains cable gets damaged or cut during use, do not touch it, but instantly pull the plug out of the socket. Never use the tool with a damaged mains cable.

When drilling in ceilings or walls make sure you will not cut through electrical mains, gas or water pipes. Use metal detection systems if needed.

Prior to the start of your work, consult a statics specialist to determine the exact drilling position. If drilling through ceilings, secure the place below, because the core may fall downward.

Pay attention that the tool is not exposed to direct rain.

• Do not use the tool in an environment with danger of explosion.
• Do not use the tool standing on a ladder.
• Do not drill in asbestos-containing materials.
• Never carry the tool at its cable and always check the tool, cable and plug before use. Have damages only repaired by specialists. Insert the plug into the socket only when the tool switch is off.
  ■ Modifications of the tool are prohibited.
• The machine should only work under supervision of sbd. Plug and switch the machine off if it is not under supervision, e.g. in case of putting up and stripping down the machine, in case of voltage drop or when fixing or mounting an accessory.
• Switch the machine off if it stops for whatever reason. You avoid that it starts suddenly and not under supervision.
• Do not use the machine if a part of the housing is damaged or in case of damages on the switch, the cable or plug.
• During work, always lead the mains cable, extension cable and extraction hose to the back away from the machine.
  ■ Power tools have to be inspected visually by a specialist in regular intervals.
• When using the drill, cooling water is never allowed to get into the motor and all electrical parts.

• Overhead-drillings only with suitable safety measures (water collection).

• After an interruption of your work, only switch the machine on again after having checked that the drill bit can be turned freely.
  ■ The tool may be used with the drill rig only.

• Do not touch rotating parts.
• Persons under 16 years of age are not allowed to use the tool.
• During use, the user and other persons standing nearby have to wear suitable ear protectors, goggles, helmets, protective gloves and boots.

- Always work concentrated and carefully. Do not use the tool when you are lacking in concentration.

For further safety instructions, please refer to the enclosure!

Fixing to Drill Rig

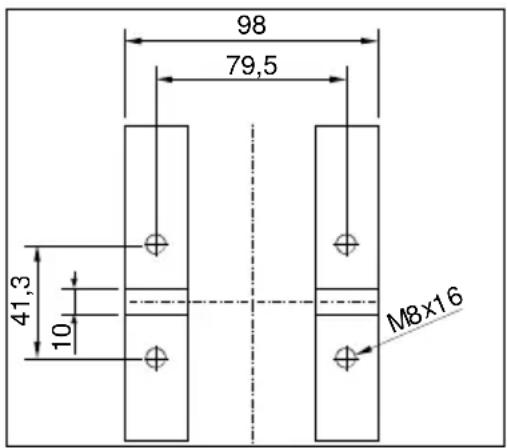

98 79,5 41,3 10 M8x16

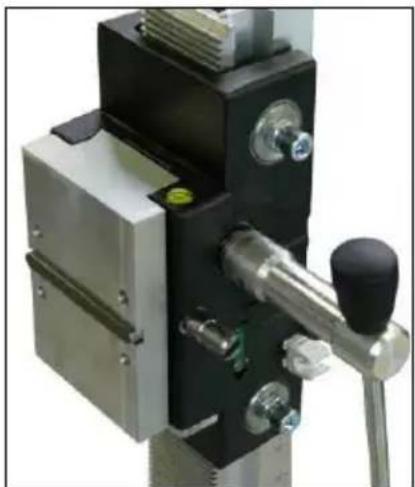

Fasten the gearing foot of the

EBM 250/2 RP by means of four M 8 Allen screws to the drill rig.

The drill stand should have a good stiffness and precise guide ways. The spindle of the machine needs to go parallel to the axle of the drill stand. Use only fall-safe drill rigs.

It is advisable to use a water-collecting ring.

Electrical Connection

The EBM 250/2 RP is made in protection class I. In order to protect the operator, the machine can only be run with a GFCI. For this reason, the machine is standard equipped with a PRCD switch integrated in the cord which allows to connect the unit directly with a grounded socket.

Attention!

• The PRCD-safety switch must not lay in water.
• PRCD-safety switch must not be used to switch the tool on and off.
  Before you start working, check the proper functioning by pressing the TEST button.

First, check the correspondence of voltage and frequency and compare it with the data mentioned on the identification plate. Voltage differences from +6% to -10% are allowed.

Use only 3-wire extension cable with protecting conductor and a sufficient cross-section (min. 2.5 mm ^4 ). A cross-section which is too small could lead to excessive power loss and to overheating of machine and cable.

The machine is equipped with a start-up speed limiter to prevent fast expulsion fuses from unindented responding.

Water Connection

If the drill bit is not cooled enough with water, the diamond segments could heat up and consequently get damaged and weakened. For this reason, always make sure that the cooling system is not blocked.

In order to supply the machine with water, please proceed as follows:

• Connect the tool to the water supply system or a water pressure vessel using the GARDENA connector.
• Always make sure that the machine only runs with enough clear water as the seals get damaged when the machine is running dry.
• Attention! The maximum water pressure should not exceed 3 bar!
• Make sure that the segments are well cooled. If the drilling water is clear, the segments are well cooled.
• Overhead-drilling only with water collection ring.
• In case of frost warning, drain the water system.

Changing Gears

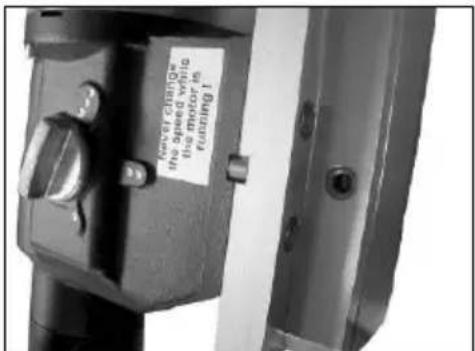

The EBM 250/2 RP is equipped with a mechanical 2-speed oil-bath gearbox.

Select the speed according to the drilling diameter (ref. to the tool's identification plate).

Use the speed selection to change to the next higher or lower speed until it locks. Change the speed only when the tool is not running; slightly turn the working spindle to ease the speed change.

Warning!

• Never apply force and change the gear only when the machine is running down.
• Never use tools, such as hammers or pliers to change the gear.

Drill Bit Changing

Attention!

The machine is heavy and when you use or sharpen it, it might heat up enormously. You could burn your hands or get cut or ripped by the segments. Before the beginning of all works on the tool you have to disconnect the plug from the mains. Always use protective gloves when changing the drill bit.

The drill spindle has a right-hand thread.

To hold on spindle always use an jaw wrench SW 32.

Never remove the drill bit with impacts because this way the machine will be damaged. With some waterproof grease, which is put on the drill bit thread, and a copper ring between spindle and drill bit you can remove the drill bit easier.

Drill Bits

Diamond drill bits with an 1 14 " UNC female thread can be screwed directly onto the working spindle.

For drill bits with R 12 " male thread, adapters are available as accessories.

Always use drill bits which match the material which has to be drilled.

You can prevent the machine from damage if you only use drill bits which are balanced and not deformed. Pay attention that diamond segments have enough relief cut towards the drill bit body.

Using the Drilling Unit

In order to operate safely, please observe the following instructions:

Safety at work:

■ Make sure that your work place is free of anything that might disturb your work.
■ Pay attention that your work-place is well-lit.
■ Make sure that you observe the conditions for the connection with the power supply.
- When laying the cables, make sure that it cannot be damaged by the tool.
■ Make sure that you always can overlook the work place in a sufficient way and that you always can reach all necessary control elements and safety devices.
- In order to avoid accidents, keep other persons away from your work place.

If possible, make sure that you have enough free space for operation and maintenance around the machine (about 2 metres). This way, you can work safely and in case of operating trouble you can intervene immediately.

Preparation

• When you drill into blocs, make sure that the blocs are well anchored and fixed.
  ■ Before drilling in supporting parts, make sure that you do not disregard the statics. Observe the instructions of the experts who are responsible for the design.
  ■ Make sure that you do not damage any gas mains, water mains or electric cables while drilling.
• Pay attention that you do not touch any metallic parts of the machine when you drill walls and grounds where electric cables could lie under water.
• Pay attention that the drilling core does not hurt anybody or damaging anything when it drops out.
• If the drilling core might cause any damage when it drops out, use an device that can hold back the drilling core.
  ■ Make sure that the drill bit is well fixed.
• Only use tools which are suitable for the particular material.

Fastening of the Drill Rig

The diamond core drill EBM 250/2 RP may only be used mounted on a drill rig.

Since the drill rig is not included in the delivery, we point out some important kinds of assembly.

For this purpose, please refer to the drill rig's operating instructions.

Vacuum fastening:

Re. vacuum fastening, make sure that you have a sufficient vacuum (minimum -0.8 bar). Make sure that the gaskets are not worn.

Attention! Do not use the vacuum fastening on the wall or overhead! Do not forget that the levelling screw may be turned out only up to a certain extent in order not to destroy the vacuum.

Dowel fastening:

The most common way of fastening is dowel fixing.

If possible, use metal dowels only. The dowel diameter must not be smaller than 12 mm.

• In order to fasten the drilling unit correctly, you need the fastening set (order number 35720).
• Drill a hole with a diameter of 15 mm, 50 mm deep. Make sure that the hole is free of dust.
• Insert a dowel and open it with an expanding mandrel.
• Screw the thread rod into the dowel.

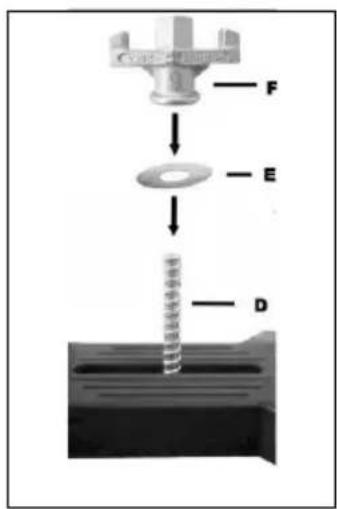

• Put the drilling unit with the deep hole in the base onto the thread rod.
• Place the washer and screw the butterfly nut very tightly.
• Adjust the drilling unit in the platform by using the four screws.

Drilling

Vertical drilling

• Switch the PRCD on.
• Open the water supply.
• Switch the motor on without touching the surface with the drill bit.
• Turn the handle to bring down the drill bit until it contacts the surface.
• In order to reach an exact centring of the drill bit, keep the feed low for the first centimeter of cutting depth.
• Then you can drill faster. A too small drilling speed reduces the power. On the other hand, when the drilling speed is too high, the diamond segments quickly become blunt.

Angular drilling

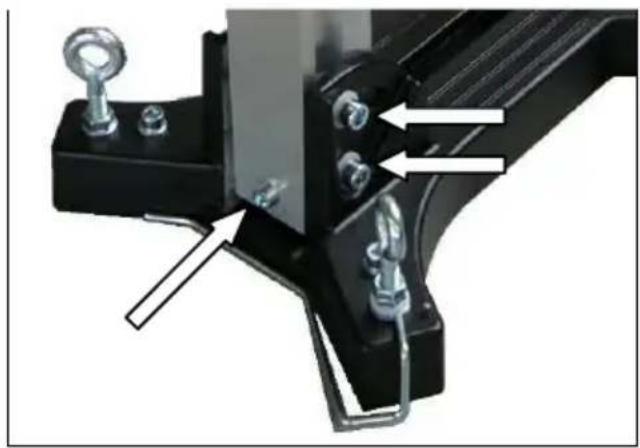

• Remove the screw in the foot base which arrests the column at 90°.
• Loosen the two screws on the base of the column and turn the column to the requested angle.
  ■ Retighten the screws again.
• At the beginning, it is better to drill very slowly because the bit only meshes with a fraction of its cutting area with the material. If you drill too fast or with a pressure which is too high, the bit can be off centre.

You have hit reinforced iron when you recognise while drilling that the feed rate gets very low, when you need to use more force, or when the water leaking from the bore hole clearly shows some metal chips.

Reduce the pressure on the drill bit to cut through the reinforced iron without any problems. You increase the pressure again when you have cut through the reinforced iron.

Drill bit extension

If you have to drill deeper than the usable length of your drill bit is:

• First, only drill to the point the usable length of the bit reaches.
• Remove the bit and pull the centre core out of the hole without moving the core drilling unit.
• Push the drill bit back into the bore hole.

Screw an adequate extension between drill bit and motor. If the collet of the drill bit is 1 14 , please do not forget the copper rings which make the removal of the drill bit easier.

Overload Protection

In order to protect the operator, motor and drill bit, the EBM 250/2 RP is equipped with a mechanical and electronic overload protection.

Mechanical: If the drill bit is suddenly blocked in the hole, a clutch will slip disengaging the drill spindle from the motor.

Electronic: In case of overload due to large a feed force, the electronic facility in the tool switch will deenergize the tool. After discharge and reengagement one can drill again.

Safety Clutch

The safety clutch should absorb shock and excessive stress. It is an aid and not an absolute protection. Therefore you have to handle and drill carefully. To keep it in good condition, the clutch should slip for a very short time (max. 2 seconds) in each case only. After excessive wearing the clutch has to be renewed by an authorized service shop.

Fracture of Segments

If a diamond segment, parts of the reinforcement or something similar breaks out, and consequently the drill bit seizes, stop working on this bore and drill a hole with the same centre and a diameter being 15 – 20 mm bigger.

Do not try to finish your work using another drill bit of the same diameter!

Drill Bits

Diamond drill bits with an 1 14 " UNC female thread can be screwed directly onto the working spindle.

For drill bits with R 12 " male thread, adapters are available as accessories. Always use drill bits which match the material which has to be drilled.

You can prevent the machine from damage if you only use drill bits which are balanced and not deformed. Pay attention that diamond segments have enough relief cut towards the drill bit body.

After Drilling

When you have finished drilling:

■ Pull the drill bit out of the hole.
- Stop the motor by using the motor switch and not the PRCD switch.
- Close the water supply.

Removal of the core when it sticks in the drill bit:

• Separate the drill bit from the motor.
• Put the drill bit in a vertical position.
• Knock carefully on the pipe by using a wooden hammer shank till the drilling core slips out. Never throw the drill bit against a wall by force or set about it with tools, such as hammer or jaw wrench. Otherwise, the pipe could go out of shape and neither the core can be removed nor the drill bit reused.

Removal of the core from blind holes:

Break off the core with a cotter or lever, or in pieces. Lift the core out with appropriate tongs or drill a hole in the core, screw an eyebolt in and pull the core out.

Care and Maintenance

Before the beginning of the maintenance or repair works you have to disconnect the plug from the mains!

Repairs may be executed only by appropriately qualified and experienced personnel. After every repair the machine has to be inspected by an electric specialist. Due to its design, the machine needs a minimum of care and maintenance. Regularly the following works have to be carried out or rather the component parts have to be inspected.

• Clean the drilling unit after having finished drilling. Later on, you have to grease the spindle thread. The ventilation slots always have to be clean and open. Pay attention that no water gets inside the core drill during the cleaning process.
• After the first 150 hours of operation you have to replace the gearbox oil. Gearbox oil changes bring about an essential increase of the tool's lifetime.
  ■ After approximately 250 hours of operation the carbon brushes have to be checked by a specialist and if necessary removed (only use original carbon brushes).
• Have switch, cable and plug checked by an electric specialist quarterly.

Environmental Protection

Raw material recycling instead of waste disposal

In order to avoid damages on transportation, the power tool has to be delivered in sturdy packing. The packing as well as the tool and its accessories are made of recyclable materials and can be disposed accordingly.

The tool's plastic components are marked according to their material, which makes it possible to remove environmental friendly and differentiated because of available collection facilities.

Only for EU countries

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Do not dispose of electric tools together with household waste material!

In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Noise Emission / Vibration

The indication of noise emission is measured according to DIN 45 635, part 21. The level of acoustic pressure on the work place could exceed 85 dB (A); in this case protection measures must be taken.

Wear ear protectors!

The typical hand-arm vibration is below 2.5 m/s ^4 .

Measured values determined according to EN 60745.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

auto-stop brushes

In order to protect the motor, this power tool is equipped with auto-stop brushes. When the carbon brushes are worn out, the machine switches itself off.

In this case both brushes must be replaced at the same time with original brushes by an electrical specialist.

In Case of Malfunction

In case of breakdown, switch the motor off and disconnect it from the power. Repairs of the electrical parts may only be performed by an authorised service specialist.

Trouble Shooting

Error	Possible Cause	Error Recovery
machine does not work	mains current supply interruptedline cord or plug damagedswitch damagedthe PRCD-switch is off	plug in another electric appliance and check the functioninghave it checked by an electric specialist and replaced if necessaryhave it checked by an electric specialist and replaced if necessarypress RESET to switch on
motor runs, drill bit does not rotate	gearbox damaged	have the tool repaired by an authorised service workshop
drilling speed too slow	water pressure / water flow rate too highdrill bit damagedgearbox damageddrill bit is blunt	regulate the water quantitycheck if drill bit is damaged and replace it if necessaryhave the tool repaired by an authorised service workshop sharpen the drill bit with a sharpening block while using the flush
motor cuts off	the tool stopsthe tool overheats, overload protection of the motor has reactedcarbon brushes are worn out - auto-stop brush switch off	lead the tool in a straight mannerdischarge the tool and restart it by pressing the switchboth brushes must be replaced with original brushes by an electrical specialist
water drops out of the gearbox housing	shaft sealing rings damaged	have the tool repaired by an authorised service workshop

Warranty

According to the general supply conditions for business dealings, suppliers have to provide to companies a warranty period of 12 months for redhibitory defects (to be documented by invoice or delivery note).

Damage due to natural wear, overstressing or improper handling are excluded from this warranty.

Damages due to material defects or production faults shall be eliminated free of charge by either repair or replacement.

Complaints will be accepted only if the tool was returned in non-dismantled condition to the manufacturer.

CE Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents:

EN 61 029, EN 55 014, EN 61 000

according to the provisions of the directives 2011/65/EU, 2004/108/EG, 2006/42/EG

Technical file (2006/42/EC) at:

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

15.04.2014

FRANÇAIS

Symbol of a trash bin crossed with two diagonal lines, no text or labels present

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

15.04.2014

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

NEDERLANDS

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

15.04.2014

Ważne wskazówki

Simple line drawing of a trash bin with no text or symbols

Tylko dla krajów EU

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

15.04.2014

Handwritten signature or scribble on a wavy line, possibly from a document or form

Frank Markert

Head of Engineering

Önemli Uyarılar

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Lothar Lässig

General Manager

15.04.2014

Handwritten signature or scribble on white background

Frank Markert

Head of Engineering

Green hexagonal logo with stylized letter 'E' and 'V' (no text or symbols)

EIBENSTOCK

Vakuum Technik

D GB F NL

Original Instructions ....11 - 18

Notice originale....19 - 26

Mechanical testing apparatus with vertical and horizontal components, no visible text or symbols

Mechanical testing apparatus with a vertical cylindrical component and articulated arm (no visible text or symbols)

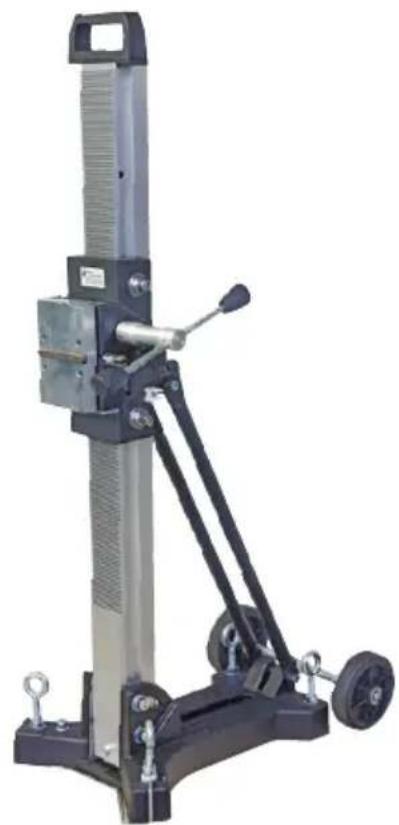

Diamantbohrständer

Diamond Drill Rigs

Supports de Carottage

Diamant Boorinstallatie

BST 250

BST 300

DEUTSCH

Warning symbols including exclamation mark, lightning bolt, steam, hand holding hand, and hand holding tool

Five circular icons representing different human and footwear behaviors: headphones, sunglasses, hats, gloves, and boots (no text or symbols)

Close-up of a mechanical device with black and silver components, no visible text or symbols

Never change the speed within the motor to running 10

Mechanical component with mounting holes and a bracket, showing alignment arrows (no text or symbols)

Close-up of a mechanical clamp securing a vertical scale ruler (no text or symbols visible)

Mechanical device with black and metallic components and three black arrows pointing to features (no visible text or symbols)

Important Instructions

Important instructions and warning notices are allegorized on the machine by means of symbols:

Warning symbols including exclamation mark, lightning bolt, steam stroke, hand holding contact, and falling object with hammer

Warning: general precaution

Warning: dangerous voltage

Warning: hot surface

Tool, drill bit and rig are heavy – Caution: risk of squashing

Danger of tearing or cutting

During work you should wear goggles, ear protectors, protective gloves, and sturdy work clothes!

Five circular icons representing different human and footwear behaviors: headphones, glasses, hat, gloves, and boots (no text or symbols)

Wear ear protection

Wear safety goggles

Wear protective helmet

Wear protective gloves

Wear protective boots

Technical Characteristics

Diamond Drill Rigs BST 250, BST 300

Measures: BST 250: BST 300	430 x 330 x 1040 mm 540 x 330 x 1100 mm
Length of the column: 995 mm
Weight BST 250: BST 300:	15.5 kg 18.5 kg
Max. drilling diameter BST 250: BST 300:	250 mm 350 mm
Inclination: 0° - 45°
Carriage brake: yes
Locking in top position: yes
Fixture of the motor: quick change motor plate
Adaptation to surface: 4 positioning screws / 2 bubble levels

Available special accessories:

Item Order no.
Fastening set (concrete) 35720
Fastening set (brickwork) 35724
Spare dowel 35722
Rawl – dowel 35725
Quick action bracing unit 35730

Supply

Diamond drill rig with turnstile, Allen wrench SW 6 and SW 8,

4 Allen screws M 8 x 20 and operating instructions in a cardboard box.

Application for Indented Purpose

The diamond drill rig is made for diamond core drills which are fixed by means of a mounting plate. The max. drilling diameter must not exceed the drilling diameter indicated in the chart.

When drilling overhead, a water collecting device must be used.

In case of wrong handling or misuse, the producer does not assume any liability.

Use

After each readjustment always check that the screws are tightly fixed so that safe operating of the drill rig is possible.

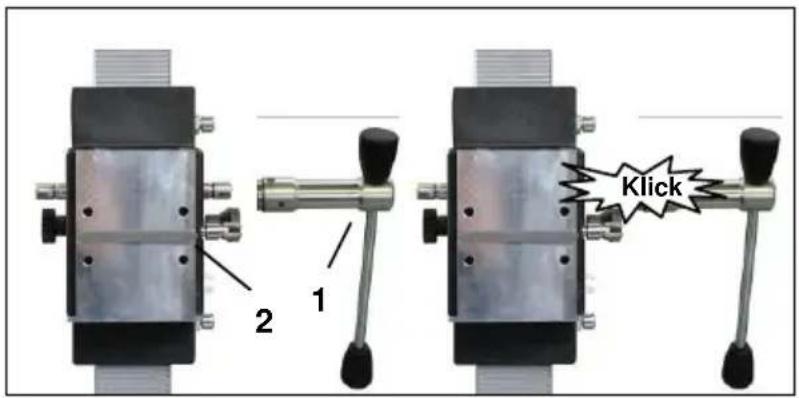

Mounting the turnstile

■ Mount the turnstile (1) on the right or left side of the carriage (2) depending on the work to be performed.
- Check whether the turnstile (1) is fixed tightly.

2 1 Klick

Fastening of the Drill Rig

Fastening by means of dowels in concrete

C D B A

For brickwork, Rawl-Dowels must be used.

• Mark the position of the drill holes for the fastening on the surface to be drilled.
• Drill a hole (∅ 15) 50 mm deep (A), into which the dowel M12 (B) is to be placed; insert and secure the dowel with the doweling tool (C).

F E D

• Screw the quick action clamping screw (D) into the dowel.
• Install the drill rig.
• Fix the washer (E) and finally the fastening nut (F) on the quick action clamping screw (D).
• Tighten the fastening nut (F) with a wrench SW 27.
  ■ Before and after tightening the nut (F), the 4 adjustable screws have to be adjusted in order to adapt the rig to the surface.

Do check whether the drill rig is installed safely and firmly.

In order to brace the drill rig by means of the quick action bracing unit, the distance to the opposite wall must be between 1.7 ~m and 3 ~m .

H G

Position the drill rig. Position the quick action bracing unit as close as possible behind the support on the base of the rig. Fix the drill rig by turning the crank (G) clockwise. Secure in position by means of the appropriate bolt (H).

Attention! It is important that the drill rig is firmly connected to the surface. If not fixed correctly, injuries to the operator or damages to the drilling unit may be caused. Uncontrolled movements during drilling will cause the drill bit to hit the surface to be drilled which may lead to a chipping of the segments. The drill bit might also tilt in the bore hole which consequently will damage it.

Fixing the Core Drill Motor

Caution! When mounting the machine, risk of squashing. Wear protective gloves!

Setting up the mounting plate

Close-up of a mechanical device with black and silver components, no visible text or symbols

Move the machine holder upwards until it locks in the top position.

Use the turnstile to open the locking device of the mounting plate.

Remove it and connect it to the core drill motor as described subsequently.

Never change the speed width the motor is running 1

The tool is supplied with a mounting plate, a 10 mm fitting key and a 4 Allen screws M8x20. The mounting plate is put on the drill motor with the fitting key and fixed by means of the 4 screws.

Pay attention to the mounting direction.

Insert the core drill with the attached mounting plate into the drill rig and lock it with the turnstile (see picture above).

For the operation of the core drill, its operating instructions and safety advices have to be strictly observed!

Operations

In order to operate the tool safely, please observe the following notes:

Details of the work area

• Keep the work area free of everything which could obstruct operations.
  ■ Provide for adequate illumination of the work area.
• Adhere to the regulations concerning the power connection.
• Lay the power cable in such a way that any damage by the drill can be avoided.
  ■ Make sure to always keep the work area in view and to be able to reach all necessary operating elements and safety installations.
• Keep other persons away from your work area in order to avoid accidents.

Space requirements for operating and maintenance

Whenever possible, keep a free space for operating and maintenance of about 2 m around the drill position, so that you can work safely and have immediate access in case of a failure.

Drilling

Inclined drilling

Close-up of a mechanical component with mounting holes and a bracket, showing no visible text or symbols.

Remove the bolt, which holds the column at a 90° angle, from the foot plate.

Loosen both Allen screws M10 with the enclosed wrench SW 8. Position the column in the appropriate angle and tighten both screws again.

After drilling put the column back in the 90° position and lock it with the screw.

Close-up of a mechanical lever with a pointer and scale markings (no readable text or symbols)

BST 300: Furthermore, loosen the locking lever on the bracing.

The scale on the toothed column makes adjusting the drilling angle easier.

At the beginning, drill very slowly, since the drill bit does only starts cutting with a fraction of the cut surface in the material. If you drill too fast or with too much pressure, the drill bit could get jammed.

In order to reach the max. drilling depth, you probably have to use an extension for the drill bit!

Demounting the Core Drill Unit

• Move the machine holder with the core drill upwards until it locks in the final top position.
  ■ Remove the drill bit.
  ■ Loosen the fastening nut (F) (see page 12)
  ■ While doing so, hold the drill rig firmly!
  ■ Remove the drill rig.
• Unscrew the quick action clamping screw (D) (see page 12).

Care and Maintenance

■ Always keep the drill rig clean, especially the column with the toothing and the 4 sliding pieces in the machine holder.
- In order to allow the free movement of the pinion shaft, it should be slightly lubricated.

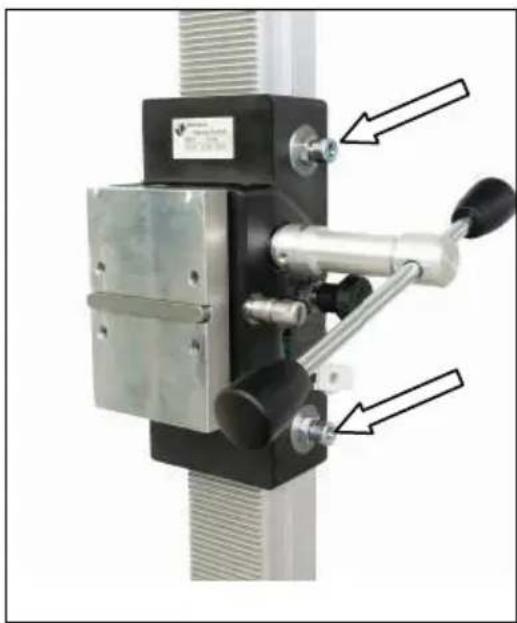

- In order to achieve a good performance of the drill rig, the 4 sliding pieces in the machine holder have to move along the column without slackness. Attention:
■ After every tenth drilling you should check if the sliding pieces have got loose-fitting due to drilling vibration.
- If the position should have changed, it can be readjusted as follows:

Mechanical testing device with labeled components and directional arrows (no readable text or symbols)

■ Loosen the counter nut on the Allen screw by means of an jaw wrench SW17
- Adjust the Allen screws and the position of the thrust piece to the column by means of a hex head wrench.
- Tighten the counter nut again and check whether the carriage moves easily on the column.

Warranty

According to our general terms of delivery for business dealings, suppliers have to provide to companies a warranty period of 12 months for redhibitory defects (to be documented by invoice or delivery note).

Damages due to natural wear, overstressing or improper handling are excluded from this warranty.

Damages due to material defects or production faults shall be eliminated free of charge by either repair or replacement.

Complaints will be accepted only if the tool is returned in non-dismantled condition to the manufacturer or an authorized Eibenstock service centre.

It is necessary that the machine (f. e. EBM 250/2 RP) used in this drill rig comply with the requirements which are described in the specifications of the drill rig (f. e. drilling diameter, fixture of the motor).

We declare that this unit has been designed in compliance with 2006/42/EC. This unit must not be put into service until it was established that the Power Tool to be connected to this unit is in compliance with 2006/42/EC (identified by the CE-marking on the Power Tool).

6.77

Warning symbols including warning triangle, lightning bolt, steam heating sign, hand holding contact, and broken iron with sparks

Attention: Voltage dangereux

Attention: Surface chaude

Circular icons representing various safety and compliance symbols including headphones, sunglasses, gloves, boots, and a power button.

Close-up of a mechanical device with black and silver components, no visible text or symbols

Never change the speed within the motor to running 10

Mechanical assembly diagram showing a bracket with mounting holes and a tool, no visible text or symbols

Close-up of a mechanical lever with a scale and arrow indicator (no text or symbols)

Mechanical device with labeled components and directional arrows (no readable text or symbols)

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Warning symbols including exclamation, lightning bolt, steam heating, hand holding contact, and broken hand with warning sign

Five circular icons representing different workplace safety symbols: head, sunglasses, hat, hand, and boot (no text or labels)

Technical Characteristics

Diamant Boorinstallatie BST 250, BST 300

Warning symbols including exclamation, hand gesture, and hand gesture with warning triangle

Close-up of a mechanical testing device with adjustable lever and metal components (no visible text or symbols)

Fiberglass the power of the fiberglass is in the power of the fiberglass.

Mechanical assembly diagram showing a bracket with bolts and mounting points (no text or symbols visible)

Close-up of a mechanical clamp securing a vertical pole, with an arrow pointing to the handle (no text or symbols visible)

Mechanical device with three arrows pointing to a central component (no visible text or symbols)
