USER MANUAL FWB17CAFN6V3 DAIKIN

Installation, use and maintenance manual Medium static pressure ducted fan coil units 2 - 8 kW

*=，0,1,2,3,...9.A.B.C....Z

01 Note as set out in A>and judge positively by B> 06 Note# come delinato in A> e.iudicato positivamente

04 Benen 2003 1968-1971 (p) 105 (p) 105 (p) 105 (p) 105 (p) 105 (p) 105 (p) 105 (p) 105 (p) 105 (p)

05 Noita la coma se estendite o yalidad to bemark. Sorn aHrrn 18 ag postiv valutne, at hinnidou in t Bertifkali C

Cerlilcated 07

01 Daikin Europe N.V. is authorised to complete the Technical Construction File 07 H Daikin Europe N.V. (2014)

02 Daikin Europe N.V. is authorised to compile the Dissector of Construction Technique. 03* Kaunaske Daikin Europe Ltd.

04 Daikn Europe N.V. ergelobod im Finanzkennzahlen/Lebenscudern/Anlagen/Verfahren 16thDaikn Europe N.V. is an established company in the field of information technology and software development.

V 1

01** Daikir Europe N.V. is authorized to compile the Technica Construction File.		07** H Daikin Europe N.V. iovia tucunomcromy v coioura ray Topokko coroacurk.		13** Daikin Europe N.V. o pooblaen zu sestve cotale k tehnino mapco.
02** Daikir Europe N.V. hat be Berechtung de Technica Construction File.		08** A Daikin Europe N.V. est autorisca a complar 4 coumertecnica fabrio.		14** Spelistrat Daikin Europe N.V. ma covirolne ke kompletis technik konstruktur.
03** Daikir Europe N.V. ist autorisca a complar 4 coumertecnica fabrio.		09** Kompanh Dasikine Europe N.V. yomkowka coe crataa, konmertes koreakpocnyrau.		15** Daikin Europe N.V. je coviroln z raizdu ata tehnnoe konstruktur.
04** Daikir Europe N.V. is boovod im Hat Technica Construction Sarmas to stilen.		10** Daikin Europe N.V. ar berndigde atamansala cien lektnika konstuktionalsien.		16** A Daikin Europe N.V. jagoslui a muzaki konstuktudis cezalldistatsa.
05** Daikir Europe N.V. ia uorubilado a complar 4 Chioconstruion Tectica.		11** Daikin Europe N.V. ar berndigde atamansala cien lektnika konstuktionalsien.		17** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
06** Daikir Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		12** Daikin Europe N.V. ar lalitei il k complen de Teisev strukturiersien.		18** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
07** Daikir Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		13** Daikin Europe N.V. ar lalitei il k complen de Teisev strukturiersien.		19** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
08** Daikir Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		14** Daikin Europe N.V. ar lalitei il k complen de Teisev strukturiersien.		20** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
09** Daikir Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		15** Daikin Europe N.V. ar lalitei il k complen de Teisev strukturiersien.		21** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
10** Daikir Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		16** Daikin Europe N.V. ar lalitei il k complen de Teisev strukturiersien.		22** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
11** Daikir Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		12** Daikin Europe N.V. ar lalitei il k complen de Teisev strukturiersien.		23** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
13** Daikir Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		14** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.		24** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
15** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		16** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.		25** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
17** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		18** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.		26** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
19** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		20** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.		27** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstuktionalsien.
19** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		20** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUKTIN.		28** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUKTIN.
20** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		21** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUKTIN.		29** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUKTIN.
20** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		20** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUKTIN.		30** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUKTIN.
20** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		21** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUK TIN.		22** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUK TIN.
22** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		23** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUK TIN.		24** Daikin Europe N.V. ia uorubilado TELV.
24** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		25** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUK TIN.		26** Daikin Europe N.V. ia uorubilado TELV.
26** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		27** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUK TIN.		28** Daikin Europe N.V. ia uorubilado TELV.
29** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		29** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUK TIN.		30** Daikin Europe N.V. ia uorubilado TELV.
30** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		31** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUK TIN.		32** Daikin Europe N.V. ia uorubilado TELV.
33** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		33** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUK TIN.		34** Daikin Europe N.V. ia uorubilado TELV.
35** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		36** Daikin Europe N.V. ia uorubilado a buzlarana cien lektnika konstUK TIN.		37** Daikin Europe N.V. ia uorubilado TELV.
38** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		39** Daikin Europe N.V. ia uorubilado TELV.		40** Daikin Europe N.V. ia uorubilado TELV.
40** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		41** Daikin Europe N.V. ia uorubilado TELV.		42** Daikin Europe N.V. ia uorubilado TELV.
43** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		43** Daikin Europe N.V. ia uorubilado TELV.		44** Daikin Europe N.V. ia uorubilado TELV.
45** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		46** Daikin Europe N.V. ia uorubilado TELV.		47** Daikin Europe N.V. ia uorubilado TELV.
48** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		49** Daikin Europe N.V. ia uorubilado TELV.		50** Daikin Europe N.V. ia uorubilado TELV.
50** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		51** Daikin Europe N.V. ia uorubilado TELV.		52** Daikin Europe N.V. ia uorubilado TELV.
53** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		54** Daikin Europe N.V. ia uorubilado TELV.		55** Daikin Europe N.V. ia uorubilado TELV.
56** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		57** Daikin Europe N.V. ia uorubilado TELV.		58** Daikin Europe N.V. ia uorubilado TELV.
59** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		60** Daikin Europe N.V. ia uorubilado TELV.		61** Daikin Europe N.V. ia uorubilado TELV.
61** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		62** Daikin Europe N.V. ia uorubilado TELV.		63** Daikin Europe N.V. ia uorubilado TELV.
64** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		65** Daikin Europe N.V. ia uorubilado TELV.		66** Daikin Europe N.V. ia uorubilado TELV.
67** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		68** Daikin Europe N.V. ia uorubilado TELV.		69** Daikin Europe N.V. ia uorubilado TELV.
70** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		71** Daikin Europe N.V. ia uorubilado TELV.		72** Daikin Europe N.V. ia uorubilado TELV.
73** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		74** Daikin Europe N.V. ia uorubilado TELV.		75** Daikin Europe N.V. ia uorubilado TELV.
76** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		77** Daikin Europe N.V. ia uorubilado TELV.		78** Daikin Europe N.V. ia uorubilado TELV.
79** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		80** Daikin Europe N.V. ia uorubilado TELV.		81** Daikin Europe N.V. ia uorubilado TELV.
82** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		83** Daikin Europe N.V. ia uorubilado TELV.		84** Daikin Europe N.V. ia uorubilado TELV.
85** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		86** Daikin Europe N.V. ia uorubilado TELV.		87** Daikin Europe N.V. ia uorubilado TELV.
88** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		89** Daikin Europe N.V. ia uorubilado TELV.		90** Daikin Europe N.V. ia uorubilado TELV.
91** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		92** Daikin Europe N.V. ia uorubilado TELV.		93** Daikin Europe N.V. ia uorubilado TELV.
93** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		94** Daikin Europe N.V. ia uorubilado TELV.		95** Daikin Europe N.V. ia uorubilado TELV.
96** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		97** Daikin Europe N.V. ia uorubilado TELV.		98** Daikin Europe N.V. ia uorubilado TELV.
98** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		99** Daikin Europe N.V. ia uorubilado TELV.		99** Daikin Europe N.V. ia uorubilado TELV.
100** Daikin Europe N.V. ia uorubilado a redigei Fie Teicbdo D Costrutione.		101** Daikin Europe N.V. ia uorubilado TELV.		102** Daikin Europe N.V. ia uorubilado TELV.

DAIKIN EUROPE N.V.

Ostend, 3rd of January 2022

Ecodesign: Directive 2009/125/EC Commission regulations: Airconditioning (EU) 2016/2281
and comply with the following standards(s) or other normale documents: 1. in case of a l'airborne particulate matter (or of aerodynamic documents) (jys): 2. in case of a dust cloud (or of aerodynamic documents) (jys): 3. in case of a dust cloud (or of aerodynamic documents) (jys): 4. in case of a dust cloud (or of aerodynamic documents) (jys): 5. in case of a dust cloud (or of aerodynamic documents) (jys): 6. in case of a dust cloud (or of aerodynamic documents) (jys): 7. in case of a dust cloud (or of aerodynamic documents) (jys): 8. in case of a dust cloud (or of aerodynamic documents) (jys): 9. in case of a dust cloud (or of aerodynamic documents) (jys): 10. in case of a dust cloud (or of aerodynamic documents) (jys): 11. in case of a dust cloud (or of aerodynamic documents) (jys): 12. in case of a dust cloud (or of aerodynamic documents) (jys): 13. in case of a dust cloud (or of aerodynamic documents) (jys): 14. in case of a dust cloud (or of aerodynamic documents) (jys): 15. in case of a dust cloud (or of aerodynamic documents) (jys): 16. in case of a dust cloud (or of aerodynamic documents) (jys): 17. in case of a dust cloud (or of aerodynamic documents) (jys): 18. in case of a dust cloud (or of aerodynamic documents) (jys): 19. in case of a dust cloud (or of aerodynamic documents) (jys): 20. in case of a dust cloud (or of aerodynamic documents) (jys): 21. in case of a dust cloud (or of aerodynamic documents) (jys): 22. in case of a dust cloud (or of aerodynamic documents) (jys): 23. in case of a dust cloud (or of aerodynamic documents) (jys): 24. in case of a dust cloud (or of aerodynamic documents) (jys): 25. in case of a dust cloud (or of aerodynamic documents) (jys): 26. in case of a dust cloud (or of aerodynamic documents) (jys): 27. in case of a dust cloud (or of aerodynamic documents) (jys): 28. in case of a dust cloud (or of aerodynamic documents) (jys): 29. in case of a dust cloud (or of aerodynamic documents) (jys): 30. in case of a dust cloud (or of aerodynamic documents) (jys): 31. in case of a dust cloud (or of aerodynamic documents) (jys): 32. in case of a dust cloud (or of aerodynamic documents) (jys): 33. in case of a dust cloud (or of aerodynamic documents) (jys): 34. in case of a dust cloud (or of aerodynamic documents) (jys): 35. in case of a dust cloud (or of aerodynamic documents) (jys): 36. in case of a dust cloud (or of aerodynamic documents) (jys): 37. in case of a dust cloud (or of aerodynamic documents) (jys): 38. in case of a dust cloud (or of aerodynamic documents) (jys): 39. in case of a dust cloud (or of aerodynamic documents) (jys): 40. in case of a dust cloud (or of aerodynamic documents) (jys): 41. in case of a dust cloud (or of aerodynamic documents) (jys): 42. in case of a dust cloud (or of aerodynamic documents) (jys): 43. in case of a dust cloud (or of aerodynamic documents) (jys): 44. in case of a dust cloud (or of aerodynamic documents) (jys): 45. in case of a dust cloud (or of aerodynamic documents) (jys): 46. in case of a dust cloud (or of aerodynamic documents) (jys): 47. in case of a dust cloud (or of aerodynamic documents) (jys): 48. in case of a dust cloud (or of aerodynamic documents) (jys): 49. in case of a dust cloud (or of aerodynamic documents) (jys): 50. in case of a dust cloud (or of aerodynamic documents) (jys): 51. in case of a dust cloud (or of aerodynamic documents) (jys): 52. in case of a dust cloud (or of aerodynamic documents) (jys): 53. in case of a dust cloud (or of aerodynamic documents) (jys): 54. in case of a dust cloud (or of aerodynamic documents) (jys): 55. in case of a dust cloud (or of aerodynamic documents) (jys): 56. in case of a dust cloud (or of aerodynamic documents) (jys): 57. in case of a dust cloud (or of aerodynamic documents) (jys): 58. in case of a dust cloud (or of aerodynamic documents) (jys): 59. in case of a dust cloud (or of aerodynamic documents) (jys): 60. in case of a dust cloud (or of aerodynamic documents) (jys): 61. in case of a dust cloud (or of aerodynamic documents) (jys): 62. in case of a dust cloud (or of aerodynamic documents) (jys): 63. in case of a dust cloud (or of aerodynamic documents) (jys): 64. in case of a dust cloud (or of aerodynamic documents) (jys): 65. in case of a dust cloud (or of aerodynamic documents) (jys): 66. in case of a dust cloud (or of aerodynamic documents) (jys): 67. in case of a dust cloud (or of aerodynamic documents) (jys): 68. in case of a dust cloud (or of aerodynamic documents) (jys): 69. in case of a dust cloud (or of aerodynamic documents) (jys): 70. in case of a dust cloud (or of aerodynamic documents) (jys): 71. in case of a dust cloud (or of aerodynamic documents) (jys): 72. in case of a dust cloud (or of aerodynamic documents) (jys): 73. in case of a dust cloud (or of aerodynamic documents) (jys): 74. in case of a dust cloud (or of aerodynamic documents) (jys): 75. in case of a dust cloud (or of aerodynamic documents) (jys): 76. in case of a dust cloud (or of aerodynamic documents) (jys): 77. in case of a dust cloud (or of aerodynamic documents) (jys): 78. in case of a dust cloud (or of aerodynamic documents) (jys): 79. in case of a dust cloud (or of aerodynamic documents) (jys): 80. in case of a dust cloud (or of aerodynamic documents) (jys): 81. in case of a dust cloud (or of aerodynamic documents) (jys): 82. in case of a dust cloud (or of aerodynamic documents) (jys): 83. in case of a dust cloud (or of aerodynamic documents) (jys): 84. in case of a dust cloud (or of aerodynamic documents) (jys): 85. in case of a dust cloud (or of aerodynamic documents) (jys): 86. in case of a dust cloud (or of aerodynamic documents) (jys): 87. in case of a dust cloud (or of aerodynamic documents) (jys): 88. in case of a dust cloud (or of aerodynamic documents) (jys): 89. in case of a dust cloud (or of aerodynamic documents) (jys): 90. in case of a dust cloud (or of aerodynamic documents) (jys): 91. in case of a dust cloud (or of aerodynamic documents) (jys): 92. in case of a dust cloud (or of aerodynamic documents) (jys): 93. in case of a dust cloud (or of aerodynamic documents) (jys): 94. in case of a dust cloud (or of aerodynamic documents) (jys): 95. in case of a dust cloud (or of aerodynamic documents) (jys): 96. in case of a dust cloud (or of aerodynamic documents) (jys): 97. in case of a dust cloud (or of aerodynamic documents) (jys): 98. in case of a dust cloud (or of aerodynamic documents) (jys): 99. in case of a dust cloud (or of aerodynamic documents) (jys): 100. in case of a dust cloud (or of aerodynamic documents) (jys):
RoHS Declaration of conformity RoHS-Knowledge Sheet Declaration of conformity RoHS-Discipline of conformity RoHS-Compliance Statement Declaration of conformity RoHS-Conformity Statement RoHS-Agreement of conformity RoHS-Guidance Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoSS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement
RoHS (2011/65/EU)
RoHS Declaration of conformity RoHS-Knowledge Sheet Declaration of conformity RoHS-Discipline of conformity RoHS-Conformity Statement RoHS-Agreement of conformity RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Discipline of conformity RoHS-Knowledge Statement RoHS-Conformity Statement RoHS-Conformity Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHBK Declaration of conformity RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement ROHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statement RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RoHS-Knowledge Statements RfCA Restriction of Certain Hazardous Substances in electrical and electronic equipment

1 BEFORE STARTING THE INSTALLATION PROCEDURE p.6
2 INTENDED USE p.6 INSTALLATION SITE p.6
3 UNIT DESCRIPTION. p.6
3.1 FWB-C: PERFORMANCE AND COMPACTNESS IN RECEIVED CEILING INSTALLATIONS .p.6
3.2 MAIN COMPONENTS.. p.7 ACCESSORIES. . p.7 FACTORY MOUNTED KIT VALVES .p.8
4 DIMENSIONS p.9
5 INSTALLATION. p.9 INSTALLATION REQUIREMENTS. p.9
5.1 ASSEMBLY OF UNITS p. 10
6 CHECKS BEFORE STARTUP. p.10
7 USE p.10
8 MAINTENANCE p.11 CLEANING THE AIR FILTER. p.11 CLEANING THE HEAT EXCHANGER p.11
9 TROUBLESHOOTING p.11
10 RATED TECHNICAL DATA p. 12
11 WEIGHTS. p. 13
12 FIGURES. p.86

OPERATING LIMITS

Thermal carrier fluid: water

Water temperature: 5^ C ÷ 90^ C

Air temperature: -20^ ÷ 40^

Control voltage: 230 V

Maximum operating pressure: 16 bar

Limit of room air relative humidity: RH < 85% not

condensing

1 BEFORE STARTING THE INSTALLATION PROCEDURE

Carefully read this manual.

Installation and maintenance should be carried out by technical personnel qualified for this type of machine, in compliance with current safety regulations.

When receiving the unit please check its state verifying if any

damage occurred during the transport.

For installation and use of accessories, please refer to the relative technical sheets.

Identify the model of the FWB-C fan coil following the indications on the packing container.

SAFETY SYMBOLS

Carefully read this manual.

Warning

Use personal protective equipment

USE SUITABLE PPE (GLOVES FOR REFRIGERANT, PROTEC-TIVE GOGGLE)

WARNING: Electrical and electronic products may not be mixed with unsorted household waste. Do NOT try to dismantle the system yourself: the dismantling of the system, treatment of the refrigerant, of oil and of other parts must be

done by an authorized installer and must comply with applicable legislation. Units must be treated at a specialized treatment facility for reuse, recycling and recovery. By ensuring this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health. For more information, contact your installer or local authority.

WARNING: the unit hasn't dangerous components according to the classification of Regulation 1357/2014.

2 INTENDED USE

Daikin will not accept any liability for damage or injury caused as a result of installation by non-qualified personnel; improper use or use in conditions not allowed by the manufacturer; failure to perform the maintenance prescribed in this manual; use of spare

parts other than original factory parts.

Equipment designed for ambient air conditioning and intended for use in civil comfort applications.

INSTALLATION SITE

When choosing an installation site, you should observe the following rules:

The air conditioning unit should not be placed immediately under a socket
- Do not install the unit in places where inflammable gases or powders are present
- Do not expose the unit to sprays of water; do not install the

unit in laundry room

Install the fan coil on walls or ceilings able to withstand its weight. Keep a clear space all around the unit to assure the proper functioning and accessibility for maintenance
- Store the unit in its packing container until you are ready to install it to prevent dust from infiltrating inside it.

3 UNIT DESCRIPTION

FWB-C: PERFORMANCE AND COMPACTNESS IN RECEIVED CEILING INSTALLATIONS

The ducted unit FWB-C was designed for conditioning environments where it is required the installation of units in medium head performance and reduced overall dimensions.

The range covers an air flow rate from 300 to 1200m^3 /h distributed over 8 models. The heat exchanger allows the use of FwB-C in the most different conditions.

The bearing structure in fact accommodates a heat exchanger of 3 or 4 rows to which it is possible to combine an additional heat exchanger of 1 or 2 rows for exceptional performance even at low temperature differentials.

Heat exchanger can be optimized for centralized applications such as district cooling. FWB-C was designed to ceiling horizontal installation.

The main condensate drip tray is situated inside the structure of the unit and is at a positive pressure relative to the drain outlet to facilitate condensate drainage.

A wide range of wall-mounted controllers is available, including microprocessor controllers with display.

Electric heating elements complete with safety devices are available to integrate the hydronic operation.

MAIN COMPONENTS

Structure

Realized in galvanized steel sheet, thermally and acoustically insulated by self-extinguishing panels class 1.

Height reduced to facilitate installation in a horizontal position, in false ceilings.

The bearing structure contains the tank for collecting and discharging condensate.

Heat exchanger

High efficiency standard with 3 rows, but also available with 4 rows upon request, heat exchangers are made of copper tube and alluminium fins secured to the tubes by mechanical expansion. It is fitted with brass manifold and an air valve. The heat exchanger, usually with left hand water connections can be turned by 180^ . Available upon request high efficiency heat exchanger optimized for district cooling application.

Fans

Double suction centrifugal fans made with ABS or aluminium, with statically and dynamically balanced forward-curving blades,

directly coupled to the electric motor.

Electric motor

Single-phase asynchronous multi-speed electric motor with permanently connected capacitor and thermal protector, mounted on vibration-damping supports.

Air filter

Washable air filter, made of acrylic fibre, filtration class G3, applied on the air intake; may be pulled out from below.

Air inlet

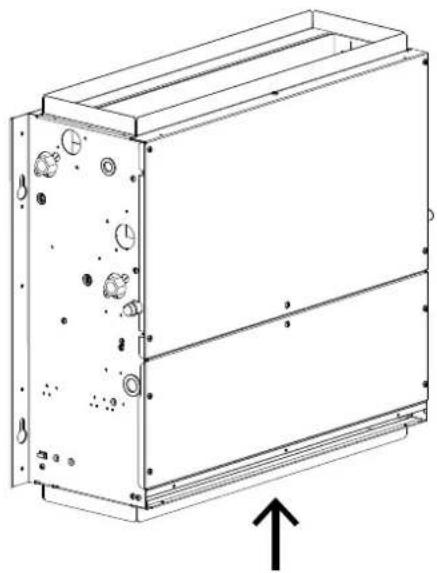

Air intake from the front or bottom of the unit, according to system requirements.

Installation example

The bearing structure allows to combine a large range of accessories in suction and air delivery in order to obtain the optimized unit configuration.

ACCESSIONS

Electronic microprocessor control panels with display
	FWTOUCH	User interface with display in Dibond material available in: FWTOUCHB-Black FWTOUCHW-White FWTOUCHG-Grey
	FWECSAP	Circuit board for FWECS control
	FWECSAC	User interface with display for FWECS controller
	FWEC1A	FWEC1A Microprocessor control with display
	FWEC2A	FWEC2A Microprocessor control with display
	FWEC3A	FWEC3A Microprocessor control with display
	FWECKA	FWEC*A control spacer for wall mounting
	FWEC2T	Electronic controller FWE2T for 2 pipes system, FWE4T for 4 pipes system
	FWEC4T
	FWHSKA	Humidity sensor for FWE2A/3A, FWECS
	FWTSKA	Water sensor for FWE1A/2A/3A and FWECS controllers
Electromechanical control
	YFSTA6 Fan stop thermostat
Power interface and regulating louver controllers
	EPIMSB6	Power interface for connecting in parallel up to 4 fun coil units to the one controller
Electrical heating elements
	EH	Heating element with installation kit, relay box and safety devices
Accessories
	PLT**N	Plenum can be installed either on the air intake or air delivery of the unit. PLT**C is insulated plenum
	PLI**C	PLT**N isn't insulated plenum

	CDRP1A Condensate drainage pump kit
	EDPD Auxiliary water drip tray
Additional coil
	EAHD**A Additional heat exchanger
Filter
	FG4T*AA Air filter G4
Valves
	2-way valves, ON/OFF or MODULATING actuator, 230 V or 24 V power supply, hydraulic kit, for additional heat exchanger
	2-way valve, ON/OFF or MODULATING actuator, 230 V or 24 V power supply, hydraulic kit, for main heat exchanger
	3-way valves, ON/OFF or MODULATING actuator, 230 V or 24 V power supply, hydraulic kit, for additional heat exchanger
	3-way valves, ON/OFF or MODULATING actuator, 230 V or 24 V power supply, hydraulic kit, for main heat exchanger
	2-way valves pressure independent, ON/OFF actuator, 230 V power supply, hydraulic kit, for main and additional heat exchanger

FACTORY MOUNTED KIT VALVES

The kit valves are available in different configurations:

ON/OFF or MODULATING motor driven 2-way valve (table 1 page 89)
ON/OFF or MODULATING motor driven 3-way valve (table 2 page 89)
- Pressure independent ON/OFF motor driven 2-way valve (refer to Pressure independent manual FC66006204)

connected to the control panel for FwB-C fan coils, control the room temperature by stopping the water flow through the heat exchanger.

The kit includes:

valve

• electrothermal actuator

• plumbing kits for installing the valve on the heat exchanger.

For Kv and hydraulic characteristics of 2, 3 way valves refer to tables 3-4-5 page 90.

For other information refer to specific technical manual.

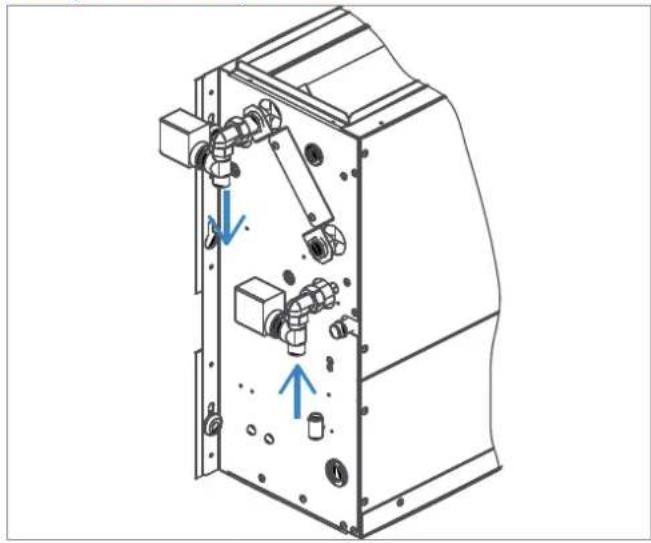

Factory mounted 3 way kit valve

Factory mounted 2 way kit valve

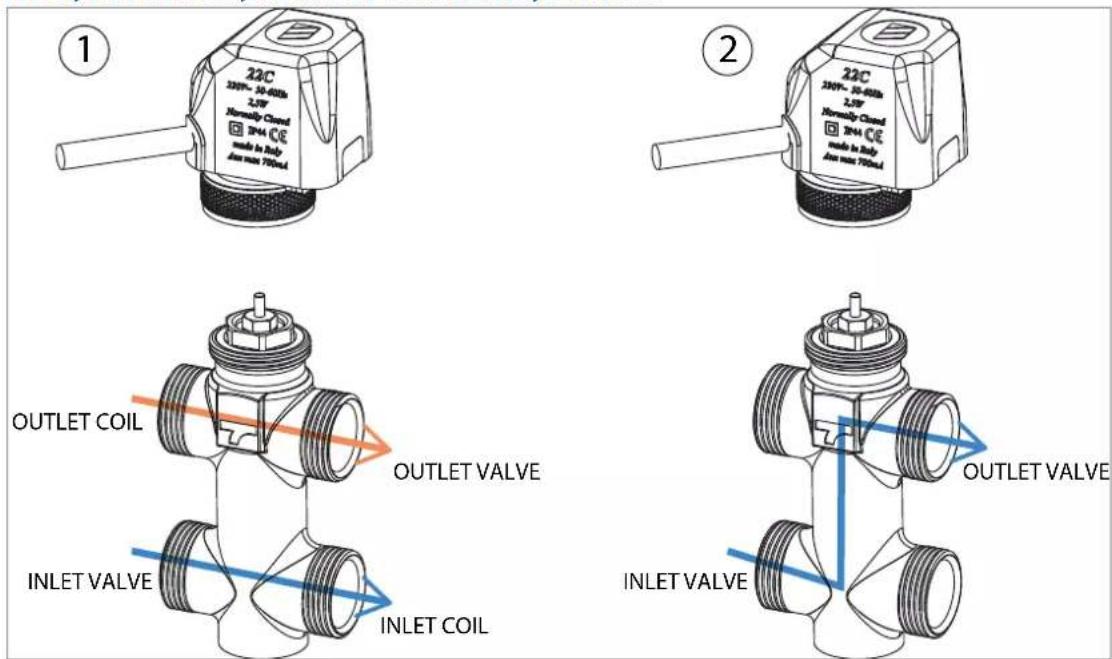

Factory mounted 3 way kit valve: 1) On mode; 2) By-Pass mode

4 DIMENSIONS

At p. 86-87 FWB-C dimensional data and position of plumbing connections are shown.

5 INSTALLATION

WARNING: unit installation and start-up must be entrusted to competent personnel and performed in a workmanlike manner, in accordance with current regulations.
WARNING Install the ducted unit, the line switch (IL) and/or all remote controls in a position out of the reach of persons who are in the bathroom or in the shower.
IMPORTANT: It is advisable to install any accessories on the standard unit prior to positioning the latter, making reference to the technical sheets. The air intake and outlet have a rectangular cross-section, with pre-cut holes for fastening the available accessories upon request.

The heat exchanger connections can be switched over to the opposite side by carrying out the following steps (Heat exchanger changing water side connections- p. 88):

remove the upper closing panel.
remove the collecting condensate tray.
remove the heat exchanger module by taking out the fastening screws (2 per side).

turn the heat exchanger by 180^ (on the vertical axis) and screw it back into the unit again.

—reassemble the tray and the upper closing panel.

INSTALLATION REQUIREMENTS

Some rules to follow

Vent air from the exchanger while the pumps are off. For this purpose use the air vent valves situated next to the exchanger connections.
All ducts, especially the outlet ducts, must be insulated with anti-condensation material.
An inspection panel must be provided in proximity to the unit to enable maintenance and cleaning operations.
The unit must be installed on the basis of design and technical considerations, carrying out an aeraulic assessment and considering the BACK PRESSURE offered by the PIPING applied to the outlet to avoid the problem of failure to change speed: this responsibility cannot fall on the product but on the installation;
Install the unit with the appropriate inspection hatches for routine and special maintenance of the fan coils: for mechanical, electrical and hydraulic replacement;
Install the control panel on the wall; choose an accessible position from where functions may be easily set and which is suitable for taking temperature readings, where applicable. Avoid positions directly exposed to sunlight or direct currents of hot or cold air and make sure there are no obstacles which may preclude a correct temperature reading.

WARNING:

In normal operation, particularly with the fan at minimum speed and ambient air with high relative humidity, condensation may form on the air outlet and on some external parts of the unit.

To avoid such issues while always remaining within the operating limits envisaged for the unit, it is necessary to limit the inlet temperature of the water inside the heat exchanger. In particular, the difference between the air dew point (T_A,D_P) and the inlet water temperature (T_W) must NOT exceed 14 ^ C, according to the following relationship: TW > TA,DP - 14^

Example: in the case of ambient air at 25^ with 75% relative humidity, the dew point temperature is about 20^ and therefore the inlet temperature of the water in the battery must be greater then:

• 20 - 14 = 6^ in order to avoid condensation on a fanoil equipped with a valve.
• 20 - 12 = 8^ If the valve kit accessory can not be installed.

Fan coil with valve
		Air temperature dry bulb (°C)
		21 23 25 27	29 31 33
Relative humidity %	40 55 55 55 55
	50 55 55 56 8
	60 55 55 79 11
	70 55 68 9 11 13
	80 56 8 10 12 14 16
	90 68 10 12 14 16 18

Fan coil without valve
		Air temperature dry bulb (°C)
		21	23	25	27	29	31	33
Relative humidity %	40	66	66	66	66	66	66	66
	50	66	66	68	8	66	8	8
	60	66	67	9	11	13	13	13
	70	66	8	10	11	13	15	15
	80	68	10	12	12	16	18	18
	90	8	10	12	14	14	18	20

In the event the indoor unit is stopped for a prolonged period, with the fan stopped and circulation of cold water in the heat exchanger, condensation may also form on the unit's exterior. In this case it is advisable to install the 3-way (or 2-way) valve accessory in order to stop the flow of water in the coil when the fan is stopped.

During wintertime periods of shut down, drain water from the system, to prevent ice from forming. If anti-freeze solutions are used, check for their freezing point using the table below.

% Glycol by weight	Freezing temperature (℃)	Capacity adjustment	Pressure drop adjustment
0 0 1,00 1,00
10	-4	0,97 1,05
20	-10	0,92 1,10
30	-16	0,87 1,15
40	-24	0,82 1,20

Electrical connections

Make the electrical connections with the power supply disconnected, in accordance with current safety regulations.

All the wiring must be done by qualified personnel.

For each thermal ventilating unit provide a main circuit breaker (IL), with opening contacts separated by at least 3 mm and an adequate protection fuse (F).

Electrical intakes are shown on the rating labels on the units. During installation, strictly abide by the indications on the wiring diagram for the unit-control panel combination.

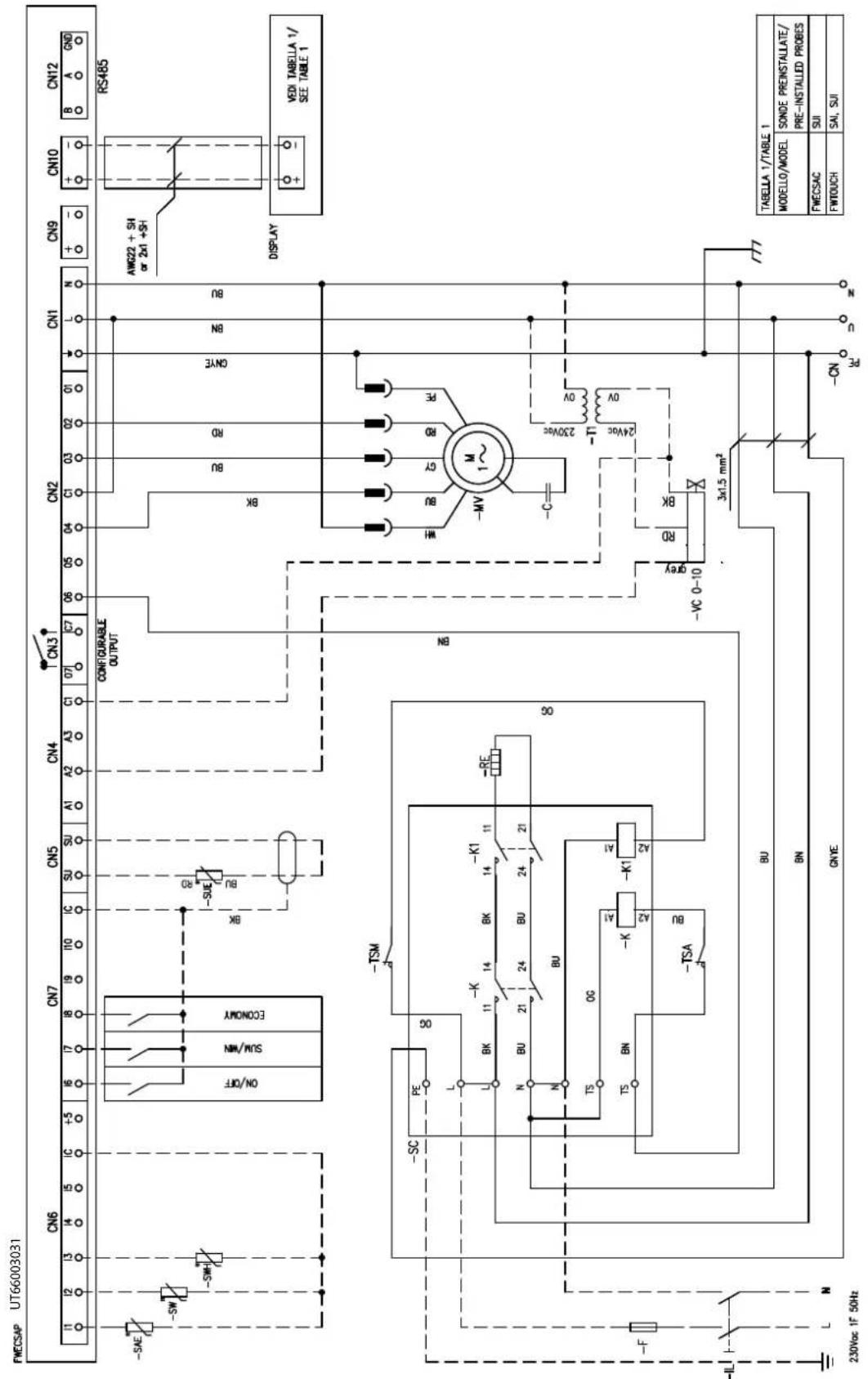

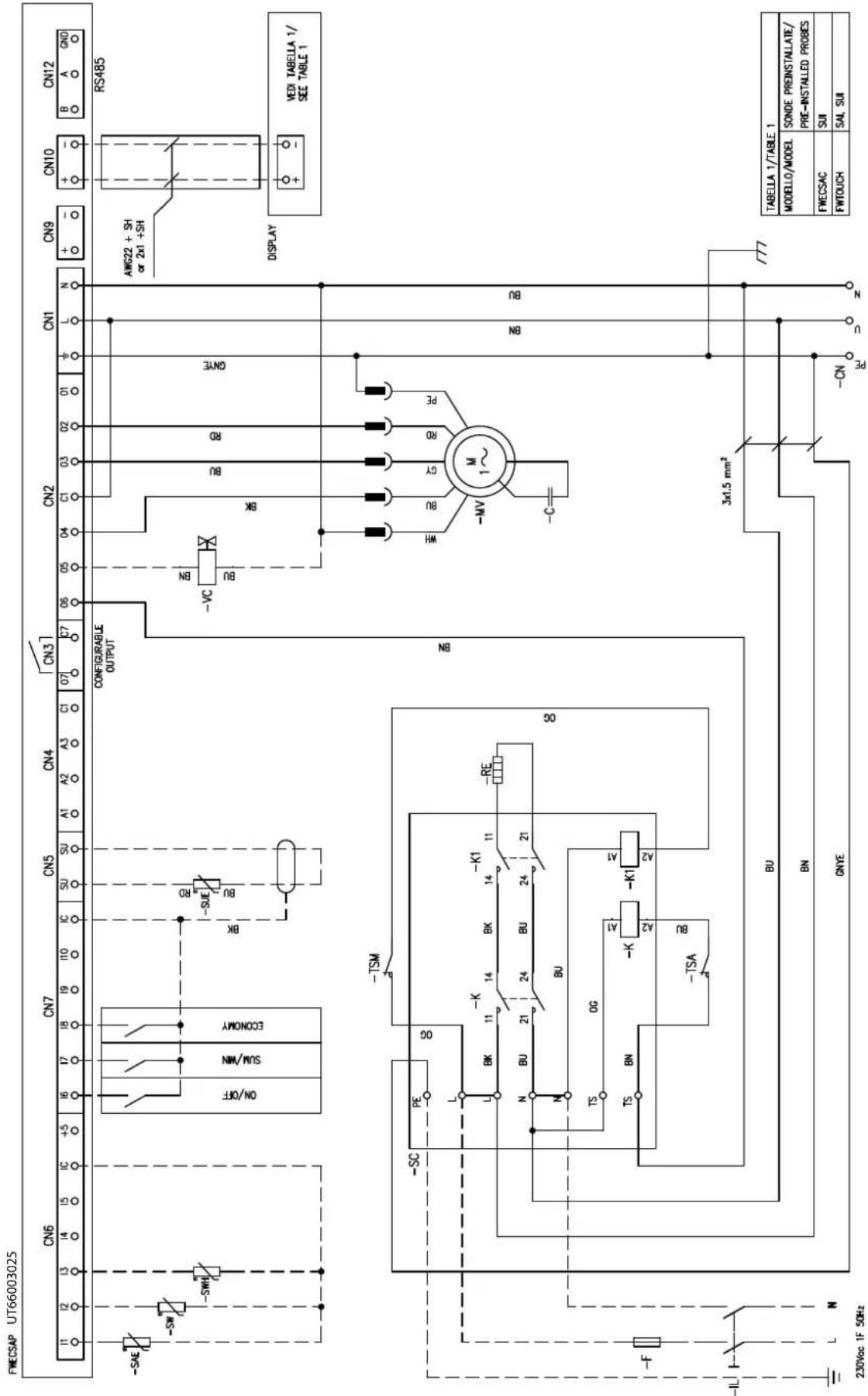

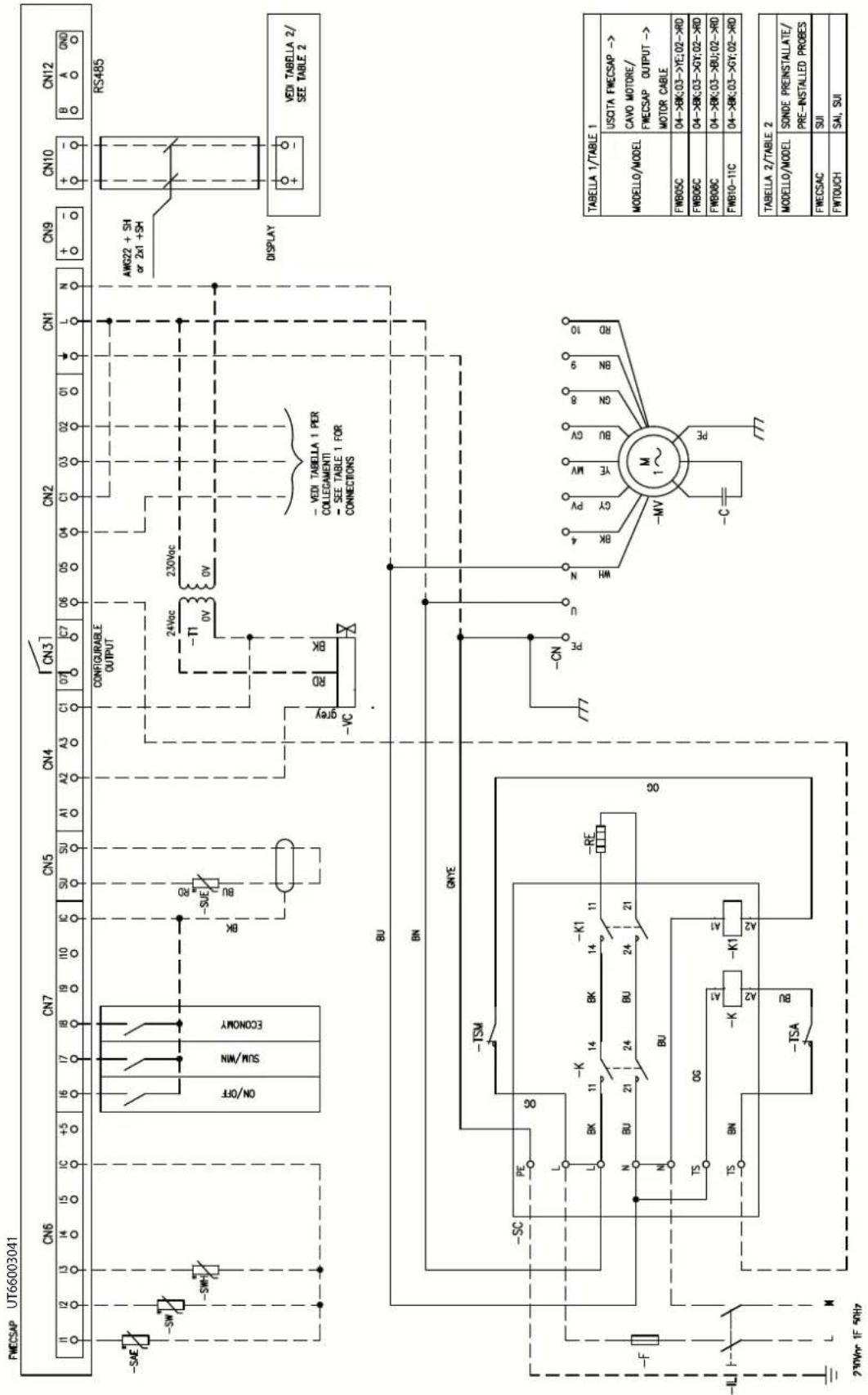

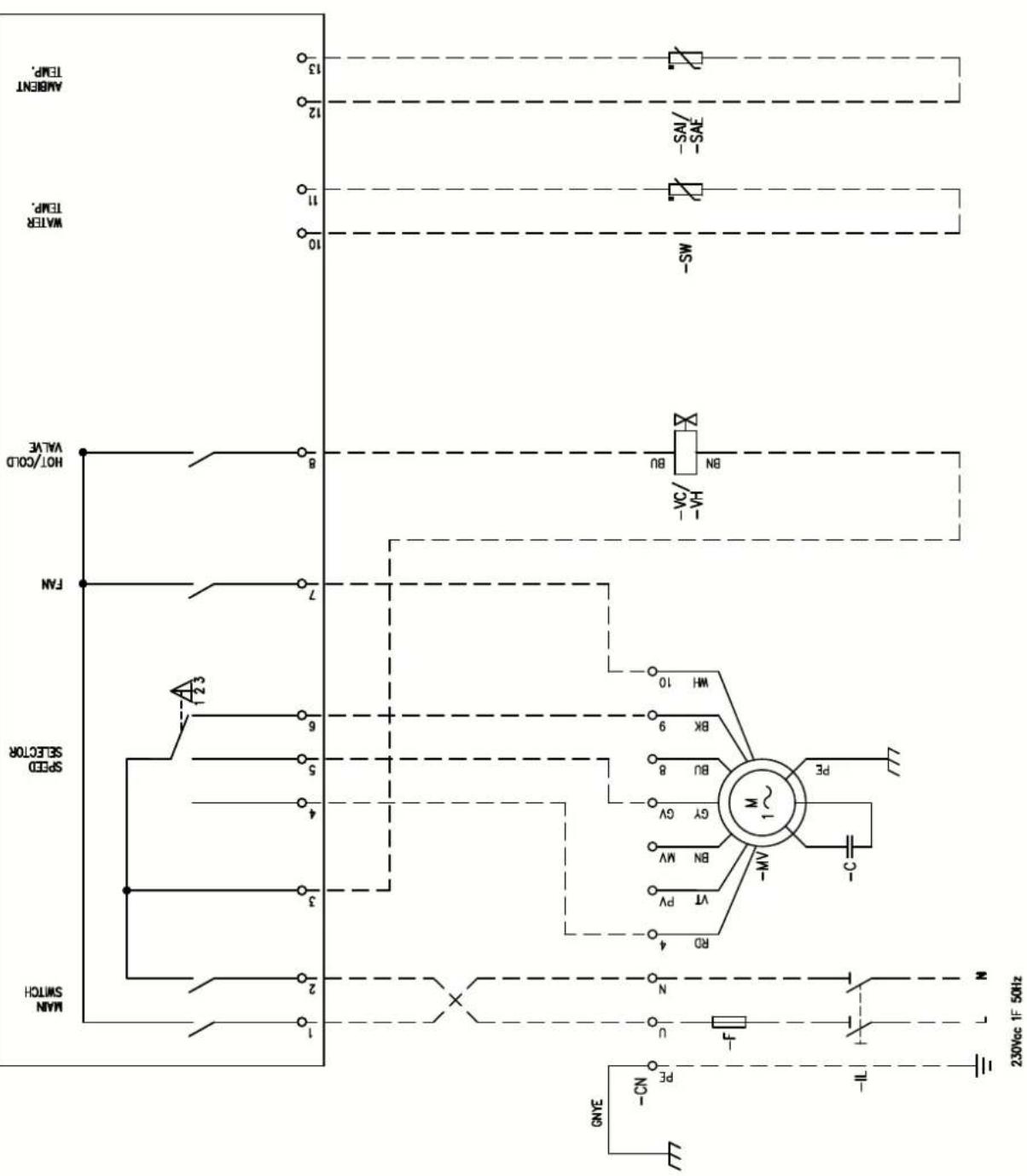

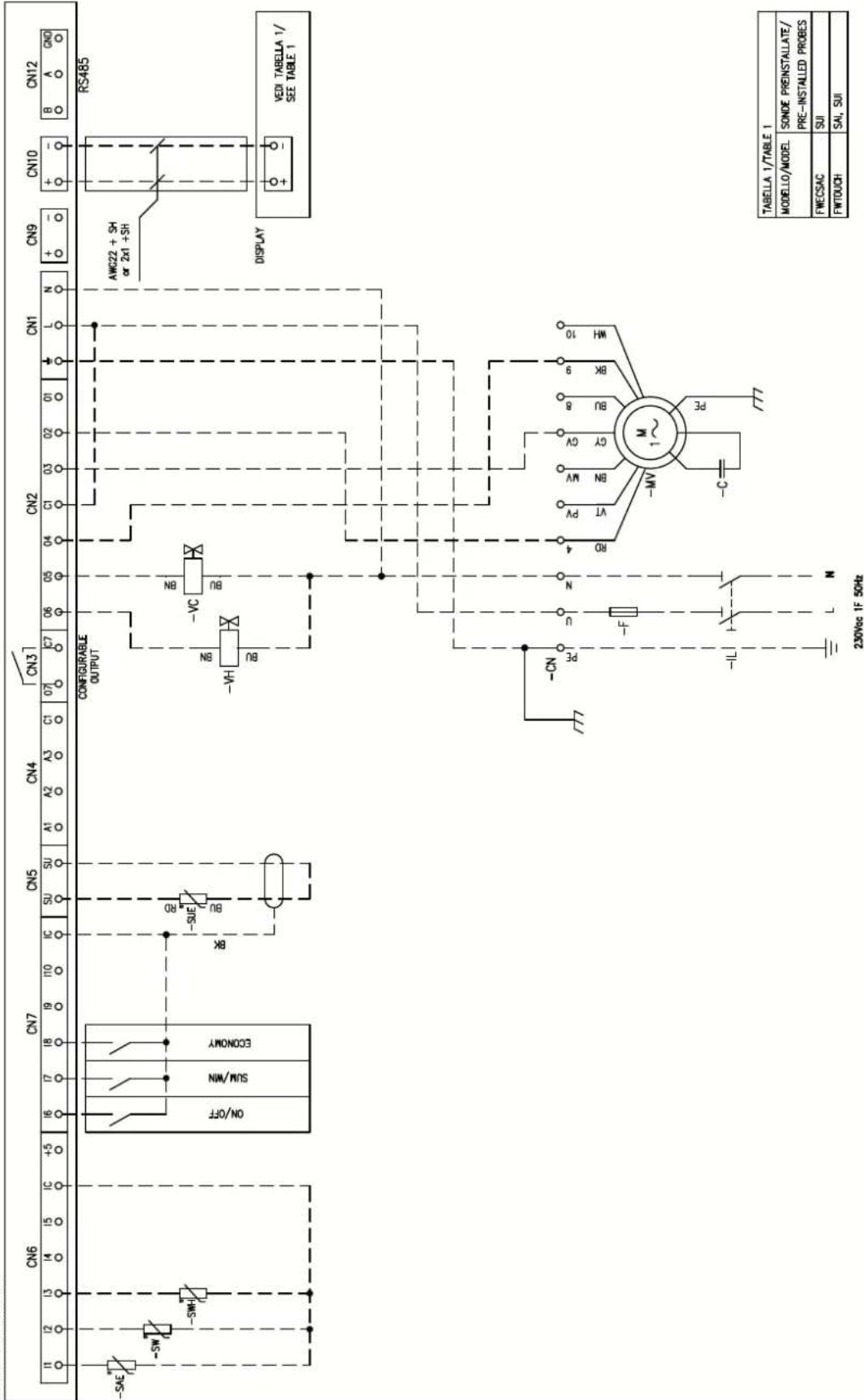

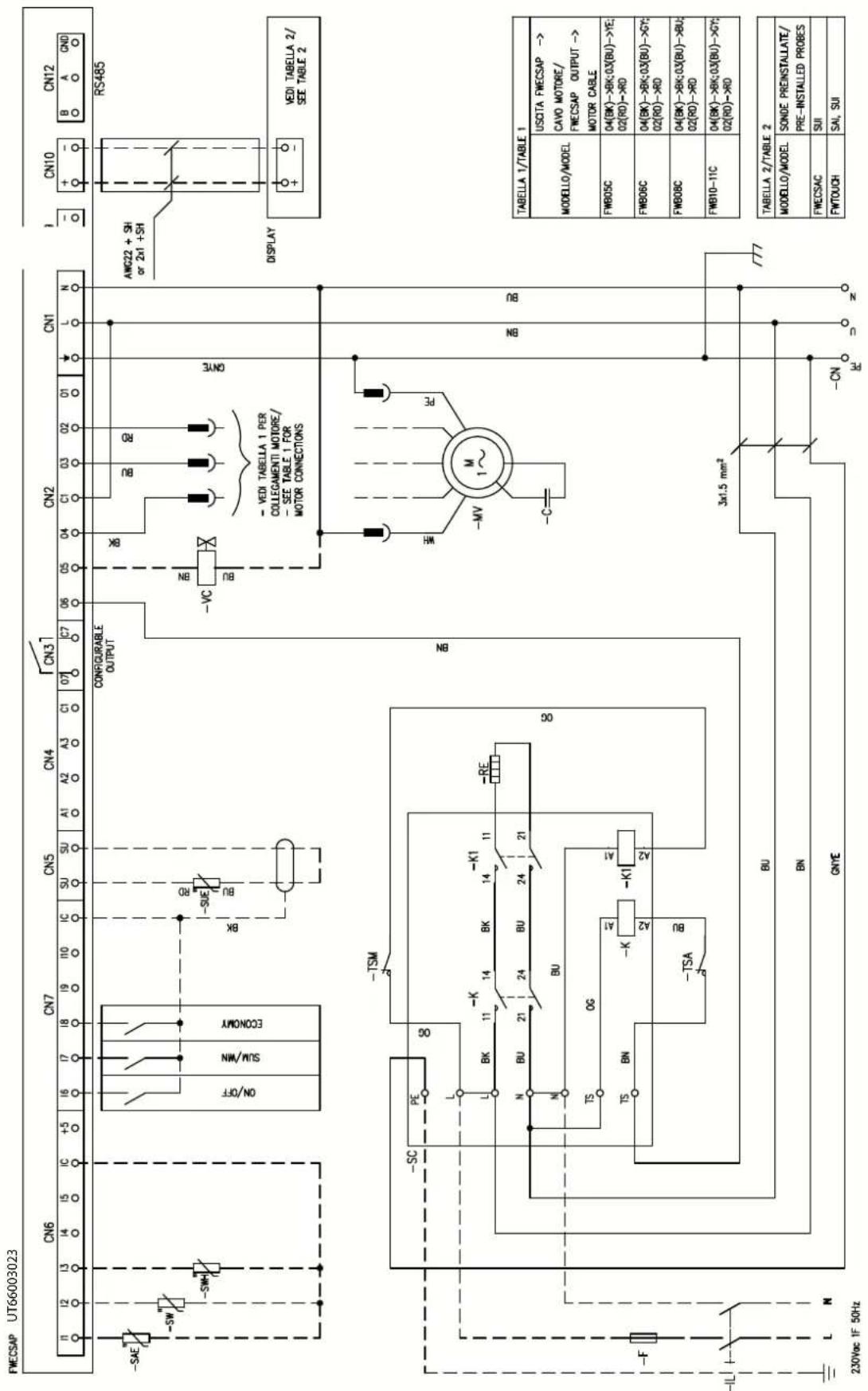

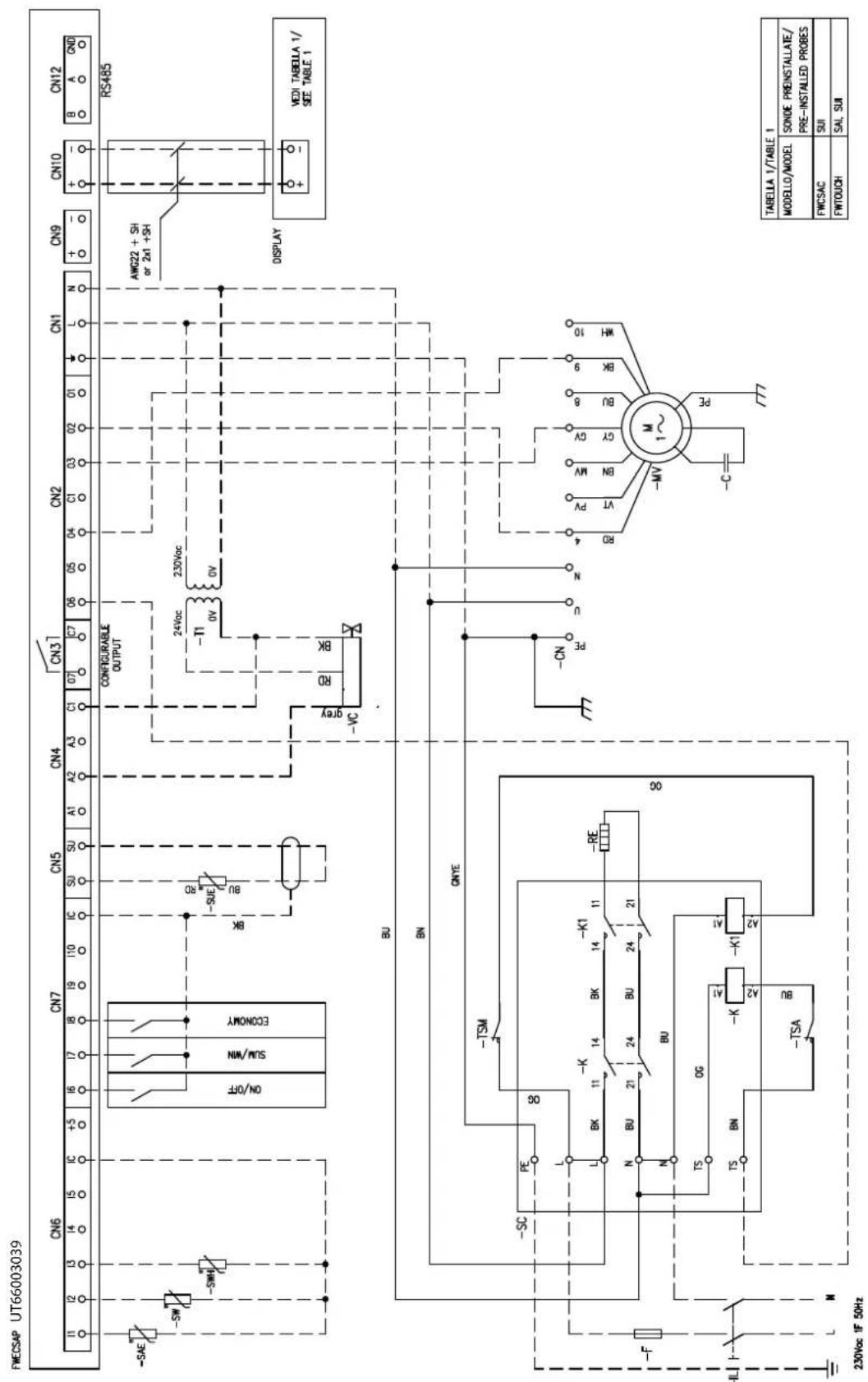

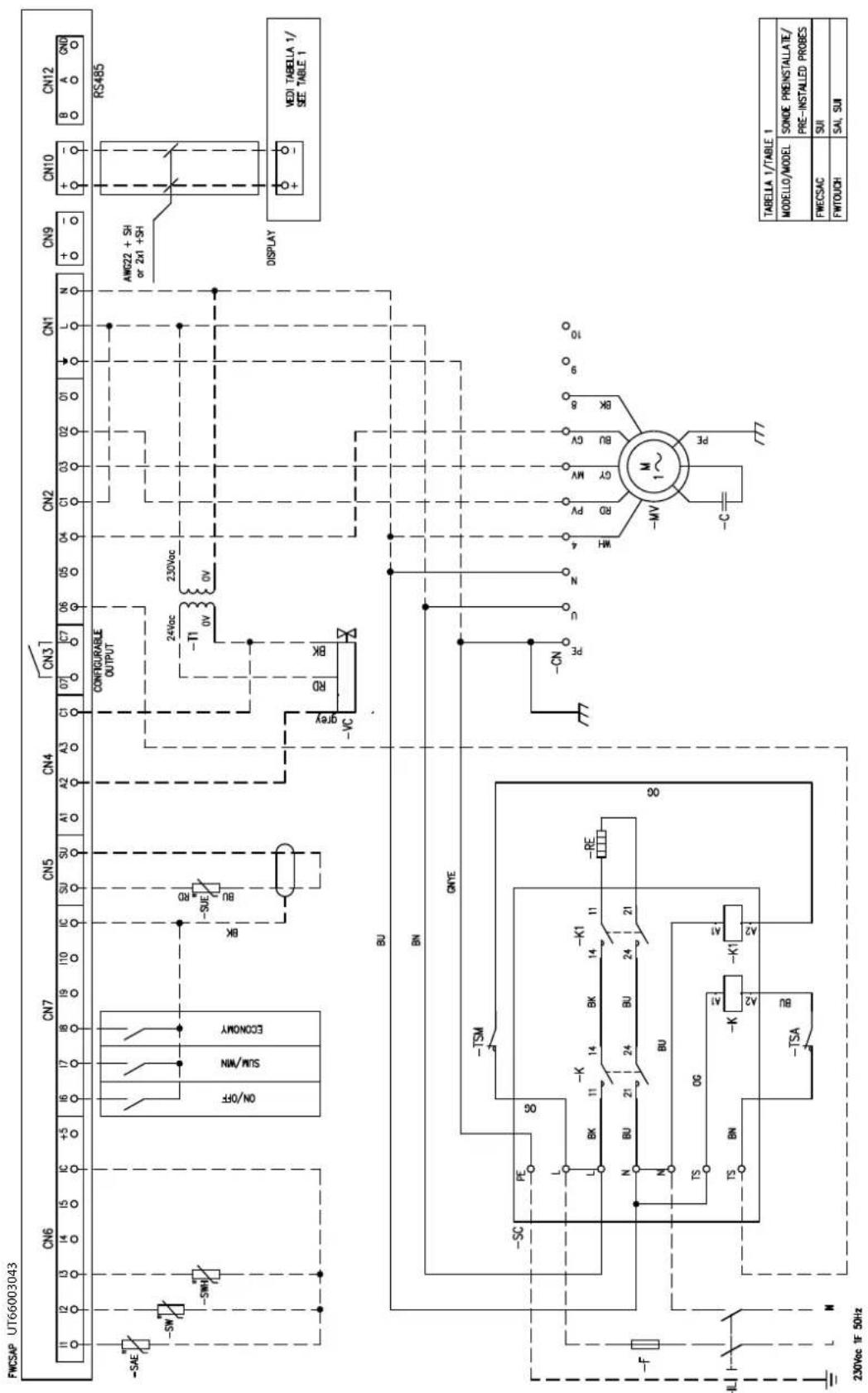

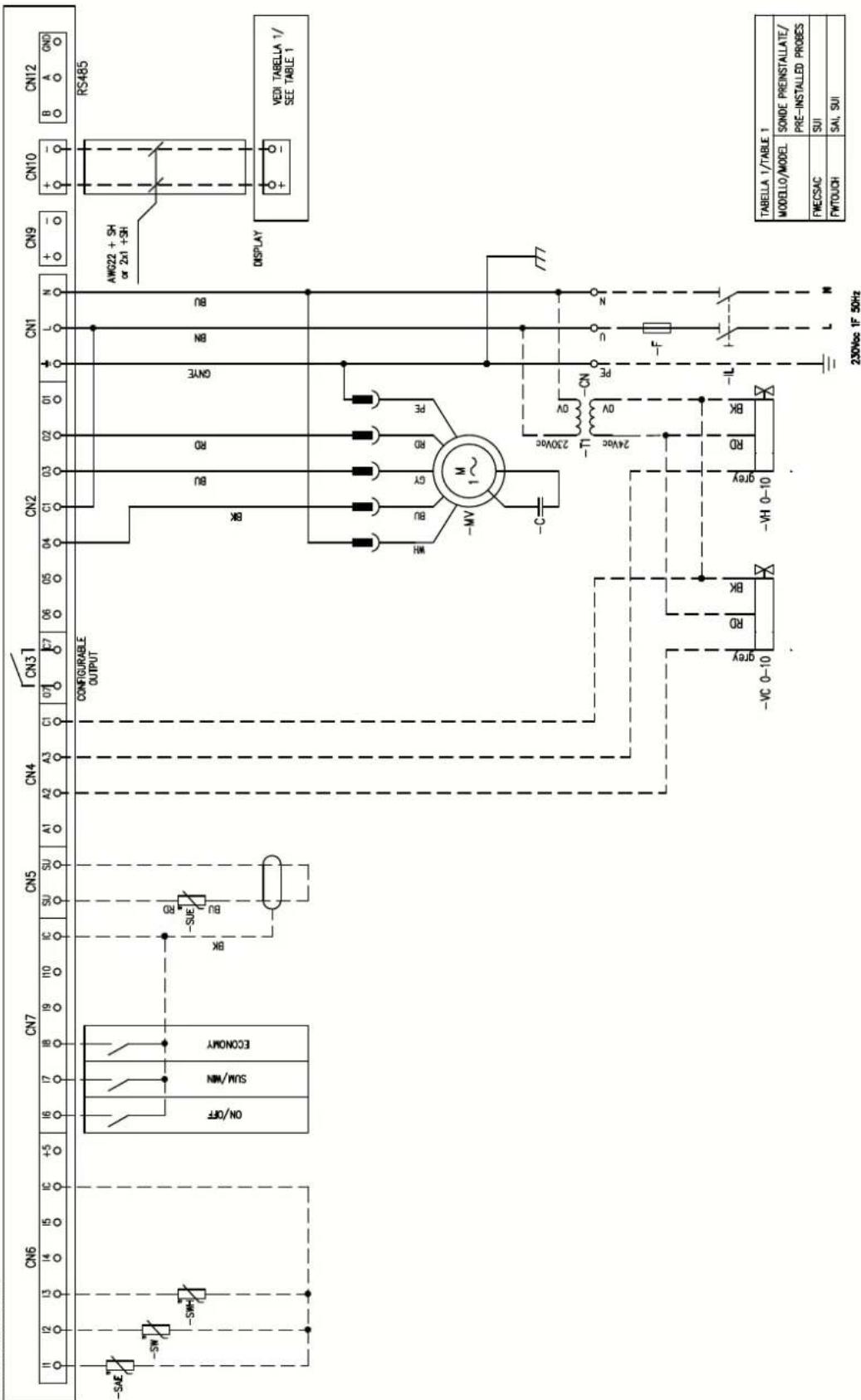

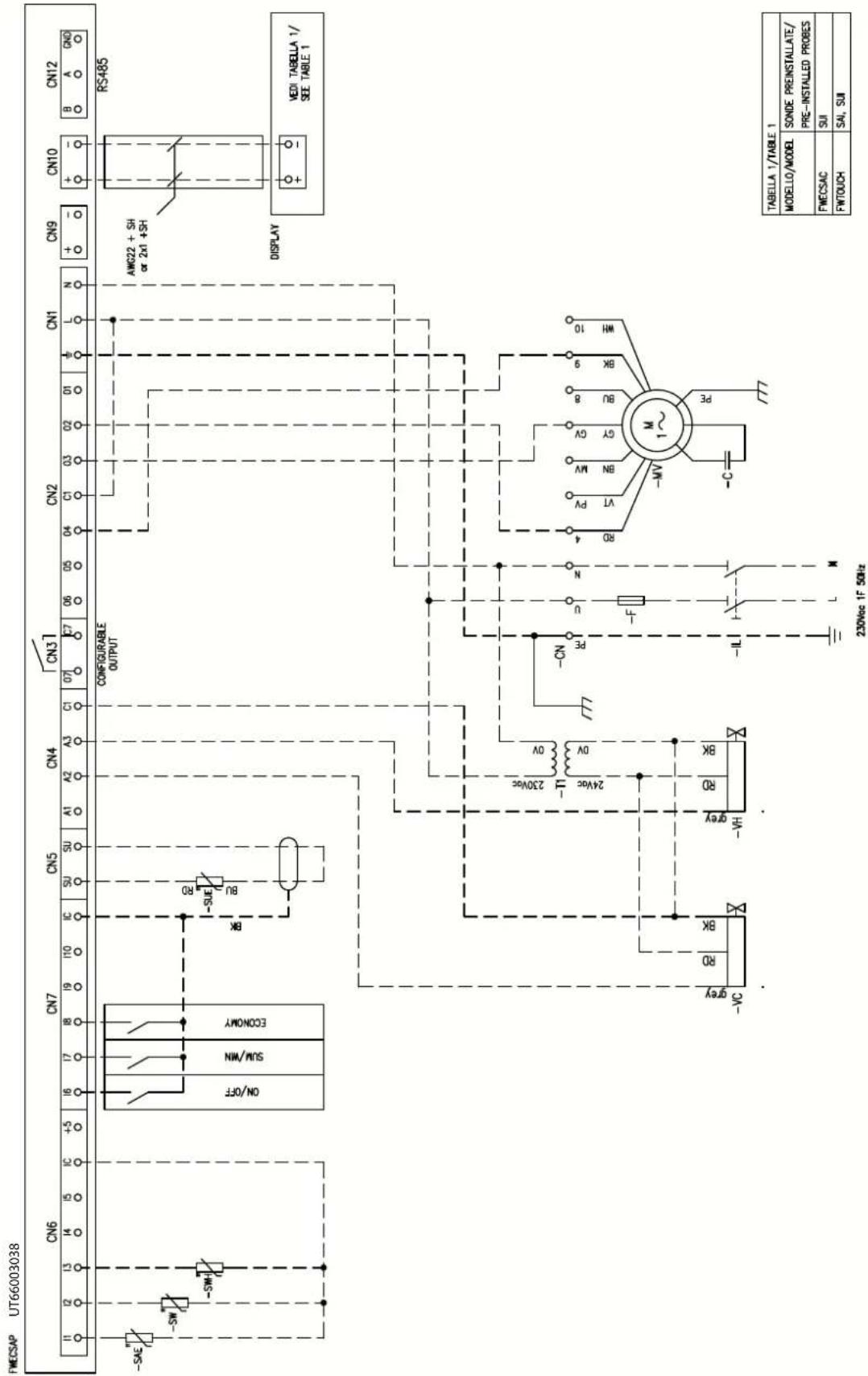

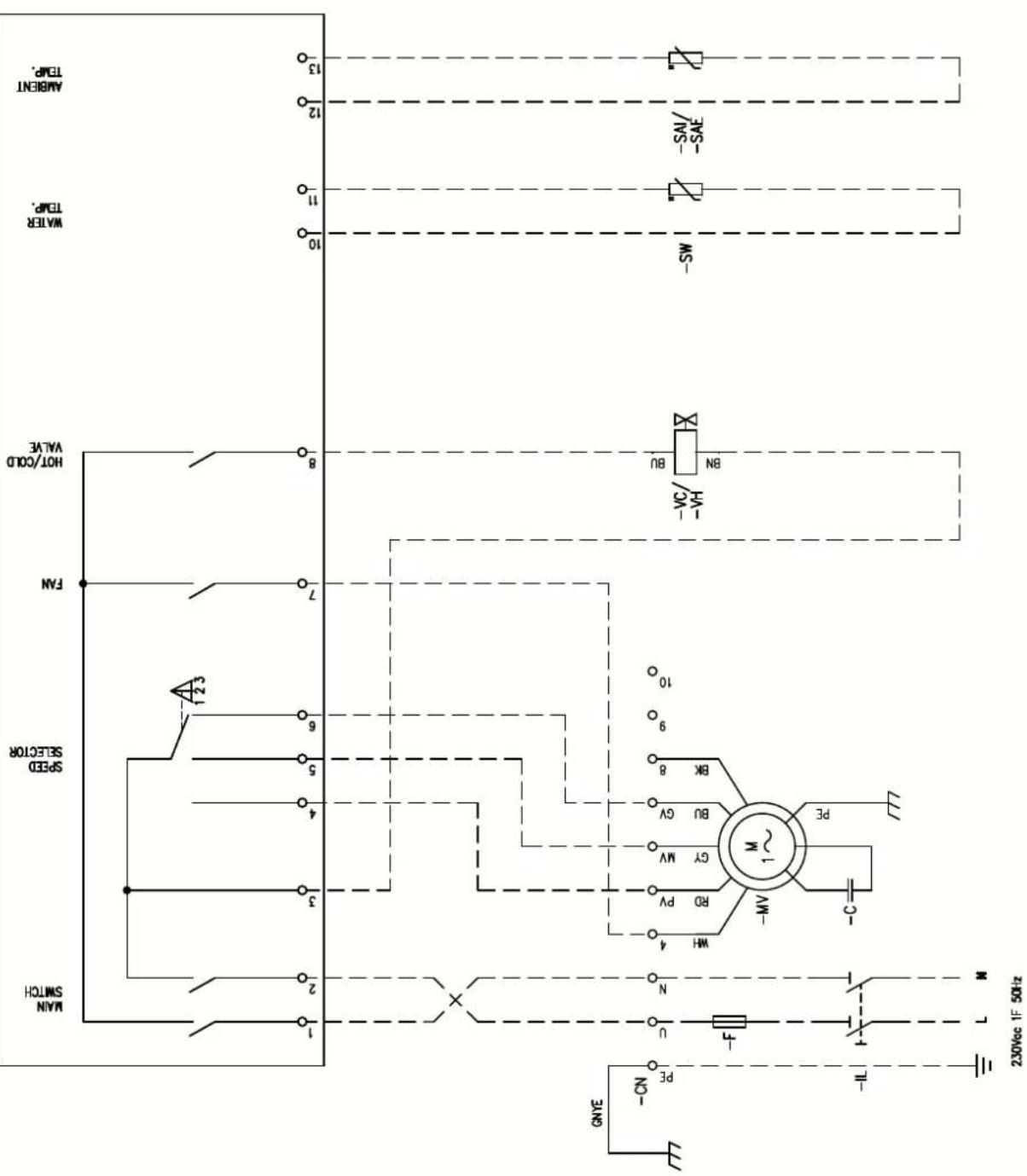

Electrical wirings:

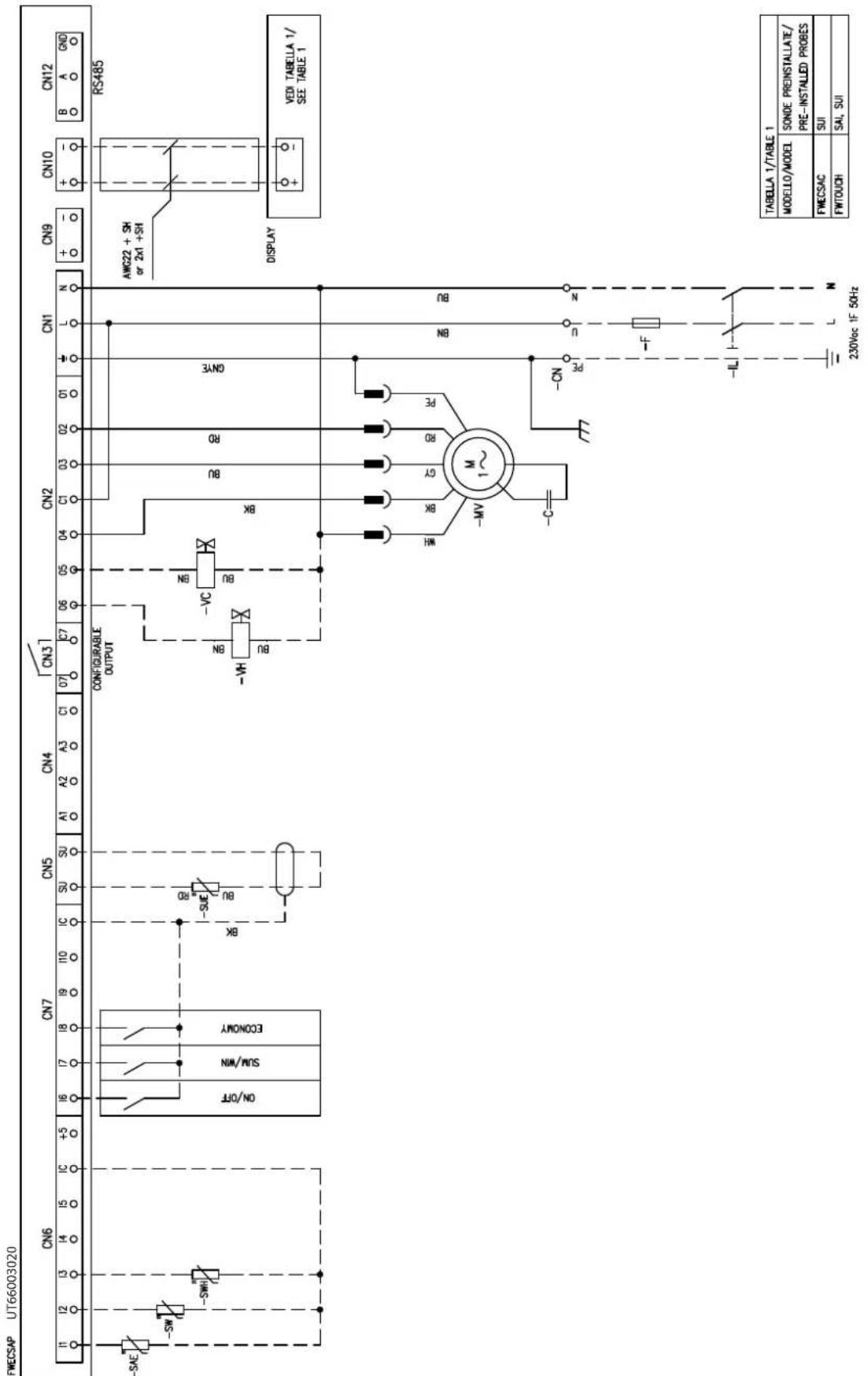

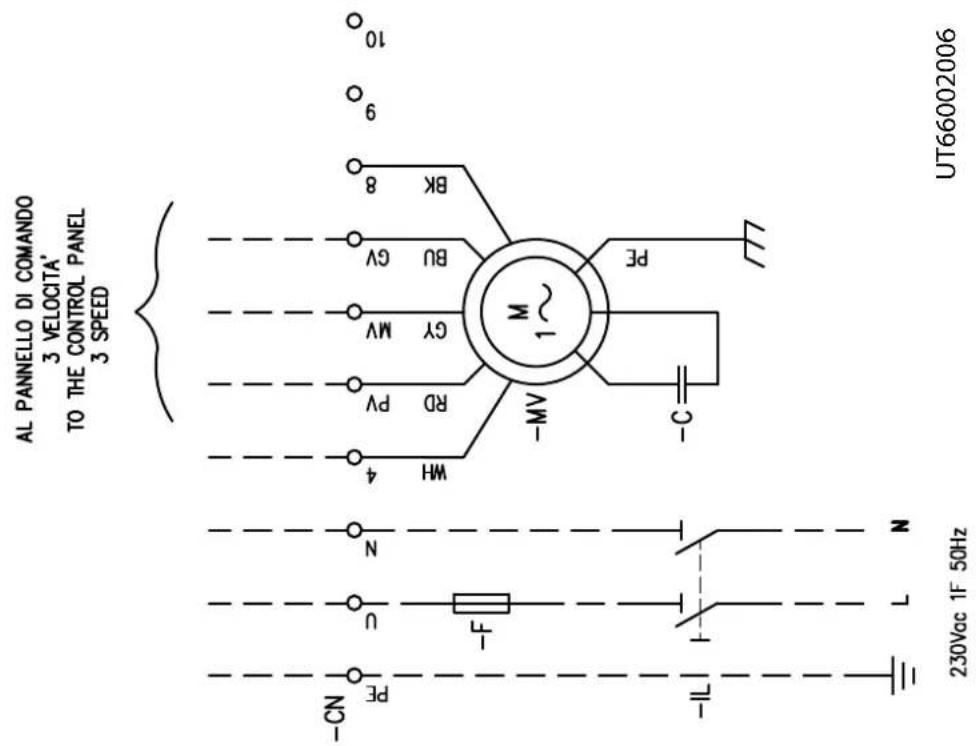

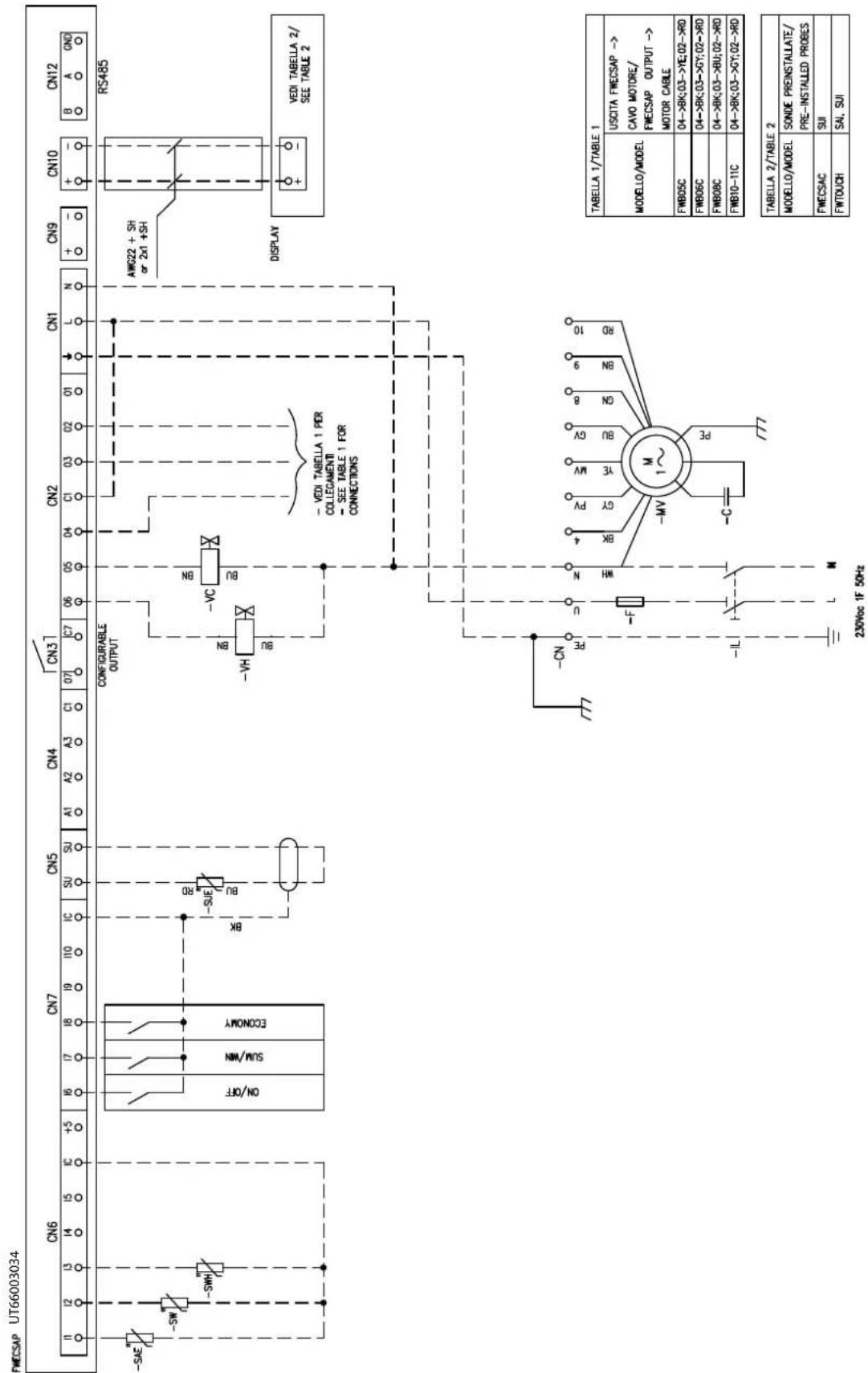

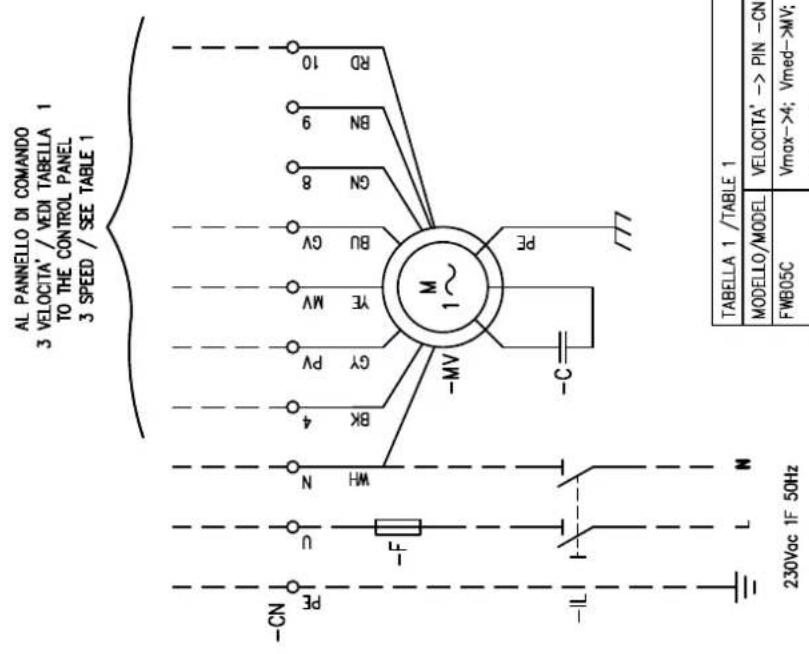

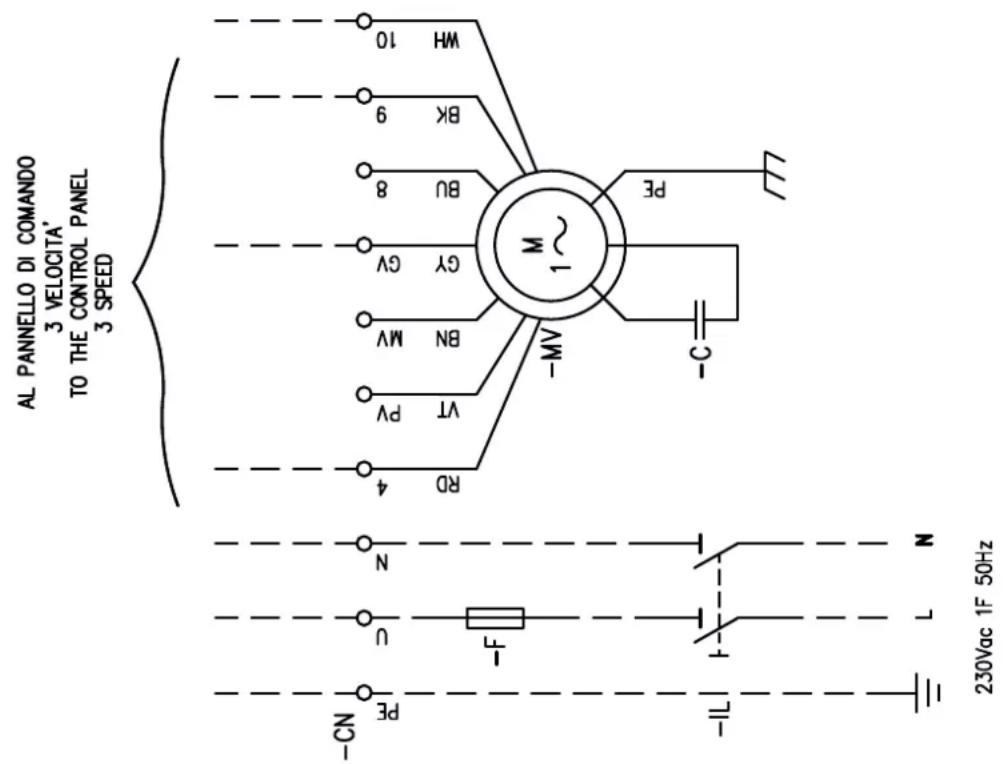

• Base Electrical Connections: pag. 91;

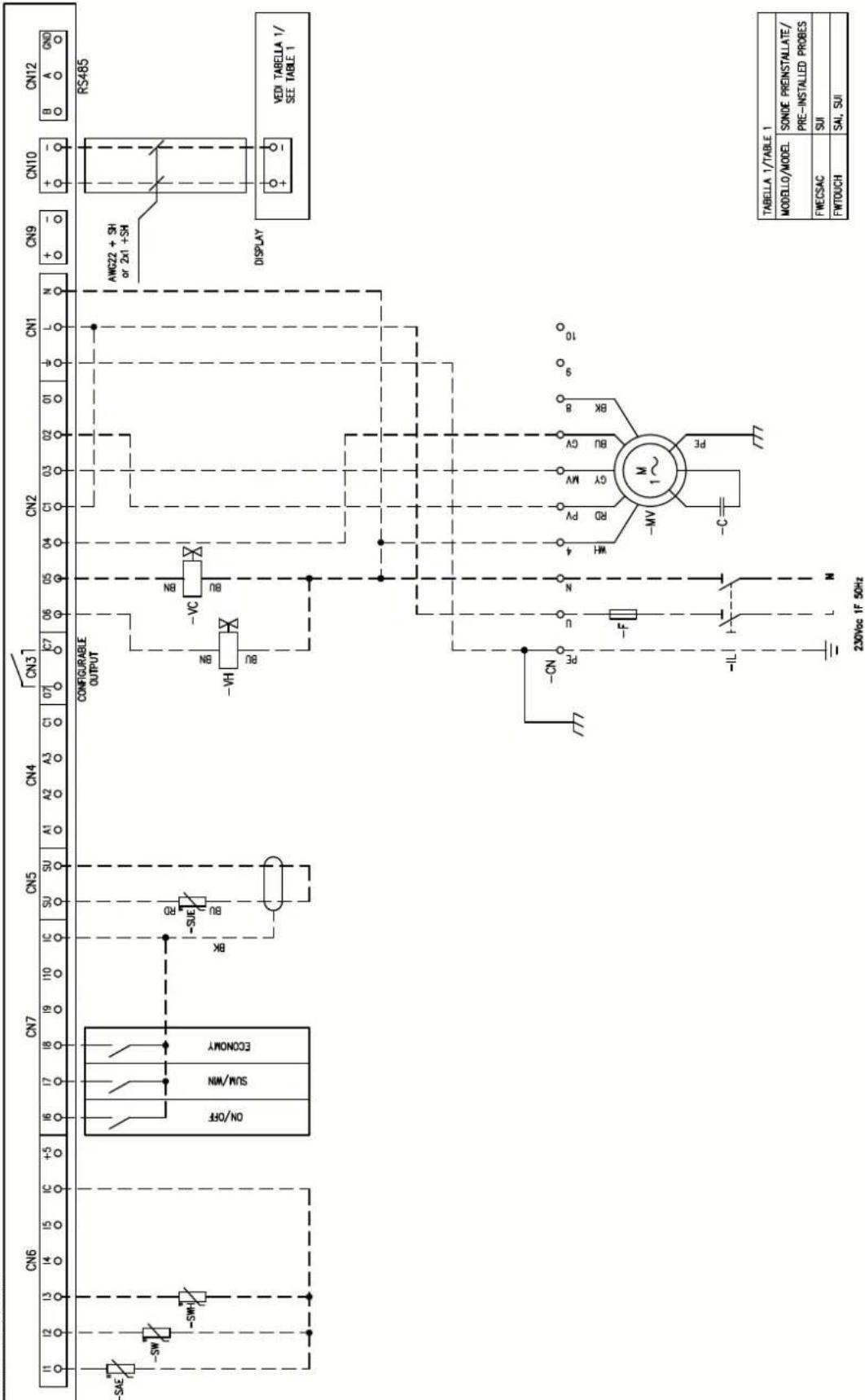

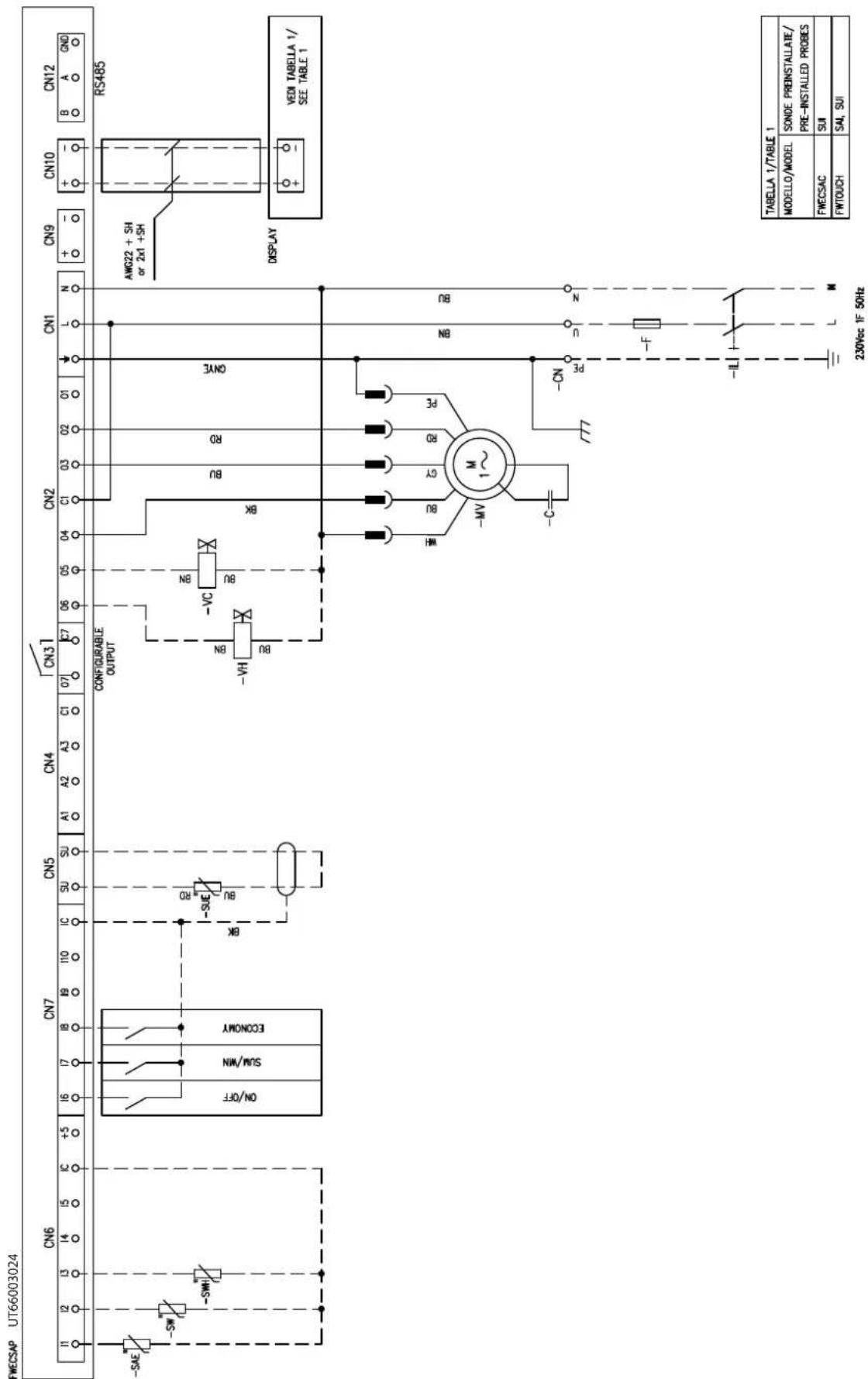

• FWECSAP on board + ON/OFF VALV: pag. 93;

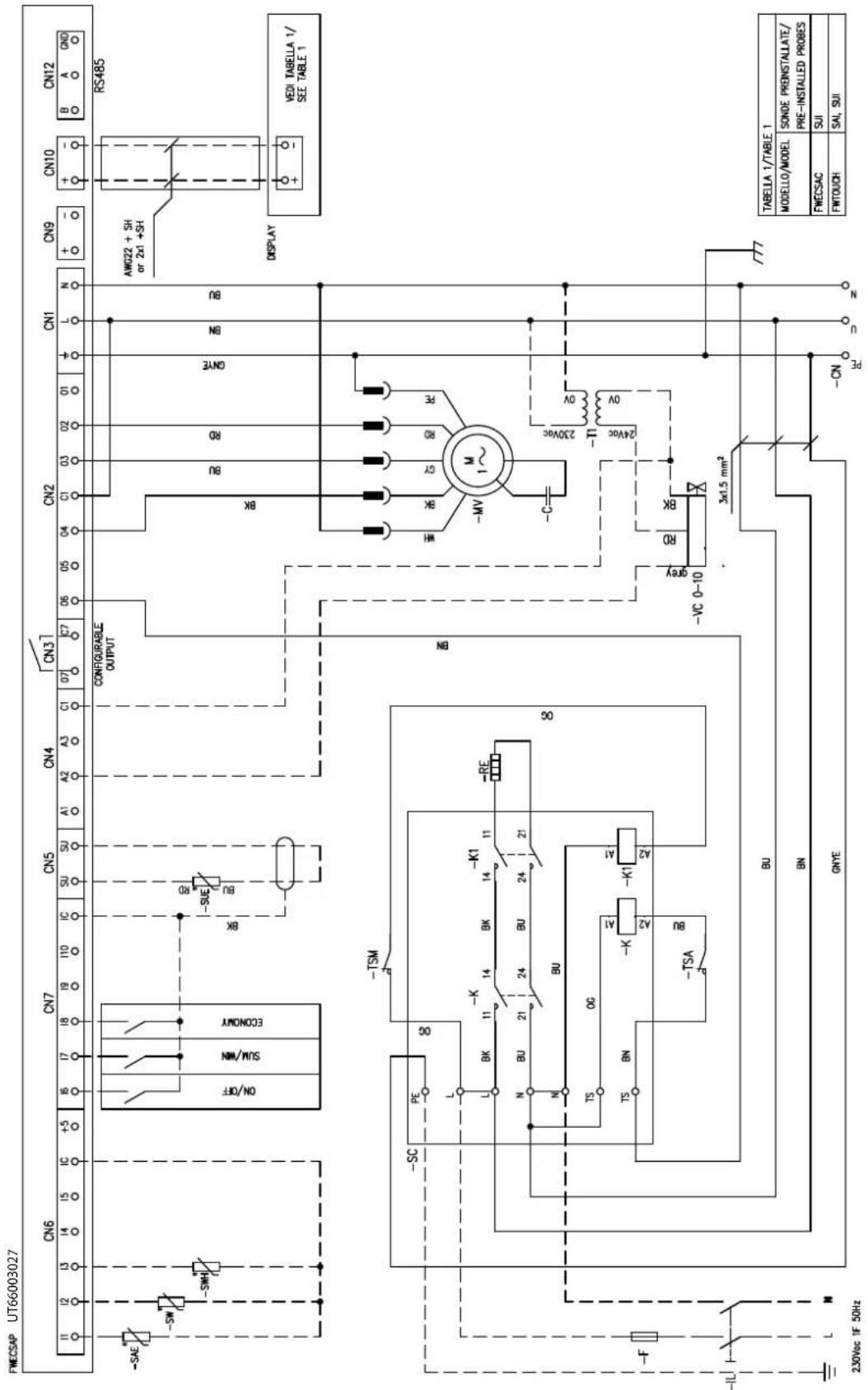

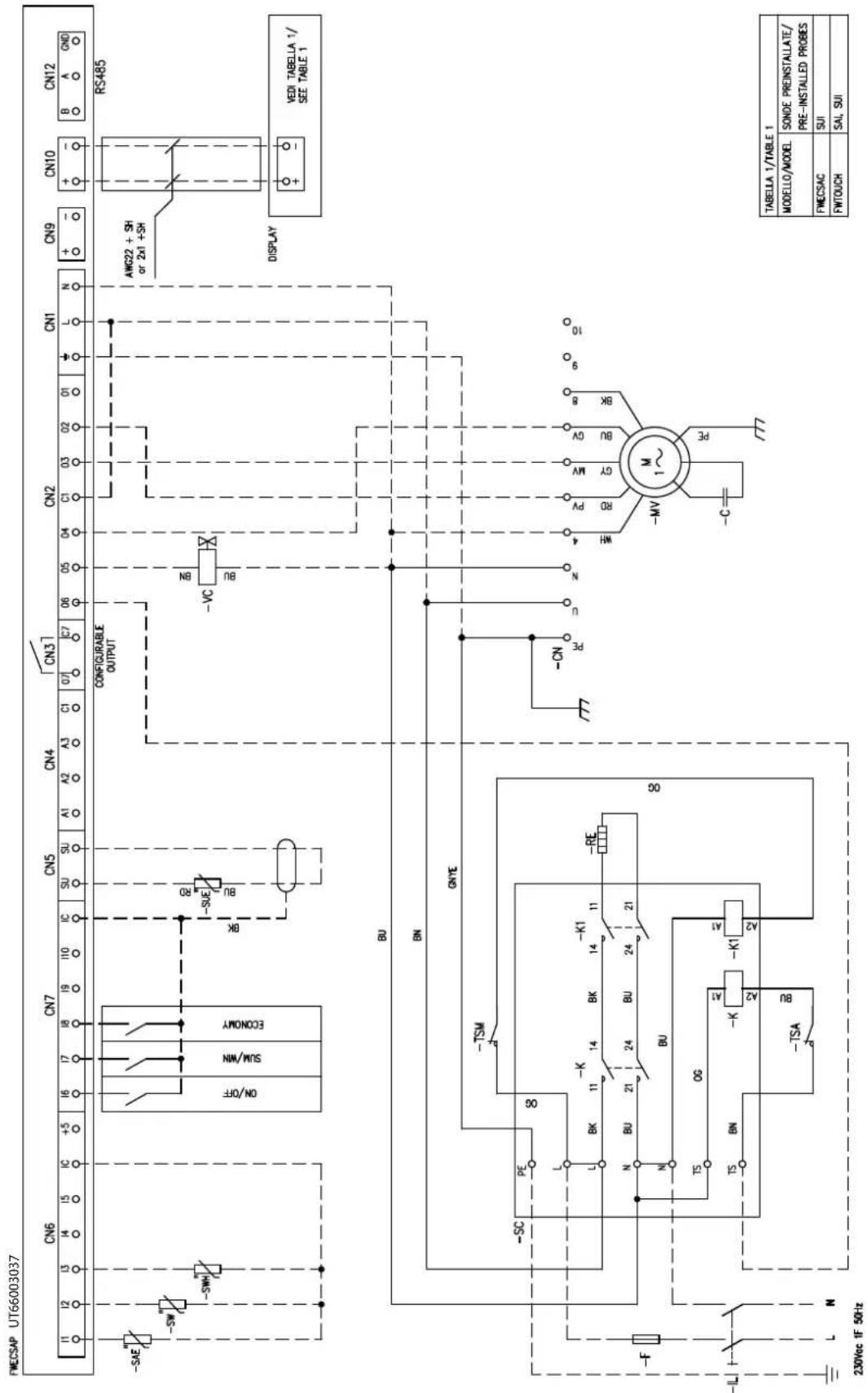

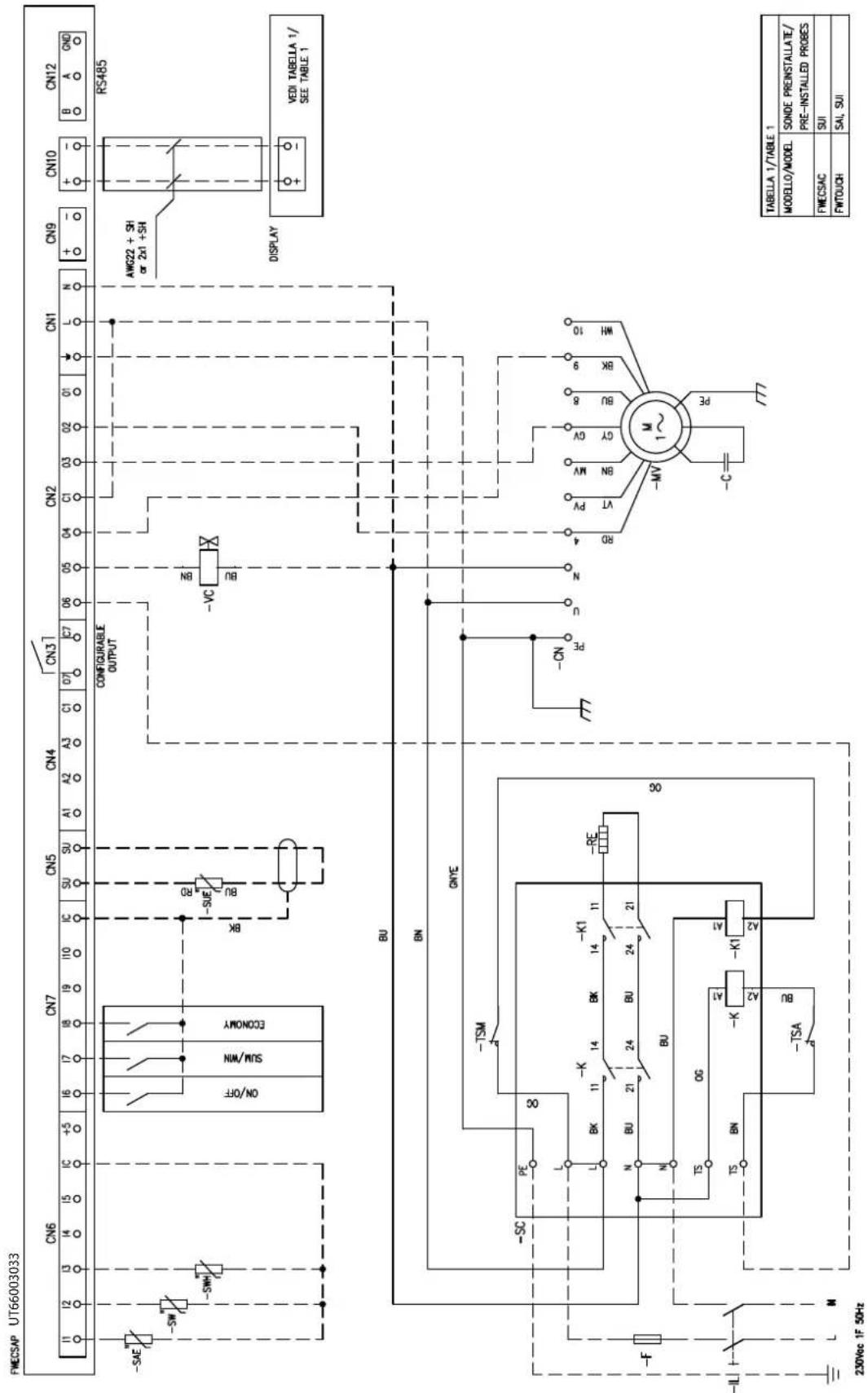

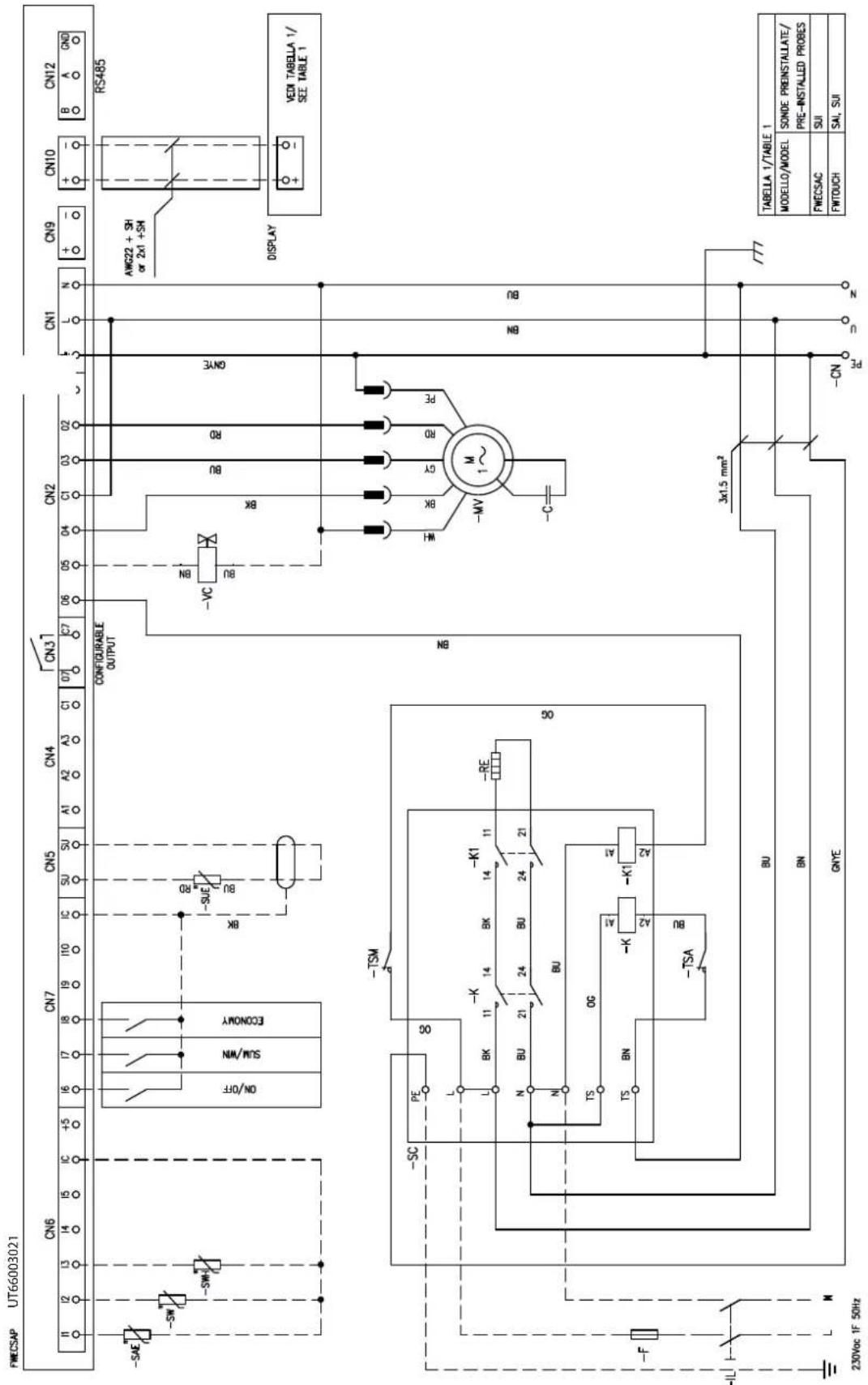

• FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;

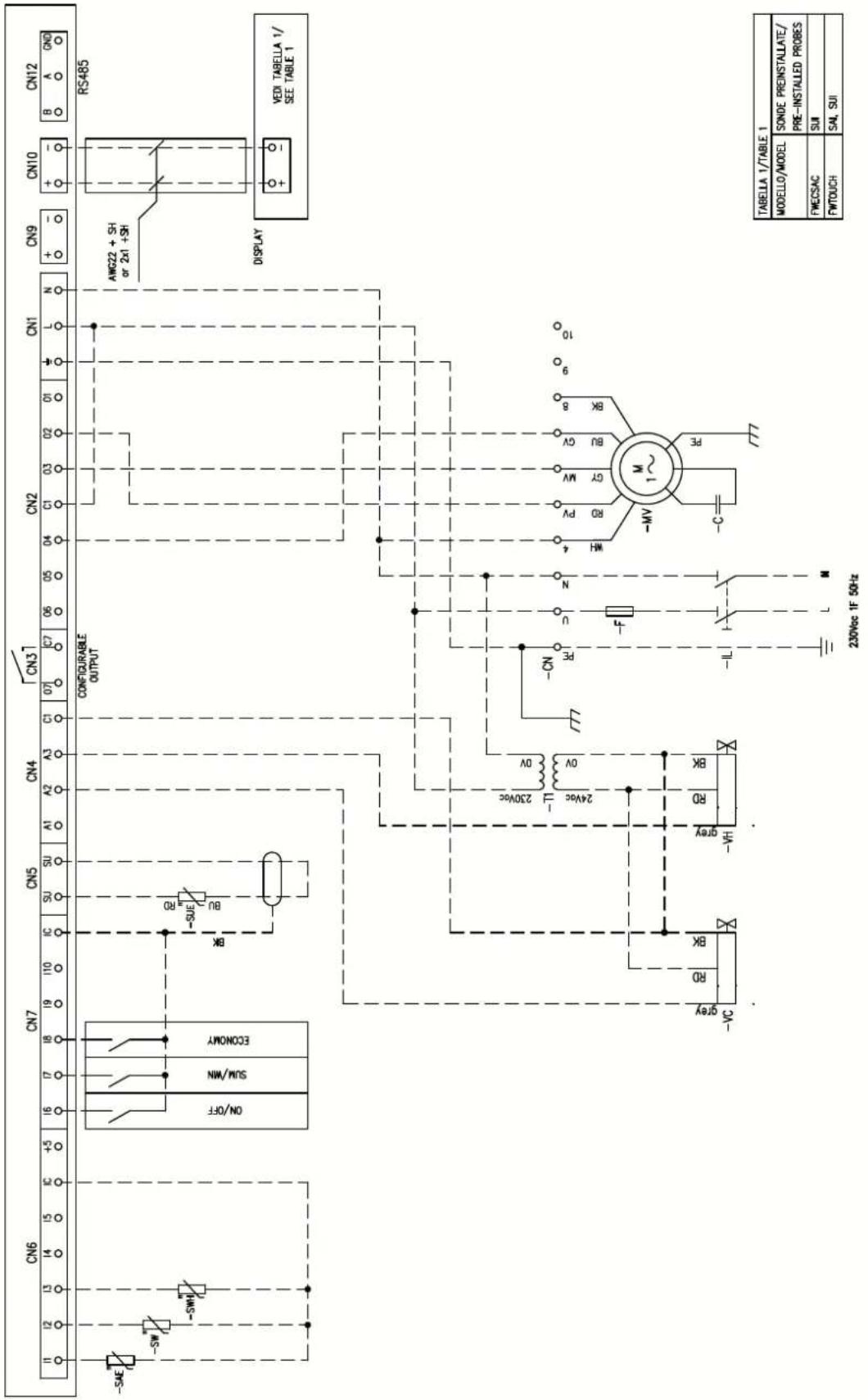

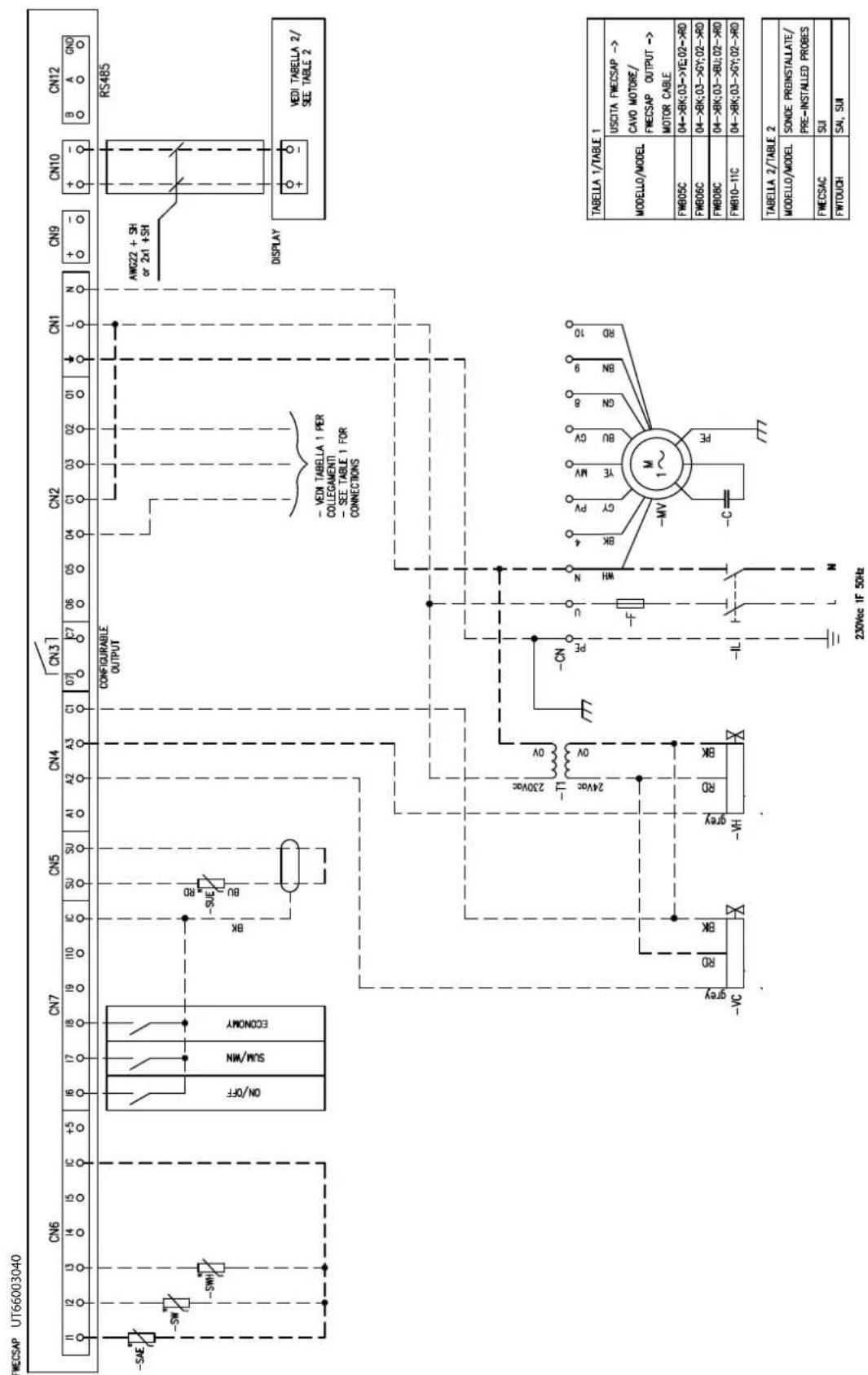

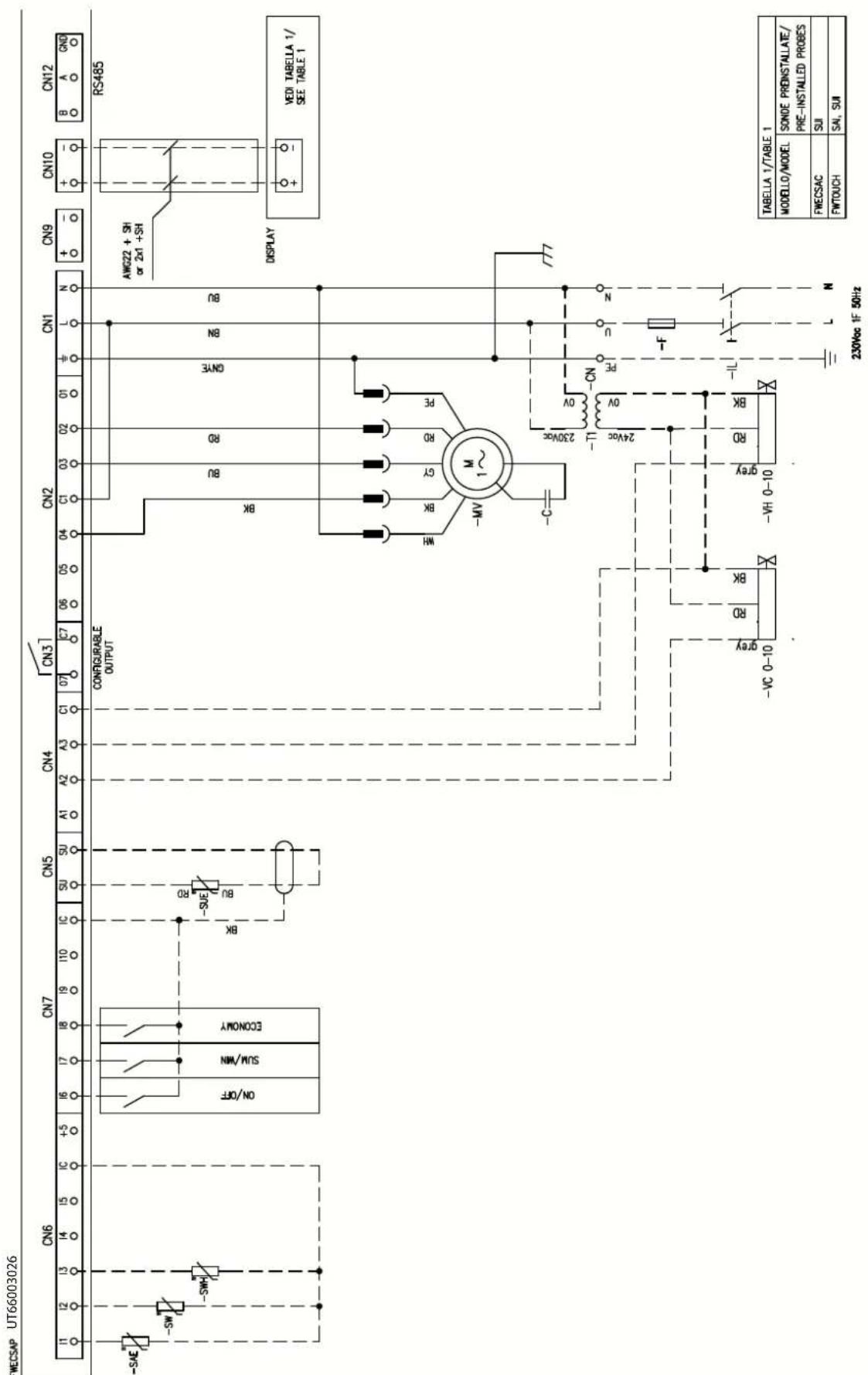

  FWECSAP on board ^+ MOD. VALV: pag. 99

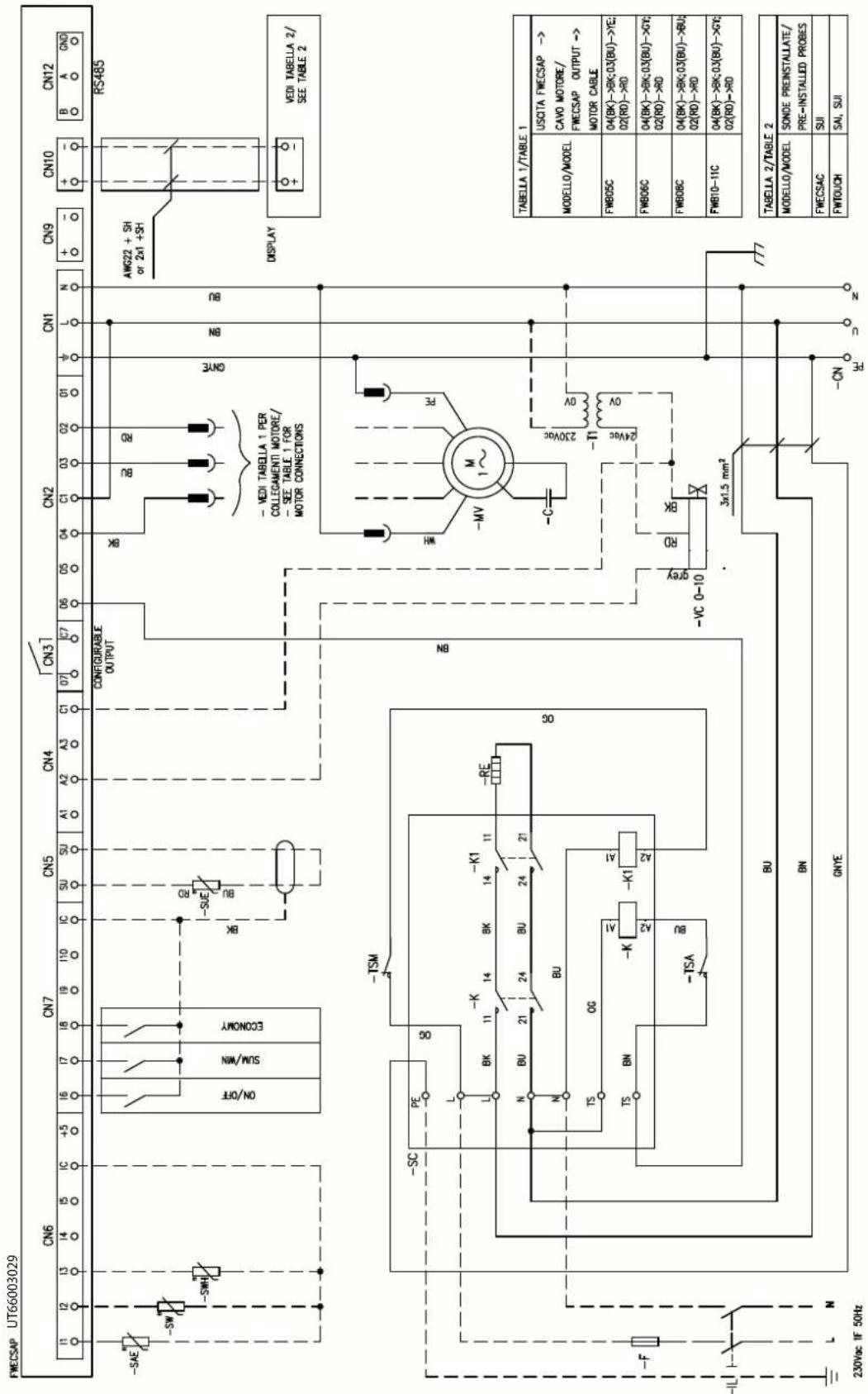

• FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
  FWECSAP remote + ON/OFF VALV: pag. 105;
• FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;

• FWECSAP remote + MOD. VALV: pag. 111;

• FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;

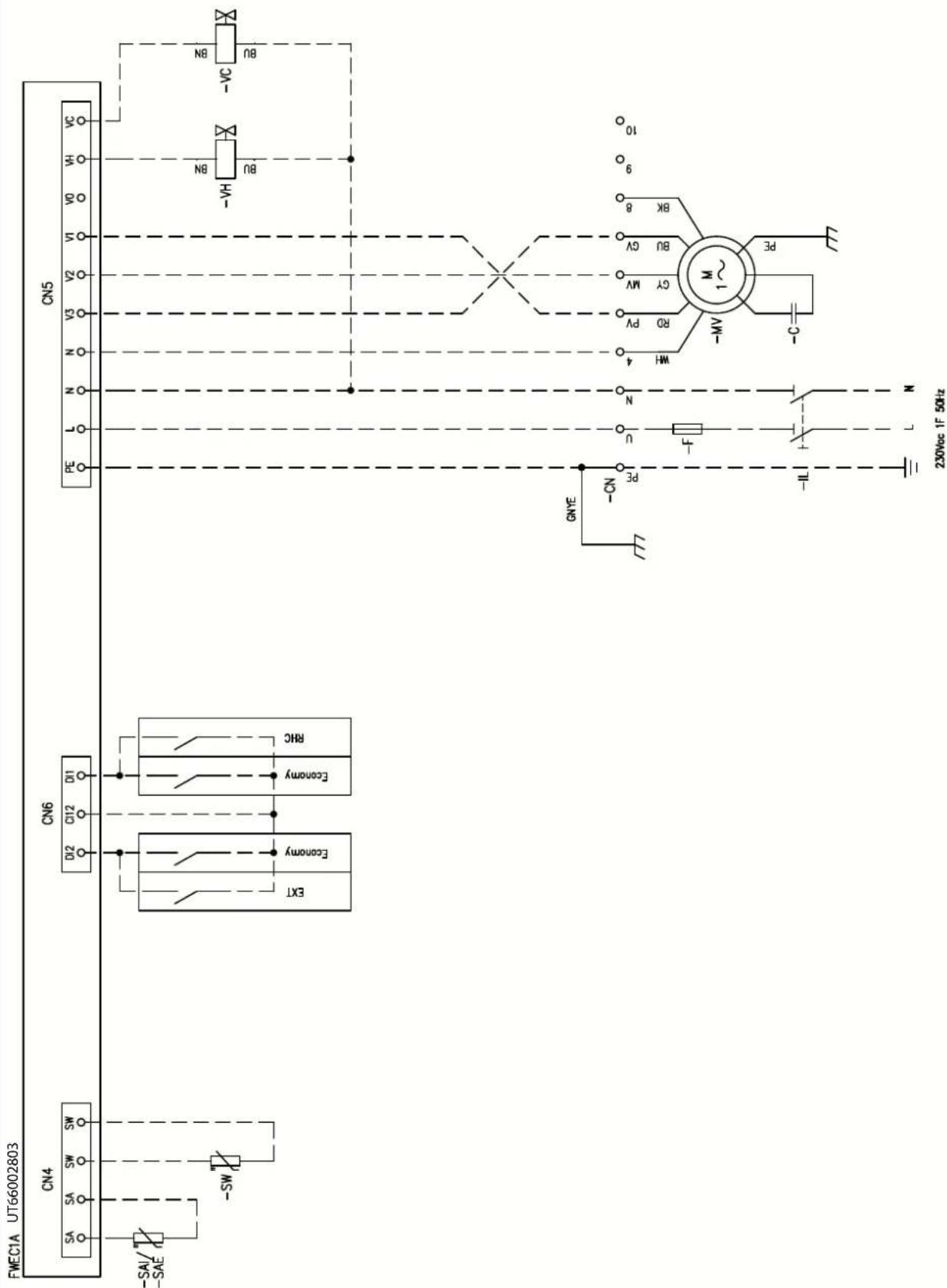

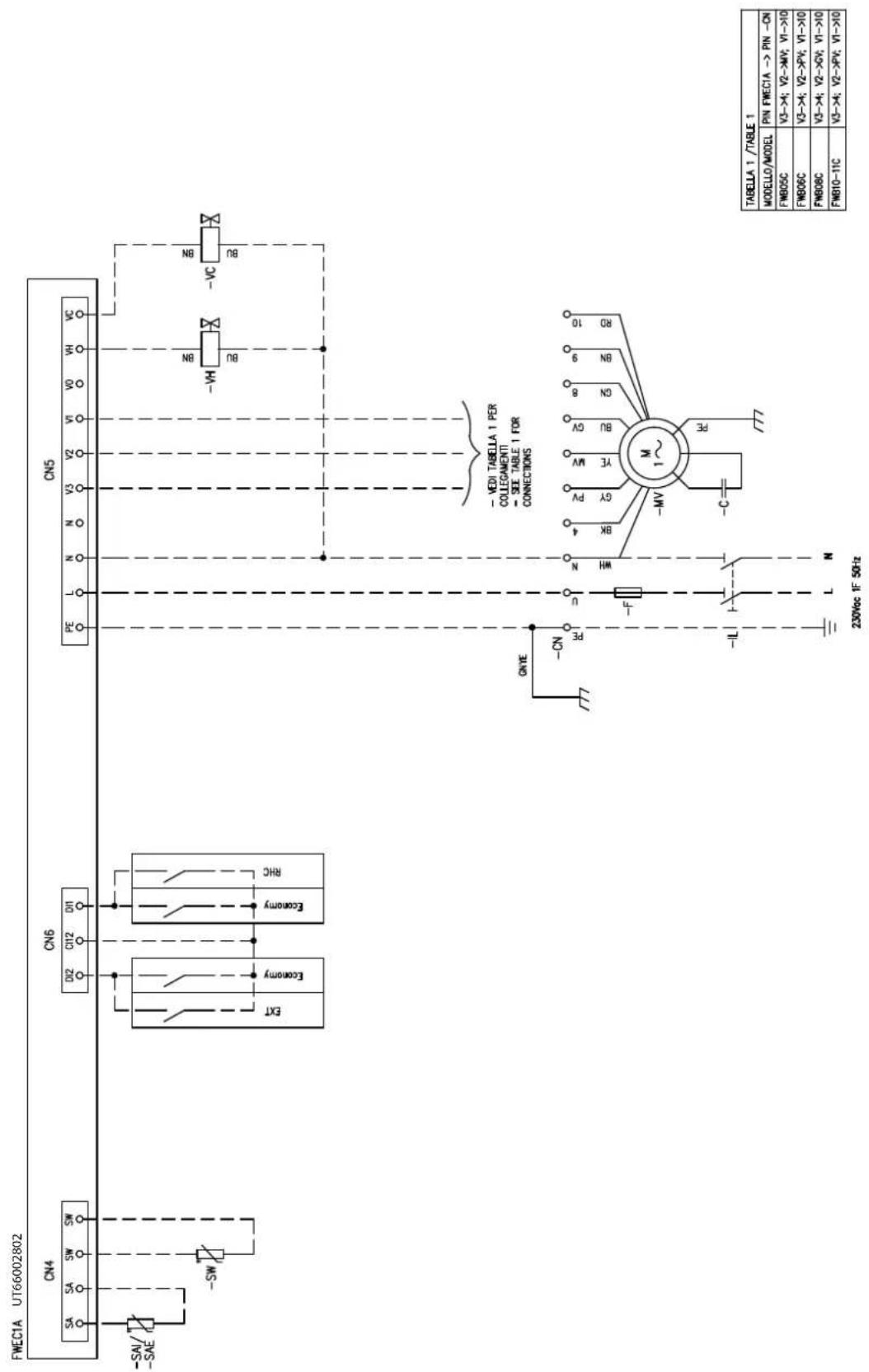

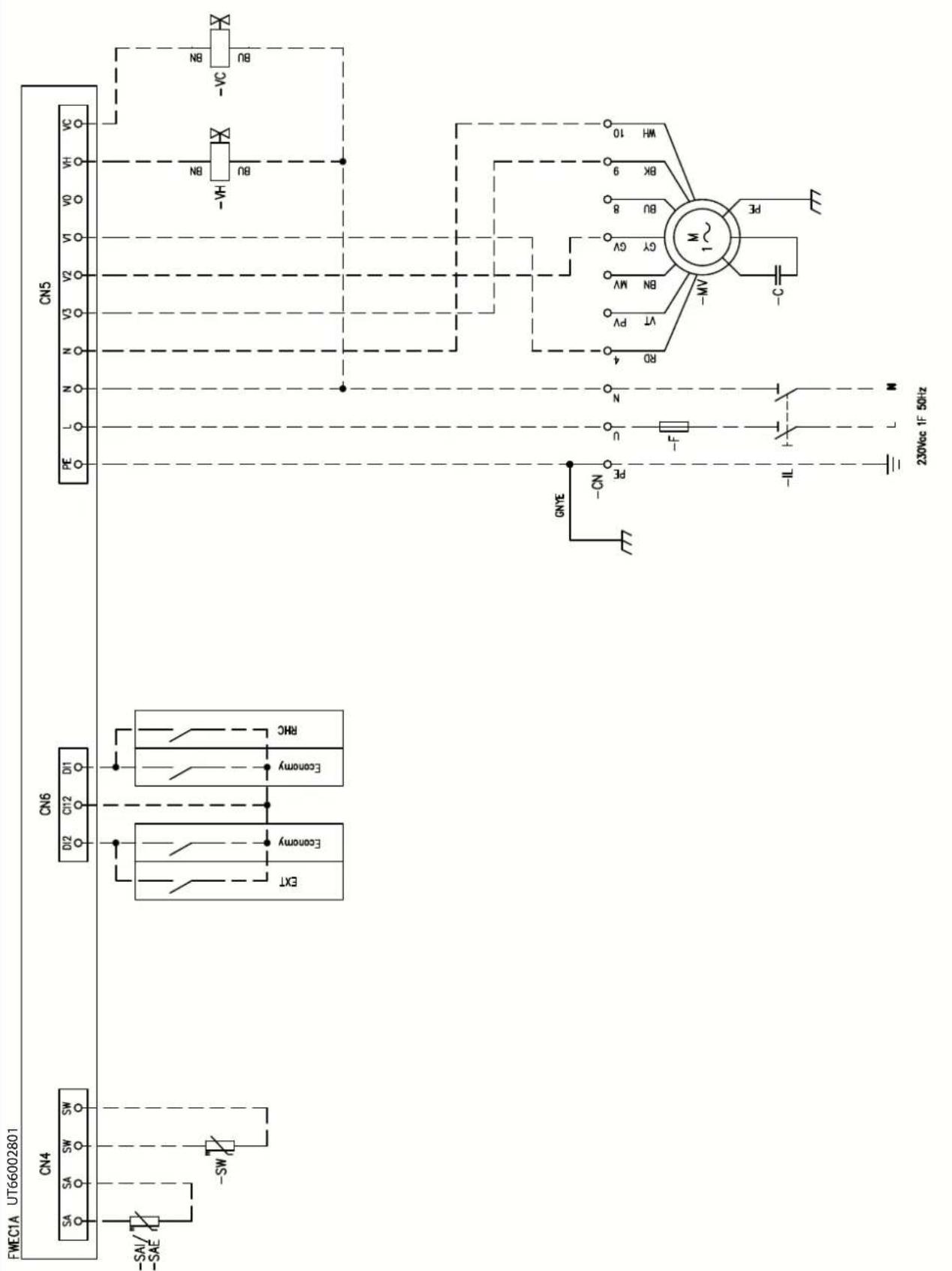

  FWEC1A:pag.117

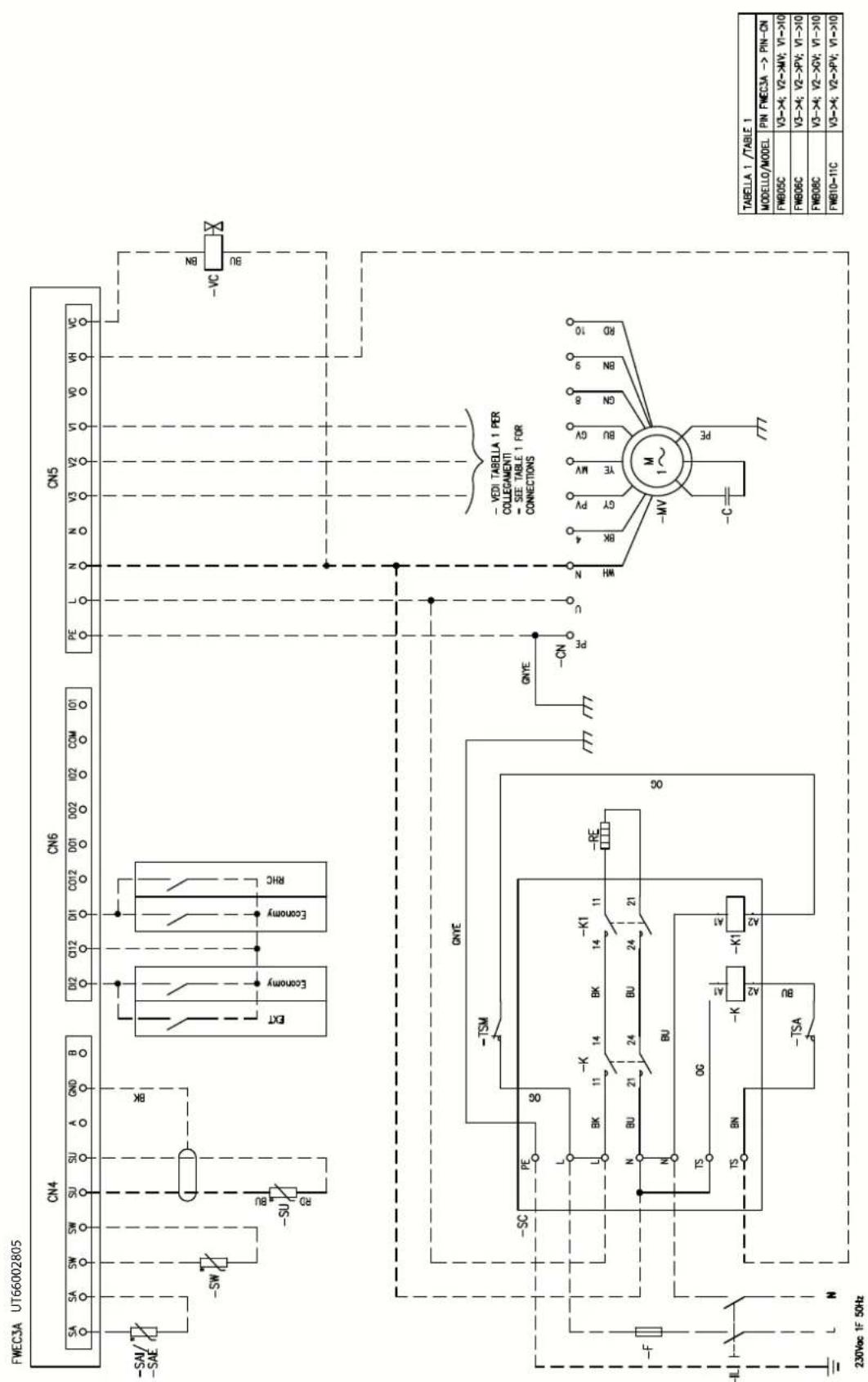

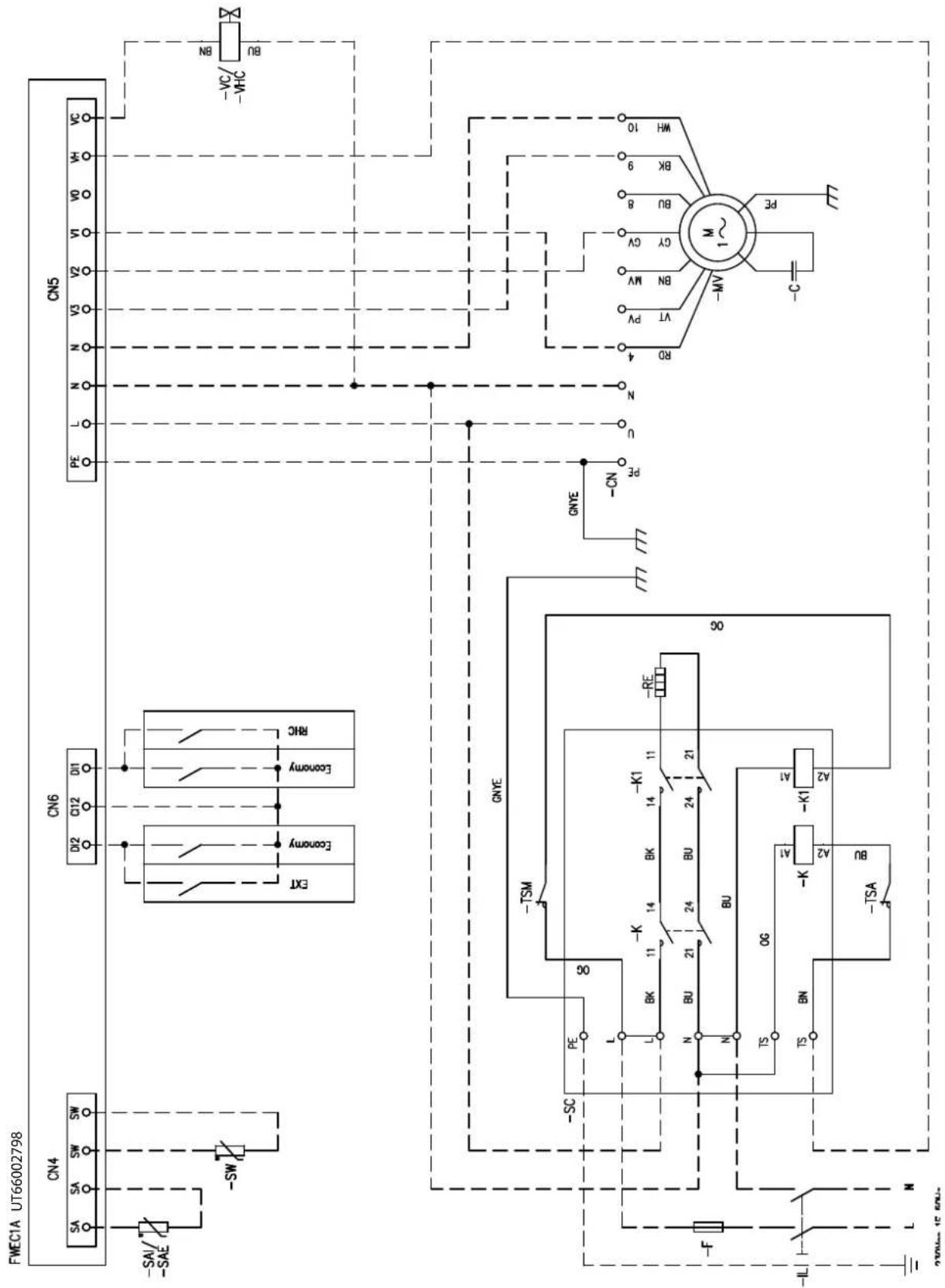

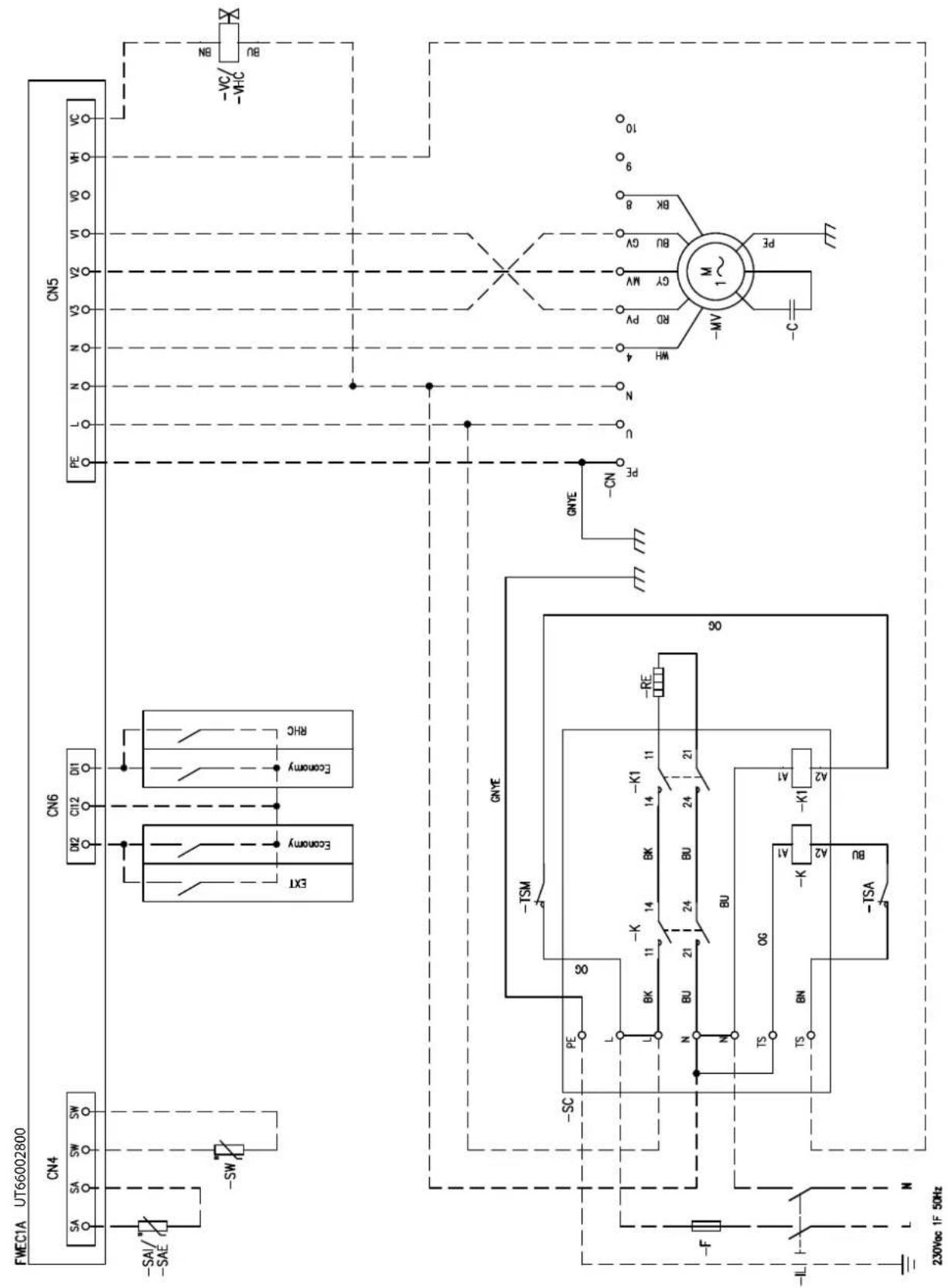

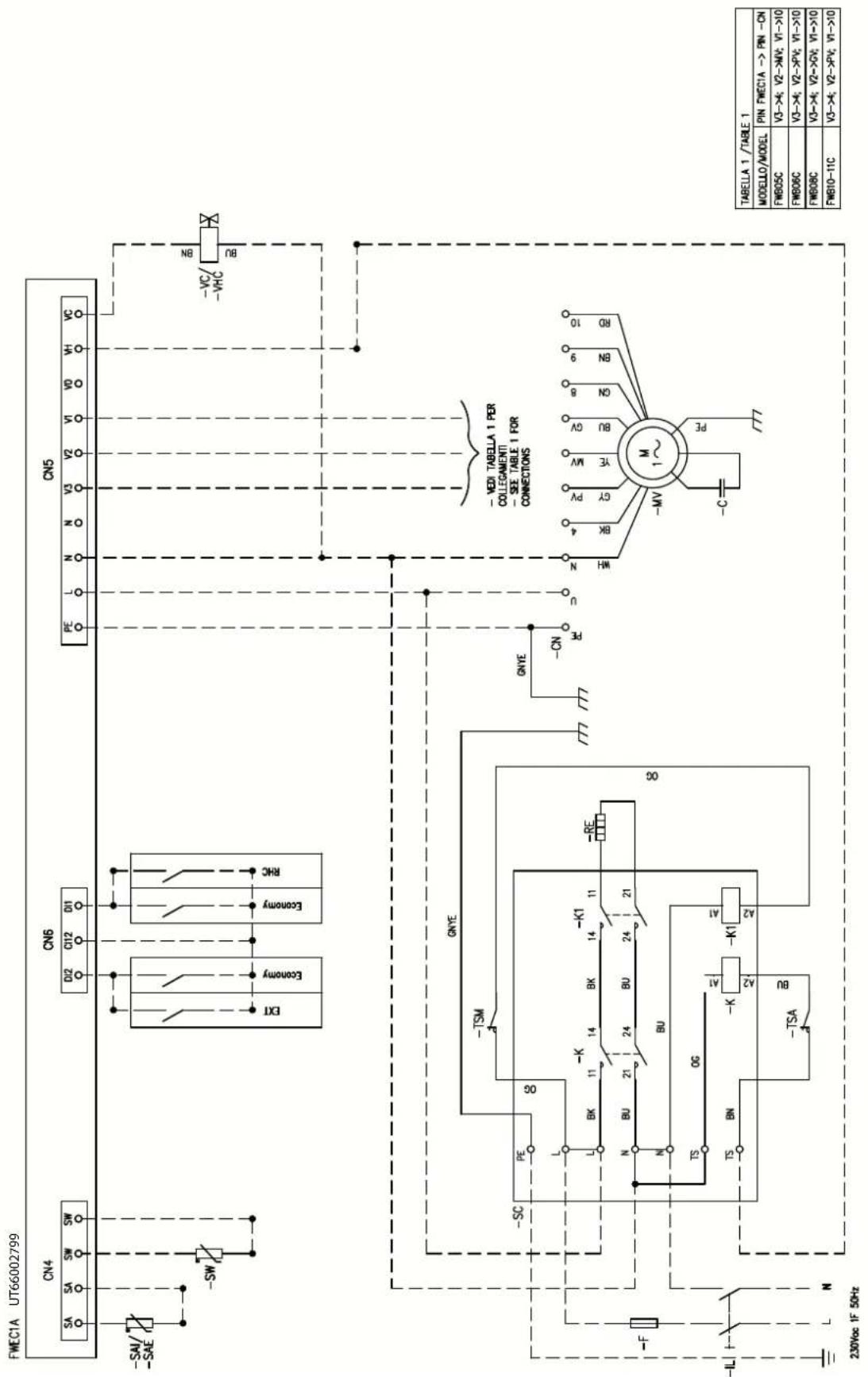

  FWEC1A + Supplementary Heating Element (EH): pag. 120;

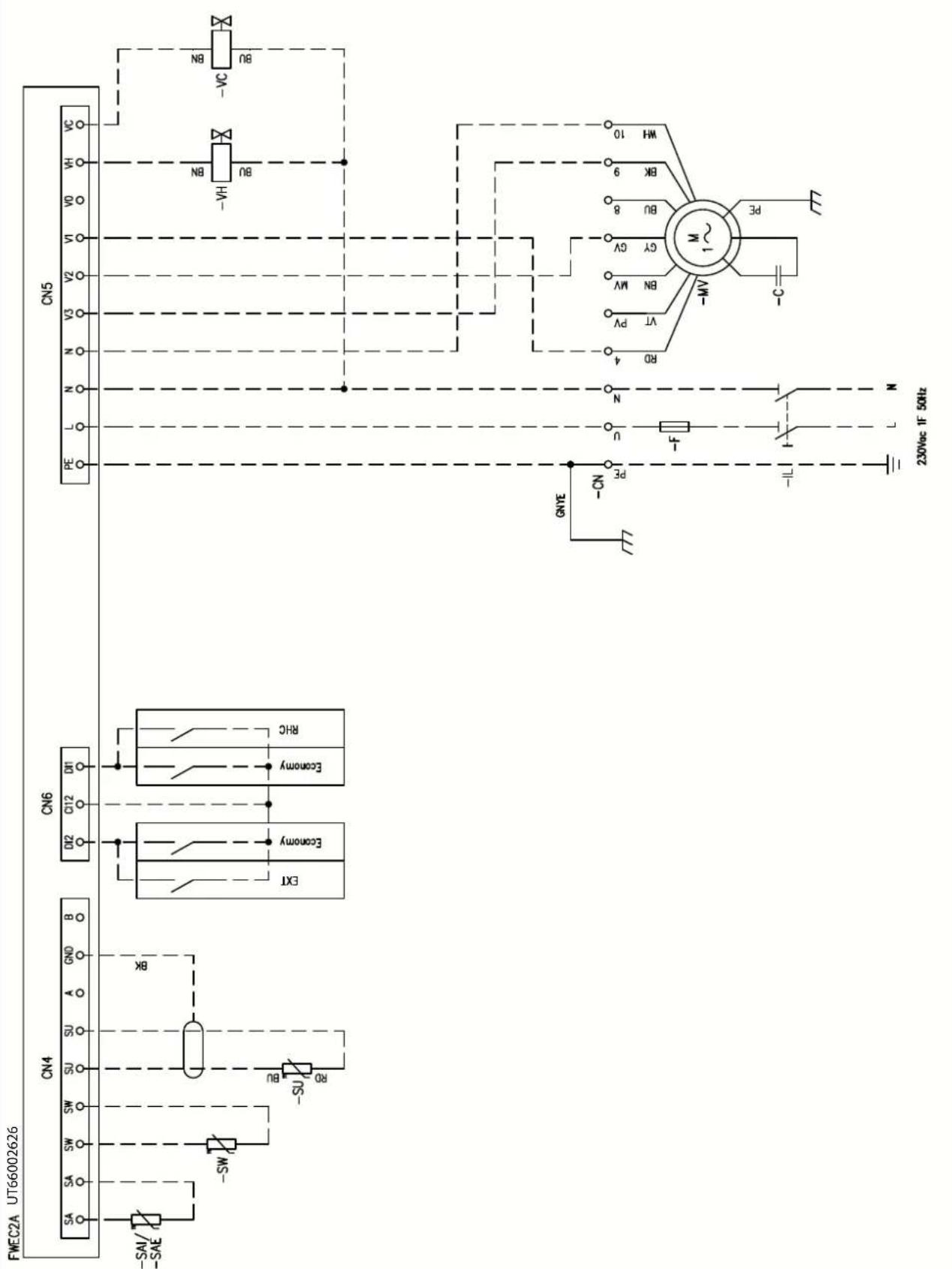

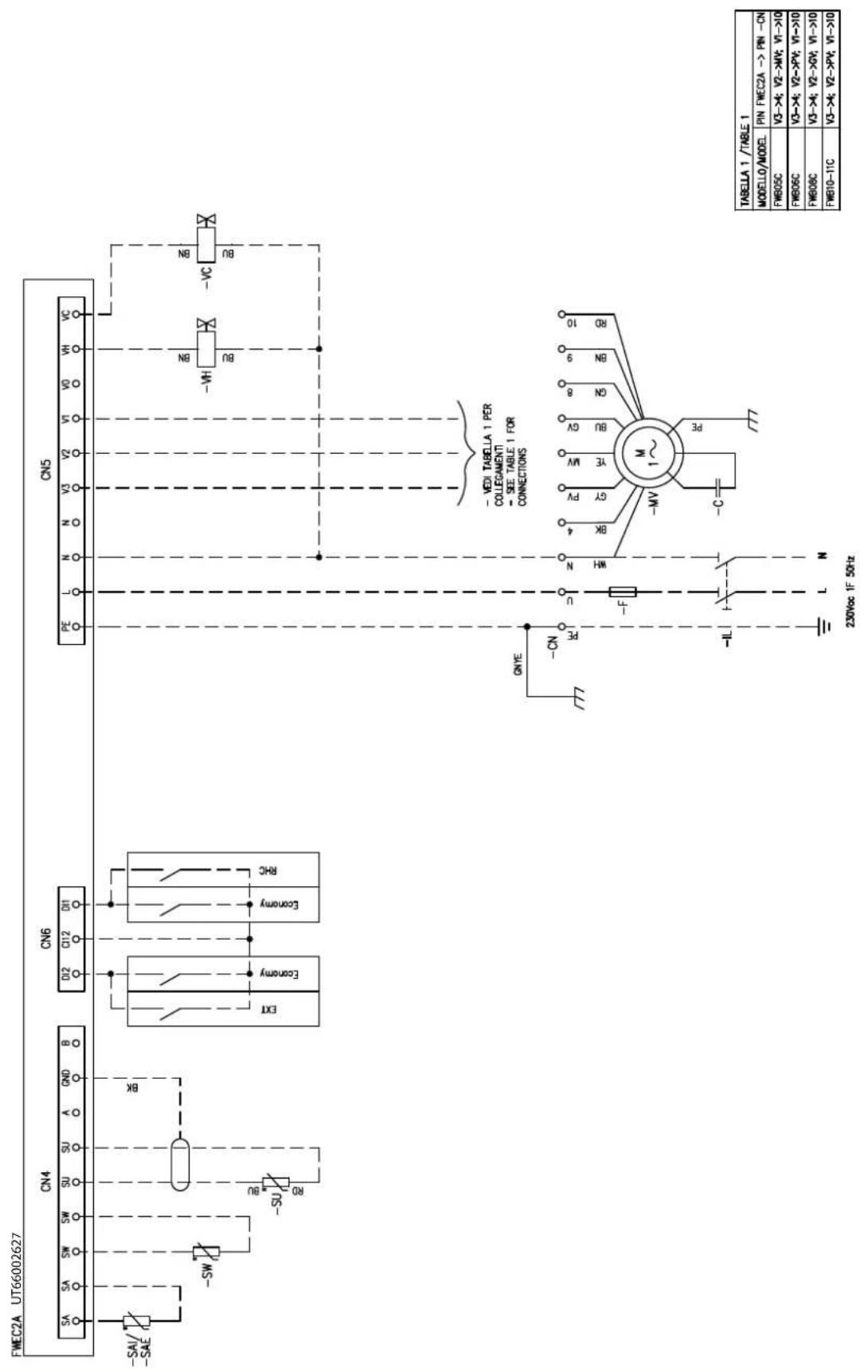

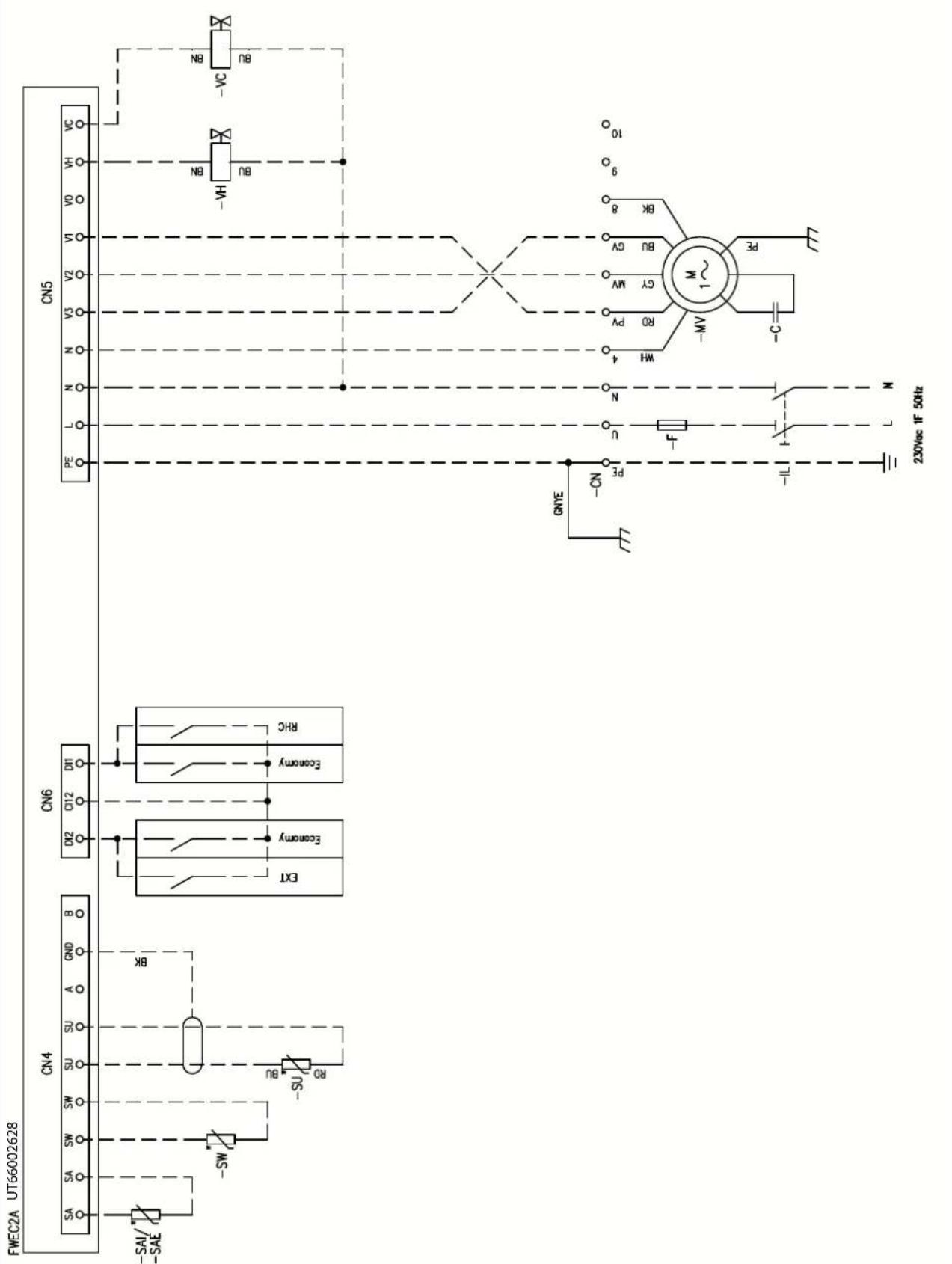

  FWEC2A: pag. 123

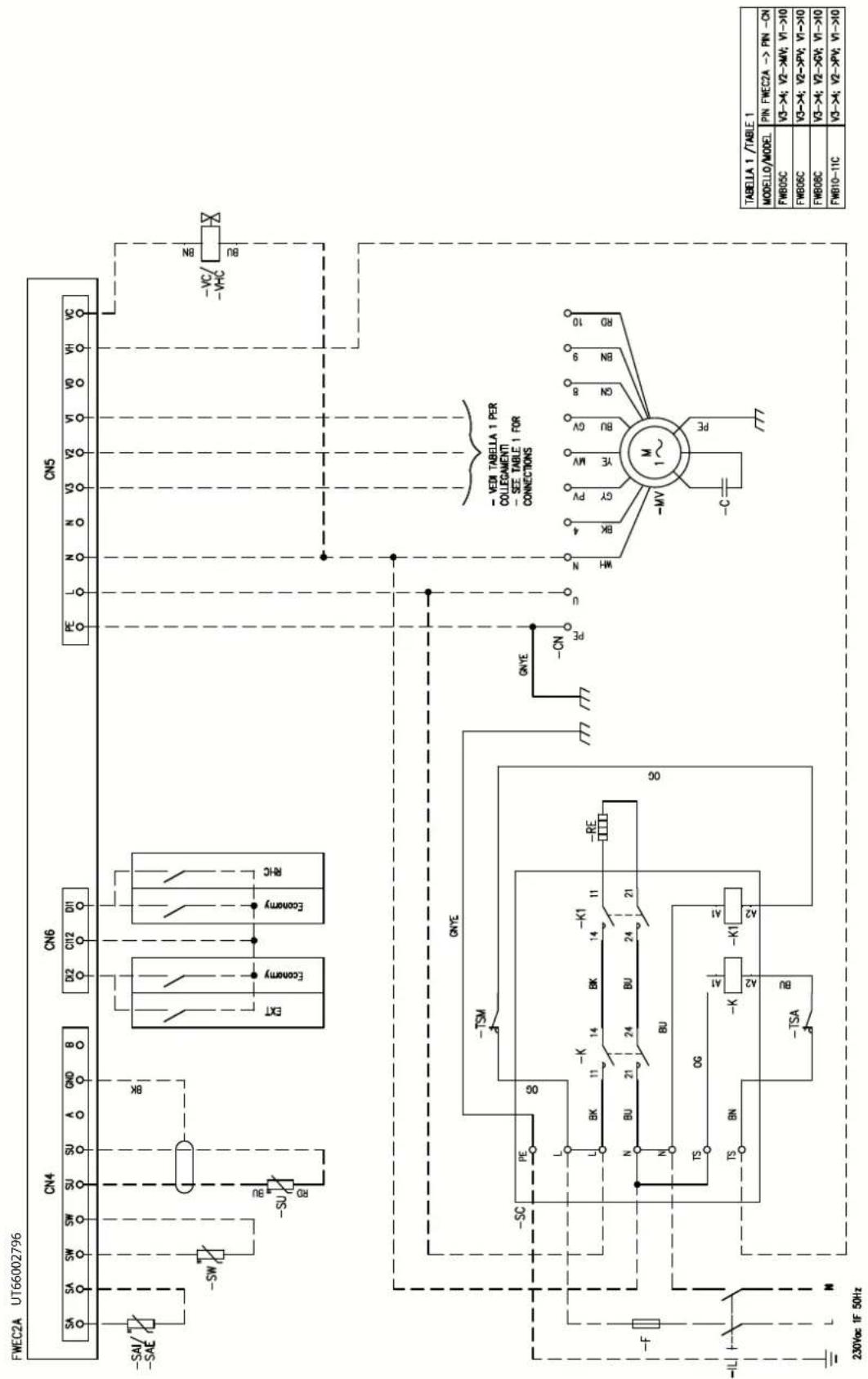

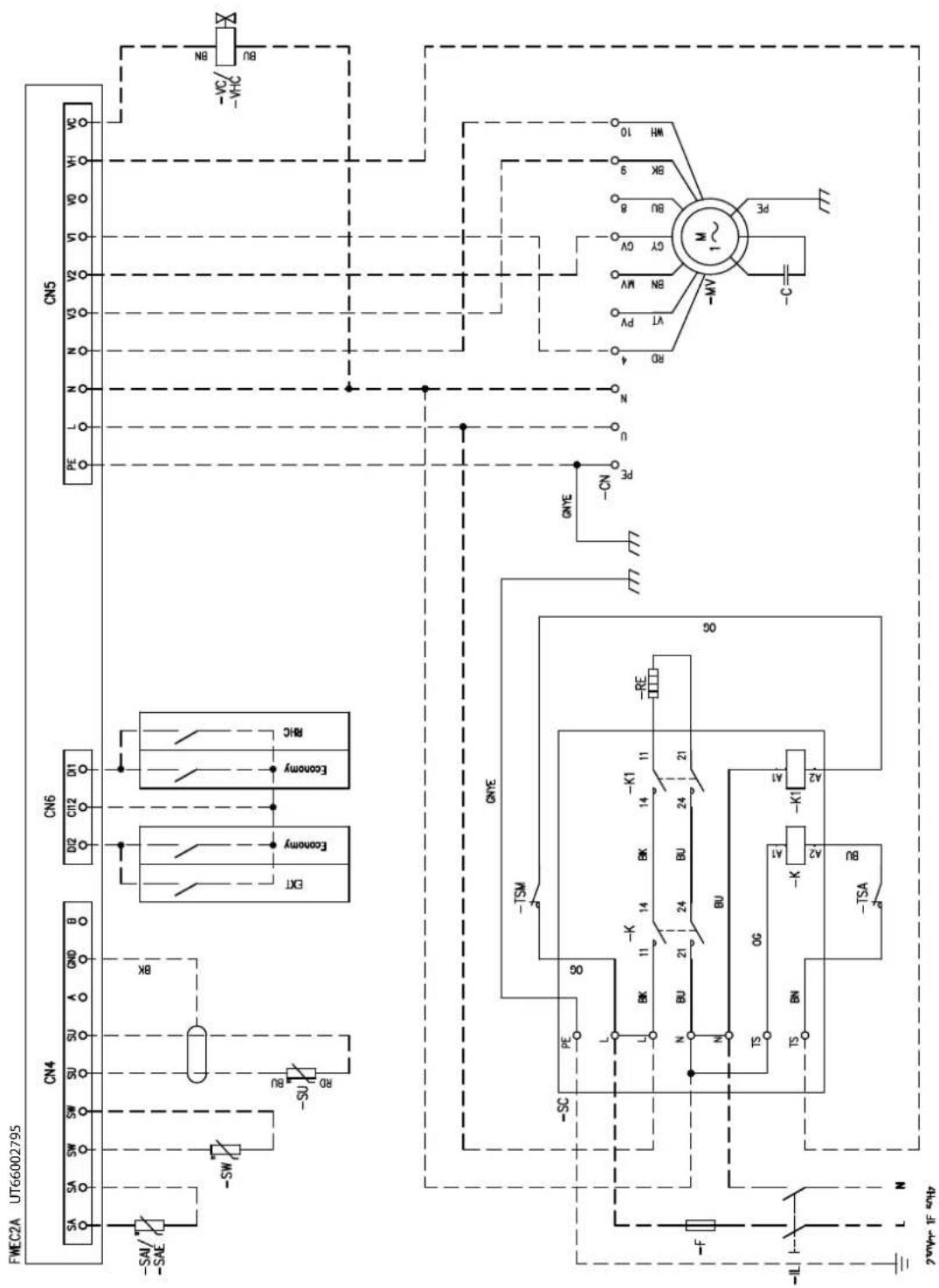

  FWEC2A + Supplementary Heating Element (EH): pag. 126;

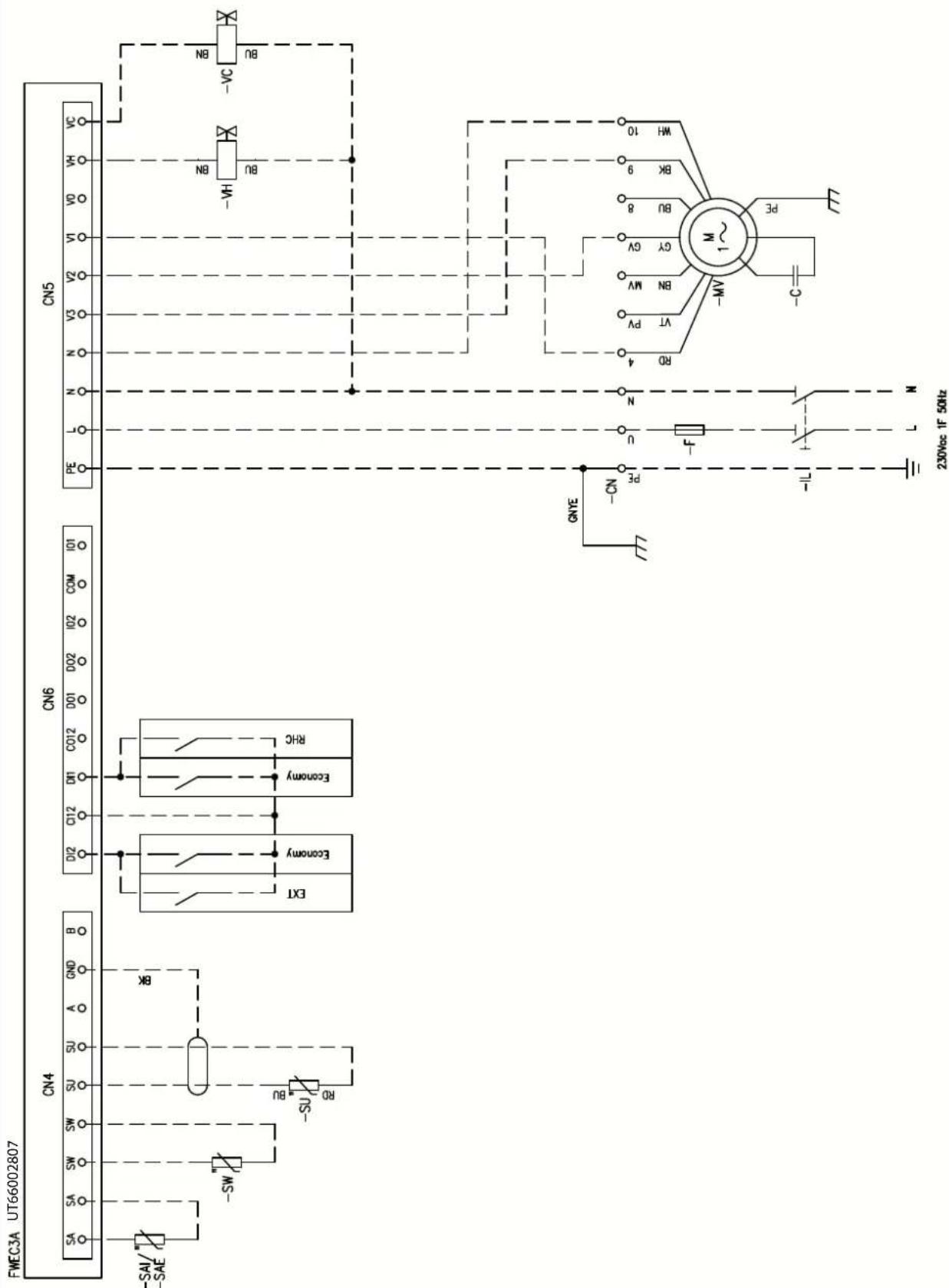

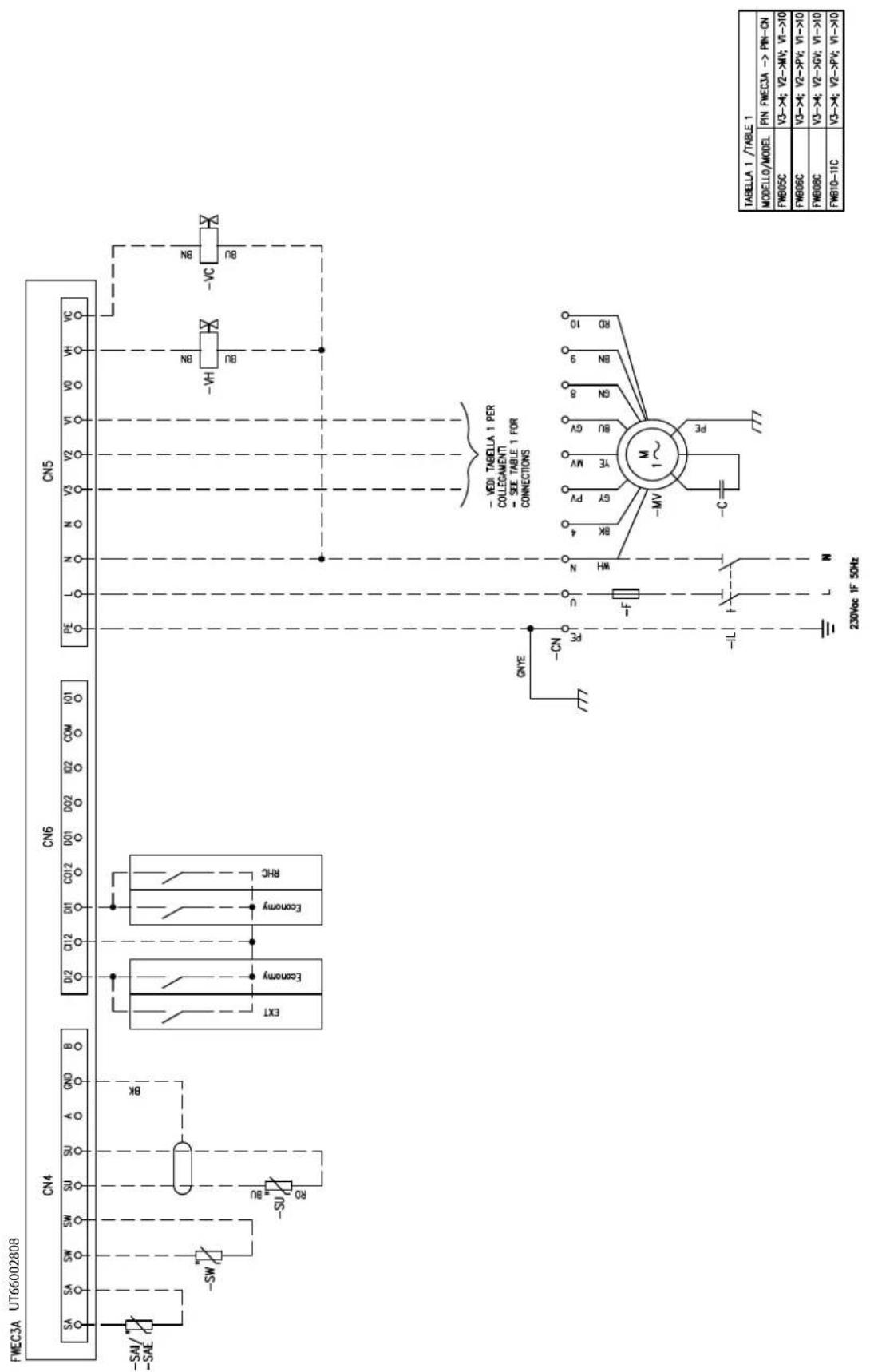

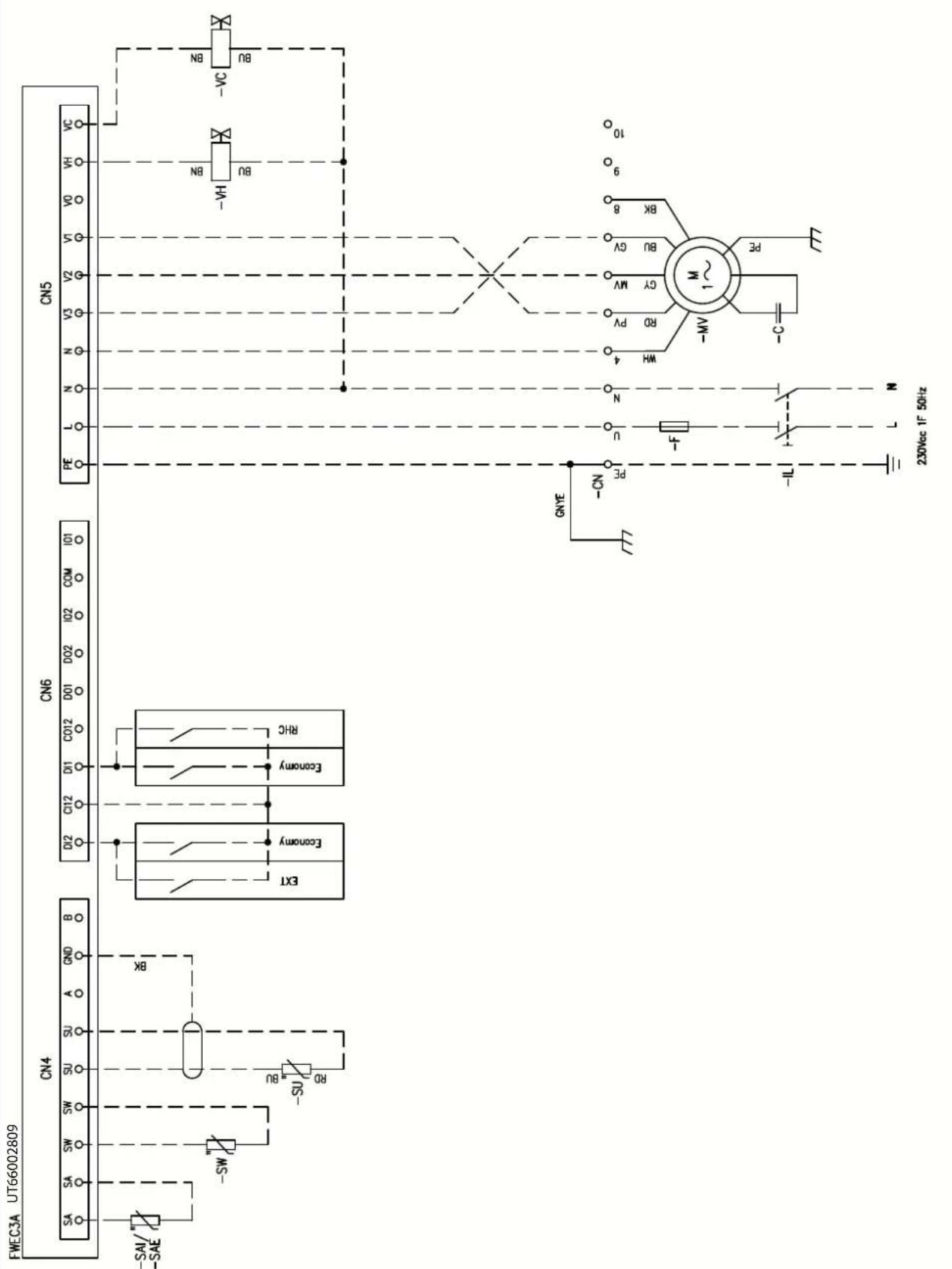

  FWEC3A: pag. 129

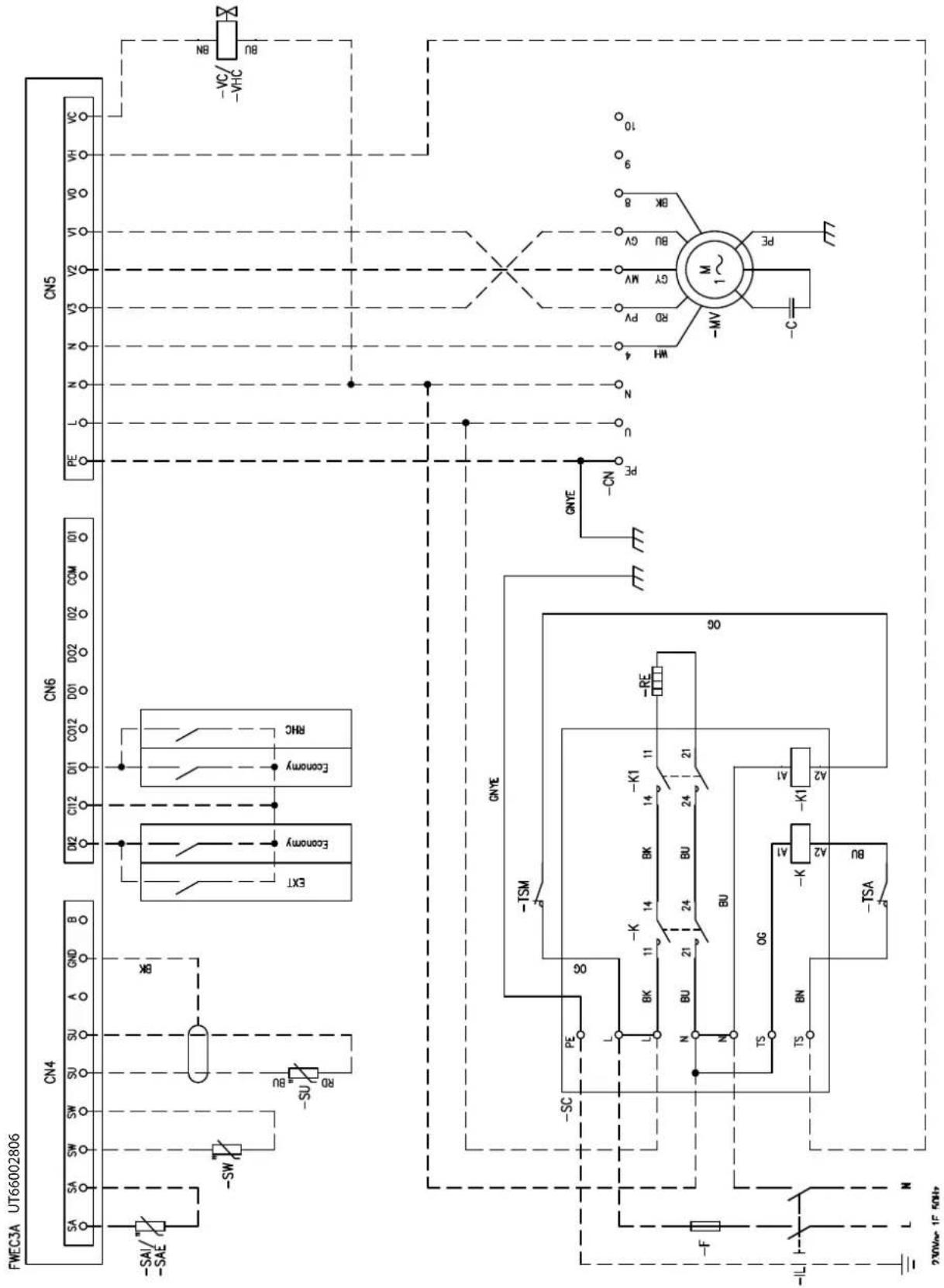

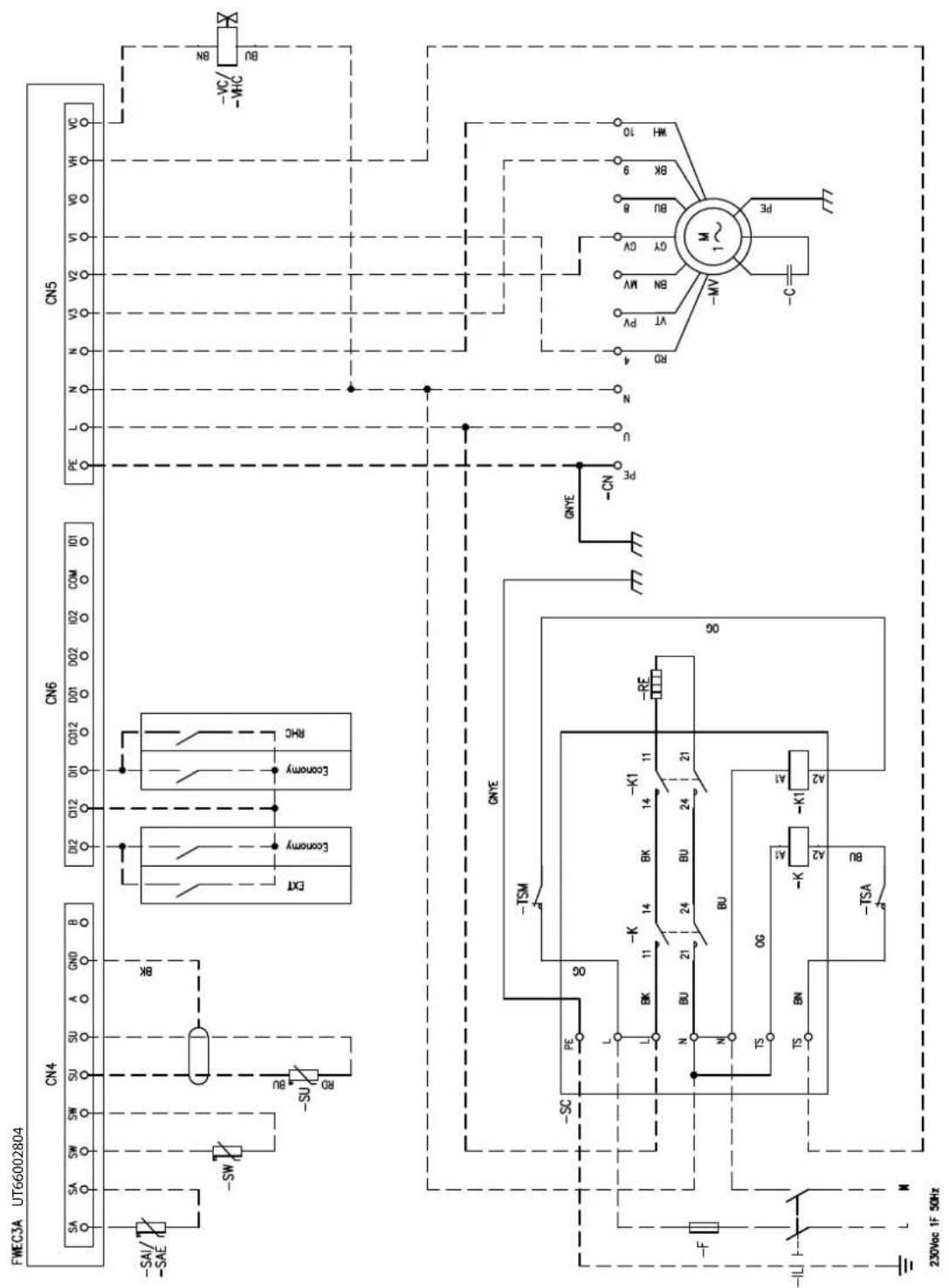

  FWEC3A + Supplementary Heating Element (EH): pag. 132;
  FWEC2T: pag. 135

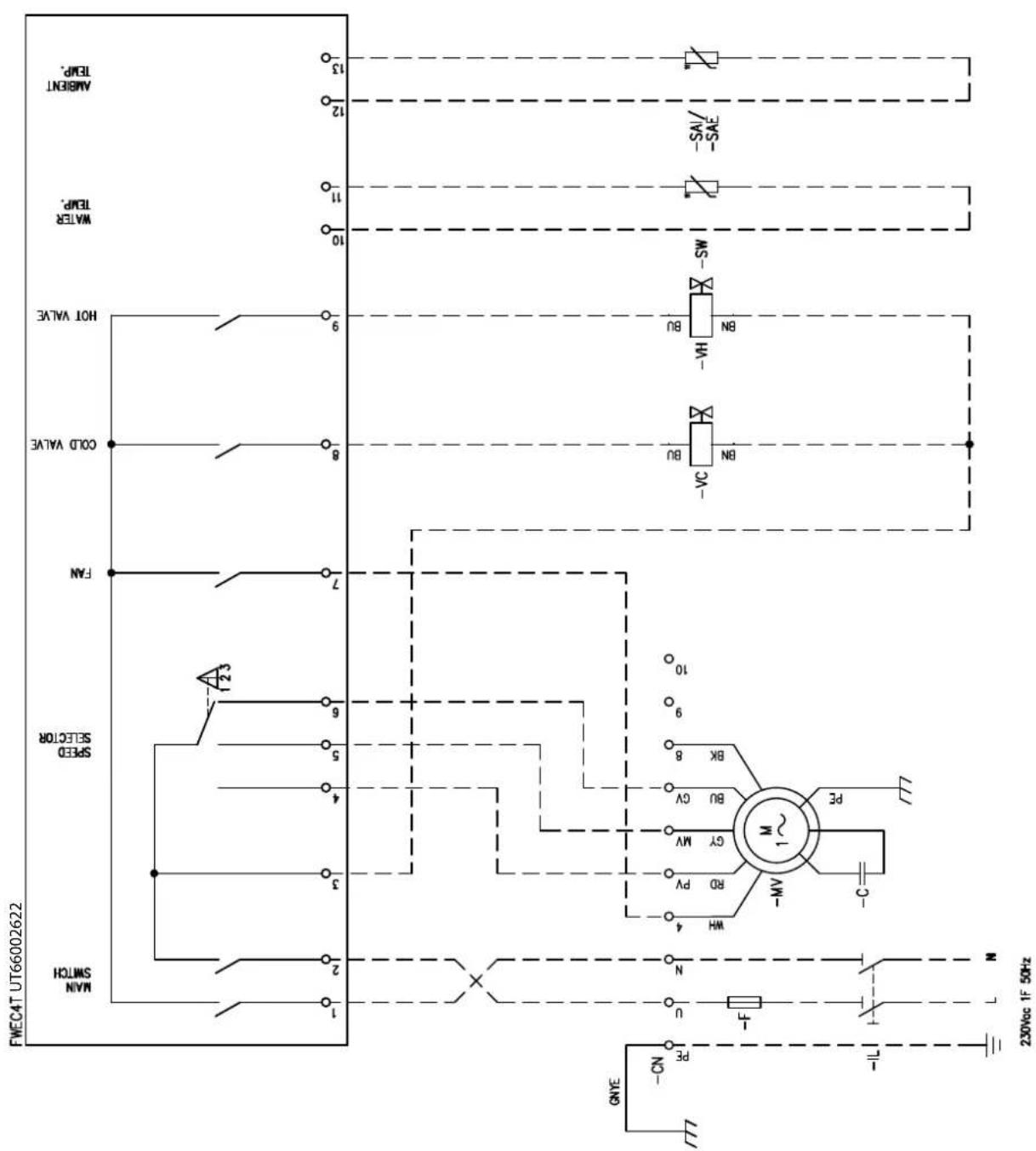

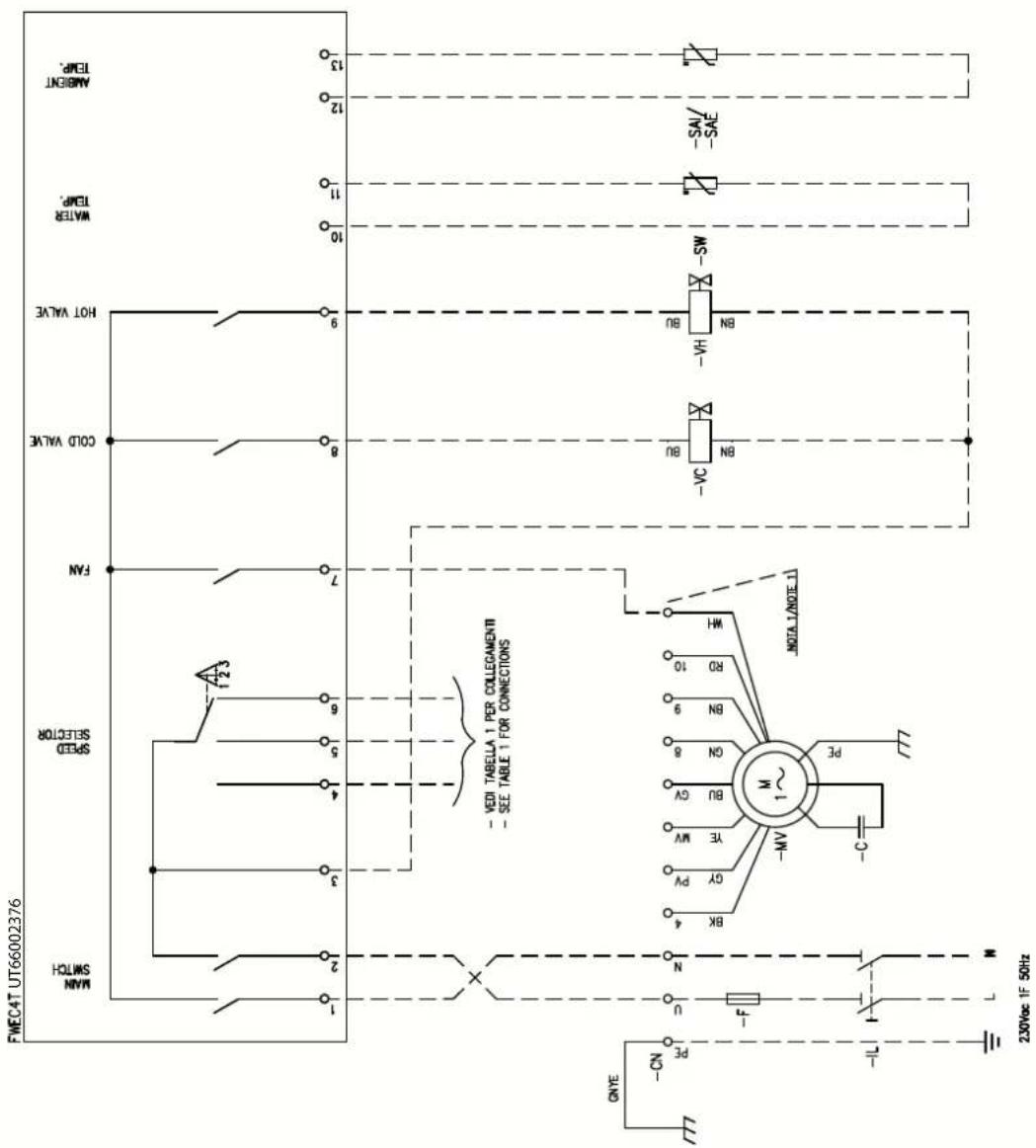

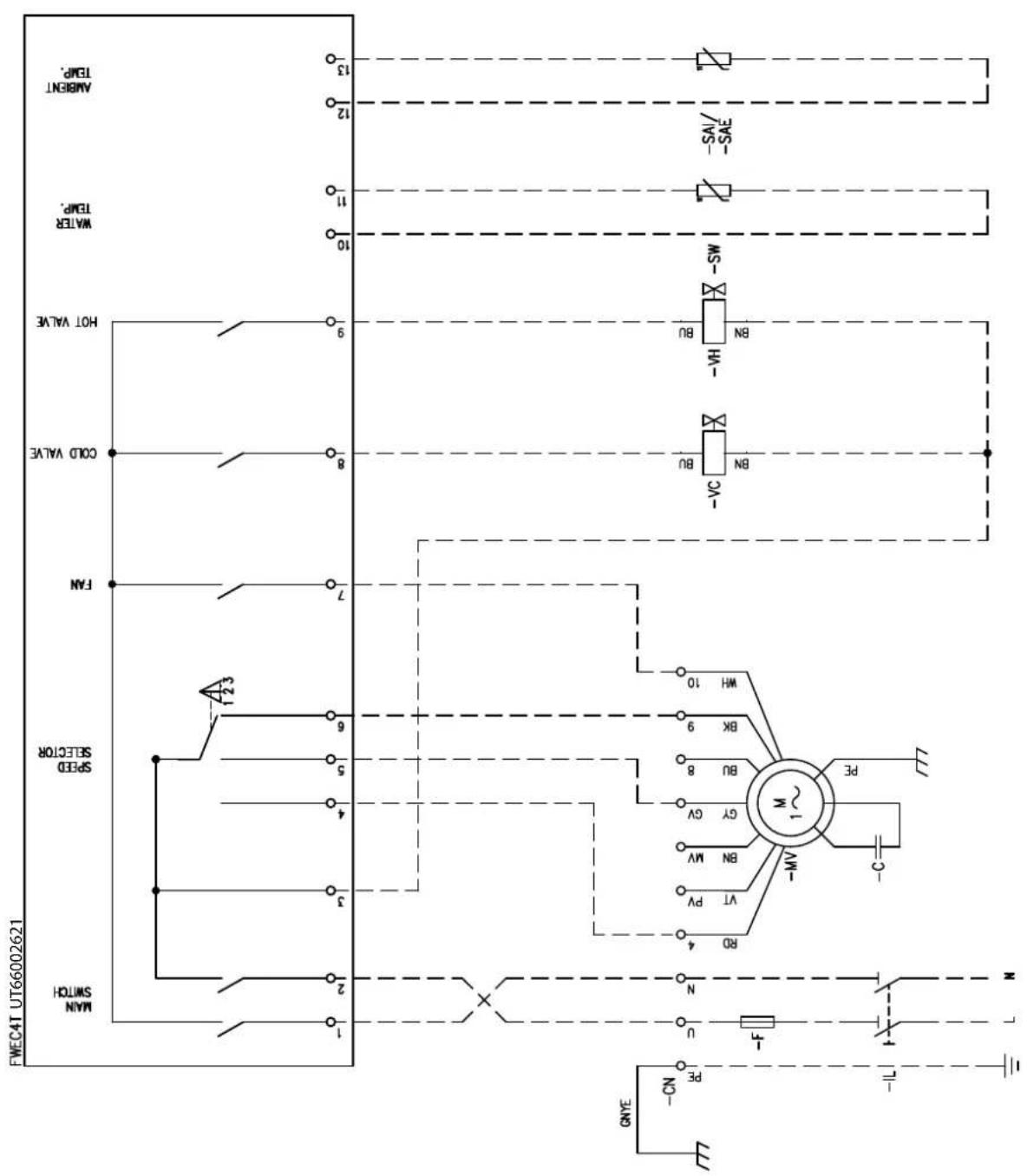

  FWEC4T:pag.138

NOTE: The electric wires (power and control circuits) must be pulled in through the gland on the side of the electric box where the plumbing connections are located and then connected to the terminals.

WARNING: COMMON motor wire = WHITE, wrong connection may cause serious damages to the motor.

5.1 ASSEMBLY OF UNITS

Mounting the unit

Insert the vibration dampers provided in the 4 slots indicated for ceiling installation

Fasten the base unit to the ceiling or wall using the 4 slots provided.

It is recommended to use 8MA threaded bars plus screw anchors of adequate capacity to bear the weight of the unit, and to prepare the positioning of the unit using 3 8MA bolts (2 in the lower part, 1 in the upper part as shown in figure p.89) and two washers for each bar. Before tightening the lock nut, adjust the main nut so as to assure that the unit is properly inclined so as to facilitate condensate drainage

figure p.89). To obtain the proper inclination, tilt the unit so that the intake side is slightly lower (approximately 10 mm) than the outlet side. Make the plumbing connections to the heat exchanger and, where the cooling function is to be used, to the condensate drainage outlet. Use one of the two tray drain outlets, which can be seen on the outside of the unit side panels

• To connect the unit to the drainage line, use a flexible rubber hose and secure it to the pre-selected drain pipe ( 3/8 ) using a metal clamp (use the drain outlet situated on the plumbing connection side).

6 CHECKS BEFORE STARTUP

• Check that the unit is installed in such a way as to guarantee the required inclination.
• Check that the drainage outlet is not clogged (by masonry debris etc.).
• Check the tightness of the plumbing connections.

Make sure the electric wires are tightly connected (carry out this check with the power supply OFF).
Make sure that air has been eliminated from the heat exchanger.
Power the fan coil and check its performance

7 USE

To use the fan coil refer to the instructions on the control panel available as accessory.

WARNING: For safety reason, do not introduce your fingers or other pointed objects in the air outlet grilles.
DANGER: The unit may be used by children of at least 8 years of age and by persons with reduced physical, sensory, or mental capabilities, or who lack experience or the necessary knowledge, provided that they are supervised or after they have received instructions relating to the safe use of the unit and understand the inherent dangers. Children must not play with the unit. Cleaning and maintenance to

be carried out by the user must not be performed by unsupervised children.

8 MAINTENANCE

For safety reasons, before carrying out any maintenance or cleaning jobs, turn off the unit by moving the fan speed selector to "Off" and putting off the main switch (0 position).

DANGER Due caution must be taken while carrying out maintenance: some metal parts may cause injuries; wear protective gloves.

The maintenance requirements of FWB-C ducted units are limited to periodic cleaning of the air filter and heat exchanger and

checks on the efficiency of condensate drainage.

Maintenance may be performed only by specialised personnel.

Whenever starting up the unit after it has not been used for a long time, check that there is no air in the heat exchanger.

The motor requires no maintenance since it has self-lubricating bearings.

CLEANING THE AIR FILTER

Disconnect the unit from the power supply by setting the main switch on 0 (OFF).

To clean the air filter proceed as follows:

1. Access the unit via the inspection panel and take out the air filter as shown in figure (p. 141).

2. If the filter is on the inside of the intake grille, remove the

latter and then proceed to carry out the steps described below.

1. Clean the filter with warm water or, in the event of dry dust build-up, using compressed air.

2. Allow the filter to dry and then fit it back in place.

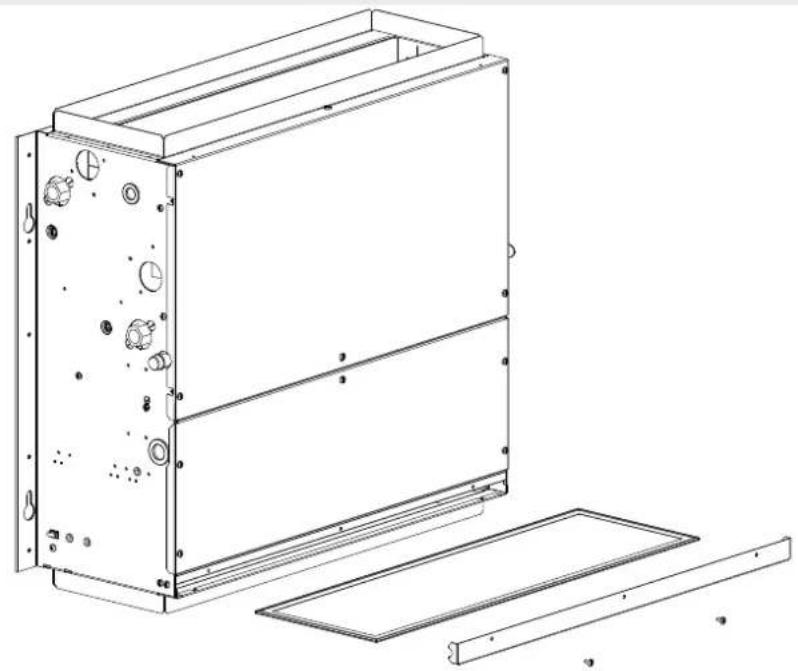

Air filter dimensions, see figure: p. 88.

CLEANING THE HEAT EXCHANGER

It is advisable to check the condition of the exchanger before the start of every summer season to make sure that the fins are not obstructed by dirt.

To access the heat exchanger, remove the outlet panel (whether of the type with collars or a rectangular flange) and the drip tray. On reaching the exchanger, clean it with compressed air or

low-pressure steam taking care not to damage the fins.

Before the start of every summer season, check the efficiency of condensate drainage.

Adequate periodic maintenance will ensure save both energy and cost savings.

9 TROUBLESHOOTING

If the unit is not working properly, before calling a service engineer carry out the checks indicated in the table below.

If the problem cannot be solved, contact your dealer or the nearest service centre.

PROBLEM CAUSE SOLUTION
The unit fails to work	No power supply Restore the power supply
	The automatic safety cutout has tripped Call a service centre for assistance
	The on/off switch is on Start the unit by moving the switch to ON
The unit provides insufficient cooling or heating	The air filter is dirty or clogged Clean the air filter
	An obstacle is obstructing the air intake or outlet Remove the obstacle
	Air is trapped inside the heat exchanger Call the installer for assistance
	There are open windows and/or doors Close windows and/or doors
	The minimum speed has been selected	Select medium or maximum speed
The unit "leaks" water	The unit has not been installed with the correct inclination	Call the installer for assistance
	The drainage outlet is clogged	Call the installer for assistance

2 pipes

FWB-C			04 05 06 08
Speed			min med max min med max min med max min med max
Declared speed			2,5,7 1,5,7 1,6,7 1,4,7
Rated air flow (E) m³/h			109 246 276 171 295 341 195 360 402 305 532 652
Available static pressure (E) Pa			10 50 63 19 50 77 19 50 63 17 50 75
Power input	(E) W		24	57	82	34	69	106	34	85	106	76	143	192
Maximum current absorption		A	0,40			0,56			0,56			1,10
Total cooling capacity	(1) (E)	kW	0,92 1,72 1,90 1,27 1,90 2,27 1,57 2,69 2,96 1,92 3,17 3,68
Sensible cooling capacity	(1) (E)	kW	0,61 1,21 1,34 0,89 1,34 1,59 1,07 1,86 2,03 1,42 2,39 2,81
FCEER class	(E)		D			D			D			E
Water flow	(1) l/h		160 306 340 222 389 408 274 476 527 343 568 664
Water pressure drop	(2) (E)	kPa	2	5	6	3	6	8	3	7	9	3	8	11
Heating capacity	(3) (E)	kW	0,88 1,81 1,99 1,33 1,98 2,35 1,59 2,80 3,10 2,35 3,71 4,31
FCCOP class	(E)		D			D			D			D
Water flow	(3) l/h		153 315 346 231 345 408 276 488 538 408 644 749
Water pressure drop	(3) (E)	kPa	1	4	5	2	5	7	2	6	8	4	9	11
Standard coil - number of rows			3			3			4			3
Total sound power level	(4) dB(A)		32 49 29 39 50 54 39 50 54 38 52 58
Inlet + radiated sound power level	(4) (E) dB(A)		30 47 50 37 48 52 37 48 52 36 50 56
Outlet sound power level	(4) (E) dB(A)		29 46 49 37 47 52 36 47 51 35 49 55
Water content - standard coil		dm³	1,20			1,20			2,20			1,60
Power supply cable type			M07V-K			M07V-K			M07V-K			M07V-K
Cross-section area of power cables	(5)	mm²	1,00			1,00			1,00			1,50
Safety fuse F		A	1			1			1			2
Fuses type			gG			gG			gG			gG

FWB-C			10 11 15 17
Speed			min med max min med max min med max min med max
Declared speed			1,6,7 1,6,7 5,6,7 5,6,7
Rated air flow (E) m³/h			333	687	760	333	687	760	1050	1163	1289	1050	1163	1289
Available static pressure (E) Pa			12 50 61 12 50 61 40 50 53 40 50 60
Power input	(E) W		76	167	192	76	167	192	235	280	332	235	280	332
Maximum current absorption		A	1,10			1,10			2,10			2,10
Total cooling capacity	(1)(E)	kW	2,22 4,22 4,63 2,44 4,79 5,23 6,15 6,66 7,216,91 7,49 8,12
Sensible cooling capacity	(1)(E)	kW	1,60 3,09 3,39 1,70 3,33 3,64 5,14 88 5,79 4,83 5,23 5,67
FCEER class	(E)		D			D			D			D
Water flow	(1) l/h		394	753	828	432	850	930	1095	1191	1295	1225	1333	1448
Water pressure drop	(2)(E)	kPa	2	7	8	3	10	12	13	16	18	20	23	26
Heating capacity	(3)(E)	kW	2,54 4,76 5,17 2,63 5,03 5,49 6,68 7,22 7,80 7,18 7,80 8,46
FCCOP class	(E)		D			D			D			D
Water flow	(3) l/h		442	827	898	457	875	955	1162	1256	1357	1248	1356	1472
Water pressure drop	(3)(E)	kPa	2	7	8	3	9	11	12	14	16	17	20	23
Standard coil - number of rows			3			4			3			4
Total sound power level	(4)	dB(A)	38 55 58 38 55 58 61 63 69 61 63 69			61 63 69 61 63 69
Inlet + radiated sound power level	(4)(E)	dB(A)	36 53 56 36 53 56 59 61 67 59 61 67			59 61 67 59 61 67
Outlet sound power level	(4)(E)	dB(A)	35 52 55 35 53 55 58 60 66 58 60 66			58 60 66 58 60 66
Water content - standard coil		dm³	2,50			3,30			2,50			3,30
Power supply cable type			NOV-K			NOV-K			NOV-K			NOV-K
Cross-section area of power cables	(5)	mm²	1,50			1,50			1,50			1,50
Safety fuse F		A	2			2			2			2
Fuses type			qG			qG			qG			qG

(1) Water temperature 7^ / 12^ air temperature dry bulb 27^ wet bulb 19^ (47% relative humidity) according to EN 397-2021
(2) Water temperature 7^ C / 12^ C , air temperature dry bulb 27^ C , wet bulb 19^ C (47% relative humidity)
(3) Water temperature 45^ / 40^ air temperature 20^
Sound power measured according to standards ISO 3741 and ISO 3742
(5) The shown section is to be considered section. The cables must be chosen in compliance with CFI-UNF 35024/1, standard.
(E) EUROVENT certificatedata
Power supply 230-1-50 (W-ph-Hz)

4 pipes

FWB-C			04 05 06 08
Speed			min med	max min med max min med max min med max
Declared speed			2,5,7 1,5,7 1,6,7 1,4,7
Rated air flow (E) m³/h			109 243	270 170 272 336 195 357	398 302 524 642
Available static pressure (E) Pa			10 50 63	19 50 77 19 50 63 17 50 75
Power input (E) W			24 57 82	34 69 106 34 85 106 76	143 192
Maximum current absorption A			0,40 0,56 0,56 1,10
Total cooling capacity	(1)(E) KW		0,92 1,70 1,86 1,26 1,88 2,24 1,57	2,67 2,93 1,89 3,13 3,64
Sensible cooling capacity	(1)(E) KW		0,61 1,20 1,31 0,88 1,33 1,57 1,07	1,84 2,01 1,41 2,35 2,78
FCEER class	(E)		D		D			D			E
Water flow	(2) l/h		160 302	333 221 335 404 274 473	522 339 562 656
Water pressure drop	(2)(E) kPa		2	5	6	3	6	8	3	7	9	3	8	11
Heating capacity	(3)(E) kW		1,14 1,93 2,06 1,55 2,07 2,32 2,09	3,09 3,29 2,80 3,82 4,24
FCCOP class	(E)		D		D			C			D
Water flow	(3) l/h		100 169 180 136 181 204 183 271	288 245 334 371
Water pressure drop	(3)(E) kPa		1	2	3	2	3	3	2	3	4	3	5	6
Additional coil - number of rows			1		1			1			1
Total sound power level	(4) dB(A)		28.49 52 39 50 54 36 47 51 38 52 58
Inlet + radiated sound power level (4)(E)	dB(A)		26.47 50 37 48 52 37 48 52 36 50 56
Outlet sound power level	(4)(E)	dB(A)	25.46 49 36 47 51 36 47 51 35 49 55
Water content - additional coil		dm³	0,47 0,47 0,59 0,59
Power supply cable type			N07V-K		N07V-K			N07V-K			N07V-K
Cross-section area of power cables	(S)	mm²	1,00 1,00 1,00 1,50
Safety fuse F		A	1		1			1			2
Fuses type			gG		gG			gG			gG

FWB-C			10 11 15 17
Speed			min med	max min	med max	min med	med max
Declared speed			1,6,7 1,6,7 5,6,7 5,6,7
Rated air flow (E) m³/h			333	683	755	333	683	755	1050	1163	1289	1050	1163	1289
Available static pressure (E) Pa			12 50 61	12 50 61 40	12 50 60 40 50 60
Power input (E) W			76 167	92 76 167	192 235 280 332	235 280 332
Maximum current absorption A			1,10 1,10 2,10 2,10
Total cooling capacity	(1)(E) kW		2,22 4,20	4,60 2,44 4,76 5,20 6,15	6,66 7,21 6,91	7,49 8,12
Sensible cooling capacity	(1)(E) kW		1,60 3,07	3,36 1,70 3,31 3,62 4,51	4,88 5,29 4,83	5,23 5,67
FCEER class	(E)		D			D			D			D
Water flow	(2) U/h		394	749	822	432	846	925	1095	1191	1295	1225	1333	1448
Water pressure drop	(2)(E) kPa		2	7	8	3	10	12	13	16	18	20	23	26
Heating capacity	(3)(E) kW		3,40 5,17 5,45 3,40 5,17 5,45 6,42 6,73 7,06 6,42 6,73 7,06
FCCOP class	(E)		D			D			D			D
Water flow	(3) U/h		297 452	477 297 452	477 562 590	618 562 590 618
Water pressure drop	(3)(E) kPa		6	13 14	6	13 14	19 21 22 19 21 22
Additional coil - number of rows			1			1			1			1
Total sound power level	(4) dB(A)		38 55 58	38 55 58 61	63 69 61 63 69
Inlet + radiated sound power level (4)(E)	dB(A)		36 53 56	36 53 56 59	61 67 59 61 67
Outlet sound power level	(4)(E)	dB(A)	35 52 55	35 52 55 58	60 66 58 60 66
Water content - additional coil		dm²	0,97 0,97 0,97 0,97
Power supply cable type			N07Y-K			N07Y-K			N07Y-K			N07Y-K
Cross-section area of power cables	(5)	mm²	1,50 1,50 1,50 1,50
Safety fuse F		A	2			2			2			2
Fuses type			gG			gG			gG			gG

(1) Water temperature 7^ / 12^ air temperature dry bulb 23^ wet bulb 19^ (47% relative humidity) according to FN139/2021
(2) Water temperature 7^ / 12^ air temperature dry bulb 23^ wet bulb 19^ (47% relative humidity)
(3) Water temperature 65^ C, 755^ C , air temperature 20^ C
(4)Sound power measured according to standards ISO 3/41 and ISO 3/42
(5) The shown section is to be considered as the minimum recommended section. The cables must be chosen in compliance with CEL-UNEL 35024/1, standard.
EJEQENTcifieddata
Power supply 230-1-50 (V-ph-H)

11 WEIGHTS

FWB-C		04	05	06	08	10	11	15	17
2 pipes	kg	24,4	25,4	33,0	36,0	45,0	45,0	51,0	51,0
4 pipes	kg	25,8	26,8	34,6	37,6	47,5	47,5	53,5	53,5

Kit valvole 3vie montate in fabbrica 1) On mode; 2) By-Pass mode

• Base Electrical Connections: pag. 91;
  FWECSAP on board + ON/OFF VALV: pag. 93;
• FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;

5.1 MONTAGGIO UNITÀ

• FWECSAP on board + MOD. VALV: pag. 99;
• FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
  FWECSAP remote + ON/OFF VALV: pag. 105;
• FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
• FWECSAP remote + MOD. VALV: pag. 111;
• FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
  FWEC1A:pag.117
  FWEC1A + Supplementary Heating Element (EH): pag. 120;
  FWEC2A: pag. 123
  FWEC2A + Supplementary Heating Element (EH): pag. 126;
  FWEC3A: pag. 129
  FWEC3A + Supplementary Heating Element (EH): pag. 132;
  FWEC2T: pag. 135
• FWEC4T: pag. 138;

9 RICERCA DEI GUASTI

Lire attentivement le present manuel.

4 DONNÉES DIMENSIONNELLES

• Base Electrical Connections: pag. 91;
  FWECSAP on board + ON/OFF VALV: pag. 93;
• FWECSAP on board + ON/OFF VALV + Supplementary

Heating Element (EH): pag. 96;
FWECSAP on board ^+ MOD. VALV: pag. 99
- FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
FWECSAP remote + ON/OFF VALV: pag. 105;
- FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
- FWECSAP remote + MOD. VALV: pag. 111;
- FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
FWEC1A:pag.117
FWEC1A + Supplementary Heating Element (EH): pag. 120;
FWEC2A:pag.123
FWEC2A + Supplementary Heating Element (EH): pag. 126;
FWEC3A:pag.129
FWEC3A + Supplementary Heating Element (EH): pag. 132;
FWEC2T:pag.135
FWEC4T:pag.138

• Base Electrical Connnctions: pag. 91;
  FWECSAP on board + ON/OFF VALV: Abb. 93;
• FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): Abb. 96;
  FWECSAP on board ^+ MOD. VALV: Abb.99
• FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): Abb. 102;
  FWECSAP remote + ON/OFF VALV: Abb. 105;
• FWECSAP remote + ON/OFF VALV + Supplementary Heating

Element (EH): Abb. 108;

• FWECSAP remote + MOD. VALV: Abb. 111;
• FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): Abb. 114;

FWEC1A:Abb.117
FWEC1A + Supplementary Heating Element (EH): Abb. 110;
FWEC2A:Abb.123
FWEC2A + Supplementary Heating Element (EH): Abb. 126;
FWEC3A:Abb.129
FWEC3A + Supplementary Heating Element (EH): Abb. 132;
FWEC2T:Abb.135
FWEC4T:Abb.138

• Base Electrical Connnctions: pag. 91;
  FWECSAP on board + ON/OFF VALV: pag. 93;
• FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;
  FWECSAP on board ^+ MOD. VALV: pag. 99;
• FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;

• FWECSAP remote + ON/OFF VALV: pag. 105;

• FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;

• FWECSAP remote + MOD. VALV: pag. 111;
• FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
  FWEC1A:pag.117
  FWEC1A + Supplementary Heating Element (EH): pag. 120;
  FWEC2A: pag. 123
  FWEC2A + Supplementary Heating Element (EH): pag. 126;
  FWEC3A: pag. 129
  FWEC3A + Supplementary Heating Element (EH): pag. 132;
  FWEC2T: pag. 135
  FWEC4T: pag. 138

• Base Electrical Connctions: pag. 91;
  FWECSAP on board + ON/OFF VALV: pag. 93
• FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;
• FWECSAP on board + MOD. VALV: pag. 99;

• FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
  FWECSAP remote + ON/OFF VALV: pag. 105;

• FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;

• FWECSAP remote + MOD. VALV: pag. 111;
• FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
  FWEC1A:pag.117
  FWEC1A + Supplementary Heating Element (EH): pag. 120;
  FWEC2A: pag. 123
  FWEC2A + Supplementary Heating Element (EH): pag. 126;
  FWEC3A: pag. 129
  FWEC3A + Supplementary Heating Element (EH): pag. 132;
  FWEC2T:pag.135
  FWEC4T:pag.138

BILJEŠKA: Elektricni kabeli (napajanje i upravljanje) moraju se dovesti do priključne ploče kroz stezaljku kabela koja se nalazi na suprotnoj strani od strane hidraulickih priključaka.

PAZNJA: ZAJEDNICKI kabel motora je BIJELE boje: njegovo pogresno spajanje uzrokuje nepopravljiva ostecenja motora.

5.1 MONTAZA JEDINICE

• Base Electrical Connctions: pag. 91;
  FWECSAP on board + ON/OFF VALV: pag. 93
• FWECSAP on board + ON/OFF VALV + Supplementary Heating Element (EH): pag. 96;
• FWECSAP on board + MOD. VALV: pag. 99;

• FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
  FWECSAP remote + ON/OFF VALV: pag. 105;

• FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;

• FWECSAP remote + MOD. VALV: pag. 111;
• FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
  FWEC1A:pag.117
  FWEC1A + Supplementary Heating Element (EH): pag. 120;
  FWEC2A: pag. 123
  FWEC2A + Supplementary Heating Element (EH): pag. 126;
  FWEC3A: pag. 129
  FWEC3A + Supplementary Heating Element (EH): pag. 132;
  FWEC2T: pag. 135
  FWEC4T: pag. 138

9 NONCK HENCPABHOCTE 83

10 HOMNHAJIbHbIE TEXHnueCKNE XAPAKTEPNUCTIKU .p.84
11 IOKA3ATEJI IN BECA .p.85
12 PNCYHKU. p.86

ГРАИЦБIФУHKUMOHINPOBAHA

KnDkN TeNoHocTeIb: B0da

TeMnepaTpa BOdBi: 5÷ 90^

TemnepaTpa BO3dyxa: -20°C ÷ 40°C

HanpjaKeHne nHTaHn:230B

MaKcImaMbHoe pa6ooye daBHeHne: 166ap

PpeelbHoe 3NaueHne OTHOCHTeBHOI

BnaxhOCTN BO3Dyxa B NOMEueHIN: RH < 85 % 6e3

KoHdEHCnpyUoIeBnlar

BnHmATEbHo npOHTaIte daHHe pkyoBOdCTBO.

MoHTaIK N TexO6CnyKunBaHnE yCTaHOBKn DOJINKbI OcyuEcTBJIbTcBc TOnbKO KBAInΦNtupOBaHHbIM TexHNueCKM NepCOHaNOM, IMeIOUIM ONbI pa6Otbl C 3TNIM TINOM O6OpyIDoBaHnR, B COOTBeTCTBnN C DeiCTByIOUmm HOpMaTINBaMn.

Pn noJyueHnn 6obpyoBaHHa CneDyET npOBepnt b erO coCTOHHe,

y6eBwncb, cyo npn TpaHcnpTnpOBke eMy He 6bl HaHecen yuepe6. B OTHOweHN MOHTaKa N EKCIpyatauN BO3MOxHOro DOONHInTeJbHO- ro 06OpUdoBaHn CM.CoOTBeCTByIOuneTexHueckne nacnopta.

OnpeenTe MoeIb faHkoIa C cHTpo6ExhBIM BeHTnIaTOpOM FwB-C no yka3aHnM, npBBeHeHHbIM Ha ynaKOBke.

CIMBOJbI BE3OITACHOCTN

BhimaTeIbHo npOuHTaIe pykoBoDCTBO

BhimaHne

NCIOb3yIe COOTBETCTBYIOUne CN3 (NEPCHATNДЯ PABOTbIC XIAJADAREHTOM,3AUHTHBIE OUKN)

3aKoHOdaTeBCTBy.ObOpyOBoAHHe 0e6xOdIMo nepepa6aTbBaTb Ha CneuaHnIUPOBAHOM PpeInpIaTNIO nepepa6OTke IIN NOBTOPHOro NcNOLb3OBAHNA, BTOpUHOn Nepepa6OTKN IBOCCTAHOBLeHNA.Y6eNBuNCb IBpABUNbHOYtINH3aUNI 3TOI IN3DEHNA,Bi NOMOKeTe PpeDToBpATNTb BO3MOXHbIE HerATINHbIE NOCECTBn DnOKpyKaHue CpeDbI 3DOpOBbY cENOBeka.IINONyueHN dONONHTbeHO HhOpMaUN O6paNTecb K yCTaHOUsKy INN B MeCTHBie OprAhblBlaCTN.

3HIMAHHE! Arperat He copejnt OnaChbIX KOMnoHeTob Co- rJlacHO kIaccnKkaun Perlanente 1357/2014.

BHIMAHHE! 3NEKTPnueckne H 3NEKTPoHHbIe N3dennr HEnb3a CMeuINBaTb C HecOpTnPOBAAHbIM 6blTOBBIM OTXdAMn. HE PbITAETECb pa3o6paTb CNTEmy CAMOCTORAeBHO: DEMOHtAK CNCTembl, c6op Macna n Dpyrnx DeTaleN DonJHKbl BblONHbTcBcYOnlHOMOeHHbIM YCTAHOBUKNOM IN COOTBetCTBOBaT DeEChTBYIOUeMy

2 HADJIEXKALUEE INCNOJb3OBAHNE

KOMnHaHr Daikin ChnMaet Cce6BcKaKyIO TBETCTBeHHoCTb B Cnya-ax, KOrJa 06OpdyOBaHHe yctHaBaNBAeTc HekBaIINΦuNPOBaHHbIM nepcoHaIOM, NcNoJIb3yETc HHeAaJExaUIM O6pa3OM NIn B HeDOnyCTUmBix YcNOBHX, He BblONIHReTcTexHueckoe O6CnyXnBaHne, npedycMOTpeHHoe B daHHom pyKOBOdCTbe, INH He nCNoJIb3yIOTC

OPINHbHbe3aNAChBeyACTN.

06opyobahme cnpoektnpobaHO nKoHnunOHPOBaHn BO3dyxa B NOMEeHNn INpeHa3HaueHo nOc3aHnKOMΦOpTHbIX ycOBn npu NCNOB3OBAHn B rpaXdaHcknx 3DaHnx.

MECTO YCTAHOBKIN

PnBbIbOpemecTa yctaHOBKn co6JIIOaJTe cIeDyOuIne npabVila:

一o6opyoBaHnIeI KOHnIuHOHnpOBaHn HnB3pa3MeaTb He nocpeCTBeHHNO NO 3NeKTPnuecko po3eTKo;
He yTaHaBnBaIte o6OpyDObaHne B NOMEueHnx, rge PnpCyTCTByIO TERKOBOCIIaMeHraUeCE Ra3bI IIN PbIb;
—HeNoDBepraTe aRperaT Bo3DeiCTBnIO 6pblr BObI; He yCTaHaBnBaIteeroB NOMEueHIN PpaueHNO;

• yctaHabInBaIte foHKnI C cIeHTpo6ExhBIM BEHTnIaTOPOM Ha CTHe Hax IIN NOTONkAX, KOTOpBE CNOC6Hb BbldePkaTb ERO Bec, OCTABJIa BOKpyr Hero IOCTaTOUHO MeTa dJa OBeCneueHn BO3MOxHOCTn HAdNekAaee kCNJIyatauIN IN TexHnueCKOrO 0cCnyBAHnI;
  -xpaHnTe arperaT B ynyakOBKe Do MOMeHTaYCTaHOBKn BO N36eKaHne InonaHaHnI NbJIN BHyTpB HeO.

3 OПИСАНЕ ПИБОРА

FWB-C: PABOYUE XAPAKTEPNCTUKI KOMNAKTHOCTb IPI BCTPOEHHO YCTAHOBKE HA NOTOJKE

KaHaIbHbI ΦaHKoJI FWB-C 6bl pa3pa60TaH IIN KOnHmIoHOHPOBaHnB O3dyxa B NOMEeHnX, rIe Tpe6yETc YCTaHOBka BbICOKo3ΦkeKTHBbIX arperatoB cpeHero Hanopa C yMeHbWeHHbIMn Ra6apuTHbIMn pa3Mepam.

AccoptmEHT OXBtBbAe Dnana3OH paXOda BO3dyxa ot 300 do 1200 m³/ч B 3aBNCMOnCTN OT KOHKpeTHoM MoJeN (BCero IMeETc8 pa3nHbIX moJeI). BaTape TEnNoo6MeHHika No3BOJraTcNObIb-3OBaTB FWB-C B cambix pa3Hoo6pa3HbIX yCIOBnIx EKcJIpyatauIN.

IeNCTBnTeNbHO，HecyuaKoHCTpykUa CodepKNT 3-nnn 4-paHyu 6aTapeio，K KOTOPO MoXHo NOcOeHNHTb DOnONHTeNbHbI 1-nnn 2-paHbI TENNo06MeHHNK Ia ObecNeueHHN UckIOuHTeNbHbIX EKnPlyatauONHbIX XapaKTEpNCIK DaKe npn Hn3Ko pa3HnCe

TEMNepaTyp.

5atapen MoKHO ONTUMN3NPOBaTB dIy CEHTpAaN3OBAHbIX cNoCo6OB npMHeHnRA, TaNX KAK CEHTpAaN3OBAHHe OXlaJckHeH. FWB-C pa3pa6oTaH dIy Trop3OHTaBHorO nOTOnOCHoro MOHTaxa.

OchOBHoi pe3epByap dIa c6opa KOHdEHCata pacnoJoxe HBytpn KOHCTpyKun arperata n HaxoDITcN IOI N3bIToUHbIM daBHeHem NO OTHoHEHIO K CIny, yTO o6JeTcaET CNB KOHDeHCata.

OcTyneH mIpOKm CnKTp HAcTeHHbIX MKNpOnpoeCCOpHBix 6NOKOB ynpaBHeHnC DnCnNeem.

IINHTerpaunn Cpa6oTOBODONPOBOHOCNCTEmbl npednaarOTc 3JIeKTPnueckne HArpeBaTeBN B KOMNJIeKTe C npedoxpAHNTenbHbIMN yCTPOnCTBaMn.

OCHOBhIE KOMTIOHEThBi

KoHCTpykua

KoHCTpykUma n3rOToBHeHa n3 OuHNKOBaHHOrO CTaJIbHO rIJIcTa, OHa TepMNueckn akyCTnueckn n30JInpObaHHa NocpeDCTBOM caMOracxXc naHeJe KnaCca 1.

YMeHbIeHHa BbICota Ira O6nerYeHHa YCTAHOBKN B TOpN3OHTaJIbHOM NIOJKeHHHa HIOBcEChbIX NOTOKAX.

B KOHCTpyKuIMeETcpe3epByapIa c6opa n CnBa KOHDeHCata.

Tennoo6menha 6aTapea

Ctanhaptnha 3-pnHna (no 3anpocy moKet 6bIb npedocTabneHa TaKke 4-pnHna) BbICOKo0fKeTMBaTape, COCTOuaN3 MeiHO Tpy6bI c aHIMnHeBIM pe6paMn, 3akpenneHHbIMn Ha Tpy6ax NocpeCTBOM MexAHueckoro pacwnpeHn.

Oha obopydobaHa naTyHHbIMKolNeKTopaMn IN BO3dyXOBblcKhBIM KnaHAm. Batape, O6bIHO NOCTabIeMaC COeINHeHrMaN CJIeBa, MoJxet 6bItb NoBepHyTa Ha 180°.

IIO 3anpocy npedlaaratoBbICOKo0fkeKTHBHe 6aTapeN,ONTNMnPobAHHbE nIcTeM cHTpaNtOBAHHORO XONOQCHa6KeHn.

BentnAToptbI

UeHtpo6exKhIbe BHTNIATopb IyBxCTOpOHero BcCabIBaHnna 15C-llactnka nnn anlOMHHn C nepeDHNm lONpaTMy, CTaTHueckn H

HnHaMnueckn C6anaHcnpoBaHHbIMN COeHNHeHHbIMN HEnOcpeCTBeHHO C3neKtpoDburatEm.

3nektpoDburatelb

MHorocopocTHOH 3JIeKtPOBnIraTeNb OJHooa3HO AOcHxpoHHOro TINa, C NOCTOARHNO yCTaHOBNEHHbIM KOHJeHCaTOPOM INepMO3auHTbIM YCTPOINCBOM, yCTaHOBNEHHbIM Ha aHTNBb6paUNOHbIX ONOPAX.

Bo3dyuHbI hJbTp

Perenepepyemb B03dyuHb fynbTp n3 akpuiNoboro BOLOKHa,Knacc fniIbtpaunn G3,ycTaHOBneH Ha BCacbIBAHm BO3dyxa, n3BNEkaETcN KACCEtbl CH3y.

BcacbBaHne Bo3Dyxa

BcacbBaHHe Bo3DyXa Cpepei nn CHn3y yCtAHOBKn B 3aBNCMOCTN OT Tpe6oBaHm CNCTembl

PpIMep yctAHOBKn

KoHCTpykUINNo3BONNETKOM6HNHPOBaTBbIPOKMcNEKTBPXOHDbIX bIXOHDbIX pInHaDJIeXHOCTeINIINyueHIN ONTImaJIbHOJ KOHnrypaunarperata.

ПИНАДLEЖHOCTN

3neKToHHbIe MkKpOpoCecOpHbIe naHenn ynpaBnHc dncnneem

FWTOUCH	FWECSAP C#	WOB#A #MATA,DA#Y ynpaBneHn FWECS
	FWEC5AC	PIONB#OBeT#ckB#N HHTC#PcX C D#NC#EeM DIA ynpaBneHn FWECS
FWEC1A	M#KpO#o#CCopHb# B#OK ynpaBneHn C #DC#NCEeM FWECA
	FWEC2A M#KpO#o#CCopHb# B#OK ynpaBneHn C #DC#NCEeM FWECA
	FWEC3A M#KpO#o#CCopHb# B#OK ynpaBneHn C #DC#NCEeM FWECA
FWFCKA	FWEC#A p#nc#ka KOMpO#nepa DIA HCT#E#HO MO#TAK
FWEC2T	B#KpO#o-# YnpaBneHn FWE2T,DA 2-#y6#H oC#T#M
FWECAT	FWECAT,DA 4-Top6H oC#T#M
FWHSKA	JdA#T#K b#An##-oct#n da B#okob ynpaBneHn FWE2A, FWE3A, FWECS
FWTSKA	JdA#T#K b#D# B#okob ynpaBneHn FWE1A/2A/3A, FWECS

3nekTpoMexaHuecKoeynpaBHeHne

YFSTA6 TcPMAOCTAT C ABTOMATHOCKAM OTKTHMCHNEM

Hntepc nHTAHnH H6NoKn ynpaBHeHn Dna3acnoHOK

MEPbI PEPDOCTOPOXHOCTN.

PnHOPMaIbHOpa6Ote，BaCTHOCTNCBEHTNIAITOpOM，fYHKUOHpyoUMHaMIMMaIbHOCKOPOCTN，INPNBO3dyXeBNOMEHcHN C BbICOKO OTHOCHTENbHOB BLAAxHOCTbIO，BO3MOxHO 06pa3OBAHNE KOHdEHCATA Ha NODAue BO3dyxa Hn HEKOTobix qACTRx BHeuHKeKCTpykUn np6opa.

Bo n36bexaHne 3tNx IaBHeH, OCTabAcb Bcerda B nppeJenax rpaHnHybIX pa6OuHx napameTpOB, ppeDycmOTpeHHbIX dIra yCTaHOBKN, Heo6XoIMMo ORpAHuHTb TemnepaTypy BXoDa BOdBi BHTpb 6MeHHNka. B qactHOCTn, Heo6XoIMMo, YTO6bl pa3HNiCa MEXdy TOKoi poCb BO3dyxa (T, D) n TEMnepaTypoB BOdBi HA BXOe (Tw) HE npebblana 14°C cornaCHO cooTHoWeHIO: TW > TA, DP - 14°C Ipnpmep: B cnyae ecnn TemnepaTypa BO3dyxa B NOMeueHn PABaHa 25°C, a OTHCOnTeBbHa BlaXHoCTb CoCtABnReT 75%, 3HaueHne

TOUKNPOCB6yETOKONo 20^ ，N，COOTBETCTBEHHo，TEMnepaTpya BObHaBXOeB6BaTapeoDOnJHs6bITb6OJIee: 20-14=6°CBOu36EkaHneYABHeHnKOHdHcaUNBΦaHKoJIe 6OBOpYDoBAHHOMKlanahOM. 20-12=8°C，ecnHnHeh3aYcTAHOBtBDOONHHTenbHbIK

ФанковскийНOM
		Temnépatура Воздуха по сухому ТермOMETру [℃]
		21	23	25	27	29	31	33
OTHOCHTIELNHA БАЖнOCТь %	40 55	55	55	55
	50 55	55	55	68
	60 55	55	79	11
	70 55	68	91	13
	80 56	80	121	16
	90 68	10	1214	16	18

Фанковлоб的事实
		Темпатура Воздуна по сухому Терmonетру [℃]
		21 23	25 27	29 31	33
Оточтеловая влажносы %	40 66	66 66	66	66	66	66	66	66
	50 66	66 66	8 10	66 8 10	66	66	66	66
	60 66	66 79	11 13	66 79	11 13	66	66	66
	70 66	8 10	11 13	15	15	15	15	15
	80 68	10 12	12 16	18	18	18	18	18
	90 8 10	12 14	14 18	20	20	20	20	20

B cnyae dntenbHoro npocToTepMHana C bblknoeHHBM BeHTnIATOpOM nipKpyJLcnei XoJIOHO B0dB T eNllo6MeHHKe BO3MOXHO 6pa3OBAHHe KOHehCata TaKke ChapyKn pnp6opa. B 3TOM clyae peKomeHdyetc YCTaHOBKa B KaueCTBe DOnONHtBnHO 6opypobAHn 3-XoDOrO (nn 2-xoDOrO) KlanHa, Ira TORO tO6bI npepBaTb notok BoBb B 6atapee, KOrDa BEHTnIATOp BblIOueH.

B clyae octahOBK 3UMOJIe Te BOy n3 cncTeMbI BO n36eKaHme NOBpeHn I3-3a o6pa3oBaHnna Nbda; eCIN NCIOJb3yOTcA hNTnΦpN3bl, npOBepbTe TEMpePaTypy 3aMep3aHnNo TApNlue, pINBedeHHo HnKe.

% rǎnkóla no becy	Těmnépatура Замерэнну (℃)	Изменения Бухочны Моцноctи	Изменения паденье hyapora
001,001,00
10-40,971,05
20-100,921,10
30-160,871,15
40-240,821,20

3neKtpueeckne coedHHeHH

BbINHNTe 3JNEKTPuueckme coeMHHeHH npOTCyTcBm HapPaeHn B COOTBeTCTBm C DeIeCTByUoMMn PpaBnlaMn TexHNKn 6e3OnaCHOCTN. 3JNEKTPOMOHtAkhHbe pa60tbl DOLXHb BbINOHHTbcra TlboKbAInΦn-UPOBAHbbm NepCOHaJOM.

Ja KaJdoTepMOBeHTnIaHIOHHO yCTaHOBN Heo6xOIMNo pEyCMOTpeTb B cTeu 3JeKToPiTuHa BBkIoUaTeB (IL) C pa3MbIAOUMN KOHTaTMn Ha pacctOAHm He MeHee 3 MM N COOTBeCTByIOUs 3aunTHbI PEOxpaHTeB (F).

3NeKtponotpe6nHeNe yka3aHo Ha Ta6nUKe TeXnUeCKnx DaHHbIX, npNKpenHnHO K arperaty.

BoBpEmy yctaHOBNCTporo npndepKnBAeTcB 3neKtpueckO CxEMbl,OTHOCAECK KOMbHauN arperata n naHennynpaBHeHH.

3JIeKTPnueckme CXEmbI:

• Base Electrical Connections: pag. 91;
  FWECSAP on board + ON/OFF VALV: pag. 93;
  FWECSAP on board + ON/OFF VALV + Supplementary

Heating Element (EH): pag. 96;

FWECSAP on board ^+ MOD. VALV: pag. 99
- FWECSAP on board + MOD. VALV + Supplementary Heating Element (EH): pag. 102;
FWECSAP remote + ON/OFF VALV: pag. 105;
- FWECSAP remote + ON/OFF VALV + Supplementary Heating Element (EH): pag. 108;
- FWECSAP remote + MOD. VALV: pag. 111;
- FWECSAP remote + MOD. VALV + Supplementary Heating Element (EH): pag. 114;
FWEC1A:pag.117
FWEC1A + Supplementary Heating Element (EH): pag. 120;
FWEC2A: pag. 123
FWEC2A + Supplementary Heating Element (EH): pag. 126;
FWEC3A:pag.129
- FWE3A + Supplementary Heating Element (EH): pag. 132;
- FWEC2T: pag. 135;
FWEC4T: pag. 138

PIMMEYAHNE.3neKtpuueckne Ka6eNn (nntaHn uynpaBneHn) Heo6xOdmo NODBeCTN K KLEMMHOI KOIOKe YpeE3 Ka6eNbHbI 3aXHM, paCNOIOKeHHbI Ha npOTNBONIOJXHOI CTeHKe CO cTOpOH bI rIqpaBNIuecknx CoeINHeHn.

BHIMAHHE!OBuN KabeBbDnRaTea - BENOTO 乙eTa:ero HnPaBnBHOe noKnIOueHne npBedeT K HenonpaBmOMy nobpeXdHNO dBnRaTeA.

5.1 MOHTAX AFRPERATA

Kpennene arperata

BCTABTe NOCTABNEMbE B KOMPJIeKTe aHTNB6paUOHbIe ONOpbl B 4OTBepCTn, npedHa3HaueHHbIe IIN KpeJIeHn K NOTOLKY.

PpKpeHnTe 6a08bI 6Jok K notoJIky uINn CTHe, nCnoJIb3y4 nped- yCMOTpeHHbIX OTBepCTnI.

— PeKOMEHnyETcHcONb3OBaTb CTepeXHH Cpe3b608 8MA, dIO6eHN, COOTBeCTBHyUOJIne Becy EToI yCTAHOBKN, a TaKKe NOIgROTOBtB pa3MeueHHeY cTahOBKn C NOMOJIbI 3 BoNTOB 8MA (2-B HnKHe YacCTN,1-B BepxHe, KAK NOKa3aHO Ha pCynHke p.89) n DByx WAn6Ha KaJDom CTePxAHE. IpeE 3aTAAKKo KOHTpraKn OTperpyInpyTe 3aTAAKKy OCHOBHO rAkn TAK, YTO6bl npuTaB npu6Opy npaBnHbHn HAKIOH, To eCb OBJeHTb CNIB KOHDeHCata (pncyHOK

p.89).PpabnBbHn HAKIOH DOCTNRAETC NYTEM HAKHOA BCaCbBaHN Bn3 NO OTHOWEHNO K NODAue Do Tex NOP, NOKa MEKdy DBMy KOHcAMn He 6ydt DOCTNHY TEPENAD yPOBHeN OKONO 10 MM.BInONHnTe rnpabnueckne CoeHNHeN C TENNOO6MeHHo 6atapeen n, B cnyae pa60tB B pexnme OxlanKeHn, C cnCTEmoN CINBA KOHdEHCATA. IVcNoB3yIte ODoH IN DByx CNMBhIX OTBepCTn pe3epByapa, KOToPBle BNbHb ChapyKn No 6okam arperata.

IINIOKIIIOHnARperaTKNHHN CINBa KOHcHcTa NcNOB3yIe R6Kn pe3HOBbI IHaHr, 3aKpeNTe ero Ha Bb6paHHO Tpy6 CNBa (0 3/8") cNOMOUBIO MetaJIIMueCKORO XOMYTA (NCIOB3yITe CINB, paONoXeHHbI HA CTOpOHE rnpabNNuecknx CoedHNHeH).

6 ΦУнклноHAJIbHЯ ПЮВЕРKA

• y6eHteScb, yTo np6Op ycTaHOBHeTakm 06pa3OM, yTo6bl o6eCneHTb Heo6xOaMlb HaKNoH.

• y6eintecb, yTO cINB KOHdeHcata He 3acopeH (OTNOXKeHnMn n T. d.).
  PpOBepeTe repMeTnHocTb nDpaBnuecknx coeHNHeHn.

• PnOBepeTe HAdExKHOCTb 3JeKTPoPBOOdkn (npOBeNTe npOBepKy npO TcYCTBmHapRKeHn).
  -y6eHITecb,yTO n3 TeNIOO6MeHHnKa 6bl ydaJIeH BO3dyx.
  IpaTe HapxKeHHe Ha np6Op npoBepbTe erpaOby.

7 3KcPJIyATAUINIA

BOTHOUHINN3KCNpyataunarperataO6bATTEcKKNCTpykUAMnHeIyynpablenHH, KOtopaABTcDOONHNHTeBbIMOBOpdyoBaHEm.

BHUMAHME! 13 coo6paXeHn 6e3OnaCHOCTn He BCTaBnIte pyKN INI ppeMTeB PeSeTky BO3dyxOBbIyCCKHO OTBepCTnA.

ONACHOCTbI Pn6bOpom MOryT NOnb3oBaTcBdTeN B Bo3paTe Do 8 JET N IInua C OrpauHneHbIMn OIN3uecknMn, CEHCOPHBIMn UYN yMCTBeHHbIMn CnOC6HOCTaMn, a TaKHe Ne HmEIOUe ONbTa

Hn Heo6xOaMbIX 3HaHn, eCn OHn HaxoTcN oN pncMOTpOM Hn nocne TOrO kAK OHn NOnyUHN INCTpyKuIN, KacaiouneC 6e3- OAnchoro NcNoIb3OBaHnA Pnp60pa I NoHMaHn CBA3HHbX C Hm pckOB. He pa3peaIte Detam IrPaTc c np6opom. YcTka nTexHnueckoe 0cbnykBaHnE, KOtOpBie HaJnxKIT BblONHATb NOIb3OBaTeIIo, He dONKhbl BblONHATbcr DeTbMn 6e3 npcmOTpa.

8 TEXHnueCKOE OBCJIyXINBAHNE

B cenax 6e3oNaChOCTn nepe npobedeHem IIO60o 6cIyKbHa Hn nn ONUCTKn BbIKIOHTe np6Op, yCTaHOBB nepeKIOUATEnb CKOPCTn B NOJOKeHne «CToT」, a IINHeHb BbIKIOUATeNB-B NIOJOKeHne «O» (BblKIJI).

ONIACHOCTb！BydTe OCTOPOXHb npn BbINONHEHN pa60nt NO Te Hnueckomy 06cnyxHBaHIO: HeKOTOpBie MeTaNIIYeCKNE DeTALN MOrYT CTaTB pNCHHO TpaBM, O6raTeJIbHO HaDeBaHTe 3aUNTHbe nepuATKn.

KaHbIbe pAnKoIbI FWB-C Tpe6yIOT TexHnuecKO o6CnyKBaHnA,

KOTOpoe 3aKnIouaeteCBApeNoIuueckoOuHCTKe BO3NyUHOro
fNbTpA, Tepnlo06MeHHnka N B PpOBepke 3ΦΦeKTNBHOCTN CINBa
KOHHeHCata.

TexHueckoe 06cIyKbAHme MoKeT npoBOnTb TOnbKO KBaHnΦnUPOBaHHb INepcoHaI.

CHCTKA BO3dyuHOrO ΦNJIbTPA

OTKIOUHTe nHTaHne arperata, yCTaHOBnB IINHeHbI BbIKIOuTaTeIb B noLoXKeHne «0» (BbIKI).

YTo6bO uOInCTnTb BO3DyUHbI ΦuNbTp, DeiCTByTe CNeDuOUM 06pa3OM:

1.ПolyuHTe DoCTyN K npB6Opу Yepe3 CMOtpoByIO naHEnb Nn3BNeKInTe Bo3DyUHbI ΦnIbTp, KaK nOKa3aHO Ha pncyHKe (OChntKa Bo3DyUHOrO fnnbTaPa> p.141):

1. EcnJx eHoxoHTcBHyTpN BO3dyxo36pHoPeWTeK, CHMNTe NocnHIOU N BbINOHTHe Oepaun, ONcaHHbIe HmXe.
2. OuInTe fNbTp TeIIOB OBOIO IN, B Cnyae cyxoi nbIN, CkaTbIM BO3dyXOM.
3. CHOBA BCTaBbTe ΦnIbTp, NOcne TORO KAK OH NOdCOxHET.

Pa3MepbBo3DyHoroФиNbTpa CM.нрсунke: p. 88.

YNCCTKA TENJIOOBMEHHOH BATAPEI

PekomeHnyetc npoBepaTb coCTOHaHe Tennno6MeHHnKa nepei HauAion KaJdOro NeTHero ce3OHa, YTO6bl y6eINbCra, YTO pe6pa He 3acopeHbI rpr3bIO.

YTo6bl NOnyUHTb DoCTyn K TeNNoo6MeHHoB 6aTapee, Heo6xOJIMo CHrTB NaHEnb NODaun (c MaHKeTaMn ININ PpAmoyroIbHbIM fNaHcEm), a TAKKe pe3epByap dna C6opa KOHeHCata.

Kak TOnbko Bbl dOyIeTe Do 6aTapeu, ouHCTnTe ee CxAtbIM

BO3DyXOM Nnnapom Hn3KOrO daBHeH, cTapaCb He NoBpeuNTb pe-6pa Tepnoo6MeHHka.

IpeedKaKdbmHaayamOnJeTHeKcnnyatauNn npoBepaTe,npabunbHO JIN PpOcXoNDT CINVB KOHdEHCata.

HadnHexaee n nepnoDnueckoe 06cnnyKbBaHne npBODNT K ekOHOMN 3Heprnn MATEpnaIbHbIX pecypcoB.

9 ПОИСК HЕСПAPBHOCTEД

Ecn np60ep He pa6oTaetdoJXHbIM o6pa3OM, npexJe yem o6paataBcra 3a nOmoIbEO CepBnCHyO cnYk6y, BblonHInTe npOBepKn, yKa3AHbE B Ta6nue HnKe.

Ecn npo6nema He moKet 6bItb peWeHa, o6paTnTeCb K 6nnKaIeMy dInepy nN B cepBnchbl ceHtp.

1 Water connections standard heat exchanger
2 Water connections additional heat exchanger
3 Condensate discharge

Legenda

1 Water connections standard heat exchanger
2 Water connections additional heat exchanger
3 Condensate discharge

Legenda

() Note: 2 way valve kit E2M* is suitable both for standard and additional heat exchanger.

lab.2	3 way valve kit (*)
FCU Models sizes	3 way valve kit 230V on/off 2 pipes	3 way valve kit 230V on/off 4 pipes	3 way valve kit 24V on/off 2 pipes	3 way valve kit 24V proportional 2 pipes	3 way valve kit 24V proportional 4 pipes	Body Watts 2 pipes (single heat exchangers)	Body Watts 4 pipes (additional heat exchangers)	Acuator Watts 230V on/off	Acuator Watts 24V on/off	Acuator Watts 24V proportional
FWB-C	04-05	E4V2N050V3WA	E4V1N080V3WA	E4V2N05024WA	E4V2N05P24WA	413112	413112	22CX230NC2-2	22CX24NC2-2	EMUIC-010
FWB-C	06-08	E4V2N080V3WA	E4V1N080V3WA	E4V2N08024WA	E4V2N08P24WA	413131	413112	22CX230NC2-2	22CX24NC2-2	EMUIC-010
FWB-C	10-11-15 -17	E2MV10B6	E4VHX170V3WA	E4V2N17024WA	E2MPV10A6	E4VHN17P24WA	413131	22CX230NC2-2	22CX24NC2-2	EMUIC-010

(*) Note: each 3 way valve kit, for standard coil or additional coil, includes: 1 valve + 1 actuator + 1 plumbing kit.

TABLE 3:HYDRAULIC CHARACTERISTICS

Tab.3	Hydraulic characteristics
Valve Part Number DN D1 (mm) Max working pressure PN (Bar) Kvs Kvs_bypass	16,1,7-2,5					ΔPS maximum static differential pressure at the ends of the valve against which the valve can open [bar]
213112/1/2" M 15
213134/3/4" M 20	16,2,8-1,5
413112(") 1/2" M 15	16,1,7,1,2,2
413134(") 3/4" M 20	16,2,5,1,6,1

NOTE (^*) 3 way 4 ports valves are the standard ones, NC, used only in mixing mode

2 AND 3WAYKITVALVELPRESSUREDROPS

Electrical wirings legend:

Make the electrical connections with the power supply disconnected, in accordance with current safety regulations.

Check that the mains electricity supply is compatible with the voltage shown on the unit rating plate.

Traced connection are on responsibility of the installer.

• IL: Circuit breaker (not supplied)
  F: Fusible 2A (not supplied)
• CN: Terminal board vite/faston
• MV: Fan motor
  C:Pre-wired to motor condenser
• VC: ON/OFF valve cold water/hot (2-pipes system) ON/OFF valve cold water (4-pipes system)
• VH: ON/OFF valve hot water (4-pipes system)

BN: Brown = valves power supply phase
BU: Blu = valves power supply neutral

SAI: Pre-installed indoor air temperature probe
SAE: Remote air temperature probe
- SW: Water temperature probe
- SWH: Water temperature probe for additional hot coil (4-pipes system). Available in option only with SW.
- SUI: Pre-installed relative humidity indoor probe
- SUE: Remote relative humidity probe

• SC: Relay box
  RE: Heating element
  TSA:Thermostat
  TSM:Thermalfuse
  K:Thermostat consent relay
  K1:Thermalfuse consent relay

Specific for schemes with FWECSAP control

T1: Transformer 230Vac/24Vac (not supplied)

• VC 0-10: modulating valve cold water/hot (2-pipes system) Modulating valve cold water (4-pipes system)
• VH 0-10: Modulating valve hot water (4-pipes system) RD: Red = +24Vac valves power supply

BK: Black = 0V valves power supply /GND control signal

GY: Grey = control signal 0-10 Vdc valves

WARNING: With FWECSA and FWEC controls is possible to manage until 4 speeds. It's mandatory to use O1 input for FWEC and V1 input for FWECSA. Wire the 4 speeds cables in ascending order (min to max speed) from input 1 to 4. Every selected speed cable which isn't shown in wiring diagrams for the selected unit isn't "Eurovent certified".

Base electrical connection for FwB-C 04

TABLELA 1 /TABLE 1
MODELLO/MODEL	VELOCITA' -> PIN -CN
FWB05C	Vmax->4; Vmed->MV; Vmin->10;
FWB06C	Vmax->4; Vmed->PV; Vmin->10;
FWB08C	Vmax->4; Vmed->GV; Vmin->10;
FWB10-11C	Vmax->4; Vmed->PV; Vmin->10;

UT66002005
Base Electrical connection for FwB-C 15-17

Electrical connection FwB-C 04 +FWECSAP on board+VALVON/OFF

FMECSAP UT66003022

CN6 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 572 573 574 575 576 577 578 579 580 581 582 583 584 585 586 587 588 589 590 591 592 593 594 595 596 597 598 599 600 601 602 603 604 605 606 607 608 609 610 611 612 613 614 615 616 617 618 619 620 621 622 623 624 625 626 627 628 629 630 631 632 633 634 635 636 637 638 639 640 641 642 643 644 645 646 647 648 649 650 651 652 653 654 655 656 657 658 659 660 661 662 663 664 665 666 667 668 669 670 671 672 673 674 675 676 677 678 679 680 681 682 683 684 685 686 687 688 689 690 691 692 693 694 695 696 697 698 699 700 701 702 703 704 705 706 707 708 709 710 711 712 713 714 715 716 717 718 719 720 721 722 723 724 725 726 727 728 729 730 731 732 733 734 735 736 737 738 739 740 741 742 743 744 745 746 747 748 749 750 751 752 753 754 755 756 757 758 759 760 761 762 763 764 765 766 767 768 769 770 771 772 773 774 775 776 777 778 779 780 781 782 783 784 785 786 787 788 789 790 791 792 793 794 795 796 797 798 799 800 801 802 803 804 805 806 807 808 809 810 811 812 813 814 815 816 817 818 819 820 821 822 823 824 825 826 827 828 829 830 831 832 833 834 835 836 837 838 839 840 841 842 843 844 845 846 847 848 849 850 851 852 853 854 855 856 857 858 859 860 861 862 863 864 865 866 867 868 869 870 871 872 873 874 875 876 877 878 879 880 881 882 883 884 885 886 887 888 889 890 891 892 893 894 895 896 897 898 899 900 901 902 903 904 905 906 907 908 909 910 911 912 913 914 915 916 917 918 919 920 921 922 923 924 925 926 927 928 929 930 931 932 933 934 935 936 937 938 939 940 941 942 943 944 945 946 947 948 949 950 951 952 953 954 955 956 957 958 959 960 961 962 963 964 965 966 967 968 969 970 971 972 973 974 975 976 977 978 979 980 981 982 983 984 985 986 987 988 989 990 991 992 993 994 995 996 997 998 999

Electrical connection FWB-C 15-17 + FWECSAP on board + VALVON/OFF

Electrical connection FWB-C05-11+FWECSAP on board +VALVONOFF + EH100V36A

Electrical connection FWB-C.04 + FWECSAP on board + MOD, VALV.

Electrical connection FWB-C05-11+FWECSAP on board ^+ MOD:VALV.

Electrical connection FWB-C 15-17+FWECSAP on board ^+ MOD. VALV.

FMECSAP UT66003030

Electrical connection FwB-C 05-11 CA + FWECSAP on board ^+ MOD. VALV+EH100V36A

Electrical connection FwB-C 04 CA +FWECSAP remote +ON/OFFVALV.

FMECSAP UT66003032

Electrical connection FwB-C 15-17+FWECSAP remote +ON/OFF VAL.

FMECSAP UT66003036

Electrical connection FwB-C 05-11+FWECSAP remote + ON/OFF VALV.+EH100V36A

Electrical connection FwB-C 04 + FWECAP remote+ MOD:VALV.

Electrical connection FwB-C 15-17+FWECSAP remote ^+ MOD. VALV

FWECSAP UT66003042

Electrical connection PwB-C04 + FWECSAP remote + MOD. VALV. + EH060V3A

Electrical connection FwB-C05-11+FWECSAP remote ^+ MOD.VALV.+EH0100V36A

Electrical connection FwB-C04 + FwEC1A

Electrical connection PWB-C05-11 +FWEC1A

Electrical connection FwB-C 15-17 +FWEC1A

Electrical connection PwB-C 04 + FwEC1A+EH060V3A

Electrical connection FwB-C05-11 + FWEC1A+EH100V36A

Electrical connection FWB-C 15-17 +FWEC1A+EH200V36A

Electrical connection FwB-C 04 + FWEC2A

Electrical connection PwB-C 05-11+FWEC2A

Electrical connection FWB-C 15-17+FWEC2A

Electrical connection FwB-C05-11+FWEC2A+EH100V36A

Electrical connection FwB-C 15-17 + FWEC2A+EH200V36A

Electrical connection FwB-C 04 + FwEC3A

Electrical connection FwB-C 15-17 +FWEC3A

Electrical connection FwB-C05-11 + FWEC3A+ EH100V36A

Electrical connection FwB-C 15-17 + FWEC3A+EH200V36A

Electrical connection FwB-C 04 + FWEC2T

FWEC2TUT66002623

TABELLA 1 /TABLE 1
MODELLO/MODEL	PIN FWEC2T-> PIN -CN
FWB05C	6->10; 5->8; 4->4
FWB06C	6->10; 5->9; 4->4
FWB08C	6->10; 5->GV; 4->4
FWB10/11C	6->10; 5->9; 4->4
NOTA 1: SCOLLEGARE CAVO WH DA MORSETTO N SU -CN E COLLEGARE A PIN 7 SU FWEC2T NOTE 1: DISCONNECT THE WH CABLE FROM TERMINAL N ON -CN AND CONNECT TO PIN 7 ON FWCET2

Electrical connection FWB-C 15-17 + FWEC2T

FWEC2T UT66002625

Electrical connection FwB-C 05-11+FWEC4T

TABLELA 1 /TABLE 1

MODELLO/MODEL PIN FWECAT->PIN-ON

FWB05C 6->10;5->8;4->4

FWB06C 6->10;5->9;4->4

FWB08C 6->10;5->CV;4->4

FWB10-11C 6->10;5->9;4->4

NOTA 1: SCOLLEGARE CANDI WH DA MORSETTO N SU-ON E COULEGARE A PIN 7 SU FWECAT NOTE 1: DISCONNECT THE WH CABLE FROM TERMINAL N ON-ON AND CONNECT TO PIN 7 ON FWECAT

Standard inlet - Aspirazione standard - Aspiration standard - Standard Luftansaugung - Aspiracion estandar - Standardni sani - Standardni usis - Standard elszivas - CtaHapTHoe acsbAHme

Cleaning the air filter - Pulizia filtratio aria - Nettoyage du filtre à air - Reinigung des Luftfilters - Limpieza del filtrto de aire - Cisténi vzduchového filtru - Ciscenje filtra zraka - Levegószüro tiszitása - Ucstka Bo3duHoro ønltpa
