USER MANUAL CCE7T620EXU CANDY

Discover extra contents and create your inventory list

QR code image containing encoded data, no visible human-readable text

EN 1

BG 12

CS 23

DA 34

DE 45

EL....56

ES 68

FI 79

FR....90

HR....101

HU 112

IT 123

NL....134

NO 145

PL....156

PT....167

RO 189

RU 172

SK 200

SL....211

SR 222

SV 233

UK 244

AR 255

ET....266

LT 277

LV....288

Summary

PRODUCT DESCRIPTION....2

Space requirements....2

USE 3

Use....3

Customized temperature....4

Super Cool function .... 4

Super Freeze function....5

Eco mode....5

Holiday function....5

Defrosting....5

Demo mode....6

Error Codes....6

APP CONNECTION....7

Step 1....7

Step 2....7

Step 3....7

Wi-Fi Use 8

DOOR REVERSIBILITY....9

DOOR REVERSIBILITY....10

TROUBLESHOOTING 11

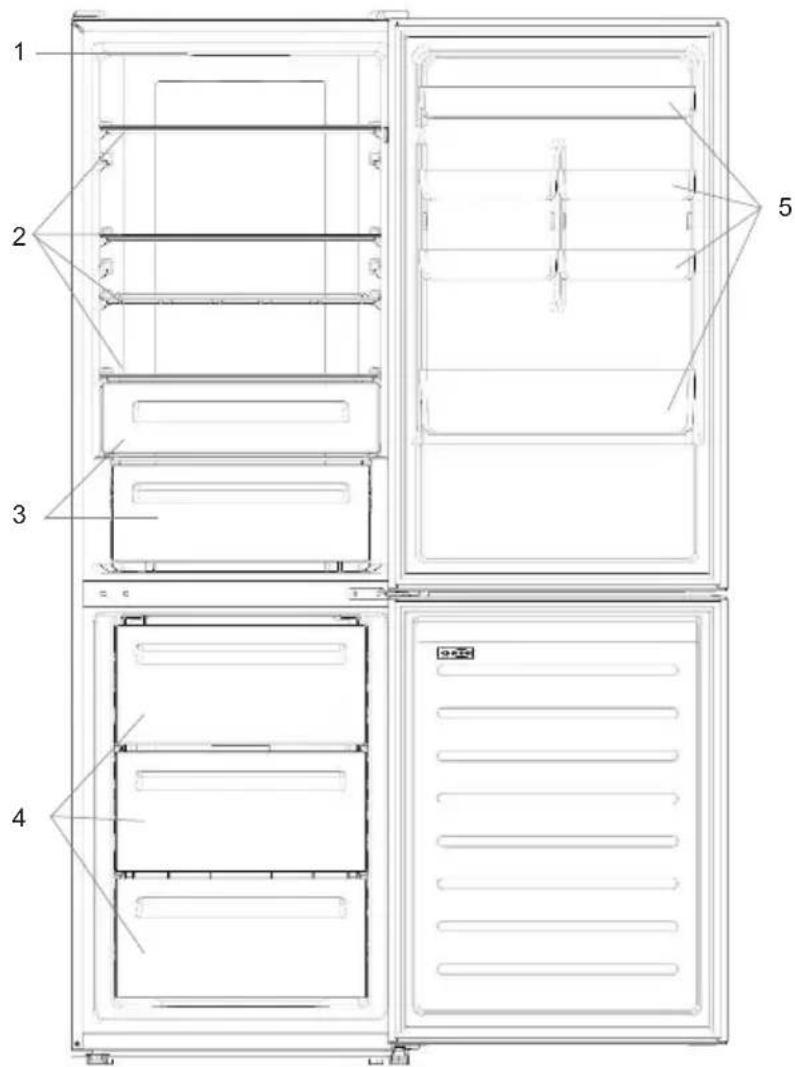

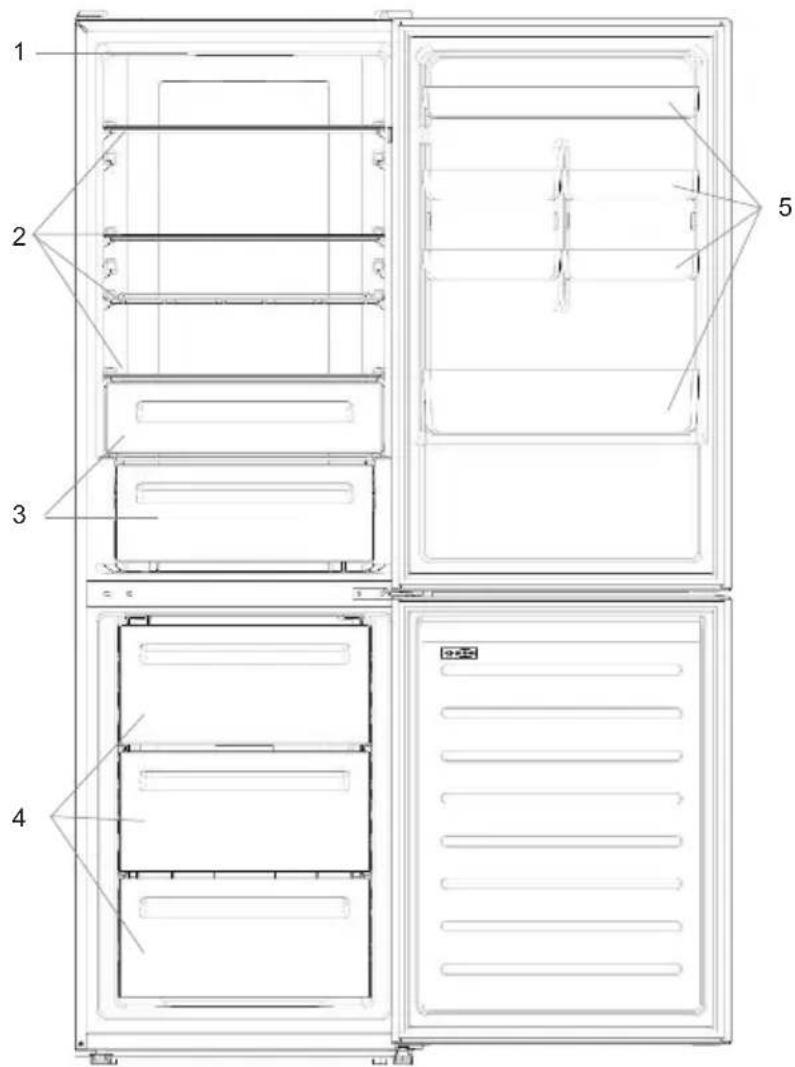

PRODUCT DESCRIPTION

1 2 3 4 5

1. Control Panel
2. Shelves
3. Crisper
4. Freezer Boxes
5. Door rack

* The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.
** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Space requirements

The unit's door must be able to fully open as shown. Spare enough space for convenient opening of the doors and drawers.

Keep a distance of at least 50 mm between the side walls of the product and adjacent parts.

Width: min. 920 mm

Depth: min. 1137 mm

100 100 100 500

USE

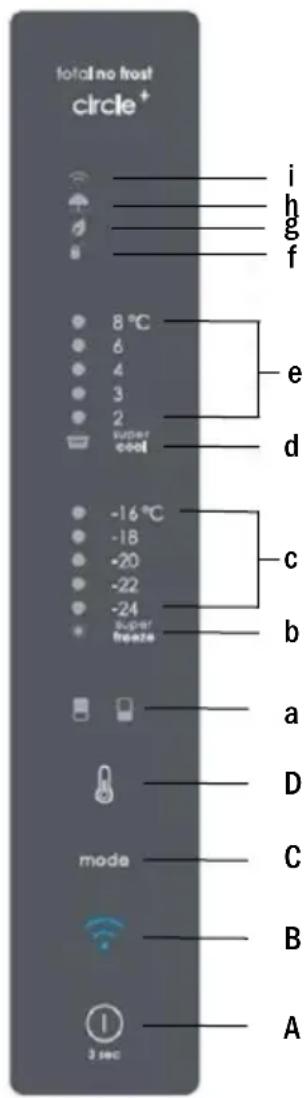

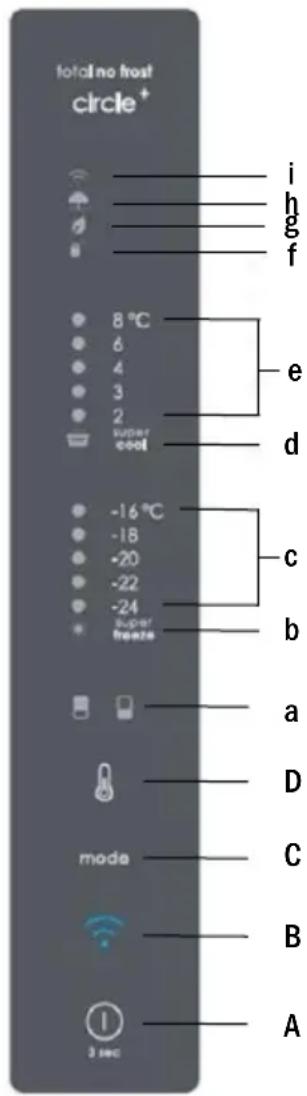

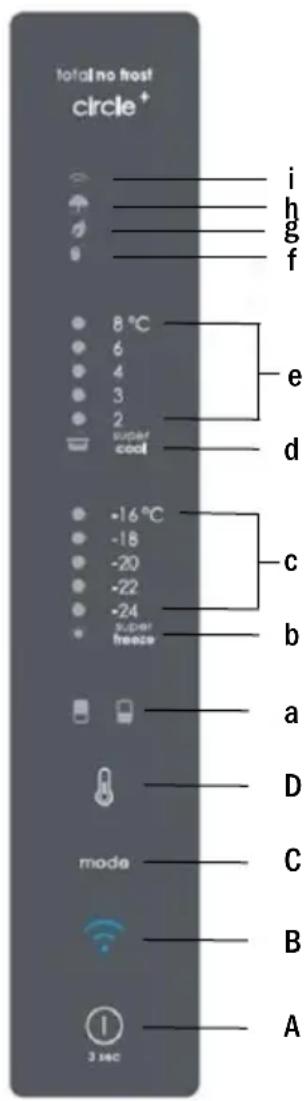

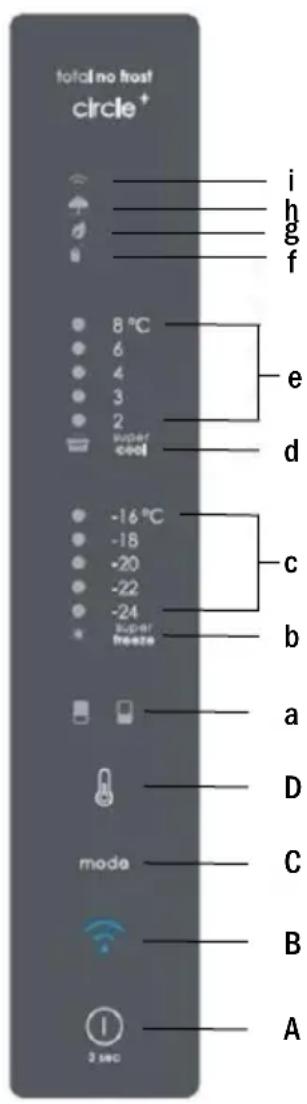

total no host circle+ i h g f 8 °C e 6 4 3 2 super cool d -16 °C -18 -20 -22 -24 Superior freeze c b a D C B A mode 3 sec

A. ON/OFF key, used to switch on/off the appliance
B. Wi-Fi key, used to switch on/off the Wi-Fi
C. Mode key, used to selected the desired function
D. TEMP key, used to selected the fridge and freezer temperature
a. Fridge /freezer area icon, shows which compartment of the appliance is selected
b. Super Freeze icon, shows if the Super Freeze function is activated
c. Freezer temperature levels, show which is the selected temperature in the freezer
d. Super Cool icon, shows if the Super Cool function is activated
e. Fridge temperature levels, show which is the selected temperature
f. Customized temperature icon, show if the temperature has been selected by app
g. Eco mode icon, shows whether the eco mode is activated
h. Holiday function icon, show whether the holiday function is activated
i. Wi-Fi Icon, shows whether the Wi-Fi is working and the appliance is connected

Use

• Plug on the appliance, it automatically turns on. The temperature will automatically set at 4 °C in the fridge and -18 °C in the freezer.
• To change the temperature, press the TEMP key for 5 seconds, an acoustic signal is made and the icon of the selected compartment (fridge or freezer) as well as all the temperature LEDs of the corresponding compartment turn on for 2s, after 2s the selection of the compartment is confirmed. With the selected compartment icon on, quick press the TEMP key to change the temperature. When the setting increases, the corresponding LED light will turn on. An acoustic signal is made every time the TEMP key is pressed and the temperature is changed, after 5 seconds the selection is confirmed. After 30s without operation the fridge/freezer icon area turns off, while the LEDs of the selected temperatures stay on. When the TEMP key is touched again, the icon of the last are selected (Fridge or freezer) turns on.
  • In case of power loss, the last cooling level set will be restored
• To restore the default setting, at the screen lit, keep pressed the TEMP button, and simultaneously press the ON/OFF key for 5 seconds

- Under the normal operating condition (in spring and autumn), it is recommended to set the temperature at 4 °C. In summer when the ambient temperature is high, it is recommended to set temperature at 6\~8 °C, so as to guarantee the fridge and freezer temperatures and reduce the refrigerator continuous running time; and in winter when the ambient temperature is low, it is recommended to set temperature at 3\~4 °C to avoid frequent start/stop of the refrigerator.

Customized temperature

From the app it is possible to customize the temperature for both fridge and freezer. The temperature can be set with 1 °C sensitivity. It is possible to select a temperature from 2 °C to 8 °C in the fridge, and from -16 °C to -24 °C in the freezer.

When the temperature is selected by the app, the customized temperature icon turns on, while all the temperature LED lights of the affected compartment are turned off (i.e. if the refrigerator temperature is selected from the app, LEDs from 2 °C to 8 °C are turned off. If the freezer temperature is selected from the app, LEDs from -16 °C to -24 °C are turned off)

If only a single area (freezer or fridge) has the customized temperature, the temperature selection of the other area is not changed and the LED light of the selected temperature of that area remains on. An acoustic signal is made every time the temperature is changed.

Super Cool function

It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. When the function is activated, the temperature of the fridge is automatically set at 2 °C.

How to use the Super Cool function:

• The function can be activated by long pressing TEMP key to select the fridge compartment, and then quick pressing the TEMP key until the Super Cool icon led is turned on, or it can be turned on from the app. When the function is activated, the Super Cool LED is always ON.
• To exit the Super Cool function, press the TEMP key or turn it off from the app.
• The Super Cool function automatically ends when the function has lasted for more than 30 hours.
• When the Super Cool ends, the icon of the control panel is switched off and the previously set cooling level is restored.

Note: Super Cool and Super Freeze function cannot be activated simultaneously

Super Freeze function

The super freezing function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If a large amount of food has to be freeze, it is recommended to set the Super-Freeze function on 24h before the usage. When the function is activated, the temperature is automatically set at -24 °C.

How to use the Super Freeze function:

• The function can be launched by long pressing TEMP key to select the freezer compartment, and then quick pressing TEMP key until the Super Freeze icon led is turned on, or it can be turned on from the app. When the function is activated, the Super Freeze LED is always ON.
• To exit the Super Freeze function, press the TEMP key or turn it off from the app.
• The Super Freeze function automatically ends when the function has lasted for more than 50 hours.
• When the Super Freeze ends, the icon of the control panel is switched off and the previously set freezing level is restored.

Note: Super Cool and Super Freeze function cannot be activated simultaneously

Eco mode

The Eco mode can be activated to optimize the performance of the appliance, whereas obtaining the best food storage. The Eco mode will automatically set the temperature at 5 °C in fridge and at -18 °C in the freezer

How to use the Eco mode:

• The function can be activated from control panel by pressing the “mode” key until the Eco mode icon turns on (an acoustic signal confirms the selection), or by selecting the function from the app. When the function is activated, the Eco mode icon is always ON.
• To exit the Eco turn it off from the app or chose another function from the control panel.
• When the Eco Mode ends, the icon of the control panel is switched off and the previously set cooling levels are restored.

Holiday function

The Holiday function can be used to reduce the energy consumption of the appliance, when it is not used regularly. When the function is on, the LED lights are off (even if the door is open) and the fridge is turned off, whereas the freezer will keep working normally.

How to use the Holiday function:

• The function can be activated from control panel by pressing the “mode” key until the Holiday icon turns on (an acoustic signal confirms the selection), or by selecting the function from the app. When the function is activated, the Holiday icon is always ON.
• To exit the Holiday function, turn it off from the app or chose another function from the control panel.
• When the Holiday function ends, the icon of the control panel is switched off and the previously set cooling levels are restored.

Defrosting

The defrosting of the refrigerator and freezer compartment are done automatically: no manual operation is needed.

Slider

Near the vegetable basket there is a slider that allows you to adjust the humidity inside it: moving it to the right decreases the humidity, moving it to the left increases the humidity.

Demo mode

To enter the demo mode, with the display unlocked, keep pressed the MODE key and press the WiFi key 5 times within 5 seconds. To exit the demo mode, perform the same operation or power off the refrigerator.

Error Codes

- Communication error

[-16°C;-18°C;-20°C;-22°C;-24°C] Lights in the fridge turn on sequentially, it means there has been a communication error between the main control board and the display board. Please, contact the technical assistance to help solve the problem

- Fan

[-16°C;-20°C;-22°C;-24°C] lights in the fridge flashing simultaneously if the fan is not working properly. Please, contact the technical assistance to help solve the problem

APP CONNECTION

IN APP PAIRING PROCEDURE

Step 1

• Download the hOn app on the stores

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Step 2

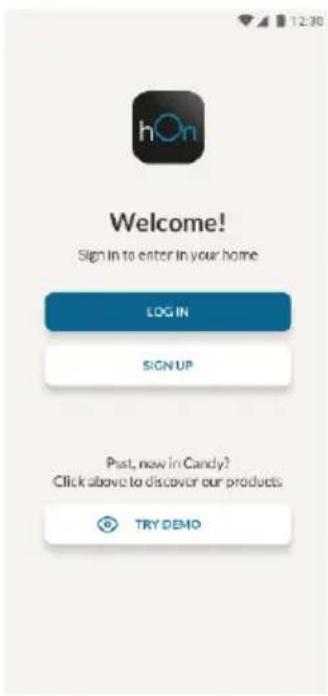

• Create your account on the hOn App or log in if you already have an account

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Step 3

• Follow pairing instructions in the hOn App

Wi-Fi Use

If the Wi-Fi has not been configured yet, when the refrigerator turns on, it will automatically enter the configuration mode and keep this status for 30 minutes. The Wi-Fi icon blinks and product enrollment can start.

• Follow in app instructions to configure the Wi-Fi (see above)
• Once the Wi-Fi is configured and the connection established, the Wi-Fi icon is on and fixed.
• After 30 minutes without performing any operation, the Wi-Fi will automatically exit the configuration mode
• If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information.

To reset the Wi-Fi, press Wi-Fi key and MODE key for 2s.

To turn off the Wi-Fi, press Wi-Fi key for 3s.

Radio-module - Technical data

Frequency rate (OFR)	2400 MHz-2843.5 MHz
Channel frequencies	2412...2472 MHz(step size 5 MHz)
Maximum power(EIRP)	100 mW

Radio equipment type is in compliance with Directive 2014/53/EU.

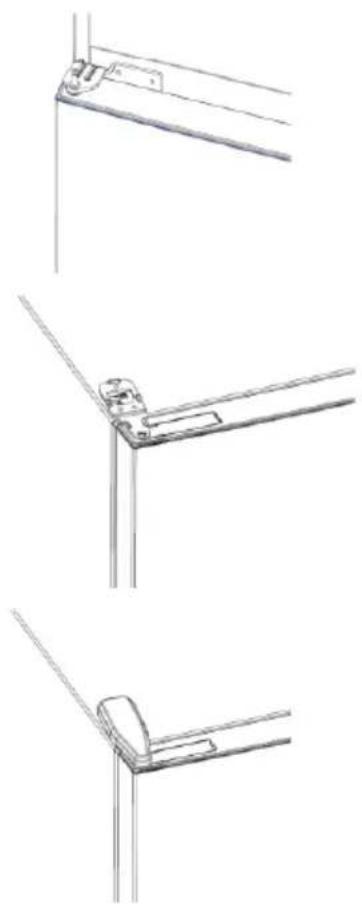

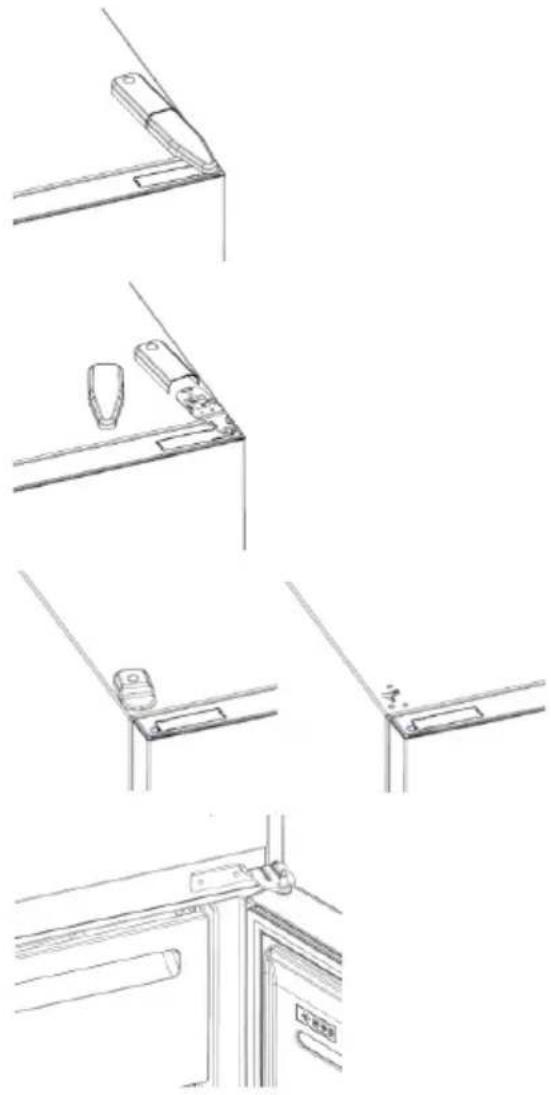

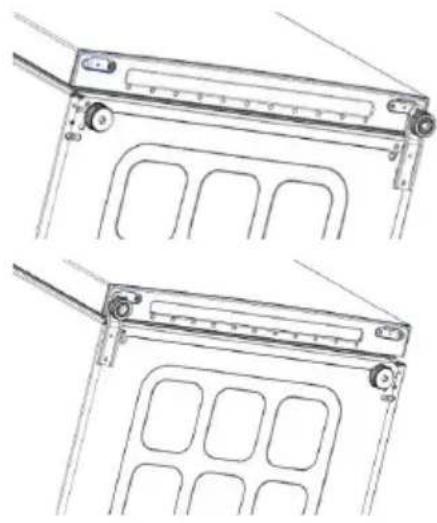

DOOR REVERSIBILITY

Tools needed: Electric screwdriver

1. Remove the top hinge cover
2. Unscrew the top hinge
3. Remove the top hinge cover (left)
4. Remove middle hinge

Line drawings of a door frame assembly with bracket, handle, and door lock (no text or symbols)

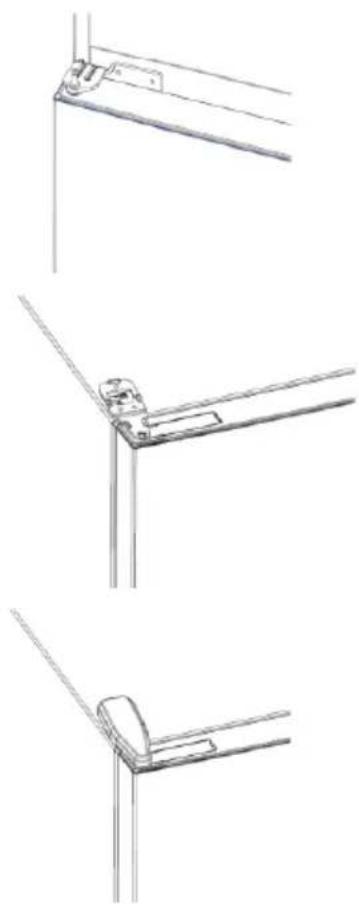

1. Remove lower hinge
2. Mount hinge foot
3. Mount middle hinge
4. Mount the upper hinge plate
5. Mount the upper hinge cover

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

TROUBLESHOOTING

The inside light bulb does not turn on.	No electricity.	The power cable is not properly plugged in.Check if the appliance is switched off (see Temperature Adjustment).Check the power socket is working correctly (e.g. with another electric device).
	Holiday Mode is activated.	Deactivate Holiday mode.
The internal temperature of the refrigerator and/or freezer is not cold enough.	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
	Incorrect temperature setting.	Check the temperature setting and, if possible, set a lower temperature (see Temperature Adjustment).
	The refrigerator and/or freezer are too full.	Wait for the temperature of the refrigerator/ freezer to stabilise.Avoid filling the refrigerator and freezer excessively.
	The surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	Warm items have been stored.	Always allow items to cool before storing them.
The food in the refrigerator freezes.	Incorrect temperature setting.	Check the temperature setting and, if possible, increase the temperature.
	Food in contact with the back wall.	Keep the food away from the refrigerator's back wall.
The bottom of the refrigerator compartment is wet or water droplets are present.	The drain hose could be clogged.	Clean the drain hose with a stick or similar item to allow the water to drain.
Presence of drops of water or frost on the rear wall of the refrigerator.	Depending on the function, drops of water or frost form on the rear wall of the refrigerator during operation.	It is not a defect.
	Warm items have been stored.	Always allow items to cool before storing them.
	There are open food containers or liquids.	Always cover food and liquids.
	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
Presence of water in the vegetable drawer.	Lack of air circulation.	Verify that your appliance is not too full.
	Vegetables and fruit with too much moisture.	Wrap the fruit and vegetables in plastic materials, e.g. cling film, bags or containers.
The motor runs continuously.	The doors are not closed.	Make sure the doors are closed and check the seals close properly.
	The doors are opened frequently.	Avoid opening the doors unnecessarily for some time.
	Ambient temperature is very high.	Verify that the ambient temperature is in the range set out in the specifications on the appliance tag.Set the display screen/thermostat to a warmer temperature.
	The appliance has been off (no power) for some time.	It normally takes the appliance 8-12h to cool completely.
The frozen food is thawing.	Surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	The freezer door is not closed.	Make sure the door is closed and that the gasket is sealing properly.
Fridge door alarm.	Fridge door alarm (acoustic beep) activates whenever the door is left open for more than 3 minutes.	Avoid leaving the door open when not needed. The beep ceases when the door is closed.
The appliance makes noises such as gurgling, buzzing, clicking, creaking.	No breakdowns. An engine is running, e.g. refrigeration unit, fan. The refrigerant flows into the pipes. Motor, switches and solenoid valves are switched on or off.	No action needed.
	The appliance is not located on level ground.	Adjust the feet to level the appliance.
	The appliance touches an object around it.	Remove objects around the appliance.
The appliance does not cool, the temperature and lighting indicators are on.	Demo mode is activated.	Deactivate DEMO mode.
Strong ice and frost in the freezer compartment.	The items were not adequately packaged.	Always pack the items well.
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer.
	The door/drawer has been opened too frequently or for too long.	Do not open the door/drawer too frequently.
	The door/drawer gasket is dirty, worn, cracked or mismatched.	Clean the door/drawer gasket or replace it with a new one.
	Something on the inside prevents the door/drawer from closing properly.	Reposition the shelves, door racks or internal containers to allow the door/drawer to close.
The sides of the appliance are warm.	This is normal.

Резюме

ОПИСАНИЕ НА ПРОДУКТА ....13

Изисквания за пространство 13

УПОТРЕБА 14

Употреба 14

Персонализирана температура 15

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Стъпка 2

hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

Стъпка 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical component or bracket with two protruding parts (no text or symbols)

Technical line drawing of two mechanical bracket components (no text or symbols)

Technical line drawings of three different mechanical or architectural components with no visible text or symbols

Technical line drawings of three different metal bracket mounting configurations (no text or symbols)

ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

PROPOJENÍ S APLIKACÍ POSTUP PÁROVÁNÍ S APLIKACÍ

Krok 1

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Krok 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy! Click above to discover our products TRY DEMO

Krok 3

Pure technical line drawing of a mechanical bracket or angle (no text or symbols)

Simple line drawing of a kitchen utensil with a glass and a tool, no text or symbols present

Technical line drawing showing two views of a mechanical bracket or bracket assembly (no text or symbols)

Technical line drawings of three different mechanical or architectural components (no text or symbols)

Technical line drawings of three different metal bracket mounting configurations (no text or symbols)

ŘEŠENÍ PROBLÉMŮ

APP-FORBINDELSE FREMGANGSMÅDE VED PARRING I APP

Trin 1

• Download hOn-appen i butikkerne

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Trin 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Trin 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of a mechanical device with multiple slots and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a corner bracket with diagonal lines (no text or symbols)

FEJLFINDING

Technical drawing of a mechanical component with dimension annotations in millimeters

NUTZUNG

total no host circle+ i h g f 8 °C e 6 4 3 2 super cool d -16 °C -18 -20 -22 -24 super freeze c b a D mode C B A 3 sec

12:30 hOn Welcome! Sign in to enter in your home LOGIN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Schritt 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

FEHLERBEHEBUNG

50mm 10mm φ 100°

ΧΡΗΣΗ

total no host circle+ i h g f 8 °C e 6 4 3 2 super cool d -16 °C -18 -20 -22 -24 super freeze c b a D mode C B A 3 sec

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Βήμα 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

Βήμα 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a table with two items on top, no text or symbols present

Technical line drawing showing two mechanical bracket assembly configurations (no text or symbols)

Technical line drawings of three different mechanical or architectural components (no text or symbols)

Technical line drawings of three different metal bracket mounting configurations (no text or symbols)

Technical drawing of a mechanical component with dimension annotations and angle markings

USO

total no frost circle+ i h g f 8 °C e 6 4 3 2 super cool d -16 °C -18 -20 -22 -24 super freeze c b a D mode C B A 3 sec

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Paso 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products. TRY DEMO

Paso 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Vaihe 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Vaihe 3

Pure technical line drawing of a mechanical clamp or bracket (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text or symbols

Technical line drawing showing two views of a bracket or mounting detail with a small component, no text or symbols present.

Technical line drawings of three different door frame structures (no text or symbols)

Technical line drawings of three different metal bracket mounting configurations (no text or symbols)

VIANETSINTÄ

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Étape 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Étape 3

Line drawings of a door frame assembly with bracket, handle, and door lock (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

DÉPANNAGE

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2. korak

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

3. korak

- Pridržavajte se uputa za uparivanje u aplikaciji hOn

Uporaba mreže Wi-Fi

Ako se mreža Wi-Fi još nije konfigurirala kada se hladnjak uključuje, automatski prelazi u način konfiguriranja i ostaje u tom statusu 30 minuta. Ikona za Wi-Fi treperi i priključivanje proizvoda može početi.

• Pridržavajte se uputa u aplikaciji za konfiguriranje mreže Wi-Fi (pogledajte gore).
• Nakon što se konfigurira mreža Wi-Fi i uspostavi veza, uključuje se ikona mreže Wi-Fi i fiksno ostaje uključena.
• Nakon 30 minuta bez izvođenja bilo kakve radnje, mrežom Wi-Fi automatski se izlazi iz načina konfiguriranja.
• Ako se mreža Wi-Fi već konfigurirala, automatski se ponovno povezuje u skladu s informacijama o konfiguriranju.

Da biste ponovno postavili mrežu Wi-Fi, pritisnite tipku za Wi-Fi i tipku MODE ključ na dvije sekunde. Da biste isključili mrežu Wi-Fi, pritisnite tipku za Wi-Fi na tri sekunde.

Radio-modul - Tehnički podaci

Učestalost (OFR)	2400 MHz-2843.5 MHz
Frekvencije kanala	2412...2472 MHz(veličina koraka 5 MHz)
Maksimalna snaga(EIRP)	100 mW

Line drawings of kitchen appliances and fixtures (no text or symbols)

1. Uklonite donju šarku
2. Postavite postolje šarke
3. Postavite srednju šarku
4. Postavite ploču gornje šarke
5. Postavite poklopac gornje šarke

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

RJEŠAVANJE PROBLEMA

Ne uključuje se žarulja unutarnjeg osvjetljenja.	Nema struje.	Kabel napajanja nije propisno ukopčan.Provjerite da uređaj nije isključen (pogledajte Podešavanje temperature).Provjerite radi li električna uličnica ispravno (npr. s drugim električnim uređajem).
	Aktiviran je način rada Holiday.	Deaktivirajte način rada Holiday.
Unutarnja temperatura hladnjaka i/ili zamrzivača nije dovoljno niska.	Vrata nisu zatvorena.	Provjerite zatvaraju li se vrata i brtve pravilno.
	Vrata se često otvaraju.	Izbjegavajte nepotrebno otvaranje vrata neko vrijeme.
	Neodgovarajuća postavka temperature.	Provjerite postavku temperature i po mogućnostli smanljite je (pogledajte odjeljak Podešavanje temperature).
	Hladnjak i/ili zamrzivač je/su prepuni.	Pričekajte da se temperatura hladnjaka/zamrzivača stabilizira.Izbjegavajte prekomjemo punjenje hladnjaka i zamrzivača.
	Temperatura okoline je preniska.	Premjestite uređaj na toplije mjesto ili zagrijlte prostoriju.
	Pohranjene su tople namirnice.	Uvijek pričekajte da se namirnice ohlade prije nego ih spremite.
Hrana u hladnjaku se zamrzava.	Neodgovarajuća postavka temperature.	Provjerite postavku temperature i, ako je moguće, povećajte je.
	Hrana dodiruje stražnju stijenku.	Držite hranu dalje od stražnje stijenke hladnjaka.
Donji dio odjeljka hladnjaka je mokar ili su prisutne kapljice vode.	Odvodno crijevo možda je začepljeno.	Očistite odvodno crijevo štapom ili sličnim predmetom kako biste omogučili odvod vode.
Kapljice vode ili mraz na stražnjoj stijenci hladnjaka.	Ovisno o funkciji, kapljice vode ili mraz formiraju se na stražnjoj stijenci hladnjaka tijekom rada.	To nije znak kvara.
	Pohranjene su tople namirnice.	Uvijek pričekajte da se namirnice ohlade prije nego ih spremite.
	Otvoreni su spremnici hrane ili tekućine.	Uvijek prekrijte hranu i tekućine.
	Vrata nisu zatvorena.	Provjerite zatvaraju li se vrata i brtve pravilno.
	Vrata se često otvaraju.	Izbjegavajte nepotrebno otvaranje vrata neko vrijeme.
U ladici s povrćem ima vode.	Nema cirkulacije zraka.	Provjerite da uređaj nije prepun.
	Povrće i voće sadrži previše vlage.	Zamctajte voće i povrće u plastične materijale, npr. prianjajuću foliju, vrećice ili spremnike.
Motor radi neprekidno.	Vrata nisu zatvorena.	Provjerite jesu li vrata zatvorena i jesu li brtve propisno zatvorena.
	Vrata se često otvaraju.	Izbjegavajte nepotrebno otvaranje vrata neko vrijeme.
	Temperatura okoline vrlo je visoka.	Provjerite je li temperatura okoline u rasponu navedenom u specifikacijama na oznaci uređaja.Postavite zaslon/termostat na višu temperaturu.
	Uređaj je isključen (nema napajanja) već neko vrijeme.	Obično je potrebno 8 do 12 sati da se uređaj potpuno ohladi.
Zamrznuta hrana se odmrzava.	Temperatura okoline je preniska.	Premjestite uređaj na toplijo mjesto ili zagrijte prostoriju.
	Vrata zamrzivača nisu čvrsto zatvorena.	Provjerite jesu li vrata zatvorena i ispravnost brtve.
Alarm za vrata hladnjaka.	Alarm za vrata hladnjaka (zvučni signal) aktivira se uvijek kada su vrata otvorena dulje od 3 minute.	Ne ostavljajte vrata otvorena kada to nije potrebno. Zvučni signal prestaje nakon zatvaranja vrata.
Uređaj proizvodi zvukove kao što su grgljanje, zujanje, klikanje, škripanje.	Nema kvarova. Motor radi, npr. rashladna jedinica, ventilator. Rashladno sredstvo ulazi u cijevi. Motor, prekidači i elektromagnetski ventili uključeni su ili isključeni.	Nije potrebno ništa poduzimati.
	Uređaj se ne nalazi na ravnom tlu.	Podesite nožice za niveliranje uređaja.
	Uređaj dodiruje predmet u svojoj okolini.	Uklonite predmete oko uređaja.
Uređaj se ne hladi, indikatori temperature i osvjetljenja uključeni su.	Aktiviran je demonstracijski način rada.	Deaktivirajte demonstracijski način rada.
Mnogo je leda i mraza u odjeljku zamrzivača.	Namirnice nisu primjereno zapakirane.	Uvijek dobro zapakirajte namimice.
	Ladica ili vrata uređaja nisu dobro zatvorena.	Zatvorite vrata/ladicu.
	Vrata/ladica su/je otvarana prečesto ili predugo.	Ne otvarajte vrata/ladicu prečesto.
	Brtva vrata/ladice je prljava, istrošena, napuknuta ili nepravilno postavljena.	Očistite brtvu vrata/ladice ili je zamijenite novom.
	Nešto u unutrašnjosti onemogućuje pravilno zatvaranje vrata/ladice.	Premjestite police, police na vratima ili unutarnje spremnike kako bi se vrata/ladica mogla zatvoriti.
Bočne strane uređaja su tople.	To je normalno.

Összegzés

TERMÉKLEÍRÁS.... 113

Helyigény....113

HASZNÁLAT....114

Használat 114

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2. lépés

12:30 hOn Welcome! Sign In to enter in your home LOGIN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

3. lépés

Pure technical line drawing of a mechanical bracket or angle joint (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text or symbols

Technical line drawing showing two mechanical components mounted on a bracket (no text or symbols)

Line drawing of a door frame with handle and door, no text or symbols present

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

HIBAELHÁRÍTÁS

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Fase 2

12:30 hOn Welcome! Sign In to enter in your home LOGIN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Fase 3

Line drawings of a door frame assembly with no text or symbols

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting points (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

SOLUZIONE DEI PROBLEMI

PRODUCTBESCHRIJVING....135

Technical drawing of a mechanical component with dimension annotations in millimeters

GEBRUIK

total no frost circle+ i h g f 8 °C e 6 4 3 2 super cool d -16 °C -18 -20 -22 -24 super freeze c b a D mode C B A 3 sec

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Stap 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Stap 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

PROBLEMEN OPLOSSEN

PRODUKTBESKRIVELSE....146

Plassbehov....146

BRUK 147

Bruk 147

Tilpasset temperatur ....148

APP-TILKOBLING....151

Trinn 1....151

Trinn 2....151

Trinn 3....151

Wi-Fi-bruk....152

D∅R-REVERSIBILITET 153

D∅R-REVERSIBILITET 154

FEILS∅KING 155

PRODUKTBESKRIVELSE

1 2 3 4 5

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Trinn 2

- Opprett kontoen din på hOn-appen, eller logg på hvis du allerede har en konto

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products. TRY DEMO

Trinn 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text or symbols

Technical line drawing showing two views of a bracket or hinge with a small object on the left side (no text or symbols)

Technical line drawings of three different door frame structures (no text or symbols)

Technical line drawings of three different metal bracket mounting configurations (no text or symbols)

FEILS∅KING

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Krok 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products. TRY DEMO

Krok 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

ROZWIĄZYWANIE PROBLEMÓW

Technical drawing of a mechanical component with dimension annotations in millimeters

UTILIZAÇÃO

total no frost circle+ i h g f 8 °C e 6 4 3 2 super cool d -16 °C -18 -20 -22 -24 super freeze c b a D mode C B A 3 sec

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Passo 2

12:30 hOn Welcome! Sign In to enter in your home LOGIN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Passo 3

Line drawings of kitchen appliances and fixtures (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Pasul 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Pasul 3

Line drawings of kitchen appliances and fixtures in various orientations (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting bracket without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

DEPANARE

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

War 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

War 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical or architectural component with two cylindrical parts and a base (no text or symbols)

Technical line drawing showing two views of a bracket or support structure with no text or symbols

Line drawing of a door frame with handle and clasp (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), showing internal compartments and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Krok 2

12:30 hOn Welcome! Sign in to enter in your home LOG IN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

Krok 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical component or bracket with two protruding parts (no text or symbols)

Technical line drawing showing two views of a bracket or support structure with no visible text or symbols

Line drawing of a door handle assembly with no visible text or symbols

Technical line drawing of a mechanical device with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

RIEŠENIE PROBLÉMOV

POVEZAVA Z APLIKACIJO....217

1.korak 217

2.korak 217

3.korak 217

Uporaba omrežja WI-FI 218

REVERZIBILNA VRATA....219

REVERZIBILNA VRATA....220

ODPRAVLJANJE TEŽAV 221

OPIS IZDELKA

1 2 3 4 5

1. Nadzorna plošča
2. Police
3. Predal za zelenjavo
4. Predali zamrzovalnika
5. Predal v vratih

Technical drawing of a mechanical component with dimension annotations in millimeters

UPORABA

total no host circle+ i h g f 8 °C e 6 4 3 2 super cool d -16 °C -18 -20 -22 -24 super freeze c b a D mode C B A 3 sec

A. Tipka za VKLOP/IZKLOP, za vklop/izklop aparata
B. Tipka Wi-Fi, za vklop/izklop omrežja Wi-Fi
C. Tipka Mode, za izbiro željene funkcije
D. Tipka TEMP, za izbiro temperature hladilnika in zamrzovalnika
a. Ikona območja hladilnika/zamrzovalnika prikazuje, kateri predelek naprave je izbran
b. Ikona Super Freeze, prikazuje, ali je funkcija Super Freeze aktivirana
c. Ravni temperature kažejo, katera temperatura je izbrana v zamrzovalniku
d. Ikona Super Cool, prikazuje, ali je funkcija Super Cool aktivirana
e. Ravni temperature hladilnika kažejo, katera temperatura je izbrana.
f. Ikona za temperaturo po meri, prikazuje, ali je temperaturo izbrala aplikacija
g. Ikona za način Eco, prikazuje, ali je funkcija Eco aktivirana
h. Ikona funkcije Holiday prikazuje, ali je funkcija Holiday aktivirana
i. ikona za Wi-Fi, prikazuje, ali Wi-Fi deluje in ali je naprava povezana z njim

Uporaba

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2. korak

- Ustvarite svoj račun v aplikaciji hOn ali se prijavite, če račun že imate

12:30 hOn Welcome! Sign In to enter in your home LOGIN SIGN UP Past, now in Candy? Click above to discover our products. TRY DEMO

3. korak

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text or symbols

Technical line drawing showing two views of a mechanical bracket or bracket assembly (no text or symbols)

Line drawing of a door with handle and door lock (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

ODPRAVLJANJE TEŽAV

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2. korak

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

3. korak

- Pratite uputstva za uparivanje u hOn aplikaciji

Upotreba „Wi-Fi“ mreže

Pure technical line drawing of a mechanical bracket or angle (no text or symbols)

Simple line drawing of a mechanical bracket or bracket with two protruding components (no text or symbols)

Technical line drawing showing two views of a mechanical bracket or bracket assembly (no text or symbols)

1. Uklonite srednju š arku
2. Uklonite donju š arku
3. Postavite stopicu š arke
4. Postavite srednju š arku
5. Postavite pločicu gornje š arke
6. Postavite poklopac gornje š arke

Technical line drawings of three different mechanical or architectural components (no text or symbols)

Technical line drawings of three different metal bracket mounting configurations (no text or symbols)

REŠAVANJE PROBLEMA

Unutrašnja sijalica se ne uključuje.	Nema struje.	Kabl za napajanje nije pravilno priključen.Proverite da li je uređaj isključen (pogledajte Podešavanje temperature).Proverite da ii utičnica radi ispravno (npr. sa drugim električnim uređajem).
	Režim Holiday je aktiviran.	Deaktivirajte režim Holiday.
Unutrašnja temperatura frižidera i/ili zamrzivača nije dovoljno hladna.	Vrata nisu zatvorena.	Proverite da li su vrata i zaptivke pravilno zatvoreni.
	Vrata se često otvaraju.	Izbegavajte neko vreme nepotrebno otvaranje vrata.
	Pogrešno podešavanje temperature.	Proverite podešavanje temperature i, ako je moguće, podesite nižu temperaturu (pogledajte Podešavanje temperature).
	Frižider i/ili zamrzivač su previše puni.	Sačekajte da se temperatura frižidera/ zamrzivača stabilizuje.Izbegavajte prekomerno punjenje frižidera i zamrzivača.
	Temperatura okoline je previše niska.	Pomerite jedinicu na toplije mesto ili zagrejte prostoriju u kojoj se trenutno nalazi.
	Topli artikli su uskladišteni.	Uvek ostavite artikle da se ohlade pre skladištenja.
Hrana u frižideru se zamrzava.	Pogrešno podešavanje temperature.	Proverite podešavanje temperature i, ako je moguće, povećajte temperaturu.
	Hrana je u kontaktu sa zadnjim zidom.	Držite hranu dalje od zadnjeg zida frižidera.
Dno odeljka frižidera je mokro ili su prisutne kapljice vode.	Možda je zapušeno odvodno crevo.	Očistite odvodno crevo štapićem ili sličnim predmetom kako biste omogućili odvod vode.
Prisustvo kapljica vode ili mraza na zadnjem zidu frižidera.	U zavisnosti od funkcije, kapljice vode ili mraza se tokom rada formiraju na zadnjem zidu frižidera.	To nije kvar.
	Topli artikli su uskladišteni.	Uvek ostavite artikle da se ohlade pre skladištenja.
	Postoje otvorene posude za hranu ili tečnosti.	Uvek pokrijte hranu i tečnosti.
	Vrata nisu zatvorena.	Proverite da li su vrata i zaptivke pravilno zatvoreni.
	Vrata se često otvaraju.	Izbegavajte neko vreme nepotrebno otvaranje vrata.
Prisustvo vode u fioci za povrće.	Nedostatak cirkulacije vazduha.	Uverite se da uređaj nije previše pun.
	Povrće i voće sadrži previše vlage.	Voće i povrće umotajte u plastične materijale, npr. plastičnu foliju, kese ili posude.
Motor radi neprekidno.	Vrata nisu zatvorena.	Proverite da li su vrata zatvorena i da li su zaptivke pravilno zatvorene.
	Vrata se često otvaraju.	Izbegavajte neko vreme nepotrebno otvaranje vrata.
	Temperatura okruženja je veoma visoka.	Proverite da li je temperatura okruženja u opsegu navedenom u specifikacijama na nalepnici uređaja.Podesite displej/termostat na višu temporaturu.
	Uređaj je isključen (nema struje) već neko vreme.	Obično je potrebno 8-12 sati da se uređaj potpuno ohladi.
Zamrznuta hrana se otaça.	Temperatura okoline je previše niska.	Pomerite jedinicu na toplije mesto ili zagrejte prostoriju u kojoj se tronutno nalazi.
	Vrata zamrzivača nisu zatvorena.	Proverite da li su vrata zatvorena i da li zaptivka pravilno zaptiva.
Alarm za vrata frižidera.	Alarm za vrata frižidera (zvučni signal) se aktivira kad god su vrata otvorena duže od 3 minuta.	Ne ostavljajte vrata otvorena kada to nije potrebno. Zvučni signal prestaje kada se zatvore vrata.
Uređaj proizvodi zvukove kao što su klokotanje, zujanje, škljocanje, škripanje.	Nema kvarova. Motor radi, npr. rashladna jedinica, ventilator. Rashladno sredstvo teče u cevima. Motor, prekidači i elektromagnetni ventili su uključeni ili isključeni.	Nikakva radnja nije potrebna.
	Uređaj se nalazi na neravnoj površini.	Podesite stopice za nivelisanje uređaja.
	Uređaj dodiruje neki predmet do njega.	Uklonite predmete oko uređaja.
Uređaj ne hladi, indikatori temperature i osvetljenja su uključeni.	Aktiviran je Demo režim.	Deaktivirajte DEMO režim.
Velike količine leda i mraza su se formirale u zamrzivaču.	Artikli nisu adekvatno upakovani.	Uvek dobro upakujte predmete.
	Vrata/fioka uređaja nije dobro zatvorena.	Zatvorite vrata/fioku.
	Vrata/fioka je otvorena prečesto ili predugo.	Ne otvarajte vrata/fioku prečesto.
	Zaptivka vrata/fioke je prljava, istrošena, napukla ili neodgovarajuća.	Očistite zaptivku vrata/fioke ili je zamenite novom.
	Nešto iznutra sprečava da se vrata/fioka pravilno zatvore.	Promenite položaj polica, polica za vrata ili unutrašnjih posuda kako biste omogućili zatvaranje vrata/fioke.
Bočne strane uređaja su tople.	Ovo je normalna pojava.

Sammanfattning

PRODUKTBESKRIVNING....234

Technical drawing of a mechanical component with dimension annotations in millimeters

ANVÄNDNING

total no trust circle+ i h g f 8 °C 6 4 3 2 super cool e d -16 °C -18 -20 -22 -24 super freeze c b a D C B A mode 3 sec

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Steg 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Steg 3

Pure technical line drawing of a mechanical bracket or angle (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text or symbols

Technical line drawing showing two mechanical bracket assembly steps (no text or symbols)

Line drawing of a door with a handle and door panel, no text or symbols present

Technical line drawing of a mechanical device with multiple slots and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical bracket or support structure without any text, numbers, or symbols

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a corner bracket with diagonal lines (no text or symbols)

FELSÖKNING

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Крок 2

12:30 hOn Welcome! Sign In to enter in your home LOG IN SIGN UP Post, now in Candy? Click above to discover our products TRY DEMO

Крок 3

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text or symbols

Technical line drawing showing two views of a mechanical bracket or bracket with no visible text or symbols

Technical line drawings of three different household appliances or fixtures (no text or symbols present)

Three technical line drawings of metal bracket connections (no text or symbols)

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

QR code image containing encoded data, no visible human-readable text

2الخطوة

12:59 hOn Welcome! Sign in to enter in your home LOC IN SIGN UP Past, new in Candy? Click above to discover our products. TRY DEMO

3الخطوة

Line drawings of kitchen appliances and fixtures (no text or symbols)

TOOTE ÜLEVAADE....267

Ruuminõuded 267

KASUTAMINE....268

Kasutamine....268

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2. toiming

12:30 hOn Welcome! sign in to enter in your home LOGIN SIGN UP Past, new in Candy? Click above to discover our products TRY DEMO

3. toiming

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical device with a cylindrical component and a handle (no text or symbols)

Technical line drawing of two mechanical bracket components with no visible text or symbols

Pure technical line drawing of a door frame structure without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with a handle and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or angle (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Simple line drawing of a corner joint or bracket structure (no text or symbols)

VEAOTSING

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2 veiksmas

hOn Welcome! Sign in to enter in your home LOGIN SIGN UP Past, now in Candy? Click above to discover our products TRY DEMO

3 veiksmas

Pure technical line drawing of a mechanical bracket or angle (no text or symbols)

Simple line drawing of a mechanical setup with a tool and two components (no text or symbols)

Technical line drawing of two mechanical bracket components with no visible text or symbols

Pure technical line drawing of a door or cabinet structure without any text, numbers, or symbols

Technical line drawing of a mechanical lifting device with no visible text or symbols

Line drawing of a mechanical device with internal compartments and mounting bracket (no text or symbols)

Pure technical line drawing of a mechanical bracket or mounting detail (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

TRIKČIŲ ŠALINIMAS

PRODUKTA APRAKSTS 289

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

2. darbība

12:30 hOn Welcome! Sign in to enter in your home LOGIN SIGN UP Past, new in Candy? Click above to discover our products. TRY DEMO

3. darbība

Simple line drawing of a mechanical joint or bracket (no text or symbols)

Simple line drawing of a mechanical device with a handle and lever (no text or symbols)

Technical line drawing of two mechanical bracket components with no visible text or symbols

Pure technical line drawing of a door frame structure without any text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical device with a handle and internal compartments (no text or symbols)

Pure technical line drawing of a mechanical bracket or angle (no text or symbols)

Pure technical line drawing of a corner joint or bracket (no text or symbols)

Simple line drawing of a corner joint or bracket structure (no text or symbols)

PROBLÉMU NOVĚRŠANA
