Product type	Combined fridge-freezer (free-standing)
Brand	Candy
Model	CNCQ2T620CX
Total volume	409 L
Fridge volume	289 L
Freezer volume	120 L
Climate class	SN, N, ST, T (from 10°C to 43°C)
Defrost type	Automatic (no frost)
Freezing capacity	6 kg/24h
Refrigerant	R600a (isobutane)
Power supply	220-240 V ~ 50 Hz
Rated current	0.9 A
Main fuse	15 A
Energy efficiency class	C (on a scale from A to G)
Annual consumption	178 kWh/year
Noise level	38 dB(A) (class C)
Number of doors	2 (swing doors)
Door reversibility	Yes, right/left (kit provided)
Interior lighting	LED (12 V max 1.5 W)
Special functions	Fresh 0°C drawer, Humidity Area drawer, fine temperature adjustment, open door alarm
Supplied accessories	Glass shelf, door balconies, freezer drawers, cover, energy label, warranty card, quick guide, door hinges, hinge cover
Maintenance	Clean interior with warm water and neutral detergent; do not use steam or abrasive detergents
Warranty	2 years (EU); spare parts available for 7 years (functional) and 10 years (door gaskets)
Country of manufacture	Not specified, but manufactured in compliance with CE standards

Frequently Asked Questions - CNCQ2T620CX CANDY

What are the recommended temperature settings?

The recommended temperature for the fridge is 4 °C and for the freezer is -20 °C. Use the K2 button to adjust.

How to activate the Fresh 0°C function?

Press the K3 button to activate/deactivate the Fresh 0°C mode. The 0° indicator lights up when the function is active.

What to do if the door remains open?

The audible alarm sounds after 3 minutes. Close the door. If it remains open for more than 7 minutes, the light turns off.

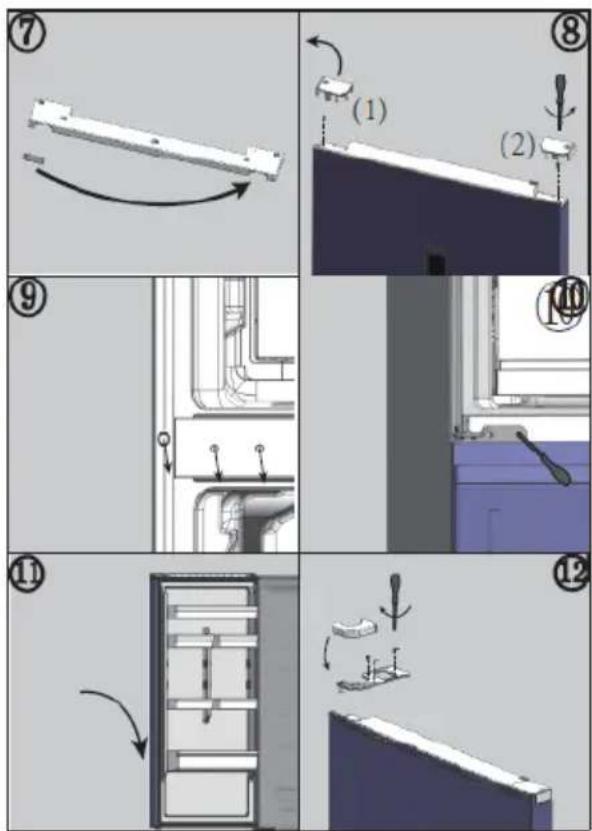

How to reverse the door opening direction?

Unplug the appliance then reverse the door following the steps in the manual. Use the supplied reversal kit. Do not exceed a tilt of 45°.

The appliance is not cooling enough, what to check?

Check: the set temperature, whether the door is properly closed, whether ventilation is free, whether food is not blocking air circulation. Wait 24h for stabilization.

How to clean the interior of the fridge?

Unplug the appliance, remove food and shelves. Clean with a sponge soaked in warm water and neutral detergent. Dry with a soft cloth. Do not use a steam cleaner.

What to do in case of power outage?

Food stays cold for about 5 hours. Open the door as little as possible. If the outage exceeds 5 hours, check the food and consume thawed products quickly.

Why is there a ticking or flowing noise?

These noises are normal: they come from the operation of the compressor and the circulation of refrigerant. No action required.

How to save energy with this appliance?

Place it away from heat sources, let hot food cool before storing, do not set a too low temperature, and close the door quickly.

The interior light no longer works, how to replace it?

The LED cannot be replaced by the user. Contact Haier customer service. Reference: 12 V max 1.5 W.

USER MANUAL CNCQ2T620CX CANDY

WARNING: Risk of fire/flammable material

EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

Adjust the temperature for fridge 13

Adjust the temperature for freezer 13

Fine Tuning function 13

fresh 0°C function 13

18 Equipment

20 Energy saving tips

21 Care and cleaning

23 Troubleshooting

28 Installation

31 Technical data

33 Customer service

Please click the contents to look at the detail information.

Thank you for purchasing a Candy Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Cap insert

Energy label Quick Warranty card

Door hinges

Hinge Cover

WARNING – Important Safety information

NOTICE - General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets from getting closed in the appliance.

Before switching on the appliance for the first time, read the following safety hints:

WARNING!

Before first use

▶ Make sure there is no transport damage. Remove all packaging and keep it out of children's reach. ▶ Wait at least two hours before installing the appliance to ensure the refrigerant circuit is fully efficient. ▶ Handle the appliance always with at least two persons because it is heavy.

Installation

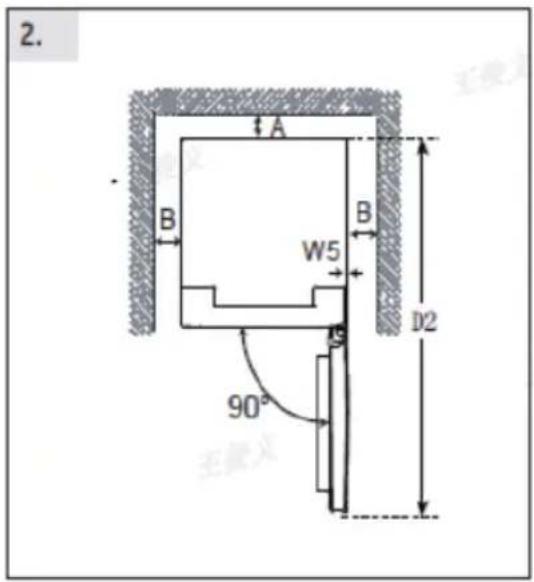

The appliance should be placed in a well-ventilated place. Ensure a space of at least 5 cm above and around the appliance. ▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. ▶ Do not install the appliance in direct sunlight or near heat sources (e.g., stoves, heaters). ▶ Install and level the appliance in an area suitable for its size and use. - Keep ventilation openings in the appliance or in the built-in structure clear of obstruction. ▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature display or compressor, or there may be abnormal noise when operating. In such case, an automatic regulator shall be mounted. ▶ Do not use multi-plug adapters and extension cables. - Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

- Use a separate earthed socket for the power supply which is easily accessible. The appliance must be earthed. Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶ Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶ Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.

- Keep away children under 3 years of age from the appliance unless they are constantly supervised.

▶ Children shall not play with the appliance.

▶ If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.

▶ Notice that the appliance, for example CNCQ2T620E*, CNCQ2T618E*, ECN2CQTE* 186, ECN2CQTE* 206, (* = colour code: B,X,W ), is set for operation at a specific ambient range between 10 °C and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

▶ Notice that the appliance, for example CNCQ2T620D*, CNCQ2T620A*, CNCQ2T618EXMA, CNCQ2T618EBMA, CNCQ2T618A*, CNCQ2T618C*, is set for operation at a specific ambient range between 10°C and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water.

▶ Do not pull on the door shelves. The door may be pulled slant.

WARNING!

Do not store or use flammable, explosive, or corrosive materials in or near the appliance. Do not store medicines, bacteria, or chemical agents in the appliance. This appliance is for household use. It is not recommended to store materials that require strict temperature control. Never store liquids in bottles or cans (except high-proof spirits), especially carbonated beverages, in the freezer, as they will burst during freezing. Check the condition of food if a warming in the freezer has occurred. Do not set unnecessarily low temperatures in the refrigerator compartment. High settings may cause sub-zero temperatures. Caution: Bottles can burst. Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is a risk of frostbite or frost blisters. First aid: keep immediately under running cold water. Do not pull away! Do not touch the inside surface of the freezer compartment when in operation, especially with wet hands, as your hands may freeze to the surface. Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor. Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning: Make sure children are supervised if they carry out cleaning and maintenance. Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor. When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING!

Hold the plug, not the cable, when unplugging the appliance.

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.

Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.

Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

▶ Do not spray or flush the appliance during cleaning.

▶ Do not use water spray or steam to clean the appliance.

▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives of CE UK CA

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE or UKCA marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

CNCQ2T620AX CNCQ2T620EX CNCQ2T620EW CNCQ2T620DX CNCQ2T620DW CNCQ2T620EB CNCQ2T620CB ECN2CQTEX206 ECN2CQTEW206 ECN2CQTEB206

A: Refrigerator compartment

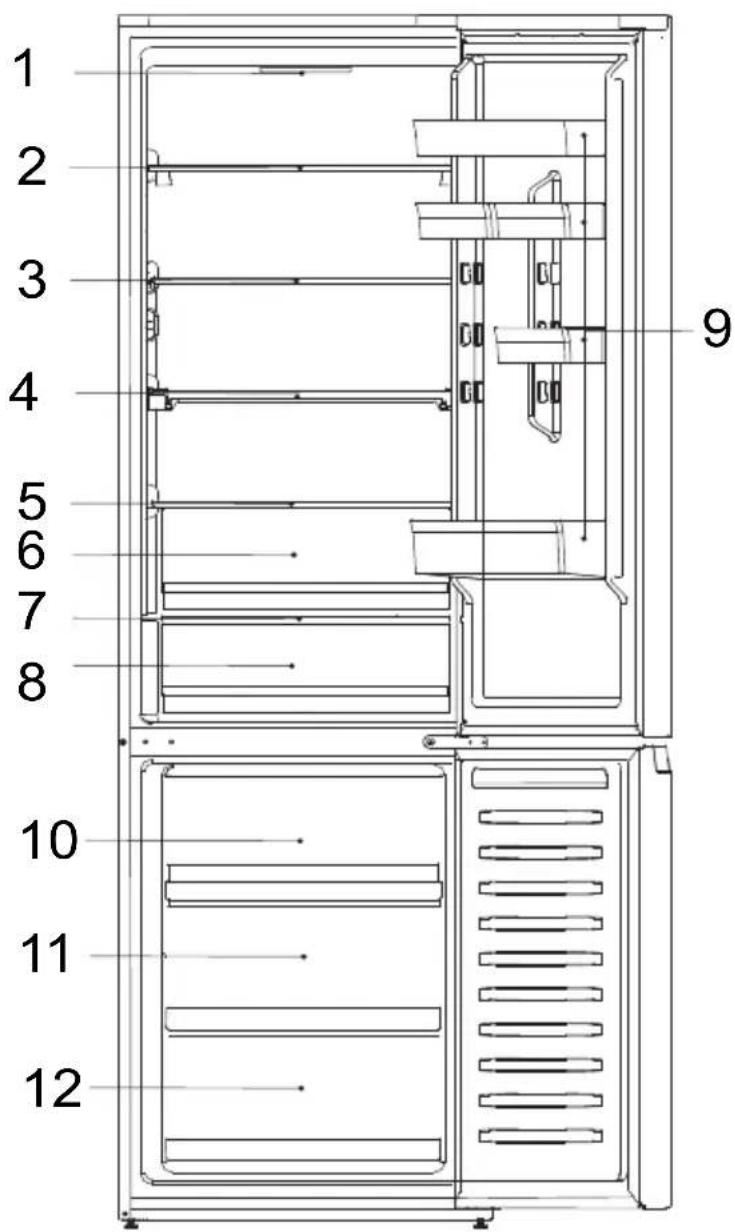

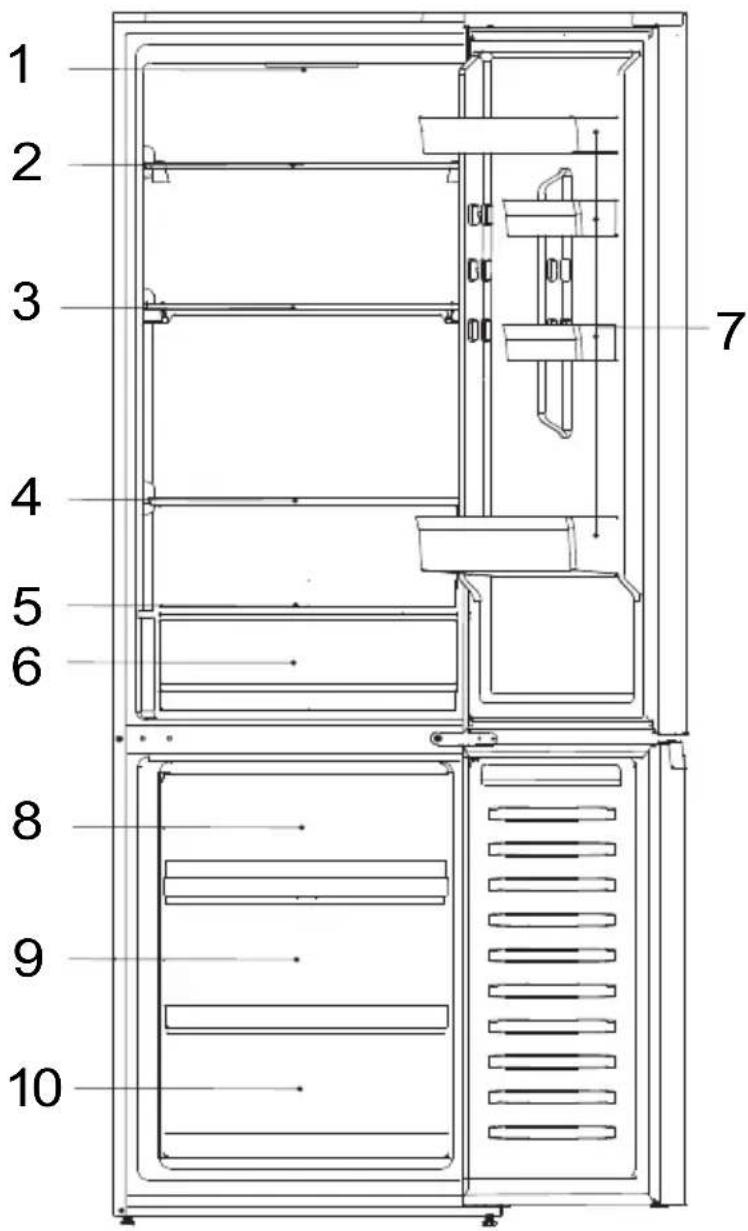

1-Display panel 2-Glass shelf 3-Glass shelf 4-Glass shelf 5-Drawer cover 6-Humidity Area drawer 7-Drawer cover 8-Fresh 0°C storage drawer 9-Door balcony

B: Freezer compartment

10-Upper freezer storage drawer 11-Middle freezer storage drawer 12-Lower freezer storage drawer

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

CNCQ2T618EW

CNCQ2T618EB

CNCQ2T618EX

ECN2CQTEX186

ECN2CQTEW186

ECN2CQTEB186

CNCQ2T618EXMA

CNCQ2T618EBMA

CNCQ2T618CW

CNCQ2T618CX

CNCQ2T618AW

CNCQ2T618AX

CNCQ2T618EX

CNCQ2T618DW

CNCQ2T618DX

A: Refrigerator compartment

1-Display panel

2-Glass shelf

3-Glass shelf

4-Glass shelf

5-Drawer cover

6- Fresh 0°C drawer

7-Door balcony

B: Freezer compartment

8-Upper freezer storage drawer

9-Middle freezer storage drawer

10-Lower freezer storage drawer

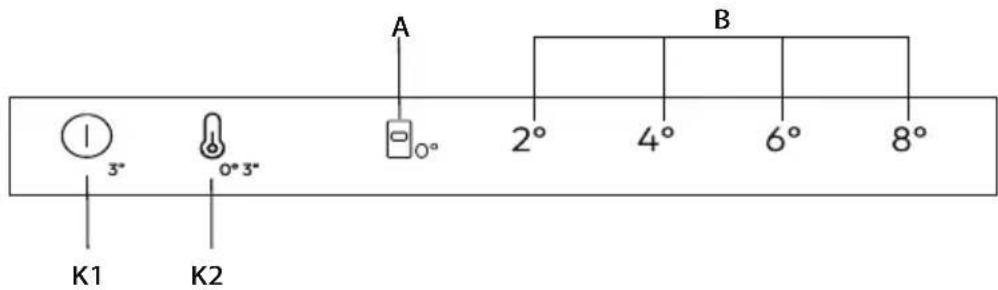

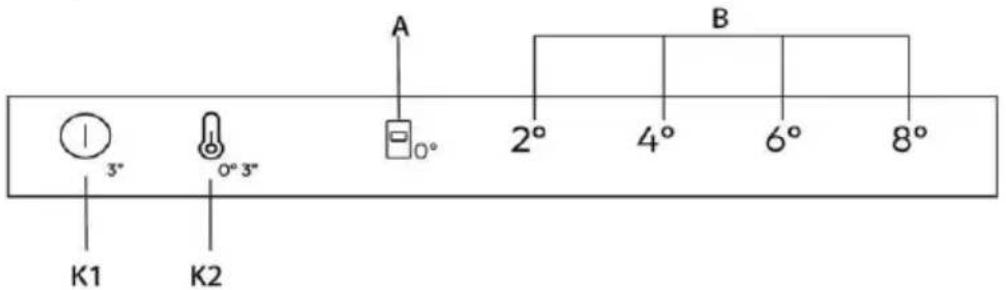

Display panel

K1 Power On/Off, used to switch On/Off the appliance.

K2 Temperature selection/Fine Tuning

On/Off key, used to switch on/off fresh 0°C.

Indicators

A Fresh 0°C function

B Fridge temperature display

Before first use

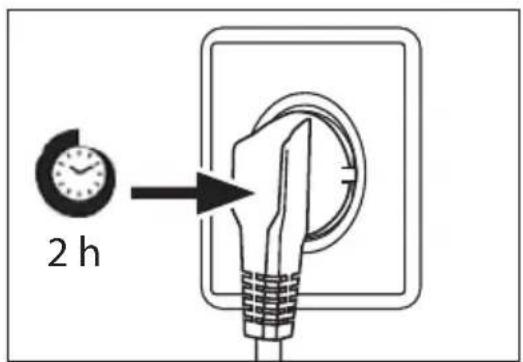

Remove all packaging materials, keep them out of children's reach and dispose them in an environment friendly way. ▶ Clean the inside and outside of the appliance as well as the interior and accessories with water and a mild detergent, and dry it well with soft cloth. ▶ After the appliance has been levelled and cleaned, please wait for at least 2 hours before connecting it to the power supply. See Section INSTALLATION. ▶ Precool the compartments at high settings before loading with food.

Mechanical buttons

The buttons on the display panel are mechanical buttons.

Switch on/off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator "4°" of "B" (Fridge temperature display) and the indicator "☐o°" of fresh 0°C drawer illuminates. The fridge temperature and freezer temperature are automatically set to 4°C and -20°C respectively fresh 0°C drawer come into operation.

NOTICE

The appliance is preset to the recommended temperature of 4° C. These are the recommended settings. If desired, you can change these temperatures manually.

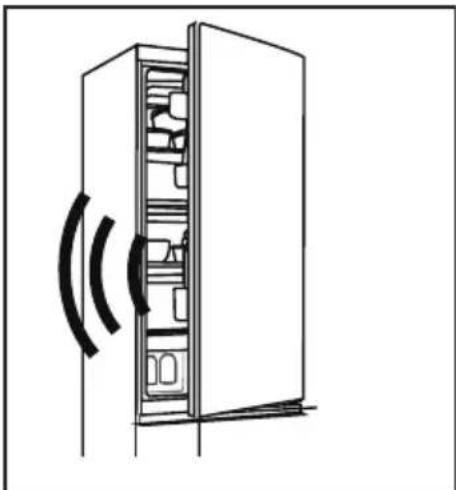

Door opening alarm

When the refrigerator door is open for more than 3 minutes, the door opening alarm will sound.

The alarm can be silenced by closing the door. If the door is open for more than 7 minutes, the light inside the refrigerator and Display panel illumination will automatically turn off.

Power on/off

When the appliance is in the power on, press the K1 button for 3 seconds, the appliance enters standby mode, the compressor stops working, and the light extinguish; When the appliance is in standby mode, press the K1 button for 3 seconds, the appliance is power on, the compressor will work, and the light will be on.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature

Frequency of door opening

Amount of stored foods

Installation of the appliance

Adjust the temperature for fridge/freezer compartment

1. Press the key "K2" (Fridge Temperature Selection) to select the Fridge Temperature;
2. Indicator "B" (Fridge temperature display) will be bright alternately as below;

2 ^ ° → 4 ^ ° → 6 ^ ° → 8 ^ °

1. After about 3s, the setting will be confirmed.
2. When selecting the Fridge temperature from the Display panel, the corresponding temperature for Freezer is 2°(-22°) → 4°(-20°) → 6°(-18°) → 8°(-16°) .

Fine Tuning

The fine tuning selection mode gives the seven possibility to set the temperatures, such as, 2° 、 3°(2°4°) 、 4° 、 5°(4°6°) 、 6° 、 7°(6°8°) 、 8° .

How to use the fine tuning function:

1. Press the K2 key for 8 seconds to on/off fine tuning selection mode. When the appliance enters the mode, an acoustic signal is made and the LED of currently selected cooling level bright,
2. By pressing the K2 key, the fine tuning setting increases and at each pressing, indicator "B" (Fridge temperature display) will be bright alternately as below;

2° → 3° (2° 4°) → 4° → 5° (4° 6°) → 6° → 7° (6° 8°) → 8°

"fresh 0°C" drawer

To enter "fresh 0°C" mode, with the fridge door open, press K2 for 3 seconds. An acoustic signal sounds, the indicator lights up, and the temperature of the fresh 0°C drawer will be near 0°C.

To exit "0°" mode, with the fridge door open, press K2 for 3 seconds. An acoustic signal sounds, the indicator "☐o°" extinguishes, and the temperature of the "0°" drawer will change with the temperature of the refrigerator.

NOTICE

1. When the appliance enters the Fine Tuning mode, the indicator "B" (Fridge temperature display) 2° 4° light up simultaneously, and the refrigerator's temperature operates at 3°; 4° 6° light up simultaneously, and the refrigerator's temperature operates at 5°; 6° 8° light up simultaneously, and the refrigerator's temperature operates at 7°;
2. When the room temperature is below 8°C, and the refrigerator is in the 2° mode, whether "0°" mode is opened or closed, the temperature of the fresh 0°C drawer is near 0°C.

Tips on storing fresh food

Storing into the refrigerator compartment

Keep your fridge temperature below 5°C.

Hot food must be cooled to room temperature before storing in the appliance.

Foods stored in the refrigerator should be washed and dried before storing.

Food to be stored should be properly sealed to avoid odor or taste alterations.

Do not store excessive quantities of food. Leave spaces between foods to allow cold air to flow around them, for better and more homogeneous cooling.

Foods eaten daily should be stored at the front of the shelf.

Leave a gap between foods and the inner walls to allow air to flow. In any case, do not store foods against the rear wall: foods could freeze against the rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.

Frozen food can be gently defrosted in the refrigerator compartment. This saves energy.

The ageing process of fruit and vegetables such as courgettes, melons, papaya, bananas, pineapples, etc. can be accelerated in the refrigerator. Therefore, it is not recommended to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.

Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See Care And Cleaning.

Different foods should be placed in different areas according to their properties.

Storage into the freezer compartment

• Keep the freezer temperature at -18°C.
• Hot food must be cooled to room temperature before storing in the freezer compartment.
• Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg.
• It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and non-toxic.
• In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.

WARNING!

Acid, alkali and salt etc. could erode the internal surface of the freezer.

• Do not place food containing these substances (e.g., sea fish) directly on the internal surface. Clean up salt water in the freezer immediately.
• Do not exceed the food storage time recommended by the manufacturers. Only take the required amount of food out of the freezer.
• Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is first cooked, otherwise it may be less edible.
• Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer - See TECHNICAL DATA or data at the type plate.
• Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months).
• While freezing fresh food, avoid bringing them in contact with already frozen food. Risk of thawing!

When storing commercially frozen foods, please follow these guidelines:

• Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines! - Try to keep the length of time between purchase and storage as short as possible to preserve food quality. • Buy frozen food that has been stored at a temperature of -18°C or below. - Avoid buying food which has ice or frost on the packaging - This indicates that the products might have been partially defrosted and refrozen at some point - temperature rising affects the quality of food.

NOTICE

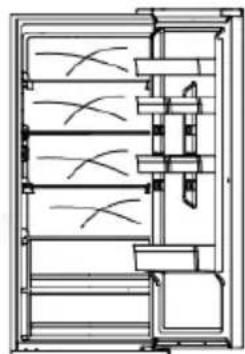

Due to different models, your product may not have all of the following features. Please refer to chapter Product Description.

Multi-air-flow

The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.

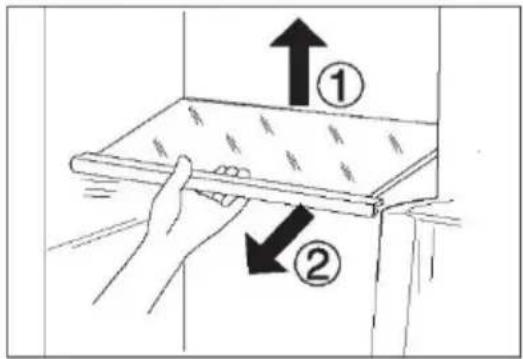

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.
3. To reinstall it, place it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.

Removable door racks/bottle holder

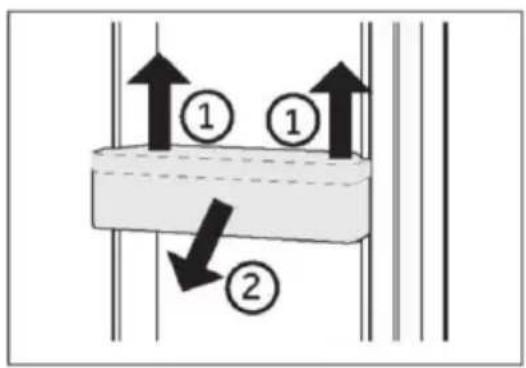

1. The door racks can be removed for cleaning:

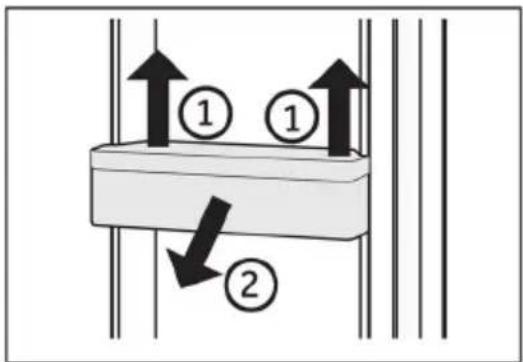

2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. To insert the door rack, carry out the above steps in reverse order.

Fridge storage drawer

For using and setting the Fridge storage compartment, please check section USE.

Freezer drawer

The freezer drawer can be extended straightly and completely. They are mounted on easy roll telescopic rails, so that you can store and remove the freezing goods comfortably. Because of the automatic door closing mechanism, the handling is easy and you can save energy.

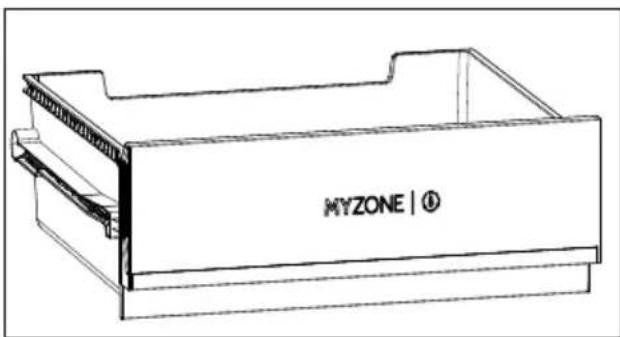

Removable drawer

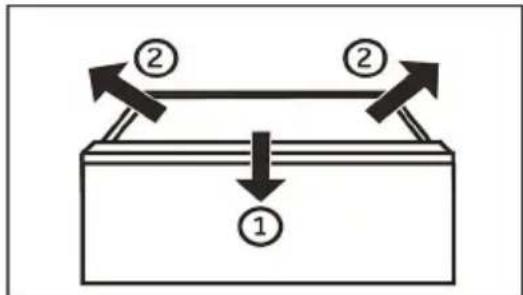

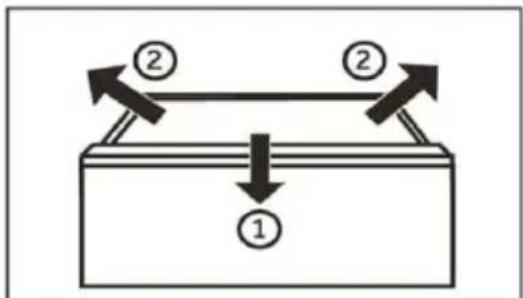

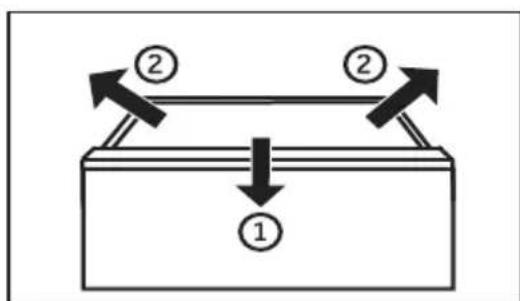

To remove the drawer, pull it out to the maximum extent ①, lift and remove ②.

To insert the drawer, carry out the above steps in reverse order.

WARNING!

Do not overload the drawers: Maximum load of each drawer: 35kg!

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliance's other settings.

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION).

Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).

Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.

▶ Allow warm food to cool down before placing it in the appliance.

▶ Open the appliance door as little and briefly as possible.

▶ Do not overfill the appliance to avoid obstructing the air flow.

▶ Avoid air within the food packaging.

▶ Keep door seals clean so that the door always closes correctly.

The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance in a factory-fresh condition, and food to be placed without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

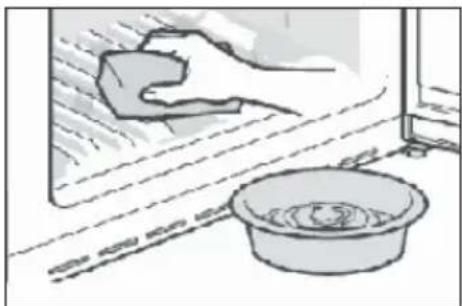

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ▶ Do not spray or flush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.

▶ Always keep the door gasket clean. ▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent. ▶ Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service ▶ Rinse and dry with soft cloth. ▶ Do not clean any of the parts of the appliance in a dishwasher. ▶ Allow at least 7 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameters of the lamps:

Refrigerator compartment: 12 V max 1.5 W

Non-use for a longer period

If the appliance is not used for an extended period of time:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

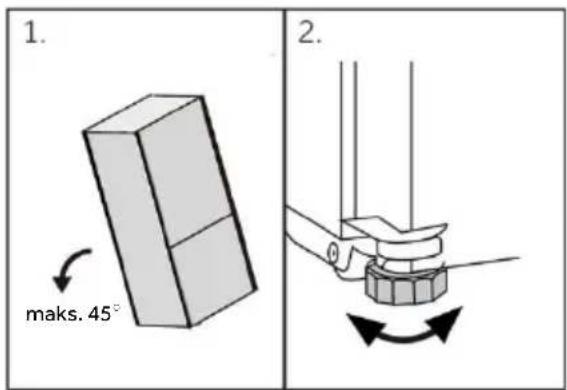

3. Do not tilt the refrigerator more than 45 degrees to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles. ▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. ▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution
The compressor does not work.		Mains plug is not connected in the mains socket.The appliance is in the defrosting cycleConnect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.		The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mis-matched.The required air circulation is not guaranteed.In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.		The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.Clean the inside of the refrigerator.Wrap the food thoroughly..
Problem Possible Cause Possible Solution
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods be-fore storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appli-ance.	The temperature is set too low.	Reset the temperature.
Moisture forma-tion on the inside of the refrigerator compartment.	The climate is too warm and toodamp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the hu-midity decreases.Ensure that he door/drawer is tightly shut.
Problem Possible Cause Possible Solution
Strong ice and frost in the freezer compartment.	·The goods were not adequately packaged.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.·The door/drawer gasket is dirty, worn, cracked or mismatched.·Something on the inside prevents the door/drawer to close properly.	·Always pack the goods well.·Close the door/drawer.·Do not open the door/drawer too frequently.·Clean the door/drawer gasket or replace them by new ones.·Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	·-·This is normal.
The appliance makes abnormal sounds.	·The appliance is not located on level ground.·The appliance touches some object around it.	·Adjust the feet to level the appliance.·Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	·-·This is normal.
You will hear an alarm beep.	·The fridge storage compartment door is open.	·Close the door.
You will hear a faint hum.	·The anti-condensation system is working	·This prevents condensation and is normal
Problem Possible Cause Possible Solution
The interior lighting or cooling system does not work.	Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the "website" section, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible. ▶ Do not put additional food into the appliance during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment. An inspection of the goods is required immediately after the interruption. As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power, the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons. - Keep all packaging materials out of children's reach and dispose of them in an environmentally friendly manner. ▶ Take the appliance out of the packaging. ▶ Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10°C and 38°C for this refrigerator, such as CNCQ2T620E*, CNCQ2T618E*, ECN2CQTE*186, ECN2CQTE*206, (*=colour code: B,X,W), or the room temperature should always be between 10°C and 43°C for this refrigerator, for example, CNCQ2T620D*, CNCQ2T618C*, CNCQ2T620A*, CNCQ2T618A*, CNCQ2T618EXMA, CNCQ2T618EBMA, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

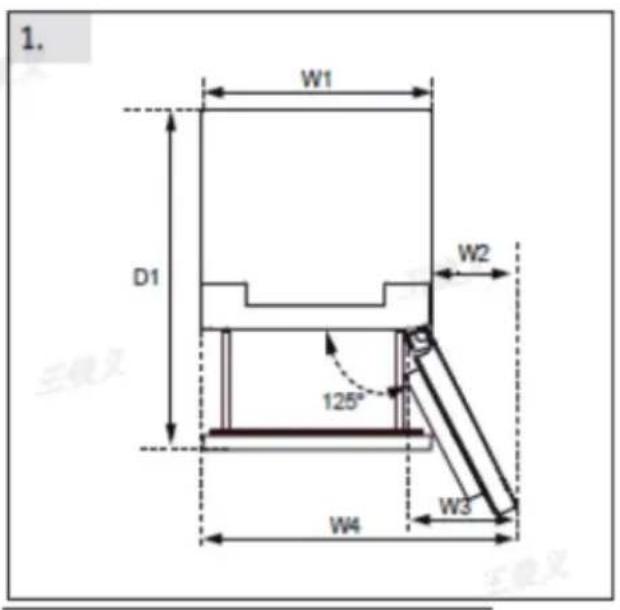

Recommended space when door is opened (Fig.1.2.)

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

WARNING!

When the refrigerator can be used normally, a minimum installation gap of 50mm is required to ensure the refrigeration efficiency of the refrigerator. The obstruction around the refrigerator will increase its power consumption.

Aligning the appliance

The appliance should be placed on a flat and solid surface.

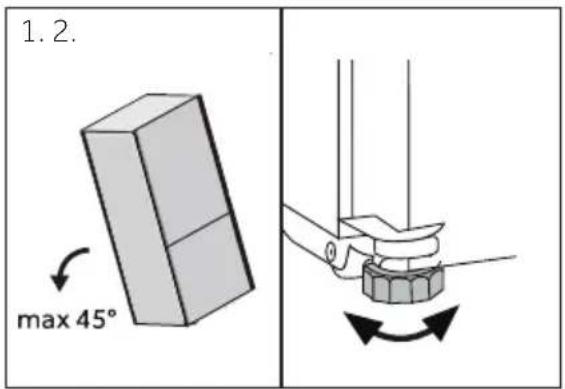

1. Tilt the refrigerator slightly backwards.
2. Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 100 mm for the door to open properly.

1. The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

NOTICE

For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks, a damaged power cord must be replaced by the customer service (see warranty card).

Door Reversibility

Before connecting the appliance to the power supply, you should check whether the door swing must be changed from right (as delivered) to left, if this is required by the installation location and the usability.

WARNING!

The appliance is heavy. You need two persons to carry out the door reversibility. ▶ Before any operation, first unplug the appliance from the mains. ▶ Do not tilt the appliance more than 45° C to prevent damage to the refrigeration system.

Assembly steps

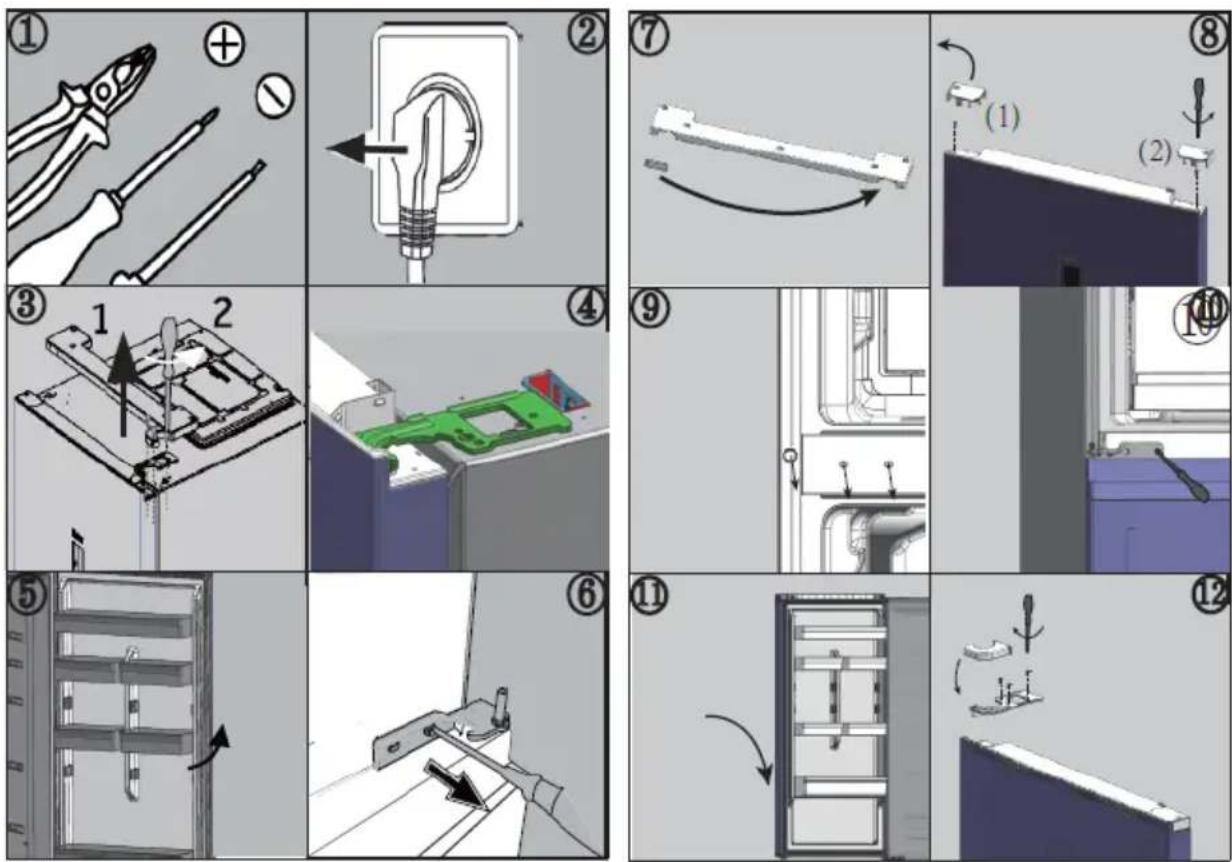

1. Provide necessary tools.
2. Unplug the appliance.
3. Remove the upper hinge cover 1 and unscrew the upper hinge (three screws) on the right side 2.
4. Remove the upper hinge.
5. Lift the loose refrigerator door carefully off the middle hinge.
6. Remove the middle hinge.
7. Remove the small cover of the front panel from left to right side.
8. Turn the door upside down and unscrew the cover (1). Take out the new cover (2) from the necessary bag and screw them to opposite side.
9. Change the positions of the blanking plugs and the screw on the side.
10. Screw the middle hinge to the left side of the appliance. Pay attention to inverting the pivot of the middle hinge, ensuring that the side with the gasket is facing upwards.
11. Lift the upper door carefully on the middle hinge. And be sure the pivot fits into the hinge barrel of the lower door.
12. Take out the new upper hinge and hinge cover from the accessory bag. Put the connection cable through the upper hinge and fix the upper hinge with three screws on left side of appliance. And then put the hinge cover over the hinge.
13. Replace front panel and fix it with five screws.

After the change of the door, check if the door seals are located properly on the housing and all screws are tightened well.

Ambient temperatures

Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C

Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C;

Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C;

Tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C.

Product parameters according to regulation (EU)2019/2016

Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located

Model	CNCQ2T620EBCNCQ2T620EW CNCQ2T620EX ECN2CQTEX206 ECN2CQTEB206 ECN2CQTEW206	CNCQ2T620DW CNCQ2T620DX	CNCQ2T618EW CNCQ2T618EX CNCQ2T618EB CNCQ2T618EC ECN2CQTEX186 ECN2CQTEB186 ECN2CQTEW186	CNCQ2T620CB
Type of refrigerating appliance	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	E D E C
Annual energy consumption (kWh/annum)	279 223 270 178
Volume Refrigerator compartment(L)	289 289 235 289
Volume Freezer compartment(L)	120 120 120 120
Freezing Class	4-star 4-star 4-star 4-star
Defrosting type	Auto-defrost Auto-defrost Auto-defrost Auto-defrost
Temperature rise time(h)	11 11 11 13
Freezing capacity(kg/24h)	6 6 6 6
Climate class	SN.N.ST SN.N.ST.T SN.N.ST SN.N.ST.T
Noise emission class and airborne acoustical noise emissions (dB(A) re 1 pW)	C(38)	B(35)	C(38)	B(35)

Product parameters according to regulation (EU)2019/2016

Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located

Model	CNCQ2T620AX	CNCQ2T618CX CNCQ2T618CW	CNCQ2T618AX CNCQ2T618AW	CNCQ2T618EXMA CNCQ2T618EBMA
Type of refrigerating appliance	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer	Refrigerator-freezer
Energy efficiency class	A C A			A+
Annual energy consumption (kWh/annum)	114	172 110		290
Volume Refrigerator compartment(L)	289	235 235		234
Volume Freezer compartment(L)	120 120 120			96
Freezing Class	4-star 4-star	4-star		4-star
Defrosting type	Auto-defrost	Auto-defrost Auto-defrost		Auto-defrost
Temperature rise time(h)	16 13 16			13
Freezing capacity(kg/24h)	7 6 7			6
Climate class	SN.N.ST.T	SN.N.ST.T	SN.N.ST.T	SN.N.ST.T
Note: Adopting standards	EN 62552-1:2020 EN 62552-3:2020		EN 62552-2:2020	EN 62552:2013

Product parameters according to regulation (EU)2019/2016

Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located

Model	CNCQ2T618DW CNCQ2T618DX
Type of refrigerating appliance	Refrigerator-freezer
Energy efficiency class	D
Annual energy consumption (kWh/annum)	216
Volume Refrigerator compartment(L)	235
Volume Freezer compartment(L)	120
Freezing Class	4-star
Defrosting type	Auto-defrost
Temperature rise time(h)	13
Freezing capacity(kg/24h)	6
Climate class	SN.N.ST.T
Noise emission class and airborne acoustical noise emissions (dB(A) re 1 pW)	B(35)

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance. (2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C

Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C

Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C

Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Model	CNCQ2T620EBCNCQ2T620EW CNCQ2T620EX ECN2CQTEX206 ECN2CQTEB206 ECN2CQTEW206	CNCQ2T620DW CNCQ2T620DX	CNCQ2T618CW CNCQ2T618CX	CNCQ2T618EW CNCQ2T618EX CNCQ2T618EB CNCQ2T618EC ECN2CQTEX186 ECN2CQTEB186 ECN2CQTEW186
Total volume(L)	409 409 355			330
Voltage/Frequency	220~240V/ 50Hz	220~240V/ 50Hz	220~240V/ 50Hz	220~240V/ 50Hz
Rated current(A)	0.9 1.4 1.4			0.9
Main fuse(A)	15 15 16			15
Note: Adopting standards	EN 62552-1:2020 EN 62552-3:2020EN 62

Model	CNCQ2T620AX	CNCQ2T618AX CNCQ2T618AW	CNCQ2T620CB	CNCQ2T618EXMA CNCQ2T618EBMA
Total volume(L)	409 355	409 330
Voltage/Frequency	220~240V/50Hz	220~240V/50Hz 220~240V/50Hz 220~240V/50Hz
Rated current(A)	1.4 1.4 1.4	0.9
Main fuse(A)	16 16	16	16
Note: Adopting standards	EN 62552-1:2020; EN 62552-2:2020; EN 62552-3:2020			EN 62552:2013

Model	CNCQ2T618DW CNCQ2T618DX
Total volume(L)	355
Voltage/Frequency	220~240V/50Hz
Rated current(A)	1.4
Main fuse(A)	16
Note: Adopting standards	EN 62552-1:2020; EN 62552-2:2020; EN 62552-3:2020

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or ▶ our European Call Service-Center (see listed phone numbers below) or ▶ the Service & Support area at www.haier.com where you can activate the service ▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES) 902 509 123
Haier Germany (DE) 0180 5 39 39 99		• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT) 0820 001 205		• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

Multiple air flow

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Appliance alignment

Westgate House, Westgate, Ealing

London, W5 1YY

On/Off

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Westgate House, Westgate, Ealing

London, W5 1YY

On/Off

Multi-air flow

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Westgate House, Westgate, Ealing

London, W5 1YY

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic or background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

Westgate House, Westgate, Ealing

London, W5 1YY

On/Off

Refrigerator drawer

Freezer drawer

https://corporate.haier-europe.com/en/.

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Westgate House, Westgate, Ealing

Power On/Off

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

On/Off

Refrigerator storage drawer

Replace the LED lamps

WARNING!

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Align the appliance

Use

Power on/off

Refrigerator storage drawer

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Use

Refrigerator drawer

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Disposal

Adjustable shelves

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	"186	"206
	W2:323	"3618"	"3620"
	W3:383	"5618"	"5620"
	W4:918	"1618"	"7620"
	W5:3		"1620"
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Centering the device

Standards and directives, € UK CA

Power on/off

Multiple air flows

Adjustable shelves

Refrigerator storage drawer

Freezer drawer

WARNING!

▶ Keep the door gasket clean at all times. ▶ Clean the interior and exterior of the appliance with a sponge moistened with warm water and a neutral detergent. Using a soft towel or sponge soaked in warm water (you may add a neutral detergent to the warm water), wipe the interior and exterior of the refrigerator, including the door gasket, door rack, glass shelves, containers, and similar items.

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	"186	"206
	W2:323	"3618"	"3620"
	W3:383	"5618"	"5620"
	W4:918	"1618"	"7620"
	W5:3		"1620"
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Leveling the appliance

The appliance should be placed on a flat and sturdy surface.

Room temperature

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the refrigerator's warranty:

On/Off

Adjustable shelves

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Westgate House, Westgate, Ealing

London, W5 1YY

A: Refrigerator compartment

1- Display panel

2- Glass shelf

3- Glass shelf

4- Glass shelf

5- Drawer cover

A: Refrigerator compartment

1- Display panel

2- Glass shelf

3- Glass shelf

4- Glass shelf

5- Drawer cover

6- 0°C Fresh drawer

On/Off

Refrigerator storage drawer

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Leveling the appliance

To turn on/off

Adjustable

Drawer handle

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Notice

Westgate House, Westgate, Ealing

London, W5 1YY

6-Drawer Humidity Area

7-Drawer cover

Multi air flow

Adjustable shelves

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Adjustable shelves

Freezer drawer

WARNING!

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*486	*206
	W2:323	*3618°	*3620°
	W3:383	*5618°	*5620°
	W4:918	*1618°	*7620°
	W5:3		*4620°
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2650

6-Humidity area drawer

7-Drawer cover

8-Fresh 0°C storage drawer

9-Door shelves

Adjustable shelves

Freezer drawer

The freezer drawers can be pulled straight out to the very end. They are mounted on a telescopic guide that is easy to remove and install. This allows you to store and remove frozen food without difficulty. Thanks to the automatic door closing mechanism, handling is simple and saves energy.

Removable drawer

When removing the drawer, pull it out to the very end ①, lift it up and take it out ②.

When reinstalling the drawer, carry out the described steps in reverse order.

WARNING!

Do not overload the drawers: Maximum capacity of each drawer: 35 kg!

Light

The door gasket must always be clean. Clean the interior and exterior of the appliance with a sponge moistened with warm water and a neutral detergent. Clean the interior and exterior surfaces of the refrigerator, including door gaskets, door shelves, glass shelves, drawers, and so on. Use a soft towel or sponge soaked in warm water (you can add neutral detergent to the warm water).

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618"	*3620"
	W3:383	*5618"	*5620"
	W4:918	*1618"	*7620"
	W5:3		*1620"
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

1. Stability can be checked by alternately pushing on the diagonals. The appliance should rock equally in both directions. Otherwise, the frame may warp, which can lead to door gasket leaks. A slight backward tilt makes it easier to close the door.

NOTICE

Ambient temperature

Extended temperate: this refrigerating appliance is intended for use at ambient temperatures from 10 °C to 32 °C

Temperate: this refrigerating appliance is intended for use at ambient temperatures from 16 °C to 32 °C:

Subtropical: this refrigerating appliance is intended for use at ambient temperatures from 16 °C to 38 °C:

Tropical: this refrigerating appliance is intended for use at ambient temperatures from 16 °C to 43 °C.

Product parameters according to Regulation (EU) 2019/2016

Westgate House, Westgate, Ealing

London, W5 1YY

On/Off

Adjustable shelves

Refrigerator storage drawer

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618°	*3620°
	W3:383	*5618°	*5620°
	W4:918	*1618°	*7620°
	W5:3		*1620°
	W6:506
Depth	D1:996
	D2:1220
	D3:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

WARNING!

Westgate House, Westgate, Ealing

London, W5 1YY

B: Freezer compartment

10-Upper freezer storage drawer 11-Central freezer storage drawer 12-Lower freezer storage drawer

NOTE

B: Freezer compartment

8-Upper freezer storage drawer

9-Central freezer storage drawer

10-Lower freezer storage drawer

Display panel

On/Off

Multi air flow

Adjustable shelves

Freezer drawer

WARNING!

Ambient temperatures

Westgate House, Westgate, Ealing

London, W5 1YY

On/Off

Multi-airflow

Refrigerator storage drawer

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Leveling the appliance

Westgate House, Westgate, Ealing

London, W5 1YY

Multi-airflow

The refrigerator is equipped with a multi-airflow system, with cold air flow at each shelf level.

Adjustable shelves

1. The height of the shelves can be adjusted to suit your food storage needs.
2. To move a shelf, first remove it by lifting the rear edge ① and pulling it out ②
3. To replace it, place it on the supports on both sides and push it in as far as possible until the rear part of the shelf is secured within the side notches

Removable door shelves / bottle holders

1. The door racks can be removed for cleaning:
2. Place your hands on both sides of the shelf, lift it up ① and pull it out ②.
3. To replace the door rack, perform the above steps in reverse order.

Refrigerator storage drawer

Freezer drawer

The freezer drawer can be extended straight out and fully. They are mounted on a telescopic rail that is easy to remove and install. This allows you to store and remove frozen foods without difficulty. Thanks to the automatic door closing mechanism, operation is easy and energy-saving.

Removable drawer

To remove the drawer, pull it out as far as possible ①, lift it up and take it out ②.

To insert the drawer, perform the above steps in reverse order.

WARNING!

Do not overload the drawers: Maximum load of each drawer: 35 kg!

Light

The internal LED light turns on when the door is opened. The light output is not affected by any device settings.

Energy saving tips

▶ Make sure the appliance has proper ventilation (see INSTALLATION). Do not install the appliance in direct sunlight or near heat sources (e.g., oven, heater). Avoid unnecessarily low temperatures in the appliance. Energy consumption increases the lower the temperature is set in the appliance. ▶ Wait for hot food to cool down before placing it in the appliance. ▶ Open the appliance door as little and as briefly as possible. Do not overfill the appliance to avoid obstructing air flow. Avoid trapping air when packaging food. Keep the door seals clean so they always close properly. The most energy-saving configuration requires that the drawer, food box, and shelves be placed in the appliance according to factory settings, and that food be placed without blocking the air outlet in the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

▶ Always keep the door seal clean. ▶ Clean the interior and exterior of the appliance with a sponge soaked in warm water and neutral detergent. Scrub the inside and outside of the refrigerator, including the door seal, door shelf, glass shelves, boxes, etc., using a soft cloth or sponge dipped in warm water (you can add neutral detergent to the warm water).

If liquid is spilled, remove all soiled parts, rinse directly under running water, dry, and put back in the refrigerator. If a thick liquid is spilled (e.g., whipped cream, melted ice cream), remove all soiled parts, place in warm water at about 40 °C for a while, then rinse under running water, dry, and put back in the refrigerator. ▶ In case a small part or component gets stuck inside the refrigerator (between shelves or drawers), free them with a small brush. If you cannot reach the part, contact Haier customer service. ▶ Rinse and dry with a soft cloth. ▶ Do not clean any part of the appliance in a dishwasher. ▶ Wait at least 7 minutes before switching the appliance back on, as frequent switching on can damage the compressor.

Defrosting

Defrosting of the refrigerator and freezer is automatic, so you do not need to do it manually.

Replacing LED lights

WARNING!

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Leveling the appliance

Place the device on a flat and sturdy surface.

1. Tilt the refrigerator slightly backward.
2. Adjust the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 100 cm so that the door opens properly.

1. Stability can be checked by alternately pushing on the diagonals. Slight rocking should be even in both directions. Otherwise, the frame may warp. This can result in door seal leaks. A slight tilt backward makes it easier to close the door.

NOTE

Multi-airflow

Adjustable shelves

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Westgate House, Westgate, Ealing

London, W5 1YY

On/Off

Multi-airflow

Adjustable shelves

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Ambient temperatures

Westgate House, Westgate, Ealing

London, W5 1YY

Switch on/off

Multiple airflows

Adjustable shelves

Refrigerator drawer

Freezer drawer

(Unit : mm)	Dimension	Model#1	Model#2
Width	W1:595	*186	*206
	W2:323	*3618*	*3620*
	W3:383	*5618*	*5620*
	W4:918	*1618*	*7620*
	W5:3		*1620*
	W:595
Depth	D1:996
	D2:1220
	D:667
Distance to back wall	A:50
Distance to lateral walls	B:50
Distance to ceiling	C:100
Overall Height	H:1850/2050	H:1850	H:2050

Westgate House, Westgate, Ealing

London, W5 1YY

CANDY
