Product Type	Built-in refrigerator-freezer
Brand	Candy
Model	CNBQT3518D
Dimensions (H x W x D)	1773 x 540 x 555 mm
Total volume	251 L
Refrigerator volume	179 L
Freezer volume	72 L
Energy efficiency class	E
Annual energy consumption	229 kWh/year
Voltage / Frequency	220-240 V ~/50 Hz
Input current	1,2 A
Refrigerant	R600a (isobutane, flammable)
Climate class	SN/N/ST/T (10 °C to 43 °C)
Acoustic emissions	35 dB(A) – class B
Freezer star rating	4 stars
Special functions	Super Cool, Super Freeze, Eco, Holiday
Defrost type	Automatic (frost-free)
Interior lighting	LED, 12 V max. 2 W
Supplied accessories	Ice cube tray, egg rack, energy label
Maintenance	Clean with mild detergent; do not use steam or solvents
Availability of spare parts	Electronic parts: 7 years; door gaskets: 10 years
Warranty	2 years (EU)

Frequently Asked Questions - CNBQT3518D CANDY

How to set the refrigerator temperature?

Open the refrigerator door and unlock the display (button K2). Use the K4 (decrease) and K5 (increase) buttons to adjust in 1°C increments. The range is from 1°C to 9°C. The screen flashes and confirms after 5 seconds.

What to do if the appliance does not cool?

Check that the plug is properly inserted and the power outlet works. Make sure the door is properly closed. Wait 12 hours after first startup. If the problem persists, refer to the Troubleshooting section of the manual.

How to activate the Super Freeze function?

Unlock the display, then press the K6 button (Super Freeze). Indicator D lights up. It turns off automatically after 50 hours or can be manually deactivated. Ideal for freezing large quantities of food.

What is the Holiday function for?

The Holiday function maintains a higher temperature in the refrigerator (approximately 17°C) to save energy during your absences. Empty the refrigerator before activating it. Press button K7 to activate or deactivate it.

How to clean the inside of the refrigerator?

Unplug the appliance. Use a soft sponge with warm water and a mild detergent. Do not use metal brushes, solvents, or steam cleaners. Rinse and dry with a soft cloth. Wait 5 minutes before plugging back in.

Why do I hear a running water noise?

This noise is normal and comes from the circulation of refrigerant in the circuit. The appliance may also emit a slight hum due to the anti-condensation system.

What to do if the interior light does not turn on?

Check that the door is properly closed and the appliance is powered. If the LED lamp is defective, do not replace it yourself; contact customer service for a replacement.

What are the safety precautions regarding the refrigerant?

The appliance contains R600a (isobutane), a flammable gas. In case of leak, ventilate the room, avoid any flame or spark, and contact customer service. Do not damage the refrigerant circuit.

How to properly install the appliance?

Place it in a well-ventilated area, away from sunlight and heat sources. Leave at least 10 cm of space around. Wait 2 hours after transport before plugging in. Use a dedicated grounded outlet.

How to save energy with this refrigerator?

Set the temperature to 5°C (refrigerator) and -18°C (freezer). Avoid opening the door too often. Let hot food cool before storing. Activate the Eco function (button K7) for optimized operation.

USER MANUAL CNBQT3518D CANDY

WARNING: Risk of fire/flammable material

EN

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

20 Care and cleaning

22 Troubleshooting

26 Installation

33 Technical data

35 Customer service

Before first use 6

Installation 6

Daily use 7

Refrigerant gas information 9

Lock/unlock panel 13

Adjust the temperature for larder 13

ON/OFF function 14

ECO function

Holiday function

Super Cool function

Super Freeze function

Please click the contents to look at the detail information.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Ice cube tray

Egg tray

Energy label

Warranty card

Safety Warning Manual

Screw Cover

Sponge block, Slide guide, Slide assembly

Fixed plate, Hinge cover, Fixed plate II

Bottom fixed plate

Top fixed plate

Bottom cover

Bottom side cover

Seal strip

Seal sponge

Bottom hinge cover

WARNING – Important Safety information

NOTICE – General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints!

WARNING!

Before first use

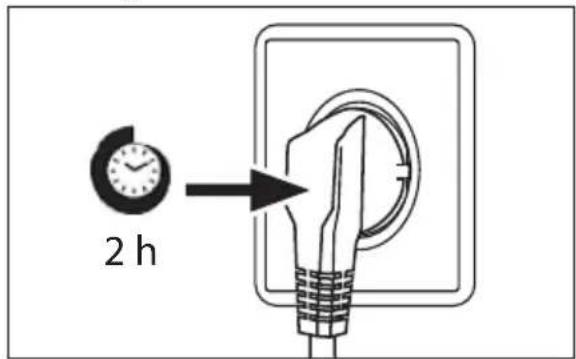

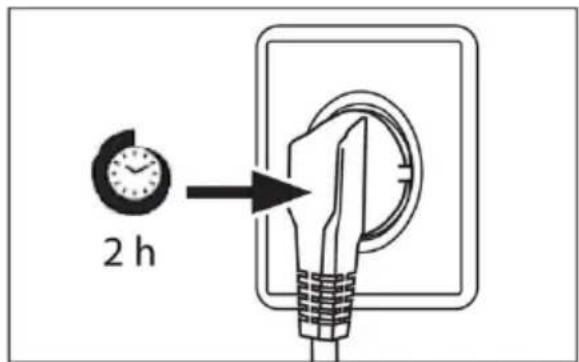

▶ Make sure there is no transport damage. - Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient. ▶ Handle the appliance always with at least two persons because it is heavy. Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner. ▶Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. ▶After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION. ▶Precool the compartments at high settings before loading with food. The function Power- Freeze helps to cool down the compartments quickly. The refrigerator temperature and freezer temperature are automatically set to 5°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Installation

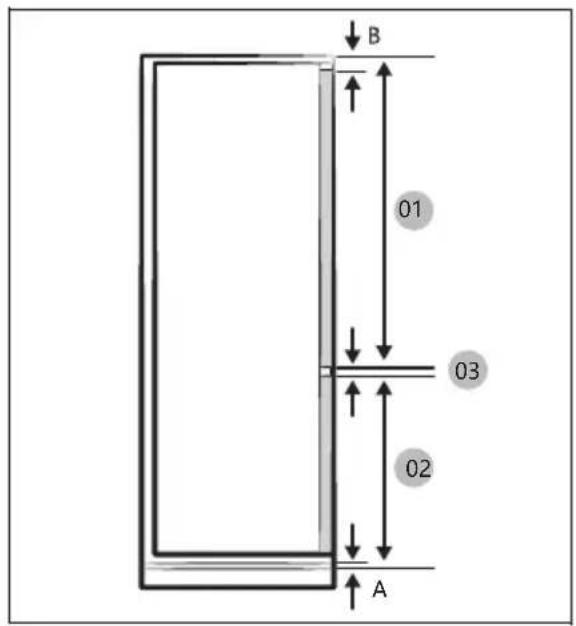

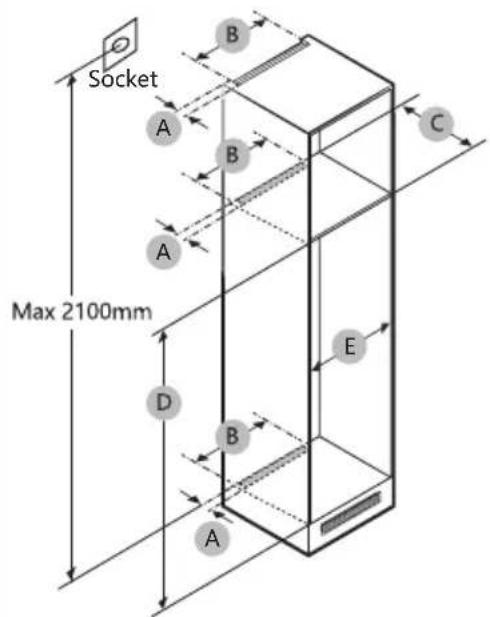

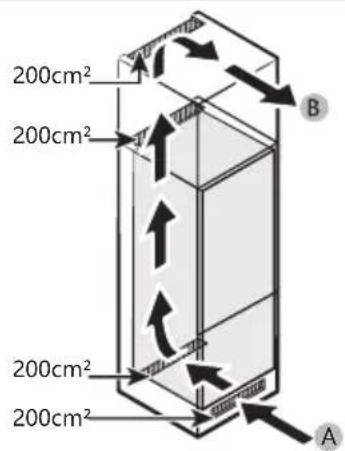

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance. ▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. ▶ Do not install the appliance in direct sunlight or near heat sources (e.g., stoves, heaters). ▶ Install and level the appliance in an area suitable for its size and use. Keep ventilation openings in the appliance or in the built-in structure clear of obstruction. ▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be abnormal noise when operating. In such case, an automatic regulator shall be mounted. ▶ Do not use multi-plug adapters and extension cables. ▶ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

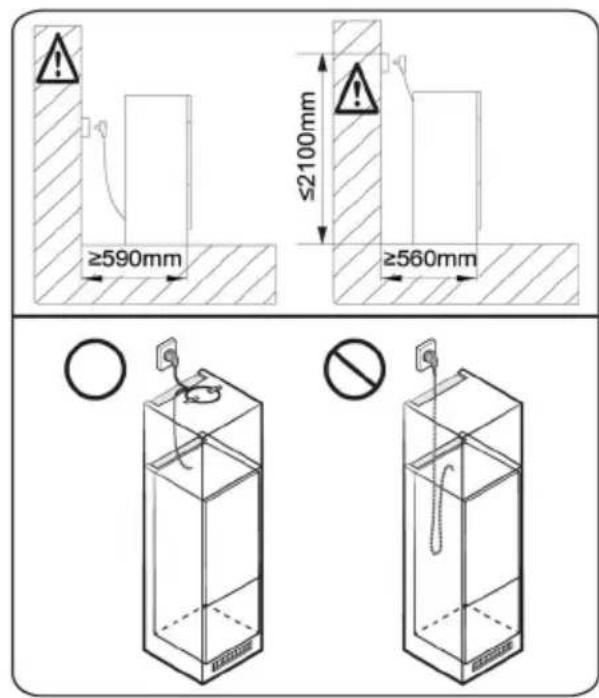

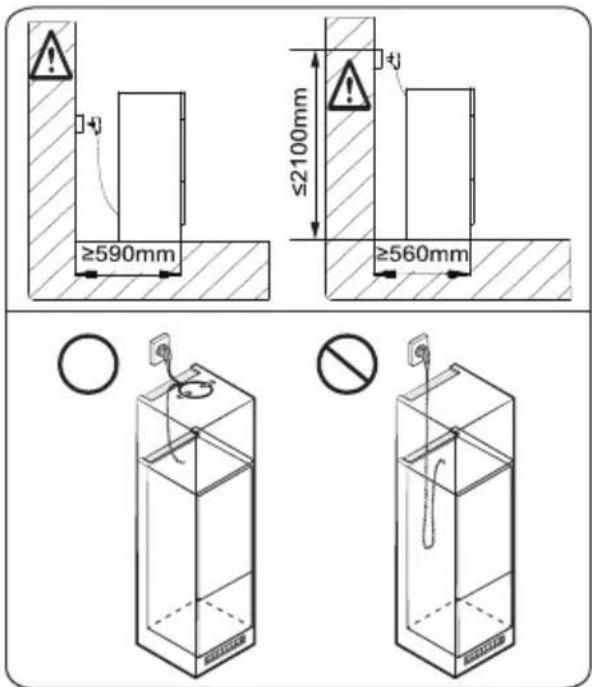

▶ Use a separate earthed socket for the power supply which is easily accessible. The appliance must be earthed. Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible. ▶ Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances. Keep away children under 3 years of age from the appliance unless they are constantly supervised. Children shall not play with the appliance. If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance. Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range. Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water. Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple. Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

WARNING!

▶Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity. ▶Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures. ▶Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. ▶Check the condition of food if a warming in the freezer has taken place. ▶Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst ▶Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! ▶Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface. ▶Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor. ▶Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning ▶Make sure children are supervised if they carry out cleaning and maintenance. ▶Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

▶Hold the plug, not the cable, when unplugging the appliance. ▶Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ▶Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

▶If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

▶Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.

▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

▶Do not spray or flush the appliance during cleaning.

▶Do not use water spray or steam to clean the appliance.

Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE or UKCA marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

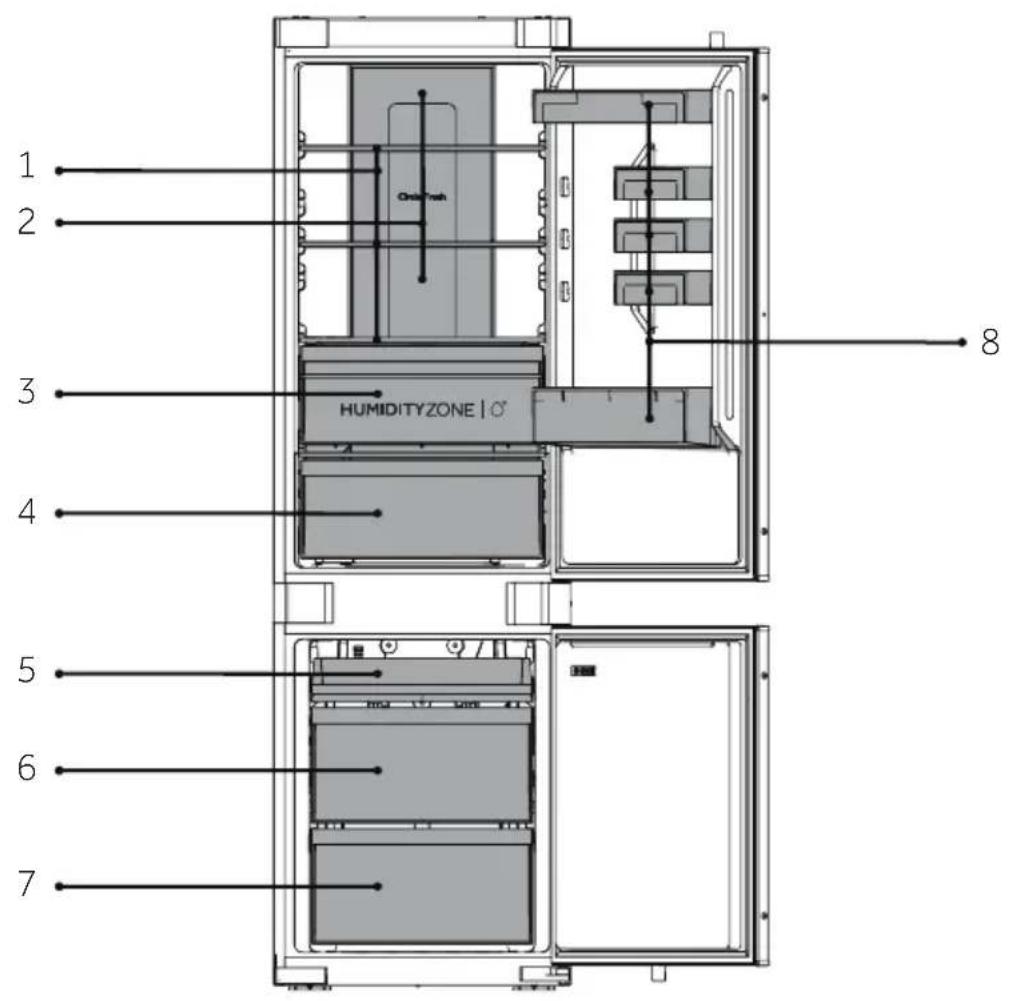

A: Refrigerating chamber

1 Ordinary shelves 2 Refrigerated air duct 3 Humidity Zone drawer 4 Fresh Box drawer 8 Bottle holder

B: Freezing chamber

5 Upper freezer tray 6 Middle freezer drawer 7 Lower freezer drawer

Control panel

Indicators:

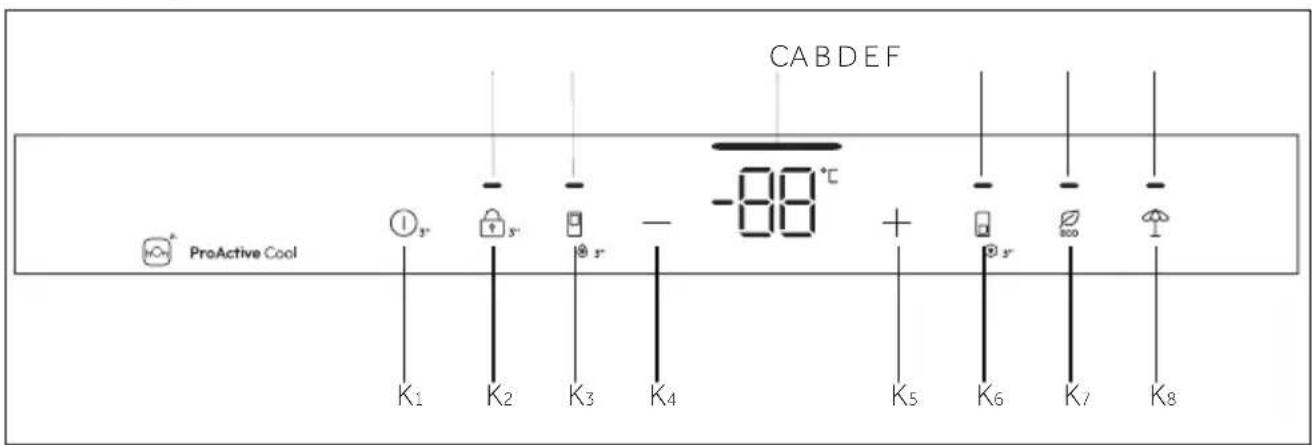

A Lock and Unlock, B Super Cool function, C Temperature display, D Super Freeze function, E ECO function, F Holiday function

Buttons:

K1 ON/OFF button, K2 Lock and Unlock button, K3 Super Cool select button, K4 Temperature adjustment button "-", K5 Temperature adjustment button "+", K6 Super Freeze select button, K7 ECO button, K8 Holiday function button

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Switch on/off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator "C" (Temperature display) illuminates. The fridge temperature and freezer temperature are automatically set to 5°C and -18°C respectively.

NOTICE

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out of the power socket.

Lock/unlock panel

Automatic lock: When the fridge door and freezer door are closed and there is no key operation within 30 seconds, the display screen will be automatically extinguished and locked.

Manual lock: When the display screen is unlocked, press the button "K2" (3S Unlock) and hold for 3 seconds. The buzzer rings once, the indicator "A" (Panel lock) illuminates, and the display is locked.

Unlock: When the display screen is locked, press the button "K2" (3S Unlock) and hold for 3 seconds. The buzzer rings once, the indicator "A" (Panel lock) goes off, and the display is unlocked.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature, frequency of door opening, amount of stored foods, and installation of the appliance.

Adjust the temperature for larder

After opening the refrigerator door and unlocking the control screen, the Lower temperature key is used to lower the set temperature of the refrigerator. Every time the key is lightly touched, the temperature will reduce by 1°C, and the allowed minimum temperature is 1°C.

After opening the refrigerator door and unlocking the control screen, the Raise temperature key is used to raise the set temperature of the refrigerator. Every time the key is lightly touched, the temperature will increase by 1°C, and the allowed maximum temperature is 9°C.

During operation, the Temperature display icon will display the set temperature and flash. The control screen will automatically confirm the set temperature after 5 seconds. After completing the setting, the refrigerator gradually changes from the actual temperature to the set temperature. So there may be a deviation between the actual temperature and the set temperature for a period of time.

ON/OFF function

The ON/OFF button is used to switch between OFF (pause working status) and ON (normal working modes).

Enter OFF mode: Under the refrigerator working mode, first unlock the display, then keep touching the ON/OFF function button for 3 seconds to turn off the control screen, refrigeration lighting, cooling, and other functions, with a prompt sound followed.

NOTICE

OFF mode is not power down; the refrigerator is still powered on at this time.

Exit OFF mode: Under the OFF mode, keep touching the ON/OFF button for 3 seconds to restart the control screen, refrigeration lighting, cooling, and other functions, accompanied by a prompt sound. The refrigerator will return to the set temperature and function before and enter normal working mode.

ECO function

After opening the refrigerator door and unlocking the control screen, lightly touch the ECO function button. The ECO function icon will light up, indicating that the refrigerator is already in ECO mode. To exit this mode, you can perform the same operation by lightly touching the ECO function button again.

Under ECO mode, the refrigerator automatically operates at an average temperature of 5°C.

Holiday function

1. When the display screen is unlocked, press the button "K7" (Holiday function button). The buzzer rings once, the indicator "G" (Holiday function) illuminates, and then the Holiday function will be turned on.
2. When the display screen is unlocked, press the button "K7" (Holiday function button). The buzzer rings once, the indicator "G" (Holiday function) goes off, and then the Holiday function will be turned off.

NOTICE

1. The Holiday function is mainly used for short-term travel and other life scenes. The fridge room must be emptied when using the Holiday function.
2. In the Holiday function, the temperature of the fridge room will be higher (about 17°C). Please pay attention to empty the food in the fridge room to avoid food deterioration.

Super Cool function

1. When the display screen is unlocked, press the button "K3" (Super Cool selector). The buzzer rings once, the indicator "B" (Super Cool function) illuminates, and then the Super Cool function will be turned on.
2. When the indicator "B" (Super Cool function) illuminates, press the button "K3" (Super Cool selector). The buzzer rings once, the indicator "B" (Super Cool function) goes off, and then the Super Cool function will be turned off.
3. After the Super Cool function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K3" (Super Cool selector) to turn it off.

NOTICE

1. Under Super Cool state, the fridge temperature cannot be adjusted. If either button "K4" ("K5") or the temperature adjustment button "+" is pressed to adjust the temperature of the fridge, the indicator "B" (Super Cool indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.
2. In the state of Super Cool function, the Auto-set function cannot be turned on at the same time due to control modes. When you choose one function that conflicts with another function, the original function will automatically exit.
3. This function will be automatically disabled after 6 hours.

Super Freeze function

1. When the display screen is unlocked, press the button "K6" (Super Freeze selector), the buzzer rings once, the indicator "D" (Super Freeze function) illuminates, and then the Super Freeze function will be turned on.
2. When the indicator "D" (Super Freeze function) illuminates, press the button (Super Freeze selector), the buzzer rings once, the indicator "D" (Super Freeze function) goes off, and then the Super Freeze function will be turned off.
3. After the Super Freeze function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K6" (Super Freeze selector) to turn it off.

NOTICE

1. Under Super Freeze state, the freezer temperature cannot be adjusted. If either button "K4" ("Temperature adjustment button "-") or button "5" (Temperature adjustment button "+") is pressed to adjust the temperature of freezer, the indicator "D" (Super Freeze indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.
2. Super Freeze function is designed to keep nutrition value of frozen food, it will be freeze food in the shortest time. If large quantities of frozen food are to be frozen at one time. Meanwhile, Super Freeze function should be set 24h in a- advance to make the freezer own relatively low temperature and put food in. At this time, the freezing speed of the freezer is improved, food can be frozen quickly, the nutrition of food is effectively kept, and the storage becomes quite convenient.
3. The Super Freeze function will automatically switch off after 50 hours. The appliance is then operated at the previously set temperature.

Humidity Zone drawer

In this compartment the humidity level is higher than fridge compartment. It is controlled automatically by the system and is suitable to store fruits, vegetables, salads, etc.

NOTICE

1. Do not remove the plastic cover inside the two zones.
2. They maintain the humidity.
3. Cold-sensitive fruits like pineapple, avocado, bananas, and grapefruits are not recommended to be stored in these two drawers.

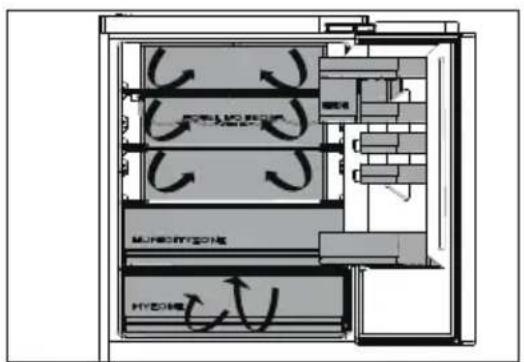

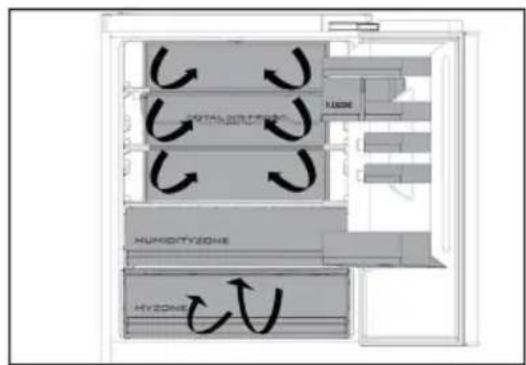

Multi-air-flow

1. The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.

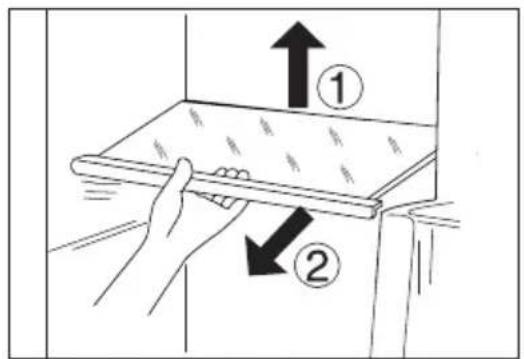

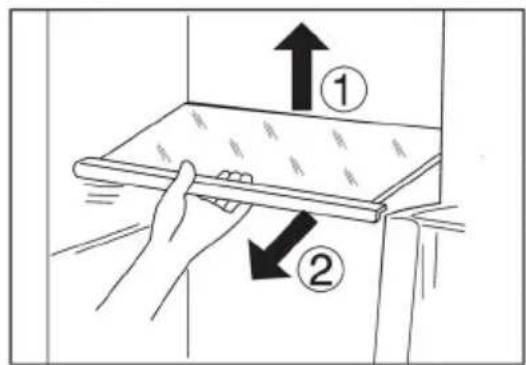

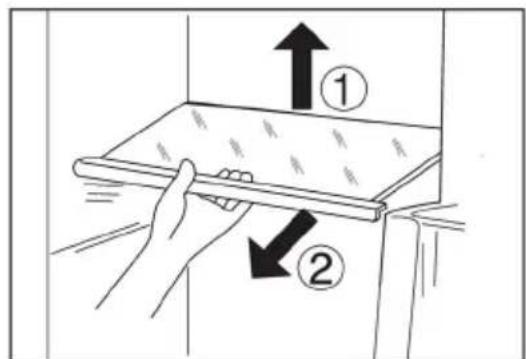

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.

NOTICE

Ensure that all ends of a shelf are level.

Removable door racks/bottle holder

1. The door racks can be removed for cleaning:

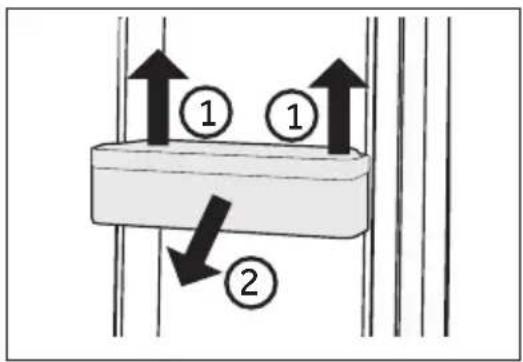

2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

NOTICE

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

Removable drawer

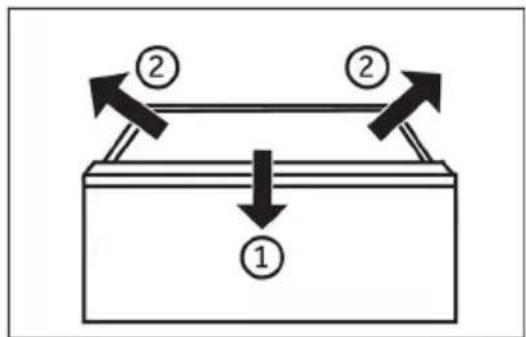

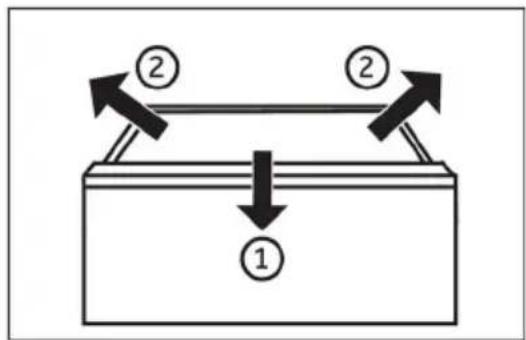

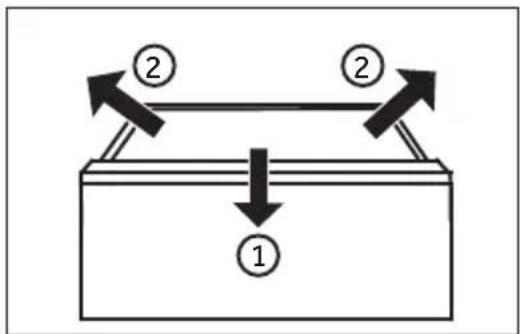

To remove the drawer, pull it out to the maximum extent ①, then lift and remove it ②.

To insert the drawer, follow the above steps in reverse order.

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliance's other settings.

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or near heat sources (e.g., stoves, heaters). ▶ Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.

▶ Functions like Super Freeze consume more energy.

▶ Allow warm food to cool down before placing it in the appliance. ▶ Open the appliance door as little and as briefly as possible. ▶ Do not overfill the appliance to avoid obstructing the air flow.

▶ Avoid air within the food packaging.

▶ Keep seals clean so that the door always closes correctly.

▶ Defrost frozen food in the fridge storage compartment.

The most energy-saving configuration requires the appliance to keep drawers, food boxes, and shelves in factory-fresh condition, and food should be placed as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

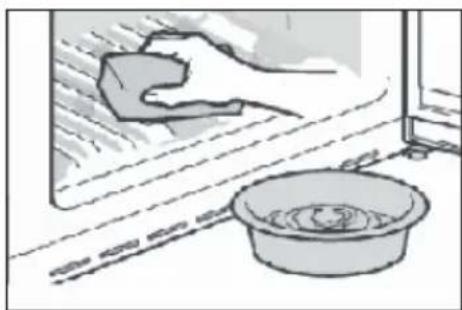

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ▶ Do not spray or flush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. ▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. ▶ In case of heating check the condition of frozen goods.

▶ Always keep the door gasket clean. - Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent. ▶ 1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge. ▶ 3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge. ▶ 4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service ▶ Rinse and dry with soft cloth. ▶ Do not clean any of the parts of the appliance in a dishwasher. ▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameters of the lamps:

Refrigerator compartment: 12 V max 2W

Freezer compartment: 12 V max 2 W

Non-use for a longer period

If you do not use the appliance for a long time, and you do not want to use the Holiday-function:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45 degrees to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles. ▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem, please check all shown possibilities and follow the instructions below before you contact an after-sales service. See CUSTOMER SERVICE.

WARNING!

▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. ▶ A damaged supply cord should only be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle	Connect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.	In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	Clean the inside of the refrigerator.Wrap the food thoroughly..
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods be-fore storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appli-ance.	The temperature is set too low.The Super Freeze/Su-per Cool function is activated or is running too long.	Reset the temperature.Switch off the Super Freeze/Su-per Cool function
Moisture forma-tion on the inside of the refrigerator compartment.	The climate is too warm and toodamp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the hu -midity decreases.Ensure that he door/drawer is tightly shut.
Display light work, but do not feel cool.	It is in the demo mode.	Please note what condition it is in,if it is in Demo mode, exit it.Exit:Open the refrigerator door, in the locked state, press the second button on the right for 8S within 12 hours of power-on.

Problem Possible Cause Possible Solution
Strong ice and frost in the freezer compartment.	The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly.
The sides of the cabinet and door strip get warm.	This is normal.
The appliance makes abnormal sounds.	The appliance is not located on level ground.The appliance touches some object around it.
A slight sound is to be heard similar to that of flowing water.	This is normal.
You will hear an alarm beep.	The fridge storage compartment door is open.
You will hear a faint hum.	The anti-condensation system is workingMains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.
The interior lighting or cooling system does not work.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible. ▶ Do not put additional food into the appliance during a power interruption. ▶ If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment. ▶ An inspection of the goods is required immediately after the interruption. As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power, the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.

- Keep all packaging materials out of children's reach and dispose of them in an environmentally friendly manner.

▶ Take the appliance out of the packaging.

Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10°C and 43°C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space requirement

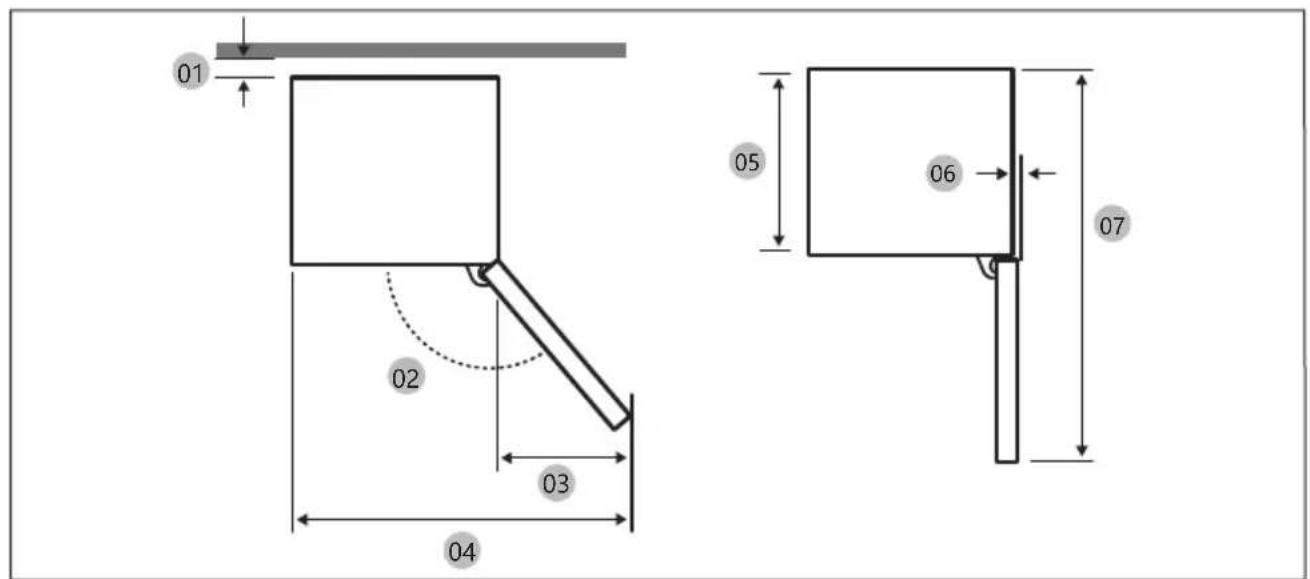

Required space when door is opened (Without cabinet door panel)

01*	10 (Min.) / 30 (Recommended)	10 (Min.) / 30 (Recommended)
02	95°(Recommended)	95°(Recommended)
03	43	43
04	583	583
05	515	515
06	-3	-3
07	1060	1060

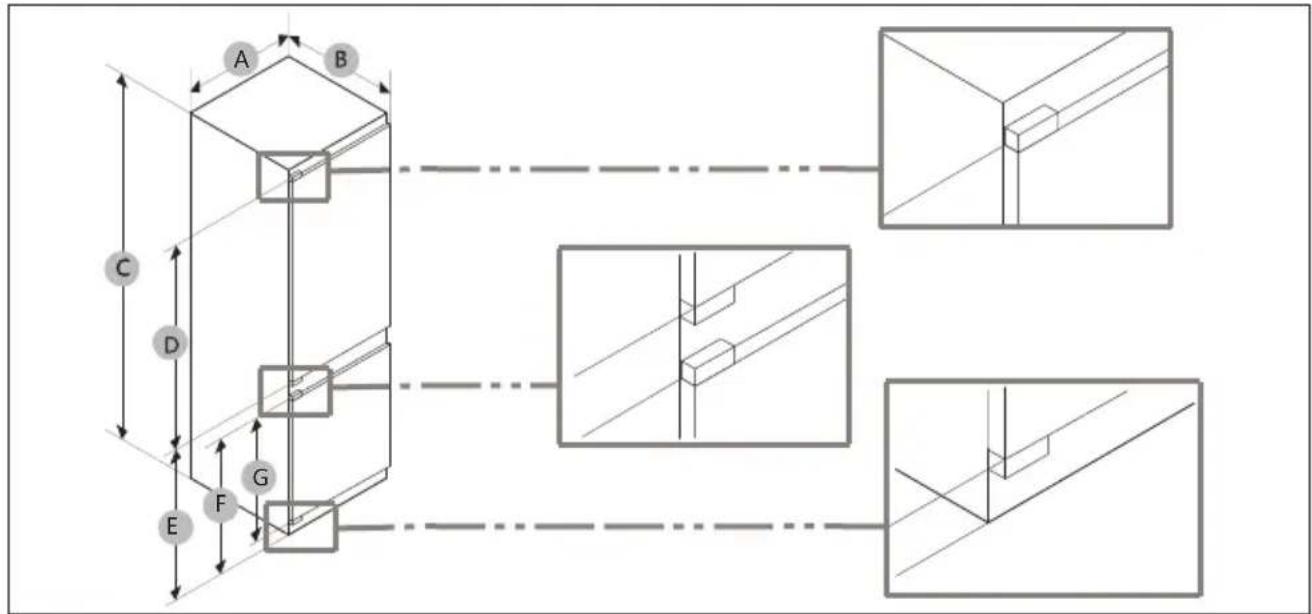

Product dimension

Model	A(mm) B(mm)	C(mm) D(mm)	E(mm) F(mm) G(mm)
	540 ± 2550 ± 21772 ± 2745662	970		618

NOTICE

• The specified energy consumption is based on the condition of a 10 mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 mm but it consumes slightly more energy. • We recommend using a cabinet that is 18mm thick with hinges less than 20mm thick. • The measurements in the above table may differ, depending on the measuring method.
• For built-in installation, see the Installation Guide.

Ventilation cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

A: Ventilation Options B: Air outlet ≥200 cm²; Ventilation options

Cabinet dimension

CAUTION!

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes.
2. Defective cabinet.
3. Mistakes by the installer or the user.

Clearance

See the pictures and tables below for space requirements for installation.

Model		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Remark
	Min.	50400		560177	8	560	Hinge7mm
	Recommend			580	1780	562
	Max.			-	1782	568

NOTICE

• If the width of a cabinet is larger than 568 mm, the gap between the refrigerator and the cabinet can become loose.
• If the cabinet is higher than 1782 mm, you must use finishing materials to fill the gap.

NOTICE

To install a cabinet requiring a 4 mm gap, see the cabinet reference table below.

A. Louvered panel for air ventilation B. Front panel

(unit: mm)

Model
01	Min. 1028+BMax. 1106+B
02	Min. 662+AMax. 740+A
03	4 mm (fridgeeza)fer cabinet door panel g p

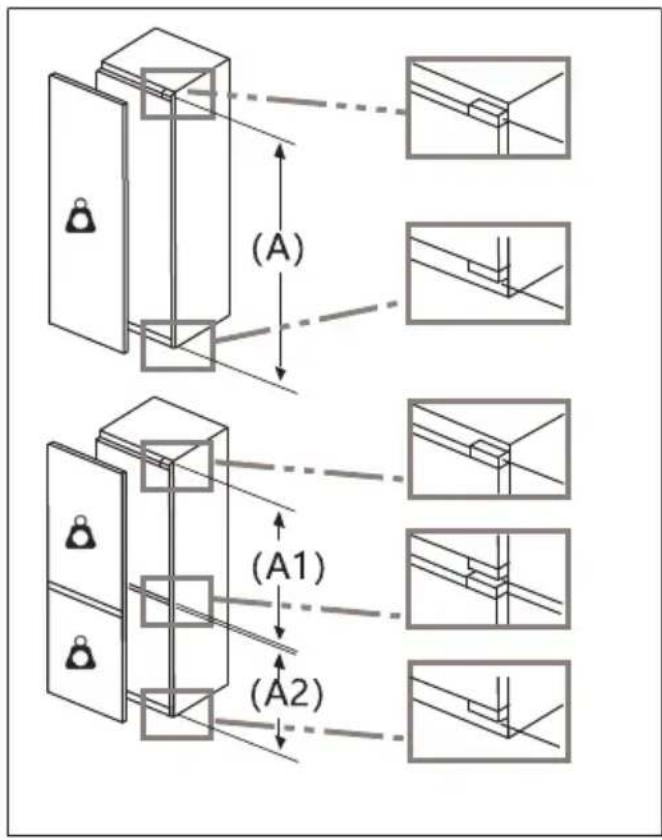

Maximal permissible weight of the unit fronts

Fitted unit fronts that exceed the permissible weight may cause damage and result in functional impairment of the hinges.

Weight (kg)

1500-1750 mm	22
720-1400 mm	19
A1	15
A2	15

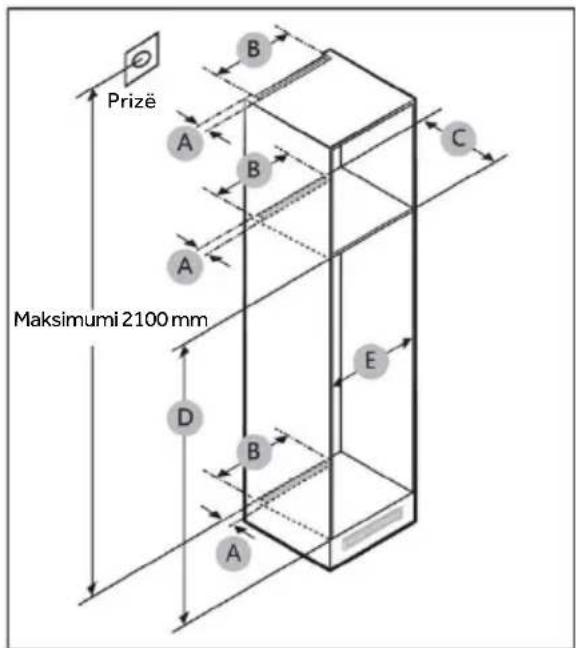

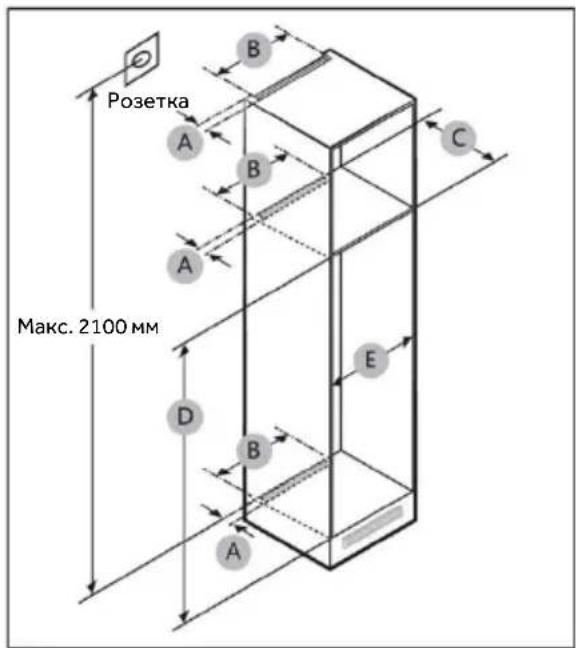

Consideration for socket outlet location and required space

NOTICE

If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator it could decrease the energy efficiency.

Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand
Model name/identifier
Category of the model	Refrigerator freezer	Refrigerator freezer
Energy efficiency class	E	E
Annual energy consumption(kWh/year)(1)	229	229
Total volume(L)	251	251
Volume refrigerator(L)	179	179
Volume freezer(L)	72	72
Volume chiller section(L)	/	/
Volume auto ice maker(L)	/	/
Star rating	4	4
Temperature of other compartments>14°C	Non applicable	Non applicable
Frost-free system	Yes	Yes
Freezing capacity(kg/24h)
Climate rating(2)	SN/N/ST/T	SN/N/ST/T
Noise emission class and airborne acoustical noise emissions(db(A)re1pW)	B(35)	B(35)
Temperature rise time(h)	12	12
Ice making capacity	/	/
Type of appliance	Built-in	Built-in

Model name	Energy efficiency class
	E

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance. (2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency	220-240V ~/ 50Hz
Input current (A)	1.2
Main fuse (A)	16
Coolant	R600a
Dimensions (H/W/D in mm)	1773/540/555

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or ▶ our European Call Service-Center (see listed phone numbers below) or the Service & Support area at www.haier.com where you can activate the service ▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 5 39 3999	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205	• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

39 Safety information

44 Intended use

Indicators:

Adjustable shelves

NOTE

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

WARNING

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

WARNING

WARNING

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

A Lock and unlock B Super Cool function C Temperature display D Super Freeze function E ECO function F Holiday function

Buttons:

K1 ON/OFF button K2 Lock and unlock button K3 Super Cool button K4 Temperature adjustment button "-" K5 Temperature adjustment button "+" K6 Super Freeze button K7 ECO button K8 Holiday function button

Touch buttons

The buttons on the control panel are touch buttons that already respond to a light touch of the finger.

Switch the appliance on/off

Multi-airflow

NOTE

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

NOTE

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

Multiple air flow

NOTE

Modell	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540 ±2	550 ±2	1772 ±2	970	745	662	618

NOTE

NOTE

Indicators:

NOTICE

Multiple air flow

NOTICE

Movτέλο	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

NOTICE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

Adjustable shelves

WARNING

Modelo	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

WARNING

WARNING

Indicators:

Note.

Mudel	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

Note.

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

*Refrigerator warranty duration:

Fixed shelf

Hinge cover

Fixed plate ll

Fixed bottom plate

Fixed top plate

Bottom cover

Bottom side cover

Sealing strip

Sealing sponge

Bottom hinge cover

Indicator lights:

NOTE

Multi-airflow

NOTE

Malli	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618

NOTE

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

INFORMATION

Multi-air flow

INFORMATION

Modèle A (mm) B (mm)	C (mm) D (mm)	E (mm)	F (mm) G (mm)
	540 ± 2	550 ± 2	1772 ± 2	970	745	662

INFORMATION

INFORMATION

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

A Locking and unlocking B Super Cool function C Temperature indicator D Super Freeze function E ECO function F Holiday function

Buttons:

K1 ON/OFF button K2 Locking and unlocking button K3 Super Cool function selection button K4 Temperature setting button "-" K5 Temperature setting button "+" K6 Super Freeze function selection button K7 ECO button K8 Holiday function button

Sensor keys

The buttons on the control panel are sensor keys, which respond to a light touch of the finger.

NOTICE

When the appliance is switched on, it may take up to 12 hours to reach the appropriate temperatures.

Removable drawer

When removing the drawer, pull it out all the way ①, lift it up and take it out ②.

When reinstalling the drawer, carry out the described steps in reverse order.

Light

The door gasket must always be clean. ▶ Clean the interior and exterior of the appliance with a sponge moistened with warm water and a neutral detergent. 1. Clean the interior and exterior surfaces of the refrigerator, including door gaskets, door shelves, glass shelves, drawers, and so on. Use a soft towel or sponge soaked in warm water (you can add neutral detergent to the warm water).

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618

NOTICE

• The stated energy consumption is based on a gap of 10 mm between the cabinet and the rear of the product. The product will operate correctly even if the gap is less than 10 mm, but it will consume slightly more energy.
• We recommend using a cabinet with a thickness of 18 mm and hinges with a thickness of less than 20 mm. • Measurements in the table above may vary depending on the method.
• For instructions for the built-in version, refer to the Installation Guide.

Front elements of the installed unit that exceed the permitted weight can cause damage and result in functional damage to the hinge.

Weight (kg)

1500 - 1750 mm	22
720 - 1400 mm	19
A1	15
A2	15

Taking into account the location of the socket and the required space

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

Adjustable shelves

NOTE

Modell	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

NOTE

NOTE

Indicators:

NOTE

Adjustable shelves

NOTE

Modello	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

NOTE

NOTE

Indicators:

NOTE

Modelis	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540 ± 2	550 ± 2	1772 ± 2	970	745	662	618

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

Modelis	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

Adjustable shelves

ATTENTION

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

CAUTION

CAUTION

Westgate House, Westgate, Ealing

Glide breaker mounting

Fixed plate

Hinged cover

Fixed plate II

Lower fixed plate

Upper fixed plate

Bottom cover

Lower side cover

Sealing strip

Sealing sponge

Lower hinged cover

Indicators:

NOTE

Multi-airflow

NOTE

Modell	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

NOTE

in NOTE

Indicators:

WARNING

Adjustable shelves

WARNING

Model A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

WARNING

and WARNING

Indicators:

WARNING

Replacing the LED lamps

WARNING!

Modelo	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

AVISO

AVISO

Westgate House, Westgate, Ealing

London, W5 1YY

Lower capacity

Lower side capacity

Sealing strip

Sealing sponge

Disposal

Indicators:

Humidity Zone drawer

Multiple airflow

Adjustable shelves

NOTE

Freezer compartment: 12 V max. 2 W

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

OBSERVATION

OBSERVATION

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

Buttons:

Multi-air flow

Adjustable shelves

NOTE

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

A Lock and unlock B Super Cool function C Temperature display D Super Freeze function E ECO function F Holiday function

Buttons:

K1 ON/OFF button K2 Lock/unlock button K3 Super Cool selection button K4 Temperature adjustment button "-" K5 Temperature adjustment button "+" K6 Super Freeze selection button K7 ECO button K8 Holiday function button

Sensor buttons

NOTICE

Refrigerator compartment: 12 V max 2 W

Freezer compartment: 12 V max 2 W

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

NOTICE

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

A Lock and unlock B Super Cool function C Temperature display D Super Freeze function E ECO function F Holiday function

Buttons:

Humidity Zone drawer

In this drawer, the humidity level is higher than in the refrigerator. The system automatically controls it and it is suitable for storing fruit, vegetables, salad, etc.

WARNING

Multiple air flows

WARNING

Model A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

WARNING

WARNING

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the appliance warranty:

Indicators:

NOTICE

Multiple air flows

NOTICE

Modeli	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

NOTICE

Cabinet dimensions

CAUTION!

NOTICE

Westgate House, Westgate, Ealing

London, W5 1YY

Bottom cover

Sealing strip

Sealing sponge

Hinge cover from the bottom side

Indicators:

A Locking and unlocking B Super Cool function C Temperature display D Super Freeze function E ECO function F Holiday function

Buttons:

K1 On/off button K2 Locking and unlocking button K3 Super Cool function selection button K4 Temperature setting button "-" K5 Temperature setting button "+" K6 Super Freeze function selection button K7 ECO button K8 Holiday function button

Sensor buttons

The buttons on the control panel are sensor buttons that respond to a light touch of the finger.

NOTE

1. In Super Cool mode, the refrigerator temperature cannot be adjusted. If you press button "K4" (temperature setting button "-") or button "K5" (temperature setting button "+") to adjust the refrigerator temperature, indicator "B" (Super Cool indicator) will flash accompanied by a rapid sound indicating that this action cannot be performed.
2. In the Super Cool function state, the Auto-set function cannot be activated simultaneously due to different control modes. When you select one function that conflicts with another function, the original function will automatically close.
3. This function will automatically disable after 6 hours.

Super Freeze function

Multi Air Flow

NOTE

When the appliance is first turned on, it may take up to 12 hours to reach the correct temperatures.

Removable drawer

To remove the drawer, pull it out as far as possible ①, then lift and remove it ②.

To insert the drawer, perform the above steps in reverse order.

Light

The internal LED light turns on when the door is opened. The light output is not affected by any appliance settings.

Energy saving tips

Make sure the appliance has proper ventilation (see INSTALLATION). Do not install the appliance in direct sunlight or near heat sources (e.g., oven, heater). Avoid unnecessarily low temperatures in the appliance. Energy consumption increases the lower the temperature is set in the appliance. ▶ Functions such as Super Freeze consume more energy. ▶ Wait for hot food to cool down before placing it in the appliance. Open the appliance door as little and as briefly as possible. Do not overfill the appliance to avoid obstructing air flow. Avoid trapping air when packaging food. Keep the door seals clean so they always close properly. ▶ Defrost frozen food in the refrigerator. The most energy-saving configuration requires keeping the drawers, food box, shelves, etc. in their factory-fresh state, and placing food as deep as possible without blocking the air outlet.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

▶ Always keep the door seal clean. ▶ Clean the interior and exterior of the appliance with a sponge soaked in warm water and neutral detergent. 1. Scrub the inside and outside of the refrigerator, including the door seal, door shelf, glass shelves, drawers, etc., using a soft cloth or sponge dipped in warm water (you can add neutral detergent to the warm water).

1. If liquid is spilled, remove all soiled parts, rinse directly under running water, dry, and put them back in the refrigerator.
2. If a thick liquid is spilled (e.g., whipped cream, melted ice cream), remove all soiled parts, place them in warm water at about 40 °C for a while, then rinse under running water, dry, and put them back in the refrigerator.
3. If a small part or component gets stuck inside the refrigerator (between shelves or drawers), free it with a small soft brush. If you cannot reach the part, contact Haier customer service. ▶ Rinse and dry with a soft cloth. Do not clean any part of the appliance in a dishwasher. ▶ Wait at least 5 minutes before reconnecting the appliance, as frequent switching on can damage the compressor.

Defrosting

Defrosting of the refrigerator and freezer is automatic, so you do not need to do it manually.

Replacing LED lamps

WARNING!

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

NOTE

- The stated energy consumption is based on a gap of 10 mm from the cabinet to the back of the product. The product will operate correctly even with a gap smaller than 10 mm, but it consumes slightly more energy.

- We recommend using a cabinet with a thickness of 18 mm and hinges with a thickness of less than 20 mm.

- Measurements in the table above may vary depending on the measurement method.

- Instructions for the built-in version are provided in the Installation Guide.

Cross-section for ventilation

Front panels of the built-in unit that exceed the permissible weight may cause damage and lead to functional impairment of the hinges.

Weight (kg)

1500-1750 mm	22
720-1400 mm	19
A1	15
A2	15

Consideration of the socket location and required space

NOTE

If you install the refrigerator in a cabinet with a depth of 560 mm, make sure that the power cord is placed on the side of the refrigerator before plugging it into the socket. If the power cord is at the back of the refrigerator, this may reduce energy efficiency.

Waiting time

Maintenance-free lubricating oil is contained in the compressor capsule. This oil may pass through the closed pipe system during transport on an incline. Before connecting the appliance to the mains power supply, you must wait 2 hours so that the oil flows back into the capsule.

Electrical connection

Before any connection, check the following:

The power supply, socket, and fuses comply with the rating plate, ▶ the socket is earthed and has no multiple sockets or extensions, ▶ the plug and socket strictly comply with the regulations.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks, the customer service must replace the damaged power cord (see the warranty card).

Technical product data in accordance with EU Regulation No. 2019/2016

Marka
Naziv/identifikator modela
Kategorija modela	Frižider i zamrzivač	Frižider i zamrzivač
Klasa energetske efikasnosti	E	E
Godišnja potrošnja energije (k Wh/godišnje) (1)	229 229
Ukupna zapremina (l)	251	251
Zapremina frižidera (l)	179	179
Zapremina zamrzivača (l)	72	72
Zapremina rashladnog odeljka (l)	//
Zapremina automatskog ledomata (l)	//
Ocena u zvezdicama	4	4
Temperatura ostalih odeljaka >14 °C	Nije primenljivo Nije primenljivo
Sistem bez mraza	Da	Da
Kapacitet zamrzavanja (kg/24 h)
Klimatska ocena (2)	SN/N/ST/T	SN/N/ST/T
Klasa emisija buke i emisija akustične buke koje se prenose vazduhom (dB(A)re1pW)	B(35) B(35)
Vreme porasta temperature (h)	12	12
Kapacitet izrade leda //
Tip uređaja	Ugradni	Ugradni

Naziv modela	Klasa energetske efikasnosti
	E

Explanations:

• Yes, part of the equipment

(1) Based on the results of compliance testing with standards over 24 hours. Actual consumption depends on the use and location of the device.

Also, refer to the warranty card supplied with the product in case of warranty.

Evropski pozivni centar servisne službe
Zemlja*	Broj telefona	Troškovi
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 5 39 39 99	• 14 ct/min. za pozive na fiksni telefon • maks. 42 ct/min. za pozive na mobilni telefon
Haier Austria (AT)	0820 001 205	• 14,53 ct/min. za pozive na fiksni telefon • maks. 20 ct/min. sve ostalo
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

Multiple airflows

NOTE!

Modell	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1 772±2	970	745	662	618

NOTE!

Indicators:

Multiple airflow

Model A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1772±2	970	745	662	618

Westgate House, Westgate, Ealing

London, W5 1YY

Indicators:

Buttons:

Multi-airflow

Adjustable shelves

NOTE

Cabinet size

NOTE

Westgate House, Westgate, Ealing

London, W5 1YY

Fixed bottom panel

Upper fixed panel

Lower cover

Closing strip

Closing sponge

Lower hinge cover

Danger

Danger

Stop waiting

Westgate House, Westgate, Ealing

London, W5 1YY

CANDY

2024 Version A
