Product type	2-channel mixer
Brand	Vonyx
Model	STM-2300
Mains power	220-240 V~/50 Hz, fuse 10-16 A
DC power	24 V via mains adapter (included)
Power consumption	Not specified
Dimensions (W x D x H)	Approximately 250 x 200 x 80 mm
Weight	Approximately 2.0 kg
Number of channels	2 (Line/Phono) + 1 Microphone
Microphone inputs	1 x 6.35 mm jack (balanced)
Line inputs	2 RCA pairs (Line 1/Phono 1, Line 2/Phono 2) + 1 RCA pair Line 3
Outputs	Master (RCA), Monitor (RCA), Headphones (6.35 mm stereo jack)
Equalizer	3 bands per channel (Bass, Mid, Treble) + 2 bands for mic (Bass, Treble)
Crossfader	Yes, for channels 1 and 2
MP3 player	Yes, with playback controls and USB input
Additional functions	Talkover, Cue, Phone/Monitor switch, VU meter
Temperature range	5 °C to 35 °C (indoor use)
Maintenance and cleaning	Dry cloth, no chemicals
Spare parts and repairability	Repair by authorized technician only, use original parts
Safety	Do not open the casing, do not expose to moisture, disconnect during storms
General information	Warranty void in case of unauthorized modification

Frequently Asked Questions - STM-2300 Vonyx

How to connect a microphone to the Vonyx STM-2300 mixer?

Connect your microphone to the Microphone input (6.35 mm jack) marked 5. Use the Level knob (2) to adjust the volume and the High (3) and Low (4) knobs to adjust treble and bass.

Can I connect a turntable to this mixer?

Yes, use the Line 2/Phono 2 (25) or Line 1/Phono 1 (28) inputs. Set the Phono/Line switch (6) to Phono position and connect the ground wire to the GND terminal (26).

How to listen to a channel on headphones without affecting the main output?

Press the CUE button (11) of the desired channel. Adjust the headphone volume with the Phone/Mon fader (13) set to Phone position. The sound will be audible on headphones without affecting the master.

What does the Talkover function do?

The Talkover function (12) automatically reduces the volume of music sources when you speak into the microphone. This allows your voice to stand out clearly, ideal for announcements.

How to use the built-in MP3 player?

Insert a USB drive into the USB port (1) or connect a device via the USB connector. Use the buttons |<, Play/Pause, |> for navigation, and VOL+/VOL- to adjust the volume. Press EQ to select sound effects.

What type of mains adapter is needed?

The mixer can be powered via mains (220-240 V~/50 Hz) or via a DC 24V input (21). Use the supplied adapter. Never connect to a variac or dimmer.

How to adjust the equalizer for optimal sound?

Each channel has three bands: Bass (10) for lows, Mid (9) for mids, Treble (8) for highs. Turn the knobs clockwise to increase, counterclockwise to decrease. The microphone has its own High (3) and Low (4) settings.

What to do if the mixer does not power on?

Check that the mains cord is properly connected and the power switch (20) is pressed. Check the fuse (10-16 A) and replace it if necessary. If the problem persists, consult a technician.

How to clean the mixer without damaging it?

Use a dry, soft cloth. Never use chemicals, aerosols, or liquids that could seep inside. Disconnect the device before cleaning.

Is the warranty preserved if I repair the device myself?

No, any attempt at unauthorized repair or modification voids the warranty. Only an authorized technician may intervene. Use only original parts.

USER MANUAL STM-2300 Vonyx

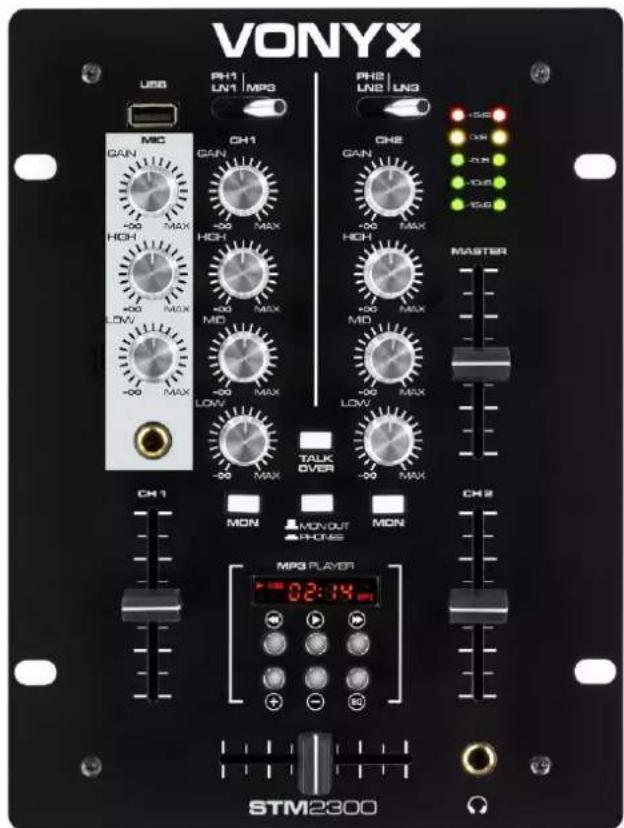

STM-2300 2-Channel Mixer

Ref. nr.: 172.740

INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

V2.0

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The product contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.
• Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.
• The product is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the product from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the product with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the product to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the product on and off. This shortens the life time.

• Keep the product out of the reach of children. Do not leave the product unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• If this product is with speaker inside which can cause magnetic field. Keep the product at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the product has fallen, always have it checked by a qualified technician before you switch the product on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
• Keep the original packing material so that you can transport the product in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the product will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the device can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

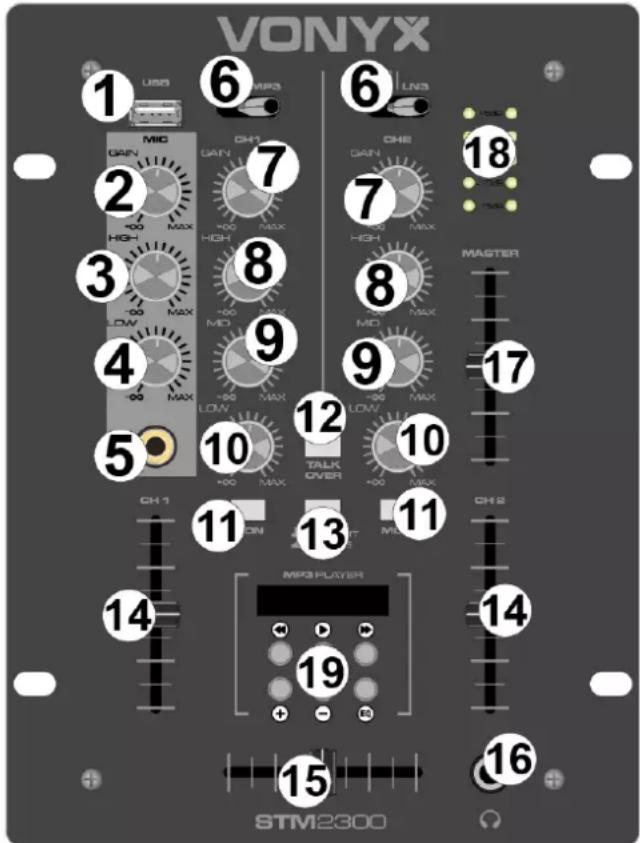

CONTROLS AND CONNECTION

1. USB

USB input slot.

Rotate to adjust the microphone signal volume.

1. MICROPHONE TREBLE

Rotate to increase or lower the microphone's higher frequencies.

1. MICROPHONE BASS

Rotate to increase or lower the microphone's lower frequencies.

1. MICROPHONE INPUT

6.3mm input jack for connecting a microphone.

1. PHONO/LINE

Use this switch to select the input to be sent to the individual channel.

1. GAIN

Use to set the level of the corresponding input channel.

1. TREBLE

Rotate to increase or lower the high frequencies of the input channel.

1. MID

Rotate to to increase or lower the middle frequencies of the input channel.

1. BASS

Rotate to to increase or lower the low frequencies of the input channel.

1. CUE

Press to select a channel to be listened to via headphones.

1. TALKOVER

Press to automatically lower the volume level of the input sources when using a microphone (mic priority).

1. PHONE-/MON OUT

Use to change between headphone out or monitor out.

1. CHANNEL VOLUME FADER

Slide to adjust the volume of the corresponding channel.

1. CROSSFADER

Slide to adjust the balance between channel 1 and 2.

1. HEADPHONE OUTPUT

6.3mm headphone stereo jack.

1. MASTER VOLUME

Slide to adjust the volume level of the master-output.

1. VU METER

Indicates the output levels of the left and right master channels.

1. MP3 PLAYER

|<< : Press to restart- or select the previous track.

Play/Pause: Press to (re)start or pause play.

|: Press to skip to select the next track.

VOL-: Press to decrease MP3 volume.

VOL+: Press to increase MP3 volume.

EQ: Press to select different effects.

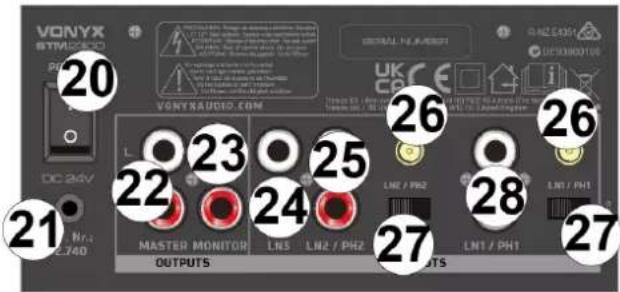

20. POWER SWITCH

Press to turn the device on/off.

21. DC 24V

Power adapter input.

22. MASTER OUTPUT

RCA connector output for connecting to an amplifier.

23. MONITOR OUTPUT

RCA connector output for connecting to a recording device.

The output level is not influenced by the master- and channel volume controls.

24. LINE 3 INPUT

RCA connector input for connecting to CD/MP3 players.

25. LINE 2/PHONO 2

RCA connector input. Use line for connecting to CD/MP3 players, use phono for connecting to turntables.

26. GND

For connecting earth cables from the turntable.

27. INPUT SWITCH

Selector switch for choosing input device.

28. LINE 1/PHONO 1

RCA connector input. Use line for connecting to CD/MP3 players, use phono for connecting to turntables.

NEDERLANDS

20. AAN/UIT SCHAKELAAR

Signal-to-noise ratio : >80dB

Output level: Master : 1V

Output level: Record : 350mV

Output level: Headphone : 300mW

Equalizer : 3-Band

Power supply : 24V DC and 100-240VAC 50/60Hz

Dimensions (L x W x H) : 178 x 238 x 100mm

Weight : 2,25

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2022 by TRONIOS the Netherlands
