USER MANUAL NICO Kindercraft

Line drawing of a baby crib with vertical ribs and a side panel (no text or symbols)

Line drawing of a metal cage with vertical supports and a front panel (no text or symbols)

kinderkraft.com

kinderkraftofficial

kinderkraft

All rights to this data are entirely reserved to 4Kraft Sp. z o.o. Any unauthorized use or misuse, including usufruct, copying, duplication and sharing, wholly or partially, without consent of 4Kraft Sp. z o.o. may result in legal consequences.

AR....8
CS 11
DE....14
EN....17
ES....20
FR 22
HU 26
IT 28
NL 31
PL....34
PT 37
RO....40
RU....43
SK 46
SV 49

x2

5

M6x15 x8

E

x2

6

Simple L-shaped metal angle bracket diagram (no text or symbols)

F

Simple line drawing of a rectangular block (no text or symbols)

7*

2 C 2 C C C C C C C

IIIa

4 B B A E E E A

lllb

AR

عزيزى العميل!

Thank you for choosing a product by Kinderkraft. Our designs are child-oriented – safety and quality always comes first, stay comfortable knowing that you have made the best choice.

IMPORTANT, RETAIN FOR

FUTURE REFERENCE: READ

CAREFULLY

SAFETY INSTRUCTIONS AND PRECAUTIONS WARNING

• Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot;
• Do not place this child's bed near heat sources, windows and other furniture.
• Do not use the cot if any part is broken, torn or missing and use only spare parts approved by the manufacturer; spare parts may be only delivered by manufacturer.
• Do not leave anything in the cot or place the cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings,

blind/curtain cords. Another products should be placed either tight to any wall or have a gap of 300 mm between the wall and the side of the bed;

• Do not use more than one mattress in the cot.
• The lowest position of the base is the safest. When a child starts to sit down without the assistance – use only this level.
• Thickness of the mattress shall be such that the internal height (measured from the top of mattress to the upper edge of the cot frame) was at least 500 mm in the lowest position of the cot base and at least 200 mm in the highest position of the cot base.
  • Maximum thickness of the mattress: 9 cm.
• Mattress should have size 120 x 60 cm. Length and width shall be that there shall be no gap more than 30 mm between the mattress and the sides and ends.
• All assembly elements and fittings should be tightened properly and checked regularly and retightened as necessary.
• Cot with high sides: To prevent injury from falls, if the child is able to climb out of the cot, the cot shall no longer be used for that child.
• The bed is intended for children from birth to 4 years of age. Note! The sofa-bed function of the baby cot is intended for children from 18 months to 4 years of age.

• For transport or storage it is possible to disconnect the main parts of the cot.

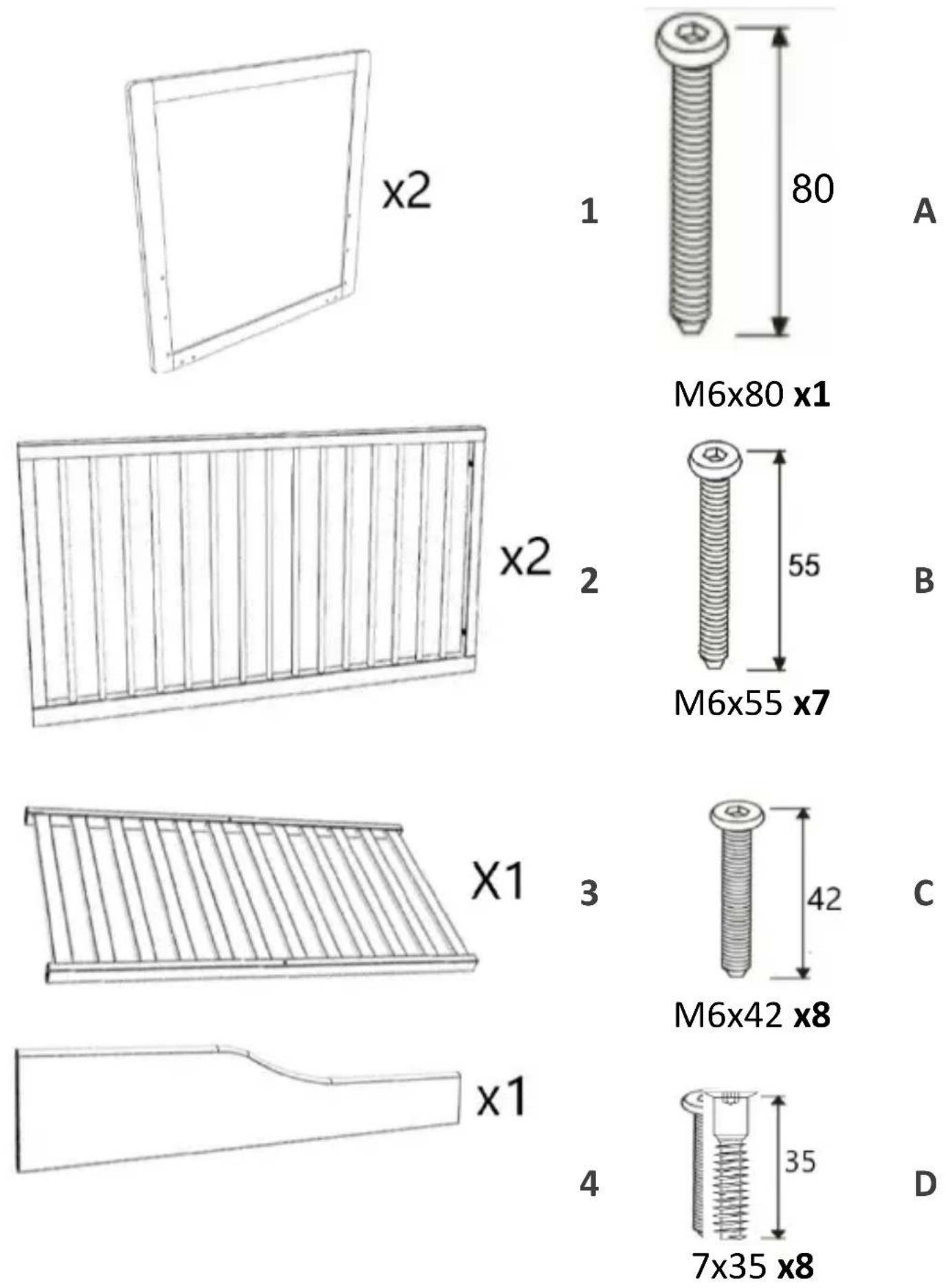

• List of cot components - page 4

1	Front (x2)	A	Screw M6 x 80
2	Side wall (x2)	B	Screw M6x55 (x7)
3	Bottom	C	Screw M6x42 (x8)
4	Side panel	D	Confirmat 7 x 35 (x8)
5	Left leg (x2)	E	Wheel nut M6 x 15 (x8)
6	Right leg (x2)	F	Allen key

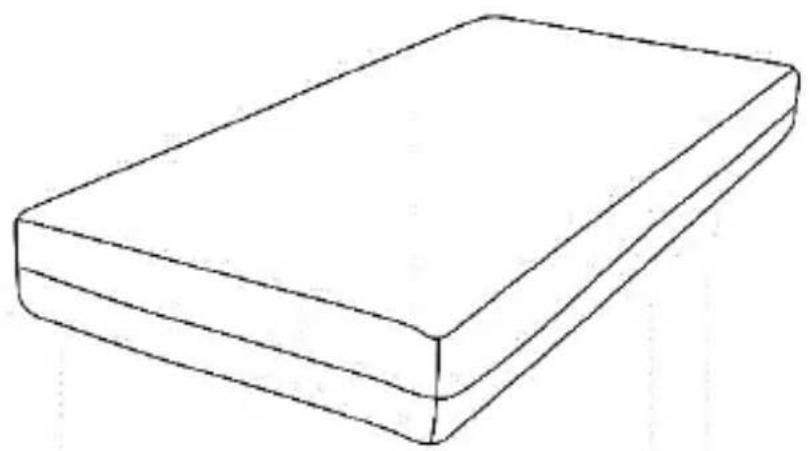

7*	Mattress

2. Cot assembly:

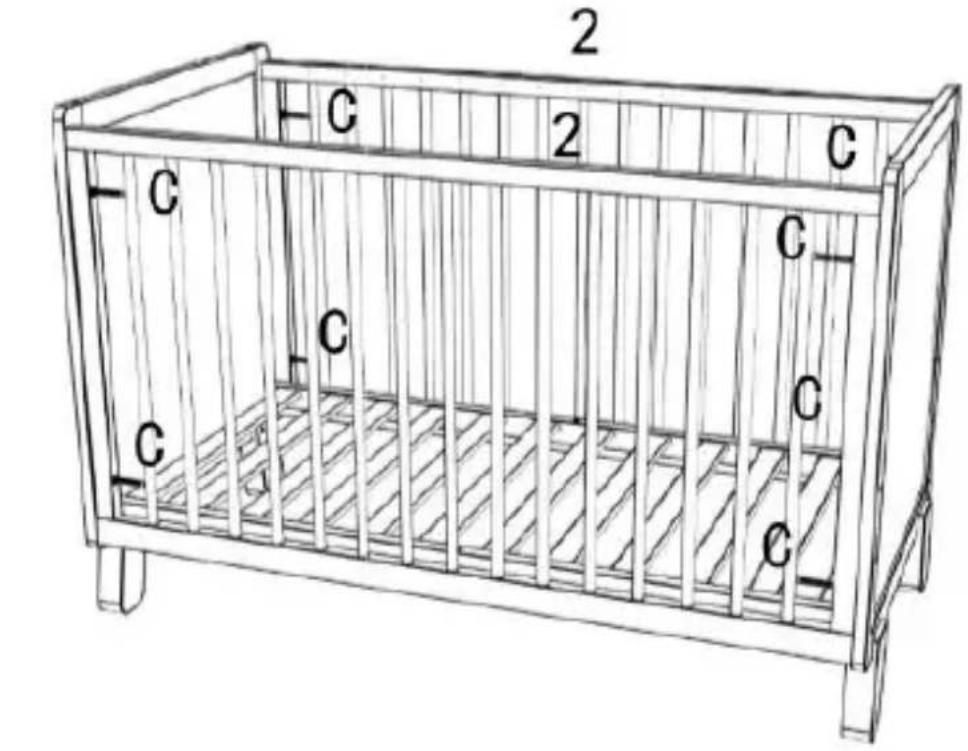

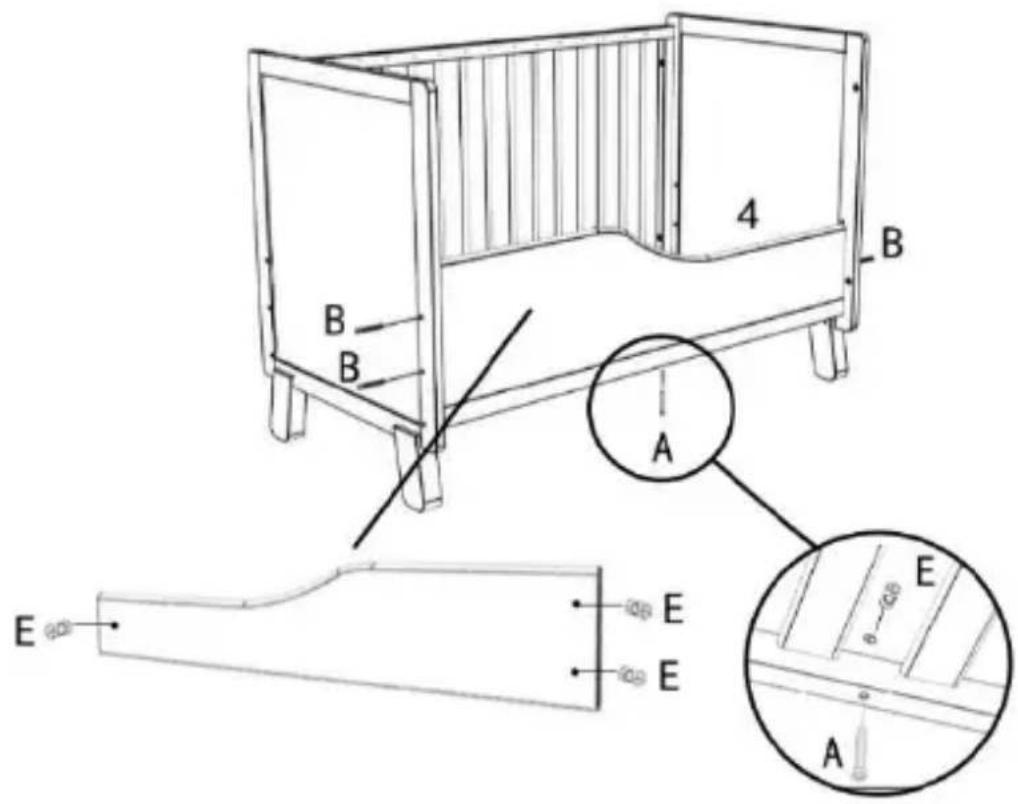

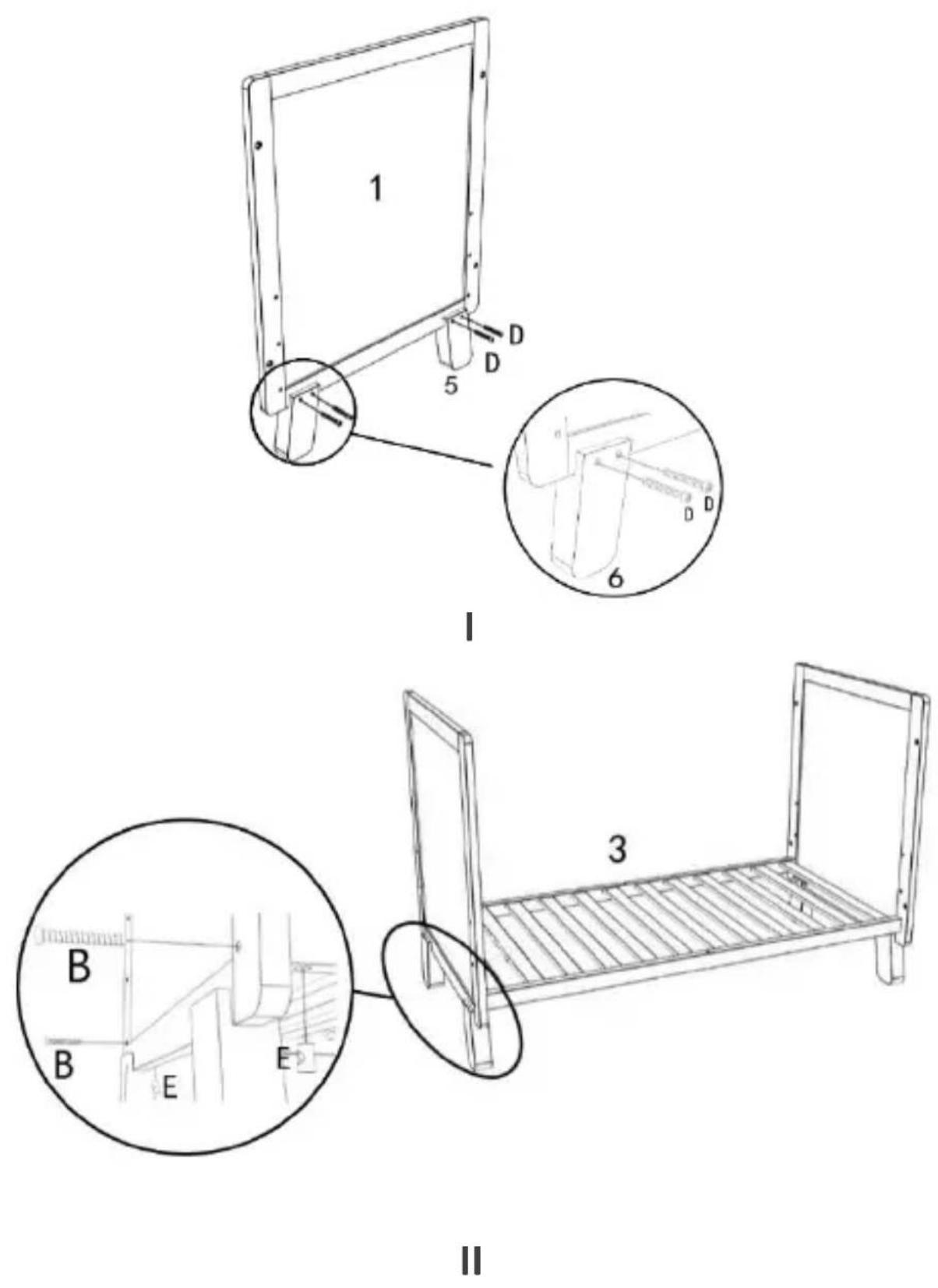

The installation should take place on a soft surface that will not damage the surface of the elements. Installation should be carried out by two people. Start assembling the cot by connecting the element (1) and legs (5,6) with the confirmat (D) and the Allen key (F) included in the set (fig. I). Repeat the same operation on the second element (1). Connect the resulting elements to the bottom (3) with the mounting kit (B) + (E) and Allen key (fig. II). ATTENTION: The cot has a 3-step bottom height adjustment. Connect the side (2) to the structure assembled in the previous steps by screwing it in with screws (C) and an Allen key (fig. IIIa). Repeat the same operation on the other side. To use is as a toddler bed, remove one of the sides (2) beforehand, and install it there using the screws (B) and wheel nuts (E) on the side (4) (fig IIIb). In addition, connect the centre of the side panel (4) to the bottom using screw A and nut E. NOTE: The toddler bed can only be used with the bottom in the lowest position. The cot is ready for use once the mattress is inserted and all attachments are firmly secured (7* - CAUTION! The cot is available in two versions: with or without a mattress).

3. Maintenance and cleaning

Frame - clean with a soft, clean and dry cloth.

	Handwash.		Do not wash. Clean the product gently with a damp cloth and a mild detergent.
	Do not bleach		Do not iron
	Do not dry in a tumble dryer		Do not dry clean

Do not fold or store the product when it is wet and never store it in wet conditions, as it can lead to mould growth.

¡Estimado Cliente!

3. Maintenance and cleaning

(EN) In the interests of our Clients - we are at your disposal! If you have a problem with the product you received, contact us in the most convenient way for you!
