USER MANUAL TINO Kindercraft

Abstract black shape with white curved lines inside, resembling a stylized letter or symbol (no text or symbols present)

Kinderkraft

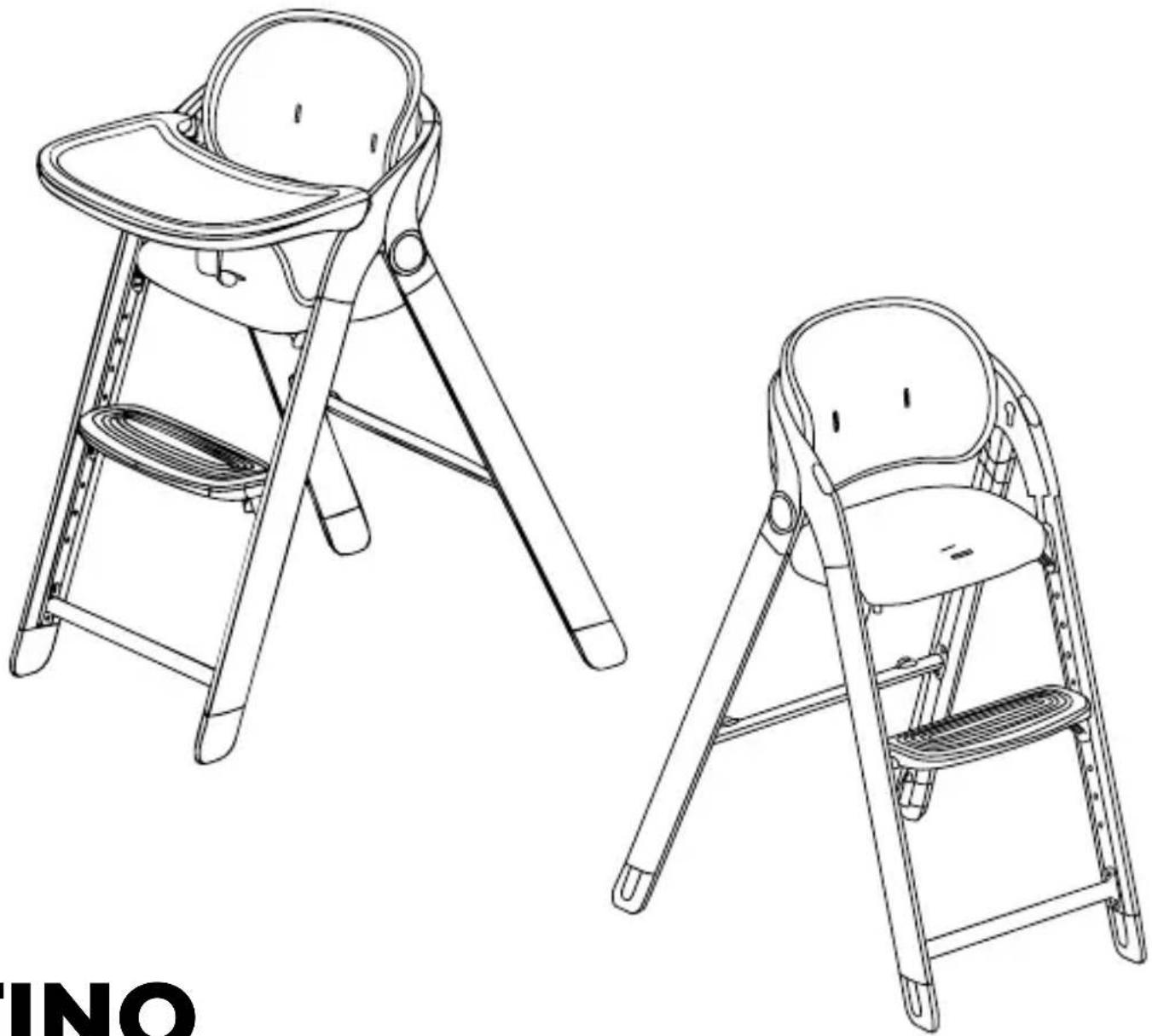

Line drawings of two baby play chairs, one full and one partially assembled, with no text or symbols present.

TINO

USER GUIDE

(AR) كرسی.عالی
(CS) STOLIČKA NA KRMENÍ 2v1
(DE) KINDERSTUHL 2in1
(EN) HIGH CHAIR 2in1
(ES) TRONA PARA COMER 2en1
(FR) CHAISE HAUTE POUR BÉBÉ 2en1
(HU) ETETOSZEK 2az1-ben
(IT) SEGGIOLINO DA TAVOLO 2in1
(NL) VOEDINGSTOEL 2in1
(PL) KRZESEŁKO DO KARMIENIA 2w1
(PT) CADEIRA DE ALIMENTAÇÃO 2em1
(RO) SCAUN PENTRU ALĂPTĂT 2în1
(RU) СТУЛ ДЛЯ КОРМЛЕНИЯ 2в1
(SK) STOLIČKA NA KŘMENIE 2v1
(SV) BARNSTOL 2i1

دليل، الاستخدام

NÁVOD K OBSLÜZE

BEDIENUNGSANLEITUNG

USER MANUAL

MANUAL DE USARIO

GUIDE D'UTILISATION

HASZNÁLATI UTASÍTÁS

ISTRUZIONI PER UTENTE

GEBRUIKSAANWIJZING

INSTRUKCJA OBSŁUGI

MANUAL DE INSTRUÇÕES

MANUAL DE UTILIZARE

All rights to this data are entirely reserved to 4Kraft Sp. z o.o. Any unauthorized use or misuse, including usufruct, copying, duplication and sharing, wholly or partially, without consent of 4Kraft Sp. z o.o. may result in legal consequences.

AR 11

CS....15

DE 18

EN 22

ES....24

FR....28

HU....31

IT....34

NL....37

PL....40

PT....43

RO 46

RU 50

SK....53

SV....56

/ Ilustrace jsou pouze orientační a nepředstavují plné zobrazení produktu./Die gezeigten Bilder dienen nur als Referenz, das tatsächliche Produkt kann von der Abbildung abweichen./The illustrations are for illustration only and do not represent the product./Las ilustraciones son meramente orientativas y no constituyen una representación completa del producto./Les illustrations sont données à titre indicatif et ne constituent pas une représentation complète du produit./Az illusztrációk csak tájékoztató jellegüek és eltérhetnek a valós terméktöl./Le immagini sono inserite a scopo dimostrativo e non rispecchiano appieno le caratteristiche del prodotto./De afbeeldingen dienen uitsluitend ter illustratie en geven geen volledig beeld van het product./Ilustracje mają charakter poglądowy i nie stanowią pełnego odwzorowania produktu./As ilustrações têm uma função informativa e não são uma representação fiel do produto./ Ilustrațiile sunt doar pentru referință și nu reprezintă produsul complet./Иллюстрации приведены только для справки и не представляют весь продукт./Obrázky slúžia len na ilustráciu a nie sú úplným predstavením produktu./Illustrationer är endast för referens och representerar inte hela produkten

Line drawing of a mechanical device with two vertical supports and a central rectangular component (no text or symbols)

1

Simple line drawing of two vertical supports with a central support bracket (no text or symbols)

2

Technical line drawing of a mechanical bracket component (no text or symbols)

3

Line drawing of a curved mechanical component with two protruding ends (no text or symbols)

4

Line drawing of a robotic gripper device (no text or symbols)

5

Line drawing of a curved mechanical component with two side brackets (no text or symbols)

6

7

Line drawing of a ladder with a circular seat and rope strap (no text or symbols)

AI

Top-down schematic of a vehicle's front wheel and dashboard (no text or labels)

A II

Line drawing of a person wearing a helmet and harness, no text or symbols present

B

Line drawing of a chair with an inset showing a close-up of the seat and hand positioning (no text or symbols)

C

D

Line drawing of a baby chair with hand operating, showing interior components and eye symbol (no text or symbols)

E

Line drawing of a manual chair with a handle and seat, no text or symbols present

F

Line drawing of a baby in a high chair being lifted, with a hand adjusting the seat (no text or symbols)

G

Technical line drawing of a mechanical assembly with no visible text or symbols

M

Diagram of two identical mechanical components with directional arrows indicating alignment (no text or symbols)

0

Illustration of a hand operating a chair with a circular motion indicator, showing the side view and head view (no text or symbols)

R

Line drawing of a hand holding a smartphone with two buttons and a handle, labeled 'T' at the bottom (no text or symbols on the diagram itself)

Line drawing of a baby boom chair with adjustable arms and seat (no text or symbols)

AR

عزيزى العميل!

شکلً لشر ائک منتجاً من کیندر کرفت.

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

قائمة العناصر

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Seznam komponentü

Warning sign depicting a person sitting at a desk inside a triangular frame (no text or symbols)

Liste der Teile

Thank you for purchasing the Kinderkraft product.

We create with your babies in mind - we take utmost care to ensure the safety and quality of our products so that you

can enjoy the comfort of the best possible choice.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

HIGH CHAIR

WARNING!

• Never leave the child unattended.
  • Always use the restraint system.
• Falling hazard: Prevent your child from climbing on the product.
• Do not use the product unless all components are correctly fitted and adjusted
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
• Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
• Do not use the product until the child can sit up unaided.
• Don't use the product if any part is broken, torn or missing.

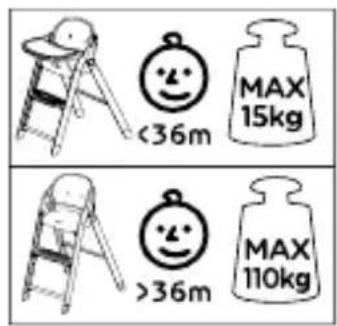

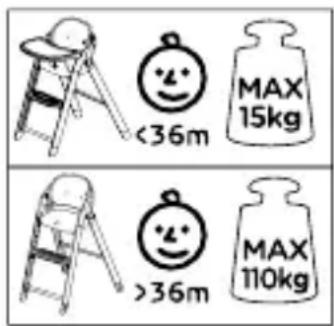

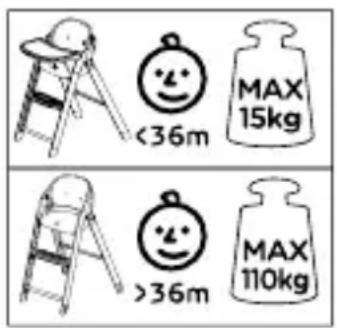

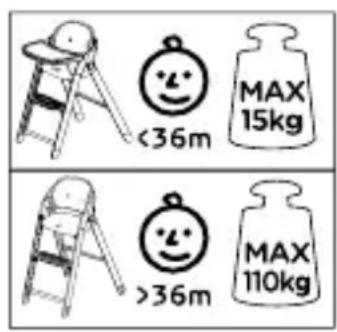

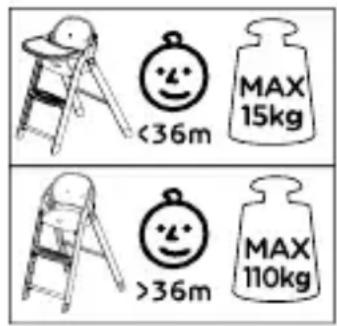

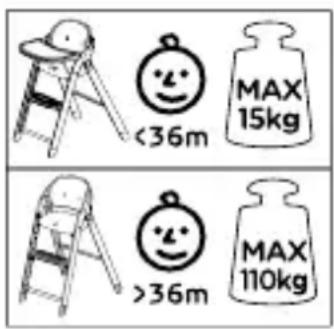

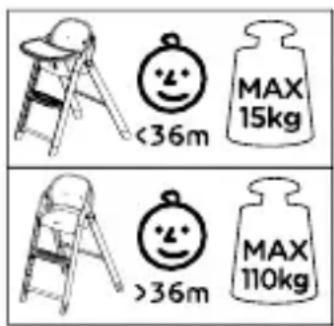

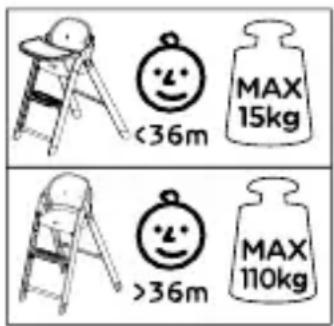

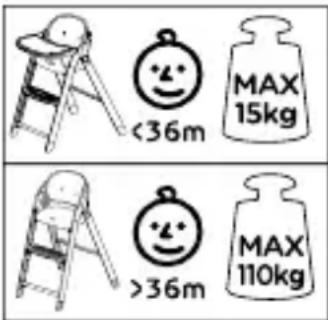

• High chair is intended for children able to sit up unaided and up to 36 months or a maximum weight of 15 kg.
• Always check the security and the stability of product before use.
• Make sure that any harness is correctly fitted.
• Do not move or lift the product while the child is inside.
• Accessories or replacement parts other than those approved by the manufacturer must not be used.
• Keep children away when unfolding and folding the product to avoid injury.
• Product located under a window could be used as a step by the child and cause the child to fall out of the window.

SEATING FOR CHILDREN

WARNING!

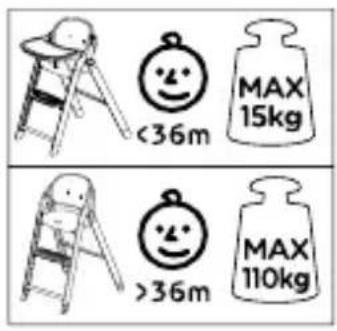

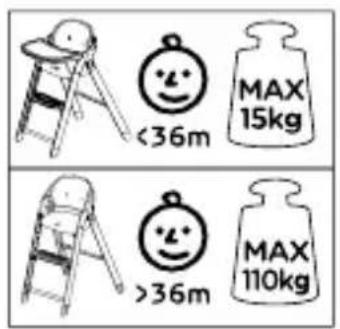

• This product is suitable for children aged 36 months and adults weighing up to 110 kg.
• DO NOT place this product near a window as it can be used as a step by the child and cause the child to fall out of window
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product
• DO NOT place this product near a window where cords from blinds or curtains could strangle a child
• All assembly fittings should always be tightened properly
• not to use seating if any part is broken, torn or missing and use only spare parts approved by the manufacturer
• the restraint system shall be removed/hidden/covered when the product is used as a seating for older children.

Warning sign depicting a person climbing a ladder inside a window (no text or symbols)

List of elements

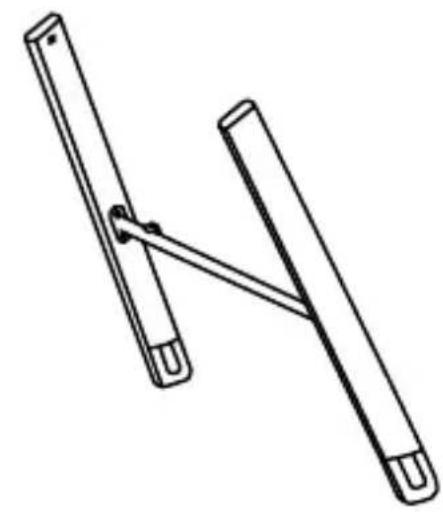

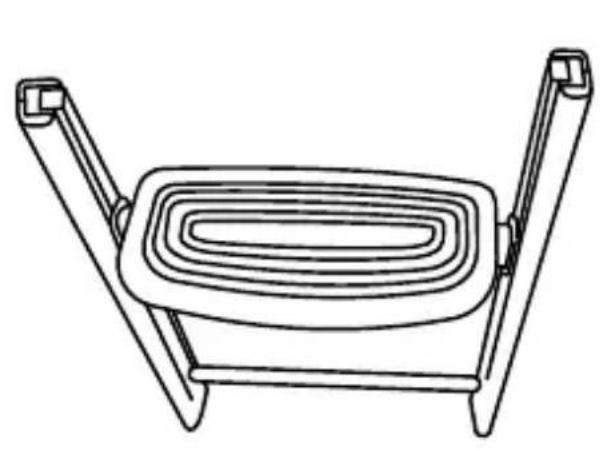

1. Front legs with footrest
2. Rear legs

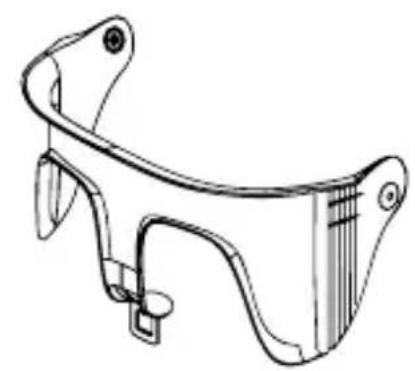

3. Safety insert

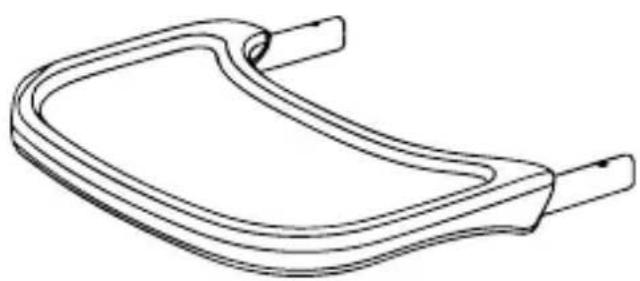

4. Tray

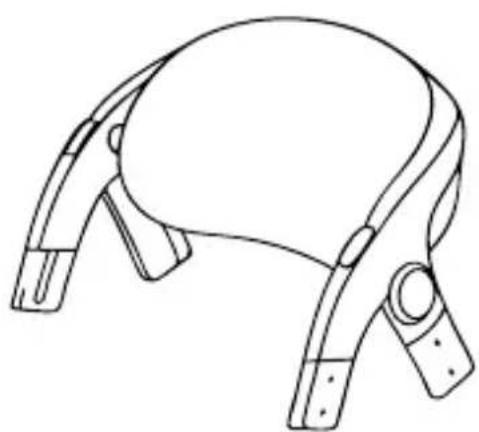

5. Backrest with cushion

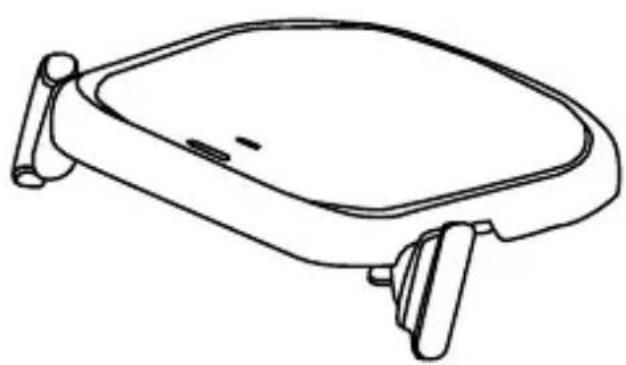

6. Seat
7. Bolts x4

High chair assembly

Slide the two under-seat locks (6) (Fig. All) and slide them into the high chair front legs (1) as shown in Fig. AI.

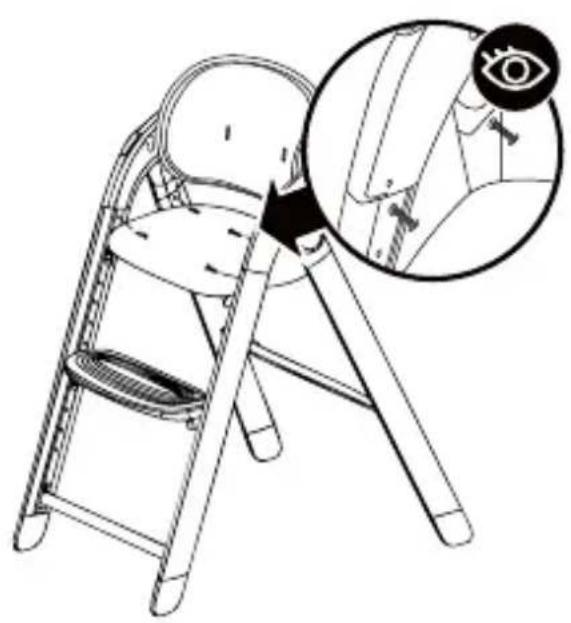

Backrest assembly

Insert the front and rear legs into the openings in the backrest as shown in Fig. B. Then screw in the bolts (7) into each leg as shown in Fig. C.

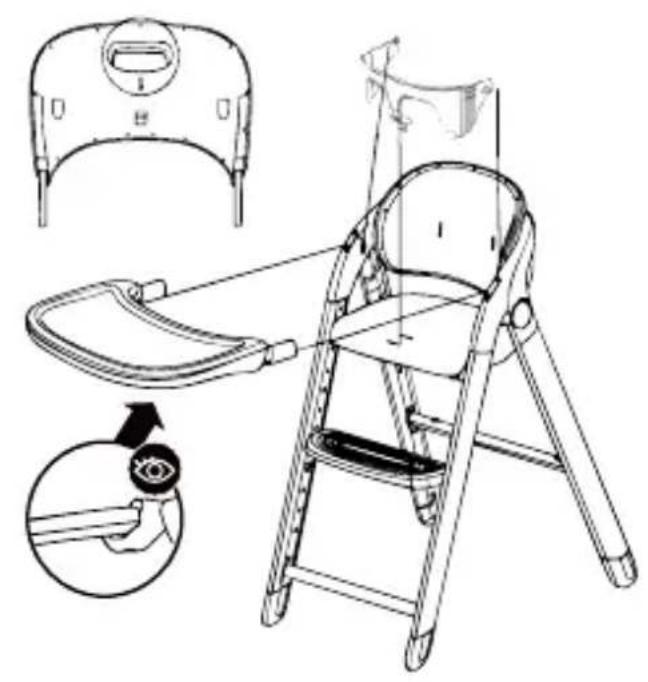

Safety insert and tray assembly

Match the two clips on both sides of the safety insert (3) with the slots in the backrest with cushion (Fig. D). After inserting, press them gently. Then slide the bottom latch into the front slot in the seat until you hear a click confirming the insert (3) is correctly mounted. The high chair features 3 seat depth positions. When used as a high chair, the seat must be pushed all the way back. Using the button located at the bottom of the tray, insert the tray (4) into the openings on both sides of the backrest and adjust to the desired position (Fig. D). The tray has two adjustment

positions. In the first position, two dots on the tray guides are visible, and in the second position, the dots are not visible.

Footrest height adjustment

Gently press the buttons on both sides of the bottom part of the footrest, simultaneously pressing inward (Fig. E). Slide the footrest into the desired position until you hear a "click" indicating it is locked. The footrest features a total of eight adjustment positions.

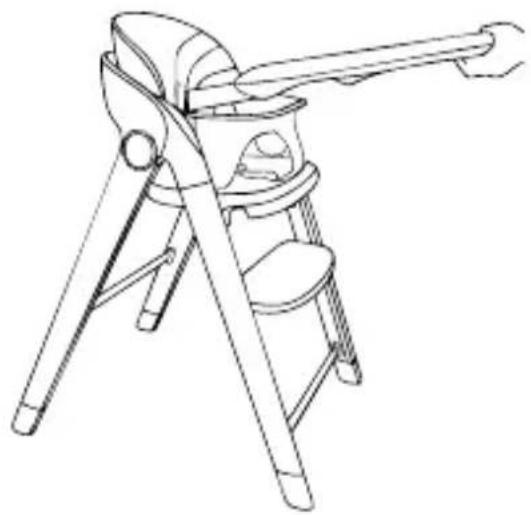

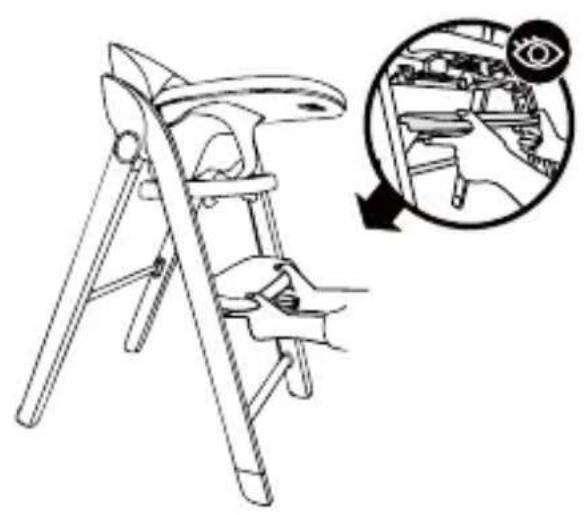

Removing the tray

Press and hold the bottom button, then pull out the tray (4) (Fig. F).

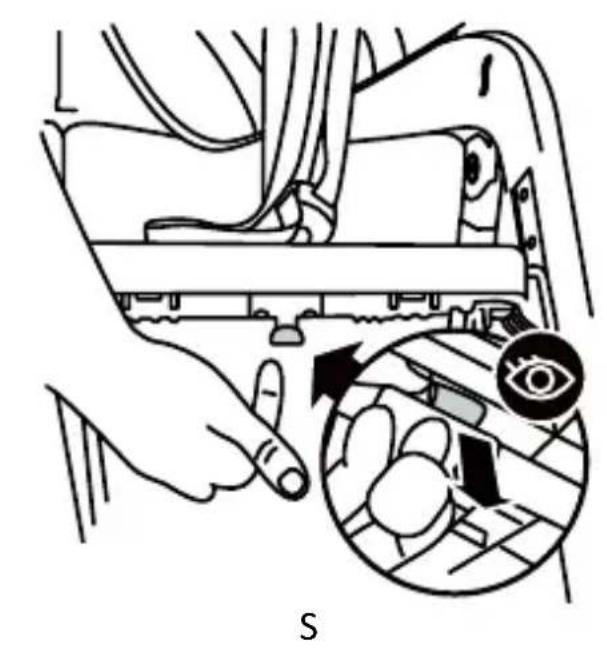

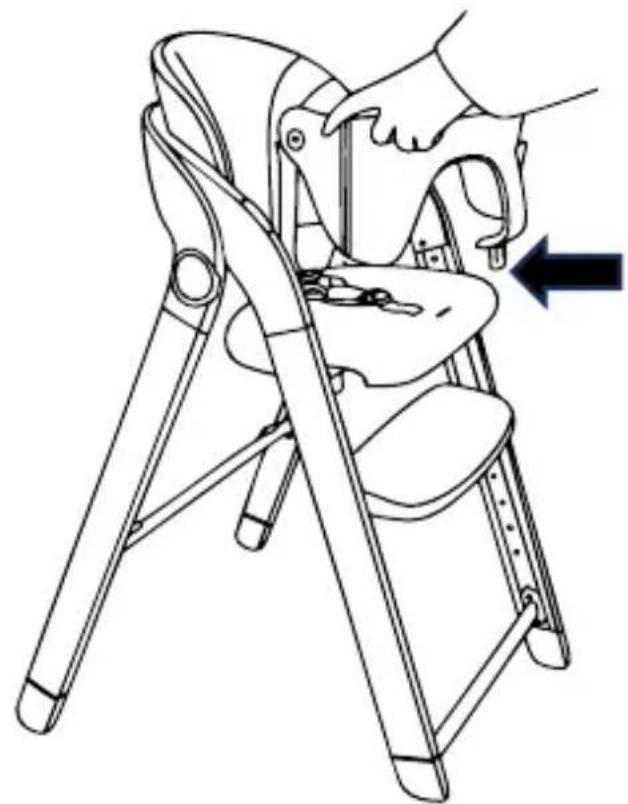

Safety insert disassembly

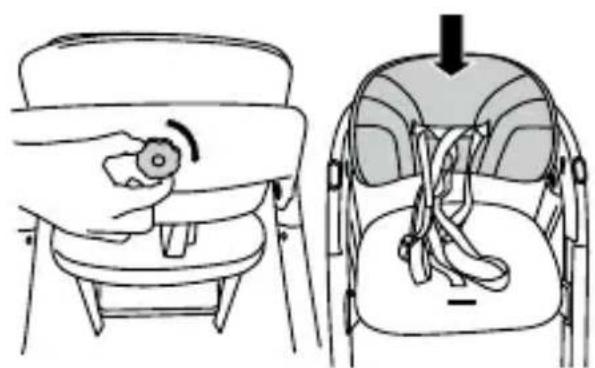

To remove the safety insert (3), push the under-seat buckle forward and upward simultaneously. Then, bend the clips located in the backrest slots inward and pull the insert upward (Fig. G).

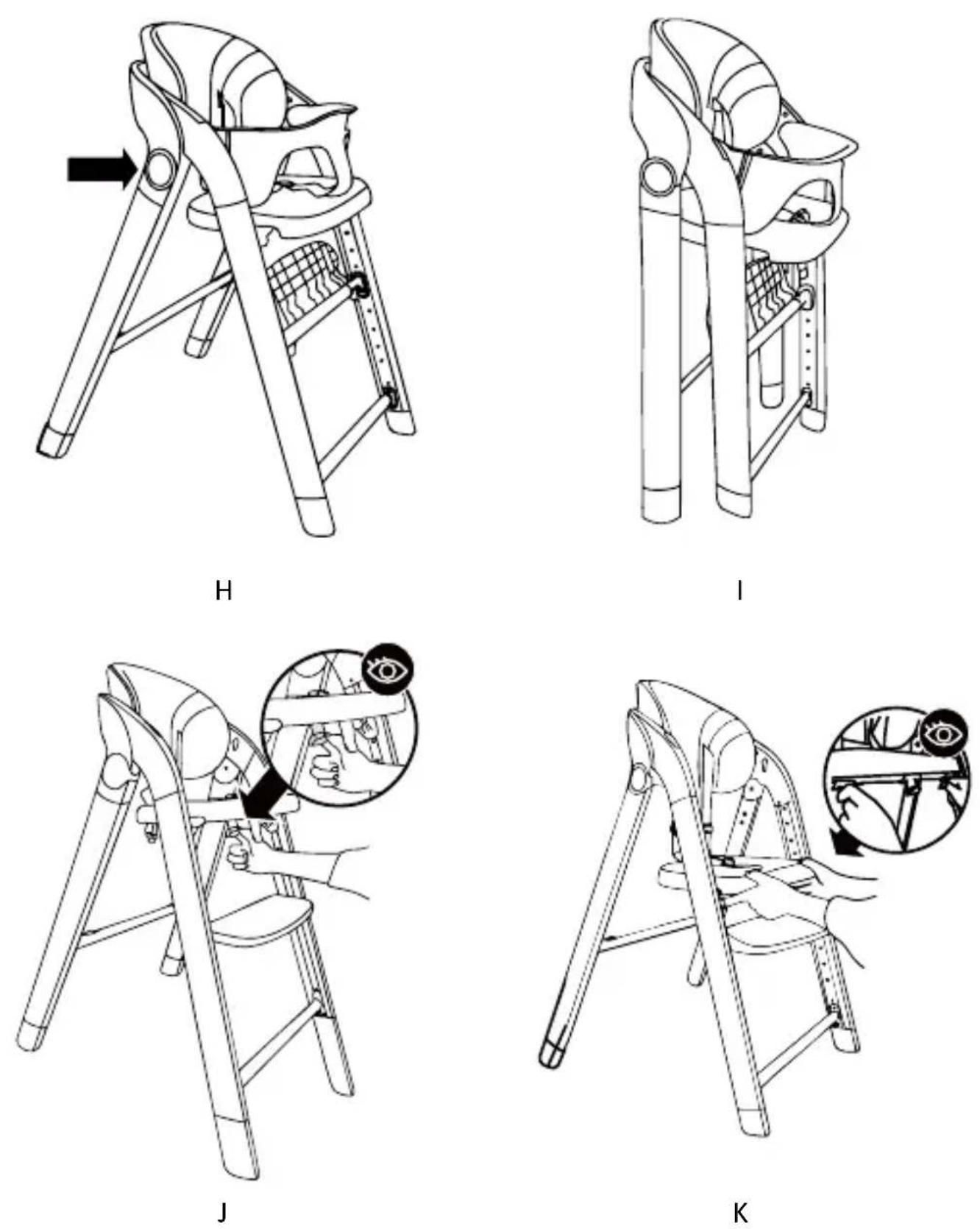

Folding

Press both round buttons on the sides of the high chair simultaneously (Fig. H) and push the backrest forward to complete the folding (Fig. I).

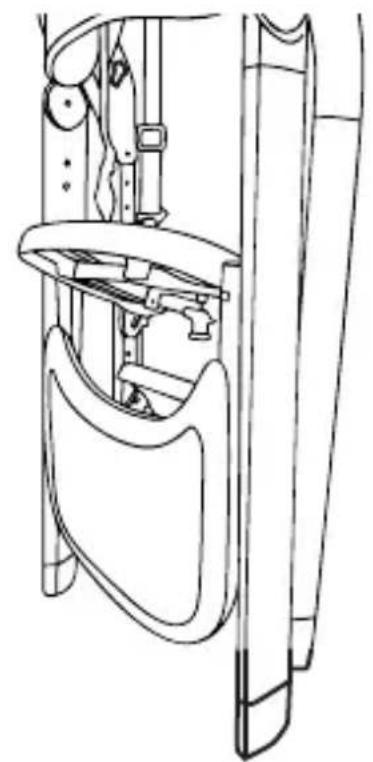

Mounting the tray

Once the high chair is folded, you can mount the tray (4) on the designated grips located on the rear legs (Fig. L). Insert and lock the tray securely for convenient storage and access (Fig. M).

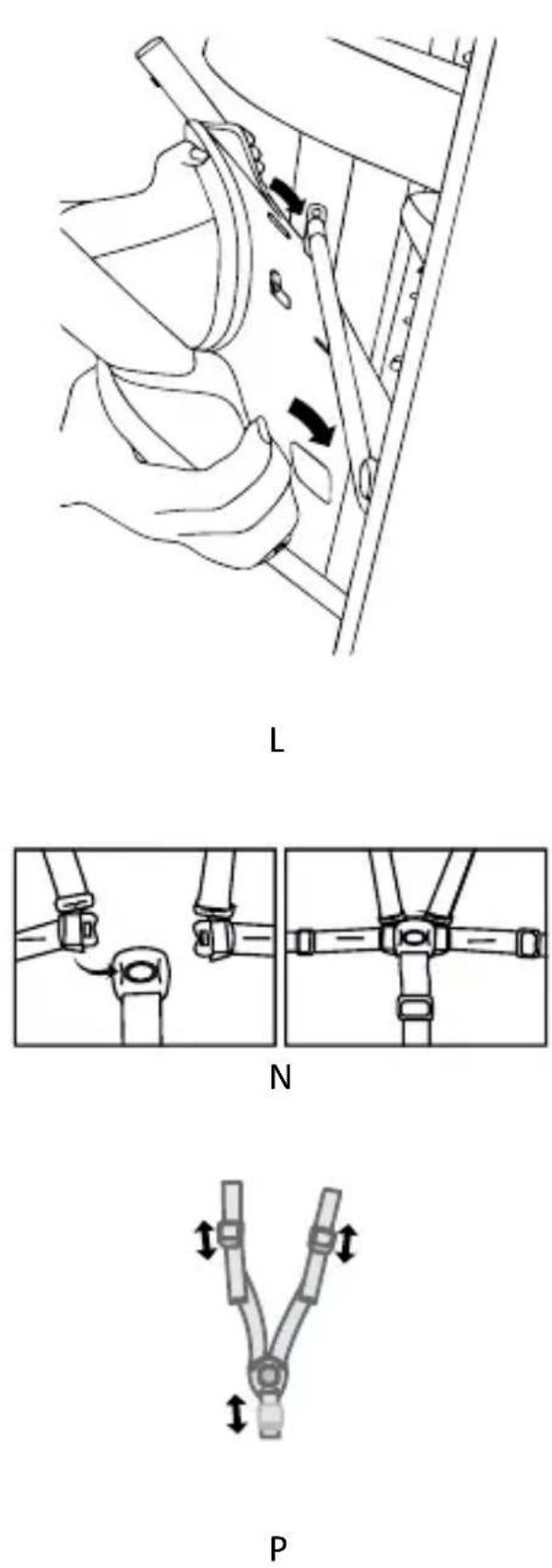

Safety harness

WARNING: Using a safety harness is necessary to ensure the child's safety. Using the tray alone does not provide proper support for the child. A safety harness should be used at all times. Connect the shoulder straps, waist straps, and crotch strap into the buckle. Correct fastening of the harness is shown in Fig. N.

Safety harness length adjustment

The safety harness is equipped with an adjustable buckle, allowing you to adjust the length of the straps to the child's height. Move the strap buckles up or down depending on the desired strap length (Fig. O, P).

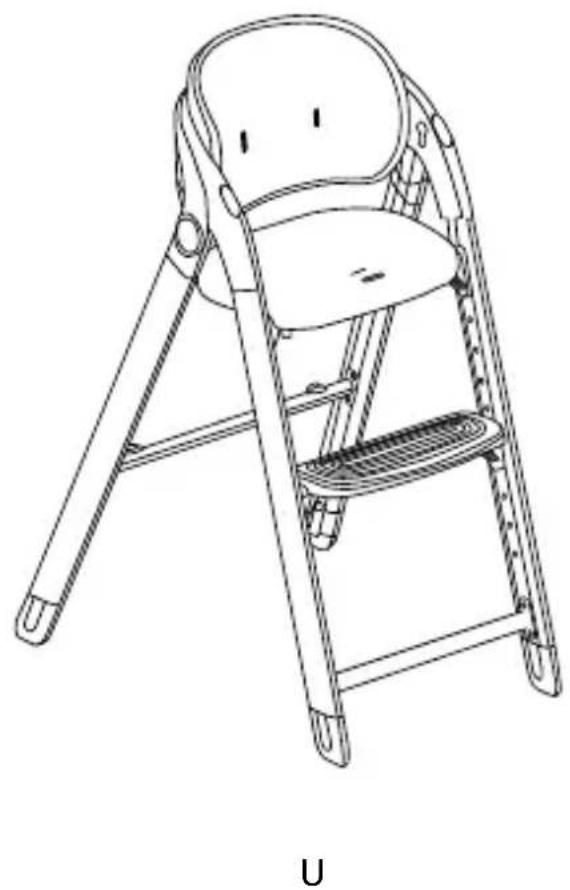

Chair for older children and adults

In this version of the chair, remove the tray, safety insert, and safety harness (see instructions above). To remove the harness, unscrew the screw at the back of the backrest and slide the backrest downward (Fig. R). To remove the crotch strap, thread it through the opening in the seat (Fig. S), slide the shoulder straps out from the openings in the back of the seat (Fig. T). Then slide the backrest fully into the slots and tighten the screw at the back of the backrest as much as possible. This creates the version of the chair suitable for older children and adults (Fig. U).

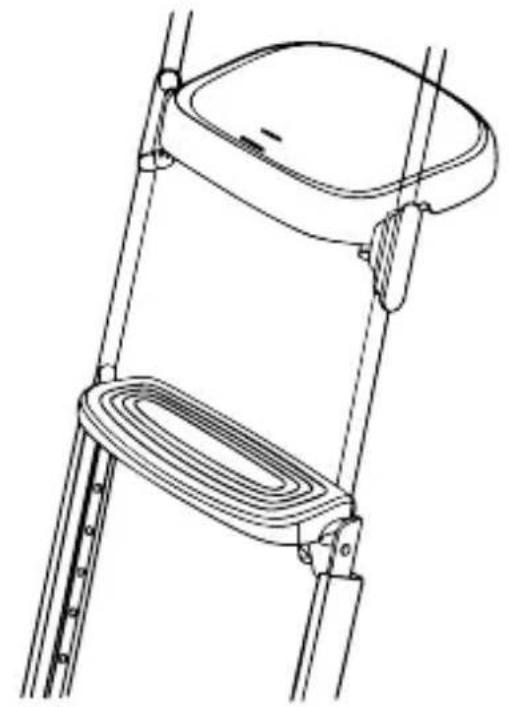

Seat position adjustment

The high chair features an adjustable seat depth (6). To change the seat position (6), pull the adjustment element downward and slide the seat into the desired position (Fig. J). Set the seat to the desired position, then return the fastener to its original position until you hear a characteristic “click.” You can set the seat in three different positions.

Seat height adjustment

To adjust the seat plate height (6), press the buttons on both sides of the lower part of the seat plate inward. Move the seat plate up or down to the desired height until you hear a "click" indicating it is completely locked (Fig. K).

Cleaning

High chair frame: Clean with a damp cloth and mild cleaning agent.

Straps: Clean with a damp cloth.

WARRANTY

The full text of the Terms and Conditions of the Warranty is available on the website WWW.KINDERKRAFT.COM

ES

ESTIMADO CLIENTE!

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Lista de componentes

Warning sign depicting a person climbing a ladder inside a triangular frame (no text or symbols)

Liste des pièces :

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Elenco delle parti

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Warning sign depicting a person sitting on a chair inside a window, enclosed in a triangle (no text or symbols)

Lista części

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Lista de componentes

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Lista elementelor:

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Zoznam komponentov

Warning sign depicting a person climbing a chair inside a window (no text or symbols)

Reservdelslista
