PDM-T604 - Mixer Power Dynamics - Free user manual and instructions

Product type	Professional mixing console with DSP processor and MP3/Bluetooth player
Power supply	220-240 VAC / 50 Hz, fuse 10-16 A
Inputs	4 mono channels (XLR/6.35 mm jack), 2 stereo inputs (6.35 mm jack), RCA inputs, USB, Bluetooth
Outputs	2 main outputs XLR and 6.35 mm jack, 2 AUX outputs (6.35 mm jack), headphone output 6.35 mm
Digital effects	380 built-in DSP effects, 4 memories, LED display
Equalizer	7-band graphic on master; 3-band per channel (high, mid, low) with ±15 dB
Bluetooth	Built-in for wireless audio streaming
USB	USB port for MP3 playback and direct recording
Dimensions (approx.)	400 x 300 x 100 mm
Weight (approx.)	3.5 kg
Phantom power	+48 V switchable per channel for condenser microphones
Channel functions	Gain, mute, PFL, pan, assignment L/R and G1/G2
Indicators	Peak LED per channel, master level bargraph
Maintenance and cleaning	Use a dry cloth; do not use chemicals
Safety	Do not open the casing, unplug before maintenance, use a grounded outlet
Spare parts and repairability	Repairs exclusively by an authorized technician; use original parts
Operating temperature	5°C to 35°C (indoor only)
Warranty	Valid subject to compliance with the instructions in the manual

Frequently Asked Questions - PDM-T604 Power Dynamics

How to activate +48V phantom power?

Press the +48V PHANTOM button (ref. 30) on the rear panel. The LED indicator lights up. Use this function only with condenser microphones requiring phantom power.

How to connect a Bluetooth device?

Press the MODE button on the front panel several times until BT mode is selected. Enable Bluetooth on your mobile device, search for 'Power Dynamics PDM-T604' and pair. A beep sound confirms the connection.

How to use the DSP effects?

Use the UP/DOWN buttons (ref. 23) to select one of the 380 effects. Press MEMORY (ref. 24) to save or recall 4 favorite effects. Adjust the effect level with the FX fader (ref. 39).

How to record MP3 via the USB port?

Insert a USB stick. Press and hold the REC button (ref. 28) to start recording. Press briefly to stop and listen to the recording. In USB mode, press briefly to toggle between USB playback and recording.

What does the PEAK LED on a channel mean?

The PEAK LED flashes when the input signal level is too high. Reduce the gain (ref. 2) by turning counterclockwise to avoid distortion.

How to use the PFL function?

Press the PFL button (ref. 11) of a channel to listen to the signal pre-fader via headphones, without affecting the main output. The PFL LED (ref. 37) lights up.

How to assign a channel to G1/G2 outputs?

Press the G1/G2 button (ref. 13) on the channel to send it to the group faders. Then use the G1/G2 fader (ref. 41) to adjust the level. You can also return the groups to the master via the G1/G2 TO MAIN button (ref. 43).

How to connect active speakers?

Connect the speakers to the MAIN OUT outputs (ref. 21) via XLR or 6.35 mm jacks. Ensure the speakers are off when connecting and set the MAIN fader (ref. 42) to zero before powering on.

What to do if the device does not turn on?

Check the power cord and wall outlet. If the fuse is defective, unplug the device, open the fuse holder (ref. 44) with a screwdriver and replace it with a fuse of the same type and rating (10-16 A).

How to clean the mixing console?

Unplug the device. Use a dry, lint-free cloth to wipe the surface. Never use chemicals, aerosols, or liquids. Avoid cleaning switches with sprays.

USER MANUAL PDM-T604 Power Dynamics

Power Dynamics Professional Audio

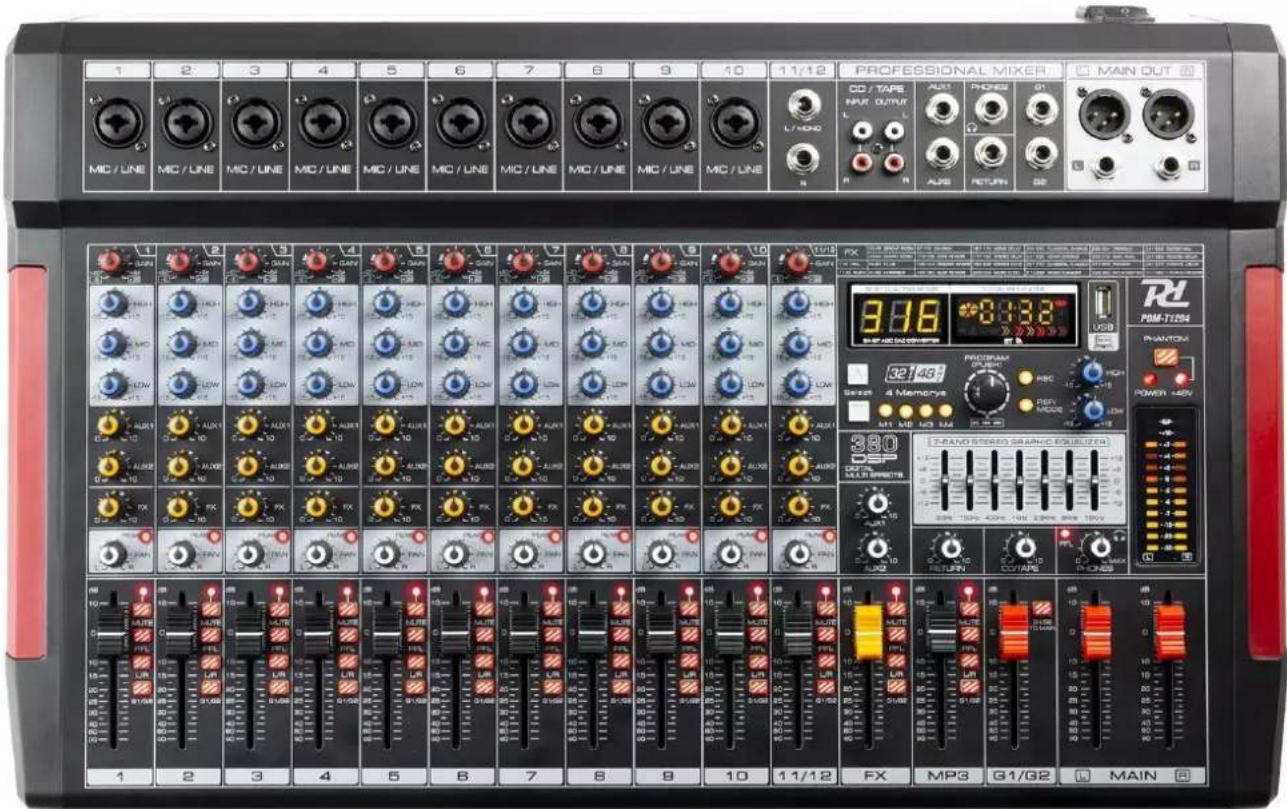

PDM-T Series Stage Mixer

Ref. nr.: 172.660; 172.662; 172.664; 172.666

1 2 3 4 5 6 7 8 9 10 11/12 PROFESSIONAL MIXER MAIN OUT MC / LINE MC / LINE MC / LINE MC / LINE MC / LINE MC / LINE L / NO. CD / TAPE INPUT OUTPUT L AUX PROCES 01 AUX RETURN 02 1 2 3 4 5 6 7 8 9 10 11/12 FX MP3 G1/G2 MAIN

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
• Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

CONTROL ELEMENTS

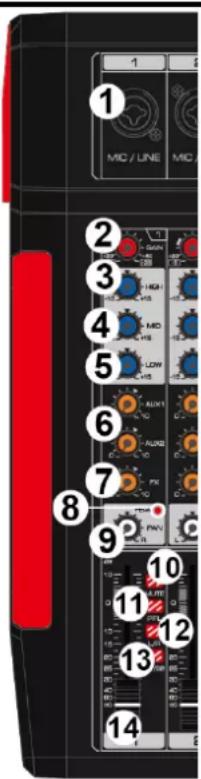

1. XLR MICROPHONE/LINE INPUT

Mono input. Use this input to connect a microphone, musical instrument or audio device (CD-player for example) to the device. The socket is supporting both XLR and unbalanced 6.3mm plugs.

2. GAIN

Determines the basic volume of each channel. Adjust them for the desired volume performance. When the volume level gets too high, the peak LED indicator light will be flashing.

3. HIGH (TREBLE) CONTROLLER

Turn to adjust the high tones with 15dB at 12KHz.

4. MID CONTROLLER

Turn to adjust the mid tones with 15dB at 2.5KHz.

5. LOW (BASS) CONTROLLER

Turn to adjust the low tones with 15dB at 80Hz.

6. AUX CONTROL

Turn to adjust the output level of AUX signal.

7. FX

Turn to adjust the level sent to the internal FX.

8. PEAK LED INDICATOR

When the volume of input signal is too high, the LED indicator light will be flashing. In that case, rotate the gain controller counter clockwise to turn down the volume.

9. PAN

This is the “panorama” control or balance control, determining the position of the signal within the stereo image. When working in subgroups, you can use the pan controller to assign the signal to just one output, which gives you additional flexibility in recording situations.

10. MUTE

The mute switch breaks the signal path pre-channel fader, thus muting that channel in the main mix. The AUX sends which are set to post-fader are muted for that channel too, while the pre-fader monitor paths remain active irrespective of whether the channel is muted or not.

11. PFL

Press to enable PRE FADER LISTENING. This enables you to listen to a channel signal, without affecting the main output signal.

12. L/R

Press to send corresponding channel to the main output.

13. G1/G2

Press to route signal to the G1/G2 fader.

14. CHANNEL FADER

Slide to adjust the (volume) level of the channel signal. Use these faders to adjust the balance between the various channels.

15. STEREO INPUT

Inputs for connecting to line-level devices (e.g. electric keyboard) via 6.35 plugs. If only connect to L (MONO) jack, the mixer will send out the same mono signal to L and R outputs.

16. CD/TAPE INPUT & OUTPUT

RCA connectors, allowing for connection with playback devices, such as CD players, etc. Use the tape output for connecting with, for example, a tape deck for recording applications.

17. AUX/SEND

The AUX/send 6.3mm jack carries the master AUX mix (from the channels' AUX controls).

18. RETURN

Unbalanced 6.3mm jack, typically used to receive the return signal from an external effect device (reverb, delay, etc.).

19. G1/G2

6.3mm jack output for G1/G2 signal.

20. HEADPHONES

6.3mm headphones socket.

1 MIC / LINE MIC 2 3 4 5 6 7 8 9 10 11 12 13 14

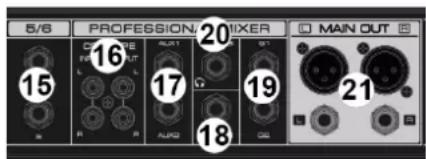

5/8 PROFESSION 20 21 MAIN OUT 16 17 19 18

21. MAIN OUTPUTS

XLR and 6.3mm jack outputs, to connect an active speaker or amplifier.

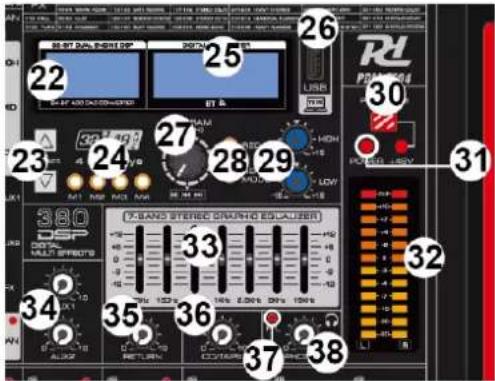

22. DSP DISPLAY

Display showing the 380 DSP effects.

23. SELECT BUTTONS

Press up/down to select desired DSP effect.

24. MEMORY BUTTONS

Press to recall one of 4 saved DSP memory slots.

25. MP3 DISPLAY

Display showing, for example, song name, play time, etc.

26. USB PORT

USB entry port for MP3 input or computer connection.

27. MP3 CONTROL KNOB

Rotate to select previous or next track. Push to (re)start/pause play.

28. REC AND REPEAT/MODE BUTTONS

22 25 26 30 31 23 24 27 28 29 33 32 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

REC: Long press to initiate record function. Short press to finish recording and play the recorded audio. When playing the recorded audio, short press to switch to USB mode. When playing USB, short press to switch to playing recorded audio. REP/MODE: Short press to change modes (USB, BT, REC). Long press to change repeat modes (ALL, ONE).

29. MP3 EQ CONTROL

Two-band equalizer for the MP3 player.

30. +48V PHANTOM BUTTON/LED

When the button is pressed to turn on, the +48V LED light will illuminate, providing DC+48V phantom power to the XLR plug on microphone mono input. Turn on this function when using a condenser microphone that is powered by phantom power.

31. POWER INDICATOR

Lights up when the power is on.

32. LEVEL INDICATOR

Shows the signal level from the main output. Adjust the faders or volume level controllers to lower the level if the indicator lights up in red.

7-band equalizer to adjust the sound signal sent to the main output jacks.

34. AUX1 & AUX2

Turn to adjust the volume level of AUX1 and AUX2 outputs.

35. RETURN CONTROL

Turn to adjust the return signal level.

36. CD/TAPE CONTROL

Turn to adjust the CD/TAPE output level.

37. PFL INDICATOR

After activating PFL function (by pressing the PFL button), this indicator lights up.

38. HEADPHONES CONTROL

Turn to adjust the signal level sent to the phones out jack.

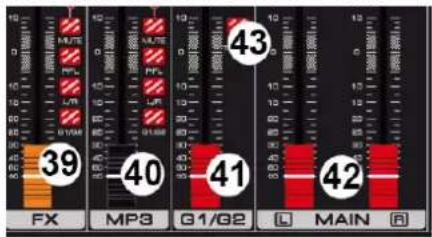

39. FX FADER

Slide to control the effect input.

40. MP3 FADER

Slide to control the MP3 volume level.

41. G1/G2 FADER

Slide to control the G1/G2 group volume level.

42. MAIN MIX FADER

Slide to control the main (master) volume level.

43. G1/G2 TO MAIN

Press to redirect the G1/G2 signal to main channel output.

44. AC IN AND FUSE HOLDER

Socket for plugging in the supplied power cord (top). For instructions on how to change the fuse (bottom), see "REPLACING THE FUSE".

45. POWER SWITCH

Switch to turn the device on/off.

POWER ON OFF AC INPUT/ FUSE 45 44 AC 100-240V/50-30Hz

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

BT STREAMING

Press the MODE button repeatedly to select BT mode. Now the mixer can be found by mobile device for the purpose of streaming. When pairing is successful, a sound will be emitted.

REPLACEMENT DU FUSIBLE

POWER 45 ON OFF AC INPUT/ FUSE 44 AC 100-240V/50-60Hz

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA

	PDM-T604	PDM-T804	PDM-T1204	PDM-T1604
Ref.nr.	172.660	172.662	172.664	172.666
Playback options	BT streaming, USB
Input connections	6.3mm Jack, RCA, USB, XLR (3-pin)
Output connections	6.3mm Jack, RCA, USB, XLR (3-pin)
Presets	380
DSP resolution	32-bit
Frequency response	20Hz-20KHz
THD	<0,5%
Equalizer	7-Bands
Equalizer: Low	80Hz +15dB
Equalizer: High	12KHz +15dB
Power supply	100-240VAC 50/60Hz

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2022 by TRONIOS the Netherlands
