USER MANUAL imageRUNNER ADVANCE C255i CANON

Quick Operation Guide

English 3

Français 15

Deutsch 27

Italiano 39

Español 51

Quick

Operation Guide

Learning How to Use Your Machine 4

Tips for Copying 6

Tips for Printing 7

Tips for Faxing 8

Tips for Scanning 9

Tips for Registering Destinations 10

You can access http://canon.com/oip-manual to read the User's Guide that describes all functions of this machine.

Store this guide in a safe place for future reference.

Some functions may not be available, depending on the model of the machine you are using.

The information in this document is subject to change without notice.

If your machine is of the model dedicated to printing only

The machine dedicated to printing only cannot be used for any other functions than printing. Although this Guide contains the descriptions of the functions and operations for copying, faxing, and scanning as well as printing, please read only the necessary descriptions to use your machine.

Silhouette of a person in profile with red clothing, no text or symbols visible

Learning How to Use Your Machin

This section contains a brief overview of the basic operations of your machine.

Turning On the Display

Illustration of a printer emitting a circular button with red arrows, next to a hand pointing at it (no text or symbols present)

When the display is turned off, press the Ⓞ button on the control panel to exit the Sleep mode and turn it back on.

The Main Buttons for Operations

Abstract geometric shapes including a yellow rectangle, a green circle with an exclamation mark, and a pink triangle with a symbol (no text or labels)

Press to execute functions, to cancel operations, and to clear the current settings.

- Accessing the Main Menu

Main Menu Quick Menu Select a function. Copy

Perform a wide variety of operations from the Main Menu, displayed from any screen by pressing 📄

- Quickly Checking the Status of Machine

Access Stored Files Status Monitor/Cancel

All you need to do to check the machine's status is press Status Monitor/Canal

See "Control Panel" in the User's Guide.

Red line drawing of a computer with control panel and buttons (no text or symbols)

Two Methods for Setting Original Documents

Placing Original Documents Correctly

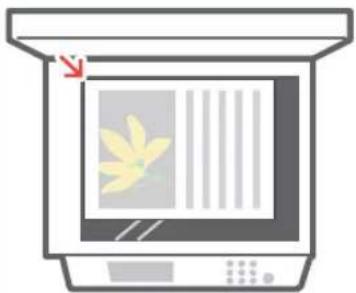

Placing Original Documents on the Platen Glass

• Place the side to scan face down.
• Place the original documents so that it fits in the back left corner.

Illustration of a kitchen appliance with a window and leaf design (no text or symbols)

Compatible Types of Original Documents

Books, magazines

Business cards

Newspaper clippings

Placing Original Documents in the Feeder

• Place the side to scan face up.
• Adjust the slide guide.

Illustration of a printer with a yellow flower inside, showing paper feed and alignment arrows (no text or symbols)

• Compatible Types of Original Documents


Documents with many pages, quotations, etc.

Silhouette of a person in profile, no text or symbols visible

Tips for Copying

Use helpful functions, such as two-sided printing and N on 1 feature, to make your copies look better while using paper efficiently.

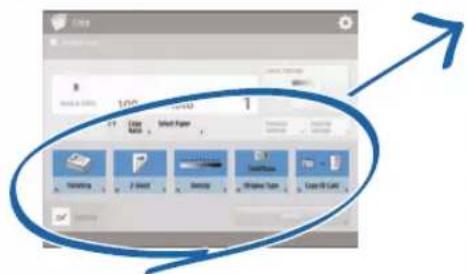

Basic Copy Flow

1 | Set the document.
2 | Press [Copy].
3 | Enter the number of copies.
4 | Set your preferred setting.

Screenshot of a software interface showing a toolbar with icons and a blue upward arrow, likely indicating a process or progress.

5 | Press (Start).

Non 1

The N on 1 feature helps you save paper by combining multiple pages onto one single sheet of paper.

Stacked sheets of paper with a magnified inset showing two different patterns (no text or symbols)

Density

Adjust the text density to make hard to read documents (such as something written in pencil) easier to read.

Recommended Settings

2-Sided

Halve the amount of paper you use by printing on both sides of copied paper.

Two 3D isometric diagrams showing a rectangular block and a folded paper or sheet with a lightning bolt (no text or symbols)

Copy Ratio

Use "Copy Ratio" when copying to magnify small text for easy reading.

Finishing (Collate)

Output original documents in sets with the Collate mode, convenient for organizing big copy jobs.

Illustration of a printer and three document sheets labeled A, B, C (no text or symbols on the devices themselves)

Original Type

Pick one of a variety of different original types when copying to optimize the settings for that original document.

Illustration of an open book, a photo collage, and a magazine (no text or symbols visible)

For further information about the functions, see "A Variety of Features," on p.12.

Tips for Printing

Don't bother getting up! Specify print settings directly from your computer.

To print from a computer, first install the printer driver. For instructions on installing printer drivers, see the Printer Driver Installation Guide.

Silhouette of a seated woman holding an object, against a solid pink background (no text or symbols)

Basic Print Flow

1 | Select the print function from the application menu.
2 | Select the machine from [Select Printer].
3 | Select the paper source.

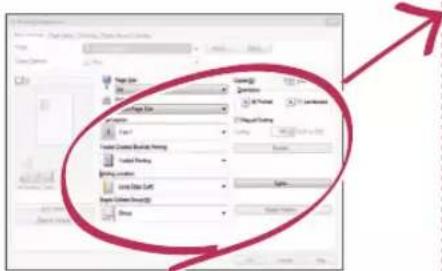

4 | Set your preferred setting.

Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type Source Image Map Type

5 | Enter the number of copies, and press [Print].

Recommended Settings

2-Sided

Two-sided printing can save paper, especially for those big copy jobs!

Illustration of two stacked documents with a pink arrow indicating transformation (no text or symbols)

Page Layout

Significantly decrease the amount of paper you use by printing a total of four pages on a single sheet of paper.

Two 3D rectangular blocks with internal patterns, one showing a pink arrow indicating transformation or alignment (no text or symbols)

Finishing (Collate)

Use [Collate] when printing a large number of copies to sort them for easy distribution.

For further information about the functions, see "A Variety of Features," on p.12.

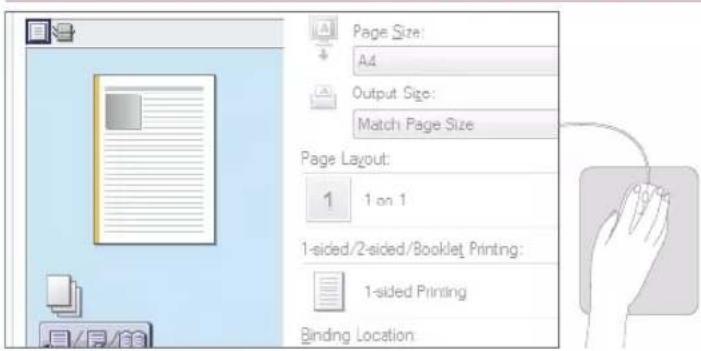

Change Print Settings with Just One Easy Click!

Page Size: A4 Output Size: Match Page Size Page Layout: 1 1 on 1 1-sided/2-sided/Booklet Printing: 1-sided Printing Binding Location

Change print settings, such as the page layout, by simply clicking the icon on the printer driver screen. The icon changes as you adjust the settings, so you can easily see your changes taking effect.

Silhouette of a person standing against a green background (no text or symbols)

Tips for Faxing

Faxing is easy with these simple steps! Improve the clarity of your faxes by adjusting settings, such as density or resolution.

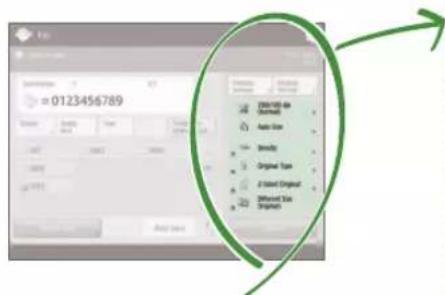

Basic Fax Flow

1 | Set the document.
2 | Press [Fax].
3 | Enter the fax number and press [OK].

To send a fax to a registered address, press Address Book

4 | Set your preferred setting.

0123456789 DINJET DE Oursuit Auto Size Brandy Original Type E-Object Object Different Use Object

5 | Press (Start) and once scanning is complete, press [Start Sending].

Recommended Settings

Resolution

Improve text clarity by increasing the resolution of a document, when sending documents with small text.

Density

Increase the density of thin text when sending (such as text written in pencil) to make it easier to read.

Original Type

Pick one of a variety of different original types when faxing to optimize the settings for that original document.

For further information about the functions, see "A Variety of Features," on p.12.

Press the Button to Adjust the Fax Volume

1 2 3 4 5 6 7 8 9 * 0 # ID C

Adjust the volume when sending and receiving faxes by pressing on the control panel.

Previewing Received Faxes Before Printing

CHECK A1CD

Check received faxes before printing, letting you select which to print while saving paper.

See "Saving Received Documents in the Machine (Memory Reception)" in the User's Guide.

Tips for Scanning

Not enough space for storing mountains of paperwork? You can scan and store them as data on your computer.

Silhouette of a person standing against a plain background (no text or symbols)

Basic Scan Flow

1 | Set the document.
2 | Press [Scan and Send].
3 | Press [New Destination] and enter the destination address.

To scan and send to a registered destination, press .

4 | Set your preferred setting.

Auto export Options Auto (Current) Auto (Current Air Air) Auto Star PGR 3 Quick Export Different Size Compact

5 | Press (Start).

Recommended Settings

Resolution

You can adjust the resolution when scanning a magazine or picture to make the image more vivid and clear.

File Format

Save a scanned original document in the format that best suits your needs, such as contracts as PDFs or presentation materials as PowerPoint documents.

For further information about the functions, see "A Variety of Features," on p.12.

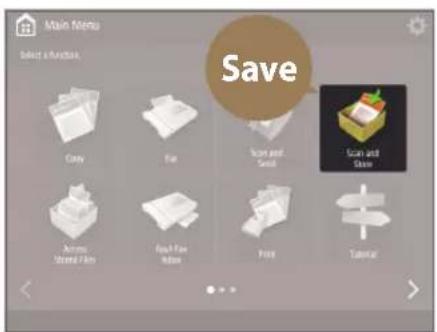

Digitize Stacks of Paper Documents to Save Office Space

Main Menu Select a function, Save Candy Fan Scroll and Send Scan and Save Actions Stream Film Fast-Fax Video Press Tablet

Illustration of three electronic devices: printer, USB flash unit, and desktop computer (no text or symbols)

Digitize your paper documents by selecting [Scan and Store] when scanning an original document. You can even choose a variety of different destinations to save the data, such as the machine or a file server.

See "Basic Operations for Scanning Originals" in the User's Guide.

Silhouette of a human figure in walking pose against a teal background (no text or symbols)

Tips for Registering Destinations

Register destinations in the address book to make sending operation simple. Increase efficiency by using One-Touch Buttons for frequently used destinations!

Basic Flow for Registering Destinations

1 | Press [Dest./Fwd. Settings].

Main Menu ALL THE WORLD

2 | Press [Register Destinations].

Start New Settings Regular Settings Regular Order Forming Schedule

3 | Press [Register New Dest.].

Disk Drive Settings File Edit View Help Name: Size: 721425.038 Alt: 2122044 Chives: 1639999.000 MOS: 2000000.000 SOS: 2000000.000 SOS: 2000000.000 SOS: 2000000.000 SOS: 2000000.000 SOS: 2000000.000 SOS: 2000000.000 SOS: 1639999.000 SOS: 1639999.000 SOS: 1639999.000 SOS: 1639999.000 SOS: 1639999.000 SOS: 1639999.000 SOS: 1639999.00 SOS: 1639999.00 SOS: 1639999.00 SOS: 1639999.00 SOS: 1639999.00 SOS: 1639999.00 SOS: 1639999.00 SOS: 164111111 SOS: 164111111 SOS: 164111111 SOS: 164111111 SOS: 164111111 SOS: 164111111 SOS: 164111111 SOS: 164111111 TOS: 244444444 TOS: 244444444 TOS: 244444444 TOS: 244444444 TOS: 244444444 TOS: 244444444 TOS: 244444444 TOS: 244444444 SOS: 288888888 SOS: 288888888 SOS: 288888888 SOS: 288888888 SOS: 288888888 SOS: 288888888 SOS: 288888888 SOS: 288888888 TOS: 335555555 TOS: 335555555 TOS: 335555555 TOS: 335555555 TOS: 335555555 TOS: 335555555 TOS: 335555555 TOS: 335555555 SOS: 377777777 TOS: 377777777 TOS: 377777777 TOS: 377777777 TOS: 377777777 TOS: 377777777 TOS: 377777777 TOS: 377777777 TOS : 335555555 TOS : 335555555 TOS : 335555555 TOS : 335555555 TOS : 335555555 TOS : 335555555 TOS : 335555555 TOS : 335555555 SOS : 288888888 TOS : 288888888 TOS : 288888888 TOS : 288888888 TOS : 288888888 TOS : 288888888 TOS : 288888888 TOS : 288888888 TOS: 266666666 TOS: 266666666 TOS: 266666666 TOS: 266666666 TOS: 266666666 TOS: 266666666 TOS: 266666666 TOS: 266666666 SOS : 222222222 TOS : 222222222 TOS : 222222222 TOS : 222222222 TOS : 222222222 TOS : 222222222 TOS : 222222222 TOS : 222222222 TOS: 1,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,3,

4 | Select the type of destination.

Diet Field Settings File Skip Skip Browse Register True/Cliff Save

5 | Enter the address and press [OK].

Email: Email Settings Name: mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT- mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PPT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-102 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:POT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-103 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:POT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104 mail:PUT-104

Illustration of a hand pointing at a computer monitor (no text or symbols visible)

Select the Destination Type

Register e-mail addresses, fax numbers, even servers as destinations! Pick the destination type that is right for you.

E mail

Fax I-Fax

LDAP Server GroupFile

See "Registering Destinations" in the User's Guide.

Using [Group]

You can register multiple destinations to a single group.

Send documents to everyone in a meeting at once!

Send Documents Easily With One-touch Buttons

Register an often used destination to a one-touch button with [Register One-Touch], and save time!

Easy Address Editing from Your Computer

Address Book Management Tools

You can access the machine from your computer with the Remote UI, enabling you to edit addresses easily with the keyboard.

See "Registering Destinations" in the User's Guide.

See "Managing the Machine from a Computer (Remote UI)" in the User's Guide.

Silhouette of a person in motion against a solid orange background (no text or symbols)

And More! A Variety of Features

There are many more helpful features that are not mentioned in this guide. For details, see the User's Guide.

Change Machine Settings Remotely from Your Computer

OFF!O

Use the "Remote UI" function to edit the address book, check consumable status, and more from your computer.

See "Managing the Machine from a Computer (Remote UI)" in the User's Guide.

- Prevent Security Leaks with Document Security

Illustration of a key, padlock, and document (no text or symbols)

Password your documents with the Encrypted Secure Print mode. This feature is perfect for protecting important documents.

See "Advanced Functions for Printing" in the User's Guide.

Print Two-Sided ID Cards on One Side of Paper

Diagram illustrating document processing workflow with clipboard, checklist, and checkmark indicators

Check IDs easily by copying both sides of an ID and printing them to a single piece of paper with [Copy ID Card].

See "Making ID Card Copies" in the User's Guide.

Advanced Paper Saving Options

Diagram showing a 3D block being converted to a folded paper sheet (no text or symbols present)

Print up to an incredible 8 pages of original documents on a single sheet of paper with [2-Sided] and [N on 1].

See "Copying" in the User's Guide.

Illustration of a hand pressing down on a computer screen with circular buttons (no text or symbols)

One-touch Settings

Register often used combinations of settings to "Quick Menu" to efficiently use them with a single button.

See "Customizing the Touch Panel Display" in the User's Guide.

Guide

Silhouette of a person in red and white against a dotted background (no text or symbols)

Illustration of a printer emitting a circular button with red arrows, next to a hand pointing at it (no text or symbols present)

Abstract geometric shapes including a yellow rectangle, a green circle with an exclamation mark, and a pink triangle with a symbol (no text or labels)

Red line drawing of a vintage electronic device with buttons and display (no text or symbols)

Illustration of a kitchen appliance with a window and leaf design (no text or symbols)

Types de documents originaux compatibles

Livres, magazines

Cartes de visite

Coupures de presse

Illustration of a printer with a yellow flower inside, showing paper barcode and alignment arrows (no text or symbols)

Types de documents originaux compatibles

Silhouette of a person in profile, wearing a hat and holding an object (no text or symbols visible)

Astuces pour copier

Screenshot of a legacy Windows application interface showing file selection options with a blue upward arrow overlay.

Stacked sheets of paper with a small grid pattern on the right side, no text or symbols present.

Densité

Illustration of two stacked rectangular sheets with a blue arrow indicating transformation or alignment (no text or symbols)

Illustration of a printer and three overlapping documents labeled A, B, C (no text or symbols on the devices themselves)

Type d'original

Illustration of an open book, a photo collage, and a magazine with city skyline (no text or symbols visible)

Silhouette of a person sitting in a chair, holding an object (no text or symbols visible)

Properties Name: Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description Description

Illustration of two stacked rectangular blocks with striped patterns, one being folded and the other partially filled (no text or symbols)

Mise en page

Two 3D rectangular blocks with striped surfaces, one showing a pink arrow indicating transformation or alignment (no text or symbols)

Illustration of a printer and three stacked documents labeled A, B, C (no text or symbols on the devices themselves)

Silhouette of a person standing against a green background (no text or symbols)

Astuces pour le fax

=0123456789 OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK Cancel Add OK

Silhouette of a person standing against a textured background (no text or symbols)

Add Add (Add/Add) Delete Add Formal Add Add Delete Formal Add Formal Add

Menu principal Order use knockbox Enregister Cone Fix Line of interaction Line of interaction Architectoregents Ride Low line Impression Distressed

Illustration of a printer, USB flash unit, and computer monitor (no text or symbols)

Silhouette of a human figure in profile, walking pose against a teal background (no text or symbols)

representation.fund Name: address: p500 address: p500.com Composite version: Add Delete

Illustration of a hand pointing at a control panel (no text or symbols)

Cancel ad instances Quota de question Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instances Cancel ad instance

Silhouette of a person standing against a solid orange background (no text or symbols)

HDRS TENSION L HORS TENSION L

Illustration of a key, lock, and document (no text or symbols)

Diagram illustrating document review process with clipboard, checklist, and signature, alongside icons for ID card and email.

Diagram showing a 3D block being converted to a 2D grid notebook (no text or symbols present)

Illustration of a hand pressing down on a device with circular components (no text or symbols)

Réglages 1 touche

Silhouette of a person in red and white, no text or symbols visible

Illustration of a printer and a hand interacting with a circular button, no text or symbols present

Abstract geometric shapes including a red circle with a black diamond, yellow rectangle, and pink triangle on a light background (no text or symbols)

Red line drawing of a computer with control panel and buttons (no text or symbols)

Illustration of a kitchen appliance with a window and fan (no text or symbols)

Illustration of a printer with a yellow flower inside, showing paper cutting through it (no text or symbols)

Kompatible Originaldokumenttypen

Silhouette of a person in profile, wearing a white top and blue patterned background (no text or symbols)

Stacked sheets of paper with a magnified inset showing two different panels (no text or symbols)

Dichte

Illustration of two stacked documents with a folded paper sheet, no text or symbols present

Kopierfaktor

Verwenden Sie beim

Kopieren den

"Kopierfaktor", um

kleinen Text zwecks

Illustration of a printer and three document sheets labeled A, B, C (no text or symbols on the devices themselves)

Originaltyp

Illustration of open and closed books, a photo, and a magazine (no text or symbols visible)

Silhouette of a person sitting in a chair, holding an object (no text or symbols visible)

Import Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Export Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transportation Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Transport Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Product Export to Output

Illustration of two rectangular blocks with striped patterns, one partially submerged and the other partially submerged (no text or symbols)

Seitenlayout

Two 3D rectangular blocks with internal grating, one with a pink arrow indicating transformation or alignment (no text or symbols)

Silhouette of a person standing against a green background (no text or symbols)

Tipps für das Faxen

Silhouette of a person standing against a patterned background (no text or symbols)

Business and Services Auto Cluster Auto + 200 for Auto Formal Auto Displaying Displaying Displaying

Illustration of a printer, USB flash unit, and desktop computer (no text or symbols)

Silhouette of a walking human figure against a dotted background (no text or symbols)

Screenshot of a mobile app interface showing a finger pointing to a red 3D cube with icons and text labels.

UserMapProject Manager User as a software manager Employee Manager Edit process Edit process management

Illustration of a hand pointing at a computer monitor (no text or symbols visible)

Silhouette of a person in motion against a solid orange background (no text or symbols)

Illustration of a key, padlock, and document (no text or symbols)

Diagram illustrating document processing workflow with clipboard, checklist, and signature checkmark

Two 3D block diagrams showing a striped surface and a rolled-up sheet of paper, with no text or symbols present.

Illustration of a hand pressing down on a device with circular components (no text or symbols)

Silhouette of a person in profile against a red dotted background (no text or symbols)

Illustration of a printer and a hand interacting with a circular button (no text or symbols)

Abstract geometric shapes including a yellow rectangle, a green circle with an exclamation mark, and a pink triangle with a symbol (no text or labels)

Red line drawing of a vintage electronic device with buttons and display (no text or symbols)

Illustration of a kitchen appliance with a window showing a leaf design and a red arrow pointing to the lid (no text or symbols)

Illustration of a printer with a yellow flower inside, showing paper barcode and alignment arrows (no text or symbols)

Silhouette of a person in profile against a blue dotted background (no text or symbols)

Stacked sheets of paper with a magnified inset showing a grid pattern (no text or symbols)

Densità

Illustration of two stacked documents with a folded paper binding (no text or symbols)

Illustration of a printer and three document sheets labeled A, B, C (no text or symbols on the devices themselves)

Tipo di originale

Illustration of a newspaper with photos and an open book, no visible text or symbols

Silhouette of a person sitting on a chair, holding an object (no text or symbols visible)

Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Current Settings Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total (100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(100%) Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5%(1) Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.5% Total(1) 25.6% Total(1) 25.6% Total(1) 25.6% Total(1) 25.6% Total(1) 25.6% Total(1) 25.6% Total(1) 25.6% Total(1) 25.6% Total(1) 25.6% Total(1) 25.6% Total(1) 25.7% Total(1) 25.7% Total(1) 25.7% Total(1) 25.7% Total(1) 25.7% Total(1) 25.7% Total(1) 25.8% Total(1) 25.8% Total(1) 25.8% Total(1) 25.8% Total(1) 25.8% Total(1) 25.8% Total(1) 25.9% Total(1) 25.9% Total(1) 26.0% Total(1) 26.0% Total(1) 26.0% Total(1) 26.0% Total(1) 26.0% Total(1) 26.0% Total(1) 26.3% Total(1) 26.3% Total(1) 26.3% Total(1) 26.3% Total(1) 26.3% Total(1) 26.4% Total(1) 26.4% Total(1) 26.4% Total(1) 26.4% Total(1) 26.4%(3) Total(1) 26.4%(3) Total(1) 26.4%(3) Total(1) 26.4%(3) Total(1) 26.4%(3) Total(1) 26.4%(3) Total(1) 26.4%(3) Total(1) 26.4%(3) Total(1) 26.4%(3) Total(1)

Silhouette of a person standing against a green background (no text or symbols)

Consigli per il fax

Silhouette of a person standing against a textured background (no text or symbols)

Sonsatire + Info Add Delete Add to Add Remove Add Add Delete Remove Add to Add Remove Add to Add

Illustration of a printer, USB flash unit, and desktop computer (no text or symbols)

Silhouette of a human figure in motion against a dotted background (no text or symbols)

Email: [e-mail] - Email client to: OK

Illustration of a hand pointing at a computer interface (no text or symbols visible)

Edit Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off Edit Off

Silhouette of a person standing against an orange background (no text or symbols)

E altro ancora!

Illustration of a key, lock, and document (no text or symbols)

Diagram illustrating document review process with clipboard, checklist, and red pen, showing approval steps and text fields

Two 3D diagrams showing a striped block and a rolled-up sheet of paper, with no text or symbols present.

Illustration of a hand pressing down on a device with circular components (no text or symbols)

Silhouette of a person in profile against a dotted background (no text or symbols)

Cómo usar el equipo

Illustration of a printer emitting a circular icon with red arrows, next to a hand pointing at it (no text or symbols present)

Abstract diagram with geometric shapes and colored circles (no text or symbols)

Red line drawing of a computer with control panel and buttons (no text or symbols)

Dos métodos para colocar documentos originales

Illustration of a kitchen appliance with a window display and a leaf symbol (no text or symbols)

Illustration of a printer with a yellow flower inside and a barcode on top, no text or symbols present.

Silhouette of a person in profile against a blue dotted background (no text or symbols)

Two stacked sheets of paper with a pink arrow indicating transformation or alignment (no text or symbols)

Densidad

Illustration of two stacked rectangular sheets with a lightning bolt symbol indicating compression or dislocation (no text or symbols present)

Escala de copia

Illustration of a printer and three sheet documents labeled A, B, C (no text or symbols on the devices themselves)

Tipo original

Illustration of an open book, a photo collage, and a magazine with city skyline (no text or symbols visible)

Silhouette of a seated woman holding a book, against a pink background (no text or symbols)

Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete Delete

Two 3D rectangular blocks with striped patterns, one being cut with a pink arrow (no text or symbols)

Diseño de página

Two 3D rectangular blocks with horizontal grooves, one being cut with arrows (no text or symbols)

Acabado (Clasificar)

Illustration of a printer and three stacked documents labeled A, B, C (no text or symbols on the devices themselves)

Silhouette of a person standing against a green dotted background (no text or symbols)

=0123456789 Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List Data List

Silhouette of a person standing against a textured background (no text or symbols)

Silhouette of a human figure in profile view against a dotted background (no text or symbols)

Screenshot of a software interface showing a hand interacting with a red 3D object, surrounded by various image thumbnails and labels.

2 | Pulse [Guardar destinos].

Development Area Data area Large area Small area

3 | Pulse [Guardar nuevo dest.].

Illustration of a hand pointing at a device with a screen (no text or symbols)

Silhouette of a person in motion against a solid orange background (no text or symbols)

¡Y mucho más!

Illustration of a key and padlock next to a document (no text or symbols)

Diagram illustrating document processing workflow with clipboard, checklist, and signature checkmark

Diagram showing a 3D block being converted into a rolled-up sheet (no text or symbols present)

Illustration of a hand pressing down on a device with circular components (no text or symbols)

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON U.S.A., INC.

One Canon Park, Melville, NY 11747, U.S.A.

CANON CANADA INC.

8000 Mississauga Road Brampton ON L6Y 5Z7, Canada

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

(See http://www.canon-europe.com/ for details on your regional dealer)

CANON AUSTRALIA PTY. LTD

Building A, The Park Estate, 5 Talavera Road, Macquarie Park, NSW 2113, Australia

CANON CHINA CO., LTD

2F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China

CANON SINGAPORE PTE. LTD.

1 Fusionopolis Place, #15-10, Galaxis, Singapore 138522

CANON HONGKONG CO., LTD

19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
