Introduction

Congratulations on the purchase of your new Focolare. We are convinced that you, with your passion for barbecuing and the outdoor lifestyle, will transform an average summer evening into a beautiful buona sera and your garden into a giardino.

Squadra Boretti

Read this manual carefully and keep it safe!

This manual contains specific instructions for your safety, for the assembly, operation and the maintenance of your barbecue. Use the barbecue only as directed in this manual. Common sense and caution during use are an absolute must!

Available accessories:

In order to get the most out of your Focolare Boretti offers a number of accessories: To protect your Focolare table from rain, hail, sun and dirt we advise to use a water-resistant cover. Boretti has a custom-made cover available for the Focolare under productcode BBA124. Make sure the Focolare has completely cooled down before putting on the cover. Make sure to dry the Focolare before you apply the cover and remove the cover every two weeks to check for condensation under the cover.

Boretti also has matching stools available to the Focolare (in sets of 2 pieces) under productcode BBA125 to complete the experience with friends and family on your Focolare.

Furthermore, there is a set of small feet available under Boretti productcode BBA126 which allow you to use your Focolare at lower height. This size is perfect for roasting products while sitting in your garden chair or loungeset.

Check the Boretti website (www.boretti.com) for more info on these accessories and much more.

Important safety information

Read this manual carefully and keep it safe!

1. General safety guidelines

* Before use, first read all the information contained in this guide carefully.
* Never allow children and pets in the vicinity of this barbecue.
* This barbecue may never be used by children, people with mental impairments or people who are under the influence of mind-altering substances and/or medication.
* This barbecue becomes extremely hot, extreme care and attention is required during its use.
* Always maintain as much distance as possible when lighting and operating this barbecue.
* Always keep flammable and inflammable substances, gasses, liquids and materials away from the barbecue and never let them come into direct contact with the barbecue.
* Neglecting or incorrectly complying with the instructions, precautions, warnings and dangers contained in this manual can lead to fire or explosions, to material damage and ultimately to serious physical injury or even death.
* The Focolare is an open barbecue and not an outdoor table, please take into consideration all instructions in this manual for safe use.

1.1 Assembly

* Assemble the barbecue according to the assembly drawing as contained in this manual.
* Incorrect assembly or not following the correct order of assembly, as demonstrated in the drawing, can lead to very serious situations.
* Always take care and be precise during assembly.
* All parts must be assembled as shown in the assembly drawing. If a part is missing and/or you doubt the correctness of the assembly, immediately contact Boretti.
* Never repair or replace parts of this equipment yourself unless this is expressly mentioned in this manual.

1.2 Place of use

* Only use the barbecue out of doors (outside) and in a well-ventilated environment. Never use the barbecue indoors or in a (partly) enclosed space. Toxic fumes will build up, and these can cause serious physical injury and possibly even death.
* Exclusively for domestic use and exclusively intended for the preparation of food.
* Never use the barbecue on a flammable or inflammable surface.
* Only use the barbecue on a hard, straight and stable surface that can take the weight.
* Maintain a distance of at least 3 meters between the barbecue and all flammable or inflammable materials (wood, plastic, foliage etc.) when the barbecue is in use.
* Always keep the barbecue away from petrol and/or other flammable and/or inflammable liquids, flammable gasses, flammable fumes or areas where you suspect these may be present.
* Never use the barbecue when there is a strong wind.
* The barbecue becomes extremely hot, never attempt to move it during or shortly after use.

1.3 Lighting the barbecue

Warning!

Do not use spirit or petrol for lighting or relighting! Use only firelighters complying to EN 1860-3!

* Use firelighters or a barbecue lighting fluid to light the fire.
* Only use firelighters or barbecue lighting fluid that complies with the legal requirements and always follow the manufacturer's instructions.
* The barbecue shall be heated up and the fuel kept red hot for at least 30 minutes prior to the first cooking on the barbecue.
* Never add flammable and/or inflammable liquid to warm or hot charcoal/ and/or material damage.
* Be careful when adding charcoal to an existing fire. A flare-up can lead to physical injury and/or material damage.

* Do not cook before the fuel has a coating of ash!

Warning!

This barbecue will become very hot, do not move it during operation!

* Do not use indoors!

Warning!

Keep children and pets away!

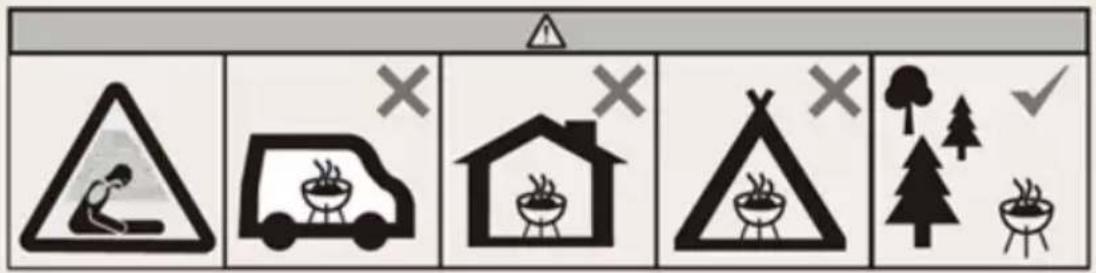

* Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

2. Parts list

1. Focolare body 2. Grill lifter 3. Door


Technical line drawing of a circular industrial machine with radial blades and central hub (no text or symbols)

Line drawing of a mechanical tool or clamp with a curved handle and mounting holes (no text or symbols)

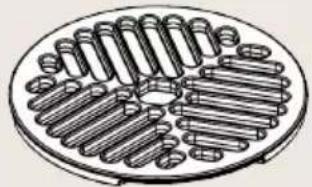

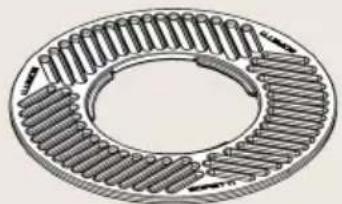

1. Cast iron outer-grill 5. Cast iron inner-grill 6. Charcoal basket


Technical illustration of a mechanical gear or cam mechanism with concentric rings and evenly spaced teeth (no text or symbols)

Technical illustration of a circular mechanical component with multiple grooves and shafts (no text or symbols)

Simple line drawing of a circular perforated object with no text or symbols

3. Assembly drawings

Step 1

Place charcoal basket into the opening of the Focolare.

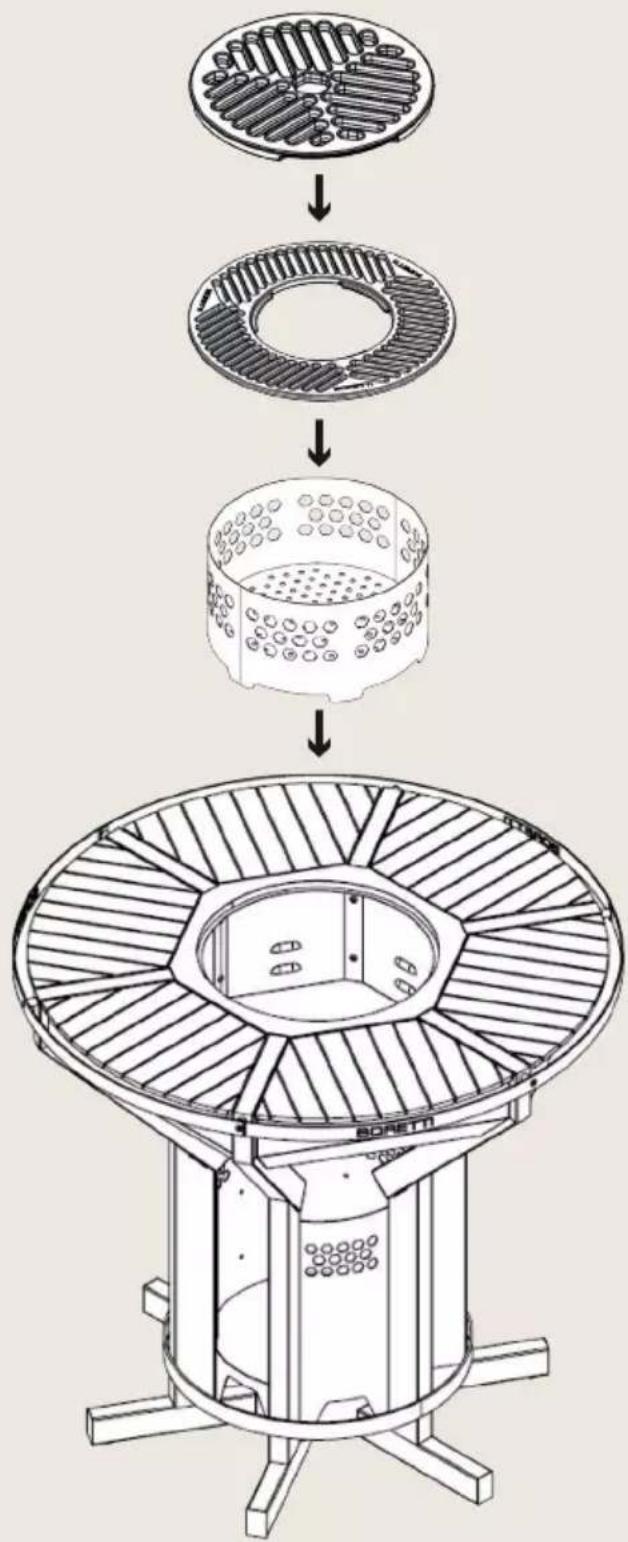

Step 2

Place both cast iron grills on top of the charcoal basket.

Technical diagram illustrating the assembly of a circular mechanical component with labeled parts and a BORETTO model.

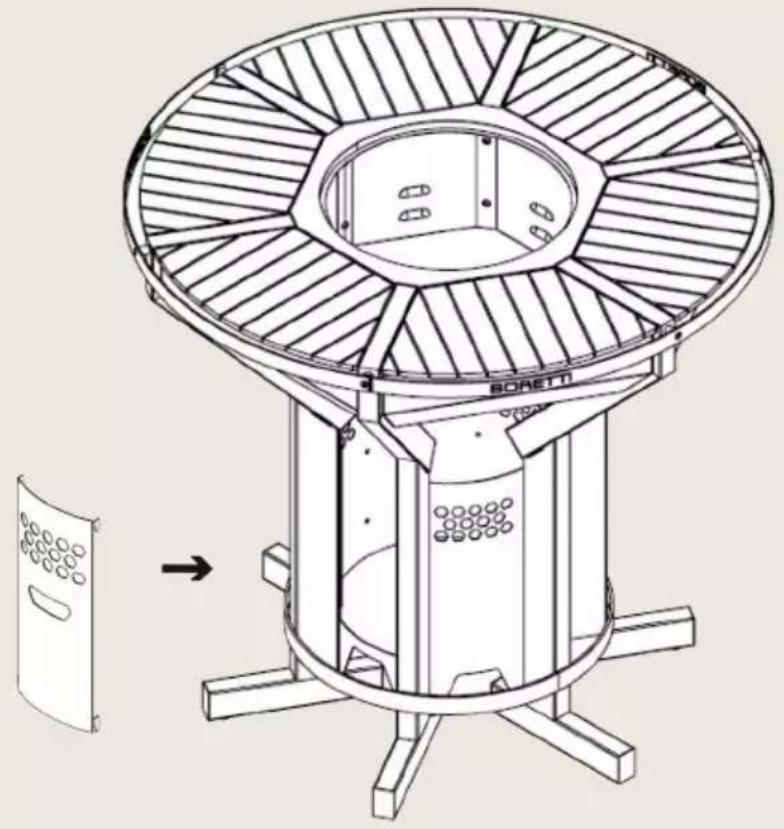

Step 3

Place door into the Focolare body.

Technical line drawing of a circular industrial fan or turbine with radial blades and a base plate, showing internal structure and component details (no text or symbols)

4. Use of your barbecue

4.1 Lighting the fire

Take off the cast iron grills of the Focolare using the included grill lifter tool. Make sure to always use the included grill lifter tool and wear heat-resistant gloves when handling the tool for the cast iron grills.

Place appropriate amount of charcoal in the central charcoal basket, place natural firelighters complying to EN 1860-3 between the pile of charcoal and ignite these. Then immediately place back the cast iron grills onto the the Focolare central grill (using the included grill lifter tool and heat-resistant gloves!) before the charcoal heats up.

Never use more than 1,6 kg lump charcoal for the Focolare.

Chimney starters, electric starters or other items suitable for the lighting of charcoal may be used to light the barbecue instead of firelighters.

Always use these according to the instructions from the manufacturer.

Never use a chimney starter in combination with barbecue lighting fluid.

Never use wood on your Focolare, we strongly advise to use charcoal only.

We recommend to use charcoal consisting of bigger lumps for the optimal results on your Focolare.

For more tips about recommended barbecue utensils or charcoal, see www.boretti.com

4.2 Controlling the fire

Building up a good fire takes both time and attention. A carefully built-up fire will result in the best return. Your barbecue will remain at temperature for longer and the use of charcoal will be kept to a minimum.

After you have lit the barbecue and it has attained the correct temperature, do not add additional charcoal. The amount of charcoal in the charcoal basket partially controls the temperature on the cast iron grills, use the matching amount of charcoal to get to desired temperature range. Never use more charcoal than indicated above in chapter 4.1.

An external thermometer can be used for an accurate reading of the temperature on the cast iron grills.

Caution!

Different parts of the Focolare can become extremely hot, always use heat-resistant gloves when operating the barbecue.

Caution!

Do not use aluminum or tin foil in the charcoal basket. This blocks the supply of air and has an immediate negative effect on the temperature.

Caution!

If required, you can add extra charcoal on the barbecue through the central grill opening with the use of the grill lifter tool and barbecue tongs while wearing heat-resistant gloves.

Never use firelighters or a barbecue lighting fluid when doing so. This could result in a flare-up which can lead to physical injury and/or material damage.

Caution!

Do not place any hot components or tools on the Focolare wooden parts as they might be damaged by the heat.

Caution!

Only prepare your food on the cast iron inner- and outer-grill, make sure your food does not come in direct contact with other parts of the Focolare before, during and after cooking.

4.3 Extinguishing the fire

* Allow all the charcoal to burn up completely. By spreading the charcoal out properly in the charcoal basket the fire will be extinguished more quickly.
* Never use water to extinguish the fire. Use of water may lead to physical injury and/or material damage.
* Do not empty the ash receptacle until all charcoal and ash have been completely extinguished and the barbecue has cooled down fully.

Caution!

The cooking grids are not manually adjustable cooking grids, and manual adjustment is not allowed when in use.

5. Maintenance of your barbecue

After the use of the barbecue we recommend that you store it under a barbecue cover or in the garage/shed. For the Focolare the custom-made BBA124 cover is available through www.boretti.com or at your local Boretti-dealer.

Only store/cover the barbecue after it has fully cooled down. Never store it in a damp space, and never store it in a space where flammable or inflammable substances are being stored.

Regularly check and tighten all nuts and screws on your Focolare to ensure it stays as stable as possible.

5.1 Cleaning your charcoal barbecue

It is recommended to clean the cast iron grills immediately after use when the grills are still a bit warm. You can use a heat-resistant barbecue brush to do this (available through www.boretti.com). To keep the cast iron grills in the best condition we also advice to occasionally apply a thin layer of (sunflower) oil. This will also help to keep food residue from sticking onto the grills.

We also recommend to clean the charcoal basket and the ash tray after every use. If needed use lukewarm water. Make sure to dry thoroughly after cleaning.

In case it is needed we recommend to clean the outer body of the charcoal barbecue with lukewarm water and a soft sponge or cloth.

DO NOT USE any abrasive cleaning detergents or soaps as this can damage the paint or finishing of your barbecue. Dry after cleaning.

Make sure to not put any heavy or hot items (including cast iron grills) on the wooden parts of the Focolare to prevent them from being damaged or scratched.

6. Environmental directive, warranty provisions & contact details

If, for whatever reason, you want to dispose of your charcoal barbecue, please take the following guidelines into account:

* Deliver the barbecue to the authorised local company for the collection of surplus household equipment. Contact your local council to find out where these collection points are located.
* This barbecue features the mark that complies with the European guidelines 2002/96EG relating to disposal of equipment. This guideline decides the standard for the collection and recycling of disposed equipment which apply to the whole European Union territory.

For barbecue accessories warranty service conditions and other questions we refer you to

www.boretti.com

You can also send questions and suggestions to

[e-mail]

Warning sign with pictograms and symbols, including a person sleeping at a table, a van, a house, a tent, and trees.

Technical line drawing of a BORETTI industrial fan with radial blades and mounting feet (no text or symbols)

BORETTI FOCOLAREBORETTI FOCOLARE

Technical line drawing of a circular industrial machine with radial blades and central hub (no text or symbols)

Line drawing of a mechanical tool or clamp with a curved handle and mounting holes (no text or symbols)

Technical illustration of a mechanical gear or cam mechanism with concentric rings and evenly spaced teeth (no text or symbols)

Technical illustration of a circular mechanical component with multiple grooves and shafts (no text or symbols)

Line drawing of a circular container with perforated interior and side supports (no text or symbols)
