USER MANUAL Ceramica Solo Large BORETTI

Black Eraser grill with textured lid and yellow warning tag (no visible text or symbols)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

EN | USER MANUAL NL | GEBRUIKSAANWIJZING DE | BENUTZERHANDBUCH FR | NOTICE D'UTILISATION IT | MANUALE DELL'UTENTE SV | BRUKSANVISNING FI | KÄYTTÖOHJE DK | BRUGERVEJLEDNING NO | BRUKERHÄNDBOK

www.boretti.com

BORETTI

Passione in Cucina

Exterior view of a gray rice cooker with textured body and yellow warning tag (no text or symbols on body)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

EN | USER MANUAL

www.boretti.com

Introduction

Congratulations on the purchase of your new barbecue. We are convinced that you, with your passion for barbecuing and the outdoor lifestyle, will transform an average summer evening into a beautiful buona sera and your garden into a giardino.

Squadra Boretti

Read this manual carefully and keep it safe!

This manual contains specific instructions for your safety, for the assembly, operation and the maintenance of your barbecue. Use the barbecue only as directed in this manual. Common sense and caution during use are an absolute must!

Important safety information

Read this manual carefully and keep it safe!

1. General safety guidelines

* Before use, first read all the information contained in this guide carefully.
* N ever allow children and pets in the vicinity of this barbecue.
* This barbecue may never be used by children, people with mental impairments or people who are under the influence of mind-altering substances and/or medication.
* This barbecue becomes extremely hot, extreme care and attention is required during its use.
* Always maintain as much distance as possible when lighting and operating this barbecue.
* Always keep flammable and inflammable substances, gasses, liquids and materials away from the barbecue and never let them come into direct contact with the barbecue.
* Neglecting or incorrectly complying with the instructions, precautions, warnings and dangers contained in this manual can lead to fire or explosions, to material damage and ultimately to serious physical injury or even death.

1.1 Assembly

* Assemble the barbecue according to the assembly drawing as contained in this manual.
* Incorrect assembly or not following the correct order of assembly, as demonstrated in the drawing, can lead to very serious situations.
* Always take care and be precise during assembly.
* All parts must be assembled as shown in the assembly drawing. If a part is missing and/or you doubt the correctness of the assembly, immediately contact Boretti.
* Never repair or replace parts of this equipment yourself unless this is expressly mentioned in this manual.

1.2 Place of use

* Only use the barbecue out of doors (outside) and in a well-ventilated environment. Never use the barbecue indoors or in a (partly) enclosed space. Toxic fumes will build up, and these can cause serious physical injury and possibly even death.
* Exclusively for domestic use and exclusively intended for the preparation of food.
* Never use the barbecue on a flammable or inflammable surface.
* Only use the barbecue on a hard, straight and stable surface that can take the weight.
* Maintain a distance of at least 3 meters between the barbecue and all flammable or inflammable materials (wood, plastic, foliage etc.) when the barbecue is in use.
* Alwa ys keep the barbecue away from petrol and/or other flammable and/or inflammable liquids, flammable gasses, flammable fumes or areas where you suspect these may be present.
* Never use the barbecue when there is a strong wind.
* The barbecue becomes extremely hot, never attempt to move it during or shortly after use.

1.3 Lighting the barbecue

Warning!

Do not use spirit or petrol for lighting or relighting! Use only firelighters complying to EN 1860-3!

* Use fir elighters or a barbecue lighting fluid to light the fire.
* Only use firelighters or barbecue lighting fluid that complies with the legal requirements and always follow the manufacturer's instructions.
* The barbecue shall be heated up and the fuel kept red hot for at least 30 minutes prior to the first cooking on the barbecue.
* The lid may only be closed once the charcoal have turned to ashes/the liquid has burnt off. Closing the lid too soon can lead to smoke from the flammable liquid building up in the barbecue. When the lid is opened, this can result in a flare-up or explosion and this can lead to physical injury and/or material damage.
* Ne ver add flammable and/or inflammable liquid to warm or hot charcoal/ and/or material damage.
* Be car eful when adding charcoal to an existing fire. A flare-up can lead to physical injury and/or material damage.
* Ne ver use the barbecue if, as well as the ash receptacle (if applicable), the grease receptacle is missing too.

* Do not cook before the fuel has a coating of ash!

Warning!

This barbecue will become very hot, do not move it during operation!

* Do not use indoors!

Warning!

Keep children and pets away!

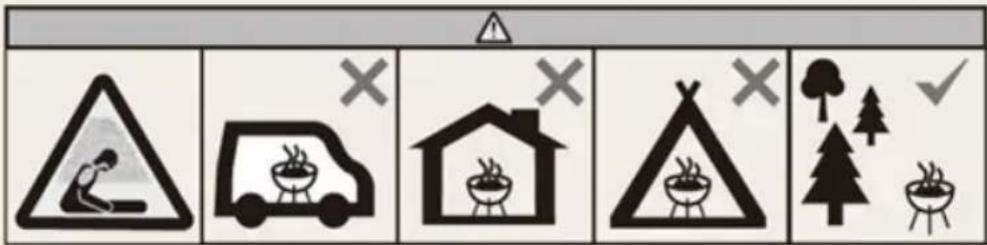

* Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

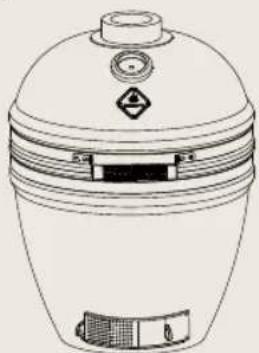

2. Parts list

①(1x)

10(1x)

16.1 (3x)

②(1x)

⑪(1x)

16.2 (1x)

③(1x)

12(1x)

A _(2x) M5x45

④(1x)

⑬(1x)

B (2x) M5

C (6x) M6

⑤(2x)

⑭(1x)

D (6x) M6x14

⑥(1x)

⑦ (2x)

⑧ (1x)

15(1x)

Line drawing of a cylindrical water heater with lid and control panel (no text or symbols)

⑨(1x)

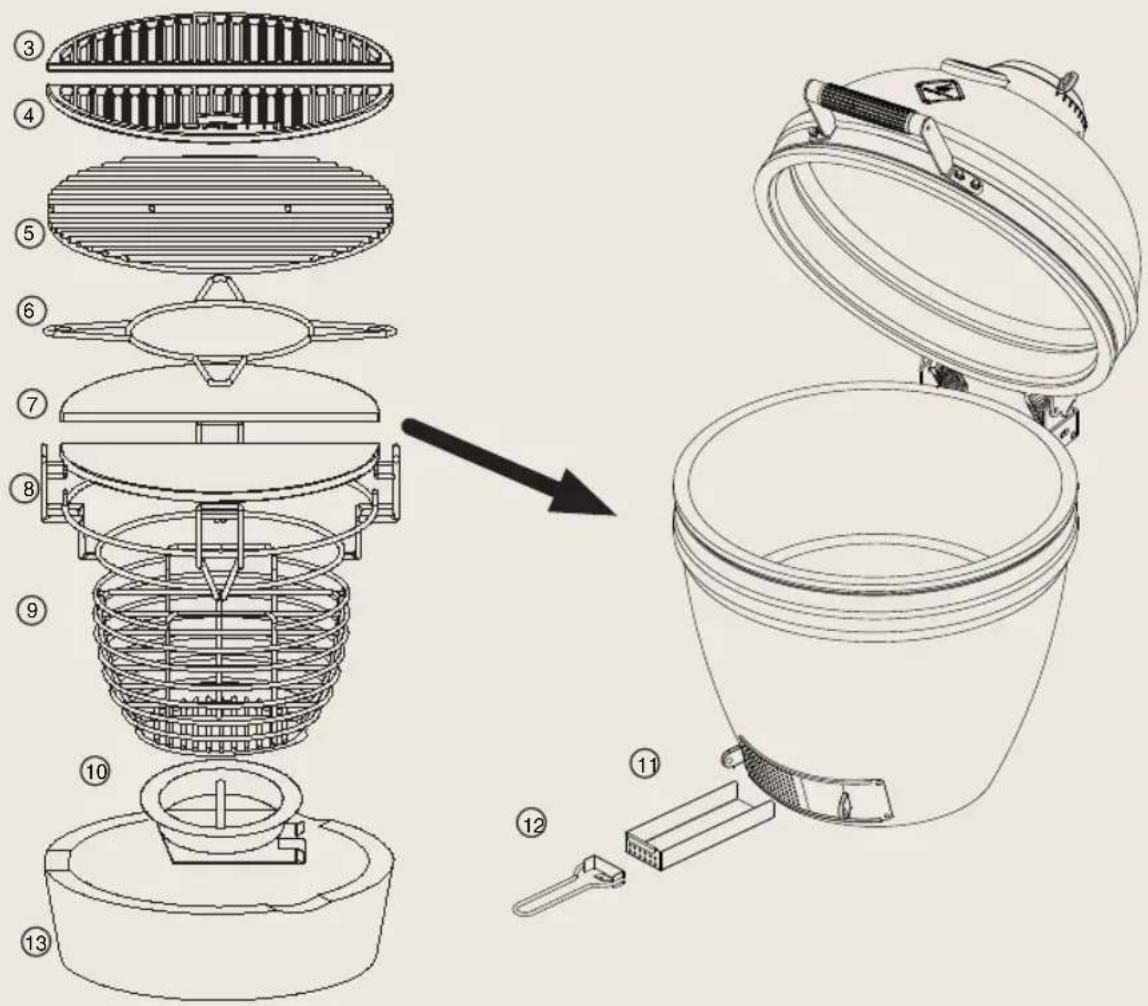

3. Assembly drawings

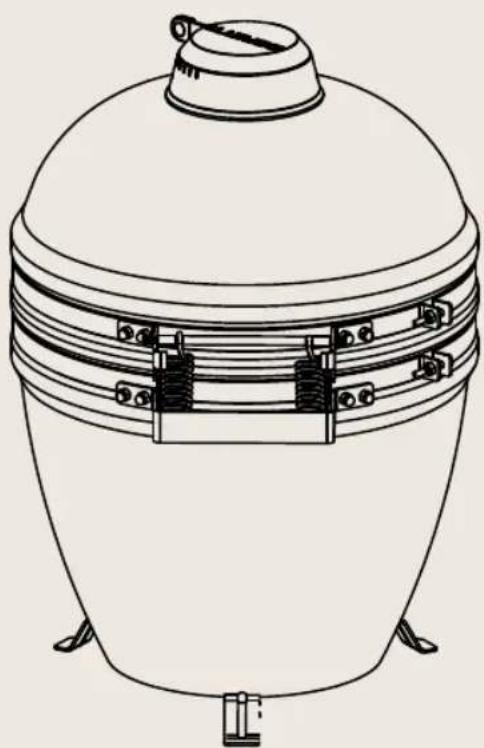

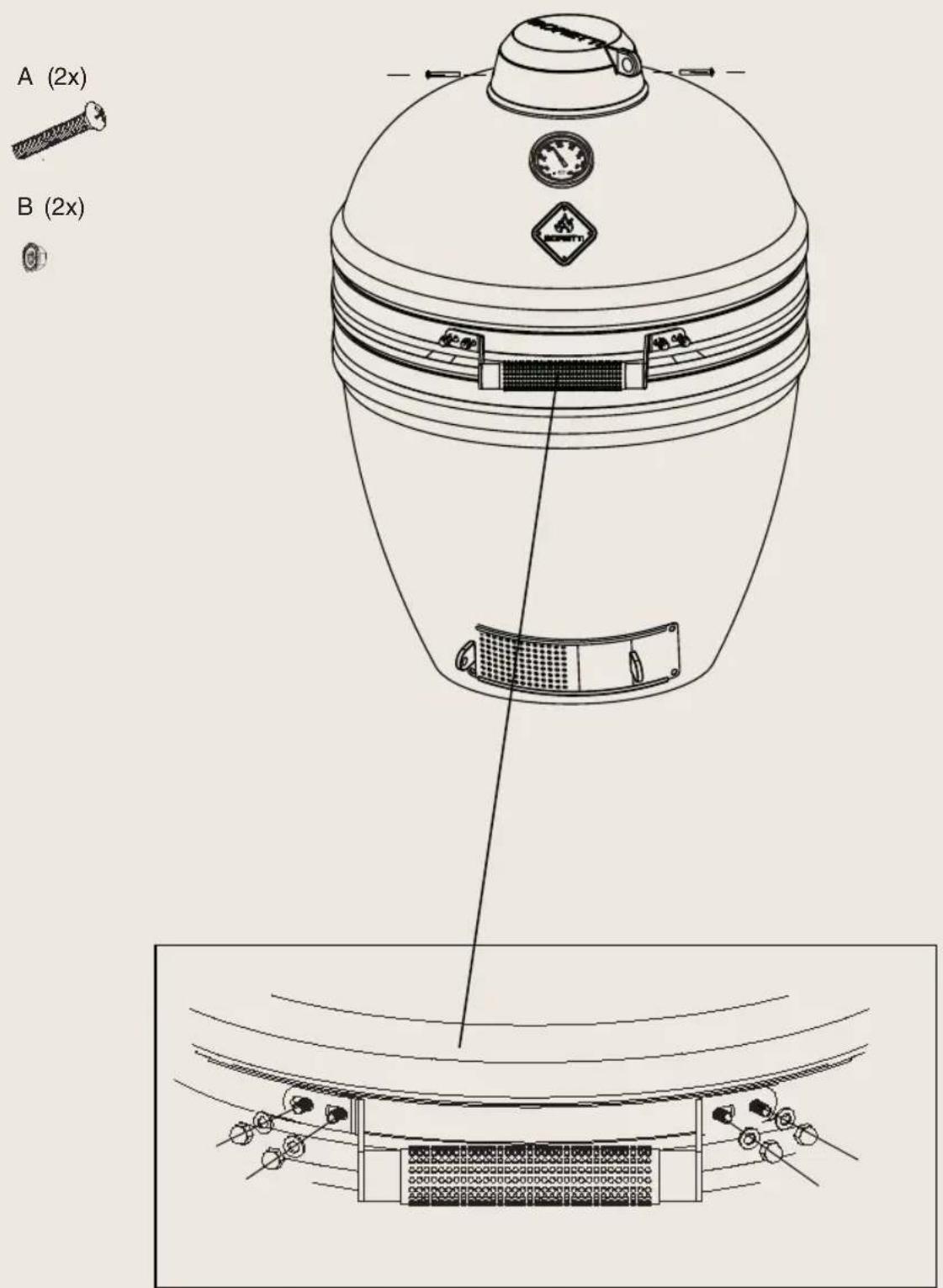

Step 1

Technical line drawing of a portable oven with control panel and top-mounted air vent (no text or symbols)

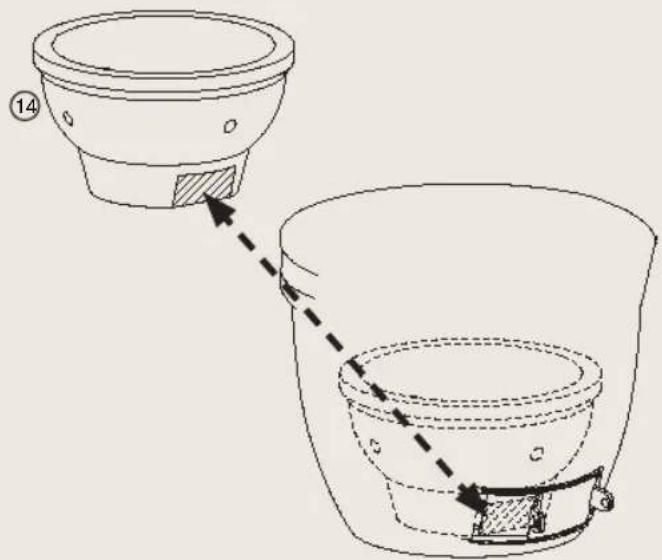

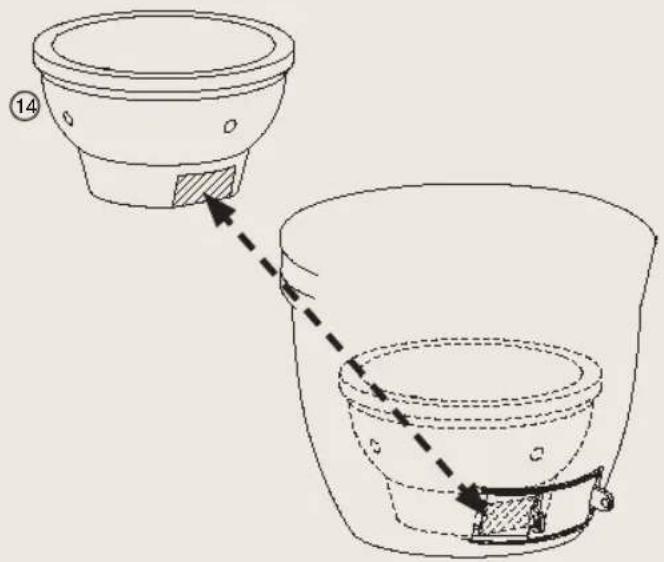

Step 2 - Check and adjust

Diagram showing a bucket being inserted into a container with labeled parts and directional arrows

Step 3

Technical diagram of a cooking pot with numbered parts and an arrow indicating assembly or transformation.

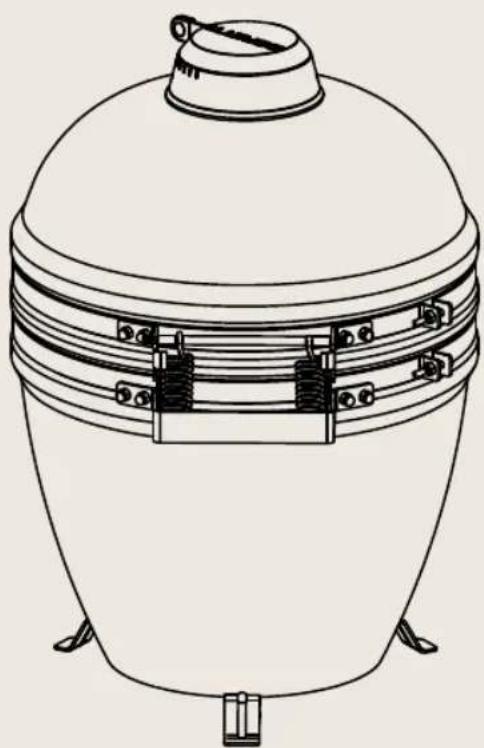

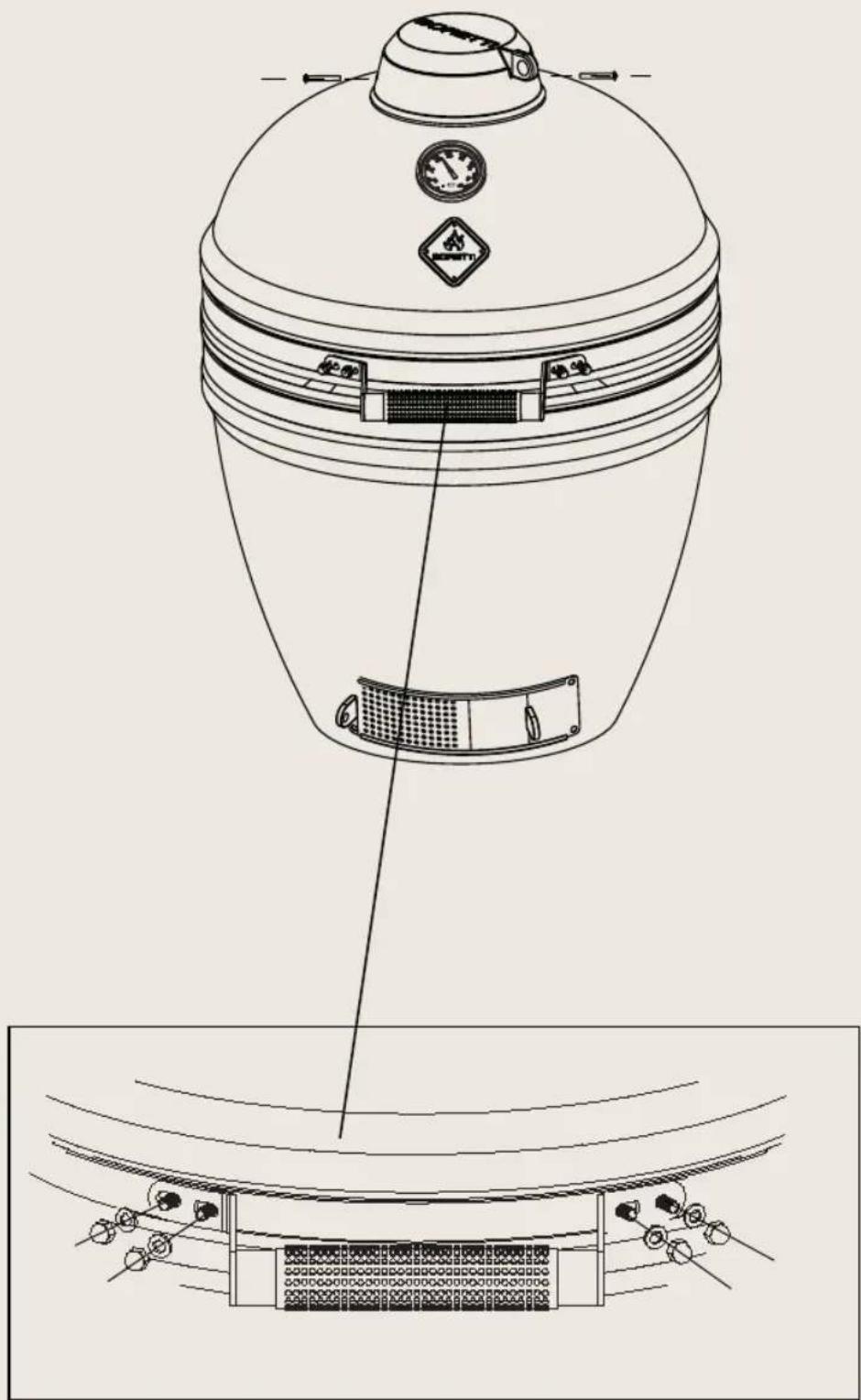

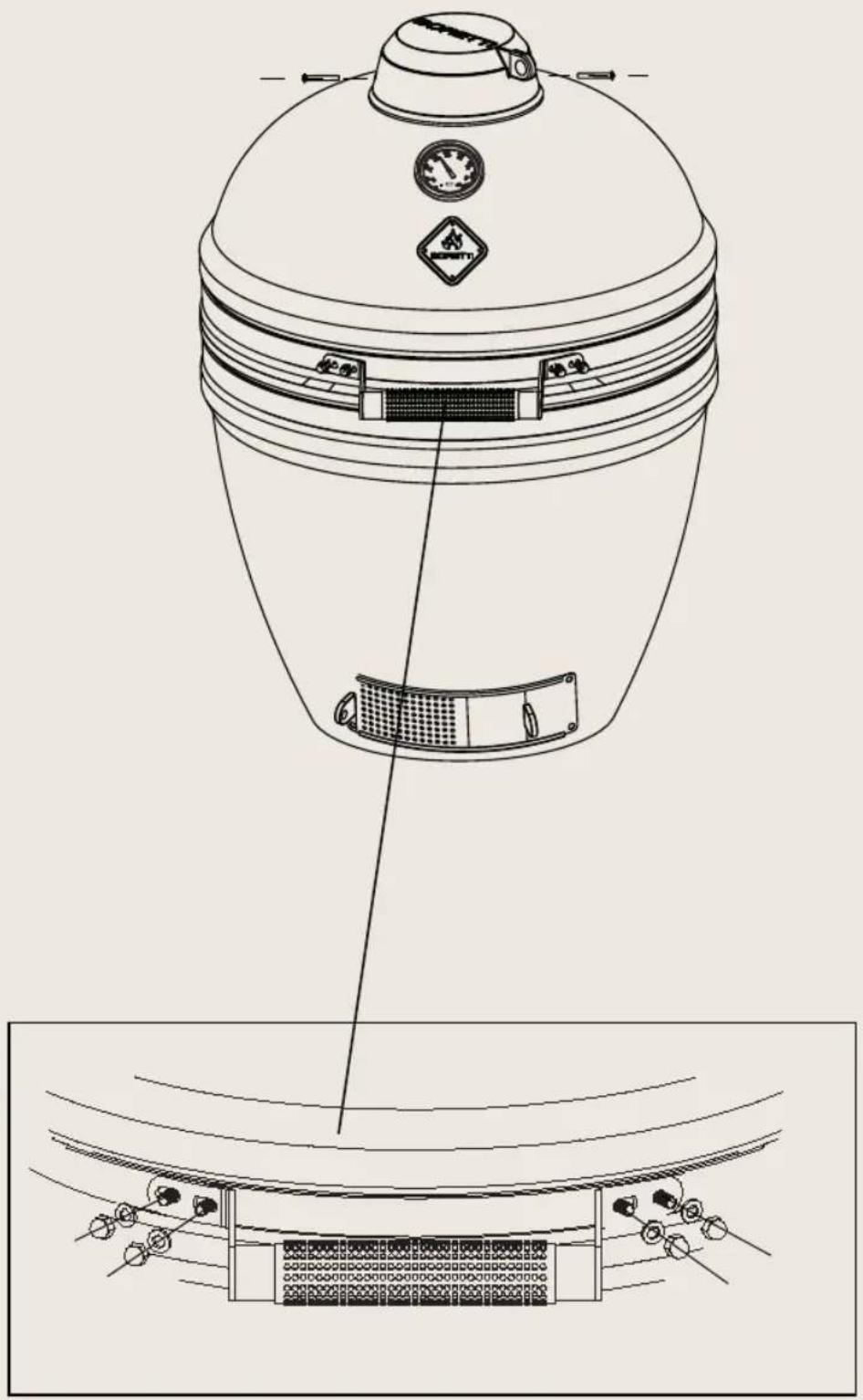

Step 4
C (6x)

D (6x)

Ceramica Large

a Large

Ceramica Medium

. Medium

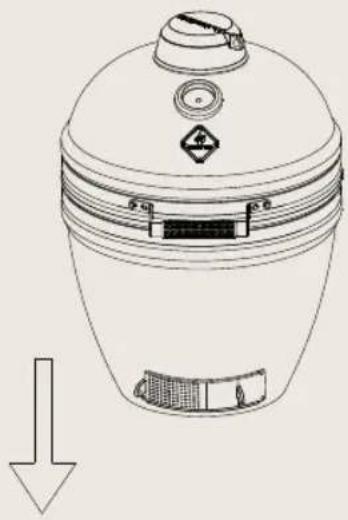

Line drawing of a cylindrical water heater with a downward arrow indicating flow or movement (no text or symbols)

Technical line drawing of a three-angle mechanical bracket with mounting feet (no text or symbols)

Line drawing of a simple K-9 rice cooker with no text or symbols

Line drawing of a cylindrical heating pot with lid and three legs (no text or symbols)

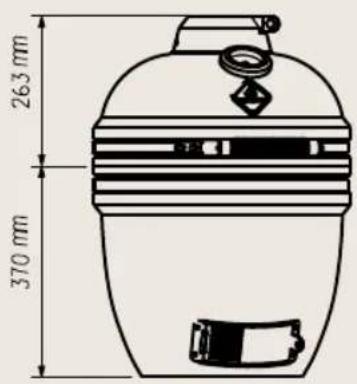

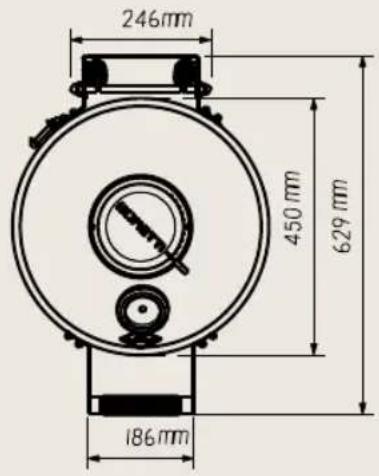

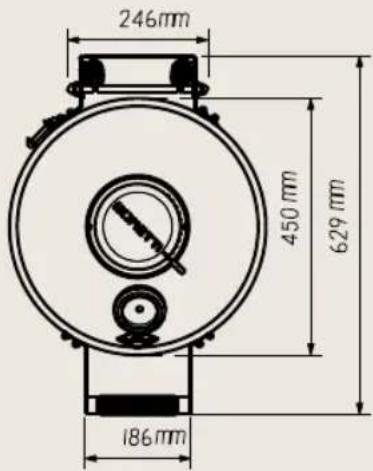

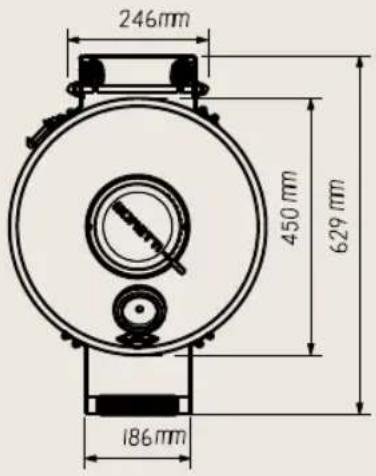

246mm 450 mm 629 mm 186 mm

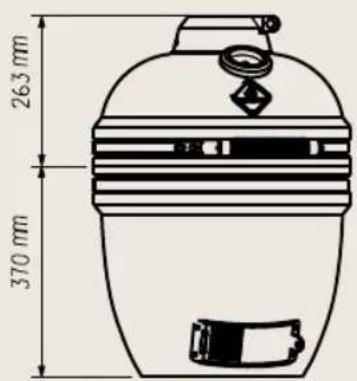

263 mm 370 mm

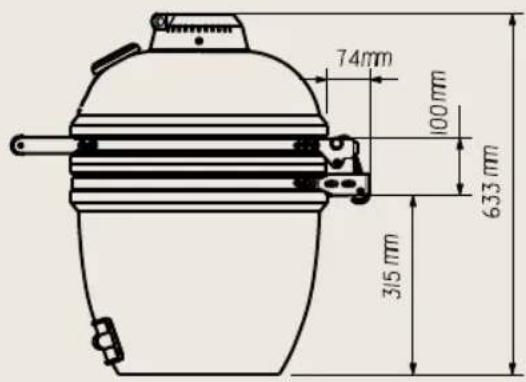

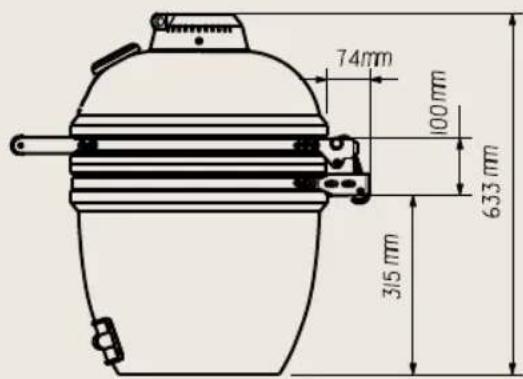

74mm 100mm 633mm 315mm

Ceramica Solo Medium

Warning:

Every Boretti Ceramica is handmade and unique. Therefore the exact dimensions of every single product can differ. Exact dimensions of your product can differentiate from above dimensions. Please carefully measure your Ceramica Solo and optionally consult an expert before building in your Ceramica Solo into your outdoor kitchen.

Please also keep in mind that the product will expand and shrink due to temperature changes; keep sufficient space to accommodate these changes. Users of the information in this manual cannot derive any rights or claim the exact correctness and completeness of the outlined dimensions.

175 mm Φ440mm 105 mm 265 mm 30 mm 50 mm

Ceramica Solo Medium

Warning:

Above drawings are an indictation on how to built-in your Ceramica Solo Medium. Exact dimensions on your specific product can be different on your product. Carefully measure your Ceramica Solo before building in and consult an expert on how to built-in the Ceramica Solo into your outdoor kitchen.

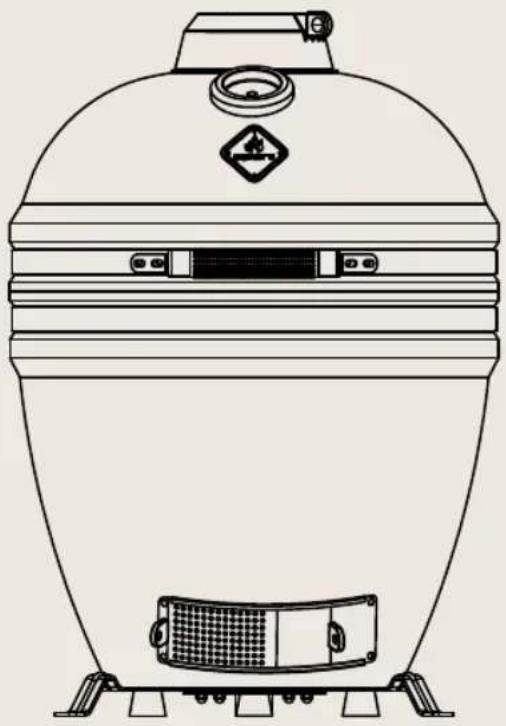

The Ceramica Solo includes a foot for air flow under the grill base and to prevent heat damage to your outdoor kitchen; please use this foot at all times.

Beware not to scratch the body when placing it onto the Ceramica feet. Please gently open the Ceramica lid to prevent backwards movement. If you need to lift your Ceramica Solo you should remove all the internal accessories. Beware not to scratch the body when placing it onto the Ceramica feet and it should be done by at least 2\~3 people. Then the best handholds are the back of the hinge assembly and the front, lower damper door. Make sure the lid is closed in case it drops during the movement. Be very careful when placing the Ceramica into your outdoor kitchen and ask for help to carry safely and to prevent any damage to the product.

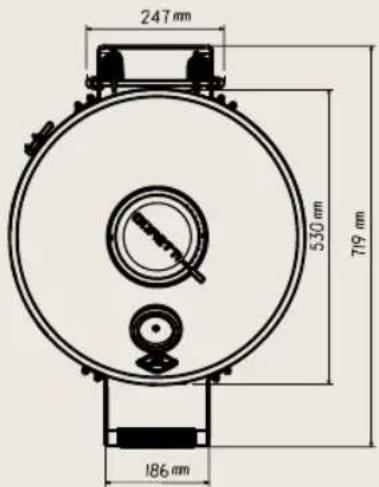

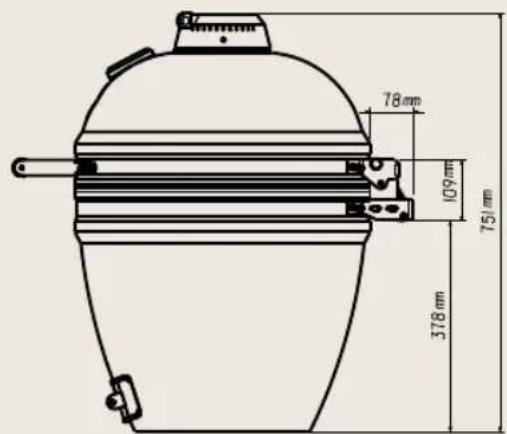

247 mm 530 mm 719 mm 186 mm

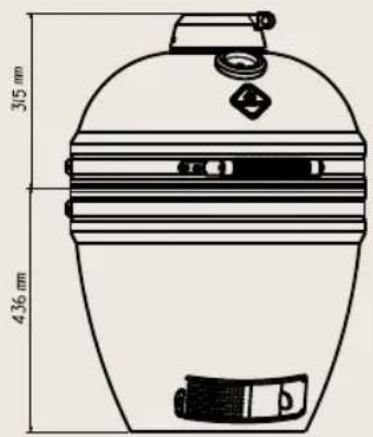

315 mm 436 mm

78 mm 109 mm 75 mm 378 mm

Ceramica Solo Large

Warning:

Every Boretti Ceramica is handmade and unique. Therefore the exact dimensions of every single product can differ. Exact dimensions of your product can differentiatie from above dimensions. Please carefully measure your Ceramica Solo and optionally consult an expert before building in your Ceramica Solo into your outdoor kitchen.

Please also keep in mind that the product will expand and shrink due to temperature changes; keep sufficient space to accommodate these changes. Users of the information in this manual cannot derive any rights or claim the exact correctness and completeness of the outlined dimensions.

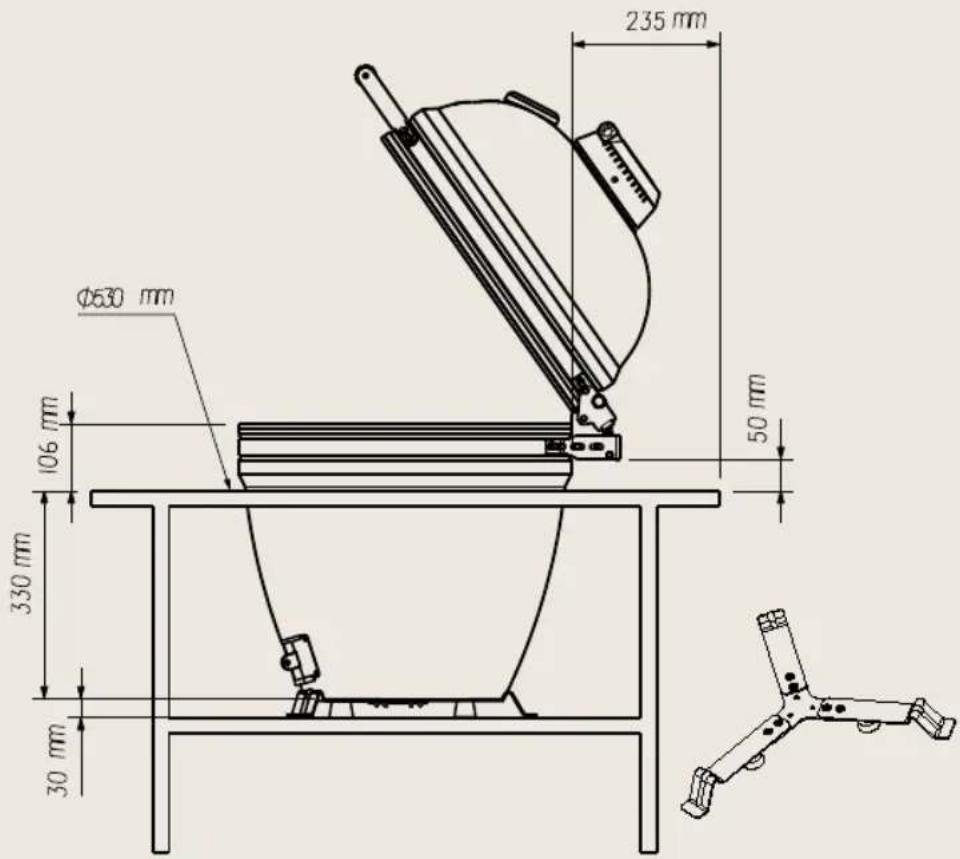

235 mm φ630 mm 106 mm 330 mm 30 mm 50 mm

Ceramica Solo Large

Warning:

Above drawings are an indictation on how to built-in your Ceramica Solo Large. Exact dimensions on your specific product can be different on your product. Carefully measure your Ceramica Solo before building in and consult an expert on how to built-in the Ceramica Solo into your outdoor kitchen.

The Ceramica Solo includes a foot for air flow under the grill base and to prevent heat damage to your outdoor kitchen; please use this foot at all times.

Beware not to scratch the body when placing it onto the Ceramica feet. Please gently open the Ceramica lid to prevent backwards movement. If you need to lift your Ceramica Solo you should remove all the internal accessories. Beware not to scratch the body when placing it onto the Ceramica feet and it should be done by at least 2\~3 people. Then the best handholds are the back of the hinge assembly and the front, lower damper door. Make sure the lid is closed in case it drops during the movement. Be very careful when placing the Ceramica into your outdoor kitchen and ask for help to carry safely and to prevent any damage to the product.

Care and safe use guidelines

Slow cook / Smoke (Low temperature)	Top vent Bottom vent
Roast / Bake (Medium temperature)	Top vent Bottom vent
Grill / Sear (High temperature)	Top vent Bottom vent
Intensive heating (Max temperature)	Top vent Bottom vent

4. Use of your barbecue

4.1 Lighting the fire

Open the lid of the Ceramica and open the air inlet bottom vent and the air outlet top vent. Remove the grill racks and the ceramic deflector plates. Place lump charcoal in the appropriate charcoal basket.

Never use more than 1,2 kg lump charcoal for the Ceramica Medium.

Never use more than 2,2 kg lump charcoal for the Ceramica Large.

The charcoal basket has a divider, if divider is used we strongly advise to use 50% of above mentioned quantity for the respective Ceramica kamado.

Chimney starters, electric starters or other items suitable for the lighting of charcoal may be used to light the barbecue instead of firelighters or barbecue lighting fluid.

Always use these according to the instructions from the manufacturer.

Never use a chimney starter in combination with barbecue lighting fluid.

For the best tasting dishes, allow sufficient time for the charcoal to get warmed through and wait until any firelighters that have been used are burnt up completely. We recommend to use charcoal consisting of bigger lumps for the optimal results on your Ceramica. We advise to keep the temperature of your Ceramica Kamado below 300°C during the first three uses to heat up the ceramic parts gradually. For more tips about recommended barbecue utensils or charcoal, see www.boretti.com

4.2 Controlling the fire

Building up a good fire takes both time and attention. A carefully built-up fire will result in the best return. Your barbecue will remain at temperature for longer and the use of charcoal will be kept to a minimum.

After you have lit the barbecue and it has attained the correct temperature, you can control the temperature by making use of the air inlet and the air and the top vent. When you (partly) open the air inlet and air outlet, higher temperatures will be achieved, while the (partly) closing of the air inlet and air outlet will result in a lower temperature. This mean you can decide on the correct temperature. Use the thermometer for an accurate reading of the temperature.

Caution!

When opening the lid of the Ceramica backdraft can cause a burst of flames. Always be careful when opening the lid. Always open the lid slowly to prevent a sudden surge of oxygen leasing to a burst of flames and always make sure to wear heat-resistant gloves.

Caution!

Always make sure to were heat-resistant gloves for all handles or gripping devices (e.g. air inlet, top vent and non-adjustable cooking grids) during operation of the barbecue.

Caution!

Do not use aluminum or tin foil in the charcoal basket. This blocks the supply of air and has an immediate negative effect on the temperature.

Caution!

Leaving the air inlet bottom vent and the air outlet top vent open for too long can result in the barbecue getting too hot. Do not overheat the kamado. Grilling results will be best at moderate temperatures below 400 °C.

Caution!

If required, you can add extra charcoal during barbecuing with the use of barbecue tongs. Never use firelighters or a barbecue lighting fluid when doing so. This could result in a flare-up which can lead to physical injury and/or material damage.

4.3 Extinguishing the fire

* Allow all the charcoal to burn up completely. By spreading the charcoal out properly in the charcoal basket the fire will be extinguished more quickly.
* Close the air inlet bottom-vent and the air outlet top-vent of the Ceramica Kamado completely; by blocking the supply of oxygen, the fire will be extinguished more quickly.
* Never use water to extinguish the fire. Use of water may lead to physical injury and/or material damage.
* Do not empty the ash receptacle until all charcoal and ash have been completely extinguished and the barbecue has cooled down fully.

Caution!

The cooking grids are not manually adjustable cooking grids, and manual adjustment is not allowed when in use.

5. Maintenance of your barbecue

After the use of the barbecue we recommend that you store it under a barbecue cover or in the garage/shed. For both Ceramica sizes there are custom-made covers available through www.boretti.com or at your local Boretti-dealer.

Only store the barbecue after it has fully cooled down. Never store it in a damp space, and never store it in a space where flammable or inflammable substances are being stored.

Regularly check and tighten all nuts and screws on your Ceramica to ensure it stays as stable as possible.

5.1 Cleaning your charcoal barbecue

It is recommended to clean the grill racks immediately after use when the grills are still a bit warm. You can use a barbecue brush to do this (available through www.boretti.com). To keep the cast iron grills in the best condition we also advice to occasionally apply a thin layer of (sunflower) oil. This will also help to keep food residue from sticking onto the grills.

We also recommend to clean the charcoal basket and the ash tray after every use. If needed use lukewarm water. Make sure to dry thoroughly after cleaning.

In case it is needed we recommend to clean the outer body of the charcoal barbecue with lukewarm water and a soft sponge or cloth.

DO NOT USE any abrasive cleaning detergents or soaps as this can damage the paint or finishing of your barbecue. Dry after cleaning.

The inside of your Ceramica is best cleaned by burning it "clean" at high temperatures. This will remove most fat and dirt. Try to achieve a temperature around 250-300°C for at least 30 minutes to get the dirt and fat away. DO NOT clean the inside of your Ceramica kamado with any liquids, cleaning detergents or brushes or as this can damage the ceramic or can influence the taste of your dishes prepared on the Ceramica.

6. Environmental directive, warranty provisions & contact details

If, for whatever reason, you want to dispose of the igniter, observe the following guidelines:

* Take the igniter to your local domestic appliance collection point. Your municipal authority can tell you where these collection points are.
* This igniter is marked with the WEEE symbol under EU Directive 2002/96 on waste electrical and electronic equipment. This directive sets standards for the collection and recycling of waste equipment that apply throughout the territory of the European Union.

For barbecue accessories, warranty and service provisions, and other questions, please visit

www.boretti.com

You can also email your questions and suggestions to

[e-mail]

Warning symbols for outdoor activities including cooking, heating, and gathering with corresponding icons

BORETTI

Passione in Cucina

Exterior view of a gray rice cooker with textured body and yellow warning tag (no text or symbols on body)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

Line drawing of a cylindrical water heater with lid and control panel (no text or symbols)

⑨ (1x)

3. Montagetekeningen

Stap 1

Technical line drawing of a portable grill with top and bottom views, showing internal components and control panel (no text or symbols)

Diagram showing a bucket being inserted into a container with labeled parts and directional arrows

Stap 3

Technical diagram of a cooking pot with numbered parts and an arrow indicating assembly or transformation.

Stap 4
C (6x)

D (6x)

Ceramica Large

a Large

Ceramica Medium

. Medium

Line drawing of a cylindrical water heater with a downward arrow indicating flow or movement (no text or symbols)

Technical line drawing of a three-angle mechanical bracket with mounting feet (no text or symbols)

Line drawing of a standard Gorka grill with no text or symbols

Line drawing of a cylindrical heating pot with a lid and three legs (no text or symbols)

246mm 450 mm 629 mm 186 mm

263 mm 370 mm

74mm 100mm 633mm 315mm

Ceramica Solo Medium

Waarschuwing:

78mm 109mm 751mm 378mm

Ceramica Solo Large

Waarschuwing:

Front view of a rectangular electronic device with internal components and a coiled spring (no text or symbols visible)

Technical line drawing of a rectangular mechanical component with mounting holes and internal components (no text or symbols)

Warning sign with pictograms and symbols, indicating hazard or caution in a campfire safety scenario

Blank white image with no visible content or text

BORETTI

Passione in Cucina

Black Eraser grill with textured surface and yellow warning tag (no visible text or symbols)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

DE | BENUTZERHANDBUCH

www.boretti.com

Einführung

Line drawing of a cylindrical water heater with lid and control panel (no text or symbols)

⑨ (1x)

Diagram showing a bucket being inserted into a container with labeled parts and directional arrows

Schritt 3

Technical diagram of a cooking pot with numbered parts and an arrow indicating assembly or transformation.

Schritt 4

C (6x)

D (6x)

Ceramica Large

a Large

Ceramica Medium

. Medium

Line drawing of a cylindrical water heater with lid and side panel, showing internal structure and a downward arrow (no text or symbols)

Technical line drawing of a three-angle mechanical bracket with mounting holes (no text or symbols)

Line drawing of a standard Gorka grill with top and side panels (no text or symbols)

Line drawing of a cylindrical object with a dome top and three legs, attached with a coiled spring (no text or symbols)

246mm 450 mm 629 mm 186 mm

263 mm 370 mm

74mm 100mm 633mm 315mm

Ceramica Solo Medium

Achtung:

78mm 109mm 751mm 378mm

Ceramica Solo Large

Achtung:

Front view of a rectangular electronic device with internal components and a coiled spring (no text or symbols visible)

Braten/Backen (Mittlere Temperatur)

Pure technical line drawing of a rectangular mechanical component with mounting holes and internal slots (no text or symbols)

Warning sign with pictograms and symbols indicating workplace safety, transportation, heating, and tree-based activities

BORETTI

Passione in Cucina

Black Eraser grill with textured surface and yellow warning tag (no visible text or symbols)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

FR | NOTICE D'UTILISATION

www.boretti.com

Introduction

Line drawing of a cylindrical water heater with lid and control panel (no text or symbols)

⑨ (1x)

Technical line drawing of a portable grill with top and bottom views, showing internal components and control panel (no text or symbols)

Diagram showing a bucket being inserted into a container with labeled parts and directional arrows

Étape 3

Technical diagram of a cooking pot with numbered parts and an arrow indicating assembly or transformation.

Étape 4
C (6x)

D (6x)

Ceramica Large

a Large

Ceramica Medium

. Medium

Line drawing of a cylindrical water heater with lid and cooling fins, showing internal structure and a downward arrow (no text or symbols)

Technical line drawing of a three-angle mechanical bracket with mounting holes (no text or symbols)

Line drawing of a simple kiosk with a flame logo on top, showing front and side views (no text or symbols)

Line drawing of a cylindrical heating pot with a lid and three legs (no text or symbols)

246mm 450 mm 629 mm 186 mm

263 mm 370 mm

74mm 100mm 633mm 315mm

Ceramica Solo Medium

Avertissement :

Warning sign with pictograms and symbols indicating hazard, absence, and correct/incorrect safety

BORETTI

Passione in Cucina

Gray Erking grill with textured surface and yellow warning tag (no visible text or symbols)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

Line drawing of a portable gas stove with lid and control panel (no text or symbols)

⑨ (1x)

Diagram showing a bucket being inserted into a container with labeled parts and directional arrows

Fase 3

Technical diagram of a cooking pot with numbered parts and an arrow indicating assembly or transformation.

Fase 4

C (6x)

D (6x)

Ceramica Large

a Large

Ceramica Medium

. Medium

Line drawing of a cylindrical water heater with lid and side panel, showing internal structure and a downward arrow (no text or symbols)

Technical line drawing of a three-angle mechanical bracket with mounting holes (no text or symbols)

Line drawing of a simple kiosk with a flame logo on top, showing front and side views (no text or symbols)

Line drawing of a cylindrical object with a dome top and three legs, attached with a coiled spring (no text or symbols)

246mm 450 mm 629 mm 186 mm

263 mm 370 mm

74mm 100mm 633mm 315mm

Ceramica Solo Medium

Avvertenza:

Front view of a rectangular electronic device with internal components and a coiled spring (no text or symbols visible)

Pure technical line drawing of a rectangular mechanical component with mounting holes and internal slots (no text or symbols)

4. Uso del barbecue

Warning sign with pictograms and symbols indicating hazard, absence, and correct/incorrect safety

BORETTI

Passione in Cucina

Exterior view of a gray rice cooker with textured surface and yellow warning tag (no text or symbols visible)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

SV | BRUKSANVISNING

www.boretti.com

Inledning

Line drawing of a cylindrical water heater with lid and control panel (no text or symbols)

⑨ (1x)

3. Monteringsritningar

Steg 1

Technical line drawing of a portable oven with control panel and base panel, showing internal components (no text or symbols)

Diagram showing a bucket being inserted into a container with labeled parts and directional arrows

Steg 3

Technical diagram of a cooking pot with numbered parts and an arrow indicating assembly or transformation.

Steg 4
C (6x)

D (6x)

Ceramica Large

a Large

Ceramica Medium

. Medium

Line drawing of a cylindrical water heater with a downward arrow indicating flow or movement (no text or symbols)

Technical line drawing of a three-angle mechanical bracket with mounting holes (no text or symbols)

Line drawing of a simple kiosk with a flame logo on top, showing front and side views (no text or symbols)

Line drawing of a cylindrical object with a dome top and three legs, attached with a coiled spring (no text or symbols)

246mm 450 mm 629 mm 186 mm

263 mm 370 mm

74mm 100mm 633mm 315mm

Ceramica Solo Medium

Varning:

Front view of a rectangular electronic device with internal components and a coiled spring (no text or symbols visible)

Pure technical line drawing of a rectangular mechanical component with mounting holes and internal structure (no text or symbols)

Warning sign with pictograms and symbols indicating hazard, absence, and correct/incorrect safety measures

BORETTI

Passione in Cucina

Exterior view of a gray Eraser grill with textured lid and yellow warning tag (no text or symbols on body)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

FI | KÄYTTÖOHJE

www.boretti.com

Johdanto

Line drawing of a cylindrical industrial vessel with lid and control panel (no text or symbols)

16.1 (3x)

16.2 (1x)

A _(2x) M5x45

B (2x) M5

C (6x) M6

D (6x) M6x14

Diagram showing a bucket being inserted into a container with labeled parts and directional arrows

Vaihe 3

Technical diagram of a cooking pot with numbered parts and an arrow indicating assembly or transformation.

Vaihe 4

C (6x)

D (6x)

Ceramica Large

a Large

Ceramica Medium

. Medium

Line drawing of a cylindrical water heater with a downward arrow indicating flow or pressure direction (no text or symbols)

Technical line drawing of a three-angle mechanical bracket with mounting holes (no text or symbols)

Line drawing of a simple kiosk with a flame logo on top, showing front and side views (no text or symbols)

Line drawing of a cylindrical object with a dome top and three legs, attached with a coiled spring (no text or symbols)

246mm 450 mm 629 mm 186 mm

263 mm 370 mm

74mm 100mm 633mm 315mm

Ceramica Solo Medium

Varoitus:

78mm 109mm 751mm 378mm

Ceramica Solo Large

Varoitus:

Front view of a rectangular electronic device with a central connector and a coiled component labeled 1234 (no readable text or symbols beyond basic markings)

Diagram of a device rear panel with connector pins and a 34-pin connector, shown with an arrow indicating direction (no text or symbols present)

Top-down schematic of a mechanical or electrical component with mounting holes and internal structure (no text or symbols)

4. Grillin käyttö

Warning sign with pictograms and symbols for outdoor activities including cooking, heating, camping, and gathering

BORETTI

Passione in Cucina

Exterior view of a gray rice cooker with textured body and yellow warning symbol (no text or symbols on body)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

DK | BRUGERVEJLEDNING

www.boretti.com

Introduktion

Line drawing of a portable gas stove with lid and control panel (no text or symbols)

⑨ (1x)

3. Monteringstegninger

Trin 1

A (2x) B (2x)

Trin 2 - Kontrollér og justér

Diagram showing a bucket being inserted into a container with labeled parts and directional arrows

Trin 3

Technical diagram of a cooking pot with numbered parts and an arrow indicating assembly or transformation.

Trin 4

C (6x)

D (6x)

Ceramica Large

a Large

Ceramica Medium

. Medium

Line drawing of a cylindrical water heater with lid and side panel, showing internal structure and a downward arrow (no text or symbols)

Technical line drawing of a three-angle mechanical bracket with mounting holes (no text or symbols)

Line drawing of a simple kiosk with a flame logo on top, showing front and side views (no text or symbols)

Line drawing of a cylindrical object with a dome top and three legs, attached with a coiled spring (no text or symbols)

246mm 450 mm 629 mm 186 mm

263 mm 370 mm

74mm 100mm 633mm 315mm

Ceramica Solo Medium

Advarsel:

78mm 109mm 751mm 378mm

Ceramica Solo Large

Advarsel:

Front view of a rectangular electronic device with internal components and a coiled spring (no text or symbols visible)

Stegning/Bagning (Middel temperatur)

Pure technical line drawing of a rectangular mechanical component with mounting holes and internal slots (no text or symbols)

4. Brug af din grill

Warning sign with pictograms and symbols indicating workplace safety, transportation, heating, and outdoor activities

Blank white image with no visible content or text

Blank white image with no visible content or text

Blank white image with no visible content or text

Blank white image with no visible content or text

Blank white image with no visible content or text

Blank white image with no visible content or text

Blank white image with no visible content or text

Blank white image with no visible content or text

Blank white image with no visible content or text

Blank white image with no visible content or text

Blank white image with no visible content or text

-

-

-

BORETTI

Passione in Cucina

Exterior view of a gray Ergrande grill with textured lid and yellow warning tag (no text or symbols on body)

CERAMICA SOLO MEDIUM CERAMICA SOLO MEDIUM CERAMICA SOLO LARGE CERAMICA SOLO LARGE

NO | BRUKERHÅNDBOK

www.boretti.com

Innledning

Line drawing of a portable gas stove with lid and control panel (no text or symbols)

⑨ (1x)

Diagram showing a bucket being inserted into a container with labeled parts and directional arrows

Trinn 3

Technical diagram of a cooking pot with numbered parts and an arrow indicating assembly or transformation.

Trinn 4
C (6x)

D (6x)

Ceramica Large

a Large

Ceramica Medium

. Medium

Line drawing of a cylindrical water heater with lid and side panel, showing internal structure and a downward arrow (no text or symbols)

Technical line drawing of a three-angle mechanical bracket with mounting holes (no text or symbols)

Line drawing of a simple kiosk with a flame logo on top, showing front and side views (no text or symbols)

Line drawing of a cylindrical object with a dome top and three legs, attached with a coiled spring (no text or symbols)

246mm 450 mm 629 mm 186 mm

263 mm 370 mm

74mm 100mm 633mm 315mm

Ceramica Solo Medium

Advarsel:

Warning sign with pictograms and symbols indicating workplace safety, transportation, heating, and outdoor activities

BORETTI

Passione in Cucina
