EVOL-X Pro - Controller Nacon - Free user manual and instructions

Product type	Wired controller for Xbox and PC
Brand	NACON
Model	EVOL-X Pro
Dimensions (L x W x H)	154 x 97 x 48 mm
Weight	220 g
Power supply	5 V DC, 500 mA (max 15 W)
Cable length	Approximately 3 m (USB-C to USB-A)
Audio jack	3.5 mm jack
Compatibility	Xbox Series X|S, Xbox One, Windows 10/11
Main buttons	A/B/X/Y, D-pad, analog sticks (38° range with digital button), LT/RT triggers, LB/RB bumpers
System buttons	Xbox button, Menu, View, Share, Multifunction, two shortcuts
Customizable shortcuts	Yes, via multifunction button (3 seconds)
Indicator light	White LED (steady when connected)
PC connection	Plug-and-Play, automatic driver installation
Box contents	Controller, 3m USB-C to USB-A cable, warranty and compliance card
Maintenance	Clean with a soft, damp cloth only, no detergent
Operating temperature	Max 35 °C
Intended use	Indoor only
Recycling	Do not dispose with household waste, take to a WEEE collection center
Manufacturer	NACON, 396-466 Rue de la Voyette, CRT2, 59273 Fretin, France
Customer service (France)	Monday-Friday 10am-6pm, [e-mail]

Frequently Asked Questions - EVOL-X Pro Nacon

How to connect the EVOL-X Pro controller to an Xbox?

Plug the included USB-C to USB-A cable into a free USB port on your Xbox console. Press the Xbox button on the controller to turn on the console. The LED indicator turns steady white when the connection is established.

Does the controller work on PC?

Yes, it is compatible with Windows 10/11. Simply plug the cable into a USB port on your PC: drivers install automatically. You can play immediately.

How to set up shortcuts?

Press and hold the multifunction button for 3 seconds until the LED flashes. Press the desired shortcut, then the button to assign to it. To reset, press the shortcut twice. Finish by holding the multifunction button for 3 seconds.

Is the cable removable?

Yes, the 3m USB-C to USB-A cable is removable. You can replace it if necessary.

Does the controller have an audio jack?

Yes, it is equipped with a 3.5 mm jack for connecting headphones or earphones.

What are the programmable buttons?

Two shortcut buttons located on the back can be customized via the multifunction button to replicate any other button on the controller.

How to clean the controller?

Use a soft, clean, slightly damp cloth. Never use detergents or abrasive products that could damage the finish.

Is the controller wireless?

No, the EVOL-X Pro is a wired controller. It connects via the provided USB cable.

What safety precautions should be followed?

Use only indoors, avoid water and humidity, do not expose to temperatures above 35°C, do not attempt to open or repair it yourself. Not suitable for children under 7 years.

Where to find controller software updates?

Check regularly the website www.nacongaming.com for the latest software updates to improve gaming experience.

USER MANUAL EVOL-X Pro Nacon

Line drawing of a Gaia console with labeled buttons (no text or symbols beyond branding)

1 Manette

Informations relatives au support technique

Emai l: [e-mail]

Europe

Email : [e-mail]

US/Canada email (English/French)

Email : [e-mail]

US/Canada Phone Support

(English/French/Spanish)

Tel.: [phone]

Mentions légales

1124 8TH Street, Kirkland, WA 98033 USA

Nacon Pty. Ltd.

Level 2/20 Bond Street, Sydney NSW 2000 Australia

SUPPORT :

UK, [e-mail]

Tel.: [phone]

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

ITALIA, [e-mail]

Tel:[phone]

USA/CANADA, [e-mail]

AUSTRALIA, [e-mail]

MEXICO, [e-mail]

FABRIQUÉ EN CHINE / MADE IN CHINA

WWW.NACONGAMING.COM

nacon

WWW.NACONGAMING.COM

@NaconGaming

acongaming

on International

Nacon ^® , 396 - 466 Rue de la Voyette, CRT2 59273 Fretin, France

©2O23 Nacon ^® 852 538 461 R.C.S. Lille Métropole - 59814 Lesquin Cedex.

Black Sony 1997 game controller with X, Y, and A buttons (no readable text beyond branding)

EV-X

PROP

CONTROLLER

START GUIDE

Microsoft, Xbox "Sphere" Design, the Xbox, Xbox Series X, Xbox Series S, Xbox Series X|S, Xbox One and Windows 10/11 are trademarks of the Microsoft group of companies. All other trademarks are the property of their respective owners.

Actual product may differ from illustrations.

© 2023 NACON

Made in China

XBOX

Thank you for purchasing this NACON® product.

This product has been designed to enhance your gaming experience. Please keep this user manual in a safe place for future reference.

Package contents

Line drawing of a Gaia console with labeled buttons (no text or symbols beyond branding)

1 Controller

1 USB-C to USB-A 3m cable

1 Warranty & Compliance insert

Product specifications

Wired controller for the Xbox console.

3.5mm audio jack socket.

Detachable USB-C to USB-A 3m cable.

Compatible with Xbox console and PC.

Weight: 220g.

Height x width x depth: 154 x 97 x 48 mm.

Cable length: 3 m approx.

Input/Output 5V DC = 500mA : DC power supply.

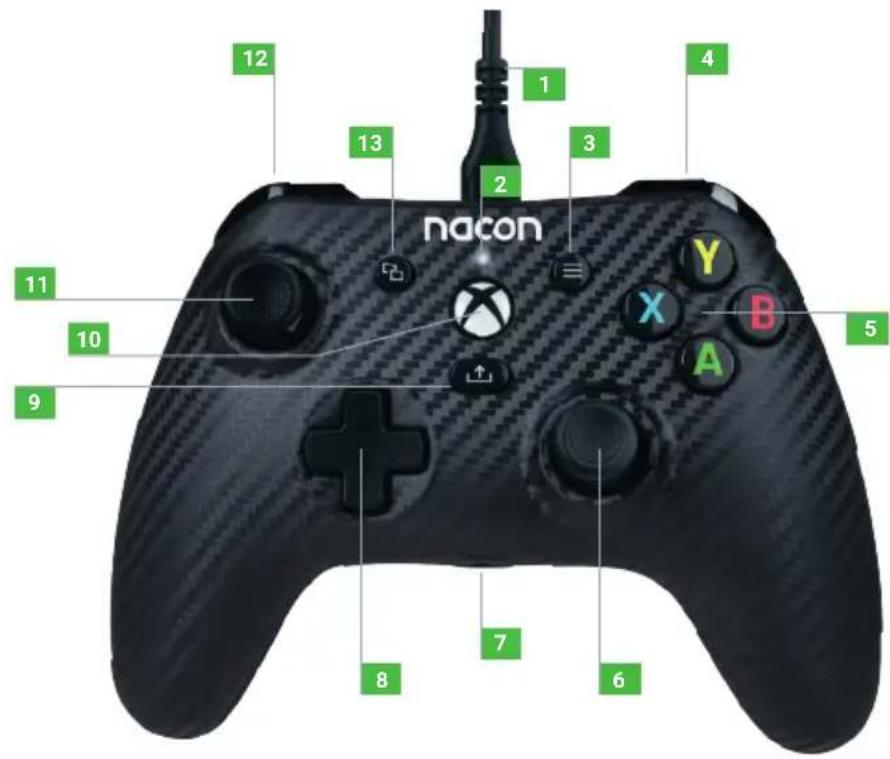

Controller elements

1 USB-C Cable
2 Status LED
3 MENU button
4 Right bumper RB
5 A/B/X/Y action buttons
6 38° Right analog stick with digital button
7 3.5 mm audio jack socket
8 D-pad
9 SHARE button
10 XBOX button
11 38° Left analog stick with digital button
12 Left bumper LB
13 VIEW button

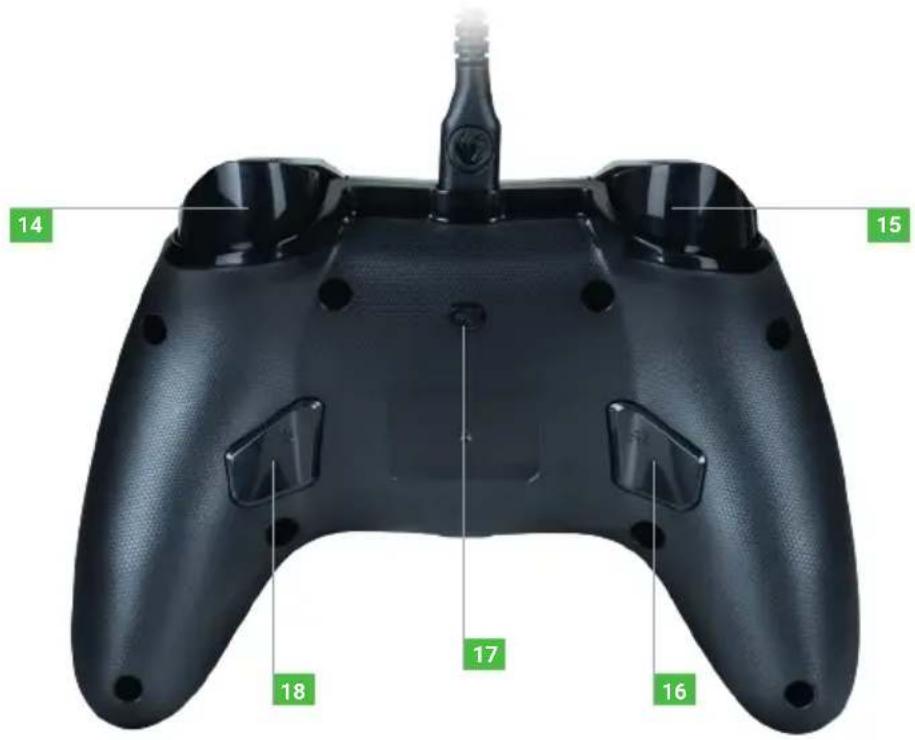

14 Rear Right trigger RT
15 Rear Left trigger LT
16 Left shortcut
17 Multi-function button
18 Right shortcut

I How to use this controller on Xbox

Connect the USB cable to an unused port on your Xbox console. Take care not to touch the sticks or triggers when switching on the controller. If your console is off, press the Xbox button on your controller to turn on the console or press the X button on your Xbox.

Once the status LED (no. 2) is solid White. You're ready to play!

The controller will switch off as soon as the USB cable is unplugged.

NOTE: from time to time we may update the software, of our products, to enhance the gaming experience. Please check our website www.nacongaming.com regularly for any updates.

I How to use this controller on PC

The Evol-X PRO controller is a Plug-n-Play device. The necessary driver software will be automatically installed when the controller is first connected to your computer. Here is the detailed procedure to follow:

• Turn on your computer, wait for it to start, and go to your Windows desktop.
• Find an unused USB port on your PC and plug the USB cable of your Evol-X PRO controller into it.
• Windows will detect the new device and, after a few seconds, start installing the appropriate drivers. The process will be indicated by a small icon in the task bar.
• The installation takes more or less time depending on the speed of your system. At the end of the process, the following message will appear: «You can now use your Evol-X PRO. »

How to map the shortcuts

Press and hold the multi-function button for 3 seconds.

The status LED will flash.

Then press the shortcut button that you want to map, followed by the button that you want to assign to that shortcut.

Repeat the process for each shortcut.

To reset the mapping on the shortcut double press it.

To finish the mapping, press and hold the multi-function button for 3 seconds.
