USER MANUAL EZM-7730 Emko

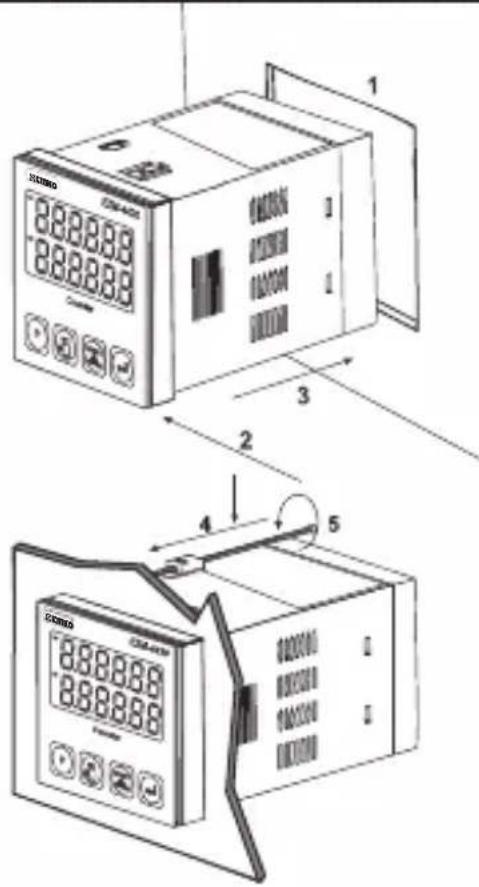

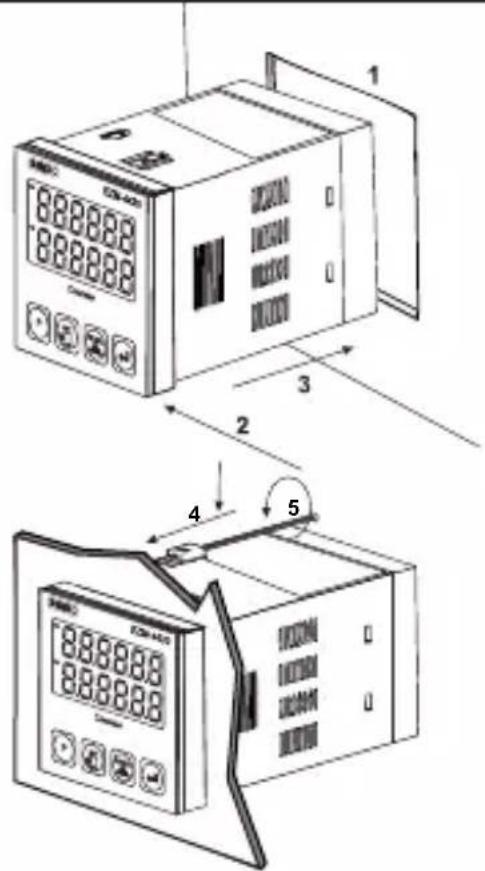

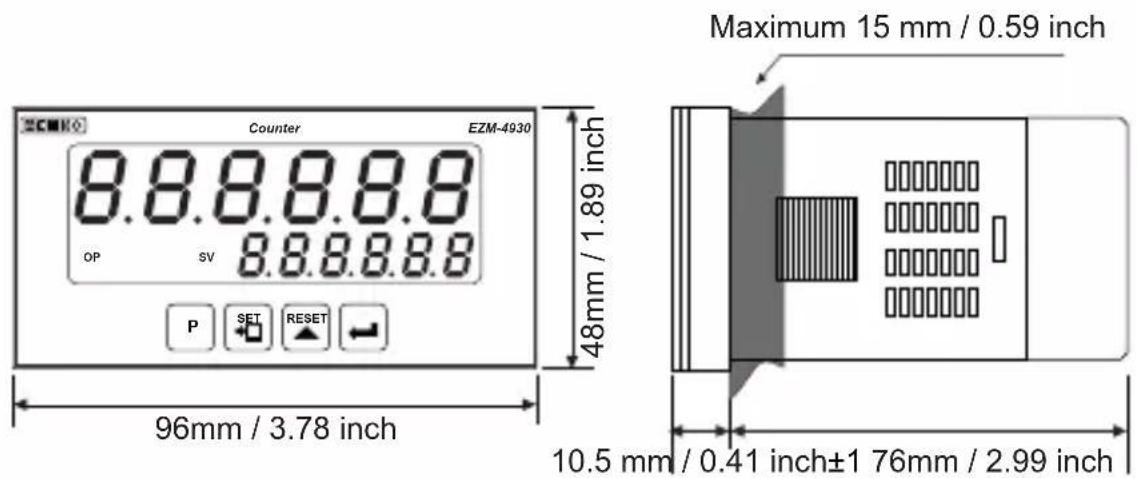

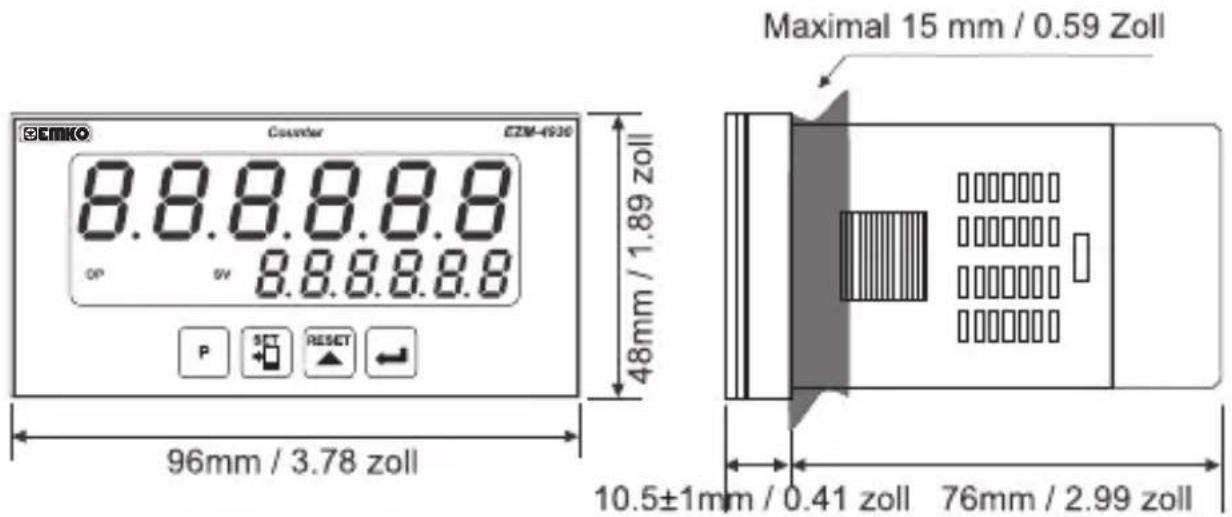

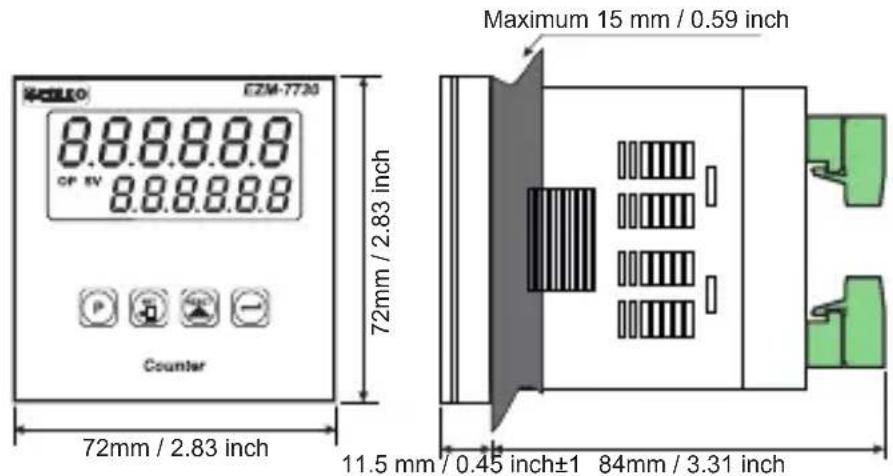

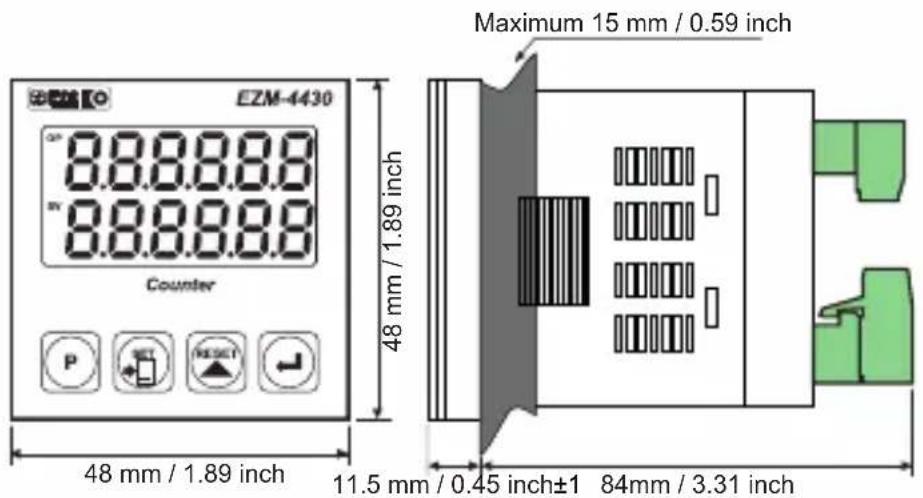

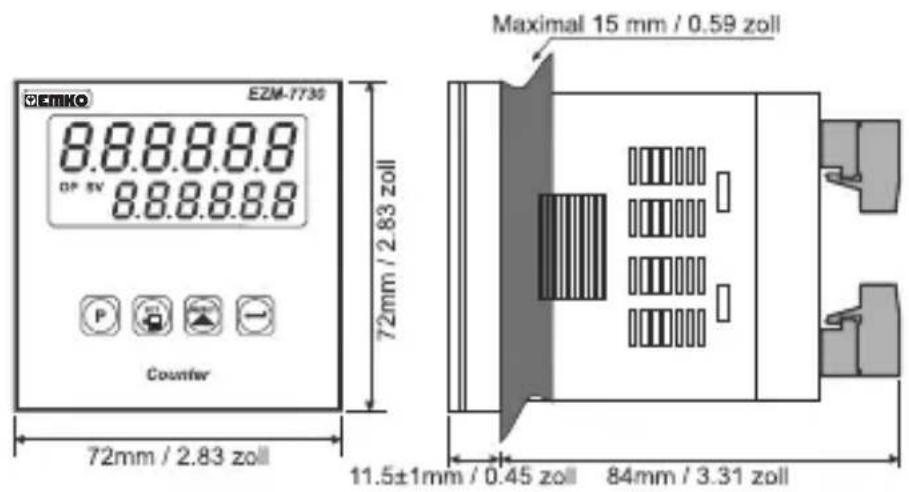

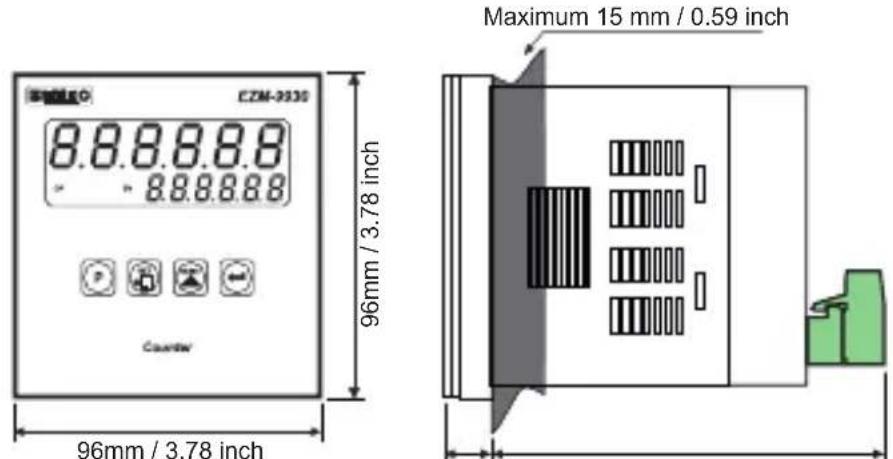

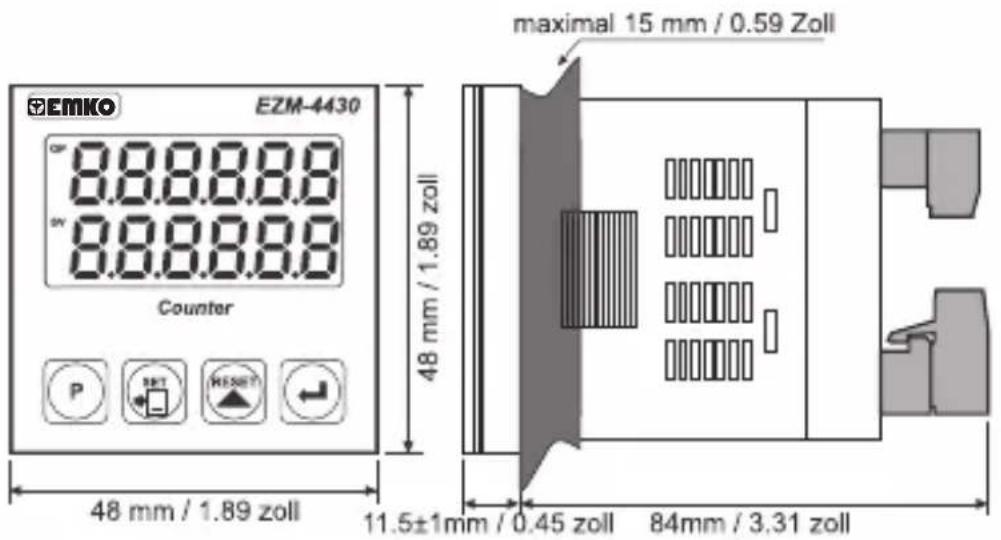

Before mounting the device in your panel, make sure that the panel cut-out is suitable. Check front panel gasket Position. Insert the device through the cut-out. If the mounting clamp are on the unit, put out them before inserting the unit to the panel.

4- Insert the unit in the panel cut-out from the

5- Insert the mounting clamps to the holes that

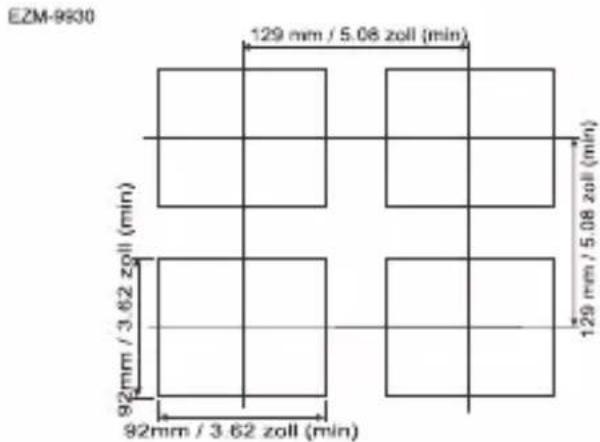

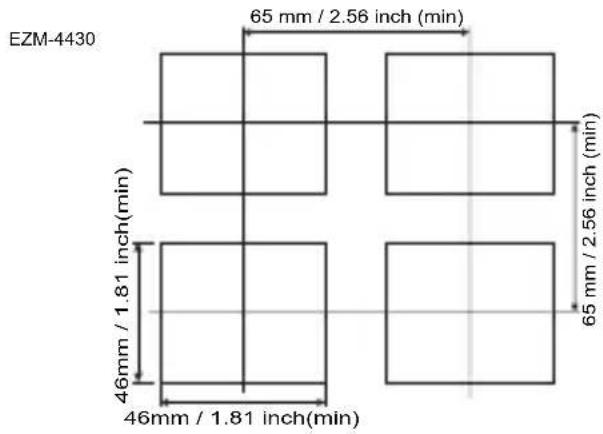

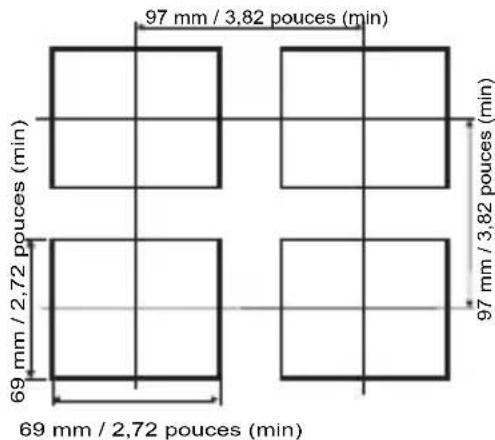

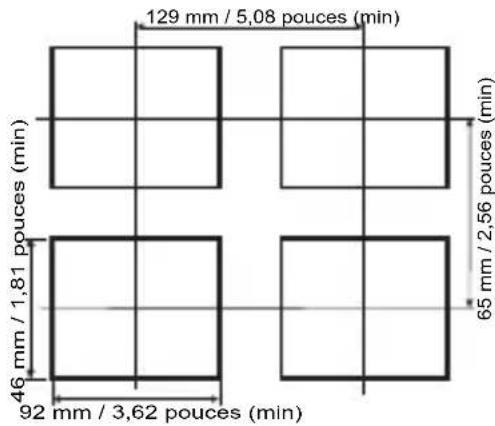

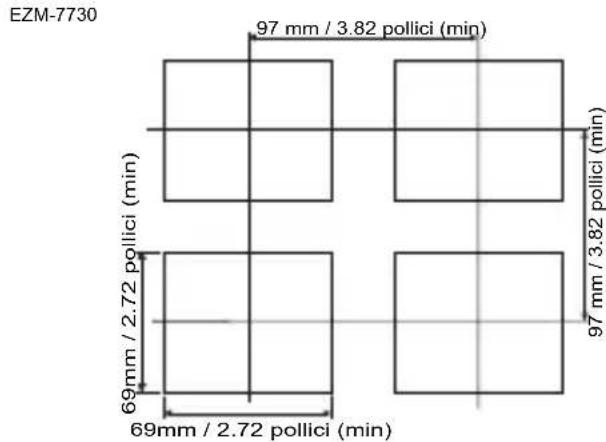

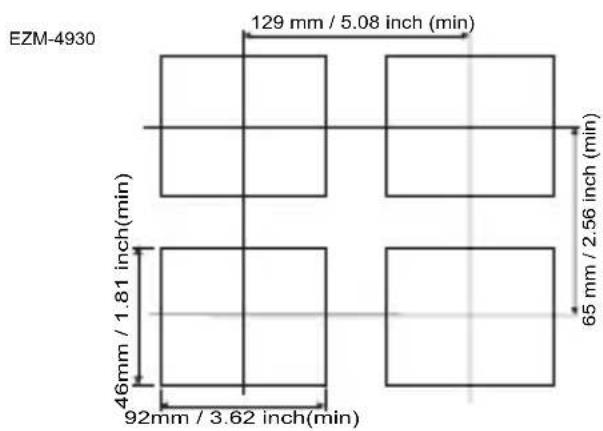

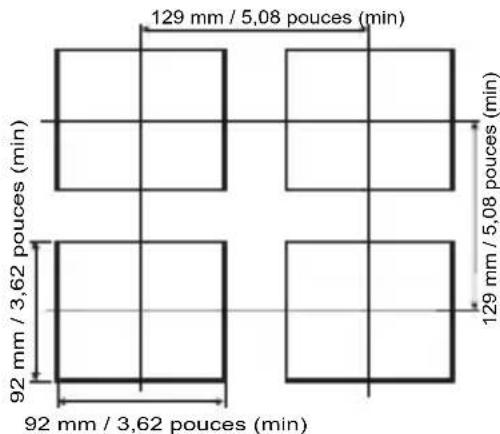

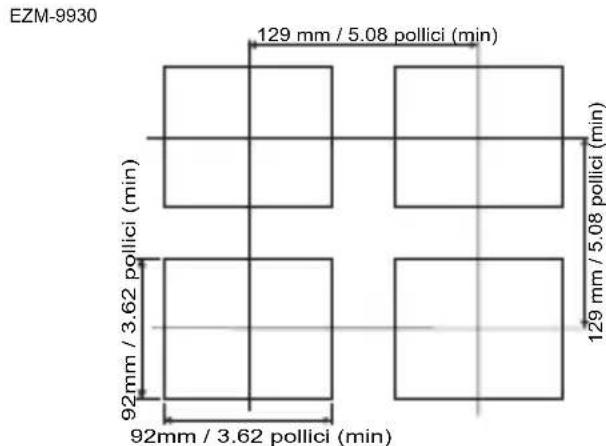

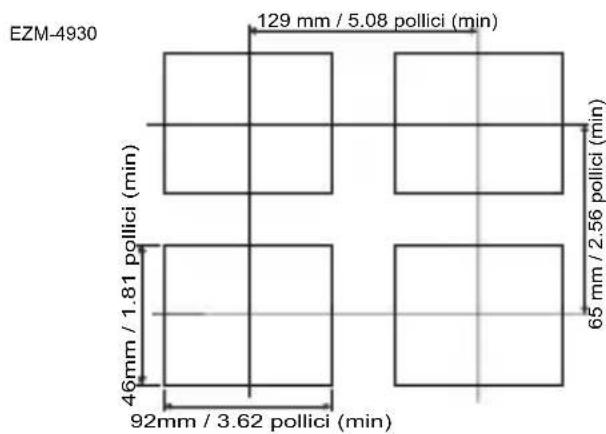

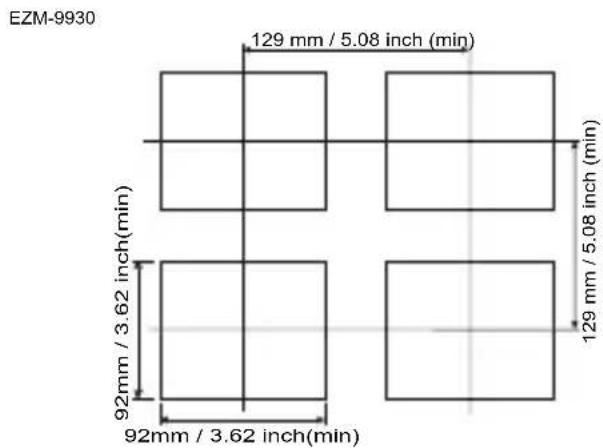

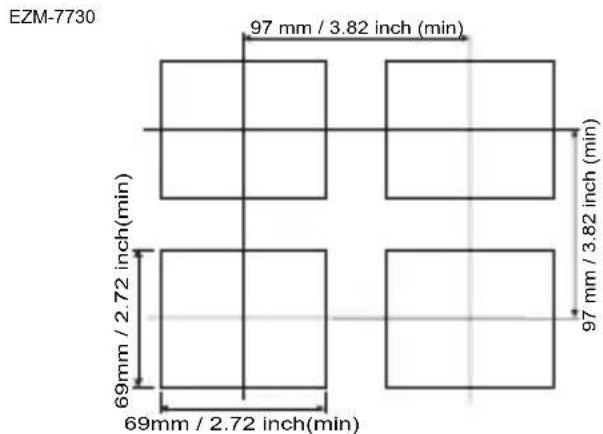

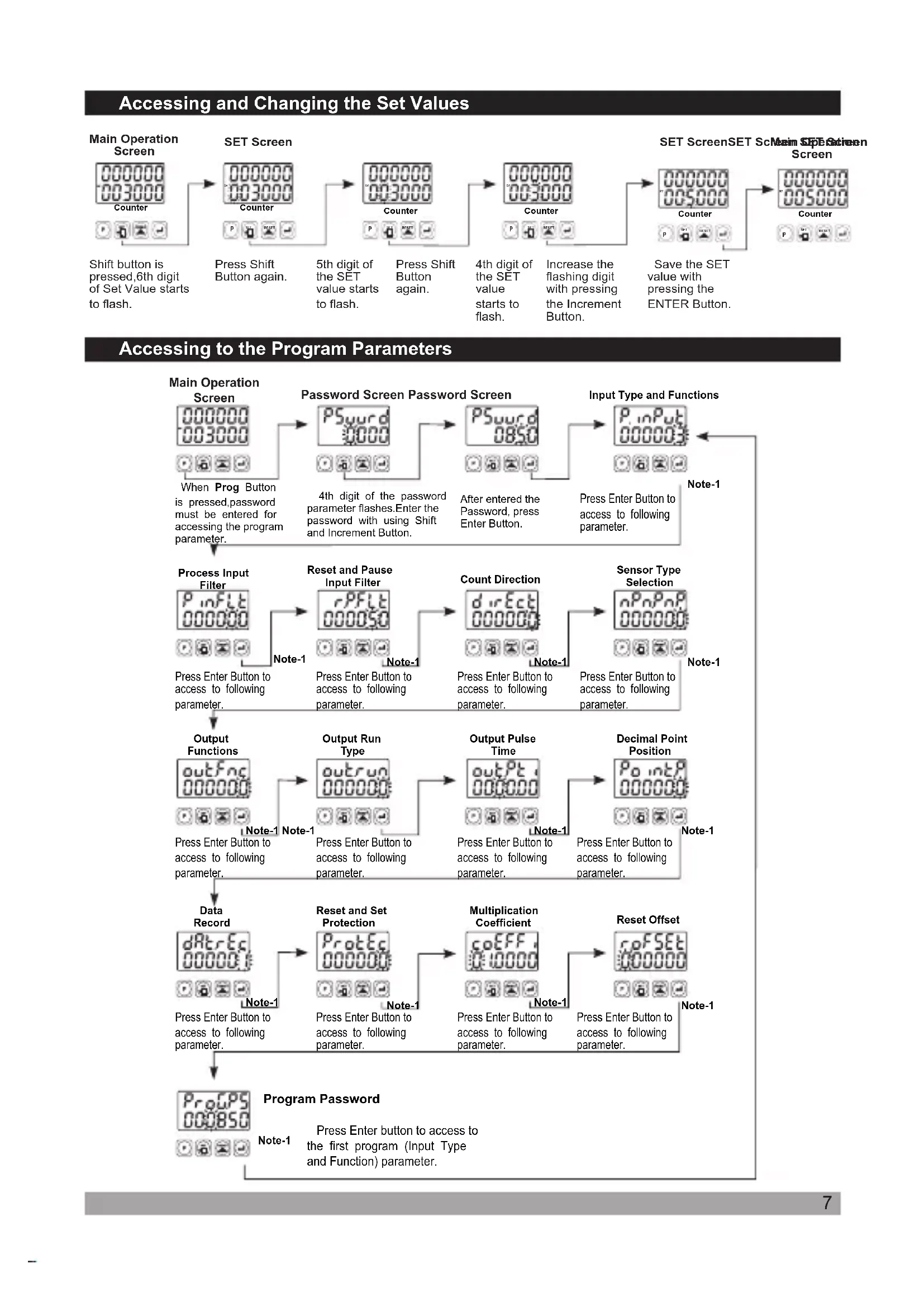

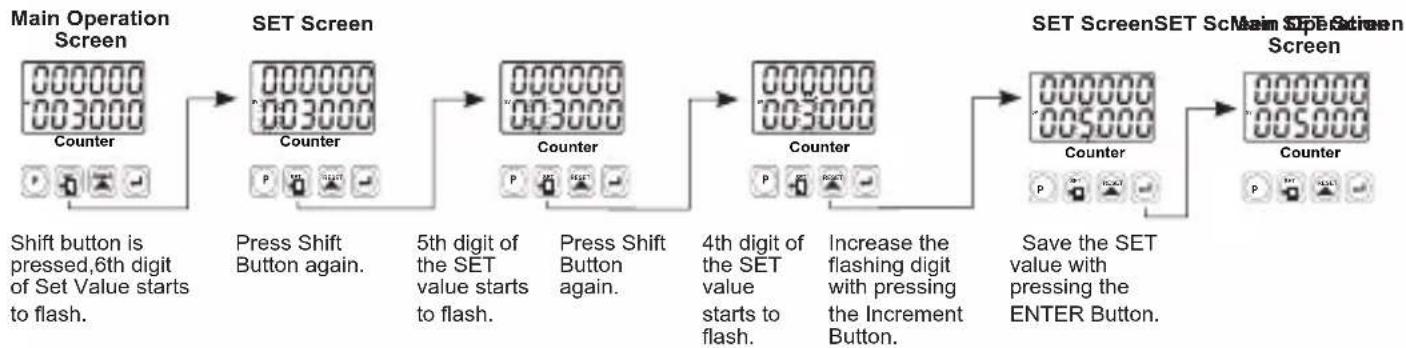

located top and bottom sides of device and screw up the fixing screws until the unit completely immobile within the panel. PANEL MOUNTING6 EZM-4430 EZM-4930 EZM-7730 EZM-9930 65 mm / 2.56 inch (min) 46mm / 1.81 inch(min) 46mm / 1.81 inch(min) 65 mm / 2.56 inch (min) 129 mm / 5.08 inch (min) 46mm / 1.81 inch(min) 65 mm / 2.56 inch (min) 97 mm / 3.82 inch (min) 69mm / 2.72 inch(min) 69mm / 2.72 inch(min) 97 mm / 3.82 inch (min) 129 mm / 5.08 inch (min) 92mm / 3.62 inch(min) 129 mm / 5.08 inch (min) 92mm / 3.62 inch(min) 92mm / 3.62 inch(min) Panel Cut-out7 Accessing and Changing the Set Values Main Operation Screen Shift button is pressed,6th digit of Set Value starts to flash. SET Screen Press Shift Button again. 5th digit of the SET value starts to flash. 4th digit of the SET value starts to flash. Increase the flashing digit with pressing the Increment Button. Save the SET value with pressing the ENTER Button. Main Operation Screen Press Shift Button again. SET ScreenSET Screen SET Screen

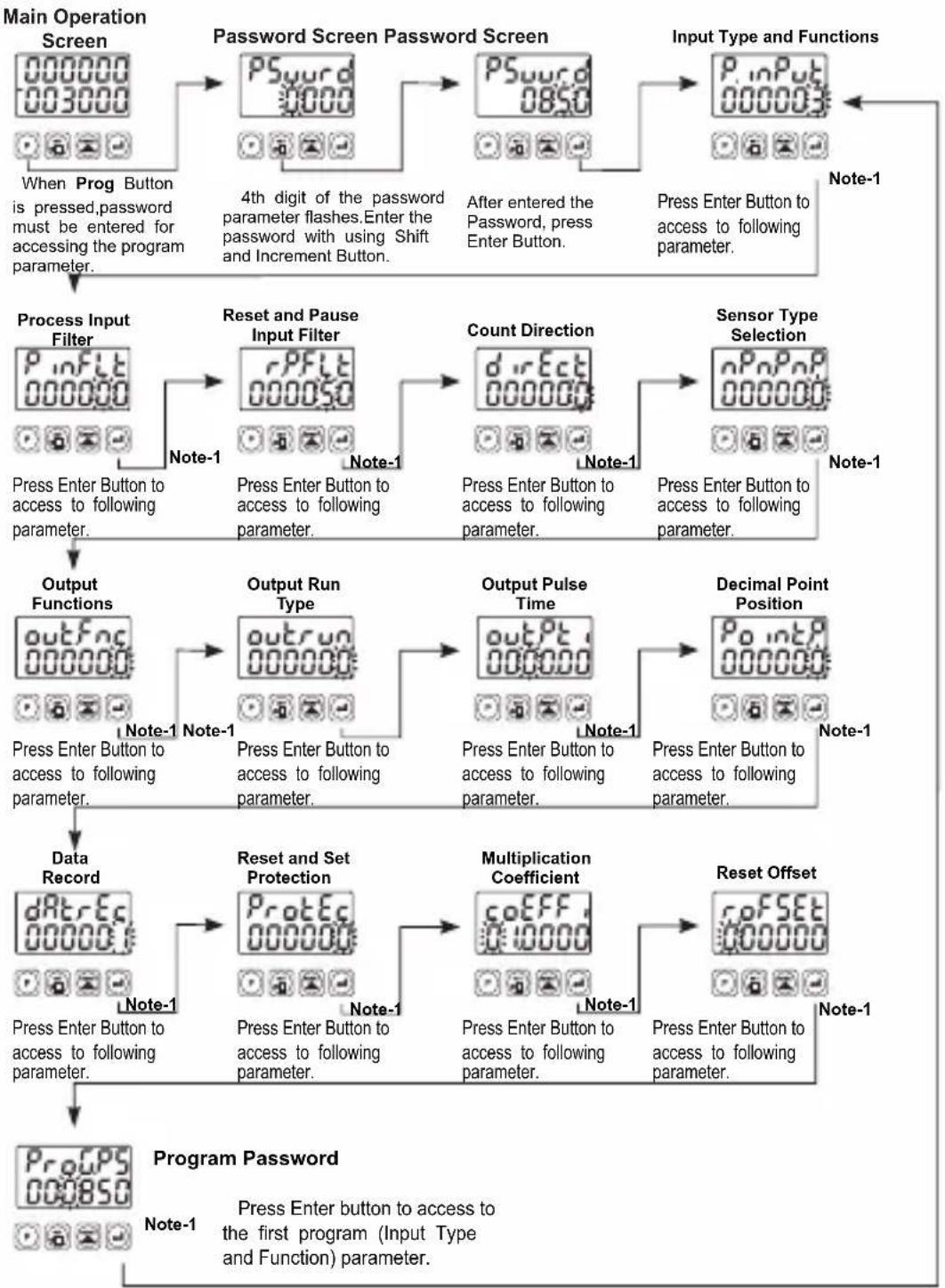

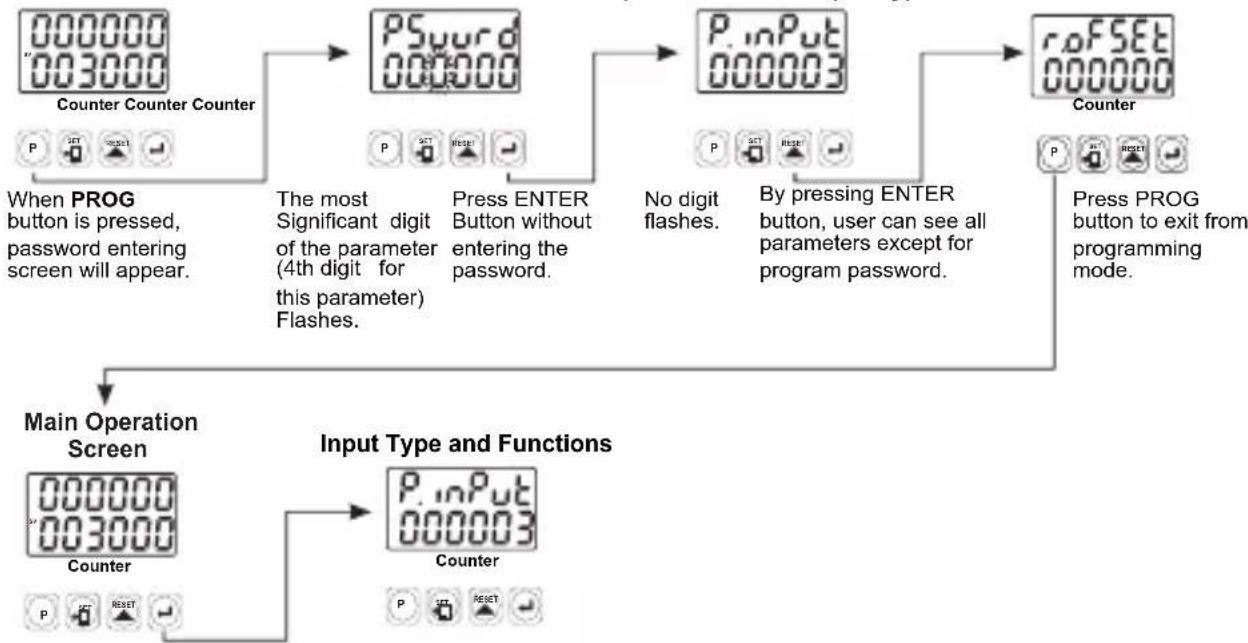

SET Counter Counter Counter Counter Counter Counter Accessing to the Program Parameters Program Password Press Enter button to access to the first program (Input Type and Function) parameter. Press Enter Button to access to following parameter. When Prog Button is pressed,password must be entered for accessing the program parameter. 4th digit of the password parameter flashes.Enter the password with using Shift and Increment Button. After entered the Password, press Enter Button. Main Operation Screen Password Screen Password Screen Input Type and Functions Process Input Filter Reset and Pause Input Filter Count Direction Sensor Type Selection Output Functions Output Run Type Output Pulse Time Decimal Point Position Data Record Reset and Set Protection Multiplication Coefficient Reset Offset Note-1 Note-1 Note-1 Note-1 Note-1 Note-1 Note-1 Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Press Enter Button to access to following parameter. Note-1 Note-1 Note-1 Note-1 Note-1 Note-1 Note-1:Output Functions (Default=0)

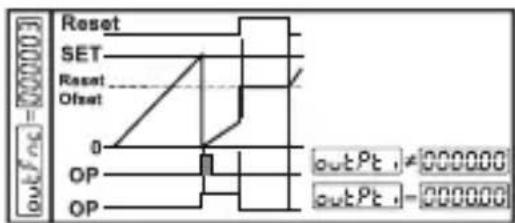

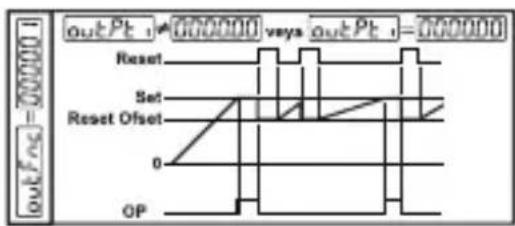

Manuel Reset-1: Process counts,until manuel reset happens.When count value reaches the Set value,Output Position is changed. :Sensor Type Selection (Default=0) PNP Sensor type is selected. NPN Sensor type is selected. :Count Direction (Default=0) Downcount. ( Preset--> 0 ) Upcount. ( 0 -->Preset ) : (Default=50)Filter time for Reset and Pause Inputs It is used to protect against the electrical contact debounce or the signal that is less than the determined pulse time. It can be adjusted from to milisecond.

Note 1- Parameter value can be changed with Incrament button. When the Enter button is pressed,parameter value will be saved and following parameter is accessed. Note 2- Press “P” button is exit without saving the parameter value.Thus Main Operation Screen is appeared. Parameter Definitions :Input Type and Functions (Default=3) 0 : (INC) 1 : Down (DEC) 2 : , Down .(INC/DEC) 3 : . (INC/INC) 4 : Down (UP/DOWN) 5 : x1 .(for Incremental Encoder) 6 : x2 .(for Incremental Encoder ) 7 : x4 .(for Incremental Encoder ) Upcount on rising edge of Ch-A input. count on rising edge of Ch-A input. Upcount on rising edge of Ch-A input count on rising edge of Ch-B input Upcount on rising edge of Ch-A input,Upcount on rising edge of Ch-B input Upcount on rising edge of Ch-A input when Ch-B is at 0 count on rising edge of Ch-A when Ch-B is at 1. Phase Shifting Phase Shifting Phase Shifting : (Default=0)Filter time for Ch-A and Ch-B Inputs It is used to protect against the electrical contact debounce or the signal that is less than the determined pulse time. It can be adjusted from to milisecond.9 Manuel Reset-2: reset happens.When count value reaches the Set value,Output Position is changed. Counting doesn’t change continue over Set value.Output Position doesn’t change ,until manuel reset happens. Process counts,until manuel

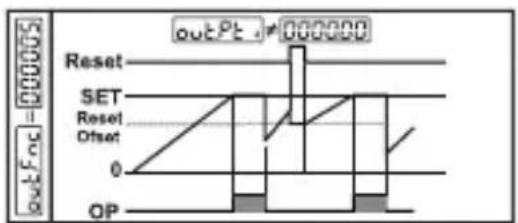

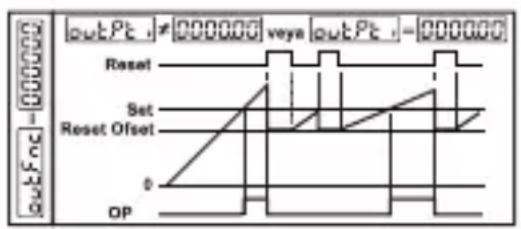

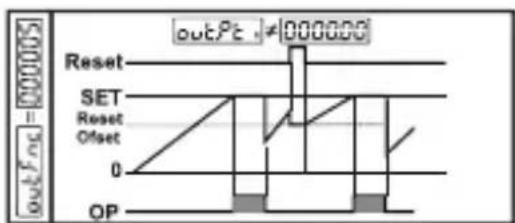

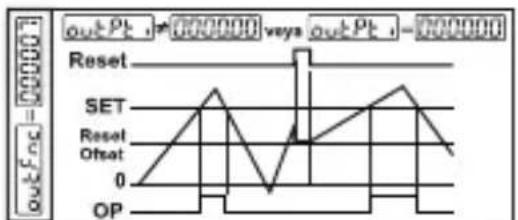

Automatic Reset-1:When count value reaches the Set value,Output position is changed.Process value automatically and counting will continue from “0”(up count) or “Set”(downcount).After the end of the Output Pulse Time output positions changes the old position.

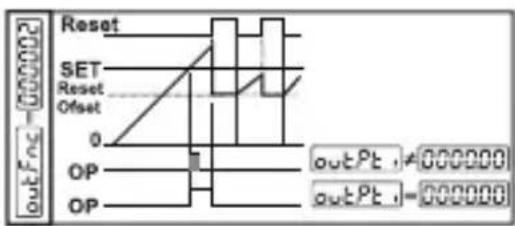

Automatic Reset-2: Set value,Output position is changed.Counting continue over the Set value. Process value is reset automatically,counting continue from “0” (upcount) or “Set” (downcount) and Output position changes the old position at the end of the output pulse time. When count value reaches the doesn’t

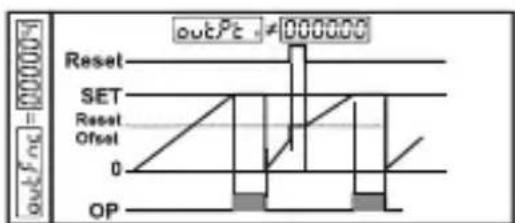

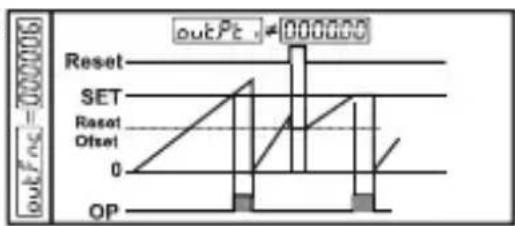

Automatic Reset-4: the Set value,Output position is changed.Count value is automatically reset and counting will continue ( for 0->P) and Output position changes the old position at the end of the output pulse time. When count value reaches

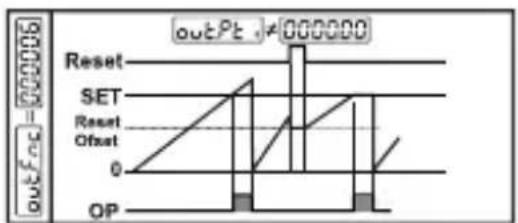

Automatic Reset-3: Set value,Output position is changed.Count value becomes zero.(For 0->P) Counting restarts on “0” value, but Set Value is showen on the Process value screen. Output position becomes the old and the Real count value can be seen at the end of output pulse time. When count value reaches the

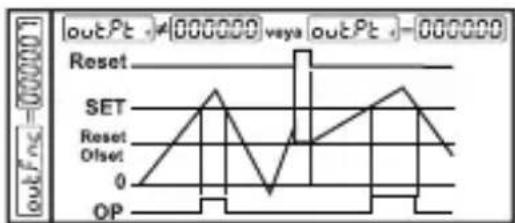

Automatic Reset-5:Process counts,until manuel reset happens.Output pulse time does not take into considera tion.This function can be prefered on systems that, upcounts or downcounts at the same time.10 :Output Run Type (Default=0) Normally Energised. Normally De-energised. :Output Pulse Time (Default=0.00) It determines how long Output will be active.It can be adjusted from 00.00 to 99.99 seconds. If it is 00.00 second ,then it operates indefinitely. : Point Position (Default=0) Between first and second digits. No point. Between second and third digits. Between third and fourth digits. Between fourth and fifth digits. : Data Record (Default=1) Count value is not saved to memory when power is disconnected. Count value is saved to memory when power is disconnected and restored on power up. :Reset and Set Protection (Default=0) No Reset and Set protection. Only Reset button protection is active. Only Set button protection is active . Full Protection.Reset and Set button protection is active. : Multiplication Coefficient (Default=01.0000) The Count value that is read from Process input,is multiplied with this value.Parameter value can be adjusted from 00.0000 to 99.9999.If this parameter is adjusted to “01.0000” then this parameter has no effect on Process input count,so Process value equal to the Process input count. : Reset Offset (Default=0) It can be adjusted from to .When Process is manually reset ,count process starts from this value. : Program Password (Default=0) It is used for accessing to the program parameters. It can be adjusted from to . If it is ; there is no password protection while entering to the program parameters. If operator accesses to the program parameters by entering “0” to ,then the operator can only see the parameter without changing,except11 Failure Messages in EZM-XX30 Programmable Counter Reset Offset ParameterWhen PROG button is pressed,password entering screen will appear.The mostSignificant digit of the parameter(4th digit for this parameter)Flashes.Press ENTERButton withoutentering thepassword.No digit flashes.By pressing ENTERbutton, user can see allparameters except forprogram password.Press PROG button to exit from programming mode.Counter Counter CounterCounterCounterPassword ScreenMain Operation Screen Input Type and FunctionsInput Type and Functions

1- If Actual Value is flashing and counting is stopped ;

It appears if any of the count value is bigger than the maximum count value. To remove this warning and reset the count value press RESET button.

2- If Actual Value is flashing and counting is stopped ;

It appears if any of the count value is lower than the minimum count value. To remove this warning and reset the count value press RESET button.

Before beginning installation of this product, please read the instruction manual and warnings below carefully. In package , -One piece unit -Two pieces mounting clamp -One piece instruction manual A visual inspection of this product for possible damage occured during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product. If there is danger of serious accident resulting from a failure or defect in this unit, power off the system and the electrical connection of the device from the system. The unit is normally supplied without a power switch or a fuse. Use power switch and fuse as required. Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure. Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented. Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in malfunction, electric shock or fire. Do not use the unit in combustible or explosive gaseous atmospheres. During the equipment is putted in hole on the metal panel while mechanical installation some metal burrs can cause injury on hands, you must be careful. Montage of the product on a system must be done with it’s mounting clamp. Do not do the montage of the device with in appropriate mounting clamp. Be sure that device will not fall while doing the montage. It is your responsibility if this equipment is used in a manner not specified in this instruction manual. Installation12 Warranty EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date.This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely. Maintenance Repairs should only be performed by trained and specialized personnel. Cut power to the device before accessing internal parts.Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or water to clean the external plastic case. Other Informations Order Information All order information of EZM-XX30 series are given on the table at above.User may form appropriate device configuration from information and codes that at the table and convert it to the ordering codes.Firstly, supply voltage then other specifications must be determined.Please fill the order code blanks according to your needs.Please contact us, if your needs are out of the standards.Symbol Means Vac V Symbol Means Vdc ZSymbol Means Vac and Vdc W
