Product Type	Universal input process indicator and controller
Brand and Model	Emko ESM7700
Display	Red LED display, 4 digits, height 13.2 mm
Universal Inputs	Thermocouple (L, J, K, R, S, T, B, E, N, C), PT-100, mV, V, mA
Accuracy	±0.25% of full scale
Cold junction compensation	Automatic, ±0.1°C/1°C
Standard outputs	1 relay 5 A @ 250 V~ (resistive load) + 2 slots for optional modules
Optional output modules	Relay, SSR, digital output, current output 0/4…20 mA
Serial communication	MODBUS RTU RS-232 (standard) or RS-485 (optional)
Power supply	100-240 V~ 50/60 Hz or 24 V~ / 24 V= (depending on order)
Dimensions (W x H x D)	72 x 72 x 87.5 mm
Panel cutout	69 x 69 mm
Weight	270 g
Protection	IP65 front, IP20 rear
Operating temperature	0…50°C
Humidity	0-90% RH non-condensing
Overvoltage category	II
Pollution degree	II (office or workplace)
Warranty	2 years
Included accessories	Device, 2 mounting brackets, user manual
Maintenance and cleaning	Use a cloth dampened with ethyl alcohol or water. Do not use hydrocarbon solvents.
Safety	Fixed installation category II. Disconnect power before wiring.

Frequently Asked Questions - ESM7700 Emko

How to choose the input type (TC, RTD, voltage, current)?

Access the PinP menu then parameter SSL. Select 0000 for TC, 0001 for RTD, or 0002 for voltage/current. Then, in the submenus (tCSL, rtdS, uRSL), choose the specific type (e.g., J, K, PT-100, 0-10 V).

How to set alarm setpoint values?

From the main screen, press the SET key. Alarms 1, 2, and 3 are displayed successively. Use the ▲/▼ keys to modify each setpoint, then press SET to confirm. If no action for 120 s, the device exits automatically.

What are the available output modules?

Two slots (MODULE-1 and MODULE-2) accept: EMO-X00 (relay), EMO-X10 (SSR), EMO-X20 (digital output), EMO-X30 (current output 0/4-20 mA). Output-3 is an integrated relay.

What is the measurement accuracy?

The accuracy is ±0.25% of full scale for all inputs (TC, RTD, mV, V, mA). Cold junction compensation adds ±0.1°C per 1°C variation.

How to perform a two-point display calibration?

In the PinP menu, set tAdJ to 0001. Then set tPoL (low value) and tPoH (high value) corresponding to the input signals. This option is available only for voltage/current inputs.

What to do in case of sensor fault?

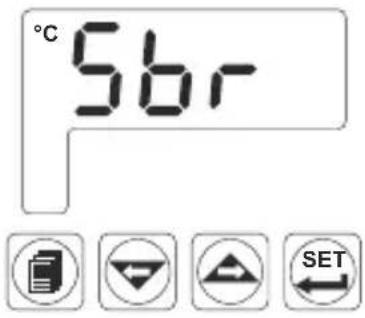

The screen displays S.Er (sensor fault) or the display flashes if the value exceeds scale. Check the sensor wiring. For a dedicated alarm output, set the module function to 0001 (sensor break alarm).

How to clean the device?

Use a soft cloth dampened with ethyl alcohol or water. Never use solvents such as gasoline or trichloroethylene which can damage the housing.

What are the installation conditions?

Install the device in a 69x69 mm cutout. Ambient temperature must be between 0 and 50°C, humidity 0-90% RH. Ensure to use the rated voltage and disconnect power before wiring.

How to configure Modbus communication?

In the Com menu, set the address (5Adr from 1 to 247), baud rate (bRud: 1200 to 19200 baud), parity (Prty), and stop bit (StPb). Use the MODBUS RTU protocol.

What to do if the technician password is lost?

Contact the manufacturer (Emko Elektronik) at [phone]. The default password is 0000 (no protection). If it has been changed and forgotten, a reset by the manufacturer is necessary.

USER MANUAL ESM7700 Emko

PROCESS INDICATOR UNITS ESM-XX00

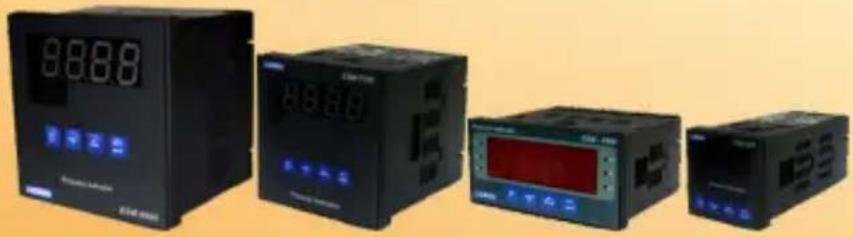

Four black industrial control units with digital displays and indicator lights, displayed against a plain yellow background (no visible text or symbols)

CE ERC

ESM-4400, ESM-7700, ESM-9900, ESM-4900

Universal Input Smart output module system Process display units

• 4 digit process (PV) display
• Universal process input (TC, RTD, mV ---, V ---, mA ---)
• Dual or multi point calibration for ____ voltage &____ current inputs
• Smart output module system
• Programmable Alarm functions
• Process control or re-transmission with 0/4...20 mA === Current output module
• RS-232 (standart) or RS-485(Optional) serial communication with Modbus RTU protocol

SPECIFICATIONS

PROCESS INPUT

Universal Input: TC, RTD, --- Voltage/Current

Thermocouple (TC): L(DIN 43710), J, K, R, S, T, B, E and N (IEC584.1)(ITS90), C (ITS90)

Thermoresistance (RTD): PT-100 (IEC751)(ITS90)

= = Input: mV, V, mA

Measurement Range : Please refer to Table-1 for selection of input type and scale

Accuracy:± 0.25% of full scale for thermocouple, thermoresistance, mV, V and mA input.

Cold Junction Compensation: Automatically ±0.1°C/1°C

Line Compensation: Maximum 10 Ohm

Sensor break protection: Upscale

Sampling Cycle:3 samples per second

Input Filter: 0.0 to 900.0 seconds

OUTPUT

Standart Relay Output: 5A@250V\~ (on resistive load)

Output Modules: User can insert 2 output module to the device.

-Relay Output Module

-SSR Output Module (Max. 26mA, Max. 22V =)

-Digital (Transistor) Output Module (Max.40 mA @18V ---)

-0/4...20 mA === Current Output Module

POWER SUPPLY

Power Supply Voltage :

100-240V ∼ 50/60 Hz (-%15;+%10) -6VA

24V ∼ 50/60 Hz (-%15 ; +%10) -6VA

(It must be determined in order.)

DISPLAY

Process Display :

ESM-4400 : 10.1 mm Red 4 digit LED Display

ESM-4900 : 20.3 mm Red 4 digit LED Display

ESM-7700 : 13.2 mm Red 4 digit LED Display

ESM-9900 : 19 mm Red 4 digit LED Display

LED Göstergeler : °C /°F / V, OP1/2/3 (Output Status) LED.

ENVIRONMENTAL RATINGS and PHYSICAL SPECIFICATIONS

Operating Temperature : 0...50°C

Humidity : 0-90%RH (non condensing)

Protection Class : IP65 at front, IP20 at rear

Mounting : Type-1 Enclosure Mounting

Installation : Fixed installation Category II

Over Voltage Category : ||

Pollution Degree : II, office or workplace, none conductive pollution

Weight:

ESM-4400: 210 gr.

ESM-4900: 260 gr.

ESM-7700: 270 gr.

ESM-9900: 360 gr.

Dimensions / Panel Cut-Out:

ESM-4400 : (48 x 48mm, Depth:116 mm) / (46 x 46mm)

ESM-4900 : (96 x 48mm, Depth:86.5 mm) / (92 x 46mm)

ESM-7700 : (72 x 72mm, Depth:87.5 mm) / (69 x 69mm)

ESM-9900 : (96 x 96mm, Depth:87.5 mm) / (92 x 92mm)

Minimum Distance Between Panel Cut-Out Centers:

ESM-4400:X=65mm,Y=65mm

ESM-4900 : X=129mm, Y=65mm

ESM-7700:X=97mm,Y=97mm

This symbol is used for safety warnings. User must pay attention to these warnings.

This symbol is used to determine the dangerous situations as a result of an electric shock. User must pay attention to these warnings definitely.

This symbol is used to determine the important notes about functions and usage of the device

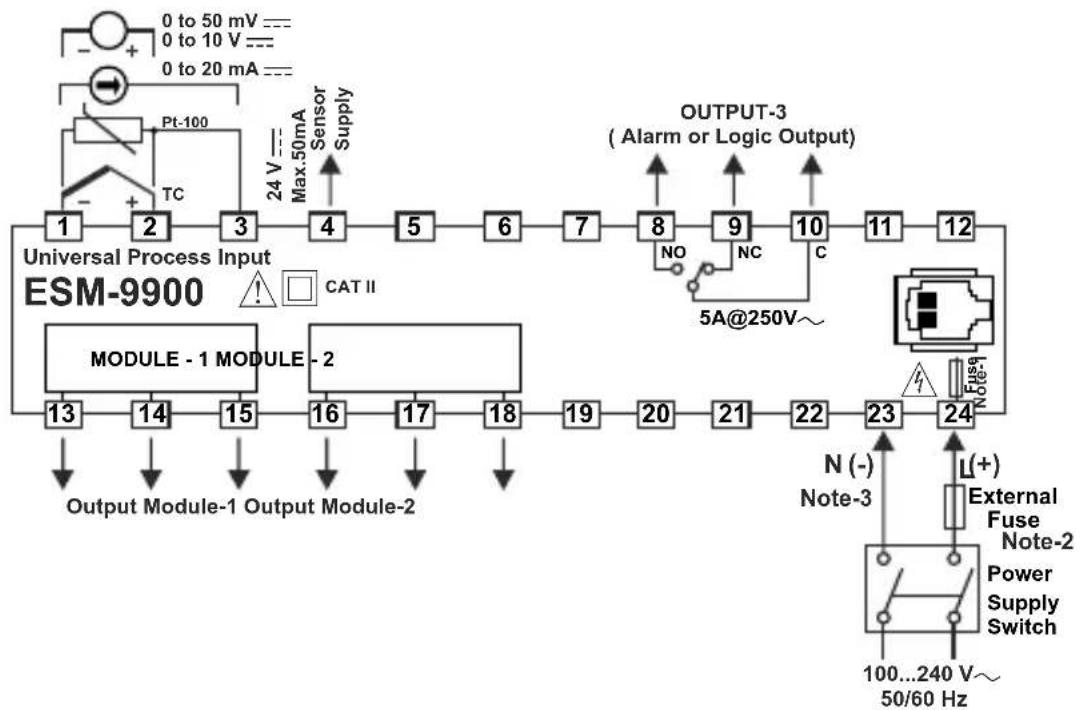

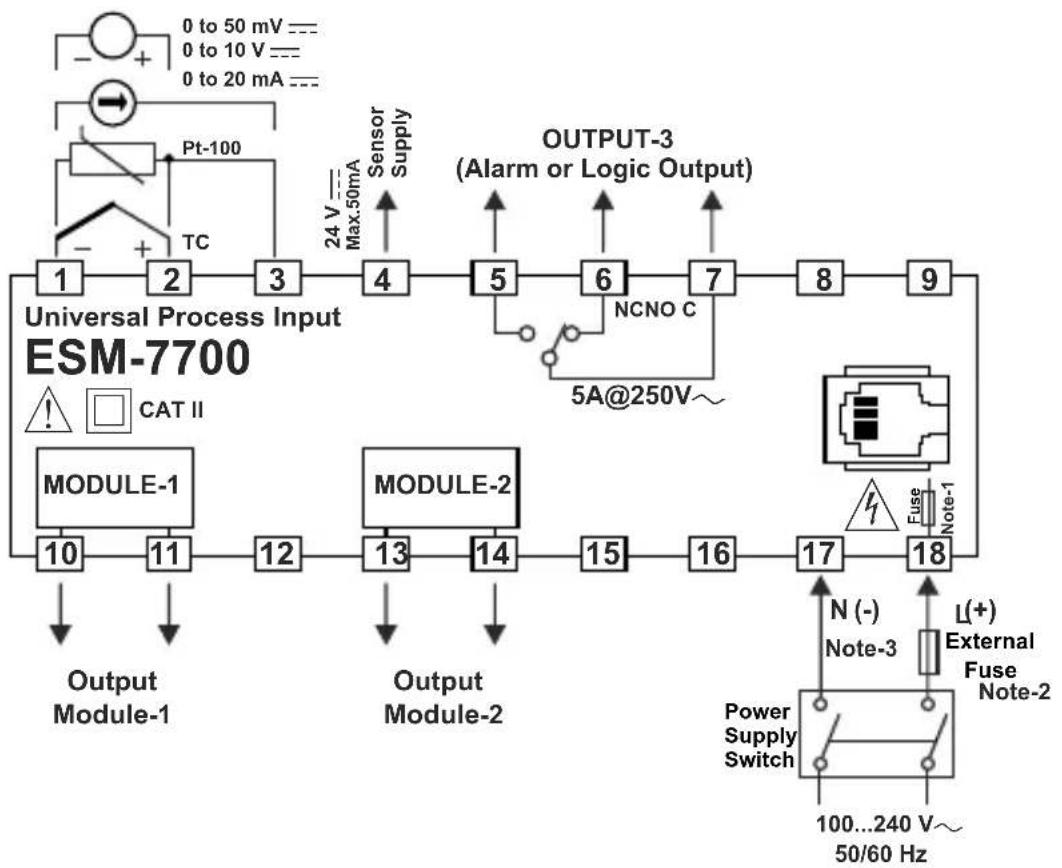

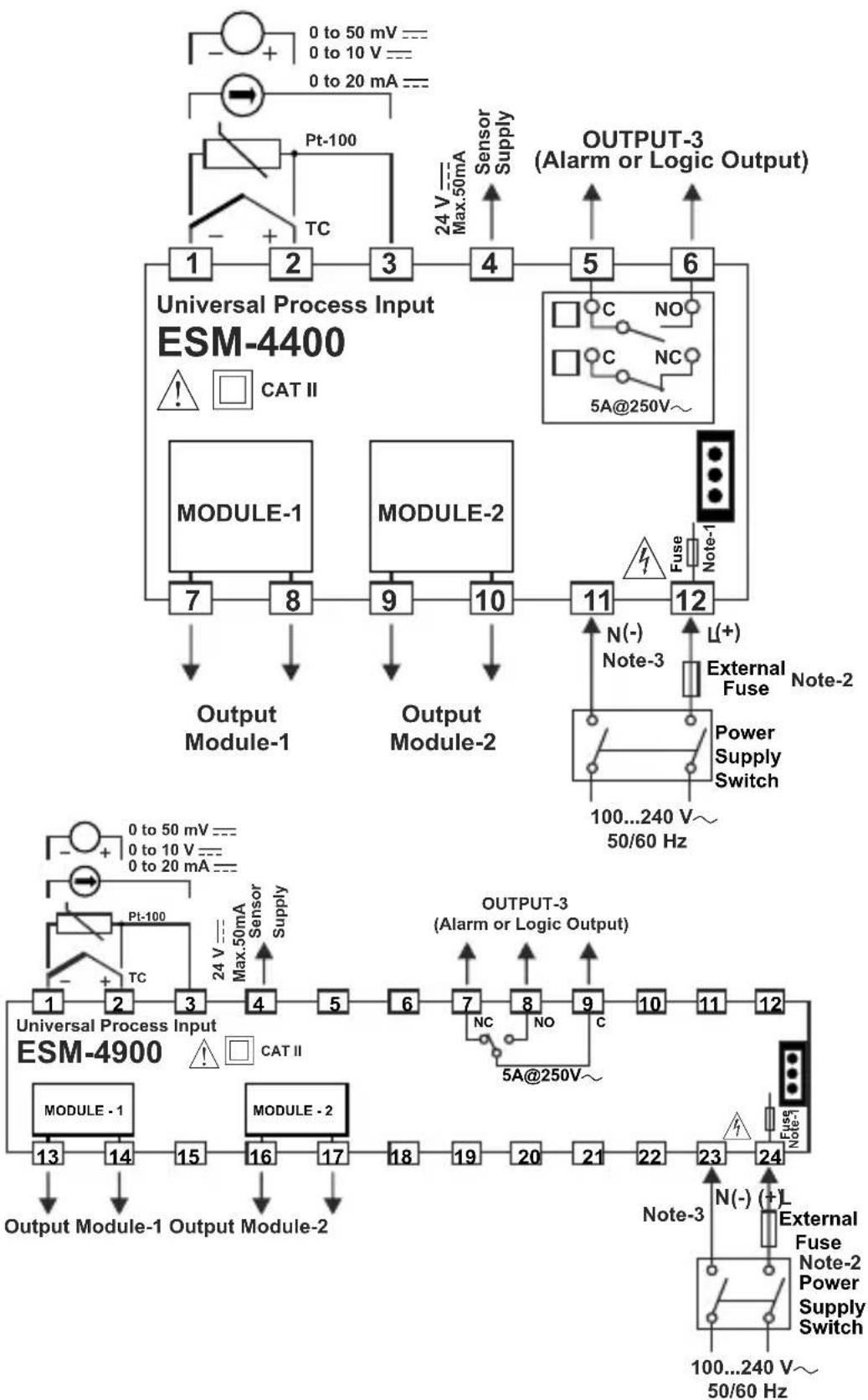

Electrical Wirings
    subgraph_ESM-4400["Universal Process Input ESM-4400"]
        A["1"] --> B["2"]
        B --> C["3"]
        C --> D["4"]
        D --> E["5"]
        E --> F["6"]
        F --> G["OUTPUT-3 (Alarm or Logic Output)"]
        H["MODULE-1"] --> I["7"]
        J["MODULE-2"] --> K["8"]
        L["Output Module-1"] --> M["7"]
        N["Output Module-2"] --> O["9"]
        P["Output Module-2"] --> Q["10"]
        R["Output Module-2"] --> S["11"]
        T["Output Module-2"] --> U["12"]
        V["Sensor Supply"] --> W["Sensor Supply"]
        X["Sensor Supply"] --> Y["Sensor Supply"]
        Z["Fuse"] --> AA["NOTE-1"]
        AB["L(+)"] --> AC["External Fuse Note-2"]
        AD["N(-)"] --> AE["Power Supply Switch"]
        AF["External Fuse"] --> AG["Note-1"]
        AH["N(-)"] --> AI["Note-3"]
        AJ["External Fuse"] --> AK["Note-2"]
        AL["Note-3"] --> AM["Note-1"]
    end

    subgraph_ESM-4900["Universal Process Input ESM-4900"]
        AN["1"] --> AO["2"]
        AP["3"] --> AQ["4"]
        AR["5"] --> AS["6"]
        AT["7"] --> AU["8"]
        AV["9"] --> AW["10"]
        AX["11"] --> AY["12"]
        AZ["13"] --> BA["14"]
        BB["15"] --> BC["16"]
        BD["17"] --> BE["18"]
        BF["19"] --> BG["20"]
        BH["21"] --> BI["22"]
        BJ["23"] --> BK["24"]
        BL["N(-)"] --> BM["External Fuse Note-2 Power Supply Switch"]
        BN["100...240 V~ 50/60 Hz"] --> BO["Note-1"]
    end

Note-1 : There is an internal fusible flameproof resistor.
Note-2 : External fuse is recommended.
1100.T for power supply 240 V\~ or 24V\~
1A---T for power supply 24V ---
Note-3: “L” is (+), “N” is (-) for 24V === supply voltage

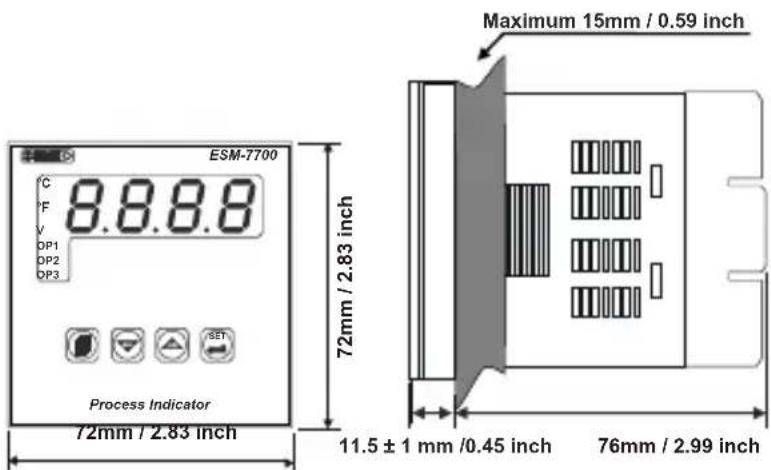

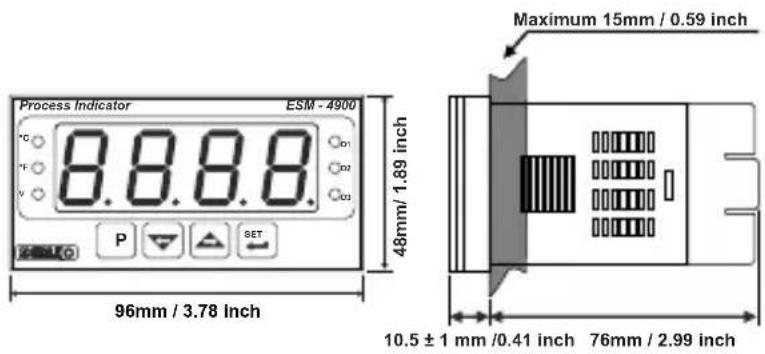

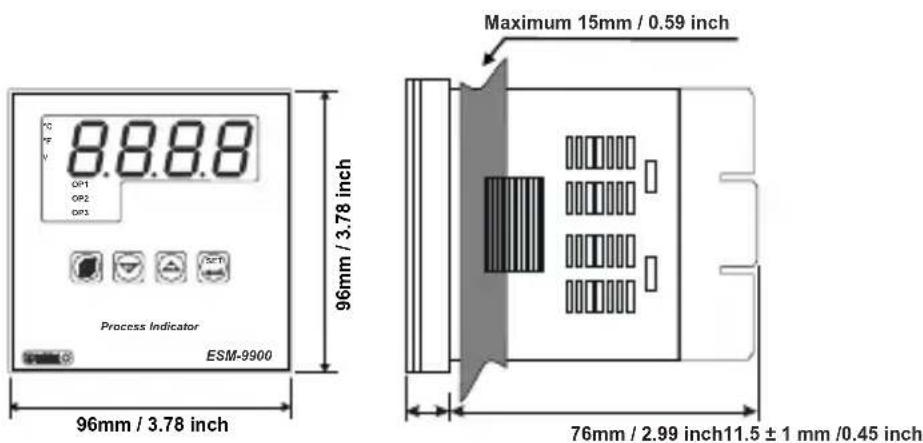

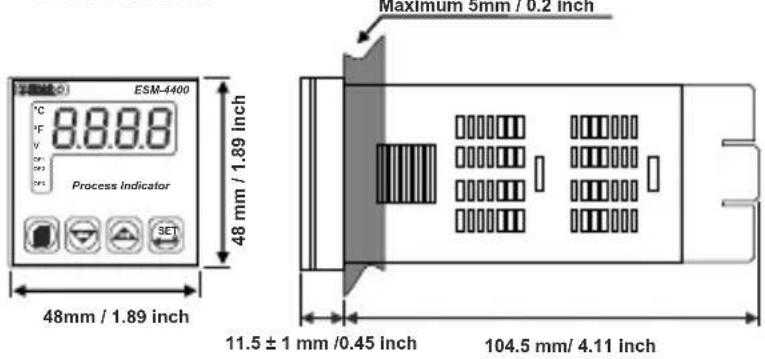

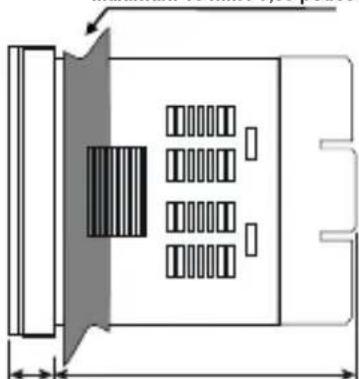

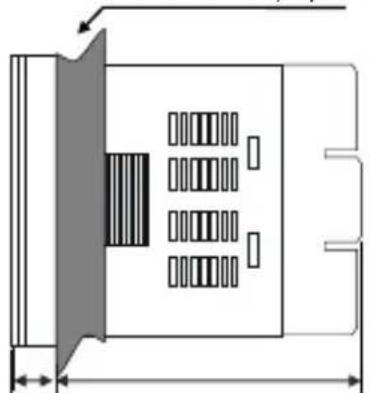

DIMENSIONS

ESM-4400 Process Indicator 8.8.8.8 48 mm / 1.89 inch 48 mm / 1.89 inch Maximum 5mm / 0.2 inch 11.5 ± 1 mm /0.45 inch 104.5 mm/ 4.11 inch

Process Indicator ESM - 4900 °C 8.8.8.8 P SET 96mm / 3.78 inch 48mm/ 1.89 inch Maximum 15mm / 0.59 inch 10.5 ± 1 mm /0.41 inch 76mm / 2.99 inch

ESM-7700 °C 8.8.8.8 °F V DP1 DP2 DP3 Process Indicator 72mm / 2.83 inch 72mm / 2.83 inch Maximum 15mm / 0.59 inch 11.5 ± 1 mm / 0.45 inch 76mm / 2.99 inch

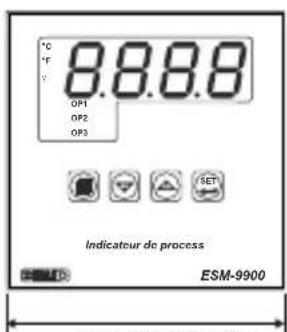

8.8.8.8 DP1 DP2 DP3 Process Indicator ESM-9900 96mm / 3.78 inch Maximum 15mm / 0.59 inch 96mm / 3.78 inch 76mm / 2.99 inch11.5 ± 1 mm /0.45 inch

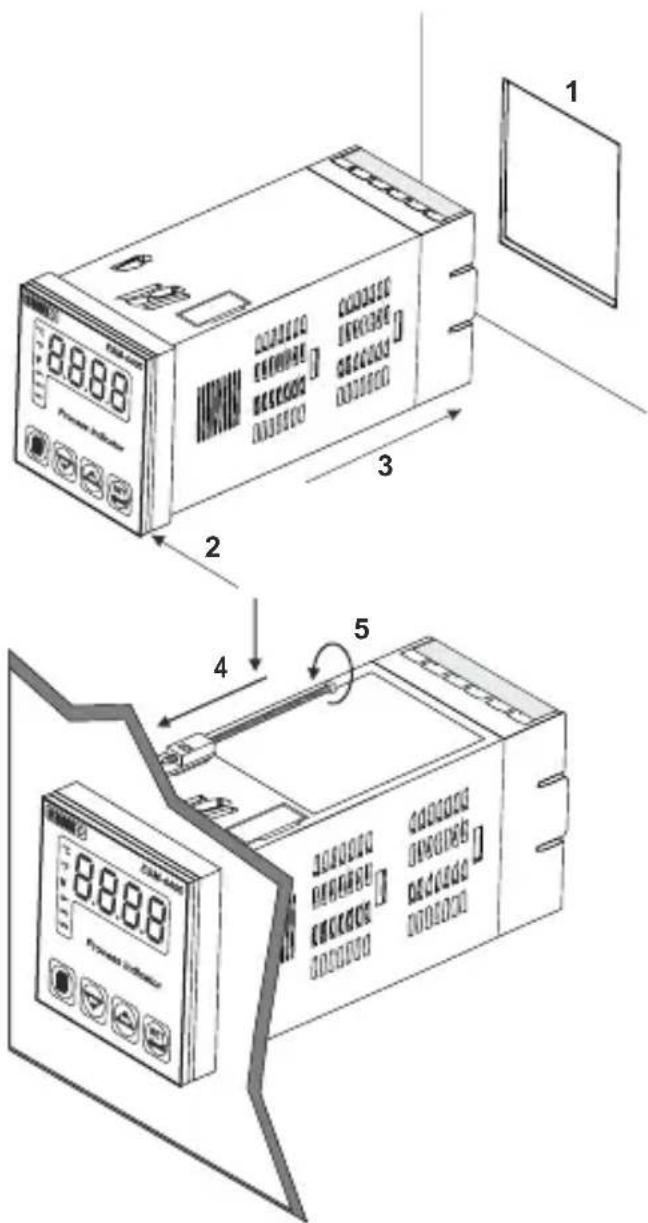

PANEL MOUNTING

8888 Power Supply 1 2 3 4 5 8888 Power Supply

1-Before mounting the device in your panel, make sure that the cut-out is of the right size. 2-Check front panel gasket position. 3-Insert the device through the cut-out. If the mounting clamps are on the unit, put out them before inserting the unit to the panel.

4-Insert the unit in the panel cut-out from the front side.

5- Insert the mounting clamps to the holes that located top and bottom sides of device and screw up the fixing screws until the unit completely immobile within the panel

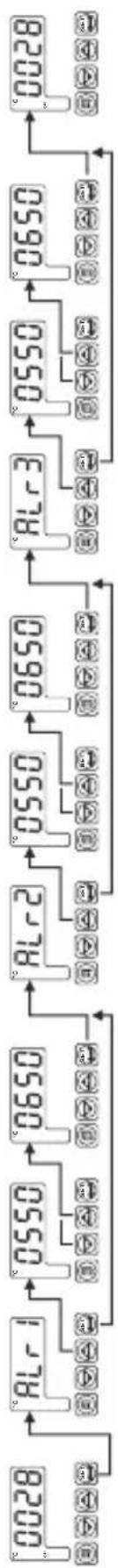

Access and change Set values

Main Screen Alarm-1 Set Screen

Alarm-2 Set Screen

Main Screen

Press SET Press Press increment Press SET Press Press increment Press SET Press Press increment Press SET

Button Increment or decrement button to Increment or decrement button to Increment or decrement button to

button to button to change save the button to button to change save the button to button to change save the

enter Alarm-1 the Alarm-1 Set Alarm-1 Set enter Alarm-2 the Alarm-2 Set Alarm-2 Set enter Alarm-3 the Alarm-3 Set Alarm-3 Set

set value. Value. value. set value. Value. value. set value. Value. value.

Note: User can exit from Set Value section without saving the values by pressing P button.

If no operation for 120 seconds, device automatically exits from Set Value section.

ENGLISH

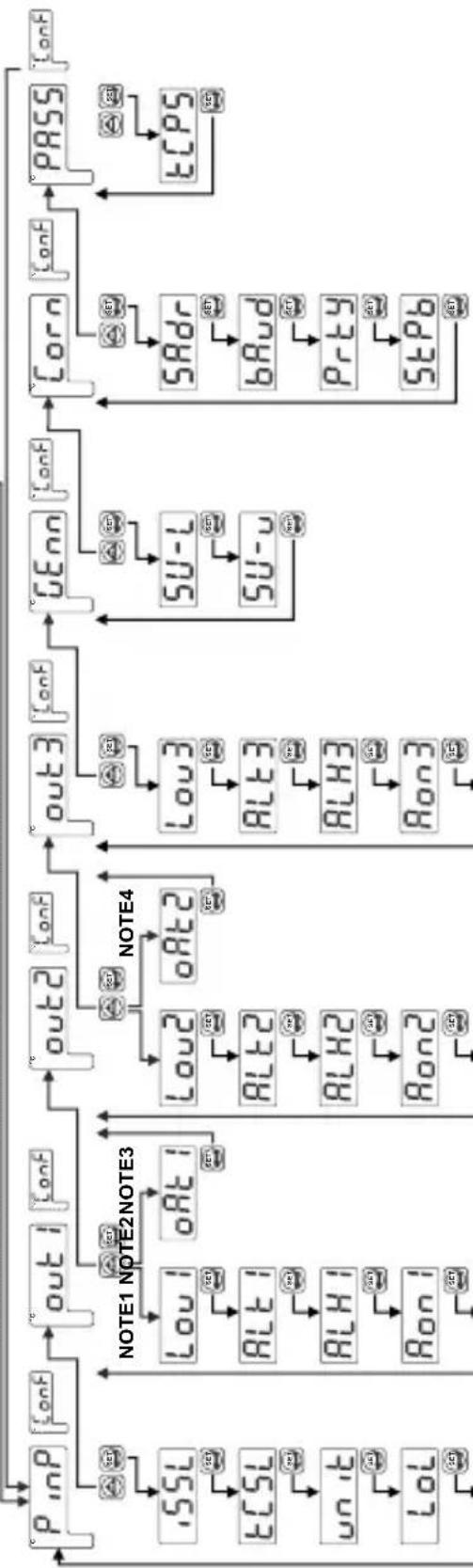

Easy Access diagram of Program Parameters

Main Screen Technician menu Technician password Technician password

entering screen entering screen entering screen

1 CCU 1 COC 0000

CELLA ELPS UUUU

□ □ □ □

21

Cross Set/OK Button. Press Increment button. Enter password with

Press Set/OK Button Press Increment button Enter password with to enter password to access password using increment or

to enter password to access password using increment of entering screen. entering screen decrement buttons.

Press Set/OK Button Press Increment button Enter password with Press Set/OK Button to enter password to access password using Increment or to approve password.

entering screen. entering screen decrement buttons.

Press Menu

Button.

广力云

    subgraph Inputs
        H[".SSL"] --> I["ECSL"]
        I --> J["unit"]
        J --> K["Lol"]
    end

    subgraph Note1
        L["LOU1"] --> M["ALT1"]
        M --> N["ALH1"]
        N --> O["Ron1"]
    end

    subgraph Note2
        P["OAT1"] --> Q["ALT2"]
        Q --> R["ALH2"]
        R --> S["Ron2"]
    end

    subgraph Note3
        T["LOU2"] --> U["ALT3"]
        U --> V["ALH3"]
        V --> W["Ron3"]
    end

    subgraph Note4
        X["OAT2"] --> Y["ALT4"]
        Y --> Z["ALH4"]
        Z --> AA["Ron4"]
    end

    subgraph Outputs
        AB["LU3"] --> AC["SU-L"]
        AC --> AD["SU-u"]
        AD --> AE["SRdr"]
        AE --> AF["bAud"]
        AF --> AG["Prty"]
        AG --> AH["StPb"]
        AH --> AI["ETCPS"]
    end

    A --> J --> K --> L --> M --> N --> O --> D --> E --> F --> G --> AI

NOTE1: If there is EMO-X00, EMO-X10, EMO-X20 output module in MODULE-1 socket, these parameters are shown.

NOTE2: If there is EMO-X00, EMO-X10, EMO-X20 output module in MODULE-2 socket, these

parameters are shown.

NOTE3: If there is EMO-X30 module in MODULE-1 socket, this parameter is shown.

NOTE4: If there is EMO-X30 module in MODULE-2 socket, this parameter is shown.

ENGLISH

PinP ConF: Process Input Type and Relevant Parameters

,55L Process Input Type

0000 TC input type selection

000 RTD input type selection

0002 ---Voltage / Current input type selection.

ECSL TC Input Selection

This parameter is active if TC input type is selected.

0000 L (-100°C;850°C) or (-148°F;1562°F)

0001 L (-100.0°C;850.0°C) or (-148.0°F;999.9°F)

0002 J (-200°C;900°C) or (-328°F;1652°F)

0003 J (-199.9°C; 900.0°C) or (-199.9°F; 999.9°F)

0004 K (-200°C;1300°C) or (-328°F;2372°F)

0005 K (-199.9°C; 999.9°C) or (-199.9°F; 999.9°F)

0006 R (0°C;1700°C) or (32°F;3092°F)

0007 R (0.0°C;999.9°C) or (32.0°F;999.9°F)

0008 S (0°C;1700°C) or (32°F;3092°F)

0009 S (0.0°C;999.9°C) or (32.0°F;999.9°F)

00 10 T (-200°C;400°C) or (-328°F;752°F)

0011 T (-199.9°C;400.0°C) or (-199.9°F;752.0°F)

00:12 B (44°C;1800°C) or (111°F;3272°F)

0013 B (44.0°C;999.9°C) or (111.0°F; 999.9°F)

0014 E (-150°C;700°C) or (-238°F;1292°F)

0015 E (-150.0°C;700.0°C) or (-199.9°F;999.9°F)

00:16 N (-200°C; 1300°C) or (-328°F; 2372°F)

0017 N (-199.9°C;999.9°C) or (-199.9°F;999.9°F)

00:18 C (0°C;2300°C) or (32°F;3261°F)

00 19 C (0.0°C;999.9°C) or (32.0°F;999.9°F)

rtd5 RTD Input Selection

This parameter is active if RTD input is selected.

0000 PT-100 (-200°C; 650°C) or (-328°F; 1202°F)

000 PT-100 (-199.9°C ; 650.0°C ) or (-199.9°F ;999.9°F)

uRSL ——voltage / Current Input Selection

This parameter is active if —Voltage / Current is selected.

0000 0...50mV = (-1999; 9999)

000: 0...5V = (-1999; 9999)

0002 0...10V = (-1999; 9999)

0003 0...20mA = (-1999; 9999)

0004 4...20mA = (-1999; 9999)

Display Point Position

This parameter is active if oltage/Current input is selected. V

No point

Between first and second digits "0.0"

Between second and third digits "0.00"

Between third and fourth digits "0.000"

Display Value Adjustment Type

This parameter is active if oltage/Current input is selected. V

Fixed dual point display adjustment. Display adjustment low point value is fixed to -1999, display adjustment high point value is fixed to 9999.

User can do dual point display adjustment with tPoL and tPoH.

User can do defined 16 display adjustment points.

Low Point Display adjustment (-1999, 9999)Unit

This parameter is active if oltage/Current input is selected. V

High Point Display adjustment (-1999, 9999)Unit

This parameter is active if voltage/Current input is selected.——V

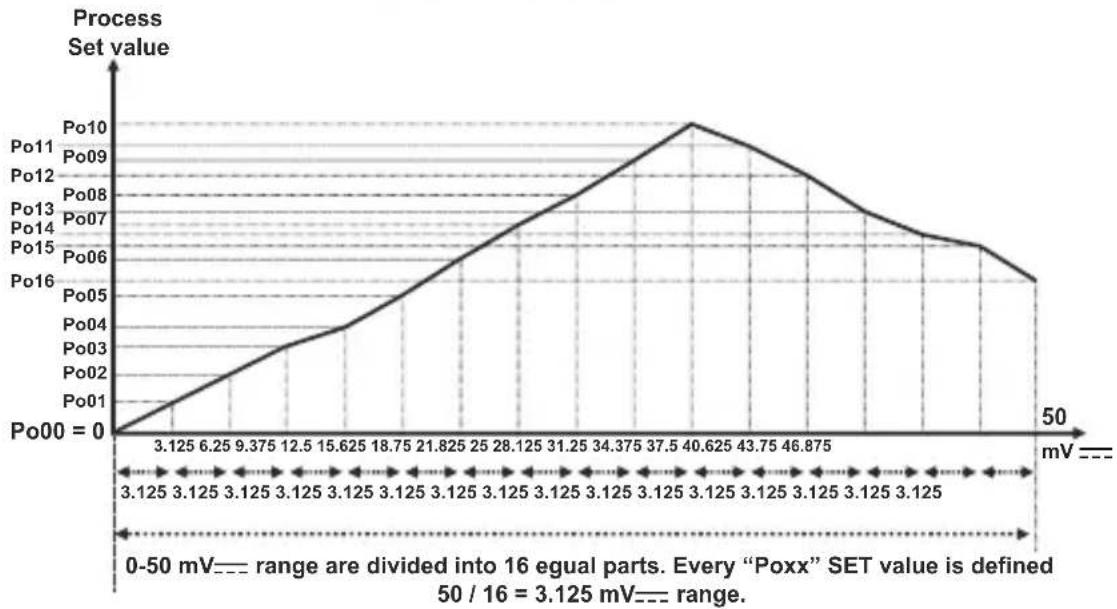

Display adjustment points (-1999, 9999)Unit

This parameter is active if voltage/Current input is selected. In multi point display adjustment operation, defined scale is divided into 16 adjustment points.

For example: UASL is 0000 (0-50 mV)

Coefficient value (1.000, 9.999)

Process value is multiplied with this value.

---VThis parameter is active if oltage/Current input is

Unit selection

Unit is °C

Unit is °F

Unit is Voltage. This selection is active if ===Voltage/Current input is selected

No unit. This selection is active if voltage / current input is selected

Operating Scale Minimum Value (Scale Low Point, Scale High Point)Unit

Used for Proportional band calculation and display blink.

Operating Scale Maximum Value (Scale Low Point, Scale High Point)Unit

Used for Proportional band calculation and display blink.

Display offset for process value (Scale -10%, Scale +10%)Unit

This parameter value is added to the process value.

Filter Time (0.0, 900.0)Second

Defines filter time for display value.

Cold Junction Compensation

This parameter is active if process input is selected TC input.

Cold junction compensation is active.

Cold junction compensation is not active.

Scale: The difference, between high point and low point of the process input type. Example: If tCSL = 2 (low point is -200, high point is 900), then scale is 1100. If input type is Voltage/Current, then the scale is difference between tPoH and tPoL parameters.

out1 ConF: MODULE-1 parameters

If there is EMO-X00 (Relay Output), EMO-X10 (SSR driver) and EMO-X20 (Digital Output) module in MODULE-1 socket, then the following parameters is active.

MODULE-1 output module Logic output function

0000

Alarm output

0001

Sensor break alarm output

0002

Output is active when the process value is out of the band which is defined with minimum value of operating scale and maximum value of operating scale

Alarm-1 Type

MODULE-1 alarm type. This parameter is active, if the Logic-1 output function is Alarm output.

0000

Process high alarm

0001

Process low alarm

Alarm-1 hysteresis value (0% of scale, 50% of scale)Unit

This parameter is active, if the Logic-1 output function is Alarm output.

Alarm-1 On delay time (0, 9999)Second

This parameter is active, if the Logic-1 output function is Alarm output.

Alarm-1 Off Delay Time (0, 9998)Second

When the value is greater than 9998, LCH is seen on the screen. It means alarm latching output is selected. This parameter is active if logic-1 output function of Alarm-1 Output is alarm output.

out1 ConF: MODULE-1 parameters

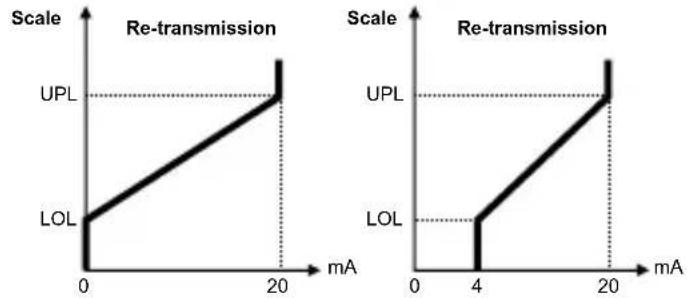

If there is EMO-X30 (0/4...20 mA == Current output module in MODULE-1 socket, then the following parameter is active.

MODULE-1 analogue output module configuration

0000 0...20mA--- output

0001 4...20mA--- output

out2 ConF: MODULE-2 parameters

If there is EMO-X00 (Relay Output), EMO-X10 (SSR driver) and EMO-X20 (Digital Output) module in MODULE-2 socket, then the following parameters is active.

MODULE-2 output module Logic output function

0000

Alarm output

0001

Sensor break alarm output

0002

Output is active when the process value is out of the band which is defined with minimum value of operating scale and maximum value of operating scale

Alarm-2 Type

MODULE-2 alarm type. This parameter is active, if the Logic-2 output function is Alarm output.

0000

Process high alarm

0001

Process low alarm

Alarm-2 hysteresis value (0% of scale, 50% of scale) Unit

This parameter is active, if the Logic-2 output function is Alarm output.

Alarm-2 On delay time (0, 9999)Second

This parameter is active, if the Logic-2 output function is Alarm output.

Alarm-2 Off Delay Time (0, 9998)Second

When the value is greater than 9998, LCH is seen on the screen. It means alarm latching output is selected. This parameter is active if logic-2 output function of Alarm-2 Output is alarm output.

out2 ConF: MODULE-2 parameters

If there is EMO-X30 (0/4...20 mA == Current output module in MODULE-2 socket, then the following parameter is active.

MODULE-2 analogue output module configuration

0000 0...20mA--- output

0001 4...20mA--- output

out3 ConF: MODULE-3 parameters

Output-3 Logic output function

0000

Alarm output

0001

Sensor break alarm output

0002

Output is active when the process value is out of the band which is defined with minimum value of operating scale and maximum value of operating scale

Alarm-3 Type

0000

Process high alarm

0001

Process low alarm

Alarm-3 hysteresis value (0% of scale, 50% of scale)Unit

This parameter is active, if the Logic-3 output function is Alarm output.

Alarm-3 On delay time (0, 9999)Second

This parameter is active, if the Logic-3 output function is Alarm output.

Alarm-3 Off Delay Time (0, 9998)Second

When the value is greater than 9998, LCH is seen on the screen. It means alarm latching output is selected. This parameter is active if logic-3 output function of Alarm-3 Output is alarm output.

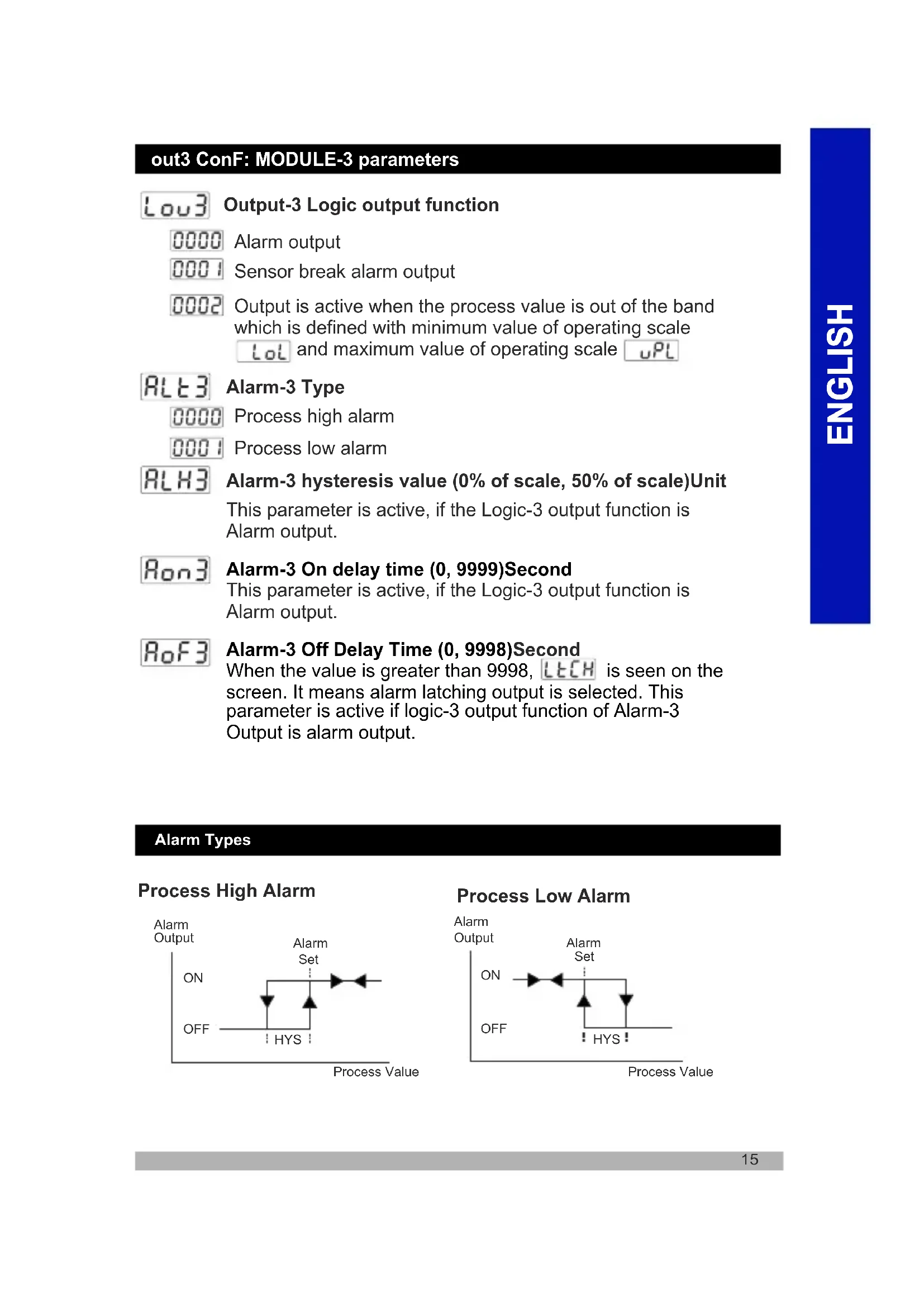

Alarm Types

Process High Alarm

Process Low Alarm

Alarm Types

Process High Alarm

Process Low Alarm

Gen ConF: General Parameters

Alarm Set value Low limit ( Lol, 5U-u)Unit

Alarm Set ( , )Ubitvalue High limit

Com ConF: Serial Communication Configuration Parameters

Communication Accessing Address (1,247)

Communication accessing address of device.

Communication accessing address can be adjusted from 1 to 247.

Communication Baud Rate

1200 Baud Rate.

2400 Baud Rate.

4800 Baud Rate

9600 Baud Rate

19200 Baud Rate

Parity Selection for Communication

No parity.

Odd parity.

Even parity.

Stop Bit Selection for Communication

1 stop bit

2 stop bit

ESM-XX00 Process Control Unit Error Messages

°C 56r SET

1 - Sensor failure in analogue inputs. Sensor connection is wrong or there is no sensor connection.

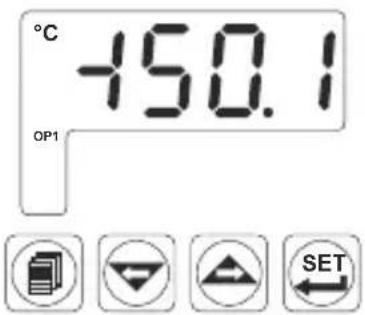

°C -150.1 OP1 SET

2- If top display blinks : If analogue input value is less than minimum value of operating scale [Lol] top display starts to blink.

°C 850.1 OP1 SET

3- If top display blinks : If analogue input value is greater than maximum value of operating scale top display starts to blink.

°C 155L SET

°C SET

4- If technician password is different from "0" and user accesses to the parameter by Set button without entering the technician password and wants to change a parameter, the warning message is shown on the display as shown on the right. Device does not allow to do any changes without entering the password correctly.

Installation

Before beginning installation of this product, please read the instruction manual and warnings below carefully.

In package,

• One piece unit
• Two pieces mounting clamp
• One piece instruction manual

A visual inspection of this product for possible damage occurred during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product.

If there is danger of serious accident resulting from a failure or defect in this unit, power off the system and separate the electrical connection of the device from the system.

The unit is normally supplied without a power switch or a fuse. Use power switch and fuse as required.

Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.

Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.

Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in malfunction, electric shock or fire.

Do not use the unit in combustible or explosive gaseous atmospheres.

During the equipment is putted in hole on the metal panel while mechanical installation some metal burrs can cause injury on hands, you must be careful.

Montage of the product on a system must be done with it's mounting clamp. Do not do the montage of the device with inappropriate mounting clamp. Be sure that device will not fall while doing the montage.

It is your responsibility if this equipment is used in a manner not specified in this instruction manual.

Warranty

EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.

Maintenance

Repairs should only be performed by trained and specialized personnel. Cut power to the device before accessing internal parts. Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or water to clean the external plastic case.

Other Informations

Manufacturer Information:

Emko Elektronik Sanayi ve Ticaret A.Ş. Demirtaş Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA /TURKEY

Phone : [phone] Fax : [phone]

Repair and Maintenance Service Information:

Emko Elektronik Sanayi ve Ticaret A.Ş. Demirtaş Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA /TURKEY

Phone : [phone] Fax : [phone]

Ordering Information

ESM-4400 (48x48 DIN 1/16)

ESM-4900 (96x48 DIN 1/8)

ESM-7700 (72x72 DIN Size)

ESM-9900 (96x96 DIN 1/4)

A	Supply Voltage
1	100-240V ~ (-%15;+%10) 50/60Hz
2	24V ~ (-%15;+%10) 50/60Hz 24V --- (-%15;+%10)
9	Customer (Maximum 240V ~ (-%15;+%10))50/60Hz

	Input type ScaleBC
20	Configurable(Table-1) Table-1

	Serial CommunicationD	Product Code
0	None
1	RS-232	EMC-400,EMC-700,EMC-900
2	RS-485	EMC-410,EMC-710,EMC-910

E	Output-3
1	Relay Output(5A@250V~ on resistive Load)

FG	Module-1	Module Codes
00	None
01	Relay Output Module	EMO-400,EMO-700,EMO-900
02	SSR driver Output Module(Maximum 26mA, 22V =--)	EMO-410,EMO-710,EMO-910
03	Digital (Transistor) Output Module(Maximum 40mA@18V =--)	EMO-420,EMO-720,EMO-920
04	Current Output Module(0/4...20 mA =--- veya 0...10V =--)	EMO-430,EMO-730,EMO-930

HI	Module-2	Module Codes
00	None
01	Relay Output Module	EMO-400,EMO-700,EMO-900
02	SSR driver Output Module(Maximum 26mA, 22V ==)	EMO-410,EMO-710,EMO-910
03	Digital (Transistor) Output Module(Maximum 40mA@18V ==)	EMO-420,EMO-720,EMO-920
04	Current Output Module(0/4...20 mA == veya 0...10V ==)	EMO-430,EMO-730,EMO-930

Table-1

BC	Input Type(TC)	Scale(°C)	Scale(°F)
21	L ,Fe Const DIN43710	-100°C,850°C	-148°F ,1562°F
22	L ,Fe Const DIN43710	-100.0°C,850.0°C	-148.0°F,999.9°F
23	J ,Fe CuNi IEC584.1(ITS90)	-200°C,900°C	-328°F,1652°F
24	J ,Fe CuNi IEC584.1(ITS90)	-199.9°C,900.0°C	-199.9°F,999.9°F
25	K ,NiCr Ni IEC584.1(ITS90)	-200°C,1300°C	-328°F,2372°F
26	K ,NiCr Ni IEC584.1(ITS90)	-199.9°C,999.9°C	-199.9°F,999.9°F
27	R ,Pt13%Rh Pt IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
28	S ,Pt10%Rh Pt IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
29	T ,Cu CuNi IEC584.1(ITS90)	-200°C,400°C	-328°F,752°F
30	T ,Cu CuNi IEC584.1(ITS90)	-199.9°C,400.0°C	-199.9°F,752.0°F
31	B ,Pt30%Rh Pt6%Rh IEC584.1(ITS90)	44°C,1800°C	111°F,3272°F
32	B ,Pt30%Rh Pt6%Rh IEC584.1(ITS90)	44.0°C,999.9°C	111.0°F,999.9°F
33	E ,NiCr CuNi IEC584.1(ITS90)	-150°C,700°C	-238°F,1292°F
34	E ,NiCr CuNi IEC584.1(ITS90)	-150.0°C,700.0°C	-199.9°F,999.9°F
35	N ,Nicrosil Nisil IEC584.1(ITS90)	-200°C,1300°C	-328°F,2372°F
36	N ,Nicrosil Nisil IEC584.1(ITS90)	-199.9°C,999.9°C	-199.9°F,999.9°F
37	C , (ITS90)	0°C,2300°C	32°F,3261°F
38	C , (ITS90)	0.0°C,999.9°C	32.0°F,999.9°F
BC	Input Type(RTD)	Scale(°C)	Scale(°F)
39	PT 100 , IEC751(ITS90)	-200°C,650°C	-328°F,1202°F
40	PT 100 , IEC751(ITS90)	-199.9°C,650.0°C	-199.9°F,999.9°F

BC	Input Type( --- Voltage and Current)	Scale
41	0...50 mV ---	-1999,9999
42	0...5 V ---	-1999,9999
43	0...10 V ---	-1999,9999
44	0...20 mA ---	-1999,9999
45	4...20 mA ---	-1999,9999

Thank you very much for your preference to use Emko Elektronik products, please visit our web page to download detailed user manual.

www.emkoelektronik.com.tr

ESM-XX00 PROZESSANZEIGE

Four black industrial control unit units with digital displays and indicator lights, displayed against a plain yellow background (no visible text or symbols)

CE ERC

ESM-4400, ESM-7700, ESM-9900, ESM-4900

0...50mV = (-1999; 9999)
0...5V = (-1999; 9999)
2 0...10V --- (-1999; 9999)
3 0...20mA = (-1999; 9999)
4...20mA = (-1999; 9999)

°C -150.1 OP1

°C 850.1 CP1

°C 155L

℃

Four black electronic devices with digital displays and control buttons, displayed against a plain yellow background (no visible text or symbols)

CE ERC

ESM-4400, ESM-7700, ESM-9900, ESM-4900

Technical line drawing of a rectangular device with internal compartments and a central slot, shown with dimension lines (no text or symbols)

Pure technical diagram of a mechanical or electronic component with no text, numbers, or symbols

10,5 ± 1 mm / 0,41 pouce 76 mm / 2,99 pouces

ESM-7700 °C 8.8.8.8 °F V OP1 OP2 OP3 Indicateur de process

72 mm / 2,83 pouces
72 mm / 2,83 pouces

Maximum 15 mm / 0,59 pouce

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

11,5 ± 1 mm / 0,45 pouces 76 mm / 2,99 pouces

°C 8.8.8.8 OP1 OP2 OP3 Indicateur de process ESM-9900

96 mm / 3,78 pouces
96 mm / 3,78 pouces

Maximum 15 mm / 0,59 pouce

Pure technical diagram of a mechanical or architectural component with no text, numbers, or symbols

0003 0...20 mA --- (-1999; 9999)

0004 4...20 mA = (-1999; 9999)

Affichage position de point

°C -150.1 OP1

°C 155L SET

°C SET

A

BC

D

E

FG

HI /

U

V

W

Z/

1

/

/

0

0

0

0

A	Tension d'alimentation
1	100-240 V ~ (-%15;+%10) 50/60 Hz
2	24 V ~ (-%15;+%10) 50/60 Hz 24 V = -(-%15;+%10)
9	Client (Maximum 240 V ~ (-%15;+%10)) 50/60 Hz

Four black industrial control unit units with digital displays and buttons, displayed against a plain yellow background (no visible text or symbols)

CE EAC

ESM-4400, ESM-7700, ESM-9900, ESM-4900

ESM-7700: X = 97 mm, Y = 97 mm

ESM-9900: X = 129 mm, Y = 129 mm

°C 56r SET

°C -150.1 OP1 SET

°C 850.1 OP1 SET

°C 155L SET

°C SET

A

BC

D

E

FG

HI /

U

V

W

Z/

1

/

/

0

0

0

0

A	Tensión de alimentación
1	100-240 V ~ (-%15; +%10) 50/60 Hz
2	24 V ~ (-%15; +%10) 50/60 Hz 24 V = (-%15; +%10)
9	Cliente (Máximo 240 V ~ (-%15; +%10)) 50/60 Hz

	Tipo de Entrada EscalaBC
20	Configurable (Tabla-1)	Tabla-1
