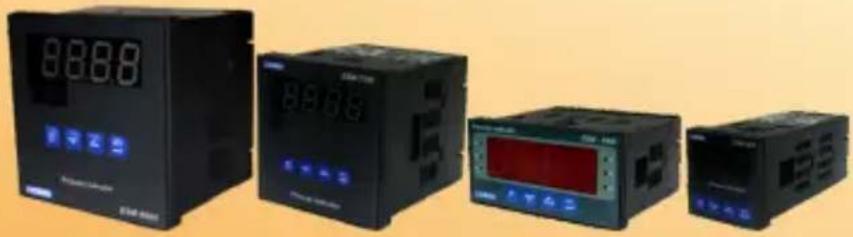

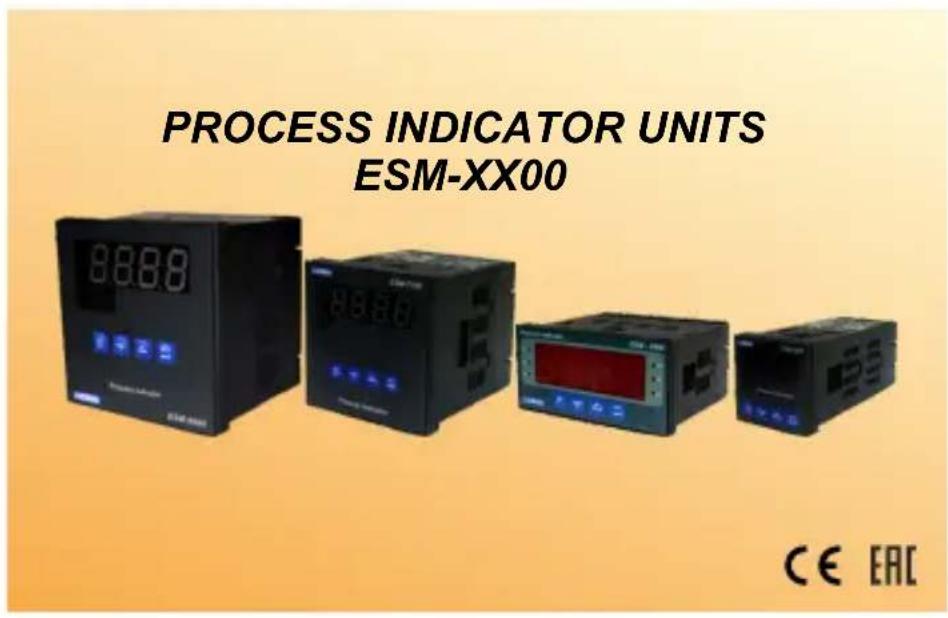

ESM-XX00 Process Indicator Units

ENGLISH

ESM-4400, ESM-7700, ESM-9900, ESM-4900

Universal Input Smart output module system Process display units

• 4 digit process (PV) display
• Universal process input (TC, RTD, mV ---, V ---, mA ---)
• Dual or multi point calibration for ---voltage &---current inputs
• Smart output module system
• Programmable Alarm functions
• Process control or re-transmission with 0/4...20 mA --- Current output module
• RS-232 (standart) or RS-485(Optional) serial communication with Modbus RTU protocol

SPECIFICATIONS

PROCESS INPUT

Universal Input: TC, RTD, --- Voltage/Current

Thermocouple (TC): L(DIN 43710), J, K, R, S, T, B, E and N

(IEC584.1)(ITS90),C (ITS90)

Thermoresistance (RTD): PT-100 (IEC751)(ITS90)

--- Input: mV, V, mA

Measurement Range : Please refer to Table-1 for selection of input

type and scale

Accuracy: ± 0.25% of full scale for thermocouple, thermoresistance, mV, V and mA input.

Cold Junction Compensation:Automatically ± 0.1^ / 1^

Line Compensation: Maximum 10 Ohm

Sensor break protection:Upscale

Sampling Cycle:3 samples per second

Input Filter: 0.0 to 900.0 seconds

OUTPUT

Standart Relay Output: 5A@250V~ (on resistive load)

Output Modules: User can insert 2 output module to the device.

-Relay Output Module

-SSR Output Module (Max. 26mA, Max. 22V---)

-Digital (Transistor) Output Module (Max.40 mA @18V ---)

-0/4...20 mA --- Current Output Module

POWER SUPPLY

Power Supply Voltage :

100-240V 50/60 Hz (-%15;+%10) -6VA

24V～50/60 Hz (-%15；+%10)-6VA

24V = = (- % 15; + % 10) -6W

(It must be determined in order.)

DISPLAY

Process Display :

ESM-4400 : 10.1 mm Red 4 digit LED Display

ESM-4900 : 20.3 mm Red 4 digit LED Display

ESM-7700 : 13.2 mm Red 4 digit LED Display

ESM-9900 : 19 mm Red 4 digit LED Display

LED Gostergeler: ^ C / ^ / V OP1/2/3 (Output Status) LED.

ENVIRONMENTAL RATINGS and PHYSICAL SPECIFICATIONS

Operating Temperature: 0 50^

Humidity : 0-90%RH (non condensing)

Protection Class : IP65 at front, IP20 at rear

Mounting : Type-1 Enclosure Mounting

Installation : Fixed installation Category II

Pollution Degree : II, office or workplace, none conductive pollution

Weight:

ESM-4400:210 gr.

ESM-4900:260 gr.

ESM-7700:270 gr.

ESM-9900:360 gr.

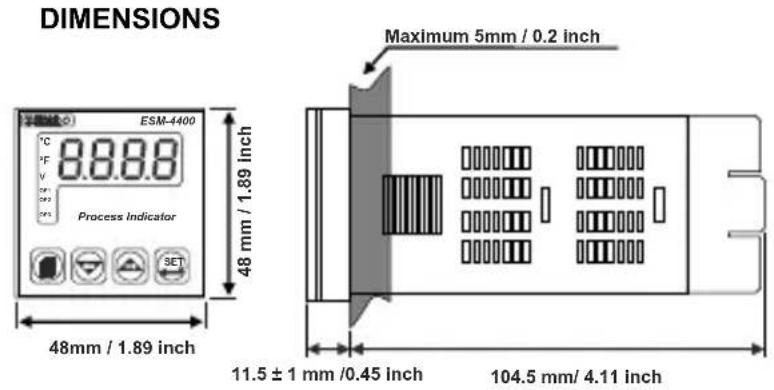

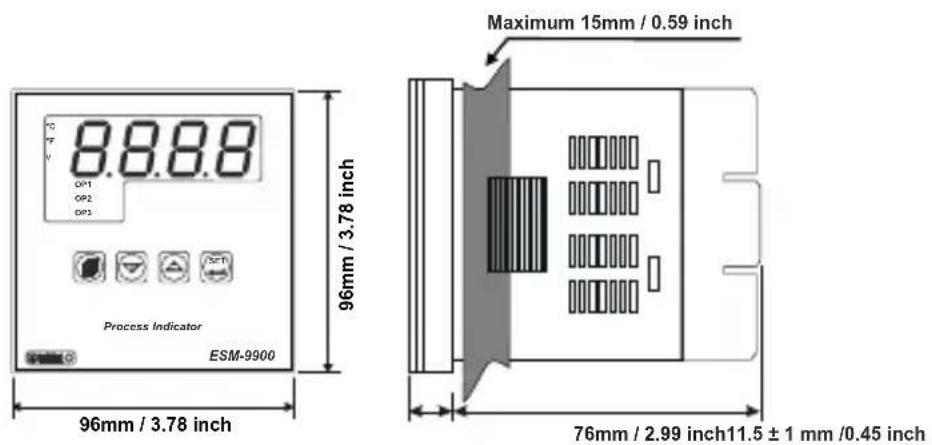

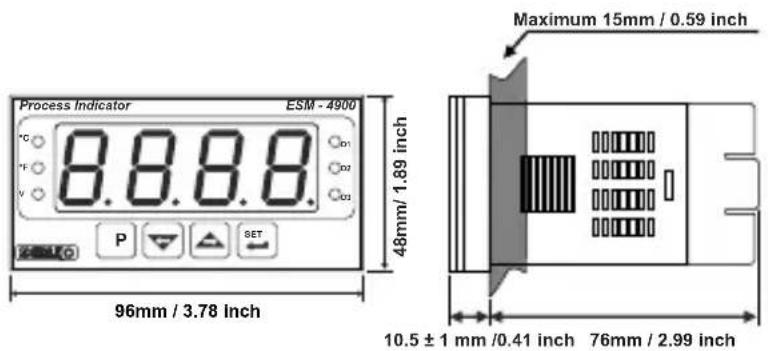

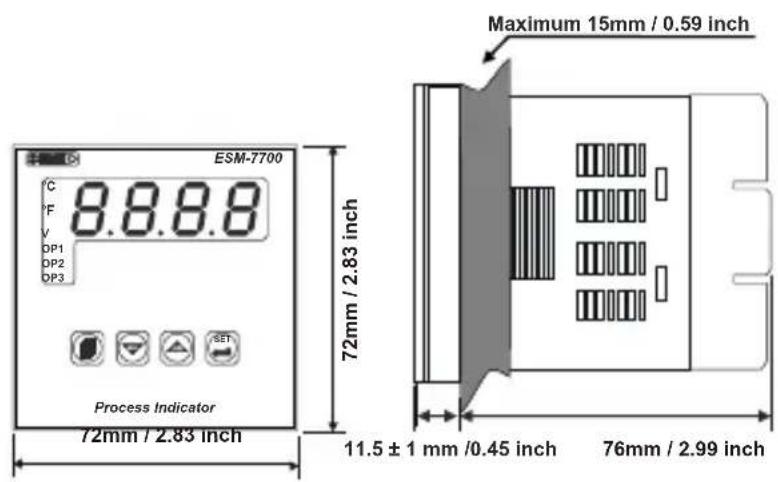

Dimensions / Panel Cut-Out:

ESM-4400: (48 x 48mm, Depth:116 mm) / (46 x 46mm)

ESM-4900 : (96 x 48mm, Depth:86.5 mm) / (92 x 46mm)

ESM-7700 : (72 x 72mm, Depth:87.5 mm) / (69 x 69mm)

ESM-9900 : (96 x 96mm, Depth:87.5 mm) / (92 x 92mm)

Minimum Distance Between Panel Cut-Out Centers:

ESM-4400:X=65mm，Y=65mm

ESM-4900 : X=129mm, Y=65mm

ESM-7700:X=97mm，Y=97mm

ESM-9900 : X=129mm, Y=129mm

This symbol is used for safety warnings. User must pay attention to these warnings.

This symbol is used to determine the dangerous situations as a result of an electric shock. User must pay attention to these warnings definitely.

This symbol is used to determine the important notes about functions and usage of the device

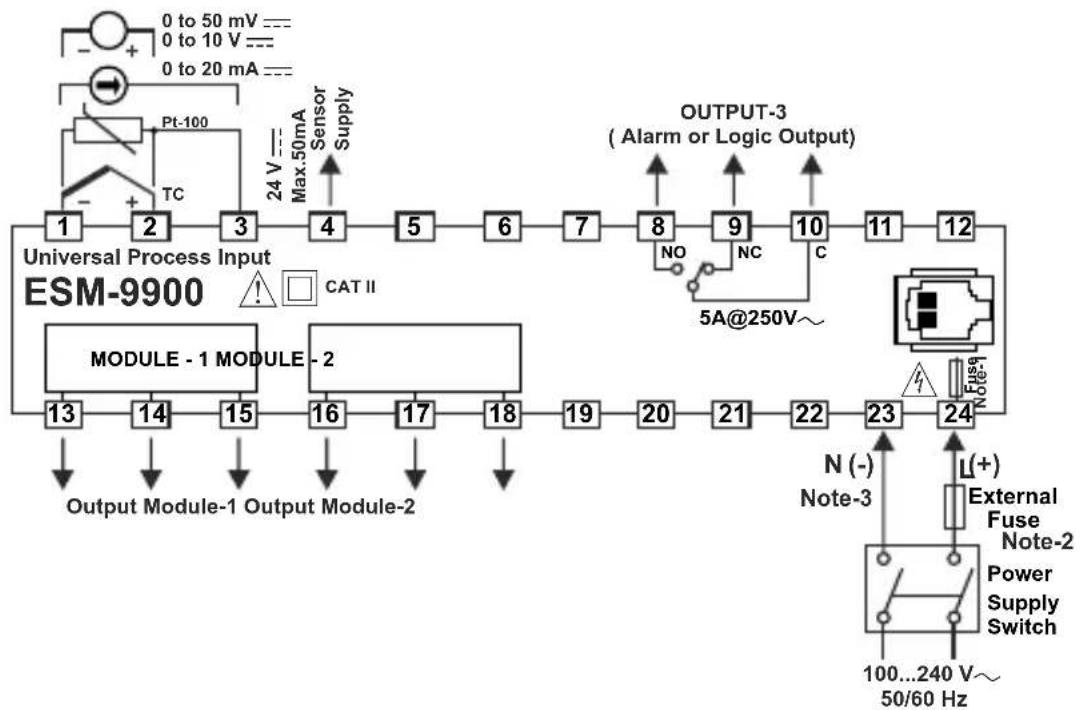

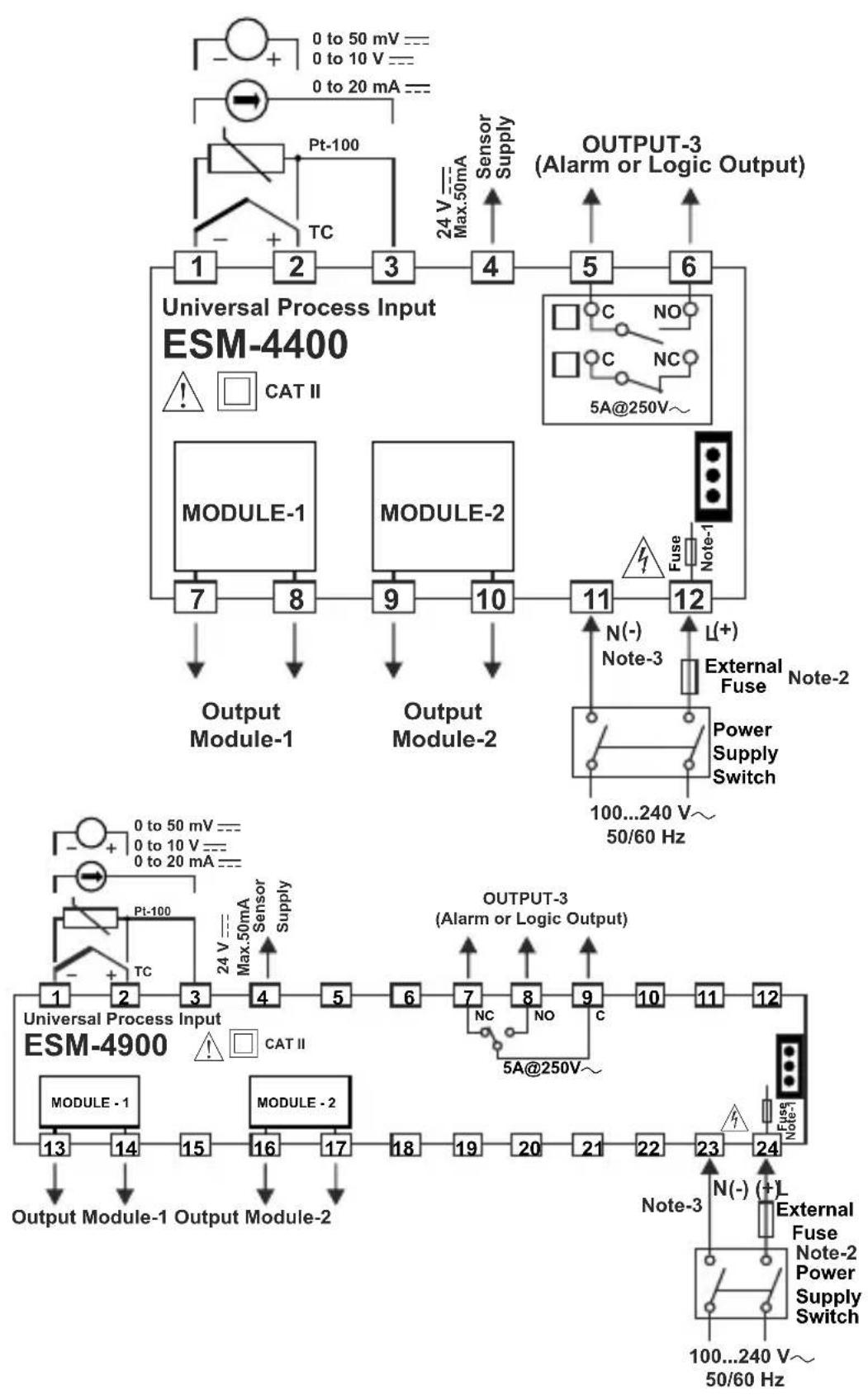

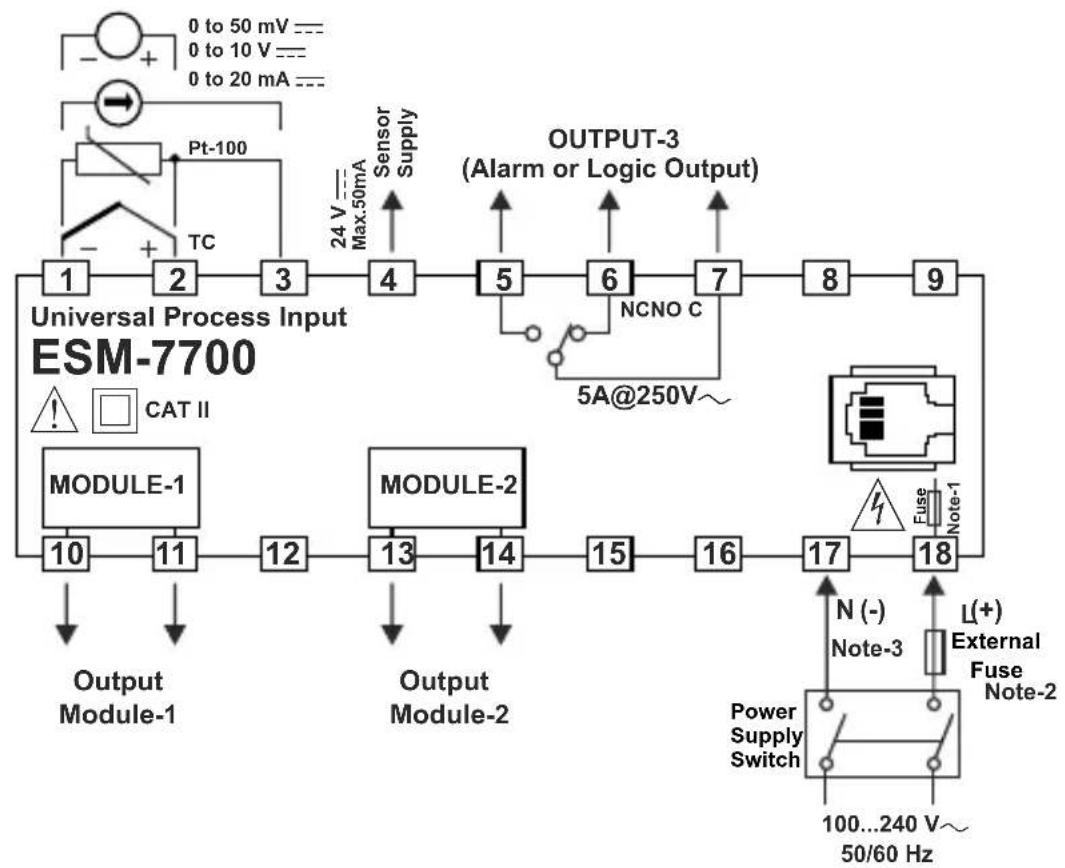

Electrical Wiring

Note-1 :There is an internal fusible flameproof resistor.
Note-2 : External fuse is recommended.
110Q.T for power supply 240V or 24V
1A---T for power supply 24V ---
Note-3: “L” is (+), “N” is (-) for 24V --- supply voltage

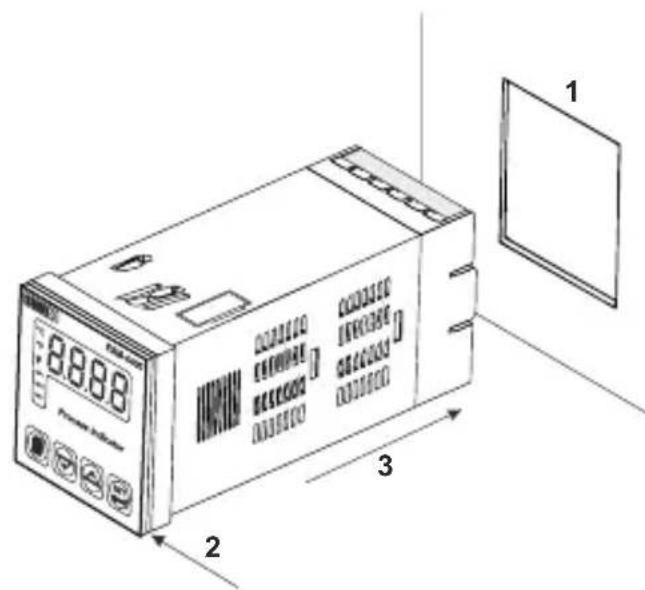

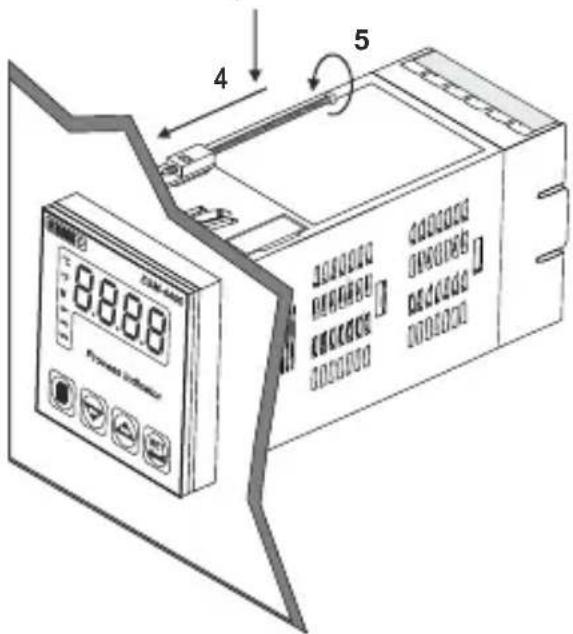

PANEL MOUNTING

1-Before mounting the device in your panel, make sure that the cut-out is of the right size.
2-Check front panel gasket position.
3-Insert the device through the cut-out. If the mounting clamps are on the unit, put out them before inserting the unit to the panel.

4-Insert the unit in the panel cut-out from the front side.

5- Insert the mounting clamps to the holes that located top and bottom sides of device and screw up the fixing screws until the unit completely immobile within the panel

Note: User can exit from Set Value section without saving the values by pressing p button.
If no operation for 120 seconds, device automatically exits from Set Value section.

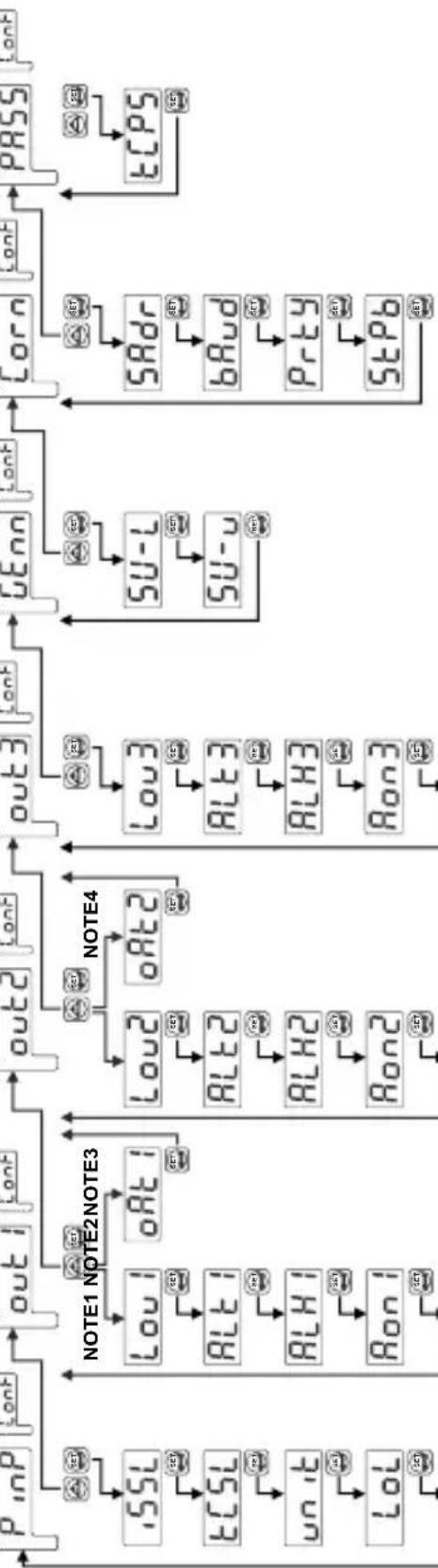

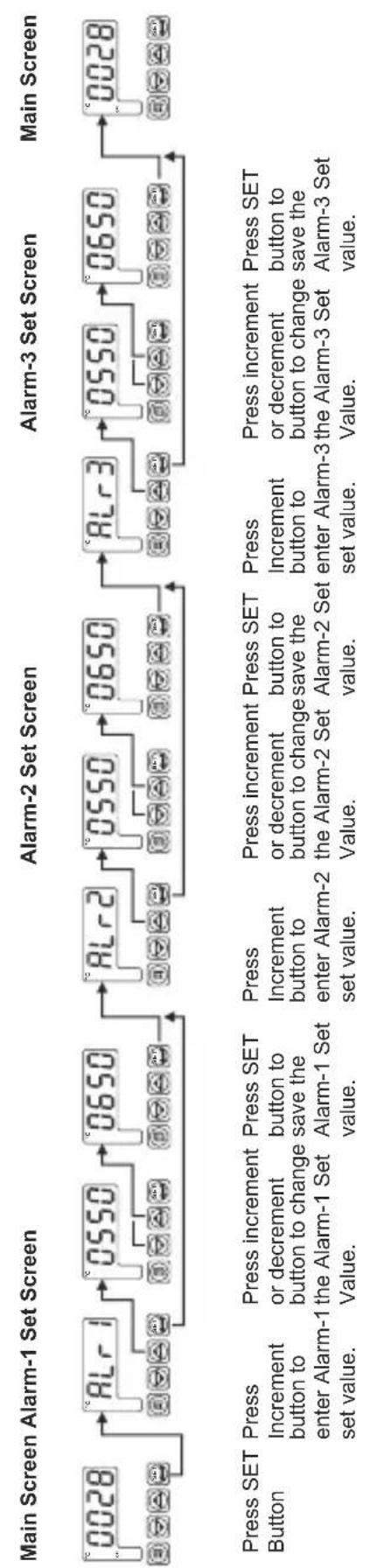

Easy Access diagram of Program Parameters

Technician menu Technician password Technician password

entering screen entering screen entering screen

156

ECLA ECLPS UU

Press Set/OK Button Press increment button Enter password venter enter password to access password using Insertion

Note: For detailed information look PASS ConF section.

Press Set/OK Button Press Increment button Enter password with Press Set/OK Button

Press Set/OK Button Press Increment button Enter password withEnter密码 to access password using the

0 0 0

Press Set/OK Button Press Increment button Enter password withEnter密码 to access password using the

To enter password to access password using increment of
entering screen. entering screen decrement buttons.
华

NOTE1: If there is EMO-X00, EMO-X10, EMO-X20 output module in MODULE-1 socket, these parameters are shown.

NOTE2: If there is EMO-X00, EMO-X10, EMO-X20 output module in MODULE-2 socket. these

parameters are shown.

NOTE2:If there is FMO X30 module in MODUL5.1

NOTES: If there is EMO-A30 mode

socket, this parameter is shown.
NOTE4: If there is EMO-X30 mode, the following are not allowed.
socket, this parameter is shown.

PinP ConF: Process Input Type and Relevant Parameters

,55L Process Input Type

0000 TC input type selection

000 RTD input type selection

0002 = = Voltage / Current input type selection.

TC Input Selection

This parameter is active if TC input type is selected.

0000 L (-100^;850^) or (-148^;1562^)

L (-100.0^;850.0^) or (-148.0^;999.9^)

0002 J (-200^;900^) or (-328^;1652^)

0003 J (-199.9^;900.0^) or (-199.9^;999.9^)

000 K (-200^;1300^) or (-328^;2372^)

0005 K (-199.9°C;999.9°C) or (-199.9°F;999.9°F)

0006 R (0^;1700^) or (32^;3092^)

000 R (0.0^;999.9^) or (32.0^;999.9^)

0008 S (0^;1700^) or (32^;3092^)

0009 S (0.0^;999.9^) or (32.0^;999.9^)

00 T (-200^;400^) or (-328^;752^)

T (-199.9°C;400.0°C) or (-199.9°F;752.0°F)

0012 B (44^;1800^) or (111^;3272^)

0013 B (44.0°C; 999.9°C) or (111.0°F; 999.9°F)

0014 E (-150^;700^) or (-238^;1292^)

0015 E (-150.0^;700.0^) or (-199.9^;999.9^)

0016 N (-200^;1300^) or (-328^;2372^)

0017 N (-199.9^;999.9^) or (-199.9^;999.9^)

00.18 C (0^;2300^) or (32^;3261^)

0019 C (0.0^;999.9^) or (32.0^;999.9^)

rteds RTD Input Selection

This parameter is active if RTD input is selected.

PT-100 (-200°C; 650°C) or (-328°F; 1202°F)

000:PT-100(-199.9°C;650.0°C)or(-199.9°F;999.9°F)

wRSL voltage / Current Input Selection

This parameter is active if = = Voltage / Current is selected.

0000 0...50mV = = (-1999;9999)

Display Point Position

This parameter is active if oltage/Current input is selected. V

000 No point

Between first and second digits "0.0"

0002 Between second and third digits "0.00"

Between third and fourth digits "0.000"

Display Value Adjustment Type

This parameter is active if oltage/Current input is selected. = = = V

Fixed dual point display adjustment. Display adjustment low point value is fixed to -1999, display adjustment high point value is fixed to 9999.

User can do dual point display adjustment with tPoL and tPoH.

User can do defined 16 display adjustment points.

Low Point Display adjustment (-1999, 9999)Unit

This parameter is active if oltage/Current input is selected. V

High Point Display adjustment (-1999, 9999)Unit

This parameter is active if voltage/Current input is selected. = V

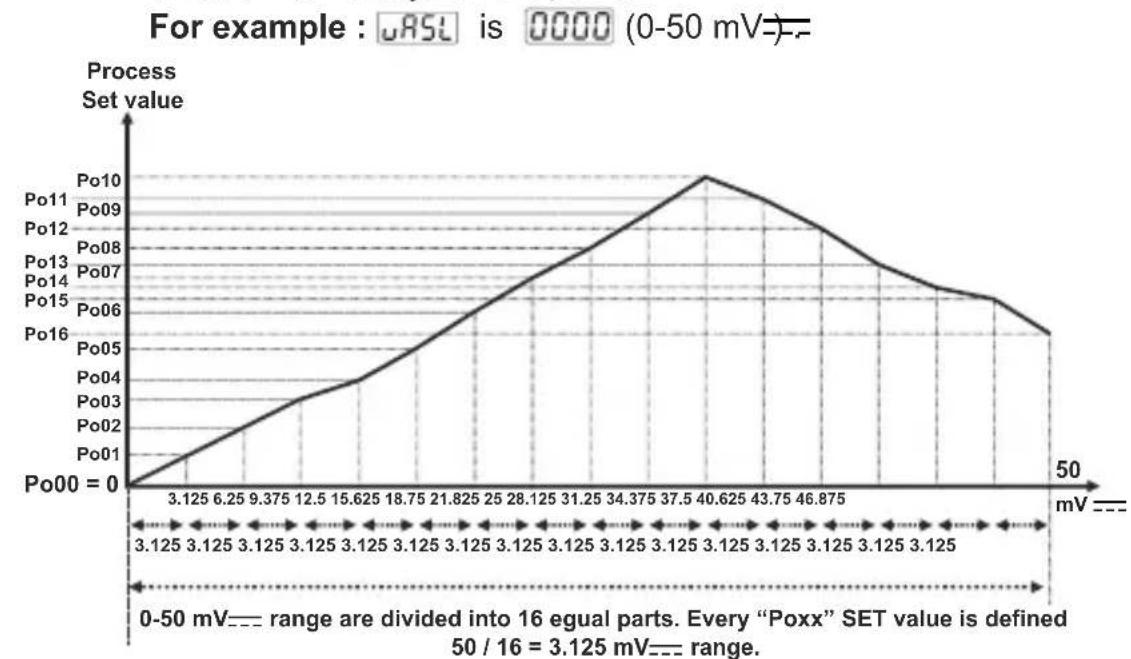

Display adjustment points (-1999, 9999)Unit

This parameter is active if age/ Current input is selected. In multi point display adjustment operation, defined scale is divided into 16 adjustment points.

Coefficient value (1.000, 9.999)

Process value is multiplied with this value.

---VThis parameter is active if voltage/Current input is:

Unit selection

Unit is ^ C
of Unit is ^ F
Unit is Voltage. This selection is active if = = Voltage/Current input is selected
No unit. This selection is active if voltage / current input is selected

Operating Scale Minimum Value (Scale Low Point, Scale High Point)Unit

Used for Proportional band calculation and display blink.

Operating Scale Maximum Value (Scale Low Point, Scale High Point)Unit

Used for Proportional band calculation and display blink.

Display offset for process value (Scale -10%, Scale +10%)Unit

This parameter value is added to the process value.

Filter Time (0.0, 900.0)Second

Defines filter time for display value.

Cold Junction Compensation

This parameter is active if process input is selected TC input.

Cold junction compensation is active.

Cold junction compensation is not active.

Scale: The difference, between high point and low point of the process input type. Example: If tCSL = 2 (low point is -200, high point is 900), then scale is 1100. If input type is Voltage/Current, then the scale is difference between tPoH and tPoL parameters.

out1 ConF: MODULE-1 parameters

If there is EMO-X00 (Relay Output), EMO-X10 (SSR driver) and EMO-X20 (Digital Output) module in MODULE-1 socket, then the following parameters is active.

MODULE-1 output module Logic output function

Alarm output
000 Sensor break alarm output
0002 Output is active when the process value is out of the band which is defined with minimum value of operating scale to and maximum value of operating scale uPL

Alarm-1 Type

MODULE-1 alarm type. This parameter is active, if the Logic-1 output function is Alarm output.

0000 Process high alarm
0001 Process low alarm

Alarm-1 hysteresis value (0% of scale, 50% of scale)Unit

This parameter is active, if the Logic-1 output function is Alarm output.

Alarm-1 On delay time (0, 9999)Second

This parameter is active, if the Logic-1 output function is Alarm output.

Alarm-1 Off Delay Time (0, 9998)Second

When the value is greater than 9998, LECH is seen on the screen. It means alarm latching output is selected. This parameter is active if logic-1 output function of Alarm-1 Output is alarm output.

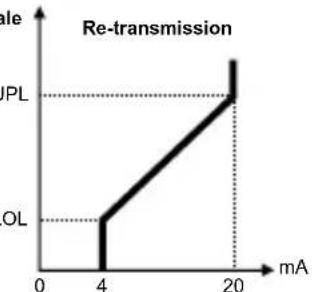

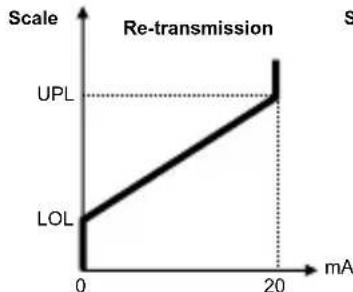

out1 ConF: MODULE-1 parameters

If there is EMO-X30 (0/4...20 mA = Current output module in MODULE-1 socket, then the following parameter is active.

MODULE-1 analogue output module configuration

0000 0...20mA=== output

0004...20mA= output

out2 ConF: MODULE-2 parameters

If there is EMO-X00 (Relay Output), EMO-X10 (SSR driver) and EMO-X20 (Digital Output) module in MODULE-2 socket, then the following parameters is active.

MODULE-2 output module Logic output function

0000 Alarm output
Sensor break alarm output
0002 Output is active when the process value is out of the band which is defined with minimum value of operating scale to and maximum value of operating scale uPL

Alarm-2 Type

MODULE-2 alarm type. This parameter is active, if the Logic-2 output function is Alarm output.

0000 Process high alarm
0001 Process low alarm

Alarm-2 hysteresis value (0% of scale, 50% of scale)Unit

This parameter is active, if the Logic-2 output function is Alarm output.

Alarm-2 On delay time (0, 9999)Second

This parameter is active, if the Logic-2 output function is Alarm output.

Alarm-2 Off Delay Time (0, 9998)Second

When the value is greater than 9998, LECH is seen on the screen. It means alarm latching output is selected. This parameter is active if logic-2 output function of Alarm-2 Output is alarm output.

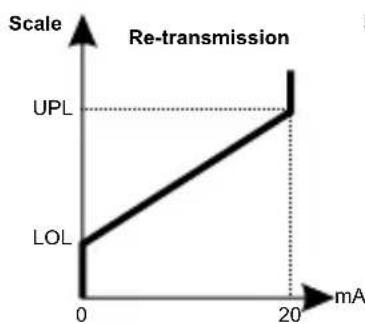

out2 ConF: MODULE-2 parameters

If there is EMO-X30 (0/4...20 mA --- Current output module in MODULE-2 socket, then the following parameter is active.

MODULE-2 analogue output module configuration

0000 0...20mA---output

0004...20mA-output

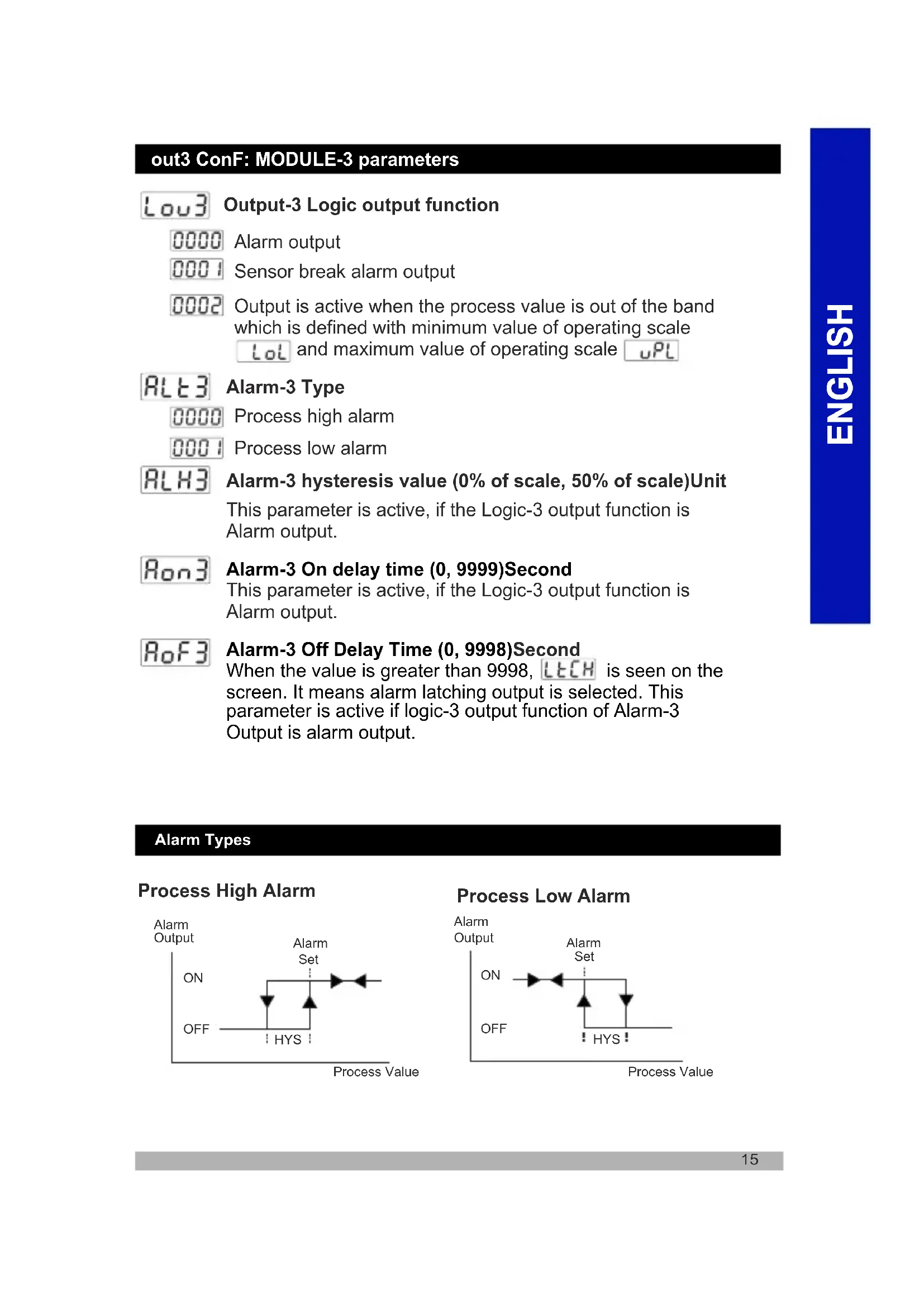

out3 ConF: MODULE-3 parameters

Output-3 Logic output function

0000

Alarm output

0001

Sensor break alarm output

0002

Output is active when the process value is out of the band which is defined with minimum value of operating scale lot and maximum value of operating scale uPL

Alarm-3 Type

0000

Process high alarm

000

Process low alarm

Alarm-3 hysteresis value (0% of scale, 50% of scale)Unit This parameter is active, if the Logic-3 output function is Alarm output.

Alarm-3 On delay time (0, 9999)Second

This parameter is active, if the Logic-3 output function is Alarm output.

Alarm-3 Off Delay Time (0, 9998)Second

When the value is greater than 9998, LECH is seen on the screen. It means alarm latching output is selected. This parameter is active if logic-3 output function of Alarm-3 Output is alarm output.

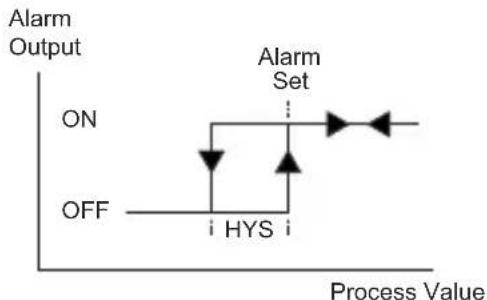

Alarm Types

Process High Alarm

Process Low Alarm

Alarm Types

Process High Alarm

Process Low Alarm

Gen ConF: General Parameters

Com ConF: Serial Communication Configuration Parameters

5Adr Communication Accessing Address (1,247)

Communication accessing address of device.

Communication accessing address can be adjusted from 1 to 247.

bRud Communication Baud Rate

1200 Baud Rate.

0001 2400 Baud Rate.

0002 4800 Baud Rate

0003 9600 Baud Rate

0004 19200 Baud Rate

Parity Selection for Communication

0000 No parity.

000: Odd parity.

0002 Even parity.

Stop Bit Selection for Communication

0000 1 stop bit

0001 2 stop bit

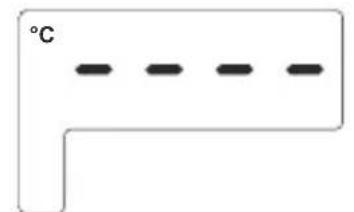

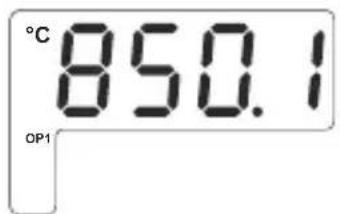

ESM-XX00 Process Control Unit Error Messages

1 - Sensor failure in analogue inputs. Sensor connection is wrong or there is no sensor connection.

2- If top display blinks : If analogue input value is less than minimum value of operating scale top display starts to blink.

3- If top display blinks: If analogue input value is greater than maximum value of operating scale top display starts to blink.

4- If technician password is different from "0" and user accesses to the parameter by Set button without entering the technician password and wants to change a parameter, the warning message is shown on the display as shown on the right. Device does not allow to do any changes without entering the password correctly.

Installation

Before beginning installation of this product, please read the instruction manual and warnings below carefully.

In package ,

• One piece unit
• Two pieces mounting clamp
• One piece instruction manual

A visual inspection of this product for possible damage occurred during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product.

If there is danger of serious accident resulting from a failure or defect in this unit, power off the system and separate the electrical connection of the device from the system.

The unit is normally supplied without a power switch or a fuse. Use power switch and fuse as required.

Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.

Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.

Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in malfunction, electric shock or fire.

Do not use the unit in combustible or explosive gaseous atmospheres.

During the equipment is putted in hole on the metal panel while mechanical installation some metal burrs can cause injury on hands, you must be careful.

Montage of the product on a system must be done with it's mounting clamp. Do not do the montage of the device with inappropriate mounting clamp. Be sure that device will not fall while doing the montage.

It is your responsibility if this equipment is used in a manner not specified in this instruction manual.

Warranty

EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.

Maintenance

Repairs should only be performed by trained and specialized personnel. Cut power to the device before accessing internal parts. Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or water to clean the external plastic case.

Other Informations

Manufacturer Information:

Emko Elektronik Sanayi ve Ticaret A.S.

Demirtas Organize Sanayi Bolgesi Karanfil Sk. No:6 16369 BURSA/TURKEY

Phone : [phone]

Fax : [phone]

Repair and Maintenance Service Information:

Emko Elektronik Sanayi ve Ticaret A.S.

Demirtaş Organize Sanayi Bölgesi Karafil Sk. No:6 16369
BURSA/TURKEY

Phone : [phone]

Fax : [phone]

Ordering Information

ESM-4400 (48x48 DIN 1/16) ESM-4900 (96x48 DIN 1/8) ESM-7700 (72x72 DIN Size) ESM-9900 (96x96 DIN 1/4)

A

BC

DE

FG

HI /

U

V

W

Z /

1

/

/

0

0

0

A

Supply Voltage

1

100-240V ~ (-%15;+%10) 50/60Hz

2

24V ~ (-%15;+%10) 50/60Hz 24V --- (-%15;+%10)

9

Customer (Maximum 240V ~ (-%15;+%10))50/60Hz

Input type ScaleBC

20

Configurable(Table-1) Table-1

Serial CommunicationD

Product Code

0

None

1

RS-232

EMC-400,EMC-700,EMC-900

2

RS-485

EMC-410,EMC-710,EMC-910

E

Output-3

1

Relay Output(5A@250V~ on resistive Load)

FG

Module-1

Module Codes

00

None

01

Relay Output Module

EMO-400,EMO-700,EMO-900

02

SSR driver Output Module (Maximum 26mA, 22V ---)

EMO-410,EMO-710,EMO-910

03

Digital (Transistor) Output Module (Maximum 40mA@18V ---)

EMO-420,EMO-720,EMO-920

04

Current Output Module (0/4...20 mA --- veya 0...10V ---)

EMO-430,EMO-730,EMO-930

HI

Module-2

Module Codes

00

None

01

Relay Output Module

EMO-400,EMO-700,EMO-900

02

SSR driver Output Module (Maximum 26mA, 22V ---）

EMO-410,EMO-710,EMO-910

03

Digital (Transistor) Output Module (Maximum 40mA@18V ---)

EMO-420,EMO-720,EMO-920

04

Current Output Module\((0/4...20 mA --- veya 0...10V ---)\)

EMO-430,EMO-730,EMO-930

Table-1

BC	Input Type(TC)	Scale(°C)	Scale(°F)
21	L,Fe Const DIN43710	-100°C,850°C	-148°F,1562°F
22	L,Fe Const DIN43710	-100.0°C,850.0°C	-148.0°F,999.9°F
23	J,Fe CuNi IEC584.1(ITS90)	-200°C,900°C	-328°F,1652°F
24	J,Fe CuNi IEC584.1(ITS90)	-199.9°C,900.0°C	-199.9°F,999.9°F
25	K,NiCr Ni IEC584.1(ITS90)	-200°C,1300°C	-328°F,2372°F
26	K,NiCr Ni IEC584.1(ITS90)	-199.9°C,999.9°C	-199.9°F,999.9°F
27	R,Pt13%Rh Pt IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
28	S,Pt10%Rh Pt IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
29	T,Cu CuNi IEC584.1(ITS90)	-200°C,400°C	-328°F,752°F
30	T,Cu CuNi IEC584.1(ITS90)	-199.9°C,400.0°C	-199.9°F,752.0°F
31	B,Pt30%Rh Pt6%Rh IEC584.1(ITS90)	44°C,1800°C	111°F,3272°F
32	B,Pt30%Rh Pt6%Rh IEC584.1(ITS90)	44.0°C,999.9°C	111.0°F,999.9°F
33	E,NiCr CuNi IEC584.1(ITS90)	-150°C,700°C	-238°F,1292°F
34	E,NiCr CuNi IEC584.1(ITS90)	-150.0°C,700.0°C	-199.9°F,999.9°F
35	N,Nicrosil Nisil IEC584.1(ITS90)	-200°C,1300°C	-328°F,2372°F
36	N,Nicrosil Nisil IEC584.1(ITS90)	-199.9°C,999.9°C	-199.9°F,999.9°F
37	C,(ITS90)	0°C,2300°C	32°F,3261°F
38	C,(ITS90)	0.0°C,999.9°C	32.0°F,999.9°F
BC	Input Type(RTD)	Scale(°C)	Scale(°F)
39	PT 100,IEC751(ITS90)	-200°C,650°C	-328°F,1202°F
40	PT 100,IEC751(ITS90)	-199.9°C,650.0°C	-199.9°F,999.9°F
BC	Input Type( ---- Voltage and Current)		Scale
41	0...50 mV ---		-1999,9999
42	0...5 V ---		-1999,9999
43	0...10 V ---		-1999,9999
44	0...20 mA ---		-1999,9999
45	4...20 mA ---		-1999,9999

Thank you very much for your preference to use Emko Elektronik products, please visit our web page to download detailed user manual.

Your Technology Partner

www.emkoelektronik.com.tr

EMKO

ESM-XX00 PROZESSANZEIGE

C E EAC

ESM-4400,ESM-7700,ESM-9900,ESM-4900

24 V --- (-%15;+%10)-6 W

m = 311
