CHLSC8 - Controller EtiamPro - Free user manual and instructions

Product type	Controller for digital LED strips
Brand	EtiamPro
Model	CHLSC8
Dimensions (L x H x D)	12.8 x 53 x 4.8 mm
Input voltage	12-24 V DC
Number of controllable pixels	>1024
Number of dimming levels	10
Dimming range	0-100 %
Number of animations	20
Memory function	Yes
Compatibility	Digital white LED strips with WS2811 (SPI) circuit
Required power supply	Single source 12-24 V DC, GND connection
Switch connection	Up to 2 external switches (bidirectional possible)
Configuration buttons	3 push buttons: +/speed, mode, -/slow
Safety instructions	Do not expose to moisture, shocks, extreme heat; do not connect power supply to switch cables
Maintenance	Keep away from dust and moisture; clean with a dry cloth
Warranty	Velleman Group NV warranty (see manual)
Repairability	Replacement parts not specified; contact the dealer

Frequently Asked Questions - CHLSC8 EtiamPro

How to connect the LED strip to the CHLSC8 controller?

Use the dedicated external connector: red wire (12/24V), green wire (data signal), white wire (0V/GND). Connect the external power supply to the red and white wires of the strip.

Can I use push-button switches with this controller?

No, the controller only works with switches toggle or slide, not with push buttons.

How to set the number of LEDs on the strip?

Turn off the switch, press the mode button for 2 seconds. Use +/speed to increase and -/slow to decrease the number. Confirm with a brief press on mode.

How to change the animation (mode)?

Turn on the switch, then briefly press the mode button to cycle through the 20 available animations. The 21st press returns to the first.

How to adjust the brightness?

Turn off the switch, press -/slow for 2 seconds. Then use -/slow to choose a level from 1 (10%) to 10 (100%). Turn on to check.

My LED strip does not turn on, what should I do?

Check the connections: red wire to 12/24V, white wire to GND. Make sure the power supply is on and the switches are correctly wired. Check the polarity.

Can I use this controller with RGB LED strips?

No, the CHLSC8 is designed only for digital white LED strips using the WS2811 (SPI) protocol.

How to reset the controller to factory settings?

The manual does not mention a reset. You can restore default settings by repeating the configuration procedures (number of pixels, intensity, mode).

What is the maximum supported LED strip length?

The controller can handle more than 1024 pixels. For 5-meter strips, it is recommended to power each end if necessary.

Where to download the full manual?

You can download the PDF manual for free on notice-facile.com or visit the website www.velleman.eu for the latest version.

USER MANUAL CHLSC8 EtiamPro

Close-up of a black and red cable with a white connector, showing no visible text or symbols.

USER MANUAL 6

GEBRUIKERSHANDLEIDING 11

MODE D'EMPLOI 17

MANUAL DEL USUARIO 23

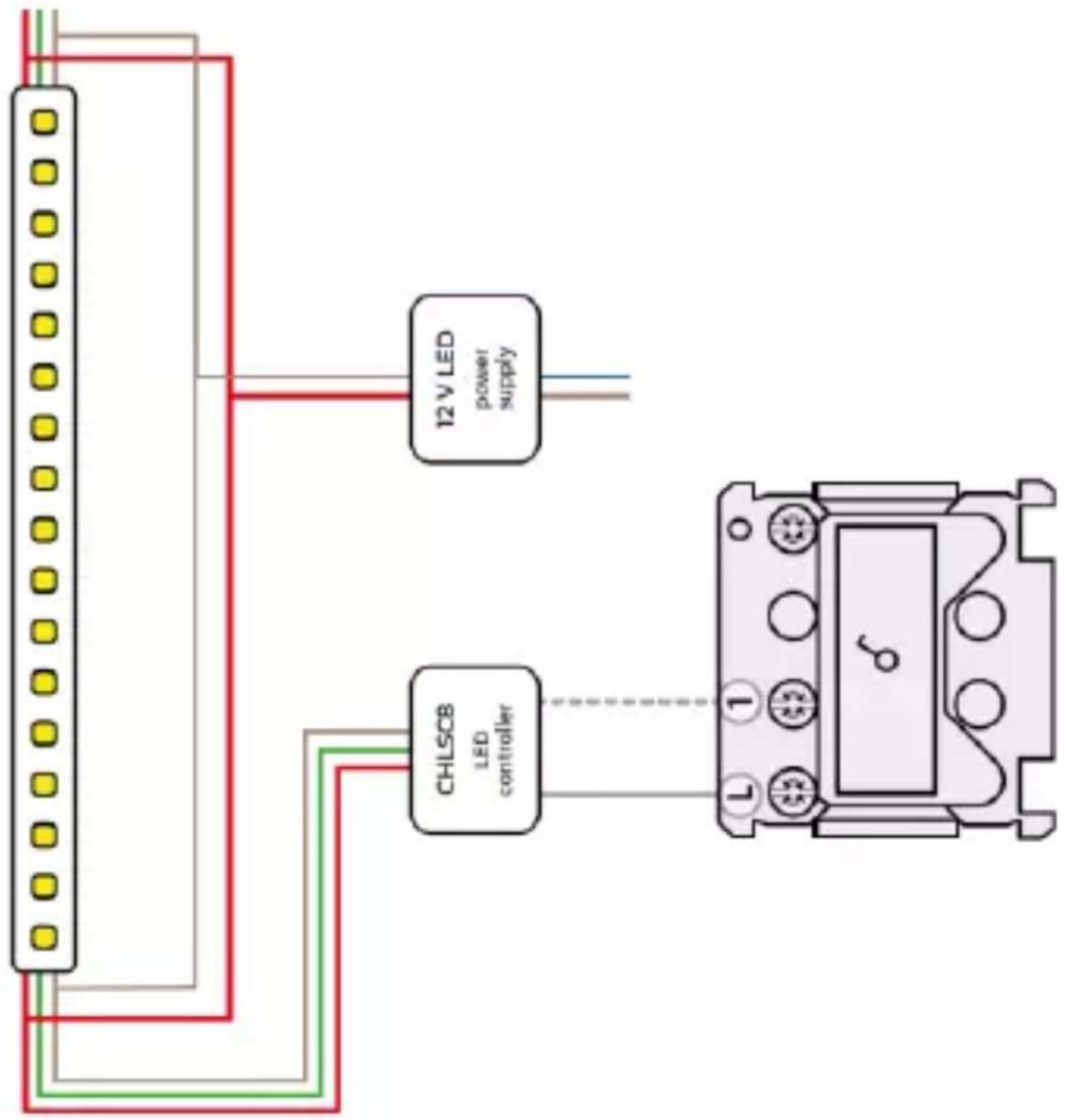

Connection with 1 switch and 1 controller

12 V LED power supply CHLSCB LED controller

CHLSC8

Connection with 2 switches and 1 controller

CHLSC8

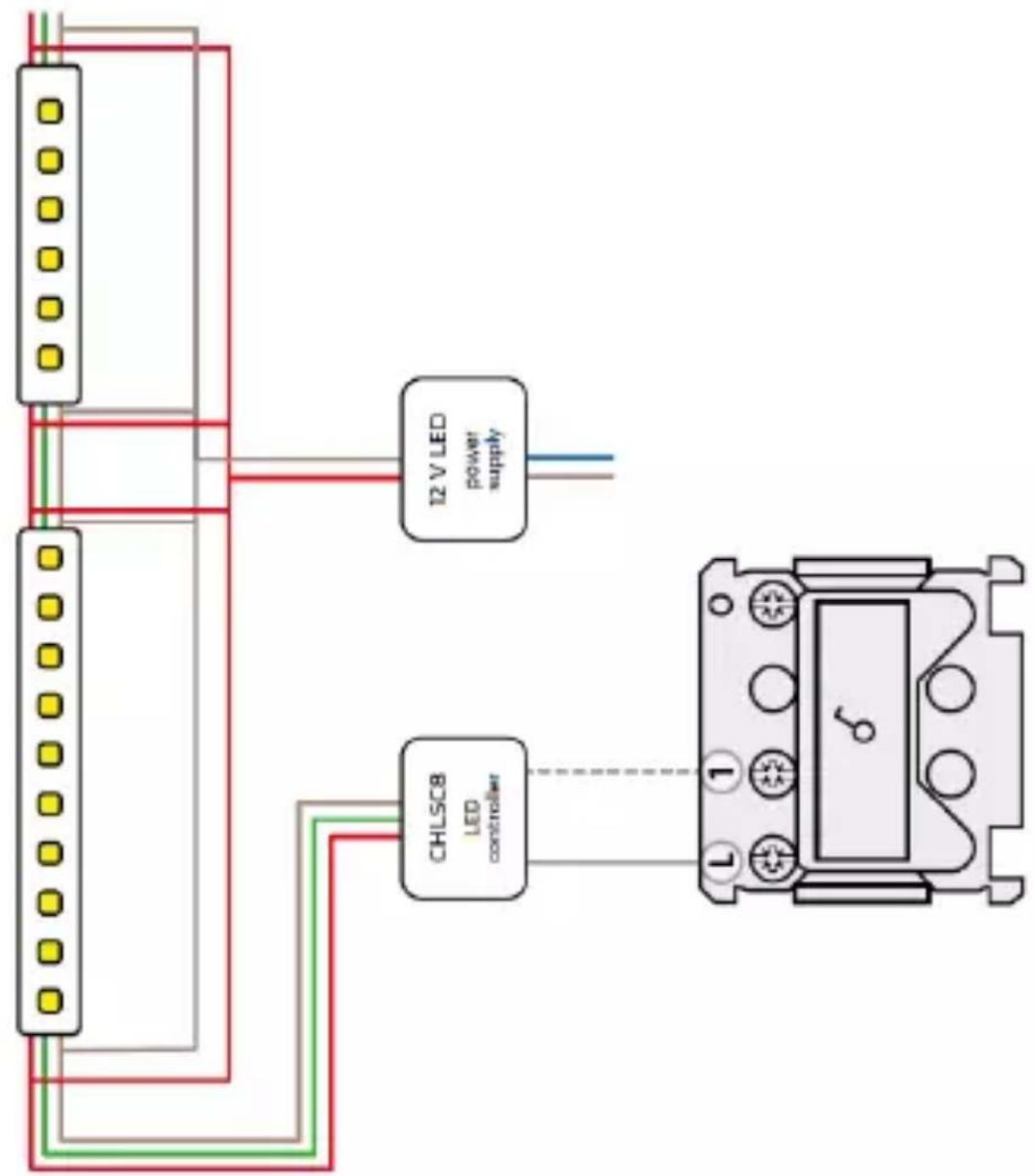

Connection with multiple digital white LED strips on 1 controller

Digital white LED strip 1 Digital white LED strip 2

12 V LED power supply CHLSC8 LED controller

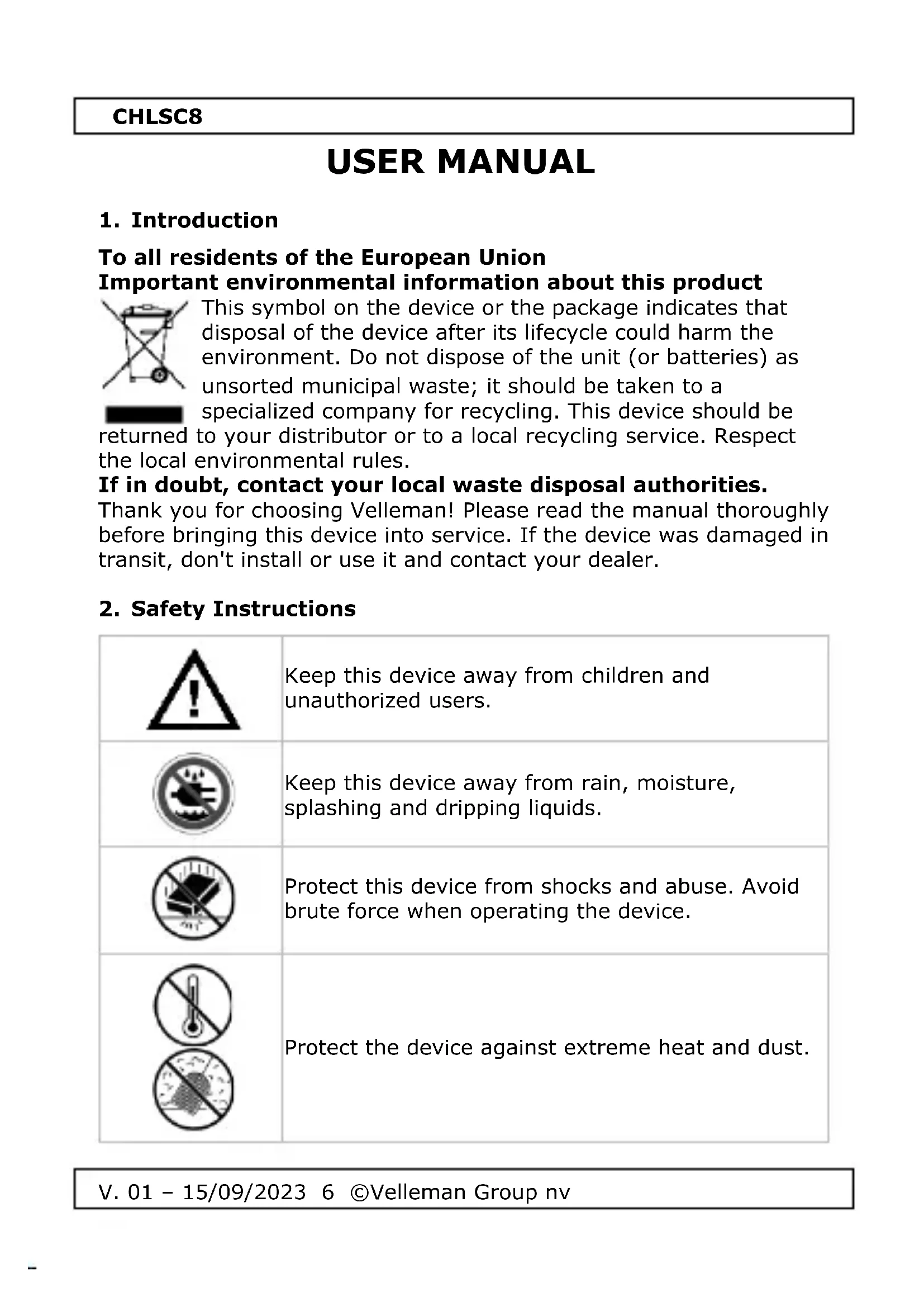

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	Protect this device from shocks and abuse. Avoid brute force when operating the device.
	Protect the device against extreme heat and dust.

CHLSC8

3. General Guidelines

Refer to the Velleman Group NV® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

4. Features and specifications

• suitable for: only for digital LED strips
• operating mode: turn on/off via 1 external switch or 2 switches via connection for two-way switch
• note: only works with switches, not via push buttons
• configuration modes: brightness, change modes (20 different modes), mode speed

5. Overview

Refer to the illustrations on page 2 of this manual.

1. LED strip connection cable
2. 2 white dotted cables. Connection to external switch or switches
3. “+/speed” push button
4. mode push button
5. “-/slow” push button
6. White cable connected to LED strip. Connect to 0VDC
7. Red cable connected to LED strip. Connect to 12VDC

6. Operation

Only connect the controller to digital white LED strips which work with the SPI digital signal on 12V and 24V. The controller is developed to work with the WS2811 LED driver ICs.

Only use 1 power supply for the whole installation and connect ground (GND) connections.

CHLSC8

6.1 Physical connection

1. Connect the LED strip with the controller via the external dedicated connector.

• Red cable: 12V (or 24V)
- Green cable: Data signal
- White cable: 0V or GND

1. Connect an external constant voltage LED power supply to the external red and white cables from the LED strip.

2. Connect an external switch or switches via the 2 white dotted cables.

Refer to the illustrations on page 3 & 4 of this manual.

Warning: never connect the power supply to these wires! This will damage the controller.

1. It is possible to extend the standard 5m digital white LED strip with more digital white LED strips.

Refer to the illustrations on page 5 of this manual.

Warning: Each 5 meter LED strip need power supply connections on both sides!

6.2 configuration

The installation and configuration need to be done before installing the controller behind the switch. The configuration can be done via the integrated push buttons on the backside of the controller.

Adjust operation mode:

This controller can control different types of digital LED strips. This setting can be changed via the following steps:

1. Turn off the switch or switches.
2. Press 2 seconds on “+/speed” push button.
   A running light now starts with a certain pattern. With each press of the “+/speed” button, the pattern will change.
   the patterns are:

• 1234 => selection for white color digital LED strips
• 1324
• 2134
• 3124

V. 01 – 15/09/2023 8 ©Velleman Group nv

CHLSC8

1. Turn on the switch or switches to check the effect.

Adjust the number of pixel:

The number of pixels must be configured to get a nice and complete animation. This can be done via following steps:

1. Turn off the switch or switches.
2. Press 2 seconds on the mode button. The number of LEDs will be on. Now you can extend or shorten the number of LED's/pixels
3. Extend: press “+/speed” push button
4. Shorten: press “-/slow” push button

Confirm the selection by pressing short on the mode button.

Adjust intensity:

The light intensity can be adjusted during configuration via following steps:

1. Turn off the switch or switches.

2. Press 2 seconds on “-/slow” push button.
   You can configure the intensity based on the number of LEDs (1 to 10, where 1 = 10% and 10 = 100%) by pressing short on the “-/slow” push button.

3. Turn on the switch or switches to check the intensity.

Adjust animations (modes):

The controller has 20 different animations. An animation can be selected once during configuration.

1. Turn on the switch or switches.
2. The first animation will be shown. Pressing the mode push button will change the animation.
   There are 20 different animations. The 21st time you get back the first animation.

CHLSC8

Adjust speed:

The animation speed can be configured once during installation.

Increase speed:

1. Turn on the switch or switches.
2. Press "+/speed" push button to increase the speed.

Decrease speed:

1. Turn on the switch or switches.
2. Press "-/slow" push button to decrease the speed.

7. Technical Specifications

Physical properties
LED dimmer depth	4.8 mm
Led dimmer height	53 mm
Number of dimming levels	10
LED dimmer width	12.8 mm
General data
For use with	Single colour (white) with WS2811
Controllable pixels	>1024
Memory function	yes
Dimming range	0-100 %
Input voltage rating VDC	12-24 V

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv.

All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
