Product type	Waterproof housing for Canon compact camera
Brand	Canon
Model	WP-DC38
Body material	Polycarbonate
Dimensions (excluding protruding parts)	140.6 x 91.5 x 85.1 mm
Weight (housing only with diffuser plate)	Approximately 385 g
Maximum waterproof depth	40 meters (130 feet)
Waterproof standard	IPX8 equivalent (IEC/JIS)
Seal type	Crimp O-ring
Camera operating temperatures	0 to 40 °C
Included accessories	Waterproof housing, strap, wrist strap, diffuser plate, silicone grease for seal, user guide
Accessories sold separately	Canon WW-DC1 weights for waterproof housing (2 weights for seawater, 1 for freshwater recommended)
Main functions	Shutter release, zoom lever, ON/OFF button, function selector, lock button, latch, lens window, tripod thread, adjustment ring, removable diffuser plate
Maintenance and cleaning	Rinse with running water after use (especially seawater), do not wash interior with water, wipe with a soft dry cloth, apply silicone grease to the seal, replace the seal once a year
Safety	Do not use the strap underwater (risk of strangulation); replace with wrist strap; do not expose to temperatures >40°C; do not disassemble; check waterproofing before each use
Spare parts and repairability	Replaceable seal (contact Canon customer service); WW-DC1 weights available separately
General information	Recommended use in Underwater mode (SCN) for natural colors; check package contents; read provided camera guide

Frequently Asked Questions - WP-DC38 CANON

How to install the camera in the WP-DC38 waterproof housing?

Remove the camera's shoulder strap, insert the battery and memory card. Open the housing by releasing the latch, place the camera inside ensuring the lens window remains clean. Close the housing after checking that no foreign matter is on the seal and that the latch is properly engaged.

What is the maximum operating depth of the housing?

The Canon WP-DC38 is designed for use up to 40 meters (130 feet) depth. Do not exceed this limit to avoid leakage.

How to maintain the seal?

After each use, carefully remove the seal, clean the groove with a cotton swab, apply a thin layer of the supplied silicone grease evenly over the entire seal, then put it back without twisting. Replace the seal once a year.

What to do in case of water leakage into the housing?

Turn off the camera immediately, remove it from the housing, carefully wipe the interior of the housing and the camera with a soft dry cloth. Contact Canon customer service if necessary. Do not reuse the housing until it is completely dry and checked.

Can I use the supplied strap underwater?

No, it is prohibited to use the strap underwater as it could wrap around the neck and pose a strangulation risk. Replace it with the supplied wrist strap before any diving use.

How to use the camera's Underwater mode?

Set the mode dial to SCN, press the function button (), select the icon using ▲▼, then choose using ◀▶ and confirm with Ⓔ️. This mode softens blue tones for more natural colors underwater.

Is the housing compatible with all Canon cameras?

No, the WP-DC38 is specifically designed for certain Canon compact models. Check the compatibility list in the manual or on the Canon website. Never force insertion of an incompatible camera.

How to clean the housing after use at sea?

Rinse the closed housing thoroughly with running water to remove salt deposits. Let it soak in clean water for several hours. Wipe the exterior with a soft dry cloth. Do not open the housing underwater and do not wash the interior with water.

Where to find silicone grease for the seal?

Silicone grease is supplied with the housing. For replacement, use only the grease recommended by Canon, available from authorized dealers or customer service. Use of other products may damage the seal.

How to attach the optional WW-DC1 weights?

Refer to the user guide provided with the weights. In seawater, it is recommended to attach 2 weights, and in freshwater 1 weight to prevent the housing from floating. Secure them firmly before entering the water.

USER MANUAL WP-DC38 CANON

Prohibition sign showing a person with a medical device and a diagonal line crossing it, indicating no intervention or absence of preventive measures.

注意

Symbol of no protection, showing a camera under a sun and a prohibition sign (no text present)

Labeled diagram of a digital camera with numbered parts for identification

Technical diagram of a mechanical device with numbered parts labeled 12 through 21

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

取り外しかた

拡散板を持ち上げて取り外します。

Line drawing of a mechanical device with mounting holes and a cylindrical component (no text or symbols)

1 ① ② ③

バックルを外してケースを開きます。

Exploded view diagram of a device's internal components, showing casing, casing with buttons and ports, and internal compartments (no text or labels)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

7 ケースを閉じます。 防水パッキンに

OPEN ① ② ③

Line drawing of a mechanical component with hands and a valve (no text or symbols)

1 ケースを閉じます。

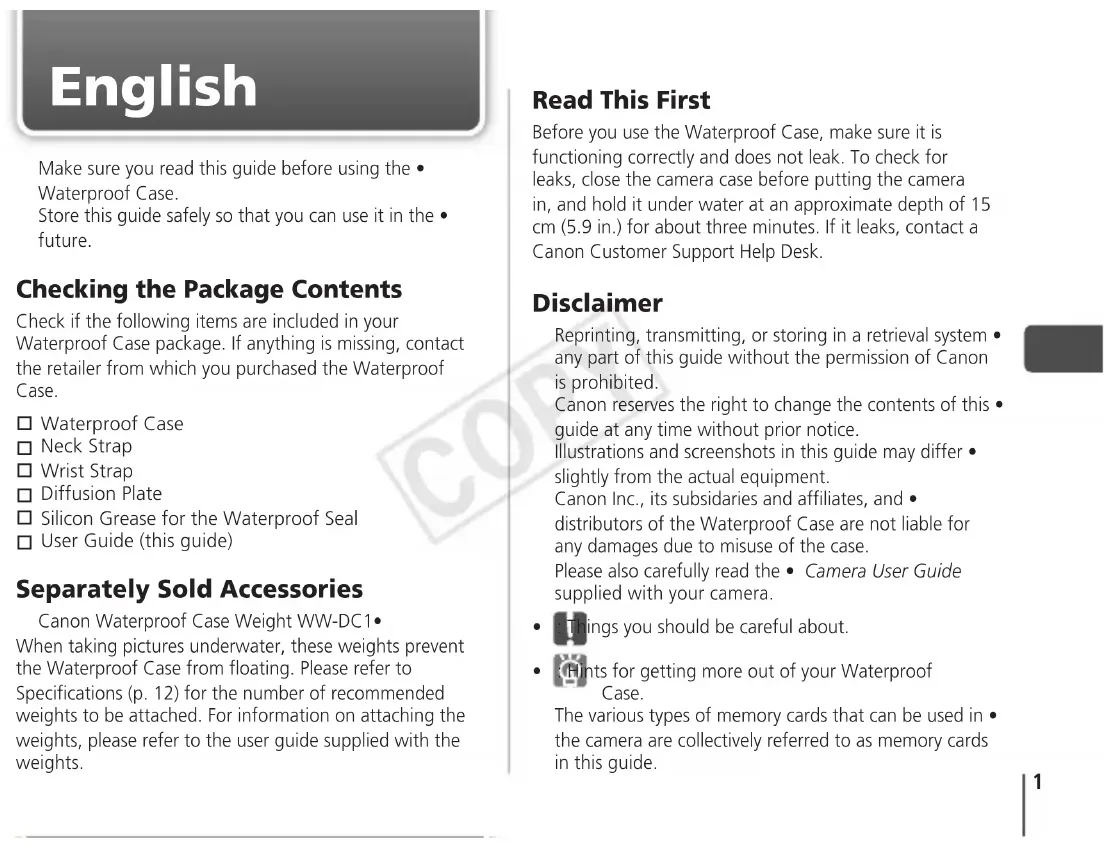

Make sure you read this guide before using the • Waterproof Case.

Store this guide safely so that you can use it in the future.

Checking the Package Contents

Check if the following items are included in your Waterproof Case package. If anything is missing, contact the retailer from which you purchased the Waterproof Case.

□ Waterproof Case
□ Neck Strap
□ Wrist Strap
□ Diffusion Plate
□ Silicon Grease for the Waterproof Seal
□ User Guide (this guide)

Separately Sold Accessories

Canon Waterproof Case Weight WW-DC1• When taking pictures underwater, these weights prevent the Waterproof Case from floating. Please refer to Specifications (p. 12) for the number of recommended weights to be attached. For information on attaching the weights, please refer to the user guide supplied with the weights.

Read This First

Before you use the Waterproof Case, make sure it is functioning correctly and does not leak. To check for leaks, close the camera case before putting the camera in, and hold it under water at an approximate depth of 15 cm (5.9 in.) for about three minutes. If it leaks, contact a Canon Customer Support Help Desk.

Disclaimer

Reprinting, transmitting, or storing in a retrieval system • any part of this guide without the permission of Canon is prohibited.

Canon reserves the right to change the contents of this guide at any time without prior notice.

Illustrations and screenshots in this guide may differ • slightly from the actual equipment.

Canon Inc., its subsidiaries and affiliates, and • distributors of the Waterproof Case are not liable for any damages due to misuse of the case.

Please also carefully read the • Camera User Guide supplied with your camera.

• : Things you should be careful about.
• Hints for getting more out of your Waterproof Case.

The various types of memory cards that can be used in • the camera are collectively referred to as memory cards in this guide.

Safety Precautions

Before using the Waterproof Case, please ensure that you • read the safety precautions below. Always ensure that the Waterproof Case is operated correctly.

The safety precautions noted on the following pages are intended to prevent injuries to yourself and other persons, or damage to the equipment.

Warning

Denotes the possibility of serious injury or death.

Caution Denotes the possibility of injury.

Caution

Denotes the possibility of damage to the Waterproof Case and camera.

Warning

Be sure to remove the camera after using the Waterproof Case.

Leaving the camera in the Waterproof Case and placing it in direct sunlight or other places subject to high temperatures may result in fire, or cause the case to burst.

Do not use the Waterproof Case as a personal flotation device (such as a life preserver).

Do not use the neck strap under water.

Remove the neck strap and attach the wrist strap before using the Waterproof Case underwater. Using the neck strap may cause it to become wrapped around the neck and result in strangulation or other injuries.

Prohibition sign showing a person with a medical device and a diagonal line crossing it, indicating no intervention or absence of preventive care.

Caution

Immediately turn off the camera if the Waterproof Case leaks.

Leaks could result in fire or electrical shock. Thoroughly wipe the Waterproof Case interior and the camera dry and contact a Canon Customer Support Help Desk.

Caution

Be careful of condensation.

Moving the Waterproof Case rapidly between hot and cold temperatures may cause condensation (water droplets) to form on its internal surfaces. If this occurs, stop using the camera as the condensation may cause a malfunction. Remove the camera, and wipe off the condensation from the case and camera with a soft, dry cloth so that it is completely dry.

Do not insert the camera with the strap attached. Do not press the buttons or lever with unnecessary force when using the case underwater. Do not spray the waterproof seal with tap-water. Do not damage the waterproof seal, or allow dirt to accumulate between the waterproof seal and the case. Do not disassemble or modify the Waterproof Case.

The above actions could cause leaks.

Avoid using or storing the Waterproof Case in the following places.

Depths exceeding 40 meters • (130 ft.).

Places subject to temperatures • above 40 °C (104 °F).

No sign depicting a construction or construction hazard, featuring a sun and silhouette against a circular background (no text or symbols)

Avoid placing, or storing the Waterproof Case in the following places.

Places subject to strong sunlight.

Humid or dusty areas.

Near substances such as •

naphthalene or insecticides

Do not drop or throw the Waterproof Case.

The above actions may warp the case and cause malfunctions.

Use only the supplied silicon grease.

Use of other waterproofing products may impair the strength of the Waterproof Case.

Waterproof Seal

Debris stuck to the waterproof seal may cause water • leakage. Catching a single strand of hair, or a tiny grain of sand in the seal can cause leaks.

If you notice that the waterproof seal is damaged or • cracked, stop using the case immediately and contact a Canon Customer Support Help Desk.

When storing your Waterproof Case, keep it open to prevent the waterproof seal from deforming and to maintain its waterproof capabilities.

Protect the waterproof seal from dust and scratches during • storage.

To ensure that the case remains watertight, you should replace the seal once a year.

- Please contact a Canon Customer Support Help Desk for replacement seals.

Components Guide

Labeled diagram of a digital camera with numbered parts for identification

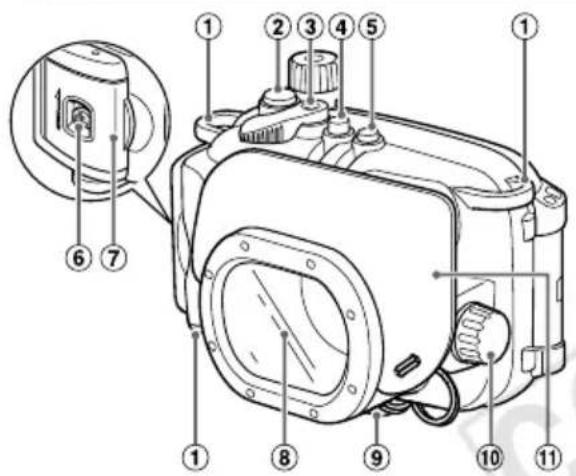

① Strap Mounts
② Shutter Button
③ Zoom Lever
④ Power Button
⑤ Ring Function Selector
⑥ Lock Release Switch
⑦ Catch
⑧ Lens Window
⑨ Tripod Socket
⑩ Control Ring
⑪ Diffusion Plate

Technical diagram of a mechanical device with numbered parts for identification

⑫ Mode Dial
⑬ (Shortcut)/ (Direct Print) Button
⑭ (Playback) Button
⑮ (Exposure Compensation)/ ▶ (Jump)/▲ Button
⑯ ↓ (Flash)/▶ Button
⑰ FUNC./SET (Function/Set) Button
⑱ (Macro)MF (Manual Focus)/ ◀ Button
⑲ (Self-timer)/ (Single Image Erase)/ ▼ Button
⑳ DISP. (Display) Button
② MENU Button

Preparations

Diagram of a camera with labeled parts including adjustment arrows and numbered callouts

Wrist Strap Neck Strap

Diagram of a camera with numbered parts indicating adjustment or operation steps

Technical diagram of a camera with numbered parts labeled ①, ②, and ③ indicating different components.

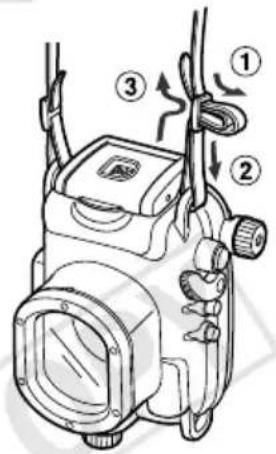

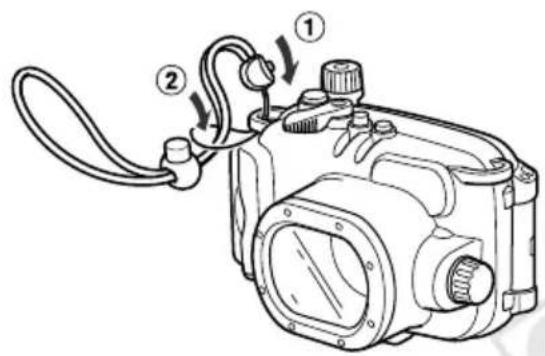

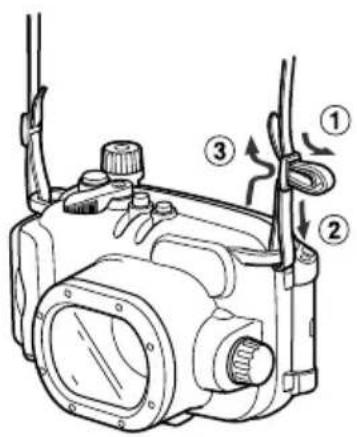

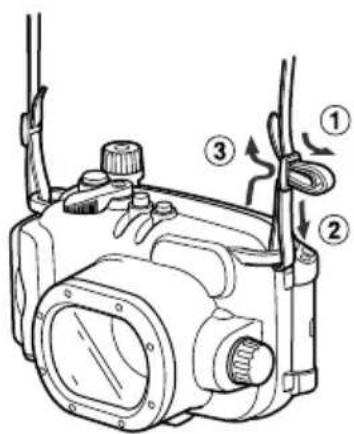

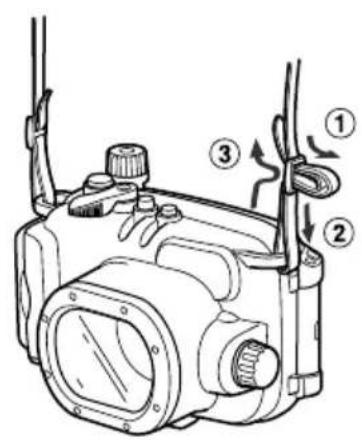

1 Attach the strap and adjust the length.

- Remove the neck strap and attach the wrist strap before using the case underwater. Using the neck strap may cause it to become wrapped around the neck and result in strangulation or other injuries. Do not attach any straps except for the ones included with the Waterproof Case.

Diffusion Plate

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

2 Attach the diffusion plate.

Do not scratch the surface of the diffusion plate, • as this may prevent light from the flash from being properly diffused.

The effectiveness of the diffusion plate may be • impaired if the subject is too close to the camera.

Removing the Diffusion Plate

Lift and remove the diffusion plate.

Line drawing of a camera module with no visible text or symbols

Diagram of a device with labeled parts and directional arrows indicating process steps

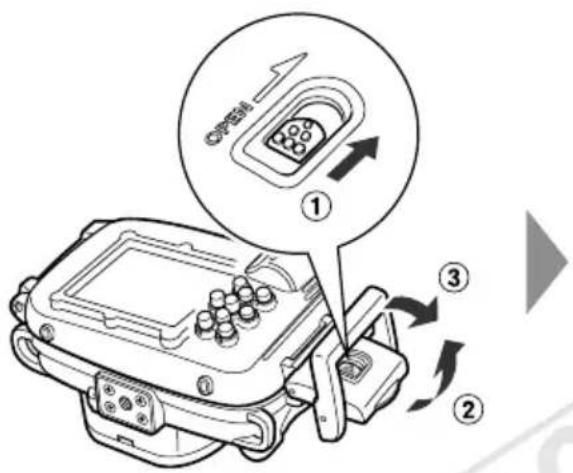

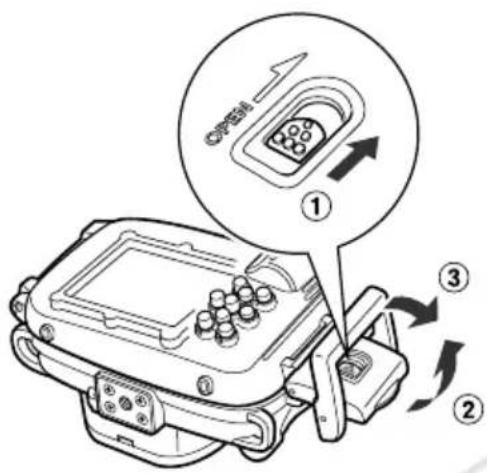

3 Release the catch to open the case. When using commercially available •

When using commercially available • anticondensation products, the anticondensation solution should only be applied to the inside surface of the lens window using a soft, dry cloth. If anticondensation solution comes in contact with any surface other than the inside of the lens widnow, wipe it off immediately with a soft, dry cloth, as it could lead to deterioration of the Waterproof Case.

Waterproof Seal

4 Apply silicon grease to the waterproof seal.

1. Remove the waterproof seal as shown. Do not dig your fingernails into it or pull • on it forcibly.
2. Using a cotton swab, wipe off any debris in the mounting groove.
3. Apply a small amount (droplet) of grease to your fingertip, and evenly coat the entire surface of the waterproof seal.
4. Place the waterproof seal back in the seal mounting groove. Take care not to twist it.

Preparing the Camera

Battery Strap

Memory Card

5 Remove the strap, and make sure the battery and memory card are in the camera.

Please refer to the • Camera User Guide for information on the correct battery, and how to insert the battery and memory card.

Use a battery that is adequately charged.

Check the estimated capacity of your memory • card and ensure there is enough space to record images.

Inserting the Camera Into the Case

Exploded view diagram of a device's internal components, showing casing, housing, and internal wiring (no text or labels)

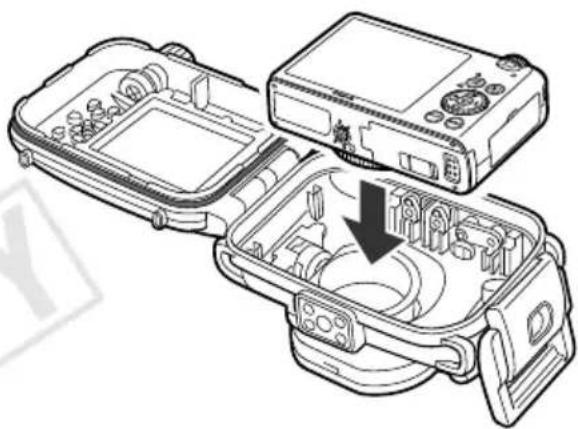

6 Insert the camera into the Waterproof Case.

Choose a place well away from salty sea air. • Keep the lens window clean by wiping it gently • with a dry cloth.

Technical diagram of a device with numbered components and directional arrows indicating assembly or movement.

7 Close the case. Make sure that

Make sure that the waterproof seal is free of • debris.

Make sure that the catch is securely locked.

Using the Camera

Please refer to the Camera User Guide for instructions on how to use the camera.

Underwater Mode

Setting the camera to mode will tone down the blues, letting you obtain more natural colors when shooting underwater.

Mode Dial S Button ▲ Button ► Button ■ Button ◀ Button ▼ Button

1 Set the mode dial to SCN.
2 After pressing the ⬣️ button, press the ▲▼ buttons to choose ⚙.
3 Press the ◀▶ buttons to choose ⌘, then press the ⏚ SET button.

When shooting underwater in 🚗, P, Tv, Av or M modes, you should set the white balance to 🚗 (Underwater) using the FUNC. menu.

You can set the white balance manually with the • press of a single button if you assign the 📁 (Custom White Balance) function to the 📄 button. Try this for adjusting the white balance to the shooting conditions.

Using the Control Dial

Using the control dial with the waterproof case differs slightly from that of the camera itself.

Press the ◀▶ buttons while pressing the 📊 button.

Removing the Camera Care and Maintenance

① ② ③

1 Thoroughly dry the case, wiping off all the water.

Remove any dirt, sand, hair or other debris • from the case and wash it with clean, running water to remove any salt deposits.

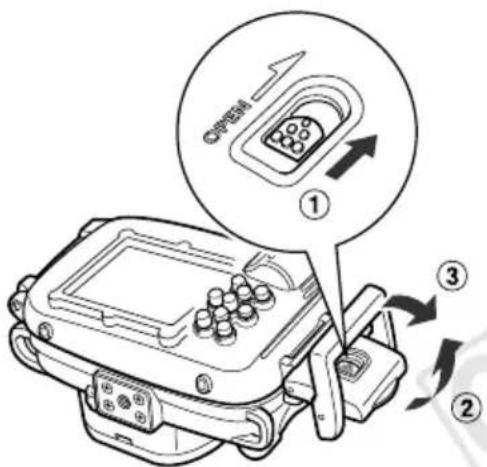

2 Open the case and remove the camera.

Make sure to do the following after using the Waterproof Case.

Line drawing of hands operating a mechanical device (no text or symbols present)

1 Close the case.

Do not wash the interior of the Waterproof • Case with water. Wipe it with a soft, dry cloth.

2 Thoroughly wash the case with clean water, then wipe it completely dry with a soft, dry cloth.

After using the case in the ocean, soak it in clean • water for several hours to remove any salt deposits.

Specifications

Waterproof Capability:

Meets IEC/JIS protection rating "IPX8" equivalentFor use within a depth of 40m (130 ft.)

Waterproofing: Seal (crimp-type O-ring)

Body Materials: Polycarbonate

Camera Operating Temperatures:

0 to 40 °C (32 to 104 °F)

Dimensions: 140.6 x 91.5 x 85.1 mm(5.54 x 3.60 x 3.35 in.)(excluding protrusions)

Volume: Approx. 630 cm ^3 (38.4 in. ^3 )

Weight: Approx. 385 g (13.6 oz.)

(Waterproof Case only*)

Number of Separately Sold Waterproof Case Weights (WW-DC1) Recommended Mounting:

When in sea water: 2 weights

When in fresh water: 1 weight

*Including diffusion plate
All data noted here are based on Canon's testing standards. Product specifications and appearance are subject to change without prior notice.

Deutsch

Prohibition sign showing a person with a chest and bandage, crossed out by a diagonal line

Vorsicht

Prohibition sign with sun and machinery symbol, indicating no protection or damage

Labeled diagram of a camera with numbered parts for identification

Technical diagram of a mechanical device with numbered components for identification

Diagram of a camera with labeled parts including adjustment arrows and numbered callouts

Diagram of a camera with numbered parts indicating adjustment or assembly steps

Technical diagram of a camera with numbered parts indicating mechanical components and directional arrows

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

Line drawing of a camera module with no visible text or symbols

Diagram of a device with labeled parts and directional arrows indicating process steps

Exploded view diagram of a device's internal components, showing casing and housing with no visible text or symbols

Technical diagram of a device with numbered components and directional arrows indicating assembly or movement.

Capex ① ② ③

Line drawing of hands operating a mechanical device with no visible text or symbols

Prohibition sign showing a person with a bandage and chest, crossed out by a diagonal line

Precaución

a 40 metros (130 pies).

Symbol of a camera crossed out by a sun, no text or numbers present

Utilice solamente la grasa de silicona suministrada.

Labeled diagram of a digital camera with numbered parts for identification

Technical diagram of a mechanical device with numbered parts labeled 12 through 21

Diagram of a camera with labeled parts including adjustment arrows and numbered callouts

Correa de muñeca Correa pa

Diagram of a camera with numbered parts indicating adjustment or operation steps

cuello

Technical diagram of a camera with numbered parts indicating mechanical components and directional arrows

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

Line drawing of a camera module with no visible text or symbols

Diagram of a device with labeled parts and directional arrows indicating process steps

Exploded view diagram of a device's internal components, showing internal casing and housing with no visible text or symbols

Technical diagram of a device with numbered components and directional arrows indicating assembly or movement.

Capex ① ② ③

Line drawing of hands operating a mechanical device (no text or symbols present)

Cierre el estuche.

Prohibition sign showing a person with an exoskeleton and a medical device, crossed out by a diagonal line

Attention

Warning sign with no protection symbol and a camera icon, indicating no radiation or explosion

Labeled diagram of a digital camera with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

⑫ Molette modes
⑬ Touche (Baccourci)/ (Impression directe)
⑭ Touche ▶ (Lecture)
⑮ Touche ☒ (Correction d'exposition)/Touche ⚫ (Saut)/▲
⑯ Touche ♣ (Flash)/▶
⑰ Touche FUNC SET FUNC./SET (Fonction/Réglages)
⑱ Touche 🎨 (Macro)/MF(Mise au point manuelle)/
⑲ Touche 📍 (Retardateur)/ 📋 (Effacer une image)/ ▼
⑳ Touche DISP. (Affichage)
⑳ Touche MENU

Préparatifs

Diagram of a camera with labeled parts including adjustment arrows and numbered callouts

Dragonne Courroie

Diagram of a camera with numbered parts indicating adjustment or operation steps

Technical diagram of a camera with numbered parts indicating mechanical components and directional arrows

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

Line drawing of a camera module with no visible text or symbols

Diagram of a device with labeled parts and directional arrows indicating process steps

Exploded view diagram of a device's internal components, showing internal wiring and housing (no text or labels)

Technical diagram of a device with numbered components and directional arrows indicating assembly or movement.

Close-up ① ② ③

Line drawing of hands operating a mechanical device (no text or symbols present)

Prohibition sign showing a person with a medical device and a diagonal line crossing it, indicating no medical protection or exclusion.

Attenzione

Prohibition sign showing a sun and a vehicle (no text or symbols)

Labeled diagram of a digital camera with numbered parts for identification

Technical diagram of a mechanical device with numbered parts labeled for identification.

Diagram of a camera with labeled parts including adjustment arrows and numbered callouts

Diagram of a camera with numbered parts and directional arrows indicating motion or signal flow

Technical diagram of a camera with numbered parts and directional arrows indicating motion or movement.

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Diagram of a device with labeled parts and directional arrows indicating process steps

Exploded view diagram of a device's internal components, showing casing, housing, and internal wiring (no text or labels)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Line drawing of hands operating a mechanical device (no text or symbols present)

Prohibition sign showing a person with an echocardiogram and a diagonal line, indicating no medical or health restrictions.

Предупреждение

Prohibition sign with sun and camera icon, no text present

Labeled diagram of a digital camera with numbered parts for identification

Technical diagram of a mechanical device with numbered parts for identification

Diagram of a camera with labeled parts including adjustment arrows and numbered callouts

Diagram of a camera with numbered parts indicating adjustment or operation steps

Technical diagram of a camera with numbered parts indicating mechanical components and directional arrows

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

Line drawing of a camera module with no visible text or symbols

Diagram of a device with labeled parts and directional arrows indicating process steps

Exploded view diagram of a device's internal components, showing casing, ports, and housing (no text or labels)

Technical diagram of a device with numbered components and directional arrows indicating assembly or movement.

OPEN ① ② ③

Line drawing of hands operating a mechanical device (no text or symbols present)

1 Закройте футляр.

Prohibition sign showing a person with a stethoscope crossed out of the chest (no text or symbols)

注意

如果防水套漏水，请立即关闭电源。

Warning sign with no prohibition symbol and a silhouette of a camera under sun

请勿投掷或摔落防水套。

Technical diagram of a camera with numbered parts for identification and assembly reference

Technical diagram of a mechanical device with numbered parts labeled 12 through 21

Diagram of a camera with labeled parts including adjustment arrows and numbered callouts

腕带 背带

Diagram of a camera with numbered parts indicating adjustment or operation steps

Technical diagram of a camera with numbered parts indicating mechanical components and directional arrows

1 安装腕带 / 背带并调节其长度。

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

取下闪光扩散板

抬起并取下闪光扩散板。

Line drawing of a mechanical device with no visible text or symbols

1 2 3

3 解开扣环以打开防水套。

Exploded view diagram of a camera module showing internal components and a downward arrow indicating assembly (no text or symbols present)

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

7 关闭防水套。

请确保防水封条上没有附着灰尘或污物等。

请检查扣环是否锁紧。

使用相机

OPEN ① ② ③

Technical line drawing of a mechanical component with hands and legs (no text or symbols)

1 关闭防水套。

CDI-M464-010 XXXXXXXX © CANON INC. 2010 IMPRIMÉ AU JAPON
