Product Type	Electronic Arm Blood Pressure Monitor
Brand	Duronic
Model	BPM400
Dimensions (L x W x H)	Approx. 180 mm x 100 mm x 40 mm
Weight (without batteries)	Approx. 345 g
Power Supply	4 x AAA batteries 6 VDC or AC adapter 6 V=1 A (model UE08WCP-060100SPA)
Display	Backlit LCD screen 140 x 36 mm
Pressure Measurement Range	0 to 40 kPa (0 to 300 mmHg)
Pulse Measurement Range	40 to 199 pulsations/min
Pressure Accuracy	± 0.4 kPa (3 mmHg) between 5°C and 40°C
Pulse Accuracy	± 5 %
Compatible Arm Circumference	Approx. 22 cm to 42 cm
Memory	60 saves per user
Main Functions	Measurement of systolic and diastolic pressure, heart rate, irregular heartbeat detection, WHO classification, average of readings
Measurement Mode	Oscillometric by inflation and deflation
Care and Cleaning	Clean with a dry cloth; do not immerse; avoid extreme temperatures and dust
Safety	Applied part type BF; emergency stop if pressure > 40 kPa; CE compliance (medical device)
Warranty	1 year (Shine-Mart Ltd)
Included Accessories	Cuff, 4 AAA batteries, user manual
Operating Conditions	Temperature: 5°C to 40°C; humidity ≤ 85% RH
Storage Conditions	Temperature: -20°C to 60°C; humidity: 10% to 93% RH
IP Classification	IP21

Frequently Asked Questions - BPM400 Duronic

How to install batteries in the BPM400 blood pressure monitor?

Slide the battery compartment cover, insert 4 AAA batteries respecting polarity, then close. Replace batteries when the low battery icon appears or the display is dim.

How to set the date and time on the BPM400?

With the device off, press the 'Set' button to enter year settings. Use 'MEM' to change the value, then 'Set' to confirm. Repeat for month, day, hour, minutes, and unit of measurement (mmHg or kPa).

What is the meaning of the symbols on the LCD screen?

The main symbols are: SYS (systolic pressure), DIA (diastolic pressure), Pul/min (heart rate), low battery icon, movement icon, irregular heartbeat icon (IHB), and WHO classification level (Normal, Mild, Moderate, Severe).

How to take a correct blood pressure measurement?

Attach the cuff firmly around your arm, the air hose aligned with your little finger. Sit comfortably with your arm resting on a table. Press 'START/STOP' to start the measurement. Stay still and do not speak during the measurement. Wait at least 3 minutes between measurements.

What to do in case of error message E1, E2 or E3?

E1: the cuff is not properly installed, tighten it. E2: the cuff is too tight, loosen it. E3: the cuff pressure is excessive, relax and restart. If the error persists, contact customer service.

How to view the measurement history in memory?

Press the 'MEM' button to display the average of your last measurements. Use 'MEM' or 'Set' to scroll through individual records. The record number, date, and time are displayed. The most recent measurements appear first.

How to delete all saved data?

In memory mode, press and hold the 'MEM' button for 3 seconds. When 'dEL ALL' appears, press 'Set' to confirm. 'dEL dOnE' confirms deletion. To cancel, press 'START/STOP'.

What does the irregular heartbeat icon mean?

The IHB icon appears if the device detects an abnormal variation in heart beat intervals during measurement. This may be due to movement or incorrect position. If this symbol appears frequently, consult a doctor for a cardiac examination.

What are the storage conditions for the blood pressure monitor?

Store the device in a dry place, away from sunlight and extreme temperatures (between -20°C and 60°C). Avoid dusty environments and shocks. Clean with a dry cloth; do not wash the cuff.

Is the BPM400 blood pressure monitor compatible with a power adapter?

Yes, it can be powered by a 6 V=1 A power adapter, model UE08WCP-060100SPA. Use only the specified adapter to avoid damaging the device.

USER MANUAL BPM400 Duronic

Creative Consumer Electronics

Blood Pressure Monitor BPM400

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 5

The choice of power supply

Installing and replacing the batteries

Setting date, time and measurement unit

MEASUREMENT

Tie the cuff

Start a measurement

What are systolic pressure and diastolic pressure?

What is the standard blood pressure classification?

Why does my blood pressure fluctuate throughout the day?

Why do I get a different blood pressure at home compared to the hospital?

Is the result the same if measuring both arms?

TROUBLESHOOTING

SPECIFICATIONS

AUTHORIZED COMPONENT

CONTACT INFORMATION

COMPILED EUROPEAN STANDARDS LIST

EMC GUIDANCE

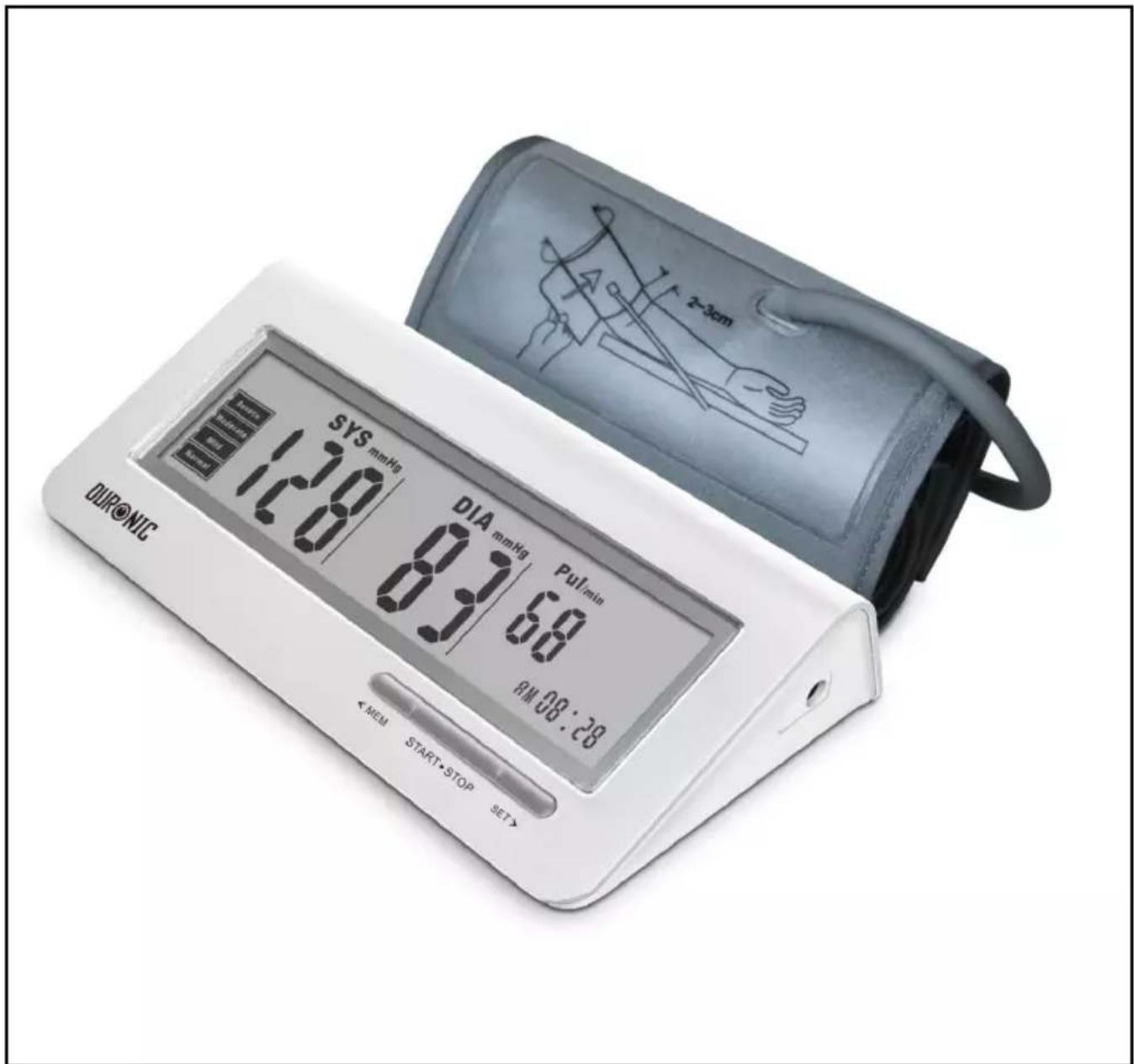

Thank you for selecting the SHINEMART arm type blood pressure monitor. The monitor features blood pressure measurement, pulse rate measurement and auto-save the result. The design provides you with two years of reliable service. Readings taken by the blood pressure monitor are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method. This manual contains important safety and care information, and provides step by step instruction for using the product. Read the manual thoroughly before using the product.

140*36mm Digital LCD display

Maximum 60 records per user

Measuring during inflation technology

Safety Information

The below signs may appear in the user manual, labeling or other component. They are the requirement of standard and use.

	THE OPERATION GUIDE MUST BE READ		Type BF Applied Parts
	CE Mark: conforms to essential requirements of the Medical Device Directive 93/42/EEC.		DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
	Manufacturer		Direct Current
	Specifies Serial Number		Authorized Representative in the European Community
	Manufacture Date

CAUTION

This device is intended for adult use only.

This device is intended for non-invasive measuring and monitoring of arterial blood pressure.

It is not intended for use on extremities other than the arm or for functions other than obtaining a blood pressure measurement.

Do not confuse self-monitoring with self-diagnosis. This unit allows you to monitor your blood pressure. Do not begin or end medical treatment without asking a physician for treatment advice. If you are taking medication, consult your physician to determine the most appropriate time to measure your blood pressure. Never change a prescribed medication without consulting your Physician.

When the device is used to measure patients who have common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation, the results may deviate. Please consult your physician about the results.

If the cuff pressure exceeds 40 kPa (300 mmHg), the unit will automatically deflate. Should the cuff not deflate when pressures exceeds 40 kPa (300 mmHg), detach the cuff from the arm and press the START/STOP button to stop inflation.

The equipment is not AP/APG equipment and not suitable for use in the presence of a flammable anesthetic mixture with air of with oxygen or nitrous oxide.

The operator must not touch batteries /adapter and the patient simultaneously.

To avoid measurement errors, please avoid the condition of strong electromagnetic field radiated interference signal or electrical fast transient/burst signal.

The user must check that the equipment functions safely and see that it is in proper working condition before being used.

This device is contraindicated for any female who may be, or is pregnant. Besides providing inaccurate readings, the effects of this device on the fetus are unknown. Manufacturer will make available on request circuit diagrams, component parts list etc.

This unit is not suitable for continuous monitoring during medical emergencies or operations. It may cause the patient's arm and fingers to become and swollen, due to the blood supply being cut off.

Please use the device under the environment which was provided in the user manual. Otherwise, the performance and lifetime of the device will be impacted and reduced.

During use, the patient will be in contact with the cuff. The materials of the cuff have been tested and found to comply with requirements of ISO 10993-5:2009 and ISO 10993-10:2010. It will not cause any potential sensitization or irritation reaction.

Please use ACCESSORIES and detachable parts specified/ authorized by MANUFACTURE.

The use of unauthorized parts may cause damage to the unit or danger to the user/patients.

The device does not need to be calibrated within the two years of reliable service.

Please dispose of ACCESSORIES, detachable parts, and the ME EQUIPMENT according to the local guidelines.

If you have any problems with this device, such as setting up, maintaining or using, please contact the SERVICE PERSONNEL of SHINEMART. Do not open or repair the device by yourself. Please report to SHINEMART if any unexpected operation or events occur.

Please use the soft cloth to clean the whole unit. Do not use any abrasive or volatile cleaners.

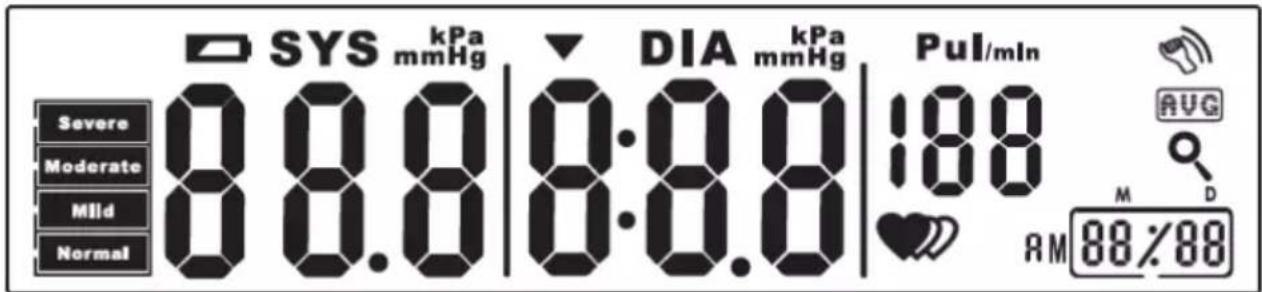

LCD display signal

Symbol Description	Explanation
SYS	Systolic blood pressure High pressure result
DIA	Diastolic blood pressure	Low pressure result
Pul/min	Pulse	Pulse/minute
	Deflating	CUFF air is exhausting of deflating
8	Time (hour:minute)	Currently time
M	Memory	If “M” shows, the displayed measurement values is from the memory.
m	mmHg	Measurement Unit of the blood pressure 1mmHg=0.133kPa
	kPa	Measurement Unit of the blood pressure (1kPa=7.5mmHg)
E	Low battery	Batteries are low and need to be replaced
	Shock reminder	Shocking will result in inaccurate measurements
	Average The average of blood pressure
	Recalling The records will be shown
	Arrhythmia Irregular heartbeat
	Grade The grade of the blood pressure.

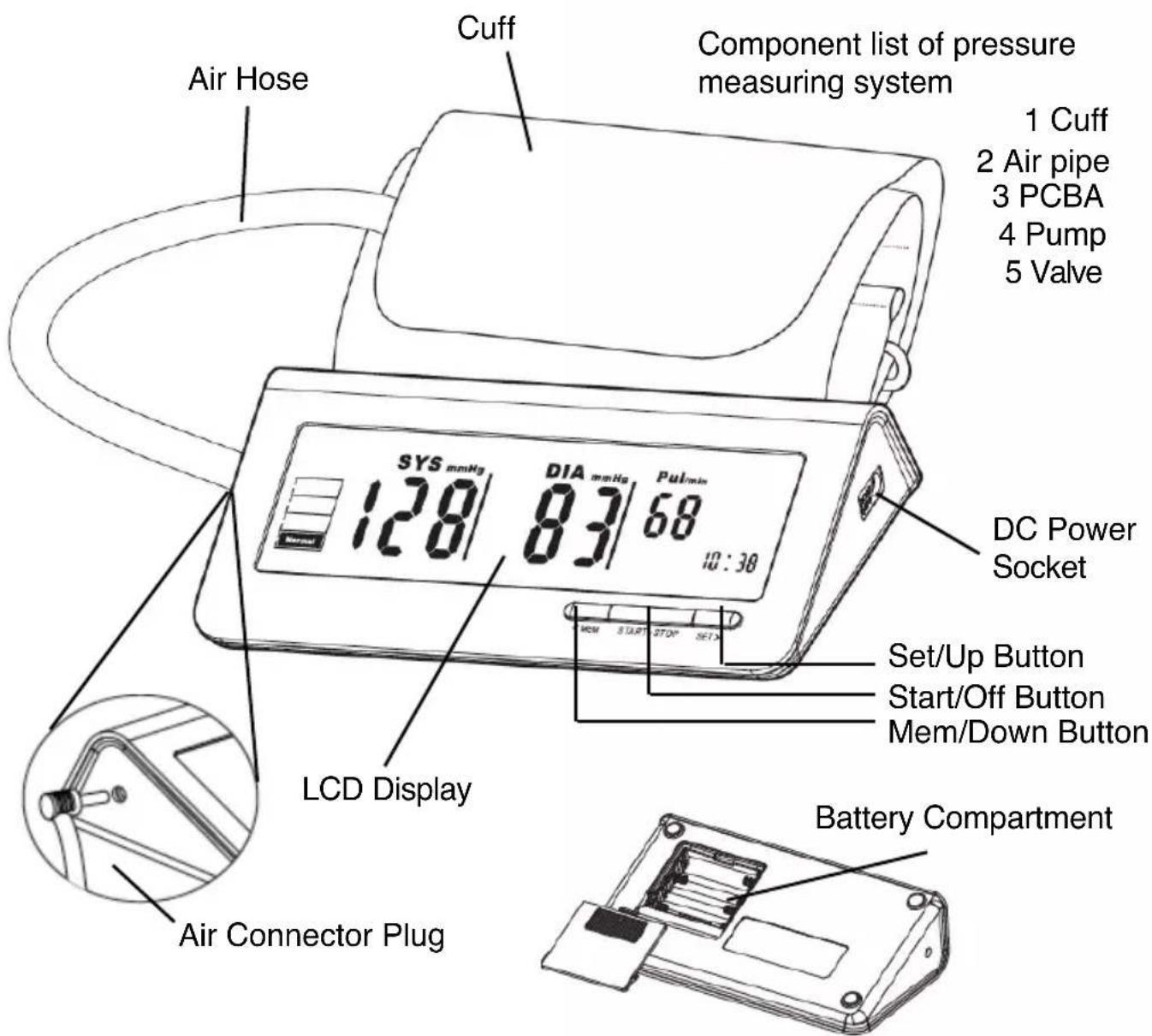

Monitor Components

List

1. Blood Pressure Monitor

1. Cuff (22-42cm)

1. 4^* AAA Batteries

1. User Manual

The Choice of Battery

1. Battery powered mode: 6VDC

4*AAA batteries

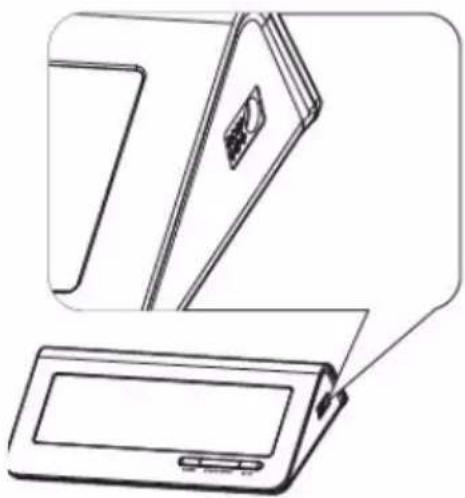

1. AC adapter powered mode: 6V---1A

(Can be supplied by AC adapter model) UE08WCP-060100SPA only!) Not Included) Right picture is the socket for the power adapter.

Caution

In order to get the best results and protect your monitor, please use the right battery and special power adapter.

Line drawing of a refrigerator with a door and front panel, no text or symbols present

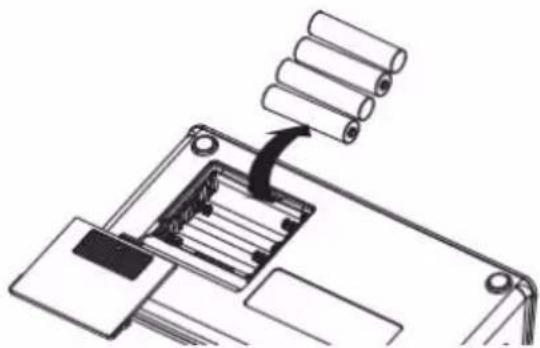

The Installment And Replacement Of Battery

1. Slide off the battery cover.
2. Install the batteries by matching the correct polarity, as shown.
3. Replace the cover.

Replace the batteries whenever the following happens:

• The showso
- The display dims
• The display does not light up

Diagram of a mechanical assembly with cylindrical components and internal components (no text or symbols)

Caution

Remove batteries if the device is not likely to be used for some time.

The old batteries are harmful to the environment, do not dispose with other daily trash. Remove the old batteries from the device and follow your local recycling guidelines.

Do not dispose of batteries in fire. Batteries may explode or leak.

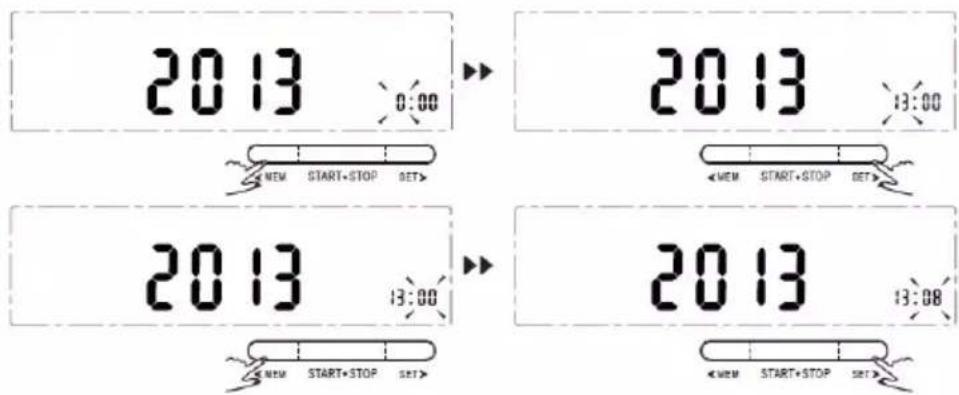

Setting the date, time and measurement unit

It is important to set the clock before using your blood pressure monitor, so that a time stamp can be assigned to each record that is stored in the memory. (year :2000—2050,time:24 H)

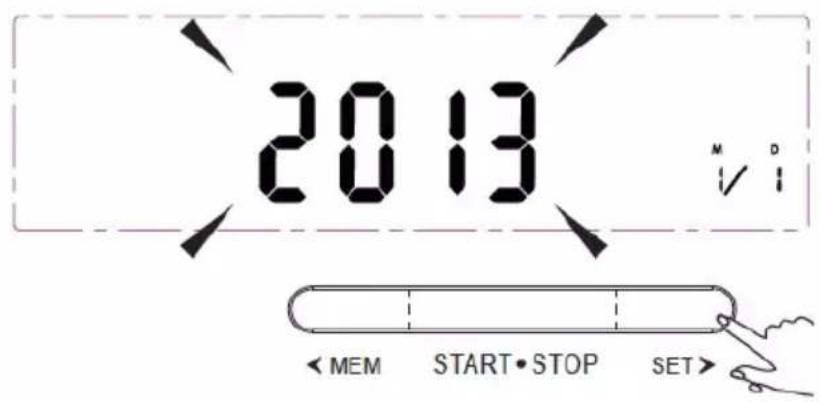

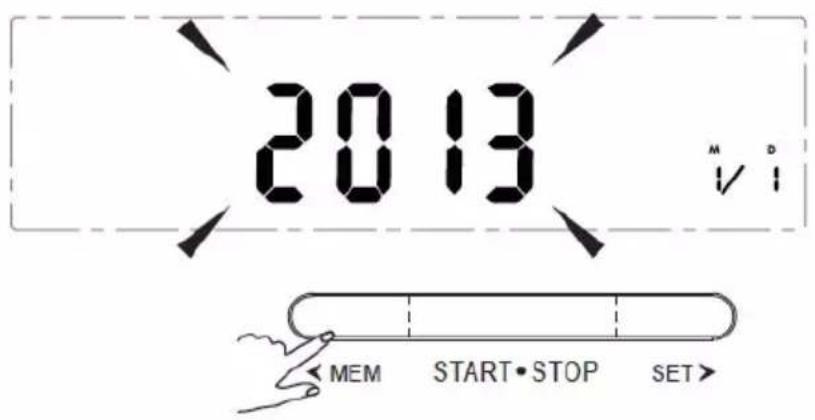

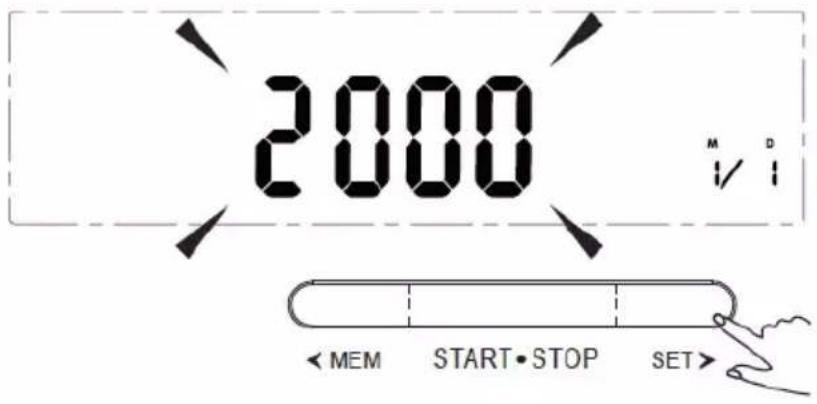

1. When the unit is off, press and hold "SET" for 3 seconds to enter the mode for year setting.

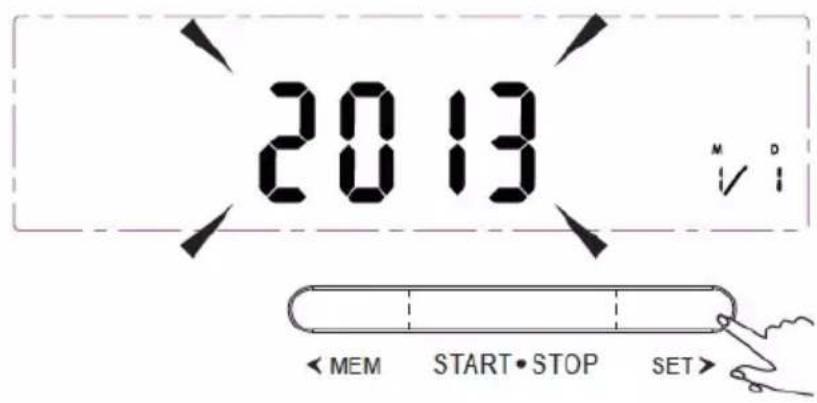

2. Press the "MEM" to change the [YEAR].

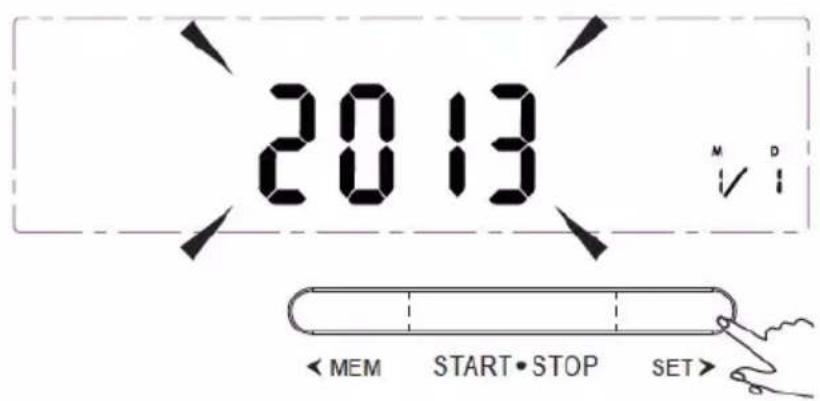

3. When you get the right year, press "SET" to select and turn to next step automatically.

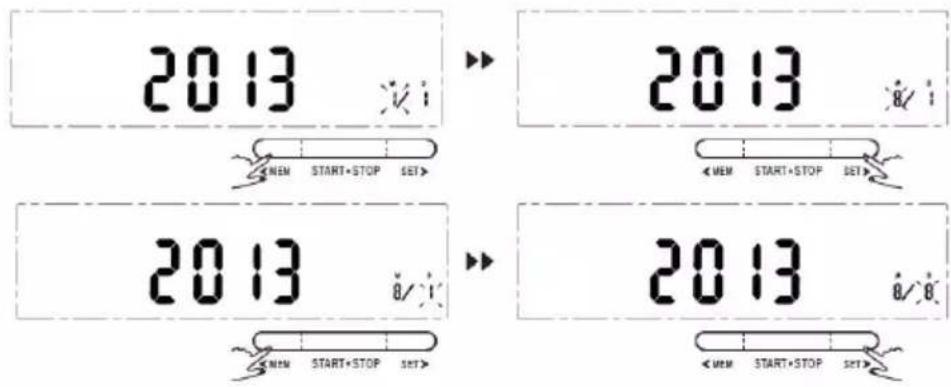

1. Repeat steps 2 and 3 to set the [MONTH] and [DAY].

1. Repeat steps 2 and 3 to set the [HOUR] and [MINUTE].

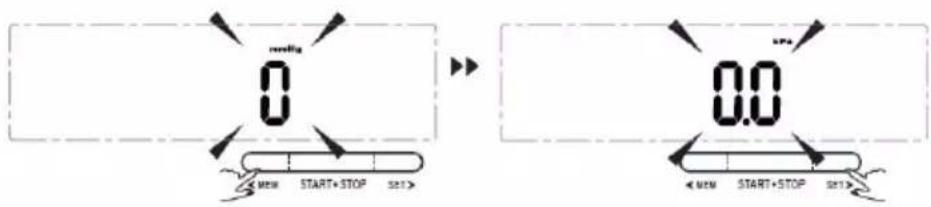

1. Repeat steps 2 and 3 to set the [UNIT].

1. After the unit is set, the right picture will show, then it turn off automatically.

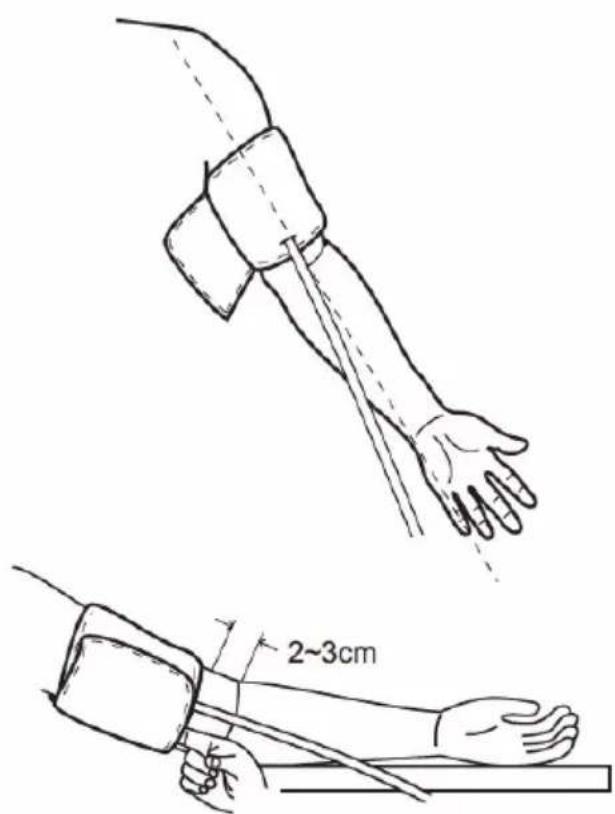

Tie The Cuff

1. Tie the cuff on your upper arm, then position the tube off-center toward the inner side of arm in line with the little finger.
2. The cuff should be snug but not too tight. You should be able to insert one finger between the cuff and your arm.
3. Sit comfortably with your left arm resting on a flat surface.

Rest for 5 minutes before measuring.

Wait at least 3 minutes between measurements. This allows your blood circulation to recover. For a meaningful comparison, try to measure under similar conditions. For example, take daily measurements at approximately the same time, on the same arm, or as directed by a physician.

Line drawing of a person measuring blood pressure on a table (no text or symbols)

Start The Measurement

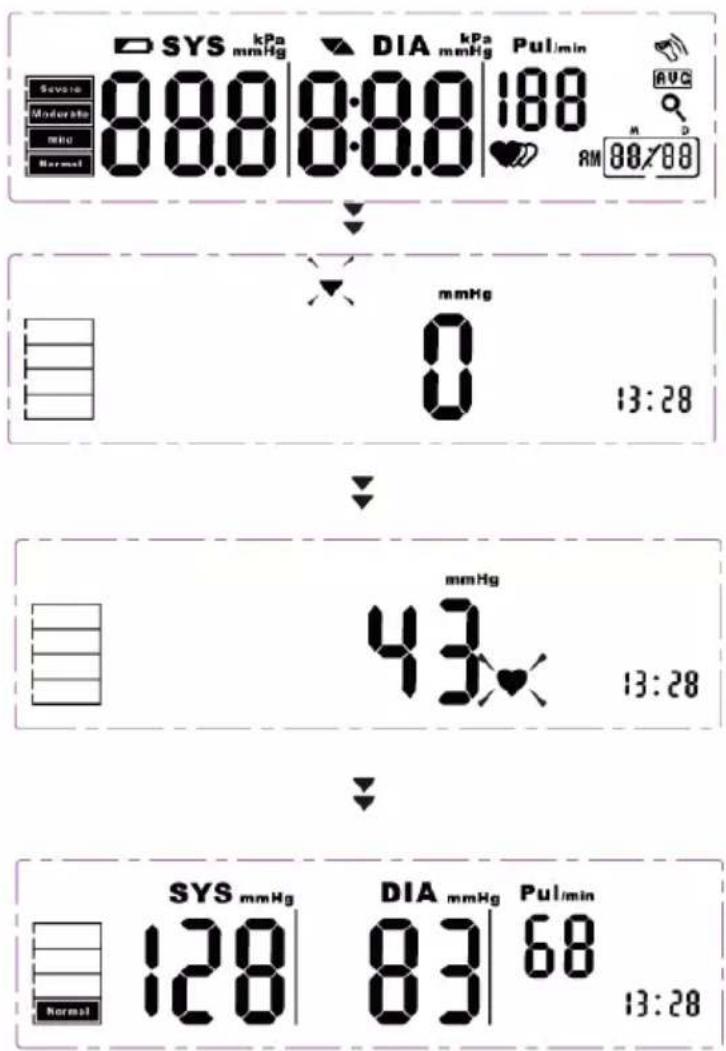

1. Press the "START/STOP" to turn on the monitor, and it will finish the whole measurement automatically.

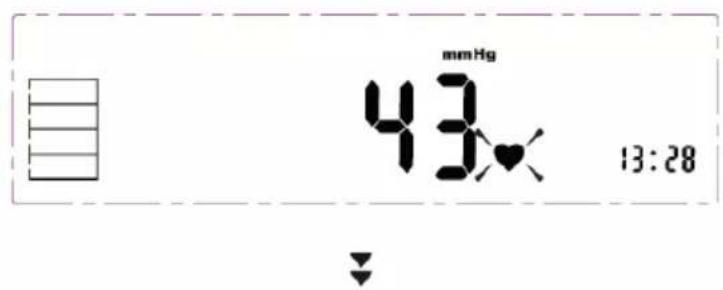

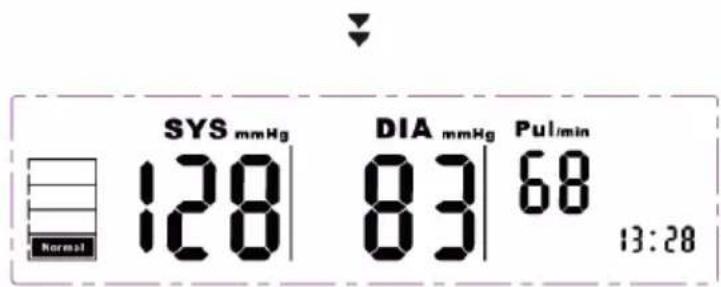

LCD display

Adjust to zero automatically.

Inflating and measuring automatically.

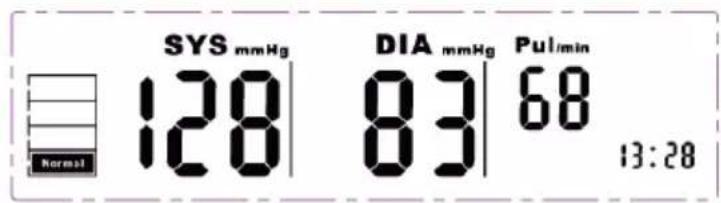

Display and save the results automatically.

1. Press the "START/STOP" to power off, otherwise it will turn off automatically within 1 minute.

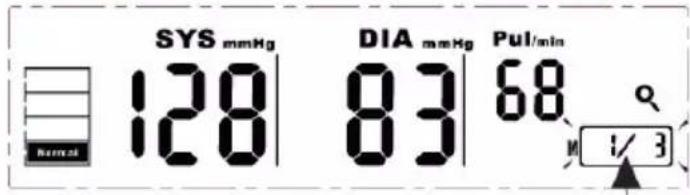

Recalling the records

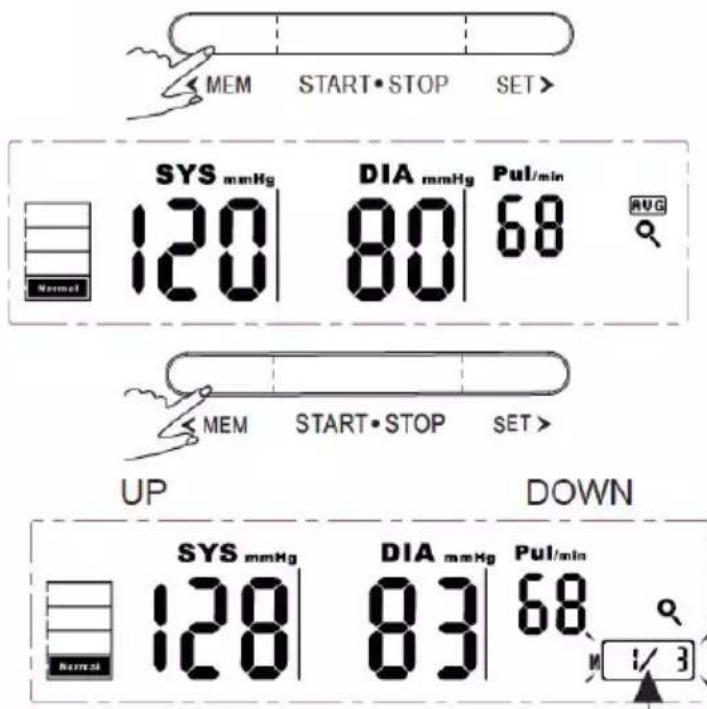

1. When the BPM is off, please press the "MEM" to show the average of the records.
   The sign of "AVG" will show in the right corner.
2. Press the "MEM" or "SET" to get the record you want.

The order of the record, date, time will display alternately.

The Order Number of the measurement: 1. Total three records.

The corresponding date is August 8th.

The corresponding time is 13:28.

Caution

The most recent record (1) is shown first. Each new measurement is assigned to the first (1) record. All other records are pushed back one digit (e.g., 2 becomes 3, and so on), and the last record (60) is dropped from the list.

Deleting a measurement record from memory

If you did not get the correct measurement, you can delete all results by following steps below.

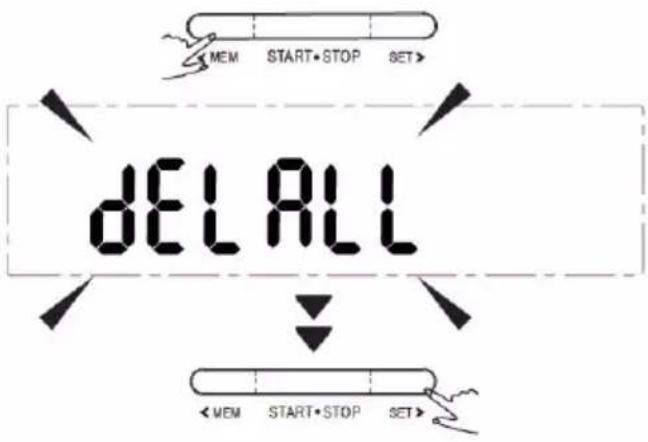

1. Press and hold "MEM" for 3 seconds, the flash display will show.

2. Press "SET" to confirm deleting and the monitor will turn off automatically.

3. If you do not want to delete the records, press "START/STOP" to escape.

4. If there is no record, the right display will show.

Tips For Measurement

Measurements may be inaccurate if taken in the following circumstances.

Cartoon drawing of a person eating with a plate of food (no text or symbols)

Wait at least 1 hour after eating or drinking

Cartoon illustration of a man sitting at a table with a steaming cup and coffee cup (no text or symbols)

Immediate measurement after tea, coffee, smoking

Simple line drawing of a person holding an object (no text or symbols)

Wait at least 20 minutes after taking a bath

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols.

When talking or moving your fingers

Simple line drawing of a person with decorative swirls around (no text or symbols)

In a very cold environment

Cartoon illustration of a person with thought bubble showing a person inside a box (no text or symbols)

When you need the toilet

Maintenance

In order to get the best performance, please follow the below instructions.

Simple line drawing of a sun heating a device with a screen and indicator lights (no text or symbols)

Put in a dry place and avoid the sunshine

Cartoon illustration of a smiling rectangular object partially submerged in water, with no text or symbols present.

Avoid touching water, clean it with a dry cloth in case.

Simple line drawing of a rectangular device with three ports and vertical lines indicating motion or signal (no text or symbols)

Avoid the intense shaking and collision

Simple line drawing of a rectangular object with decorative swirls (no text or symbols)

Avoid the dusty and unstable-temperature environment

Simple line drawing of a stylized tablet with a smiley face and a hand holding the cup (no text or symbols)

Using a wet cloth to remove the dirt

Simple line drawing of a smiling book with a flowing tail, no text or symbols present

Avoid washing the cuff under running water. Use a dry cloth.

What are systolic pressure and diastolic pressure?

When ventricles contract and pump blood out of the heart, blood pressure reaches its maximum value, the highest pressure in the cycle is known as systolic pressure. When the heart relaxes between heartbeats, the lowest blood pressure is diastolic pressure.

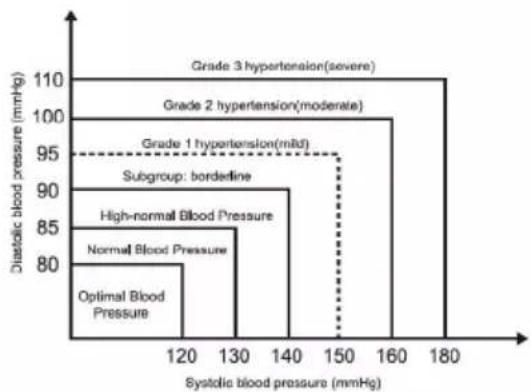

What is the standard blood pressure classification?

Below illustrates the blood pressure classification mode by World Health Organization (WHO) and International Society of Hypertension (ISH) in 1999.

Blood Pressure (mmHg)\Level	Normal			Mild	Moderate	Severe
SYS	<120	120~129	130~139	140~159	160~179	≥180
DIA	<80	80~84	85~89	90~99	100~109	≥110

Caution: Only a physician can tell you your normal blood pressure range and the point at which you are at risk. Consult your physician to obtain these values. If the measurements taken with these products fall outside the range.

Irregular Heartbeat Detector

An irregular heartbeat is detected when a heartbeat rhythm varies while the unit is measuring the systolic and diastolic blood pressure. During each measurement, this equipment records the heartbeat intervals and works out the standard deviation. If the calculated value is larger than or equal to 15, the irregular heartbeat symbol appears on the symbol when the measurement results are displayed.

Caution: The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Usually this is NOT a cause for concern. However, if the symbol appears often, we recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Why does my blood pressure fluctuate throughout the day?

1. Individual blood pressure varies multiple times everyday. It is also affected by the way you tie your cuff and your measurement position, so please take the measurement under the same conditions.
2. If the person takes medicine, the pressure will vary more.
3. Wait at least 3 minutes for another measurement.

Line drawing of a person measuring blood pressure with a wall-mounted device and a clock in the background (no text or symbols)

Why do I get a different blood pressure at home compared to the hospital?

The blood pressure is different even throughout the day due to weather, emotion, exercise etc. Also, there is the “white coat” effect, which means blood pressure usually increases in clinical settings.

What you need to pay attention to when you measure your blood pressure at home:

If the cuff is tied properly.

If the cuff is too tight or too loose.

If the cuff is tied on the upper arm.

If you feel anxious.

Taking 2-3 deep breaths before beginning will be better for measuring.

Advice: Relax yourself for 4-5 minutes until you calm down.

Is the result the same if measuring on the right arm?

It is ok for both arms, but there will be some different results for different people. We suggest you measure the same arm every time.

Line drawing of a person using a blood pressure monitor on a desk (no text or symbols)

This section includes a list of error messages and frequently asked questions for problems you may encounter with your blood pressure monitor. If the products not operating as you think it should, check here before arranging for servicing.

Problem	Symptom Check	This	Remedy
No power	Display is dim or will not light up.	Batteries are exhausted.	Replace with new batteries.
		Batteries are inserted incorrectly.	Insert the batteries correctly.
Low batteries	Show on the display	Batteries are low.	Replace with new batteries
Error message	E1 shows	The cuff is not secure.	Refasten the cuff and then measure again.
	E2 shows	The cuff is very tight	Refasten the cuff and then measure again.
	E3 shows	The pressure of the cuff is excess.	Relax for a moment and then measure again.
	E10 or E11 shows	The monitor detected motion while measuring.	Movement can affect the measurement. Relax for a moment and then measure again.
	E20 shows	The measurement process does not detect the pulse signal.	Loosen the clothing on the arm and then measure again.
	E21 shows	The treatment of the measurement failed.	Relax for a moment and then measure again.
	EExx,shows on the display.	A calibration error occurred.	Retake the measurement. If the problem persists, contact the retailer or our customer service department for further assistance. Refer to the warranty for contact information and return instructions.

Power supply	Battery powered mode: 6VDC 4*AAA batteries AC adapter powered mode: 6V---1A (Can be supplied by AC adaptor model UE08WCP-060100SPA only!) (Not Included)
Display mode	Digital LCD V.A.140mmx36mm
Measurement mode	Oscillographic testing mode
Measurement range	Rated cuff Pressure 0kPa~40kPa(0mmHg~300mmHg) Measurement pressure: 5.3kPa-30.7kPa (40mmHg-230mmHg) Pulse value: (40~199) beat/minute
Accuracy	Pressure: 5°C~40°Cwithin±0.4kPa(3mmHg) pulse value:±5%
Normal working condition	Temperature:5°C~40°C Relative humidity ≤85%RH Atmospheric pressure: 86kPa to 106kPa
Storage & transportation condition	Temperature:-20°C to 60°C Relative humidity:10%RH to 93%RH Atmospheric pressure: 50kPa to 106kPa
Measurement perimeter of the upper arm	About 22cm~42cm
Weight	Approx.345g (Excluding the dry cells)
External dimensions	Approx.180*100*40mm
Attachment	4*AAA batteries,user manual
Mode of operation	Continuous operation
Degree of protection	Type BF applied part
Protection against ingress of water	IP21

Authorized Component

1. Please use the TRANSTEK authorized adapter. (Not Included)

Diagram of a handheld device connected to a cable, with an inset showing the tip of the cable (no text or symbols present)

Adapter Input:100\~240V 50\~60Hz,400mA Output: 6V---1A Type: UE08WCP-060100SPA ( Conforms to UL certificate )

Contact Information

Distributed by:

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Manufactured by: Guangdong Transtek Medical Electronics Co., Ltd.

Company: Guangdong Transtek Medical Electronics Co., Ltd.

Address: Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan,528437,Guangdong,China

Authorized European Representative:

Company: MDSS - Medical Device Safety Service GmbH

Address: Schiffgraben 41, 30175 Hannover, Germany

EMC Guidance

1. MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the ACCOMPANYING DOCUMENTS
2. Wireless communications equipment such as wireless home network devices, mobile phones, cordless telephones and their base stations, walkie-talkies can affect this equipment and should be kept at least a distance d=3, 3m away from the equipment.

(Note: As indicated in Table 6 of IEC 60601-1-2:2007 for ME EQUIPMENT, a typical cell phone with a maximum output power of 2 W yields d=3, 3m at an IMMUNITY LEVEL of 3V/m)

Complied European Standards List

Risk Management	ISO/EN 14971:2012
Labeling	ISO/EN 15223-1:2012
User Manual	EN 1041:2008
Generl Requirements for Safety	EN 60601-1:2006IEC/EN 60601-1-11:2010
Electromagnetic Compatibility	IEC/EN 60601-1-2:2007
Performance requirements	EN 1060-1:1995+A2:2009EN 1060-3:1997+A2:2009
Clinical investigation	EN 1060-4:2004
Software Lifetime	IEC/EN 60601-1-6:2010 IEC/EN 62366:2007
Usability	IEC/EN 62304:2006+AC:2008

CE 0123

Model: TMB-1018-A; Ref.No.:BPM400

Distributed by:

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

Imported by Shine-Mart Ltd, RM3 8SB

CE

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

DURONIC

Line drawing of a refrigerator with a door and front panel, no text or symbols present

Diagram of a device's internal structure with cylindrical components and an arrow indicating assembly (no text or symbols)

Caution

Line drawing of a person measuring their blood pressure with a device (no text or symbols)

Commencez la mesure

Cartoon drawing of a person eating with a bowl and spoon (no text or symbols)

Simple line drawing of a person holding an object (no text or symbols)

Simple line drawing of a stylized human figure with expressive eyes and decorative swirls (no text or symbols)

Cartoon illustration of a man holding a steaming cup and coffee cup (no text or symbols)

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols

Cartoon illustration of a person with thought bubble showing a person inside (no text or symbols)

In order to get the best performance, please follow the below instructions.

Simple line drawing of a weathered air conditioner with a sun icon above (no text or symbols)

Line drawing of a rectangular electronic device with three ports and a label, emitting sound waves (no text or symbols)

Simple line drawing of a smiling smartphone with a computer mouse (no text or symbols)

Cartoon illustration of a smiling phone partially submerged in water, with no text or symbols present.

Simple line drawing of a device with decorative swirls (no text or symbols)

Simple line drawing of a hand pouring liquid into a bag (no text or symbols)

Line drawing of a person receiving blood pressure from a table with a clock in the background (no text or symbols)

Line drawing of a person using a blood pressure monitor on a desk (no text or symbols)

Simple line drawing of a tool with a coiled cable and a pencil inserted, shown in an inset (no text or symbols)

Adaptateur

Input: 100\~240V,

50\~60Hz,400mA

Output:6V---1A

Type: UE08WCP-060100SPA

(Conformse au certificat UL)

Information de contact

Vendu par:

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Produit par: Guangdong Transtek Medical Electronics Co., Ltd.

Entreprise: Guangdong Transtek Medical Electronics Co., Ltd.

Adresse: Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan,528437,Guangdong,China

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill,

Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

Garantie

Line drawing of a device with a lid and screen, no text or symbols present

Diagram of a mechanical assembly with cylindrical components and a black arrow indicating a process (no text or symbols)

VORSICHT

Cartoon drawing of a person eating with a plate of food (no text or symbols)

Cartoon illustration of a man sitting at a table with a steaming cup and coffee cup (no text or symbols)

Simple line drawing of a person holding an object (no text or symbols)

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols

Simple line drawing of a person with decorative swirls around (no text or symbols)

Cartoon illustration of a person with thought bubble showing a person inside a box (no text or symbols)

Simple line drawing of a sun-dyeed electrical device with a screen and indicator lights (no text or symbols)

Simple line drawing of a stylized tablet with a smiling face and a hand holding the cup (no text or symbols)

Cartoon illustration of a smiling phone partially submerged in water (no text or symbols)

Simple line drawing of a rectangular object with decorative swirls around it (no text or symbols)

Simple line drawing of a smiling water dispenser with a curved handle (no text or symbols)

Line drawing of a person receiving blood pressure from a medical device, with a wall clock showing time (no text or symbols present)

Line drawing of a person using a blood pressure monitor on a desk (no text or symbols)

Simple line drawing of a tool with a coiled cable and a magnified inset showing the tip (no text or symbols)

SHINEMART LTD, Unit 1 Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB, UK

Hersteller: Guangdong Transtek Medical Electronics Co., Ltd.

Adresse: Zone A, No.105, Dongli Road, Torch Development

District, Zhongshan, 528437, Guangdong, China

Company: MDSS - Medical Device Safety Service GmbH

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District, Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

Gewährleistung

Line drawing of a refrigerator with a door and front panel, no text or symbols present

PRECAUCIÓN

Diagram of a mechanical assembly with cylindrical components and a black arrow indicating a process (no text or symbols)

PRECAUCIÓN

Line drawing of a person measuring blood pressure on a table (no text or symbols)

Recuperar registros

The Order Number of the measurement: 1. Total three records.

The corresponding date is August 8th.

13:28

The corresponding time is 13:28.

PRECAUCIÓN

Cartoon drawing of a person eating with a plate of food (no text or symbols)

Cartoon illustration of a man sitting at a table with a steaming cup and coffee cup (no text or symbols)

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols.

Simple line drawing of a person with expressive eyes and decorative swirls (no text or symbols)

Cartoon illustration of a person with thought bubble showing a person inside a box (no text or symbols)

Simple line drawing of a handheld device with a light source and a small car icon, no text or symbols present.

Cartoon illustration of a smiling face on a phone partially submerged in water (no text or symbols)

Simple line drawing of a rectangular electronic component with decorative swirls (no text or symbols)

Simple line drawing of a smiling computer monitor with a hand holding the case (no text or symbols)

Simple line drawing of a cartoon character pouring liquid from a bottle (no text or symbols)

Evite lavar el manguito

Line drawing of a person measuring blood pressure with a wall-mounted device (no text or symbols)

Line drawing of a person measuring blood pressure on a table (no text or symbols)

Diagram of a handheld device connected to a cable, with an inset close-up showing the tip and body (no text or symbols)

Adaptador Modelo UE08WCP-060100SPA Entrada 100\~240V 50\~60Hz,400mA Salida 6V---1A (Certificado conforme con la norma UL)

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill,

Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

Garantía

Line drawing of a refrigerator with a door and front panel, no text or symbols present

Diagram of a mechanical assembly with cylindrical components and a black arrow indicating a process (no text or symbols present)

ATTENZIONE

Line drawing of a person measuring blood pressure on a table (no text or symbols)

The Order Number of the measurement: 1. Total three records.

The corresponding date is August 8th.

The corresponding time is 13:28.

ATTENZIONE

Cartoon drawing of a person eating with a bowl and spoon (no text or symbols)

Cartoon illustration of a man sitting at a table with a steaming cup and coffee cup (no text or symbols)

Simple line drawing of a person holding an object (no text or symbols)

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols.

Simple line drawing of a person with decorative swirls around (no text or symbols)

Cartoon illustration of a person with thought bubble showing a person inside a box (no text or symbols)

Simple line drawing of a sun-dyeed electrical device with a screen and indicator lights (no text or symbols)

Cartoon illustration of a smiling phone partially submerged in water, with no text or symbols present.

Simple line drawing of a rectangular electronic device with scroll decorations (no text or symbols)

Simple line drawing of a smiling smartphone with a closed eyes and a rounded body, connected to a strap (no text or symbols)

Simple line drawing of a smiling water dispenser with a droplet pouring from its tip (no text or symbols)

Simple line drawing of a tool with a cable and a pencil, shown in an inset (no text or symbols)

Alimentatore Input:100\~240V 50\~60Hz,400mA Output: 6V---1A Tipo: UE08WCP-060100SPA ( Conforme con i certificati UL )

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB, UK

Indirizzo: Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan,528437,Guangdong,China

Società: MDSS - Medical Device Safety Service GmbH

Indirizzo: Schiffgraben 41, 30175 Hannover, Germany

Guida EMC

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill,

Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105 , Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

Garanzia

Line drawing of a refrigerator with a door and front panel, no text or symbols present

Diagram of a mechanical assembly with cylindrical components and a black arrow indicating a process (no text or symbols present)

Line drawing of a person measuring blood pressure on a table (no text or symbols)

Rozpoczęcie pomiaru

Zapisywanie pomiaru

Cartoon drawing of a person eating with a bowl and spoon (no text or symbols)

Cartoon illustration of a man sitting at a table with a steaming cup and coffee cup (no text or symbols)

Simple line drawing of a person holding an object (no text or symbols)

Cartoon illustration of a man holding a phone to his ear, with no visible text or symbols

Simple line drawing of a stylized human figure with decorative swirls (no text or symbols)

Cartoon illustration of a person with thought bubble showing a person inside (no text or symbols)

Simple line drawing of a sun shining on a device with a simple cartoon face (no text or symbols)

Simple line drawing of a rectangular device with three buttons and a handle, emitting sound waves (no text or symbols)

Simple line drawing of a tablet with a smiling face and a hand holding a bag (no text or symbols)

Cartoon illustration of a smiling rectangular object partially submerged in water, with splashes and motion lines (no text or symbols)

Simple line drawing of a rectangular object with decorative swirls around it (no text or symbols)

Simple line drawing of a smiling book with a flowing tail, no text or symbols present

Illustration of a person receiving blood pressure with a wall-mounted device and a clock in the background (no text or symbols)

Line drawing of a person using a blood pressure monitor on a desk (no text or symbols)

Simple line drawing of a tool with a coiled cable and a magnified inset showing the tip (no text or symbols)

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Producent: Guangdong Transtek Medical Electronics Co., Ltd.

Firma: Guangdong Transtek Medical Electronics Co., Ltd.

Adres: Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan,528437,Guangdong,China

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

Warunki Gwarancji
