Product Type	Automatic arm blood pressure monitor
Brand and Model	Duronic BPM150
Dimensions (L x W x H)	102 x 143 x 73 mm
Weight	300 g (without batteries)
Power Supply	4 AA batteries (6V DC) or AC adapter 6V / 1A (model UE08WCP-060100SPA)
Display	Backlit LCD screen 80 x 60 mm
Measurement Method	Oscillometric (by inflation and deflation)
Measurement Range	Pressure: 0 to 300 mmHg (0 to 40 kPa); Pulse: 40 to 199 beats/min
Accuracy	Pressure: ±3 mmHg; Pulse: ±5%
Memory	60 readings per user with date and time
Special Functions	Irregular heartbeat detection (IHB), WHO classification, automatic shut-off
Cuff	Arm circumference 22 to 42 cm, air tube 60 cm
Operating Conditions	Temperature: 5°C to 40°C; Humidity ≤85% RH
Storage and Transport	Temperature: -20°C to 60°C; Humidity: 10% to 93% RH
Maintenance	Clean with a dry cloth, do not immerse, avoid dust and extreme temperatures
Warranty	1 year by Shine-Mart Ltd (Duronic)
Standards	CE 0123, compliant with directive 93/42/EEC, applied part type BF
Box Contents	Blood pressure monitor, cuff, 4 AA batteries, instruction manual
Repairability	Repairs only by an authorized service; parts approved by the manufacturer

Frequently Asked Questions - BPM150 Duronic

How to set the date and time on the Duronic BPM150 blood pressure monitor?

Press the Set button when the device is off to enter year setting. Use MEM to change, then Set to confirm. Repeat for month, day, hour, and minutes. Finally, choose the measurement unit (mmHg or kPa) and the device will display 'DONE' and turn off.

What does the IHB icon (irregular heartbeat) mean?

The IHB icon appears when the device detects an irregular pulse interval during measurement. If it appears frequently, consult your doctor. This is not a medical diagnosis, but a preliminary indicator.

How to delete all measurements from memory?

In memory mode, press and hold the MEM button for 3 seconds until 'dEL ALL' appears on the screen. Press Set to confirm. The screen will show 'dEL dOnE' then the device will turn off.

Why does my blood pressure reading at home differ from the hospital?

Blood pressure can vary due to stress, activity, time of day, and 'white coat' effect (nervousness at the hospital). For reliable comparisons, take measurements under the same conditions (same arm, same time, at rest).

What to do if the screen displays error code E1, E2, or E3?

E1: cuff is too loose; tighten and measure again. E2: cuff is too tight; loosen the cuff. E3: excessive pressure; relax and try again after a few minutes.

What is the correct position for taking blood pressure?

Sit comfortably with your arm resting on a table, cuff at heart level. The air tube should align with the inside of the arm (little finger side). Rest for 5 minutes before measurement.

How to clean the monitor and cuff?

Use a dry cloth to clean the device. Never immerse the monitor in water. The cuff should not be washed; gently clean it with a damp cloth if needed and air dry.

When should I replace the batteries?

Replace batteries when the low battery symbol (lo+o) appears, the display becomes dim, or the screen does not turn on. Use 4 new AA batteries respecting polarity.

Can I use the monitor on my right or left arm?

Yes, but results may differ slightly. It is recommended to always measure on the same arm for consistency. In general, both arms are acceptable.

How to interpret the WHO classification results?

The device displays a color code (normal, mild, moderate, severe) based on WHO thresholds. For example, systolic pressure <120 mmHg and diastolic <80 mmHg is considered optimal. Consult a doctor for personalized interpretation.

USER MANUAL BPM150 Duronic

Creative Consumer Electronics

Blood Pressure Monitor

BPM150

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 5

Monitor components 10

BEFORE YOU START

The choice of power supply 10

Installing and replacing the batteries 10

Setting Date and time 11

MEASUREMENT

Tie the cuff 13

Start a measurement 14

Delete the records 16

INFORMATION FOR USER

Tips for operation 17

Maintenance 18

ABOUT BLOOD PRESSURE

What are systolic pressure and diastolic pressure? 19

What is the standard blood pressure classification? 19

Why does my blood pressure fluctuate throughout the day? 19

Why do I get a different blood pressure at home compared to the hospital? 20

Is the result the same if measuring on the right arm? 20

TROUBLESHOOTING 21

SPECIFICATIONS 22

THE AUTHORIZED COMPONENTS 24

CONTACT INFORMATION 23

EMC Guidance 24

Thank you for selecting SHINEMART arm type blood pressure monitor. The monitor features blood pressure measurement, pulse rate measurement and auto-save the result. The design provides you with two years of reliable service. Readings taken by the blood pressure monitor are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method. This manual contains important safety and care information, and provides step by step instruction for using the product. Read the manual thoroughly before using the product.

Features:

80*60mm Digital LCD display

Maximum 60 records

Inflating measuring technology

Safety Information

The symbols shown below may appear in the user manual, labeling or other components. They are the standard requirement.

	THE OPERATION GUIDE MUST BE READ		Type BF Applied Parts
	CE Mark: conforms to essential requirements of the Medical Device Directive 93/42/EEC.		DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
	Manufacturer		Direct Current
	Specifies Serial Number		Authorized Representative in the European Community
	Manufacture Date

Caution

This device is intended for adult use only. This device is intended for no-invasive measuring and monitoring of arterial blood pressure. It is not intended for use on extremities other than the arm or for functions other than obtaining a blood pressure measurement. Do not confuse self-monitoring with self-diagnosis. This unit allows you to monitor your blood pressure. Do not begin or end medical treatment without asking a physician for treatment advice.

If you are taking medication, consult your physician to determine the most appropriate time to measure your blood pressure. Never change a prescribed medication without consulting your Physician. When the device was used to measure patients who have common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation, the best result may occur with deviation. Please consult your physician about the result. If the cuff pressure exceeds 40 kPa (300 mmHg), the unit will automatically deflate. Should the cuff not deflate when pressures exceeds 40 kPa (300 mmHg), detach the cuff from the arm and press the START/STOP button to stop inflation. The equipment is not AP/APG equipment and not suitable for use in the presence of a flammable anesthetic mixture with air of with oxygen or nitrous oxide. The operator shall not touch output of batteries and the patient simultaneously. To avoid measurement errors, please avoid the condition of strong electromagnetic field radiated interference signal or electrical fast transient/burst signal. The user must check that the equipment functions safely and see that it is in proper working condition before being used. This device is contraindicated for any female who may be suspected of, or is pregnant. Besides providing inaccurate readings, the effects of this device on the fetus are unknown. Manufacturer will make available on request circuit diagrams, component parts list etc. This unit is not suitable for continuous monitoring during medical emergencies or operations. Otherwise, the patient's arm and fingers will become anaesthetic, swollen and even purple due to a lack of blood. Please use the device under the environment which was provided in the user manual. Otherwise, the performance and lifetime of the device will be impacted and reduced. During use, the patient will be in contact with the cuff. The materials of the cuff have been tested and found to comply with requirements of ISO 10993-5:2009 and ISO 10993-10:2010. It will not cause any potential sensitization or irritation reaction. Please use ACCESSORIES and detachable partes specified/ authorised by MANUFACTURE. Otherwise, it may cause damage to the unit or danger to the user/patients. The device doesn't need to be calibrated within the two years of reliable service. Please dispose of ACCESSORIES, detachable parts, and the ME EQUIPMENT according to the local guidelines. If you have any problems with this device, such as setting up, maintaining or using, please contact the SERVICE PERSONNEL of Duronic. Don't open or repair the device by yourself. Please report to Duronic if any unexpected operation or events occur. Please use the soft cloth to clean the whole unit. Don't use any abrasive or volatile cleaners.

SYS.

mmHg

DIA.

mmHg

Pul

min

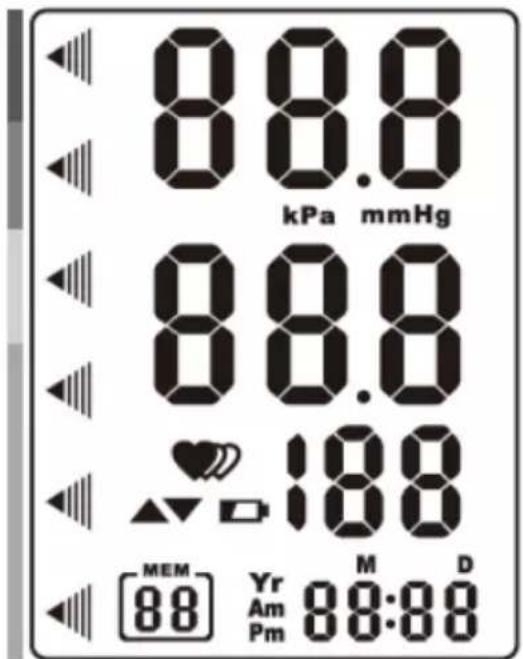

Symbol Description	Explanation
SYS	Systolic blood pressure High pressure result
DIA	Diastolic blood pressure	Low pressure result
Pul/min	Pulse	Pulse/minute
	Defl ting	CUFF air is exhausting of deflating
8:59	Time (hour:minute)	Currently time
	Memory	If “M” shows, the displayed measurement values is from the memory.
	mmHg	Measurement Unit of the blood pressure
	Low battery	Batteries are low and need to be replaced
	Arrhythmia	Irregular heartbeat
[25ZT]	Grade	The grade of the blood pressure

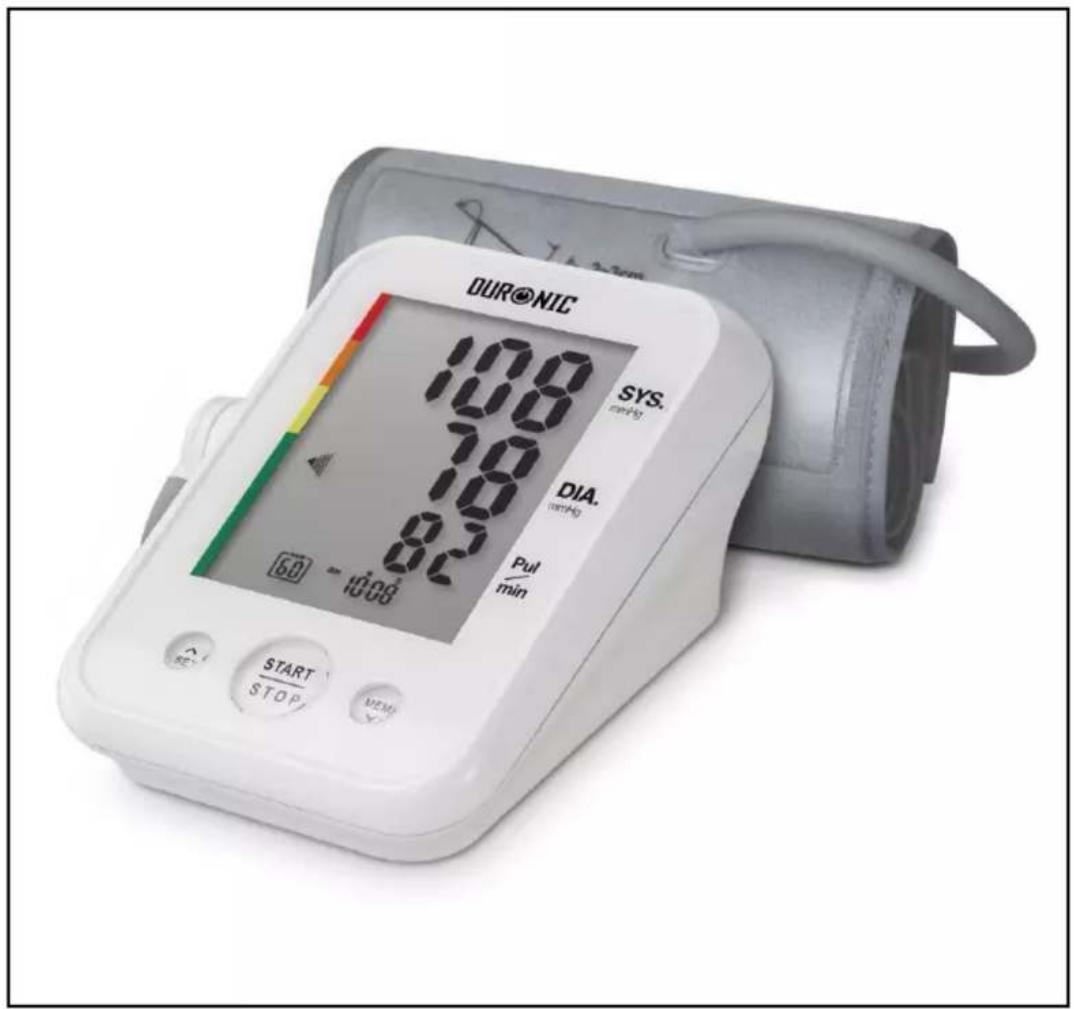

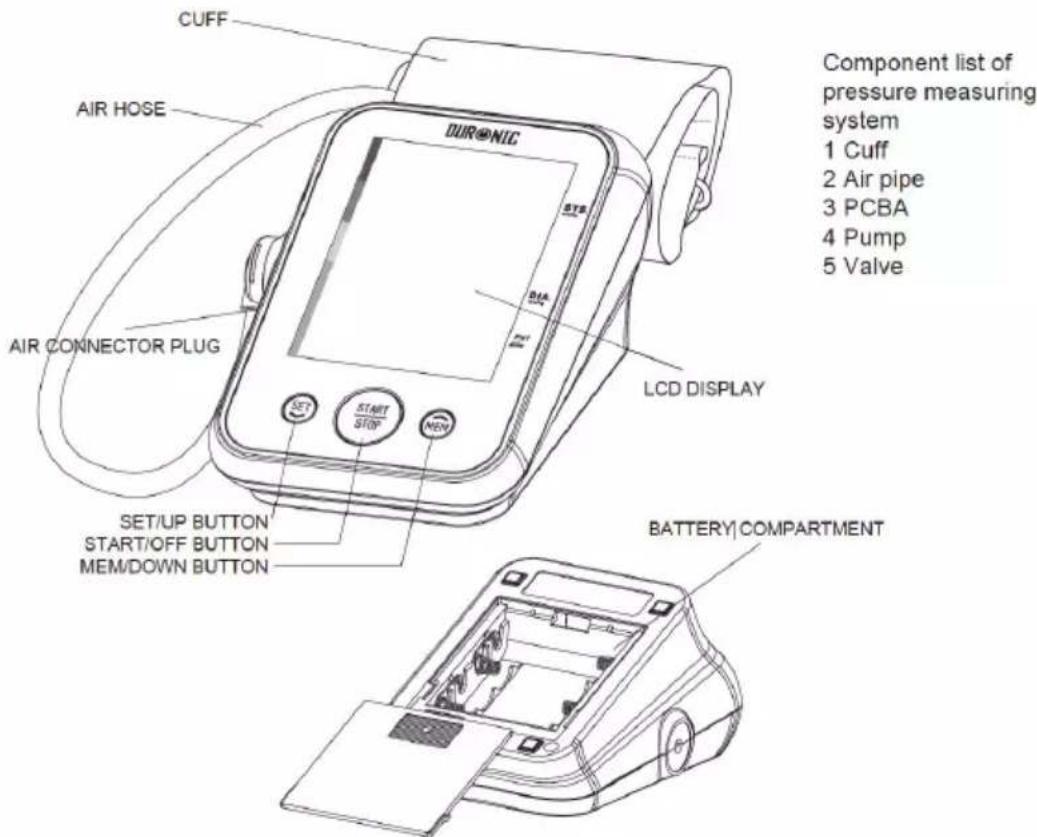

Monitor Components

List

1. Blood Pressure Monitor 2. Cuff (22\~42cm)

(Type BF applied part)

1. 4*AA Batteries 4. User Manual

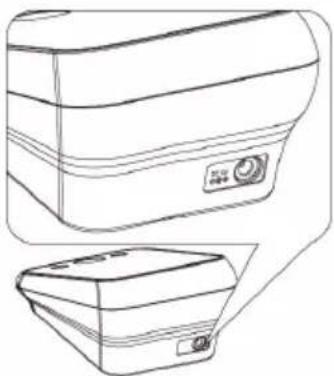

Choice Of Battery

1. Battery powered mode: 6VDC 4*AA batteries
2. AC adaptor powered mode: 6V---1A
3. (Can be supplied by AC adaptor model UE08WCP-060100SPA only!) (Not Included) The picture is the hole in for power adapter.

Line drawing of a two-tier air conditioner unit with control panel (no text or symbols)

Caution: In order to get the best effect and protect your monitor, please use the right battery and special power adapter.

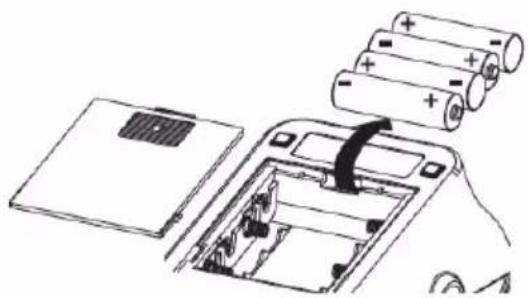

The Installment And Replacement Of Battery

• Slide off the battery cover.
  • Install the batteries by matching the correct polarity, as shown.
• Replace the cover.

Diagram of a battery pack with batteries and a circuit board, showing internal components (no text or symbols)

Replace the batteries whenever the below happen:

The lo+ shows

The display dims

The display does not light up

Caution:

Remove batteries if the device is not likely to be used for some time.

The old battery is harmful to the environment, do not dispose with other daily trash.

Remove the old battery from the device and follow your local recycling guidelines.

Do not dispose of batteries in fire. Batteries may explode or leak.

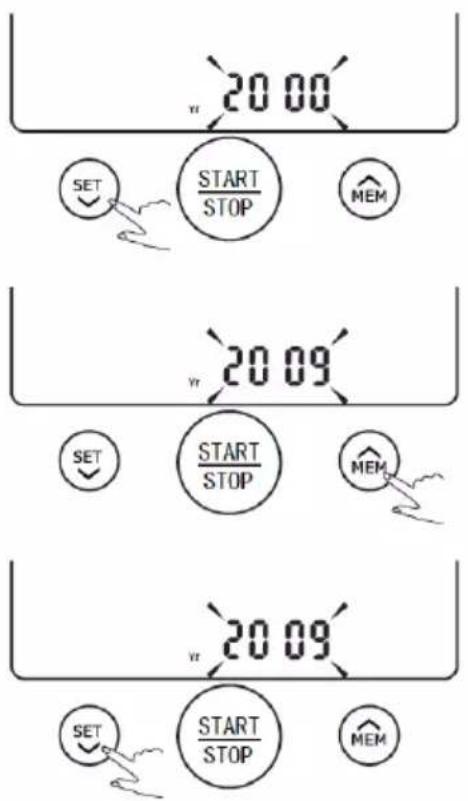

Setting Date And Time

It is important to set the clock before using your blood pressure monitor, so that a time stamp can be assigned to each record that is stored in the memory. (year :2000—2050 time:24 H)

1. When the unit is off, hold pressing "SET" for 3 seconds to enter the mode for year setting.

2. Press the "MEM" to change the [YEAR].

3. When you get the right year, press "SET" to set down and turn to next step automatically.

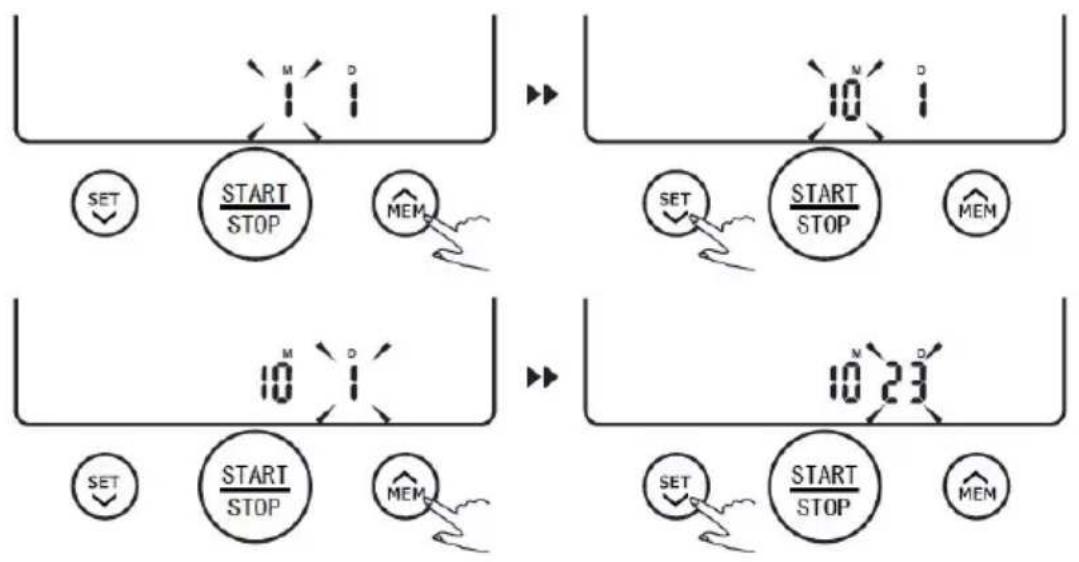

1. Repeat the 2 and 3 to set the [MONTH] and [DAY].


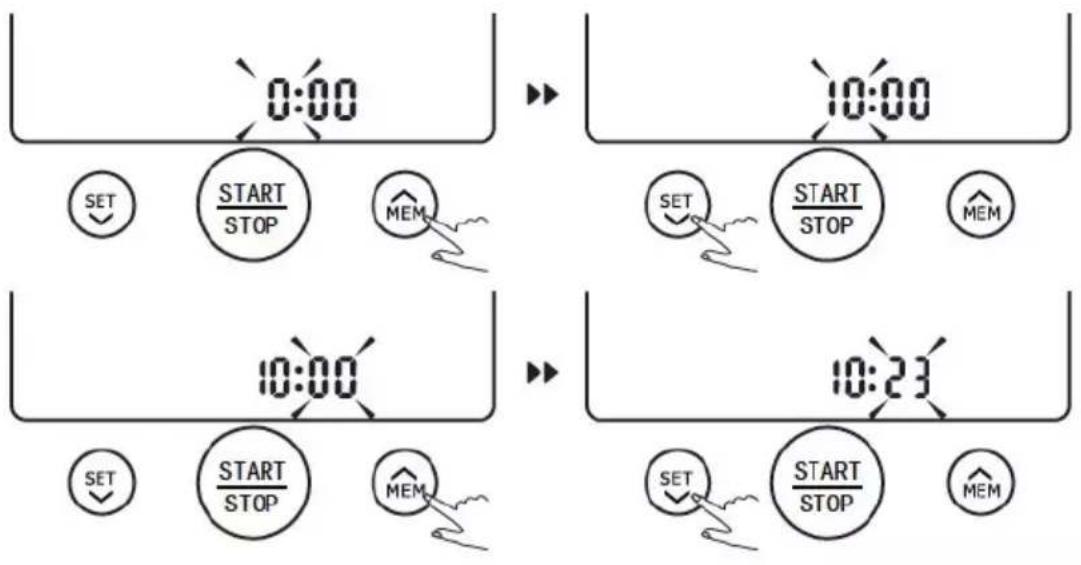

1. Repeat the 2 and 3 to set the [HOUR] and [MINUTE].

1. After the [MINUTE] is set, the right picture will show, then it turn off automatically.

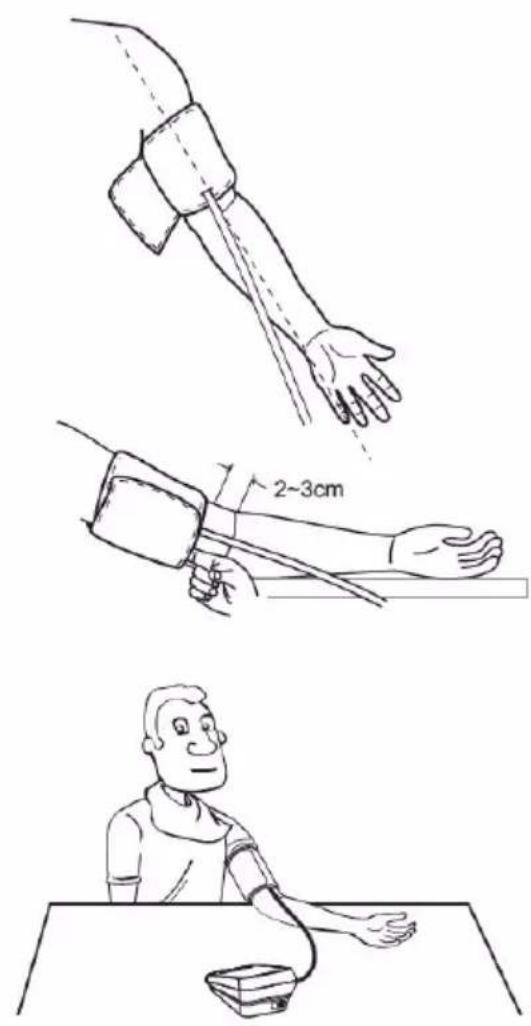

Tie The Cuff

1. Tie the cuff on your upper arm, then position the tube off-center toward the inner side of arm in line with the little finger.

2. The cuff should be snug but not too tight. You should be able to insert one finger between the cuff and your arm.

3. Sit comfortably with your left arm resting on a flat surface.

Rest for 5 minutes before measuring.

Wait at least 3 minutes between measurements. This allows your blood circulation to recover. For a meaningful comparison, try to measure under similar conditions. For example, take daily measurements at approximately the same time, on the same arm, or as directed by a physician.

Start the Measurement

1. Press the "START/STOP" to turn on the monitor, and it will finish the whole measurement automatically.

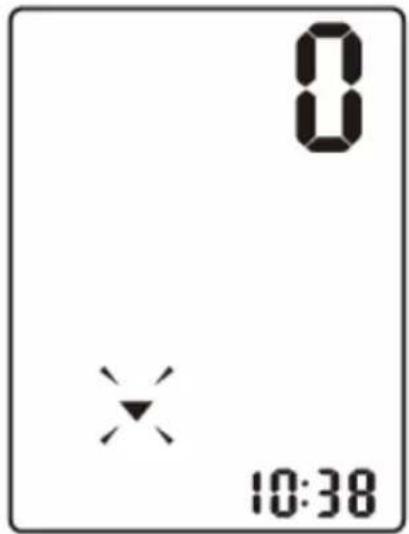

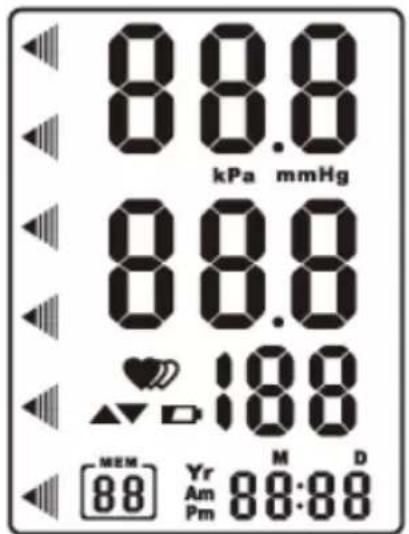

LCD Display

Adjust the zero automatically.

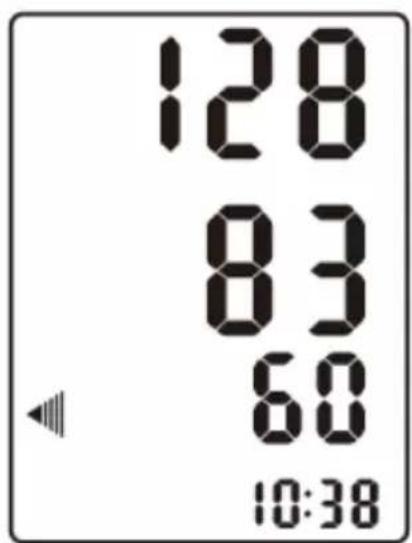

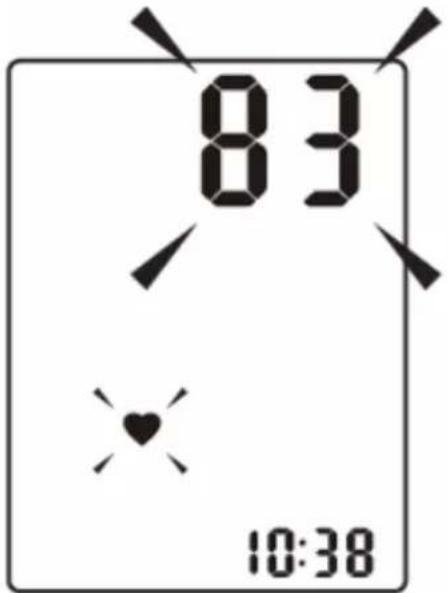

Inflating and measuring automatically. Display and save the results automatically.

1. Press the "start/stop" to power off, otherwise it will turn off automatically within 1 minute.

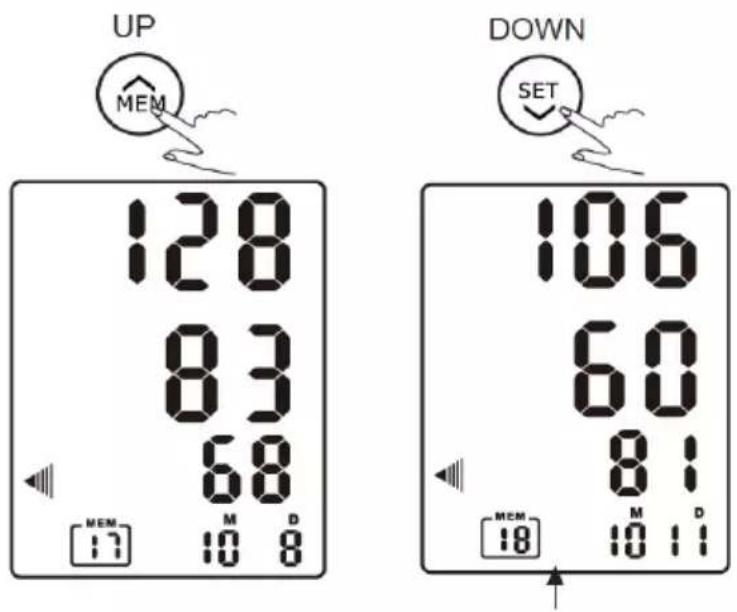

Recalling The Records

1. Please press the "MEM" to show the recent record.

1. Press the "MEM" or "SET" to get the record you want.

The order of the date and time will be shown under the Pulse by turns.

The current is the No.18 The corresponding date is 11th October.

The corresponding time is 10:38.

Caution: The most recent record (1) is shown first. Each new measurement is assigned to the first (1) record. All other records are pushed back one digit (e.g., 2 becomes 3, and so on), and the last record (60) is dropped from the list.

Deleting A Measurement Record From Memory

If you did not get the correct measurement, you can delete all results by following below steps.

1. Hold pressing "MEM" for 3 seconds, the flash display will show.

1. Press "SET" to confirm deleting and the monitor will turn off automatically.

1. If you don't want to delete the records, press "START/STOP" to escape.

Simple diagram with three horizontal black oval shapes and a small icon at the bottom (no text or symbols)

1. If there is no record. the right display will show.

Tips For Measurement

It can cause incorrectness if the measurement are taken in the following circumstances.

Cartoon drawing of a person eating with a bowl and spoon (no text or symbols)

Wait at least 1 hour after dinner or drinking

Cartoon illustration of a man sitting at a table with a steaming cup and coffee cup (no text or symbols)

Immediate measurement after tea, coffee, smoking

Simple line drawing of a person holding an object (no text or symbols)

Wait at least 20 minutes after taking a bath

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols

When talking or moving your fingers

Simple line drawing of a stylized human figure with decorative swirls (no text or symbols)

In a very cold environment

Cartoon illustration of a person with thought bubble showing a person inside (no text or symbols)

When you want to discharge urine

Maintenance

In order to get the best performance, please follow the below instructions.

Illustration of a handheld electronic device with a light source symbol above it (no text or labels)

Store in a dry place and avoid direct sunlight

Simple line drawing of a handheld device with buttons and display screen (no text or symbols)

Avoid intense shaking and collision

Line drawing of a handheld mobile phone with a hand interacting with it (no text or symbols)

Use a wet cloth to remove the dirt

Simple line drawing of a smiling smartphone partially submerged in water, with bubbles falling (no text or symbols)

Avoid touching water

Illustration of a mobile phone with a screen and antenna, surrounded by decorative swirls (no text or symbols)

Avoid the dusty and unstable temperature environment

Simple line drawing of a bag with a water droplet pouring from a pipe (no text or symbols)

Avoid washing the cuff

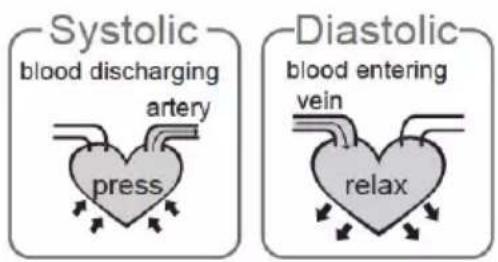

What are systolic pressure and diastolic pressure?

When ventricles contract and pump blood out of the heart, blood pressure reaches its maximum value, the highest pressure in the cycle is known as systolic pressure. When the heart relaxes between heartbeats, the lowest blood pressure is diastolic pressure.

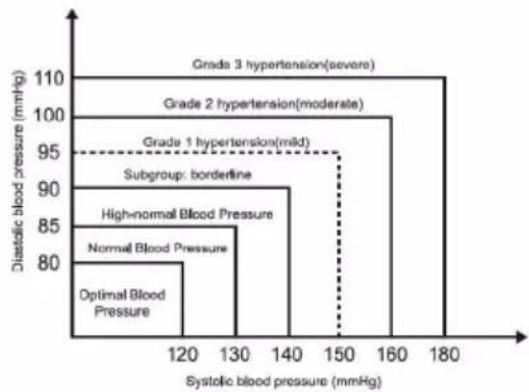

What is the standard blood pressure classification

Below illustrates the blood pressure classification mode by World Health Organization (WHO) and International Society of Hypertension (ISH) in 1999.

Blood Pressure (mmHg)\Level	Normal			Mild	Moderate	Severe
SYS	< 120	120~129	130~139	140~159	160~179	≥180
DIA	<80	80~84	85~89	90~99	100~109	≥110

Caution: Only a physician can tell you your normal blood pressure range and the point at which you are at risk. Consult your physician to obtain these values. If the measurements taken with these products fall outside the range, consulty.

Irregular Heartbeat Detector

This Blood Pressure Monitor is equipped with an intelligent function of Irregular Heartbeat (IHB) Detector. During each measurement this equipment records the heartbeat intervals and works out the standard deviation. If the calculated value is larger than or equal to 15, this equipment will light up the IHB symbol on the screen when displaying the measuring result.

Caution: The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heartbeat was detected during measurement. Usually this is NOT a cause for concern. However, if the symbol appears often, we recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

Why does my blood pressure vary throughout the day?

1. Individual blood pressure varies multiple times everyday. It is also affected by the way you tie your cuff and your measurement position, so please take the measurement under the same conditions.
2. If the person takes medicine, the pressure will vary more.
3. Wait at least 3 minutes for another measurement.

Illustration of a person measuring blood pressure with a clock showing time (no text or symbols present)

Why do I get a different blood pressure at home compared to the hospital?

The blood pressure is different even throughout the day due to weather, emotion, exercise etc. Also, there is the "white coat" effect, which means blood pressure usually increases in clinical settings.

What you need to pay attention to when you measure your blood pressure at home: If the cuff is tied properly. If the cuff is too tight or too loose. If the cuff is tied on the upper arm. If you feel anxious. Taking 2-3 deep breaths before beginning will be better for measuring. Advice: Relax yourself for 4-5 minutes until you calm down.

Is the result the same if measuring on the right arm?

It is ok for both arms, but there will be some different results for different people. We suggest you measure the same arm every time.

Line drawing of a person using a blood pressure monitor on a table (no text or symbols)

This section includes a list of error messages and frequently asked questions for problems you may encounter with your blood pressure monitor. If the products not operating as you think it should, check here before arranging for servicing.

Problem	Symptom Check	This	Remedy
No power	Display is dim or will not light up.	Batteries are exhausted.	Replace with new batteries.
		Batteries are inserted incorrectly.	Insert the batteries correctly.
Low batteries	Show on the display	Batteries are low.	Replace with new batteries
Error message	E1 shows	The cuff is not secure.	Refasten the cuff and then measure again.
	E2 shows	The cuff is very tight	Refasten the cuff and then measure again.
	E3 shows	The pressure of the cuff is excess.	Relax for a moment and then measure again.
	E10 or E11 shows	The monitor detected motion while measuring.	Movement can affect the measurement.Relax for a moment and then measure again.
	E20 shows	The measurement process does not detect the pulse signal.	Loosen the clothing on the arm and then measure again.
	E21 shows	The treatment of the measurement failed.	Relax for a moment and then measure again.
	EExx,shows on the display.	A calibration error occurred.	Retake the measurement. If the problem persists, contact the retailer or our customer service department for further assistance.Refer to the warranty for contact information and return instructions.

Power supply	Battery powered mode:6VDC 4*AA batteriesAC adaptor powered mode: 6V---1A(Can be supplied by AC adaptor modelUE08WCP-060 100SPA only!) (Not Included)
Display moder	Digital LCD V.A.80*60mm
Measurement mode	Oscillographic testing mode
Measurement range	Rated cuff Pressure0kPa~40kPa(0mmHg~300mmHg)Measurement pressure: 5.3kPa-30.7kPa(40mmHg-230mmHg)Pulse value: (40~199) beat/minute
Accuracy	Pressure:5°C~40°Cwithin±0.4kPa(3mmHg)pulse value:±5%
Normal working condition	Temperature:5°C~40°C Relative humidity≤85%Atmospheric pressure: 86kPa to 106kPa
Storage & transportation condition	Temperature:-20°C to 60°CRelative humidity:10% to 93%Atmospheric pressure: 50kPa to 106kPa
Measurement perimeter of the upper arm	About 22cm~42cm
Weight	Approx.300g(Excluding the dry cells)
External dimensions	Approx.102*143*73mm
Attachment	4*AA batteries,user manual
Mode of operation	Continuous operation
Degree of protection	Type BF applied part
Protection against ingress of water	IP21

Contact Information

Distributed by:

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Manufactured by: Guangdong Transtek Medical Electronics Co., Ltd.

Company: Guangdong Transtek Medical Electronics Co., Ltd.

Address: Zone A, No.105, Dongli Road, Torch Development District, Zhongshan, 528437, Guangdong, China

Authorized European Representative:

Company: MDSS - Medical Device Safety Service GmbH

Address: Schiffgraben 41, 30175 Hannover, Germany

Complied European Standards List

Risk Management	ISO/EN 14971:2012
Labeling	ISO/EN 15223-1:2012
User Manual	EN 1041:2008
Generl Requirements for Safety	EN 60601-1:2006IEC/EN 60601-1-11:2010
Electromagnetic Compatibility	IEC/EN 60601-1-2:2007
Performance requirements	EN 1060-1:1995+A2:2009EN 1060-3:1997+A2:2009
Clinical investigation	EN 1060-4:2004
Software Lifetime	IEC/EN 62304:2006+AC:2008
Usability	IEC/EN 60601-1-6:2010IEC/EN 62366:2007

Authorized Component

Please use the Duronic authorized adapter.

(Not Included)

Diagram of a cable being inserted into a device, with an inset close-up showing the tip (no text or symbols)

Adapter

Input: 100\~240V, 50\~60Hz, 400mA

Output: 6V===1A

Type: UE08WCP-060100SPA

( Conforms to UL certificate )

EMC Guidance

Table 1 Guidance and MANUFACTURER's declaration – ELECTROMAGNETIC EMISSIONS- for all ME EQUIPMENT and ME SYSTEMS

Guidance and manufacturer's declaration – electromagnetic emissions
The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
Emissions test	Compliance	Electromagnetic environment - guidance
RF emissions CISPR 11	Group 1	The device uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissions CISPR 11	Class B
Harmonic emissions IEC 61000-3-2	Not applicable
Voltage fluctuations/ flicker emissions IEC 61000-3-3	Not applicable

Table 2 Guidance and MANUFACTURER's declaration – electromagnetic IMMUNITY – for all ME EQUIPMENT and ME SYSTEMS

Guidance and manufacturer's declaration - electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment
IMMUNITY test	IEC 60601 test level C	Compliance level	Electromagnetic environment - guidance
Electrostatic discharge (ESD) IEC 61000-4-2	±6 kV contact ±8 kV air	±6 kV contact ±8 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%.
Electrical fast transient/burst IEC 61000-4-4	±2 kV for power supply lines ±1 kV for input/output lines	±2 kV line(s) to line(s)	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input lines IEC 61000-4-11	<5% UT (>95% dip in UT) for 0.5 cycle 40% UT (60% dip in UT) for 5 cycles 70% UT (30% dip in UT) for 25 cycles <5% UT (>95% dip in UT) for 5 s	<5% UT (>95% dip in UT) for 0.5 cycle 40% UT (60% dip in UT) for 5 cycles 70% UT (30% dip in UT) for 25 cycles <5% UT (>95% dip in UT) for 5 s	Mains power quality should be that of a typical commercial or hospital environment. If the user of the device requires continued operation during power mains interruptions, it is recommended that the device be powered from an uninterruptible power supply or a battery.
Power frequency (50/60Hz) magnetic field IEC 61000-4-8	3A/m 3A/m		Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.

Table 4 Guidance and MANUFACTURER's declaration – electromagnetic IMMUNITY – for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING

Guidance and manufacturer's declaration - electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below.The customer or the user of the device should assure that it is used in such an environment.
IMMUNITY test	IEC 60601TEST LEVEL	Compliance level	Electromagnetic environment - guidance
Conducted RFIEC 61000-4-6Radiated RFIEC 61000-4-3	3 Vrms150 kHz to80 MHz3 V/m80 MHz to2.5 GHz	3 Vrms3 V/m	Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distance: d = 1.167 d = 1.167 80 MHz to 800 MHz d = 2.333 800 MHz to 2.5 GHzwhere P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres.(m).Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, a should be less than the compliance level in each frequency range. bInterference may occur in the vicinity of equipment marked with the following symbol:

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

a Field strengths from fixed transmitters, such as base stations for radio (cellular / cordless) telephones and land mobile radios, amateur radio, AM and FM radio broad-cast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the device.b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3V/m.

Table 6 Recommended separation distances between portable and mobile RF communications equipment and the ME EQUIPMENT or ME SYSTEM – for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING

Recommended separation distances between portable and mobile RF communications equipment and the device.
The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
power of transmitter (W)	Separation distance according to frequency of transmitter (m)Rated maximum
	150 kHz to 80 MHz d = 1.167	80 MHz to 800 MHz 800 MHz to 2.5 GHz d = 1.167	d = 2.333
0.01 0.117 0.117			0.233
0.1	0.369 0.369		0.739
1	1.167	1.167	2.333
10	3.690	3.690	7.378
100	11.67	11.67	23.33
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80MHz and 800MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

Imported by Shine-Mart Ltd, RM3 8SB

CE

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it

is to be disposed of, it must be treated as Waste

Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

CE 0123

Model: TMB-995; Ref.No.:BPM150

Distributed by:

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill,

Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

EC REP

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

Line drawing of two household appliances with buttons and a display (no text or symbols)

Diagram of an open battery pack with batteries and circuit board, showing internal components (no text or symbols)

CAUTION

Simple diagram with three horizontal black dots and a small icon at the bottom (no text or symbols)

Cartoon drawing of a person eating with a bowl and spoon (no text or symbols)

Cartoon illustration of a man holding a steaming cup and coffee cup (no text or symbols)

Simple line drawing of a person holding an object (no text or symbols)

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols

Simple line drawing of a person with decorative swirls around (no text or symbols)

Cartoon illustration of a person with thought bubble showing a person inside a box (no text or symbols)

Illustration of a handheld electronic device with a light bulb and a sun icon above it (no text or symbols)

Line drawing of a handheld electronic device with buttons and display screen (no text or symbols)

Line drawing of a handheld electronic device with a screen and antenna (no text or symbols)

Simple line drawing of a smiling smartphone partially submerged in water, with bubbles indicating water droplets (no text or symbols)

Illustration of a handheld electronic device with a screen and scroll lines (no text or symbols)

Simple line drawing of a bag with a water droplet pouring from it, no text or symbols present

Illustration of a person using a blood pressure monitor at a desk with a clock in the background (no text or symbols)

Simple line drawing of a person sitting at a desk with a bandage and a box (no text or symbols)

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Produit par: Guangdong Transtek Medical Electronics Co., Ltd.

Entreprise: Guangdong Transtek Medical Electronics Co., Ltd.

Adresse: Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan,528437,Guangdong,China

Diagram of a handheld device connected to a cable, with an inset showing a magnified view of the cable (no text or symbols)

Adaptateur

Input: 100\~240V,

50\~60Hz,400mA

Output: 6V---1A

Type: UE08WCP-060100SPA

(Conformse au certificat UL)

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill,

Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105 , Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

DURONIC

Line drawing of a two-tier air conditioner unit with control panel (no text or symbols)

Diagram of a battery pack with batteries and a circuit board, showing internal components (no text or symbols)

Blutdruckmessung

Simple diagram with three horizontal black dots and a small icon at the bottom (no text or symbols)

Cartoon drawing of a person eating with a bowl and spoon (no text or symbols)

Simple line drawing of a person holding an object (no text or symbols)

Simple line drawing of a stylized human figure with decorative swirls (no text or symbols)

Cartoon illustration of a man sitting at a table with a steaming cup and coffee cup (no text or symbols)

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols

Cartoon illustration of a person with thought bubble showing a person inside a box (no text or symbols)

Illustration of a handheld electronic device with a warning symbol and light rays, no text or labels present.

Line drawing of a handheld electronic device with buttons and display screen (no text or symbols)

Line drawing of a handheld mobile phone with a hand interacting with it (no text or symbols)

Simple line drawing of a smiling smartphone partially submerged in water, with bubbles indicating water droplets (no text or symbols)

Simple line drawing of a handheld electronic device with scroll lines around it (no text or symbols)

Simple line drawing of a smiling bag pouring liquid from a faucet (no text or symbols)

Line drawing of a person measuring blood pressure with a wall-mounted device and clock (no text or symbols)

Simple line drawing of a person sitting at a desk with a bandaged arm and a medical device (no text or symbols)

SHINEMART LTD, Unit 1 Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB, UK

Hersteller: Guangdong Transtek Medical Electronics Co., Ltd.

Adresse: Zone A, No.105, Dongli Road, Torch Development

District, Zhongshan, 528437, Guangdong, China

Company: MDSS - Medical Device Safety Service GmbH

Address: Schiffgraben 41, 30175 Hannover, Germany

Europäische Normen

Diagram of a tool with a coiled cable and a magnified inset showing the tip (no text or symbols)

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill,

Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

DURONIC

Line drawing of a two-tiered air conditioner unit with control panel (no text or symbols)

Diagram of a battery pack with batteries and casing, showing internal components (no text or symbols)

Simple diagram with three horizontal black oval shapes and a small icon at the bottom (no text or symbols)

Cartoon drawing of a person eating with a bowl and spoon (no text or symbols)

Cartoon illustration of a man holding a steaming cup and coffee cup (no text or symbols)

Simple line drawing of a person holding an object (no text or symbols)

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols

Simple line drawing of a person with decorative swirls around (no text or symbols)

Cartoon illustration of a person with thought bubble showing a person inside a box (no text or symbols)

Illustration of a handheld electronic device with a warning symbol and a sun icon (no text or symbols present)

Line drawing of a handheld electronic device with buttons and display (no text or symbols)

Line drawing of a handheld electronic device with a screen and mouse (no text or symbols)

Simple line drawing of a smiling smartphone partially submerged in water, with bubbles indicating water droplets (no text or symbols)

Illustration of a mobile phone with a screen and scroll lines (no text or symbols)

Simple line drawing of a smiling bag pouring liquid from a water bottle (no text or symbols)

Evite lavar el manguito

Illustration of a person receiving a blood pressure monitor at a desk, with a clock showing time (no text or symbols present)

Simple line drawing of a person sitting at a desk with a bandaged arm and a rectangular object on the table (no text or symbols)

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Fabricado por: Guangdong Transtek Medical Electronics Co., Ltd.

Empresa: Guangdong Transtek Medical Electronics Co., Ltd.

Dirección: Zone A, No.105 ,Dongli Road, Torch Development

District, Zhongshan, 528437, Guangdong, China

Company: MDSS - Medical Device Safety Service GmbH

Address: Schiffgraben 41, 30175 Hannover, Germany

Diagram of a cable being inserted into a device, with an inset close-up showing the insertion (no text or symbols)

Adaptador

Modelo: UE08WCP-060100SPA

Entrada: 100\~240V, 50\~60Hz, 400mA

Salida: 6V==1A

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District, Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

Line drawing of two household air purifiers with control knobs and buttons (no text or symbols)

Diagram of a battery pack with batteries and a circuit board, showing internal components (no text or symbols)

Simple diagram with three horizontal black oval shapes and a small icon at the bottom (no text or symbols)

Cartoon drawing of a person eating with a bowl and plate (no text or symbols)

Cartoon illustration of a man sitting at a table with a steaming cup and coffee cup (no text or symbols)

Simple line drawing of a person holding an object (no text or symbols)

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols

Simple line drawing of a stylized human figure with decorative swirls (no text or symbols)

Cartoon illustration of a person with thought bubble showing a person inside (no text or symbols)

Illustration of a handheld electronic device with a screen and indicator lights, emitting a light (no text or symbols)

Line drawing of a handheld electronic device with buttons and display screen (no text or symbols)

Line drawing of a handheld electronic device with a screen and mouse, no text or symbols present

Simple line drawing of a smiling smartphone partially submerged in water, with bubbles indicating sound or damage (no text or symbols)

Illustration of a handheld electronic device with scroll lines around it (no text or symbols)

Simple line drawing of a bag with a water droplet pouring from its tip, no text or symbols present

Illustration of a person using a blood pressure monitor at a desk, with a wall clock showing time (no text or symbols present)

Cartoon illustration of a person sitting at a desk with a bandaged arm and a stack of books (no text or symbols)

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB, UK

Indirizzo: Zone A, No.105, Dongli Road, Torch Development

District, Zhongshan, 528437, Guangdong, China

Company: MDSS - Medical Device Safety Service GmbH

Address: Schiffgraben 41, 30175 Hannover, Germany

Diagram of a medical or laboratory procedure showing a cable being inserted into a device, with an inset close-up highlighting the insertion area (no text or symbols present)

Alimentatore Input: 100\~240V, 50\~60Hz,400mA Output: 6V==1A Tipo: UE08WCP-060100SPA ( Conforme con i certificati UL )

Guida EMC

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill,

Romford, Essex, RM3 8SB UK

EC

REP

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany

Line drawing of a two-tier air conditioner unit with control panel (no text or symbols)

Diagram of a battery pack with batteries and a circuit board, showing internal components (no text or symbols)

Simple diagram with three horizontal black dots and a small icon at the bottom (no text or symbols)

Cartoon drawing of a person eating with a bowl and spoon (no text or symbols)

Cartoon illustration of a man sitting at a table with a steaming cup and coffee cup (no text or symbols)

Simple line drawing of a person holding an object (no text or symbols)

Cartoon illustration of a man in a suit holding a phone to his ear, with no visible text or symbols

Simple line drawing of a stylized human figure with decorative swirls (no text or symbols)

Cartoon illustration of a person with thought bubble showing a person inside a box (no text or symbols)

Illustration of a handheld electronic device with a warning symbol and light rays, no text or symbols present.

Line drawing of a handheld electronic device with buttons and display (no text or symbols)

Line drawing of a handheld mobile phone with a hand interacting with it (no text or symbols)

Simple line drawing of a smartphone partially submerged in water, with bubbles indicating water droplets (no text or symbols)

Illustration of a handheld electronic device with scroll lines around it (no text or symbols)

Simple line drawing of a smiling bag pouring liquid from a pipe (no text or symbols)

Nie pierz mankietu

Line drawing of a person using a blood pressure monitor at a desk, with a wall clock showing time (no text or symbols present)

Line drawing of a person using a medical or health device on a table (no text or symbols)

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill, Romford, Essex, RM3 8SB UK

Producent: Guangdong Transtek Medical Electronics Co., Ltd.

Firma: Guangdong Transtek Medical Electronics Co., Ltd.

Adres: Zone A, No.105, Dongli Road, Torch Development District, Zhongshan, 528437, Guangdong, China

Diagram of a cable being inserted into a pen, with an inset showing the same component (no text or symbols present)

Zasilacz

Input: 100\~240V, 50\~60Hz, 400mA

Output: 6V===1A

Typ: UE08WCP-060100SPA

SHINEMART LTD Unit 1, Spilsby Road, Harold Hill,

Romford, Essex, RM3 8SB UK

Guangdong Transtek Medical Electronics Co., Ltd

Zone A, No.105, Dongli Road, Torch Development District,

Zhongshan, 528437, Guangdong, China

EC REP

MDSS - Medical Device Safety Service GmbH

Schiffgraben 41, 30175 Hannover, Germany
