USER MANUAL VC28 Duronic

3. Battery pack release button

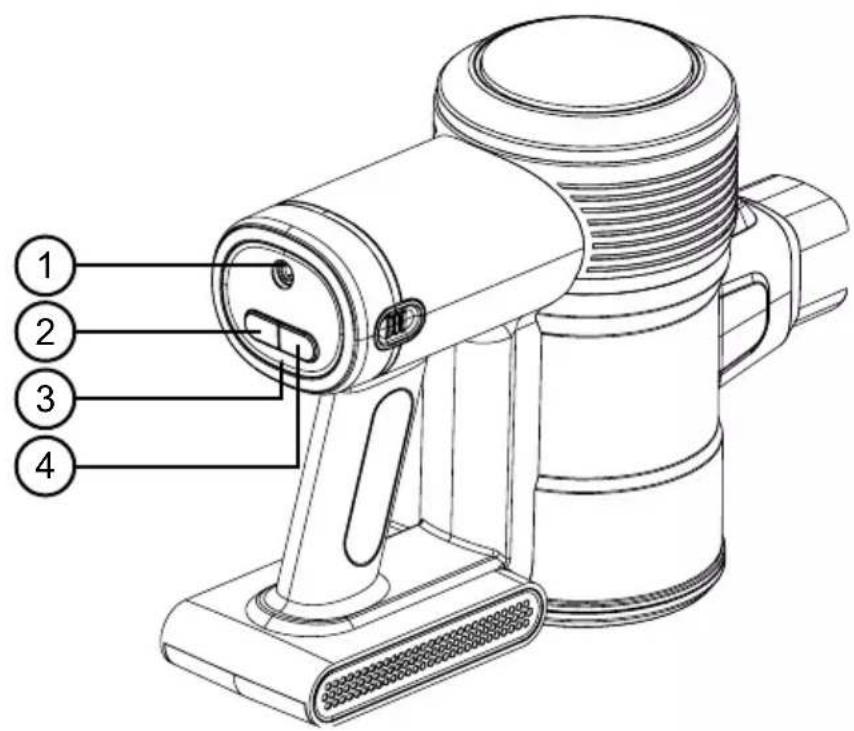

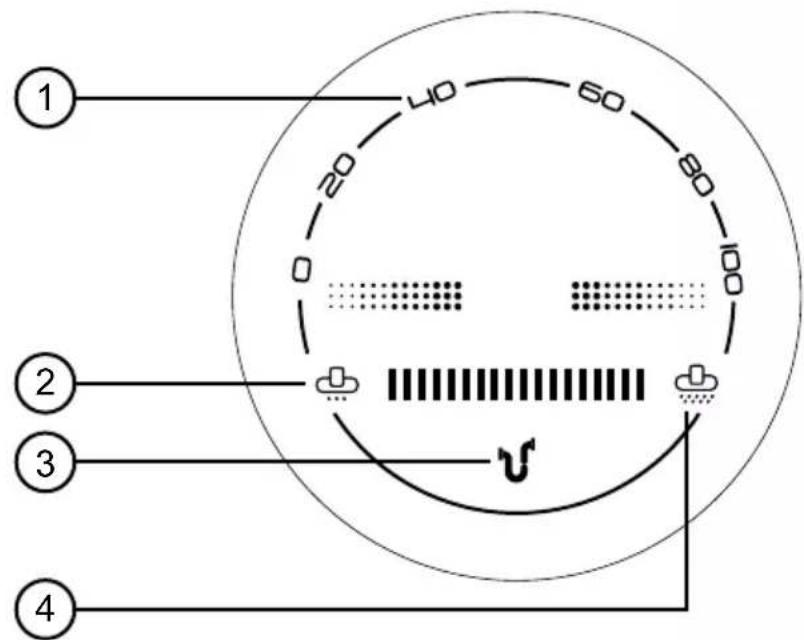

Mesh lter6 Indicator Panel Battery Pack Panel

(charge percentage) indicator

High speed indicator

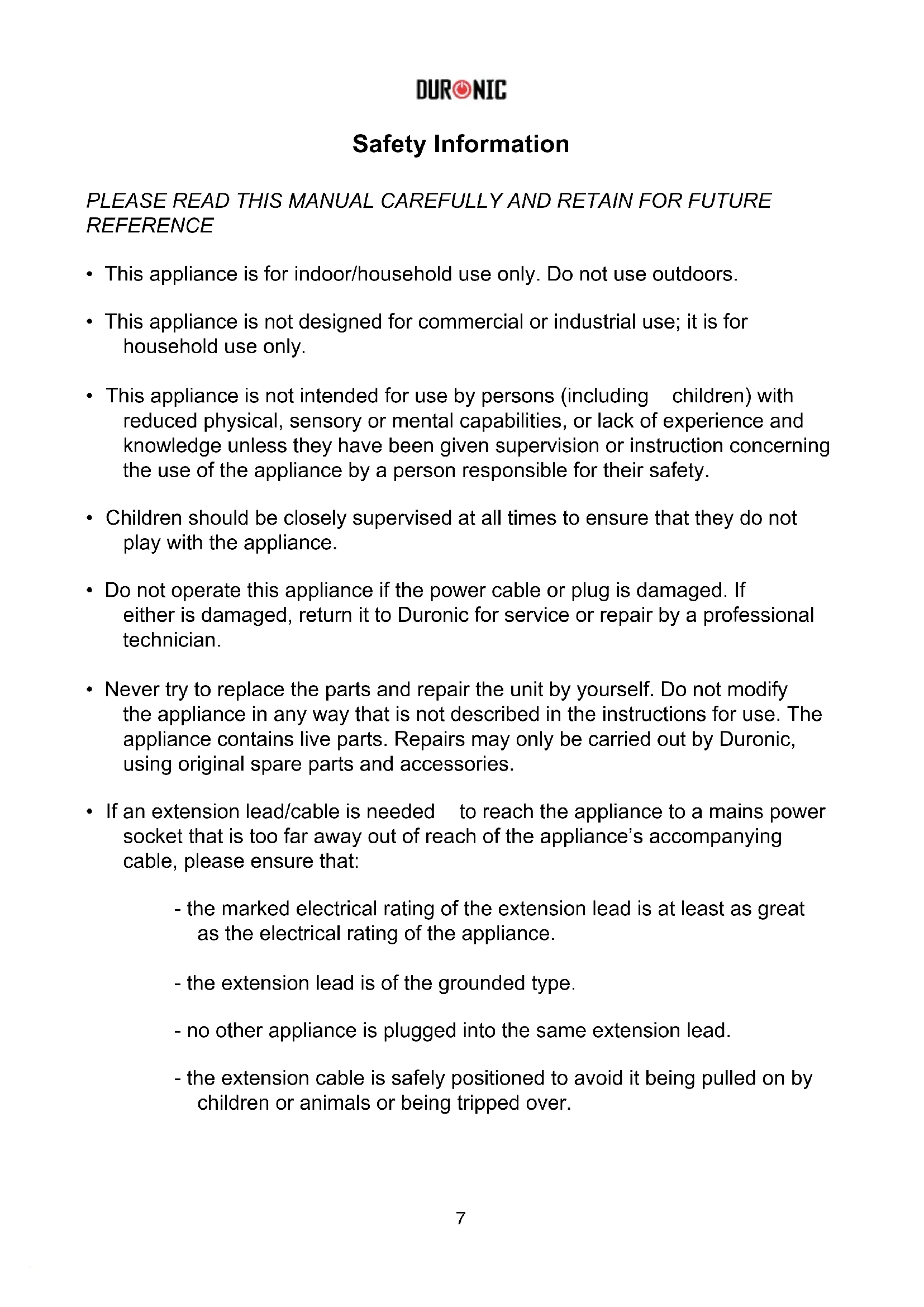

• This appliance is for indoor/household use only. Do not use outdoors.

• This appliance is not designed for commercial or industrial use; it is for household use only

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children should be closely supervised at all times to ensure that they do not play with the appliance.

• Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.

• Never try to replace the parts and repair the unit by yourself. Do not modify the appliance in any way that is not described in the instructions for use. The appliance contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.

If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the appliance’s accompanying cable, please ensure that: - the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance. - the extension lead is of the grounded type. - no other appliance is plugged into the same extension lead. - the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over. Safety Information8

• Do not cover the air inlet or the air outlet vent openings while the appliance is operating.

• Always turn off the vacuum cleaner before unplugging from the outlet.

• Unplug from the mains plug outlet when not in use.

• Never disconnect the plug by pulling on the power cable. You should always hold the plug with your hand and pull to disconnect.

o protect against the risk of electric shock, do not immerse any part of the main motor unit in water or other liquids.

Keep hair, loose clothing, ngers and all parts of your body away from the suction opening.

• Do not put any objects into the openings.

• Do not use to pick up ammable or combustible liquids such as gasoline or use in areas where they may be present.

• Only use this vacuum cleaner on a dry surface. Do not vacuum up any moisture or uid of any kind.

Do not pick up anything that is burning or smoking such as cigarettes, matches or hot ashes.

Do not use on concrete, tarmac, or any other rough surfaces.

• Do not use on articial grass.

• Take extra care when using the vacuum cleaner on staircases.

• Do not use the vacuum cleaner without the dust container lter in place.

• Do not use the vacuum cleaner when it is blocked. Keep the appliance free of dust, lint, hair and anything else that may reduce airow

Unplug the charger when not in use for extended periods.

• Do not wrap the charging cable around the charger when storing. Safety Information (continued)9

• Unplug the charger and disconnect the battery from the appliance before carrying out any cleaning or user maintenance.

• Do not install, charge or use this appliance outdoors.

• Do not use on wet surfaces and do not expose to moisture, rain or snow.

• Use on dry oors and areas ONLY. Do not use it outdoors or on wet surfaces.

• When removing or replacing the motorised brush roller, be careful not to switch on the vacuum until the brush roller has been reassembled and locked back into place

Only use the battery and charging cable supplied by Duronic for the VC24/ VC28. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• Do not modify the charger in any way; it has been designed for a specic voltage. Always check that the mains voltage is the same as that stated on the rating label.

• The battery pack is a sealed unit and, under normal circumstances, poses no safety concerns. In the unlikely event that liquid leaks from the battery , do not touch the liquid as it may cause burns or irritation, and you should observe the following precautions: - Skin contact – can cause irritation. If you get any battery liquid on your hands, wash them with soap and water. Safety Information (continued) Battery Safety WARNING - FIRE HAZARD: Do not apply any fragrance or scented product to the lter(s) of this appliance. The chemicals in such products are known to be ammable and can cause the appliance to catch re.10 - Inhalation – can cause respiratory irritation. Open a window or step outside to get some fresh air and then seek medical advice. - Eye contact – can cause irritation. If any uid comes into contact with your eyes, immediately ush your eyes thoroughly with water for

least 15 minutes. Seek medical attention. - Disposal – wear protective gloves to handle the battery pack and dispose of it immediately, following local refuse guidance or regulations.

Do not use a battery pack that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury . Do not shorten/short-circuit the battery terminals.

The battery pack used in this appliance may present a risk of re or chemical burn if mistreated.

Do not place the battery pack on or near a cooker or any other hot surface.

• Do not expose the battery pack to re or excessive temperatures. Exposure to re or temperatures above 140°F (60°C) may cause explosion.

When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another

Battery Safety (continued)

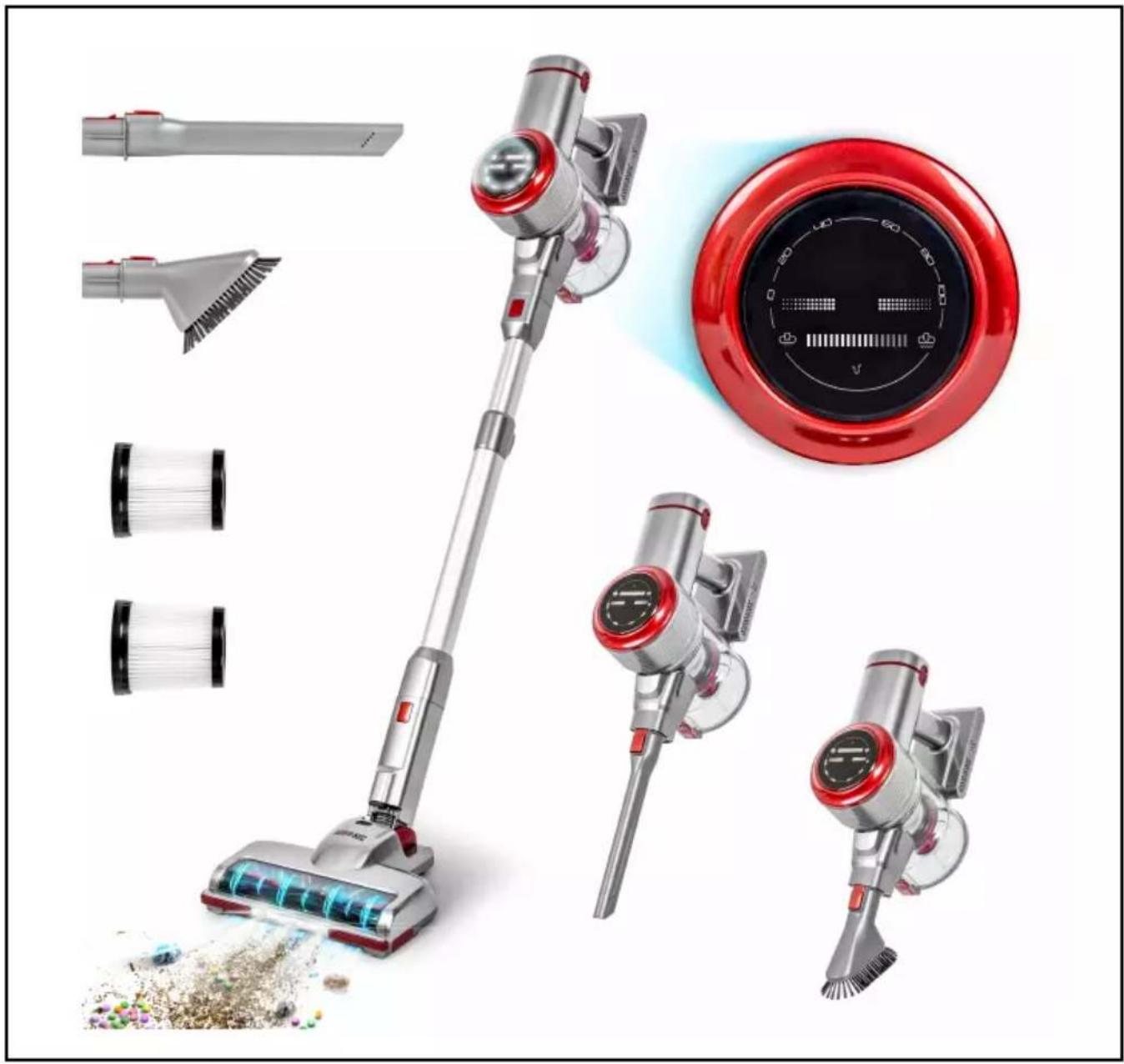

ARNING - FIRE HAZARD: Do not place this appliance on or near a cooker or any other hot surface and do not incinerate this appliance even if it is severely damaged. The battery might catch re or explode.11 The VC24 / VC28 vacuum cleaner is a lightweight cordless upright electric oor cleaner that is perfect for cleaning all around the home. Cordless by design, this vacuum has a wide range of manoeuvrability and enables you to clean both upstairs and downstairs without having to worry about annoying trailing power cables. It can convert from an upright cleaner into a compact handheld vacuum which is ideal for cleaning the car or areas you need to get up close to. Using the attachments provided you can clean not just the oors but also high-up spots, shelves, in-between seats on the sofa or in gaps behind furniture.

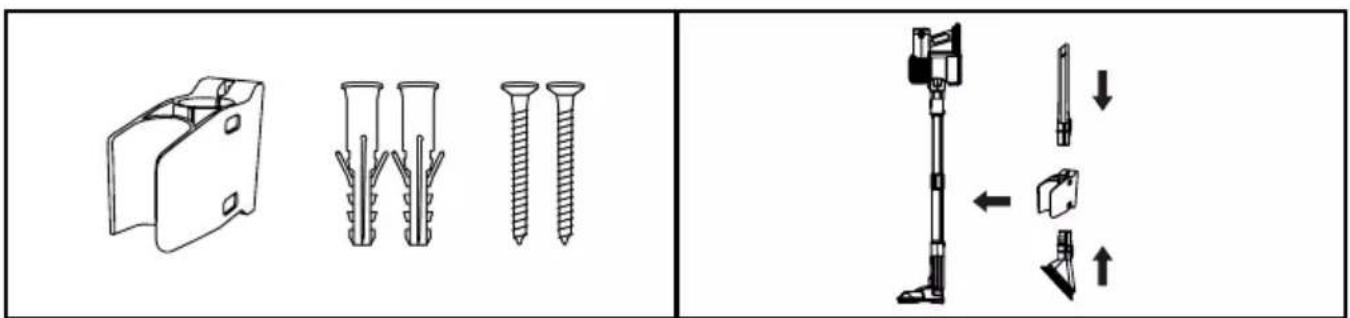

1) Attach the wall bracket (14) to the

wall using the xings provided.

2) To attach the vacuum to the bracket,

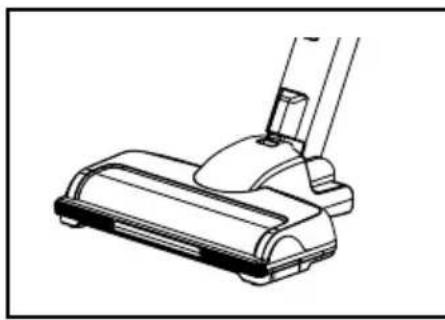

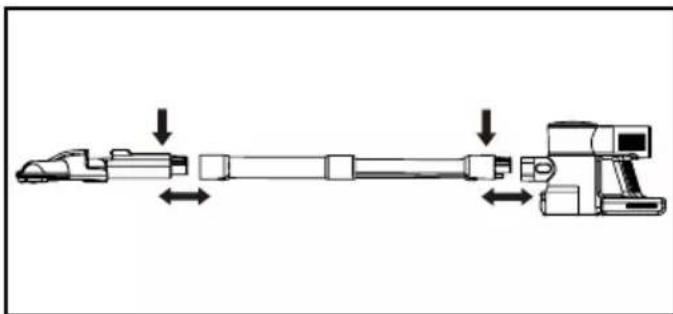

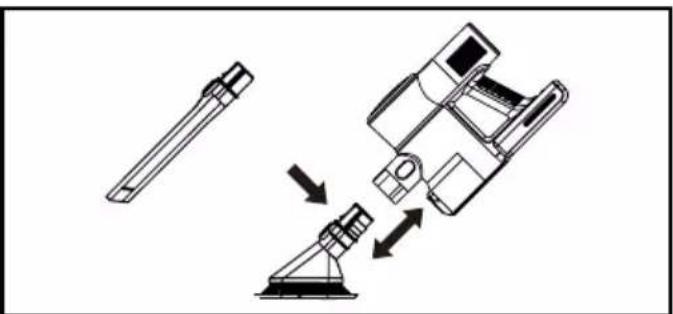

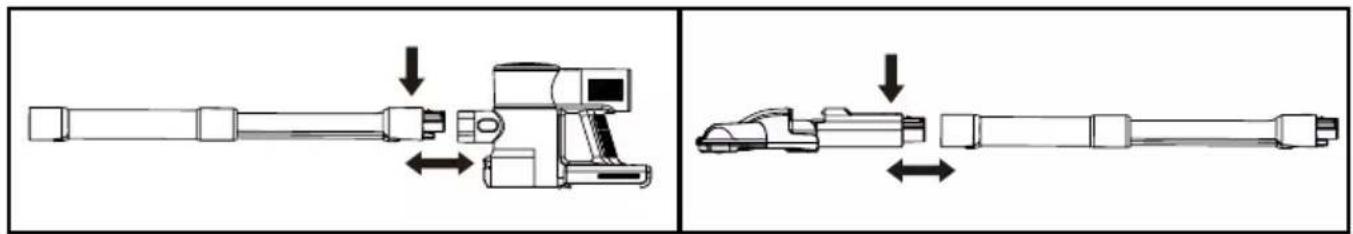

simply press and click the pole into place on the bracket. Assemble the vacuum Install the wall mount Introduction Before First Use12 The Attachments For cleaning both carpeted and hard ooring. For cleaning smaller spaces or hard-to-reach spots. For cleaning surfaces, particularly dusty surfaces and edges. Floor Brush Crevice Tool Small Brush Head This vacuum can be used in two ways: as an upright stick vacuum which is controlled by the long pole handle, or as a portable handheld vacuum. How to Use Attach the telescopic tube to the motor unit, then attach the oor brush. Both parts should click into place. Attach the telescopic tube to the motor unit, then attach the small brush or crevice tool to the other end of the tube. Alternatively, the brush or crevice tool can attach directly to the motor unit. To use as an upright vacuum To use as a handheld vacuum13 Using the Vacuum To switch on the vacuum, press the On/Off button (a). To adjust the speed, press the Speed button (b). There are 3 speeds to choose from: low, medium and high.

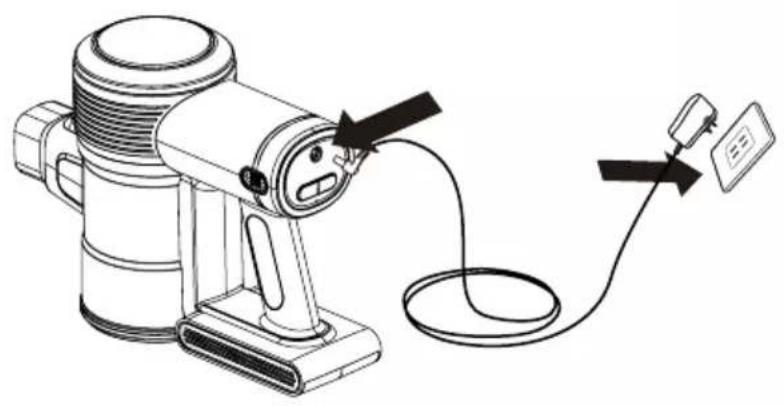

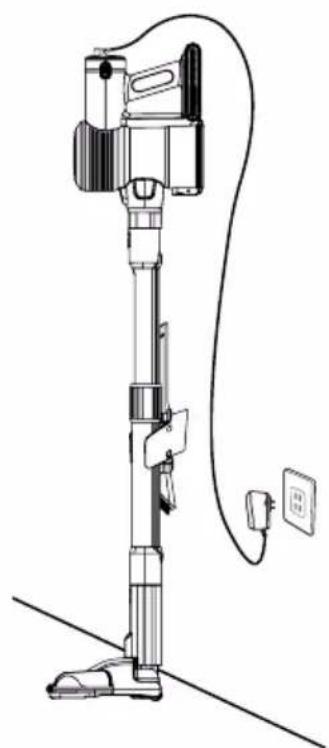

When the power/battery indicator ashes for seconds and turns of f, this indicates that the power has been used up. To recharge the battery (13), plug the charging power adapter (18) into a plug socked and then into battery pack. A green light will start to ash – this indicates that the battery is charging. When the power indicator stops ashing and stays on constantly instead, this means the battery is fully charged. The battery on this vacuum can be charged in two ways: Recharging the Battery On the wall mounted dock14 Removing the battery to charge separately Recharging the Battery (continued)

1. Remove the telescopic tube (7) and any attachments from the motor unit

Holding the vacuum motor unit over a bin, press down on the Dust Container Release button (11) to open the dust container (12). The lid will pop open and the contents will be released into the bin.

3. Gently close the lid until it clicks into place.

4. Re-attach the telescopic tube back onto the motor unit.

Cleaning or Changing the Filter Cleaning and changing the lters (19+20) will improve the performance of the vacuum cleaner. In order to do so, please refer to the following steps:

1. Remove the dust container from the motor unit (5). Inside the dust container

you will nd the HEPA lter inside the Mesh Filter. Remove both lters from the dust container.

2. Gently tap out any dust from the lters into a bin.

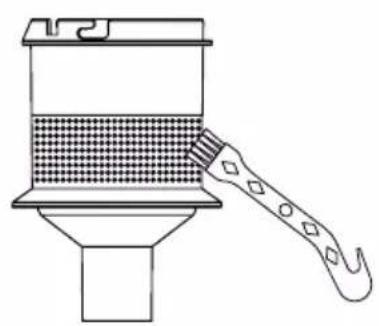

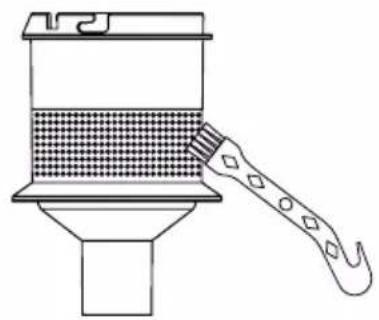

3. Use the Cleaning Tool (17) to dust away any remaining build-up on the lters.

Cleaning and Maintenance15 Cleaning and Maintenance (continued)

4. The fabric HEPA lter can also be rinsed under water and then left to air dry.

5. Once the HEPA lter is fully dry, replace the lter back into mesh lter, and

then back into the dust container. Note: Do not use a washing machine to clean the dust lter, or a hair dryer to dry the lter

Clearing Blockages If your vacuum has a blockage, the blockage indicator will light up. Ensure that the vacuum is not plugged in or switched on before looking for blockages. Be careful not to switch it on during the unblocking process and be aware of any sharp objects that could be stuck in the vacuum. Cleaning the Whole Vacuum If the body of the main unit or handle needs to be cleaned, use a damp well- wrung cloth to wipe over the surface. Then use a dry cloth to dry the surface. CAUTION: Do not immerse any part of the vacuum main unit in water or any other liquid.16 Cleaning and Maintenance (continued) Removing and Cleaning the Floor Brush

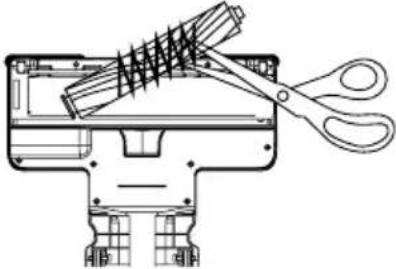

1. Unplug the vacuum from power

and clean the hair or any other foreign matter from the roller brush.

Leave the roller brush to air dry for at least 24 hours.

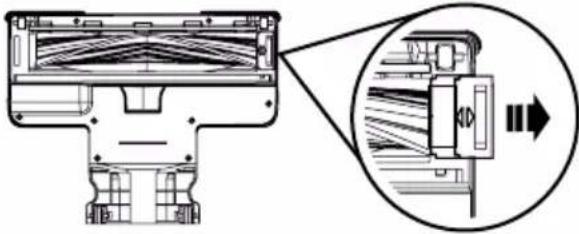

2. Slide the brush lock outwards to

the unlocked position.

4. Wash the roller brush with water.

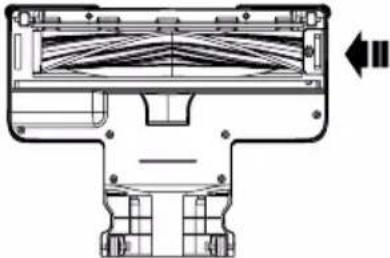

6. Install the roller brush back into

the oor brush assembly. Slide the lock inwards until it is locked into place.17 Troubleshooting Problems Possible Solutions It is not cleaning or picking up well

2. Checked dust container is correctly

Check the lters are correctly tted.

Clean the lters. The vacuum stops or doesn’t work

Check battery is installed properly

The battery did not charge

Check connections with power cable.

Check wall socket. The powered oor brush didn’t work

1. Make sure dust container is assembled

Make sure the oor brush and metal extension tube are connected tightly.

brush is blocked or not.18

arranty 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The

place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect,

inexpert repairs or consumable parts.

5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

7. Valid in the UK only

Information on waste Disposal for Consumers of

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

but kept separate for the treatment, recovery and recycling of the materials used.

waste to your Local Authority Civic waste site, where it will be accepted free of charge.
