USER MANUAL VC6B Duronic

Creative Consumer Products

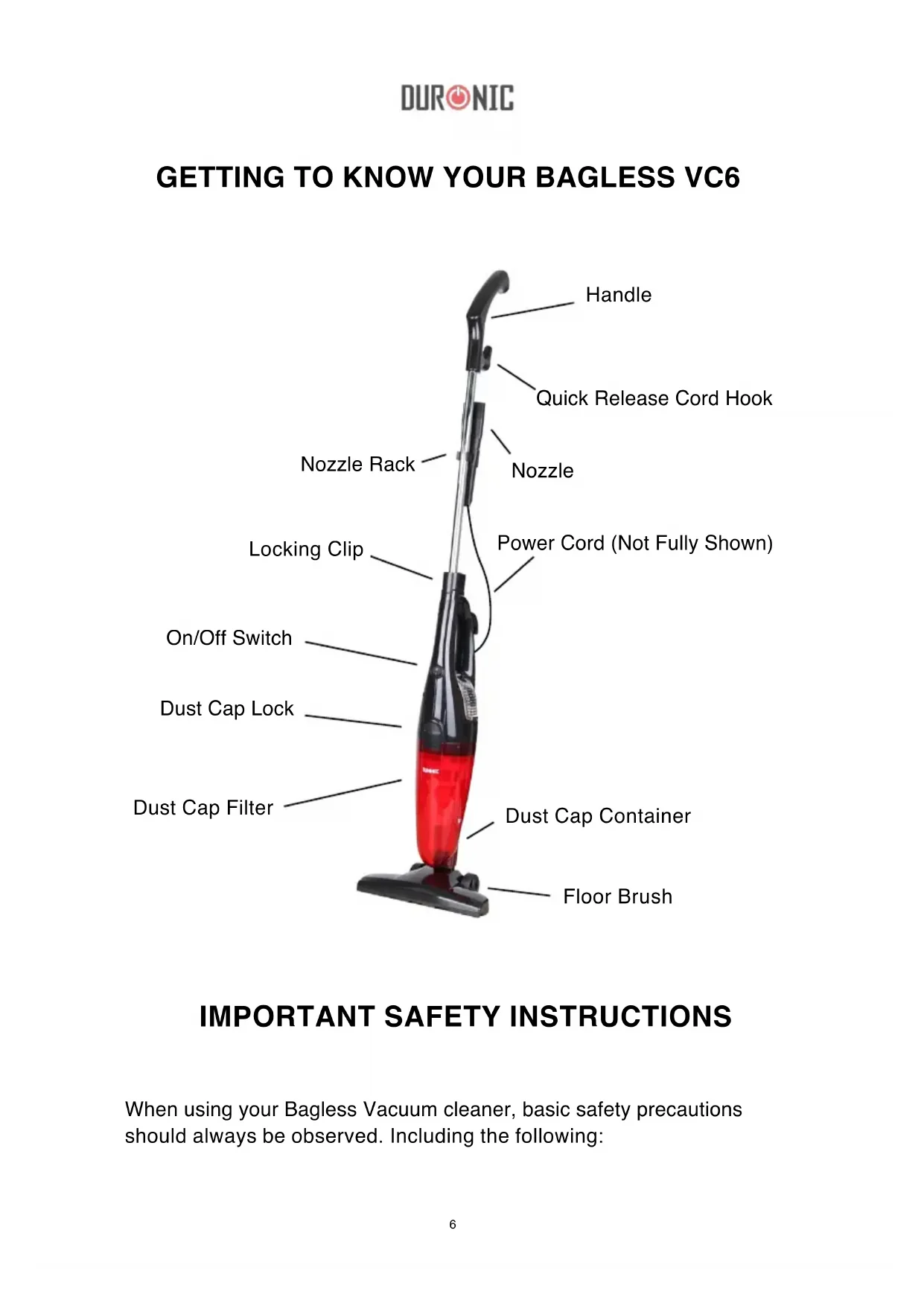

When using your Bagless Vacuum cleaner, basic safety precautions should always be observed. Including the following: Handle Quick Release Cord Hook On/Off Switch Dust Cap Lock Dust Cap Filter Nozzle Nozzle Rack Power Cord (Not Fully Shown) Dust Cap Container Floor Brush Locking Clip7

WARNING - To reduce the risk of fire, electric shock, or injury:

1. Use the vacumm for its intended use only.

2. Do not immerse any part of

the system in water or other liquids. Do not use outside or on wet surfaces.

Do not unplug by pulling on the cord.

Keep out of reach of children.

Do not carry by the chord. Make sure the cord is not pulled around corners, trapped in doorways or underneath the appliance.

Do not use if the power cord or plug is damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the vacuum. You should return the unit to the manufacturer for examination and repair. Incorrect re-assembly or repair can cause a risk of electrical shock or injury.

Make sure that the opening of the pipe is kept free of dust, hair and anything that may reduce the airflow.

8. Keep hair, loose clothing, ngers and all parts of your body away

from moving parts, especially the oor brush.

9. Do not use to pick up ammable or combustible liquids such as

gasoline or use in areas where they may be present.

10. Do not pick up anything that is burning such as cigarettes, matches

11. Do not use the vacuum without the dust cup lter in place.

12. This appliance is intended for household use only.

13. Make sure the machine is switched off before unplugging it from

14. Store your appliance indoors in a cool, dry area.

Using improper voltage may result in damage to the motor and possible injury to the user. Correct voltage is listed on the rating label.

11. Do not use the vacuum without the dust cup lter in place.

12. This appliance is intended for household use only.

13. Make sure the machine is switched off before unplugging it from

14. Store your appliance indoors in a cool, dry area.

Using improper voltage may result in damage to the motor and possible injury to the user. Correct voltage is listed on the rating label.

For Household Use Only

Important: If an opening in the unit or the hose is blocked, switch off the vacuum cleaner and remove the reason for blockage before you start the unit again.

1. Do not operate the vacuum cleaner too close to heaters, radiators or

2. Before inserting the power plug into a wall outlet, make sure that

3. Before you start vacuuming, make sure to remove large of sharp

objects from the oor that might damage the dust cap lter.

4. When pulling out the power plug from the wall outlet, pull the plug not

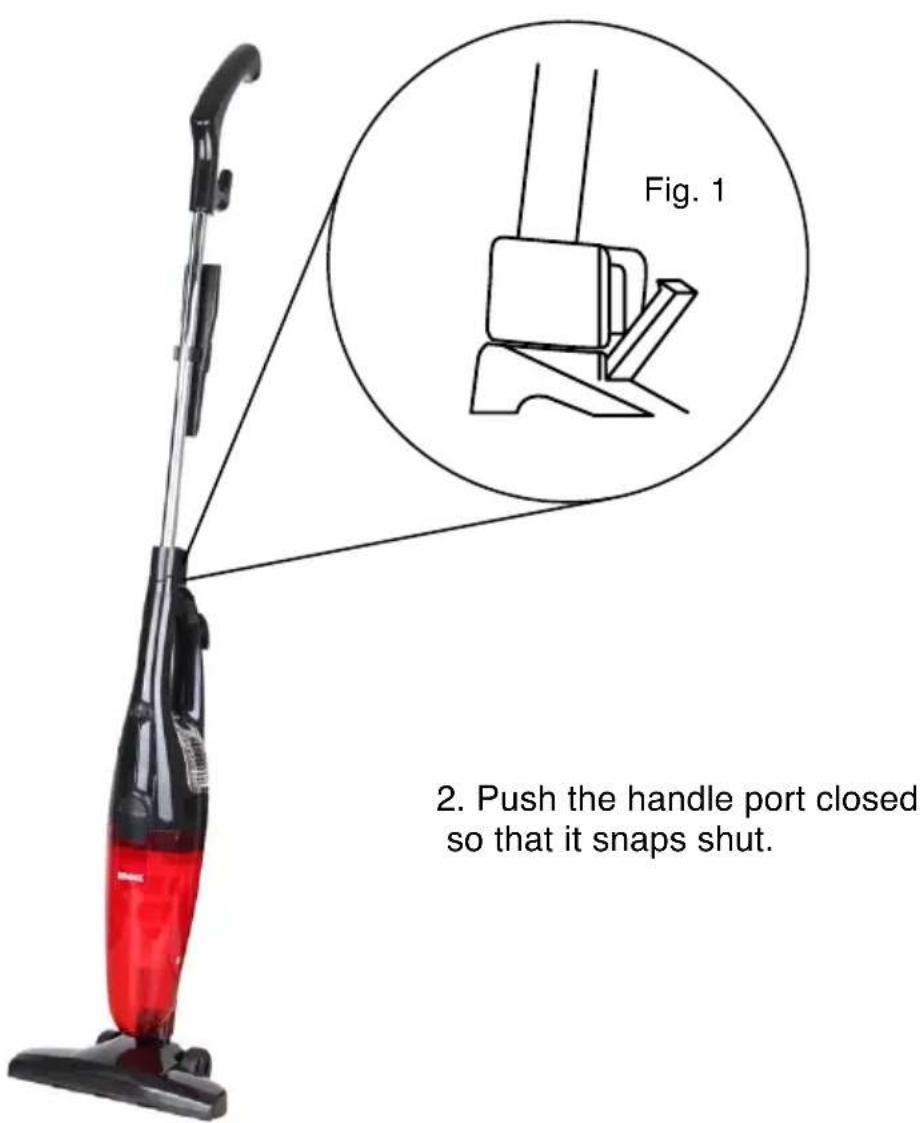

Note: Always make sure the unit is switched off before tting or removing accessories. Inserting the metal handle into the main body:

1. On the top handle, pull open the handle port (Fig.1) and insert the

metal extension pipe until the locking clip is sitting rmly on the handle. OPERATING INSTRUCTIONS Fig. 1

2. Push the handle port closed

so that it snaps shut.11

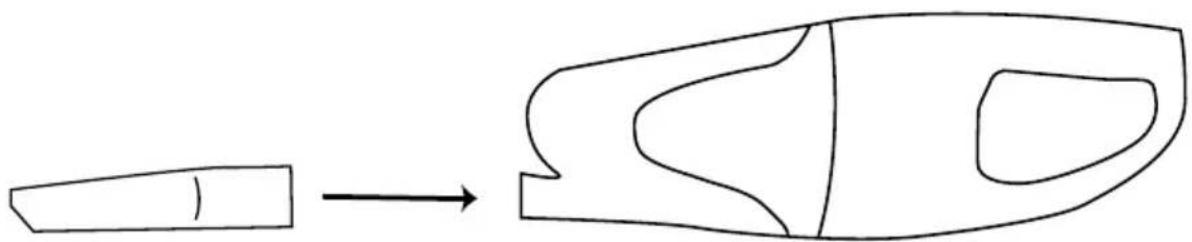

Attaching the Crevice Tool and the Floor Brush to the Main Body:

1. Push the crevice tool or oor brush into the front suction opening.

(Fig. 2) The following are recommendations for accessory usage: Crevice Tool: For radiators, crevices, corners, base-boards and between cushions. Floor Brush: For all kinds of ooring, including carpeted and tiled oors. Winding And Unwinding The Power Cord: This vacuum cleaner is equipped with a convenient cord storage feature. This unit also has a quick release cord hook. Wind the power cord around the cord hook. To unwind the power cord, simply twist the quick release cord hook to the left or right. Fig. 212

Caution: The front suction opening must be clear and free from any obstruction at all times otherwise the motor will overheat and become damaged. Using the Unit as an Upright Vacuum - Insert the extensions tube into the hand vacuum - Choose the appropriate accessory (crevice tool or floor brush) and attach it to suction hole opening on the hand vacuum. Note: You may choose not to attach the crevice tool or oor brush when operating as an upright vacuum cleaner. - Press the “1” on the On/Off power switch to turn the unit on. When nished using the unit, press the “0” on the On/Off power switch to turn the unit off. - When you have finished using the unit, wind the power cord around the cord winding hooks for easy storage. Using the Unit as a Hand Vacuum Disconnect the metal extension pipe from the hand vacuum by releasing the handle port from the locking clip and removing the metal extension pipe from the handle. Once the metal extension pipe is removed you can push the handle port shut. OPERATING INSTRUCTIONS13

ORDERING REPLACEMENT DUSTCUP FILTERS

Please Note: The Dustcup Filter is washable. It should, however, be replaced every 3-6 months (depending on usage) to ensure the best performance from your vacuum cleaner. Replacement dustcup filters can be ordered from www.duronic.co.uk. There are different versions of the VC6 with different cups. Please contact sales@duronic.c o.uk with your order ID and one of our members will instruct you on the exact part you need. Important: Make sure that ALL lters are completely dry before re-installing them back in the vacuum. This product is tted with a BS: l363 plug and fuse imported by ShineMart limited. Please contact Shine-mart limited for information on waste disposal for Consumers of Electrical and Electronic Equipment.14 1 Year Guarantee from Shine-Mart limited, Trademark owners of Duronic products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY

RIGHTS AS A CONSUMER

This product has been manufactured under the strictest of quality control procedures and using the highest quality of materials to ensure excellent performance and reliability. It will give a very good and long lasting service, providing it is properly used and maintained. The product is guaranteed for 1 year from the date of original purchase. If any defects arise due to faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at discretion of that company. Duronic Products offer 1 year warranty under the following conditions;

1. The product must be returned to the retailer with original proof of

2. The product must be assembled and used in accordance with the

instructions contained in this operating manual.

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect,

third-party repairs or consumable parts.

5. Shinemart limited has no responsibilities for accidental or

consequential loss or damage.

6. Shinemart limited are not liable to carry out any type of servicing

work under the guarantee.

Make sure that the opening of the pipe is kept free of dust, hair and anything that may reduce the airflow.

2. The product must be assembled and used in accordance with the
