VC8 - Vacuum Cleaner Duronic - Free user manual and instructions

Product type	Stick / Handheld vacuum
Brand	Duronic
Model	VC8
Power supply	220-240 V ~ 50/60 Hz
Filter type	Washable and reusable
Dust container capacity	Approximately 0.6 L
Included accessories	Floor head, crevice nozzle, extension tube
Cable length	5 m
Weight	2.5 kg
Usage	Indoor, dry surfaces
Filter maintenance	Rinse with cold water, air dry for 24 hours
Safety instructions	Do not immerse, do not vacuum liquids or hot objects, unplug before cleaning
Warranty	1 year

Frequently Asked Questions - VC8 Duronic

How to assemble the VC8 vacuum cleaner?

Insert the extension tube into the handheld vacuum by pressing the tube release button until it locks. Then attach the desired accessory (floor head or crevice nozzle) to the handheld vacuum.

How to clean the vacuum filter?

Remove the dust container by pressing the release button. Rinse the filter with cold water and let it air dry for 24 hours before reinstalling. Do not use a washing machine or hairdryer.

Can the VC8 vacuum liquids?

No, never use the vacuum to vacuum flammable or combustible liquids, or water. This could damage the appliance and pose a risk of electric shock.

What to do if suction power decreases?

Check that the dust container is not full and that the filter is not clogged. Clean the filter if necessary. Also ensure that the suction tube is free of any obstructions.

How to use the vacuum in handheld mode?

Remove the extension tube by pressing the tube release button and pulling. You can then use the handheld vacuum directly, with or without an accessory.

What is the warranty of the Duronic VC8 vacuum?

The product has a 1-year warranty from the date of purchase. It covers manufacturing and electrical defects, but not normal wear, misuse, or unauthorized repairs.

How to store the vacuum after use?

Turn off the appliance, unplug it, and wrap the cable around the storage hooks. Store it in a cool, dry indoor place.

Is the filter washable and reusable?

Yes, the filter is washable with cold water and reusable. It is recommended to replace it when suction performance significantly decreases.

Can I use the vacuum without the dust container?

No, never use the vacuum without the dust container. It must be properly installed to ensure proper operation and safety.

What to do if the power cord is damaged?

Do not use the vacuum if the cord is damaged. Contact your retailer or Duronic after-sales service for assistance. Do not attempt to repair it yourself.

USER MANUAL VC8 Duronic

VC8 - Bagless Vacuum Cleaner

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

DURNIC

DUR NIC

Contents

English Manual 5

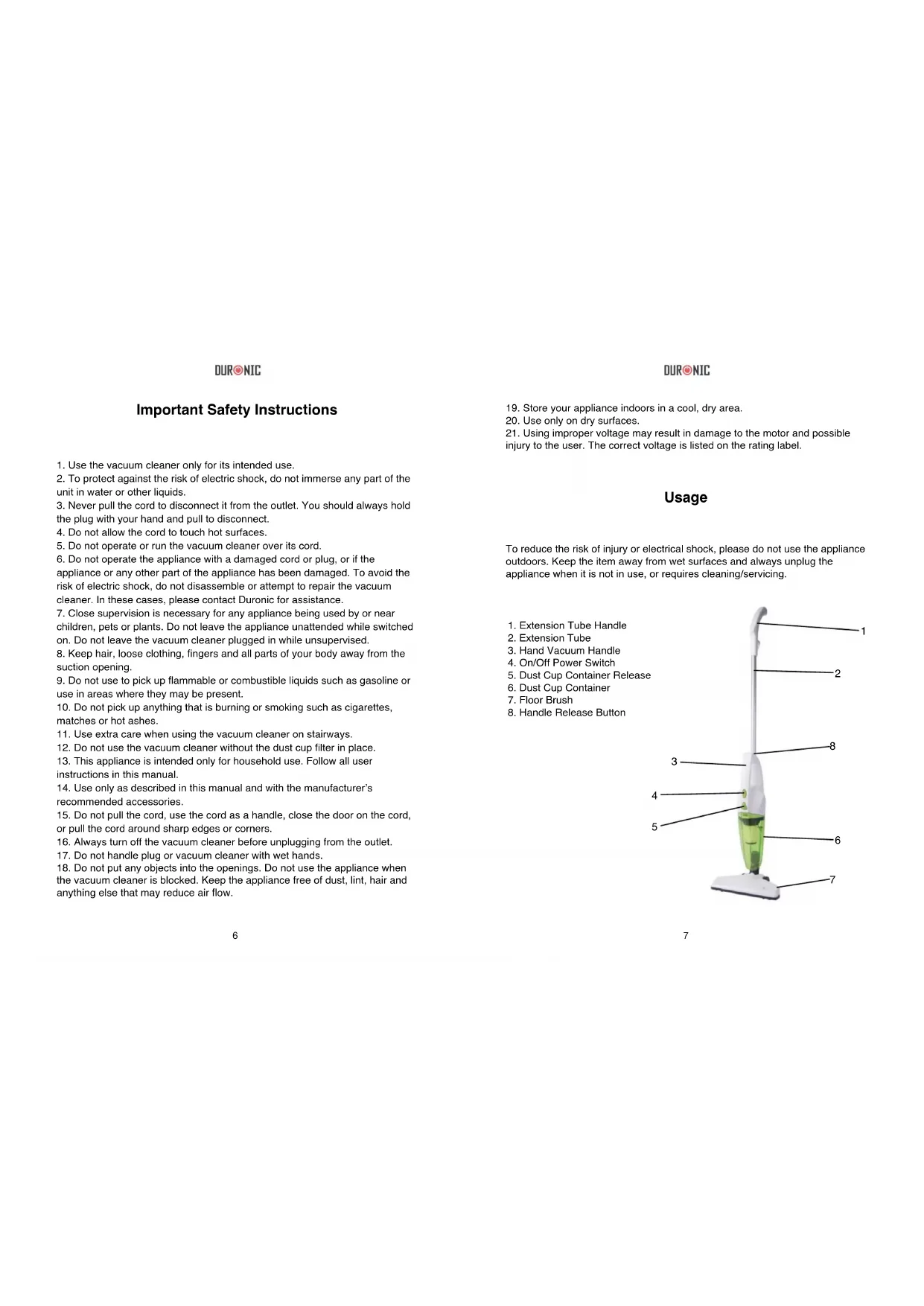

Important Safety Instructions

1. Use the vacuum cleaner only for its intended use.
2. To protect against the risk of electric shock, do not immerse any part of the unit in water or other liquids.
3. Never pull the cord to disconnect it from the outlet. You should always hold the plug with your hand and pull to disconnect.
4. Do not allow the cord to touch hot surfaces.
5. Do not operate or run the vacuum cleaner over its cord.
6. Do not operate the appliance with a damaged cord or plug, or if the appliance or any other part of the appliance has been damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the vacuum cleaner. In these cases, please contact Duronic for assistance.
7. Close supervision is necessary for any appliance being used by or near children, pets or plants. Do not leave the appliance unattended while switched on. Do not leave the vacuum cleaner plugged in while unsupervised.
8. Keep hair, loose clothing, fingers and all parts of your body away from the suction opening.

9. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.

10. Do not pick up anything that is burning or smoking such as cigarettes, matches or hot ashes.

11. Use extra care when using the vacuum cleaner on stairways.

12. Do not use the vacuum cleaner without the dust cup filter in place.
13. This appliance is intended only for household use. Follow all user instructions in this manual.
14. Use only as described in this manual and with the manufacturer's recommended accessories.
15. Do not pull the cord, use the cord as a handle, close the door on the cord, or pull the cord around sharp edges or corners.
16. Always turn off the vacuum cleaner before unplugging from the outlet.
17. Do not handle plug or vacuum cleaner with wet hands.
18. Do not put any objects into the openings. Do not use the appliance when the vacuum cleaner is blocked. Keep the appliance free of dust, lint, hair and anything else that may reduce air flow.

DURONIC

1. Store your appliance indoors in a cool, dry area.
2. Use only on dry surfaces.
3. Using improper voltage may result in damage to the motor and possible injury to the user. The correct voltage is listed on the rating label.

Usage

To reduce the risk of injury or electrical shock, please do not use the appliance outdoors. Keep the item away from wet surfaces and always unplug the appliance when it is not in use, or requires cleaning/servicing.

1. Extension Tube Handle
2. Extension Tube
3. Hand Vacuum Handle
4. On/Off Power Switch
5. Dust Cup Container Release
6. Dust Cup Container
7. Floor Brush
8. Handle Release Button

DURNIC

Assembling

INSERTING THE METAL HANDLE INTO THE MAIN BODY

• On the hand vacuum cleaner handle, pull open the handle port and insert the extension tube until the locking clip is sitting firmly on the handle.
• Push the handle port closed so that it snaps shut.

ATTACHING THE CREVICE TOOL & FLOOR BRUSH TO THE MAIN BODY

Push the crevice tool or floor brush into the suction hole opening.

The following are recommendations for accessory usage:

Crevice Tool: For radiators, crevices, corners, and between cushions.
Floor Brush: For all kinds of flooring, including carpeted and tiled floors.

Operating Instructions

Caution: The suction hole must be open and free of any obstruction at all times. Otherwise, the motor will overheat and damage the unit.

Power Switch

• Push the power button to switch the unit on.
• Push again to turn the unit off.

USING THE VC8 AS A HAND VACUUM

• Disconnect the extension tube from the hand vacuum by using the handle release button and pulling the extension tube out. Once the extension tube is removed, slide the handle port shut.

DURONIC

USING THE VC8 IN AN UPRIGHT POSITION

• Insert the extension tube into the hand vacuum.
• Choose the appropriate accessory (crevice tool or floor brush) and attach it to the suction hole on the hand vacuum.

Note: You may choose not to attach the crevice tool or floor brush when operating it in an upright position.

• Press the power switch to turn the unit on. When finished using the unit, press on the power switch again to turn the unit off.
• When you have finished using the vacuum, wind the power cord around the cable management hooks for easy storage.

Cleaning & Maintenance

In order to achieve the best performance, empty the dust cup container and clean the dust cup filter after each use.

1. To remove the dust cup container, press down on the dust cup container release button and separate the dust cup container from the main unit.
2. Pull out the dust cup filter.
3. Empty the dust from the dust cup container.
4. Rinse the dust cup filter in cold water, and then let it dry for 24 hours before replacing it back in the dust cup container. Make sure that ALL filters are completely dry before re-installing back into the vacuum cleaner.

Note: Do not use a washing machine to clean the dust cup filter. Do not use a hair dryer to dry it. Leave it out to dry. Replace the dust cup filter carefully into the dust cup compartment. Never operate without the dust cup filter in place.

Note: The Dust cup filter is washable. However, it should be replaced every 3 months to ensure peak performance of your vacuum.

DURNIC

DURONIC

Warranty

1 Year Guarantee from Shino-Mart Ltd. Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER
This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.
Duronic Products are offered with a 1 year guarantee under the following conditions: 1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee 7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse. Imported by Shine-Mart Ltd, RM3 85B

Information on waste Disposal for Consumers of

This mark on a product and/or accompanying documents indicates that when it

is to be disposed of, it must be treated as Waste.

Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste.

but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling, please take all WEEE marked

waste to your Local Authority for Waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they

will be helping to save valuable resources and preventing any potential negative

effects upon human health and the environment, of any hazardous materials that

the waste may contain
