GOO30 - Electric cooking appliance Wëasy - Free user manual and instructions

Product type	Electric crepe maker
Brand	Wëasy
Model	GOO30
Power supply	230 V ~ 50 Hz
Power	1000 W
Plate type	Non-stick
Number of temperature levels	5
Temperature adjustment	Rotary knob
Power indicator light	Red
Preheating indicator light	Green
Included accessories	Spatula
Use	Domestic
Safety	Non-slip feet
Care and cleaning	Damp cloth, do not immerse
Warranty	2 years
After-sales service	https://sav.hkoenig.com
Plate material	Non-stick
On/off switch	Yes
Recommended foods	Crepes
Usage precautions	Do not leave unattended, risk of burns

Frequently Asked Questions - GOO30 Wëasy

How to use the crepe maker for the first time?

Unpack the appliance and the spatula. Heat the crepe maker at maximum temperature for 4 minutes, let it cool, then clean it with a damp cloth. This removes manufacturing residues. A slight odor is normal, ventilate the room.

What is the power of the appliance?

The GOO30 crepe maker has a power of 1000 W and operates on a power supply of 230 V ~ 50 Hz.

How to clean the crepe maker?

Turn off and unplug the appliance, let it cool completely. Wipe the plate with a damp cloth. Never use abrasive products or oven cleaner, and never immerse the appliance in water.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by an authorized After-sales Service to avoid any danger. Do not repair the appliance yourself.

Can I use metal utensils on the plate?

No, only use heat-resistant silicone or wooden utensils to avoid scratching the non-stick surface of the plate.

How long does it take to preheat the crepe maker?

Preheating takes about 4 minutes. The green light turns on when the desired temperature is reached.

Why is there a burnt smell during first use?

It is normal and harmless. It is the burning of manufacturing residues. Make sure to ventilate the room well during first use.

How to adjust the temperature?

Use the temperature knob located on the side. There are 5 levels. Start at the maximum level for preheating, then adjust according to the desired cooking.

What is the warranty period?

The warranty is 2 years from the date of purchase or delivery, subject to normal use and compliance with the manual.

Where to find crepe recipes?

The manual provides a basic recipe. You can also find recipes in cookbooks or online. A simple recipe: 250 g flour, 1/2 L milk, 3 eggs, a pinch of salt.

USER MANUAL GOO30 Wëasy

Black weasy kitchen grater with wooden chopsticks and control buttons (no text or symbols on main body)

electric crepe maker

crepiere electrique elektrische maschine pfannkuchen elektrische machine pannenkoeken panqueques maquina electrica frittelle macchina elettrica

ENGLISH

Technical data

Mains voltage: 230V \~ 50Hz

Power: 1000W

Protection class: I

About these instructions

This product is equipped with safety features.

Nevertheless, read the safety warnings carefully and use the product only as described in these instructions to avoid accidental injury or damage.

Keep this manual for future reference.

If you pass on this article to someone else, remember to include these instructions.

Symbols in these instructions

⚠: This symbol warns against danger of injury.

△: This symbol warns against the danger of injury caused by electricity.

- The term DANGER warns against possible severe injuries and danger to life.

- The term WARNING warns against injuries and severe material damage.

- The term CAUTION warns against slight injuries or damage.

(i): This is how supplementary information is shown. The first time the maker is heated a slight odour may develop. This is entirely harmless. Ensure there is adequate ventilation.

Safety warnings

Intended use

• The crepe maker is designed for making crepes. It is not suitable for frying.
• It is designed for home use and is not suitable for commercial purposes.
  • DANGER to children and infirm persons
• This appliance us not intended for use by children or persons with restricted capabilities. It must only be used by persons who are able to use the appliance safely.
• Keep packaging material away from children. There is danger of suffocation!
• If the cable is damaged, it must be replaced by a post-sale service basis to avoid damage.
• This appliance is not designed for people with physical, mental or sensory problems, or people without experience (eg children), unless they are kept under supervision.
  • DANGER due to electricity
• The appliance must not come into contact with or be immersed in water or other liquid, as there is a risk of electric shock. Do not use the appliance outdoors. Do not touch the plug if you hands are wet.
• If the appliance becomes damp or wet, unplug the mains plug from the wall socket immediately. Do not

touch water or anything damp while the mains plug is in the wall socket.

• Do not use the appliance if the appliance or power cord shows visible signs of damage or the appliance has been dropped.
• Only connect the appliance to a properly installed socket outlet with earthing contacts and with the same mains voltage rating as that of the appliance (see “Technical Data”).
• Check that the wall socket used is easily accessible so that you can quickly pull the mains plug out of the wall socket is necessary.

- Never leave the appliance unsupervised when in use.

- Always unplug the mains plug, when you are not using the appliance, ... if there is a fault and before cleaning.

• Always pull on the plug, never on the cord.

- Unwind the power cord completely for use and let the appliance cool down completely before winding it up again.

- Do not bend, squash or strain the power cord. Do not allow it to hang down across the surface where the maker is placed. Protect it from sharp edges, oil and heat.

- Do not make any modifications to the appliance or the power cord. Do not change the power cord yourself, repairs to the appliance or power cord must only be carried out by a specialized workshop or at our Service Centre. Improper repair may result in considerable risk of injury to the user.

DANGER - other potential risk of injury

- Route the power cord ensuring that it does not become a stumbling trap.

WARNING - risk of fire and burns

- The contact surface can become extremely hot while the appliance is in use.

-Avoid the risk of fire or scorching: Position the appliance for use so that it is completely free-standing, and never against a wall or in a corner, or against curtains or similar. Keep flammable material away and do not cover the appliance.

-Avoid the risk of burning: Ensure that no-one touched the hot parts of the appliance during use and the cooling down period. Allow the appliance to cool down before cleaning, transporting or storing it.

- The contact surface can become extremely hot while the appliance is in use.

-Avoid the risk of fire or scorching: Position the appliance for use so that it is completely free-standing, and never against a wall or in a corner, or against curtains or similar. Keep flammable material away and do not cover the appliance.

-Avoid the risk of burning: Ensure that no-one touched the hot parts of the appliance during use and the cooling down period. Allow the appliance to cool down before cleaning, transporting or storing it.

CAUTION - material damage

• Place the appliance on a level, heatproof and splashproof surface. So not place it on surfaces that can become hot, such as cooker tops or near a gas stove.
• Never cut the crepes on the baking plate! Use only heatproof plastic or wooden utensils so as not to scratch the non-stick coating on the baking plate.
• Never use abrasive cleaning agents, oven cleaners or materials that might scratch when cleaning. This could damage the non-stick coating.

• The appliance is equipped with non-skid rubber feet. Furniture today is coated with various varnished and synthetic substances and treated with many different paints. Some of these products may contain substances that react adversely with the rubber feet and soften them. If necessary, place an anti-slip mat under the appliance.

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
• Keep the appliance and its power cord out of reach of children under 8 years of age.
• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
• Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

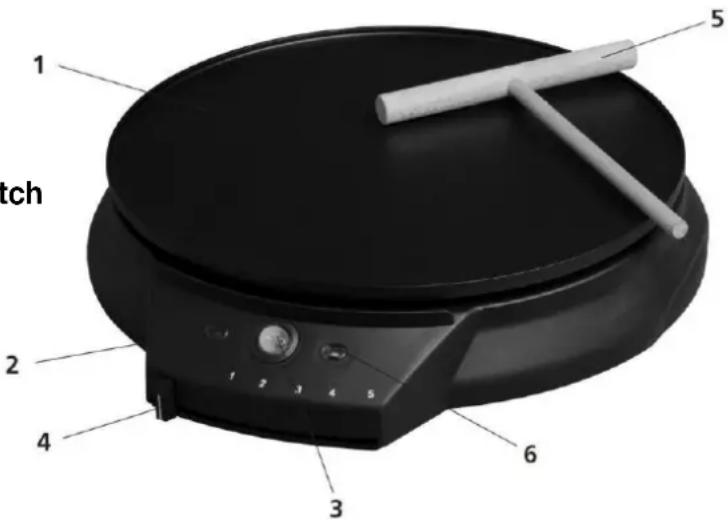

At a glance (features)

1 - Baking plate
2 - Red indicator light
3 - On/Off switch
4 - Temperature selection switch
5 - Batter spreader
6 - Green indicator light

1 2 3 4 5 6 tch

First-time use

DANGER to children

Danger to life due to suffocation/choking.

• Keep the packing material out of the reach of children. Dispose of it immediately.
• Remove the crepe maker and the batter spreader from the packaging.
• Heat the appliance once without crepe batter for 4 minutes at the highest temperature (see “Cooking crepes”), let it cool and then clean it as described in the section “Cleaning” to remove any possible deposits left during manufacture.

The first time the maker is heated a slight odour may develop.

This is entirely harmless. Ensure there us adequate ventilation.

Cooking crepes

1. unwind the power cord completely and position it so that it cannot touch the appliance while you are cooking.
2. insert the mains plug into a wall socket.
3. move the temperature selection switch fully to the right to level 5 and switch the crepe maker on using the On/Off switch. The red indicator light lights up and the appliance heats up.

After approx. 4 minutes the green indicator light comes on.

The baking plate has reached the correct temperature for the level you have set.

1. pour a small amount of crepe batter onto the baking plate and spread it with circular movements using the batter spreader.

Moisten the batter spreader before use. This prevents the dough from sticking to the spreader.

Pour slightly more batter onto the baking plate for practice when making your first crepes. It is easier to handle a slightly thicker crepe.

When you pour the batter onto the hot baking plate you might hear some slight crackling noised caused by differences in temperature and voltage. This does not damage the appliance.

The green indicator lamp goes on and off repeatedly during use. This indicates when the appliance is heating up in order to maintain the required temperature.

1. Allow the crepe to cook until the surface is no longer liquid and the crepe can be moved slightly.

2. Insert a crepe turner under a third of the crepe, lift the crepe and turn it.

3. Leave the crepe to cook briefly until done. Lift it slightly with the crepe turner to check. The crepe should be visibly cooked though but not yet brown. Cooked in this way, it can be easily folded or rolled.

4. Remove the crepe from the baking plate.

5. If you wish to cook another crepe and the last crepe was too dark, move the temperature selection switch down slightly.

6. If you do not wish to cook another crepe, switch the crepe maker off using the On/Off switch. Pull out the mains plug and leave the appliance to cool.

7. Spread or fill the crepe according to taste and fold it or roll it. You will find two examples of how to fold it below.

Recipes

You will find a large number of books about crepe batter and fillings at bookshops. So that you can start straight away, we have provided a basic recipe that is suitable for both sweet and savoury fillings:

Pancake batter

For a dozen pancakes: 250g of flour

1/2 liter of milk

3 eggs

1 pinch of salt

Pour the flour and salt into a salad bowl. Make a depression in the centre.

Break the eggs in that, mix with a wooden spoon and keep on adding the milk, turning it all the time. Leave the batter to stand for an hour.

Switch on your pancake maker and heat it up. Now it's your turn...Enjoy!

Black wheat savoury pancake batter

savoury pancakes: 1kg of black wheat flour 3 eggs

1 glass of milk

Lukewarm water

1 pinch of salt

Pour the black wheat flour into a salad bowl. Make a depression in the centre. Break the eggs in that, mix with a wooden spoon and keep on adding the milk, turning it all the time, then add lukewarm water until you obtain a creamy batter of uniform consistency.

Leave the batter to stand for two or three hours. Switch on your pancake maker and heat it up. Now it's your tern...Enjoy!

Useful tips

- The consistency of the batter depends on the ratio of egg to liquid. Adding more liquid produces thinner crepes, and adding more egg produced thicker crepes.

- You can season the batter with sugar, spices or also a dash of beer. Vary the seasoning to suit the required fillings.

• Be careful when adding sugar: If too much sugar is used the crepes may tear when handled. If you do not add sugar, the crepes will not stick to one another. The crepes can then be stacked one on top of another without the need for baking paper.
• Also try making the batter with wholemeal flour. The batter will then be a little thicker.

CLEANING

CAUTION: Material damage

Never use abrasive cleaning agents, oven cleaners or materials that might scratch when cleaning.

1. Unplug the mains plug from the wall socket and allow the crepe maker to cool.
2. Wipe the appliance with a damp cloth.
3. Let the appliance dry well before putting it away.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?". This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (*).
• Normal maintenance of the device.

• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.

• Damage of external origin: fire, water damage, electrical surge, etc.

• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France www.hkoenig.com - https://en.hkoenig.com - Tél: [phone]

FRANCAIS

Labeled diagram of a portable food processor with numbered parts for identification

Pour approximativement 40 crêpes:

1 kg de farine de sarrasin

3 œufs

de l'eau tiède

une pincée de sel

CONDITIONS DE GARANTIE

Labeled diagram of a portable kitchen appliance with numbered parts and a stick resting on top.
