USER MANUAL pint568 Wëasy

Black and white photo of a weasy beer tap dispenser with a glass of beer (no text or symbols on the device itself)

ENGLISH

Please read the instruction manual carefully before installing and operating, and keep it for future reference.

INTRODUCTION

This is a household beer cooler; it brings the beer to the best temperature for cold storage (3 to 6°C) within 48 hours. The beercooler will keep the 5L Keg cool for an almost indefinite period. Wedo, however, suggest that you initially cool your beer keg for at least12 hours in your refrigerator before placing it into the beer cooler.

IMPORTANT SAFETY INSTRUCTION

We have provided many important safety messages in the instruction manual for the beer cooler. Before use it, please read and obey all safety rules and operating instructions; and put the instruction manual in a safe place for future reference.

SAFETY INSTRUCTION

Before use it, check whether the power cord is well connected or not; if not, please don't use it, and call service center;
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
Before use it, check whether the plug conform with the socket or not; if not, please don't use it, and call service center;
☐ Do not connect or disconnect the electric plug when your hands are wet.
Place the beer cooler on a dry and horizontal surface.

To ensure proper ventilation for the beer cooler, make sure the beer cooler is at least 5 inches / 10cm away on either side so as to allow correct ventilation on the appliance.
Never put the beer cooler under the sunlight.
☐ Never cover the beer cooler when it is operating by some other object.
☐ The beer cooler must be installed in an area protected from the elements, such wind, rain, water spray or drips.
Before proceeding with cleaning and maintenance operation, make sure the power line of the unit is disconnected. Failure to do so can result in electric shock or death.

☐ Do not immerse the beer cooler or power plug in the water or other liquid.
☐ Do not use coarse cloth, abrasive stuff to clear the beer cooler.
☐ Do not take beer keg out from the beer cooler if the beer is not drunk out completely.
☐ Never allow children to operate, play with or crawl inside the beer cooler.
This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

Cleaning and user maintenance shall not be made by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

☐ Cleaning and maintenance should not be carried out by children unless they

are at least 8 years of age and are supervised by an adult.

Keep the appliance and its power cord out of reach of children under 8 years of age.

When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

☐ Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

☐ Never leave the unit unattended while in operation.

Please keep this document at hand and give it to the future owner in case of transfer of your device.
☐ The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
☐ This appliance is intended to be used in household and similar applications such as

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications

☐ The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

NO.	ITEM	NOTE
1	Voltage	AC 220V ~240V/50Hz;DC12V
2	Available capacity	11L or 5L HeineKen keg with build-in pressure
3	Power	60W
4	Refrigeration performance	Adjustable temp:3 ~ 6°C (25°Cambient temperature)
5	Noise	≤40dB(A);[Background noise≤25dB(A)]
6	Dimension (mm)	L422*W340*H430
7	Aluminum heat-sinking	√
8	Refrigeration technology of semiconductor	√
9	Manually operated drain	√
10	Separable drip tray	√
11	Temp adjustment	√
12	Keep warm system	PU frothing/weight range:310±5g
13	Climatic type	N/SN

STRUCTURE DIAGRAM

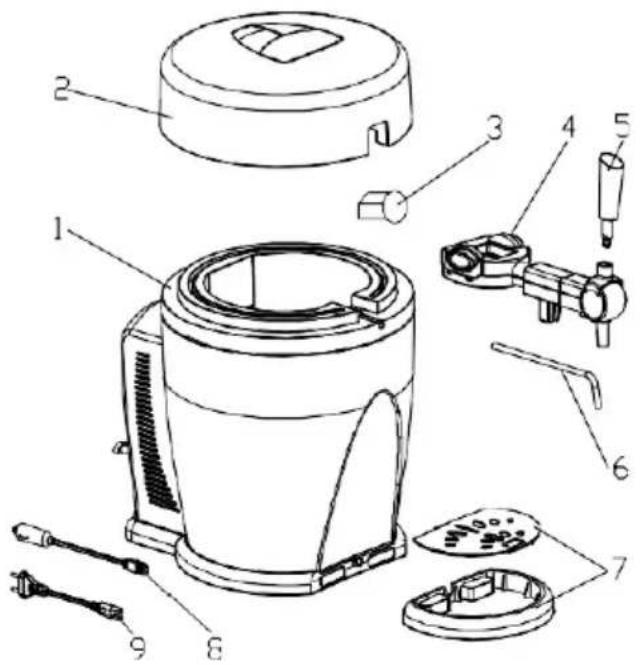

Exploded diagram of a vacuum cleaner with numbered parts for identification

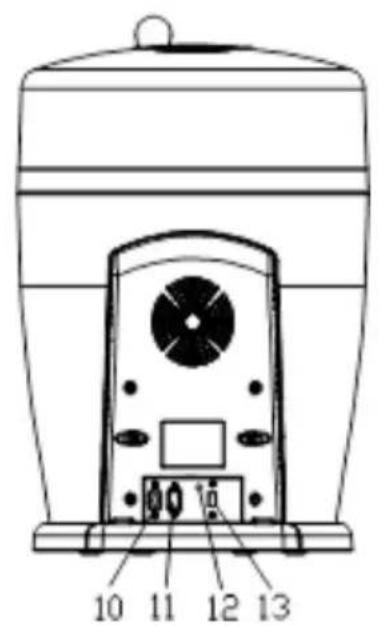

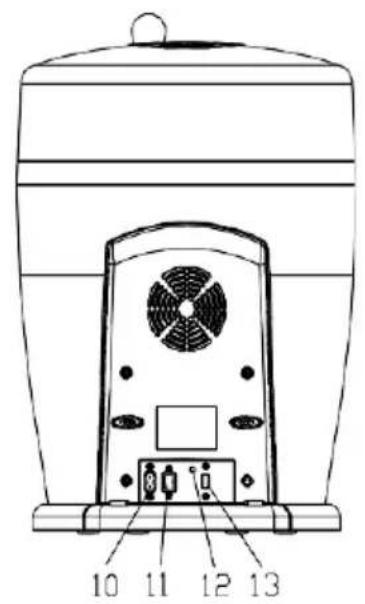

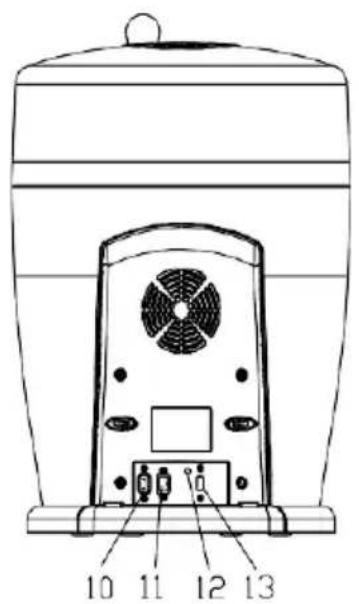

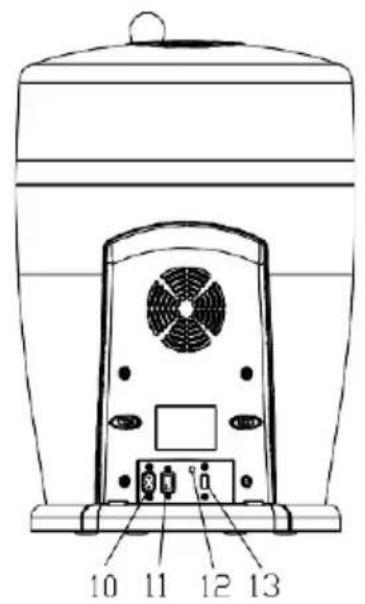

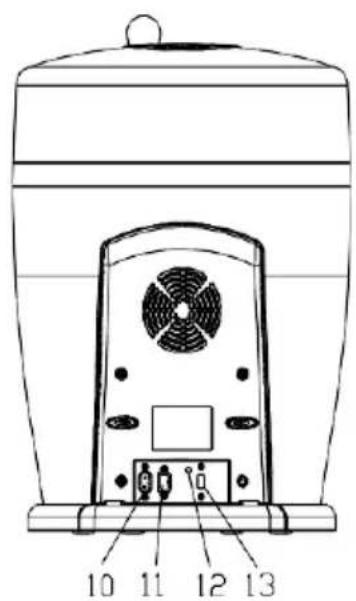

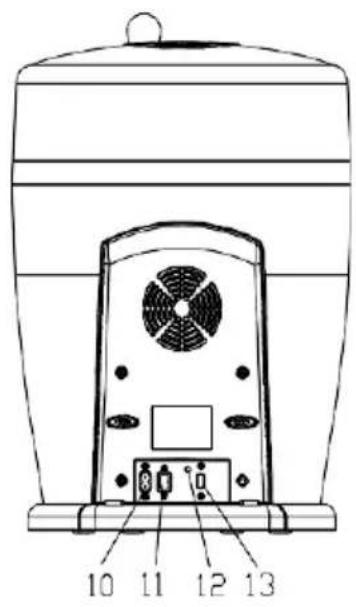

10 11 12 13

NO.	Parts name	NO.	Parts name
1	Housing	8	12 V DC cable
2	Cover with hand grip	9	AC cable with plug
3	Seal	10	AC connection
4	Tap unit	11	DC connection
5	Tap handle	12	On/Off indicator light
6	Extension pipe (5x)	13	Supply voltage selector switch
7	Drip tray with grille

OPERATION METHOD

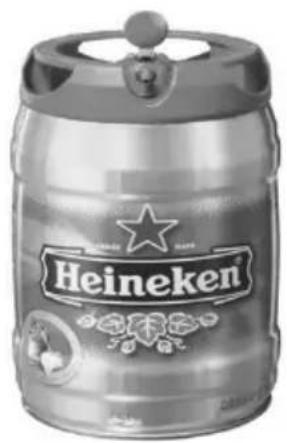

Heineken beer barrel with star logo and floral design (no readable text or symbols beyond branding)

↑

1. 5L HeineKen keg with build-in pressure is a must.

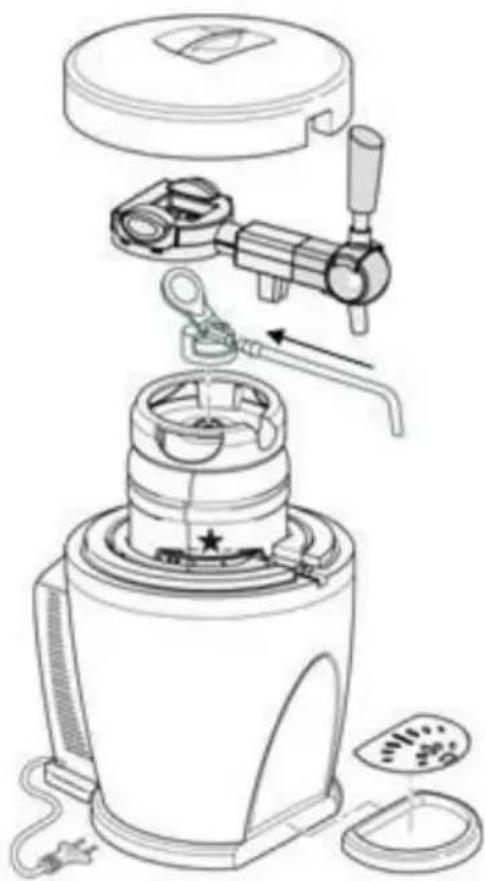

2. Insert the extension pipe into a small hole sitting at the top part of beer keg.
3. When the ambient temperature is 25^ C and the HeineKen keg is placed, power the unit up with DC current or AC current for 48H, the beer temp will up to and maintain 36^ C.( 3^ C means the cooler is running, 6^ C means it is

Technical line drawing of a blender with internal components and a fan (no text or symbols)

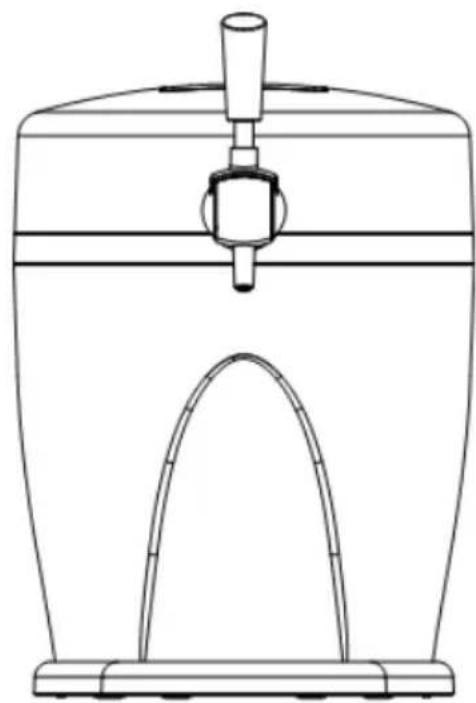

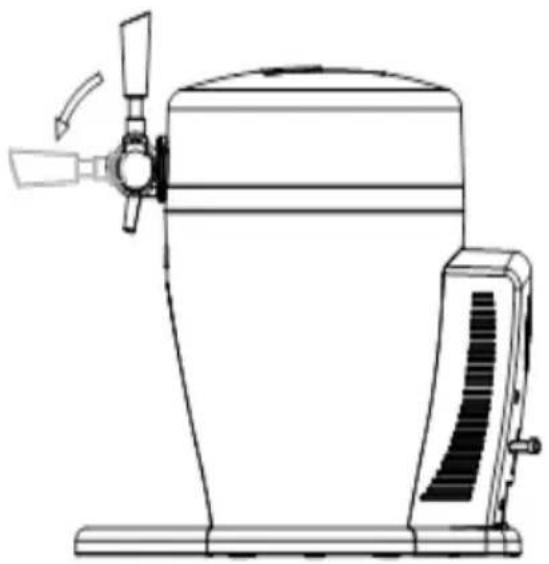

Line drawing of a mechanical device with a handle and central arched component (no text or symbols)

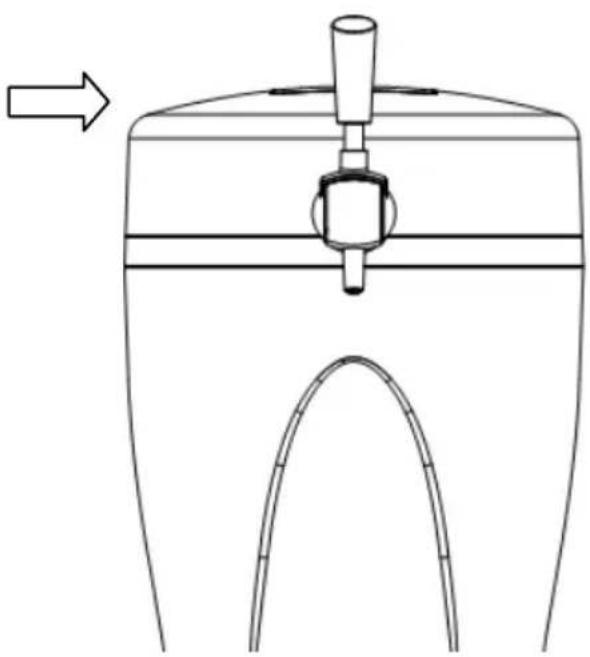

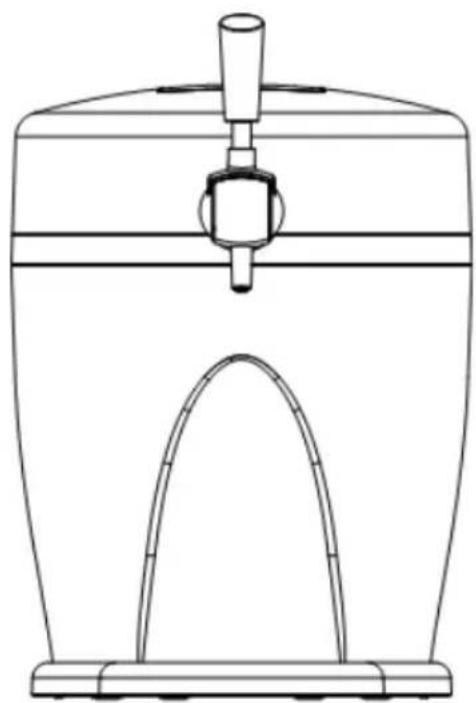

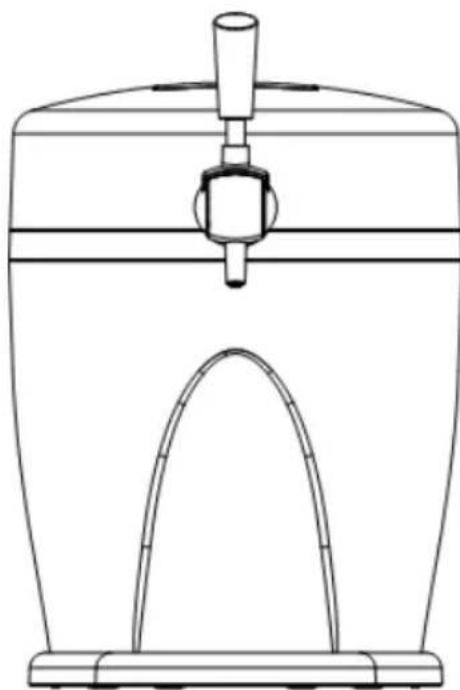

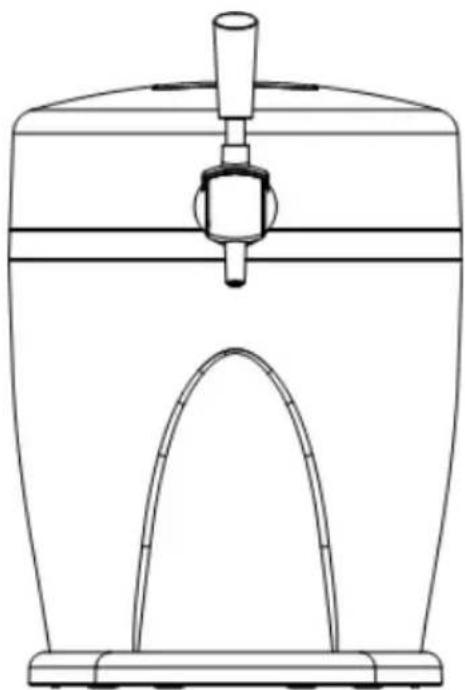

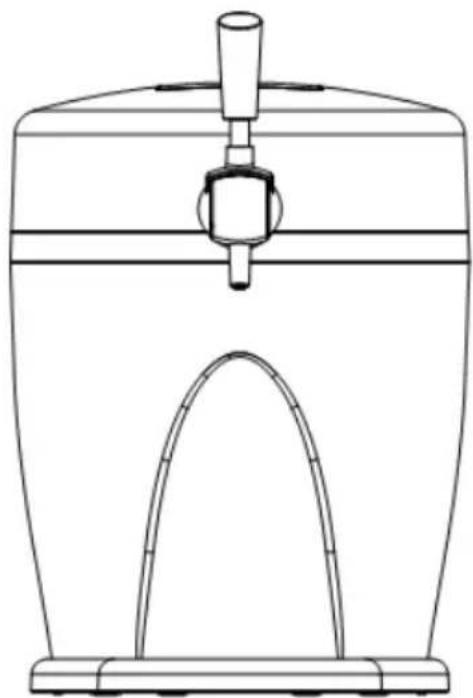

1. The tap unit must be installed firmly. Normally, the tap handle should be stuck straight up. Pull the tap handle at about 15^ C, the beer begins to be released. When at 90^ C, the tap handle is located, once the hand goes, the handle will have a automatic reset.

Line drawing of a portable radio or megaphone device with a handle and control panel (no text or symbols)

Close-up of a black cylindrical object with metallic cylindrical components, possibly a mechanical or electronic component (no visible text or symbols)

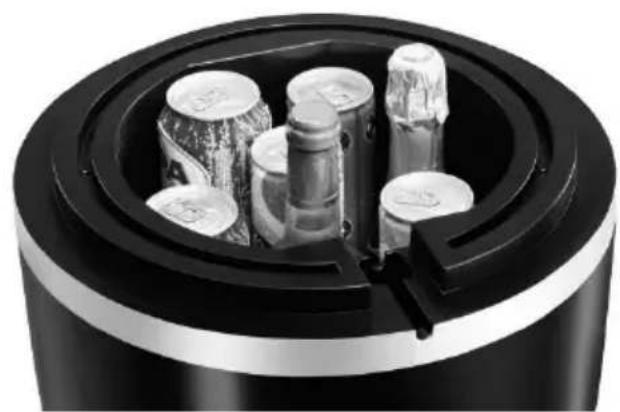

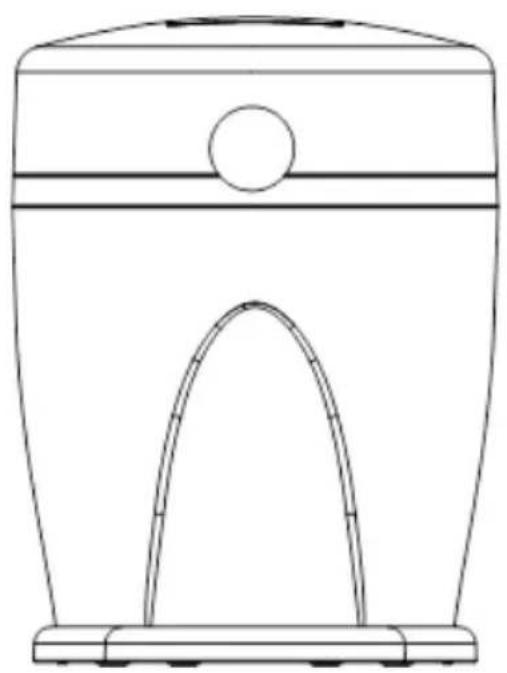

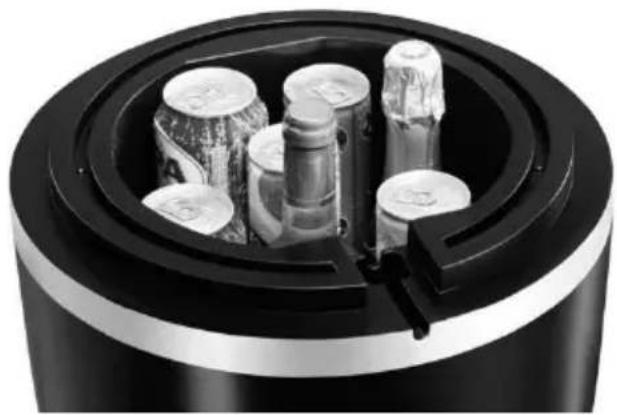

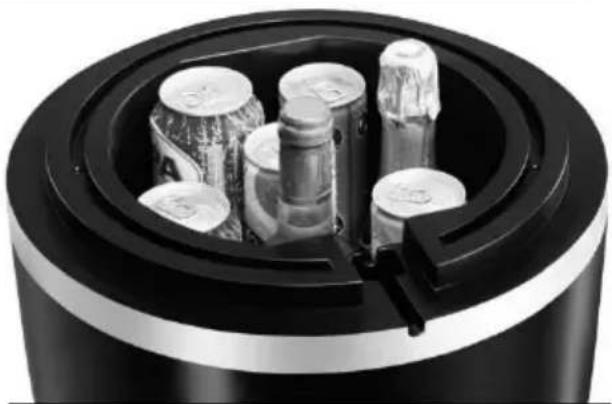

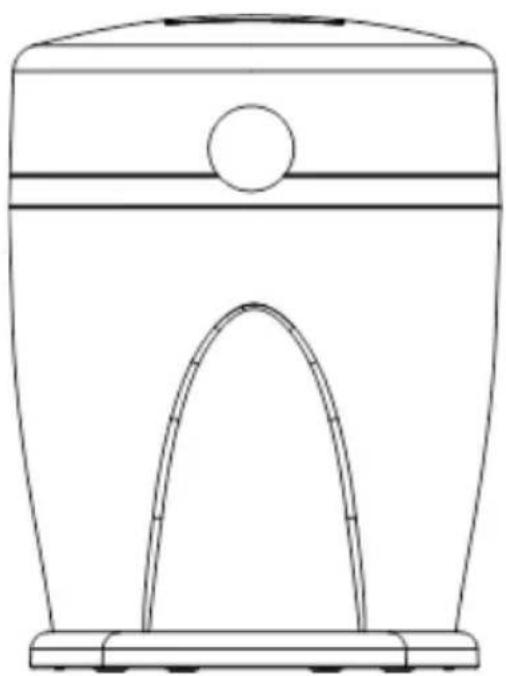

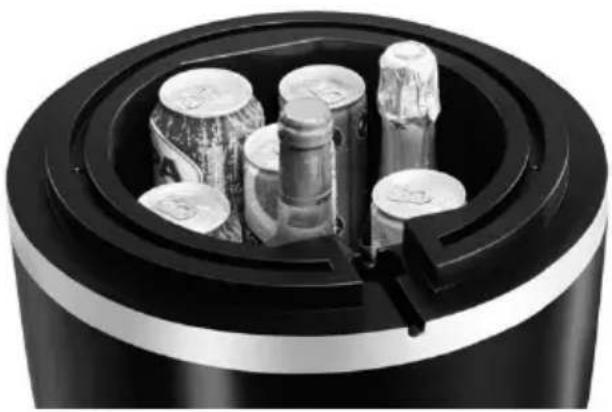

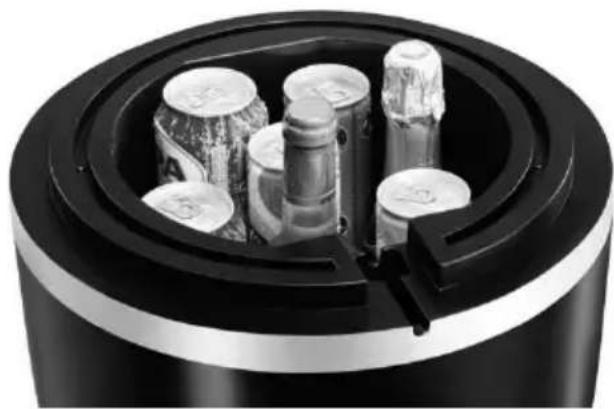

1. When the 5L HEINEKEN keg is not needed, replaces the tap unit by the seal, then you can regard it as a refrigerate unit with four bottles of 310 ~mm high beer or 12 tins of beverage.

Line drawing of a simple container with an arched top and side supports (no text or symbols)

CLEANING

Always unplug the unit before cleaning it.

- Do not use aggressive or caustic detergents or sharp objects (such as knives or other sharp objects).

Never submerge the unit.

- Never put the appliance or its accessories in a dishwasher.

- Do not allow moisture to penetrate the interior of the appliance to the electrical components.

- Clean the inside and outside of the unit with a damp cloth and a small amount of mild detergent.

-Then carefully wipe the inside and outside of the unit with a soft cloth.

- Clean the drip tray and grate in hot

soapy water. Then dry them with you.

• After each use, rinse the barrel pulling pipe and the extension pipe under running water.
• When placing a new drum, use a clean extension hose. Rinse the extension hose under running water and let it dry thoroughly.

MAINTENANCE

If the beer cooler does not work properly, please call the service center; To save time and money, before you call for service, check the Troubleshooting Guide. It lists cause of minor operation problems that you can correct yourself.

Troubleshooting

Trouble	Cause	Troubleshooting
The beer fails to be released.	Extension pipe on the faucet is not connected wellNo beer keg in the unit or no beer in the beer keg.	Connect the pipe wellPut a new beer keg into the cooler
The released beer is full of froth, effective liquid is not enough.	The beer can not be poured into the mug properly.The temp in the kegis too high( the best range is 3-5°C)Beer keg is shaken before using.Beer in the keg is going to use upThe pressure in the keg is too great.	Completely open the faucet quickly; Find the best distance between mug and the faucet, the height 34 to 1 is recommended. Check the color and concentration, it should be thick and in cream-colored.Cool down the beer at3-5°CPlace the beer keg for some time until the froth disappearReplace a new beer keg.Turn the knob in a clockwise direction to turn down or turn off the adjustable valve.
The rate of flow of beer is too slow.	The pressure in the keg is too low.Extension pipe or gas pipe is leakage.	Check if the pipe is damaged.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?". This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not includenormal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (*).
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as those of unsuitable accessories.

• Damage of external origin: fire, water damage, electrical surge, etc.

• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).

• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONNEMENT

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

Y —st dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

Adeva SAS - H.Koenig Europe – 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - [e-mail] - [e-mail] - Tél : [phone]
