USER MANUAL NVP15 Wëasy

Yellow and black portable vacuum cleaner with coiled cord, no visible text or symbols on device body

NVP15

STEAM CLEANER NETTOYEUR VAPEUR DAMPFREINIGER STOOMREINIGER LIMPIADOR VAPOR PULITORE A VAPORE

English

Read all these instruction carefully before use.

SAFETY INSTRUCTIONS

Please read carefully

● The appliance should be disconnected from the mains after use and before cleaning.
- Do not direct steam at people, animals or at electrical devices.
- Do not operate machine without water in the tank.
- Do not allow machine to run unattended at any time.
- Close supervision is necessary when this machine is used near children. Do not allow it to be used as a toy.
- The machine is designed for household use only, do not expose to rain.
- Do not overfill the water tank. The machine contains a maximum of 1500ml of water only. Excessive filling of the water tank may cause damage of injury.
- Never turn the machine over or tilt more than 45^ when it is switched on or if it's still producing steam.
- Never use this machine to clean electronic devices or installations.
- Do not run the steam cleaner more than 1 hour.
- Use extra care when cleaning on stairs.
- Do not immerse cord, plug or machine in water or any other liquid.
- Do not operate with a damaged cord, if the power cord is damaged or any improper performance of this machine occurs it should be repaired by a qualified electrician only.
- Keep hair, loose clothing, fingers, feet and all parts of body away from the jet of steam. Do not operate

machine in bare feet or when wearing open toe shoes or sandals.

- Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or corners. Keep cord away from heated surfaces.

- Unplug the steam cleaner when not in use. Put all controls off before unplugging the sector.

- Do not unplug by pulling on cord. Always grasp the plug, not the cord. Never handle plug or appliance with wet hands.

- Store in a dry place. Do not expose machine to freezing temperatures.

- Do not try to repair the appliance yourself. Contact a qualified technician. To avoid danger, a defective cable should be replaced only with an equivalent cable and by the manufacturer, our after sales service or someone with a similar qualification.

- Use only original accessories.

- Regularly check the appliance and the cable. Do not switch the appliance on if it is damaged.

- This device is not intended for use by persons with reduced capacity on the physical, mental or sensory or lack of experience and knowledge (including children), unless they have had instructions to use the appliance by a person responsible for their safety use of the appliance and understand the hazards involved. Children should be supervised to ensure they do not play with the device.

● The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

- The steam must not be aimed directly at electrical equipment, mains cables or parts containing electrical components (for example inside ovens, fridges,

switches and lights, microwave ovens, screens).

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
• Keep the appliance and its power cord out of reach of children under 8 years of age.
• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
  ● Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit
  ● Never leave the unit unattended while in operation.
• Please keep this document at hand and give it to the future owner in case of transfer of your device

NEVER OPEN THE PRESSURE CAP DURING USE UNLESS YOU HAVE CORRECTLY FOLLOWED THE INSTRUCTIONS ELSEWHERE IN THIS GUIDE. THE PRESSURE CAP GET HOT IN USE. HANDLE ITWITH CARE. Please retain in a safe place for future reference.

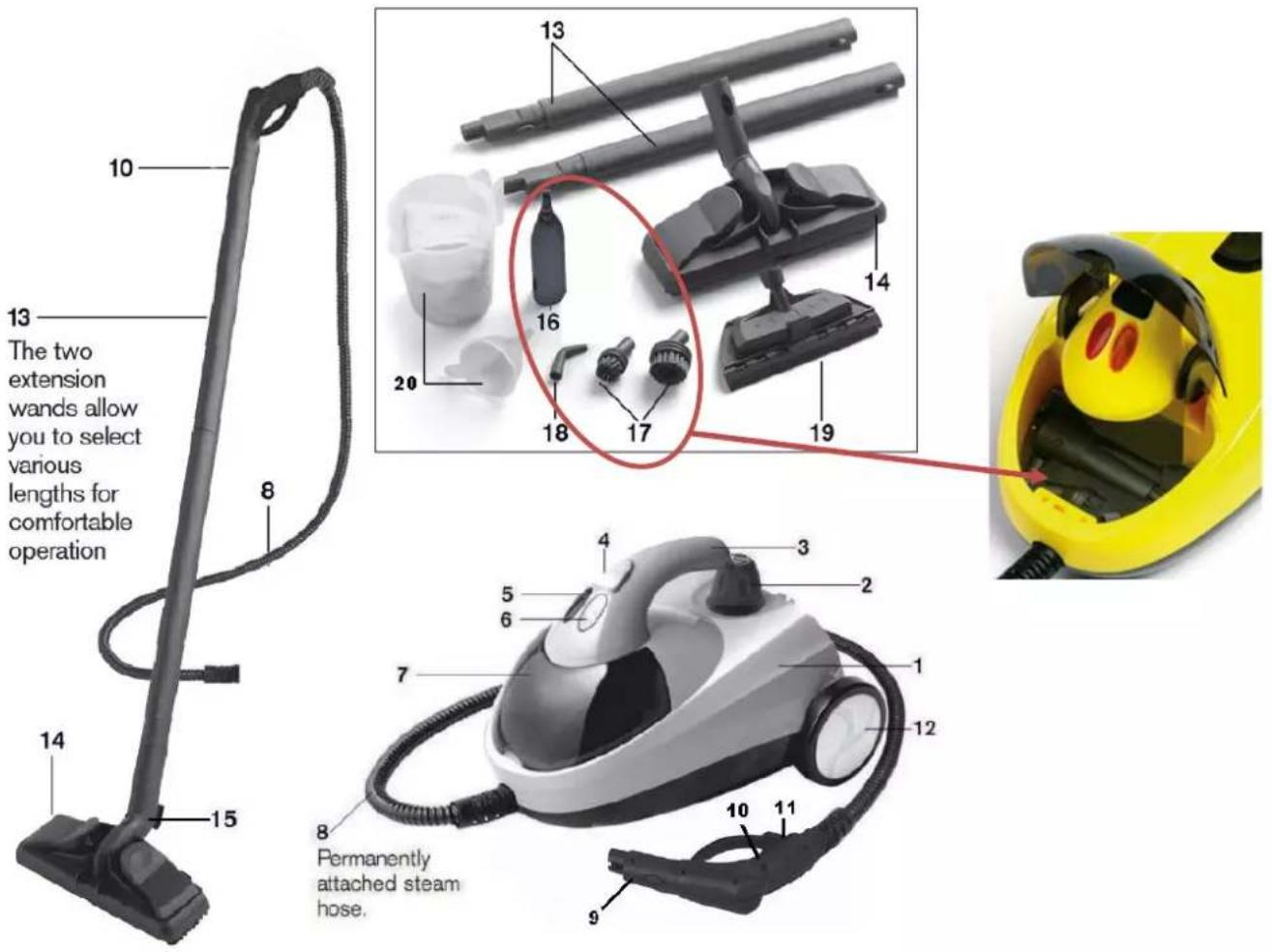

MACHINE ACCESSORIES / DESCRIPTION

10 13 The two extension wands allow you to select various lengths for comfortable operation 8 20 16 14 18 17 19 14 15 4 3 2 5 6 7 1 12 10 11 8 Permanently attached steam hose. 9

1. Water tank
2. Red safety button
3. Pressure cap
4. Wheels
5. Carry handle
6. Snap on extension wands
7. ON / OFF switch
8. Floor brush
9. Operating indicator
10. Floor angled detail tool
11. Steam indicator switch
12. Adaptors for accessories
13. Accessories store
14. Multi-purpose round brushes
15. Fixed steam hose
16. High pressure nozzle
17. Steam gun
18. Squeegee head
19. Steam trigger
20. Graduated funnel and cleaning cloth

Technical data : Mains supply : 230V-50Hz, Power : 1500W, Tank capacity : 1.5 liters.

USING FOR THE FIRST TIME

- Make sure the machine is unplugged from the mains. - Unscrew the safety cap (2) by pushing down and turning anti clockwise. - Using the graduated funnel (15) fill the machine with up to 1500 ml of water. This should be sufficient to steam clean for approximately one hour.

- Once full, replace the safety cap by turning clockwise and fasten tightly.

- Attach the accessory on floor cleaning tool when you require to the machine.

- Now plug the machine into the mains and switch on. Two lights should illuminate. The red light (5) is a power indicator. The orange light (6) indicates that the machine is building up steam pressure. When the machine is first turned on this light will illuminate and the machine can take up to 12 minutes to reach the correct pressure level depending on the amount of water in the tank.

- Once the orange light has gone out the machine is ready to use. The orange light may come back on when the machine is in use. If this happens, release the safety trigger and allow the steam pressure to build up once again. This should take no longer than 40 seconds. If the safety trigger is pressed when the orange light is on hot water may come out of the machine.

Close-up of a white electronic device with two circular buttons and a finger inserted (no visible text or symbols)

Close-up of hands holding a black cylindrical object with a white triangular symbol on the top (no text or symbols visible)

Person pouring liquid from a bottle into a dark container (no visible text or symbols)

REFILLING THE WATER TANK

• Switch the machine off using the on/off button(4)
• Disconnect the power cable from the mains. Wait 5 minutes before
• squeezing the safety trigger to make sure that the machine is no longer under pressure before unscrewing the safety cap. DO NOT unscrew the safety cap until the steam has stopped.
  ● Fill the water tank as necessary using the funnel provided.
• DO NOT exceed 1500ml of water before replacing the safety cap by turning clockwise. Fasten cap tightly.
  ● You are now ready to switch the machine on and resume steam cleaning.

IF YOU LIVE IN A HARD WATER AREA, IT IS BEST TO USE DISTILLED WATER (THIS PREVENTS INTERNAL LIME SCALE THAT MAY DAMAGE THE STEAM SYSTEM)

Warning ! This cap gets hot in use; handle with care.

CLEANING FLOORS

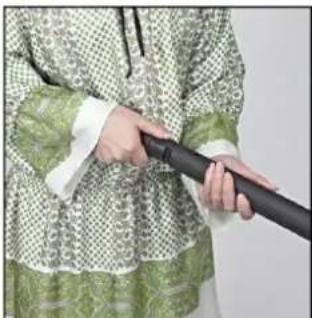

Attach the floor brush to the extension wands, which snap together. Then attach the extension wand to the steam gun. Do ensure the extension wands are firmly connected. Before cleaning always remove dust from the surface you wish to clean. To release the extension wands press the button on the hose connection.

Cleaning floors & carpets with the cleaning cloth.

While the machine is switched off attach the cleaning cloth to the floor brush via the spring loaded clips, make sure the edges of the cleaning cloth are secure. DO NOT attempt to do this while the machine is still hot. Never remove the cleaning cloth whilst the safety trigger is released or the machine is warm to the touch.

Warning - risk of injury!

Person in traditional green patterned robe holding a black cylindrical object (no visible text or symbols)

Person holding a black handheld device with a connector, wearing patterned clothing (no visible text or symbols)

Hand cleaning a white broom with black cloth (no text or symbols visible)

FITTING THE ACCESSORIES

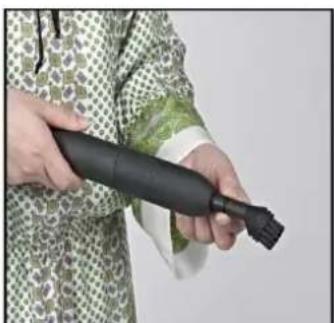

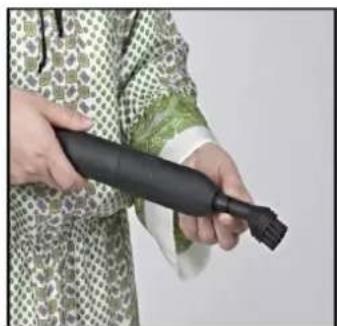

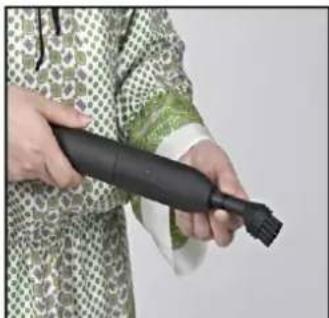

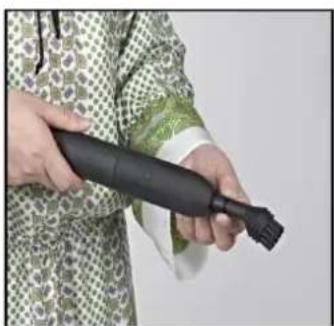

The accessories may be fitted to the steam gun(9) using one or both adaptors 16a and 16b. When using the round brushes or high-pressure nozzle, Squeegee head ,adaptors 16a and 16b are both required.

CLEANING AND MAINTENANCE

Cleaning and maintenance operations should be carried out with the appliance disconnected from the power supply.

The machine should be allowed to completely cool down before it is stored away or cleaned.

Clean the machine and its accessories with a slightly damp cloth only. Never use a cleaning product or detergent. To ensure that your machine operates correctly over a long period, rinse out the water tank once a month to remove lime-scale deposits. Never use vinegar or a lime-scale remover.

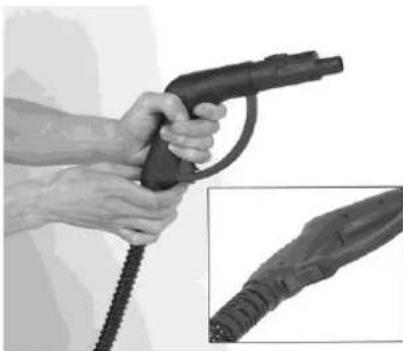

SWITCHING ON THE APPLIANCE

Before switching on the appliance, check that the mains voltage that you want to use is suitable for the appliance. The information you need for this is shown on the identification plate. (230V\~50Hz).

Close-up of hands holding a black electric shock absorber with a cable, alongside an inset close-up of the cable (no text or symbols visible)

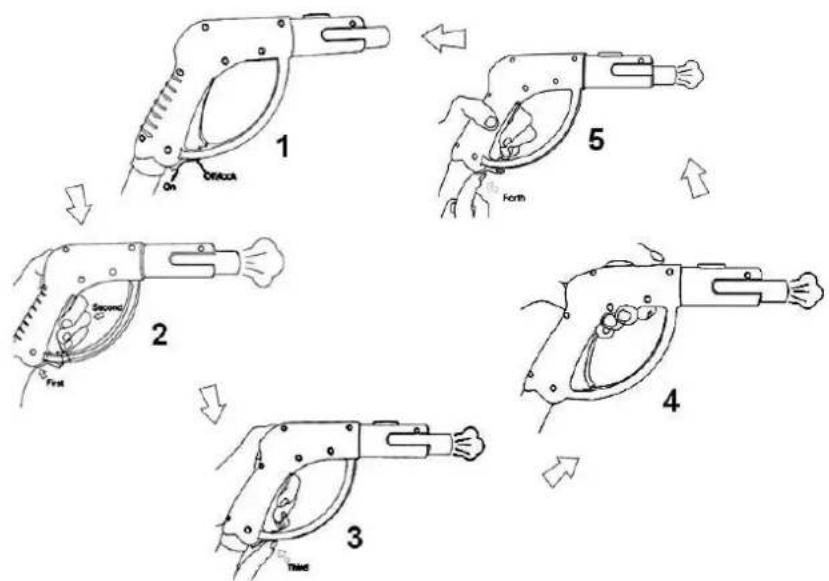

HOW TO USE THE STEAM GUN

First : Know your steam gun.

You will find the Steam trigger & red safety button on steam gun.

You will notice that the safety button is writing "off/lock, on". (Picture 1)

Second : Using

a) Spraying steam

When the steam cleaner is running and you want to clean:

First, press the red safety button to the "ON" position. After that, press the steam trigger. Steam will come out. Simply press the steam trigger when you want to clean everywhere. (Picture 2)

b) Spraying continuous steam jet

If you want continuous steam, do not stay pulled the trigger. Press the trigger and put the safety button to the "Off / Lock" position. The steam will continuously.

C) Stop

After cleaning, it is preferable to stop the steam gun. If you're clean as Picture 4 and you want to stop, just put the safety button to "ON". The steam will stop out of the gun. After that, replace the safety button to the "off / lock" position to lock. (Picture 5-1)


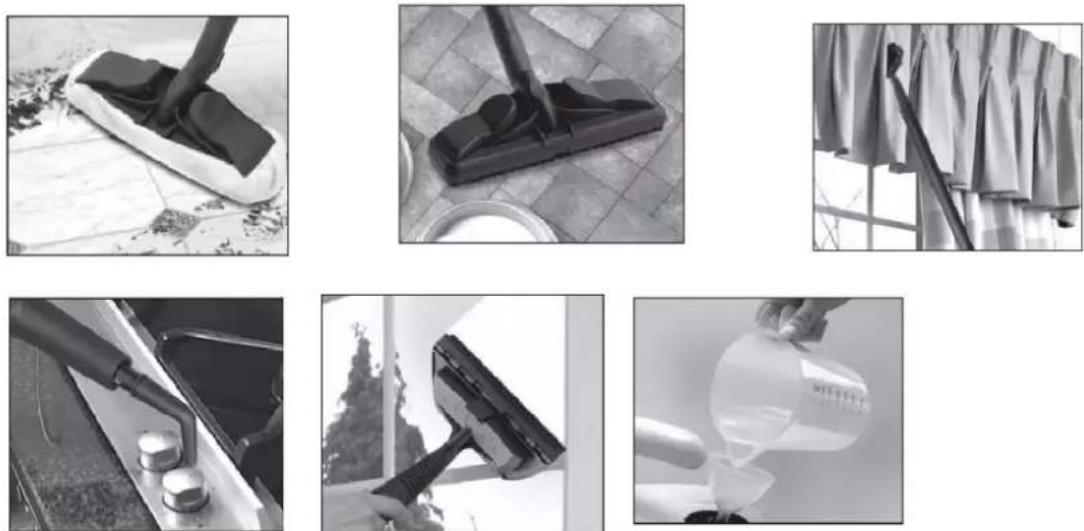

ACCESSORIES

The supplied accessories allow you to use the power of steam to blow the grease, dirt, mold, scum, kill mites, fleas and harmful germs, all with a minimum of effort in places difficult to reach - all without the use of chemicals.

Cleaning Cloth (15)

Machine washable when it becomes dirty. Adapts easily to the floor brush by spring clips. The fabric is designed to lift, trap and absorb dirt cleaning sensitive surfaces, leaving surfaces clean and disinfected.

Floor Brush (14)

The floor brush flock together using the orientation of the brush.

Use with extensions for floor and carpet cleaning. It has spring clips to hold the cleaning cloth. Her hair loose dirt and open fibers allow the steam to penetrate.

Extension wands (13)

Two extensions allow you to have different lengths for comfortable use, reducing the need to bend you while allowing you to reach high places. The wand and the accessory component locking system allows operation without leakage.

Round Brushes (17)

Indispensable for cleaning small hard to reach areas. Use to clean the ceramic grills or accessories bathroom. These small round brushes are scalable to the end of the gun handle (9), using both adapters 16a and 16b.

Squeegee (19)

Use the scraper on the mirrors, windows or other smooth surfaces. Steam took off the dirt from the surface and the rubber blade scrape it. Attach the squeegee directly on the gun with both adapters 16a and 16b.

High Pressure Nozzle (18)

Allows a flow of high pressure steam. Connects directly to the steam gun by using adapters 16a et16b.

Graduated funnel (15)

Use the graduated funnel to ensure you fill the machine with the right amounts of water. The funnel allows to not make a mess when filling the tank!

WARNING!

Read the safety instructions!

DO NOT use the machine without water in the tank.

NEVER use the machine without the safety plug screwed in tightly.

CAUTION!

Cleaning Fabrics:

A number of materials and fabrics are not suitable to be steam cleaned for example: Do not use on leather, wax polished, synthetic fabrics, velvet, Dralon or other sensitive vapor materials.

Cleaning Glass/Mirrors:

Thermal shock can break the glass. Before cleaning glass surfaces, carefully warm the surface by directing the steam on the glass from a distance of at least 6 or 15 cm.

CAUTION!

We recommend :

To test the product on an inconspicuous area before cleaning for color stability and tissue sensitivity. If the color or appearance is affected, do not clean with steam.

CAUTION!

Do not used by physically or mentally disabled or intellectually disadvantaged or the lack of experience person (including the children). Unless they were responsible for the safety of their people to give adequate care and guidance on how to use this machine.

CAUTION!

Do not clean the pool if there is still water in it.

Water comes out of the nozzle

The Steam Cleaner develops a massive amount of steam. This may condense as water or water droplets in the steam hose and tools and nozzle, which are then expelled when used after a period of cooling. This

is normal and not a cause for concern.

No steam comes out

Check in case the hose has become kinked or blocked, or if you are short of water in the tank.

I can't get the pressure cap off

Make sure that you have wholly de-pressurized the boiler See the section REFILLING WITH WATER IN USE.

Steam flow is erratic; sometimes it works really well, sometimes not so good

If you have not used pure water, you may have a small blockage inside your Steam Cleaner.

I have hard water and use boiled water from the kettle, or water that I left in the boiler, now my Steam Cleaner doesn't work well at all.

Actually, you have made matters worse because boiled water concentrates the minerals that form lime scale rather than boiling them away. Water left in the boiler will go off and may create a reaction with the boiler and/or the steam hose. So, ALWAYS empty the machine after use and NEVER use boiled water.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?". This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (*).
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Français

Close-up of a white electronic device with a finger pressing a button, showing two circular components (no text or symbols visible)

Close-up of hands holding a black cylindrical object with a white triangular symbol on top (no text or symbols visible)

Person pouring liquid into a container with a black hole (no visible text or symbols)

REMLISSAGE DU RESERVOIR D'EAU

Person in traditional green patterned robe holding a black object (no visible text or symbols)

Person holding a black handheld device with a small connector, wearing a patterned garment (no visible text or symbols)

Close-up of a hand using a black broom to clean or store items (no text or symbols visible)

MONTAGE DES ACCESSOIRES

Close-up of hands holding a black electric shock absorber with cable, alongside a close-up of its textured grip (no text or symbols visible)

MISE EN MARCHE DE L'APPAREIL

CONDITIONS DE GARANTIE

Close-up of a white electronic device with a finger pressing a button (no visible text or symbols)

Close-up of a hand pressing down on a black cylindrical object with a white triangular symbol (no text or numbers visible)

Close-up of a person pouring liquid from a plastic bag into a dark container (no visible text or symbols)

WASSERTANK FÜLLEN

Person in patterned robe holding a black cylindrical object (no visible text or symbols)

Person holding a black cylindrical object, wearing patterned clothing (no visible text or symbols)

Hand cleaning a broom with black cloth (no text or symbols visible)

MONTAGEZUBEHÖR

Close-up of a hand holding a black spray gun with coiled hose, alongside a close-up of its cable (no text or symbols visible)

MIT DER DAMPFPISTOLE

1: Dampfpistole

Close-up of a white electronic device with a finger pressing a button and two circular ovals on its surface (no text or symbols visible)

Close-up of hands holding a black cylindrical object with a triangular symbol on top (no text or symbols visible)

Close-up of a microscope tip dispensing liquid into a dark circular sample (no visible text or symbols)

VULLEN VAN DE WATERTANK

Person in patterned green and white garment holding a black cylindrical object (no visible text or symbols)

Person holding a black cylindrical object with a small protrusion, wearing patterned clothing (no visible text or symbols)

Hand cleaning a white cloth with a black cloth, no text or symbols visible

MONTEREN VAN DE ACCESSOIRES

Close-up of hands holding a black spray gun with a coiled hose, alongside an inset image of a damaged cable (no text or symbols visible)

HOE HET STOOMPISTOOL TE GEBRUIKEN

1 : Leer je stoompistool kennen.

Close-up of a hand using a black glove to clean or store floor tiles (no text or symbols visible)

Close-up of a vacuum cleaner cleaning tiled floor with a white bowl nearby (no text or symbols visible)

Black and white photo of draped curtains with a diagonal pole against a window frame (no text or symbols visible)

Close-up of a mechanical component with a black tool inserted, showing a bolt and nut assembly (no visible text or symbols)

Close-up of a hand cleaning a wall-mounted tool, no visible text or symbols

Close-up of a person pouring liquid from a glass bottle (no visible text or symbols)

Waarschuwing!

Close-up of a white surface with two dark oval indentations and a finger inserted into a square button (no text or symbols visible)

Close-up of a hand pressing down on a black cylindrical object with a triangular logo (no visible text or symbols)

Person pouring liquid into a white cylindrical container with dark contents (no visible text or symbols)

Three-panel image showing a person in a patterned outfit, holding a black vacuum tube, and handling a cloth or bag (no text or symbols visible)

MONTAJE DE LOS ACCESORIOS

Close-up of a hand holding a black spray gun with a coiled hose, alongside an inset close-up of the cable (no text or symbols visible)

COMO USAR LA PISTOLA DE VAPOR

1: Pistola de vapor

Close-up of a hand using a cleaning tool to clean or store floor tiles (no visible text or symbols)

Close-up of a vacuum cleaner sweeping tiled floor (no text or symbols visible)

Black and white photo of draped curtains with a diagonal pole against a window frame (no text or symbols visible)

Close-up of a mechanical component with a pipe and two circular components (no visible text or symbols)

Close-up of a hand holding a black textured object against a window frame (no visible text or symbols)

Close-up of a person holding a transparent bottle with a small object inside (no visible text or symbols)

Advertencia!

Close-up of a white electronic device with a finger pressing a button, showing two circular buttons (no text or symbols visible)

Close-up of hands holding a black conical object with a white triangular symbol on top (no text or symbols visible)

Close-up of a hand pouring liquid into a white container with black contents (no visible text or symbols)

Person in patterned green and white garment holding a black cylindrical object (no visible text or symbols)

Person holding a black cylindrical object with a small protrusion, wearing patterned clothing (no visible text or symbols)

Hand cleaning a white broom with a black cloth (no text or symbols visible)

ASSEMBLAGGIO DEGLI ACCESSORI

Close-up of hands holding a black electric shock absorber with a cable, alongside an inset close-up of its textured material (no text or symbols visible)

ACCENSIONE DELL'APPARECCHIO

Imbuto graduato (15)
