USER MANUAL FX-EK700 Fuxtec

TRAGEN SIE HANDSCHUHE.

Your new device has been developed and designed to meet FUXTEC's high standards, such as easy operation and user safety. Properly treated, this device will serve you well for years to come.

WARNING: To reduce the risk of injury, the user must read and understand

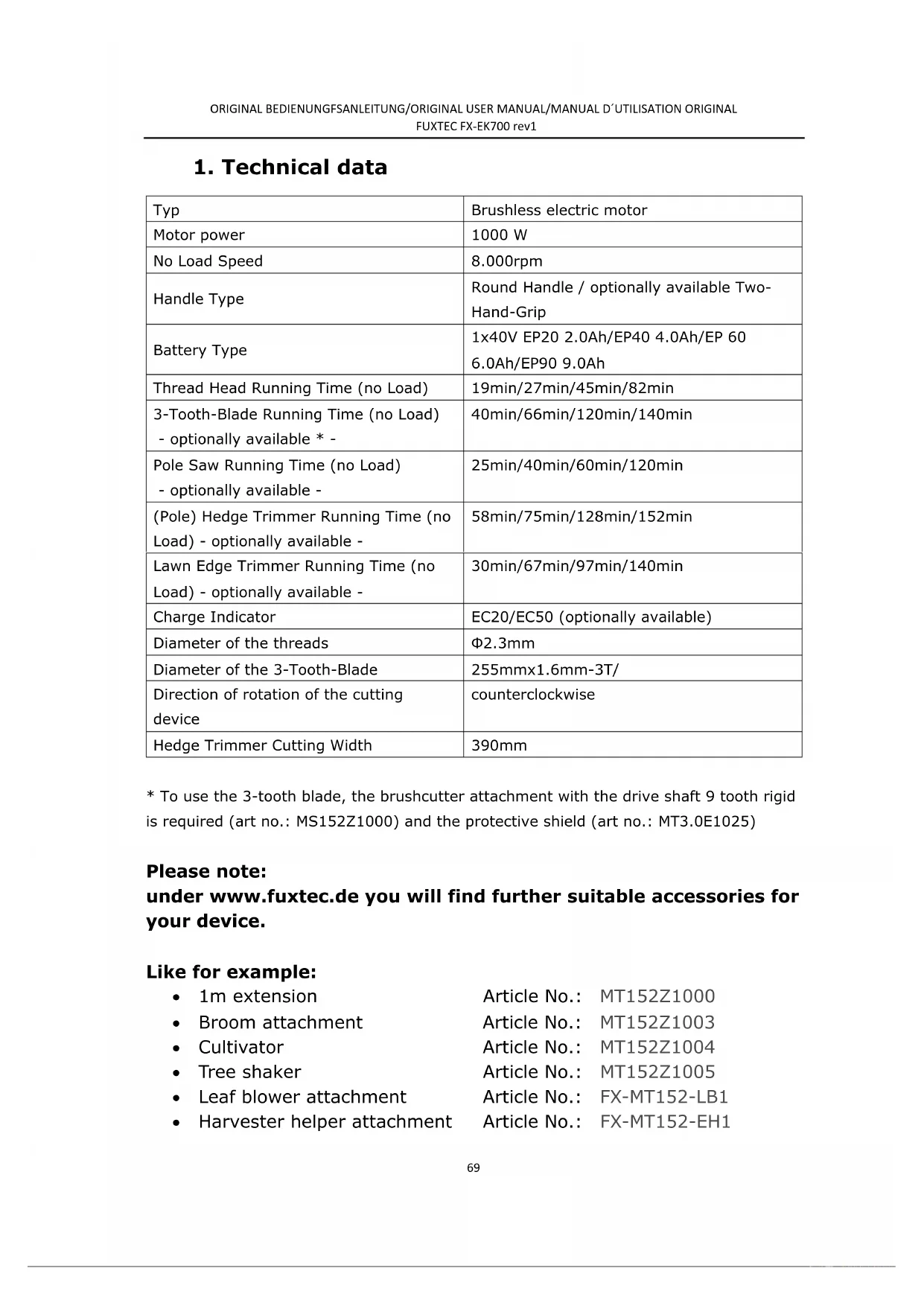

• To use the 3-tooth blade, the brushcutter attachment with the drive shaft 9 tooth rigid is required (art no.: MS152Z1000) and the protective shield (art no.: MT3.0E1025) Please note: under www.fuxtec.de you will find further suitable accessories for your device. Like for example:

• 1m extension Article No.: MT152Z1000

• Broom attachment Article No.: MT152Z1003

• Leaf blower attachment Article No.: FX-MT152-LB1

2. Introduction and safety

Thank you for purchasing the product of our company. The present manual explains how to handle it well. Before using it, please read this instruction manual carefully, operate the machine correctly and engage in your task with safety. Specifications, descriptions and illustrative material in this manual are as accurate as known at the time of publication, but are subject to change without notice. Illustrations may include optional equipment and accessories, and may not include all standard equipment. Intended use The machine is intended to trim garden area. This machine may not be used to do other thing out of the described safety warnings. For safety reasons it is essential to read the entire instruction manual before first operation and to observe all the instructions therein. This product is intended for private domestic use only, not for any commercial use. It must not be used for any purposes other than those described. Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

1. Health defects resulting from vibration emission if the product is being used

over long periods of time or not adequately managed and properly maintained.

2. Injuries and damage to property due to broken attachments or the sudden

impact of hidden objects during use.

3. Danger of injury and property damage caused by flying objects.

4. Prolonged use of this product expose the operator to vibrations and may

produce ‘whitefinger’ disease. In order to reduce the risk, please wear gloves and keep your hands warm. If any of the ‘whitefinger’ symptoms appear, seek medical advice immediately. ‘Whitefinger’ symptoms include: numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour orORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

condition. These symptoms normally appear in the fingers, hands or wrists. The risk increases at low temperatures. WARNING! This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

2.1 Safety and warning

On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarize yourself with them to reduce hazards like personal injuries and damage to property. Warnings

ALWAYS WEAR EYE PROTECTION, EAR PROTECTION AND MOUTH PROTECTION.

WEAR FOOT PROTECTION.

WARNING! FLAMMABLE MATERIALS!

ALWAYS KEEP 15 METERS AWAY FROM OTHER PEOPLE DISTANCE!

NI DO NOT SMOKE AND AVOID OPEN FLAMES NEXT TO THE DEVICE Additional warnings for the hedge trimmer attachment:

ALWAYS WEAR HEARING PROTECTION! Additional warnings for the pole saw attachment

ALWAYS KEEP A MINIMUM DISTANCE OF 10M BETWEEN THE UNIT AND HIGH VOLTAGE LINES!

STOPPED BEFORE CLEANING, REMOVING OR ADJUSTING

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

2.3 Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2.4 Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

2.6 Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the powertool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

2.7 Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contactsORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained

2.9 Lawn Trimmer Safety Warnings

• Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.

• Never operate the machine while people, especially children, or pets are nearby.

• Inspect the entire machine for loose parts (nuts, bolts, screws, etc.) and any damage before start and operation. Repair or replace as necessary before using the machine.

• Never replace the non-metallic cutting means with metallic cutting means.

• Do not overreach and to keep the balance at all times. Always be sure of the footing on slopes. Walk when operating the power tool, never run.

• Do not touch moving hazardous parts before the battery pack is removed and the moving hazardous parts have come to a complete stop.

• Always wear eye and ear protection. Wear protective mask if necessary. Dress properly, do not wear loose clothing or jewelry that could become caught in moving parts of the unit. Safe, sturdy, nonskid footwear should always be worn. Long hair should be tied back. It is recommended that legs and feet should be covered to protect from flying debris during operation.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

• Do not use the extended-reach hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

• To reduce the risk of electrocution, never use near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death.

• Always use two hands when operating the extended-reach hedge trimmer. Hold the extended-reach hedge trimmer with both hands to avoid loss of control.

• Always use head protection when operating the extended-reach hedge trimmer overhead. Falling debris can result in serious personal injury.

2.11 Pole Pruner safety warnings

• Avoid dangerous environments - do not use appliances in damp or wet locations.

• Keep children away - all people and pets should be kept at a distance from the work area.

• Dress properly - do not wear loose clothing or jewelry. They can be caught in moving parts. Wear protective clothing; use of work gloves, long pants, a long sleeved shirt and safety footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.

• Use safety glasses - always use face or dust mask if the area in which you are working is dusty.

• Use right appliance - do not use appliance for any job except that for which it is intended.

• Do not force appliance - it will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

• Do not overreach - keep proper footing and balance at all times.

• Store Idle Appliance Indoor - when not in use, appliances should be stored indoors in dry places out of reach of children.

• Maintain appliance with care. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease.

Remove the battery pack:

1. whenever the machine is left by the user;

2. before clearing a blockage;

3. before checking, cleaning or working on the machine;

4. after striking a foreign object to inspect the machine for damage;

5. if the machine starts to vibrate abnormally, for immediately check.

• Never operate the machine with defective guards or shields, or without safety device.

• Do not using the machine in bad weather conditions especially when there is a risk of lightning.

• Inspect the area to be cut and remove all debris that could become entangled in the nylon cutting head. Also remove any objects that the unit may throw during cutting.

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130 °C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

• “WARNING – Do not operate near electrical power lines. The unit has not been designed to provide protection from electric shock in the event of contact with overhead electric lines, consult local regulations for safe distances from overhead electric power lines and ensure that the operating position is safe and secure before operating the saw chain pole pruner.”

• Keep all parts of the body away from the saw chain. Make sure the switch is off when clearing jammed material. Saw chain continues to move after the switch is turned off. A moment of inattention while operating the extended- reach pruner may result in serious personal injury.

• Carry the extended-reach pruner by the handle with the saw chain stopped. When transporting or storing the extended-reach pruner, always fit the saw chain device cover. Proper handling of the extended-reach pruner will reduce possible personal injury from the saw chain.

• Hold the extended-reach pruner by insulated gripping surfaces only, because the saw chain may contact hidden wiring or its own cord. A saw chain contacting a “live” wire may make exposed metal parts of the extended-reach pruner “live” and could give the operator an electric shock.

• Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the saw chain.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

• Do not use the extended-reach pruner in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

• To reduce the risk of electrocution, never use near any electrical power lines. Contact with or use near power lines may cause serious injury or electric shock resulting in death. with both hands to avoid loss of control.

• Always use head protection when operating the extended-reach pruner overhead. Falling debris can result in serious personal injury.

2.12 Brush cutter safety warnings

• Avoid dangerous environments - do not use appliances in damp or wet locations.

• Keep children away - all people and pets should be kept at a distance from the work area.

• Dress properly - do not wear loose clothing or jewelry. They can be caught in moving parts. Wear protective clothing; use of work gloves, long pants, a long-sleeve shirt and safety footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.

• Use safety glasses, objects may be thrown out. Serious eye injuries may result.

• Always use face or dust mask if the area in which you are working is dusty.

• Use right appliance - do not use appliance for any job except that for which it is intended.

• Do not force appliance - it will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

• Do not overreach - keep proper footing and balance at all times.

• Stay alert. Use common sense. Do not operate appliance when you are tired or under the influence of drugs, alcohol or medication.

• Maintain appliance with care. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease.

• Check damaged parts. Before using the appliance, make sure the safety guards are intact. Never use a tool without its safety guard. Check the alignment of the moving parts, the binding of the moving parts.

• Check for broken or defective parts that can affect the safe operation of your tool. A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless indicated elsewhere in this manual.

• Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication.

• Always wear heavy, long pants, boots, gloves, and a long-sleeve shirt. Do not wear loose clothing, jewelry, short pants, sandals, or go barefoot. Secure hair so it is above shoulder level.

• Inspect unit before each use. Replace damaged parts. Make sure all fasteners are in place and secure. Replace cutting attachment parts that are cracked, chipped, or damaged in any way. Make sure the cutting attachment is properly installed and securely fastened. Be sure the cutting attachment shield is properly attached and in the position which is recommended by the manufacturer.

• Keep firm footing and balance. Do not over-reach. Keep cutting attachment below waist level. Keep all parts of your body away from the rotating cutting attachment.

• Clear the area to be cut before each use. Remove all objects such as rocks, broken glass, nails, wire, or string, which can be thrown or become entangled in the cutting attachment. Clear the area of children, bystanders and pets. At a minimum, keep all children, bystanders and pets outside a 15 m (50 ft) radius; outside the 15 m (50 ft) zone, there is still a risk of injury from thrown objects. Bystanders should be encouraged to wear eye protection.

• If you are approached, stop the engine and cutting attachment. In the case of bladed units, there is the added risk of injury to bystanders from being struck with the moving blade in the event of a blade thrust.

• When the unit is turned off, make sure the cutting attachment has stopped before servicing, cleaning or removing material from the gardening appliance and before the unit is set down.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130 °C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

• Check damaged parts. Before using the appliance, make sure the safety guards are intact. Never use a tool without its safety guard. Check the alignment of the moving parts, the binding of the moving parts.

• Check for broken or defective parts that can affect the safe operation of your tool. A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless indicated elsewhere in this manual.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. Additional Requirements for Brushcutters

• Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut.

• Blade thrust can be violent enough to cause the unit and/or operator to be propelled in any direction, and possibly lose control of the unit.

• Blade thrust can occur without warning if the blade snags, stalls or binds.

• Blade thrust is more likely to occur in areas where it is difficult to see the material being cut.

• The handles shall be mounted in accordance with the manufacturer’s instructions. Do not attach any blade to a unit without proper installation of all required parts. Failure to use the proper parts can cause the blade to fly off and seriously injure the operator and/or bystanders. Discard blades that are bent, warped, cracked, broken, or damaged in any way. Use a sharp blade. A dull blade is more likely to snag and thrust.

• A coasting blade can cause injury while it continues to spin after the appliance is stopped or throttle trigger is released. Maintain proper control until the blade has completely stopped rotating.

2.13 Safety Warnings for battery pack

a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Seek medical advice immediately if a cell or battery pack has been swallowed. g) Keep battery pack clean and dry. h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

i) Battery pack needs to be charged before use. Always refer to this instruction

and use the correct charging procedure. j) Do not maintain battery pack on charge when not in use. k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. l) Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C). m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

n) Recharge only with the charger specified by Sunseeker. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. o) Do not use any battery pack which is not designed for use with the equipment. p) Keep battery pack out of the reach of children. q) Retain the original product literature for future reference. r) Remove the battery from the equipment when not in use. s) Dispose of properly.

Additional safety instructions for your Battery Charger

1. Before charging, read the instructions.

2. Do not charge a leaking battery.

3. Do not use chargers for works other than those for which they are designed.

4. Before charging, ensure your charger is matching the local AC supply.

5. For indoor use, or do not expose to rain.

6. The charging device must be protected from moisture.

7. Do not use the charging device in the open.

8. Do not short out the contacts of battery or charger.

9. Respect the polarity “+/-” when charging.

10. Do not open the unit and keep out of the reach of children.

11. Do not charge the batteries of other manufactures or ill-suited models.

12. Ensure that the connection between the battery charger and battery is

correctly positioned and is not obstructed by foreign bodies.

13. Keep battery charger’s slots are free of foreign objects and protect against

dirt and humidity. Store in a dry and frost-free place.

14. When charging batteries, ensure that the battery charger is in a well -

15. Ensure that batteries and chargers are not left unsupervised during

16. Do not recharge non-rechargeable batteries, as they can overheat and

17. Longer life and better performance can be obtained if the battery pack is

charged when the air temperature is between 18

. Do not charge the battery pack in air temperatures below 4

. This is important as it can prevent serious damage to the battery pack.

18. Charge only battery pack of the same model provided by Zhejiang

Sunseeker Industrial Co.,Ltd and of models recommended Zhejiang Sunseeker Industrial Co.,Ltd.

2.14 Battery pack safety warnings

• Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on can cause accidents.

• Use only original battery packs intended specifically for this machine. Use of any other battery packs may create a risk of injury and fire.

• Do not open the battery. Danger of short-circuiting.

• Protect the battery against heat (e. g., against continuous intense sunlight and fire) water and moisture. Danger of explosion.

• In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.

• Use the battery pack only in conjunction with this product and/or product family. This measure alone protects the battery against dangerous overload.

• The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

• Do not short-circuit the battery. There is danger of explosion.

• Store and use the battery only within a temperature range between –20 °C and 50 °C. As an example, do not leave the battery in the car in summer.

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

a) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents. b) Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. Note: This warning is not applicable for batteries that cannot be disconnected from the appliance in normal use. c) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. d) Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. e) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. f) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. (This advice is considered correct for conventional NiMh, NiCd, lead acid and lithium-ion cell types. If this advice is incorrect for a cell design that differs from these, then the correct advice may be substituted.)ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

g) Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. h) Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion. The temperature of 130°C can be replaced by the temperature of 265°F.

i) Follow all charging instructions and do not charge the battery pack or

appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. j) Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. k) Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

2.15 The instruction manual shall contain the following

information: a) Instructions regarding battery charging, information regarding ambient temperature range for appliance and battery use and storage, and the recommended ambient temperature range for charging system during charging. b) For a battery-operated appliance intended for use with a detachable battery pack or a separable battery pack: instructions indicating the appropriate battery packs for use, such as by a catalog number, series identification or the equivalent. c) Instructions indicating the appropriate charger(s) for use, such as by a catalog number, series identification or the equivalent. d) For an appliance provided with a quick release system for a battery harness as required in Clause 16.6, instructions regarding the operation of the quick release system.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

Battery charger safety warnings Read all safety warnings and instructions before using the charger. Only for indoor use!

• This appliance is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.

• Only charge the Lithium-Ion battery pack with a capacity of 2.0/4.0/6.0/9.0Ah (EP20/EP40/EP60/EP90 Lithium-Ion battery cells) as mentioned in this instruction manual. Do not charge non-rechargeable batteries.

• The battery and charger must be placed in a well ventilated area.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not operate the battery charger on easily inflammable surfaces (e. g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.

• Do not cover the ventilation slots of the battery charger. Otherwise, the battery charger can overheat and no longer operate properly.

2.16 Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimize the vibration and noise exposure risks: 1. Only use the product as intended by its design and these instructions.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

2. Ensure that the product is in good condition and well maintained.

3. Use correct attachments for the product and ensure they are in good

4. Keep tight grip on the handles/gripping surface.

5. Maintain this product in accordance with these instructions and keep it well

lubricated (where appropriate).

6. Plan your work schedule to spread any high vibration tool use across a longer

7. Prolonged use of the product exposes the user to vibrations that can cause a

range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g. fingers going white; as well as specific diseases such as carpal tunnel syndrome.

• To reduce this risk when using the product, always wear protective gloves and keep your hands warm.

• The symptoms of HAVS include any combination of the following: Tingling and numbness in the fingers; Not being able to feel things properly; Loss of strength in the hands; Fingers going white (blanching) and becoming red and painful on recovery (particularly in the cold and wet, and probably only in the tips at first). Seek medical advice immediately if such symptoms are experienced.

Familiarize yourself with the use of this product by means of this instruction manual. Memorize the safety directions and follow them to the letter. This will help to prevent risks and hazards.

1. Always be alert when using this product, so that you can recognize and handle

risks early. Fast intervention can prevent serious injury and damage to property.

2. Switch off the product and remove the battery pack if there are malfunctions.

1. Check the product as well as accessories for damage before each use. Do not

use the product if it is damaged or shows wear.

2. Double check that all parts are properly fixed.

3. Always hold the product on its handles. Keep the handles dry and free from

lubricant to ensure safe holding.

4. Ensure that the air vents are always unobstructed and clear. Clean them if

necessary with a soft brush. Blocked air vents may lead to overheating and damage the product.

5. Switch the product off immediately if you are disturbed while working by other

people entering the working area. Always let the product come to complete stop before putting it down.

6. Do not overwork yourself. Take regular breaks to ensure you can concentrate

on the work and have full control over the product. WARNING! In some countries regulations define at what time of the day and on what special days products are allowed to be used and what restrictions apply! Ask your community for detailed information and observe the regulations in order to preserve a peaceful neighborhood and avoid committing administrative offences.

MAINTENANCE AND CARE

Remove and pulling out the battery pack before assembly! Wear protective gloves! Maintain this product regularly and carefully! If the product is improperly maintained, it may fail at its intended task, which may produce fatal consequences.

1. Keep the product clean. Remove debris from it after each use and before

2. Regular and proper cleaning will help ensure safe use and prolong the life of

3. Inspect the product before each use for worn and damaged parts. Do not

operate it if you find broken and worn parts. WARNING! Only perform repairs and maintenance work according to these instructions! All further works must be performed by a qualified specialist! GENERAL CLEANING

1. Clean the product with a dry cloth and mild soap. Use a brush for areas that

2. In particular clean the air vents after every use with a cloth and brush.

3. Remove stubborn dirt with high pressure air (max. 3 bar).

NOTE: Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

4. Check for any damage and wear. Repair damages in accordance with this

instruction manual or take it to an authorised service centre or a similarly qualified person before using the product again.

MAINTENANCE OF BATTERY PACK

1. If the battery is empty and the product is switched off automatically, do not

continue to press the ON/OFF switch.

2. Charging the battery only after the battery pack is cooled down.

3. Charging the battery completely if the product will not be used for long time.

4. Charging the battery at least every 3 months to maintain the optimal capacity.

REPLACEMENT PARTS Use only original FUXTEC replacement parts, accessories and attachments. Failure to do so can cause poor performance, possible injury and may void your warranty. Never use the device without the guard assembled!ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

Have all parts ready and a hex key. Mount rubber wedge - with the recess facing forward. Fit the plastic handle (right hand side or left handside) - used for brush cutting. Fit the plastic handle and make it fit the rubber groove Tighten all nuts with a hex key. Make sure position is correct.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

6. Installation of battery

Press the battery pack fully into the power tool until it is locked by the unlocking button (“Click”). Maintenance of battery pack

1. If the battery is empty and the product

is switched off automatically, do not continue to press the ON/OFF switch.

2. Charge the battery only after the battery

pack has cooled down.

3. Charge the battery completely if the product

will not be used for a long time.

4. Charge the battery at least every 6 months

to maintain the optimal capacity.

Optional battery range: bought separately

The safety hook is now ready for your work with the device. To disconnect quickly from the device in an emergency, fast pull the safety pin on the red fabric tab upwards.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

The shoulder strap is now separated from the device and you can quickly remove yourself from the device in an emergency!

For your own safety, we recommend that you familiarise yourself with the safety lock by practising several times before the first use oft he device.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

8. Safety lock and start

Switching ON and OFF Hold the device as in working position. To start the machine, first push the lock- off-button for the ON/OFF switch and then press the ON/OFF switch and keep it pressed.To switch off the device, release the ON/OFF switch.

Note: For safety reasons, the ON/OFF switch cannot be locked; it must remain pressed during the entire operation. Safety lock Start / StopORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

Loosen the plastic handle. Find the hole in the tool. Press the handle and make the 2 parts join together. You can turn it a little from side to side to make it slide into position. Lock the safety by releasing the handle After finish, your will hear a click. Please tighten the plastic handle to be ready for work.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

10.1 Installing of protection guard

Centre the 2 arrows on the winding core and the spool box (winding head). Insert the line in the winding core where the arrow signs “line in”. Insert the line through the winding head and make the left and right side the same length. Max trimmer line diameter 2.4 mm. Max 4 meters of trimmer line. Cutting Width 16”/400mm.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

11. Using the hedge trimmer attachment

Transport of the hedge trimmer Warning! Never carry or transport your device with the blades running to avoid the risk of injury. Always carry it in a horizontal position only. Grip the bar so that the device is horizontally balanced. Keep the hot muffler away from your body and the cutting attachment behind you. Always switch off the engine and place the blade guard over the blades before transporting the tool over long distances. When transporting the tool in a vehicle, secure it appropriately to prevent it from tipping over, leaking fuel, and damaging the device. For devices with adjustable bar: Make sure it is in a secure position. Warning! Never operate your tool with only one hand. The resulting loss of control can lead to severe or fatal injuries. Keep hands and feet away from the cutting tool to avoid the risk of injury. Never touch a running cutting tool with any part of your body. Warning! Do not bend forward too far. Always maintain your balance and a secure footing. Special care is required when there is a danger of slipping (wet ground, snow) and challenging, overgrown terrain. Watch out for hidden obstacles such as tree stumps, roots, and puddles to avoid tripping. Remove fallen branches, undergrowth, and cuttings. Be extremely careful when working on sloping or uneven ground. Never work on a ladder, tree branch, or another unsafe surface. Never lift the tool above shoulder height. Warning! The tool blades continue to run for a short time after the throttle lever is released (flywheel effect). The acceleration of the engine while the blades are blocked causes the clutch to slip further. This can lead to overheating and damage to essential components (including clutch, polymer housing component). This, in turn, can lead to a risk of injury due to running blades despite idling adjustment. For devices with adjustable bar: Carefully place the bar in the desired working position. Do not touch the blades to avoid injury. Only make adjustments when the blades areORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

Steel blades for cutting hedges and undergrowth

Protects the cutting bar when the tool is not in use

Converts the rotation of the angular drive into the reciprocating movements of the cutting blades

Holds the cutting bar in the desired position

Transfers the rotary motion of the drive axle to the blade drive

Adjusts the cutting bar to the desired angle

7. Drive axle tube (tree)

Surrounds and protects the drive axle between the coupling sleeve and the gearbox. General Besides the intended use for cutting hedges at height, the hedge trimmer can also be used on the ground. Because its blades work like a mower, it is ideal for cutting undergrowth, thicket, reeds, wild growth, and more durable grass. The hedge trimmer is particularly suitable for busy places such as traffic islands or parks, as the cuttings are not thrown around by the blades. Preparation Always wear the carrying strap. Do not throw the clippings in the waste bin. It can be composted.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

Cutting technique The working posture and method are exactly the same as for the motor scythe. The cutting bar is moved back and forth, just above the ground. Adjusting the cutting angle of the hedge trimmer attachment

Adjust the cutting angle: Release the lock (1), simultaneously pull the two release levers (2) and turn the blade position to the desired angle via the adjusting lever (3). Make sure that the lock (1) is always engaged. Maintenance of the attachment: Top up 20 grams of grease/lubricant every 25 operating hours. Use a grease gun to press the lubricant into the nipples (1).ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

12. Using the branch saw attachment

Transport of the tool Warning! Always carry it in a horizontal position only. Grip the bar so that the device is horizontally balanced. Keep the hot muffler away from your body and the cutting attachment behind you. Unintentional acceleration of the engine can cause the saw-chain to rotate and cause serious injury. Always switch off the engine and slide the rail guard over the cutting attachment before transporting the tool over long distances. When transporting the tool in a vehicle, secure it appropriately to prevent it from tipping over, leaking fuel, and damaging the device. Main components and control elements 1 = Saw chain 2 = Guide rail 3 = Oil tank 4 = Oil tank cover 5 = Drive axle 6 = Sprocket cover 7 = Chain guard 8 = Sprocket wheel 9 = Chain tensioner Explanation

1. Saw chain: A chain of knives, straps and dynamic links

2. Guide rail: Holds and guides the saw chain

3. Oil tank: Oil tank to lubricate the chain

4. Oil tank cap: Seals the oil tank

5. Drive axle: Connecting element between the engine and gearbox

6. Sprocket cover: Covers the sprocket

7. Chainguard (protective cover): Protects the chain while the device is out of service

and during transport and storage.

8. Sprocket: Gearwheel that moves the saw-chain

Before starting Remove the guard from the chain and inspect the chainsaw for proper operating conditions (see maintenance and sharpening of the saw-chain on page 33). Before starting your engine, always check that it is in good condition, especially the throttle, the throttle lock, the stop button, and the tool attachment. The throttle stick must be free to move and always return to the idle position. Never attempt to modify the control or safety devices. Never use a damaged, poorly adjusted or serviced or incompletely and securely mounted device. Always keep the handles clean and dry. It is especially important to protect them from moisture, soot, oils, grease, or resins to ensure safe handling and control of your device. The correct chain tension is fundamental. The tensioning procedure in this manual on page 28f. must be followed to avoid improper tension. Make sure that the hexagonal bolts for the sprocket cover are then tightened firmly. Recheck the chain tension after tightening the bolts. Never start work with an unattached sprocket cover. Adjust the carrying strap and handle it to your size before beginning work. Place the saw on firm ground or another firm surface outside, or as shown in the picture. Maintain a secure footing and balance. Make sure there is nothing near the guide bar and the saw chain to reduce the risk of injury. Attach the tool to the hooks on your harness when the engine is idling (see relevant section). Important notes The correct chain tension is always significant. Check it regularly (every time the chainsaw is switched off). If the chain becomes loose during cutting, turn off the engine to tighten it. Never do this while the engine is running.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

During operation Holding and controlling the tool Always hold the device by the handles with both hands during operation. Close your fingers and thumbs around the handles. Place your left hand on the front handle and your right hand on the rear handle on the throttle. This also applies to left-handed users. Always keep your hands in this position to keep your saw under control. Never try to operate your tool with one hand. Losing control of your device can cause severe or fatal injury. Always keep your balance and a secure footing to maintain control of your chainsaw. Never work on a ladder, tree branch, or another unsafe surface. Never lift the device above shoulder height. Do not bend forward too far. Use a lifting platform to work at the height of more than 4.5 meters. Special care is required when working on slippery surfaces (wet ground, snow) and on steep, overgrown terrain. Watch out for hidden obstacles such as tree stumps, roots, and puddles to avoid tripping. Remove fallen branches, undergrowth, and cuttings. Be extremely careful when working on sloping or uneven ground. Be extremely careful in wet and frosty conditions (rain, snow, ice). Interrupt work in the event of wind, storm, or heavy rain. Operating instructions Warning! Keep hands and feet away from the cutting tool to avoid the risk of injury. Never touch a running cutting tool with any part of your body. The saw-chain continues to run for a short time after you release the throttle stick (inertia). The acceleration of the engine while the blades are blocked causes the clutch to slip. This can lead to overheating and damage to essential components (including clutch, polymer housing component). This, in turn, can lead to a risk of injury due to running blades despite idling adjustment. If the chain is stuck, always switch off the engine before cleaning and make sure that the chain is stationary.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

Make sure that the saw-chain does not come into contact with foreign objects such as stones, fences, nails, etc. These objects could be thrown away and injure the user or bystanders or damage the saw chain. Before cutting, clear the work area of unwanted branches and undergrowth. Then create a retreat area, away from the place where cut branches may fall, and remove all obstacles there. Keep the work area clear, remove the cut branches immediately. Place all other tools and devices at a safe distance from the branches to be cut, but not in the retraction area. Always observe the condition of the tree. Look for rot and decay in the roots and branches. If they are rotten on the inside, they may unexpectedly break off and fall off during pruning. Also, look for broken and dead branches that could be loosened by the shock and fall down on you. If the branches are very thick or heavy, first make a small incision under the branch before working from top to bottom to prevent breakage. To reduce severe or fatal injuries from falling objects, never cut vertically above your body. Hold the chain saw at an angle of no more than 60° from the horizontal (see illustration). Objects may fall in unexpected directions. Never stand directly under the branch you are cutting. Watch out for falling branches! Immediately step aside and keep a sufficient distance from the falling wood as soon as a cut branch begins to break off. Always pull the device out of the cutting gap while the chain is running to prevent the saw from jamming. Do not exert pressure when you reach the end of a sawing operation. This can cause the guide bar and the running saw chain to jump out of the cutting gap uncontrollably, which in turn can hit other objects. If the guide bar is jammed in a branch so that the chain cannot move any further, switch off the saw and carefully move the branch to open the gap and release the bar.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

Mounting the guide bar and saw chain Warning! Adjust the guide bar and chain only when the engine is not running.

1 Loosen the nut and remove the sprocket cover. 2 Turn the tensioning screw (1) clockwise until the tensioning nut (2) stops at the left. The chain is very sharp. Wear work gloves to avoid cutting yourself. 4 Place the chain on the guide bar, starting at the bar/sword tip. 4 Insert the guide bar into the attachment bolt. Insert the pin on the tensioner into the hole (4) and place the chain on the sprocket at the same time. 5 Replace the sprocket cover and tighten the nut by hand. 6 Now turn the tensioning screw (1) clockwise until the chain hangs only minimally on the underside of the rail, and the tang of the chain links is in the running groove of the rail. Tensioning the saw chain Restore tension during the cutting operation:

• Switch off the engine and loosen the nut a little.

• Hold the rail tip upwards.

• Use a screwdriver to tighten the tensioning screw (1) clockwise until the chain is again tight against the bottom of the bar.

• Tighten the nut well again. A new chain must be re-tensioned more often than an older one. Check the chain tension regularly (see section "Operating instructions / During operation")

Checking the chain tension

• Check the chain tension.

• Switch off the engine.

• Wear work gloves to protect your hands.

• The chain must lie close to the bottom of the bar, and at the same time, it must be possible to move the chain along the bar with your hand.

• Retighten the chain if necessary. Lubricating the saw chain For automatic and reliable lubrication of the chain and guide bar, please use only high- quality and environmentally friendly lubricating oil with an adhesive additive. The maintenance requirement depends on lubricating oil quality. It is, therefore, essential to use only designated chain lubricating oil. Top up 20 grams of grease/lubricant every 25 operating hours. If no chain lubricating oil is available, you can use an HD single-grade or multi-grade engine oil with a viscosity appropriate to the outside temperature in an emergency.

Do not use used oil! Medical studies have shown that contact with used oil can lead to skin cancer. Furthermore, waste oil is harmful to the environment! Used oil no longer has the necessary lubricating properties and is unsuitable for lubricating the chain.

Filling oil for the chain

• Check the oil level regularly during work. Never let it run out!

• Clean the tank cap and its surroundings so that no dirt falls into the tank.

• Place the device so that the tank cap is facing upwards. If the oil level in the tank does not drop, there may be a problem in the oil supply: Check the lubrication condition of the chain, clean the oil lines, and contact your dealer ifORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

necessary. Checking the lubrication of the chain The chain saw must always fling a small amount of oil from itself.

• Always check the lubrication of the chain and the oil level in the tank before starting work. Never use your saw without lubricating oil. If the chain dries out, the entire cutting tool will be permanently damaged in a short time. Each new chain must be run in for 2 to 3 minutes. Then check the chain tension and adjust it if necessary (see section "Checking the chain tension"). Using the branch saw attachment Preparation

• Wear suitable protective clothing and equipment - see "Safety Instructions."

• Put on the shoulder strap Do not throw the cuttings into the household waste, they can be composted! Never stand under the branch you are sawing off. Watch out for falling branches and twigs. Be aware that they could hit you after impact.

Cutting procedure Always cut the lower branches first so that they can fall down freely. Cut thick branches in small, controllable portions. Working posture Hold the wrap-around handle with your left hand and with your right hand the throttle handle. Your left arm should be stretched out in one of the most comfortable positions for you. The axle should always be held at an angle of no more than 60°! The most comfortable working position is with the tool at a 60° angle. Still, smaller angles are also possible, depending on the situation. Cross-cutting To avoid jamming the guide rail in the cutting gap, place the tool with the hook against the branch, and then perform the cross- section from top to bottom.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

The relief cut To avoid splintering the bark on thick branches, always start with a relief cut (1) on the lower side of the branch.

• To do this, guide the saw in an arc through the underside of the branch (see illustration).

• Then place the hook against the branch and make the cross-cut (2). Cut thick branches flush If the branch diameter is more than 10 cm, first cut it with relief and cross-section (3) at a distance (A) of about 20 cm from the actual target.

• Then you can cut the branch flush (4) through relief and subsequent cross-section. Cutting over obstacles The long reach allows the cutting of branches and twigs hanging over obstacles such as rivers or ponds. The angle of the tool depends on the position of the branches and twigs. Reactive forces Reactive forces occur during the operation of the saw-chain. The forces that are to be applied to the wood act against the user. They happen when the running chain comes into contact with a solid object such as a branch or is jammed. These forces can lead to a loss of control and injuries as a result. Understanding the origin of these forces can help you avoid the fright and loss of control. This saw is designed so that the kickback effects are not as noticeable as with conventional chainsaws. Nevertheless, always keep a firm grip and an excellent stance to maintain control of the tool in case of doubt. The most common effects are:

• Retreat. Kickback Kickback may occur if the running saw-chain hits or is jammed against a solid object at the upper quarter of the guide bar. The cutting force of the chain exerts a rotational force on the saw in the opposite direction to the chain movement. This results in an upward movement of the guide bar.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

Avoiding kickback The best protection is to avoid situations that lead to setbacks.

4. Always keep an eye on the position of the top guide rail.

5. Never let this point come into contact with an object. Do not cut it. Be especially

careful near wire fences and when cutting small, hard branches where the chain can easily get caught.

6. Only cut one branch at a time.

A = Retraction The retraction (A) occurs when the chain suddenly becomes stuck on the underside of the bar because it is jammed or hits a foreign object in the wood. The chain then pulls the saw forward. The retraction often occurs when the chain does not run at full speed when it comes into contact with the wood. Avoid retraction B = Kickback Be aware of the forces and situations that can cause the chain to jam at the bottom of the bar.

2. Always start cutting with the chain running at full speed.

Recoil (B) occurs when the chain is suddenly stuck on the top of the bar because it is jammed or hits a foreign object in the wood. The chain can then press the saw against the operator with a jerk. Kickback often occurs when the bar top is used for cutting. Avoid kickback

4. Be aware of the forces and situations that can cause the chain to jam on the top

5. Do not cut more than one branch at a time.

6. Do not tilt the bar sideways when pulling it out of a cutting gap, as the chain

During operation Check the chain tension regularly! A new chain must be re-tensioned more often than an older one. Cold chain: Tension is correct when the chain is close to the bottom of the bar and can still be pulled along the bar by hand. Retighten if necessary (see section "Tensioning the saw-chain"). The chain at operating temperature:ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

The chain expands and begins to sag. The dynamic links on the bottom of the bar should not fall out of the groove. Otherwise, the chain will fall off the bar. Retighten the chain (see section "Tensioning the saw-chain"). After work Loosen the chain if you have tightened it while working at operating temperature. The chain contracts when it cools down. If it does not loosen, it may cause damage to the gear wheel and bearing. Guide bar maintenance

• Turn the bar over each time you have sharpened or replaced the chain. This will prevent uneven wear of the bar, especially at the top and bottom. Clean regularly 1 = the opening for the oil supply 2 = the oil duct 3 = the running groove of the rail

Checking and replacing the sprocket

• Remove the sprocket cover, chain, and guide bar. Replace the sprocket: − at the latest after the service life of two chains or before. − when the wear marks on the sprocket are more deep-seated than 0.5 mm. Otherwise, the service life of the chain would be reduced. You can extend the life of your sprocket by using two chains alternately. Maintenance and sharpening of the saw chain The correctly sharpened chain An adequately sharpened chain goes effortlessly through the wood and requires very little pressure. Do not work with a dull or damaged saw-chain. It increases physical strain, increases vibrations, and leads to unsatisfactory results and higher wear and tear:

• Replace damaged and worn chain parts with suitable spare parts, which you can file to the shape and size of the original parts if necessary. Observe the angles and dimensions given below. If the saw chain is not sharpened correctly or the depth gauge is too small, there is a higher risk of kickback effects and resulting injuries! The saw chain cannot be fixed on the guide bar. It is, therefore, best to remove the chain from the guide bar and then sharpen it.

• Select a sharpening tool suitable for chain pitch. See "Technical data" for the approved chain pitches. The chain pitch (e.g., 3/8") is marked in the depth gauge of each blade.

Only use particular files for saw chains! Other files have the wrong shape and grinding. Choose the diameter of the file according to your Chain pitch. Please also note the following Angling when sharpening the chain knives. A = filing angle B = angle of the side plateORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

The angle must also be maintained for all knives. If the angle is uneven, the chain will run irregularly, wear out quickly, and break prematurely. As these requirements can only be met with sufficient and regular practice:

• Use a file holder A file holder must be used when sharpening the saw- chain by hand. The correct file angles are marked on it.

• Hold the file horizontally (at the correct angle to the guide bar) and file according to the angle mark on the file holder. Support the file holder on the top plate and the depth gauge.

• Always file the blade from the inside out.

• The file sharpens only in the forward movement. Lift it off when moving backward.

• Do not touch the fastening straps and dynamic links with the file.

• Continue to rotate the file regularly to prevent uneven wear.

• Use a piece of hardwood to remove bones from cut edges. All knives must be of the same length. Otherwise, they will be of different heights. This makes the chain run irregularly and increases the risk of breaking.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

The extension is mounted in the same way as the other attachments: 1). Place the drive axle against the main shaft so that the hole of the axle is aligned with the locking pin of the connecting piece.

2). Actuate the locking pin and insert the drive axle into the main shaft. Release the locking pin and ensure that the locking pin engages in the hole.

3). Turn the wing screw clockwise to secure the connection.

Use the 1-meter extension: The 1-meter extension can be used with all attachments are mounted in between and serves to protect the increase in your working radius.ORIGINAL BEDIENUNGFSANLEITUNG/ORIGINAL USER MANUAL/MANUAL D´UTILISATION ORIGINAL FUXTEC FX-EK700 rev1

14. Using the pivoting branch saw attachment

IMPORTANT: Do not mount or adjust the attachment unless the device is turned off. The mounting of the swiveling branch saw attachment is the same as for the other accessories: 1). Place the drive axle against the main shaft so that the hole of the axle is aligned with the locking pin of the connecting piece.

2). Actuate the locking pin and insert the drive axle into the main shaft. Release the locking pin and ensure that the locking pin engages in the hole.

3). Turn the wing screw clockwise to secure the connection.

Use the pivoting branch saw attachment: Step one: Pull the black handle downwards for adjustment. Step two: Adjust the tilt angle of the branch, saw attachment as desired.

15. Declaration of Conformity

We hereby declare that the product EK700 complies with the following directives: Producer: FUXTEC GmbH

The conformity with the Machinery Directive is verified by the conformity assessment procedure according to the Directive 2006/42/EC. The conformity with the Noise Emission of Outdoor Equipment Directive is verified by the conformity assessment procedure according to annex VI, and the Directive 2000/14/EC. Measured sound power level
