| Product Type | GPS Smartwatch |
| Brand | Medion |
| Model | Life S2400 (MD 61759) |
| Dimensions | 58 x 46 x 16 mm |
| Weight | 64 g (with strap) |
| Battery | Lithium-ion 3.8 V, 500 mAh |
| Battery Life | Up to 5 days |
| Charging Time | Approximately 120 minutes |
| Bluetooth | Version 4.0 LE, range ~10 m |
| Protection Rating | IP68 |
| Display | Color touch (not specified in manual) |
| GPS | Built-in |
| Sensors | Heart rate, accelerometer |
| Main Functions | Pedometer, calorie counter, sleep monitoring, alarm, notifications, Bluetooth calls, multi-sport modes (walking, running, cycling, etc.) |
| Associated App | Medion Fitness (iOS and Android) |
| Package Contents | Watch, USB charging dock, quick start guide, warranty documents |
| Maintenance and Cleaning | Clean with a damp cloth, rinse after use in chlorinated or salt water |
| Safety | Do not expose to extreme temperatures, avoid contact with sharp objects, keep away from pacemakers |
| Spare Parts and Repairability | No user-serviceable parts, integrated battery not replaceable |
| General Information | Use for private purposes only, not medical |
Frequently Asked Questions - Life S2400 (MD 61759) MEDION
User questions about Life S2400 (MD 61759) MEDION
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sports Watch in PDF format for free! Find your manual Life S2400 (MD 61759) - MEDION and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Life S2400 (MD 61759) by MEDION.
USER MANUAL Life S2400 (MD 61759) MEDION
GPS Sports Watch
GPS Sport Watch


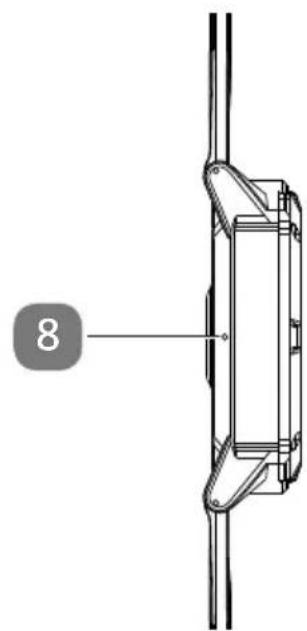

8) Mikrofon
10) Ladekontakte
QR code image containing encoded data, no visible human-readable textnatural_image
Four grayscale images showing a hand interacting with a black circular button, each displaying a finger icon and a purple button (no text or symbols)Abb. A
1. Information about this user manual 39
1.1. Explanation of symbols ....39
EN
2. Proper use
3. Safety information
3.1. Unauthorised persons ....4
3.2. General information 4
4. Package contents
5. Device overview
5.1. Front and back ....45
5.2. Left and right side....45
5.3. Charging station....46
6. Getting started
6.1. Charging the sports watch 46
6.2. Putting on the sports watch 47
6.3. Switching on the device 47
6.4. MEDION® Fitness app 47
6.5. Connecting the device to the app via Bluetooth ^ 48
7. Operation 4
7.1. Button functions....49

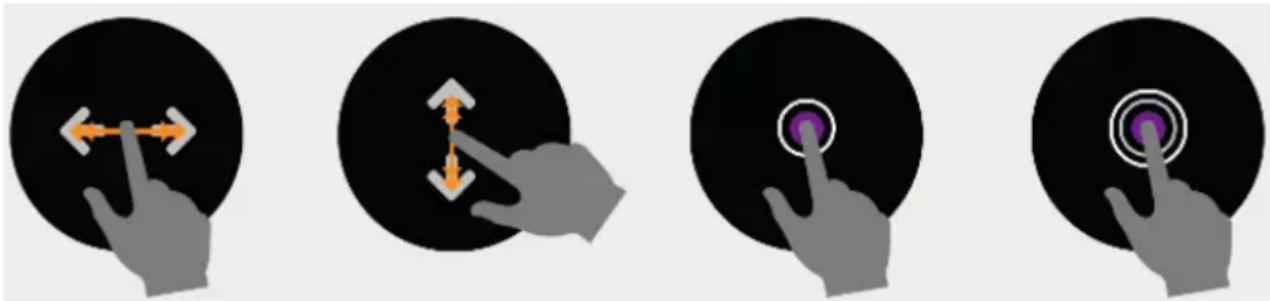

7.2. Navigation using the touch display....49
7.3. Basic functions ....50
7.4. Home screen....51
7.5. Selecting a home screen design ....52
7.6. Quick settings....52
8. Main menu
9. Settings 5
10. Sport mode 58
10.1. Activity recording....58
10.2. Data view during the activity....58
10.3. Activity progress....59
10.4. Sport settings 59
11. Communications functions....60
11.1. Notifications....60
11.2. Contacts list....60
11.3. Making a call using the number pad ....61
11.4. Incoming calls 61
12. Switching off the sports watch 61
13. Additional functions with the MEDION® Fitness app 61
14. Cleaning and care 62
15. Storing the device when not in use....62
- Troubleshooting 63
- EU Declaration of Conformity....64
17.1. Trademark information 64 - Disposal 64
- Technical specifications 65
- Service information 66
- Legal Notice 67
- Privacy statement 67

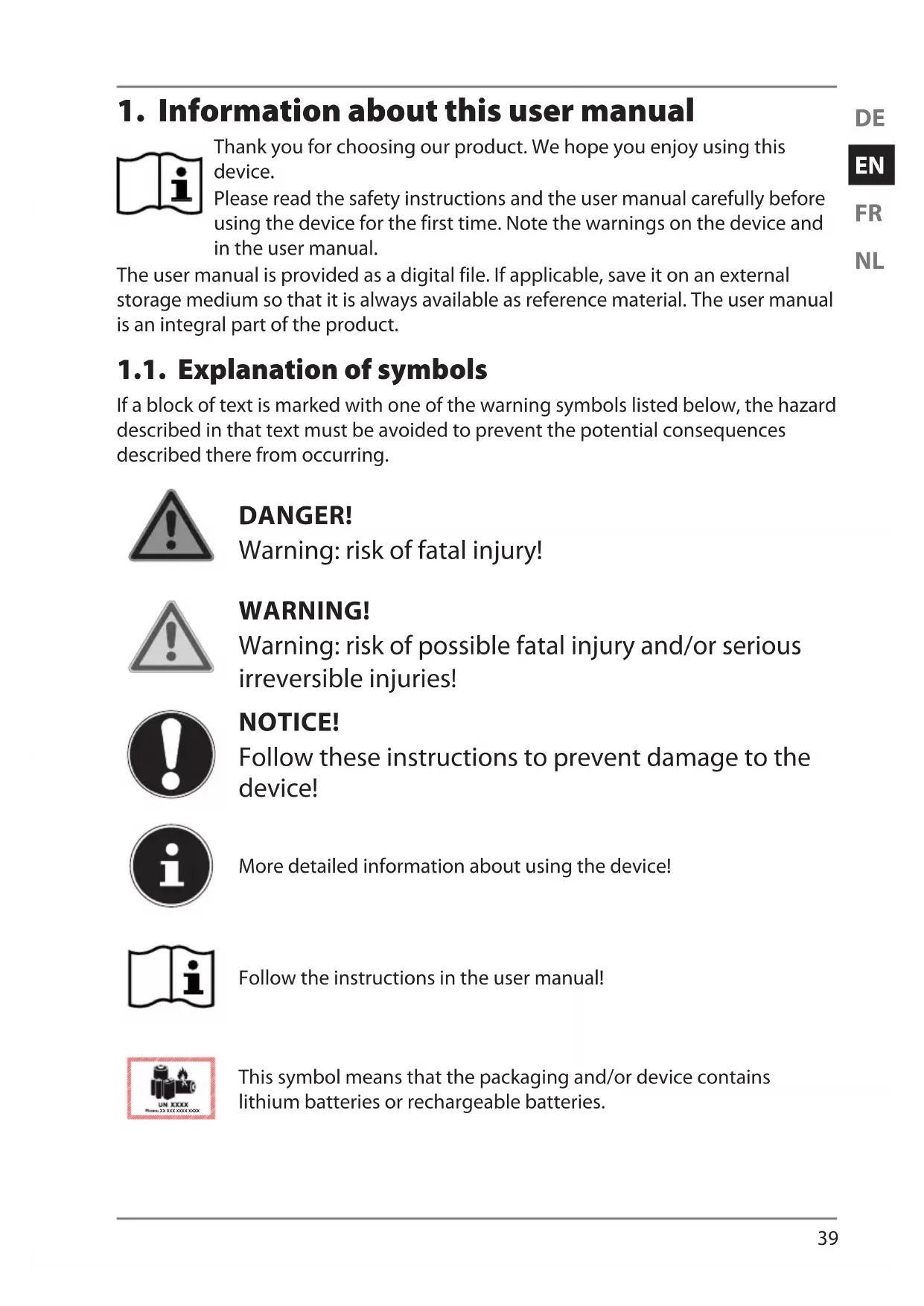

1. Information about this user manual
Thank you for choosing our product. We hope you enjoy using this device.
Please read the safety instructions and the user manual carefully before using the device for the first time. Note the warnings on the device and in the user manual.
The user manual is provided as a digital file. If applicable, save it on an external storage medium so that it is always available as reference material. The user manual is an integral part of the product.
1.1. Explanation of symbols
If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.
DANGER!
Warning: risk of fatal injury!
WARNING!
Warning: risk of possible fatal injury and/or serious irreversible injuries!
NOTICE!
Follow these instructions to prevent damage to the device!
More detailed information about using the device!
Follow the instructions in the user manual!
This symbol means that the packaging and/or device contains lithium batteries or rechargeable batteries.
CE
Declaration of conformity (see "Declaration of conformity" section): Products that feature this symbol meet the requirements of the EC directives.
- Bullet point/information on steps during operation
▶ Instruction to be carried out
■ Safety instructions to be performed
2. Proper use
This sports watch is an information technology device and can be used in many different ways:
• Distance tracking via GPS
• Heart rate monitor
- Step counter
• Calorie consumption calculation
- Multi-sport mode (e.g. for walking, running, cycling)
- Sleep monitoring*
- Alarm clock
- Notification when a message is received *
The device is only intended for private use and not for industrial/commercial use. Please note that we shall not be liable in cases of improper use:
Comply with all the information in this user manual, especially the safety information. Any other use is considered improper and can cause personal injury or property damage.
3. Safety information
3.1. Unauthorised persons
- Keep the device and its accessories out of the reach of children.
This device can be used by children aged 8 years and above, by people with reduced physical, sensory or mental capabilities, or people who lack experience and/or knowledge, if proper supervision is provided or if these people have been instructed in how to use the device safely and have fully understood the possible dangers.
■ Children must not be allowed to play with the device.
■ Do not allow children to clean the device or perform maintenance tasks on it unless they are aged 8 years or older and properly supervised.
- Keep the device out of reach of children under the age of 8.
3.2. General information
■ Do not modify the device without our prior consent.
■ Only use replacement parts or accessories that we have supplied or approved.
■ The device is designed to illustrate a range of physical data (e.g. heart rate, calorie consumption). It must not be used for medical diagnoses or the treatment or prevention of illness.
■ Do not expose the device to extreme conditions.
Avoid:
– extremely high or low temperatures
- direct sunlight
- open flames.
■ Do not use the device if there is visible damage to its housing or the display.
■ The device contains no user-maintainable parts. Never open the device housing.
■ The rechargeable battery is an integral component of the device and users must not replace it themselves.
■ Use only the supplied USB charging station to charge the battery.
■ Never use optical equipment to look at the LEDs on the underside of the device.
■ To prevent the device from being damaged by excessive heat during charging, do not cover it.
■ Never put anything on top of the device and never exert any pressure on the display, as it might break.
■ Avoid touching the display with sharp objects.
■ Do not take the device apart or deform it. You could injure your hands or fingers, or battery fluid could get into your eyes or onto your skin. If you do come into contact with the battery fluid, rinse the affected area with plenty of water and contact your doctor immediately.
■ When using the device, keep it at least 20 cm from implanted pacemakers or defibrillators, for safety reasons, to prevent them being affected by it.
■ Prolonged contact with the skin may cause skin irritation or allergic reactions in some people.
■ Stop using the device if:
- your hands or wrists hurt
- i t c h
- burn
– or are numb or stiff, either while wearing it or afterwards.
WARNING!
Risk of explosion!
Never throw the device into the fire! Risk of explosion!
■ Do not use the device in potentially explosive atmospheres. This includes petrol stations, fuel storage areas and areas where solvents are processed, for example. This device must also not be used in areas with particle-laden air (for example flour or wood dust).
WARNING!
Risk of fire!
Risk of fire caused by an unintentional short-circuit.
■ Stop using the device immediately and, if necessary, disconnect it from the USB power supply:
- if the device produces unusual noises or smoke;
- if the device is damaged by a liquid or high moisture levels;
– in emergency situations.
■ Repairs to your device should only be carried out by qualified specialists.
4. Package contents
DANGER!
Risk of choking and suffocation!
There is a risk of choking and suffocation if plastic film or small parts are breathed in or swallowed.
- Keep packaging away from children.
■ Do not allow children to play with the packaging material.
■ The packaging material is not a toy!
Remove the product from the packaging and remove all packaging material.
▶ Check your purchase to ensure that all items are included. If anything is missing, please contact our Service Centre within 14 days of purchase.
Before each use, check the device for any damage. Contact our Service Centre if you find any damage.
The following items are supplied with your product:
• GPS Sports Watch
- USB charging station
- Quick start guide and warranty documents
5. Device overview

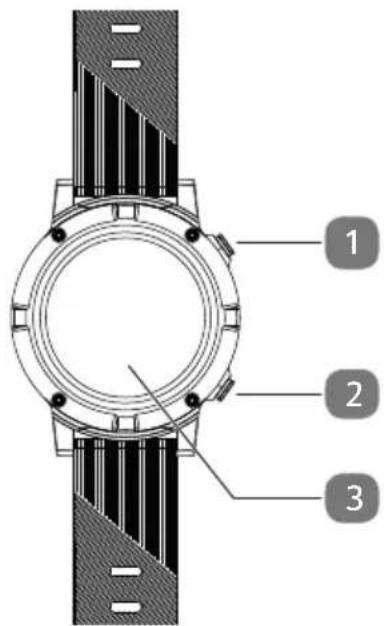

5.1. Front and back
2) On/Off button
3) Touchscreen display


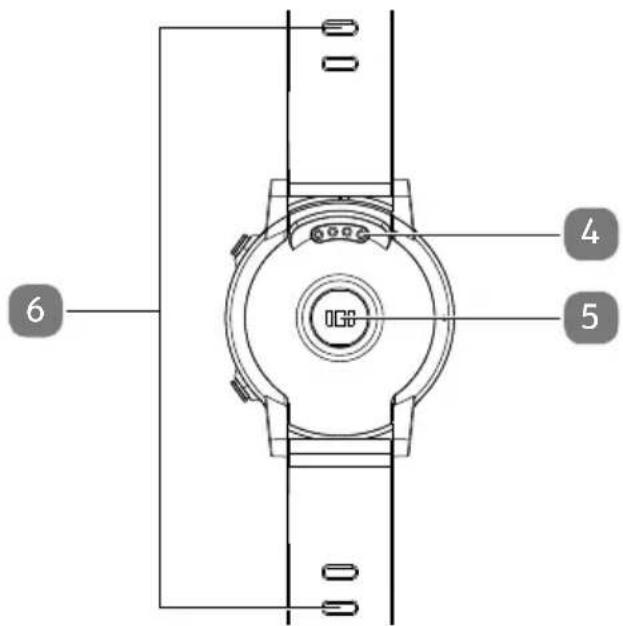

6 4 54) Charging contacts
5) Pulse sensors
6) Wrist strap

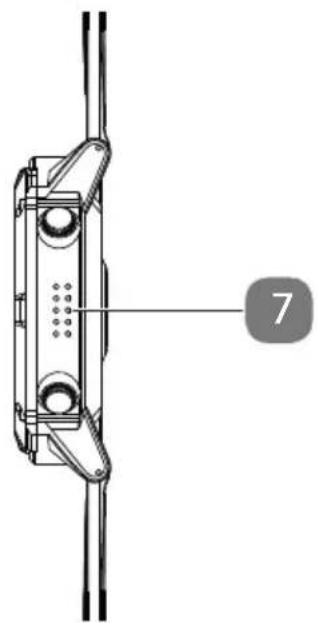

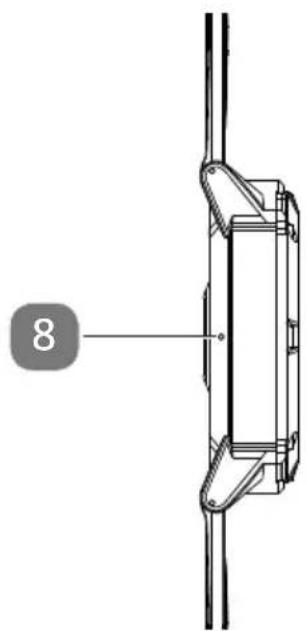

5.2. Left and right side
Technical line drawing of a mechanical component with a numbered label (8) pointing to a section, no readable text or symbols present.5.3. Charging station


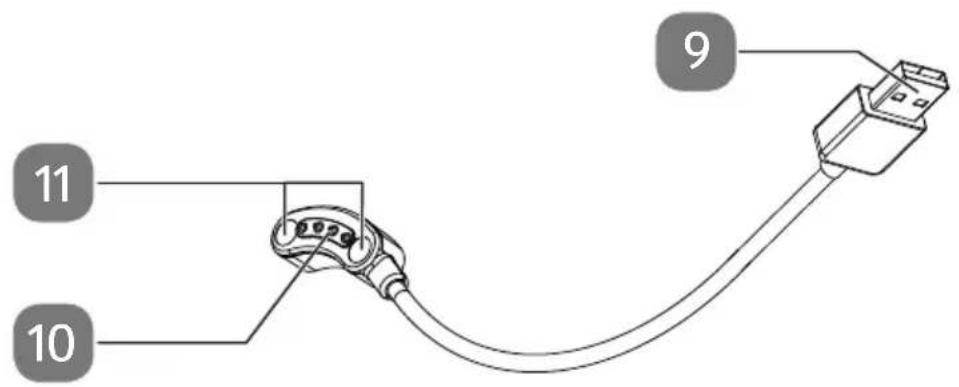

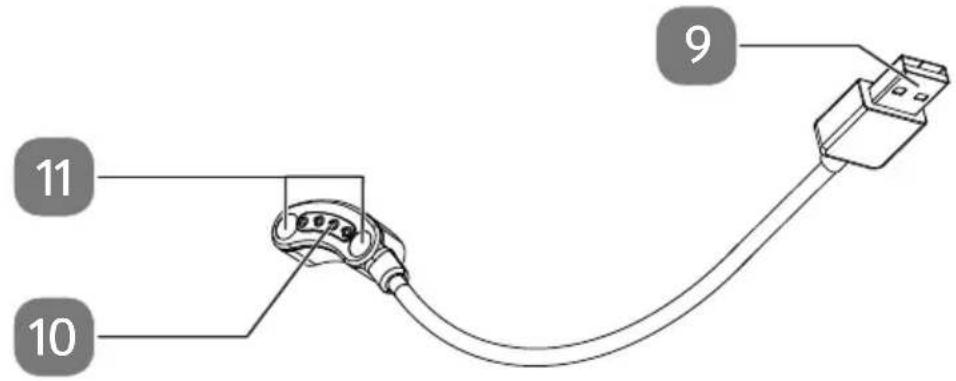

9 10 119) USB port
10) Charging contacts
11) Fixing magnets
6. Getting started
▶ Remove all packaging materials.
Remove the protective film from the device display.
DANGER!
Risk of choking and suffocation!
There is a risk of choking and suffocation if plastic film or small parts are breathed in or swallowed.
- Keep packaging away from children.
■ Do not allow children to play with the packaging material.
■ The packaging material is not a toy!
6.1. Charging the sports watch
NOTICE!
Risk of damage!
There is a risk of damage to the device if the sports watch is handled incorrectly.
■ The rechargeable battery is an integral component of the device and users must not replace it themselves.
Connect the USB charging station to a free USB port on your PC or laptop.

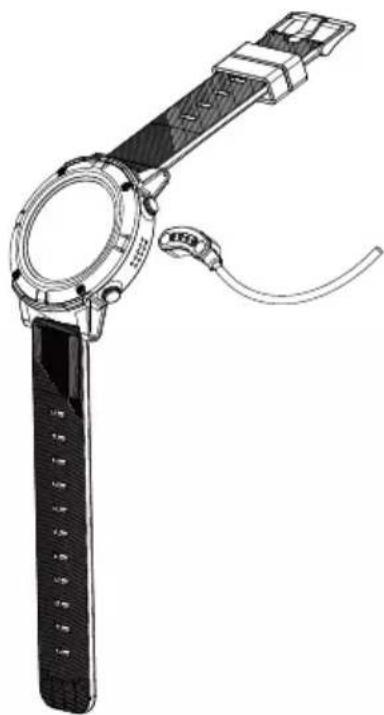

Place the sports watch on the charging station as shown opposite. Ensure that the charging contacts on the underside of the device are correctly seated on the contacts on the charging station.
The sports watch vibrates and a dynamic battery charging icon is shown on the display.
The device needs approximately 120 minutes to charge.
▶ Press the On/Off button during the charging process to check the current charge level.
6.2. Putting on the sports watch
Place the sports watch around your wrist and fasten the strap.
The strap should not be too tight or too loose for your wrist. It is worn in the same way as a conventional wristwatch.
To obtain the most accurate heart rate measurement, the sports watch should be close to your wrist so that it cannot slip when you move.
6.3. Switching on the device
▶ Press and hold the On/Off button for about 3 seconds until the sports watch vibrates and the display lights up.
The sports watch is now switched on and the home screen is shown on the display (see Fig."7.4. Home screen" on page 51).
6.4. MEDION® Fitness app
Download the associated MEDION® Fitness app to your smartphone/tablet free of charge from the Apple App Store or Google Play Store.
Alternatively, use the QR code below to download the app automatically:
Apple App Store/Google Play Store
A Bluetooth ^® connection is an unencrypted wireless data transfer system which is unprotected against unauthorised third parties.
Bluetooth pairing must be carried out when you first set up the device.
▶ Enable Bluetooth on your smartphone/tablet.
▶ Start the MEDION® Fitness app.
▶ Select the desired language in the app.
The sports watch menu language is adapted to your selection automatically.
You can now create a user account with MEDION® Fitness to take full advantage of all the app's functions and to save your activities and data in the history so that this information can be retrieved again at a later date.
To create a user account, tap REGISTER WITH MEDION FITNESS and then SIGN UP.
Then enter your personal information such as gender, age, weight, height etc. to enable the calculations (for calorie consumption etc.) to be made using your personal data.
Now log into your MEDION Fitness user account or continue without registering.
▶ Activate the sports watch by pressing the On/Off button so that the display lights up.
▶ Press CONNECT in the app to start searching for devices.
A shortlist of various device models is now shown on the display.
▶ Select the sports watch that you primarily use, in this case it is model S2400. The app then starts to search for devices within range and displays a list of the devices found.
▶ Select your sports watch S2400 from the list of devices.
At this point, a prompt appears on your smartphone/tablet to ask if you would like to pair the sports watch with the device.
Confirm the prompt to continue the pairing process in the app.
A connection prompt is now displayed on your sports watch for 10 seconds.
Tap OK within 10 seconds to establish a connection between the devices.
If you do not confirm the pairing on the sports watch within 10 seconds, you must repeat the pairing process using the app.
Once the connection is successful, the √ view will appear on your sports watch and the following text will be displayed in the app: THE DEVICE IS CONNECTED AND READY TO USE.
▶ Press FINISH to finish establishing the connection.
If you would like further information or advice on using the MEDION® Fitness app, please use the feedback function within the app. You can also download the user manual for the MEDION® Fitness app from within the app.
7. Operation
7.1. Button functions
| On/Off button – Press and hold: switch the device on/off– Short press: switch on the display; return to the home screen | |
| Sport mode shortcut button | – Short press: quick access to the menu for selecting a sport type for the activity recording |
7.2. Navigation using the touch display
When navigating using the touch display, four basic operating options are available to you (see Fig. A):
- Access/scroll through the menu using swipe gestures from right to left, left to right, upwards and downwards.
- Make a selection by tapping the desired menu item.
- Press and hold the touchscreen display on the home screen to select the home screen design (see "7.5. Selecting a home screen design" on page 52).
7.3. Basic functions
| Open the main menu | Starting on the home screen, swipe from right to left on the display. | |
| Menu item selection | In the main menu, swipe upwards or downwards on the display. | |
| Exit the menu | In the submenu, swipe from left to right on the display to return to the menu item above. | |
| Switch to the home screen | Press the On/Off button. | |
| View notifications | Starting on the home screen, swipe from left to right on the display. | An active Bluetooth connection with a smartphone/tablet PC is required in order to use this function. |
| Open quick settings | Starting on the home screen, swipe downwards on the display. | |
| View sports data | Starting on the home screen, swipe upwards once or several times on the display to view your sports data and programmed alarms, if applicable. | |
7.4. Home screen
Once switched on, the sports watch display starts on the home screen.
You can choose a different home screen design (see "7.5. Selecting a home screen design" on page 52).
The following descriptions refer to the use of the default design of the sports watch (Fig. B).

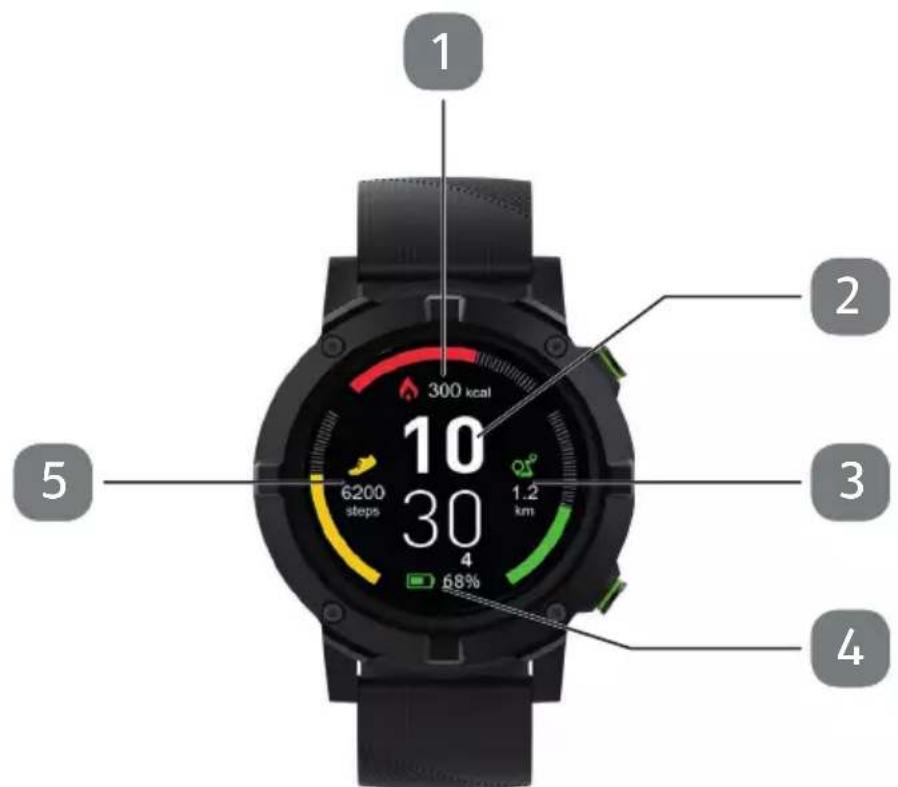

Various information is collated and displayed on the home screen:
1) Calorie consumption
2) Time
3) Distance travelled
4) Battery charge level
5) Number of steps
▶ While navigating in the sports watch menu, press the On/Off button to switch to the home screen.
7.5. Selecting a home screen design
Tap and hold the home screen display to open the selection of home screen designs.
▶ Use your finger to swipe from left to right or right to left on the display to switch between the design templates (see Fig. C).
Tap on the suitable design to select it.
7.6. Quick settings
Starting on the home screen, swipe downwards once on the display to access the following quick settings options:
| Tap the top left symbol to select aSound profile(e.g. vibration mode). | |
Tap the symbol at the top right to select one of the defaultUser profiles(e.g. meeting mode).The device settings are automatically adjusted in accordance with the selected profile. When switching to flight mode, the Bluetooth® connection on your smartphone/tablet must also be switched off manually, to disconnect all radio connections to the sports watch. | |
| Tap the symbol at the bottom left to select aBrightness level for the display lighting. | |
| Tap the symbol at the bottom right to activate/deactivate theSwitch on display by rotating the wrist function. |
8. Main menu
Starting on the home screen, swipe from right to left on the display to open the main menu.
▶ Within the main menu, swipe upwards or downwards on the display to scroll through the menu items.
▶ Tap on the required menu item to access the associated submenu.
In the submenu, swipe from left to right on the display to return to the menu item above.
| Tap this menu item to access the Settings menu for the sports watch (see “9. Settings” on page 57). | |
| Tap this menu item or press the sport mode shortcut button to select a Type of sport for the activity recording and to start it (see “10.1. Activity recording” on page 58). | |
| Tap this menu item to open the Number pad and to make a call using the sports watch (see “11.3. Making a call using the number pad” on page 61). | |
| Tap the data overview to open the Heart rate view. Alternatively, starting on the home screen swipe upwards on the display four times to access the heart rate view.The most recent measured value and the corresponding time are displayed.Tap the heart rate view to start a new measurement.The pulsing heart displays the current measuring process.Once the measurement has finished, the calculated value is shown automatically.Within the heart rate view, swipe from right to left on the display to view a diagram of the measured values. | |
| Tap this menu item to open the Step count view. Alternatively starting on the home screen, swipe upwards on the display twice to access the heart rate view.In the view, swipe from right to left on the display to view your step count data in the weekly view. | |
| Tap this menu item to open the Sleep data view. Alternatively, starting on the home screen swipe upwards on the display three times to access the sleep data view.The total sleep duration and the duration of deep and light sleep phases is displayed.In the sleep view, swipe from right to left on the display to display the measured values for individual days in the weekly diagram. Tap the diagram to open the progress view. | |
 | Tap here to access the Contacts list stored on your smartphone using the sports watch (see “11.2. Contacts list” on page 60).To use this function, you must have first granted the MEDION®  Fitness app access to your contacts and have an active Bluetooth connection. |
 | Tap this menu item or swipe, starting on the home screen, from left to right on the display to display new Notifications (e.g. regarding incoming messages/calls) (see “11.1. Notifications” on page 60). |
 | To receive a reminder to take a short break for movement during longer periods of inactivity, for example, you can program a Movement reminder on the sports watch:In the menu, tap to open the submenu to set a movement reminder.Swipe on the display and select a time interval of between 30 and 300 minutes for your movement reminder.Select to deactivate the movement reminder.Tap on the tick symbol to store your entry. |
 | Tap this menu item to use the “Find telephone” function.If there is an existing Bluetooth connection with the smartphone/tablet PC, tap on the search symbol to sound a signal tone on the connected device to help locate it. |
 | You can control the release of your smartphone’s camera via your sports watch using the camera Remote release function.In the menu, tap to open the remote release function on the sports watch.Your smartphone’s camera menu now opens automatically.Point the camera lens at the desired subject.On the sports watch, tap the camera symbol to take a photograph on the smartphone. |
| The sports watch and the smartphone/tablet PC or the MEDION Fitness app must be connected via Bluetooth to be able to use this function. In addition, you must first grant the app the required permissions for access to the camera and media files.You can controlAudio playbackon your smartphone/tablet PC using the sports watch. To do so, the devices must be connected via Bluetooth.In the menu, tap to open the menu for controlling playback.Tap to start playbackTap to pause playback.Tap to play the next track.Tap to play the previous track.Tap to increase the volume.Tap to decrease the volume. | |
| [Z6DZ] | |
| Audio output takes place via the sports watch speaker, provided that no headphones/AUX cables are connected to the headphone socket on the smartphone/tablet PC. | |
| Tap this menu item to receive aVoice messageor to manage stored voice messages.Tap the red capture button to start the voice recording.Tap to pause the voice recording. Tap the red capture button to resume the voice recording.Tap to end the voice recording and store your voice message.Tap to play the most recently recorded voice message. Tap◀to skip back to the previous voice message. Tap▶to skip to the next voice message.Tap on the file symbol to open the overview of all stored voice messages.Tap on a voice message to play it.Tap and hold a voice message and until a selection menu appears, in which you can select the following additional options:- Start playback of the selected voice message.- Attach an additional voice message to the selected voice message.- Rename the stored voice message.- Delete the selected voice message from the memory. | |
 | The sports watch allows you to programme one or moreAlarms:▸ In the menu, tap.▸ Tap to create a new alarm.▸ Select one of the specified subjects, specify the alarm time and select the interval for repeating the alarm as well as an alarm tone.The alarm is automatically stored and shown in the overview.▸ Tap the digital switch next to the respective alarm to activate/deactivate it.An activated alarm is indicated by a green switch.▸ Tap on an existing alarm in the overview to edit it.▸ Tap and hold an alarm to delete the alarm from the memory. Starting from the home screen, swipe upwards over the display five times to view the next pending alarm and switch it on/off using the digital switch. In the view, tap to open the submenu for managing alarms. |
 | ▸ Tap this menu item to open thedata view.▸ Swipe upwards or downwards on the display to switch back and forward by individual days.▸ In the view, tap the calendar symbol to open thecalendar view.▸ Swipe upwards or downwards on the display to scroll through the digital calendar. |
 | ▸ Tap this menu item to open thestop watchfunction.▸ Tap to start the stop watch.▸ TapII to pause the stop watch. Tap▶ again to resume the stop watch timer.▸ Press ⬇ while the stop watch is running to store an interim time. Repeat the process to store additional interim times in numerical order.Meanwhile, the stop watch continues to run.▸ Tap the most recently stored interim time at the top of the stop watch view to open an overview of all stored intervals. Swipe from left to right on the display to return to the stop watch view.▸ TapⓍ to reset the stop watch to zero and to delete stored interim times, if applicable. |
9. Settings
In the main menu, tap 📋 to access the sports watch's settings menu.
The following settings can be configured in this menu:
 | ▶ Tap here to enter your personal data (gender, age, height/weight). |
 | ▶ Tap here to switch on/off Bluetooth. |
 | ▶ Tap here to select the time format and switch on/off the automatic date/time synchronisation or to manually set the date/time. |
 | ▶ Tap here to specify the units of measurement. |
 | ▶ Tap here to set the signal method (e.g. vibrations and sounds), select a ringtone for incoming calls or a sound for notifications and set the signal volume. |
 | ▶ Tap here to set the display brightness and the time until the display turns off. |
 | ▶ Tap here to set the menu language for the sports watch. |
 | ▶ Tap here to activate/deactivate the function to awaken the sports watch by rotating your wrist. |
 | ▶ Tap here to specify the start and end time as well as the time interval for the regular heart rate measurement. |
 | ▶ Tap here to reset the sports watch to the factory settings.Attention! This process will delete all settings, data and stored values from the sports watch! |
 | ▶ Tap here to view detailed device information (e.g. model name, MAC address, software version etc.). |
10. Sport mode
10.1. Activity recording
In the menu, tap 📁 or press the sport mode shortcut button to select a sport type for your activity recording.
Use the MEDION® Fitness app to select an activity from an extended range of sport modes (e.g. badminton, dancing etc.). The range varies depending on the device model.
Tap on the desired type of sport to start recording the activity.
Depending on the sport type selected, a prompt appears at this point to confirm whether you would like to use the GPS function for your activity. An active GPS function increases the battery consumption.
Please be aware that it may take longer to establish the GPS connection in some cases when you first set up the device, as the sports watch must initially establish first contact with the satellites.
Activity recording starts once the three-second countdown has elapsed.
During the activity, swipe once from left to right on the display or press the On/Off button to pause the activity recording. To resume the activity recording, swipe from right to left on the display.
During the activity, swipe twice from left to right on the display or press the On/Off button twice to end the activity recording.
Tap the end button to store the recorded sports data during the process.
If insufficient sports data has been recorded to store this progress, a corresponding message is shown on the display.
10.2. Data view during the activity
Depending on the selected sport type, the sports data measured while recording the activity is shown on the display, for example:
- Activity duration
– Average step count per minute - Distance covered
– Calorie consumption - Speed
- Heart rate
During the activity, swipe from left to right on the display to pause the activity recording and view addition data, for example the route (only when using the GPS function).
In this view, swipe upwards once or several times on the display to view additional data, for example:
– Diagram of the average heart rate measurement
- Average speed
10.3. Activity progress
You can view your stored activity recordings on the sports watch. To do so, proceed as follows:
In the menu, tap or press the sports mode shortcut button.
Tap the submenu to open the route.
The overview first shows the total number of kilometres covered and the calories consumed as well as the total duration of all activities.
In the overview, swipe upwards on the display to show your stored activity recordings in chronological order.
Tap a recording to view the detailed values.
▶ Swipe upwards on the display to switch between the value views.
▶ Swipe to the bottom view and tap the delete button to delete the selected activity recording.
10.4. Sport settings
Under sports settings, you can set various reminders to appear during activity recording.
For example, you could set to receive a reminder after a particular activity duration to change the training intensity after this amount of time has elapsed.
In the menu, tap or press the sports mode shortcut button.
Tap the submenu to open the sports settings.
You can set a reminder per kilometre covered, a minimum speed, after a defined period of activity has elapsed, once a distance goal is reached or a daily sports reminder at a particular time.
Tap on the respective reminder option to define the desired value.
Tap next on the digital switch next to the respective reminder to switch the reminder on or off.
Reminders that are switched on are highlighted in orange.
11. Communications functions
If your sports watch is connected to your smartphone via Bluetooth and you have installed the MEDION® Fitness app, you can handle incoming/outgoing calls and notifications about incoming messages, emails, SMS etc. on the sports watch.
In order to use the specified functions, you must first grant the app the required permissions for access to your smartphone data.
Please be aware that the use of mobile internet, outgoing calls and SMS may incur additional costs depending on your mobile contract. Check the terms and conditions with your mobile network provider beforehand to avoid unnecessary high mobile phone bills.
11.1. Notifications
Using the MEDION® Fitness app you can specify which applications should be permitted to send you notifications on the sports watch.
For example, you can specify that you would like to receive a notification for incoming calls, SMS, emails. Equally the opposite also applies, you can deselect unwanted notifications in the app settings.
New notifications are indicated on the home screen:
Tap the speech bubble symbol to open the notifications view. Alternatively, tap
in the menu or when on the home screen swipe from left to right on the display to access the notifications view.
Tap on the respective notification to open and to view the full notification.
Take care to ensure that "Do not disturb" mode is switched off in the MEDION® Fitness app to receive notifications on the sports watch.
11.2. Contacts list
Provided that you have granted the MEDION® Fitness app the required permissions, you can access your stored contacts list using the sports watch.
In the menu, tap 📁 to open the contacts list.
You contacts are displayed in alphabetical order.
Tap on the required contact and then the phone number shown to call the selected contact.
Tap the red telephone receiver symbol to end the call.
11.3. Making a call using the number pad
In the menu, tap to open the number pad.
▶ Enter the target phone number. Tap on the red X to delete incorrect entries step by step.
To enter a special character (^* / + / #) , press and hold the respective number button until the special character is shown in the input bar at the top edge of the display.
Tap the green telephone receiver symbol to start the call.
Tap the red telephone receiver symbol to end the call.
11.4. Incoming calls
If there is an existing Bluetooth connection, incoming calls are signalled on the sports watch.
Provided that the contacts have been synchronised with the smartphone, the caller's contact name is shown on the display.
When you receive a call from a number that is not stored in your contacts, the caller's phone number is shown on the display, if this has been transmitted.
To accept the call on the sports watch, tap the green telephone receiver symbol.
Tap the red telephone receiver symbol to reject the call.
Voice output takes place via the internal speaker and voice input via the internal microphone on the sports watch.
Tap on the numeric keypad symbol to enter numbers during a call.
Tap the red telephone receiver symbol to end the call.
12. Switching off the sports watch
▶ Press and hold the On/Off button on the sports watch for about 3 seconds until the device vibrates and the display goes blank.
The device is now switched off.
13. Additional functions with the MEDION® Fitness app
Additional functions are available for your sports watch with the MEDION® Fitness app, such as the option to add or edit daily goals.
For more information on using the MEDION® Fitness app, refer to the user manual within the app. If you have any questions, use the integrated feedback function.
14. Cleaning and care
NOTICE! Risk of damage!
■ Do not use any aggressive chemical agents, scouring agents or hard sponges for cleaning.
You must always keep the heart rate monitor sensor surfaces on the underside of the sports watch clean, as measurement values may be affected if you do not do so.
Clean the sports watch's external surfaces regularly with a damp cloth.
▶ After use in chlorinated or salty water, rinse the sports watch thoroughly under clean running water to prevent permanent damage.
15. Storing the device when not in use
▶ Switch off the sports watch when not in use and store it in a dry, dust-free environment.
Carry out a complete discharging and charging cycle each month. This prevents the battery from completely discharging and becoming permanently damaged making it unable to be charged again.
16. Troubleshooting
| Problem Possible cause Solution | ||
| The sports watch will not start. | The battery is not charged. | ▸ Charge the sports watch. |
| No/incorrect heart rate measurement | The sensor surfaces are dirty.The strap is too loose around the wrist. | ▸ Clean the sensor surfaces.▸ Make sure that the strap is not fastened too loosely around your wrist. |
| Data transfer between the sports watch and smartphone/tablet PC is faulty. | No Bluetooth connection | ▸ Perform the Bluetooth pairing again.▸ If necessary, uninstall the MEDION® Fitness app and then reinstall it with subsequent Bluetooth pairing. |
| Implausible route GPS has not been enabled. | ▸ Enable the GPS function before starting the activity recording. | |
| It is taking a very long time to establish the GPS connection. | This is because it is it first time contact is being established between the sports watch and the satellites. | ▸ Wait a few minutes until the sports watch has established contact with the satellite. |
| The calculation of calories burned is incorrect/implausible. | Your personal data has been stored incorrectly. | ▸ Check your entries for gender, age, weight and height. |
17. EU Declaration of Conformity
MEDION AG hereby declares that this device complies with the fundamental requirements and the other relevant provisions of:
• Radio Equipment Directive 2014/53/EU
• RoHS Directive 2011/65/EU.
You can download the complete EU Declaration of Conformity at www.medion.com/conformity.
17.1. Trademark information
The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used by MEDION under licence.
The Android ^™ word mark and logos are registered trademarks of Google LLC and are used by MEDION under licence.
Other trademarks are the property of their respective owners.
18. Disposal
PACKAGING
Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environmentally friendly manner.
DEVICE
Old devices that carry the symbol illustrated may not be disposed of in ordinary household waste.
In accordance with Directive 2012/19/EU, these devices must be disposed of correctly at the end of their service life.
This involves separating the materials in the devices for the purpose of recycling and minimising the environmental impact.
Take old devices to a collection point for electrical scrap or a recycling centre.
The integrated battery cannot be removed. Take the entire device for disposal.
Contact your local waste disposal company or your local authority for more information on this subject.
19. Technical specifications
CPU: MT2503AV
Integrated battery: Li-Ion battery 3.8 V / 500 mAh
Operating and storage temperature: -10^ to +40^
Battery charging time: 120 minutes
Battery capacity: Up to 5 days
Charge connection: USB 2.0
Power supply: 5 V = 500 mA
Bluetooth ^® version: 4.0 LE
Bluetooth range: Approx. 10 m
Bluetooth frequency range: 2402 to 2480 MHz
Max. Bluetooth transmission power: 4.15 dBm
Protection class: IP68
Dimensions: 58 mm x 46 mm x 16 mm
Wrist circumference: Max. 220 mm
Weight incl. strap: 64 g
20. Service information
Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:
- In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service Community at community.medion.com.
• Alternatively, use our contact form at www.medion.com/contact. - You can also contact our Service team via our hotline or by post.
| Opening times Hotline number UK | |
| Mon – Fri: 08.00 – 20.00Sat – Sun: 10.00 – 16.00 | 0333 3213106 |
| Service address | |
| MEDION Electronics Ltd.120 Faraday Park, Faraday Road, DorcanSwindon SN3 5JF, WiltshireUnited Kingdom | |
You can download this and many other sets of operating instructions from our service portal at www.medion.com/gb/service/.
You will also find drivers and other software for a wide range of devices there.
You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.
21. Legal Notice
Copyright © 2020
Date: 12.06.2020
All rights reserved.
These operating instructions are protected by copyright.
Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.
Copyright is owned by the company:
MEDION AG
Am Zehnthof 77
45307 Essen
Germany
Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.
22. Privacy statement
Dear customer,
We wish to inform you that we, MEDION AG, Am Zehnthof 77, 45307 Essen, Germany process your personal data as a data controller.
For matters regarding data protection, we are supported by our company data protection officer who can be contacted at MEDION AG, Datenschutz, Am
Zehnthof 77, D – 45307 Essen; datenschutz@medion.com. We process your data for the purpose of warranty processing and associated processes (e.g. repairs) and therefore rely on processing your data for the sales contract concluded with us.
Your data will be provided to repairers contracted to us for the purpose of warranty processing and associated processes. We generally store your personal data for a period of three years in order to fulfil your legal warranty rights.
You have the right to be informed of the personal data concerned as well as the right to rectification, deletion, restriction of processing, the right to object to processing, as well as the right to data portability.
In case of access and cancellation rights, restrictions apply according to S 34 and S 35 of BDSG (Federal Data Protection Act) (Art. 23 GDPR). In addition, there is a right of appeal to a competent data protection supervisory authority (Article 77 GDPR in conjunction with S 19 BDSG). The state official for data protection and freedom of information for MEDION AG is Nordrhein Westfalen, P box 200444, 40212
Düsseldorf, Germany. www.ldi.nrw.de.
The processing of your data is necessary for warranty processing: it is not possible to process the warranty without the provision of the required data.
Sommaire
Technical line drawing of a mechanical component with no visible text or symbols5.3. Station de charge
10) Contacts de charge
11) Aimants de fixation
6. Mise en marche
QR code image containing encoded data, no visible human-readable textnatural_image
Four grayscale images showing a hand interacting with a black circular button, each displaying a finger icon and directional arrows (no text or symbols)Fig. A
7.3. Commandes de base
5.3. Laadstation....111
8) Microfoon
10) Laadcontacten
11) Bevestigingsmagneten
6. Ingebruikname
QR code image containing encoded data, no visible human-readable textnatural_image
Four grayscale images showing a hand interacting with a black circular button, each displaying a finger icon and a purple button (no text or symbols)Afb. A
7.3. Basisbediening

