Product type	Washing machine
Brand	EAS Electric
Model	EMW1256GW
Rated capacity	12 kg
Dimensions (H × W × D)	85 × 60 × 60 cm
Power supply	220-240 V ~ 50 Hz
Energy efficiency class	A
Energy consumption (ECO 40-60 cycle)	0,544 kWh
Water consumption (ECO 40-60 cycle)	57 L
Maximum spin speed	1350 rpm
Noise level (spin)	80 dB(A)
Number of programs	15
Main programs	Cotton, Synthetics, Mix, 20°C, Sport, Baby, Jeans, Steam wash, ECO 40-60, Express 15', Quick 45', Wool, Bedding, Spin, Drum clean
Special functions	Delayed start, Prewash, Extra rinse, Intensive wash, Hygiene Pro, Child lock, Reload
Safety	Child lock, door safety, leak protection
Maintenance and cleaning	Cleaning of pump filter, detergent drawer, door gasket
Availability of spare parts	10 years minimum
Warranty	3 years

Frequently Asked Questions - EMW1256GW EAS Electric

How to correctly install the EMW1256GW washing machine?

Place the machine on a hard, dry, level surface. Remove the 4 transport screws at the back using a wrench, then plug the holes with the supplied caps. Adjust the feet to level it and lock the lock nuts. Connect the cold water inlet hose to the tap and the drain hose to the sewer. Plug the appliance into a grounded socket.

How to perform the first wash?

Before first use, run an empty cycle with the Drum clean program or a 90°C program without laundry or detergent to clean the drum. Then, perform the calibration by pressing Spin for 10 seconds until 't19' is displayed, then press Start.

What to do if the door does not open after a cycle?

The door remains locked for a few moments after the cycle ends for safety reasons. Wait until 'End' is displayed and the lock automatically unlocks. Do not force the door open. If the problem persists, unplug and replug the appliance.

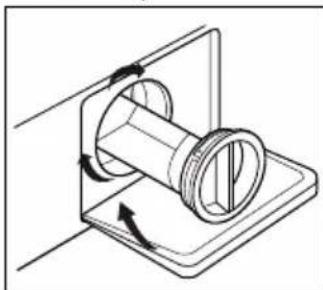

How to clean the drain pump filter?

Make sure the cycle is finished and the appliance is empty. Turn off and unplug the washing machine. Open the lower cover, place a container under the filter, turn the filter counterclockwise to remove it. Clean it and put it back. Perform this operation every 3 months.

Which detergents to use?

Use detergents suitable for machine washing, low-sudsing. For white laundry, prefer a detergent with bleaching agents; for colors, a detergent without optical brighteners. Adjust the dosage according to soiling and water hardness.

How to activate the child lock?

Press the Delayed start and Function buttons simultaneously for 3 seconds. An audible signal confirms activation. The screen displays 'CL' alternately with the remaining time. To deactivate, repeat the same operation.

What does the error code E30 mean?

The E30 code indicates that the door is not properly closed. Check that the door is correctly closed and that no clothing is blocking the lock. Restart the cycle.

How to use the delayed start function?

First select a program. Press Delayed start to choose a delay from 0 to 24 hours. Then press Start/Pause to start the countdown. To cancel, reduce the delay to 0H before starting or turn off the appliance.

What is the maximum capacity of the machine?

The rated capacity is 12 kg for cotton. Observe the loads indicated for each program to optimize washing and save energy.

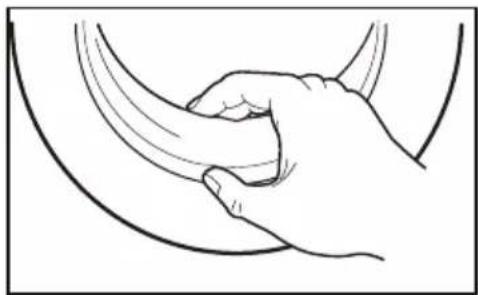

How to maintain the door gasket?

Clean the rubber gasket and the glass after each wash with a damp cloth to remove lint and residues. Check that there are no objects stuck. Perform a thorough cleaning once a month.

USER MANUAL EMW1256GW EAS Electric

Abstract arrangement of gray and white triangular shapes pointing right (no text or symbols)

LAVADORA

WASHING MACHINE

LAVE-LINGE

MÁQUINA DE LAVAR

Line drawing of a washing machine with circular wheels and a button (no text or symbols)

EMW1056GW

EMW1256GW

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Contenido

Modelo	EMW1056GW	EMW1256GW
Alimentación	220-240V~,50Hz
Corriente máxima	10A
Presión de agua estándar	0.05MPa~1MPa
Capacidad lavado	10.0kg	12.0kg
Dimensiones
A	595mm	595mm
B	850mm	850mm
C	530mm	595mm
Peso	65kg	73kg
Potencia nominal	2000W	2000W
Dimensiones de referencia
D	600mm	660mm
E	540mm	641mm
F	1045mm	1105mm
G	135mm	135mm

1	Puerta
2	Dispensador de detergente
3	Panel de control

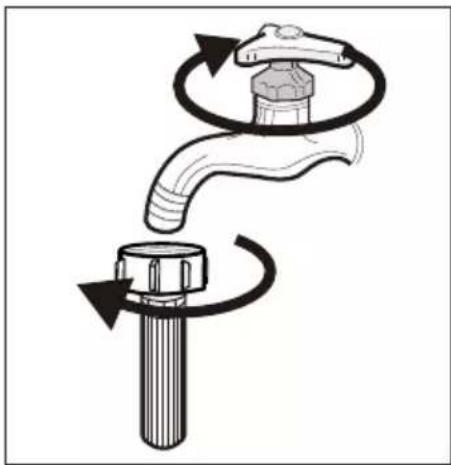

Diagram of a faucet with arrows indicating flow direction (no text or symbols)

Diagram showing a mechanical or biological process with a rotating arrow and circular components (no text or symbols)

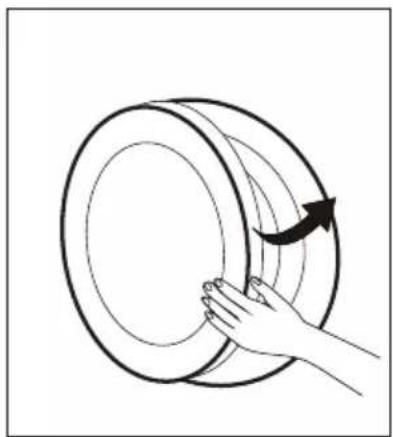

1. Cierre la puerta

Hand holding a circular object with an arrow indicating rotational motion (no text or symbols)

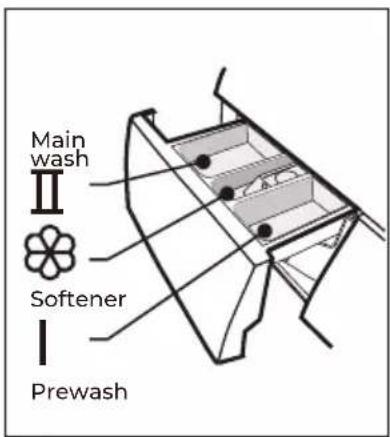

1. Añada detergente

NOTA

Simple diagram with a black circle and two curved arrows pointing inward, no text or symbols present.

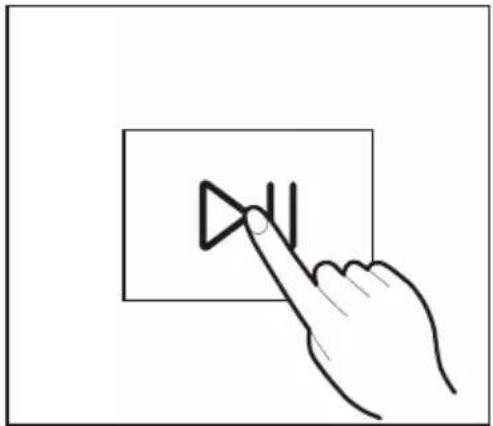

Hand pointing at a square button with a triangular symbol (no text or labels)

Hand pointing at a grid of rectangular blocks (no text or symbols)

NOTA

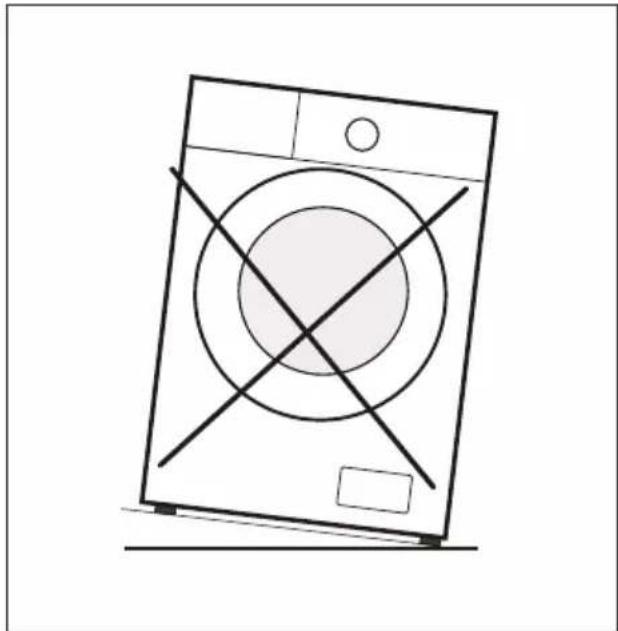

Line drawing of a washing machine with crossed-out circular components and a blank front panel (no text or symbols)

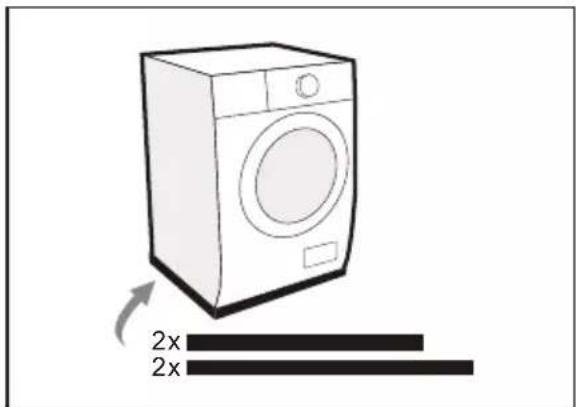

Diagram of a cardboard box being inserted into a base, with an inset showing the internal structure (no text or symbols)

ADVERTENCIA

Illustration of a wrench turning a snail shell with an arrow indicating rotation (no text or symbols)

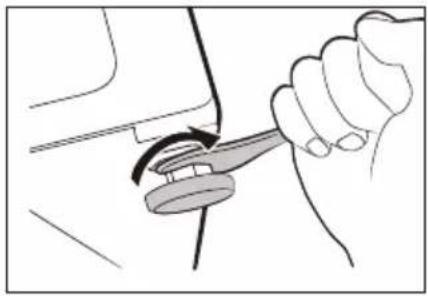

Diagram showing a wrench turning a screw with an arrow indicating direction (no text or symbols)

Simple line drawing with a curved arrow pointing to an oval shape, no text or symbols present

Illustration of a hand using a tool to adjust or install a component, showing a curved arrow indicating rotation (no text or symbols present)

Illustration of a person using a device to adjust or install a device, with an inset showing the same hand (no text or symbols present)

Diagram of a faucet and bulb assembly with directional arrows indicating movement (no text or symbols)

NOTE

Diagram of a washing machine with pipes and control valves, showing height and width dimensions (no text or labels)

Esponja acústica

NOTA

Diagram of a door frame with an arrow indicating direction (no text or symbols)


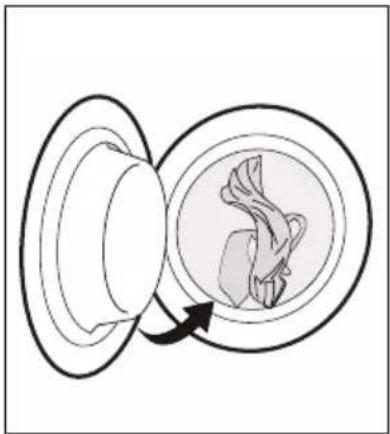

Line drawing of a container with a lid and fish inside, no text or symbols present

ADVERTENCIA

A Display

Line drawing of a hand washing a laundry machine with a cloth on top (no text or symbols)

AVISO

Line drawing of a hand gripping a curved object, possibly a tool or device (no text or symbols present)

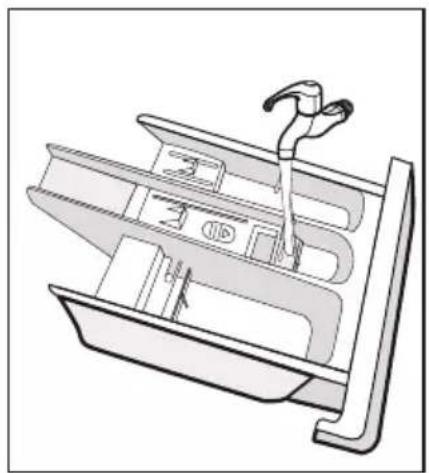

LIMPIEZA Y CUIDADO

Diagram showing a hand valve and a cylindrical component with curved arrows indicating rotation or movement (no text or symbols)

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

Illustration of a hand inserting a component into a device, showing rotational arrows (no text or symbols)

Line drawing of a hand using a tool to inspect or install a component, with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand using a tool to clean or inspect a dark object inside a transparent container (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

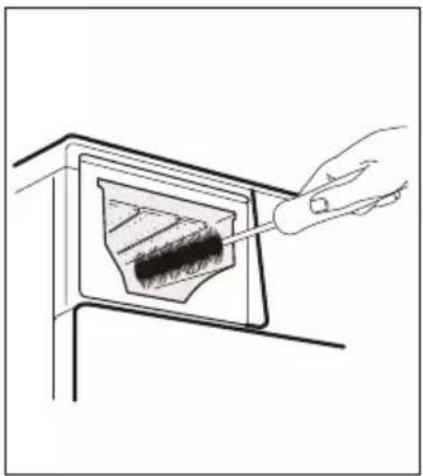

Hand holding a brush applying circular motion to a tray (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

ATENCIÓN

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

3 SAFETY INSTRUCTIONS
3 Safety Instructions

7 SPECIFICATIONS
8 PRODUCT OVERVIEW
9 QUICK START GUIDE
12 PRODUCT INSTALLATION
16 OPERATION INSTRUCTIONS
31 CLEANING AND MAINTENANCE

35 TROUBLE SHOOTING
36 DISPOSAL AND RECYCLING
38 WARRANTY

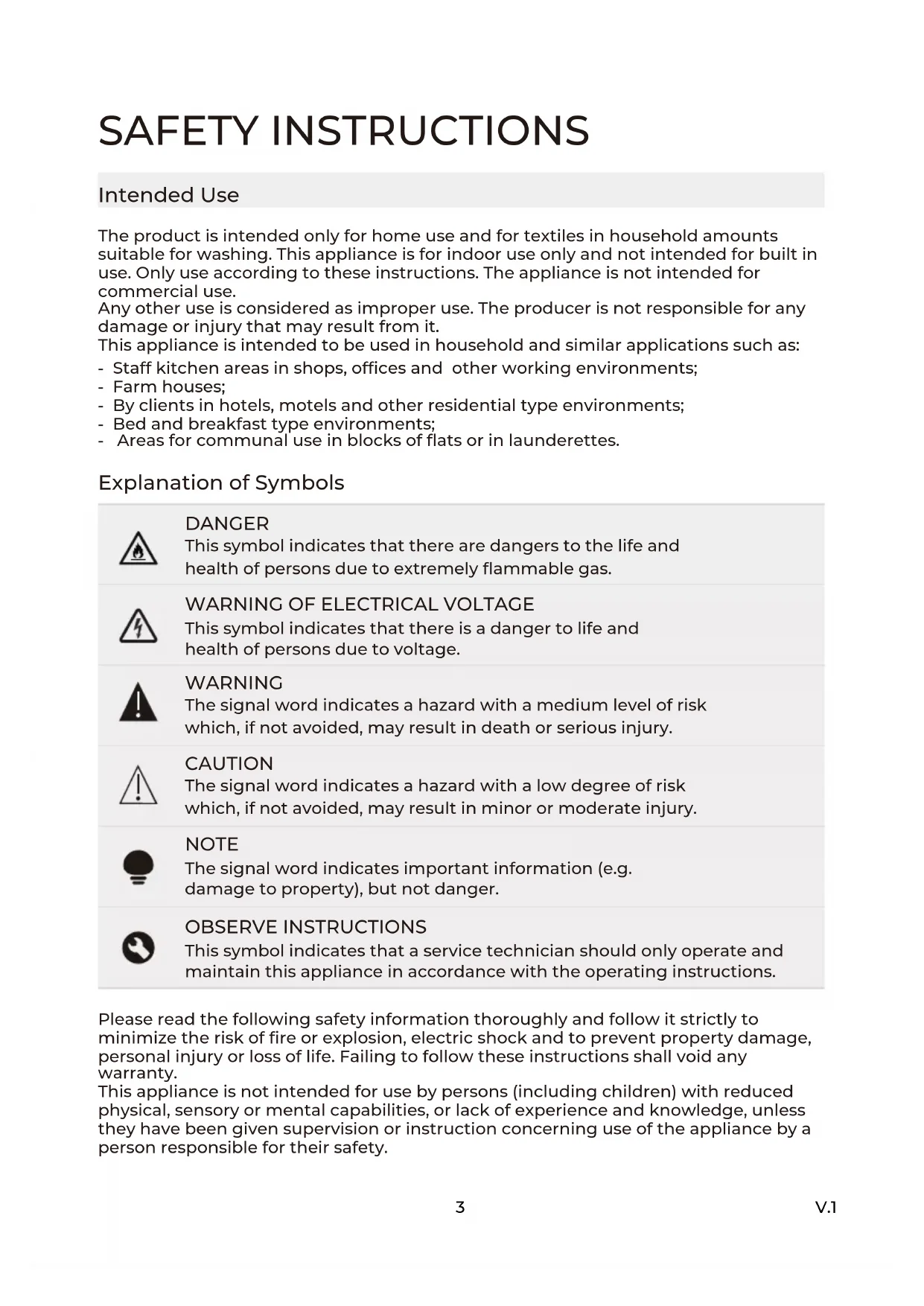

SAFETY INSTRUCTIONS

Intended Use

The product is intended only for home use and for textiles in household amounts suitable for washing. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injury that may result from it.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Areas for communal use in blocks of flats or in launderettes.

Explanation of Symbols

	DANGERThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	WARNING OF ELECTRICAL VOLTAGEThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WARNINGThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CAUTIONThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	NOTEThe signal word indicates important information (e.g. damage to property), but not danger.
	OBSERVE INSTRUCTIONSThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING: Electric Shock Hazard

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
• Risk of electric shock!
• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children should be supervised that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.

Installation Location and Surrounding

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor.
• The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes, let the appliance dry in the open air.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the machine.
• Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see "Maintenance - Cleaning of drain pump filter") to avoid damages caused by frost.
• Never use flammable sprays or substances in the immediate proximity of the appliance.

Installation

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.

SAFETY INSTRUCTIONS

• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

Electrical Connection

• Make sure the supply cable is not trapped by the machine, or it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications" table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.
  • Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

WARNING:

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
  • Always pull at the plug, not at the cable.
  • Always unplug the appliance if it is not being used.

Water Connections

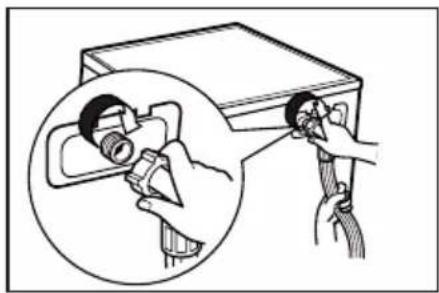

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak, close the water tap and get it repaired.
• Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged.
• Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

Operation and Maintenance

• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.

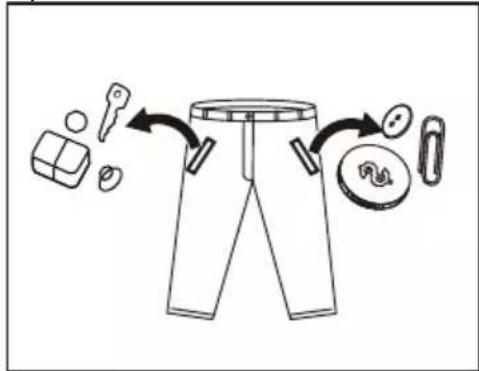

• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.

• Remove all objects from pockets such as lighters and matches before use the appliance. Thoroughly rinse items that have been washed by hand.

• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.

• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be washed in the machine.
• Fabric softeners or similar products should be used are recommended in their instructions.
• Never try to open the door forcefully.
• The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.
• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.
• Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The producer will not be responsible for damages caused by the intervention of not authorized persons.

Transport

- Before Transport:

-Bolts shall be reinstalled to the machine by a specialized person;

-Accumulated water shall be drained out of the machine.

- This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door can not be used as a handle.

Model	Washing capacity
EMW1056GW	10.0kg
EMW1256GW	12.0kg

SPECIFICATIONS

Model	EMW1056GW	EMW1256GW
Power Supply	220-240V~,50Hz
MAX. Current	10A
Standard Water Pressure	0.05MPa~1MPa
Washing Capacity	10.0kg	12.0kg

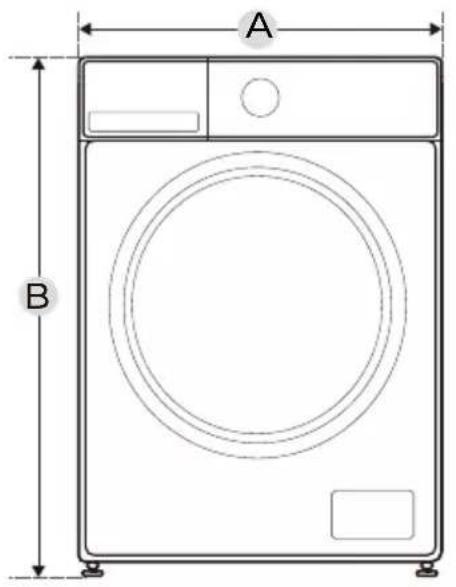

Dimension
A	595mm	595mm
B	850mm	850mm
C	530mm	595mm
Weight	65kg	73kg
Rated Power	2000W	2000W

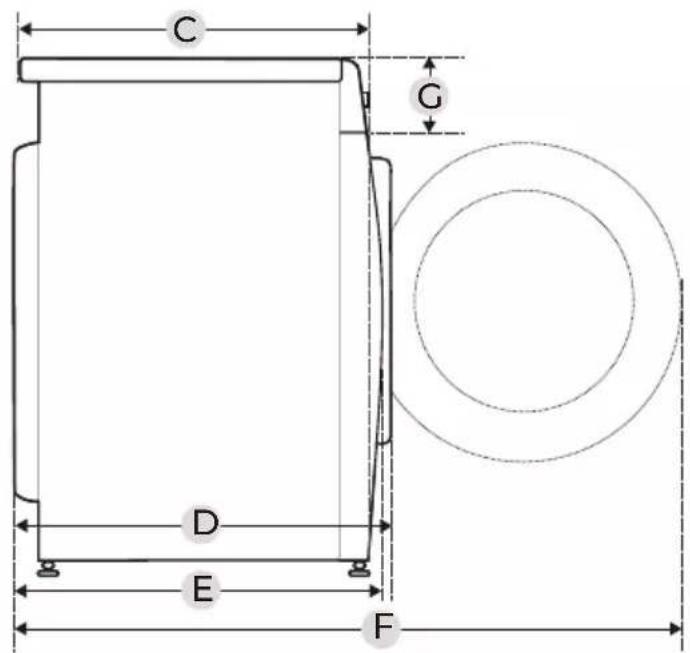

Reference Dimension
D	600mm	660mm
E	540mm	641mm
F	1045mm	1105mm
G	135mm	135mm

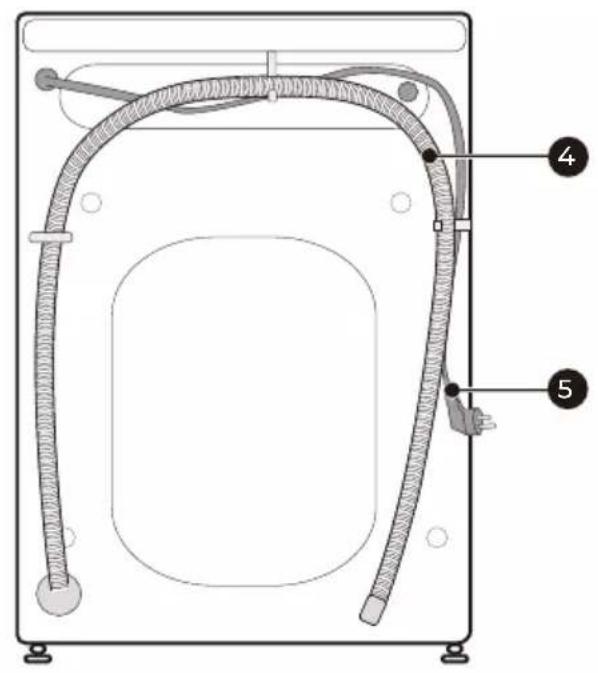

PRODUCT OVERVIEW

1	Door
2	Detergent dispenser
3	Control panel

4	Drain hose
5	Power supply cord
6	Service flap

NOTE

The product picture is for illustration only, please refer to real product as reference.

Accessories

4 x Covercaps	1 x Supply hosecold water	1 x Owner'smanual	Acoustic sponge(optional)

QUICK START GUIDE

CAUTION

• Before washing, please make sure the machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, recommended to clean the inner drum by running the "Drum Clean" or other program with the optional temperature of 90°C.
  Be careful not to put laundry and detergent in the machine.

Calibration

It's recommended to calibrate the machine, so that provide the best performance. The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

continuously (normally 3 seconds) until "t19" is displayed on the knob.

▷||

1. Before Washing

1. Plug in 2. Open tap 3. Load


Diagram of a faucet with arrows indicating flow direction (no text or symbols)

Diagram showing a mechanical or biological process with a rotating arrow and circular components (no text or symbols)

1. Close door


Hand pressing a circular object with an arrow indicating rotation (no text or symbols)

1. Add detergent


NOTE

Detergent need to be added in compartment I if the pre-wash function is selected.

2. Washing

1. Select programme

Simple diagram with a black circle and two curved arrows pointing inward, no text or symbols present.

1. Press Start/Pause to start the program

Hand pointing at a square button with a triangular symbol (no text or labels)

1. Select function or remain default settings

Hand pointing at a grid of rectangular cells (no text or symbols)

NOTE

1: If default is selected, step 2 can be skipped.
2: The function button line chart is for reference only, please refer to real product as standard.
3. After Washing

Buzzer beep and "End" on display.

PRODUCT INSTALLATION

Tools Needed If Installation By Yourself (not include)

Installation Area

WARNING

Stability is important to prevent the product from wandering!

Make sure the machine is standing leveled and stable.

Make sure that the product does not stand onto the power cord.

- Make sure to maintain the minimum distances from the walls as shown in the picture.

Simple line drawing of a washing machine with crossed lines indicating no text or symbols on the body (no text or symbols present)

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface.
2. Avoid direct sunlight.
3. Sufficient ventilation.
4. Room temperature is above 5^irc C.
5. Keep far away from the heat sources such as coal or gas burning appliances.

Unpacking the Machine

Diagram of a box being inserted into a base, with an inset showing a 3D mechanical component (no text or symbols present)

WARNING

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.

• There is a risk of suffocation! Keep all packaging well away from children.

• Remove the cardboard box and styrofoam packing.

• Lift the machine and remove the base packaging.
• Remove the tape securing the power supply cord and drain hose.
• Remove the inlet hose from the drum.

Remove Transport Bolts

WARNING

You must remove the transport bolts from the backside before using the product.

1. Loosen the 4 transport bolts with a spanner.

Illustration of a wrench turning a snail shell with an arrow indicating rotation (no text or symbols)

1. Remove the bolts including the rubber parts and keep them for future use.

Diagram showing a wrench turning a mechanical component with an arrow indicating motion (no text or symbols)

1. Close the holes using the cover caps.

Simple line drawing with a curved arrow pointing to an oval shape, no text or symbols present

PRODUCT INSTALLATION

Levelling the Machine

WARNING

The lock nuts on all four feet must be screwed tightly against the housing.

Illustration of a hand using a tool to adjust or install a component, showing a curved arrow indicating rotation (no text or symbols present)

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level using a spirit level.

Connect the Water Supply Hose

WARNING

To prevent leakage or water damage, follow the instructions in this chapter.

- Do not kink, crush or modify water inlet hose.

Illustration of a person using a device to adjust or install a device, with an inset showing the same hand (no text or symbols present)

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Diagram of a faucet and bulb assembly with directional arrows indicating movement (no text or symbols)

NOTE

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

WARNING

• Do not kink or protract the drain hose.
- Position drain hose properly, otherwise damage might result in water leakage. It is not allowed to remove the buckle of drain pipe.

There are two ways to place the end of drain hose:

1. Put it into the water trough.

1. Connect it to the branch drain pipe of the trough.

Acoustic Sponge

NOTE

- Please make sure to assemble the acoustic sponges, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

Diagram of a door frame with an arrow indicating direction (no text or symbols)

1. Get the machine laid on the floor, using some soft material like foam or clothes between the machine and floor for a protection;
2. Stick the 2x longer sponges to the longer bottom edges of machine, and the 2x shorter sponges to the shorter bottom edges.

OPERATION INSTRUCTIONS

Before Each Washing

- The ambient temperature of the machine should be 5°C-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

- Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine properly.

1. Take all items out of the pockets

1. Tie together long textile strips and belts, close zips and button

2. Sort laundry according to color and textile type


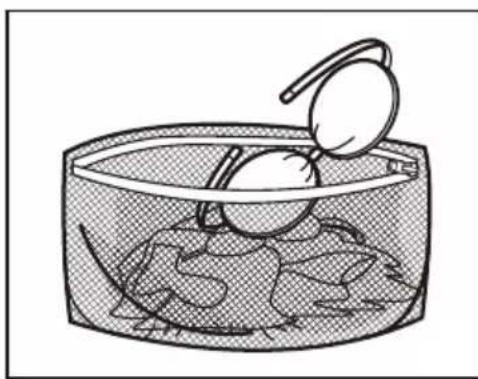

1. Put small items into a laundry bag

Line drawing of a container with a lid and two small objects inside, no text or symbols present

WARNING

dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.

suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

Detergent Dispenser

Pre wash

II

Main wash

Softener

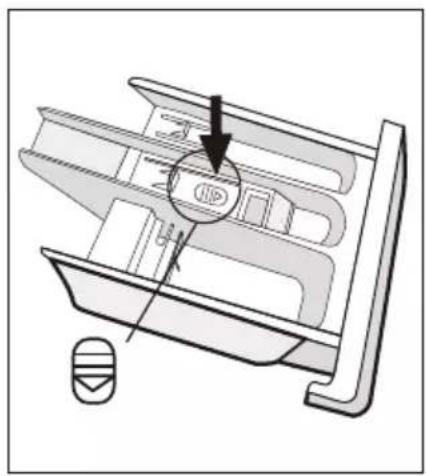

Release button to pull out the dispenser

function.

Programme	|	||/△	✿	Programme	|	||/△	✿
Algodón/Algodão	○	●	○	Centrifugado
Sintéticos	○	●	○	R. de cama	○	●	○
Mix	○	●	○	Lana/Lã		●	○
Sport	○	●	○	Express 15'		●	○
R. Bebé	○	●	○	Rápido 45'		●	○
Jeans	○	●	○	20°C		●	○
ECO 40-60		●	○	Lav. vapor	○	●	○
Limp. tambor

- Means must ○ Means optional

OPERATION INSTRUCTIONS

Detergent Recommendation

Recommended washing detergent	Type of laundry and textile	Wash cycles	Washing temp. °C
Heavy-duty detergent with bleaching agents and optical brighteners	White laundry made from boil-proof cotton or linen	Algodón/Algodão ECO 40-60	40/60
Colour detergent without bleaching agent and optical brighteners	Coloured laundry made from cotton or linen	Algodón/Algodão	20/40
Color or mild detergent without optical brighteners	Coloured laundry made from easy care fibres or synthetic materials	Algodón/Algodão Sintéticos	20/40
Mild washing detergent	Delicate textiles, silk, viscose	Sintéticos	20
Special wool detergent	Wool	Lana/Lã	20/40

NOTE

- Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.

- Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption.

• To achieve the best cleaning result a proper detergent dosing is important.

- Use a reduced detergent amount if the drum is not filled completely.

• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.

- Dose according to how dirty your laundry is, less dirty clothes require less detergent.

• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

- heavy foam formation

- poor washing and rinsing result

Following symptoms are a sign of detergent under dosing:

- laundry turns grey

- built-up of limescale deposits on the drum, the heating element and/or the laundry

Control Panel

Turn the appliance off.

2 Start/Pause

Start or pause your programme.

3 Option

This allows you to select additional functions and will light when selected.

4 Programmes

Available according to the laundry type.

5 Display

The display shows settings, estimated remaining time, options and status messages.

NOTE

- The Chart is reference only, please refer to real product as standard.

OPERATION INSTRUCTIONS

Display

Display

Wash Time Delay Time 125

Speed 400

End End

Child Lock

Pre Wash

Strong Wash

HYGIENE FUNCTION

2H

Error E30

Temp. 30

Door Lock

Extra Rinse

Delay

Programmes

Model: EMW1056GW; EMW1256GW

Programme	Load (kg) Default Time (h:min)
	10.0	12.0	10.0	12.0
Algodón/Algodão	10.0	12.0	3:49	3:49
Sintéticos	5.0	6.0	3:28	3:28
Mix	10.0	12.0	1:30	1:30
20°C	5.0	6.0	1:11	1:11
Sport	5.0	6.0	0:57	0:57
R. Bebé	10.0	12.0	1:52	1:52
Jeans	10.0	12.0	1:56	1:56
Lav. vapor	5.0	6.0	1:58	1:58
Centrifugado	10.0	12.0	0:12	0:12
R. de cama	10.0	12.0	1:48	1:48
Lana/Lã	2.0	2.0	1:07	1:07
ECO 40-60	10.0	12.0	3:59	4:00
Limp. tambor	--	--	1:28	1:28
Express 15'	2.0	2.0	0:15	0:15
Rápido 45'	2.0	2.0	0:45	0:45

NOTE

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

EMW1056GW

Cycle	Nominal capacity in kg	Temperature setting°C	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter/operalling cycle	Highest temperature °C	Residual moisture in % / spin speed in rpm2
Algodón/ Algodão	10.0	60	3:54	1.726	85	60	53%/1400
Mix	10.0	40	1:30	0.889	85	40	70%/800
20 °C	5.0	20	1:11	0.212	51	20	65%/1000
Express 15'	2.0	Cold	0:15	0.030	31	Cold	70%/800
R. de cama	10.0	40	1:48	0.920	85	40	65%/1000
ECO 40-603)	10.0	--	3:59	0.895	67.0	41	53.9%/1350
	5.0	--	3:00	0.560	52.0	33	53.9%/1350
	2.5	--	3:00	0.232	41.5	23	53.9%/1350

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• 20°C is able to clean lightly soiled cotton laundry, at a nominal temperature of 20°C, which complies with the regulation (EU) 2019/2023.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, (EU)2021/340,(EU)2021/341

The EU energy efficiency class is: A

Energy test program: ECO 40-60. Other as the default.

Half load for 10.0kg machine: 5.0kg.

Quarter load for 10.0kg machine: 2.5kg.

EMW1256GW

Cycle	Nominal capacity in kg	Temperature setting°C	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter/operalling cycle	Highest temperature °C	Residual moisture in % / spin speed in rpm2
Algodón/ Algodão	12.0	60	3:54	1.936	99	60	53%/1400
Mix	12.0	40	1:30	1.006	99	40	70%/800
20 °C	6.0	20	1:11	0.224	58	20	65%/1000
Express 15'	2.0	Cold	0:15	0.030	31	Cold	70%/800
R. de cama	12.0	40	1:48	1.037	99	40	65%/1000
ECO 40-603)	12.0	--	4:00	1.186	82.0	42	53.9%/1350
	6.0	--	3:00	0.618	58.0	32	53.9%/1350
	4.0	--	3:00	0.254	46.0	24	53.9%/1350

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• 20°C is able to clean lightly soiled cotton laundry, at a nominal temperature of 20°C, which complies with the regulation (EU) 2019/2023.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, (EU)2021/340,(EU)2021/341
  The EU energy efficiency class is: A
  Energy test program: ECO 40-60. Other as the default.
  Half load for 10.0kg machine: 6.0kg.
  Quarter load for 10.0kg machine: 3.0kg.

Programmes

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^irc C or 60^irc C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.
The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

CAUTION

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

OPERATION INSTRUCTIONS

Programmes are available according to the laundry type.

Programmes
Algodón/Algodão	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Rápido 45'	Washing few and not very dirty clothes quickly.
Sintéticos	Washing synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
R. bebé	Washing the baby's clothes, it can make the baby's wear cleaner. and make the rinse performance better to protect the baby skin.
Jeans	Specially for jeans.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
20°C	Able to clean lightly soiled cotton laundry, at a nominal temperature of 20 °C.
Sport	Washing the activewear.
Express 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
R. de cama	This program is specially designed for washing Bulky.
Lana/Lã	Hand or machine-washable wool or richwool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Centrifugado	Spins and drains the water.
ECO 40-60	Able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
Lav. vapor	Steam is applicable for daily laundries.
Limp. tambor	Specially set in this machine to clean the drum and tube. It applies 90 °C high temperature sterilization to make the clothes washing more green. When this programme is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent i put in, the barrel cleaning effect will be better. The customer can use this programme regularly according to the need.

NOTE

• The Chart is reference only, please refer to real product as standard.
• When the programme is finished, "End" will flash on the display, Please select the knob to the Off position.

OPERATION INSTRUCTIONS

Option

Cycle	Default Temp.(°C)	Default spin speed (rpm)	Additional functions
		1400
Algodón/Algodão	40	1400
Sintéticos		1200
Mix		800
20°C	20	1000
Sport		800
R. Bebé		1000
Jeans		800
Limp. Tambor		--
Centrifugado		1000
R. de cama		1000
Lana/Lã		600
ECO 40-60		1400
Lav. vapor		1000
Express 15'		800
Rápido 45'		800

NOTE

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Centrifug.

When needed, the spinning speed can be adjusted pressing the Centrifug. button in the following steps: 1400:0-400-600-800-1000-1200-1400

Delay

1. Select a programme.
2. Press the Início diferido/Início retardado button to choose the delaying time 0-24H.
3. Press Inicio/Pausa to start the delay operation.

Choose programme

Setting time Start

To cancel the Delay function, press the "Inicio diferido/Inicio retardado" button before starting the program until the display shows 0 H. If the program has already started, switch the appliance off and afterwards on and select a new programme.

Pre Wash

Extra washing function before the main washing cycle starts to increase the washing performance.

Note: Detergent needs to be added to the compartment I.

Extra Rinse

The laundry will undergo an extra rinse after selecting this function.

Strong Wash

Very dirty clothes can choose it, select it can increase the washing time and intensity to increase the washing effect.

HYGIENE FUNCTION

When the Hygiene Function light is on, this function is automatically

automatically activated during every washing cycle. Hygiene Function system will keep your laundry always clean.

Temp.

When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps:

Cold -20°C-30°C - 40°C- 60°C - 90°C.

NOTE

Usage counter

1. Unplug the equipment for 10s and reconnect again.
2. Power on and within 10s, please press "Centrifug." and "Función/Função" on control panel simultaneously and continuously for around 5s until the device display shows digits--the value can indicate the times of equipment usage.
3. Repeat step 1 again and customer can resume to normal operation.

OPERATION INSTRUCTIONS

Child Lock

To avoid mis-operation by children.

Press Inicio diferido/Inicio retardado and Función/Função simultaneously for 3 sec until the buzzer beep. The child lock indicator switches on.

CAUTION

When the Child Lock is activated, the display will alternately show "CL" and the remaining time.

Pressing any other button will cause the Child Lock indicator to flash.

When the program ends, "CL" and "End" will alternate on the display.

The Child Lock deactivates the function of all buttons except the Child lock button! Only the simultaneous pressing of the two buttons Inicio diferido/Inicio retardado and Función/Função can deactivate the Child Lock!

Please deactivate the Child Lock before selecting a new program!

Mute the buzzer

Choose the Programme Press the [Temp.] button for 3sec., the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

CAUTION

• After Muting the buzzer function, the sounds will not be activated any more.

Reload

This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To Press

[▶] 3 sec. to reload, and start the clothes adding in the midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the Inicio/Pausa button.

Press[Press 3 sec. to reload] 3 sec.

Reload the clothes

Start

Product Fiche

Supplier's name or trade mark(°)(°): EAS ELECTRIC

Supplier's address(1)(2): P.I. San Carlos, Camino de la Sierra, S/N, Parcela 11 03370 Redován (Alicante) - ESPAÑA

Model identifier ^(a) : EMW1056GW

General product parameters:

Parameter Value	Parameter Value
Rated capacity(°)(kg)	10.0		Dimensions in cm(9)(°)	Height 85
				Width 60
				Depth 53
Energy efficiency index(6)(EEI)	51.9		Energy efficiency class(6)	A (°)
Washing efficiency index(6) Rinsing effectiveness (g/kg)(b)			Water consumption in litre per cycle, based on the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water.s	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used.	0.513			52
Maximum temperature inside the treat textile (b)	Rated capacity	37	Weighted remaining moisture content (9)(%)	53.9
	Half	33
	Quarter	23
Spin speed(b)(rpm)	Rated capacity	1350	Spin-drying efficiency class (b)	B (d)
	Half	1350
	Quarter	1350
Programme duration(b)(h:min)	Rated capacity	3:59	Type	free-standing
	Half	3:00
	Quarter	3:00
Airborne acoustical noise emissions in the spinning phase(a) (dB(A) re I pW)	72		Airborne acoustical noise emission class (b)(spinning phase)	A (e)
Off-mode (W) (if applicable)	0.50		Standby mode (W)(if applicable)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W)(if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (a)(c): 3 years
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU)2019/2023(1) is found: www.easelectric.es
(i) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369,(b) for the eco 40-60 programme.(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU)2017/1369.(d) it the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

Supplier's name or trade mark(°)(°): EAS ELECTRIC

Supplier's address(1)(2): P.I. San Carlos, Camino de la Sierra, S/N, Parcela 11 03370 Redován (Alicante) - ESPAÑA

Model identifier ^(a) : EMW1256

General product parameters:

Parameter Value	Parameter Value
Rated capacity(°)(kg)	12.0		Dimensions in cm(9)(°)	Height 85
				Width 60
				Depth 60
Energy efficiency index(6)(EEI)	52.0		Energy efficiency class(6)	A (°)
Washing efficiency index(6) Rinsing effectiveness (g/kg)(b)				5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used.	0.544		Water consumption in litre per cycle, based on the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water.s	57
Maximum temperature inside the treat textile (b)	Rated capacity	42	Weighted remaining moisture content (9)(%)	53.9
	Half	32
	Quarter	24
Spin speed(b)(rpm)	Rated capacity	1350	Spin-drying efficiency class (b)	B (d)
	Half	1350
	Quarter	1350
Programme duration(b)(h:min)	Rated capacity	4:00	Type	free-standing
	Half	3:00
	Quarter	3:00
Airborne acoustical noise emissions in the spinning phase(a) (dB(A) re I pW)	80.0		Airborne acoustical noise emission class (b)(spinning phase)	C (e)
Off-mode (W) (if applicable)	0.50		Standby mode (W)(if applicable)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W)(if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (a)(c): 3 years
This product has been designed to release silver ions during the washing cycle			NO
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU)2019/2023(1) is found: www.easelectric.es
(i) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369,(b) for the eco 40-60 programme.(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU)2017/1369.(d) it the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

CLEANING AND MAINTENANCE

Cleaning and Care

WARNING

maintenance.

Cleaning the Cabinet

Proper maintenance on the machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a towel to wipe it off immediately.

Never use sharp items to clean the appliance.

Line drawing of a hand washing a laundry machine with a cloth (no text or symbols)

CAUTION

- Never use abrasive or caustic agents. Such as formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

NOTE

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages. Remove any coins, buttons and other objects from the seal after each wash. Clean the door seal and glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

CLEANING AND MAINTENANCE

Cleaning the Inlet Filter

NOTE

- Diminishing water flow is a sign that the filter needs to be cleaned.

1. Close the tap and remove the water supply hose from it.

Diagram showing a faucet being twisted with arrows indicating rotational motion (no text or symbols)

1. Clean the filter with a brush.

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

1. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.

2. Use a brush to clean the

Illustration of a hand inserting a device into a control panel, with an inset showing the internal mechanical component (no text or symbols present)

Line drawing of a hand using a tool to inspect a component, with no visible text or symbols

1. Reinstall the filter to the water inlet and reconnect the water supply hose.

2. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

CLEANING AND MAINTENANCE

Cleaning the Detergent Dispenser

1. Press down the release [icon] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.

3. Restore the softener cover and push the drawer back into the recess.

4. Press the release and remove the dispenser drawer

Technical diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

1. Clean the dispenser drawer and the softener cover under water

Technical line drawing of a mechanical device with handle and internal components (no text or symbols)

1. Clean the recess with a soft brush

Line drawing of a hand using a tool to remove or remove a dark object inside a transparent container (no text or symbols)

1. Insert the dispenser drawer

Technical line drawing of a mechanical component with no visible text or symbols

NOTE

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

CLEANING AND MAINTENANCE

Cleaning the Drain Pump Filter

WARNING

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Wait for water cooling down. Risk of scalding!

• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

• Open the lower cover cap

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

1. Remove extraneous matter

1. Open the filter by turning to the counter clockwise

Hand holding a button with an arrow indicating rotation (no text or symbols)

1. Close the lower cover cap

Technical line drawing of a mechanical component with rotational arrows indicating movement (no text or symbols)

CAUTION

- When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

TROUBLE SHOOTING

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible Cause	Solution
Appliance does not start	Door is not closed properly.Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts are still in place.Floor is not solid or level.	Check if the fixing bolts have been removed.Make sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible Cause	Solution
E30	Door is not closed properly.	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough. Straighten the water pipe. Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

DISPOSAL AND RECYCLING

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Customer Service

Spare parts for your appliance are available for a minimum of 10 years following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign requirements. In case of questions, please contact our local customer service center.

WARNING

Risk of electric shock

You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

recognized!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

installations.

Drain Pump Filter")

part of the machine when lifting. The machine door can not be used as a handle.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

Contenu

Modèle	EMW1056GW	EMW1256GW
Alimentation	220-240V~,50Hz
Courant maximal	10A
Pression d'eau standard	0.05MPa~1MPa
Capacité de lavage	10.0kg	12.0kg
Dimensions
A	595mm	595mm
B	850mm	850mm
C	530mm	595mm
Poids	65kg	73kg
Puissance nominale	2000W	2000W
Dimensions de référence
D	600mm	660mm
E	540mm	641mm
F	1045mm	1105mm
G	135mm	135mm

DESCRIPTION DU PRODUIT

Diagram of a faucet with arrows indicating flow direction (no text or symbols)

1. Chargez le linge


Diagram showing a mechanical component with a rotating arrow indicating rotation (no text or symbols)

1. Fermez la porte


Hand pressing a circular object with an arrow indicating rotation (no text or symbols)

Simple diagram with a central black circle and two curved arrows pointing inward, no text or symbols present.

Hand pointing at a grid of rectangular blocks (no text or symbols)

Hand pointing at a square button with a triangular icon, no text or symbols present

REMARQUE

Line drawing of a washing machine with crossed-out circular components and a blank front panel (no text or symbols)

Technical illustration of a mechanical assembly with an inset close-up showing a 3D component detail (no text or symbols)

AVERTISSEMENT

Illustration of a snail being handled with a wrench, showing rotational motion (no text or symbols)

Diagram showing a wrench turning a mechanical component with an arrow indicating motion (no text or symbols)

Simple line drawing with a curved arrow and a circle, no text or symbols present

INSTALLATION

Illustration of a hand using a tool to adjust or install a component, showing a curved arrow indicating rotation (no text or symbols present)

Illustration of a person using a handheld device to adjust or install a device, with an inset showing the same device (no text or symbols present)

Diagram of a faucet and bulb assembly with directional arrows indicating movement (no text or symbols)

REMARQUE

Diagram of a door frame with an arrow indicating clockwise motion (no text or symbols)

Line drawing of a container with a lid and fish inside, no text or symbols present

AVERTISSEMENT

Display

Lavage Retard 125

Speed 400

End End

2H

Erreur E30

Temp. 30

Line drawing of a hand washing a washing machine with cloth (no text or symbols)

ATTENTION

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

REMARQUE

Line drawing of a hand gripping a curved object, possibly a tool or device (no text or symbols present)

NETTOYAGE ET MAINTENANCE

Diagram showing a faucet being switched by a valve, with no text or symbols present.

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

Illustration of a hand inserting a component into a device, showing rotational arrows (no text or symbols)

Line drawing of a hand using a tool to inspect or install a component, with no visible text or symbols.

Technical diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with handle and internal components (no text or symbols)

Line drawing of a hand using a tool to cut a rectangular object with a textured interior (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

REMARQUE

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Hand pressing a button on a tray with a circular arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

ATTENTION

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

1	Porta
2	Distribuidor de detergente
3	Control panel

Diagram of a faucet with arrows indicating flow direction (no text or symbols)

1. Carregue a roupa


Diagram showing a cross-section of a mechanical component with an arrow indicating rotation (no text or symbols present)

1. Feche a porta


Hand pressing a circular component with an arrow indicating rotational motion (no text or symbols)

1. Adicione detergente


Simple diagram with a central black circle and two curved arrows pointing inward, no text or symbols present.

Hand pointing at a square button with a triangular icon, no text or symbols present

Hand pointing at a grid of rectangular cells (no text or symbols)

NOTA

Line drawing of a washing machine with crossed-out circular components and a blank space (no text or symbols)

Diagram of a cardboard box being inserted into a base, with an inset showing the internal structure (no text or symbols)

ADVERTÊNCIA

Illustration of a wrench turning a snail shell with an arrow indicating rotation (no text or symbols)

Diagram showing a wrench turning a mechanical component with an arrow indicating motion (no text or symbols)

1. Fechar os buracos com as tampas.

Simple line drawing with a curved arrow pointing to an oval shape, no text or symbols present

INSTALAÇÃO

Equilibrar a máquina de lavar

ADVERTÊNCIA

Illustration of a hand using a tool to adjust or install a component, showing a curved arrow indicating rotation (no text or symbols present)

Illustration of a person using a device to adjust or install a device, with an inset showing the same hand (no text or symbols present)

Diagram of a faucet and bulb assembly with directional arrows indicating movement (no text or labels)

NOTA

Diagram of a washing machine with piping and outlet pipes, showing height and width measurements (no text or labels)

Esponja acústica

NOTA

Diagram of a door frame with a curved arrow indicating direction (no text or symbols)

Simple line drawing of a container with a lid and fish inside, no text or symbols present.

ADVERTÊNCIA

Display

Line drawing of a hand washing a laundry machine with a cloth on top (no text or symbols)

ATENÇÃO

Line drawing of a hand gripping a curved object, possibly a tool or device (no text or symbols present)

Diagram showing a faucet being switched by a valve, with no text or symbols present.

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

Illustration of a hand inserting a device into a housing, showing mechanical components and rotation arrows (no text or symbols)

Line drawing of a hand using a tool to inspect a component, with a magnified inset showing the meshing area (no text or symbols)

Technical diagram of a mechanical component with an arrow indicating direction, showing internal structure and a small inset view (no text or symbols)

Technical line drawing of a mechanical device with handle and internal components (no text or symbols)

Line drawing of a hand using a tool to insert or remove a dark object into a rectangular frame (no text or symbols)

1. Recolocar a caixa

Technical line drawing of a mechanical assembly with no visible text or symbols

NOTA

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Hand holding a circular button with an arrow, mounted on a tray (no text or symbols visible)

1. Fechar a tampa inferior

Technical diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

CAUTION

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Scan for manual in other languages and further updates:
