USER MANUAL Kamvas Pro 16 Plus Huion

KAMVAS Pro 16 Plus (4K)

GT1562

② User Manual
30 Benutzerhandbuch
51 Manuel d' utilisateur
⑦2 ユーザーマニュアル
93 Manuale d'uso
114 Manual de Usuario

Front view of a tablet device labeled 'HUION' at the bottom (no other text or symbols visible)

Contents

1 / Precautions ....3
2 / Product Overview....4
2.1 Display Introduction......4
2.2 Product and Accessories 4
2.3 Display Connection 6
2.4 Install Driver 9
3 / Pen Basic Operation ....10
3.1 Hold the pen 10
3.2 Position the cursor .... 10
3.3 Click.... 11
3.4 Move....11
3.5 Use the side buttons.... 11
3.6 Pen Nib Replacement.... 12
4 / Pen-enabled OSD Menu ....13
5 / Function Setting ......16
5.1 Working Area Setting.... 16
5.2 Display Setting.... 18
5.3 Pen Buttons Function Setting 21
5.4 Enable the Windows Ink Feature 21
5.5 Pressure Sensitivity Setting 22
5.6 Pen Pressure Testing 23
5.7 Pen Nib Activity Setting....23
5.8 Data Export and Import 24
6 / Specifications ....25
7 / Trouble Shooting ......26
8 / After-service Contact ......29

1 / Precautions

【Please read this manual carefully before using, and keep it well for future reference.】

--Before cleaning the display, please unplug the USB cable and wipe with a soft damp cloth, do not use any kind of detergents.
--Please don't place the display near water sources such as bathtub, washbasin, sinks, washing machine, damp basement, swimming pool, etc.
--Do not place the display on where is unstable or a height for children reaching easily in order to avoid danger.
--Do not place the display and digital pen close to the magnetic field.
--The grooves and holes on the back case is designed for ventilation to prevent the monitor from overheating. Please don't place the display on beds, sofas, carpets or in embedded device.
--Only power supplies shown on the nameplate can be used for the display. If you have questions about the power supply which you are using, please consult the distributor of your display.
--To protect your display, please switch off the power when it is not in use. During blackouts or not using for long time, please unplug the display from the socket.
--Make sure no foreign bodies get inside the monitor through grooves and prevent liquid from splashing on the display as to prevent short-circuit or fire.
--If the display has a breakdown, do not open the main case and try to repair it by yourself. Please ask for a service for proper repair and maintenance.
--When the following situations occur, please unplug the power adapter and you may need a service for full repair and maintenance:

A. The power wire or plug is damaged or worn out;

B. There is liquid splashed inside of the display;

C. The display has fallen or the LCD is broken;

D. When obvious abnormalities occur to the display.

--While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.

2 / Product Overview

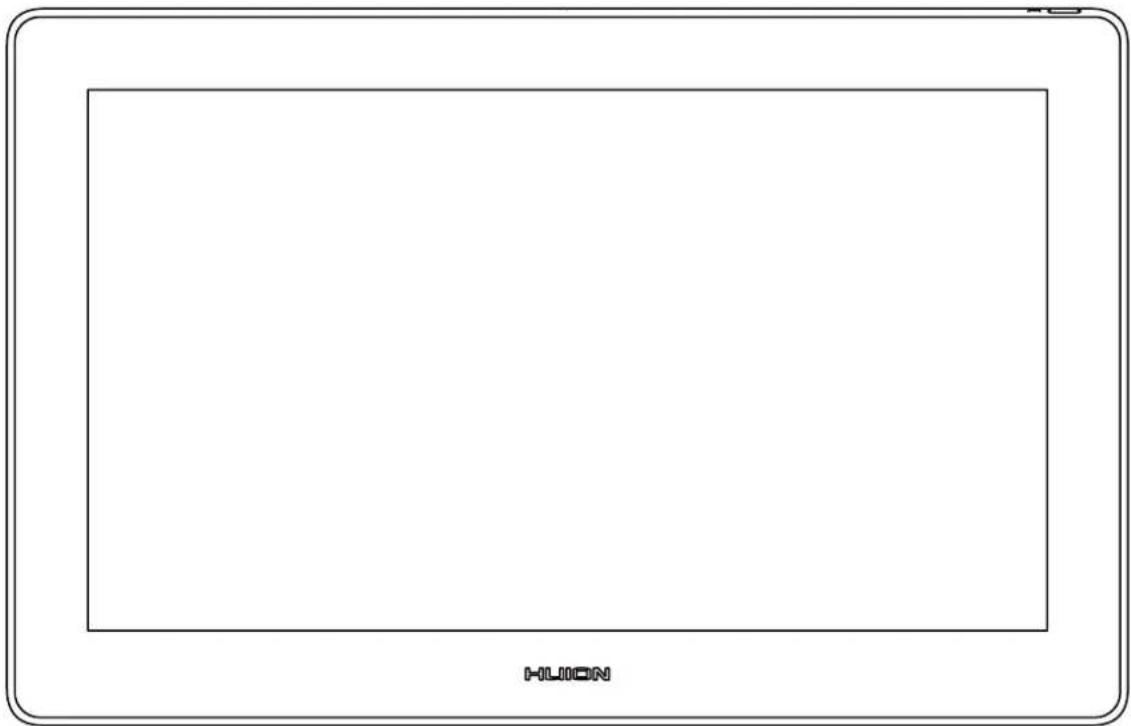

2.1 Display Introduction

Thanks for choosing HUION® KAMVAS® Pro 16 Plus (4K) creative display. This is a new generation of professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely paint and write, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.

To give you a better understanding and using of your display, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Mac systems.

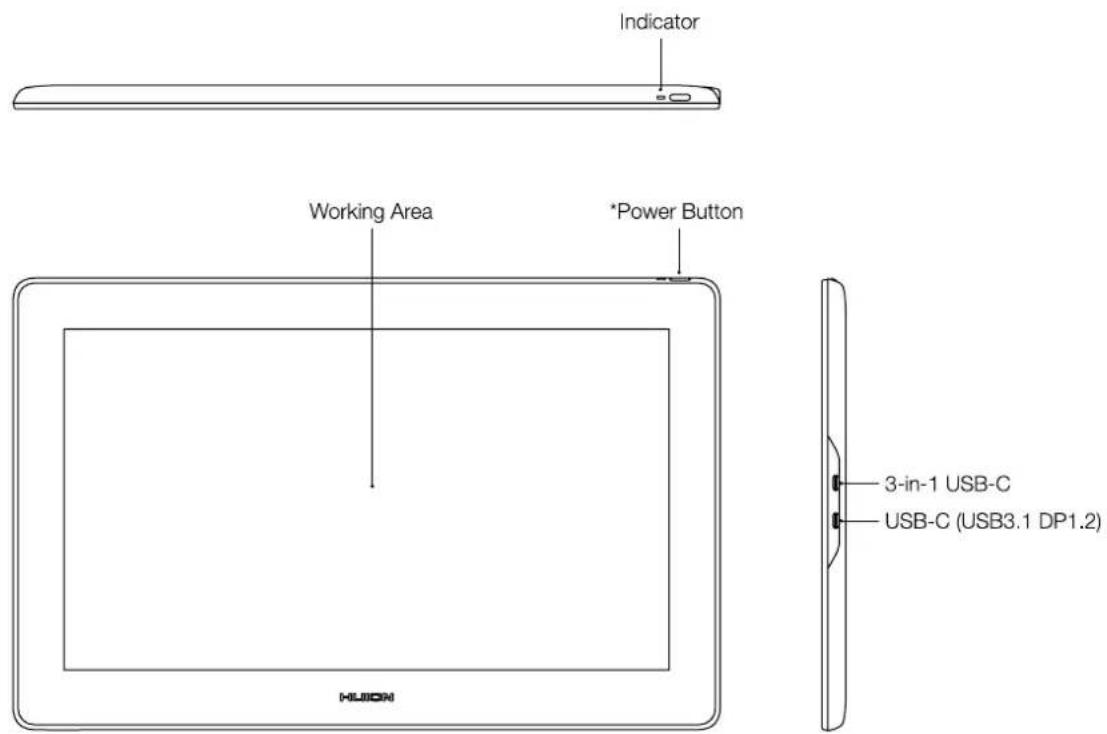

2.2 Product and Accessories

*Function Button: Press Power Button around three seconds to open the OSD menu.
Picture shown is for illustration purposes only.

2.2.1 Accessories

Battery-free pen

Replacement Nibs
(inside the pen holder)

Pen Holder

Stand

Pen Case

Pen Nib Clip (inside the pen holder)

Warranty Card

Quick Start Guide

Cleaning Cloth

Coiled network cable with USB port and multiple connector ports (no text or symbols visible)

3-in-1 Cable

Simple line drawing of a coiled cable with two connectors (no text or symbols)

USB Extension Cable

Pure diagram of a U-shaped cable with two connectors (no text or symbols)

USB-C Cable

Power Cable Power Adapter

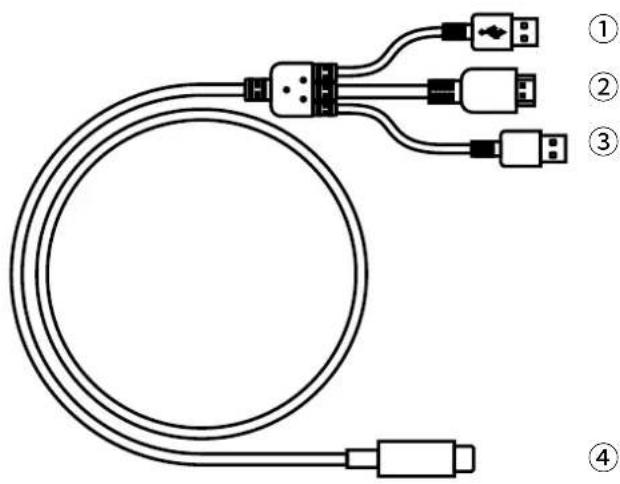

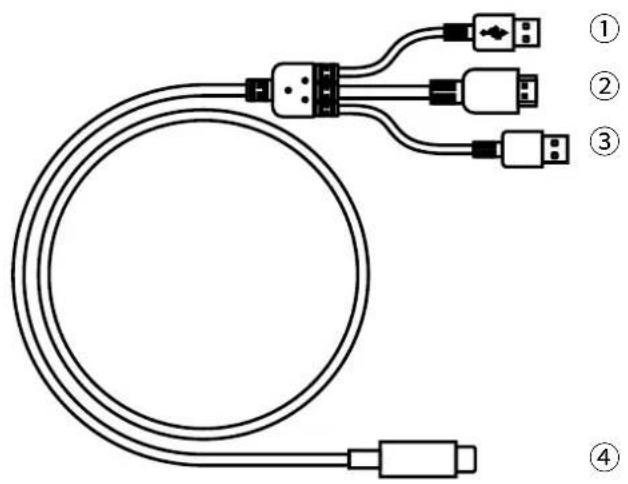

2.2.2 3-in-1 Cable

Diagram of a multi-pin cable with four connector ports, labeled 1 to 4 (no text or symbols on the cable itself)

① USB (Data) ② HDMI ③ USB (Power) ④ Type-C

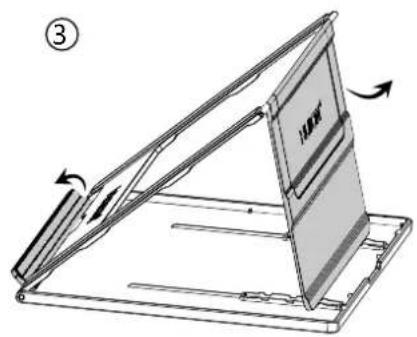

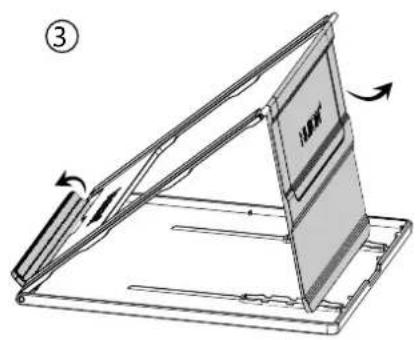

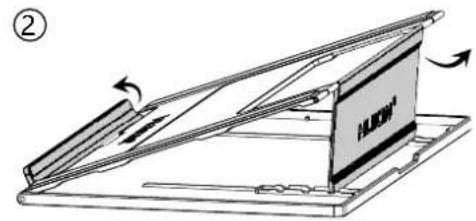

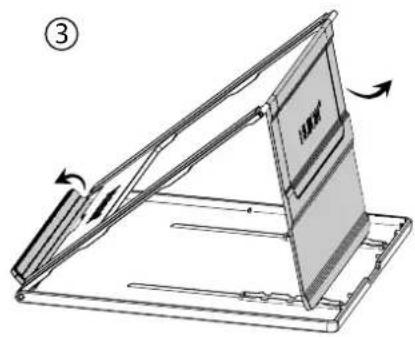

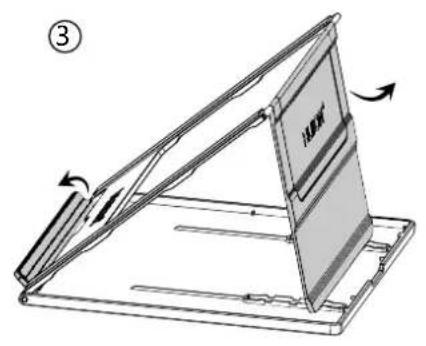

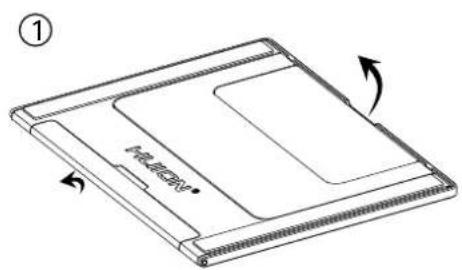

2.2.3 Adjustable Stand

We designed this ergonomic adjustable stand specially for your KAMVAS display, you can adjust the angle of the display according to your usage habit, and make you feel more comfortable when painting and creating.

Diagram of a folding screen setup with directional arrows indicating movement (no text or symbols)

2.3 Display Connection

Connect the pen display to your computer with 3-in-1 Cable or USB-C to USB-C Cable.

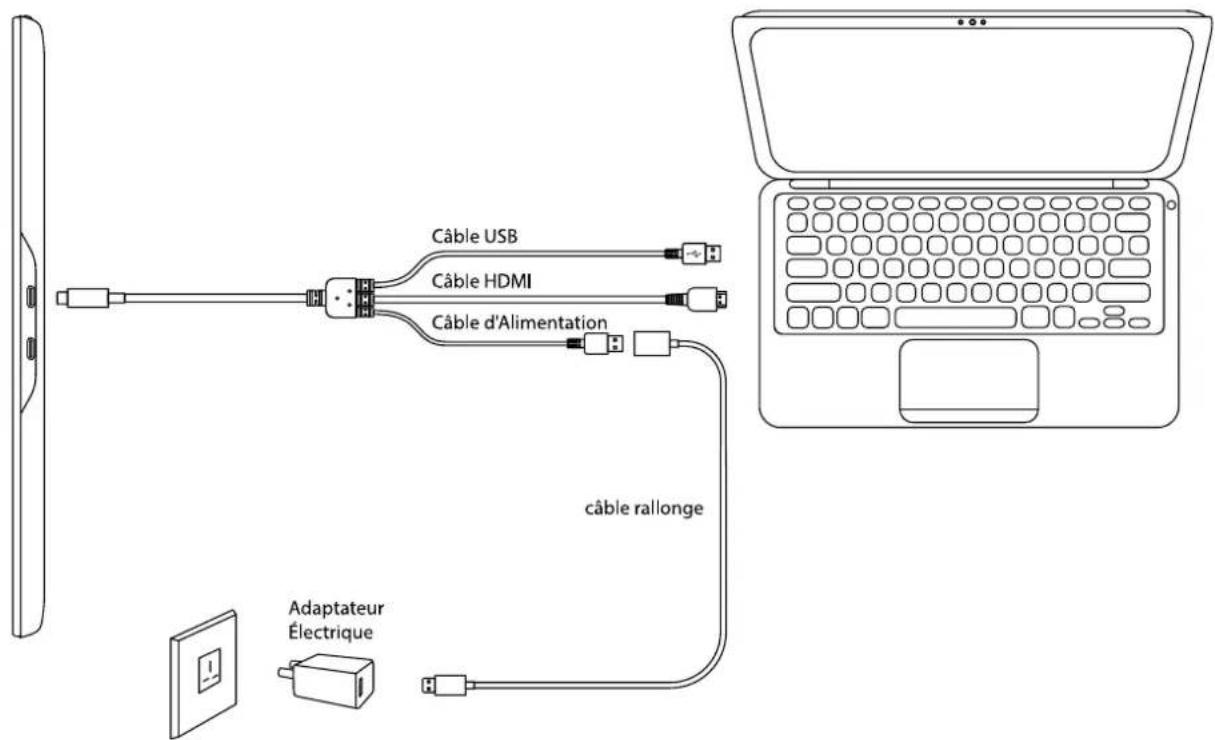

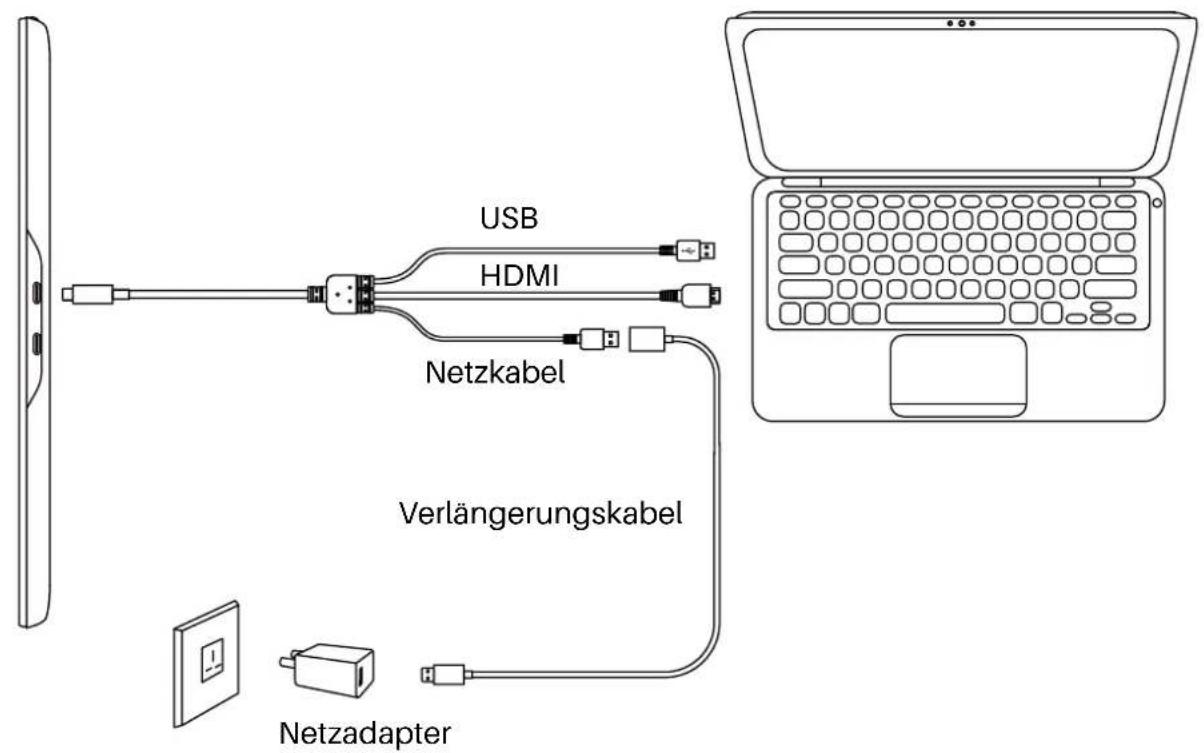

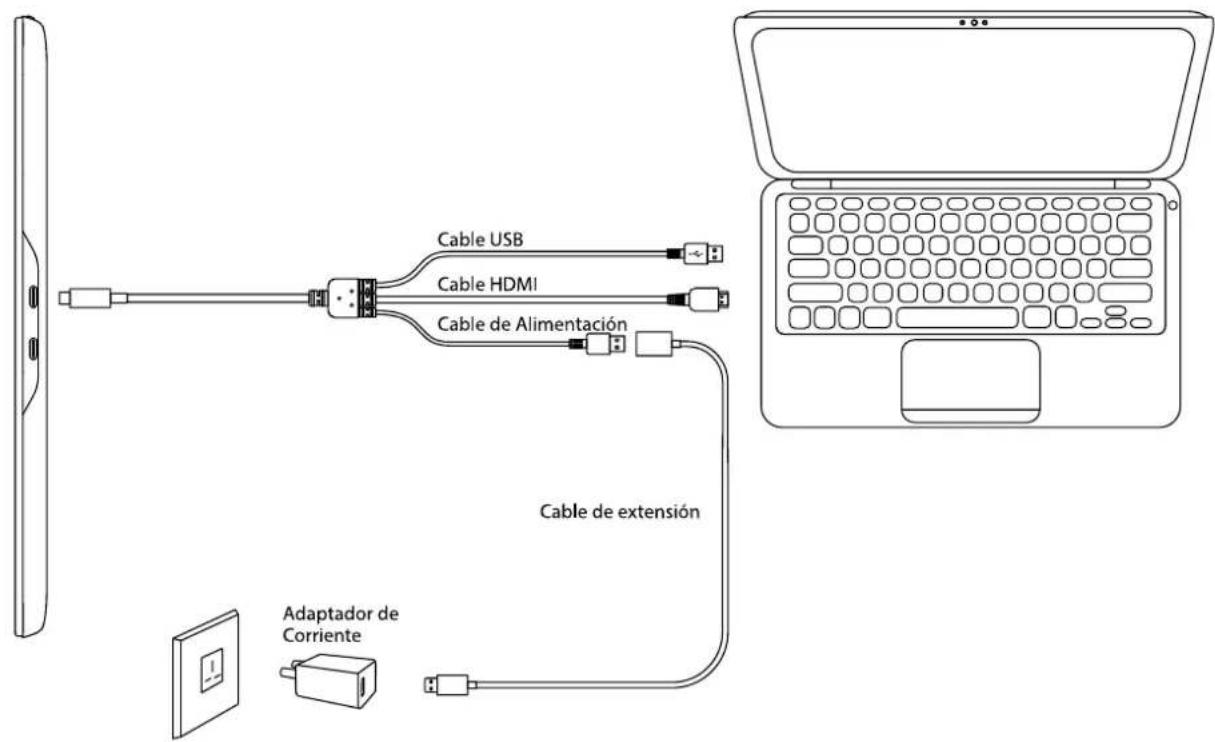

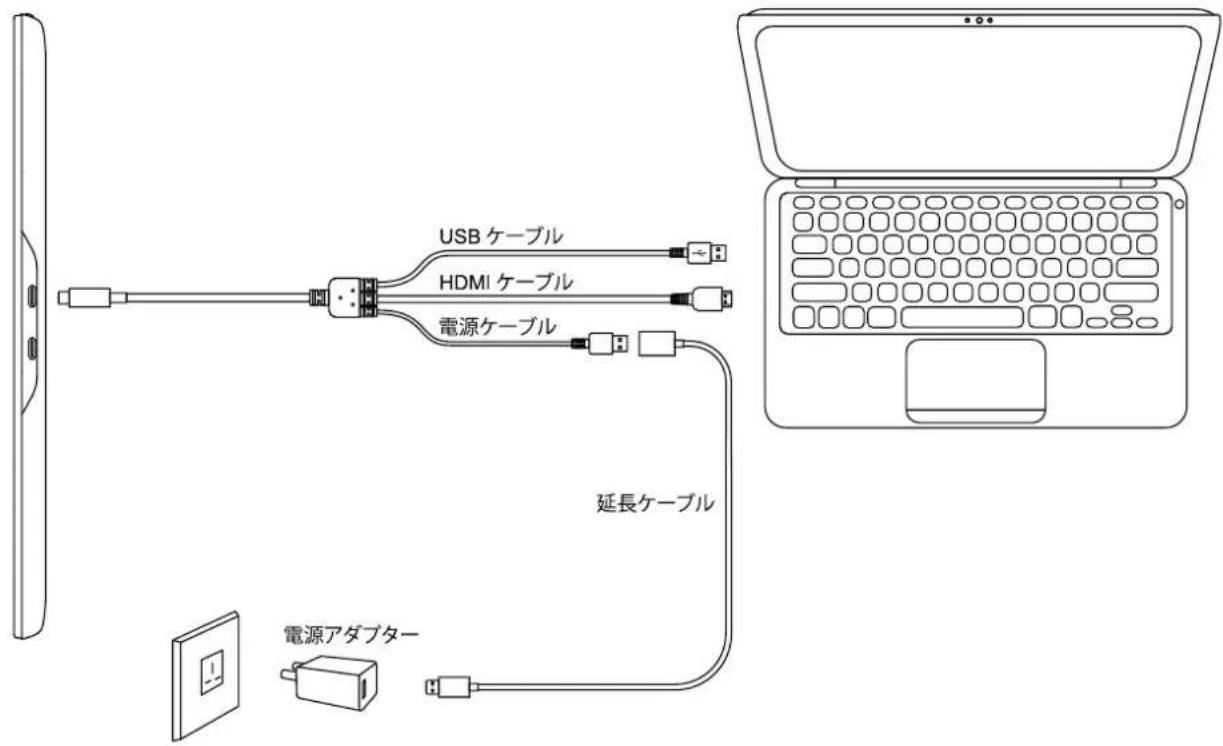

[1] Connect the display to your computer with 3-in-1 cable;

Connect the power adapter to the power cable.

When the power cable is not long enough to be connected to the power adapter, an extension cable is available to help reach further.

All USB power adapters are applicable as long as its gauge is 5V and 3A.

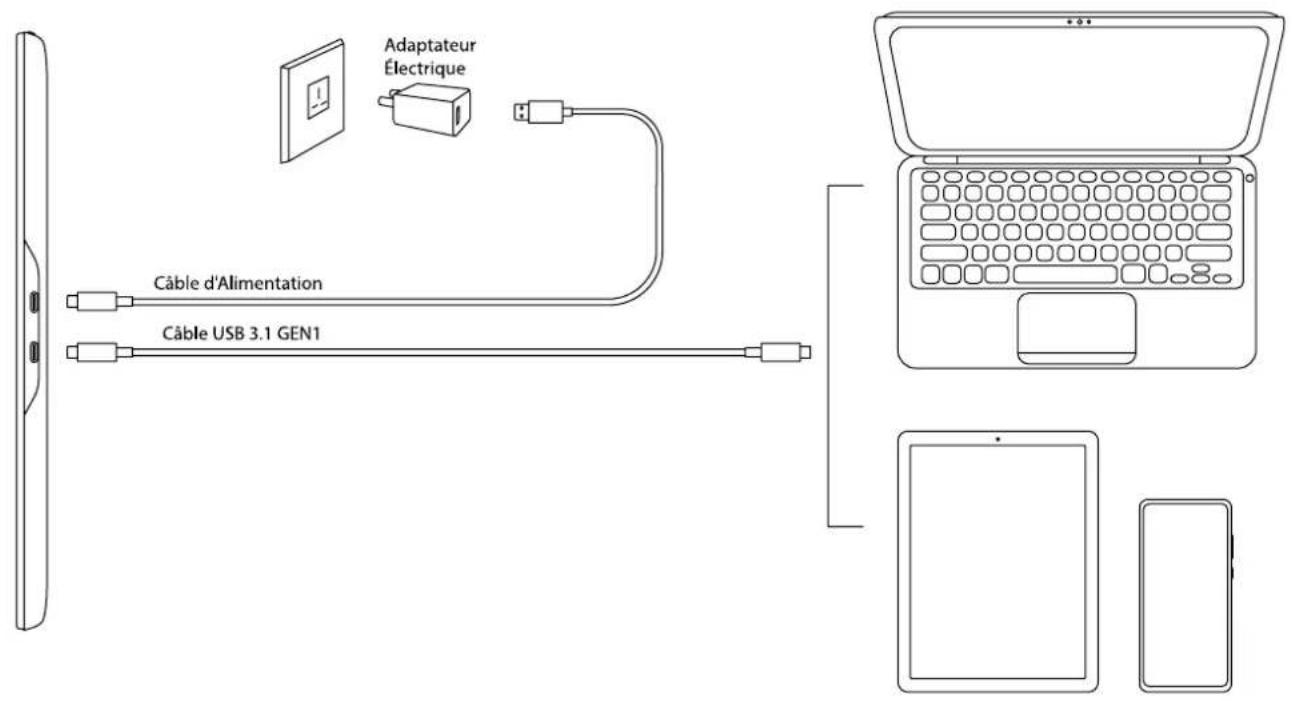

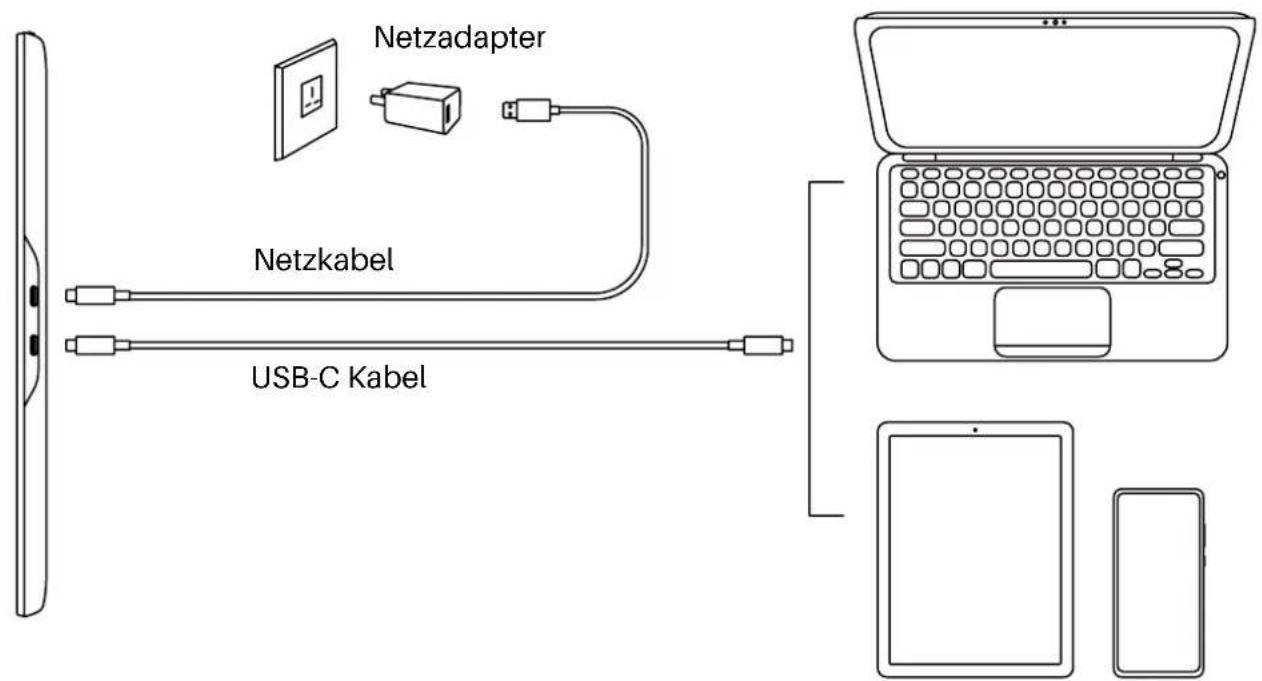

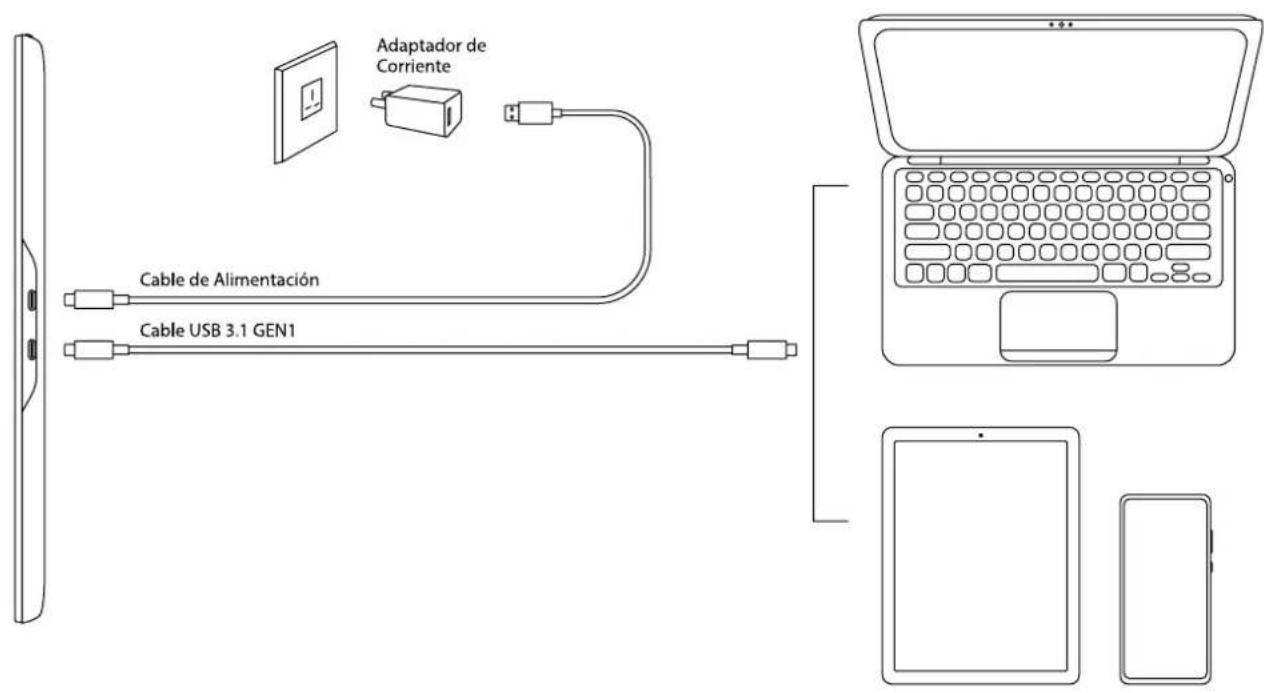

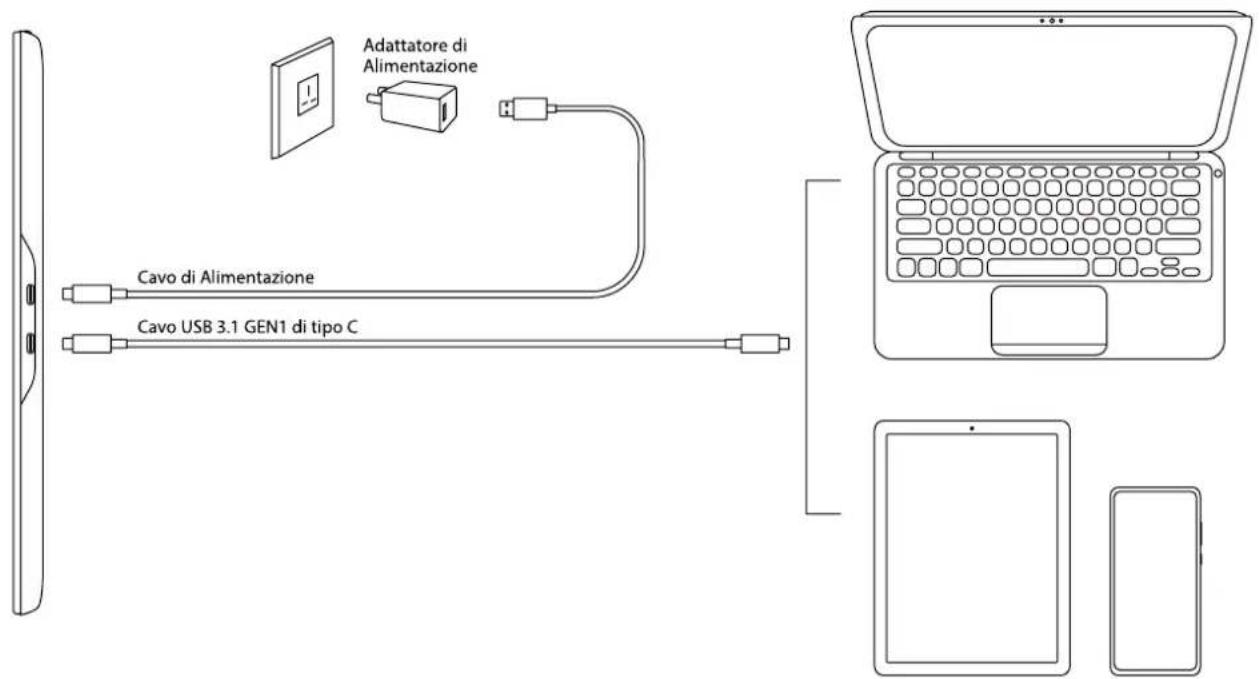

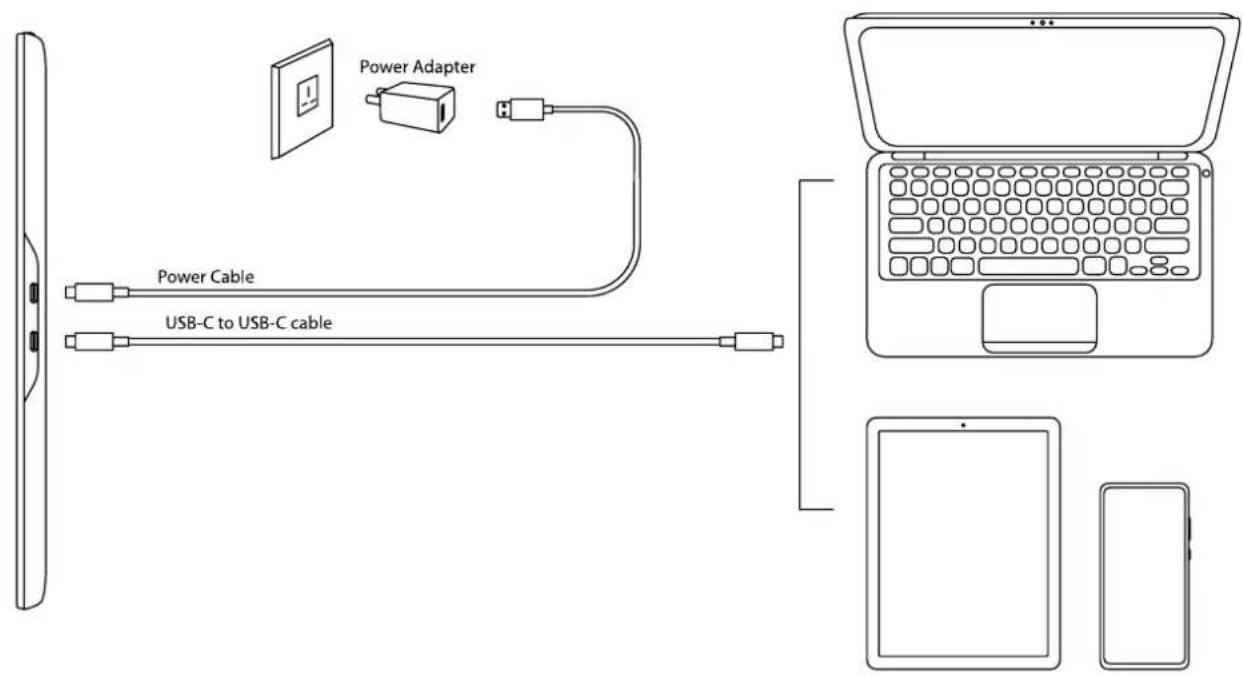

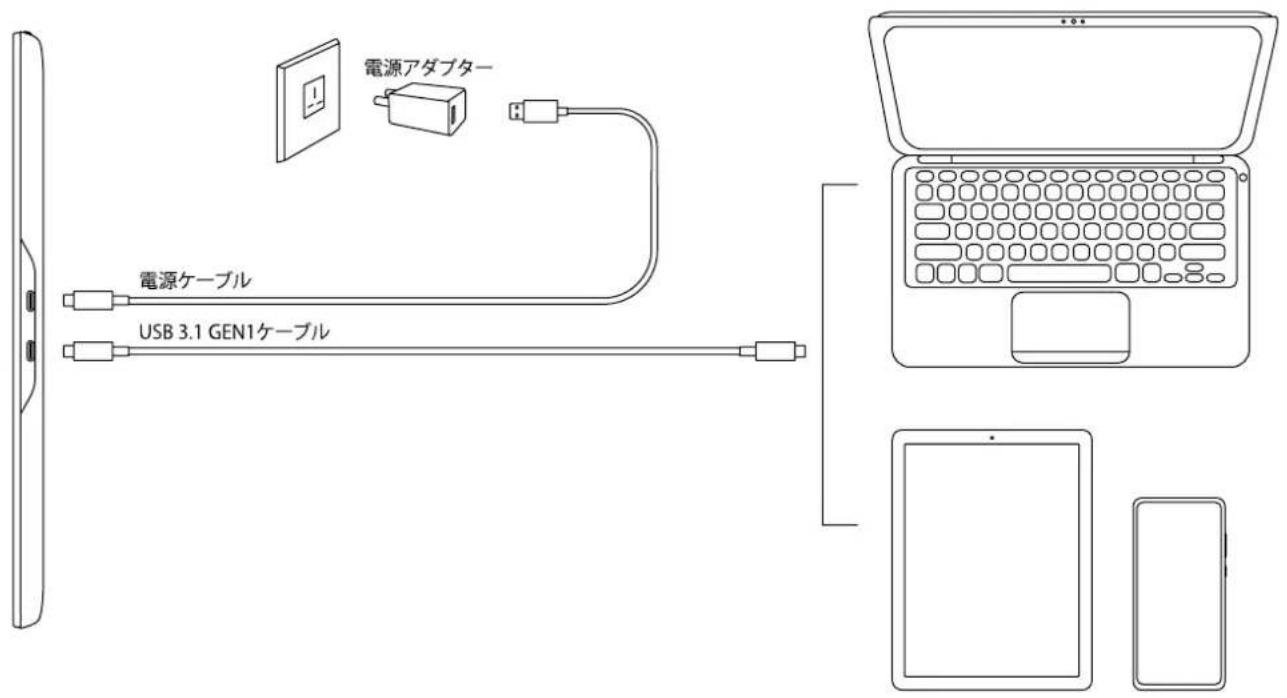

[2] Connect the pen display with PC/Android device via USB-C to USB-C cable; Connect the power adapter to the power cable.

The USB-C to USB-C and power cable can be purchased separately. Please notice the USB-C to USB-C cable must meet the requirements of USB3.1 GEN1 and DP1.2 or above, and gauge of the power cable should be 5V, 3A at least.

2.4 Install Driver

2.4.1 OS Support

Windows 7 or later, macOS 10.12 or later.

2.4.2 Install Driver

Please download the driver from our website: www.huion.com/download

After finishing installation, you can find the driver icon "⚡" in the system tray area, which means the driver was installed successfully; when you connect the display to computer, the icon will change to color "⚡", which means the driver has already recognized the display and you can start using it now.

Notes:

[1] Before installing, you need to uninstall other driver of similar products, including the old driver of this product.

[2] Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.

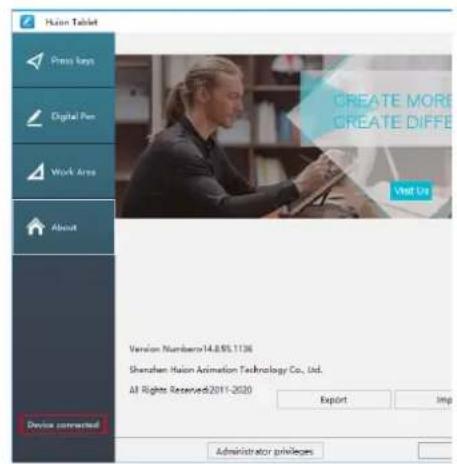

2.4.3 Driver Page

After the download is successful, double-click to open the driver, connect the display to your computer with attached cables.

When the connection is complete, watch for a prompt at the bottom left of the driver page that display two states "Device disconnected" or "Device connected".

3 / Pen Basic Operation

3.1 Hold the pen

Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.

Notice:

When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter the sleep mode.

Line drawing of a hand holding a pen, no text or symbols present

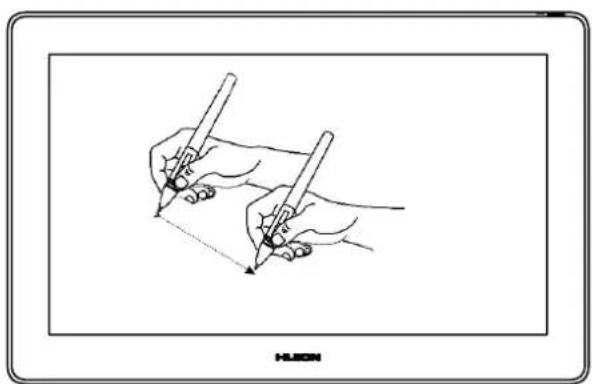

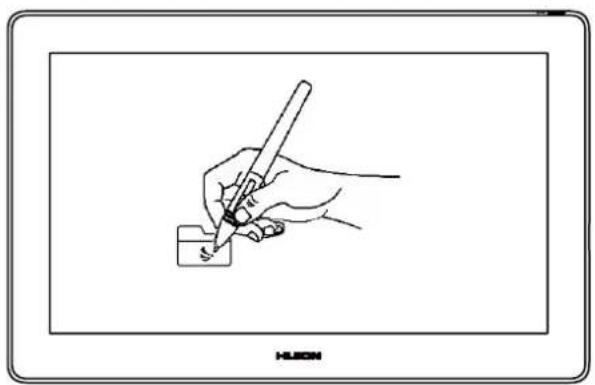

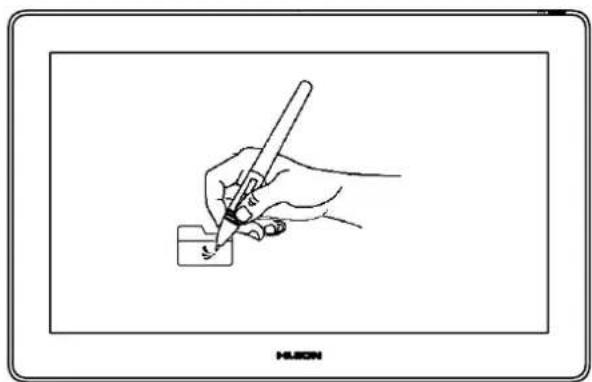

3.2 Position the cursor

Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly.

Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.

Line drawing of two hands holding pens and a pen, writing on a line (no text or symbols present)

Line drawing of a hand holding a pen writing on a small object, enclosed in a tablet frame (no text or symbols)

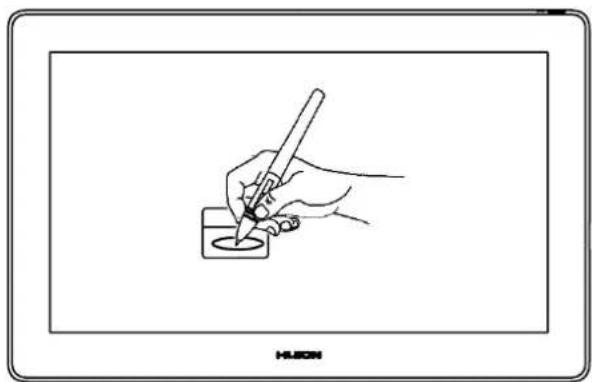

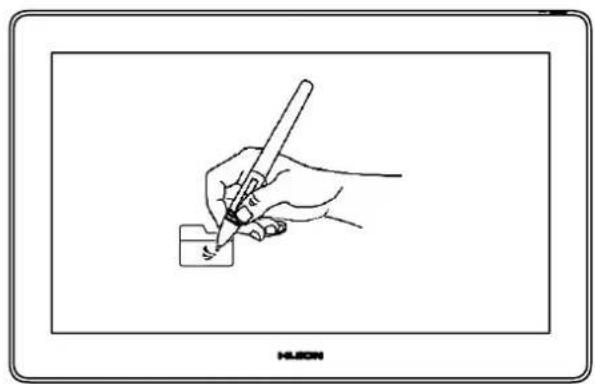

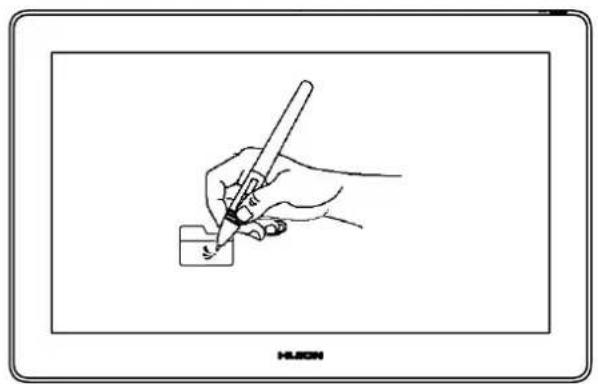

3.3 Click

Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.

Line drawing of a hand holding a pen and eraser, writing on a digital device (no text or symbols present)

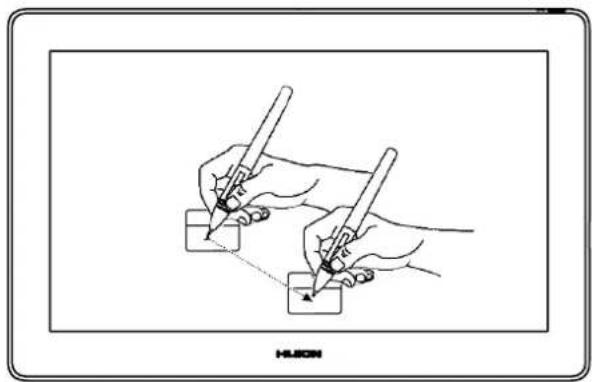

3.4 Move

Select the object, then slide the pen tip across the screen to move it.

Line drawing of two hands using stethoscope to write a square (no text or symbols)

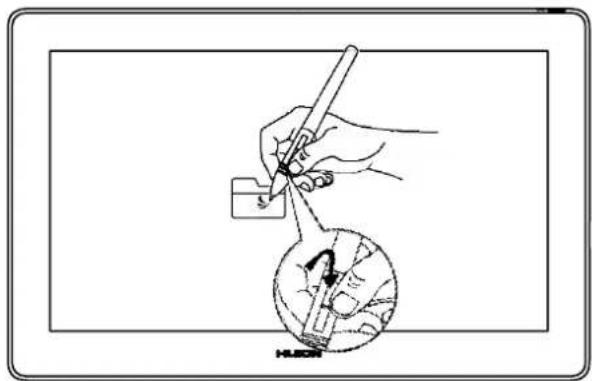

3.5 Use the side buttons

The buttons on the pen can be set to two different customizable functions.

You can use the buttons whenever the pen tip is within 10mm of the display active area.

You do not have to touch the pen tip to the display in order to use the switch.

Illustration of a hand using a pen to draw a circular object with a tool, no text or symbols present

3.6 Pen Nib Replacement

The nib will be worn off after using for a long time, then you need to replace a new nib.

[1] Anticlockwise rotate the pen holder to open the cover, take a new nib out.
[2] Insert the pen nib into the pen nib clip and tilt the pen to pull out the old nib.
[3] Insert the new nib straight into the pen and push the nib slowly and firmly until it stops.

Line drawing of two hands holding a pen, no text or symbols present

Line drawing of two hands holding a pen, with no visible text or symbols

4 / Pen-enabled OSD Menu

OSD settings on Kamvas Pro 16 Gen2 products can be done with the digital pen.

4.1 Method 1

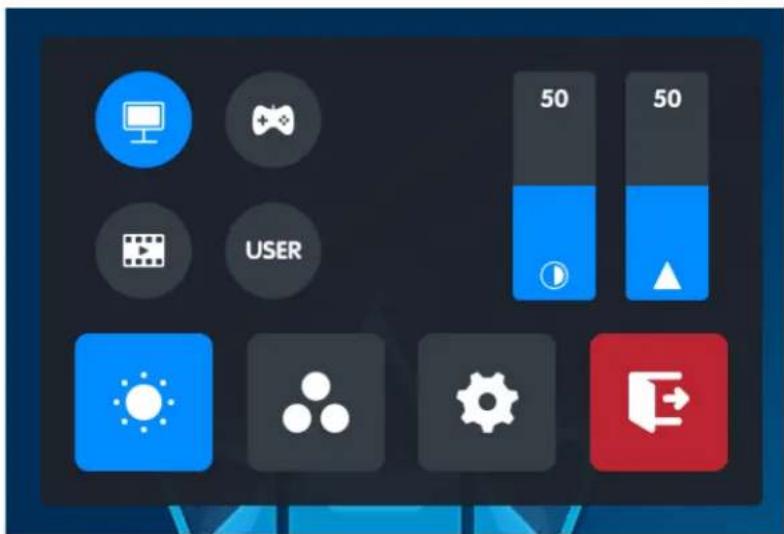

Long press the power switch button to call up the OSD menu, and then use the digital pen to adjust the settings. The user interface is designed in a minimalist way, where options including Brightness, Color Temperature, General Settings and Exit are reserved, while seldom used ones are eliminated.

4.1.1 Brightness Settings

There are four mode of "Standard", "Game", "Movie" and "User" can be chosen. In "User" mode, you can adjust the brightness by dragging the bar on the upper right.

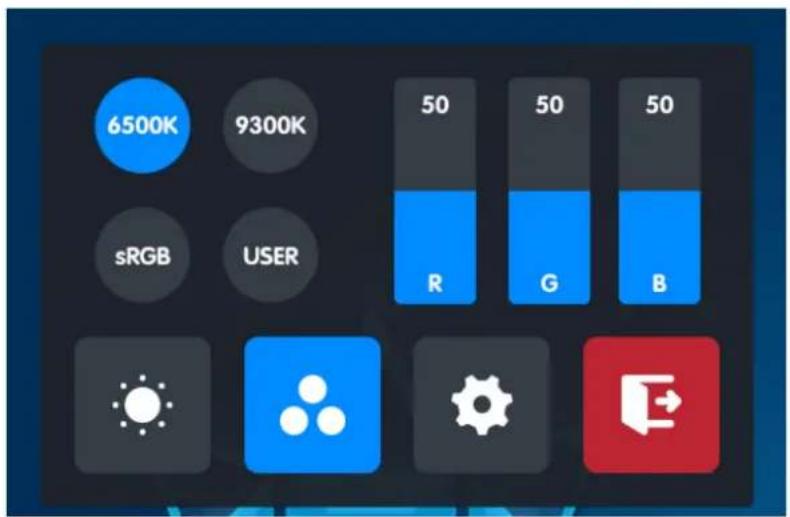

4.1.2 Color Temp. Settings

There are four mode of "6500K", "9300K", "sRGB" and "User" can be chosen. In "User" mode, you can adjust the Color temperature by dragging the bar on the upper right. right.

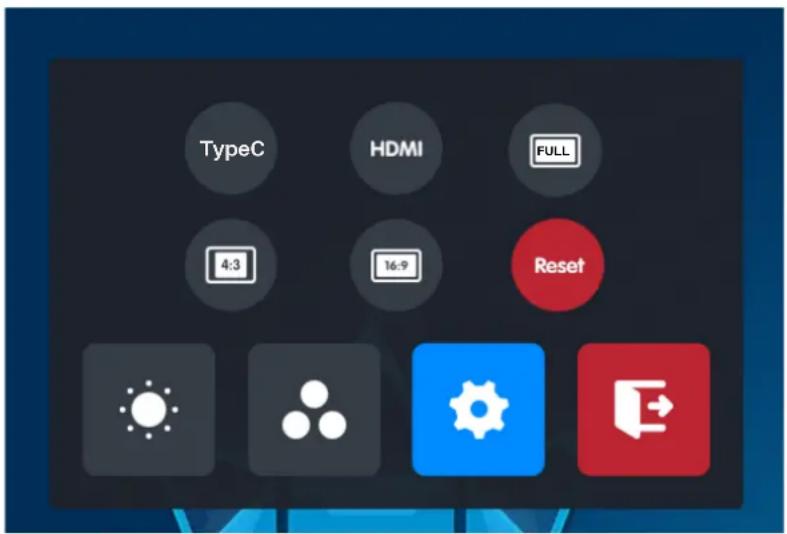

4.1.3 General Settings

[1] TypeC/HDMI: Display the current signal connection mode.
[2] FULL: Switch the display ratio to FULL
[3] 4:3: Switch the display ratio to 4:3.
[4] 16:9: Switch the display ratio to 16:9.
[5] Reset: All the setting options will be restored to the default setting.

4.1.4 Exit button

Click the exit button to exit the OSD menu.

Red square icon with a white document symbol and right-pointing arrow (no text or numbers)

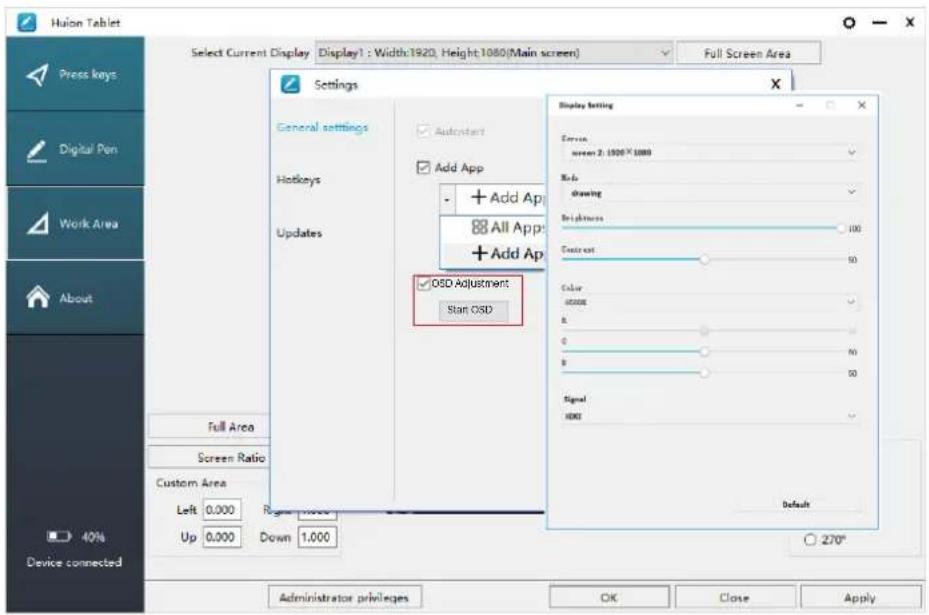

4.2 Method 2

[1] Click the "o" in the upper right corner of the driver to set.
[2] Click on the "Activate OSD" button and then you can adjust the screen, scene mode, brightness, contrast and color.

5 / Function Setting

5.1 Working Area Setting

5.1.1 Using Multiple Monitors

Select the Working Area tab to define the relationship between pen movement on the display and cursor movement on the monitor screen.

By default the entire active area of display maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.

If your monitors are in mirror mode (All monitors display the same content), the display maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.

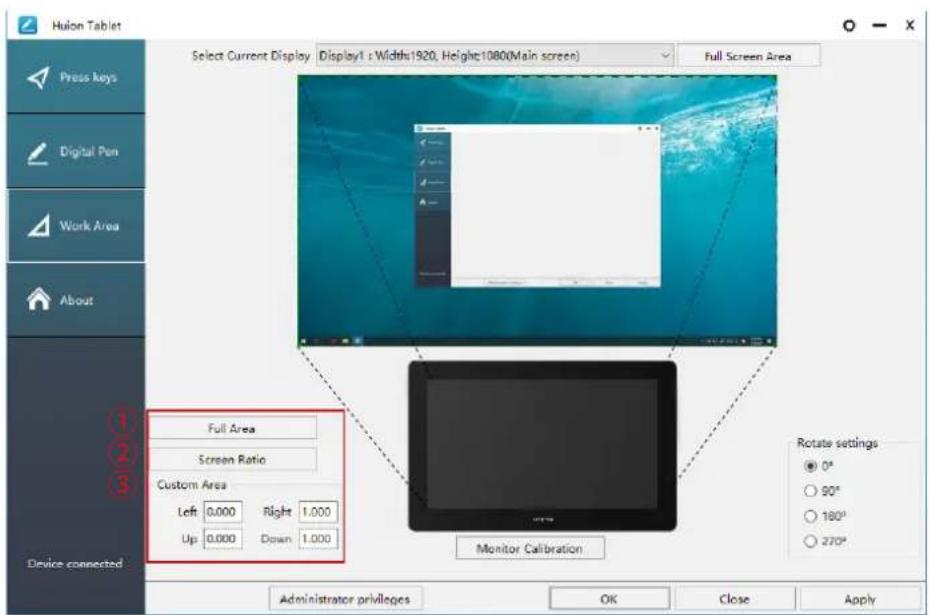

5.1.2 Working Area Setting

Define the display area that will be mapped to the screen area.

[1] Full Area: the entire active area of the display. This is the default setting.

[2] Screen Ratio: As a general rule, be 16:9.

[3] Customized Area:

1> Enter coordinate values.

2> Drag the corners of the foreground graphic to select the screen area.

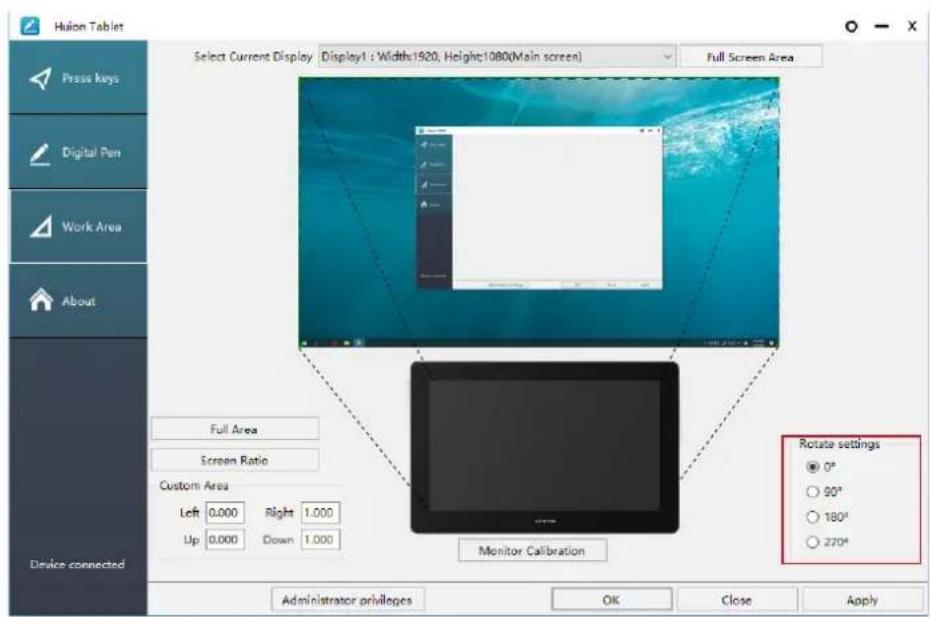

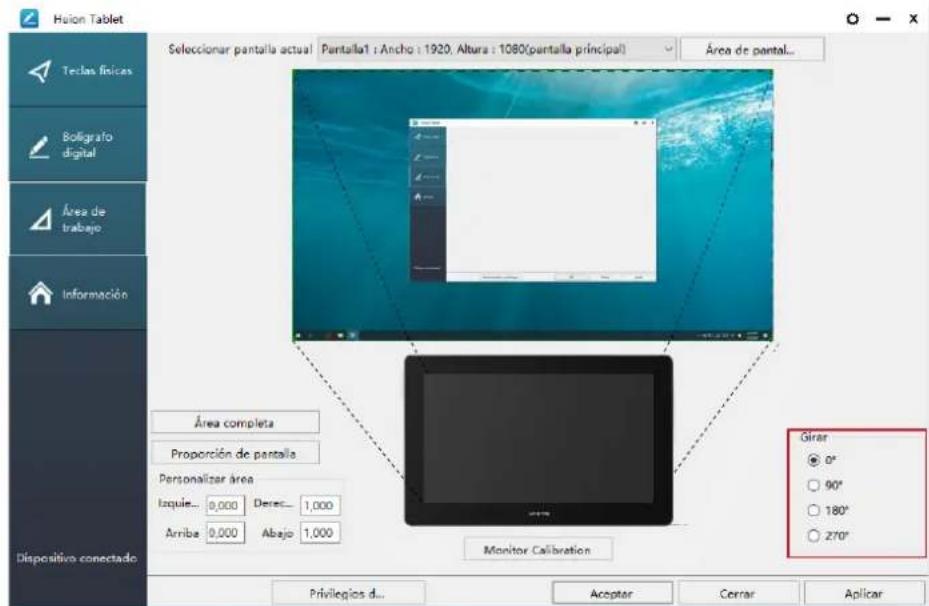

5.1.3 Rotate Working Area

By changing the direction of the display to adapt to the left and right hand operation. You can rotate the display by 0^ , 90^ , 180^ or 270^ .

5.2 Display Setting

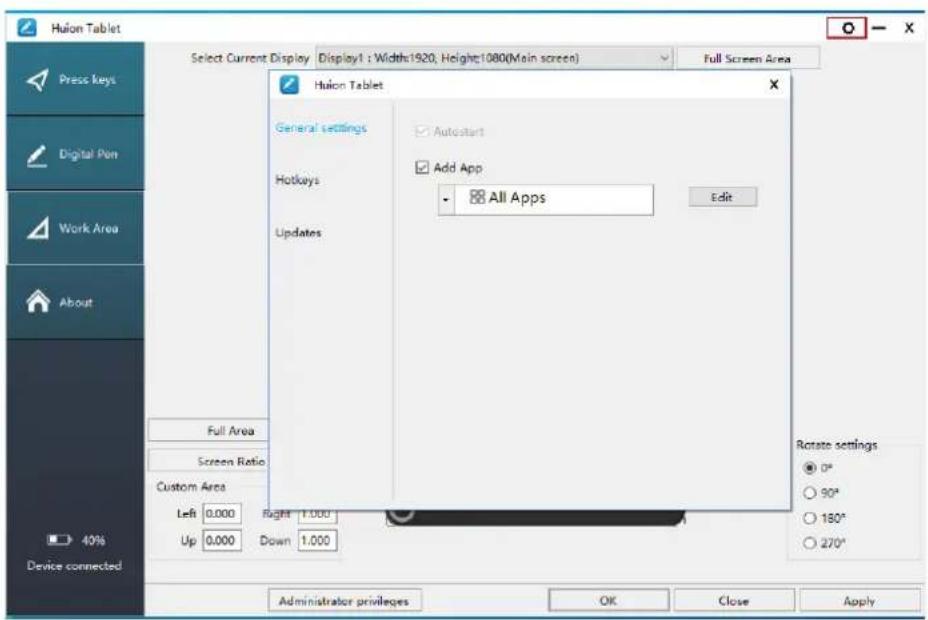

Click the "o" in the upper right corner of the driver to set the Display, including General settings, Hotkeys and Updates.

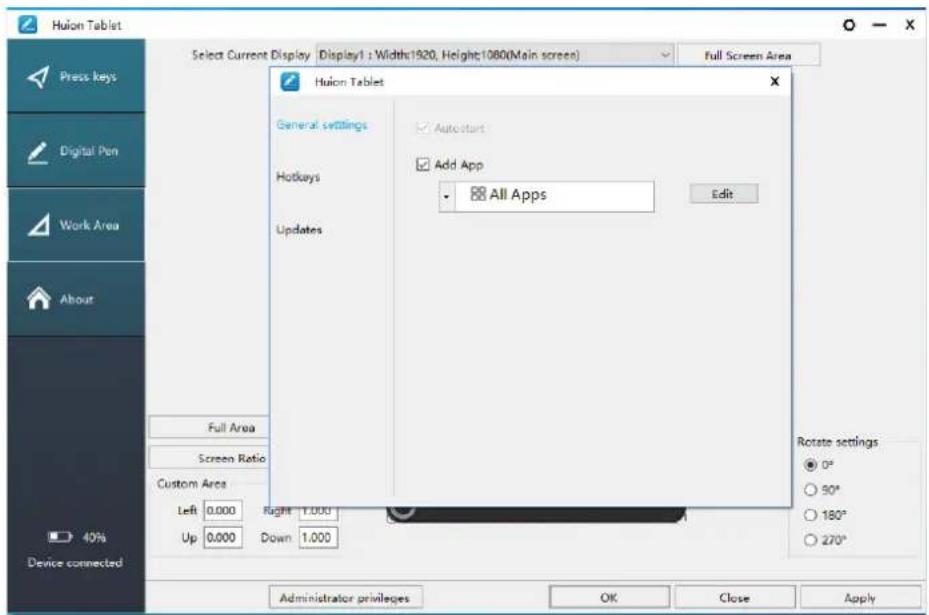

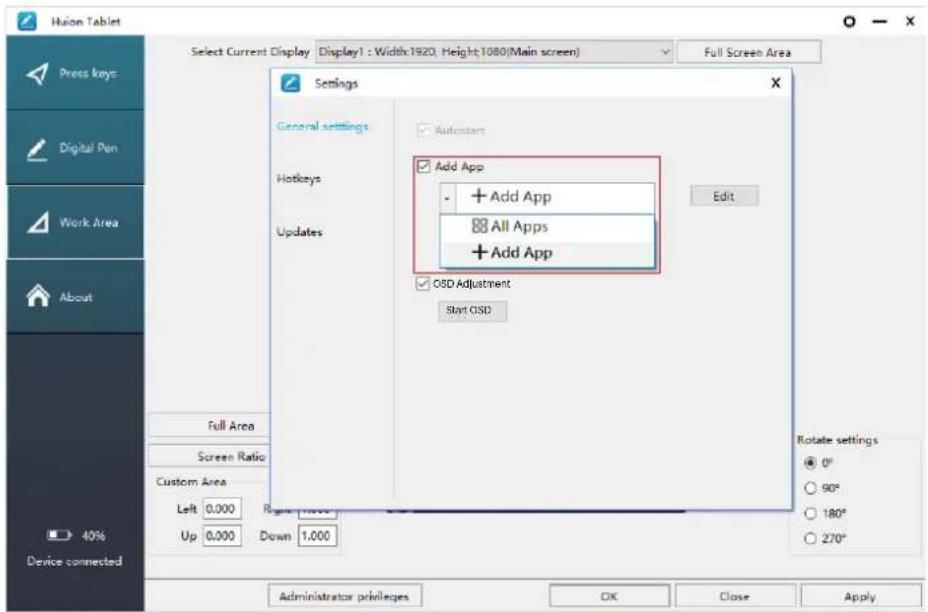

5.2.1 General settings

[1] Add App: Shortcut key function can be set by adding different programs.

When opening different programs, the driver will automatically recognize that the shortcut function is the corresponding function set.

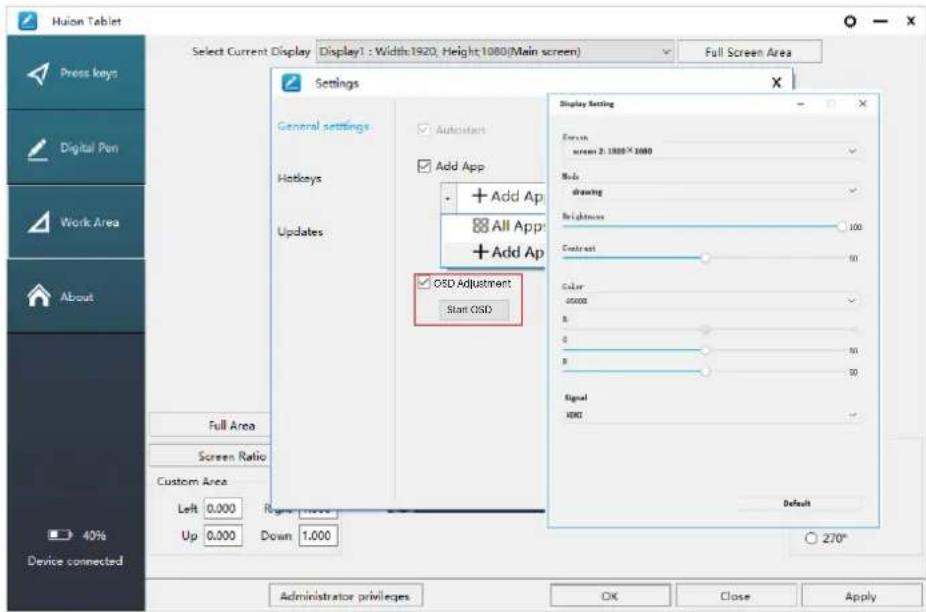

[2] OSD Adjustment: Click on the "Activate the OSD" button and then you can adjust the screen, scene mode, brightness, contrast and color.

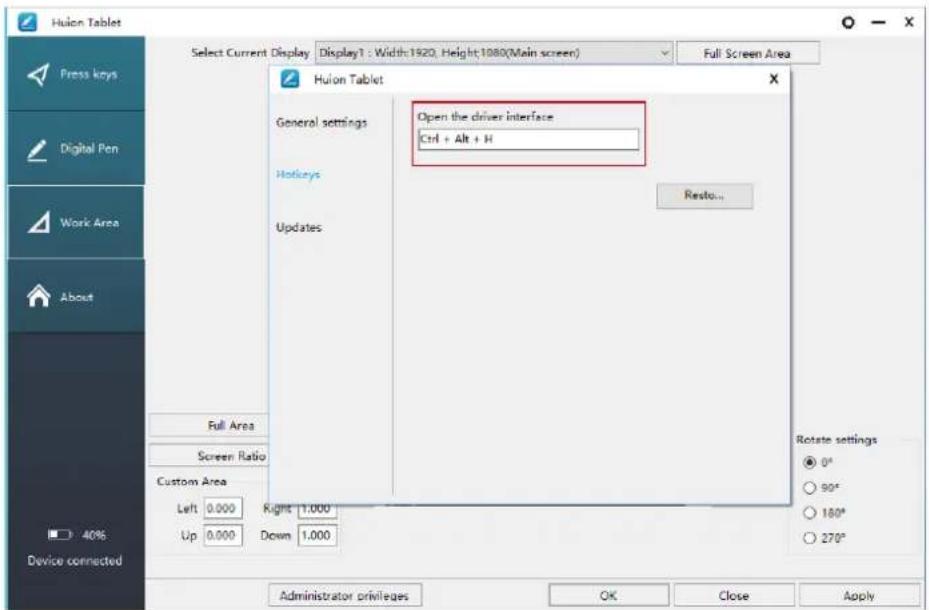

5.2.2 Hotkeys settings

Set the shortcut key to quickly open the driver interface. The default value is Ctrl+Alt+H, which can be set according to usage habits.

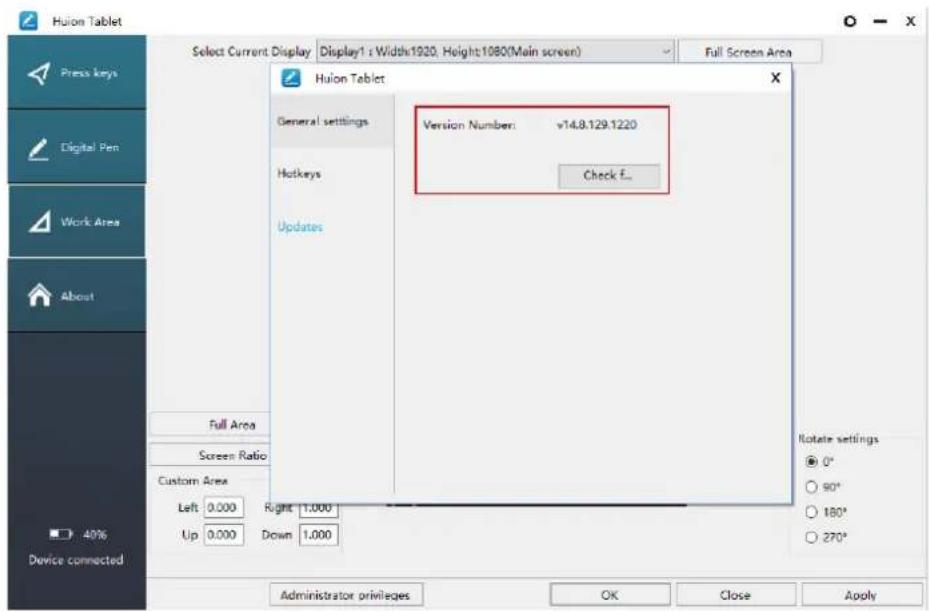

5.2.3 Updates

You can view the driver version number, click "Check for Update", view the latest driver version, and update according to the system prompt.

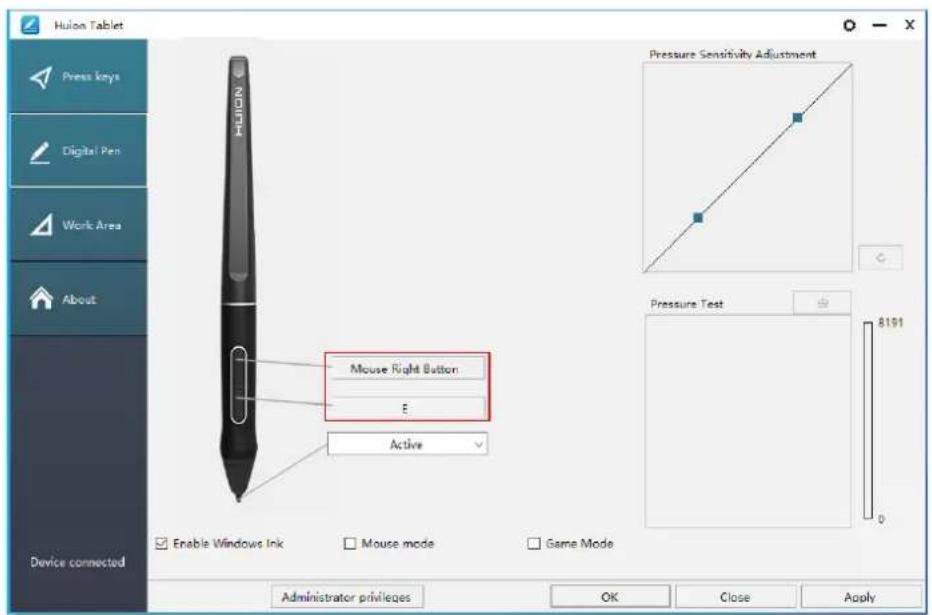

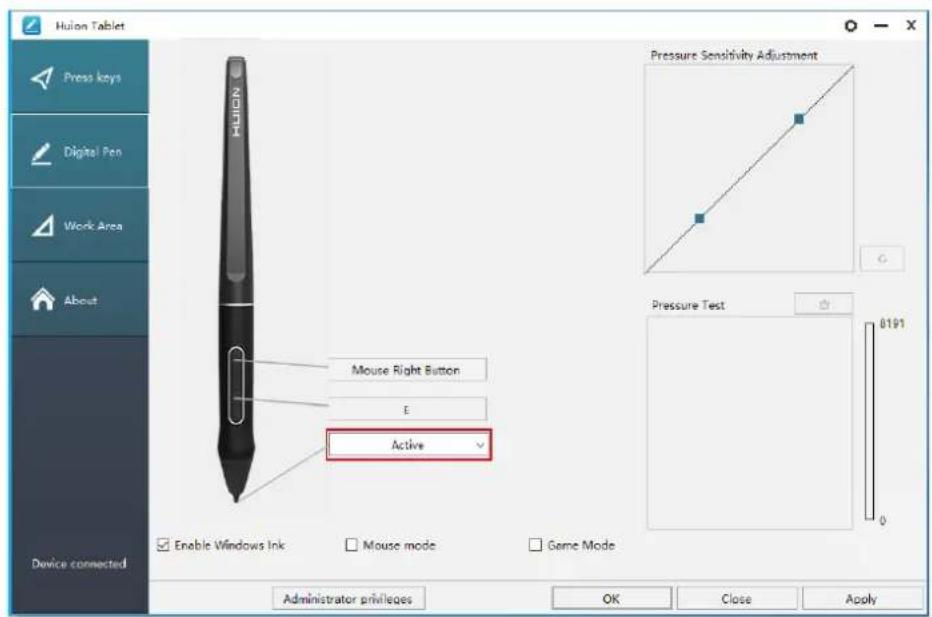

5.3 Pen Buttons Function Setting

Select the function to be achieved on the pop-up dialog box, then click "Apply" or "OK" to take effect.

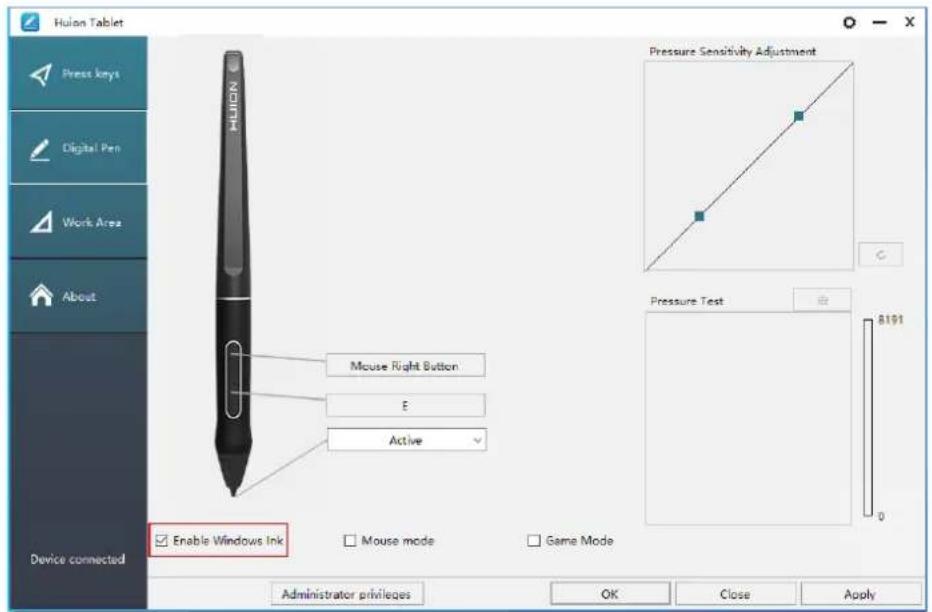

5.4 Enable the Windows Ink Feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Journal, Adobe Photoshop CC, SketchBook 6 and so on.

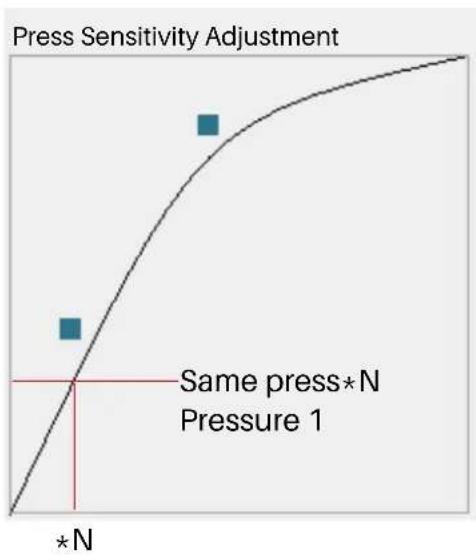

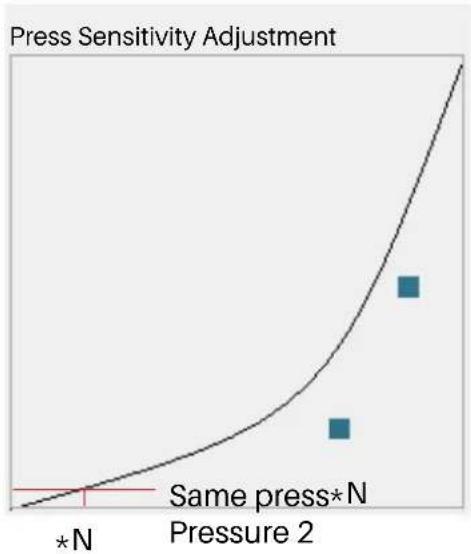

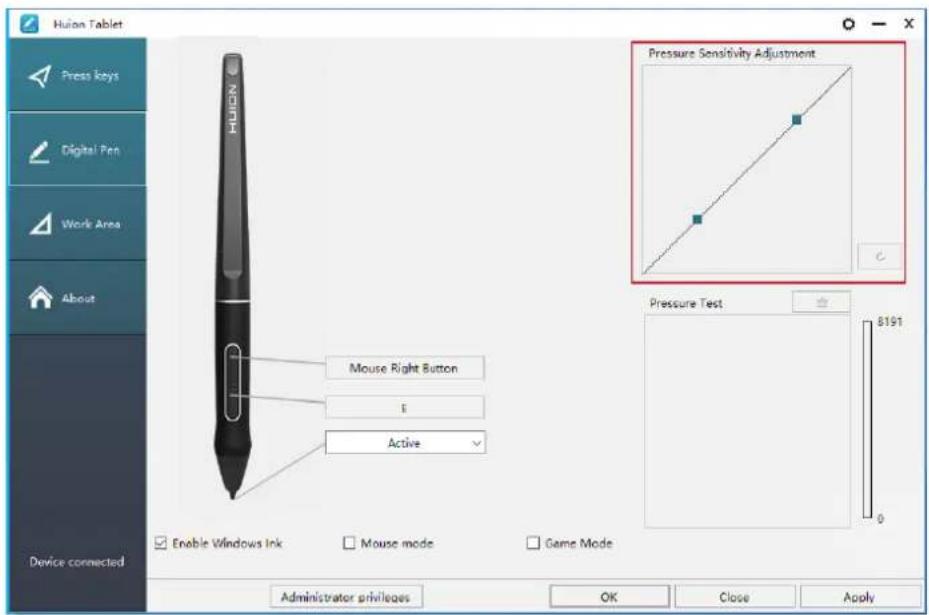

5.5 Pressure Sensitivity Setting

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.

Drag upward (left): the pressure change is more obvious, small pressure produces a great pressure.

Drag down (right): pressure change is weak, a lot of pressure produces less pressure.

Click the button ☐ at the bottom right of the Settings box to reset the pressure sensitivity to the default state.

For example: apply *N respectively the same pressure, under different pressure coefficient produced different pressure effects. According to their habit of holding the pen posture and the size of the hand for the appropriate pressure Settings.

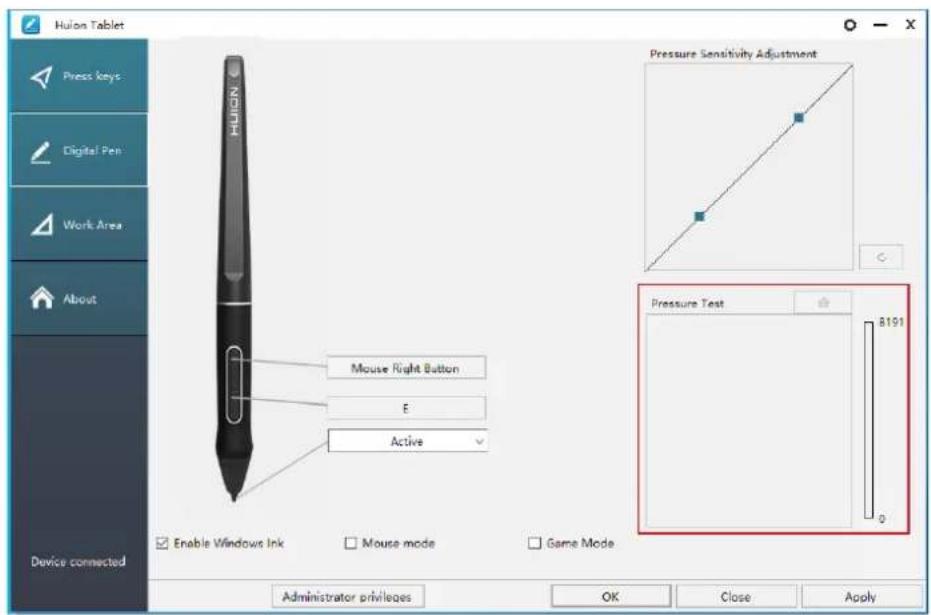

5.6 Pen Pressure Testing

You can gradually apply pressure to the stylus on the screen to test the pressure level.

Click "☐" button to clear all the ink.

5.7 Pen Nib Activity Setting

The pen nibs can be set to be Active/Inactive as needed. Click the drop-down option to select, and click OK again to save the Settings. In Active mode, the digital pen can be used normally. In Inactive mode, the digital pen has cursor movement, but cannot complete the specified action.

5.8 Data Export and Import

The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.

6 / Specifications

Model GT1562
Screen	Panel Size 15.6 inches
	Resolution 3840 x 2160	(16:9) UHD
	LCD Type IPS
	Active Area 345.6 x 194.4mm
	Contrast Ratio 1200:1
	Brightness 200cd/m	2
	Response Time 25ms
	View Angle 89°/89° (H) /89°/89° (V) (Typ.) (CR >10)
	Gamut 145% sRGB
	Display Color 16.7M (8bit)
Touch	Touch Type Battery-Free Electromagnetic Resonance
	Resolution 5080LPI
	Pressure Level 8192
	Accuracy	±0.3 mm (Center), ±2 mm (Corner)
	Sensing Height	10mm
Pen	Model	PW517
	Dimension	163.7 x φ14.3 mm
	Buttons	Two Customized Press Key
General	Output Voltage 5V 3A
	Video Interface	3-in-1 USB-C and USB-C to USB-C
	Dimension	402.7 x 257.4 x 13mm (Without Stand)
	Net Weight	1.27Kg (With stand)
	OS Support	Windows 7 or later, mac OS 10.12 or later, Android (USB3.1 DP1.2)

7 / Trouble Shooting

7.1 Possible Breakdowns Related to DISPLAY

Abnormal Phenomena Possible Solutions
Power indicator does not flash	1. Make sure power is on.2. Check the socket and power cable.
No display on the screen	1. Make sure power is on.2. Correctly connect the cables.3. If you connect the display with a laptop, please make sure the display is on the right display mode: extend or duplicate mode.4. Check whether the side indicator shows green, if not, it means no signal in. Please reboot your computer or reconnect the cable.5. Is the signal wire broken or bent? If so, please replace the signal wire.
No signal	1. Make sure the cables are well connected.2. If you use a desktop, make sure the HDMI port is plugged into the graphic card on the tower, but not into the motherboard.3. If you use a Windows OS computer, make sure to press "Windows+P" on keyboard, then choose Duplicate or Extend. Don't choose Computer Only or Projector Only.4. If there is no HDMI port on your computer, you need an extra HDMI adapter. We don't recommend a USB to HDMI adapter. Also, we don't recommend a USB hub. We recommend DVI/ VGA/ Display Port/ Type-C/ Thunderbolt, etc. to HDMI adapters.
Images are blurred Please set	the display resolution with 3840 x 2160.
Displays wallpaper & task bar of computer monitor only.	It is because you are under extended mode right now. It is a normal situation.If you are not familiar with extended mode, we recommend you to use in Duplicate/Mirror mode. Windows OS: Press keyboard combination---Windows+P---then choose DuplicateMac OS: System Preference---Displays--- Arrangement--- Check "Mirror Displays".If you decide to use in Extended mode. Make sure to choose pen display as Work Area in Driver. It is usually "Display 2".
Lack of colors Check the pins of the signal wire are not bent or fractured.
There is chromatic aberration	As the regional color temperature is different, so minor chromatic aberration is a normal phenomenon.
Images jitter or ripple images appear	It is likely that there is electric equipment nearby that brings about electronic interference.

7.2 Possible Breakdowns Related to FUNCTIONS

Abnormal Phenomena Possible Solutions
There is no pressure in the graphics software but the cursor moves	You may have installed other display drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It's better to restart your computer after finishing the installation.
The pen does not work	1. Make sure you are using the pen that originally came with your display.2. Make sure you installed the driver correctly.
Press Keys does not work	1. Make sure the Press Keys function was enabled in the driver.2. Make sure you have correctly defined the Press Keys.3. Check if the press lock switch is on the unlock position.
The computer can't enter sleep mode	When you are not using the display, please do not put the pen on the display surface, which will keep the computer awake.
The side button of the pen doesn't work	When pressing the side button, please make sure that the nib didn't touch the display surface and the distance between the nib and surface is within 10mm.
The side button of the pen doesn't work	Make sure the USB port is functional, if not, please change to another USB port.
The computer can't recognize the display	Check that the USB port is normal. If there is any problem, please use another USB port.

8 / After-service Contact

SHENZHEN HUION ANIMATION TECHNOLOGY CO., LTD.

Bldg 28, Quarter 4, HuaiDeCuiGang Industrial Park, Fuyong Street, Bao'an District, Shenzhen, 518106, China

The information in this manual is subject to change without notice. For more information, please contact us by email: [e-mail]

Or visit our website www.huion.com to get the latest driver and user manual.

Inhalt

Coiled cable with connectors and ports, no visible text or symbols

Simple line drawing of a coiled cable with two connectors (no text or symbols)

Pure diagram of a coiled cable with two connectors (no text or symbols)

① USB (Daten) ② HDMI ③ USB (Macht) ④ Type-C

2.2.3 Displayständer

Diagram of a folding screen setup with directional arrows indicating motion (no text or symbols)

Diagram of a folding stand with directional arrows indicating movement, no text or symbols present

The USB-C to USB-C and power cable can be purchased separately. Please notice the USB-C to USB-C cable must meet the requirements of USB3.1 GEN1 and DP1.2 or above, and gauge of the power cable should be 5V, 3A at least.

2.4 Treiberinstallation

Line drawing of a hand holding a pen, no text or symbols present

Illustration of two hands holding pens and a pen, writing on a line (no text or symbols present)

Line drawing of a hand holding a pen and eraser, writing on a small object (no text or symbols present)

3.3 Klicken

Line drawing of a hand holding a pen writing on a square object, no text or symbols present

3.4 Bewegung

Illustration of a hand using a pen to draw a small object, with an inset showing a magnified view of a tool inside (no text or symbols)

Line drawing of two hands holding a pen, no text or symbols present

Line drawing of two hands holding a pen, no text or symbols present

Coiled cable with three connectors and a connector, no text or symbols visible

Câble 3-in-1

Simple line drawing of a coiled cable with two connectors (no text or symbols)

Câble rallonge

Pure diagram of a coiled cable with two connectors (no text or symbols)

Câble USB-C

Diagram of a mechanical device with rotating components and directional arrows, no readable text or symbols present.

Diagram of a folding stand with directional arrows indicating movement (no text or symbols)

Line drawing of a hand holding a pen, no text or symbols present

Illustration of two hands holding pens and writing on a line, with no visible text or symbols

Line drawing of a hand holding a pen writing on a small object, enclosed in a tablet frame (no text or symbols)

3.3 Clic

Line drawing of a hand holding a pen writing on a square object, no text or symbols present

3.4 Mouvement

Illustration of two hands using stethoscope to draw a square object (no text or symbols)

Illustration of a hand using a pen to apply a tool to a small object, with an inset showing a magnified view of the object (no text or symbols present)

Line drawing of two hands holding a pen, no text or symbols present

Line drawing of two hands holding a pen, no text or symbols present

Building 28, 4th Block, Huaide Cuigang Industrial Park, Fuyong, Bao'an District, Shenzhen, Chine

Pure electrical circuit lines without any symbols

3-in-1 ケーブル

Simple line drawing of a coiled cable with two connectors (no text or symbols)

延長ケーブル

Pure diagram of a coiled cable with two connectors (no text or symbols)

USB-C ケーブル

電源ケーブル 電源アダプター

2.2.2 3 in1 ケーブル

Diagram of a multi-pin cable with four connectors, labeled ① to ④ (no text or symbols on the cable itself)

2.3 ディスプレイの設定

Line drawing of a hand holding a pen, no text or symbols present

3.2 カーソルの移動

Illustration of two hands holding a pen and a stylus, writing on a paper sheet (no text or symbols present)

Line drawing of a hand holding a pen writing on a small object, enclosed in a tablet frame (no text or symbols)

3.3 クリック

Line drawing of a hand holding a pen and eraser, writing on a digital device (no text or symbols present)

3.4 アイテムの移動

Illustration of two hands drawing a square with a pencil, no text or symbols present

3.5 サイドボタンを使用する

Illustration of a hand using a pen to apply liquid to a small container, with a magnified inset showing the same object (no text or symbols present)

3.6 替え芯をセットする

Line drawing of two hands holding a pen, no text or symbols present

Line drawing of two hands holding a pen, no text or symbols present

4 / 機能設定

4.1 作業領域の設定

4.1.1 マルチモニター設定

Coiled cable with three connectors and a connector pin (no text or symbols visible)

Simple line drawing of a coiled cable with two connectors (no text or symbols)

Pure diagram of a U-shaped tube with two connectors (no text or symbols)

Cavo USB-C

① USB (Dati)
② HDMI
③ USB (Power)
④ Type-C

2.2.3 Supporto del Display

Diagram of a folding screen setup with directional arrows indicating motion (no text or symbols)

Diagram of a folding stand with directional arrows indicating movement (no text or symbols)

Line drawing of a hand holding a pen, no text or symbols present

Illustration of two hands holding pens and a stylus, writing on a line (no text or symbols present)

Line drawing of a hand holding a pen writing on a small object, enclosed in a tablet frame (no text or symbols)

3.3 Cliccare

Line drawing of a hand holding a pen writing on a square object, no text or symbols present

3.4 Spostare

Illustration of two hands drawing a square with a pencil, no text or symbols present

Illustration of a hand using a pen to draw a circular object with a tool, no text or symbols present

Line drawing of two hands holding a pen, no text or symbols present

Line drawing of two hands holding a pen, no text or symbols present

Building 28, 4th Block, Huaide Cuigang Industrial Park, Fuyong, Bao'an District, Shenzhen

Pure electrical circuit lines without any symbols

Cable 3-in-1

Simple line drawing of a coiled cable with two connectors (no text or symbols)

Cable de extensión

Pure diagram of a U-shaped tube with two connectors (no text or symbols)

① USB (Datos)
② HDMI
③ USB (Power)
④ Type-C

Diagram of a folding screen setup with directional arrows indicating motion (no text or symbols)

Diagram of a folding stand with directional arrows indicating movement (no text or symbols)

2.3 Display Connection

Line drawing of a hand holding a pen, no text or symbols present

Illustration of two hands holding pens and a pen, writing on a line (no text or symbols present)

Line drawing of a hand holding a pen and eraser, writing on a small object (no text or symbols present)

3.3 Click

Line drawing of a hand holding a pen writing on a square object, no text or symbols present

3.4 Movimiento

Illustration of two hands drawing a square with a pencil, no text or symbols present

Illustration of a hand using a pen to draw a circular object with a tool, no text or symbols present

4.1.3 Rotate Working Area

Rotar el Área de Trabajo By changing the direction of the display to adapt to the left and right hand operation. You can rotate the display by 0^ , 90^ , 180^ or 270^ .

Blue crown logo with stylized design and 'HUION' text below (no additional symbols or text)
